Spacetime Continuity and Quantum Information Loss

Abstract

Continuity across the shock wave of two regions in the metric during the formation of a black hole can be relaxed in order to achieve information preservation. A Planck scale sized spacetime discontinuity leads to unitarity (a constant asymptotic entanglement entropy) by restricting the origin of coordinates (moving mirror) to be timelike. Moreover, thermal equilibration occurs and total evaporation energy emitted is finite.

1. Introduction

In this note, the role of continuity and information loss (via the tortoise coordinate, $r^{*}$), in understanding the crux of the phenomena of particle creation from black holes [1], is explored. In particular, the relationship to the simplified model of the moving mirror [2,3,4] is investigated because it has identical Bogolubov coefficients [5].

Uncompromising continuity is relaxed in favor of unitarity by a single additional parameter generalization of the $r^{*}$ coordinate. An understanding of the correspondence between the black hole and the moving mirror in this new context is initiated [6,7,8]. We prioritize information preservation, and find finite evaporation energy, thermal equilibrium, and analytical beta coefficients. Moreover, we determine and assess a left-over remnant (e.g., [9,10]).

Broadly motivating, delving into the ramifications of external effects on quantum fields have led to interesting results on a wide variety of phenomena all the way from, e.g., relativistic superfluidity [11,12] to the creation of quantum vortexes in analog spacetimes [13,14]. The fertile enterprise of QFT under external conditions (such as the external condition of a rotating black hole spacetime) has resulted in simple and revealing relations, (e.g., [15] $2\pi T=g-k$, temperature of a Kerr black hole).

Specifically motivating, the physical effect of the black hole origin is that it amplifies quantum field fluctuations by reflecting virtual particles into real ones. There is, however, a problem: the black mirror [5], which is the aforementioned usual tortoise coordinate associated boundary condition, extracts energy indefinitely and does not preserve unitarity.

We sketch a possible simple way out—“a timelike worldline for the origin”—which resolves these two problems (as probed in [6]). It was demonstrated recently [7,8] that a timelike worldline compels the introduction of a second parameter, $\xi$, the asymptotic sub-light speed of the origin (in addition to mass, M), which generalizes the tortoise coordinate and characterizes the dynamics, evaporative energy, spectra, information, and continuity.

2. Asymptotic Null Origin

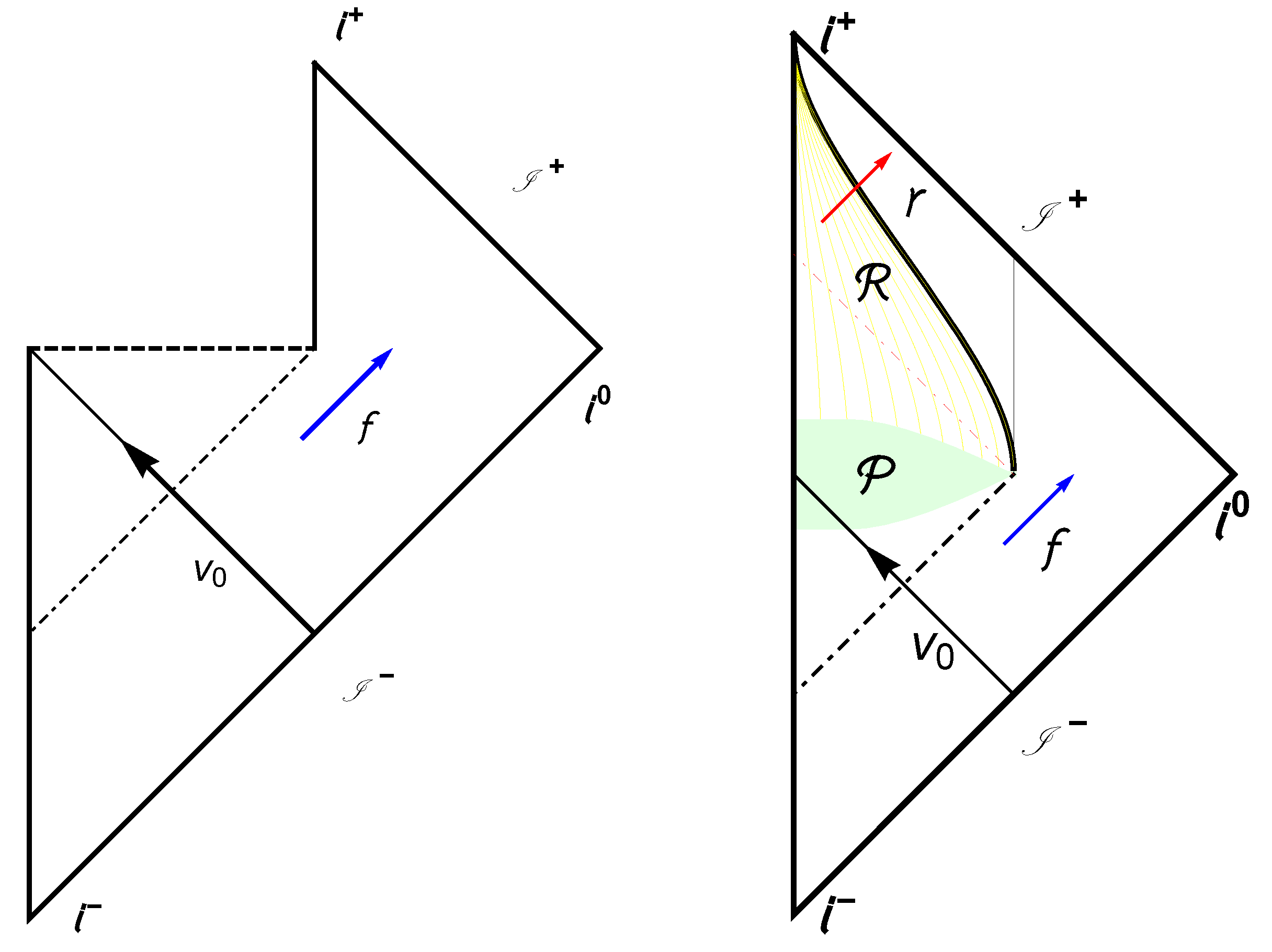

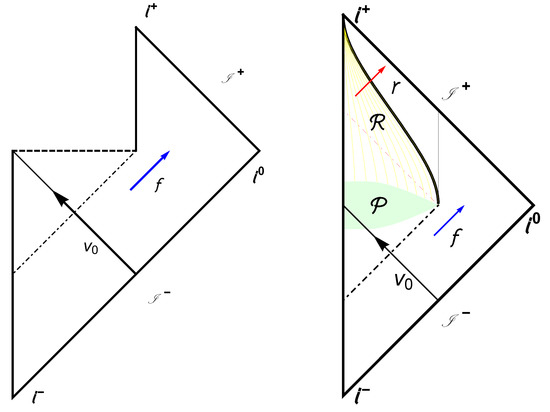

It is first appropriate to survey the situation with information loss. This is plotted as the usual Penrose diagram in Figure 1. To that end, the matching solution for the outside and inside of the black hole over the shock wave is derived, following the notation of Wilczek [9] and in the textbook of Fabbri, Navaro-Salas [16]. The Regge-Wheeler coordinate, $r^{*}$,

$$r^{*}\equiv r+2Mln\left(\frac{r}{2M}-1\right),$$

(1)

sets the dynamics. In the usual set up, the metric is matched on both sides of the shock wave, $v_0$, inside and out, respectively:

$$r(v_0,U)=r(v_0,u),$$

(2)

where

$$r(v_0,U)=\frac{v_0-U}{2},\mathrm{and}{r}^{*}(v_0,u)=\frac{v_0-u}{2}.$$

(3)

Using Equations (1)–(3) to solve for the trajectory of the origin, u, in null coordinates gives:

$$u=U-4Mln\left|\kappa U\right|.$$

(4)

Here, we define the surface gravity, $\kappa \equiv 1/4M$. As $u\to +\infty$, the formation of a event horizon occurs at $v_H\equiv v_0-4M$, where for simplicity and without loss of physical generality we set $v_H=0$ (shock wave at $v_0=4M$). The result, Equation (4), is the matching solution [7,9,16] required for the Schwarzschild geometry (exterior) to the Minkowski geometry (interior) with a strict event horizon. The regularity condition (the field must be zero at $r=0$) restricts the behavior of the modes in the interior such that $U\leftrightarrow v$. Converting to Cartesian coordinate x by the definitions $u\equiv t\left(x\right)-x$ and $v\equiv t\left(x\right)+x$ into Equation (4), and solving for $t\left(x\right)$ gives the equation of motion of the black mirror 1:

$$t\left(x\right)=-x-4M{e}^{x/2M},$$

(5)

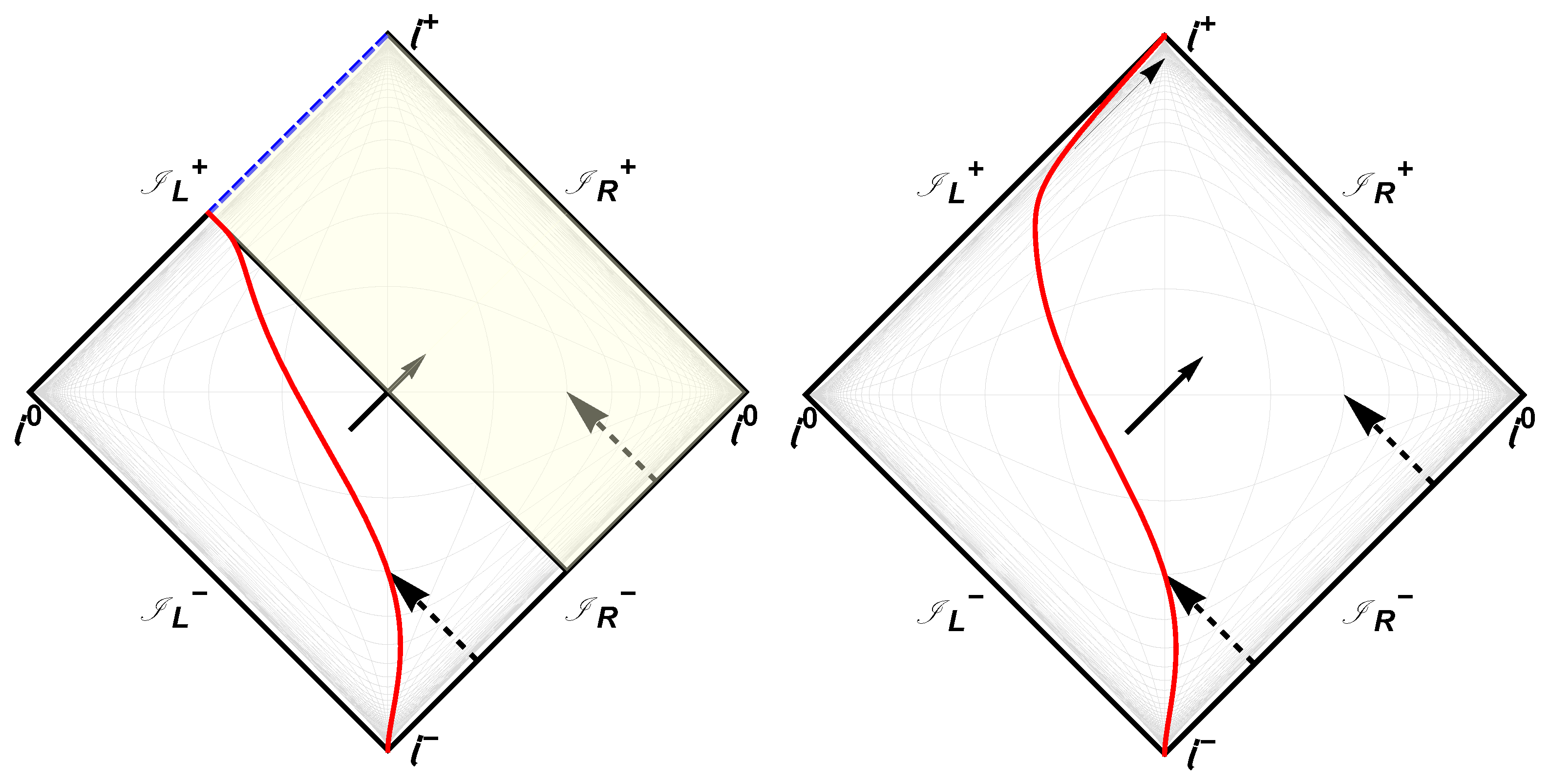

which is studied2 in [5]. This is plotted as mirror in Figure 2. The coordinates span $0<r<\infty$ and $-\infty <x<\infty$. The transcendentally invertible trajectories of Equations (4) and (5) characterize a one-parameter system (the mass M) and determine the late-time (thermo)dynamics, which results in information loss. See Figure 3 for a visual of how modes traveling through the horizon are “lost”.

3. Asymptotic Timelike Origin

Prioritizing information preservation requires the existence of an asymptotic comoving observer with the origin. This is a timelike restriction on the black mirror: its maximum speed must always travel slower than light, even asymptotically3. The black hole origin, $r=0$, which corresponds to the location of the moving mirror, will also be made to be timelike. Similar to the mirror, the origin, expressed in null coordinates (outside retarded time as a function of inside retarded time) will not asymptotically approach null-future infinity, ${\mathcal{I}}^{+}$. This also means that the situation in the black hole case resolves without $r=0$ attaching to a space-like singularity (to do so would mean that $r=0$ is no longer timelike). The result of a particular timelike trajectory for the origin is that the usual evaporation process effectively ends with the formation of a remnant, depicted in the Penrose diagram of Figure 1. Notice that for the corresponding moving mirror as pictured in the Penrose diagram, Figure 3 or Figure 2, the worldline never finds itself located at null-future infinity. To make this quantitative, and to raise the principle of unitarity to the most overarching priority of the model, we modify Equation (5) to a new trajectory [6] for the origin of coordinates (one that has an asymptotic drift):

$$t_{\xi }\left(x\right)=-\frac{x}{\xi }-4M{e}^{x/2M\xi }.$$

(6)

Here, $\xi$ is the asymptotic coasting speed, $0<\xi <1$. This is plotted as mirror in Figure 2. The trajectory in null coordinates changes dramatically from Equation (4) to (using the regularity condition result $U\leftrightarrow v$):

$$u_{\xi }=v-\frac{\xi }{\kappa }ln\left[\frac{ϵ}{2}\mathcal{W}\left(\frac{2}{ϵ}{e}^{-\frac{2}{ϵ}\kappa v}\right)\right],$$

(7)

where $\mathcal{W}$ is the Lambert function and we have introduced the definition, $\xi \equiv 1-ϵ$. When $\xi \to 1$, the trajectory in Equation (7) is equivalent to Equation (4), which demonstrates an operative formation of an effective event horizon. Thus, the timelike restriction (by the introduction of a second parameter $\xi$ in addition to mass M) in Equation (5), resulting in Equation (6), permits the genesis of an event horizon 4.

The origin, $r=0$, as far as the quantum field, $\psi$, is concerned, is a perfectly reflecting boundary because $\psi (r\le 0)=0$. Equation (7) is the timelike world line of the origin and re-tracing our steps from the matching condition Equation (4) to Equation (1), we arrive at:

$$r_{\xi }^{*}\equiv r+2M\xi ln\left[\frac{ϵ}{2}\mathcal{W}\left(\frac{2}{ϵ}{e}^{\frac{2}{ϵ}[\frac{r}{2M}-1]}\right)\right].$$

(8)

In the limit that $\xi \to 1$, Equation (8) → Equation (1), $r_{\xi }^{*}\to r^{*}$. No singularity in Equation (8) exists at $r=2M$. On the contrary, unlike Equation (1), using $\xi \ne 1$ and examining $r=2M$, the function takes on a finite value: $r_{\xi }^{*}=2M\left[1-\xi \mathcal{W}(2/ϵ)\right]$. The asymptotic inertial drift, $\xi$, can be close to $\xi \approx 1$ for operative continuity and still be strictly, $\xi <1$, for information preservation. At the cost of classical continuity, we have purchased quantum purity.

4. How Discontinuous?

The discontinuity is located in the Planckian region of Figure 1, where one expects quantum geometric effects to play an important role and spacetime discontinuity to possibly occur. This discontinuity can be characterized at late times by first considering the whole spacetime using the interior coordinates [9],

$$d{s}^2=\left\{\begin{array}{cc}-dUdV,\hfill & \mathrm{for}v\le v_0,\\ -f(u,v)f^{-1}(u,v_0)dUdV,\hfill & \mathrm{for}v>v_0.\end{array}\right.$$

(9)

The difference at late times, $u\to \infty$, of

$$\delta s^2=1-f(u,v)f^{-1}(u,v_0),$$

(10)

is a measure of the discontinuity. The difference, located at the shock wave, $v=v_0$, utilizing Equation (7) and its inverse, $v_{\xi }\left(u\right)$, is

$$\delta s^2{|}_{u\to \infty }=\underset{u\to \infty }{lim}\left[1-\frac{d{v}_{\xi }}{du}\frac{d{u}_{\xi }}{dv}\right]=2\frac{ϵ-1}{ϵ-2}\left(1-\frac{1}{W\left(\frac{2}{ϵ}{e}^{-2/ϵ}\right)+1}\right)$$

(11)

This late-time measure helps clarify how tiny the discontinuity $\delta s^2$ can be when $\xi$ is ultra-relativistic,

$$\delta s^2{|}_{u\to \infty }\approx 0,\mathrm{for}\xi ⪆0.9.$$

(12)

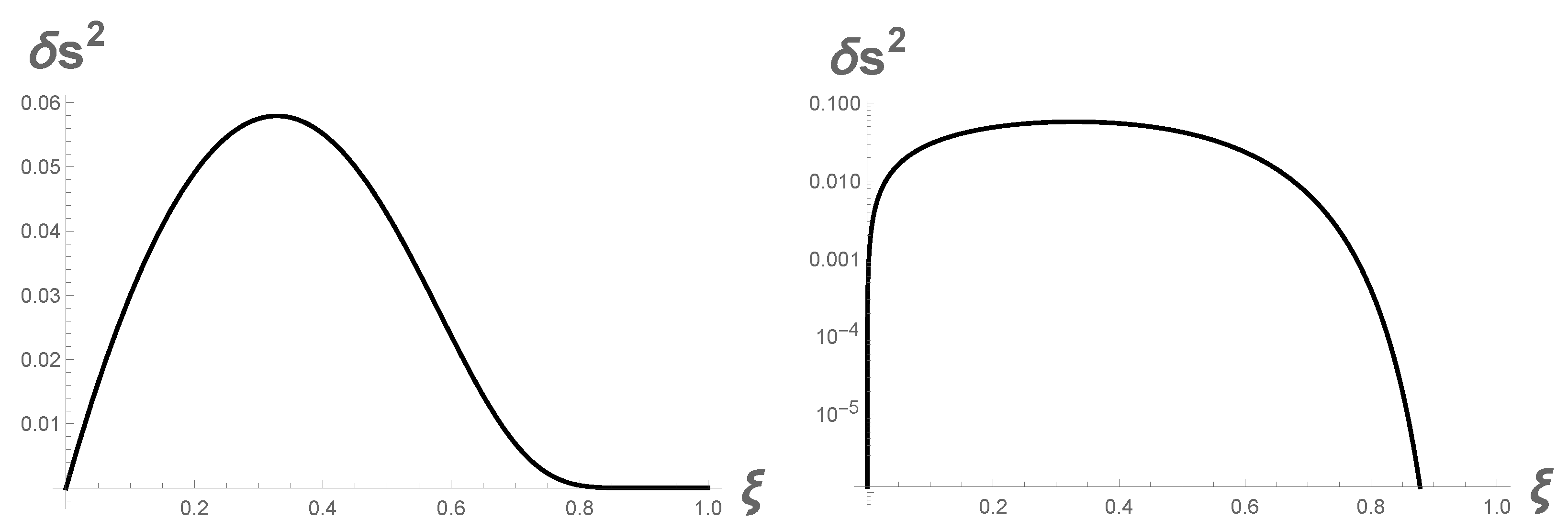

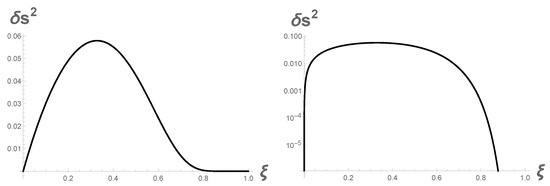

as shown in Figure 4, which also includes a log plot of $\delta s^2$ as a function of $\xi$.

5. Restriction on Entropy

The limit of the von-Neumann entanglement entropy [27] from the dynamics of Equation (5) as a function of lab time t is found from the rapidity [6], $\eta \left(t\right)={tanh}^{-1}\dot{z}\left(t\right)$, by using $6S\left(t\right)=\eta \left(t\right)$:

$$\overline{S}\equiv \underset{t\to \infty }{lim}S\left(t\right)=\underset{t\to \infty }{lim}\frac{1}{6}{\tanh }^{-1}\left[{(\mathcal{W}\left[2e^{-2\kappa t}\right]+1)}^{-1}\right]=\infty .$$

(13)

This is a consequence of the fact that not all field modes hit the origin and information is lost (see, e.g., the $\overline{S}=\infty$ in [28]). In contrast, the asymptotically timelike trajectory of Equation (6) has the limit,

$${\overline{S}}_{\xi }\equiv \underset{t\to \infty }{lim}{S}_{\xi }\left(t\right)=\underset{t\to \infty }{lim}\frac{1}{6}{\tanh }^{-1}\left[\xi {(\mathcal{W}\left[2e^{-2\kappa t}\right]+1)}^{-1}\right]=\frac{1}{6}{\tanh }^{-1}\left(\xi \right)\ne \infty .$$

(14)

The final asymptotic entropy, ${\overline{S}}_{\xi }$, is the final rapidity (an additive quantity appropriate for an entropy). This is a result of the fact that all the field modes intersect the timelike worldline origin. We show in the next sections that, while $\overline{S}=\eta /6$ is finite, it will be extremely large (e.g., relative to usual accelerator rapidities) in order to reach effective equilibrium ($\xi \approx 1$).

In the first case, Equation (13), some left-mover field modes never hit the origin and consequently never become right-movers. These modes are lost forever in the black hole. However, in the second case, Equation (14), an asymptotic approach to time-like future infinity, $i^{+}$, means that all the left-movers hit the origin and they all become right-movers, preserving information measured by an observer at ${\mathcal{I}}^{+}$.

6. Restriction on Energy

Evaluation of the total energy emitted [6],

$$E={\int }_{-\infty }^{\infty }F\left(u\right)du,$$

(15)

from the energy flux, $F\left(u\right)$, can be done with the Schwarzian derivative [2,3],

$$-24\pi F\left(u\right)=\{p,u\}\equiv \frac{p^{‴}}{p^{\prime }}-\frac{3}{2}{\left(\frac{p^{″}}{p^{\prime }}\right)}^2,$$

(16)

of the null-coordinate trajectory, $p\left(u\right)$ (the v position of the origin as function of u) in our case, the function $p\left(u\right)=v_{\xi }\left(u\right)$, which is the inverse of Equation (7). The result is finite and analytic:

$$E=\frac{ħ\kappa }{24\pi c}\left({\gamma }^2+\frac{\eta }{\xi }\right),$$

(17)

where $\gamma \equiv 1/\sqrt{1-{\xi }^2}$ is the asymptotic coasting Lorentz factor, $\eta \equiv {tanh}^{-1}\xi$ is the asymptotic coasting rapidity, and $\xi <1$ is the asymptotic coasting speed. When $\xi \approx 1$, near the speed of light, then ${\gamma }^2\gg \eta /\xi$, and the second term can be neglected:

$$E\sim \kappa {\gamma }^2.$$

(18)

The energy diverges as the origin moves asymptotically null (i.e. $\xi \to 1$ and $\gamma \to \infty$)m behaving as the total divergent energy using the inverse of Equation (4), $v\left(u\right)$; there, $\xi =1$. Consistent with conservation of energy, Equation (18) gives the total finite emission when the system has a chance to equilibrate.

7. Mass of the Remnant

The energy of the spacetime is M and the evaporation energy is E. The difference between them is the mass, m, of the remnant:

$$M-E=m,$$

(19)

where for a steady-state system, $\xi \approx 1$, Equation (18) holds,

$$M-\frac{{\gamma }^2}{96\pi M}=m.$$

(20)

The two parameters of the system, $\gamma$ and M, are simply related if the mass of the remnant is so far less than the black hole, $m\ll M$, that it may be neglected:

$${\gamma }^2=96\pi M^2.$$

(21)

For perspective, a solar mass black hole, $M\sim {10}^{38}$ Planck masses, via $cosh\eta =\gamma$, has final coasting origin rapidity $\eta \sim 91$. The fastest particle ever measured, the OMG particle, had rapidity $\eta \sim 27$.

8. Constant Energy Flux and Equilibrium Temperature

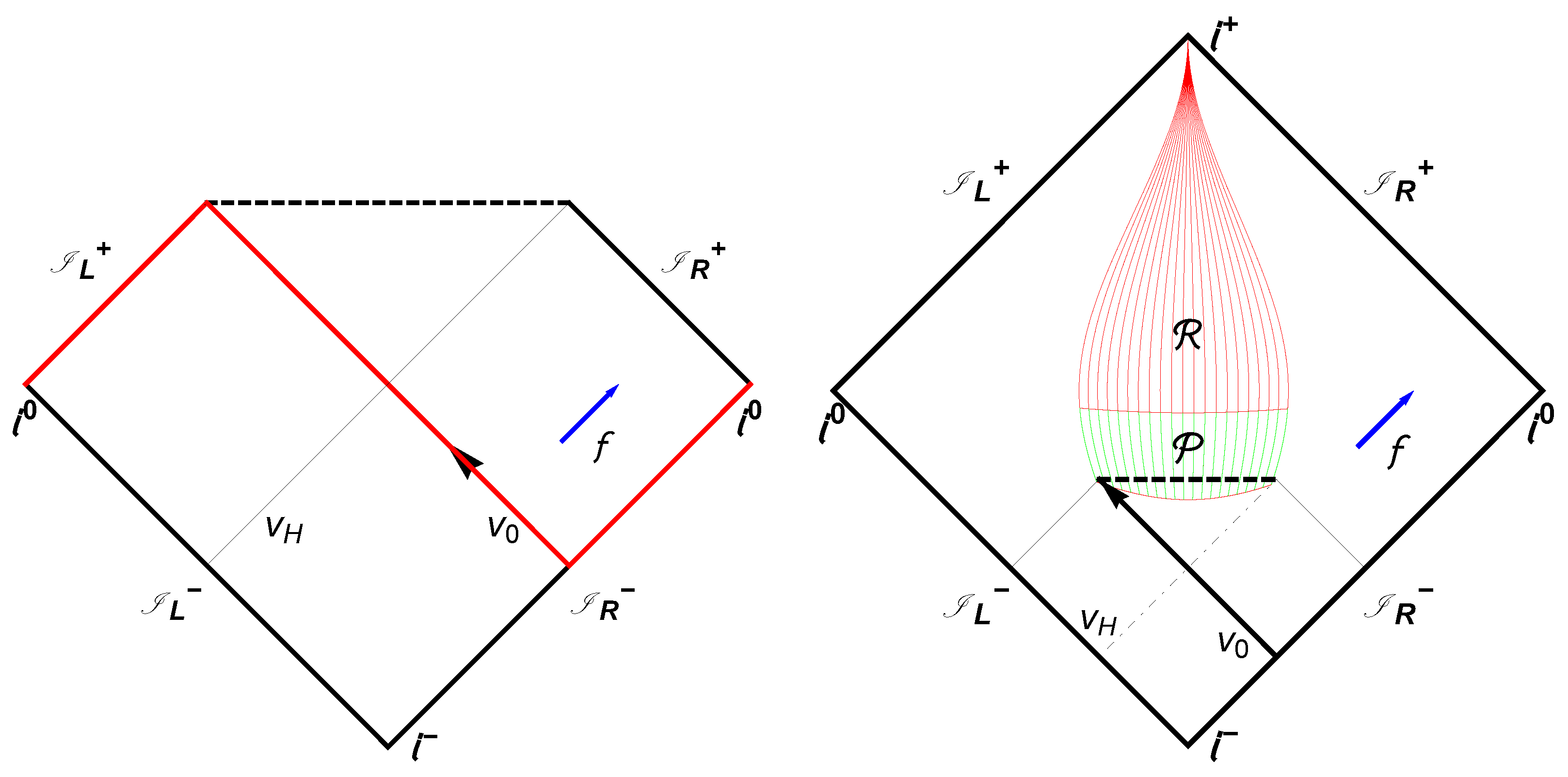

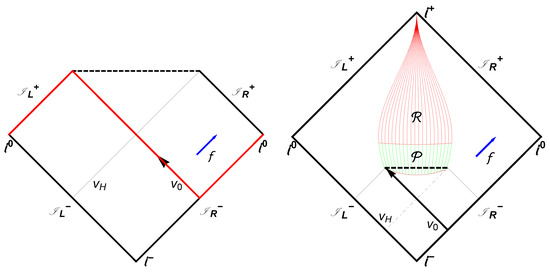

In the 1+1 dimensional black hole case, visually depicted in Figure 5, a temperature, $2\pi T=\kappa$, gives a constant energy flux,

$$F=\frac{{\kappa }^2}{48\pi }=\frac{\pi }{12}{T}^2,$$

(22)

which emerges in the form of an extended plateau for assignment of high coast speed, $\xi \approx 1$. A series expansion of the temperature,

$$T_{\xi }=\sqrt{\frac{12}{\pi }{F}_{\xi }^{\max }},$$

(23)

as a function of maximum energy flux [6],

$$F_{\xi }^{\max }=\frac{{\kappa }^2}{48\pi }\left[1-3\sqrt[3]{6}{ϵ}^{2/3}+O\left(ϵ\right)\right]$$

(24)

(where the radiation is closest to equilibrium) gives the temperature of the black hole:

$$T_{\xi }=\frac{\kappa }{2\pi }\left[1-3{\left(\frac{3}{4}\right)}^{1/3}{ϵ}^{2/3}+O\left(ϵ\right)\right],$$

(25)

to lowest order in $ϵ\equiv 1-\xi$. The higher order terms correspond to the very small deviation due to sub-light speed drift, $\xi <1$, which are safely ignored for small $ϵ\approx 0$. The timelike modification of Equation (5) to Equation (6) locks in a constant energy flux plateau and effective long-term thermal equilibrium of Equation (25) for $\xi \approx 1$. This corroborates the stability of the steady-state (long-time Planckian distributed particle radiation) due to the timelike worldline origin.

9. Particle Spectrum

The beta Bogolubov coefficient in the particle spectrum,

$$〈N_{\omega }〉\equiv \langle 0_{\mathrm{in}}|N_{\omega }^{\mathrm{out}}|0_{\mathrm{in}}\rangle ={\int }_0^{\infty }{\left|{\beta }_{\omega {\omega }^{\prime }}\right|}^{2}d{\omega }^{\prime },$$

(26)

can be computed [6] via an integral with input of Equation (6). The result is analytically tractable:

$${\beta }_{\xi }=-\frac{\xi \sqrt{\omega {\omega }^{\prime }}}{2\pi \kappa {\omega }_p}{\left(\frac{i\kappa }{{\omega }_p}\right)}^A\Gamma \left(A\right),$$

(27)

where $A\equiv \frac{i}{2\kappa }[(1+\xi )\omega +(1-\xi ){\omega }^{\prime }]$ and ${\omega }_p\equiv \omega +{\omega }^{\prime }$. How is this Planckian? The integrand of Equation (26) is Planckian using Equation (27) with $\xi \approx 1$,

$$|{\beta }_{\omega {\omega }^{\prime }}{(\xi \approx 1)|}^2\approx \frac{{\omega }^{\prime }}{2\pi \kappa {(\omega +{\omega }^{\prime })}^2}\frac{1}{e^{2\pi \omega /\kappa }-1}\to \frac{1}{2\pi \kappa {\omega }^{\prime }}\frac{1}{e^{2\pi \omega /\kappa }-1}$$

(28)

where, in the second step, we took the high frequency approximation, ${\omega }^{\prime }\gg \omega$. The pre-factor is an continuum artifact removed with wave packets [1]. The resulting Equation (28) is the usual Planck distribution consistent with Equation (25). Further consistency of the result can be shown by using Equation (27) to obtain, via a numerical computation, the total energy,

$$E\equiv {\int }_0^{\infty }ħ\omega 〈N_{\omega }〉d\omega$$

(29)

and comparing this with the total energy, Equation (17) (both the left and right sides of the origin) from the stress tensor [6,29]. The results are in agreement.

10. No Restriction on Total Particle Count: Soft Hair

It is good to mention a limitation and an extension of this approach. Assuming unitarity from the start, this model regularizes the total emission energy, the asymptotic entanglement entropy, and the asymptotic rapidity of the origin. However, the total particle count is still infinite. That is, the $\xi$-model is still impaired by an infrared divergence in the integrand, $N_{\omega }$, when computing,

$$N\equiv {\int }_0^{\infty }〈N_{\omega }〉d\omega ={\int }_0^{\infty }{\int }_0^{\infty }{\left|{\beta }_{\omega {\omega }^{\prime }}\right|}^{2}d{\omega }^{\prime }d\omega ,$$

(30)

which is the total particle count. Even after the energy has effectively stopped being radiated, an extreme red-shift occurs. This end-of-time Doppler shift suffered by the modes which continue to pass through the origin marks the existence of the remnant, which is characterized by this divergence,

$$\mathrm{asymptotic}\mathrm{drift}:N\to \infty .$$

(31)

The modes reflect off a constant, $\xi >0$, boundary condition (albeit one with asymptotically zero acceleration). The massless scalar particles carry zero-energy (e.g., [30]). Generally, this divergence is remedied by abandoning asymptotically coasting trajectories and replacing them with asymptotically static trajectories (the final asymptotic velocity would be zero, $\xi =0$), which leave no evidence of any remnant (zero Doppler shift),

$$\mathrm{asymptotic}\mathrm{static}:N\to \mathrm{finite}.$$

(32)

An interesting extension of this model would be a construction of such an asymptotically static dynamic which also has thermal emission and corresponds to Equation (5) or Equation (6). This line of work is in progress.

11. Conclusions

This note postcedes the work of [6,7,8]. The evaporation model prioritizes unitarity over continuity (see

Table 1. Summary of Quantities.

Quantity	Continuity   $\mathit{\xi }=1$	Unitarity   $\mathit{\xi }\ne 1$
$r^{*}$	$r^{*}\equiv r+2Mln\left(\frac{r}{2M}-1\right)$	$r_{\xi }^{*}\equiv r+2M\xi ln\left[\frac{ϵ}{2}\mathcal{W}\left(\frac{2}{ϵ}{e}^{\frac{2}{ϵ}[\frac{r}{2M}-1]}\right)\right]$
$t\left(x\right)$	$t=-x-4M{e}^{x/2M}$	$t_{\xi }=-x/\xi -4M{e}^{x/2M\xi }$
u	$u=v-4Mln\left|\kappa v\right|$	$u_{\xi }=v-4M\xi ln\left[\frac{ϵ}{2}\mathcal{W}\left(\frac{2}{ϵ}{e}^{-\frac{2}{ϵ}\kappa v}\right)\right]$
$\overline{S}$	∞	${\overline{S}}_{\xi }=\eta /6$
E	∞	$E_{\xi }=\frac{\kappa }{24\pi }\left({\gamma }^2+\frac{\eta }{\xi }\right)$
T	$T=\kappa /2\pi$	$T_{\xi }=\kappa /2\pi +\mathcal{O}\left(ϵ\right),\mathrm{for}ϵ\approx 0$
$\beta$	$\beta =-\frac{\sqrt{\omega {\omega }^{\prime }}}{2\pi \kappa {\omega }_p}{\left(\frac{i\kappa }{{\omega }_p}\right)}^{\frac{i\omega }{\kappa }}\Gamma \left(\frac{i\omega }{\kappa }\right)$	${\beta }_{\xi }=-\frac{\xi \sqrt{\omega {\omega }^{\prime }}}{2\pi \kappa {\omega }_p}{\left(\frac{i\kappa }{{\omega }_p}\right)}^A\Gamma \left(A\right)$
N	∞	∞

for a summary of results) and one consequence is that a finite total energy is emitted. Here, two analytic answers are found: the beta Bogolubov coefficient and the finite total energy. The dynamics are described by the asymptotically timelike worldine, Equation (7), and the two-parameter Regge-Wheeler coordinate, Equation (8).

Uncompromising continuity across the shock wave in the metric results in information loss. At the Planck scale, at least, continuity is less certain. High precision in effective continuity is permitted with very fast sub-light drifting speeds. This relaxation results in preserved information, finite energy and radiated Planckian distributed particles with constant energy flux at equilibrium temperature.
