Review

Axion-like Particle Effects on Photon Polarization in High-Energy Astrophysics

INAF, Istituto di Astrofisica Spaziale e Fisica Cosmica di Milano, Via A. Corti 12, 20133 Milano, Italy
Universe 2024, 10(8), 312; https://doi.org/10.3390/universe10080312
Submission received: 26 June 2024 / Revised: 25 July 2024 / Accepted: 28 July 2024 / Published: 30 July 2024

Abstract

:
In this review, we present a self-contained introduction to axion-like particles (ALPs) with a particular focus on their effects on photon polarization: both theoretical and phenomenological aspects are discussed. We derive the photon survival probability in the presence of photon–ALP interaction, the corresponding final photon degree of linear polarization, and the polarization angle in a wide energy interval. The presented results can be tested by current and planned missions such as IXPE (already operative), eXTP, XL-Calibur, NGXP, XPP in the X-ray band and like COSI (approved to launch), e-ASTROGAM, and AMEGO in the high-energy range. Specifically, we describe ALP-induced polarization effects on several astrophysical sources, such as galaxy clusters, blazars, and gamma-ray bursts, and we discuss their real detectability. In particular, galaxy clusters appear as very good observational targets in this respect. Moreover, in the very-high-energy (VHE) band, we discuss a peculiar ALP signature in photon polarization, in principle capable of proving the ALP existence. Unfortunately, present technologies cannot detect photon polarization up to such high energies, but the observational capability of the latter ALP signature in the VHE band could represent an interesting challenge for the future. As a matter of fact, the aim of this review is to show new ways to make progress in the physics of ALPs, thanks to their effects on photon polarization, a topic that has aroused less interest in the past, but which is now timely with the advent of many new polarimetric missions.

1. Introduction

The Standard Model (SM) of particle physics provides a satisfactory theoretical baseline able to explain all known processes acting on elementary particles. However, the SM cannot be considered as the ultimate theory of fundamental interactions since it does not really unify the electroweak and the strong interaction and does not contain gravity. Moreover, the SM describes neither dark matter nor dark energy, which together make up the majority of our Universe. Therefore, the SM represents a low-energy manifestation of a more fundamental theory describing and unifying all four fundamental interactions at the quantum level.
Several proposals have been presented with the aim of extending and completing the SM, such as multidimensional Kaluza–Klein theories [1,2,3], four-dimensional unsymmetrical models [4,5,6,7,8], and superstring and superbrane theories [9,10,11,12,13,14,15,16]. A remarkable fact is that all these theories invariably predict the existence of axion-like particles (ALPs, for a review, see, e.g., [17,18]).
ALPs represent a generalization of the axion, the pseudo-Goldstone boson originating from the breakdown of the global Peccei–Quinn symmetry U ( 1 ) PQ , introduced to solve the strong CP problem (see, e.g., [19,20,21,22]). The axion is characterized by a strict relationship between its mass and its coupling to photons, and it interacts also with gluons and fermions so that the Peccei–Quinn mechanism can work. Instead, two aspects differentiate ALPs from axions: (i) the ALP mass m a is unrelated to the two-photon-to-ALP coupling g a γ γ , and (ii) ALPs primarily interact with photons only, while other possible interactions can safely be neglected in the present context. ALPs are currently considered among the best candidates for being the long-sought dark matter [23,24,25,26]. Furthermore, ALPs produce two significant effects in the presence of external magnetic fields: (i) photon–ALP oscillations [27,28], which are similar to the oscillations of massive neutrinos with different flavors with the difference that, in the ALP case, the external magnetic field is necessary for spin compensation between spin-0 ALPs and spin-1 photons, and (ii) the change of the polarization state of photons [27,28]. Due to their faint interaction with photons, ALPs can hardly be detected over the limited distances of laboratory experiments. Instead, the astrophysical context allows us to overcome this restriction with photons that can originate at cosmological distances and can cross several magnetized media, where photon–ALP interaction can take place. Therefore, the astrophysical environment appears as the most promising way to study the ALP physics, especially in the high-energy (HE) and in the very-high-energy (VHE) band (see, e.g., [29,30] for a review).
In particular, photon–ALP oscillations occur in different magnetized media, such as inside active galactic nuclei (AGN; see, e.g., [31] and Section 4.1). Specifically, photon–ALP oscillations explain the detection of photons with energies of up to ∼ 400 GeV originated from flat spectrum radio quasars (FSRQs, an AGN class), while conventional physics prevents any emission for energies above ∼ 20 GeV (see also Section 4.1): this fact represents the first hint at ALP existence [32]. Moreover, photon–ALP interaction solves the anomalous redshift dependence of the spectra of BL Lacs (another AGN class) [33]. In particular, within conventional physics, the values assumed by the BL Lac VHE-emitted spectral indexes decrease as the redshift grows, while no redshift dependence is expected, since cosmological effects are not present and selection biases are excluded, as discussed in [33]. The introduction of photon–ALP conversion inside the extragalactic space increases the Universe transparency [34,35,36], partially avoiding the absorption of VHE photons due to their interaction with the extragalactic background light (EBL, see also Section 4.4 and [37,38,39]), and makes BL Lac VHE-emitted spectral indexes redshift independent. Since this is the only possibility according to the physical expectation, this result represents the second hint at ALP existence [33]. Moreover, photon–ALP conversion inside the blazar jet, in the host galaxy, in the extragalactic space and in the Milky Way produces two features [40,41]: (i) spectral irregularities and (ii) photon excess in blazar spectra at VHE, which can be detected by current and planned observatories, such as ASTRI [42], CTA [43], GAMMA-400 [44], HAWC [45], HERD [46], LHAASO [47], and TAIGA-HiSCORE [48]. Furthermore, ALP-induced spectral irregularities produced inside the galaxy cluster turbulent magnetic field have been used to place constraints on the ALP parameter space [49,50]. In addition, photon–ALP interaction provokes modifications on stellar evolution [51]; it has been employed inside galaxy clusters as an explanation of the spectral distortions of the continuum thermal emission (T 2 keV 8 keV ) [52] and of the unexpected spectral line at 3.55 keV , viewed as dark matter decay into ALPs with their subsequent oscillations into photons [53]. ALPs have also been used in order to explain a blazar line-like feature [54]. The recent detection of the gamma-ray burst GRB 221009A by the LHAASO Collaboration [55,56] up to 18 TeV strongly challenges conventional physics, while the photon–ALP scenario naturally explains the VHE observation of this GRB, which represents the third hint and the firmest indication to date at ALP existence [57] (see also Section 6.2 and [58]). Moreover, all three above-mentioned hints are derived with the same ALP parameters, which further strengthens the indication itself.
In this review, we concentrate on the other main effect of the photon–ALP interaction, i.e., the change of the polarization state of photons. This ALP effect has attracted less interest so far with respect to that producing spectral modifications. However, the existing and proposed polarimetric missions in both the X-ray band such as IXPE [59] (already operative), eXTP [60], XL-Calibur [61], NGXP [62], XPP [63] and in the HE range like COSI [64] (approved to launch), e-ASTROGAM [65,66], AMEGO [67] allow polarization studies to be carried out with unprecedented sensitivity. Therefore, these observatories represent a unique opportunity to perform additional studies on ALP physics. In particular, the ALP effects on the polarization of photons produced in GRBs have been studied in [68]. Attention to various ALP-induced polarization topics regarding different astrophysical sources, such as AGN, white dwarfs, and neutron stars, has been paid in [69,70,71,72,73,74,75]. Moreover, the photon–ALP interaction has been demonstrated as a unique way to measure the emitted photon polarization [76]. Quite recently, the impact of the photon–ALP interaction on the polarization of photons produced in the central region of typical galaxy clusters or generated at the jet base of generic blazars has been analyzed in [77]. Results obtained in [77] have been applied to concrete cases: (i) to Perseus and Coma concerning galaxy clusters, as shown in [78], and (ii) to OJ 287, BL Lacertae, Markarian 501, and 1ES 0229+200 regarding blazars, as discussed in [79], showing that, in all the cases, the initial photon polarization is strongly modified by the photon–ALP interaction with the production of features observable by present and planned missions [59,60,61,62,63,64,65,66,67]. The above-cited studies concerning blazars [77,79] and especially galaxy clusters [77,78] demonstrate that the measure of the polarization degree of photons produced by these astrophysical sources may provide us a new and an additional way to study ALPs and their effects. In fact, whenever the expectations of conventional physics about the photon polarization degree of astrophysical sources are in tension with possible future observations performed by missions in the X-ray band [59,60,61,62,63] and in the HE range [64,65,66,67], this fact would represent a hint at ALP existence. This is especially true regarding galaxy clusters. As discussed below, photons diffusely produced in the central zone of galaxy clusters are expected to be unpolarized both in the X-ray and in the HE band within conventional physics, but the photon–ALP conversion makes them partially polarized, as shown in [77,78]. Therefore, a signal of partially polarized photons diffusely produced in a galaxy cluster would be a strong indication at ALP existence. Concerning blazars, we could achieve a similar conclusion if the detected polarization degree were extremely high, above the predictions of standard hadronic models (see below and [77,79]). In case no tension was found, the ALP parameter space ( m a , g a γ γ ) could still be limited further. In this review, our aim is thus to describe the ALP-induced effects on photon polarization, which may be detected by missions in the X-ray band [59,60,61,62,63] and in the HE range [64,65,66,67] and which may provide us new ways to make progress in the ALP physics.
In particular, we introduce ALPs and the photon–ALP system in Section 2, and we illustrate polarization in Section 3. Section 4 describes the astrophysical media crossed by the photon–ALP beam. In Section 5, the ALP-induced polarization effects are reported both in the X-ray and in the HE range for Perseus as an example for galaxy clusters and for OJ 287 as an example for blazars. In Section 6, the above-mentioned polarization effects are discussed along with their real detectability. Section 6 is also devoted to describing possible future perspectives in the VHE range, where strong ALP signatures could be detected, along with a discussion about GRBs. Finally, we draw our conclusions in Section 7. Throughout this review, we employ the natural Lorentz–Heaviside (rationalized) units with = c = k B = 1 .

2. Axion-like Particles

ALPs are neutral, spin-zero pseudo-scalar bosons, whose primary interaction with photons (other interactions with fermions or gluons may exist but are subdominant and negligible in the present context) is described by the Lagrangian
L ALP = 1 2 μ a μ a 1 2 m a 2 a 2 1 4 g a γ γ F μ ν F ˜ μ ν a = 1 2 μ a μ a 1 2 m a 2 a 2 + g a γ γ E · B a ,
where a denotes the ALP field, while E and B respectively represent the electric and magnetic components of the electromagnetic tensor F μ ν , whose dual is F ˜ μ ν . Many bounds about the photon–ALP coupling g a γ γ and the ALP mass m a have been derived in the literature [49,51,80,81,82,83,84,85,86,87,88,89]. The most reliable ALP limit is represented by g a γ γ < 0.66 × 10 10 GeV 1 for m a < 0.02 eV at the 2 σ level from no detection of ALPs from the Sun [80]. Other bounds are more or less affected by the description of the astrophysical environment [49,51,81,82,83,84,85,86,87,88,89].
Furthermore, the QED one-loop vacuum polarization effects, which become important in the presence of a strong external magnetic field, are accounted by the Heisenberg–Euler–Weisskopf (HEW) effective Lagrangian [90,91,92]
L HEW = 2 α 2 45 m e 4 E 2 B 2 2 + 7 E · B 2 ,
where α represents the fine-structure constant, while m e is the electron mass.
We consider a photon–ALP beam of energy E propagating in the y-direction in a magnetized medium with an external magnetic field denoted by B and entering Equation (1), where E describes the photon electric field. Because of the off-diagonality of the mass matrix of the γ a system, the propagation eigenstates differ from the interaction eigenstates, producing γ a oscillations. This is similar to the oscillations of different flavor massive neutrinos, but in the case of the photon–ALP system, the external B field is essential to compensate for the spin mismatch between photons and ALPs. In particular, the functional expression of the photon–ALP coupling in Equation (1) shows that a couples only with the component B T of B transverse to the photon momentum k [35]. Furthermore, the short-wavelength approximation [28] holds in the present analysis since E m a (we consider extremely light ALPs), so that the propagation of an unpolarized photon–ALP beam arising from L ALP of Equation (1) is described by the Von Neumann-like equation
i d ρ ( y ) d y = ρ ( y ) M ( E , y ) M ( E , y ) ρ ( y ) ,
where M ( E , y ) represents the photon–ALP mixing matrix, while ρ ( y ) is the polarization density matrix of the photon–ALP system. By defining ϕ , the angle that B T forms with the z axis, M reads as follows:
M ( E , y ) Δ x x ( E , y ) Δ x z ( E , y ) Δ a γ ( y ) sin ϕ Δ z x ( E , y ) Δ z z ( E , y ) Δ a γ ( y ) cos ϕ Δ a γ ( y ) sin ϕ Δ a γ ( y ) cos ϕ Δ a a ( E ) ,
with
Δ x x ( E , y ) Δ ( E , y ) cos 2 ϕ + Δ ( E , y ) sin 2 ϕ ,
Δ x z ( E , y ) = Δ z x ( E , y ) Δ ( E , y ) Δ ( E , y ) sin ϕ cos ϕ ,
Δ z z ( E , y ) Δ ( E , y ) sin 2 ϕ + Δ ( E , y ) cos 2 ϕ ,
Δ a γ ( y ) = 1 2 g a γ γ B T ( y ) ,
Δ a a ( E ) = m a 2 2 E ,
and
Δ ( E , y ) = i 2 λ γ ( E , y ) ω pl 2 ( y ) 2 E + 2 α 45 π B T ( y ) B cr 2 E + ρ CMB E ,
Δ ( E , y ) = i 2 λ γ ( E , y ) ω pl 2 ( y ) 2 E + 7 α 90 π B T ( y ) B cr 2 E + ρ CMB E ,
where B cr 4.41 × 10 13 G is the critical magnetic field and ρ CMB = 0.522 × 10 42 . Equation (8) describes the photon–ALP interaction, while Equation (9) accounts for the ALP mass effect. The first term in Equations (10) and (11) describes photon absorption (e.g., due to the EBL [37,38,39]) with λ γ being the γ γ e + e mean free path. In the second term of Equations (10) and (11), ω pl = ( 4 π α n e / m e ) 1 / 2 represents the plasma frequency with n e denoting the electron number density. The third term in Equations (10) and (11) describes the QED one-loop vacuum polarization coming from L HEW of Equation (2), producing polarization variation and birefringence on the beam, and the fourth term expresses the photon dispersion on the CMB [93].
The solution of Equation (3) can be expressed in terms of the transfer matrix  U ( E ; y , y 0 ) of the photon–ALP system as
ρ ( y ) = U E ; y , y 0 ρ 0 U E ; y , y 0 ,
where ρ 0 is the density matrix at position y 0 . The probability to find the photon–ALP beam in the final state ρ at position y starting in the initial state ρ 0 at position y 0 reads as follows:
P ρ 0 ρ ( E , y ) = Tr ρ U ( E ; y , y 0 ) ρ 0 U ( E ; y , y 0 ) ,
with Tr ρ 0 = Tr ρ = 1 [35].
We concentrate now on a photon–ALP system with the following characteristics: (i) fully polarized photons, (ii) no photon absorption ( λ γ ), (iii) homogeneous medium, and (iv) constant B field. Therefore, we can choose the z axis along the direction of B T , resulting in ϕ = 0 in Equation (4). With these assumptions, the γ a conversion probability reads as follows:
P γ a ( E , y ) = g a γ γ B T l osc ( E ) 2 π 2 sin 2 π ( y y 0 ) l osc ( E ) ,
with
l osc ( E ) 2 π Δ z z ( E ) Δ a a ( E ) 2 + 4 Δ a γ 2 1 / 2
being the photon–ALP beam oscillation length. The different energy dependence of the several Δ terms in Equation (4) produces various regimes, which can be experienced by the photon–ALP beam. Hence, we can introduce the low-energy threshold E L and the high-energy threshold E H reading as follows:
E L | m a 2 ω pl 2 | 2 g a γ γ B T ,
and
E H g a γ γ B T 7 α 90 π B T B cr 2 + ρ CMB 1 ,
respectively. In the energy interval E L E E H , the photon–ALP system lies in the strong-mixing regime, where the plasma, the ALP mass, the QED one-loop, and the photon dispersion on the CMB effects are all negligible with respect to the photon–ALP mixing term. In this case, P γ a is maximal and energy independent and reduces to
P γ a ( y ) = sin 2 g a γ γ B T 2 ( y y 0 ) .
Instead, both in the case E E L , where the plasma contribution and/or the ALP mass term are prominent, and in the case E E H , where the QED one-loop effect and/or the photon dispersion on the CMB dominate, the photon–ALP beam propagates in the weak-mixing regime, where P γ a becomes energy dependent and progressively vanishes.
The usual situation of a generic photon initial polarization, structured magnetic fields, and non-homogeneous media represents a generalization of the above-considered case, which is reported here for the simplicity of the analytical expressions of the involved equations. However, in all our following calculations, we employ the appropriate photon polarization and the proper expressions of the magnetization, dispersion, and absorption properties of the crossed media.

3. Polarization Effects

The generalized polarization density matrix  ρ associated with the photon–ALP beam can be expressed as
ρ ( y ) = A x ( y ) A z ( y ) a ( y ) A x ( y ) A z ( y ) a ( y ) * ,
where A x ( y ) and A z ( y ) represent the photon linear polarization amplitudes along the x and z axis, respectively, and a ( y ) is the ALP amplitude. Equation (19) allows us to describe totally polarized (pure states), unpolarized, and partially polarized beams at once. In particular, pure photon states polarized in the x and z direction are expressed as
ρ x = 1 0 0 0 0 0 0 0 0 , ρ z = 0 0 0 0 1 0 0 0 0 ,
respectively, and the ALP state as
ρ a = 0 0 0 0 0 0 0 0 1 ,
whereas an unpolarized photon state is described by
ρ unpol = 1 2 1 0 0 0 1 0 0 0 0 .
Partially polarized photons are characterized by a polarization density matrix with an intermediate functional expression between Equations (20) and (22).
The photonic part of the polarization density matrix of Equation (19) can be expressed in terms of the Stokes parameters as [94]
ρ γ = 1 2 I + Q U i V U + i V I Q ,
while the photon degree of linear polarization  Π L and the polarization angle χ are defined [95] as
Π L ( Q 2 + U 2 ) 1 / 2 I = ( ρ 11 ρ 22 ) 2 + ( ρ 12 + ρ 21 ) 2 1 / 2 ρ 11 + ρ 22 ,
and
χ 1 2 arctan U Q = 1 2 arctan ρ 12 + ρ 21 ρ 11 ρ 22 ,
respectively, where ρ i j with i , j = 1 , 2 are the photon polarization density matrix elements. In the following Sections, we will show the behavior of the final Π L , which turns out to be strongly modified by the photon–ALP interaction with respect to the initial photon degree of the linear polarization Π L , 0 .
As shown by some theorems enunciated and demonstrated in [76], in the absence of photon absorption, there exists a relationship between photon survival probability in the presence of photon–ALP interaction P γ γ and initial Π L , 0 ( P γ a = 1 P γ γ due to the absence of photon absorption), and in particular, the following hold:
  • In case of no photon absorption and a starting condition of only photons with an initial degree of linear polarization Π L , 0 , the inequalities P γ a ( 1 + Π L , 0 ) / 2 and P γ γ ( 1 Π L , 0 ) / 2 hold. In case of initially unpolarized photons ( Π L , 0 = 0 ), we observe P γ a 1 / 2 and P γ γ 1 / 2 .
  • In the previous conditions, Π L , 0 represents the measure of the overlap between the values assumed by P γ a and P γ γ . In case of initially unpolarized photons ( Π L , 0 = 0 ), P γ a and P γ γ possess the common value of 1/2, at most.
We have employed the inequalities described in item 1 to verify the correctness of the behavior of P γ γ reported in several figures of this review (see the following sections).
As shown in [76], the results presented in item 2 can be used to measure the initial  Π L , 0 when only spectral data of an astrophysical source are known. The strategy works in the energy band in which the photon–ALP system lies in the weak mixing regime, where P γ a and P γ γ are energy dependent and their assumed values satisfy the inequalities described in item 1.
The procedure can be sketched as follows. We consider systems in an energy range where photon absorption is negligible. Starting from observational data of an astrophysical source with the observed spectrum Φ obs , we can infer P γ γ as
P γ γ = Φ obs Φ em ,
where Φ em represents the emitted spectrum, which can be either known or derivable from Φ obs (see [76] for more details). Furthermore, the absence of photon absorption by hypothesis ensures that P γ a = 1 P γ γ . Now, Π L , 0 can be obtained by measuring the interval of overlap between the values assumed by P γ γ and P γ a .
In Figure 1, we show how the previous procedure works: in the left panels, an application in the optical-X-ray band is reported, while the right panels address a similar study but in the MeV range. We show how an observer would proceed to infer the initial Π L , 0 from spectral data. Note that cosmological effects are taken into account and E in Figure 1 represents the photon energy, as observed from the Earth.
In the optical-X-ray band, we consider a high-frequency peaked blazar (HBL) placed inside a poor galaxy cluster at redshift z = 0.1 with an initial Π L , 0 = 0.3 , while in the MeV range, we deal with an HBL but now placed inside a quite rich galaxy cluster at redshift z = 0.05 with Π L , 0 = 0.1 . We assume the phenomenological emitted spectra derived in [96] and typical values concerning the magnetization properties of the astrophysical media crossed by the photon–ALP beam both in the optical-X-ray and in the MeV energy band.
In particular, in the optical-X-ray band, the photon–ALP interaction turns out to be negligible inside the poor galaxy cluster (see also Section 4.3), where the blazar is supposed to be located and inside the hosting elliptical galaxy, whose typical properties are described in Section 4.2. Instead, we have efficient photon–ALP conversion inside the jet of the blazar, whose characteristics are described in Section 4.1: For the magnetic field in the jet B jet , we assume a toroidal profile of Equation (27) with magnetic field strength at the emission distance y em = 3 × 10 16 cm equal to B 0 jet B jet ( y em ) = 0.5 G , and for the electron number density n e jet , we consider the profile expressed by Equation (28), taking n e , 0 jet n e jet ( y em ) = 5 × 10 4 cm 3 . We hypothesize an efficient photon–ALP interaction inside the extragalactic space by assuming an extragalactic magnetic field strength B ext = 1 nG and the B ext coherence properties described in Section 4.4. Lastly, the photon–ALP interaction turns out to be efficient also inside the Milky Way, where we adopt the Jansson and Farrar model [97,98] concerning the magnetic field B MW and that presented in [99] regarding the electron number density in the Galaxy n MW , e (see also Section 4.5). For more details, we send the reader to [76].

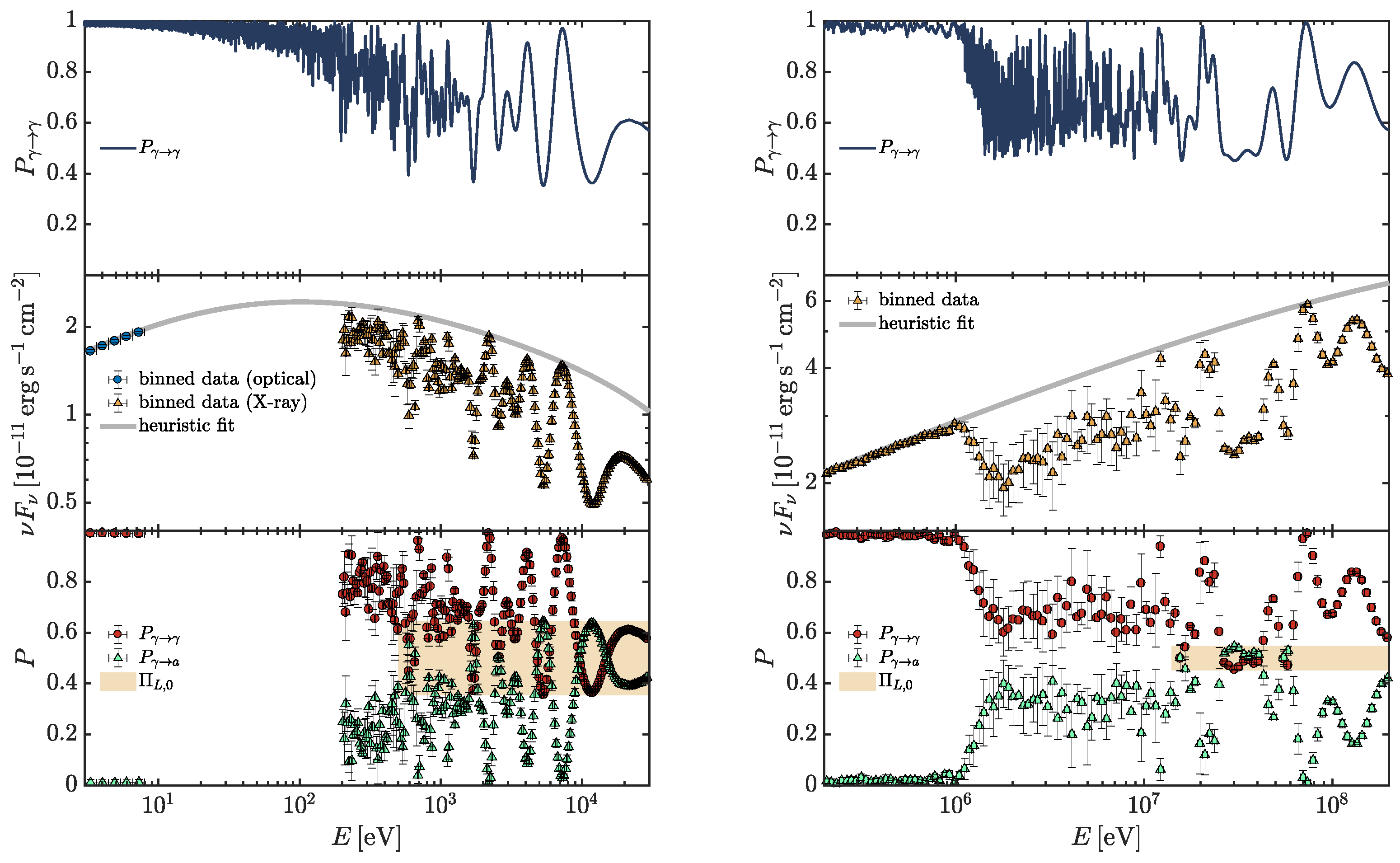

Figure 1. Measure of the initial Π L , 0 . Top panels: A typical realization of P γ γ versus E. Central panels: Observed binned spectra. Bottom panels: Inferred P γ γ and P γ a and measure of Π L , 0 . In the left panels, we consider a high-frequency peaked blazar (HBL) placed inside a poor galaxy cluster at redshift z = 0.1 with initial Π L , 0 = 0.3 in the energy range 3 eV E 3 × 10 4 eV , and we take m a = 5 × 10 14 eV , g a γ γ = 0.5 × 10 11 GeV 1 . In the right panels, we consider an HBL but now placed inside a quite rich galaxy cluster at redshift z = 0.05 with initial Π L , 0 = 0.1 in the energy range 2 × 10 5 eV E 2 × 10 8 eV , and we take m a = 2 × 10 10 eV , g a γ γ = 0.5 × 10 11 GeV 1 . The inferred values of Π L , 0 are very close to the simulated ones. (Credit: adapted from [76]).
Figure 1. Measure of the initial Π L , 0 . Top panels: A typical realization of P γ γ versus E. Central panels: Observed binned spectra. Bottom panels: Inferred P γ γ and P γ a and measure of Π L , 0 . In the left panels, we consider a high-frequency peaked blazar (HBL) placed inside a poor galaxy cluster at redshift z = 0.1 with initial Π L , 0 = 0.3 in the energy range 3 eV E 3 × 10 4 eV , and we take m a = 5 × 10 14 eV , g a γ γ = 0.5 × 10 11 GeV 1 . In the right panels, we consider an HBL but now placed inside a quite rich galaxy cluster at redshift z = 0.05 with initial Π L , 0 = 0.1 in the energy range 2 × 10 5 eV E 2 × 10 8 eV , and we take m a = 2 × 10 10 eV , g a γ γ = 0.5 × 10 11 GeV 1 . The inferred values of Π L , 0 are very close to the simulated ones. (Credit: adapted from [76]).
Universe 10 00312 g001
Instead, in the MeV range, we have an efficient photon–ALP conversion in the cluster since the blazar is supposed to be located inside a rich galaxy cluster, whose properties are reported in Section 4.3: we assume the cluster magnetic field B clu profile of Equation (29), where n e clu represents the cluster electron number density described by means of the β model expressed by Equation (34). Concerning the parameters entering Equations (29) and (34), we assume k L = 0.1 kpc 1 , k H = 3 kpc 1 , q = 11 / 3 , B 0 clu = 20 μ G , n e , 0 clu = 0.1 cm 3 , η clu = 0.75 , β clu = 2 / 3 , a cluster core radius r core = 150 kpc , and a cluster radius of 1 Mpc (see Section 4.3 and Section 6.1 for the definition of the parameters). In the present situation, we hypothesize a negligible photon–ALP conversion inside the extragalactic space by assuming B ext < 10 15 G (see also Section 4.4). Concerning the photon–ALP beam propagation inside the blazar jet, host galaxy, and Milky Way, we consider the same models and parameter values assumed in the previous case (optical-X-ray band) apart from the jet magnetic field strength at the emission distance, which is now B 0 jet B jet ( y em ) = 0.1 G (see also Section 4.1, Section 4.2, and Section 4.5). We send the reader to [76] for more details.
In both of the previous cases (optical-X-ray and MeV band), a typical realization of P γ γ is evaluated and reported in the top panels of Figure 1: we assume g a γ γ = 0.5 × 10 11 GeV 1 for both of the situations, but we take m a = 5 × 10 14 eV for the first blazar in the optical-X-ray band, while we deal with an alternative scenario by taking m a = 2 × 10 10 eV for the second blazar in the MeV range. The central panels of Figure 1 show the observed binned spectra Φ obs (with a typical energy resolution [65,100,101,102]), simulated by multiplying the emitted spectra by P γ γ in the presence of photon–ALP interaction. In the bottom panels of Figure 1, we show P γ γ and P γ a with P γ γ inferred from the simulated observed spectra Φ obs , reported in the central panels, by means of Equation (26), where Φ em can be reconstructed by fitting the upper spectral bins in the central panels, since photon–ALP interaction produces an energy-dependent dimming in the observed spectra (see also [76]). We recall that P γ a = 1 P γ γ due to the absence of photon absorption. Finally, by employing the results presented in item 2, we can measure the initial Π L , 0 , and we obtain Π L , 0 = 0.288 ± 0.016 in the X-ray band and Π L , 0 = 0.090 ± 0.018 in the MeV range. We observe that the inferred values are very close to the initially assumed ones, which demonstrates the power of the present method.
We want to stress that the above-described procedure is the only established possibility to measure the initial polarization of photons produced by astrophysical sources. Furthermore, this procedure can be employed in a wide energy range, where photon absorption is negligible, and only needs spectral observations of the source, so that flux-measuring observatories also become polarimeters.

4. Photon–ALP Beam Propagation in Different Media

In the present section, we describe the main properties of the media crossed by the photon–ALP beam starting where photons are produced up to their arrival at the Earth: blazar, host galaxy, galaxy cluster, extragalactic space, and Milky Way. We concentrate mainly on the characteristics that are crucial for the photon–ALP system, such as the magnetization and absorption properties of the media, while we send the reader to the quoted papers for an exhaustive discussion.

4.1. Blazars

Blazars are powerful astrophysical sources emitting in the whole electromagnetic spectrum, from radio waves up to the VHE band. They are a particular class of AGN that are basically extragalactic supermassive black holes (SMBHs) accreting matter from the surroundings. In these systems, two collimated relativistic jets can develop in opposite directions. In the accidental case where one of these jets turns out to be in the Earth direction, the AGN is called blazar, while in other situations, the AGN shows a different phenomenology, as displayed in Figure 2, where the AGN structure is also shown.

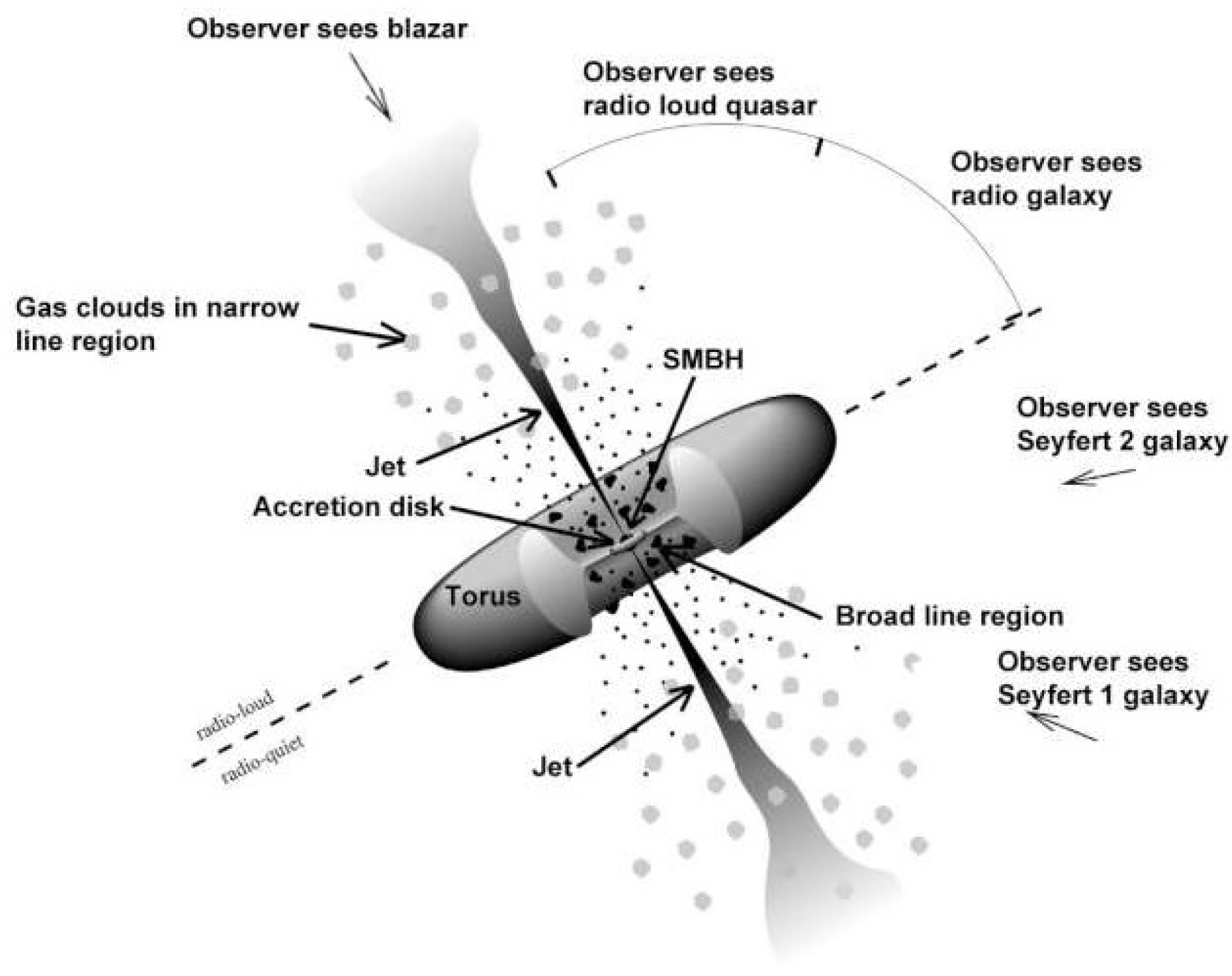

Blazars are divided into two sub-classes: flat spectrum radio quasars (FSRQs) and BL Lac objects (BL Lacs). FSRQs are powerful sources, where accretion from the disk surrounding the central SMBH is efficient. Furthermore, they show intense broad emission lines generated by clouds of gas in the so-called broad-line region (BLR) encompassing the central SMBH and photoionized by the ultraviolet photons produced by the disk. Moreover, FSRQs display absorption regions for VHE photons, which can interact with the optical/ultraviolet radiation emitted by the above-mentioned BLR and with the infrared radiation produced by the dusty torus (see Figure 2), preventing the observation of photons with energy above ∼ 20 GeV [106,107,108,109]. However, photons of up to ∼ 400 GeV have been observed from FSRQs [110,111,112]. Only ad hoc solutions have been proposed inside conventional physics, while photon–ALP oscillations provide a natural solution of the problem by partially preventing BLR absorption: this fact represents a hint at ALP existence [32]. Instead, BL Lacs are less powerful, and they show neither absorption regions nor significant emission lines due to the presence of a radiatively inefficient accretion flow (RIAF) onto the central SMBH [113,114].
In the following, we will concentrate on BL Lacs, where the emission region of photons is located at a distance of about y em = ( 10 16 10 17 ) cm from the central SMBH. Once produced at y em , photons propagate inside the BL Lac jet up to a distance y jet 1 kpc , where they enter the host galaxy. During their path inside the jet, these photons can oscillate into ALPs inside the jet magnetic field B jet . The toroidal part of B jet , which is transverse to the jet axis [115,116,117], turns out to be the dominant one at the distances under consideration, and its profile reads as follows:
B jet ( y ) = B 0 jet y em y ,
where B 0 jet denotes the magnetic field strength of the jet at y em . Another crucial information in order to evaluate photon–ALP conversion inside BL Lacs is the electron number density profile in the jet n e jet , which, due to the conical shape of the jet, is expected to be
n e jet ( y ) = n e , 0 jet y em y 2 ,
where n e , 0 jet represents the electron number density at y em . Synchrotron Self Compton (SSC) diagnostics applied to blazar spectra suggests assuming n e , 0 jet = 5 × 10 4 cm 3 [118].
Two competing photon emission mechanisms have been proposed in order to explain blazar phenomenology: (i) the leptonic model (see, e.g., [119,120,121]) and (ii) the hadronic model (see, e.g., [122,123,124]). Both scenarios describe photon production in the optical up to the X-ray band as generated by electron synchrotron emission. At higher energies, leptonic models explain photon emission with inverse Compton scattering of synchrotron radiation or of external photons from the disk and/or clouds with the synchrotron producing relativistic electrons [119,120,121]. Instead, hadronic models attribute the high-energy photon generation to proton–synchrotron emission or photomeson production [122,123,124]. Hadronic models require higher values of B 0 jet and y em with respect to leptonic scenarios. Moreover, hadronic models predict a higher initial degree of linear polarization Π L , 0 with respect to leptonic scenarios, as shown in Figure 3 for two particular BL Lacs.
The propagation of the photon–ALP beam is computed in the comoving frame of the jet so that a transformation E γ E , with γ being the Lorentz factor, is required to pass to the fixed frames of the subsequently encountered regions.
The values assumed by B 0 jet , y em , γ and Π L , 0 affect the calculation of the photon–ALP beam propagation in the jet and will be discussed in Section 5 for both leptonic and hadronic models. Then, the photon–ALP beam transfer matrix in the jet U jet can be evaluated by following the calculation reported in [31].

4.2. Host Galaxy

The effectiveness of the photon–ALP conversion inside the host galaxy depends on its nature and characteristics. Ideal galaxies in order to have an efficient photon–ALP conversion are spirals and even more starbursts. The reason lies in the high magnetic field strength inside the host B host , which can reach values of B host = O ( 5 10 ) μ G for spirals [126,127] and B host = O ( 20 50 ) μ G for starbursts [128,129], and in the large coherence length L dom host of B host , which is around L dom host = O ( 1 4 ) kpc for both spiral and starburst galaxies outside the central region [126]. The magnetic field coherence can be modeled by employing a Kolmogorov-type turbulence power spectrum in a similar way as discussed in the following subsection concerning galaxy clusters (for more details about the parameter values, see also [57]). A possible example of photon–ALP conversion inside spirals or starbursts is represented by photons produced by GRBs, which are usually located in the central region of these galaxies [130,131].
In particular, the location of GRB 221009A—the brightest GRB to date—in the central region of a disk-like galaxy [132] allows for an efficient photon–ALP conversion inside the host, which is able to justify the detection by the LHAASO Collaboration of this GRB above 10 TeV [55,56,57]. The latter fact represents a strong hint at ALP existence, as demonstrated in [57] (see also Section 6.2 and [58]).
Instead, blazars are often hosted inside elliptical galaxies, where B host is described by means of a domain-like model with the typical values B host 5 μ G and L dom host 150 pc [133]. In such a situation, the photon–ALP oscillation length turns out to be much larger than L dom host , resulting in an inefficient photon–ALP conversion, as shown in [32]. However, whatever the nature and the properties of the host galaxy are, we evaluate the associated photon–ALP beam transfer matrix U host .

4.3. Galaxy Clusters

Galaxy clusters consist of 30 to more than 1000 galaxies with a total mass within the range ( 10 14 10 15 ) M , making them the largest gravitationally bound structures in the Universe. Properties such as galactic content, density profile, shape, concentration, and symmetry allow galaxy clusters to be classified into three main classes: (i) regular clusters, (ii) intermediate clusters, and (iii) irregular clusters [134]. The approximate spherical symmetry and the satisfying knowledge of the density profile of regular clusters allow us to model their electron number density n e clu and the linked magnetic field B clu carefully so that we can properly calculate the photon–ALP conversion.
The strength of B clu is set to B clu = O ( 1 10 ) μ G by Faraday rotation measurements and synchrotron radio emission [135,136]. The morphology of B clu is turbulent and modeled with a Kolmogorov-type turbulence power spectrum M ( k ) k q , with index q = 11 / 3 and where k represents the wave number in the interval [ k L , k H ] with k L = 2 π / Λ max and k H = 2 π / Λ min being the minimal and maximal turbulence scales, respectively [137]. Consequently, the behavior of B clu can be modeled as [137,138]
B clu ( y ) = B B 0 clu , k , q , y n e clu ( y ) n e , 0 clu η clu ,
where B represents the spectral function describing the Kolmogorov-type turbulence of the cluster magnetic field (for more details, see, e.g., [139]), η clu is a cluster parameter, and B 0 clu and n e , 0 clu are the magnetic field strength and the electron number density at the center of the cluster, respectively.
Several models are employed to describe the profile of n e clu , such as the single β model typically used for non-cool-core (nCC) clusters, the double β model for cool-core (CC) clusters, or a modified version of them [140]. We will fix the behavior of n e clu in Section 5, where we will concentrate on real situations.
Photons can be produced by some astrophysical source such as a blazar or a GRB and can pass through a galaxy cluster, or they can be diffusely generated in the central region of the cluster itself. In the latter situation, it is necessary to discuss their initial Π L , 0 . In the X-ray band, photons are produced in the cluster central region via thermal Bremsstrahlung [141] with photons that turn out to be therefore unpolarized. In the HE range, several processes are proposed to explain possible photon emission, such as the cascade of VHE photons, inverse Compton scattering, and neutral pion decay (see, e.g., [142,143,144,145]). Even in the HE range, photons turn out to be effectively unpolarized [146,147].
The transfer matrix U clu of the photon–ALP beam propagating from the central region of the cluster up to its virial radius can be evaluated by following the calculation reported in [77]. In the specific case in which photons are not diffusely produced in the central region of a rich cluster but are generated by another astrophysical source that does not lie inside a rich cluster—such a situation is frequent concerning blazars—the photon–ALP conversion in this region turns out to be inefficient.

4.4. Extragalactic Space

The effectiveness of the photon–ALP conversion inside the extragalactic space is determined by the strength and morphology of the extragalactic magnetic field B ext . However, the properties of B ext are still poorly understood. While many configurations for B ext exist in the literature [148,149,150], its limits are in the interval 10 7 nG B ext 1.7 nG on the scale of O ( 1 ) Mpc [151,152,153].
The shape of B ext is modeled as a domain-like network, where B ext is homogeneous over a whole domain of size L dom ext , which is equal to its coherence length, and with B ext randomly and discontinuously changing its direction from one domain to the subsequent one, but maintaining approximately the same strength [148,149]. Since the exact orientation of B ext in each domain is unknown, the photon–ALP beam propagation becomes a stochastic process, and many realizations of it can be evaluated by varying the B ext orientations, in order to obtain the statistic properties of the system. However, only a single realization of the photon–ALP beam propagation process can be physically observed.
The domain-like model proposed for B ext is justified by several scenarios of outflows from primeval galaxies, further amplified by turbulence [154,155,156,157]. According to the latter scenarios, the usual values for B ext are B ext = O ( 1 ) nG and L dom ext = O ( 1 ) Mpc (for details, see [158]). In this fashion, we assume B ext = 1 nG and L dom ext in the interval ( 0.2 10 ) Mpc with L dom ext = 2 Mpc .
However, the commonly used discontinuous model for B ext produces unphysical results when the photon–ALP beam oscillation length l osc becomes smaller than L dom ext due to the photon dispersion on the CMB [93], and consequently, the system turns out to be sensitive to the B ext substructure. In order to solve such a problem, we employ a more complex model developed in [158], where the components of B ext change continuously, crossing from a domain to the subsequent one.
In the UV-X-ray and HE bands, photon absorption due to the interaction with EBL photons—we assume the conservative EBL model of Franceschini and Rodighiero [38]—is negligible, but it becomes substantial for E > O ( 100 ) GeV [37]. Therefore, for E < O ( 100 ) GeV , propagation in the extragalactic space produces additional photon–ALP oscillations when the photon–ALP conversion is efficient. Instead, for E > O ( 100 ) GeV , where we have a large EBL absorption, the effect of the photon–ALP beam propagation in the extragalactic space is also to mitigate the EBL absorption of VHE photons. The reason lies in the fact that when photons become ALPs, they do not undergo EBL absorption so that the effective optical depth is reduced and more photons can reach the Earth.
In both of the previous situations, with large or negligible EBL absorption and in the case of both efficient or ineffective photon–ALP conversion, the transfer matrix U ext of the photon–ALP system in the extragalactic space can be calculated by following the analysis performed in [36,158].

4.5. Milky Way

Photon–ALP conversion in the Milky Way can be computed once the morphology and strength of the magnetic field B MW and the profile of the electron number density n MW , e in the Galaxy are known.
Concerning B MW , we employ the model developed by Jansson and Farrar [97,98], which includes a disk and a halo component, both parallel to the Galactic plane, and a poloidal ‘X-shaped’ component at the galactic center. The most relevant component of B MW for the photon–ALP conversion turns out to be its regular part, to which we add for completeness the turbulent one developed in [159]. The alternative B MW model of Pshirkov et al. [160] does not substantially produce a different photon–ALP conversion in the Milky Way. Still, we prefer the model by Jansson and Farrar [97,98] since it determines the Galactic halo component with a higher level of accuracy.
Regarding n MW , e we employ the model presented in [99], where the Galaxy is modeled with an extended thick disk standing for the warm interstellar medium, a thin disk accounting for the Galactic molecular ring, a Galactic Center disk, spiral arms and features for the Gum Nebula, Galactic Loop I, and the Local Bubble.
By following the procedure developed in [40], we can evaluate the transfer matrix U MW of the photon–ALP system in the Milky Way.

4.6. Overall Photon–ALP Beam Propagation

Once all the transfer matrices discussed in the previous subsections are known, we can combine them in order to calculate the total transfer matrix U describing the photon–ALP beam propagation starting from the photon emission zone up to the Earth. When photons are diffusely generated in the central zone of a galaxy cluster, U reads as follows:
U = U MW U ext U clu ,
while when photons are produced in the jet of a blazar, U is expressed by
U = U MW U ext U clu U host U jet .
In both of the previous cases, we can calculate the photon survival probability in the presence of photon–ALP interaction by specializing Equation (13) as
P γ γ = i = x , z Tr ρ i U ρ in U ,
where ρ x and ρ z read from Equations (20), and ρ in represents the beam initial polarization density matrix, which is specified in the following subsections for concrete cases, for which the initial photon degree of linear polarization Π L , 0 is known. Moreover, by recalling Equation (12) with ρ 0 ρ in , we obtain the final photon degree of the linear polarization Π L and the polarization angle χ , thanks to Equations (24) and (25), respectively (see also [30,77,78]).

5. ALP Effects on Photon Polarization

Hereafter, we show how photon–ALP interaction modifies the final degree of linear polarization Π L and polarization angle χ for photons diffusely generated in the galaxy cluster central region or produced in the blazar jet. Here, we report two concrete examples: one for galaxy clusters, and specifically, we concentrate on Perseus, and one for BL Lacs and in particular, we focus on OJ 287. The latter two sources represent good observational targets to study ALP effects inside galaxy clusters [77,78] and blazars [77,79], respectively. We send the interested reader to the above-quoted papers, where a deeper discussion is presented along with other concrete examples of both galaxy clusters and blazars [77,78,79]. We now describe the properties of Perseus and of OJ 287, which are crucial to evaluate the photon–ALP interaction effects on Π L and χ .
Perseus is a deeply studied CC rich regular cluster located at redshift z = 0.01756 and represents the brightest galaxy cluster in the X-ray band. Its electron number density n e clu can be expressed by
n e clu ( y ) = n e , 01 clu 1 + y 2 r core , 1 2 3 2 β clu , 1 + n e , 02 clu 1 + y 2 r core , 2 2 3 2 β clu , 2 ,
with n e , 01 clu = 3.9 × 10 2 cm 3 , r core , 1 = 80 kpc , β clu , 1 = 1.2 , n e , 02 clu = 4.05 × 10 3 cm 3 , r core , 2 = 280 kpc , and β clu , 2 = 0.58 [161]. The Perseus magnetic field B clu is described by Equation (29) by taking B 0 clu = 16 μ G , which represents an average estimate among those reported in the literature [162,163]. Due to the similarity of the stochastic properties of the Perseus B clu with those of the Coma cluster, we assume the following values regarding Perseus: q = 11 / 3 , Λ min = 2 kpc and Λ max = 34 kpc [137], and the average value η clu = 0.5 entering Equation (29). Finally, we take an initial degree of linear polarization Π L , 0 = 0 both in the UV-X-ray and in the HE band according to the discussion in Section 4.3. Then, the photon–ALP beam propagation can be evaluated as discussed in Section 4, and its transfer matrix reads from Equation (30).
OJ 287 represents a typical low-frequency peaked blazar (LBL) located at redshift z = 0.3056 . Due to its high flux in both the X-ray and HE bands, OJ 287 turns out to be a favorable observational target for polarimetric studies in both energy ranges [125]. In the following, we consider the typical values regarding the LBL parameters: for the leptonic model, we take B 0 jet = 1 G , y em = 3 × 10 16 cm and γ = 10 , while for the hadronic model, we assume B 0 jet = 20 G , y em = 10 17 cm and γ = 15 [164]. The profiles of B jet and n e jet are represented by Equations (27) and (28), respectively. As discussed in Section 4.1, the initial Π L , 0 for OJ 287 is plotted in Figure 3 for both the leptonic and the hadronic scenario. OJ 287 is hosted inside an elliptical galaxy with a resulting inefficient photon–ALP conversion in the host, as discussed in Section 4.2. Moreover, OJ 287 is not found within a rich galaxy cluster with a consequent negligible ALP effect also in this zone (see Section 4.3). However, for completeness, we consider all the contributions for the evaluation of the total photon–ALP beam transfer matrix, which is expressed by Equation (31). A remark regarding photons emitted by blazars should be kept in mind: due to the limited spatial resolution of real polarimeters, photons coming from different zones inside the transverse section of the blazar jet cannot be distinguished, and all photons are then collected together. Although the latter fact might in principle wash out the ALP-induced polarization features, the studies developed in [77,79] demonstrate that this is not the case in realistic situations. In order to be conservative, the magnetic field profile expressed by Equation (27) and a propagation distance of 1 pc inside the jet are assumed. We send the reader to the papers quoted above [77,79] for a deeper discussion regarding the latter problem and the adopted strategy to take the polarimeter technological limitations into account.
We can now show the final photon survival probability P γ γ , the corresponding photon degree of the linear polarization Π L , and the polarization angle χ arising from photon–ALP oscillations inside the magnetized media analyzed in Section 4 (blazar jet, host galaxy, galaxy cluster, extragalactic space, Milky Way) for the two above-discussed scenarios: (i) photons are diffusely generated in the central zone of a galaxy cluster—we take Perseus as an example, and (ii) photons are produced at the jet base of a BL Lac—we consider OJ 287 as an illustration. In order to assess the robustness of the results, several realizations of the photon–ALP beam propagation process are evaluated by considering different magnetic field configurations due to limited knowledge especially regarding B clu and B ext . The probability density function f Π associated with the final Π L can be computed by collecting all the values assumed by Π L in the various realizations and gives us information about the most probable scenarios.
Regarding the ALP parameters, we assume g a γ γ = 0.5 × 10 11 GeV 1 and the two ALP masses: (i) m a 10 14 eV and (ii) m a = 10 10 eV , which are within the CAST bound [80]. For m a 10 14 eV , the plasma term dominates over the ALP mass term for the chosen model parameters, while the opposite is true in the case m a = 10 10 eV . Results about P γ γ , Π L and χ are obtained for photons produced at redshift z with emitted energy E and observed energy E 0 = E / ( 1 + z ) in the two intervals: (i) UV-X-ray band and (ii) HE band.
Note that, in the following figures, binned data about Π L and χ are also shown in order to provide an idea of how a possible observation of ALP-induced features may look like. The binning procedure is based on the realistic energy resolution of current and/or planned polarimeters both in the X-ray band [59,60,61,62,63] and in the HE range [64,65,66,67] (see [78,79] for more details).

5.1. UV-X-ray Band

In the UV-X-ray band, the photon–ALP beam propagates in the weak mixing regime due to the strength of the plasma and/or ALP mass term inside the mixing matrix of Equation (4). As a result, P γ γ , Π L and χ turn out to possess an energy-dependent behavior in the case of both diffuse photon production in the central region of the Perseus cluster and photon emission at the jet base of OJ 287.
In particular, in the case m a = 10 10 eV , the ALP mass term is so strong that it dominates over the photon–ALP mixing term. As a result, the photon–ALP conversion turns out to be inefficient in the UV-X-ray band for m a = 10 10 eV , apart from a moderate dimming of Π L , 0 for OJ 287 in the case of the hadronic emission model due to the high central value of B jet (see [79] for more details). This is the reason why we only consider the case m a 10 14 eV in this subsection.
Regarding the Perseus cluster, we report P γ γ , Π L and χ in the top subfigure of Figure 4 and the corresponding f Π associated with the final Π L in the bottom subfigure (see [78] for more details). Similarly, concerning OJ 287, we show P γ γ , Π L and χ in the top subfigure of Figure 5 and the linked f Π in the bottom subfigure, but we now consider the two possible emission mechanisms inside blazars (see Section 4.1): (i) the leptonic model in the left panels and (ii) the hadronic model in the right panels (see [79] for more details). In both cases, i.e., for both Perseus and OJ 287, we concentrate on two benchmark energies in the evaluation of f Π : (i) E 0 = 1 keV and (ii) E 0 = 10 keV .
In the case considered here, i.e., g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV , the energy dependence of P γ γ , Π L , and χ in the top subfigures of Figure 4 and Figure 5 is caused by the strength of the plasma term, which is not negligible with respect to the photon–ALP mixing term, especially inside the cluster in the case of Perseus and in the BL Lac jet regarding OJ 287. As a result, the photon–ALP beam propagates in the weak mixing regime, which protracts for a few energy decades due to the large variation with respect to the distance of B clu and n e clu regarding Perseus and of B jet and n e jet concerning OJ 287 (see Section 4.1 and Section 4.3 and [77,78,79] for details). In addition, the previous figures demonstrate that the final Π L turns out to be heavily modified with respect to the initial one Π L , 0 for both Perseus and OJ 287. The binned data in the top Subfigures of Figure 4 and Figure 5 concerning Π L and χ show that the ALP-induced features can be detected by IXPE [59], eXTP [60], XL-Calibur [61], NGXP [62], and XPP [63] for E 0 2 keV regarding Perseus and for E 0 0.5 keV concerning OJ 287. Regarding OJ 287, the top subfigure of Figure 5 shows that the hadronic model produces a larger energy variability of Π L and χ with respect to the leptonic scenario due to the higher value of B 0 jet and the wider extension of the jet region.

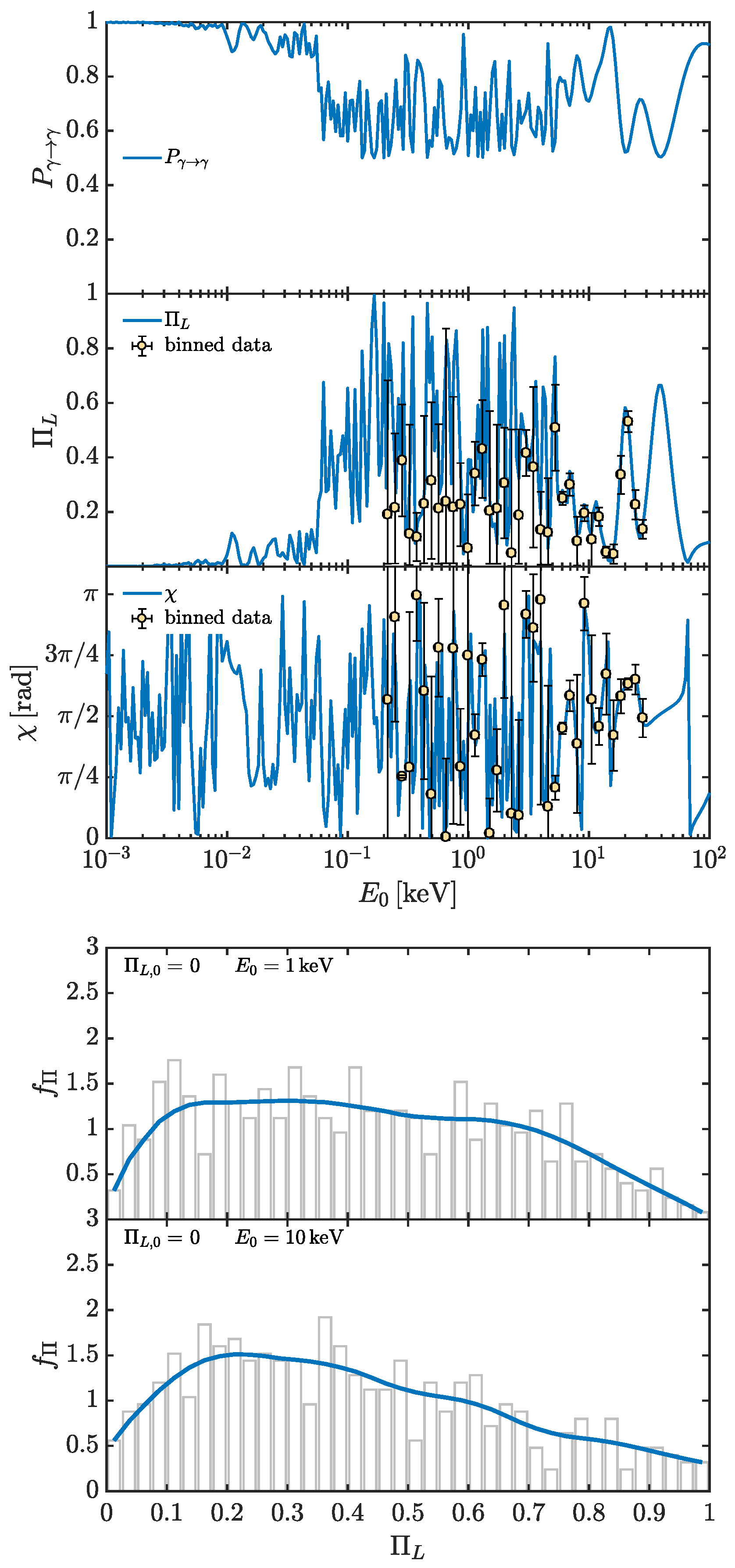

Figure 4. Perseus cluster. (Top subfigure) Photon survival probability P γ γ (upper panel), corresponding final degree of linear polarization Π L (central panel), and final polarization angle χ (lower panel) in the energy range ( 10 3 10 2 ) keV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . The initial degree of linear polarization is Π L , 0 = 0 . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 1 keV (upper panel) and 10 keV (lower panel). (Credit: [78]).
Figure 4. Perseus cluster. (Top subfigure) Photon survival probability P γ γ (upper panel), corresponding final degree of linear polarization Π L (central panel), and final polarization angle χ (lower panel) in the energy range ( 10 3 10 2 ) keV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . The initial degree of linear polarization is Π L , 0 = 0 . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 1 keV (upper panel) and 10 keV (lower panel). (Credit: [78]).
Universe 10 00312 g004
The behavior of f Π reported in the bottom subfigures of Figure 4 and Figure 5 shows a broadening of the final Π L with respect to the initial Π L , 0 for both Perseus and OJ 287. Perseus appears as a strong target to study ALP effects on photon polarization, since the final value Π L = 0 is never the most probable expected result, while conventional physics predicts Π L = Π L , 0 = 0 . Instead, for OJ 287, the most probable final value of Π L is not very different from the initial Π L , 0 apart from the case of the leptonic model at E 0 = 10 keV , where the most probable result turns out to be Π L 0.8 , which is extremely difficult to explain within conventional physics. For more details, we send the reader to the discussion developed in [78] concerning Perseus and to that presented in [79] regarding OJ 287.

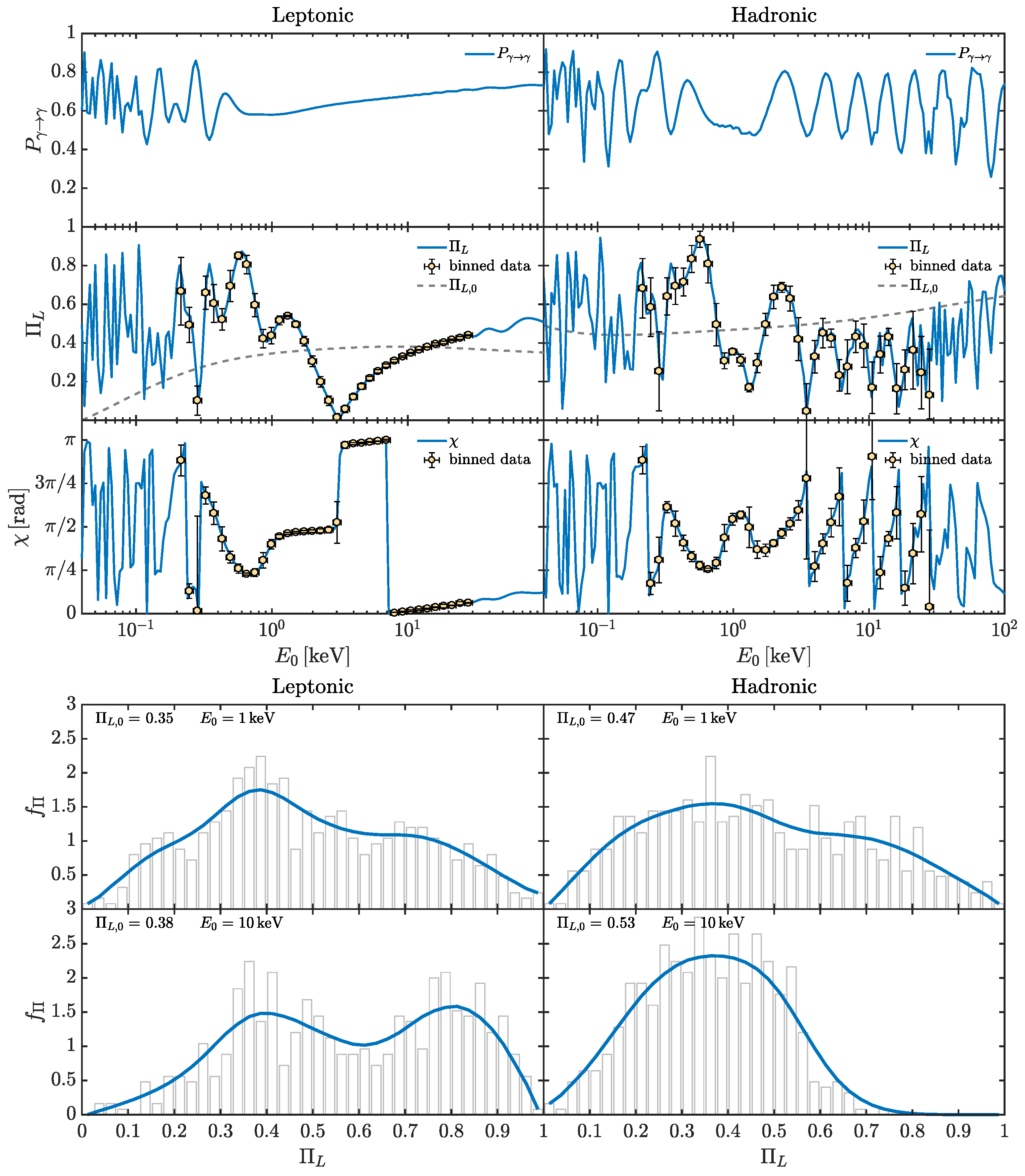

Figure 5. OJ 287. We consider a leptonic and a hadronic emission mechanism in the left and right columns, respectively. Correspondingly, the initial degree of linear polarization Π L , 0 is also shown (see also Figure 3). (Top subfigure) Photon survival probability P γ γ (upper panels), corresponding final degree of linear polarization Π L (central panels), and final polarization angle χ (lower panels) in the energy range ( 4 × 10 2 10 2 ) keV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 1 keV (upper panels) and 10 keV (lower panels). (Credit: [79]).
Figure 5. OJ 287. We consider a leptonic and a hadronic emission mechanism in the left and right columns, respectively. Correspondingly, the initial degree of linear polarization Π L , 0 is also shown (see also Figure 3). (Top subfigure) Photon survival probability P γ γ (upper panels), corresponding final degree of linear polarization Π L (central panels), and final polarization angle χ (lower panels) in the energy range ( 4 × 10 2 10 2 ) keV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 1 keV (upper panels) and 10 keV (lower panels). (Credit: [79]).
Universe 10 00312 g005

5.2. High-Energy Band

In the HE band, both the scenario with ALP parameters g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV and that with g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV produce sizable ALP effects on P γ γ , Π L and χ in the case both of photon diffuse production in the central zone of the Perseus cluster and of photon emission at the jet base of OJ 287.

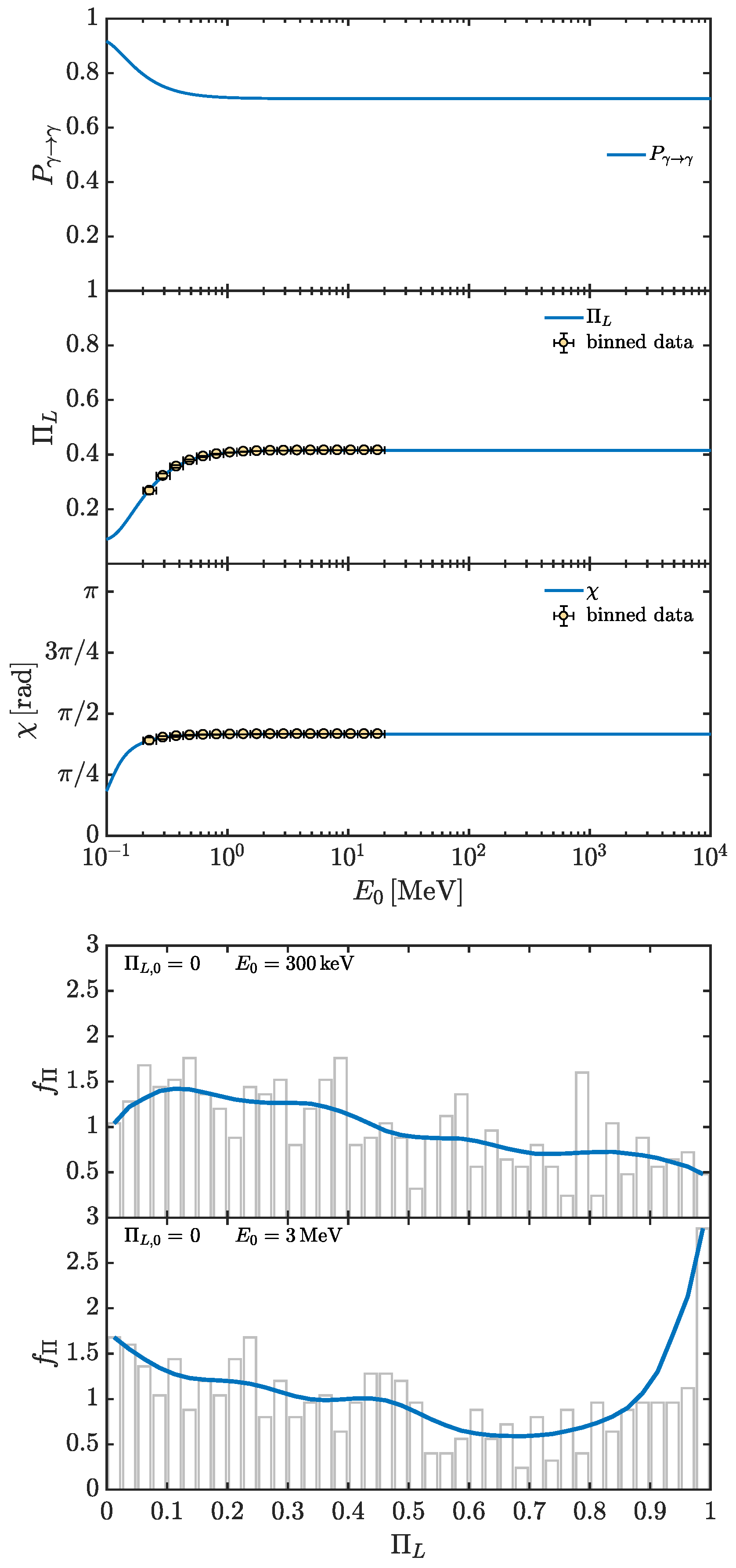

Concerning the Perseus cluster, we show the behavior of P γ γ , Π L and χ in the top subfigure of Figure 6 for the case g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV and in the top subfigure of Figure 7 for the case g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . The associated f Π are reported in the bottom subfigures of Figure 6 and Figure 7, respectively. Regarding OJ 287, we likewise report P γ γ , Π L , and χ in the top subfigure of Figure 8 for the case g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV and in the top subfigure of Figure 9 for the case g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . The corresponding f Π are shown in the bottom subfigures of Figure 8 and Figure 9, respectively. For OJ 287, we assume (i) the leptonic emission model in the left panels of Figure 8 and Figure 9 and (ii) the hadronic one in the right panels of Figure 8 and Figure 9 (see Section 4.1 and [79] for more details). Moreover, f Π is evaluated for both Perseus and OJ 287 at the two benchmark energies: (i) E 0 = 300 keV and (ii) E 0 = 3 MeV .
We first consider the scenario g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . In the present situation, the photon–ALP beam propagates in the strong mixing regime, since the photon–ALP mixing term dominates over all other terms inside the mixing matrix of Equation (4) (see Section 2). Consequently, P γ γ , Π L , and χ are energy independent in almost all the considered energy band in the case both of photon production in the central region of Perseus, as shown by the top subfigure of Figure 6, and of photon generation in the jet of OJ 287, as reported in the top subfigure of Figure 8. We can also infer that, in all the considered cases, the final Π L turns out to be strongly modified with respect to the initial Π L , 0 . The binned data show a lower uncertainty than in the UV-X-ray band due to fact that the photon–ALP system lies in the strong mixing regime, which makes both Perseus and OJ 287 good observational targets for missions such as COSI [64], e-ASTROGAM [65,66], and AMEGO [67]. Moreover, regarding OJ 287, we do not observe substantial differences between the leptonic and the hadronic emission model.

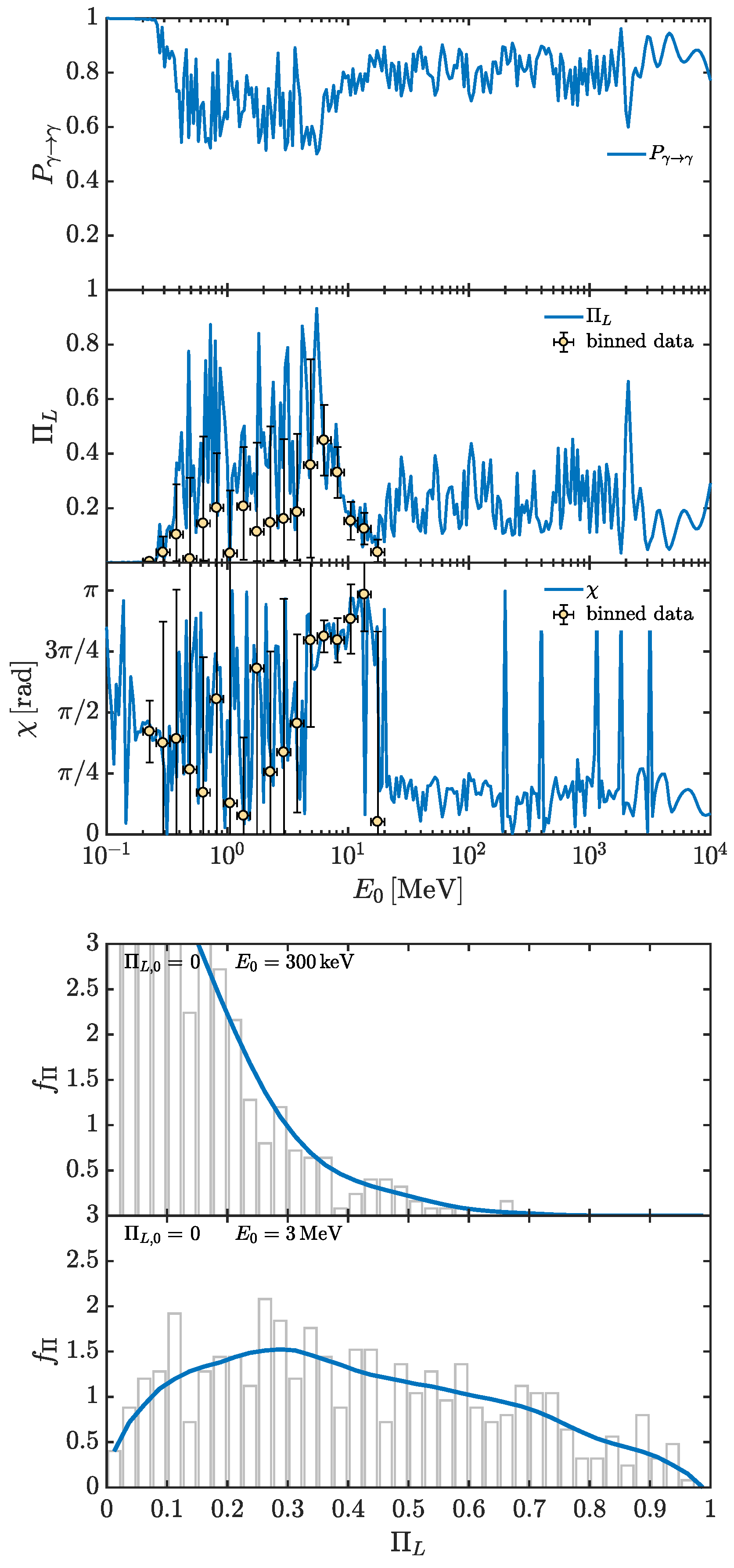

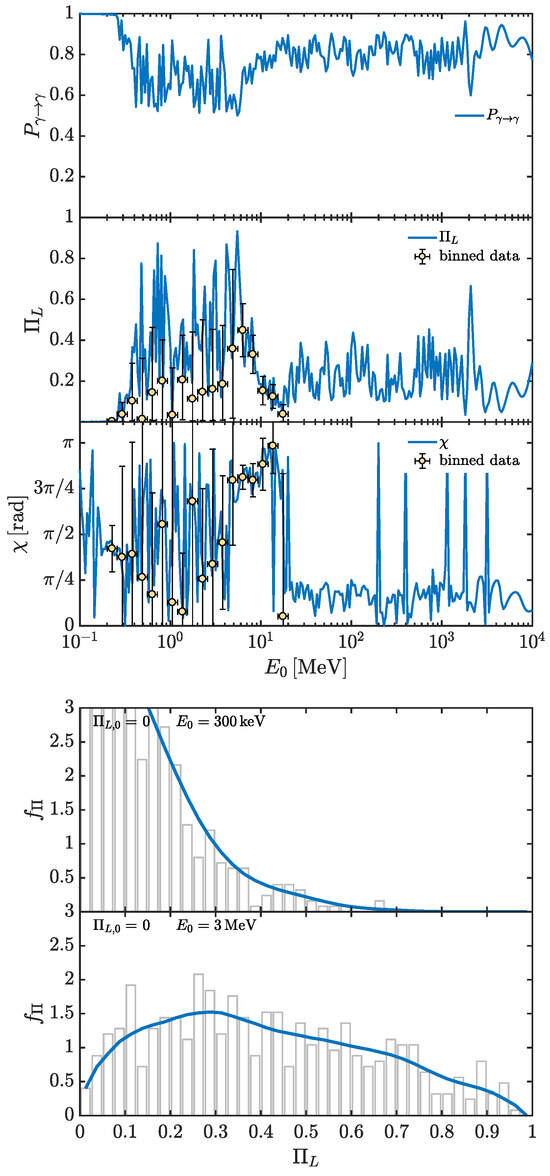

Figure 7. Perseus cluster. Same as Figure 6. We take g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . The initial degree of linear polarization is Π L , 0 = 0 . (Credit: [78]).
Figure 7. Perseus cluster. Same as Figure 6. We take g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . The initial degree of linear polarization is Π L , 0 = 0 . (Credit: [78]).
Universe 10 00312 g007
As far as the behavior of f Π is concerned, for both Perseus and OJ 287, the bottom subfigures of Figure 6 and Figure 8 respectively show that the most probable final value of Π L is larger than the initial one Π L , 0 with a substantial broadening. For both Perseus and OJ 287, the most promising energy range to study ALP effects on photon polarization appears around E 0 = 3 MeV , where the most probable value for Π L is Π L 0.8 , which is larger than that predicted by conventional physics in all considered cases.

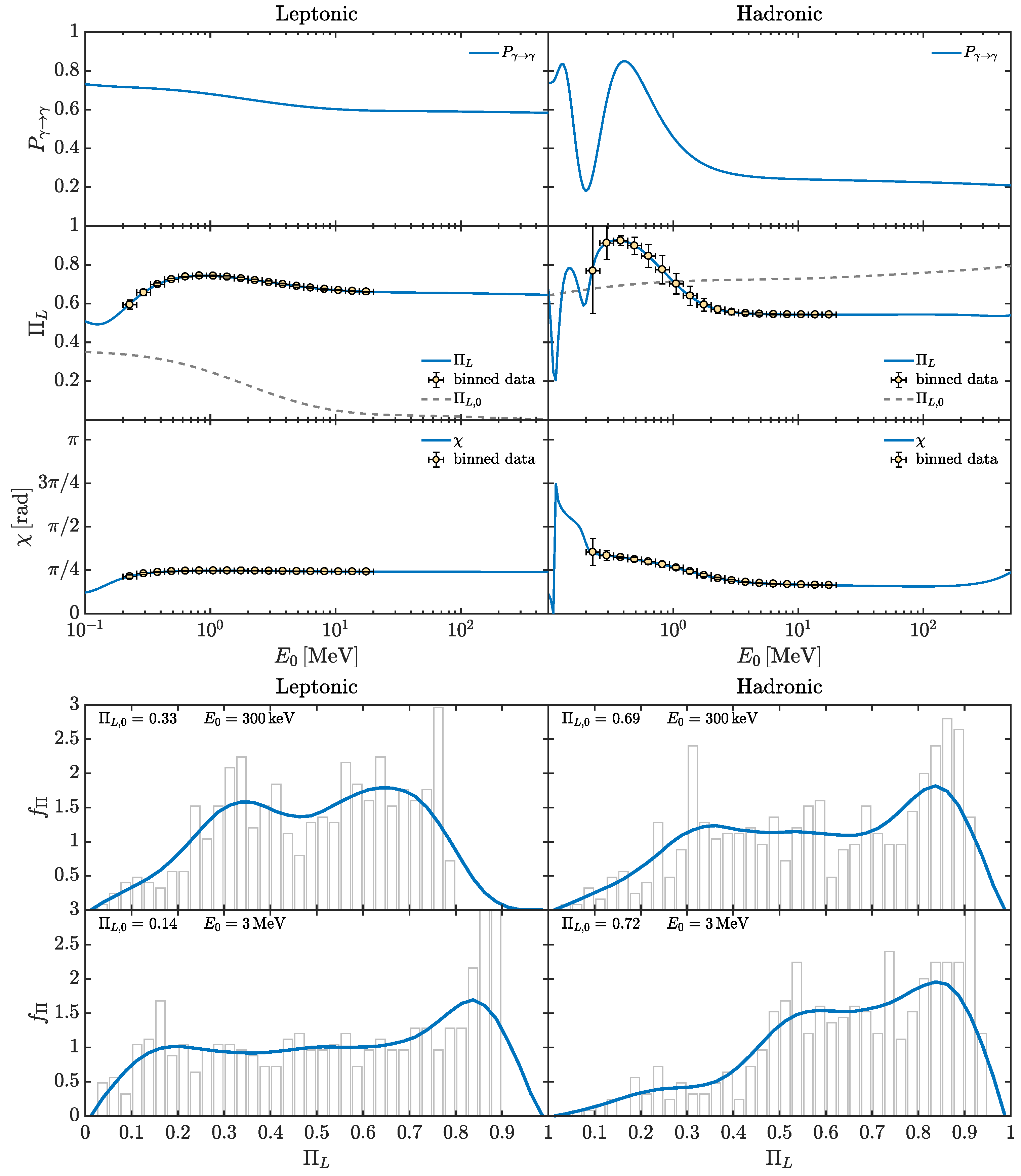

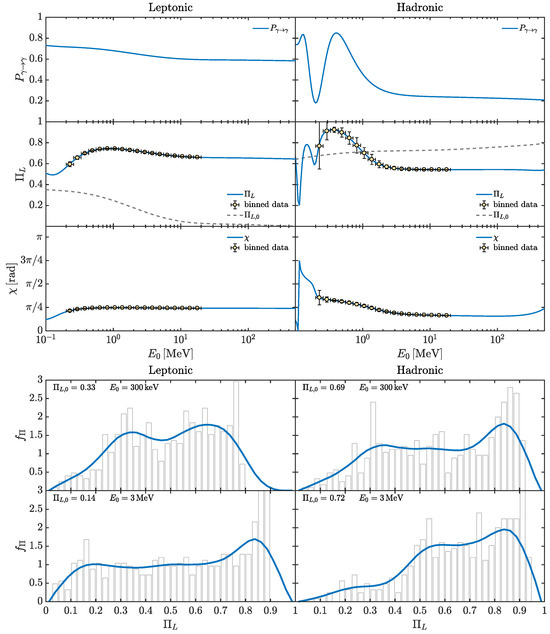

Figure 8. OJ 287. We consider a leptonic and a hadronic emission mechanism in the left and right columns, respectively. Correspondingly, the initial degree of linear polarization Π L , 0 is also shown (see also Figure 3). (Top subfigure) Photon survival probability P γ γ (upper panels), corresponding final degree of linear polarization Π L (central panels), and final polarization angle χ (lower panels) in the energy range ( 10 1 5 × 10 2 ) MeV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 300 keV (upper panels) and 3 MeV (lower panels). (Credit: [79]).
Figure 8. OJ 287. We consider a leptonic and a hadronic emission mechanism in the left and right columns, respectively. Correspondingly, the initial degree of linear polarization Π L , 0 is also shown (see also Figure 3). (Top subfigure) Photon survival probability P γ γ (upper panels), corresponding final degree of linear polarization Π L (central panels), and final polarization angle χ (lower panels) in the energy range ( 10 1 5 × 10 2 ) MeV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 300 keV (upper panels) and 3 MeV (lower panels). (Credit: [79]).
Universe 10 00312 g008
We now move to the scenario g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . In this situation, the photon–ALP system lies in the weak mixing regime, since the ALP mass term turns out to be non-negligible with respect to the photon–ALP mixing term inside the mixing matrix of Equation (4) (see Section 2). As a result, P γ γ , Π L , and χ become energy dependent, as shown in the top subfigure of Figure 7 regarding Perseus and in the top subfigure of Figure 9 concerning OJ 287. Furthermore, we observe that the final Π L turns out to be altered compared with the initial Π L , 0 especially in the case of Perseus and in that of the leptonic model for OJ 287. As already observed in the X-ray band for the case g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV , the wide energy range, where the photon–ALP system lies in the weak mixing regime, is due to the high variation of the magnetic field and electron number density profiles in the crossed media (see also Section 4.1 and Section 4.3 and [77,78,79] for more details). The binned data in the top subfigures of Figure 7 and Figure 9 show that observatories like COSI [64], e-ASTROGAM [65,66], and AMEGO [67] may detect ALP-induced features on Π L for E 0 3 MeV concerning Perseus, and similar features for E 0 0.2 MeV regarding OJ 287 in the case both of the leptonic and of the hadronic model.

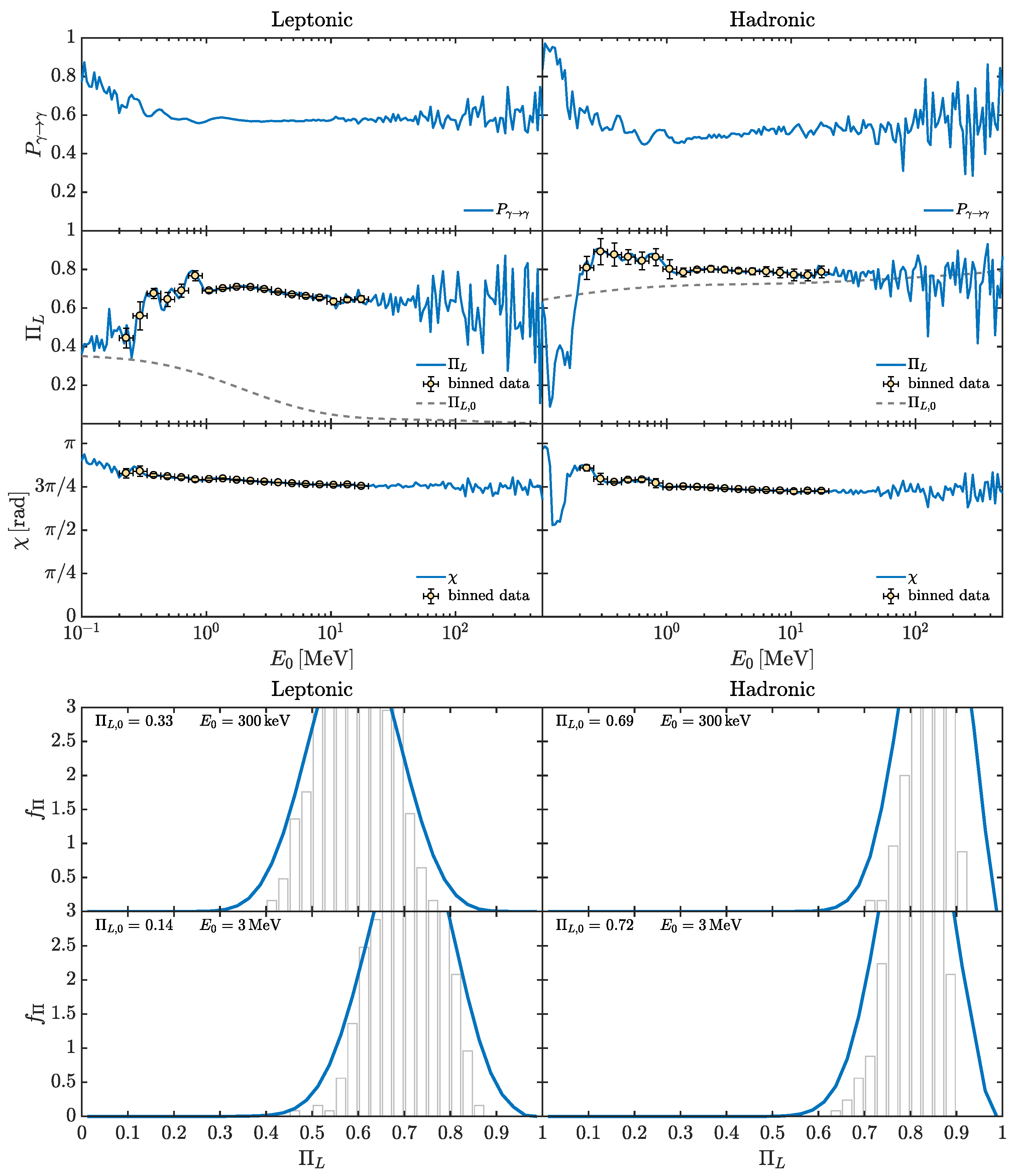

Figure 9. OJ 287. Same as Figure 8. We take g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . The behavior of the initial degree of linear polarization Π L , 0 is shown in Figure 3. (Credit: [79]).
Figure 9. OJ 287. Same as Figure 8. We take g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . The behavior of the initial degree of linear polarization Π L , 0 is shown in Figure 3. (Credit: [79]).
Universe 10 00312 g009
The behavior of f Π reported in the bottom subfigure of Figure 7 for Perseus and in the bottom subfigure of Figure 9 for OJ 287 shows a broadening of the final Π L with respect to the initial Π L , 0 in all the cases. Moreover, the best energy interval for studies of ALP-induced features on Π L appears to be E 0 3 MeV concerning the Perseus cluster, where the most probable value for the final Π L is Π L 0.2 , while conventional physics predicts Π L = Π L , 0 = 0 . Even OJ 287 represents a good observational target, since the most probable values of the final Π L are larger than the initial ones, but in this case, conventional physics could justify moderately high values of Π L albeit with some difficulty.

6. Discussion and Future Perspectives

In Section 5, the ALP impact on the polarization of photons coming from Perseus has been reported as an example of ALP effects on galaxy clusters in the X-ray and in the HE band (for details, see [78]). Similarly, OJ 287 has been presented as an illustration of the ALP-induced features on photon polarization in BL Lacs (see [79] for details). Present and planned observatories in the X-ray band [59,60,61,62,63] and in the HE range [64,65,66,67] possess the capability to detect possible ALP signatures as those analyzed in Section 5, as shown by the realistic binned data reported therein. An analysis about ALP effects on photon polarization in the VHE band has been performed in [77]: we will briefly discuss this topic in Section 6.1 along with its future crucial importance for the possible identification of an ALP signal.
The ALP-induced features on the final photon degree of linear polarization Π L discussed in Section 5 mainly originate inside the galaxy cluster central region and/or in the blazar jet, while the effect of other crossed media is subdominant, as shown in [77,78,79]. Specifically, a negligible photon–ALP conversion inside the extragalactic space (when B ext < 10 15 G ) does not substantially change the results apart from a smaller broadening of Π L shown in the behavior of its associated probability density function f Π [77,78,79].
In particular, photons diffusely emitted in the central region of galaxy clusters are expected to be observed as unpolarized within conventional physics both in the X-ray and in the HE range (i.e., with Π L = 0 , see Section 4.3). Instead, the photon–ALP interaction model consistently predicts Π L > 0 for them in both energy ranges. Therefore, galaxy clusters appear among the best observational targets for studies concerning ALP-induced effects on photon polarization. Specifically, a possible future detection of photons diffusely emitted from galaxy clusters with Π L > 0 would represent a hint at ALP existence in addition to the already-existing ones [32,33,57], since conventional physics along with other scenarios like Lorentz invariance violation [165] is unable to explain Π L > 0 (see [78] for details). BL Lacs are also promising targets especially in the cases where the photon–ALP interaction model predicts Π L > 0.8 (see Section 5), since, in this case, even the hadronic emission model can hardly justify such high polarization degrees within conventional physics (for details, see [79]). However, in case of lower Π L values detected from BL Lacs, the exclusion of an explanation within conventional physics and the demonstration of the need for ALPs may be less robust. Note that the magnetic field in the jet B jet is expected to be quite turbulent, which implies a lower initial photon degree of linear polarization Π L , 0 especially within the leptonic emission model, as shown by a recent theoretical study [166] and confirmed by IXPE results [167,168,169,170,171,172,173,174,175]. Consequently, the final Π L predicted by the photon–ALP interaction model is reduced in the cases where the initial Π L , 0 remains the most probable final value, as shown by the behavior of the corresponding f Π in Section 5.
Other possible targets to evaluate ALP effects on photon polarization are represented by (i) white dwarfs, where ALP bounds can be derived from polarization measurements [71,89]; (ii) neutron stars, where ALPs produce polarization signatures detectable in the X-ray band [74]; and (iii) GRBs, where the photon–ALP conversion over cosmological distances strongly modifies the initial photon polarization degree, as shown in the pioneering study performed in [68]. We will focus our attention in Section 6.2 on GRBs due to their importance also for the Universe transparency problem regarding the recent detection by the LHAASO Collaboration of GRB 221009A up to 18 TeV [55,56], which is difficult to justify within conventional physics, but is instead explained by the photon–ALP interaction (see Section 6.2 and [57] for details).
As far as the ALP parameter space ( m a , g a γ γ ) is concerned, we have analyzed two cases: (i) m a 10 14 eV ,   g a γ γ = 0.5 × 10 11 GeV 1 and (ii) m a = 10 10 eV , g a γ γ = 0.5 × 10 11 GeV 1 . Both the previous possibilities are within the CAST bound [80]. The former ALP scenario, i.e., the case with m a 10 14 eV , is disfavored by some recent bounds [85,86,87,88], but this possibility cannot be excluded, as discussed in [79]. Instead, the latter choice, i.e., the case with m a = 10 10 eV , meets all existing bounds and is compatible with the ALP parameters employed in previous studies, where ALP hints have been found [32,33,57]. This is the reason why the case m a = 10 10 eV , g a γ γ = 0.5 × 10 11 GeV 1 appears to be more promising. As discussed in [78], other possibilities, such as an ALP with mass m a = 10 11 eV and coupling to photons g a γ γ = 0.5 × 10 11 GeV 1 , will produce an intermediate behavior between the two cases considered in Section 5 and can meet all current ALP bounds. Note that, while an increment (decrement) of the strength of g a γ γ implies a corresponding increase (decrease) of the ALP effects on the final Π L and χ at a given energy, a variation in the value of m a produces the modification of the energy threshold, starting from which the ALP-induced polarization features become relevant. In particular, as shown in Section 5, for m a 10 14 eV down to extremely low ALP masses, we do not expect modifications in the ALP-induced effects on Π L and χ , since the ALP mass term turns out to be subdominant with respect to the plasma term in Equation (4). For 10 14 eV m a 10 10 eV , the ALP mass term starts to become important and progressively overcomes the strength of the plasma term with a resulting translation at higher energies of the threshold above which the ALP-induced effects become sizable. For the above-mentioned ALP mass m a = 10 11 eV , substantial effects on Π L and χ are expected starting from E 0 O ( 2 5 ) keV , while, as shown in Section 5, for m a = 10 10 eV , the ALP impact on Π L and χ is relevant for E 0 O ( 0.2 0.5 ) MeV . Lastly, for m a progressively increasing above 10 10 eV , the ALP-induced effects on Π L and χ will correspondingly appear at larger and larger energies up to disappear in the HE range and to become sizable only in the VHE band and beyond.
As far as polarization measurements are concerned, unfortunately, we do not presently have many observational data regarding the astrophysical sources considered in this review, i.e., galaxy clusters, blazars, and GRBs. In particular, polarization data in both the X-ray and HE bands regarding diffuse emission from galaxy clusters are substantially missing. Since, as discussed above, these latter astrophysical sources are extremely important for analyzing ALP-induced effects on photon polarization and for studying ALP physics in general, a dedicated observational campaign by IXPE [59] could provide vital information in this regard. Concerning blazars, we now have recent polarimetric data obtained in the X-ray band by IXPE (see, e.g., [167,168,169,170,171,172,173,174,175]), which promises to provide us with further important results in the near future. Regarding GRBs, some polarization measurements have been obtained in the X-ray band [176,177,178,179]. For all the astrophysical sources discussed in this review, further polarimetric data are expected from new missions proposed both in the X-ray band [60,61,62,63] and in the HE range [64,65,66,67].

6.1. Very High Energy Band

In the VHE band, we consider the case of a BL Lac emitting within the leptonic model and placed inside a rich galaxy cluster, as studied in [77]; therefore, this represents an alternative possibility with respect to those contemplated in Section 5.1 and Section 5.2. In the present situation, photon–ALP interaction inside the galaxy cluster is relevant, while the conversion inside the host is subdominant (see Section 4 for more details). The total transfer matrix of the photon–ALP beam is represented by Equation (31). In the following, two possibilities are evaluated: (i) a BL Lac with average properties (see below) is located at a redshift z = 0.03 ; (ii) the same BL Lac is placed at z = 0.4 . The BL Lac redshift represents a crucial parameter to evaluate the photon–ALP system behavior in the VHE band: since, for E 0 100 GeV , the absorption of VHE photons due to their interaction with the EBL is not negligible, as it occurs instead for lower energies, as in Section 5.1 and Section 5.2 (see also Section 4.4), a larger redshift means a higher photon absorption.
In the present scenario, the profiles of the magnetic field in the jet B jet and of the electron number density n e jet are provided by Equations (27) and (28), respectively, by taking the following parameter values: B 0 jet = 0.5 G , y em = 3 × 10 16 cm , n e , 0 jet = 5 × 10 4 cm 3 , and γ = 15 . Photons are assumed to be produced within the leptonic model as unpolarized, i.e., with the initial degree of the linear polarization Π L , 0 = 0 (see [77] for more details). Moreover, we consider a CC galaxy cluster, hosting the BL Lac, with the electron number density profile
n e clu ( y ) = n e , 0 clu 1 + y 2 r core 2 3 2 β clu ,
with the typical parameter values n e , 0 clu = 5 × 10 2 cm 3 , r core = 100 kpc , and β clu = 2 / 3 [137,138,140]. The cluster magnetic field B clu reads from Equation (29) by taking the following typical parameter values: B 0 clu = 15 μ G , η clu = 0.75 , q = 11 / 3 , k L = 0.2 kpc 1 , and k H = 3 kpc 1 [137,138,140]. Furthermore, we assume an extragalactic magnetic field strength B ext < 10 15 G , resulting in an inefficient photon–ALP conversion inside the extragalactic space. Concerning the ALP parameters, we take g a γ γ = 0.5 × 10 11 GeV 1 and m a = 10 10 eV .

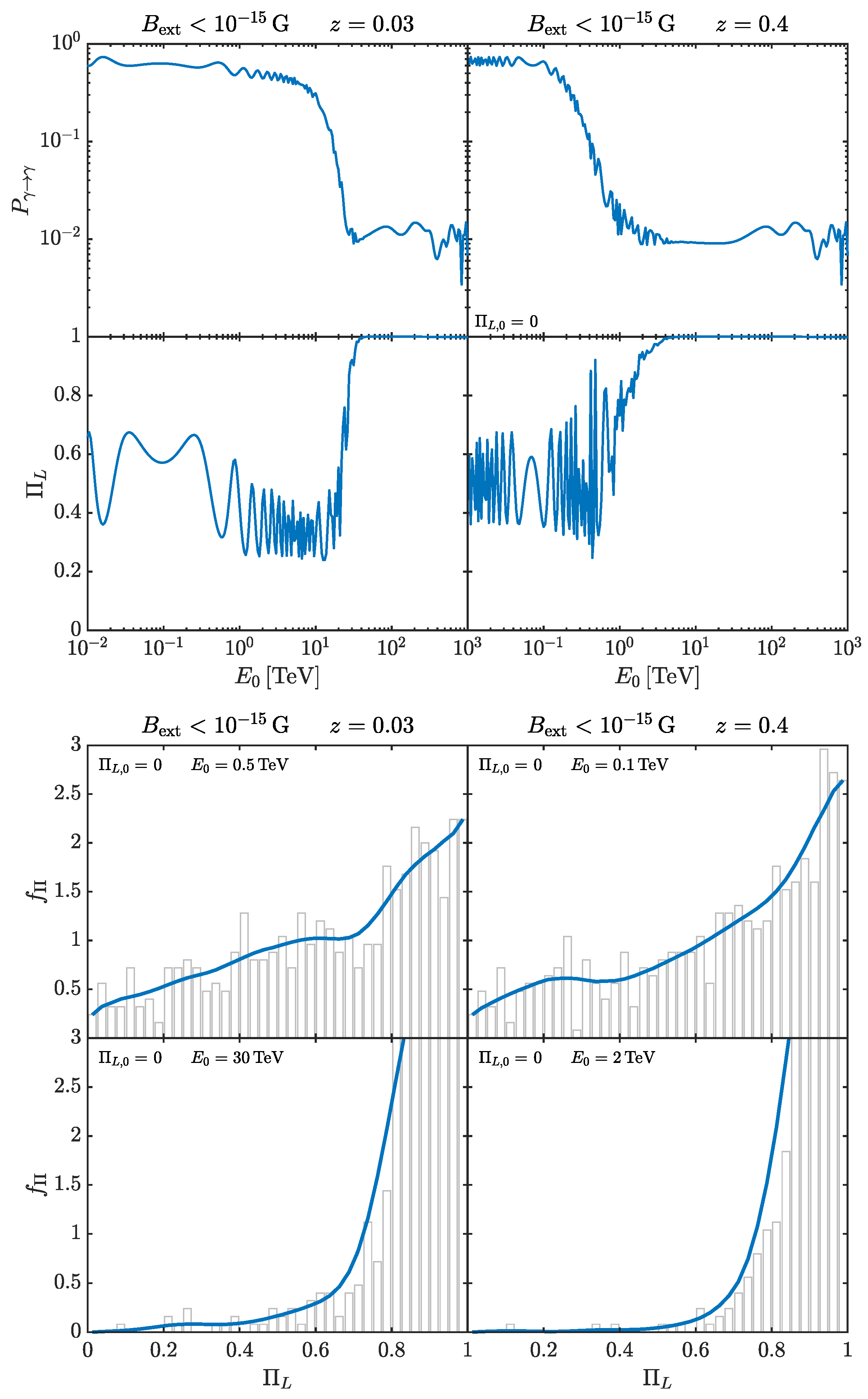

For a BL Lac with the above-discussed properties, we show P γ γ and Π L in the top subfigure of Figure 10 and the corresponding f Π associated with the final Π L in the bottom subfigure. The left panels of Figure 10 report the results for the BL Lac placed at z = 0.03 , while the right panels show the same results but for the BL Lac located at z = 0.4 (see [77] for more details).
The top subfigure of Figure 10 shows that P γ γ and Π L are energy dependent, since the photon–ALP system lies in the weak mixing regime due to the strength of the QED one-loop term, which is not negligible at high energies especially inside the BL Lac jet. Specifically, the final Π L turns out to be strongly modified with respect to the initial one Π L , 0 in both cases of the BL Lac placed at z = 0.03 and at z = 0.4 . Now, a new aspect must be considered in the VHE band with respect to the cases at lower energies discussed in Section 5.1 and Section 5.2: the top subfigure of Figure 10 shows that P γ γ considerably decreases due to the EBL absorption starting from E 0 3 TeV at z = 0.03 and from E 0 200 GeV at z = 0.4 . Correspondingly, Π L starts to grow up to its limit value Π L = 1 , which is reached at E 0 30 TeV for z = 0.03 and at E 0 5 TeV for z = 0.4 , where photons are fully polarized and P γ γ 10 2 . The different behavior with respect to the redshift is due to the fact that the EBL absorption grows as both the energy and the redshift increase. As deeply discussed in [77], we have therefore found a peculiar feature: in the presence of photon–ALP interaction, photons, observed at energies where EBL absorption is very strong, are fully polarized. The full explanation of this important feature regarding Π L , and shown in the top subfigure of Figure 10, is provided in [77]: in short, after photon–ALP interaction inside the source, we have both photons and ALPs entering the extragalactic space. Then, when EBL absorption is extremely high, all remaining photons are lost during their propagation in the extragalactic space, and we therefore collect only those photons that are reconverted back from ALPs in the Milky Way magnetic field B MW . Still, only the coherent component of B MW is efficient in producing photon–ALP conversion so that photons reconverted back from ALPs inside the Milky Way turn out to be fully polarized.
The behavior of f Π in the bottom subfigure of Figure 10 confirms the robustness of the previous discussion. In particular, upper panels deal with the case of small EBL absorption, while the lower ones describe the situation illustrated above, in which Π L tends to its limit value Π L = 1 with a concomitant high EBL absorption. Note that the behavior of f Π in the left panels is similar to that in the right ones, but different energies are considered (see the legend inside the panels) due to the above-described behavior of the EBL absorption as a function of energy and redshift. Since conventional physics cannot explain the scenario Π L = 1 , a possible detection of fully polarized VHE photons not only would be an additional hint at ALPs in addition to those discussed in [32,33,57], but also would represent the proof of ALP existence. Therefore, this ALP-induced feature identified in [77] producing fully polarized photons at VHE possesses a high discovery power. However, this possibility nowadays represents only a hope for the future, as currently known techniques cannot measure photon polarization in the VHE band but are limited to tens of GeV at most [180].

6.2. Gamma-Ray Bursts

ALP effects on the polarization of photons produced by GRBs have been analyzed in a pioneering study [68], where photon–ALP conversion is evaluated inside the source, in the extragalactic space, inside possibly crossed galaxy clusters, and in the Milky Way within the tens of KeV-few MeV band. In particular, the benchmark energy E 0 = 100 keV and the ALP parameters g a γ γ = 10 11 GeV 1 , m a = 10 13 eV are taken into account.
GRBs are extremely intense explosions originating at cosmological distances and are characterized by a prompt and an afterglow phase. By considering the typical parameters of the prompt phase—which is analyzed in [68]—regarding the magnetic field strength and the electron number density, the photon–ALP conversion inside the source turns out to be negligible. Regarding the magnetic field structure in extragalactic space, galaxy clusters, and Milky Way, domain-like models with different parameter values inside the several crossed media are assumed in [68]. In particular, by calling B ext , B clu , and B MW the magnetic field strengths in extragalactic space, galaxy clusters, and Milky Way, respectively, and L dom ext , L dom clu , and L dom MW the corresponding magnetic field coherence lengths, the following values are assumed: B ext = O ( 1 ) nG , B clu = O ( 1 ) μ G , B MW = O ( 1 5 ) μ G and L dom ext = O ( 1 ) Mpc , L dom clu = O ( 10 ) kpc , L dom MW = O ( 10 ) kpc (see [68] for more details).
For the chosen parameter values concerning both the photon–ALP system and the crossed media, the photon–ALP beam propagates in the strong mixing regime in all the previous zones within the considered energy band. Consequently, both P γ γ and Π L turn out to be energy independent with Π L which is modified with respect to the initial Π L , 0 . Therefore, the only informative quantity in the present situation is represented by f Π , which is shown in Figure 11 for photon–ALP conversion inside the extragalactic space. In particular, the behavior of f Π for different initial values of Π L , 0 is shown in the top subfigure of Figure 11 for a GRB placed at redshift z = 0.3 and in the bottom subfigure for a GRB located at z = 2 . Note that, in Figure 11, the initial degree of linear polarization is denoted by Π 0 and the photon–ALP coupling by g a γ , but these quantities possess the same meaning of Π L , 0 and g a γ γ , respectively, which are used in the whole review.

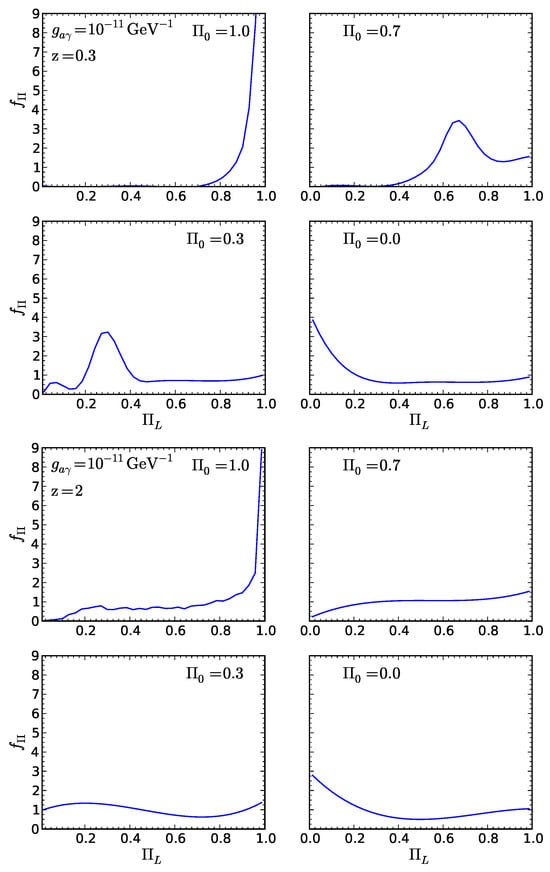

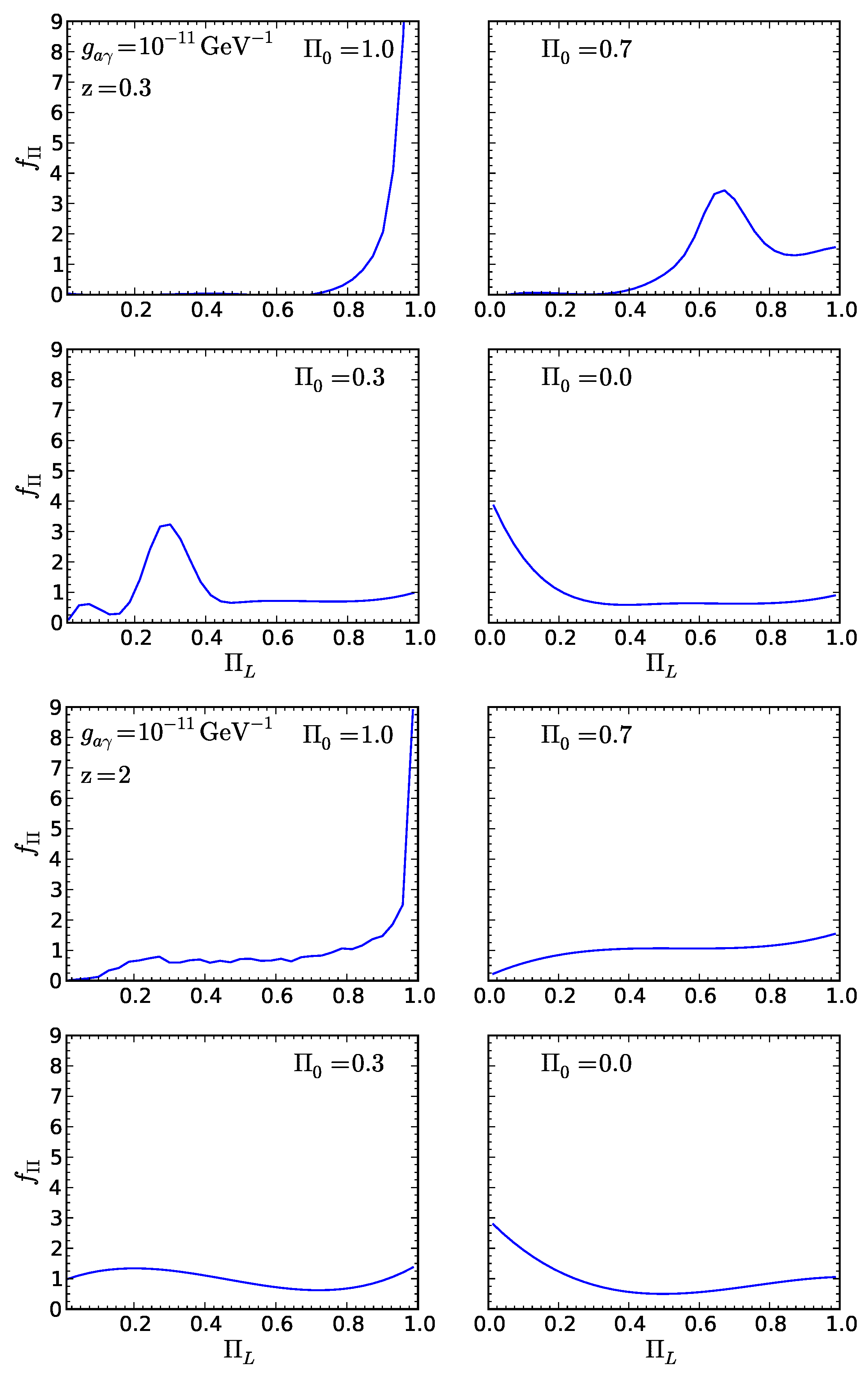

Figure 11 shows that the initial Π L , 0 (we recall the different notation here with Π 0 Π L , 0 ) is strongly modified and broadened in a similar way as it occurs in the systems considered in Section 5.1 and Section 5.2. In particular, the bottom subfigure shows that this effect increases with the redshift. Moreover, as shown in [68], the photon–ALP beam propagation inside galaxy clusters and in the Milky Way further increases the broadening effect of the initial Π L , 0 to a point that, at high redshift, the most probable value of the final Π L is no more the initial one, apart from the case of the initial Π L , 0 Π 0 = 1.
These findings demonstrate that GRBs are very important astrophysical sources where ALP-induced effects on photon polarization can be studied, in addition to galaxy clusters and BL Lacs (see Section 5.1 and Section 5.2). The recent detection by the LHAASO Collaboration of photons with energy of up to 18 TeV produced by GRB 221009A [55,56]—which is difficult to justify in the context of conventional physics—shows the need to extend the analysis of the ALP impact on GRB polarization even at higher energy bands in a similar way as discussed in Section 4 and Section 5. Moreover, the explanation of the GRB 221009A detection up to 18 TeV within the photon–ALP interaction model developed in [57] demonstrates the importance of the photon–ALP conversion also inside the galaxy hosting the GRB. Therefore, an analysis similar to that performed in [68], by considering the photon–ALP beam propagation also in the host galaxy and updated models for the photon–ALP conversion inside extragalactic space, galaxy clusters, and Milky Way, appears very promising in order to discover further ALP-induced features on photon polarization and even possible new hints at ALP existence or to improve constraints on the ALP parameter space.

7. Conclusions

In this review, we have described the ALP-induced effects on photon polarization, which can provide a different and complementary way to study the ALP physics with respect to the analysis of the ALP consequences on astrophysical spectra. As mentioned above, there exist three hints at ALP existence linked to the ALP effects on astrophysical spectra, with the most recent and strongest indication coming from the detection by the LHAASO Collaboration of GRB 221009A up to 18 TeV [55,56], which can hardly be justified within conventional physics but is naturally explained by photon–ALP interaction [57] (see also [58]). In the near future, we expect that new spectral data from observatories such as ASTRI [42], CTA [43], GAMMA-400 [44], HAWC [45], HERD [46], LHAASO [47], and TAIGA-HiSCORE [48] will be able to increase our knowledge of the ALP properties.
The study of the ALP effects on the polarization of photons generated by astrophysical sources such as galaxy clusters, blazars, GRBs, neutron stars, and white dwarfs can add further information by shedding light on the ALP parameter space with current spectral hints suggesting m a = O ( 10 10 ) eV and g a γ γ = O ( 10 11 ) GeV 1 . As discussed in this review, galaxy clusters represent very promising observational targets in this respect. In fact, according to conventional physics, photons are emitted unpolarized in the central region of galaxy clusters both in the X-ray and in the HE band, resulting in an expected zero polarization degree for the observed photons, while the photon–ALP interaction makes them partially polarized with ALP parameters in the same ballpark of those producing spectral effects. Therefore, a possible future signal of partially polarized photons diffusely produced inside galaxy clusters would be a further strong hint at ALP existence. A negative signal would instead be useful to constrain the ALP parameter space further. In any case, as discussed in this review, future observations of the photon polarization degree from other astrophysical sources like blazars and GRBs are also very promising. Missions such as IXPE [59] (already operative), eXTP [60], XL-Calibur [61], NGXP [62], XPP [63] in the X-ray band and like COSI [64], e-ASTROGAM [65,66], and AMEGO [67] in the HE range may test our findings about ALP effects on photon polarization.
Finally, an ALP direct detection could be achieved by laboratory experiments such as ALPS II [181], IAXO [182] and STAX [183], thanks to the techniques developed by Avignone and collaborators [184,185,186] and possibly with the ABRACADABRA experiment [187].

Funding

The work of the author is supported by a contribution through Grant No. ASI-INAF 2023-17-HH.0 and by the INAF Mini Grant ‘High-energy astrophysics and axion-like particles’, PI: Giorgio Galanti.

Data Availability Statement

Data used in this paper can be asked from the authors of the quoted papers.

Acknowledgments

The author thanks Giacomo Bonnoli, Silvano Molendi, and Lara Nava for the discussions and all collaborators in this field, especially Enrico Costa, Alessandro De Angelis, Marco Roncadelli, and Fabrizio Tavecchio.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Chang, S.; Tazawa, S.; Yamaguchi, M. Axion model in extra dimensions with TeV scale gravity. Phys. Rev. D 2000, 61, 084005. [Google Scholar] [CrossRef]
  2. Dienes, K.R.; Dudas, E.; Gherghetta, T. Invisible axions and large-radius compactifications. Phys. Rev. D 2000, 62, 105023. [Google Scholar] [CrossRef]
  3. Turok, N. Almost-Goldstone Bosons from Extra-Dimensional Gauge Theories. Phys. Rev. Lett. 1996, 76, 1015. [Google Scholar] [CrossRef] [PubMed]
  4. Corianò, C.; Irges, N. Windows over a new low energy axion. Phys. Lett. B 2007, 651, 298–305. [Google Scholar] [CrossRef]
  5. Corianò, C.; Irges, N.; Morelli, S. Stückelberg axions and the effective action of anomalous abelian models 1. A unitarity analysis of the Higgs-axion mixing. J. High Energy Phys. 2007, 2007, 008. [Google Scholar] [CrossRef]
  6. Baer, H.; Krami, S.; Sekmen, S.; Summy, H. Dark matter allowed scenarios for Yukawa-unified SO(10) SUSY GUTs. J. High Energy Phys. 2008, 2008, 056. [Google Scholar] [CrossRef]
  7. Baer, H.; Summy, H. SO(10) SUSY GUTs, the gravitino problem, non-thermal leptogenesis and axino dark matter. Phys. Lett. B 2008, 666, 5–9. [Google Scholar] [CrossRef]
  8. Baer, H.; Haider, M.; Kraml, S.; Sekmen, S.; Summy, H. Cosmological consequences of Yukawa-unified SUSY with mixed axion/axino cold and warm dark matter. J. Cosmol. Astropart. Phys. 2009, 2009, 002. [Google Scholar] [CrossRef]
  9. Witten, E. Some properties of O(32) superstrings. Phys. Lett. B 1984, 149, 351–356. [Google Scholar] [CrossRef]
  10. Conlon, J.P. The QCD axion and moduli stabilisation. J. High Energy Phys. 2006, 2006, 078. [Google Scholar] [CrossRef]
  11. Svrcek, P.; Witten, E. Axions in string theory. J. High Energy Phys. 2006, 2006, 051. [Google Scholar] [CrossRef]
  12. Conlon, J.P. Seeing an Invisible Axion in the Supersymmetric Particle Spectrum. Phys. Rev. Lett. 2006, 97, 261802. [Google Scholar] [CrossRef] [PubMed]
  13. Choi, K.-S.; Kim, I.-W.; Kim, J.E. String compactification, QCD axion and axion–photon–photon coupling. J. High Energy Phys. 2007, 2007, 116. [Google Scholar] [CrossRef]
  14. Arvanitaki, A.; Dimopoulos, S.; Dubovsky, S.; Kaloper, N.; March-Russell, J. String axiverse. Phys. Rev. D 2010, 81, 123530. [Google Scholar] [CrossRef]
  15. Acharya, B.S.; Bobkov, K.; Kumar, P. An M theory solution to the strong CP-problem, and constraints on the axiverse. J. High Energy Phys. 2010, 11, 105. [Google Scholar] [CrossRef]
  16. Cicoli, M.; Goodsell, M.; Ringwald, A. The type IIB string axiverse and its low-energy phenomenology. J. High Energy Phys. 2012, 10, 146. [Google Scholar] [CrossRef]
  17. Jaeckel, J.; Ringwald, A. The Low-Energy Frontier of Particle Physics. Ann. Rev. Nucl. Part. Sci. 2010, 60, 405–437. [Google Scholar] [CrossRef]
  18. Ringwald, A. Exploring the role of axions and other WISPs in the dark universe. Phys. Dark Univ. 2012, 1, 116–135. [Google Scholar] [CrossRef]
  19. Kim, J.H. Light pseudoscalars, particle physics and cosmology. Phys. Rep. 1987, 150, 1–177. [Google Scholar] [CrossRef]
  20. Cheng, H.Y. The strong CP problem revisited. Phys. Rep. 1988, 158, 1–89. [Google Scholar] [CrossRef]
  21. Kim, J.E.; Carosi, G. Axions and the strong CP problem. Rev. Mod. Phys. 2010, 82, 557. [Google Scholar] [CrossRef]
  22. Marsch, D.J.E. Axion cosmology. Phys. Rep. 2016, 643, 1. [Google Scholar] [CrossRef]
  23. Preskill, J.; Wise, M.B.; Wilczek, F. Cosmology of the invisible axion. Phys. Lett. B 1983, 120, 127–132. [Google Scholar] [CrossRef]
  24. Abbott, L.F.; Sikivie, P. A cosmological bound on the invisible axion. Phys. Lett. B 1983, 120, 133–136. [Google Scholar] [CrossRef]
  25. Dine, M.; Fischler, W. The not-so-harmless axion. Phys. Lett. B 1983, 120, 137–141. [Google Scholar] [CrossRef]
  26. Arias, P.; Cadamuro, D.; Goodsell, M.; Jaeckel, J.; Redondo, J.; Ringwald, A. WISPy cold dark matter. J. Cosmol. Astropart. Phys. 2012, 2012, 013. [Google Scholar] [CrossRef]
  27. Maiani, L.; Petronzio, R.; Zavattini, E. Effects of nearly massless, spin-zero particles on light propagation in a magnetic field. Phys. Let. B 1986, 175, 359–363. [Google Scholar] [CrossRef]
  28. Raffelt, G.G.; Stodolsky, L. Mixing of the photon with low-mass particles. Phys. Rev. D 1988, 37, 1237. [Google Scholar] [CrossRef] [PubMed]
  29. Irastorza, I.G.; Redondo, J. New experimental approaches in the search for axion-like particles. Prog. Part. Nucl. Phys. 2018, 102, 89–159. [Google Scholar] [CrossRef]
  30. Galanti, G.; Roncadelli, M. Axion-like Particles Implications for High-Energy Astrophysics. Universe 2022, 8, 253. [Google Scholar] [CrossRef]
  31. Tavecchio, F.; Roncadelli, M.; Galanti, G. Photons to axion-like particles conversion in Active Galactic Nuclei. Phys. Lett. B 2015, 744, 375–379. [Google Scholar] [CrossRef]
  32. Tavecchio, F.; Roncadelli, M.; Galanti, G.; Bonnoli, G. Evidence for an axion-like particle from PKS 1222+216? Phys. Rev. D 2012, 86, 085036. [Google Scholar] [CrossRef]
  33. Galanti, G.; Roncadelli, M.; De Angelis, A.; Bignami, G.F. Hint at an axion-like particle from the redshift dependence of blazar spectra. Mon. Not. Astron. R. Soc. 2020, 493, 1553. [Google Scholar] [CrossRef]
  34. De Angelis, A.; Roncadelli, M.; Mansutti, O. Evidence for a new light spin-zero boson from cosmological gamma-ray propagation? Phys. Rev. D 2007, 76, 121301. [Google Scholar] [CrossRef]
  35. De Angelis, A.; Galanti, G.; Roncadelli, M. Relevance of axionlike particles for very-high-energy astrophysics. Phys. Rev. D 2011, 84, 105030, Erratum in Phys. Rev. D 2013, 87, 109903. [Google Scholar] [CrossRef]
  36. Galanti, G.; Roncadelli, M. Extragalactic photon–axion-like particle oscillations up to 1000 TeV. J. High Energy Astrophys. 2018, 20, 1–17. [Google Scholar] [CrossRef]
  37. De Angelis, A.; Galanti, G.; Roncadelli, M. Transparency of the Universe to gamma rays. Mon. Not. Astron. R. Soc. 2013, 432, 3245. [Google Scholar] [CrossRef]
  38. Franceschini, A.; Rodighiero, G. The extragalactic background light revisited and the cosmic photon-photon opacity. Astron. Astrophys. 2017, 603, A34. [Google Scholar] [CrossRef]
  39. Galanti, G.; Piccinini, F.; Roncadelli, M.; Tavecchio, F. Estimating γγ absorption for ultrahigh-energy photons with lepton and hadron production. Phys. Rev. D 2020, 102, 123004. [Google Scholar] [CrossRef]
  40. Galanti, G.; Tavecchio, F.; Roncadelli, M.; Evoli, C. Blazar VHE spectral alterations induced by photon–ALP oscillations. Mon. Not. Astron. R. Soc. 2019, 487, 123. [Google Scholar] [CrossRef]
  41. Galanti, G.; Tavecchio, F.; Landoni, M. Fundamental physics with blazar spectra: A critical appraisal. Mon. Not. Astron. R. Soc. 2020, 491, 5268. [Google Scholar] [CrossRef]
  42. Vercellone, S.; Bigongiari, C.; Burtovoi, A.; Cardillo, M.; Catalano, O.; Franceschini, A.; Lombardi, S.; Nava, L.; Pintore, F.; Stamerra, A.; et al. ASTRI Mini-Array core science at the Observatorio del Teide. J. High Energy Astrophys. 2022, 35, 1–42. [Google Scholar] [CrossRef]
  43. Available online: https://www.cta-observatory.org/ (accessed on 10 June 2024).
  44. Egorov, A.E.; Topchiev, N.P.; Galper, A.M.; Dalkarov, O.D.; Leonov, A.A.; Suchkov, S.I.; Yurkin, Y.T. Dark matter searches by the planned gamma-ray telescope GAMMA-400. J. Cosmol. Astropart. Phys. 2020, 11, 049. [Google Scholar] [CrossRef]
  45. Available online: https://www.hawc-observatory.org/ (accessed on 10 June 2024).
  46. Huang, X.; Lamperstorfer, A.S.; Tsai, Y.L.S.; Xu, M.; Yuan, Q.; Chang, J.; Dong, Y.W.; Hu, B.L.; Lü, J.G.; Wang, L.; et al. Perspective of monochromatic gamma-ray line detection with the High Energy cosmic-Radiation Detection (HERD) facility onboard China’s space station. Astropart. Phys. 2016, 78, 35–42. [Google Scholar] [CrossRef]
  47. Cao, Z.; della Volpe, D.; Liu, S.; Bi, X.; Chen, Y.; D’Ettorre Piazzoli, B.; Feng, L.; Jia, H.; Li, Z.; Ma, X.; et al. The Large High Altitude Air Shower Observatory (LHAASO) Science Book (2021 Edition). Chin. Phys. C 2022, 46, 035001–035007. [Google Scholar]
  48. Available online: https://taiga-experiment.info/taiga-hiscore/ (accessed on 10 June 2024).
  49. Ajello, M. et al. [Fermi-LAT collaboration] Search for spectral irregularities due to photon–axionlike-particle oscillations with the Fermi Large Area Telescope. Phys. Rev. Lett. 2016, 116, 161101. [Google Scholar] [CrossRef] [PubMed]
  50. Abdalla, H.; Abe, H.; Acero, F.; Acharyya, A.; Adam, R.; Agudo, I.; Aguirre-Santaella, A.; Alfaro, R.; Alfaro, J.; Alispach, C.; et al. Sensitivity of the Cherenkov Telescope Array for probing cosmology and fundamental physics with gamma-ray propagation. J. Cosmol. Astropart. Phys. 2021, 2021, 048. [Google Scholar] [CrossRef]
  51. Ayala, A.; Domínguez, I.; Giannotti, M.; Mirizzi, A.; Straniero, O. Revisiting the Bound on Axion-Photon Coupling from Globular Clusters. Phys. Rev. Lett. 2014, 113, 191302. [Google Scholar] [CrossRef] [PubMed]
  52. Conlon, J.P.; Marsh, M.C.D.; Powell, A.J. Galaxy cluster thermal x-ray spectra constrain axionlike particles. Phys. Rev. D 2016, 93, 123526. [Google Scholar] [CrossRef]
  53. Jaeckel, J.; Redondo, J.; Ringwald, A. 3.55 keV hint for decaying axionlike particle dark matter. Phys. Rev. D 2014, 89, 103511. [Google Scholar] [CrossRef]
  54. Zhou, J.; Wang, Z.; Huang, F.; Chen, L. A possible blazar spectral irregularity case caused by photon-axionlike-particle oscillations. J. Cosmol. Astropart. Phys. 2021, 2021, 007. [Google Scholar] [CrossRef]
  55. LHAASO Collaboration. GCN Circular n. 32677. 2022. Available online: https://gcn.gsfc.nasa.gov/gcn3/32677.gcn3 (accessed on 10 June 2024).
  56. Cao, Z. et al. [The LHAASO Collaboration] Very high-energy gamma-ray emission beyond 10 TeV from GRB 221009A. Sci. Adv. 2023, 9, eadj2778. [Google Scholar]
  57. Galanti, G.; Nava, L.; Roncadelli, M.; Tavecchio, F.; Bonnoli, G. Observability of the Very-High-Energy Emission from GRB 221009A. Phys. Rev. Lett. 2023, 131, 251001. [Google Scholar] [CrossRef] [PubMed]
  58. Galanti, G.; Roncadelli, M.; Tavecchio, F. Assessment of ALP scenarios for GRB 221009A. arXiv 2022, arXiv:2211.06935. [Google Scholar]
  59. Weisskopf, M.C.; Soffitta, P.; Baldini, L.; Ramsey, B.D.; O’Dell, S.L.; Romani, R.W.; Matt, G.; Deininger, W.D.; Baumgartner, W.H.; Bellazzini, R.; et al. Imaging X-ray Polarimetry Explorer: Prelaunch. J. Astron. Telesc. Instrum. Syst. 2022, 8, 026002. [Google Scholar] [CrossRef]
  60. Zhang, S.; Santangelo, A.; Feroci, M.; Xu, Y.; Lu, F.; Chen, Y.; Feng, H.; Zhang, S.; Brandt, S.; Hernanz, M.; et al. The enhanced X-ray Timing and Polarimetry mission–eXTP. Sci. China Phys. Mech. Astron. 2019, 62, 29502. [Google Scholar] [CrossRef]
  61. Abarr, Q.; Awaki, H.; Baring, M.G.; Bose, R.; De Geronimo, G.; Dowkontt, P.; Errando, M.; Guarino, V.; Hattori, K.; Hayashida, K.; et al. XL-Calibur—A second-generation balloon-borne hard X-ray polarimetry mission. Astropart. Phys. 2021, 126, 102529. [Google Scholar] [CrossRef]
  62. Soffitta, P.; Bucciantini, N.; Churazov, E.; Costa, E.; Dovciak, M.; Feng, H.; Heyl, J.; Ingram, A.; Jahoda, K.; Kaaret, P.; et al. A polarized view of the hot and violent universe. Exp. Astron. 2021, 51, 1109–1141. [Google Scholar] [CrossRef]
  63. Jahoda, K.; Krawczynski, H.; Kislat, F.; Marshall, H.; Okajima, T.; Agudo, I.; Angelini, L.; Bachetti, M.; Baldini, L.; Baring, M.; et al. The X-ray Polarization Probe mission concept. arXiv 2019, arXiv:1907.10190. [Google Scholar]
  64. Yang, C.-Y.; Lowell, A.; Zoglauer, A.; Tomsick, J.; Chiu, J.-L.; Kierans, C.; Sleator, C.; Boggs, S.; Chang, H.-K.; Jean, P.; et al. The polarimetric performance of the Compton Spectrometer and Imager (COSI). Proc. SPIE 2018, 10699, 642. [Google Scholar]
  65. De Angelis, A.; Tatischeff, V.; Tavani, M.; Oberlack, U.; Grenier, I.; Hanlon, L.; Walter, R.; Argan, A.; von Ballmoos, P.; Bulgarelli, A.; et al. The e-ASTROGAM mission. Exp. Astron. 2017, 44, 25–82. [Google Scholar] [CrossRef]
  66. Tatischeff, V. et al. [e-ASTROGAM Collaboration] The e-ASTROGAM gamma-ray space observatory for the multimessenger astronomy of the 2030s. Proc. SPIE 2018, 10699, 106992J. [Google Scholar]
  67. Kierans, C.A. et al. [AMEGO Collaboration] AMEGO: Exploring the Extreme Multimessenger Universe. Proc. SPIE 2020, 11444, 1144431. [Google Scholar]
  68. Bassan, N.; Mirizzi, A.; Roncadelli, M. Axion-like particle effects on the polarization of cosmic high-energy gamma sources. J. Cosmol. Astropart. Phys. 2010, 2010, 010. [Google Scholar] [CrossRef]
  69. Jain, P.; Panda, S.; Sarala, S. Electromagnetic polarization effects due to axion-photon mixing. Phys. Rev. D 2002, 66, 085007. [Google Scholar] [CrossRef]
  70. Agarwal, N.; Kamal, A.; Jain, P. Alignments in quasar polarizations: Pseudoscalar-photon mixing in the presence of correlated magnetic fields. Phys. Rev. D 2011, 83, 065014. [Google Scholar] [CrossRef]
  71. Gill, R.; Heyl, J.S. Constraining the photon-axion coupling constant with magnetic white dwarfs. Phys. Rev. D 2011, 84, 085001. [Google Scholar] [CrossRef]
  72. Payez, A.; Cudell, J.R.; Hutsemekers, D. Can axionlike particles explain the alignments of the polarizations of light from quasars? Phys. Rev. D 2011, 84, 085029. [Google Scholar] [CrossRef]
  73. Agarwal, N.; Aluri, P.K.; Jain, P.; Khanna, U.; Tiwari, P. A complete 3D numerical study of the effects of pseudoscalar–photon mixing on quasar polarizations. Eur. Phys. J. C 2012, 72, 1928. [Google Scholar] [CrossRef]
  74. Perna, R.; Ho, W.C.G.; Verde, L.; Adelsberg, M.; Jimenez, R. Signatures of photon-axion conversion in the thermal spectra and polarization of neutron stars. Astrophys. J. 2012, 748, 116. [Google Scholar] [CrossRef]
  75. Day, F.; Krippendorf, S. Searching for axion-like particles with X-ray polarimeters. Galaxies 2018, 6, 45. [Google Scholar] [CrossRef]
  76. Galanti, G. Photon-ALP interaction as a measure of initial photon polarization. Phys. Rev. D 2022, 105, 083022. [Google Scholar] [CrossRef]
  77. Galanti, G. Photon-ALP oscillations inducing modifications to photon polarization. Phys. Rev. D 2023, 107, 043006. [Google Scholar] [CrossRef]
  78. Galanti, G.; Roncadelli, M.; Tavecchio, F.; Costa, E. ALP induced polarization effects on photons from galaxy clusters. Phys. Rev. D 2023, 107, 103007. [Google Scholar] [CrossRef]
  79. Galanti, G.; Roncadelli, M.; Tavecchio, F. ALP-induced polarization effects on photons from blazars. Phys. Rev. D 2023, 108, 083017. [Google Scholar] [CrossRef]
  80. CAST Collaboration. New CAST limit on the axion–photon interaction. Nat. Phys. 2017, 13, 584–590. [Google Scholar] [CrossRef]
  81. Payez, A.; Evoli, C.; Fischer, T.; Giannotti, M.; Mirizzi, A.; Ringwald, A. Revisiting the SN1987A gamma-ray limit on ultralight axion-like particles. J. Cosmol. Astropart. Phys. 2015, 2015, 006. [Google Scholar] [CrossRef]
  82. Berg, M.; Conlon, J.P.; Day, F.; Jennings, N.; Krippendorf, S.; Powell, A.J.; Rummel, M. Constraints on axion-like particles from X-ray observations of NGC1275. Astrophys. J. 2017, 847, 101. [Google Scholar] [CrossRef]
  83. Conlon, J.P.; Day, F.; Jennings, N.; Krippendorf, S.; Rummel, M. Constraints on axion-like particles from non-observation of spectral modulations for X-ray point sources. J. Cosmol. Astropart. Phys. 2017, 2017, 005. [Google Scholar] [CrossRef]
  84. Meyer, M. et al. [Fermi-LAT Collaboration] Search for Axionlike-Particle-Induced Prompt γ-Ray Emission from Extragalactic Core-Collapse Supernovae with the Fermi Large Area Telescope. Phys. Rev. Lett. 2020, 124, 231101, Erratum in Phys. Rev. Lett. 2020, 125, 119901. [Google Scholar] [CrossRef]
  85. Reynolds, C.S.; Marsh, M.C.D.; Russell, H.R.; Fabian, A.C.; Smith, R.; Tombesi, F.; Veilleux, S. Astrophysical limits on very light axion-like particles from Chandra grating spectroscopy of NGC 1275. Astrophys. J. 2020, 890, 59. [Google Scholar] [CrossRef]
  86. Sisk-Reynés, J.; Matthews, J.H.; Reynolds, C.S.; Russell, H.R.; Smith, R.N.; Marsh, M.C.D. New constraints on light axion-like particles using Chandra transmission grating spectroscopy of the powerful cluster-hosted quasar H1821+643. Mon. Not. Astron. R. Soc. 2022, 510, 1264. [Google Scholar] [CrossRef]
  87. Schallmoser, S.; Krippendorf, S.; Chadha-Day, F.; Weller, J. Updated Bounds on Axion-Like Particles from X-ray Observations. Mon. Not. Astron. R. Soc. 2022, 514, 329. [Google Scholar] [CrossRef]
  88. Matthews, J.H.; Reynolds, C.S.; Marsh, M.C.D.; Sisk-Reynés, J.; Rodman, P.E. How do Magnetic Field Models Affect Astrophysical Limits on Light Axion-like Particles? An X-ray Case Study with NGC 1275. Astrophys. J. 2022, 930, 90. [Google Scholar] [CrossRef]
  89. Dessert, C.; Dunsky, D.; Safdi, B.R. Upper limit on the axion-photon coupling from magnetic white dwarf polarization. Phys. Rev. D 2022, 105, 103034. [Google Scholar] [CrossRef]
  90. Heisenberg, W.; Euler, H. Folgerungen aus der diracschen theorie des positrons. Z. Phys. 1936, 98, 714–732. [Google Scholar] [CrossRef]
  91. Weisskopf, V.S. Über die elektrodynamik des vakuums auf grund des quanten-theorie des elektrons. K. Dan. Vidensk. Selsk. Mat. Fys. Medd. 1936, 14, 6. [Google Scholar]
  92. Schwinger, J. On Gauge Invariance and Vacuum Polarization. Phys. Rev. 1951, 82, 664. [Google Scholar] [CrossRef]
  93. Dobrynina, A.; Kartavtsev, A.; Raffelt, G. Photon-photon dispersion of TeV gamma rays and its role for photon-ALP conversion. Phys. Rev. D 2015, 91, 083003, Erratum in Phys. Rev. D 2015, 91, 109902. [Google Scholar] [CrossRef]
  94. Kosowsky, A. Cosmic Microwave Background Polarization. Ann. Phys. 1996, 246, 49. [Google Scholar] [CrossRef]
  95. Rybicki, G.B.; Lightman, A.P. Radiative Processes in Astrophysics; Wiley: New York, NY, USA, 1979. [Google Scholar]
  96. Ghisellini, G.; Righi, C.; Costamante, L.; Tavecchio, F. The Fermi blazar sequence. Mon. Not. Astron. R. Soc. 2017, 469, 255. [Google Scholar] [CrossRef]
  97. Jansson, R.; Farrar, G.R. A New Model of the Galactic Magnetic Field. Astrophys. J. 2012, 757, 14. [Google Scholar] [CrossRef]
  98. Jansson, R.; Farrar, G.R. The galactic magnetic field. Astrophys. J. 2012, 761, L11. [Google Scholar] [CrossRef]
  99. Yao, J.M.; Manchester, R.N.; Wang, N. A New Electron-density Model for Estimation of Pulsar and FRB Distances. Astrophys. J. 2017, 835, 29. [Google Scholar] [CrossRef]
  100. Roming, P.W.A.; Kennedy, T.E.; Mason, K.O.; Nousek, J.A.; Ahr, L.; Bingham, R.E.; Broos, P.S.; Carter, M.J.; Hancock, B.K.; Huckle, H.E.; et al. The Swift Ultra-Violet/Optical Telescope. Space Sci. Rev. 2005, 120, 95. [Google Scholar] [CrossRef]
  101. Burrows, D.N.; Hill, J.E.; Nousek, J.; Kennea, J.A.; Wells, A.; Osborne, J.P.; Abbey, A.F.; Beardmore, A.; Mukerjee, K.; Short, A.D.T.; et al. The Swift X-ray Telescope. Space Sci. Rev. 2005, 120, 165. [Google Scholar] [CrossRef]
  102. Available online: https://www.slac.stanford.edu/exp/glast/groups/canda/lat_Performance.htm (accessed on 10 June 2024).
  103. Urry, C.M.; Padovani, P. Unified schemes for radio-loud active galactic nuclei. Pub. Astron. Soc. Pacific 1995, 107, 803. [Google Scholar] [CrossRef]
  104. Collmar, W. News from CGRO-COMPTEL. Mem. Soc. Astron. Ital. 2002, 73, 99. [Google Scholar]
  105. Torres, D.F.; Anchordoqui, L.A. Astrophysical origins of ultrahigh energy cosmic rays. Rep. Prog. Phys. 2004, 67, 1663. [Google Scholar] [CrossRef]
  106. Liu, T.H.; Bai, J.M. Absorption of 10–200 GeV gamma rays by radiation from broad-line regions in blazars. Astrophys. J. 2006, 653, 1089. [Google Scholar] [CrossRef]
  107. Tavecchio, F.; Mazin, D. Intrinsic absorption in 3C 279 at GeV–TeV energies and consequences for estimates of the extragalactic background light. Mon. Not. Astron. R. Soc. 2009, 392, L40. [Google Scholar] [CrossRef]
  108. Poutanen, J.; Stern, B. GeV Breaks in Blazars as a Result of Gamma-ray Absorption within the Broad-Line Region. Astrophys. J. 2010, 717, L118. [Google Scholar] [CrossRef]
  109. Galanti, G.; Landoni, M.; Tavecchio, F.; Covino, S. Probing the absorption of gamma-rays by IR radiation from the dusty torus in FSRQs with the Cherenkov telescope array. Mon. Not. Astron. R. Soc. 2020, 495, 3463. [Google Scholar] [CrossRef]
  110. Albert, J.; Aliu, E.; Anderhub, H.; Antonelli, L.A.; Antoranz, P.; Backes, M.; Baixeras, C.; Barrio, J.A.; Bartko, H.; Bastieri, D.; et al. Very-High-Energy Gamma Rays from a Distant Quasar: How Transparent Is the Universe? Science 2008, 320, 1752. [Google Scholar] [CrossRef]
  111. Aleksić, J.; Antonelli, L.A.; Antoranz, P.; Backes, M.; Barrio, J.A.; Bastieri, D.; Becerra González, J.; Bednarek, W.; Berdyugin, A.; Berger, K.; et al. MAGIC Discovery of Very High Energy Emission from the FSRQ PKS 1222+21. Astrophys. J. 2011, 730, L8. [Google Scholar] [CrossRef]
  112. Wagner, S.J.; Behera, B. Hess Observations of Quasars. In Proceedings of the 10th HEAD Meeting, BAAS, Honolulu, HI, USA, 5 July 2010; Volume 41. [Google Scholar]
  113. Ghisellini, G.; Maraschi, L.; Tavecchio, F. The Fermi blazars’ divide. Mon. Not. Astron. R. Soc. 2009, 396, L105–L109. [Google Scholar] [CrossRef]
  114. Righi, C.; Tavecchio, F.; Inoue, S. Neutrino emission from BL Lac objects: The role of radiatively inefficient accretion flows. Mon. Not. Astron. R. Soc. 2019, 483, L127–L131. [Google Scholar] [CrossRef]
  115. Begelman, M.C.; Blandford, R.D.; Rees, M.J. Theory of extragalactic radio sources. Rev. Mod. Phys. 1984, 56, 255–351. [Google Scholar] [CrossRef]
  116. Ghisellini, G.; Tavecchio, F. Canonical high-power blazars. Mon. Not. Astron. R. Soc. 2009, 397, 985–1002. [Google Scholar] [CrossRef]
  117. Pudritz, R.E.; Hardcastle, M.J.; Gabuzda, D.C. Magnetic Fields in Astrophysical Jets: From Launch to Termination. Space Sci. Rev. 2012, 169, 27–72. [Google Scholar] [CrossRef]
  118. Tavecchio, F.; Ghisellini, G.; Ghirlanda, G.; Foschini, L.; Maraschi, L. TeV BL Lac objects at the dawn of the Fermi era. Mon. Not. Astron. R. Soc. 2010, 401, 1570–1586. [Google Scholar] [CrossRef]
  119. Maraschi, L.; Ghisellini, G.; Celotti, A. A jet model for the gamma-ray emitting blazar 3C 279. Astrophys. J. 1992, 397, L5–L9. [Google Scholar] [CrossRef]
  120. Sikora, M.; Begelman, M.G.; Rees, M.J. Comptonization of diffuse ambient radiation by a relativistic jet: The source of gamma rays from blazars? Astrophys. J. 1994, 421, 153–162. [Google Scholar] [CrossRef]
  121. Bloom, S.D.; Marscher, A.P. An analysis of the synchrotron self-compton model for the multi–wave band spectra of blazars. Astrophys. J. 1996, 461, 657. [Google Scholar] [CrossRef]
  122. Mannheim, K. The proton blazar. Astron. Astrophys. 1993, 269, 67–76. [Google Scholar]
  123. Mannheim, K. TeV gamma-rays from proton blazars. Space Sci. Rev. 1996, 75, 331–340. [Google Scholar] [CrossRef]
  124. Mücke, A.; Protheroe, R.J.; Engel, R.; Rachen, J.P.; Stanev, T. BL Lac objects in the synchrotron proton blazar model. Astropart. Phys. 2003, 18, 593. [Google Scholar] [CrossRef]
  125. Zhang, H.; Böttcher, M. X-ray and Gamma-Ray Polarization in Leptonic and Hadronic Jet Models of Blazars. Astrophys. J. 2013, 774, 18. [Google Scholar] [CrossRef]
  126. Beck, R. Magnetic fields in spiral galaxies. Astron. Astrophys. Rev. 2016, 24, 4. [Google Scholar] [CrossRef]
  127. Fletcher, A. Magnetic Fields in Nearby Galaxies. The Dynamic Interstellar Medium: A Celebration of the Canadian Galactic Plane Survey. Astron. Soc. Pac. Conf. Ser. 2011, 438, 197. [Google Scholar]
  128. Thompson, T.A.; Quataert, E.; Waxman, E.; Murray, N.; Martin, C.L. Magnetic Fields in Starburst Galaxies and the Origin of the FIR-Radio Correlation. Astrophys. J. 2006, 645, 186. [Google Scholar] [CrossRef]
  129. Lopez-Rodriguez, E.; Guerra, J.A.; Asgari-Targhi, M.; Schmelz, J.T. The Strength and Structure of the Magnetic Field in the Galactic Outflow of Messier 82. Astrophys. J. 2021, 914, 24. [Google Scholar] [CrossRef]
  130. Blanchard, P.K.; Berger, E.; Fong, W. The Offset and Host Light Distributions of Long Gamma-Ray Bursts: A New View from HST Observations of Swift Bursts. Astrophys. J. 2016, 817, 144. [Google Scholar] [CrossRef]
  131. Lyman, J.D.; Levan, A.J.; Tanvir, N.R.; Fynbo, J.P.U.; McGuire, J.T.W.; Perley, D.A.; Angus, C.R.; Bloom, J.S.; Conselice, C.J.; Fruchter, A.S.; et al. The host galaxies and explosion sites of long-duration gamma-ray bursts: Hubble Space Telescope near-infrared imaging. Mon. Not. Astron. R. Soc. 2017, 467, 1795–1817. [Google Scholar] [CrossRef]
  132. Levan, A.J.; Lamb, G.P.; Schneider, B.; Hjorth, J.; Zafar, T.; de Ugarte Postigo, A.; Sargent, B.; Mullally, S.E.; Izzo, L.; d’Avanzo, P.; et al. The First JWST Spectrum of a GRB Afterglow: No Bright Supernova in Observations of the Brightest GRB of all Time, GRB 221009A. Astrophys. J. Lett. 2023, 946, L28. [Google Scholar] [CrossRef]
  133. Moss, D.; Shukurov, A. Turbulence and Magnetic Fields in Elliptical Galaxies. Mon. Not. Astron. R. Soc. 1996, 279, 229–239. [Google Scholar] [CrossRef]
  134. Bahcall, N.A. Clusters and superclusters of galaxies. In Formation of Structure in the Universe; Dekel, A., Ostriker, J.P., Eds.; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
  135. Govoni, F.; Feretti, L. Magnetic fields in clusters of galaxies. Int. J. Mod. Phys. D 2004, 13, 1549–1594. [Google Scholar] [CrossRef]
  136. Feretti, L.; Giovannini, G.; Govoni, F.; Murgia, M. Clusters of galaxies: Observational properties of the diffuse radio emission. Astron. Astrophys. Rev. 2012, 20, 54. [Google Scholar] [CrossRef]
  137. Bonafede, A.; Feretti, L.; Murgia, M.; Govoni, F.; Giovannini, G.; Dallacasa, D.; Dolag, K.; Taylor, G.B. The Coma cluster magnetic field from Faraday rotation measures. Astron. Astrophys. 2010, 513, A30. [Google Scholar] [CrossRef]
  138. Kuchar, P.; Enßlin, T.A. Magnetic power spectra from Faraday rotation maps. Astron. Astrophys. 2011, 529, A13. [Google Scholar] [CrossRef]
  139. Meyer, M.; Montanino, D.; Conrad, J. On detecting oscillations of gamma rays into axion-like particles in turbulent and coherent magnetic fields. J. Cosmol. Astropart. Phys. 2014, 2014, 003. [Google Scholar] [CrossRef]
  140. Hudson, D.S.; Mittal, R.; Reiprich, T.H.; Nulsen, P.E.J.; Andernach, H.; Sarazin, C.L. What is a cool-core cluster? A detailed analysis of the cores of the X-ray flux-limited HIFLUGCS cluster sample. Astron. Astrophys. 2010, 513, A37. [Google Scholar] [CrossRef]
  141. Mitchell, R.J.; Dickens, R.J.; Bell Burnell, J.S.; Culhane, J.L. The X-ray spectra of clusters of galaxies and their relationship to other cluster properties. Mon. Not. Astron. R. Soc. 1979, 189, 329. [Google Scholar] [CrossRef]
  142. Houston, B.P.; Wolfendale, A.W.; Young, E.C.M. Cosmic gamma rays from galaxy clusters. Phys, J. G Nucl. Phys. 1984, 10, L147–L150. [Google Scholar] [CrossRef]
  143. Dennison, B. Formation of radio halos in clusters of galaxies from cosmic-ray protons. Astrophys. J. 1980, 239, L93–L96. [Google Scholar] [CrossRef]
  144. Colafrancesco, S.; Marchegiani, P. Warming rays in cluster cool cores. Astron. Astrophys. 2008, 484, 51–65. [Google Scholar] [CrossRef]
  145. Timokhin, A.N.; Aharonian, F.A.; Neronov, A.Y. On the non-thermal high energy radiation of galaxy clusters. Astron. Astrophys. 2004, 417, 391. [Google Scholar] [CrossRef]
  146. Lei, F.; Dean, A.J.; Hills, G.L. Compton Polarimetry in Gamma-Ray Astronomy. Space Sci. Rev. 1997, 82, 309. [Google Scholar] [CrossRef]
  147. Giomi, M.; Bühler, R.; Sgrò, C.; Longo, F.; Atwood, W.B.; on behalf of the Fermi LAT Collaboration. Estimate of the Fermi large area telescope sensitivity to gamma-ray polarization. AIP Conf. Proc. 2017, 1792, 0022. [Google Scholar]
  148. Kronberg, P.P. Extragalactic magnetic fields. Rept. Prog. Phys. 1994, 57, 325–382. [Google Scholar] [CrossRef]
  149. Grasso, D.; Rubinstein, H.R. Magnetic fields in the early Universe. Phys. Rep. 2001, 348, 163–266. [Google Scholar] [CrossRef]
  150. Wang, C.; Lai, D. Axion-Photon Propagation in Magnetized Universe. J. Cosmol. Astropart. Phys. 2016, 6, 006. [Google Scholar] [CrossRef]
  151. Neronov, A.; Vovk, I. Evidence for Strong Extragalactic Magnetic Fields from Fermi Observations of TeV Blazars. Science 2010, 328, 73. [Google Scholar] [CrossRef]
  152. Durrer, R.; Neronov, A. Cosmological magnetic fields: Their generation, evolution and observation. Astron. Astrophys. Rev. 2013, 21, 62. [Google Scholar] [CrossRef]
  153. Pshirkov, M.S.; Tinyakov, P.G.; Urban, F.R. New Limits on Extragalactic Magnetic Fields from Rotation Measures. Phys. Rev. Lett. 2016, 116, 191302. [Google Scholar] [CrossRef]
  154. Rees, M.J.; Setti, G. Model for the Evolution of Extended Radio Sources. Nature 1968, 219, 127. [Google Scholar] [CrossRef]
  155. Hoyle, F. Magnetic Fields and Highly Condensed Objects. Nature 1969, 223, 936. [Google Scholar] [CrossRef]
  156. Kronberg, P.P.; Lesch, H.; Hopp, U. Magnetization of the Intergalactic Medium by Primeval Galaxies. Astrophys. J. 1999, 511, 56. [Google Scholar] [CrossRef]
  157. Furlanetto, S.; Loeb, A. Intergalactic Magnetic Fields from Quasar Outflows. Astrophys. J. 2001, 556, 619–634. [Google Scholar] [CrossRef]
  158. Galanti, G.; Roncadelli, M. Behavior of axionlike particles in smoothed out domainlike magnetic fields. Phys. Rev. D 2018, 98, 043018. [Google Scholar] [CrossRef]
  159. Beck, M.C.; Beck, A.M.; Beck, R.; Dolag, K.; Strong, A.W.; Nielaba, P. New constraints on modelling the random magnetic field of the MW. J. Cosmol. Astropart. Phys. 2016, 2016, 056. [Google Scholar] [CrossRef]
  160. Pshirkov, M.S.; Tinyakov, P.G.; Kronberg, P.P.; Newton-McGee, K.J. Deriving the Global Structure of the Galactic Magnetic Field from Faraday Rotation Measures of Extragalactic Sources. Astrophys. J. 2011, 738, 192. [Google Scholar] [CrossRef]
  161. Churazov, E.; Forman, W.; Jones, C.; Böhringer, H. XMM-Newton Observations of the Perseus Cluster. I. The Temperature and Surface Brightness Structure. Astrophys. J. 2003, 590, 225. [Google Scholar] [CrossRef]
  162. Taylor, G.B.; Gugliucci, N.E.; Fabian, A.C.; Sanders, J.S.; Gentile, G.; Allen, S.W. Magnetic fields in the centre of the Perseus cluster. Mon. Not. Astron. R. Soc. 2006, 368, 1500–1506. [Google Scholar] [CrossRef]
  163. Aleksić, J. et al. [MAGIC Collaboration] Constraining cosmic rays and magnetic fields in the Perseus galaxy cluster with TeV observations by the MAGIC telescopes. Astron. Astrophys. 2012, 541, A99. [Google Scholar] [CrossRef]
  164. Böttcher, M.; Reimer, A.; Sweeney, K.; Prakash, A. Leptonic and Hadronic Modeling of Fermi-detected Blazars. Astrophys. J. 2013, 768, 54. [Google Scholar] [CrossRef]
  165. Kostelecký, V.A.; Mewes, M. Electrodynamics with Lorentz-violating operators of arbitrary dimension. Phys. Rev. D 2009, 80, 015020. [Google Scholar] [CrossRef]
  166. Zhang, H.; Böttcher, M.; Liodakis, I. Revisiting High-Energy Polarization from Leptonic and Hadronic Blazar Scenarios. arXiv 2024, arXiv:2404.12475. [Google Scholar] [CrossRef]
  167. Di Gesu, L.; Donnarumma, I.; Tavecchio, F.; Agudo, I.; Barnounin, T.; Cibrario, N.; Di Lalla, N.; Di Marco, A.; Escudero, J.; Errando, M.; et al. The X-ray Polarization View of Mrk 421 in an Average Flux State as Observed by the Imaging X-ray Polarimetry Explorer. Astrophys. J. Lett. 2022, 938, L7. [Google Scholar] [CrossRef]
  168. Liodakis, I.; Marscher, A.P.; Agudo, I.; Berdyugin, A.V.; Bernardos, M.I.; Bonnoli, G.; Borman, G.A.; Casadio, C.; Casanova, V.; Cavazzuti, E.; et al. Polarized blazar X-rays imply particle acceleration in shocks. Nature 2022, 611, 677. [Google Scholar] [CrossRef]
  169. Middei, R.; Liodakis, I.; Perri, M.; Puccetti, S.; Cavazzuti, E.; Di Gesu, L.; Ehlert, S.R.; Madejski, G.; Marscher, A.P.; Marshall, H.L.; et al. X-ray Polarization Observations of BL Lacertae. Astrophys. J. Lett. 2023, 942, L10. [Google Scholar] [CrossRef]
  170. Peirson, A.L.; Negro, M.; Liodakis, I.; Middei, R.; Kim, D.E.; Marscher, A.P.; Marshall, H.L.; Pacciani, L.; Romani, R.W.; Wu, K.; et al. X-ray Polarization of BL Lacertae in Outburst. Astrophys. J. Lett. 2023, 948, L25. [Google Scholar] [CrossRef]
  171. Middei, R.; Perri, M.; Puccetti, S.; Liodakis, I.; Di Gesu, L.; Marscher, A.P.; Cavero, N.R.; Tavecchio, F.; Donnarumma, I.; Laurenti, M.; et al. IXPE and Multiwavelength Observations of Blazar PG 1553+113 Reveal an Orphan Optical Polarization Swing. Astrophys. J. Lett. 2023, 953, L28. [Google Scholar] [CrossRef]
  172. Ehlert, S.R.; Liodakis, I.; Middei, R.; Marscher, A.P.; Tavecchio, F.; Agudo, I.; Kouch, P.M.; Lindfors, E.; Nilsson, K.; Myserlis, I.; et al. X-ray Polarization of the BL Lacertae Type Blazar 1ES 0229+200. Astrophys. J. 2023, 959, 61. [Google Scholar] [CrossRef]
  173. Di Gesu, L.; Marshall, H.L.; Ehlert, S.R.; Kim, D.E.; Donnarumma, I.; Tavecchio, F.; Liodakis, I.; Kiehlmann, S.; Agudo, I.; Jorstad, S.G.; et al. Discovery of X-ray polarization angle rotation in the jet from blazar Mrk 421. Nature Astronomy 2023, 7, 1245. [Google Scholar] [CrossRef]
  174. Errando, M.; Liodakis, I.; Marscher, A.P.; Marshall, H.L.; Middei, R.; Negro, M.; Peirson, A.L.; Perri, M.; Puccetti, S.; Rabinowitz, P.L.; et al. Detection of X-ray Polarization from the Blazar 1ES 1959+650 with the Imaging X-ray Polarimetry Explorer. Astrophys. J. 2024, 963, 5. [Google Scholar] [CrossRef]
  175. Kouch, P.M.; Liodakis, I.; Middei, R.; Kim, D.E.; Tavecchio, F.; Marscher, A.P.; Marshall, H.L.; Ehlert, S.R.; Di Gesu, L.; Jorstad, S.G.; et al. IXPE observation of PKS 2155-304 reveals the most highly polarized blazar. arXiv 2024, arXiv:2406.01693. [Google Scholar] [CrossRef]
  176. Kole, M.; De Angelis, N.; Berlato, F.; Burgess, J.M.; Gauvin, N.; Greiner, J.; Hajdas, W.; Li, H.C.; Li, Z.H.; Pollo, A.; et al. The POLAR gamma-ray burst polarization catalog. Astron. Astrophys. 2020, 644, A124. [Google Scholar] [CrossRef]
  177. Gill, R.; Kole, M.; Granot, J. GRB Polarization: A Unique Probe of GRB Physics. Galaxies 2021, 9, 82. [Google Scholar] [CrossRef]
  178. Chattopadhyay, T.; Gupta, S.; Iyyani, S.; Saraogi, D.; Sharma, V.; Tsvetkova, A.; Ratheesh, A.; Gupta, R.; Mithun, N.P.S.; Vaishnava, C.S.; et al. Hard X-ray Polarization Catalog for a Five-year Sample of Gamma-Ray Bursts Using AstroSat CZT Imager. Astrophys. J. 2022, 936, 12. [Google Scholar] [CrossRef]
  179. Negro, M.; Di Lalla, N.; Omodei, N.; Veres, P.; Silvestri, S.; Manfreda, A.; Burns, E.; Baldini, L.; Costa, E.; Ehlert, S.R.; et al. The IXPE View of GRB 221009A. Astrophys. J. Lett. 2023, 946, L21. [Google Scholar] [CrossRef]
  180. Depaola, G.O.; Kozameh, C.N.; Tiglio, M.H. A method to determine the polarization of high energy gamma rays. Astropart. Phys. 1999, 10, 175. [Google Scholar] [CrossRef]
  181. Bähre, R.; Döbrich, B.; Dreyling-Eschweiler, J.; Ghazaryan, S.; Hodajerdi, R.; Horns, D.; Januschek, F.; Knabbe, E.-A.; Lindner, A.; Notz, D.; et al. Any light particle search II—Technical design report. J. Instrum. 2013, 8, T09001. [Google Scholar] [CrossRef]
  182. Armengaud, E.; Attié, D.; Basso, S.; Brun, P.; Bykovskiy, N.; Carmona, J.M.; Castel, J.F.; Cebrián, S.; Cicoli, M.; Civitani, M.; et al. Physics potential of the international axion observatory (IAXO). J. Cosmol. Astropart. Phys. 2019, 2019, 047. [Google Scholar] [CrossRef]
  183. Capparelli, L.M.; Cavoto, G.; Ferretti, J.; Giazotto, F.; Polosa, A.D.; Spagnolo, P. Axion-like particle searches with sub-THz photons. Phys. Dark Univ. 2016, 12, 37. [Google Scholar] [CrossRef]
  184. Avignone, F.T., III. Potential for large germanium detector arrays for solar-axion searches utilizing the axio-electric effect for detection. Phys. Rev. D 2009, 79, 035015. [Google Scholar] [CrossRef]
  185. Avignone, F.T., III; Crewick, R.J.; Nussinov, S. Can large scintillators be used for solar-axion searches to test the cosmological axion–photon oscillation proposal? Phys. Lett. B 2009, 681, 122–124. [Google Scholar] [CrossRef]
  186. Avignone, F.T., III; Crewick, R.J.; Nussinov, S. The experimental challenge of detecting solar axion-like particles to test the cosmological ALP-photon oscillation hypotheses. Astropart. Phys. 2011, 34, 640–642. [Google Scholar] [CrossRef]
  187. Kahn, Y.; Safdi, B.R.; Thaler, J. Broadband and resonant approaches to axion dark matter detection. Phys. Rev. Lett. 2016, 117, 141801. [Google Scholar] [CrossRef]
Figure 2. Structure and phenomenology of active galactic nuclei. (Credit: adapted from [103,104,105]).
Figure 2. Structure and phenomenology of active galactic nuclei. (Credit: adapted from [103,104,105]).
Universe 10 00312 g002

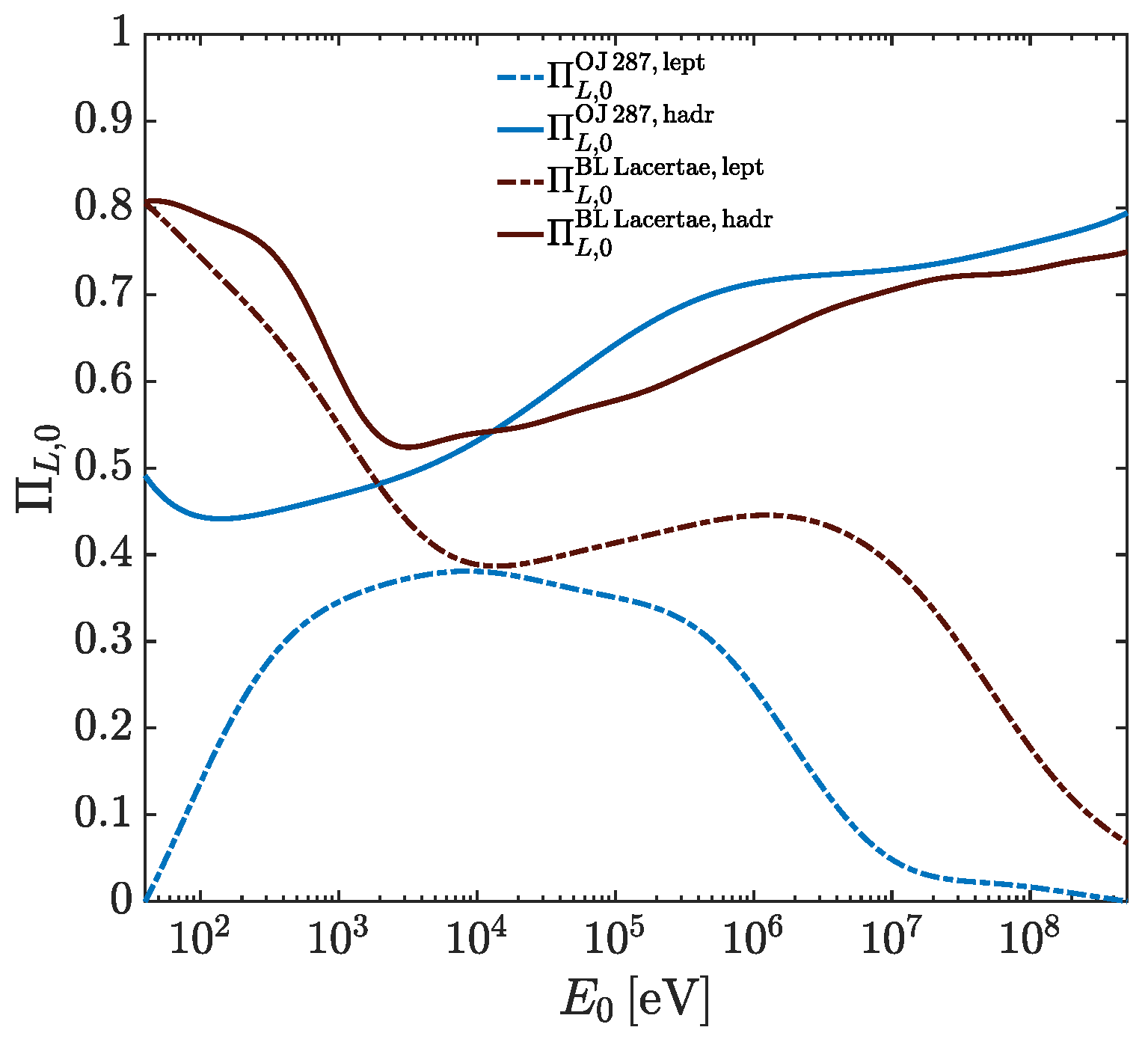

Figure 3. Initial degree of linear polarization Π L , 0 for the blazars OJ 287 and BL Lacertae in the case of both leptonic and hadronic models, as derived in [125]. (Credit: [79]).
Figure 3. Initial degree of linear polarization Π L , 0 for the blazars OJ 287 and BL Lacertae in the case of both leptonic and hadronic models, as derived in [125]. (Credit: [79]).
Universe 10 00312 g003
Figure 6. Perseus cluster. (Top subfigure) Photon survival probability P γ γ (upper panel), corresponding final degree of linear polarization Π L (central panel), and final polarization angle χ (lower panel) in the energy range ( 10 1 10 4 ) MeV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . The initial degree of linear polarization is Π L , 0 = 0 . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 300 keV (upper panel) and 3 MeV (lower panel). (Credit: [78]).
Figure 6. Perseus cluster. (Top subfigure) Photon survival probability P γ γ (upper panel), corresponding final degree of linear polarization Π L (central panel), and final polarization angle χ (lower panel) in the energy range ( 10 1 10 4 ) MeV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a 10 14 eV . The initial degree of linear polarization is Π L , 0 = 0 . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at 300 keV (upper panel) and 3 MeV (lower panel). (Credit: [78]).
Universe 10 00312 g006
Figure 10. BL Lac emitting within the leptonic model and placed inside a rich galaxy cluster. We consider the BL Lac located at a redshift z = 0.03 or at z = 0.4 in the left and right columns, respectively. The initial degree of linear polarization is Π L , 0 = 0 . (Top subfigure) Photon survival probability P γ γ (upper panels) and corresponding final degree of linear polarization Π L (lower panels) in the energy range ( 10 2 10 3 ) TeV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at different energies (see panels). (Credit: [77]).
Figure 10. BL Lac emitting within the leptonic model and placed inside a rich galaxy cluster. We consider the BL Lac located at a redshift z = 0.03 or at z = 0.4 in the left and right columns, respectively. The initial degree of linear polarization is Π L , 0 = 0 . (Top subfigure) Photon survival probability P γ γ (upper panels) and corresponding final degree of linear polarization Π L (lower panels) in the energy range ( 10 2 10 3 ) TeV . We take g a γ γ = 0.5 × 10 11 GeV 1 , m a = 10 10 eV . (Bottom subfigure) Probability density function f Π obtained by interpolating the plotted histogram for several realizations of Π L at different energies (see panels). (Credit: [77]).
Universe 10 00312 g010
Figure 11. GRB probability density function f Π for the final photon degree of linear polarization Π L after propagation in the extragalactic space with different values of the initial photon degree of linear polarization Π 0 (see the legend in the panels). We take g a γ = 10 11 GeV 1 , m a = 10 13 eV . (Top subfigure) The GRB is placed at redshift z = 0.3 . (Bottom subfigure) The GRB is located at z = 2 . (Credit: [68]).
Figure 11. GRB probability density function f Π for the final photon degree of linear polarization Π L after propagation in the extragalactic space with different values of the initial photon degree of linear polarization Π 0 (see the legend in the panels). We take g a γ = 10 11 GeV 1 , m a = 10 13 eV . (Top subfigure) The GRB is placed at redshift z = 0.3 . (Bottom subfigure) The GRB is located at z = 2 . (Credit: [68]).
Universe 10 00312 g011
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Galanti, G. Axion-like Particle Effects on Photon Polarization in High-Energy Astrophysics. Universe 2024, 10, 312. https://doi.org/10.3390/universe10080312

AMA Style

Galanti G. Axion-like Particle Effects on Photon Polarization in High-Energy Astrophysics. Universe. 2024; 10(8):312. https://doi.org/10.3390/universe10080312

Chicago/Turabian Style

Galanti, Giorgio. 2024. "Axion-like Particle Effects on Photon Polarization in High-Energy Astrophysics" Universe 10, no. 8: 312. https://doi.org/10.3390/universe10080312

APA Style

Galanti, G. (2024). Axion-like Particle Effects on Photon Polarization in High-Energy Astrophysics. Universe, 10(8), 312. https://doi.org/10.3390/universe10080312

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
