Systematic Review

The Potential of the Flavonoid Content of Ipomoea batatas L. as an Alternative Analog GLP-1 for Diabetes Type 2 Treatment—Systematic Review

Ni Kadek Santi Maha Dewi
Yan Ramona
Made Ratna Saraswati
Desak Made Wihandani
5 and
I Made Agus Gelgel Wirasuta
Doctoral Study Program, Faculty of Medicine, Udayana University, Denpasar 80232, Indonesia
Pharmacy Department, Faculty of Mathematic and Natural Science, Udayana University, Kampus Bukit Jimbaran, Denpasar 80361, Indonesia
Biology Department, Faculty of Mathematic and Natural Science, Udayana University, Kampus Bukit Jimbaran, Denpasar 80361, Indonesia
Department of Internal Medicine, Faculty of Medicine, Udayana University, Denpasar 80232, Indonesia
Department of Biochemistry, Faculty of Medicine, Udayana University, Denpasar 80232, Indonesia
Forensic Sciences Laboratory, Institute of Forensic Sciences and Criminology, Udayana University, Kampus Bukit Jimbaran, Denpasar 80361, Indonesia
Author to whom correspondence should be addressed.
Metabolites 2024, 14(1), 29;
Submission received: 3 December 2023 / Revised: 23 December 2023 / Accepted: 26 December 2023 / Published: 31 December 2023


Ipomoea batatas L. (IBL) has gained significant popularity as a complementary therapy or herbal medicine in the treatment of anti-diabetes. This review seeks to explore the mechanism by which flavonoid compounds derived from IBL exert their anti-diabetic effects through the activation of GLP-1. The review article refers to the PRISMA guidelines. In order to carry out the literature search, electronic databases such as Science Direct, Crossref, Scopus, and Pubmed were utilized. The search query was based on specific keywords, including Ipomoea batatas OR sweet potato AND anti-diabetic OR hypoglycemic. After searching the databases, we found 1055 articles, but only 32 met the criteria for further review. IBL contains various compounds, including phenolic acid, flavonols, flavanols, flavones, and anthocyanins, which exhibit activity against anti-diabetes. Flavonols, flavanols, and flavones belong to a group of flavonoids that possess the ability to form complexes with AlCl3 and Ca2+. The intracellular L cells effectively retain Ca2+, leading to the subsequent release of GLP-1. Flavonols, flavones, and flavone groups have been found to strongly interact with DPP-IV, which inhibits the degradation of GLP-1. The anti-diabetic activity of IBL is attributed to the mechanism that effectively increases the duration of GLP-1 in the systemic system, thereby prolonging its half-life.

Graphical Abstract

1. Introduction

The rise in diabetes cases worldwide can be attributed to several factors, including aging populations, population growth, and the increasing prevalence of the disease among different age groups [1]. According to projections made by the World Health Organization, DM is anticipated to rank as the seventh highest cause of mortality on a global scale by the year 2030. This forecast is based on the significant increase in the prevalence of this disease in recent times. In 2015, the International Diabetes Federation reported a staggering 415 million cases of diabetes worldwide. Alarming as it may be, this number is projected to climb even higher, reaching an estimated 642 million cases by the year 2040, according to their latest forecasts [2].
A total of 1055 publications have been identified to examine/report the potential of Ipomoea batatas L. (IBL) as an alternative method for diabetes treatment (Figure 1). These publications were categorized into 12 distinct research clusters, which were distinguished by the size of their nodes. The majority of the extensive cluster focused on Ipomoea batatas L. as an anti-diabetic and antioxidant, while a smaller portion delved into only one group, reporting on the mechanism of Glucagon-like peptide-1 (GLP-1) on IBL.
All the published articles searched for our review mentioned that IBL contains various active compounds, including flavonoids, anthocyanins, phenolic acids, caffeoyl derivatives, triterpenoids, and alkaloids. Each compound is still discussable regarding its pharmacological mechanism. Recent reports indicated that flavonoid compounds have been demonstrated to have efficacy against diabetes mellitus (DM). The occurrence effect of flavonoid consumption to reduce DM is signaled by several signaling pathways, namely glucose transporters, liver enzymatic, tyrosine kinase inhibition, AMPK, PPARγ, and NF-κB [3,4,5]. At present, researchers have identified 27 IBL cultivars that possess anti-diabetic properties. These compounds exhibit pharmacological effects and target multiple sites of action, namely the pancreas, liver, skeletal muscle, and adipose tissue [6]. IBL’s therapeutic effect on diabetes is achieved through a multifaceted pharmacological mechanism that acts on various chemical and pharmacological sites.
The compounds that have been identified were predicted to work in the gastrointestinal (GI) tract by α-glucosidase inhibition through the degradation of polysaccharides into monosaccharides and the secretion of GLP-1. It can lead to a reduction in gastric emptying, a decrease in gastrointestinal motility, and an increase in insulin secretion [7,8]. These findings also illustrated the effect on lowering blood pressure and cholesterol, both of which were identified as risk factors for DM based on the resulting outcome. A study IBL extract could induce the release of GLP-1, thereby making it an effective anti-diabetic agent [9]. This review article explores the potential and action mechanism of flavonoid compounds in IBL that can trigger GLP-1 activation.

2. Materials and Methods

2.1. Search Strategy

Consistent with the PRISMA criteria, we implemented a search strategy to conduct our study [10]. Searching for relevant articles, we conducted a systematic review of IBL’s therapeutic potential in anti-diabetic treatment. We used several selected databases, such as Science Direct, Scopus, Crossref, and Pubmed, to search extensively for the literature. The keywords encompassed in the search query were (1) Ipomoea batatas OR sweet potato AND (2) anti-diabetic OR hypoglycemic.

2.2. Inclusion Criteria

We selected research articles that focused on the effects, anti-diabetic potentials, phytochemical compounds, and signaling mechanisms of Ipomoea batatas. English-written articles that relied on in vitro and in vivo studies formed the core of these research papers. The selected studies evaluated at least three essential measures: (1) Ipomoea batatas, (2) phytochemical compounds, and (3) the signaling mechanisms involved.

2.3. Exclusion Criteria

In order to proceed with our review, we excluded conference papers, thesis dissertations, review articles, papers published for conferences, and manuscripts without abstracts or that did not meet the inclusion requirements. Studies that looked into the relationship between Ipomoea batatas and other diseases were not part of this analysis.

2.4. Data Extraction and Management

To compile the articles for this study, a reference manager called Zotero was utilized. By examining the publications that met the inclusion criteria, we proceeded with our analysis. The information gathered included the (1) type/cultivar, (2) part of the plant, (3) identified compound, (4) bioactive compound, (5) site of action, and (6) anti-diabetic mechanism pharmacology activity of IBL.

2.5. Data Extraction Strategy

In this literature review, the outcomes of various in vitro and in vivo studies examining the influence of IBL on type 2 DM were presented. Section 3 and Section 4 describe the results of the reports regarding the phytochemicals involved. In Section 5, we analyze the findings, considering the sites of action and pharmacological mechanisms of diabetes treatment.

3. Results

The Literature Search

The literature search identified 1055 articles relevant to the topic (Figure 1). Duplications were detected and removed, totaling 44 articles. Based on screening the titles and abstracts, 865 articles were removed. Then, 125 articles were further excluded based on the results of the screening of the inclusion criteria mentioned above. A total of 31 appropriate articles were reviewed in more depth in Table 1. The successful data extraction is shown in the flow diagram displayed in Figure 2.

4. Discussion

4.1. Type or Cultivar

IBL has several varieties. These varieties are differentiated based on tuber color, skin color, leaf color, texture, and size. The number of cultivars identified in this journal was 27, with several variations, such as orange [16,22,28,33], purple [12,14,19,21,24,25,27,33,34,40], and white IBL [8,9,14,15,16,18,21,24,27,28,29,30,34,36,37]. Differences in the cultivars will affect the phytochemical contents and their anti-diabetic activity.

4.2. Parts of Plant and Phytochemical Identified of IBL

Many reports mentioned that parts of IBL used for its anti-diabetic effects include the leaves, tubers, and tuber skin. Each part has different chemical compositions. In purple IBL tubers, the anthocyanin content commonly used as a marker is higher than in its leaves. The concentration of anthocyanins is also greater in purple IBL compared to white or orange IBL. The phenolic acid content, such as 3,4,5-Tricaffeoylquinic acid, chlorogenic acid, caffeic acid, Isochlorogenic acid C, Isochlorogenic acid A, and caffeoyl acid derivative [10,11,15,20], flavonoid groups such as C3R, C3G, C35G, cyanidin 3-caffeoyl-p-hydroxybenzolsophoroside-5-glucoside, P3G, peonidin 3-caffeoyl-p hydroxybenzoyl sophoroside-5-glucoside, peonidin 3-O-[2-O-(6-O-E-feruloyl-β-D-glucopyranosyl)-6-O-E-caffeoyl-β-D-glucopyranoside]-5-O-β-D-glucopyranoside [21,27], quercetin, epicatechin, protocatechualdehyde, rutin, kaemferol, isoquercitrin, and jaceosidin, have been identified in such type of potato. They directly serve as effective anti-diabetic agents [10,11,22,35]. Flavonol, a subclass of flavonoids, is extensively found in various natural sources. Flavonols, such as quercetin and epicacthecin, demonstrated their potential for increasing GLP-1 secretion in a tissue culture of GLUTag cells [41]. Ground triterpenoid, such as trans-N-feruloyltyramine, trans-N-(p-coumaroyl) tyramine, cis-N-feruloyltyramine, and 7-hydroxy-5-methoxycoumarin, and alkaloid groups such as Indole-3-carboxaldehyde also have potential as anti-diabetic agents [16].

4.2.1. Site of Action

GLP-1 is produced in the intestine through the posttranslational processing of proglucagon. The L cells, primarily found in the colon and ileum, are types of open-type epithelial cells that directly interact with nutrients in the intestinal lumen. The level of GLP-1 in circulation quickly rises due to nutrients such as carbohydrates, fats, proteins, and dietary fiber [42]. Glucose is taken up through GLUT-2, fructose through GLUT-5, and SCFAs are absorbed and metabolized intracellularly. The GLP-1 secretion is induced by the closure of KATP channels, which is a result of carbohydrate uptake through SGLT1, GLUT-2, and GLUT-5. Through intracellular metabolism, cell membrane depolarization is triggered, leading to the production of ATP and the closure of KATP channels. Additionally, this process facilitates the opening of voltage-gated Ca2+ channels. Furthermore, the uptake of free amino acids and peptides also induces depolarization and the subsequent activation of voltage-gated Ca2+ channels (VGCCs). The activation of VGCCs is brought about by the coupled transport of Na+ for amino acids and PepT1 for peptides, leading to the stimulation of GLP-1 secretion. The release of GLP-1 is triggered by the influx of extracellular Ca2+ and the release of Ca2+ from intracellular reservoirs, resulting in additional depolarization and the subsequent activation of the exocytotic machinery [43,44]. The excessive production of GLP-1 within the cells results in its dispersion across the entire systemic system. It then attaches to the GLP-1R receptor found in different organ tissues, including the skeletal muscle, adipose tissue, liver, pancreas, and gastrointestinal tract. The binding of GLP-1 to the liver results in a decline in glucose production, while concurrently promoting an elevation in glucose uptake within adipose tissue and muscle [45,46].
Various flavonoid compounds, including hispidulin, epicatechin, quercetin, C3G, 5,7-dihydroxy-6-4-dimethoxyfavanone, and homoesperetin-7-rutinoside, have demonstrated their ability to enhance GLP-1 release both in vitro and in vivo. GLP-1 stimulation has been demonstrated in GLUTag cells when exposed to epicatechin, C3G, and hispidulin. Homoesperetin-7-rutinoside has also exhibited stimulation through molecular docking [47]. The chelation of Ca2+ by quercetin, similar to the chelation of AlCl3, has been documented in various studies. Complexes between quercetin and metals are formed at the ortho positions O3/O4, O4/O5, and O3′/O4′, as detailed by numerous reports in the literature (Figure 3) [48]. Compounds belonging to the flavonol, flavanol, and flavones groups exhibit activity against AlCl3, resulting in a yellow color change. It is anticipated that these compounds will operate via a similar mechanism against Ca2+. These compounds have the ability to prolong the half-life of GLP-1, leading to an elevation in insulin release and a modification in glucose absorption from systemic to cellular in the form of glycogen [49]. Furthermore, the A or B rings of flavonoids are capable of interacting with AlCl3 through their ortho-dihydroxyl groups, resulting in the formation of complexes that are susceptible to acid [50].
Increased oxidative stress is largely responsible for the development and improvement of DM and its complications. Pancreatic islets have low expression levels of antioxidant enzymes, which make them more vulnerable to oxidative damage. Biomarkers such as MDA are used to assess oxidative stress, with increased levels indicating higher levels of lipid peroxidation. Oxidative stress in diabetes is reduced by GLP-1, which activates the cAMP, PI3K, and PKC pathways through receptors and Nrf-2. This also increases the antioxidant capacity. Conversely, oxidative stress can be reduced by suppressing ROS through radical scavenging and chelating mechanisms, thus protecting pancreatic beta cells [51].

4.2.2. Gastrointestinal Tract

Regulation of Carbohydrate Metabolism

The inhibition of α-glucosidase influenced the capability of the small intestine to inhibit the absorption of carbohydrates. This particular enzyme inhibited the conversion of complex carbohydrates and was unable to be assimilated into simple carbohydrates [52]. The IC50 values of all the compounds were investigated to be in the range of 4.46 µM to 64.14 µM, which were observed in various studies on the efficacy of α-glucosidase inhibitors in comparison to acarbose. Ethyl caffeate could inhibit α-glucosidase more effectively (about 6.77 times more than acarbose). These flavonoid compounds had a potent inhibitory effect on α-glucosidase, such as rutine, isoquercitrin, quercetin, kaempferol, and hyperoside [12]. Compared to acarbose, Trans-N-(p-coumaroyl)tyramine, 3,4,5-Tricaffeoylquinic acid, trans-N-feruloyltyramine, and cis-N-feruloyltyramine inhibited α-glucosidase 37.9, 36.6, 18.7, and 11.8 times more effectively, respectively. Quercetin-3-O-glucosidase and 7-Hydroxy-5-methoxycoumarin, with respective IC50 values of 22.38 ± 1.73 µM and 64.14 ± 9.23 µM, also had good activity [16]. Chlorogenic acid was also predicted to have inhibition activities on α-glucosidase and tyrosinase. The docking results also supported that Chlorogenic acid binds to the active site of α-glucosidase and can act in a reversible competitive manner through hydrogen bonds [19]. Peonidin 3-O-[2-O-(6-O-E-feruloyl-β-D-glucopyranosyl)-6-O-E-caffeoyl-β-D-glucopyranoside]-5-O-β-D glucopyranoside showed that a potent maltase inhibition was preferred over sucrase inhibition [27]. The aqueous fraction contained an acidic glycoprotein (IC50 53 µg/mL) that exhibited anti-diabetic properties and was predicted to have a mechanism of α-glicosidase inhibition, which is a significant breakthrough for the care of DM. This finding is particularly noteworthy when compared to acarbose [14].
Ethyl caffeic had an α-amylase activity that was 13.1 times stronger than acarbose. This was possibly due to the contribution of the OH group of the ethyl caffeic binding to the enzyme. The mixed-type inhibition of α-amylase by chlorogenic acid occurred as a result of the binding of chlorogenic acid to amino acid residues near the active site through hydrogen bonds. This binding process led to a modification in the secondary structure of the enzyme’s protein, thereby inhibiting its activity [12]. C3G, C3R, C35G, and P3G had IC50 values of 0.024 ± 0.003 (mM), 0.040 ± 0.007 (mM), 0.031 ± 0.007 (mM), and 0.075 ± 0.007 (mM), respectively, for porcine pancreatic α-amylase inhibition These four anthocyanin compounds were proven in silico, and the active side of the compound was thought to be mediated by interacting with the carboxylate group of GLU233. C3G was the most potent inhibitor of the four compounds, with a low Ki of 0.0014 mM. The Ki values of the other compounds were much higher: 0.019 nM for C3R, 0.020 nM for C35G, and 0.045 nM for P3G. The inhibition activity was observed to be conferred by the shared key side chain GLU233 [21]. Each compound induced absorption that exclusively took place as fiber and was subsequently eliminated through the gastrointestinal tract.

Increased Insulin Secretion

GLP-1, a hormone known as incretin, is released by intestinal endocrine L cells, which exhibit an effect of eaten food. The enhancement of GLP secretion in the gastrointestinal tract can lead to an improvement in insulin secretion, a decrease in GI motility, and a delay in gastric emptying. Various studies have identified compounds belonging to the phenolic acid and flavonoid groups that exhibit potential for augmenting GLP-1 secretion [7,8].
The most potent chlogenic acid derivative was 3,4,5-Tricaffeoylquinic acid, which increased GLP-1 secretion around 10-fold compared to the sulfonylure control tested on GLUTag cells. The same effect was also produced during the in vivo test, where the treatment group produced more GLP-1 secretion compared to the sulfonylurea control group. Hence, GLP-1 has the ability to maintain glycemic balance without the potential of inducing hypoglycemia. The elevation of cAMP concentrations may lead to the stimulation of GLP-1 secretion in both in the vivo model and a cell line. The noticed elevations in GLP-1 production in L cells were caused by the activation of PKA and cAMP in the in vitro model using GLUTag cells [9]. Cyanidin 3-O-glucoside (C3OG) and epicatechin functioned through the activation of the cAMP/PKA and ERK ½ pathways. Ca2+ chelation’s mechanism of action led to an elevation in the intracellular Ca2+ concentration, consequently resulting in an augmentation of GLP-1 secretion. The activity of this compound seemed to be supported by the appearance of a 3′4′ catechol group in the B ring, which was considered a crucial chemical structural component [41]. Hispidulin was also recognized as an effective anti-DM agent. Notably, the study demonstrated that hispidulin treatment led to an increase in the intracellular cAMP levels in L cells [47].
An alternative approach that has shown clinical benefits involves inhibiting DPP-4 to prolong the duration of GLP-1. Flavonoids, namely flavonol, flavanol, and flavone (Figure 3), displayed varying degrees of inhibitory activity, which were dependent on their concentration. Notably, narcissoside, myricetin, C3OG, hyperoside, and isoliquiritigenin demonstrated higher inhibitory activities. An analysis of the relationship between the structure and activity revealed that incorporating hydroxyl groups at positions C3′, C4′, and C6 in the flavonoid structure enhanced the effectiveness of DPP-4 inhibition. However, the addition of a hydroxyl group at position three of ring C in the flavonoid configuration was discovered to be disadvantageous for suppression. Additionally, the methylation of the hydroxyl groups at positions C3’, C4′, and C7 of the flavonoid conformation tended to reduce the inhibitory activity against the DPP-4 enzyme. Furthermore, it was determined that the presence of a 2,3-double bond and a 4-carbonyl group on ring C of the flavonoid configuration was crucial for achieving the inhibitory effect [53].

4.2.3. Pancreas

Inhibiting Apoptosis Beta Cell and Recovering the Islet Structure through Protective Cell Beta

Pancreatic beta cells have a crucial function in regulating glucose balance and serve as the primary producers of insulin. Their role encompasses the synthesis, storage, and secretion of insulin [54]. The research findings indicated that the IC50 value for total compound fell within the range of 9.69 ± 0.03 µM to IC50 125 ± 0 µM for Vit C. This particular range demonstrated a significant efficacy for conferring natural antioxidant properties to the compound. An elevation in ROS was the sole factor responsible for harm to the beta cells. Antioxidants in abundance are believed to have the potential to diminish ROS, leading to the recovery of islet beta cells. This recovery process will enhance the insulin secretion process through protective cell beta.
Giving SPLP (sweet potato leave phenol) leaf extract from Beijing to T2DM mice for 4 weeks showed a recovery of pancreatic tissue with an increased area and complete islet structure, increased mass, and clear borders. Giving SPLP treatment inhibited beta cell apoptosis. Phenolic compounds, including 1-caffeoylquinic acid, chlorogenic acid, caffeac acid, and 3,4,5-tricaffeoylquinic acid, are believed to have the competence to govern the process of beta cell regeneration. The IC50 value of 3,4,5-Tricaffeoylquinic acid indicated a radical scavenging activity that was 10.8 times more potent than the control substance, cevitamic acid. Subsequently, the other compounds exhibiting greater strength than ascorbic acid included Isochlorogenic acid C, Isochlorogenic acid A, Isochlorogenic acid B, Caffeic acid ethyl ester, and Caffeic acid. Additional research has documented the presence of ABTS-induced antioxidant activity. Ethyl caffeate and 3,4,5-Tricaffeoylquinic acid have been identified as exhibiting commendable activity, with IC50 values comparable to that of ascorbic acid. The order of antioxidant potency, in terms of descending activity, can be arranged as follows: Isochlorogenic acid C exhibited the highest potency, followed by Chlorogenic acid, Neochlorogenic acid, caffeic acid, Cryptochlorogenic acid, Isochlorogenic acid A, 1-Caffeoylquinic acid, Isochlorogenic acid B, esculin, and finally 7-hydroxycoumarin.
Protocatechualdehyde exhibited the most potent antioxidant activity, surpassing that of ascorbic acid by a factor of 2.32. Quercetin exhibited the highest antioxidant activity among the flavonoid group, with a remarkable 4.14-fold increase compared to ascorbic acid. Following closely, kaemferol and jaceosidin demonstrated a commendable ABTS radical scavenging activity, which was nearly on par with cevitamic acid. In the DPPH radical scavenging test, protocatechualdehyde displayed the most potent DPPH activity, surpassing ascorbic acid by a significant factor of 2.69. Ethyl caffeate and 3,4,5-tricaffeoylquinic had a good DPPH activity. The descending order of DPPH antioxidant activity, ranging from high to low, is as follows: caffeic acid, isochlorogenic acid C, chlorogenic acid, 1-caffeoylquinic acid, neochlorogenic acid, isochlorogenic acid A, cryptochlorogenic acid, isochlorogenic acid B, 7-hydroxycoumarin, and esculin. Quercetin exhibited a significantly higher DPPH radical scavenging activity that was 1.8 times greater than that of cevitamic acid. Notably, isoquercitrin, hyperoside, kaempferol, and routine also demonstrated commendable scavenging capabilities. The remarkable DPPH radical scavenging capacity of caffeic acid could be attributed to its 1,2-phenolic diol group, as well as its conjugation involving the C=C and C=O bonds. Another mechanism using the FRAP method was that protocatechualdehyde had a 2.22 stronger activity than cevitamic acid. Ethyl caffeate, caffeac acid, 3,4,5-tricaffeoylquinic acid, and Isochlorogenic acid also had a good activity. For the flavonoid compounds, namely quercetin produced a stronger reducing power activity of 1.54 compared to vitamin C. Hyperoside, kaempferol, isoquercitrin, and rutine exhibited commendable FRAP capacities [11,16,55]. The IC50 values of SPLP were consistent with a prior study, indicating a more potent oxidative stress protection compared to polyphenols derived from tea and grape seed [56].
The significant increase in the enzymatic antioxidants SOD and GSH-Px were correlated with an antioxidant activity to reduce ROS. A decrease in ROS will cause the recovery of pancreatic beta cells. The compound suspected in this process was protein-bound anthocyanin from tuber. Anthocyanins that were identified from purple IBL and possibly bound to protein were peonidin-3-cyanidin-3-sophoroside-5-glucoside and sophoroside-5-glucoside [15,24,57]. Additional research indicated that Cyanidin 3-caffeoyl-p-hydroxybenzoyl-sophoriside-5-glucoside exhibited the most potent antioxidant properties among the various anthocyanin compounds. This finding was determined through the utilization of ascorbic acid and the ABTS and DPPH methods, as stated in the alternative investigations. Furthermore, peonidin 3-caffeoyl sophoroside-5-glucoside exhibited superior antioxidant activities compared to peonidin3-(6″-caffeoyl-6″-feruoyl sophoroside)-5-glucoside and peonidin3-caffeoyl-p-hydroxybenzoyl-sophoroside-5-glucoside [33].
Tuber extract and orange-fleshed IBL leaves as beta cell protectors can reduce lipid peroxidation through a radical scavenging mechanism and the results of measuring the antioxidant activity with FRAP and TEAC can significantly reduce ROS. The antioxidant capacity values using FRAP were, respectively, 299.8 ± 2.5 and 296.9 ± 7.4 (µM AAE/mg protein) and testing using the TEAC method were 127.9 ± 2.10 and 126.3 ± 2.51 (µM TE/mg Protein). The results of this test were greater than standard ascorbic acid, namely 271.0 ± 4.17 (µM AAE/mg protein) and 107.2 ± 1.68 (µM TE/mg protein). The compounds predicted to be contained in the extract that had radical scanning activity were caffeic acid, hyperoside, protocatechuic acid, quercetin, routine, and vanillic acid [22]. Caffeic acid was reported to be a compound with a potent antioxidant activity [58,59]. MAE (microwave assisted extraction) leaves of purple IBL cultivar antin-3, which were predicted to contain the anthocyanin group, produced an IC50 value of 61.91 ± 1.11 ppm [37].
This compound worked directly in increasing insulin secretion through the repair of islet beta cells. This compound was responsible for scavenging reactive oxygen species (ROS) and elevating the AMP/ATP ratio within beta cells. The alteration in the AMP/ATP ratio triggered the activation of mitochondrial targets, leading to the induction of mitogenesis and the stimulation of insulin secretion [60].

Suppression of the Anti-Inflammatory Pathway

The compounds identified from Bandungan, Java, Indonesia, were anthocyanin, catechin, quercetin, proanthocyanin, and caffeic acid. These compounds were predicted to work in the pancreas by inhibiting the anti-inflammatory mechanisms [20]. The administration of the leaf extract at a dose of 2.5 g/kgBW for a duration of 14 days demonstrated a noteworthy 50% augmentation in pancreatic islet cells in comparison to the control group. Conversely, the administration of caiapo at a dose of 5 g/KgBW over a period of 8 weeks substantially enhanced the beta cell mass by a two-fold increase when compared to the untreated diabetic control subjects (p < 0.05). The results indicated that increased dosages of the extract could potentially result in a more significant restoration of islet beta cells. It is important to highlight that the extract was thought to comprise quercetin, chlorogenic acid, caffeic acids, and their derivatives. The anti-inflammatory characteristics of these compounds are believed to play a crucial role in diminishing inflammation by inhibiting inflammatory mediators. Quercetin is known to inhibit tyrosine kinase activity, which has been shown to be anti-diabetic. The regulation of quercetin effects through the inhibition of the NF-κB activation of beta cells also helps to improve glucose-stimulated insulin secretion [14,61,62]. Apart from that, the content of chlorogenic acid, caffeic acids, and their derivatives is thought to be able to inhibit the JNK, P38 MAP, and NF-κB pathways and is also associated with various inflammatory mediators, including IL-6, CRP, and TNF-α. It has also been reported that inhibiting oxidative stress may also induce hypoglycemic effects [35].

4.2.4. Liver

Improving Insulin Secretion and Insulin Sensitivity by Reducing Glucose Synthesis

The primary structures of other acylated anthocyanins, namely C3S5G and P3S5G, are anticipated to play a vital role in improving glucose absorption and increasing insulin levels. According to the studies, this compound can lower glycolysis through p-AMPK activity impairment. The treatment group given 200 mg/kg of free anthocyanin compound of sweet potato (FAC-PSP) extract containing 40.74 ± 2.88 mg C3G/g for 4 weeks showed a substantial rise in the p-AMPK expression levels. In the liver, the insulin-responsive glucose transporter GLUT-2 is crucial for metabolism and glucose uptake. The manifestation of the GLUT-2 protein possesses the capability to amplify the re-uptake and usage of glucose in the liver [24]. Cyanidin 3-caffeoyl-p-hydroxybenzolsophoroside-5-glucoside and Peonidin 3-(6″-caffeoyl-6‴-feruloyl sophoroside)-5-glucoside have been found to restrain hepatic gluconeogenesis in HepG2 cells. However, the outcomes of an in vivo study investigating the effects of cyanidin revealed that oral administration significantly reduced fasting blood glucose levels from their initial high values at time zero (186–205 mg/dL, respectively [33].
According to earlier studies, it was found that blackcurrant extract, which consists of 45% anthocyanins and 82% total polyphenols, has potential to enhance plasma GLP-1 levels by approximately 30% and stimulate AMPK in the liver. Cyanidin 3-caffeoyl-p-hydroxybenzolsophoroside-5-glucoside and Peonidin 3-(6″-caffeoyl-6‴-feruloyl sophoroside)-5-glucoside have been reported to restrain hepatic gluconeogenesis in HepG2 cells. However, the outcomes of an in vivo study investigating the effects of cyanidin revealed that oral administration significantly reduced fasting blood glucose levels from their initial high values at time zero (186–205 mg/dL, respectively) [63,64]. The blocking of PEPCK and the G6Pase expression exhibited remarkable effectiveness in thwarting the escalation of blood glucose levels. This indicates that the process of gluconeogenesis will be suppressed, leading to a subsequent decrease in the production of glucose [65]. There is ongoing discussion regarding the mechanism by which GLP-1 affects hepatic gluconeogenesis and glycogen formation in the liver. Some argue that these effects are directly mediated by GLP-1R in hepatocytes, while others suggest that they may be indirectly mediated by the central nervous system (CNS) or insulin release. In vitro studies have shown that GLP-1 promotes glycogen synthesis and reduces gluconeogenesis by upregulating glycogen synthase, which is downstream of PI3K/PKB, PKC, and serine/threonine protein phosphatase 1. Additionally, GLP-1 decreased the expression of the gluconeogenetic enzyme phosphoenol pyruvate carboxykinase in rat hepatocytes [65].
The current research was primarily focused on the P13K/AKT pathway, which is considered to be one of the key insulin signaling pathways. [66]. Moreover, the PI3K/AKT/GSK-3ß signaling pathway activation not only improves insulin sensitivity and glucose metabolism, but also exerts a beneficial influence on dyslipidemia. A study conducted using high doses of sweet potato leaf polyphenols (SPLP) at 150 mg/kgBB demonstrated a more effective reduction in fasting blood glucose (FBG) over a period of 4 weeks compared to low-dose treatment. These findings suggested that the reduction in FBG by SPLP was both dose-dependent and time-dependent. The various components of SPLP, including 1-caffeoylquinic acid, 3,4,5-tricaffeoylquinic acid (3,4,5-triCQA), chlorogenic acid, caffeac acid derivative, quercetin, isoquercitrin, hyperoside, and rutin, play a crucial role in regulating hepatic glycogen synthesis in the liver. This regulation is mediated by insulin through the upregulation of PI3K/AKT and the downregulation of the GSK-3ß FOXO1 expression [11].

4.2.5. Muscle

Enhancing the Absorption of Glucose, Secretion, and Insulin Sensitivity

The regulation of glucose metabolism and the maintenance of energy homeostasis heavily relies on the insulin-stimulated uptake of glucose in skeletal muscle. The PI3K/Akt pathway is a critical target for the treatment of type 2 diabetes mellitus (T2DM) due to its involvement in modulating the signaling pathways associated with muscle function [66]. In this study, it was hypothesized that the presence of arabinogalactan and epigallocatechin in WSPP was expected to result in an elevation in the expression degrees of p-IR, p-Akt, and M-GLUT-4. Remarkably, the administration of high doses of DM + 30% WSP-Tuber and DM + 5% WSP-Leave resulted in a significant reduction in fasting blood glucose levels, thereby improving the fasting glucose tolerance [23]. Epigallocatechin has recently been demonstrated to enhance the secretion of GLP-1. By overexpressing GLP-1, it will be able to enter the systemic circulation and bind to the GLP-1R receptor in different tissues, including skeletal muscle. Consequently, this binding event can lead to an elevation in the level of cAMP signaling through the Gs protein, thereby promoting AMPK phosphorylation. By promoting the translocation of GLUT-4 from its intracellular depot to the sarcolemma, this process effectively stimulates glycogen synthesis and enables the uptake of glucose in skeletal muscle [45,67].
Insulin induced a notable rise in AKT phosphorylation in another fraction within the ≤10 kDA range from WSSp [32]. The expression of GLUT-4, the NRF1 gene, and MERF2a was observed to increase after subjecting C2C12 skeletal muscle cells to tissue culture testing. In this experiment, the cells were subjected to different concentrations of OSPT (orange sweet potato tubers) and OSPL (orange sweet potato leaves) for a period of 3 h. The doses used were 500 µg/mL of OSPT and 100 µg/mL of OSPL. The expression of GLUT-4, a key factor in glucose absorption, was regulated by the transcription factors MEF2a and NRF1. The metabolism of glucose absorption was significantly influenced by these transcription factors. The close relationship between the expression and activity of the GLUT-4 gene and the NRF1 and MEF2a genes, as well as their association with insulin sensitivity and glucose homeostasis in skeletal muscle, has been discovered. ACC2 and CPT1 play crucial roles as regulators of mitochondrial fatty acid oxidation, and therefore, any interventions that affect their expression can impact intracellular lipid levels and have therapeutic implications in managing insulin resistance. The enhanced expression of these genes in the treated cells indicated that a compound derived from aqueous methanol extracts of orange-fleshed IBL, containing caffeaic acid, catechin, hysperoside, kaemferol, rutin, isovanillic acid, quercetin, protocatechui acid, and vanillic acid, holds the potential for enhancing insulin sensitivity [22].

4.2.6. Adiposa

Increasing Glucose Uptake and Insulin Secretion

In vitro experiments have confirmed the effectiveness of a pure compound comprising quercetin 3-O-β-D sophoroside, quercetin, benzyl β-d-glucoside, 4-hydroxy-3-methoxybenzaldehyde, and methyl decanoate. This compound significantly increased the expression of PI3K, AKT, and GLUT-4 phosphorylation in 3T3-L1 adipocytes when tested at a dose of 0.01 mg/mL through a Western blot analysis. The activation of this gene increased GLUT-4 translocation so that glucose uptake also increased [13,68,69]. Caiapo containing aglycoprotein 4 g/day orally has been clinically tested on 30 patients and has been effective in reducing HbA1c progressively in diabetes patients for 1–2 months when compared to the placebo group [30]. Other studies also reported that caffeic acid could increase insulin secretion and sensitivity by increasing the adiponectin expression [31]. Adiponectin, a hormone that enhances insulin sensitivity and possesses anti-apoptotic and anti-inflammatory properties, is predominantly synthesized in adipose tissue. In individuals with obesity and type 2 diabetes, there has been a notable reduction in adiponectin levels. The administration of adiponectin has been shown to augment glucose uptake stimulated by insulin through the activation of AMPK in primary rat adipocytes. Moreover, adiponectin directly interacts with insulin receptor substrate-1 (IRS-1) and plays a pivotal role in facilitating insulin-mediated glucose uptake in adipocytes [70,71].

5. Conclusions and Future Perspective

IBL was reported to have variety and cultivars that contain chemicals with anti-diabetic properties. Such chemical compounds include flavonols, flavanol, flavones, antochyanin, phenolic acid, and triterpenoid groups. IBL can be considered as a multi-chemical and multi-pharmacological site since it functions in multiple organs through various ways. GLP-1 therapy for DM will prove to be quite advantageous in the future due to its efficacious nature. Flavonols, flavones, and flavone groups capable of forming complexes with AlCl3 can also form complexes with Ca2+ through a chelation mechanism. Therefore, it is crucial to scientifically establish the correlation between chelated AlCl3 + flavonoids, which have the potential to stimulate GLP-1 production. Additionally, it is important to determine whether the active AlCl3–flavonoid compound can inhibit the DPP-IV enzyme, as GLP-1 has a short half-life due to the degradation by this enzyme. The group compounds play a crucial role in increasing GLP-1 activity and exerting its anti-diabetic effects, which would subsequently strengthen insulin production and the uptake of glucose into cells as glycogen from the systemic circulation.
Consequently, this research presents significant challenges that necessitate rigorous scientific validation. Once this hypothesis is confirmed, it will pave the way for the development of new drugs with well-defined pharmacological mechanisms. The results of the ALCl3 + flavonoid complex require an isolation and structure elucidation process. It is hoped that the structure of the compound in IBL, a new drug candidate for treating DM, can be determined. Therefore, future research should involve in silico, in vitro, and in vivo testing of each isolated compound to strengthen the understanding of the pharmacological mechanisms involved. Subsequently, a chronic toxicity test should be conducted to ensure the safety and efficacy of the new drug candidate. The findings from this research are expected to be valuable for the pharmaceutical industry, which is interested in further developing it into drug formulations. Health professionals will gradually recognize that herbal medicines share similar pharmacological mechanisms with synthetic medicines, leading to an inclination towards prescribing herbal medicines for diabetes mellitus patients. Therefore, policymakers should consider legalizing the prescription of natural medicines among health professionals in order to provide patients with a sense of comfort when receiving DM medications made from herbal ingredients in the future.

Author Contributions

Conceptualization, N.K.S.M.D. and I.M.A.G.W.; methodology, N.K.S.M.D.; software, N.K.S.M.D.; validation, N.K.S.M.D., I.M.A.G.W. and D.M.W.; formal analysis, D.M.W.; investigation, M.R.S.; resources, N.K.S.M.D.; data curation, I.M.A.G.W.; writing—original draft preparation, N.K.S.M.D.; writing—review and editing, Y.R.; visualization, M.R.S.; supervision, D.M.W.; project administration, N.K.S.M.D. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

The data to support the finding of this study can be made available by the corresponding authors upon request. The data are not publicly available due to privacy or ethical restrictions.


The authors express their gratitude to the rector of Universitas Udayana, Indonesia for providing access to their facilities during the course of this study.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Danaei, G.; Finucane, M.M.; Lu, Y.; Singh, G.M.; Cowan, M.J.; Paciorek, C.J.; Lin, J.K.; Farzadfar, F.; Khang, Y.H.; Stevens, G.A.; et al. National, regional, and global trends in fasting plasma glucose and diabetes prevalence since 1980: Systematic analysis of health examination surveys and epidemiological studies with 370 country-years and 2.7 million participants. Lancet 2011, 378, 31–40. [Google Scholar] [CrossRef]
  2. Ogurtsova, K.; da Rocha Fernandes, J.D.; Huang, Y.; Linnenkamp, U.; Guariguata, L.; Cho, N.H.; Cavan, D.; Shaw, J.E.; Makaroff, L.E. IDF Diabetes Atlas: Global estimates for the prevalence of diabetes for 2015 and 2040. Diabetes Res. Clin. Pract. 2017, 128, 40–50. [Google Scholar] [CrossRef]
  3. Al-Ishaq, R.K.; Abotaleb, M.; Kubatka, P.; Kajo, K.; Büsselberg, D. Flavonoids and their anti-diabetic effects: Cellular mechanisms and effects to improve blood sugar levels. Biomolecules 2019, 9, 430. [Google Scholar] [CrossRef]
  4. Sen Tseng, P.; Ande, C.; Moremen, K.W.; Crich, D. Influence of Side Chain Conformation on the Activity of Glycosidase Inhibitors. Angew. Chem.-Int. Ed. 2023, 62, 2–6. [Google Scholar] [CrossRef]
  5. Rajasekaran, P.; Ande, C.; Vankar, Y.D. Synthesis of (5,6 & 6,6)-oxa-oxa annulated sugars as glycosidase inhibitors from 2-formyl galactal using iodocyclization as a key step. Arkivoc 2022, 2022, 5–23. [Google Scholar]
  6. Arisanti, C.I.S.; Wirasuta, I.M.A.G.; Musfiroh, I.; Ikram, E.H.K.; Muchtaridi, M. Mechanism of Anti-Diabetic Activity from Sweet Potato (Ipomoea batatas): A Systematic Review. Foods 2023, 12, 2810. [Google Scholar] [CrossRef]
  7. Müller, T.D.; Finan, B.; Bloom, S.R.; D’Alessio, D.; Drucker, D.J.; Flatt, P.R.; Fritsche, A.; Gribble, F.; Grill, H.J.; Habener, J.F.; et al. Glucagon-like peptide 1 (GLP-1). Mol. Metab. 2019, 30, 72–130. [Google Scholar] [CrossRef]
  8. Andersen, A.; Christensen, A.S.; Knop, F.K.; Vilsbøll, T. Glucagon-like peptide 1 receptor agonists for the treatment of Type 2 diabetes. Ugeskr. Laeger 2022, 181, 202–210. [Google Scholar] [CrossRef]
  9. Nagamine, R.; Ueno, S.; Tsubata, M.; Yamaguchi, K.; Takagaki, K.; Hira, T.; Hara, H.; Tsuda, T. Dietary sweet potato (Ipomoea batatas L.) leaf extract attenuates hyperglycaemia by enhancing the secretion of glucagon-like peptide-1 (GLP-1). Food Funct. 2014, 5, 2309–2316. [Google Scholar] [CrossRef]
  10. Hutton, B.; Salanti, G.; Caldwell, D.M.; Chaimani, A.; Schmid, C.H.; Cameron, C.; Ioannidis, J.P.A.; Straus, S.; Thorlund, K.; Jansen, J.P.; et al. The PRISMA extension statement for reporting of systematic reviews incorporating network meta-analyses of health care interventions: Checklist and explanations. Ann. Intern. Med. 2015, 162, 777–784. [Google Scholar] [CrossRef]
  11. Luo, D.; Mu, T.; Sun, H. Sweet potato (Ipomoea batatas L.) leaf polyphenols ameliorate hyperglycemia in type 2 diabetes mellitus mice. Food Funct. 2021, 12, 4117–4131. [Google Scholar] [CrossRef]
  12. Luo, D.; Mu, T.; Sun, H. Profiling of phenolic acids and flavonoids in sweet potato (Ipomoea batatas L.) leaves and evaluation of their anti-oxidant and hypoglycemic activities. Food Biosci. 2021, 39, 100801. [Google Scholar] [CrossRef]
  13. Lee, C.L.; Lee, S.L.; Chen, C.J.; Chen, H.C.; Kao, M.C.; Liu, C.H.; Wu, Y.C. Characterization of secondary metabolites from purple Ipomoea batatas leaves and their effects on glucose uptake. Molecules 2016, 21, 745. [Google Scholar] [CrossRef]
  14. Pal, S.; Gautam, S.; Mishra, A.; Maurya, R.; Srivastava, A.K. Antihyperglycemic and antidyslipidemic potential of ipomoea batatas leaves in validated diabetic animal models. Int. J. Pharm. Pharm. Sci. 2015, 7, 176–186. [Google Scholar]
  15. Yustiantara, P.S.; Yustiantara, P.S.; Warditiani, N.K.; Armita Sari, P.M.N.; Anita Dewi, N.L.K.A.; Ramona, Y.; Jawi, I.M.; Wirasuta, I.M.A.G. Determination of TLC fingerprint biomarker of Ipomoea batatas (L.) Lam leaves extracted with ethanol and its potential as antihyperglycemic agent. Pharmacia 2021, 68, 907–917. [Google Scholar] [CrossRef]
  16. Zhang, L.; Tu, Z.-C.; Yuan, T.; Wang, H.; Xie, X.; Fu, Z.-F. Antioxidants and α-glucosidase inhibitors from Ipomoea batatas leaves identified by bioassay-guided approach and structure-activity relationships. Food Chem. 2016, 208, 61–67. [Google Scholar] [CrossRef]
  17. Zhao, R.; Li, Q.; Long, L.; Li, J.; Yang, R.; Gao, D. Antidiabetic activity of flavone from Ipomoea Batatas leaf in non-insulin dependent diabetic rats. Int. J. Food Sci. Technol. 2007, 42, 80–85. [Google Scholar] [CrossRef]
  18. Zovko, M.; Petlevski, R.; Kaloðera, Z.; Plantak, K. Antioxidant and antidiabetic activity of leaves of Ipomoea batatas grown in continental Croatia. Planta Medica 2008, 74, PA135. [Google Scholar] [CrossRef]
  19. Zengin, G.; Locatelli, M.; Stefanucci, A.; Macedonio, G.; Novellino, E.; Mirzaie, S.; Dvorácskó, S.; Carradori, S.; Brunetti, L.; Orlando, G.; et al. Chemical characterization, antioxidant properties, anti-inflammatory activity, and enzyme inhibition of Ipomoea batatas L. leaf extracts. Int. J. Food Prop. 2017, 20, 1907–1919. [Google Scholar] [CrossRef]
  20. Novrial, D.; Soebowo, S.; Widjojo, P. Protective Effect of Ipomoea batatas L Leaves Extract on Histology of Pancreatic Langerhans Islet and Beta Cell Insulin Expression of Rats Induced by Streptozotocin. Molekul 2020, 15, 48. [Google Scholar] [CrossRef]
  21. Sui, X.; Zhang, Y.; Zhou, W. In vitro and in silico studies of the inhibition activity of anthocyanins against porcine pancreatic α-amylase. J. Funct. Foods 2016, 21, 50–57. [Google Scholar] [CrossRef]
  22. Ayeleso, T.; Ramachela, K.; Mukwevho, E. Aqueous-Methanol Extracts of Orange-Fleshed Sweet Potato (Ipomoea batatas) Ameliorate Oxidative Stress and Modulate Type 2 Diabetes Associated Genes in Insulin Resistant C2C12 Cells. Molecules 2018, 23, 2058. [Google Scholar] [CrossRef]
  23. Shih, C.K.; Chen, C.M.; Varga, V.; Shih, L.C.; Chen, P.R.; Lo, S.F. White sweet potato ameliorates hyperglycemia and regenerates pancreatic islets in diabetic mice. Food Nutr. Res. 2020, 64, 1–11. [Google Scholar] [CrossRef]
  24. Jiang, T.; Shuai, X.; Li, J.; Yang, N.; Deng, L.; Li, S.; He, J. Protein-Bound Anthocyanin Compounds of Purple Sweet Potato Ameliorate Hyperglycemia by Regulating Hepatic Glucose Metabolism in High-Fat Diet/Streptozotocin-Induced Diabetic Mice. J. Agric. Food Chem. 2020, 68, 1596–1608. [Google Scholar] [CrossRef]
  25. Shen, L.; Yang, Y.; Zhang, J.; Feng, L.; Zhou, Q. Diacylated anthocyanins from purple sweet potato (Ipomoea batatas L.) attenuate hyperglycemia and hyperuricemia in mice induced by a high-fructose/high-fat diet. J. Zhejiang Univ. Sci. B 2023, 24, 587–601. [Google Scholar] [CrossRef]
  26. Okafor, C.S.; Ezekwesili, C.; Mbachu, N.; Onyewuchi, K.C.; Ogbodo, U.C. Anti-diabetic Effects of the Aqueous and Ethanol Extracts of Ipomoea batatas Tubers on Alloxan Induced Diabetes in Wistar Albino Rats. Int. J. Biochem. Res. Rev. 2021, 30, 1–13. [Google Scholar] [CrossRef]
  27. Matsui, T.; Ebuchi, S.; Kobayashi, M.; Fukui, K.; Sugita, K.; Terahara, N.; Matsumoto, K. Anti-hyperglycemic effect of diacylated anthocyanin derived from Ipomoea batatas cultivar Ayamurasaki can be achieved through the alpha-glucosidase inhibitory action. J. Agric. Food Chem. 2002, 50, 7244–7248. [Google Scholar] [CrossRef]
  28. Das, G.; Patra, J.K.; Basavegowda, N.; Vishnuprasad, C.N.; Shin, H.-S.H.-S.S. Comparative study on antidiabetic, cytotoxicity, antioxidant and antibacterial properties of biosynthesized silver nanoparticles using outer peels of two varieties of Ipomoea batatas (L.) Lam. Int. J. Nanomed. 2019, 14, 4741–4754. [Google Scholar] [CrossRef] [PubMed]
  29. Sakuramata, Y.; Oe, H.; Kusano, S.; Aki, O. Effects of combination of Caiapo® with other plant-derived substance on anti-diabetic efficacy in KK-Ay mice. Biofactors 2004, 22, 149–152. [Google Scholar] [CrossRef] [PubMed]
  30. Ludvik, B.; Neuffer, B.; Pacini, G. Efficacy of Ipomoea batatas (Caiapo) on Diabetes Control in Type 2 Diabetic. Diabetes Care 2004, 27, 436–440. [Google Scholar] [CrossRef] [PubMed]
  31. Kusano, S.; Tamasu, S.; Nakatsugawa, S. Effects of the White-Skinned Sweet Potato (Ipomoea batatas L.) on the Expression of Adipocytokine in Adipose Tissue of Genetic Type 2 Diabetic Mice. Food Sci. Technol. Res. 2005, 11, 369–372. [Google Scholar] [CrossRef]
  32. Kinoshita, A.; Nagata, T.; Furuya, F.; Nishizawa, M.; Mukai, E. White-skinned sweet potato (Ipomoea batatas L.) acutely suppresses postprandial blood glucose elevation by improving insulin sensitivity in normal rats. Heliyon 2023, 9, e14719. [Google Scholar] [CrossRef] [PubMed]
  33. Jang, H.; Kim, H.; Kim, S. In vitro and in vivo hypoglycemic effects of cyanidin 3-caffeoyl-p-hydroxybenzoylsophoroside-5-glucoside, an anthocyanin isolated from purple-fleshed sweet potato. Food Chem. 2019, 272, 688–693. [Google Scholar] [CrossRef] [PubMed]
  34. Kim, H.-J.; Koo, K.A.; Park, W.S.; Kang, D.-M.; Kim, H.S.; Lee, B.Y.; Goo, Y.-M.; Kim, J.-H.; Lee, M.K.; Woo, D.K.; et al. Anti-obesity activity of anthocyanin and carotenoid extracts from color-fleshed sweet potatoes. J. Food Biochem. 2020, 44, e13438. [Google Scholar] [CrossRef] [PubMed]
  35. Niwa, A.; Tajiri, T.; Higashino, H. Ipomoea batatas and Agarics blazei ameliorate diabetic disorders with therapeutic antioxidant potential in streptozotocin-induced diabetic rats. J. Clin. Biochem. Nutr. 2011, 48, 194–202. [Google Scholar] [CrossRef]
  36. Oki, N.; Nonaka, S.; Ozaki, S. The effects of an arabinogalactan-protein from the white-skinned sweet potato (Ipomoea batatas L.) on blood glucose in spontaneous diabetic mice. Biosci. Biotechnol. Biochem. 2011, 75, 596–598. [Google Scholar] [CrossRef]
  37. Wicaksono, L.A.; Yunianta; Widyaningsih, T.D. Anthocyanin extraction from purple sweet potato cultivar antin-3 (Ipomoea batatas L.) using maceration, microwave assisted extraction, ultrasonic assisted extraction and their application as anti-hyperglycemic agents in alloxan-induced wistar rats. Int. J. PharmTech Res. 2016, 9, 181–192. [Google Scholar]
  38. Kamal, S.; Akhter, N.; Khan, S.G.; Kiran, S.; Farooq, T.; Akram, M.; Zaheer, J. Anti-diabetic activity of aqueous extract of Ipomoea batatas L. in alloxan induced diabetic Wistar rats and its effects on biochemical parameters in diabetic rats. Pak. J. Pharm. Sci. 2018, 31, 1539–1548. [Google Scholar]
  39. Akhtar, N.; Akram, M.; Daniyal, M.; Ahmad, S. Evaluation of antidiabetic activity of Ipomoea batatas L. extract in alloxan-induced diabetic rats. Int. J. Immunopathol. Pharmacol. 2018, 32, 2058738418814678. [Google Scholar] [CrossRef]
  40. Nurdjanah, S.; Astuti, S.; Yuliana, N. Inhibition Activity of α-amylase by Crude Acidic Water Extract from Fresh Purple Sweet Potato (Ipomoea batatas L.) and its Modified Flours. Asian J. Sci. Res. 2020, 13, 190–196. [Google Scholar] [CrossRef]
  41. Cremonini, E.; Daveri, E.; Mastaloudis, A.; Oteiza, P.I. (−)-Epicatechin and Anthocyanins Modulate GLP-1 Metabolism: Evidence from C57BL/6J Mice and GLUTag Cells. J. Nutr. 2021, 151, 1497–1506. [Google Scholar] [CrossRef]
  42. Hjørne, A.P.; Modvig, I.M.; Holst, J.J. The Sensory Mechanisms of Nutrient-Induced GLP-1 Secretion. Metabolites 2022, 12, 420. [Google Scholar] [CrossRef]
  43. Kuhre, R.E.; Frost, C.R.; Svendsen, B.; Holst, J.J. Molecular mechanisms of glucose-stimulated GLP-1 secretion from perfused rat small intestine. Diabetes 2015, 64, 370–382. [Google Scholar] [CrossRef]
  44. Jiang, Y.; Wang, Z.; Ma, B.; Fan, L.; Yi, N.; Lu, B.; Wang, Q.; Liu, R. GLP-1 improves adipocyte insulin sensitivity following induction of endoplasmic reticulum stress. Front. Pharmacol. 2018, 9, 1168. [Google Scholar] [CrossRef]
  45. Wu, L.; Zhou, M.; Li, T.; Dong, N.; Yi, L.; Zhang, Q.; Mi, M. GLP-1 regulates exercise endurance and skeletal muscle remodeling via GLP-1R/AMPK pathway. Biochim. Biophys. Acta-Mol. Cell Res. 2022, 1869, 119300. [Google Scholar] [CrossRef]
  46. Omotuyi, O.I.; Nash, O.; Inyang, O.K.; Ogidigo, J.; Enejoh, O.; Okpalefe, O.; Hamada, T. Flavonoid-rich extract of Chromolaena odorata modulate circulating GLP-1 in Wistar rats: Computational evaluation of TGR5 involvement. 3 Biotech 2018, 8, 124. [Google Scholar] [CrossRef]
  47. Wang, Y.; Wang, A.; Alkhalidy, H.; Luo, J.; Moomaw, E.; Neilson, A.P.; Liu, D. Flavone Hispidulin Stimulates Glucagon-Like peptide-1 secretion and Ameliorates Hyperglycemia in Streptozotocin-Induced Diabetic Mice. Mol. Nutr. Food Res. 2020, 64, e1900978. [Google Scholar] [CrossRef]
  48. de Castilho, T.S.; Matias, T.B.; Nicolini, K.P.; Nicolini, J. Study of interaction between metal ions and quercetin. Food Sci. Hum. Wellness 2018, 7, 215–219. [Google Scholar] [CrossRef]
  49. Horáková, L. Flavonoids in prevention of diseases with respect to modulation of Ca-pump function. Interdiscip. Toxicol. 2011, 4, 114–124. [Google Scholar] [CrossRef]
  50. de Almeida, L.F.; Dos Santos, E.C.F.; Machado, J.C.B.; de Oliveira, A.M.; Napoleão, T.H.; Ferreira, M.R.A.; Soares, L.A.L. Phytochemical profile, in vitro activities, and toxicity of optimized Eugenia uniflora extracts. Boletín Latinoam. Y Del Caribe De Plantas Med. Y Aromáticas 2023, 22, 130–144. [Google Scholar] [CrossRef]
  51. Oh, Y.S.; Jun, H.S. Effects of glucagon-like peptide-1 on oxidative stress and Nrf2 signaling. Int. J. Mol. Sci. 2017, 19, 26. [Google Scholar] [CrossRef]
  52. Barber, E.; Houghton, M.J.; Williamson, G. Flavonoids as human intestinal α-glucosidase inhibitors. Foods 2021, 10, 1939. [Google Scholar] [CrossRef]
  53. Pan, J.; Zhang, Q.; Zhang, C.; Yang, W.; Liu, H.; Lv, Z.; Liu, J.; Jiao, Z. Inhibition of Dipeptidyl Peptidase-4 by Flavonoids: Structure–Activity Relationship, Kinetics and Interaction Mechanism. Front. Nutr. 2022, 9, 892426. [Google Scholar] [CrossRef] [PubMed]
  54. Ackermann, A.M.; Gannon, M. Molecular regulation of pancreatic β-cell mass development, maintenance, and expansion. J. Mol. Endocrinol. 2007, 38, 193–206. [Google Scholar] [CrossRef]
  55. Wirasuta, I.M.A.G. Chemical profiling of ecstasy recovered from around Jakarta by High Performance Thin Layer Chromatography (HPTLC)-densitometry. Egypt. J. Forensic Sci. 2012, 2, 97–104. [Google Scholar] [CrossRef]
  56. Xi, L.; Mu, T.; Sun, H. Preparative purification of polyphenols from sweet potato (Ipomoea batatas L.) leaves by AB-8 macroporous resins. Food Chem. 2015, 172, 166–174. [Google Scholar] [CrossRef]
  57. Arisanti, C.; Sukawati, C.; Prasetia, I.G.N.J.A.; Wirasuta, I. Stability of Anthocyanins Encapsulated from Purple Sweet Potato Extract Affected by Maltodextrin Concentration. Macromol. Symp. 2020, 391, 1900127. [Google Scholar] [CrossRef]
  58. Olivier, D.K.; van Wyk, B.E.; van Heerden, F.R. The chemotaxonomic and medicinal significance of phenolic acids in Arctopus and Alepidea (Apiaceae subfamily Saniculoideae). Biochem. Syst. Ecol. 2008, 36, 724–729. [Google Scholar] [CrossRef]
  59. Masek, A.; Chrzescijanska, E.; Latos, M. Determination of antioxidant activity of caffeic acid and p-coumaric acid by using electrochemical and spectrophotometric assays. Int. J. Electrochem. Sci. 2016, 11, 10644–10658. [Google Scholar] [CrossRef]
  60. Dhanya, R. Quercetin for managing type 2 diabetes and its complications, an insight into multitarget therapy. Biomed. Pharmacother. 2021, 146, 112560. [Google Scholar] [CrossRef] [PubMed]
  61. Dai, X.; Ding, Y.; Zhang, Z.; Cai, X.; Li, Y. Quercetin and quercitrin protect against cytokine-induced injuries in RINm5F β-cells via the mitochondrial pathway and NF-κB signaling. Int. J. Mol. Med. 2012, 31, 265–271. [Google Scholar] [CrossRef]
  62. Wirasuta, I.M.A.G.; Dewi, N.M.A.R.; Cahyadi, K.D.; Dewi, L.P.M.K.; Astuti, N.M.W.; Widjaja, I.N.K. Studying systematic errors on estimation decision, detection, and quantification limit on micro-TLC. Chromatographia 2013, 76, 1261–1269. [Google Scholar] [CrossRef]
  63. Ben-Shlomo, S.; Zvibel, I.; Shnell, M.; Shlomai, A.; Chepurko, E.; Halpern, Z.; Barzilai, N.; Oren, R.; Fishman, S. Glucagon-like peptide-1 reduces hepatic lipogenesis via activation of AMP-activated protein kinase. J. Hepatol. 2011, 54, 1214–1223. [Google Scholar] [CrossRef]
  64. Solverson, P. Anthocyanin Bioactivity in Obesity and Diabetes: And Periphery. Cells 2020, 9, 2515. [Google Scholar] [CrossRef]
  65. Wang, T.; Jiang, H.; Cao, S.; Chen, Q.; Cui, M.; Wang, Z.; Li, D.; Zhou, J.; Wang, T.; Qiu, F.; et al. Baicalin and its metabolites suppresses gluconeogenesis through activation of AMPK or AKT in insulin resistant HepG-2 cells. Eur. J. Med. Chem. 2017, 141, 92–100. [Google Scholar] [CrossRef]
  66. Chen, C.; Tan, S.; Ren, T.; Wang, H.; Dai, X.; Wang, H. Polyphenol from Rosaroxburghii Tratt Fruit Ameliorates the Symptoms of Diabetes by Activating the P13K/AKT Insulin Pathway in db/db Mice. Foods 2022, 11, 636. [Google Scholar] [CrossRef]
  67. Warditiani, N.K.; Astuti, N.M.W.; Sari, P.M.N.A.; Swastini, D.A.; Wirasuta, I.M.A.G. Analysis of lipid profile and atherogenic index (Aip) in dyslipidemia rats given ipomea batatas tuber extract (ibte). Res. J. Pharm. Technol. 2021, 14, 4999–5002. [Google Scholar] [CrossRef]
  68. Song, W.Y.; Aihara, Y.; Hashimoto, T.; Kanazawa, K.; Mizuno, M. (−)-Epigallocatechin-3-gallate induces secretion of anorexigenic gut hormones. J. Clin. Biochem. Nutr. 2015, 57, 164–169. [Google Scholar] [CrossRef]
  69. Warditiani, N.K.T.; Astuti, K.W.; Sari, P.M.N.A.; Wirasuta, I.M.A.G. Antidyslipidemic Activity of Methanol, Ethanol and Ethyl Acetate Mangosteen rind (Garcinia mangostana L). Res. J. Pharm. Technol. 2020, 13, 261. [Google Scholar] [CrossRef]
  70. Wang, Y.; Meng, R.W.; Kunutsor, S.K.; Chowdhury, R.; Yuan, J.M.; Koh, W.P.; Pan, A. Plasma adiponectin levels and type 2 diabetes risk: A nested case-control study in a Chinese population and an updated meta-analysis. Sci. Rep. 2018, 8, 406. [Google Scholar] [CrossRef]
  71. Yanai, H.; Yoshida, H. Beneficial Effects of Adiponectin on Glucose and Lipid Metabolism and Atherosclerotic Progression: Mechanisms and Perspectives. Int. J. Mol. Sci. 2019, 20, 1190. [Google Scholar] [CrossRef]

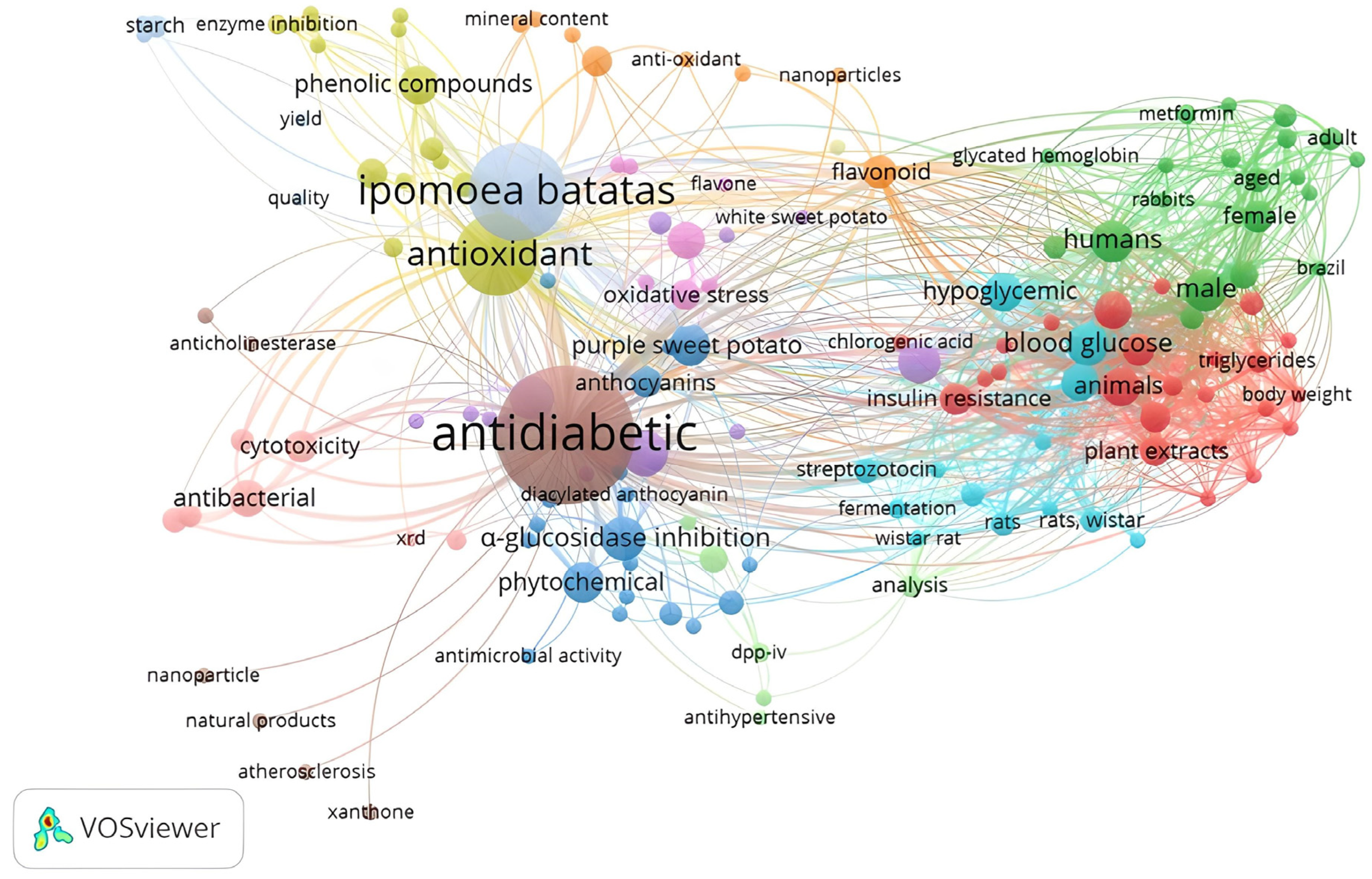

Figure 1. Keyword co-occurrence network.
Figure 1. Keyword co-occurrence network.
Metabolites 14 00029 g001

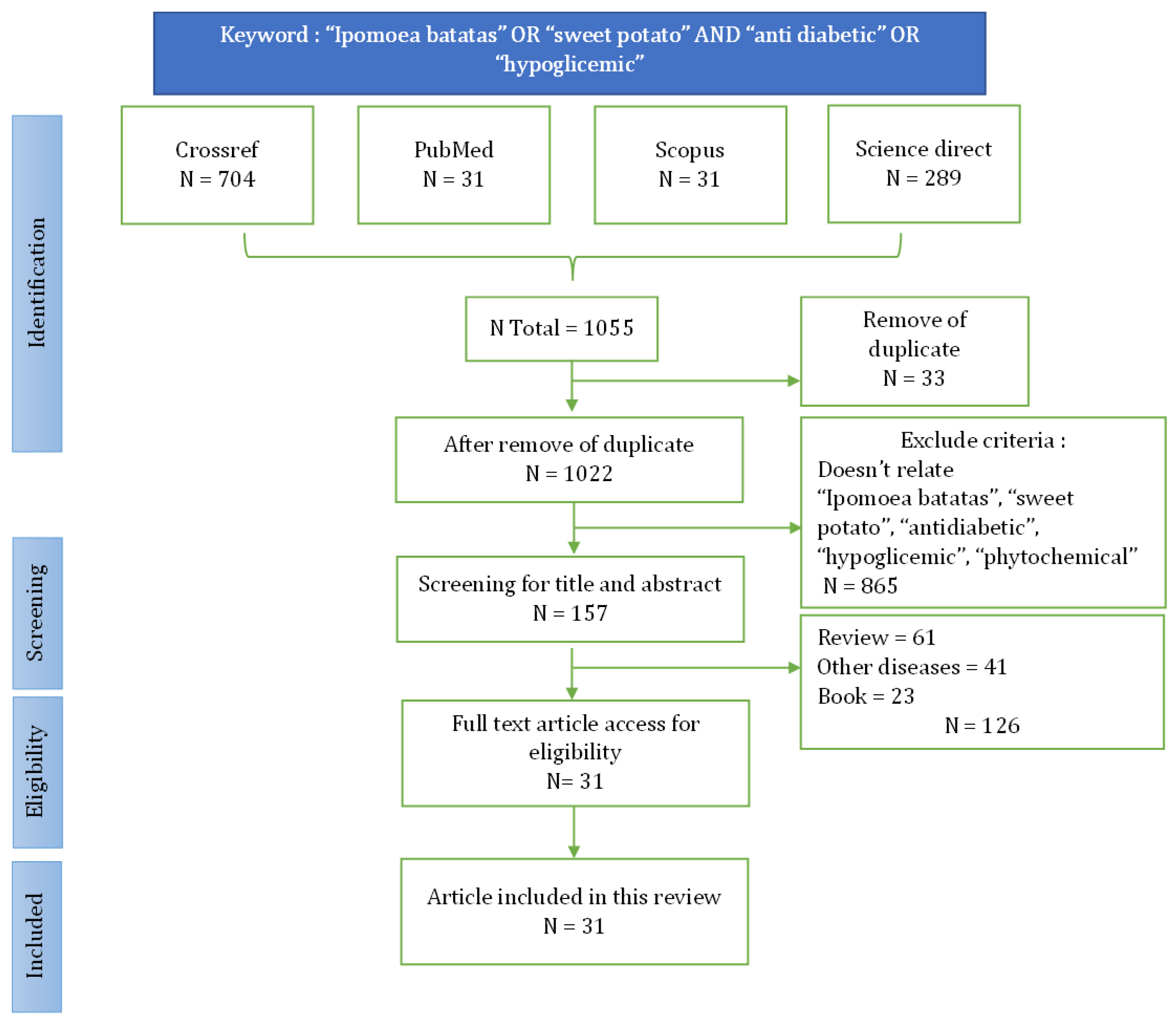

Figure 2. Flow chart identification and screening for the literature search.
Figure 2. Flow chart identification and screening for the literature search.
Metabolites 14 00029 g002

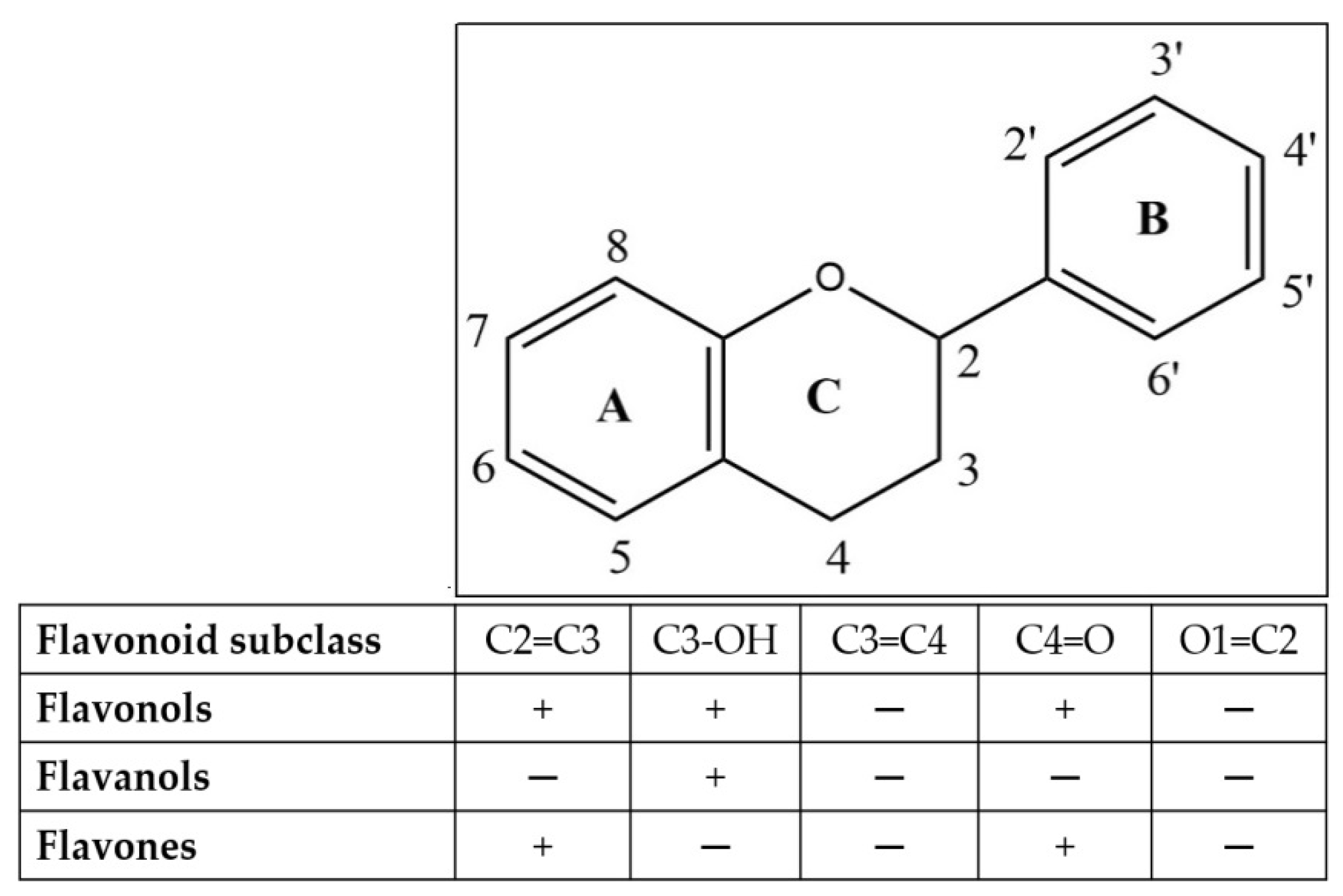

Figure 3. Flavonoid skeleton.
Figure 3. Flavonoid skeleton.
Metabolites 14 00029 g003
Table 1. Type/cultivar of Ipomoea batatas, the predictive bioactive compounds, sites of action activity, and pharmacology mechanisms.
Table 1. Type/cultivar of Ipomoea batatas, the predictive bioactive compounds, sites of action activity, and pharmacology mechanisms.
NoType/CultivarPart of PlantIdentified CompoundPredictive Bioactive CompoundAnalytical MethodSite of ActionMechanism PharmacologyReference
1IBL from cultivar Simon (Beijing, China)Leaves1-Caffeoylquinic acid; Neochlorogenic acid; Esculin; Protocatechualdehyde; Chlorogenic acid; Cryptochlorogenic acid; Caffeic acid hydroxycoumarin; Isochlorogenic acid A, B, and C, 3,4,5-Tricaffeoylquinic acid; Rutin, Hyperoside; Isoquercitrin; Astragalin; Quercetin; KAE; Diosmetin; Jaceosidin; Chrysin; and Pectolinarigenin-UHPLC-hybrid quadrupole-orbitrap/MSPancreas
  • Inhibiting beta cell apoptosis and recovering the islet structure
- Liver
  • Enhancing the AKT/PI3K/GSK-3ß signaling pathway leads to a decline in dyslipidemia, an enhancement in insulin sensitivity, and an enhancement in glucose metabolism
- Muscle
  • The improvement of insulin sensitivity and the facilitation of glucose transport through upregulating the AKT/PI3K/GLUT-4 signaling pathway
Leaves-3,4,5-Tricaffeoylquinic acid; Cryptochlorogenic acid; Chlorogenic acid; Isochlorogenic acid A, B and C; Neochlorogenic acid; Esculin; Protocatechualdehyde; Caffeic acid; 7-hydroxycoumarin; Ethyl Caffeate; Rutin; Hyperoside; Isoquercitrin; Astragalin; Quercetin; Kampferol; Diosmetin; Jaceosidin; Chrysin; Pectolinarigenin; Hysperidin; Luteolin; and CatechinUHPLC-hybrid quadrupole-orbitrap/MSGastrointestinal
  • α-amylase inhibition
  • α-glucosidase inhibition
  • Protection of cell beta by antioxidant capacity using ABTS, DPPH, FRAP
2Purple IBL from in Luzhu District, Taoyuan City,
Leaves Methyl decanoate: Quercetin 3-O-β-D sophoroside; 4-Hydroxy-3-methoxy benzaldehyde; Quercetin; and Benzyl β-d-glucosideGC-MSAdipose
  • GLUT-4 activation
  • PI3K/AKT pathway regulation in 3T3-L1 adipocytes
3IBL from the local market, IndiaLeaves Acidic glycoprotein-Gastrointestinal
  • α-Glucosidase inhibition
4IBL from Aan Village, Klungkung
Regency, Bali Province, Indonesia
Leaves-Peonidin-caffeoyl-p-hydroxybenzoylsophorside-5-glucoside; Cyanidin 3-O-rutinoside (C3OR); Peonidin dirhamnoside; Cyanidin-3-glucoside isomer (C3G); Pelargonidin glucoside or cyanidin 3-O-rutinoside; and Peonidin dirhamnosaloyl-glucoside isomer ESI-MSPancreas
  • Protection of pancreatic beta cell islet through the inhibition of intracellular nitric oxide (NO) and the reactive oxygen species (ROS) scavenging mechanism
5Fresh orange-fleshed SPL (Jishu No. 16) collected from a farm in YichunLeavesTrans-N-(p-coumaroyl) tyramine; 7,3′-Dimethylquercetin; 7-Hydroxy-5-methoxycoumarin; Caffeic acid ethyl ester; Trans-N-feruloyltyramine; Cis-N-feruloyltyramine; 3,4,5-Tricaffeoylquinic acid; 3,4-Dicaffeoylquinic acid; 4,5-Dicaffeoylquinic acid; 4,5-Feruloylcourmaoylquinic acid; Caffeic acid; Quercetin-3-O-a-D-glucopyranoside; and Indole-3-carboxaldehyde3,4,5-Tricaffeoylquinic acid; 4,5-Dicaffeoylquinic acid; 3,4-Dicaffeoylquinic acid; Caffeic acid
Quercetin-3-O-α-D-glucopyranoside; and 7,3′-dimethylquercetin
HPLC, 1D NMR, 2D NMR, ESI-MSPancreas
  • Protection of beta cell pancreas by decreasing ROS through radical scavenging DPPH
Trans-N-(p-coumaroyl) tyramine; Trans-N-feruloyltyramine; 7-Hydroxy-5-methoxycoumarin; Cis-N-feruloyltyramine; Caffeic acid ethyl ester; 3,4,5-Tricaffeoylquinic acid; and Indole-3-carboxaldehyde Gastrointestinal
  • α-Glucosidase inhibition
6IBL leaves from (Hebei province) in Autumn LeavesFlavone -Pancreas
  • The beta cell acts as a safeguard by efficiently eliminating excessive free radicals, consequently decreasing the occurrence of lipid peroxidation
7IBL from Slatina (central Croatia)LeavesFlavonoid; Phenol -Pancreas
  • Protecting beta cell scavenging
8IBL from Anguillara Veneta (Northern Italy)LeavesCatechin; Naringin; Epicatechin; Chlorogenic acid; p-OH benzoic acid; Vanillic acid; t-Ferulic acid; and o-Coumaric acidChlorogenic acid and EpicatechinHPLC-PDAGastrointestinal
  • α-glucosidase inhibition
  • Tyrosinase inhibition
  • α-amylase inhibition
  • Anti-apoptosis beta cells through suppressing the increasethe activation of caspase-3 and caspase-8
9Fresh leaves of IBL (family of clones B 00593)
from Bandungan, Central Java Indonesia.
Leaves Anthocyanins; Catechins;
Quercetin; Proanthocyanidins; and Caffeic acid
  • The preservation of beta cells involves the suppression of reactive oxygen species (ROS) production, the removal of ROS through scavenging processes, and the augmentation of antioxidant defense mechanisms.
  • In order to enhance insulin secretion and improve insulin sensitivity, it is crucial to inhibit the activation of NF-κB, thereby suppressing the production of TNF-α and inhibiting iNOS (inducible nitric oxide synthase).
10‘Suioh,’ a IBL cultivar from Kumamoto prefecture, JapanLeaves Chlorogenic acid; 3,4,5-Tricaffeoylquinic acid; 3,4-Dicaffeoylquinic acid; 4,5-Dicaffeoylquinic acid; and 3,5-Dicaffeoylquinic acid3,4,5-Tricaffeoylquinic acid -Gastrointestinal
  • α-glucosidase inhibition
  • GLP-1 receptor activation, EGFRs are transactivated, thereby activating PI3K. This PI3K activation is essential for the cAMP/PKA-dependent pathway, which ultimately leads to the exocytosis of insulin. The exocytosis of insulin activates KATP channels, causing depolarization and an increase in Ca2+ levels, resulting in the secretion of insulin.
11Purple IBL -Peonidin-3-glucoside (P3G); Cyanidin-3-rutinoside C3R);
Cyanidin-3-glucoside (C3G); and Cyanidin-3,5-glucoside (C35G)
P3G; C3R; C3G; and C35G-Gastrointestinal
  • Inhibition porcine pancreatic α-amylase
12‘Bophelo’ orange-fleshed IBL cultivar Tubers and leavesIsovanillic acid; Protocatechuic acid; Quercetin; Caffeic acid; Catechin; Hyperoside; Kaempferol; Rutin; and Vanillic acidIsovanillic acid; Kaempferol; Protocatechuic acid; Caffeic acid; Catechin; Hyperoside; Rutin; Quercetin; and Vanillic acidHPLC-MSPancreas
  • Protecting beta cell melalui peningkatan antioxidant enzyme (catalase, CAT, glutathione peroxidase) dan uji antioxidant capacity using FRAP and TEAC
  • Activation of GLUT-4 and improvement in glucose uptake
  • Expression of the genes NRF1, MEF2A, CPT1, and ACC2, and ultimately glucose uptake metabolism and the management of insulin resistance
13White potato Tainung No.10Tubers and leaves Arabinogalactan; and Epigallocatechin gallate-Muscle
  • Activation of PI3K/Akt/GLUT-4 to increase insulin sensitivity and glucose uptake
14Purple IBL (Cultivar Eshu No.12) from the Institute of Food Crops, Hubei Academy of Agricultural SciencesTubersPeonidin-3-sophoroside-5-glucoside (P3S5G); Cyanidin-3-sophoroside-5-glucoside (C3S5G); Anthocyanins (containing one or two p-hydroxybenzoic, caffeic and/or ferulic acid); and
17 proteins (consisted of group: Acetylesterase, Proteinase inhibitor, Sporamin A, Superoxide dismutase [Cu-Zn], Beta-amylase, Sporamin B, preprosporamin, Polyphenol oxidase I chloroplastic, Purple acid phosphatase, and NBS-LRR protein and pectin)
P3S5G; C3S5G; Anthocyanins (containing one or two p-hydroxybenzoic, caffeic and/or ferulic acid); and
17 proteins (consisted of the group: Acetylesterase, Proteinase inhibitor, Sporamin A, Superoxide dismutase [Cu-Zn], Beta-amylase, Sporamin B, preprosporamin, Polyphenol oxidase I chloroplastic, Purple acid phosphatase, and NBS-LRR protein and pectin)
  • Protecting cell beta through reducing ROS and improving antioxidant enzyme activities
  • Activation of AMPK/GLUT-2/GK and insulin receptor alfa (INSR) to increase the level of insulin and glucose transporter
  • The synthesis of glucose is diminished through the downregulation of gluconeogenic genes, specifically glucose-6-phosphatase (G6Pase) and phospoenolpyruvate carboxykinase (PEPCK)
15Purple IBL powder (cultivar Eshu No. 8)TubersDiacylated anthocyaninsPeonidin-3-caffeoylferuloyl sophoroside-5-glucoside-LiverEnhancing the secretion and sensitivity of the insulin elucidates mechanism: (i) inhibitor of liver XO activity; (ii) activation of the expression of SGLT2, GLUT-5, and GLUT-2; (iii) the suppression of the NF-κB pathway leads to a decrease in the expression of IL-1ß and iNOS[25]
16IBL (Linn.) Lam
from Western Research Farm,
National Root Crop Research Institute, Umudike, Abia state
TubersFlavonoid; Terpenoid; Tannin; Phenol -Pancreas
  • Induction of beta cell regeneration or repairing and increasing the size and number of cells in the islet of Langerhans
  • α-glucosidase inhibition
  • Activation of PI3K (Phosphoinositol-3-kinase), P38 MAPK (Mitogen-activated protein kinase), and GLUT-4 translocation. They have been seen to increase glucose uptake.
  • Insulin secretagogues, directly activating the K+ ATP channel through influx of Na+ and an outflow of K+
IBL cv. Ayamurasaki from the Kyushu National
Agricultural Experiment Station in Miyazaki prefecture (Japan)
Tubers Peonidin 3-O-[2-O-(6-O-E-feruloyl-β-D-glucopyranosyl)-6-O-E-caffeoyl-β-D-glucopyranoside]-5-O-β-D-glucopyranoside-Gastrointestinal
  • α-Glucosidase inhibition
18Korean red skin IBL (Ib 1)and Korean pumpkin IBL (Ib 2) from the market in Goyang, Republic of
Peel-off tuber α-carotene; ß-carotene; zeaxanthin; and
  • α-Glucosidase inhibition
19White IBL (Caiapo)Tubers Acidic glycoprotein-Gastrointestinal
  • α-Glucosidase inhibition
  • The translocation of GLUT-4, along with the promotion of lipolysis and the subsequent release of free fatty acids from adipose tissue, contributes to an increased glucose uptake in isolated adipocytes. This mechanism ultimately results in a reduction in HbA1c levels.
20White-skinned sweet potato (WSSP) purchased
from Kagawa, Japan, Prefectural Cooperative
Tubers Caffeic acid-Adipose
  • Improvement in the secretion and sensitivity of insulin through significant increases in the adiponectin expression
WSPP fraction consists of >50 kDa, 10–50 kDa, and ≤10 kDa ≤10 kDa fraction-Muscle
  • Improving insulin sensitivity and glucose uptake. Considerably increases AKT phosphorylation//GLUT-4
>50 kDa fraction Liver
  • The inhibition of gluconeogenesis is achieved by suppressing the process itself and simultaneously promoting glycogen synthesis. This dual action leads to an increased uptake of glucose.
21Korean purple IBL (Shinzami, Saeungbone9, Gyeyae2469, Gyebone108, Saeungyae33, and Gyeyae2258)Tubers3-Caffeoyl-phydroxybenzoylsophoroside-5-glucoside; Peonidin 3-caffeoyl sophoroside-5-glucoside; Peonidin 3-(6″-caffeoyl-6‴-feruloyl sophoroside)-5-glucoside; and Peonidin 3-caffeoyl-phydroxybenzoylsophoroside-5-glucosideCyanidin 3-caffeoyl-p-hydroxybenzolsophoroside-5-glucoside and Peonidin 3-(6″-caffeoyl-6‴-feruloyl sophoroside)-5-glucosideLC-DAD-ESI/MSLiver
  • Inhibition of hepatic gluconeogenesis in HepG2 cells can lead to an enhancement in insulin sensitivity by reducing glucose secretion
  • Protective beta cell by reducing ROS through radical scavenging
potatoes (Sinjami and Sinhwangmi)
TubersLutein; Peonidin 3-(6″-caffeoyl-6″-feruloyl sophoroside)5-glucoside; Zeaxanthin; Cryptoxanthi; 13Z-ß-carotene; Peonidin 3-sophoroside-5-glucoside; Peonidin 3-p-hydroxybenzoyl sophoroside-5-glucoside; Cyanidin 3-p-hydroxybenzoyl sophoroside-5-glucoside; Cyanidin3-(6″-feruloyl sophoroside)-5-glucoside; Peonidin 3-(6″-feruloyl sophoroside)-5-glucoside; Cyanidin 3-(6″,6″-dicaffeoyl sophoroside)-5-glucoside; Cyanidin 3-caffeoyl-p-hydroxybenzoyl sophoroside-5-glucoside; Cyanidin3-(6″-caffeoyl6″-feruloyl sophoroside)-5-glucoside; Peonidin 3-caffeoyl sophoroside-5-glucoside; Peonidin 3-(6″,6″-dicaffeoyl sophoroside)-5glucoside; Peonidin 3-caffeoyl-p-hydroxybenzoyl sophoroside-5-glucoside; all-trans-ß-carotene; and 9Z-ß-carotene Peonidin 3-caffeoyl-p-hydroxybenzoyl sophoroside-5-glucosideUPLC-MS/MS (Q-TOF-ESI)Adipose
  • Stimulating adipogenesis through the inhibition of fat accumulation in adipocytes via the PPARγ expression. Activation of the PPARγ receptor will maintain glucose homeostasis
23IBL from Kagawa Prefecture, Japan Tubers Chlorogenic acid; and Caffeic acid and its derivatives-Pancreas
  • Protection of beta cell from oxidative stress-related gene expression and peroxidation of the plasma membrane
  • Increase in the secretion insulin by the inhibited activation of the nuclear transcription factor and P38 MAP kinase pathway to decrease TNF-α production
24White-skinned sweet potato (WSSP)Tubers Arabinogalactan protein-Liver
  • Improving insulin sensitivity by the inhibition inflammatory cytokines such as IL-6 and TNF-α
25Purple IBL Antin-3 cultivar from the
TubersAnthocyanin group -Pancreas
  • Regeneration and protecting beta cells through reducing oxidative stress using the radical scavenging DPPH method
26White-skinned sweet potatoes (WSSP) from the local market Faisalabad (Pakistan)Tubers Carotenoid -Pancreas
  • Protecting beta cells by decreasing oxidative stress, and induced elevated cytosolic free Ca2+ concentrations in beta cells further contribute to supraphysiological insulin release
Glicoprotein; Flavonoid; and Carotenoid-Liver
  • Hepatoprotective mechanism due to a decrease in the glycation level prevents the formation of ROS—amplified activities of liver enzymes such as SGOT and SGPT.
27Purple IBL from Padang, West Sumatra, IndonesiaTubers Peonidin; and Cyanidin-Gastrointestinal
  • α-amylase inhibition
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Dewi, N.K.S.M.; Ramona, Y.; Saraswati, M.R.; Wihandani, D.M.; Wirasuta, I.M.A.G. The Potential of the Flavonoid Content of Ipomoea batatas L. as an Alternative Analog GLP-1 for Diabetes Type 2 Treatment—Systematic Review. Metabolites 2024, 14, 29.

AMA Style

Dewi NKSM, Ramona Y, Saraswati MR, Wihandani DM, Wirasuta IMAG. The Potential of the Flavonoid Content of Ipomoea batatas L. as an Alternative Analog GLP-1 for Diabetes Type 2 Treatment—Systematic Review. Metabolites. 2024; 14(1):29.

Chicago/Turabian Style

Dewi, Ni Kadek Santi Maha, Yan Ramona, Made Ratna Saraswati, Desak Made Wihandani, and I Made Agus Gelgel Wirasuta. 2024. "The Potential of the Flavonoid Content of Ipomoea batatas L. as an Alternative Analog GLP-1 for Diabetes Type 2 Treatment—Systematic Review" Metabolites 14, no. 1: 29.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
