Review
Nanoemulsion: A Review on Mechanisms for the Transdermal Delivery of Hydrophobic and Hydrophilic Drugs
1
Department of Pharmaceutics &Pharmaceutical Technology, Faculty of Pharmaceutical Sciences and Pharmaceutical industries, Future University in Egypt (FUE), 11835 Cairo, Egypt
2
Department of Pharmaceutics& Industrial Pharmacy, Ain Shams University, 11591 Cairo, Egypt
3
Quality Control Department, Elnajah Medical Services, Benghazi, Libya
*
Author to whom correspondence should be addressed.
Received: 1 June 2019 / Accepted: 9 July 2019 / Published: 12 July 2019

Abstract

:
Nanoemulsions (NEs) are colloidal dispersions of two immiscible liquids, oil and water, in which one is dispersed in the other with the aid of a surfactant/co-surfactant mixture, either forming oil-in-water (o/w) or water-in-oil (w/o) nanodroplets systems, with droplets 20–200 nm in size. NEs are easy to prepare and upscale, and they show high variability in their components. They have proven to be very viable, non-invasive, and cost-effective nanocarriers for the enhanced transdermal delivery of a wide range of active compounds that tend to metabolize heavily or suffer from undesirable side effects when taken orally. In addition, the anti-microbial and anti-viral properties of NE components, leading to preservative-free formulations, make NE a very attractive approach for transdermal drug delivery. This review focuses on how NEs mechanistically deliver both lipophilic and hydrophilic drugs through skin layers to reach the blood stream, exerting the desired therapeutic effect. It highlights the mechanisms and strategies executed to effectively deliver drugs, both with o/w and w/o NE types, through the transdermal way. However, the mechanisms reported in the literature are highly diverse, to the extent that a definite mechanism is not conclusive.
Keywords:
nanoemulsion; transdermal; permeability; water-in-oil; oil-in-water; mechanisms

1. Introduction

Nanoemulsions (NEs) are submicron sized and have gained great interest as drug carriers for improving the delivery of therapeutic agents. They are considered an advanced nanodroplet systems for systemic, controlled, and targeted drug delivery. NEs are colloidal dispersions consisting of two immiscible liquids (water and oil), in which one liquid is dispersed in the other by means of an appropriate surfactant mixture, forming a system where the size of droplets falls in the range of 20 to 200 nm, as reported by Takur et al. [1]. Nanoemulsion (NE) in particular is a very cost-effective technique, with high storage stability, as it is easily prepared and does not always require high energy or complicated procedures [2,3]. Despite the similarities between NEs and microemulsions (MEs) in terms of their physical appearance, components, and preparation techniques, NEs are kinetically stable and thermodynamically metastable, while MEs are thermodynamically stable [4].
Transdermal drug delivery is a very established route of drug administration that is known to have enhanced therapeutic efficacy, ease of administration, and an allow an immediate withdrawal of treatment if necessary [5]. This administration route bypasses the hepatic metabolism to reach systemic circulation [6], leading to an increase in drug bioavailability. Moreover, it reduces the adverse effects of some medicines, e.g., non-steroidal anti-inflammatory drugs (NSAIDs), which are usually associated with gastrointestinal tract (GIT) drug administration [7,8]. Drug delivery via skin for systemic circulation is suitable for a number of clinical conditions, such as hypertension, arthritis, diabetes, cancer, and high blood cholesterol level [9]. Because the dose is given transdermally and is sustained over a long period via tailored delivery systems, particularly in the case of NE, it is of utmost importance to improve patient compliance [10].

2. Skin Permeation Pathways

The outermost layer of the epidermis, the stratum corneum (SC), forms a hydrophobic barrier that impedes the transport of exogenous chemicals, including drugs [11]. An important requirement for transdermal delivery is that the drug carried by a vehicle is able to reach the skin surface at an adequate rate and in sufficient amounts [12]. The SC is the hardest layer of skin due to its flattered corneocytes which are surrounded by lipid bilayers consisting of ceramides [9]. It is arranged in 10–15 rows that are 10 μm in thickness, composed of highly keratinized cells, known as corneocytes. These cells are surrounded by a continuous lipid phase, known as the intercellular lipid lamellae, and have been said to resemble a “brick and mortar” model [13]. Finally, diffusion through the SC is the sum of a series of segments of lateral diffusion and intramembrane trans-bilayer transport [14].

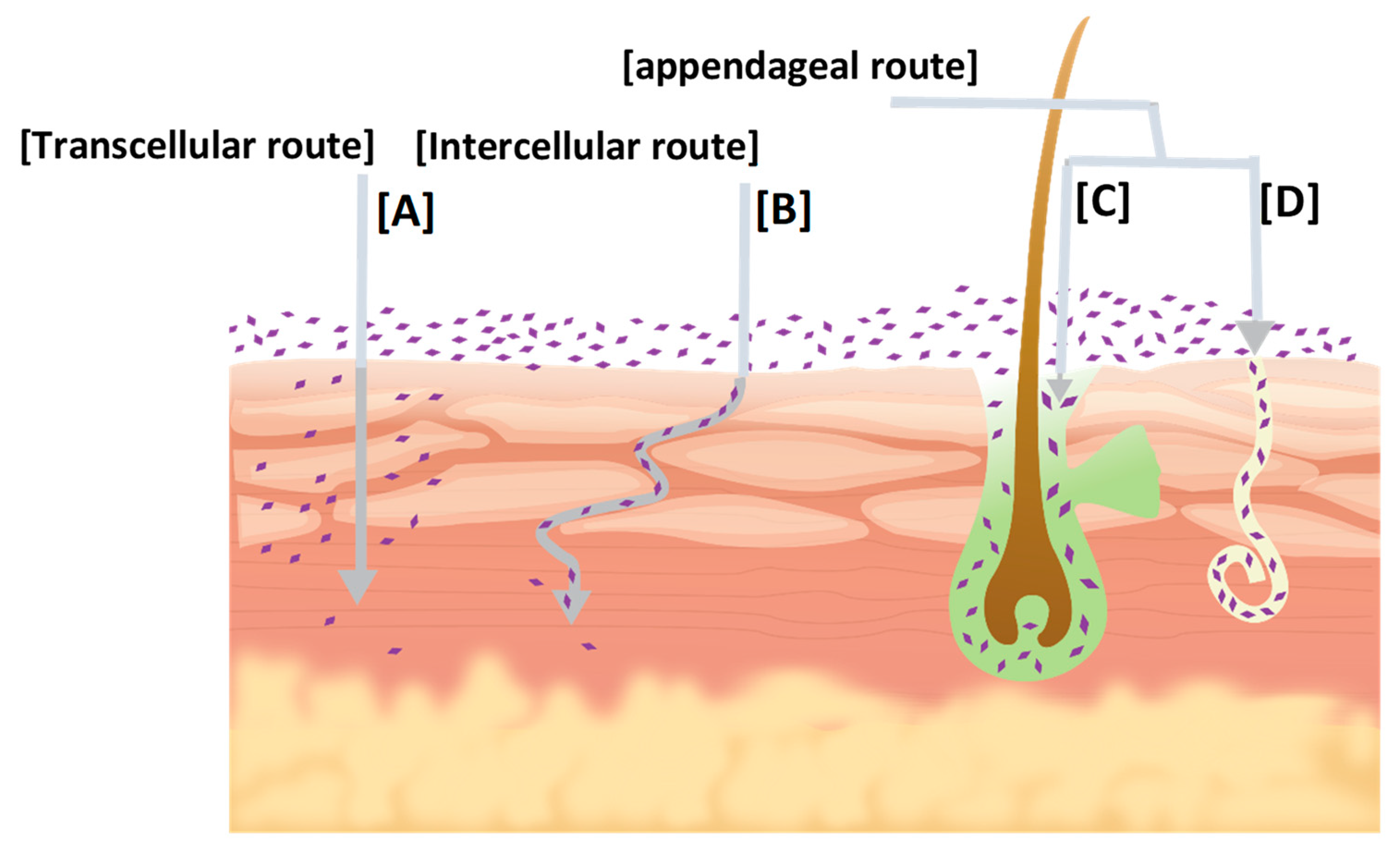

A permeant applied to the skin has three possible routes across the epidermis, as illustrated in Figure 1: The transcellular route, a lipid domain associated with the proteins inside corneocytes, the intercellular route, and the appendageal route, through hair follicles, via associated sebaceous glands and sweat ducts [15]. The fractional appendage area available for transport is only about 0.1%. This route usually contributes negligibly to the steady state drug flux. This pore pathway may be important for ions and large polar molecules that struggle to cross an intact SC [15]. The transcellular route is a sequence of partitioning and diffusion into alternating hydrophilic and lipophilic domains of cells, respectively, in the extracellular matrix [16,17]. In the intercellular route, the permeant crosses the hard path within the extracellular matrix, without traversing the cells. Small hydrophilic molecules generally prefer the transcellular route over the intercellular route, and the reverse is true for lipophilic molecules. The transcellular and intercellular routes constitute the transepidermal pathway [18].
The combined flux of these two pathways, lipid and pore, determines the overall observed flux across the skin. It is widely accepted that the trans epidermal pathway is usually the predominant pathway of skin permeation and that under sink conditions, diffusion across the SC constitutes the rate-limiting step that determines the overall flux of the permeant.

3. Determination of Transdermal Permeability Coefficient

The total experimental permeability coefficient (P) for full-thickness skin may be expressed as [19]:
P =   1 1 P S C + 1 P D / E
where PSC is the permeability coefficient of the SC and PD/E is the permeability coefficient for the epidermis-dermis combination, which can be estimated from permeation experiments with tape-stripped skin. PSC can be further divided into parallel lipoidal and pore pathway components in the SC via the following equation:
PSC = PL + PP
where PL and PP are the permeability coefficients for the lipoidal and pore pathways, respectively. By substituting Equation (2) into Equation (1), the following expression is obtained:
P =   1 1 P L + P P + 1 P D / E
Highly lipophilic drugs may be retained in the lipophilic SC and resist partitioning into the more hydrophilic viable epidermis [20]. Thus, clearance from, rather than diffusion across, the SC may then become the rate-limiting step for highly lipophilic drugs. Similarly, the appendageal pathway may be more important for highly hydrophilic molecules, electrolytes, and large molecules with low diffusion coefficients [21,22]. For lipophilic permeants, Equation (2) may be well approximated as follows:
PSCPL
In an analysis of experimental data obtained with hairless mice skin in phosphate buffer saline, Equation (4) has been found to be true for lipophilic permeant corticosterone in a PBS, as PP « PL and PD/E » PL [23,24].

4. NE in Transdermal Delivery

Nanosized drug delivery systems significantly enhance the bioavailability and solubility of active constituents by penetrating vital cellular reservoirs [25,26]. Nanoemulsions (NEs) have been reported to improve the transdermal permeation of many drugs when compared to conventional topical formulations [27]. Many formulators have investigated the skin permeation mechanism of many drugs using NEs and microemulsions (MEs) as delivery systems [20,28,29]. NEs and MEs share similar components in different ratios and the same penetration mechanisms. Their main difference lies in their droplet shape, size distribution, and kinetic stability [30]. To the best of our knowledge, although different mechanisms have been suggested to explain the effect of NE on skin permeation in the literature, an answer to the following question is not well understood: Do the NE properties or NE components provide the transdermal permeation enhancement? Thus, this review focuses on the different reported mechanisms by which NE enhanced the transdermal permeation of hydrophobic and hydrophilic drugs.

4.1. Physical Properties of Transdermal NE

NEs are a transparent (translucent) liquid in a liquid colloidal dispersion system which is kinetically stable, with a droplet size <100 nm, as reported by McClements [30]. However, he stated that other NE particle size upper limits, such as 200 and 500 nm, were proposed in recent literature. The long-term physical stability of NEs, with no flocculation or coalescence, provides unique properties and makes them approach thermodynamic stability [31]. NEs consist of oil and aqueous phases, stabilized by a surfactant and co-surfactant in defined ratios [32]. NE, when compared to conventional emulsion, shows superior properties, namely sturdiness against gravitational separation, a droplet size in the nanometer range, improved stability, and larger capacity for drug encapsulation [33]. The dispersibility of NEs is very high compared to MEs, owing to the small droplet size that prevents flocculation and allows dispersion without separation [34]. NEs can be used to deliver either hydrophilic or lipophilic drugs in water-in-oil (w/o) or oil-in-water (o/w) formulations, respectively [8].

4.1.1. Oil-in-Water (o/w) NE

Most of the drugs available in the market today that are developed by the pharmaceutical industry are poorly soluble in water and lipophilic in nature [20]. Recently, scientists have shifted their interest toward nanotechnology-based lipid systems, such as solid dispersions, solid lipid nanoparticles, liposomes, MEs, and NEs, due to their enhanced ability to solubilize drugs, increase bioavailability, and increase drug carrying capacity, which are also the most advanced commercial approaches. NE is a leading trend in transdermal drug delivery systems since it enhances drug skin permeation and improves the bioavailability of poorly soluble drugs when compared to other transdermal dosage forms [35,36].

4.1.2. Water-in-Oil (w/o) NE

NEs that are of the type w/o, issued for hydrophilic compounds, are less common than o/w NEs for transdermal delivery. In w/o NEs, the drug resides in the water phase rather than the oil phase, although its partitioning in the oil phase is inevitable, based on its oil-water partition coefficient. Since the drugs used in this category are water-soluble, the selection of surfactants in these preparations is based on a proper hydrophile-lipophile balance (HLB) value, in order to reduce the tension between the water phase and the oil phase and produce a stable formula [2].

4.2. Components of Transdermal NE

4.2.1. Oil Phase

Oleic acid (OA) is a common oil phase that is employed in the composition of NEs. OA has an inherent penetration enhancing ability, as it causes the SC to absorb more water and swell, and it also compromises some of the structural components of the SC, thus increasing penetration through this limiting and protective barrier [37]. Other oils that possess permeability enhancing abilities, such as capryol 90 [5] and isopropyl myristate [8], have been reported in the literature. The viscous oil α-tocopherol gives a very small droplet size, followed by hexyl laurate [31].

4.2.2. Surfactants

Surfactants are compounds that have the ability to enhance permeation through the skin, which is assumed to be related to their ability to reversibly bind to keratin filaments, which in turn leads to the disruption of corneocytes, thus altering the diffusion coefficient of the SC [38,39]. A study using a NE containing medium-chain monoglycerides and diglycerides as surfactants demonstrated that the concentration of surfactant blend can differentially affect the permeation of the studied hydrophilic and lipophilic drugs across skin [36]. As reported, the transdermal delivery of hydrophilic drugs but not lipophilic drugs was significantly enhanced when the concentration of the surfactant blend was increased [40]. An explanation for this is that the very high concentration of surfactants modified the skin barrier [41].
Surfactants are generally classified into non-ionic, anionic, cationic, or zwitterionic types [42]. Non-ionic surfactants are the most commonly used type of surfactants in transdermal NEs, due to their low toxicity and minimum interference in NEs [43]. These surfactants have the ability to fluidize SC lipids and hence enhance drug absorption [44]. Their rate of enhanced penetration is influenced by two possible mechanisms. At the beginning, the surfactant enters the intercellular regions of the SC, fluidizing, solubilizing, and extracting the lipid components [45]. Following this process, the surfactant penetrates the intercellular matrix, interacting and binding with keratin filaments, hypothetically resulting in the disruption of corneocytes [46,47].
Anionic surfactants, for instance, better enhance the skin penetration ability of target molecules, exerting a more powerful interaction with keratin and lipids [43,48,49,50,51]. Additionally, sodium lauryl sulfate (SLS) alkyl chains were reported to be involved in the hydrophobic interaction with skin structures, exposing the end sulphate group of the surfactant, creating additional bonding sites in the membrane, thus leading to increased skin hydration [52,53].
Cationic surfactants also affect the cornified cells by interacting with the keratin fibrils and disrupting the cell-lipid matrix. They may also change the electronic properties of the SC by interacting with the anionic components there, enhancing the transfer of anionic drugs into the skin [43].
There is no perfect combination of surfactants that can be used in all formulations, since many possibilities need to be explored. For the selection of a surfactant, the greater its degree of ethoxylation, the lower the viscosity conferred to the formulation. This is because when the degree of ethoxylation of the surfactant is higher, its solubility in water is higher, thus decreasing the viscosity of the medium [54].

4.2.3. Co-Surfactants

The addition of a co-surfactant reduces the interfacial tension and increases the fluidity of the liquid-liquid interface by decreasing its bending stress. The interfacial tension continuously decreases with an increasing co-surfactant concentration, until a minimum, beyond which the interfacial tension increases again. The concentration of alcohol necessary to reach this minimum becomes higher as the alkyl chain of the alcohol becomes shorter [55]. NEs prepared with n-butanol, n-hexanol, and n-pentanol, considered as medium-chain alcohols, have reduced interfacial tension between the surfactant and water phase. This ability is reduced with longer alcohol chains [56].
The size and region of NEs can be strongly influenced by the presence of the surfactant and co-surfactant in the system [57], by altering the surfactant film rigidity, increasing its flexibility, and taking up different curvatures required to form NEs over a wide composition range [58]. Short-chain co-surfactants, like ethanol, tend to extend the phase diagram NE area, acting as a hydrotrope that dramatically decreases the surfactant film interfacial tension between the oil and water phases [59].
The effect of the co-surfactant on the NE stability is dependent on its chain length. Accordingly, when long-chain alcohols such as heptanol and hexanol are used as co-surfactants they result in the separation of a closed water domain inside a continuum of a hydrocarbon layer. This leads to a less uniform and less organized micelle system. On the other hand, medium-chain alcohols form stable oil droplets within the system, with less sign of phase separation [60]. The selection of the co-surfactant can control the release of the drug by tailoring the viscosity of the NE to either low or high viscosity, without compromising the stability of the NE [61]. The inclusion of alcohol in the formulation exerts a strong influence on the density and viscosity of the NE. Ethanol, for example, tends to lower the viscosity of the overall preparation [59].
Furthermore, co-surfactants can improve the solubility of the drug loaded into the system [62]. Ethanol also has a low topical toxicity and can be mixed with a wide range of surfactants, increasing the dissolving power of active compounds [63]. Multiple co-surfactants, when optimally selected, can act in conjunction to improve the overall flux of the drug without the need to add a permeation enhancer (PE) [64].

4.2.4. Permeation Enhancers (Accelerants)

Permeation enhancers (PEs) have been employed to temporarily alter the physicochemical nature of the SC, thus reversibly facilitating the passage of the drug. PEs exert reversible modifying action on the connections between corneocytes [16]. A different mode of action has been proposed, through affecting the metabolic activity in the skin [65,66]. Many studies indicate the importance and influence of the chemical structure of PEs (i.e., terpenes, azones, fatty alcohols, and fatty acids) on the permeation enhancement of drugs [42].
Amongst the most commonly used PEs are fatty acids, e.g., OA (which is usually used as an oil phase in NE formulations), esters of fatty acids such as isopropyl palmitate and ethyl oleate, terpenes, for instance limonene, menthol, and cineole, and short-chain alcohols such as ethanol. Many have shown an effective transdermal permeation enhancing ability with low skin irritation [67].
In the past, OA was used as a PE before the emergence of nanoscale systems. A formulation containing 6% OA showed an increase in penetration enhancement of up to 208-fold when compared to a formulation containing no OA [68,69,70,71].
The most commonly used terpene is limonene. It was used to enhance the transdermal permeation of both lipophilic and amphiphilic compounds while found ineffective with hydrophilic compounds [72]. One study compared transdermal drug delivery through rabbit skin using 5% menthol as a PE, emphasizing the impact of the addition of PE to formulations to enhance systemic drug delivery [73].
Other PEs have been employed in enhancing drug transdermal permeation, for example azone, dimethyl sulfoxide (DMSO), and N-methyl pyrrolidone (NMP). Azone (laurocapran) was the first specifically designed as a skin PE, being effective at low concentrations ranging between 0.1 to 5%. It has been reported to enhance the skin transport of a wide variety of drugs, including steroids, antibiotics, and antiviral agents, through partitioning into the skin bilayer lipid and disrupting their packing arrangement [65].
DMSO has been incorporated along with ethanol as a PE for the transdermal delivery of acyclovir [74]. Comparisons of the enhancer potencies based on the free concentration of the enhancers revealed a nearly semi-logarithmic linear relationship between enhancer potency and the carbon number of the alkyl chain length [75]. DMSO interacts with keratin and works as an enhancer by changing the protein conformation and opening up water channels within the corneocyte [76].
N-methyl pyrrolidone (NMP) was found to be a more effective enhancer for the aqueous phase of MEs than the organic phase. Owing to its low isopropyl myristate/water partition, NMP resides exclusively in the water phase of the system, where its enhancing effect from that phase should dominate. In w/o MEs, NMP is sequestered in the encapsulated phase and unable to interact with skin. This might explain the better transdermal transport of both hydrophilic and hydrophobic permeants from o/w MEs [77].
Short-chain alcohols such as ethanol, isopropyl alcohol (IPA), and polyethylene glycol (PEG) have a pronounced permeation enhancement ability compared to medium chain alcohols, such as n-propanol, n-butanol, and n-pentanol, which are more suitable as co-surfactants than PEs [78]. Investigators gave ethanol great attention in transdermal delivery regarding its mechanism of permeation enhancement. Researchers compared the effectiveness of ethanol as a PE with lauric acid and sodium tauroglycocholate to help facilitate the passage of aminophylline through skin. Lauric acid showed the best enhancing ability in the first hour, while after four hours ethanol leaped ahead, resulting in a 60% permeation enhancement, which is explained by ethanol’s ability to temporarily modify the SC to increase permeation [45].
The enhancement ability of ethanol tends to have an optimum range, where in high concentrations drug penetration is reduced [79]. At low levels (<25%), ethanol has little or no effect on the pore pathway. It has been proposed that the ethanol enhancement effect at low levels may be interpreted in terms of increasing fluidity in the transport rate-limiting lipid domains [80]. In other words, low ethanol content (<50%) may be effective in fluidizing the SC lipid bilayer at or near the polar head plane, but not in the bilayer hydrocarbon interiors. The polar/ionic permeants were transported via the pore pathway at all ethanol concentrations. In contrast, at high ethanol levels (>50%), there was a significant increase in new pore formation in the SC, while at very high ethanol levels (≥75%), the pore pathway appeared to dominate the transport of all permeants, including the lipophilic permeants, irrespective of polarity [81].

5. Biocidal Property of NE

Surfactant NEs have been proven to have a broad-spectrum biocidal activity against a variety of microorganisms, including gram-positive and gram-negative bacteria, spores, and enveloped viruses [82]. Soybean oil nanodroplets, when stabilized by a detergent and solvent, selectively fuse with the bacterial membrane or viral envelope, destabilizing lipids and initiating the disruption of the pathogen. Myc et al. demonstrated an effective anti-fungal activity through a novel NE consisting of oil, three non-ionic detergents, solvents, and water [82].
Previously, such a combination of properties against microbes could only be achieved with antibiotics and disinfectants [83]. This capability shows great selectivity as a standalone mode of action and as an added feature to formulations, without the need of preservatives to maintain stability. Moreover, this particular property implies the direct application of the NE on the skin surface, even without the need of disinfecting the area of application. Despite this antimicrobial activity, NEs do not exert any toxicity to skin layers or to normal cells.
As reported, these antimicrobial NEs were composed of detergents, oils, and 20% water, forming a w/o system. Eucalyptus oil, which has a broad-spectrum antibacterial activity, was used as an oil phase in a NE applied to a Listeria monocytogenes strain. Here, the NE showed a sporicidal activity, mediated by both Triton X-100 and tri-n-butyl phosphate components. This unique sporicidal action of the emulsion is interesting because Bacillus spores are generally resistant to most disinfectants, including many commonly used detergents [84,85]. NE also possesses a broad-spectrum activity against a variety of bacterial strains, such as Salmonella, E. coli, S. aureus [76,86]. It has been reported that a novel NE composed of tributyl phosphate, soybean oil, and Triton X-100, has the potential to be used as a topical antimicrobial agent against several pathogens [87]. Although all the previous studies done on antimicrobial NEs were intended for topical use, this property could be exploited for transdermal applications.

6. Methods of NE Preparation

Depending on the desired formulation, the appropriate preparation method should be carefully selected to optimize the droplet size distribution, since it strongly affects the stability behavior of the NE [33]. Below, methods of NE preparation are divided into high and low energy methods.

6.1. High Energy Methods

High energy NE formation involves the use of devices that reduce the size of the inner phase droplet into a unified and reproducible range. This method is sophisticated, consumes large amount of energy, and is not suitable for thermolabile components such as proteins, enzymes, nucleic acid, and retinoids [88].

6.1.1. High-Pressure Homogenization

The high-pressure homogenization method uses many techniques to achieve the required particle size (PS). Among these techniques are hydraulic shear, cavitation, and intense turbulence [89], usually under a pressure of 500 to 5000 psi [90]. The surfactant and co-surfactant are passed through a small opening (orifices) where dilution is performed later.
This method can be done on multiple cycles, passing the liquids through the homogenizer multiple times to unify and reduce the droplet size down to 1–10 nm. Optimally, a NE with an oil content of 20% is used for this method, as a large amount of oil in the formulation reduces the productivity of this method significantly. This is one of the most frequently used methods for the preparation of NEs using a high energy technique [88].

6.1.2. Microfluidization

Microfluidization is a patented mixing technology that involves a high pressure positive displacement pump with a pressure of 500–20,000 psi [89]. This pressure forces the phases to pass through micro-channels. The two phases are mixed and proceed as a coarse emulsion, made to pass through micro-channels, which leads to a massive amount of shear. The liquids are then passed through an interaction chamber microfluidizer unit until the desired droplet size is achieved [88]. This method is expensive and is not suitable to produce NE in large quantities, so up-scaling using this method is difficult and not viable [91].

6.1.3. Ultra-Sonication

A sonicator probe introduces a vibration of a certain wavelength which produces cavitation, producing a small droplet size, hence preventing the NE from coalescing [92]. This method can only be used in a laboratory setting, as large volumes of production are not feasible [90].

6.1.4. Jet Disperser

Similar to microfluidization but with no moving parts, this method is able to handle extreme pressures of up to 400 MPa [88]. Two jets facing each other pour two different liquids through the nozzles, causing them to collide with each other. With the help of laminar elongation flow, the formed NE is collected through an orifice plate that coordinates the energy dispersion. This method is not as efficient as microfluidization, but it is less expensive and more energy efficient [92].

6.2. Low Energy Methods

6.2.1. Phase Inversion Temperature

Also known as the condensation method, the phase inversion temperature method was first carried out in 1968 [93]. They concluded that the increase in temperature results in the chemical changes of polyoxyethylene surfactants by degradation of the polymer chain with temperature [89,94]. This method involves the transitioning of the liquid phases by the spontaneous curvature of the surfactant [93]. This could be achieved by keeping the composition of the emulsion fixed while changing the temperature of the setting (phase inversion temperature, PIT) [95]. It can also be performed by keeping the temperature constant and changing the composition of the system (emulsion inversion point, EIP) [96].

6.2.2. Spontaneous Emulsification

This method is the simplest technique to produce NEs, it does not require any special equipment or devices. The oil phase, surfactant, co-surfactant, and the aqueous phase are added together in a stepwise manner, where gentle stirring is sufficient to produce the NE. The limitation of this method is the rigorous process of selection of the correct ingredients to produce a stable NE with a small droplet size [91,97,98].

6.2.3. Solvent Displacement Method

This method involves the dissolving of the oil phase in a solvent such as ethanol or acetone, then adding them both to the aqueous phase containing the surfactant and co-surfactant. This method does not require energy as it happens spontaneously at room temperature [93]. The viscosity of the emulsion, surfactant type, and concertation are the defined parameters that must be obtained to acquire the required NE [99,100].

7. Characterization of Transdermal NE

The characterization of a NE includes an array of testing steps that guarantee the successful formation of the NE. The droplet size confirmation, stability, and compatibility of all the formulation components, skin irritation testing, and successful transdermal delivery of the drug play an important role in the biological activity of the NE [101,102]. The most common characterization tests are collected and summarized in Table 1.

8. NEs for Transdermal Delivery of Hydrophilic Drugs

8.1. Transdermal w/o NEs Containing Hydrophilic Drugs

From the literature, several experiments have explored the efficacy of w/o NEs on the transdermal permeation of hydrophilic drugs through both animal and human skin (Table 2). However, there is still a surprising lack of data on NEs optimized for the delivery of hydrophilic drugs [125]. When the water-soluble metoprolol was formulated in o/w NE, it exhibited higher in vitro release compared to w/o NE. However, there was no significant difference between the 2 types of NE regarding rat skin permeation and no mechanism was suggested [126].
The loading of ropinirole hydrochloride (RHCL), a selective non-ergoline dopamine D2 receptor agonist used to treat Parkinson’s disease in transdermal NEs, was investigated. RHCL has poor bioavailability (50%) due to the extensive first pass effect. Transdermal w/o NE was compared to the aqueous solution. The results were very promising, where the w/o NE did indeed penetrate rat skin at a rate of 63.23 mg/cm2/h, while the aqueous solution failed to facilitate the transport of RHCL through the skin. These results showed a very promising prospect for w/o NE to be used for the delivery of hydrophilic drugs that show poor bioavailability through conventional routes of administration [127]. Previous studies reported similar results explaining that ME and NE could modify the surface electrical charge of an ionic drug and then enhance the permeability of a hydrophilic drug [128,129].
The potency of w/o NE, to facilitate inulin permeation, a diagnostic aid for renal function that is considered a large and water-soluble molecule, was tested. The ability to permeate hairless and hairy mice skin and also hairy rat skin was investigated. The drug flux was dependent on the HLB of surfactant mixture, rather than any other factors, including the drug molecular weight (Mw) and animal skin characteristics, such as the SC thickness and follicle-type. Using in vitro testing and comparing the penetration results of the NE with a micellar solution and aqueous control, the results revealed that the transdermal permeation of the micellar system was lower than the NE, due to the high viscosity and homogeneity with the follicular sebum [130]. This hypothesis was further supported by the low penetration result of “low-oil” NE that failed to enter the follicular pathway to successfully facilitate the release of inulin from the inner water phase. The combined results suggested that w/o NE, which is compatible with the lipophilic sebum of hair follicle, enhanced the transport of hydrophilic solutes, implying that such transport is transfollicular [130].
The presence of sebum in the hair follicle greatly hinders the delivery of hydrophilic compounds [131,132,133]. Caffeine was detected in blood only 5 min after application on the skin of healthy volunteers for open follicles and 20 min for closed hair follicles, emphasizing the importance of the pore pathway in hydrophilic drug delivery. Experimentally, an in vivo application showed better penetration through the hair follicle than the in vitro experiment regarding the transfollicular route [134,135].
The NE with soybean oil, span 80 as a surfactant, and isopropyl alcohol as a co-surfactant, at concentrations of 46.5, 32.4, and 10%, respectively, was developed for incorporating glycyrrhizin, which is used for a variety of health complications, such as allergies, ulcers, chronic hepatitis, and arthritis. The developed w/o NE has enhanced penetration properties on human cadaver skin, where the optimum formula showed the most linear and sustained release profile due to a low droplet size and reduced viscosity [136]. The topical application of a single dose of w/o NE that was composed of olive oil, span 80 as non-ionic surfactant, and containing plasmid DNA, mediated transgene expression. The deposition of plasmid DNA was primarily in the hair follicles. In contrast, none of cationic liposomes mediated transgenic protein expression. Thus, w/o NE was suggested to be a suitable candidate in gene therapy to facilitate the transfection of follicular keratinocytes [137].
As reported, thiocolchicoside (TCC), with a very poor oral bioavailability due to an extensive first pass metabolism, was incorporated into a w/o NE consisting of linseed and Sefsol as the oil phase, span 80 as the surfactant, and Transcutol P as a co-surfactant, having an average PS of 117 nm. The results showed a 5-fold improvement in transdermal delivery compared to the aqueous solution in vitro using porcine skin. These promising data serves as a good indicator to carry out future in vivo studies for TCC NE to further prove TCC efficiency [138].
Caffeine NE was developed using OA and eucalyptol, which both serve a dual function of being an oil phase and a PE, showing a 51% and 54% passage of caffeine, compared to 27% penetration of a topical caffeine solution when the follicles were opened. On the other hand, the percentage of penetrated drug was only 18.9% through blocked follicles [139]. Follicular delivery is tricky in vitro, since human skin follicles tend to collapse, becoming blocked with dry sputum, and secretion pathways become inactive. In vivo results always show better results in live skin than dead skin [140].

8.2. NE Mechanisms for Enhanced Transdermal Delivery of Hydrophilic Drugs

The mechanism by which a hydrophilic drug is transported through skin from a w/o NE, is indeed different from a hydrophobic drug. As the passage through skin requires an increased lipophilicity [12], it is then important to study the transdermal transport of a hydrophilic compound delivered from NE systems. It was hypothesized that a hydrophilic drug would not be available for percutaneous transport from NEs, unless water from the NE freely permeates transdermally. Therefore, the sufficient mobility of water within NE vehicle and the sufficient percutaneous transport of water across the skin barrier are both required [142]. Moreover, the active compound’s PS and the droplet size play a more important role here than in o/w [143]. Different reported mechanistic theories are discussed as follows and illustrated in Figure 2.

8.2.1. Increasing Drug Thermodynamic Activity

Drug thermodynamic activity is a major factor in skin permeation, where the drug moves from the internal phase to the external phase, then depositing into the skin layers. This provides a continuous process which has a major role on the extent to which the drug can diffuse transdermally, especially for hydrophilic drugs. This phenomenon was observed with glycyrrhizin, which has a large Mw of 822.94 g/mol, where having a low concentration of the surfactant/co-surfactant mixture (Smix) in the formula showed a better release through human skin than with a large concentration, hypothesizing that the low viscosity due to the low Smix content contributed to give the drug molecules more freedom to move through phases and eventually penetrate the SC. Thermodynamic activity is also enhanced with the reversal of altering the skin’s natural barrier resistance and modifying the drug SC partition coefficient by NE components as surfactants and PEs [136]. It has also been suggested that ME, by continuously fluctuating interfaces, may increase the drug mobility, hence aiding its penetration [144]. In addition, the high solubilization capacity of ME increases the thermodynamic activity of permeants, which is one of the driving forces of drug transport [144]. The drug in this energy-rich system can diffuse across the flexible interfacial surfactant film between the phases. This is a thermodynamic process that increases partitioning and diffusion into the SC [145].

8.2.2. Modification of Surface Electrical Charge of Ionic Drugs

The hydrophilic drug RHCL, with low Mw, when topically applied as an aqueous solution, showed no penetration properties, despite the drug’s hydrophilicity and small molecular size. Based on these findings, NE formulation was developed with isopropyl myristate (IPM) as the oil phase (5%), Brij® 35 + Brij® 30 (20–30%) as the surfactant, IPA as the co-surfactant (20–30%), and double-distilled water (34.5–50%).The developed NE exhibited a significant increase in drug permeation rate [105]. It was explained that NEs could modify the surface electrical charge of an ionic drug and then enhance the permeability of a hydrophilic drug, as reported in literature [146,147].

8.2.3. Solubilization of Sebum by NE Components

SC layers tend to be thinner closer to follicular orifices, which are rich in terms of their capillary network. Areas of the human body with higher follicular density like the forehead show good follicular drug delivery compared to other areas like the forearm [136]. However, follicular delivery depends on presence of sebum and the blockage of pores. Otberg et al. [136] reported that the artificial blocking of hair follicles by a varnish wax mixture significantly reduced skin penetration of the hydrophilic permeant caffeine.
It was found that a w/o NE with a low HLB surfactant mixture showed better penetration compared to aqueous and other micellar formulations, where compatibility with the lipophilic nature of the sebum plays a role in solubilizing it by the surfactant mixture, thus clearing the way for the drug to penetrate more easily [130]. There seems to be an ongoing limitation concerning in vitro release studies of the follicular pathway due to follicular shaft collapse and the cessation of perifollicular circulation. Moreover, the animal skin model used to evaluate this route is not always consistent with the release profile when applied to human skin [140]. However, certain in vivo human studies with the hydrophilic molecule caffeine NE showed that the transfollicular route contributed to over a third of the total penetration [139,148,149].

8.2.4. Pore Pathway for the Transport of Large Water-Soluble Molecules Loaded into W/O NEs

Large water-soluble drugs are unable to cross the lipid corneocyte domain. The pore pathway or hair follicle route, a primary path which w/o NEs containing large molecules use to reach the main circulation, is an important transdermal mode of delivering water-soluble permeants. In the gene delivery approach, hair follicles might be a portal toward the entrance of topically applied negatively charged DNA [150].
Recently, scientists researched the need to deliver and transfect plasmid DNA to follicular keratinocytes. They found that transdermal w/o NE allowed DNA expression into therapeutic transgenic proteins [137]. The prepared plain NE had a mean PS of 42.3 nm, while after the addition of a DNA plasmid, a smaller NE with a mean PS of 32 nm was produced. The levels of gene expression after the topical application of the DNA NE were significantly higher than with the plasmid DNA aqueous solution. The authors hypothesized that forming a stable w/o NE may drive the conformation of DNA into a more condensed state. They supported their hypothesis by highlighting the absence of aggregates and large particles during the PS analysis [137].

8.2.5. Carrying of Small Water-Soluble Molecules into O/W NE for Follicular Delivery

The skin permeation of the hydrophilic small molecule 5-aminolevulinic acid (ALA) in both w/o and o/w NE was studied. Low in vitro drug release of w/o NEs was detected and attributed to their high viscosity. Surprisingly, o/w NEs showed the highest permeation flux through nude mice skin, meanwhile, w/o NEs did not show any improvement over the aqueous solution. This result was explained by the required process of drug partitioning from the inner phase to the external phase in w/o NE, while the release from o/w requires diffusion through the external phase [141]. The in vivo high permeation from the o/w NE suggested that other mechanisms than the lipid pathway predominate the delivery. Among these suggested mechanisms are the follicular/sebaceous route, the enhancer effect, and an increase of thermodynamic activity, as suggested by Zhang el al [151].
The importance of hair follicles for o/w NE penetration was verified by in vivo confocal laser scanning microscopy in mice models. Representative fluorescence staining indicated enhanced ALA penetration into deeper skin layers after the application of the o/w nanocarrier systems compared to the control. However, the effect of permeation enhancement for ALA was not detected in the in vitro skin permeation study. The given explanation for this was that, after skin excision, the follicular volume was reduced by the contraction of the elastic fibers, such that the follicles were less receptive to the applied substances [141]. The extended release properties obtained after 48 h address the following question: Is retaining hydrophilic small molecules within skin layers for longer periods a possible mechanism of o/w NEs? From our point of view, w/o NEs, for small hydrophilic molecules, may facilitate their transepidermal permeation. In contrast, the trans-appendageal route is the accepted route of permeation in the case of incorporation in w/o NEs.

9. NEs for the Transdermal Delivery of Hydrophobic Drugs

9.1. Transdermal O/W NEs Containing Hydrophobic Drugs

The incorporation of lipophilic drugs in o/w NEs is reported to be a tool to enhance the transdermal permeation of such drugs, despite the variable explained mechanisms (Table 3).
Aceclofenac was formulated in o/w NE and compared to conventional gel. The optimized formula, consisting of 10% Labrafil, 35.33% Tween 80, 17.6% Transcutol P, 5% Triacetin, and 32% water, showed improved permeation enhancement and acceptable irritation results. The in vivo efficacy showed 40% more anti-inflammatory results in comparison to the aceclofenac gel [151].
The spontaneous emulsification technique was used to prepare the NE formulation containing clozapine, a drug that exhibits only 27% oral bioavailability due to the extensive hepatic metabolism. OA was used as the oil phase, Tween 20 as the surfactant, and Transcutol P as the co-surfactant (Smix 3:1), with 1% clozapine. The NE was incorporated into a gel to extend the contact time with the skin. Overall, 70% of the drug penetrated the skin over a period of 10 h, exhibiting both a rapid release profile over the first 2 h and an extended release profile over the 8 h of skin contact [10].
A tamoxifen o/w NE was investigated for cancer suppression performance in tumor-induced mice. The relative tumor volume after the 23 days testing period showed promising results and increased bioavailability in comparison to the orally administered drug, due to the avoidance of the first pass metabolism related to the transdermal route and consequently a better penetration to the target site [152].
Cumin was loaded in an o/w NE, exploring its capacity to reduce the oxidative damage related to a variety of diseases. The NE formulations showed good permeation results and high zeta potential, which is an indication of good stability. The highest permeation was observed after 6 h. The formulation was able to restore hepatic enzyme plasma levels after the extensive hepatotoxic effect induced by paracetamol after 7 days. Furthermore, a prolonged effect was witnessed, lasting up to 7 days after the single topical application of the NE. This indicated that a weekly application for patients suffering from chronic disease is convenient, with long term health benefits [5].
The secondary effect of tricycle antidepressants (imipramine and doxepin) which possess an analgesic effect on the peripheral nerve endings was investigated in o/w NE formulations. The NE formulation application increased the paw withdrawal time by 13% and 28% for the imipramine NE and the doxepin NE, respectively [153].
A hyaluronic acid-based NE was used as a carrier for vitamin E [154]. The effect on the stability of the NE was investigated by altering the zeta potential, degree of substitution, pH, and crosslinking agents. The encapsulation efficiency results, small size, and improved stability showed that the investigated NE was a potential transdermal carrier for lipophilic drugs [154].
An antifungal agent (amphotericin B) was incorporated into an o/w NE to enhance the transdermal delivery and effectiveness against Candida albicans and Aspergillus niger. The study revealed that the NE’s synergistic ability allows a reduction of the antifungal dose, with increasing therapeutic efficiency [155]. The prepared NE (Capmul PG8 as the oil phase, with Labrasol and PEG-400 as the surfactant and co-surfactant, respectively, and DMSO as the transdermal enhancer) was compared to the commercially available Fungizome® gel and drug solution as well. NE amphotericin B exhibited enhanced transdermal penetration and exhibited a stronger antifungal ability, coupled with longer a shelf life when compared to the conventional amphotericin B topical dose [155].
Singh et al. developed a NE for Carvedilol, a drug that has a short plasma half-life and extensive first pass metabolism. Upon conducting the in vitro and in vivo experimentation, good results were obtained, indicating a great potential for Carvedilol NE to be used in the future [156]. In another study, a significant increase in the Carvedilol permeability coefficient in the NE vehicle was obtained, compared to control film [157].
Finally, human skin permeation studies showed that MEs even enable iodide ions to diffuse through the skin [158]. A high drug amount was released from the NE in comparison to the nano-lipid carrier, which promoted the penetration into the skin, as previously reported [159].

9.2. NE Mechanisms for the Enhanced Transdermal Delivery of Hydrophobic Drugs

In many studies, NEs have proven to be a superior novel drug delivery system, not only due to the advantages mentioned above (ease of preparation, cost effectiveness, and stability) but most importantly due to how efficient and effective NEs are in delivering hydrophobic drugs transdermally to the systemic circulation [168]. Several mechanisms have been proposed by various studies, as mentioned below and presented in Figure 3.

9.2.1. Disruption of the SC Lipid Bilayers

The hydrophobicity of the SC bilayer allowed the entry of PEs and surfactants containing fatty acids. They disrupt the bilayer by creating separate domains, inducing highly permeable pathways in the SC [37]. The enhanced skin permeation and penetration of meloxicam (MLX) from the NE gel was reported, which can be attributed to its compositions in which the ingredients such as caprylic acid (short-chain fatty acid), Tween 80, and PG act as permeation enhancers, potentially significantly reducing the barrier properties of the SC through the extraction of SC lipids [111]. In contrast, the very low permeation rate of MLX from the Tween 80 and propylene glycol solution across hairless mouse skin over 36 h was reported [169]. The difference in the results here may be attributed to the fact that the NE components act synergistically and significantly disrupt the barrier properties of the SC [170]. MLX transport might be attributed to the formation of the pores in the lipid bilayer, therefore creating an increased effective volume inside the SC lipid domain available for drug diffusion [171].
From the improved penetration results of the caffeine and naproxen NEs, it was hypothesized that OA and eucalyptol act as enhancers that disrupt the SC of the skin through the dissolution of lipids layers, allowing the active compound to pass through [164].
The fennel essential oil NE showed high potential for reducing the plasma glucose levels of rats when delivered via the transdermal route, due to the presence of OA and PEG, as both of them act as PEs for dermal delivery, since they increase the fluidity of the liquid portion of the SC. Moreover, Tween 20 (a surfactant) enhanced the flux of the materials permeating through biological membranes, resulting in the better penetration of oil and hence improving its therapeutic activity [172].
An enhanced permeation profile of the lipophilic celecoxib (CXB) in an o/w formulation was reported [20]. This result was explained by the disruption and induction of a temporary denaturation state of the keratin filaments in the SC in its various layers, resulting in a transport pathway in the lipid bilayers. An optimized NE was prepared by dissolving 2% w/w of CXB in a 10% w/w combination of Sefsol 218 and triacetin (1:1). Then, a 50% w/w mixture of Tween 80 and Transcutol P was slowly added in the oil phase.

9.2.2. Enhancement of Transdermal Permeation through the Nano-Sizing of Oil Droplets

In order to investigate the effect of the oil droplet size on transdermal permeation, 1% curcumin was added to an o/w NE. Two homogenization techniques were applied, using either a high-speed homogenizer adjusted at 24,000 rpm or a high-pressure homogenizer accustomed to 1500 bar. The high-speed method resulted in a PS around 600 nm, while the high-pressure technique resulted in a rather smaller size (less than 100 nm). Studies have revealed that anti-inflammatory activity is superior with a smaller NE droplet size [173]. In addition, small droplets have a better chance to adhere to membranes, along with covering a large surface area, transporting bioactive NE compounds in a more controlled way [37]. A larger droplet size with rigid architecture may not readily penetrate. The small droplet size of the NE also provides a very large surface area for drug transfer into the skin [111].
An anti-inflammatory compound, 3,5-dihydroxy-4-isopropylstilbene (DHPS), was integrated into an o/w NE, dramatically improving the transdermal effect of the DHPS. The obtained enhancement was explained by the NE providing better dispersion and a larger contact surface area for the drug molecules, compared to drug suspension, leading to elevated solubility and permeability [166]. Reducing the droplet size from large (5 microns) to sub-micron emulsion (100 nm) increased diazepam transdermal penetration. This submicron size resulted in satisfactory drug delivery for up to 6 h, with only one single topical application of diazepam cream onto mice skin [174]. A possible explanation of the enhanced transdermal delivery of lipophilic progesterone and hydrophilic adenosine compared to the drug solutions was the large surface area of the NE, which is associated with the low interfacial tension and the small droplet size [40].
Glibenclamide was incorporated into a transdermal NE gel, due to its low oral bioavailability and its severe and fatal hypoglycemic potential. A NE gel was formulated successfully and tested for compatibility and release. The results of the study indicated that NE gel formulations enhanced the drug permeation, and this was attributed to nano-sizing [163]. The large surface area was one possible explanation for this, however, the authors agreed that the role of droplet size was less important than previously assumed by other authors [175,176]. In another study, data revealed that a negatively charged NE with a smaller PS (136 nm) had a higher in vitro release and increased penetration when compared to the positively charged formulation (157 nm). The results were explained by the fact that when the particles are smaller, the surface and the solubility pressure of the particles is bigger [177,178].
Su et al. experimented with the effective parameters for the PS of an octyldodecanol NE. They suggested that the water percentage played the biggest part on NE droplet size, and that the more water content, the bigger the droplet size. In their opinion, the effective parameters for droplet size are the mixing rate (higher rotation speeds resulted in a smaller oil droplet size), temperature, and NE surfactants used in the NE [179].

9.2.3. Binding of the Positively Charged NE to Negatively Charged Skin

Aiming to evaluate the effect of charge on skin penetration, fludrocortisone acetate and flumethasone pivalate NEs were experimented with, with a pre-impregnated aqueous phase of either a negative or positive charge. Observing the charge effect through release studies revealed that the positively charged NE was more efficient in transporting the active molecules through skin than the negatively charged one. The explanation for this enhanced ability is the binding of the positive NE onto the negatively charged skin, leading to an increase in contact time which eventually allows the NE oily core to pass steadily successfully pass through the various skin layers [180]. The inclusion of a positive charged carrier in the formulation and the subsequent adherence to the negative charged skin was aimed to increase the NE retention time and consequently the drug bioavailability [163]. The skin accumulation of miconazole (MCZ) from positively charged droplets is higher than that from negatively charged ones. This is attributed to the binding affinity of droplets to negatively charged skin. Researchers proposed that positively charged vehicles appear to be promising for topical drug delivery [181]. NEs containing chitosan were demonstrated to be more adequate as a vehicle for substances intended to act on the skin, such as sunscreens, as photoprotective products are topically administrated and they should not permeate through the skin. Since chitosan is positively charged, with a degree of deacetylation of 79%, it could explain the attractive interaction of the polymer with the skin which is negatively charged, thus preventing skin permeation [182].
Regarding stability, the positive surface charge of nanodroplets induced by phytosphingosine and the pH provided good stability for the NE, as the repulsive forces prevented the collision of NE droplets by a steric shield [183,184]. Regarding skin permeation, it has been shown that a positively charged NE significantly promoted the diffusion rate of both econazole and MCZ nitrate through rat skin when compared to the negatively charged preparations. This was done through increasing the amount of cumulated drug and consequently the transdermal flux [143]. On the other hand, the increased penetration of the positively charged NE is explained by the increased interaction and adsorption of particles with the negatively charged keratinized corneocytes of the SC, the main barrier of the skin. Here, the results showed that there is a clear relation between the NE charge and skin penetration, however, the authors revealed that there was no detectable skin permeation due to drug accumulation in the skin layers [177,178]. Finally, we can conclude from the literature that NE charge influence is more relevant than droplet size regarding skin retention, while the droplet size effect dominates in the context of skin permeation.

9.2.4. Enhancement Transdermal Permeation by Reducing the NE Viscosity

The successful passage of the drug through the SC was related to NE’s low viscosity, along with the presence of an aqueous portion in the formulation. Researchers observed the impact of viscosity when they compared their NE with a gel formulation, hypothesizing that low viscosity, working in conjunction with other factors, such as droplet size, increases the contact area with skin, resulting in easier penetration [163].
The permeation enhancement of celecoxib (CBX) was attributed to the NE’s low viscosity and formulation stability, where both the oil phase and the water phase work in conjunction, leading to more efficient drug permeation compared to conventional gel [160]. A piroxicam NE exhibited better skin flux compared to the NE gel preparation. The obtained results were attributed to the low viscosity of the NE, which facilitates the passage of NE components through the SC [167]. The small globule size of the terbinafine NE and its low viscosity were the main factors for enhanced drug permeation [110]. As the proportion of the Carbopol 934 matrix increased in the terbinafine NE gel, the drug permeation rate declined, along with increased drug deposition in the epidermis and dermis. Here, the authors concluded that increasing the NE viscosity tends to change the formulation from transdermal delivery to topical delivery [185]. Similar results were obtained for valsartan transdermal permeation in Carbopol gel, where the gelling agent reduced drug penetration due to the transformation of the NE to a highly ordered nanostructure [186].
A lower inulin skin permeation rate was detected from micellar formulations, regardless of the surfactant composition. The given explanation for this was that the high viscosity of all micellar systems possibly played a role in lowering the permeation rates of inulin across hairy mouse skin into the Franz cell receiver compartment [130].

9.2.5. Changing the Drug Partition into Skin Layers

Scientists compared the difference in penetration profile between the copaiba oil NE with Tween 20 as the surfactant and the oil alone by measuring the amount of the lipophilic drug β-caryophyllene. Upon conducting permeation and retention studies, it was found that when copaiba oil was used alone, the lipophilic drug was only found in the SC layer, failing to penetrate into the epidermis and dermis, while the copaiba oil NE was able to be detected successfully in the SC, epidermis, and dermis, demonstrating NE’s inherent ability to provide a more efficient penetration and retention in skin layers than the drug alone [187]. A study researched the importance of ME structure on drug uptake into the skin. In particular, cyclosporine skin retention data suggested that the surfactant type, co-surfactant type, water content, and the presence of a rheological modifier could enhance drug mobility and modify its tendency to partition into the SC [188]. Most likely, both o/w and w/o MEs are valuable systems that preferentially retain the drug into skin, but the mechanism still requires more studies and explanations [189].

9.2.6. Hydrating the Skin and Dilating the SC Intercellular Channels

Hydration disrupts the SC structure. Overall, 15% to 20% of the SC weight is composed of water [190]. Skin hydration leads to SC swelling and the opening of its tight brick structures, consequently increasing permeability [38]. It has been reported that extended skin hydration makes the intercellular spaces distend, dilating the lacunar networks that link the connections of the water pool system in SC interstices, which are disconnected under normal conditions [191]. Actually, the existing water in the intercellular lipid region act as water pools and are not continuous toward the deeper layers of the SC. However, small channels are formed when the skin is hydrated, reducing the diffusional resistance through the rough SC structures. Both lipophilic and hydrophilic compounds benefit from this feature. Small hydrophilic molecule penetration enhancers such as azone seem to benefit the most from hydration, regarding absorption in corneocytes at least [192]. Even though such a mechanism seems to increase both the penetration of both hydrophilic and lipophilic compounds, researchers argue that hydrophilic compounds may not benefit greatly from skin hydration, since the formation of such water pool channels in the SC is short lived and can only aid the lipophilic compounds in o/w NEs. They explained that such NEs containing water as an external phase saturate SC layers faster and hence lead to an enhanced permeability into the dermis [65,193]. In addition, the aqueous part of NE enters through the appendageal pathway and enlarges the interlamellar volume of the SC lipid bilayer, allowing the lipophilic drug to pass more easily through the various sheets of the SC [173]. An additional mechanism was suggested, where hydration and increasing water content accelerates permeant thermodynamic activity and consequently penetration through the skin [194].
These observations suggested that the transport properties can be regulated by the water content in the SC [195]. The NE components may change the water gradient in upper skin layers by avoiding evaporation, exhibiting an occlusive effect, and consequently affecting skin permeation [196]. Fourier transform infrared spectroscopy detected that by increasing water concentration in MEs, the ratio of the amide I/II band gradually increases, suggesting an increase in the hydration of the SC [197,198]. In general, increased tissue hydration appears to increase the transdermal delivery of both hydrophilic and lipophilic permeants [199].

9.2.7. Changing the Permeation Pathway of Lipophilic Permeants to Follicular Delivery

Despite follicular delivery not being the usual pathway of hydrophobic molecules, such drugs when formulated in o/w NEs, accumulate near hair follicles. Fluorescent dye (Nile red, 0.1% w/w) was incorporated in a capsaicin o/w NE to study skin penetration. Capsaicin is an interesting lipid soluble active ingredient with multiple therapeutic uses, such as in cancer treatment, inflammation, and treating cardiovascular system (CVS) diseases. Being able to deliver capsaicin while bypassing its first pass effect would definitely be of outmost importance. The optimized NE has shown deep permeation through pig skin layers. Strong fluorescence intensity was witnessed across all of the skin layers, where the tested NE showed red fluorescence deep to the dermis, reaching up to 700 μm. The strongest fluorescent spot was observed near the hair follicles. Capsaicin o/w NEs can penetrate and accumulate in the skin well through the hair follicle [165]. Similar results were obtained from ME and demonstrated that o/w and not w/o ME is a promising vehicle for the transfollicular delivery of the lipophilic adapalene [200].

10. Conclusions

Many hydrophilic and hydrophobic drugs were successfully loaded in w/o or o/w NEs, respectively, demonstrating their ability to pass into general circulation. Accordingly, the NE components have to be optimally selected to suit the drug psychochemical properties and simultaneously predict NE penetration behavior through the skin.
For the first time, different penetration mechanisms of each NE type have been explored and studied. For hydrophilic drugs, different mechanisms have explained their mode of penetration for w/o NEs. The facilitated transport of these permeants was attributed to the effect of the NE in increasing the drug thermodynamic activity or modifying the surface electrical charge of ionic drugs. The same enhancement was sometimes explained by the solubilization of sebum by the NE components, facilitating the follicular delivery of hydrophilic drugs. Most of these mechanisms focus more on the nature of the NE than the physicochemical properties of the drug. However, other transdermal strategies focus on permeant properties, namely either large or small Mw water-soluble molecules loaded into w/o NEs, triggering follicular delivery, the normal dominant pathway of hydrophilic permeants.
On the other hand, the penetration of hydrophobic drugs focuses more on the effect of the NE components on the skin barrier. The disruption of the lipid bilayer of the SC was still the most popular mechanism of transdermal enhancement, despite the reported enhancement through oil droplet nano-sizing and reducing viscosity during the preparation of the NE. The binding of a positively charged NE to negatively charged skin was reported as a controversial mechanism, as some researchers ascribed the acceleration in penetration to this mechanism while others revealed that it causes an increase in drug accumulation and retention in skin layers, and hence a reduction in permeation. Hydrating the skin and dilating the SC intercellular aqueous and lipid channels were reported to enhance the permeation of lipophilic permeants. Moreover, changing the permeation pathway of lipophilic permeants to follicular delivery using o/w NEs was reported, despite the well-known facts that oily drugs pass through the lipid pathway and that the area of the pore pathway is neglected. The question is: Do we need to incorporate lipophilic drugs in o/w NEs? Does changing the pathway to hair follicles reduce the transdermal passage of lipophilic permeants? We suggest that o/w NEs have low potential in enhancing the permeation of hydrophobic molecules, therefore, further studies are needed.
Most likely, the overall combination of such different mechanisms is the real cause of the skin penetration enhancement effect for both types of permeants. It seems that no one specific mechanism could provide a satisfying explanation for the superiority of NEs compared to other formulations. Finally, the mechanisms reported in the literature are highly diverse, to the extent that a definite mechanism is not very conclusive, highlighting the need for further investigation.
The compatibility with a wide range of hydrophobic and hydrophilic drugs, depending on its type (o/w and w/o), makes NE a very encouraging transdermal dosage form. The diverse preparation techniques, high drug encapsulation capacity (either in oil or water droplets), stability, safety, and cost effectiveness motivate researchers to carry out further studies. This review suggests future research should be focused on more understanding of the penetration mechanisms, the development of a ready-to-use NE, and targeting the CNS via a transdermal NE. From the literature, NEs are considered a useful tool for by passing the P-glycoprotein (P-gp) pump through the general ‘masking’ concept of the active agents, where the agents prevent the droplets from being discovered by the transporter while they enter the blood brain barrier. Moreover, surfactants such as polysorbate 80 (P80) in NE droplets are well-known P-gp inhibitors.
Despite all the trials made in understanding the mechanisms of how NEs are able to successfully transport hydrophilic and hydrophobic compounds through skin layers into the systemic circulation and the various proposed mechanisms hypothesized and summarized in this review article, more focused research is needed to fully study, confirm, and understand the exact interaction that happens between the skin layers and NE components through physical observation and real time monitoring of the NE penetration of the skin. In other words, the drug molecule pathway through the SC lipoid or pore domain needs to be fully understood.
Certain NE components seem to show a wide compatibility range with many drugs, such as OA, labrasol, ethanol, and Tween, as seen in the publications shared in this review. This could be developed into a concept of formulating a general-purpose NE carrier that is pre-formulated and manufactured as a ready-to-use NE, allowing formulators to only add the active constituent. The industrial development and production of NEs could be also very promising, being a time-saving and cost-effective process based on the simplicity in NE preparation as well as the cheapness of their constituents. Within a specific HLB range, pharmacists would be able to prepare transdermal NEs for patients who show low compliance or inability to tolerate the side effects associated with taking the drug orally. The low toxicity of many of NE components makes this a very promising concept for future work in transdermal delivery systems.
A lot of research is still required for the development of novel NE formulations, especially in drugs that target the central nervous system. Such drugs are most often very lipophilic in nature, passing through the blood brain barrier to exert their action and usually requiring patients to take them chronically for months or years. This drug group is also extensively metabolized by the liver. Delivering these drugs transdermally, through bypassing the hepatic metabolism, sustains a steady plasma concentration and potentially provides a more localized transdermal application for a fast onset of action.
