J. Open Innov. Technol. Mark. Complex. 2019, 5(3), 71; https://doi.org/10.3390/joitmc5030071

Article
Productivity and Economic Analysis of a New Intensive Collector in the Portuguese Market with Implication of Open Innovation Perspective
1
Instituto Politécnico de Portalegre, Departamento de Ciências Económicas e das Organizações, Campus Politécnico 10, 7300-555 Portalegre, Portugal
2
Instituto Politécnico de Portalegre, Departamento de Tecnologias, Campus Politécnico 10, 7300-555 Portalegre, Portugal
3
COPELABS, Universidade Lusófona de Humanidades e Tecnologias, Campo Grande 376, 1749-024 Lisboa, Portugal
4
Instituto de Telecomunicações, Pólo II da Universidade de Coimbra, 3030-290 Coimbra, Portugal
*
Author to whom correspondence should be addressed.
Received: 9 July 2019 / Accepted: 9 September 2019 / Published: 16 September 2019

Abstract

:
Bee venom is a sub-product of the beekeeping activity, and has a wide field of applications in several pivotal markets. Nevertheless, its collection is not an activity disseminated among Portuguese beekeepers, as its production is marginal. There are limited empirical studies on the production and the technical aspects involved in this type of activity. Our study, therefore, contributes to narrowing this knowledge gap, by analyzing and comparing the productivity and profitability of two bee venom collection techniques. The first involves equipment available on the market, and the second involves a new device developed from the aim of the present work. Concerning market knowledge, a questionnaire was given to a sample of beekeepers, to understand and characterize the market’s needs and the level of information about bee venom. Because of the growing market interest in this product, a new collector is proposed, based on a set of intensive frame collectors strategically placed inside the beehives. The improvements obtained were increased production, either in terms of quantity or quality, obtaining a positive profitability. To evaluate the productivity of the proposed equipment, a comparison was performed, in an apiary, between existing state-of-the-art equipment and the proposed intensive collector. In a second stage, the profitability of the new proposed equipment was analyzed, using a comparative method between incomes and costs associated with both solutions. The results obtained showed that the new intensive collector enables a profitable collection of bee venom in Portugal, despite its higher initial investment.
Keywords:
natural resources; bee venom production; productivity analysis; profitability analysis; product development

1. Introduction

Beekeeping is an activity directly linked to agriculture, since about 45% of world food production depends on pollinators, with a significant impact on national economies. Besides the pollination, this activity has the purpose of exploring various products of interest and commercial value, namely bee venom or apitoxin [1]. Since the poison is produced by honey bees, and as it is composed of several proteins, such as amino acids, lipids, organic acids, and enzymes [2], several applications arise. Because of this richness, apitoxin has been extensively studied and sought over the years, especially after its therapeutic characteristics when used responsibly have been proven. (When used incorrectly it can lead to allergic reactions of different intensities [3,4]). In fact, the target product of this study is used in the pharmaceutical industry, in the treatment of several diseases [4,5], such as cancer [2,6,7], HIV, multiple sclerosis, arthritis, bursitis, tendonitis, dissolution of scar tissue, herpes zoster, joint diseases and rheumatoid arthritis, Lyme disease, and osteoarthritis [8]. Another field of application is the cosmetics market [9,10,11].
Although bee venom has several important applications in Portugal, it is almost a non-existent market. The main reason is due to internal policies that did not establish legislation, or take the necessary measures for its development on beekeeping activity over the years [1]. Beekeeping is an ancient activity from which it is possible to collect various products, such as honey, pollen, propolis, royal jelly, and bee venom, but in Portugal, the only product that is significantly explored is honey [1,12,13]. This problem is not exclusive to Portugal; the European Parliament published a technical report [14], asking for a European Parliament Resolution, due to, among other reasons, the lack of data available about this subject, both in terms of quantity and quality.
Based on the above, it can be seen the importance and interest of bee venom’s collection, implying the need for an increasing production with more beekeepers dedicated to this practice [15]. This situation represents a challenge/opportunity to promote bee venom collection and develop more productive collector devices, with evidence that a profitable activity can be archived.
With this study, we seek to set up new processes by which new technologies can be adopted by a group of corporations or companies, and how they can be used to create new products or processes. The purpose is to increase the knowledge among all stakeholders and dynamically analyze the economic impacts of adopting new tools for bee venom production under an open innovation perspective [16].
To measure the level of information concerning bee venom among beekeepers, a questionnaire was drawn up and supplied for answering. With these data it was intended to also evaluate the market interest and potential growth. In relation to the collection of bee venom, specific equipment is used, composed of a glass plate overlaid with metal filaments, which are fed by a power unit combined with an electrical pulse system [17]. There are several different pieces of equipment on the market that are used both inside and outside the beehives [18].
For exterior collectors [19,20], which are placed outside the beehive, the number of bees exposed to the collector is greatly reduced, since it only affects the bees that enter and leave the hive, causing the production of small quantities of bee venom. To extract 1g of venom, 10 hives would be required, an hour per day, adequately placed [21]. Another drawback is the fact that the bee venom is exposed to weather conditions and other contaminants, and, when it is raining, this type of equipment cannot be used [22,23].
Collectors placed inside the beehive are used at the base of the nest [19], or as a cover of the beehive [24]. This type of device can collect more than the outside collectors, since it is able to be in contact with a greater number of bees, while maintaining their normal activity. However, the collectors placed in the base are subject to contamination with the waste of the bees. On the other hand, the cover ones, although with a lower risk of contamination, have the limitation that the collector area is restricted by the down face size, because it works as a cover at the top of the beehive [24].
To respond to the identified problems, the present work studies the design of an intensive collector that will take the form of a set of frames, as the usual honey enclosures, to be placed strategically inside the beehive.
The achievements obtained are a larger collection area and a cleaner substance. Consequently, the potential of obtaining a higher yield from this activity is augmented, due to the increase of production and quality (cleanliness) of the collected product.
The paper is organized as follows. Section 2 presents the Portuguese market and in particular the situation regarding bee venom. Section 3 formulates the methodologies used to collect data the market under scrutiny, the necessary information data to characterize the productivity of the two collectors, both placed inside the beehive, in order to perceive the yields that can be generated with each of them. Section 4 presents the results obtained from a questionnaire applied to the beekeeper community, and from the experimental tests made on both collectors. In Section 5 the productivity and profitability analysis is presented, and, the results obtained from the different collectors are discussed in Section 6. To end, Section 7 presents the final conclusions, and future actions, to improve market penetration of the proposed equipment.

2. Portuguese Market Case

The beekeeping sector, in Portugal, is mostly made up of small beekeepers and is directly related to agriculture. The agents of this sector use it, mainly, as a complement of income of the farms, or for self-consumption. It is an activity that is responsible for pollination of agricultural crops, contributing to a significant increase in the yield of farms and, also, for the preservation of biodiversity [1,12,13]. There are more products that can be explored in beekeeping in addition to honey, such as pollen, propolis, royal jelly, and bee venom. Due to the fact that the beekeeping labor force is not specialized, with few resources, scarce management practice, and little technical knowledge in the area, it is an underdeveloped activity [1,15].
All beekeeping products, except honey, are unknown to the common consumer, due to the lack of available information about them, and due to the lack of strategies for dissemination and commercialization by the entities regulating this sector. In 2015 there were around 11,000 registered beekeepers in Portugal, who had approximately 33,000 apiaries and 626,000 hives, as presented in Table 1 [1].
Concerning bee venom, there is no national legislation for its production or marketing, unlike honey. The market is almost non-existent, although consumers would be industries [2,4,9,10] that use molecules present in this substance for the treatment of various diseases, or for cosmetic purposes. The market value of this product was more than 23,000 Euros/kg in 2009 [1], but the collectors present in the Portuguese market have a very low yield and the index of contamination is quite high. The main reason is the fact that external equipment is the main device used for this collection [23]. The inside collector types are not used in Portugal, because those devices are manufactured with materials that do not meet the minimum legal Portuguese requirements, for products related to human consumption.

3. Methodology

To validate the interest in the proposed equipment, three main pieces of information need to be collected, and will be addressed in the Methodology Section. First, a characterization of potential users and its dimension is addressed. Secondly, the design of an intensive bee venom collector is implemented and tested, with the purpose of validating the increase of productivity and quality, relatively to actual state-of-the-art equipment available on the market. Thirdly, the financial outcome of the new collector is analyzed, in order to evaluate its potential interest for beekeepers.

3.1. Source of Data

To determine if there are Portuguese beekeepers interested in this type of exploration, a preliminary questionnaire (see Appendix A), was elaborated for a confidence interval of 99% and a sample error of 10%, obtaining a sample of 164 beekeepers to be interviewed. Since it is a national analysis, the sample was stratified using the expression (1):
n = N · Z 2 · p · ( 1 p ) ) Z 2 · p · ( 1 p ) + e 2 · ( N 1 )
where n is the calculated sample, N the total population, Z the standardized normal variable associated with the confidence interval, p the true event probability and e the sampling error.
According to the sample of beekeepers in Portugal mentioned in Table 1, it is necessary to gather data on how they are distributed geographically along the country. The only reliable information found concerns “The National Beekeeping Program 2017–2019”, responsibility of the Portuguese Government, and, as can be seen in Table 2, the majority of them are in the north and center of the country. This situation is mainly due to its relationship with agriculture, since those regions are the main areas of crops related to the pollination process [1]. To take a representative sample from the questionnaire, we need to know how many beekeepers are needed by region, so results were merged, and are also presented in Table 2.
The design of the new proposed bee venom collector implements several novel features in comparison with state-of-the-art equipment [25]. The main novelty is the placement of the collector in a vertical position, taking in consideration that the viscosity of the bee venom will prevent it sliding down the glass. Consequently, the new collector will have electrical filaments in both sides of the glass, immediately duplicating the contact area. A power control unit, battery powered, will generate the electrical pulses and control the current flow to keep the bees healthy (Figure 1). Power control parameterization has been the subject of several studies [17,26,27]. In terms of voltage, frequency and current limit, the proposed equipment considered the optimal values from the work of Maulana et al. [28].
On a second stage, 10 frames with glass plates are placed inside the hive (Figure 2) in a box similar to honey frames collector boxes.
Finally, the collector is placed inside, on the top of the beehive, to collect venom from a larger number of bees, and preventing the product from being contaminated by outside agents. The clipboard and the cover of the hive are placed over it, as shown in Figure 3.
To build this prototype, an investment of 593 Euros was made. The collector has 10 frames with a unitary contact area of 24 cm × 33 cm by side, providing a contact area of 792 cm2, which means that each frame provides 1584 cm2 in both sides, and the global collector 15,840 cm2. Filaments are separated by a distance of 3.5 mm, being powered by two AA batteries. To compare the results obtained with this collector, a state-of-the-art collector was acquired from Multi-Sweet (Group) Co. Limited, at cost of 263 Euros. The collector has measurements of 33 cm × 33 cm, providing a total contact area of 1089 cm2 and filaments are separated by a distance of 3.5 mm, being powered by a lithium battery. This collector was used in a similar hive to the one used with the new collector. In this way, we tried to provide similar conditions of operation to both collectors, in order to analyze properly the results obtained. The equipment was tested during the spring (May and June), in the morning, at 8AM, for a 1 h period daily. Every three days, a three-day stop was made, to lower stress in the beehives, since the venom was collected for a total of 16 days per month.
The productivity analysis was made by comparing the quantity obtained in each collector, and a qualitative analysis regarded the quality of bee venom. The data used for the financial analysis were the market prices of bee venom and the usual costs among beekeepers: labor, tools, wear, and cleaning products. Concerning the investment by collectors, the state of the art was bought on the international market and the new one was the sum of components bought plus the labor costs involved.

3.2. Data Analysis

The questionnaire regarding beekeeper characterization was provided in Portuguese, from 2 November 2018 to 17 February 2019, in all social network groups of beekeepers and in all beekeeper associations in Portugal, including the islands (25 associations and the National Federation of Beekeepers of Portugal). Although only 164 would be necessary to satisfy the sample value for a 99% confidence interval and a sampling error of 10% (Table 2), all valid answers were considered in the present work.
Accordingly, with the questionnaire, the data was organized to highlight the weight (as a percentage) of the different classes of beekeepers, number of hives and their information and interest on bee venom. The trustworthiness of the data on beekeepers was controlled by comparing their self-classification with the number of hives reported. The experiment with both collectors consisted of the daily collection of bee venom, adequate packing, and sending to a certificated laboratory to measure the quantity and control the quality. This information was registered systematically to enable the discussion of results. To evaluate the financial interest of the new collector, a Comparative Income Statement (CIS), traditionally known as trading and profit and loss, was performed. Compared with other similar approaches, e.g., the Pyramid Method, mostly based on trend analysis CIS, allows the study and obtaining of a global scenario of the overall profitability of the business, observing its periodic performance evaluation. The main disadvantages are the fact that it ignores inflationary impacts and has high dependability on financial information, which in the present case has a minor effect. Therefore, a comparison was made between several variables applied to both collectors used in the experiment: investments, operational costs, incomes, profits, and cash flows inherent to each solution. The operational cost included tools and utensils for fast wear, cleaning, hygiene, and comfort, and labor and amortizations. After gathering these data, some analyses were made: Net Present Value (NPV), the difference between the present value of cash inflows and the present value of cash outflows over a period of time; Internal Rate of Return (IRR), metric used to estimate the profitability of potential investments, a discount rate that makes the net present value of all cash flows from a particular project equal to zero; and the Payback Period, which refers to the amount of time it takes to recover the cost of an investment.

4. Experimental Results

4.1. Beekeeper Characterization

A total of 207 valid answers were collected from all the channels used for the questionnaire dissemination, validating the statistical assumption. Despite its global validity, since question 1.2 (see Appendix A) addressed the region of activity of the beekeeper, the sampling methodology was also validated by region, where the obtained results are presented in Table 3 and in Figure 4.
As can be verified by the analysis of Table 3, the total expected answers were obtained to satisfy the assumed statistical values; when scrutinized by region, some differences can be found. The error of the sampling of the population was achieved, and even decreased for Alentejo region. Regarding the confidence interval, due to the lack of expected answers in some regions, some values decreased, while remaining within the usual and acceptable values in the context of our work.
Considering all valid answers obtained, the first interpretation is the fact that the type of beekeeping practiced, by the universe of obtained answers, is mostly a hobby activity (Table 4).
To understand the reason that leads to 70 % of beekeepers performing it as a hobby activity, their size was evaluated as an indicator of their individual production. The question under scrutiny was the number of hives a producer has. Obtained results show that most of them have very few hives ( 72 % have less than 101 hives), as shown in Table 4. It was also questioned if beekeepers collected bee venom, to which only 3 % answered affirmatively, as shown in Table 4. From here, the first observation points to bee venom production not being an activity considered among beekeepers.
Also, Table 4 shows that 97 % of those surveyed did not collect bee venom; this value is too high, so it was pertinent to pursuit the motivations that led them not to do so. From the proposed questionnaire it was verified that 44 % do not know the processes to perform this type of activity, or even do not know what bee venom is. With the bee venom market at a very embryonic stage in Portugal, beekeepers were asked about their interest in exploiting it, to which 65 % answered affirmatively as shown in Table 4. As there are several segments of beekeepers, as shown in Table 4, we identified which segments would be most interested in collecting bee venom. Once there is a significant interest in bee venom collection detected through the questionnaire, and considering the market size evaluated, an intensive collector prototype was developed. The purpose of such development and investment was to test if it was possible to collect bee venom in a more economical way and, consequently, with a higher yield. In order to validate the results obtained from the production of the new intensive collector, a comparison was made with a state-of-the-art collector, placed as cover inside the beehive.

4.2. State-of-the-Art Bee Venom Collector

After a month using the equipment in the field, as described above, always in the same beehive, 272 mg of bee venom was collected. Every day, the bee venom was dried, and removed from the glass plates, with the help of an appropriate spatula to remove it, always using the necessary protective equipment to avoid contamination and direct contact with the skin (Figure 5a).
After being collected and placed in an intermediate container, the substance was packaged in an opaque container, and placed in a dry environment away from sunlight, until measured and controlled in quality by a certificated laboratory (Figure 5b).

4.3. Intensive Bee Venom Collector

The new device developed and described in Section 3.2 was subject to the exact same testing conditions, with a prototype being assembled to perform the field experiments, representing an investment of 593 Euros. The collector has 10 frames with a unitary contact area of 24 cm × 33 cm by side, providing a contact area of 792 cm2, which means that each frame provides 1,584 cm2 in both sides, and the global collector 15,840 cm2. Filaments are also separated by a distance of 3.5 mm, being powered by two AA batteries. The same procedure was used with the intensive collector, but with a different positioning regarding the beehive. The collector was placed over the hive and it was covered (Figure 3). In the same period of time, 4,266 mg of bee venom was collected. Figure 6 shows the extraction of one frame from the beehive.
As previously, the bee venom was dried, and removed from the glass plates. It was observed that the bee venom collected had fewer contaminating particles, and it was spread for all over the glass plates. After the substance was collected it was packaged in a clean opaque container for further weight measurement and quality control.

5. Productivity and Profitability Analysis

In the present section, some analyses are performed to determine the project’s feasibility.

5.1. Data Preparation and Productivity Analysis

Our starting point was to compare the conditions and results obtained with the two collectors under study, as can be seen in Table 5.
It is important to note that the price of the intensive collector is based on the amount spent to make a prototype, which means that under large production scales it is possible to lower its price. Under a qualitative perspective, it was noted that the bee venom collected with the intensive collector had less contamination all along the experiments period, which means that can achieve better market prices. Accordingly to these data, it can be verified that the increase in production is similar to the increase in collecting area, with some advantage for the increase in production (15.68 times) times more production versus 14.55 times more collecting area). This means the productivity is higher with the intensive collector, as presented in Table 5.
The increase in production also represented a strong increase in absolute quantity, and the major achievement is the fact that the increase in the amount of investment needed to achieve these results is much lower comparatively—only 2.26 times—which is a much lower increase in comparison to the one of production.
To analyze the profitability, the results obtained were extrapolated for an annual period, as presented in Table 5.
Because the state-of-the-art collector has only one piece to be operated, while with the intensive collector has 10 pieces or more (10 collecting frames and the beehive first cover, which is the collector in the first solution), the working operating times are higher in the new collector. This consequence is as presented in Table 5, were 16 collecting days per month are considered.
The amortizations of both collectors are presented also in Table 5.
To analyze the viability of both collectors, the general assumptions in the context of Portuguese beekeeping activity are presented in Table 6, considering also that the monetary unit is the Euro. The usual parameters to perform quantitative analyses were considered, namely inflation ( 2 % ), the purchase price of bee venom (23 €/g), the number of working hours (7.5 h), the human resources cost (34 €/day), among several other indicators.

5.2. Profitability Analysis

Starting with the state-of-the-art collector analysis in Table 7, sales, costs, and profitability are presented with the help of the information presented previously.
Accordingly to the data presented in Table 7, the profitability is marginal and does not have the capacity to recover the investment on the collector, or only in a very marginal way (2 Euros), and the cash flow reflects this consideration.
The IRR (Internal Rate of Return) is negative, where a value of −94% was obtained, in accordance with the calculated NVP, as shown in Table 8. Due to the low production of the collector under analysis, the total sales income does not cover the necessary initial investment. Basically, the sum of post-investment cash flows is less than the initial investment, and the investment loses money at the rate of the negative IRR.
The intensive collector analysis starts with Table 9, where sales, costs, and profitability are presented with the help of the information presented previously.
Accordingly, with these data presented in Table 9 the profitability is positive, including under a tax perspective, with a strong capacity to generate cash flow.
The NPV is positive, the payback period is very fast (less than 2 years), and the IRR is positive too. These values are presented in Table 10.

6. Discussion

According to the results obtained from the questionnaire, it is clear that bee venom collection is marginal in Portugal and many beekeepers do not even know of its existence as a commercial product, despite its commercial value and interest in the pharmaceutical and cosmetic markets. In Table 11 we compare some data obtained from the productivity and profitability analysis made previously.
As can be seen, one situation is potentially profitable—the intensive collector—and the other is not, in the Portuguese context, because, mostly, of the labor costs involved together with the low production obtained. Due to the low production of the collector under analysis, the total sales income does not cover the necessary initial investment, only the operational costs. Basically, the sum of post-investment cash flow is less than the initial investment, and the investment loses money at the rate of the negative IRR.
It is important to note that the price of the intensive collector is based on the amount spent to make a prototype, which means that under large production scales it is possible to lower its price. Under a qualitative perspective it was noted that the bee venom collected with the intensive collector had less contamination all along the experimental period, which means that can achieve better market prices.
As previously mentioned, there is a 65 % interest from the beekeepers surveyed; extrapolating to the universe of beekeepers in Portugal, this interest corresponds to 6,954 beekeepers who hold around 407,159 hives. With the intensive collector it is possible to collect annually, from a beehive, 51.192 g , which corresponds to an annual commercial value of 1177 Euros/beehive. With 407,159 beehives it is possible to collect approximately 20,843 kg/year, which corresponds to a commercial value of 479,396 Euros. This extra annual income that can be withdrawn from the hive can represent an interesting increase in income for beekeepers, to add to the incomes derived from the other products, namely the honey.
Accordingly, with these considerations, we consider it is worth it to further develop/refine our first prototype, to increase the yields obtained and to design the frames in order to enable their efficient mass production. The purpose would making it possible to lower the initial investment on their purchase. As we can verify, there is a market ready to be developed.

7. Conclusions

The purpose of this work was related to the market of bee venom in Portugal, its expression and the productivity and profitability analysis of a new intensive bee venom collector. After analyzing the data available, it was realized that bee venom is a very important substance and has great value in the global pharmaceutical and cosmetic markets. However, in Portugal the bee venom sector is quite not explored, although there is interest in Portuguese beekeepers pursuing to this practice, according to data obtained in the questionnaire, which corresponds to 65 % of the answers. Since there is a significant interest in bee venom collection and considering the market size evaluated, an intensive collector prototype was developed. The purpose of such development and investment was to test if it was possible to collect bee venom in a more economical way in the Portuguese context.
To validate the results obtained from the production of a new intensive collector, a comparison was made with a state-of-the-art collector, placed as cover inside the beehive. Through the experimental test, it could be verified that, effectively, bee venom was cleaner, and productivity is higher with the new collector. Although the cost of the equipment is higher too, it is possible to achieve return on investment in a short time, and get a better income in the beekeeping activity, which amount will depend on size and operation efficiency.
The results obtained showed also that the state-of-the-art collector was not profitable in the Portuguese context, because of the conjunction of lower production with high labor costs, meaning a difficult situation among advanced economies, where labor costs are usually higher. That is why we think intensive equipment is important in the context of advanced economies with higher labor costs. On the other hand, the economic risks are usually lower when we deal with relevant quantities, and the opposite when they are marginal, as is the case of the state-of-the-art collector.
Due to the lack of knowledge among beekeepers, the need for commercial and technical workshops to disseminate the activity to potential users should also be considered as future work. It is emphasized that the proposed product is not protected by intellectual property, which means that any association or trader is free to develop the mass production and marketing of the product.

Author Contributions

Conceptualization. and methodology, V.S., S.D.C. and G.M.; validation V.S., S.D.C. and G.M.; original draft preparation, V.S.; supervision, review and editing, S.D.C. and G.M.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Questionnaire—Technology in Beekeeping

Dear Sir / Madam,
We thank you for 7 min of your willingness time to answer to a simple questionnaire related to beekeeping activity, and your opinion on a new technology under study.
The answers will be completely anonymous and your collaboration is essential, to contribute on the development of a technology that can best satisfy this sector of activity.
1. General data
1.1. Are you a beekeeper?
Yes
No(Finish questionnaire)
1.2. In what region are you located?
North
Center
Lisbon and Tagus Valley
Alentejo
Algarve
Autonomous Region of the Azores
1.3. What kind of beekeeping do you practice?
Hobby
Professional
1.4. How many hives do you have?
Between 1 and 10
Between 11 and 25
Between 26 and 50
Between 51 and 100
Between 101 and 200
Between 201 and 500
More than 500
1.5. What products do you get from your beekeeping activity?
Honey
Pollen
Propolis
Beeswax
Bee venom
Royal jelly
2. Bee venom
Bee venom is the poison produced by bees, increasingly used in the treatment of various diseases, such as cancer, AIDS, Parkinson’s, multiple sclerosis, among others. Bee venom is composed of several substances capable of damaging the viruses responsible for causing the diseases mentioned. It gives its importance in the current market.
Although it is a substance that is not often produced or marketed in the Portuguese market, it is the one that has the highest market value in relation to all other products that can be obtained from bee farms.
2.1. Do you collect bee venom on your farm?
Yes(Go to 3.)
No
2.1.1. Why?
You do not know the techniques to do it
It’s a complicated process
I’m not interested in this practice(Finish questionnaire)
It requires a lot of time
Collectors in the market have very high prices
Do not know what bee venom is
2.2. Would you be interested in exploring the bee venom market?
Yes
No(Finish questionnaire)
3. Bee Venom Collectors
Collector ACollector B
Image 1Image 2
3.1. Are you familiar with the collectors that appear in the image?
Yes
No
3.2. Do you use this equipment to collect bee venom?
Yes
No
3.3. Do you use other equipment to collect bee venom?
Yes
No
3.4. How many milligrams of bee venom do you usually get per hive on your farm?
<100 mg
100 mg
>100 mg
I do not collect bee venom
4. New Technology in Study
Equipment for the collection of bee venom is under study that, compared to the current equipment, has a yield approximately 5 times higher.
We now ask for your opinion on the purchase of this equipment.
4.1. Would you be willing to buy this higher-yielding equipment to collect bee venom?
Yes
No(Finish questionnaire)
4.2. What price would you be willing to pay for this equipment?
Would buyWeights BuyWould not buy
Less than 400 euros
Between 400 and 500 euros
Between 501 and 600 euros
More than 600 euros
Thanks for your collaboration!
If you would like more information on this topic, please leave us your contact.

References

  1. Ministério da Agricultura Floresta e do Desenvolvimento Rural. Programa Apícola Nacional 2017–2019; Ministério da Agricultura Floresta e do Desenvolvimento Rural: Lisbon, Portugal, 2016; Volume 10, p. 99.
  2. Bogdanov, S. Biological and therapeutic properties of bee venom. 2014. Chapter 2. pp. 1–21. Available online: http://www.bee-hexagon.net/files/file/fileE/Health/VenomBookReview.pdf (accessed on 8 September 2019).
  3. Moreno, M.; Giralt, E. Three Valuable Peptides from Bee and Wasp Venoms for Therapeutic and Biotechnological Use: Melittin, Apamin and Mastoparan. Toxins 2015, 7, 1126–1150. [Google Scholar] [CrossRef] [PubMed]
  4. Tilahun, A.; Basa, B.; Belay, W.; Teshale, A. Review on Medicinal Value of Honeybee Products: Apitherapy. Adv. Biol. Res. 2016, 10, 236–247. [Google Scholar]
  5. Silva, J.; Monge-Fuentes, V.; Gomes, F.; Lopes, K.; Anjos, L.; Campos, G.; Arenas, C.; Biolchi, A.; Gonçalves, J.; Galante, P.; et al. Pharmacological Alternatives for the Treatment of Neurodegenerative Disorders: Wasp and Bee Venoms and Their Components as New Neuroactive Tools. Toxins 2015, 7, 3179–3209. [Google Scholar] [CrossRef] [PubMed]
  6. Jung, S.Y.; Lee, K.; Choi, S.; Yang, E.J. Bee Venom Protects against Rotenone-Induced Cell Death, NSC34 Motor Neuron Cells. Toxins 2015, 7, 3715–3726. [Google Scholar] [CrossRef] [PubMed]
  7. Lee, W.; Pak, S.C.; Park, K. The Protective Effect of Bee Venom on Fibrosis Causing Inflammatory Diseases. Toxins 2015, 7, 4758–4772. [Google Scholar] [CrossRef] [PubMed]
  8. Lee, G.; Bae, H. Bee Venom Phospholipase A2: Yesterday’s Enemy Becomes Today’s Friend. Toxins 2016, 8, 48. [Google Scholar] [CrossRef] [PubMed]
  9. Han, S.M.; Pak, S.C.; Nicholls, Y.M.; Macfarlane, N. Evaluation of anti-acne property of purified bee venom serum in humans. J. Cosmet. Dermatol. 2016, 15, 324–329. [Google Scholar] [CrossRef] [PubMed]
  10. Han, S.M.; Hong, I.P.; Woo, S.O.; Chun, S.N.; Park, K.K.; Nicholls, Y.M.; Pak, S.C. The beneficial effects of honeybee-venom serum on facial wrinkles in humans. Clin. Interv. Aging 2015, 10, 1587–1592. [Google Scholar] [CrossRef] [PubMed]
  11. Lee, G.; Bae, H. Anti-inflammatory applications of melittin, a major component of bee venom: Detailed mechanism of action and adverse effects. Molecules 2016, 21, 616. [Google Scholar] [CrossRef] [PubMed]
  12. Pereira, J.A.L. Apicultura em Números e Investigação Apícola em Números. Ph.D. Thesis, Universidade de Lisboa, Lisbon, Portugal, 2016. [Google Scholar]
  13. Casaca, J.D.; Manual de Produção de Pólen e PróPolis. Federação Nacional dos Apicultores de Portugal, Lisboa. 2010. Available online: http://fnap.pt/web/wp-content/uploads/Manual_Produ%C3%A7%C3%A3o-P%C3%B3len-e-Propolis_FNAP_2010-1.pdf (accessed on 8 September 2019).
  14. Erdős, N. On Prospects and Challenges for the EU Apiculture Sector (2017/2115(INI)); Technical Report; Committee on Agriculture and Rural Development: Brussels, Belgium, 2018. [Google Scholar]
  15. Fonte1, A.; Gonçalves, F.; da Costa, C.A.; Ferreira-Wessel, D. Evaluation of attitudes in the consumption of beehive products. Revista de Ciências Agrárias 2017, 40, 216–221. [Google Scholar]
  16. Yun, J.J.; Won, D.; Park, K. Entrepreneurial cyclical dynamics of open innovation. J. Evol. Econ. 2018, 28, 1151–1174. [Google Scholar] [CrossRef]
  17. Sánchez, A.G.; Sierra, D.J.; Cadena, V.A.; Aguirre, S.M.A. Determinación de las condiciones óptimas de un equipo extractor de apitoxina en abejas (Apis mellifera). REDVET Revista Electrónica de Veterinaria 2017, 18, 1–11. [Google Scholar]
  18. Omar, R.E. Effect of Bee Venom Collection on the Measurement of Brood Rearing Activity of Honey Bee Colony Apis mellifera L. Middle East J. Agric. Res. 2017, 6, 409–414. [Google Scholar]
  19. Han, S.-M.; Lee, K.-G.; Yeo, J.-H.; Kweon, H.-Y.; Woo, S.-O.; Lee, M.-L.; Lee, M.-Y.; Kim, C.-G. Device for Collecting Bee Venom. WIPO Patent WO2007037566A1, 5 April 2007. [Google Scholar]
  20. A Trap for the Collection of Honey Bee Venom. European Patent EP2514306B1, 24 October 2012. Available online: https://patentimages.storage.googleapis.com/38/d3/f3/cb9d7cf51dcb34/EP2514306A1.pdf (accessed on 9 September 2019).
  21. Benton, A.W.; Morse, R.A.; Stewart, J.D. Venom Collection from Honey Bees. Science 1963, 142, 228–230. [Google Scholar] [CrossRef] [PubMed]
  22. Han, S. Devive for Collecting Apitoxin. Korean Patent KR2014-097515-1, 13 June 2014. [Google Scholar]
  23. Ahn, C. Devive for Collecting Apitoxin. Korean Patent KR10-2012-0048581, 8 May 2012. [Google Scholar]
  24. Robson, C.H. Bee Venom Collection Apparatus. U.S. Patent US4,739,531, 26 April 1988. [Google Scholar]
  25. Simics, M. A Review of Bee Venom Collecting and More, 2nd ed.; Apitronic Services: Calgary, Canada, 1994. [Google Scholar]
  26. Durán, X.A.; Cifuentes, Y.L.; Ulloa, D.M. Evaluation of two frequency of collection of apitoxin extracted of hives of Apis mellifera L. time during the summertime in the Region of the Araucania. Idesia 2011, 29, 145–150. [Google Scholar]
  27. Sanad, R.E.; Mohanny, K.M. The Efficacy of a New Modified Apparatus for Collecting Bee Venom in Relation to Some Biological Aspects of Honeybee Colonies. J. Am. Sci. 2013, 9, 177–182. [Google Scholar]
  28. Maulana, E.; kusuna Wardana, A.; Khuzain, M.; Prasetyo, G.; Anwarudin, M.E. Bee Venom Harvesters Device Integrated with Solar Cell. In Proceedings of the 2018 Electrical Power, Electronics, Communications, Controls and Informatics Seminar (EECCIS), Batu, Indonesia, 9–11 October 2018; pp. 123–126. [Google Scholar]
Figure 1. Individual Frame with Two Contact Sides.
Figure 1. Individual Frame with Two Contact Sides.
Joitmc 05 00071 g001

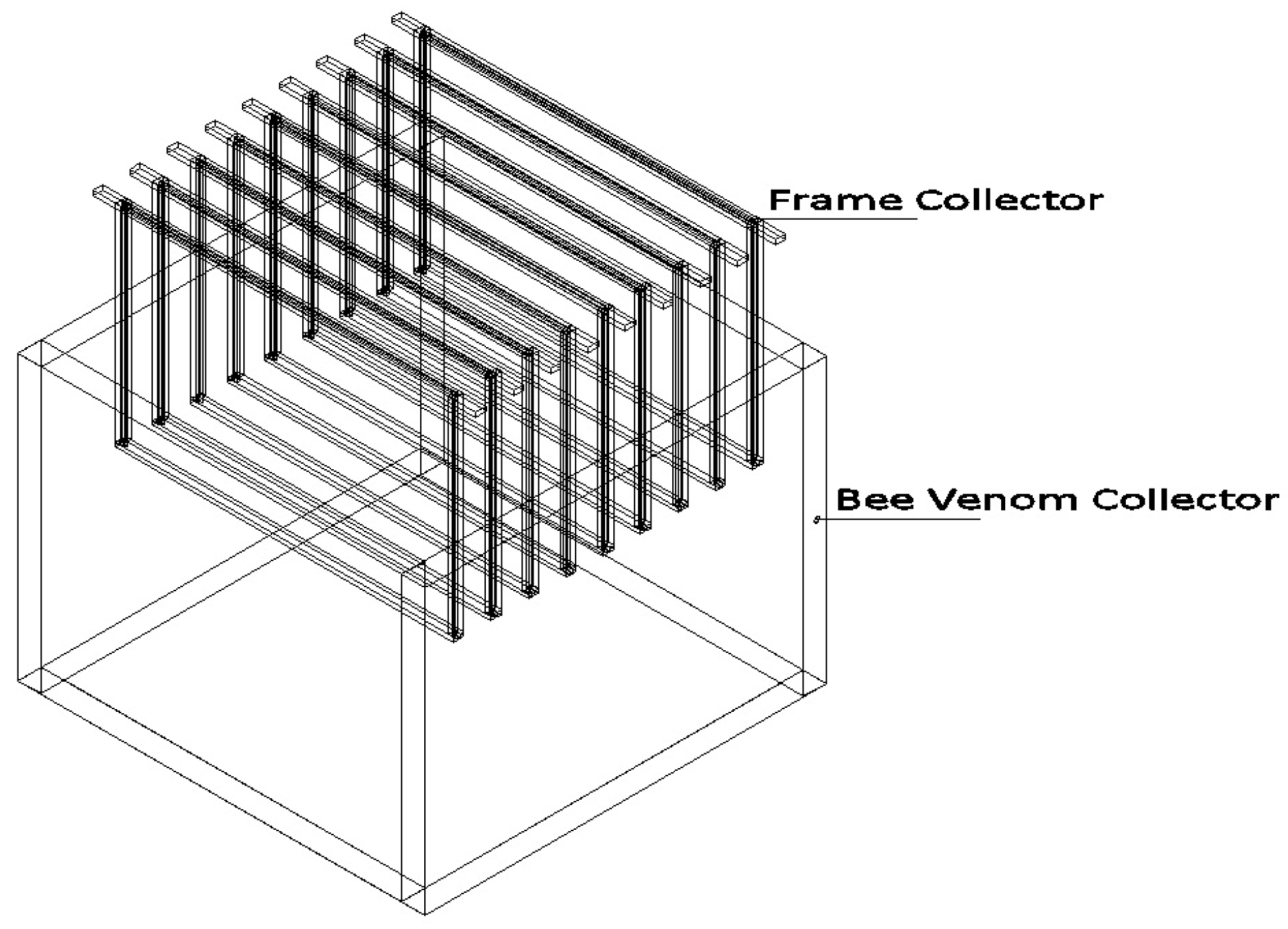

Figure 2. Collector with 10 Internal Frames.
Figure 2. Collector with 10 Internal Frames.
Joitmc 05 00071 g002
Figure 3. Intensive Collector Application.
Figure 3. Intensive Collector Application.
Joitmc 05 00071 g003
Figure 4. Percentages by Region of collected answers.
Figure 4. Percentages by Region of collected answers.
Joitmc 05 00071 g004
Figure 5. (a) Bee Venom Removal (b) Bee Venom Collected (intermediate container).
Figure 5. (a) Bee Venom Removal (b) Bee Venom Collected (intermediate container).
Joitmc 05 00071 g005

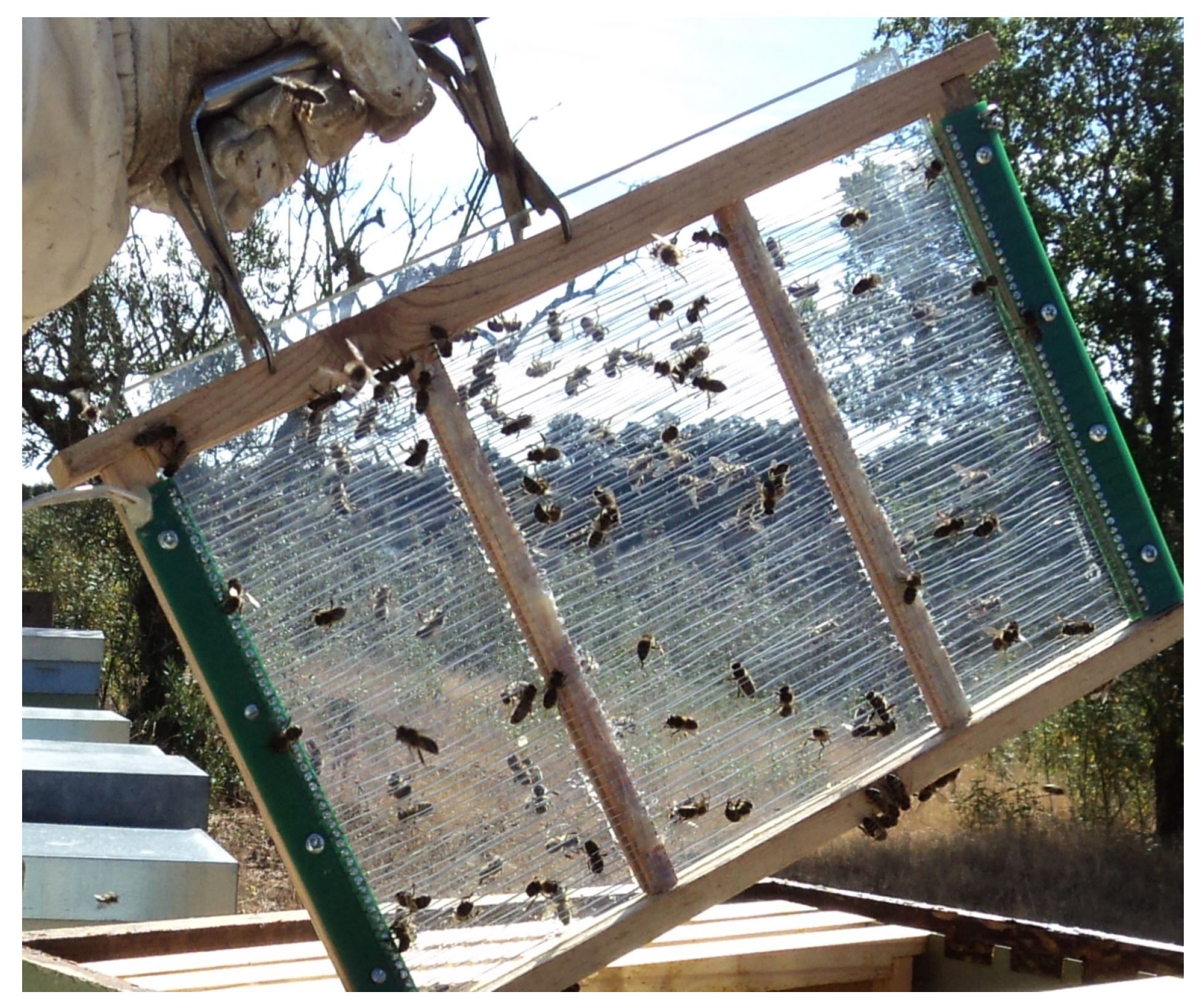

Figure 6. Equipment Application in Real Environment.
Figure 6. Equipment Application in Real Environment.
Joitmc 05 00071 g006
Table 1. Generic Characterization of Beekeeping Activity in Portugal.
Table 1. Generic Characterization of Beekeeping Activity in Portugal.
20132015Variation (no. and Percentage)
no. of beekeepers16,77410,698−6,076−36%
no. of apiaries40,17633.876−6,300−19%
no. of hives566,793626,39959,60610%
Apiaries/beekeeper23
Hives/beekeeper3459
Table 2. Absolute Value of the Sample for a 99% confidence Interval and a sampling error of 10%.
Table 2. Absolute Value of the Sample for a 99% confidence Interval and a sampling error of 10%.
RegionAbsolute Value% of RegionAbsolute Sample Value
North3,65734%56
Center3,54933%54
Lisbon and Tagus Valley9109%15
Alentejo1,21411%18
Algarve8378%13
Autonomous Region of Madeira3463%5
Autonomous Region of Azores1852%3
Total164
Table 3. Percentages by Region of collected answers.
Table 3. Percentages by Region of collected answers.
RegionPredicted
Answers
Collected
Answers
Obtained
Confidence Level
Obtained
Error
North34%22%95%10%
Center33%34%99%10%
Lisbon and Tagus Valley9%9%99%10%
Alentejo11%27%99%6%
Algarve8%5%95%10%
Autonomous Region of Madeira3%1%90%10%
Autonomous Region of Azores2%2%99%10%
Table 4. Data collected from the applied questionnaire.
Table 4. Data collected from the applied questionnaire.
VariableCategoryFrequencyPercentage
Type of bee practicedHobby14570%
Professional6230%
Size of bee venom production1–10 beehives6029%
11–25 beehives3316%
26–50 beehives2512%
51–100 beehives3115%
101–200 beehives2311%
201–500 beehives2412%
More than 500 beehives115%
Collection of bee venomYes73%
No20097%
Reasons for not collecting bee venomYou do not know the techniques to do it8240%
it is a complicated process189%
I’m not interested in this practice3718%
It requires a lot of time2713%
Collectors in the market have very high prices3216%
Do not know what apitoxin is74%
Interest in collecting bee venomYes13465%
No7335%
Interest in collecting bee venom in
different segments of beekeepers
1–10 beehives3727%
11–25 beehives2216%
26–50 beehives1914%
51–100 beehives1813%
101–200 beehives1712%
201–500 beehives1612%
More than 500 beehives86%
Table 5. Conditions and Results Obtained.
Table 5. Conditions and Results Obtained.
ItemsState-of-the-Art CollectorIntensive CollectorDifference
Production
Area (cm2)108915,84014,751
Production (mg)27242663994
Price of collectors (Euros)263593330
Productivity (mg/cm2)0.249770.269320.01955
Annual production (mg)326451,19247,928
Working operating times
Operating minutes/collector33027
Operating minutes/month48480432
Operating days/month0.111.070.96
Amortizations (constant quotas)
Year of lifespan88
Yearly amortization32.8874.1341.25
Table 6. General Assumptions.
Table 6. General Assumptions.
General Assumptions
Constant annual Inflation (%)2
Price of Bee Venom (Euros/g)23
Working hours/day7.5
Labor daily cost (Euros)34
Taxes on Labor Costs24.75%
Taxes on Profits25%
Interest rate of risk-free assets—Rf1%
Market risk premium—(Rm-Rf) or pº1.33%
Table 7. State-of-the-art Collector.
Table 7. State-of-the-art Collector.
YearsYear 1Year 2Year 3Year 4Year 5
Rate of change of prices2.00%2.00%2.00%2.00%
Sales (Euros)
Quantities Sold (g)3.2643.2643.2643.2643.264
Unit Price (Euros)23.0023.4623.9324.4124,90
Total sales7577788081
Costs (Euros)
Tools and utensils for fast wear33444
Cleaning, hygiene and comfort66677
Labor6567686970
Costs (except amortizations)7476778081
Amortizations3333333333
Total costs107109110113114
EBITDA 111000
EBIT (Earnings Before Interest and Taxes)−32−32−33−33−33
Tax over the period’s income00000
Net Income for The Period−32−32−33−33−33
Operating Cash Flow11000
Fixed Assets’ Investments263
Free Cash Flow−2621000
Accumulated Cash Flow−262−261−261−261−261
1 Income before depreciation.
Table 8. State-of-the-art Collector’s Indicators (Euros).
Table 8. State-of-the-art Collector’s Indicators (Euros).
NPV (Euros)−211
Payback Period (Years)-
IRR (%)−94
Table 9. Intensive Collector.
Table 9. Intensive Collector.
YearsYear 1Year 2Year 3Year 4Year 5
Rate of change of prices2.00%2.00%2.00%2.00%
Sales (Euros)
Quantities Sold (g)51.19251.19251.19251.19251.192
Unit Price (Euros)23.0023.4623.9324.4124.90
Total sales11771201122512491274
Costs (Euros)
Tools and utensils for fast wear5456585961
Cleaning, hygiene and comfort2425252627
Labor635648661674688
Costs (except amortizations)713729744759776
Amortizations7474747474
Total costs787803818833850
EBITDA 1464472481490498
EBIT390398407416424
Tax over the period’s income97100102104106
Net Income for The Period293298305312318
Operating Cash Flow367372379386392
Fixed Assets’ Investments593
Free Cash Flow−226372379386392
Accumulated Cash Flow−2261465259111303
1 Income before depreciation.
Table 10. Intensive Collector’s Indicators (Euros).
Table 10. Intensive Collector’s Indicators (Euros).
NPV (Euros)568
Payback Period (Years)1.61
IRR (%)163
Table 11. Compared Results.
Table 11. Compared Results.
State-of-the-Art CollectorIntensive Collector
Annual quantities (g)3.26451.192
Sales (5 years, Euros)3916126
Costs (5 years, Euros)5534090
Accumulated Cash Flow (Euros)−2611303
NPV (Euros)−211568
Payback Period (years)-1.61
IRR (%)−94163

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
