# An Empirical Investigation on Evolutionary Algorithm Evolving Developmental Timings

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

## 3. The Evolutionary Algorithm Evolving Developmental Timings

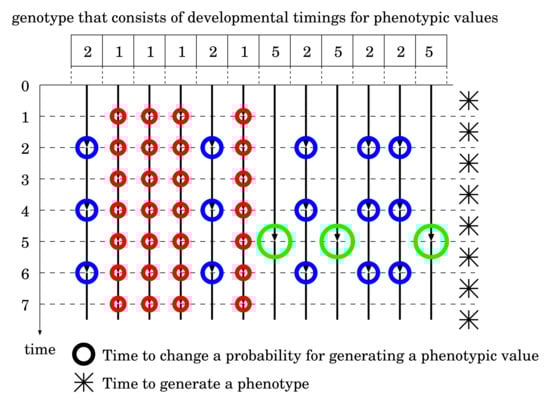

#### 3.1. Individual

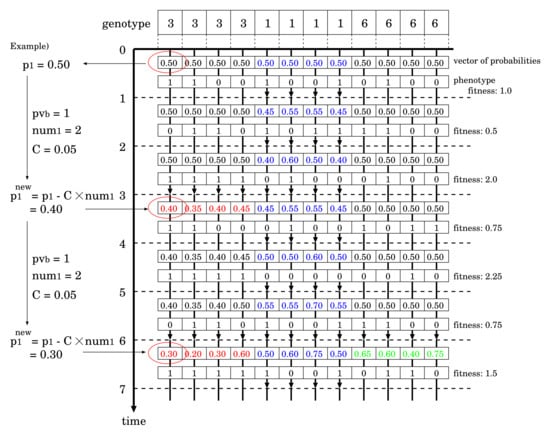

#### 3.2. Individual Development

#### 3.3. Crossover Operator

#### 3.4. Mutation and Selection Operators

## 4. Simulations for Performance Evaluation

#### 4.1. Test Problems

#### 4.1.1. Hierarchical If-And-Only-If Function (HIFF)

#### 4.1.2. Hierarchical Trap Function (HTRAP)

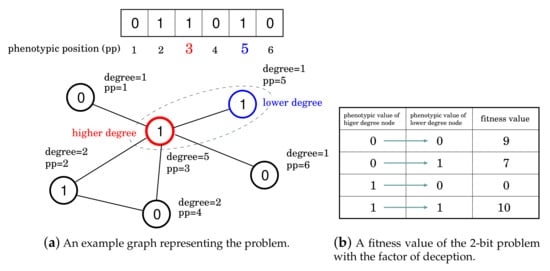

#### 4.1.3. Hierarchically Dependent Function (HDEP)

- 1.
- Generate a connected graph with some topology. The number of nodes in the graph is equal to the number of variables, that is, the length of a binary string as a solution candidate, ℓ.
- 2.
- Assign position numbers of a binary string as a solution candidate, $1,2,\dots ,\ell $, to each of the ℓ nodes on the generated graph.
- 3.
- Define Lm-bit problems with a factor of deception on the generated graph. In the graph, nodes of higher degree form higher hierarchies. Degree means the number of edges. If multiple nodes of the same degree are included in an m-bit problem, the nodes with smaller position numbers become those of higher degree.

- Assign bits of a solution candidate to corresponding nodes in the graph of the problem instance.
- Calculate the sum of fitness values of Lm-bit problems defined on the graph and then divide the sum by L. A solution candidate of an m-bit problem consists of m bits that the m nodes sequentially connected by edges have. More concretely, the solution candidate is formed by arranging m bits that the m nodes have from higher to lower in terms of hierarchy.
- Set the value obtained by the division to be a fitness value of a solution candidate of the entire problem instance.

#### 4.1.4. N-K Landscape Function (K = 4) (NKL-K4)

#### 4.1.5. Multidimensional Knapsack Problem (MKP)

#### 4.2. Algorithm for Comparison

#### 4.3. Configurations

#### 4.4. Results

#### 4.5. Discussion

#### 4.5.1. Why the EDT Solves MKP Better Than the LTGA

#### 4.5.2. Why the EDT Solves HIFF and HTRAP Worse Than the LTGA

#### 4.5.3. Why the Performances of the EDT and the CBGA Are Similar

#### 4.5.4. What Configurations Are Better for the EDT

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Thierens, D.; Goldberg, D.E. Mixing in Genetic Algorithms. In Proceedings of the 5th International Conference on Genetic Algorithms (ICGA-93), Urbana-Champaign, IL, USA, 15–22 June 1993; pp. 38–45. [Google Scholar]
- Pelikan, M.; Goldberg, D.E.; Lobo, F. A Survey of Optimization by Building and Using Probabilistic Models. Comput. Optim. Appl.
**2002**, 21, 5–20. [Google Scholar] [CrossRef] - Larranaga, P.; Lozano, J.A. Estimation of Distribution Algorithms: A New Tool for Evolutionary Computation; Kluwer Academic Publishers: New York, NY, USA, 2001. [Google Scholar]
- Pelikan, M.; Goldberg, D.E. Hierarchical problem solving and the bayesian optimization algorithm. In Proceedings of the 2000 Genetic and Evolutionary Computation Conference (GECCO 2000), Las Vegas, NV, USA, 8–12 July 2000; pp. 267–274. [Google Scholar]
- Munetomo, M. Linkage Identification with Epistasis Measure Considering Monotonicity Condition. In Proceedings of the 4th Asia-Pacific Conference on Simulated Evolution and Learning, Singapore, 18–22 November 2002; pp. 550–554. [Google Scholar]
- Yu, T.L.; Goldberg, D.E.; Sastry, K.; Lima, C.F.; Pelikan, M. Dependency Structure Matrix, Genetic Algorithms, and Effective Recombination. Evol. Comput.
**2009**, 17, 595–626. [Google Scholar] [PubMed] - Thierens, D.; Bosman, P. Hierarchical Problem Solving with the Linkage Tree Genetic Algorithm. In Proceedings of the 2013 Genetic and Evolutionary Computation Conference (GECCO 2013), Amsterdam, The Netherlands, 6–10 July 2013; pp. 877–884. [Google Scholar]
- Hsu, S.H.; Yu, T.L. Optimization by Pairwise Linkage Detection, Incremental Linkage Set, and Restricted/Back Mixing: DSMGA-II. In Proceedings of the 2015 Annual Conference on Genetic and Evolutionary Computation (GECCO 2015), Madrid, Spain, 11–15 July 2015; pp. 519–526. [Google Scholar]
- Ohnishi, K.; Uchida, M.; Oie, Y. Evolution and Learning Mediated by Difference in Developmental Timing. Adv. Comput. Intell. Intell. Inform. (JACIII)
**2007**, 11, 905–913. [Google Scholar] - Deb, K.; Goldberg, D.E. Analyzing Deception in Trap Functions. Found. Genet. Algorithms
**1993**, 2, 93–108. [Google Scholar] - Hamano, K.; Ohnishi, K.; Koeppen, M. Evolution of Developmental Timing for Solving Hierarchically Dependent Deceptive Problems. In Proceedings of the Tenth International Conference on Simulated Evolution And Learning (SEAL 2014), Dunedin, New Zealand, 15–18 December 2014; pp. 58–69. [Google Scholar]
- Baluja, S. Population-Based Incremental Learning: A Method for Integrating Genetic Search Based Function Optimization and Competitive Learning; Technical Report; Carnegie Mellon University: Pittsburgh, PA, USA, 1994. [Google Scholar]
- Harik, G.; Lobo, F.; Goldberg, D. The compact genetic algorithm. IEEE Trans. Evol. Comput.
**1999**, 3, 287–297. [Google Scholar] - Gould, S.J. Ontogeny and Phylogeny; Harvard University Press: Oxford, UK, 1977. [Google Scholar]
- Kauffman, S.A.; Weinberger, E.D. The NK model of rugged fitness landscapes and its application to maturation of the immune response. Theor. Biol.
**1989**, 141, 211–245. [Google Scholar] - Chu, P.C.; Beasley, J.E. A Genetic Algorithm for the Multidimensional Knapsack Problem. Heuristics
**1998**, 4, 63–86. [Google Scholar] - Martins, J.P.; Fonseca, C.M.; Delbem, A.C. On the Performance of Linkage-tree Genetic Algorithms for the Multidimensional Knapsack Problem. Neurocomputing
**2014**, 146, 17–29. [Google Scholar] - Goldberg, D.E. Genetic Algorithms in Search, Optimization and Machine Learning; Addison-Wesley Longman Publishing Co., Inc.: Boston, MA, USA, 1989. [Google Scholar]
- Bouter, A.; Witteveen, C.; Alderliesten, T.; Bosman, P. Exploiting linkage information in real-valued optimization with the real-valued gene-pool optimal mixing evolutionary algorithm. In Proceedings of the Genetic and Evolutionary Computation Conference, Berlin, Germany, 15–19 July 2017; pp. 705–712. [Google Scholar]
- Yu, J.Y.; Chen, I.T.; Yu, T.L. A diversity preservation scheme for DSMGA-II to conquer the hierarchical difficulty. In Proceedings of the Genetic and Evolutionary Computation Conference, Berlin, Germany, 15–19 July 2017; pp. 841–848. [Google Scholar]
- Ellefsen, K.; Huizinga, J.; Torresen, J. Guiding neuroevolution with structural objectives. Evol. Comput.
**2020**, 28, 115–140. [Google Scholar] [PubMed] [Green Version] - Harik, G.R.; Goldberg, D.E. Learning Linkage. Found. Genet. Algorithms
**1996**, 4, 247–262. [Google Scholar] - Ryan, C.; Nicolau, M.; O’Neill, M. Genetic Algorithms Using Grammatical Evolution. In Proceedings of the Fifth European Conference on Genetic Programming (EuroGP 2002), Kinsale, Ireland, 3–5 April 2002; pp. 278–287. [Google Scholar]
- Ohnishi, K.; Sastry, K.; Chen, Y.P.; Goldberg, D.E. Inducing Sequentiality Using Grammatical Genetic Codes. In Proceedings of the 2004 Genetic and Evolutionary Computation Conference (GECCO 2004), Seattle, WA, USA, 26–30 June 2004; pp. 1426–1437. [Google Scholar]
- Goldman, B.W.; Punch, W.F. Parameter-less Population Pyramid. In Proceedings of the 2014 Conference on Genetic and Evolutionary Computation (GECCO 2014), Seattle, WA, USA, 26–30 June 2004; pp. 785–792. [Google Scholar]
- Beasley, J.E. OR-Library, Multidimensional Knapsack Problem. 1990. Available online: http://people.brunel.ac.uk/~mastjjb/jeb/orlib/mknapinfo.html (accessed on 26 April 2019).
- Bu, T.; Towsley, D. On Distinguishing between Internet Power Law Topology Generators. In Proceedings of the IEEE Infocom 2002, New York, NY, USA, 23–27 June 2002; pp. 638–647. [Google Scholar]
- Barabasi, A.L.; Albert, R. Emergence of Scaling in Random Networks. Science
**1999**, 286, 509–512. [Google Scholar] [PubMed] [Green Version] - Bosman, P.A.N.; Thierens, D. More Concise and Robust Linkage Learning by Filtering and Combining Linkage Hierarchies. In Proceedings of the 2013 Genetic and Evolutionary Computation Conference (GECCO 2013), Amsterdam, The Netherlands, 6–10 July 2013; pp. 359–366. [Google Scholar]

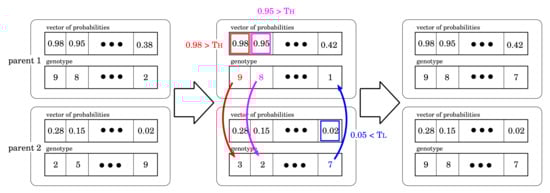

**Figure 3.**An application example of the crossover operator of the evolutionary algorithm evolving developmental timing (EDT).

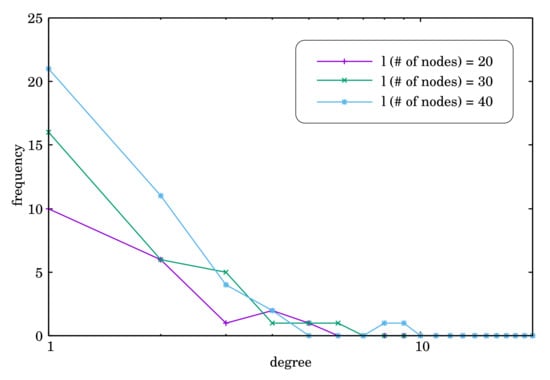

**Figure 5.**The degree distributions of three graphs used in the HDEP. The numbers of nodes in the three graphs, which are equivalent to the problem size, ℓ, are 20, 30, and 40. They are all power-law distribution.

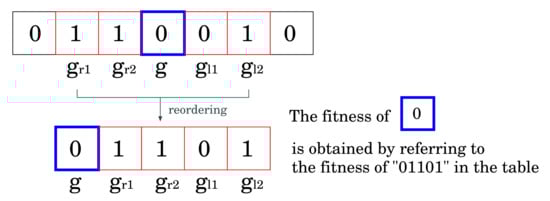

**Figure 6.**The fitness value of g in the sequential five bits, (${g}_{r1}$, ${g}_{r2}$, $g$, ${g}_{\ell 1}$, ${g}_{\ell 2}$), in NKL-K4.

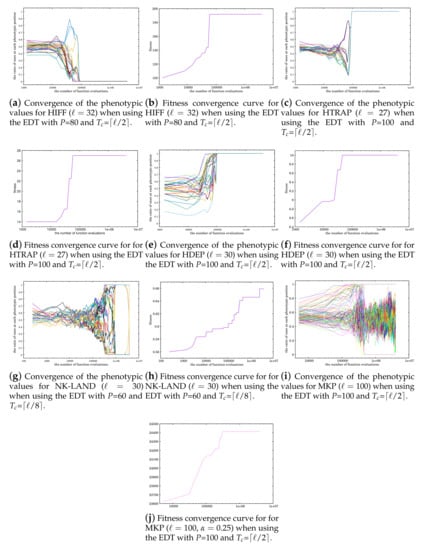

**Figure 7.**The convergence of the phenotypic values when the problem was successfully solved, and fitness convergence curves for the runs.

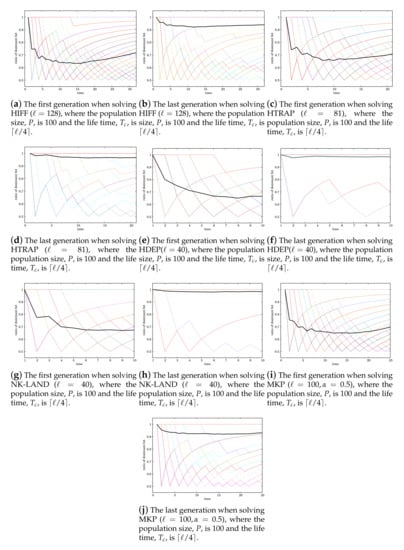

**Figure 8.**Examples of the time variation of a dominant of each variable, 0 or 1, in the development of an individual at the first and the last generations. The black bold line in each figure represents the average of the ratios of all variables.

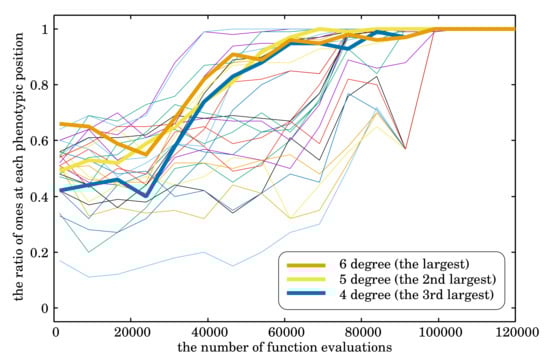

**Figure 9.**The convergence curve of phenotypic values corresponding to the nodes with the three larger degrees when solving HDEP.

**Table 1.**The fitness of g in the sequential five bits, (${g}_{r1}$, ${g}_{r2}$, $g$, ${g}_{\ell 1}$, ${g}_{\ell 2}$), in NKL-K4. The five-bit string in the table represents ($g$, ${g}_{r1}$, ${g}_{r2}$, ${g}_{\ell 1}$, ${g}_{\ell 2}$).

5-Bit | Fitness | 5-Bit | Fitness | 5-Bit | Fitness | 5-Bit | Fitness |
---|---|---|---|---|---|---|---|

00000 | 0.036486 | 01000 | 0.258027 | 10000 | 0.315626 | 11000 | 0.101828 |

00001 | 0.833081 | 01001 | 0.467604 | 10001 | 0.575035 | 11001 | 0.533017 |

00010 | 0.267900 | 01010 | 0.243886 | 10010 | 0.704985 | 11010 | 0.118997 |

00011 | 0.011235 | 01011 | 0.040266 | 10011 | 0.283613 | 11011 | 0.546785 |

00100 | 0.882766 | 01100 | 0.178573 | 10100 | 0.661520 | 11100 | 0.516638 |

00101 | 0.213545 | 01101 | 0.803215 | 10101 | 0.175868 | 11101 | 0.707389 |

00110 | 0.778439 | 01110 | 0.903812 | 10110 | 0.979191 | 11110 | 0.038014 |

00111 | 0.537816 | 01111 | 0.262323 | 10111 | 0.886160 | 11111 | 0.452097 |

EDT | SGA | CBGA | ecGA | LTGA | |||||
---|---|---|---|---|---|---|---|---|---|

HIFF (ℓ = 32) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 40 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 4 | 18 | 23 | 20 | 9 | 30 | 30 | 30 |

${N}_{e}$ | 5.8$\times {10}^{3}$ | 4.3$\times {10}^{3}$ | 5.3$\times {10}^{3}$ | 6.3$\times {10}^{3}$ | 1.3$\times {10}^{5}$ | 1.5$\times {10}^{5}$ | 5.4$\times {10}^{4}$ | 2.0$\times {10}^{3}$ | |

$S{D}_{e}$ | 2.5$\times {10}^{3}$ | 0.6$\times {10}^{4}$ | 1.1$\times {10}^{4}$ | 1.2$\times {10}^{4}$ | 3.0$\times {10}^{3}$ | $1.2\times {10}^{5}$ | 0.7$\times {10}^{4}$ | - | |

${F}_{a}$ | 1.5$\times {10}^{2}$ | 1.8$\times {10}^{2}$ | 1.8$\times {10}^{2}$ | 1.8$\times {10}^{2}$ | 164.2 | 192 | 192 | 192 | |

$S{D}_{f}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 19.3 | 0 | 0 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 2 | 11 | 17 | 20 | ||||

${N}_{e}$ | 6.2$\times {10}^{3}$ | 3.4$\times {10}^{4}$ | 4.6$\times {10}^{4}$ | 5.6$\times {10}^{4}$ | |||||

$S{D}_{e}$ | 0.9$\times {10}^{2}$ | 0.5$\times {10}^{4}$ | 0.7$\times {10}^{4}$ | 0.9$\times {10}^{4}$ | |||||

${F}_{a}$ | 1.5$\times {10}^{2}$ | 1.7$\times {10}^{2}$ | 1.8$\times {10}^{2}$ | 1.8$\times {10}^{2}$ | |||||

$S{D}_{f}$ | 0.1$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 14 | 10 | 12 | 16 | ||||

${N}_{e}$ | 5.2$\times {10}^{5}$ | 1.7$\times {10}^{5}$ | 2.6$\times {10}^{5}$ | 3.3$\times {10}^{5}$ | |||||

$S{D}_{e}$ | 3.2$\times {10}^{5}$ | 0.6$\times {10}^{5}$ | 1.3$\times {10}^{5}$ | 1.4$\times {10}^{5}$ | |||||

${F}_{a}$ | 1.7$\times {10}^{2}$ | 1.7$\times {10}^{2}$ | 1.7$\times {10}^{2}$ | 1.8$\times {10}^{2}$ | |||||

$S{D}_{f}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | |||||

HIFF (ℓ = 64) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 50 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 0 | 5 | 8 | 8 | 3 | 15 | 1 | 30 |

${N}_{e}$ | - | 2.8$\times {10}^{5}$ | 3.8$\times {10}^{5}$ | 4.2$\times {10}^{5}$ | 1.5$\times {10}^{6}$ | 1.5$\times {10}^{6}$ | 1.3$\times {10}^{5}$ | 9.0$\times {10}^{3}$ | |

$S{D}_{e}$ | - | 0.3$\times {10}^{5}$ | 0.8$\times {10}^{5}$ | 0.8$\times {10}^{5}$ | 9.6$\times {10}^{5}$ | 1.1$\times {10}^{6}$ | 0.0 | - | |

${F}_{a}$ | 3.2$\times {10}^{2}$ | 3.6$\times {10}^{2}$ | 3.8$\times {10}^{2}$ | 3.8$\times {10}^{2}$ | 332.8 | 416.0 | 338.4 | 448 | |

$S{D}_{f}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 0.2$\times {10}^{2}$ | 49.6 | 32.0 | 29.3 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 1 | 6 | 7 | 5 | ||||

${N}_{e}$ | 8.9$\times {10}^{5}$ | 4.2$\times {10}^{5}$ | 2.3$\times {10}^{5}$ | 2.5$\times {10}^{5}$ | |||||

$S{D}_{e}$ | - | 5.8$\times {10}^{5}$ | 0.9$\times {10}^{5}$ | 0.4$\times {10}^{5}$ | |||||

${F}_{a}$ | 3.2$\times {10}^{2}$ | 3.6$\times {10}^{2}$ | 3.6$\times {10}^{2}$ | 3.6$\times {10}^{2}$ | |||||

$S{D}_{f}$ | 0.4$\times {10}^{2}$ | 0.5$\times {10}^{2}$ | 0.5$\times {10}^{2}$ | 0.4$\times {10}^{2}$ | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 0 | 0 | 3 | 2 | ||||

${N}_{e}$ | - | - | 3.2$\times {10}^{5}$ | 3.5$\times {10}^{2}$ | |||||

$S{D}_{e}$ | - | - | 0.4$\times {10}^{5}$ | 0.2$\times {10}^{5}$ | |||||

${F}_{a}$ | 3.2$\times {10}^{2}$ | 3.4$\times {10}^{2}$ | 3.5$\times {10}^{2}$ | 3.5$\times {10}^{2}$ | |||||

$S{D}_{f}$ | 0.3$\times {10}^{2}$ | 0.3$\times {10}^{2}$ | 0.4$\times {10}^{2}$ | 0.3$\times {10}^{2}$ | |||||

HIFF (ℓ = 128) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 60 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 0 | 0 | 0 | 0 | 0 | 0 | - | 30 |

${N}_{e}$ | - | - | - | - | - | - | - | 2.5$\times {10}^{4}$ | |

$S{D}_{e}$ | - | - | - | - | - | - | - | - | |

${F}_{a}$ | 5.8$\times {10}^{2}$ | 6.8$\times {10}^{2}$ | 7.0$\times {10}^{2}$ | 6.7$\times {10}^{2}$ | 471.8 | 706.0 | - | 1024 | |

$S{D}_{f}$ | 0.4$\times {10}^{2}$ | 0.5$\times {10}^{2}$ | 0.5$\times {10}^{2}$ | 0.5$\times {10}^{2}$ | 23.4 | 71.2 | - | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 0 | 0 | 0 | 0 | ||||

${N}_{e}$ | - | - | - | - | |||||

$S{D}_{e}$ | - | - | - | - | |||||

${F}_{a}$ | 6.2$\times {10}^{2}$ | 7.3$\times {10}^{2}$ | 7.3$\times {10}^{2}$ | 7.4$\times {10}^{2}$ | |||||

$S{D}_{f}$ | 0.5$\times {10}^{2}$ | 0.8$\times {10}^{2}$ | 0.5$\times {10}^{2}$ | 0.7$\times {10}^{2}$ | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 0 | 0 | 0 | 0 | ||||

${N}_{e}$ | - | - | - | - | |||||

$S{D}_{e}$ | - | - | - | - | |||||

${F}_{a}$ | 5.8$\times {10}^{2}$ | 6.7$\times {10}^{2}$ | 6.9$\times {10}^{2}$ | 7.0$\times {10}^{2}$ | |||||

$S{D}_{f}$ | 0.5$\times {10}^{2}$ | 0.6$\times {10}^{2}$ | 0.5$\times {10}^{2}$ | 0.6$\times {10}^{2}$ |

EDT | SGA | CBGA | ecGA | LTGA | |||||
---|---|---|---|---|---|---|---|---|---|

HTRAP (ℓ = 9) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | - | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 30 | 30 | 30 | 30 | 30 | 30 | 30 | - |

${N}_{e}$ | 1.2$\times {10}^{5}$ | 4.9$\times {10}^{2}$ | 4.5$\times {10}^{2}$ | 6.0$\times {10}^{2}$ | 3.3$\times {10}^{2}$ | 2.0$\times {10}^{3}$ | 4.0$\times {10}^{2}$ | - | |

$S{D}_{e}$ | 1.8$\times {10}^{5}$ | 4.2$\times {10}^{2}$ | 3.3$\times {10}^{2}$ | 6.3$\times {10}^{2}$ | 3.6$\times {10}^{2}$ | 1.7$\times {10}^{1}$ | 4.0$\times {10}^{2}$ | - | |

${F}_{a}$ | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |

$S{D}_{f}$ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 30 | 30 | 30 | 30 | ||||

${N}_{e}$ | 2.3$\times {10}^{3}$ | 5.5$\times {10}^{2}$ | 4.9$\times {10}^{2}$ | 4.1$\times {10}^{2}$ | |||||

$S{D}_{e}$ | 5.2$\times {10}^{3}$ | 4.4$\times {10}^{2}$ | 4.5$\times {10}^{2}$ | 3.0$\times {10}^{2}$ | |||||

${F}_{a}$ | 6 | 6 | 6 | 6 | |||||

$S{D}_{f}$ | 0 | 0 | 0 | 0 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 30 | 30 | 30 | 30 | ||||

${N}_{e}$ | 6.9$\times {10}^{2}$ | 6.7$\times {10}^{2}$ | 5.1$\times {10}^{2}$ | 4.8$\times {10}^{2}$ | |||||

$S{D}_{e}$ | 6.3$\times {10}^{2}$ | 6.2$\times {10}^{2}$ | 4.5$\times {10}^{2}$ | 4.0$\times {10}^{2}$ | |||||

${F}_{a}$ | 6 | 6 | 6 | 6 | |||||

$S{D}_{f}$ | 0 | 0 | 0 | 0 | |||||

HTRAP (ℓ = 27) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 100 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 0 | 3 | 3 | 7 | 0 | 30 | 27 | 30 |

${N}_{e}$ | - | 3.3$\times {10}^{4}$ | 4.3$\times {10}^{4}$ | 4.3$\times {10}^{4}$ | - | 2.4$\times {10}^{6}$ | 3.7$\times {10}^{4}$ | 1.0$\times {10}^{4}$ | |

$S{D}_{e}$ | - | 0.9$\times {10}^{4}$ | 0.2$\times {10}^{4}$ | 1.0$\times {10}^{4}$ | - | 4.2$\times {10}^{5}$ | 0.9$\times {10}^{4}$ | - | |

${F}_{a}$ | 2.3$\times 10$ | 2.5$\times 10$ | 2.6$\times 10$ | 2.6$\times 10$ | 26.1 | 27 | 26.9 | 27 | |

$S{D}_{f}$ | 3.0 | 1.7 | 1.7 | 1.4 | 0.0 | 0 | 0.3 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 0 | 2 | 1 | 3 | ||||

${N}_{e}$ | - | 2.7$\times {10}^{4}$ | 2.7$\times {10}^{4}$ | 4.3$\times {10}^{4}$ | |||||

$S{D}_{e}$ | - | 0.2$\times {10}^{4}$ | - | 0.4$\times {10}^{4}$ | |||||

${F}_{a}$ | 2.3$\times 10$ | 2.5$\times 10$ | 2.6$\times 10$ | 2.5$\times 10$ | |||||

$S{D}_{f}$ | 3.1 | 2.2 | 1.2 | 1.5 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 0 | 1 | 1 | 0 | ||||

${N}_{e}$ | - | 1.1$\times {10}^{5}$ | 1.7$\times {10}^{5}$ | - | |||||

$S{D}_{e}$ | - | - | - | - | |||||

${F}_{a}$ | 2.3$\times 10$ | 2.5$\times 10$ | 2.5$\times 10$ | 2.5$\times 10$ | |||||

$S{D}_{f}$ | 2.6 | 1.8 | 1.4 | 1.7 | |||||

HTRAP (ℓ = 81) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 110 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 30 |

${N}_{e}$ | - | - | - | 1.0$\times {10}^{6}$ | - | - | - | 6.0$\times {10}^{4}$ | |

$S{D}_{e}$ | - | - | - | - | - | - | - | - | |

${F}_{a}$ | 7.3$\times 10$ | 7.7$\times 10$ | 8.3$\times 10$ | 8.5$\times 10$ | 105.3 | 105.3 | 105.3 | 108 | |

$S{D}_{f}$ | 7.3 | 1.0$\times 10$ | 1.2$\times 10$ | 1.5$\times 10$ | 0.0 | 0.0 | 0.0 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 0 | 0 | 0 | 0 | ||||

${N}_{e}$ | - | - | - | - | |||||

$S{D}_{e}$ | - | - | - | - | |||||

${F}_{a}$ | 7.4$\times 10$ | 7.9$\times 10$ | 8.1$\times 10$ | 7.8$\times 10$ | |||||

$S{D}_{f}$ | 7.2 | 1.3$\times 10$ | 1.2$\times 10$ | 9.7 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 0 | 0 | 0 | 0 | ||||

${N}_{e}$ | - | - | - | - | |||||

$S{D}_{e}$ | - | - | - | - | |||||

${F}_{a}$ | 6.2$\times 10$ | 7.7$\times 10$ | 7.7$\times 10$ | 8.0$\times 10$ | |||||

$S{D}_{f}$ | 6.3 | 1.0$\times 10$ | 1.2$\times 10$ | 1.2$\times 10$ |

EDT | SGA | CBGA | ecGA | LTGA | |||||
---|---|---|---|---|---|---|---|---|---|

HDEP (ℓ = 20) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 200 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 27 | 30 | 30 | 30 | 8 | 30 | 17 | 30 |

${N}_{e}$ | 5.4$\times {10}^{5}$ | 3.5$\times {10}^{4}$ | 2.1$\times {10}^{4}$ | 3.2$\times {10}^{4}$ | 4.7$\times {10}^{4}$ | 8.4$\times {10}^{4}$ | 2.8$\times {10}^{4}$ | 3.8$\times {10}^{3}$ | |

$S{D}_{e}$ | 8.6$\times {10}^{5}$ | 9.5$\times {10}^{4}$ | 0.7$\times {10}^{4}$ | 3.3$\times {10}^{4}$ | 2.8$\times {10}^{4}$ | 5.0$\times {10}^{4}$ | 0.8$\times {10}^{4}$ | 2.1$\times {10}^{3}$ | |

${F}_{a}$ | 9.92 | 10 | 10 | 10 | 9.60 | 10 | 9.79 | 10 | |

$S{D}_{f}$ | 0.27 | 0 | 0 | 0 | 0.24 | 0 | 0.24 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 30 | 30 | 30 | 30 | ||||

${N}_{e}$ | 4.7$\times {10}^{4}$ | 4.0$\times {10}^{4}$ | 4.3$\times {10}^{4}$ | 6.2$\times {10}^{4}$ | |||||

$S{D}_{e}$ | 7.1$\times {10}^{4}$ | 3.5$\times {10}^{4}$ | 1.4$\times {10}^{4}$ | 6.8$\times {10}^{4}$ | |||||

${F}_{a}$ | 10 | 10 | 10 | 10 | |||||

$S{D}_{f}$ | 0 | 0 | 0 | 0 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 30 | 30 | 30 | 30 | ||||

${N}_{e}$ | 1.2$\times {10}^{5}$ | 1.2$\times {10}^{5}$ | 1.5$\times {10}^{5}$ | 1.6$\times {10}^{5}$ | |||||

$S{D}_{e}$ | 1.0$\times {10}^{5}$ | 0.8$\times {10}^{5}$ | 0.8$\times {10}^{5}$ | 0.8$\times {10}^{5}$ | |||||

${F}_{a}$ | 10 | 10 | 10 | 10 | |||||

$S{D}_{f}$ | 0 | 0 | 0 | 0 | |||||

HDEP (ℓ = 30) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 200 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 6 | 27 | 28 | 30 | 0 | 30 | 0 | 30 |

${N}_{e}$ | 4.7$\times {10}^{5}$ | 3.0$\times {10}^{5}$ | 1.1$\times {10}^{5}$ | 6.1$\times {10}^{4}$ | - | 1.4$\times {10}^{5}$ | - | 7.4$\times {10}^{3}$ | |

$S{D}_{e}$ | 5.1$\times {10}^{5}$ | 9.1$\times {10}^{5}$ | 2.6$\times {10}^{5}$ | 1.4$\times {10}^{4}$ | - | 6.5$\times {10}^{4}$ | - | 2.0$\times {10}^{3}$ | |

${F}_{a}$ | 9.74 | 9.97 | 9.97 | 10 | 9.46 | 10 | 9.69 | 10 | |

$S{D}_{f}$ | 0.13 | 0.08 | 0.07 | 0 | 0.20 | 0 | 0.01 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 8 | 22 | 25 | 26 | ||||

${N}_{e}$ | 9.3$\times {10}^{5}$ | 1.5$\times {10}^{5}$ | 2.1$\times {10}^{5}$ | 1.1$\times {10}^{5}$ | |||||

$S{D}_{e}$ | 5.1$\times {10}^{5}$ | 3.0$\times {10}^{5}$ | 5.2$\times {10}^{5}$ | 2.2$\times {10}^{5}$ | |||||

${F}_{a}$ | 9.77 | 9.91 | 9.94 | 9.95 | |||||

$S{D}_{f}$ | 0.13 | 0.13 | 0.11 | 0.10 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 21 | 28 | 26 | 30 | ||||

${N}_{e}$ | 9.1$\times {10}^{5}$ | 3.0$\times {10}^{5}$ | 4.3$\times {10}^{5}$ | 3.3$\times {10}^{5}$ | |||||

$S{D}_{e}$ | 11.0$\times {10}^{5}$ | 2.7$\times {10}^{5}$ | 5.4$\times {10}^{5}$ | 1.6$\times {10}^{5}$ | |||||

${F}_{a}$ | 9.91 | 9.97 | 9.95 | 10 | |||||

$S{D}_{f}$ | 0.13 | 0.07 | 0.10 | 0 | |||||

HDEP (ℓ = 40) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 200 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 4 | 17 | 19 | 16 | 0 | 19 | 0 | 30 |

${N}_{e}$ | 9.4$\times {10}^{5}$ | 7.4$\times {10}^{4}$ | 2.1$\times {10}^{5}$ | 1.5$\times {10}^{5}$ | - | 2.5$\times {10}^{6}$ | - | 1.1$\times {10}^{4}$ | |

$S{D}_{e}$ | 7.1$\times {10}^{5}$ | 2.1$\times {10}^{4}$ | 4.7$\times {10}^{5}$ | 1.0$\times {10}^{5}$ | - | 4.5$\times {10}^{5}$ | - | 0.03$\times {10}^{4}$ | |

${F}_{a}$ | 9.26 | 9.75 | 9.82 | 9.81 | 9.02 | 9.72 | 9.15 | 10 | |

$S{D}_{f}$ | 0.30 | 0.29 | 0.24 | 0.21 | 0.04 | 0.37 | 0.04 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 5 | 11 | 10 | 11 | ||||

${N}_{e}$ | 2.3$\times {10}^{6}$ | 1.4$\times {10}^{6}$ | 3.9$\times {10}^{5}$ | 4.1$\times {10}^{5}$ | |||||

$S{D}_{e}$ | 0.7$\times {10}^{6}$ | 1.4$\times {10}^{6}$ | 9.0$\times {10}^{5}$ | 5.9$\times {10}^{5}$ | |||||

${F}_{a}$ | 9.32 | 9.55 | 9.61 | 9.65 | |||||

$S{D}_{f}$ | 0.34 | 0.37 | 0.31 | 0.31 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 4 | 3 | 6 | 7 | ||||

${N}_{e}$ | 2.7$\times {10}^{6}$ | 4.5$\times {10}^{5}$ | 1.2$\times {10}^{6}$ | 1.8$\times {10}^{6}$ | |||||

$S{D}_{e}$ | 1.3$\times {10}^{6}$ | 3.9$\times {10}^{5}$ | 1.3$\times {10}^{6}$ | 1.0$\times {10}^{6}$ | |||||

${F}_{a}$ | 9.37 | 9.42 | 9.43 | 9.43 | |||||

$S{D}_{f}$ | 0.30 | 0.26 | 0.33 | 0.35 |

EDT | SGA | CBGA | ecGA | LTGA | |||||
---|---|---|---|---|---|---|---|---|---|

NKL-K4 (ℓ = 20) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 300 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 22 | 28 | 30 | 30 | 28 | 30 | 30 | 30 |

${N}_{e}$ | 1.4$\times {10}^{6}$ | 1.2$\times {10}^{4}$ | 1.5$\times {10}^{4}$ | 2.4$\times {10}^{4}$ | 1.2$\times {10}^{5}$ | 2.7$\times {10}^{4}$ | 5.7$\times {10}^{4}$ | 2.2$\times {10}^{3}$ | |

$S{D}_{e}$ | 1.4$\times {10}^{6}$ | 0.5$\times {10}^{4}$ | 0.7$\times {10}^{4}$ | 0.8$\times {10}^{4}$ | 1.1$\times {10}^{5}$ | 1.8$\times {10}^{4}$ | 3.4$\times {10}^{4}$ | 1.7$\times {10}^{3}$ | |

${F}_{a}$ | 0.6552 | 0.6585 | 0.6591 | 0.6591 | 0.6585 | 0.6591 | 0.6591 | 0.6591 | |

$S{D}_{f}$ | 0.0079 | 0.0035 | 0 | 0 | 0.0035 | 0 | 0 | 0 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 30 | 30 | 30 | 30 | ||||

${N}_{e}$ | 2.5$\times {10}^{5}$ | 1.1$\times {10}^{5}$ | 8.9$\times {10}^{4}$ | 8.2$\times {10}^{4}$ | |||||

$S{D}_{e}$ | 6.0$\times {10}^{5}$ | 3.9$\times {10}^{5}$ | 18.5$\times {10}^{4}$ | 23.5$\times {10}^{4}$ | |||||

${F}_{a}$ | 0.6591 | 0.6591 | 0.6591 | 0.6591 | |||||

$S{D}_{f}$ | 0 | 0 | 0 | 0 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 30 | 30 | 30 | 30 | ||||

${N}_{e}$ | 1.1$\times {10}^{5}$ | 8.6$\times {10}^{4}$ | 9.8$\times {10}^{4}$ | 7.0$\times {10}^{4}$ | |||||

$S{D}_{e}$ | 0.9$\times {10}^{5}$ | 8.2$\times {10}^{4}$ | 9.3$\times {10}^{4}$ | 6.8$\times {10}^{4}$ | |||||

${F}_{a}$ | 0.6591 | 0.6591 | 0.6591 | 0.6591 | |||||

$S{D}_{f}$ | 0 | 0 | 0 | 0 | |||||

NKL-K4 (ℓ = 30) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 300 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 9 | 16 | 15 | 19 | 1 | 26 | 4 | 19 |

${N}_{e}$ | 1.0$\times {10}^{6}$ | 4.1$\times {10}^{4}$ | 5.3$\times {10}^{4}$ | 6.2$\times {10}^{4}$ | 1.5$\times {10}^{6}$ | 1.7$\times {10}^{6}$ | 1.6$\times {10}^{5}$ | 1.6$\times {10}^{4}$ | |

$S{D}_{e}$ | 1.4$\times {10}^{6}$ | 1.1$\times {10}^{4}$ | 0.8$\times {10}^{4}$ | 1.1$\times {10}^{4}$ | - | 1.2$\times {10}^{6}$ | 0.4$\times {10}^{5}$ | 0.4$\times {10}^{4}$ | |

${F}_{a}$ | 0.6498 | 0.6530 | 0.6526 | 0.6543 | 0.6456 | 0.6574 | 0.6422 | 0.6543 | |

$S{D}_{f}$ | 0.0061 | 0.0065 | 0.0065 | 0.0063 | 0.0032 | 0.0044 | 0.0088 | 0.0063 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 21 | 17 | 20 | 17 | ||||

${N}_{e}$ | 1.2$\times {10}^{6}$ | 5.6$\times {10}^{5}$ | 1.2$\times {10}^{6}$ | 6.8$\times {10}^{5}$ | |||||

$S{D}_{e}$ | 1.4$\times {10}^{6}$ | 9.5$\times {10}^{5}$ | 1.2$\times {10}^{6}$ | 8.9$\times {10}^{5}$ | |||||

${F}_{a}$ | 0.6552 | 0.6585 | 0.6591 | 0.6591 | |||||

$S{D}_{f}$ | 0.0059 | 0.0064 | 0.0061 | 0.0064 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 12 | 24 | 24 | 23 | ||||

${N}_{e}$ | 2.0$\times {10}^{6}$ | 1.3$\times {10}^{6}$ | 1.6$\times {10}^{6}$ | 1.3$\times {10}^{6}$ | |||||

$S{D}_{e}$ | 1.0$\times {10}^{6}$ | 1.1$\times {10}^{6}$ | 1.3$\times {10}^{6}$ | 1.0$\times {10}^{6}$ | |||||

${F}_{a}$ | 0.6505 | 0.6565 | 0.6565 | 0.6561 | |||||

$S{D}_{f}$ | 0.0076 | 0.0052 | 0.0052 | 0.0055 | |||||

NKL-K4 (ℓ = 40) | |||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 5000 | P = 200 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 2 | 4 | 6 | 6 | 0 | 11 | 0 | 1 |

${N}_{e}$ | 5.0$\times {10}^{5}$ | 9.4$\times {10}^{4}$ | 1.1$\times {10}^{5}$ | 1.1$\times {10}^{5}$ | - | 1.9$\times {10}^{6}$ | - | 1.6$\times {10}^{4}$ | |

$S{D}_{e}$ | 2.2$\times {10}^{5}$ | 2.5$\times {10}^{4}$ | 0.3$\times {10}^{5}$ | 0.3$\times {10}^{5}$ | - | 1.3$\times {10}^{3}$ | - | - | |

${F}_{a}$ | 0.6495 | 0.6503 | 0.6507 | 0.6513 | 0.6366 | 0.6529 | 0.6354 | 0.6447 | |

$S{D}_{f}$ | 0.0031 | 0.0035 | 0.0044 | 0.0039 | 0.0084 | 0.0047 | 0.0080 | 0.0049 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 5 | 2 | 5 | 4 | ||||

${N}_{e}$ | 1.3$\times {10}^{6}$ | 6.8$\times {10}^{4}$ | 6.3$\times {10}^{5}$ | 1.1$\times {10}^{6}$ | |||||

$S{D}_{e}$ | 1.2$\times {10}^{6}$ | 0.1$\times {10}^{4}$ | 11.3$\times {10}^{5}$ | 1.4$\times {10}^{6}$ | |||||

${F}_{a}$ | 0.6503 | 0.6489 | 0.6505 | 0.6501 | |||||

$S{D}_{f}$ | 0.0046 | 0.0032 | 0.0040 | 0.0038 | |||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 2 | 5 | 4 | 5 | ||||

${N}_{e}$ | 2.8$\times {10}^{6}$ | 1.9$\times {10}^{6}$ | 1.1$\times {10}^{6}$ | 7.9$\times {10}^{5}$ | |||||

$S{D}_{e}$ | 0.05$\times {10}^{6}$ | 1.4$\times {10}^{6}$ | 1.4$\times {10}^{6}$ | 8.8$\times {10}^{5}$ | |||||

${F}_{a}$ | 0.6456 | 0.6499 | 0.6493 | 0.6495 | |||||

$S{D}_{f}$ | 0.0071 | 0.0044 | 0.0044 | 0.0048 |

EDT | SGA | CBGA | LTGA | |||||
---|---|---|---|---|---|---|---|---|

MKP ($\alpha $ = 0.75) (ℓ = 100) | ||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 400 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 1 | 0 | 0 | 0 | 0 | 1 | 0 |

${N}_{e}$ | 3.2$\times {10}^{6}$ | - | - | - | - | 9.6$\times {10}^{4}$ | - | |

$S{D}_{e}$ | - | - | - | - | - | - | - | |

${F}_{a}$ | 59,878 | 59,895 | 59,912 | 59,916 | 58,888 | 59,960 | 58,709 | |

$S{D}_{f}$ | 70 | 40 | 37 | 44 | 170 | 0.89 | 198 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 2 | 0 | 1 | 1 | |||

${N}_{e}$ | 2.0$\times {10}^{6}$ | - | 1.3$\times {10}^{6}$ | 3.7$\times {10}^{5}$ | ||||

$S{D}_{e}$ | 0.8$\times {10}^{6}$ | - | - | - | ||||

${F}_{a}$ | 59,665 | 59,901 | 59,911 | 59,912 | ||||

$S{D}_{f}$ | 78 | 62 | 52 | 55 | ||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 0 | 0 | 1 | 0 | |||

${N}_{e}$ | - | - | 8.9$\times {10}^{5}$ | - | ||||

$S{D}_{e}$ | - | - | - | - | ||||

${F}_{a}$ | 59,665 | 59,901 | 59,911 | 59,912 | ||||

$S{D}_{f}$ | 138 | 51 | 55 | 41 | ||||

MKP ($\alpha $ = 0.50) (ℓ = 100) | ||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 400 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 0 | 1 | 1 | 0 | 0 | 0 | 0 |

${N}_{e}$ | - | 6.6$\times {10}^{5}$ | 2.7$\times {10}^{6}$ | - | - | - | - | |

$S{D}_{e}$ | - | - | - | - | - | - | - | |

${F}_{a}$ | 44,454 | 44,474 | 44,466 | 44,467 | 43,717 | 44,509 | 43,385 | |

$S{D}_{f}$ | 51 | 54 | 46 | 46 | 150 | 18 | 205 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 1 | 0 | 0 | 1 | |||

${N}_{e}$ | 2.1$\times {10}^{6}$ | - | - | 3.0$\times {10}^{6}$ | ||||

$S{D}_{e}$ | - | - | - | - | ||||

${F}_{a}$ | 44,464 | 44,468 | 44,472 | 44,466 | ||||

$S{D}_{f}$ | 54 | 54 | 47 | 53 | ||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 0 | 1 | 0 | 0 | |||

${N}_{e}$ | - | 2.8$\times {10}^{6}$ | - | - | ||||

$S{D}_{e}$ | - | - | - | - | ||||

${F}_{a}$ | 44,420 | 44,477 | 44,463 | 44,484 | ||||

$S{D}_{f}$ | 77 | 54 | 49 | 43 | ||||

MKP ($\alpha $ = 0.25) (ℓ = 100) | ||||||||

P = 4 | P = 60 | P = 80 | P = 100 | P = 2000 | P = 2000 | P = 300 | ||

${T}_{c}$=$\lceil \ell /2\rceil $ | ${N}_{r}$ | 2 | 1 | 2 | 4 | 0 | 0 | 0 |

${N}_{e}$ | 1.6$\times {10}^{6}$ | 3.7$\times {10}^{6}$ | 2.3$\times {10}^{5}$ | 2.6$\times {10}^{5}$ | - | - | - | |

$S{D}_{e}$ | 1.3$\times {10}^{6}$ | - | 0.1$\times {10}^{5}$ | 0.5$\times {10}^{5}$ | - | - | - | |

${F}_{a}$ | 24,309 | 24,323 | 24,331 | 24,340 | 24,316 | 24,343 | 23,984 | |

$S{D}_{f}$ | 52 | 44 | 47 | 46 | 33 | 4 | 123 | |

${T}_{c}$=$\lceil \ell /4\rceil $ | ${N}_{r}$ | 1 | 1 | 1 | 1 | |||

${N}_{e}$ | 3.3$\times {10}^{5}$ | 8.2$\times {10}^{4}$ | 1.6$\times {10}^{5}$ | 3.1$\times {10}^{5}$ | ||||

$S{D}_{e}$ | - | - | - | - | ||||

${F}_{a}$ | 24,315 | 24,323 | 24,317 | 24,334 | ||||

$S{D}_{f}$ | 44 | 49 | 43 | 41 | ||||

${T}_{c}$=$\lceil \ell /8\rceil $ | ${N}_{r}$ | 1 | 0 | 1 | 0 | |||

${N}_{e}$ | 3.2$\times {10}^{6}$ | - | 2.1$\times {10}^{6}$ | - | ||||

$S{D}_{e}$ | - | - | - | - | ||||

${F}_{a}$ | 24,314 | 24,326 | 24,324 | 24,310 | ||||

$S{D}_{f}$ | 48 | 46 | 43 | 42 |

EDT | SGA | CBGA | LTGA | |
---|---|---|---|---|

HIFF (ℓ = 32) | (3,3,2) | (4,4,3) | (1,1,4) | (1,1,1) |

HIFF (ℓ = 64) | (3,3,2) | (4,4,3) | (2,2,3) | (1,1,1) |

HIFF (ℓ = 128) | (2,2,2) | (2,4,2) | (2,3,2) | (1,1,1) |

Average | 2.444 | 3.333 | 2.222 | 1 |

HTRAP (ℓ = 27) | (2,3,2) | (3,2,4) | (1,1,3) | (1,1,1) |

HTRAP (ℓ = 81) | (2,4,2) | (3,2,3) | (3,2,3) | (1,1,1) |

Average | 2.5 | 2.833 | 2.166 | 1 |

HDEP (ℓ = 20) | (1,1,2) | (4,4,3) | (1,1,4) | (1,1,1) |

HDEP (ℓ = 30) | (1,1,2) | (4,4,4) | (1,1,3) | (1,1,1) |

HDEP (ℓ = 40) | (2,2,2) | (4,4,4) | (2,3,3) | (1,1,1) |

Average | 1.555 | 3.888 | 2.111 | 1 |

NKL-K4 (ℓ = 20) | (1,1,2) | (4,4,4) | (1,1,3) | (1,1,1) |

NKL-K4 (ℓ = 30) | (2,2,2) | (4,4,3) | (1,1,4) | (3,3,1) |

NKL-K4 (ℓ = 40) | (2,2,2) | (4,4,4) | (1,1,3) | (3,3,1) |

Average | 1.777 | 3.888 | 1.777 | 1.888 |

MKP (ℓ = 100, $\alpha $ = 0.75) | (1,2,2) | (3,3,3) | (2,1,1) | (3,4,3) |

MKP (ℓ = 100, $\alpha $ = 0.50) | (1,2,1) | (2,3,2) | (2,1,2) | (2,4,2) |

MKP (ℓ = 100, $\alpha $ = 0.25) | (1,2,1) | (2,3,2) | (2,1,2) | (2,4,2) |

Average | 1.444 | 2.555 | 1.555 | 2.888 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Ohnishi, K.; Hamano, K.; Koeppen, M.
An Empirical Investigation on Evolutionary Algorithm Evolving Developmental Timings. *Electronics* **2020**, *9*, 1866.
https://doi.org/10.3390/electronics9111866

**AMA Style**

Ohnishi K, Hamano K, Koeppen M.
An Empirical Investigation on Evolutionary Algorithm Evolving Developmental Timings. *Electronics*. 2020; 9(11):1866.
https://doi.org/10.3390/electronics9111866

**Chicago/Turabian Style**

Ohnishi, Kei, Kouta Hamano, and Mario Koeppen.
2020. "An Empirical Investigation on Evolutionary Algorithm Evolving Developmental Timings" *Electronics* 9, no. 11: 1866.
https://doi.org/10.3390/electronics9111866
