# Scaling Laws of Scheduling Gain for Uplink Massive MIMO Systems: Is User Scheduling Still Beneficial for Massive MIMO?

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. System Model

## 3. Scaling Laws of Scheduling Gain—Perfect CSI

#### 3.1. Individual Rate Analysis

**Lemma**

**1.**

**Corollary**

**1.**

**Proof**

**of Corollary 1.**

**Lemma**

**2.**

**Proof**

**of Lemma 2.**

#### 3.2. Sum Rate Analysis

- For the MF receiver, the scheduling gain first increases and then scales with $\mathcal{O}\left(1\right)$ as $M\to \infty $ under perfect CSI. This implies that the user scheduling to maximize the sum rate is still beneficial for massive MIMO systems with the MF receiver.
- For the ZF receiver, the scheduling gain decreases with $\mathcal{O}\left(\sqrt{\frac{1}{M}}\right)$ under the perfect CSI. Therefore, if the ZF receiver is used at the BS, only a limited scheduling gain can be achievable for large M. This implies that the benefit of user scheduling tends to disappear for massive MIMO systems using the ZF receiver.

## 4. Scaling Laws of Scheduling Gain—Imperfect CSI

**Lemma**

**3.**

**Corollary**

**2.**

**Proof**

**of Corollary 2.**

**Corollary**

**3.**

**Proof**

**of Corollary 3.**

- If non-ideal CSI is available for user scheduling at the BS, the scaling law of the scheduling gain with imperfect CSI is similar to that with perfect CSI. That is, under imperfect CSI for data demodulation with non-ideal CSI for user scheduling, the user selection is still beneficial for the MF receiver, whereas this benefit is negligible for the ZF receiver.
- If near-ideal CSI is available for user scheduling at the BS, i.e., under imperfect CSI for data demodulation with near-ideal CSI for user scheduling, the scaling law of the scheduling gain for the MF receiver with imperfect CSI is similar to that with perfect CSI. However, the scaling law of the scheduling gain for the ZF receiver under imperfect CSI is different from that under perfect CSI and depends on the channel estimation error $\tau $. In the low $\tau $ regime, the scheduling gain decreases. Meanwhile, in the high $\tau $ regime, the scheduling increases as M increases and eventually converges to a constant value, i.e., scaled by $\mathcal{O}\left(1\right)$ as $M\to \infty $. Therefore, under imperfect CSI for data demodulation, with near-ideal CSI for user scheduling, the user selection is still beneficial for the MF receiver, whereas it can be different for the ZF receiver depending on the imperfectness of CSI.

## 5. Simulation Results

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Proof of Lemma 1

## Appendix B. Proof of Lemma 3

## Appendix C. Proof of Monotonicity of (24)

## Appendix D. Proof of Monotonicity of (25)

- Case (i) When $a=2$, $f\left(M\right)=2cM-{c}^{2}$ is an increasing function of M. Since the root of $f\left(M\right)$ is $\omega =\frac{c}{2}=\frac{K-1}{2}$, $f\left(M\right)$ is always positive where $M\ge K$.
- Case (ii) When $0\le a<2$, $f\left(M\right)$ is a convex function and the two roots are given by$${\omega}_{1}=\frac{c\left(a-1\right)}{a}\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.277778em}{0ex}}\mathrm{and}\phantom{\rule{0.277778em}{0ex}}{\omega}_{2}=\frac{c\left(a-1\right)}{a-2}.$$When $1\le a<2$, ${\omega}_{1}\ge {\omega}_{2}$ and $K>{\omega}_{1}$. When $0\le a<1$, ${\omega}_{2}>{\omega}_{1}$ and $K>{\omega}_{2}$. Therefore, $f\left(M\right)$ is always positive where $M\ge K$.
- Case (iii) When $a>2$, $f\left(M\right)$ is a concave function and ${\omega}_{2}>{\omega}_{1}$ and $K>{\omega}_{2}$. Therefore, $f\left(M\right)$ is always negative where $M\ge K$,

## References

- Kim, Y.; Kim, Y.; Oh, J.; Ji, H.; Yeo, J.; Choi, S.; Ryu, H.; Noh, H.; Kim, T.; Sun, F.; et al. New Radio (NR) and its Evolution toward 5G-Advanced. IEEE Wirel. Commun.
**2019**, 3, 2–7. [Google Scholar] [CrossRef] - Guevara, L.; Cheein, F.A. The Role of 5G Technologies: Challenges in Smart Cities and Intelligent Transportation Systems. Sustainability
**2020**, 12, 6469. [Google Scholar] [CrossRef] - Yeo, J.; Kim, T.; Oh, J.; Park, S.; Kim, Y.; Lee, J. Advanced Data Transmission Framework for 5G Wireless Communications in the 3GPP New Radio Standard. IEEE Commun. Stand. Mag.
**2019**, 3, 38–43. [Google Scholar] [CrossRef] - Chataut, R.; Akl, R. Massive MIMO Systems for 5G and Beyond Networks—Overview, Recent Trends, Challenges, and Future Research Direction. Sensors
**2020**, 20, 2753. [Google Scholar] [CrossRef] [PubMed] - Larsson, E.; Tufvesson, F.; Edfors, O.; Marzetta, T. Massive MIMO for Next Generation Wireless Systems. IEEE Commun. Mag.
**2014**, 2, 186–195. [Google Scholar] [CrossRef] [Green Version] - Rusek, F.; Persson, D.; Lau, B.K.; Larsson, E.G.; Marzetta, T.L.; Edfors, O.; Tufvesson, F. Scaling up MIMO: Opportunities and Challenges with Very Large Arrays. IEEE Signal Process. Mag.
**2013**, 1, 40–46. [Google Scholar] [CrossRef] [Green Version] - Marzetta, T.L. Noncooperative Cellular Wireless with Unlimited Numbers of Base Station Antennas. IEEE Trans. Wirel. Commun.
**2010**, 11, 3590–3600. [Google Scholar] [CrossRef] - Ngo, H.Q.; Larsson, E.G.; Marzetta, T.L. Energy and Spectral Efficiency of Very Large Multiuser MIMO Systems. IEEE Trans. Commun.
**2013**, 4, 1436–1449. [Google Scholar] - Lu, L.; Li, G.Y.; Swindlehurst, A.L.; Ashikhmin, A.; Zhang, R. An Overview of Massive MIMO: Benefits and Challenges. IEEE J. Sel. Top. Signal Process.
**2014**, 5, 742–758. [Google Scholar] [CrossRef] - Onggosanusi, E.; Rahman, M.S.; Guo, L.; Kwak, Y.; Noh, H.; Kim, Y.; Faxer, S.; Harrison, M.; Frenne, M.; Grant, S.; et al. Modular and High-Resolution Channel State Information and Beam Management for 5G New Radio. IEEE Commun. Mag.
**2018**, 3, 48–55. [Google Scholar] [CrossRef] - Alemaishat, S.; Saraereh, O.A.; Khan, I.; Affes, S.H.; Li, X.; Lee, J.W. An Efficient Precoding Scheme for Millimeter-Wave Massive MIMO Systems. Electronics
**2019**, 8, 927. [Google Scholar] [CrossRef] [Green Version] - Sharif, M.; Hassibi, B. On the Capacity of MIMO Broadcast Channels with Partial Side Information. IEEE Trans. Inf. Theory
**2005**, 2, 506–522. [Google Scholar] [CrossRef] [Green Version] - Yoo, T.; Goldsmith, A. On the Optimality of Multiantenna Broadcast Scheduling Using Zero-Forcing Beamforming. IEEE J. Sel. Areas Commun.
**2006**, 3, 528–541. [Google Scholar] - Kim, T.; Jung, M.; Min, K.; Kim, Y.; Lee, J.; Choi, S. Low Complexity User Scheduling Algorithm for MRT Based Massive MIMO Systems. In Proceedings of the International Conference on Electronics, Information, and Communications (ICEIC 2013), Bali, Indonesia, 30 January–2 February 2013; pp. 607–608. [Google Scholar]
- Meng, X.; Chang, Y.; Wang, Y.; Wu, J. Multi-user Grouping Based Scheduling Algorithm in Massive MIMO Uplink Networks. In Proceedings of the 2018 IEEE 4th International Conference on Computer and Communications (ICCC), Chengdu, China, 7–10 December 2018; pp. 409–413. [Google Scholar]
- Jiang, Z.; Chen, S.; Zhou, S.; Niu, Z. Joint User Scheduling and Beam Selection Optimization for Beam-Based Massive MIMO Downlinks. IEEE Trans. Wirel. Commun.
**2018**, 17, 2190–2204. [Google Scholar] [CrossRef] [Green Version] - Interdonato, G.; Karlsson, M.; Björnson, E.; Larsson, E.G. Local Partial Zero-Forcing Precoding for Cell-Free Massive MIMO. IEEE Trans. Wirel. Commun.
**2020**, 7, 4758–4774. [Google Scholar] [CrossRef] [Green Version] - Wagner, S.; Couillet, R.; Debbah, M.; Slock, D.T.M. Large System Analysis of Linear Precoding in Correlated MISO Broadcast Channels with Limited Feedback. IEEE Trans. Inf. Theory
**2012**, 7, 4509–4537. [Google Scholar] [CrossRef] [Green Version] - Hoydis, J.; Ten Brink, S.; Debbah, M. Massive MIMO in the UL/DL of Cellular Networks: How Many Antennas Do We Need? IEEE J. Sel. Areas Commun.
**2013**, 2, 160–171. [Google Scholar] [CrossRef] [Green Version] - Truong, K.T.; Heath, R.W., Jr. Effects of Channel Aging in Massive MIMO Systems. J. Commun. Netw.
**2014**, 4, 338–351. [Google Scholar] [CrossRef] [Green Version] - Hochwald, B.; Marzetta, T.; Tarokh, V. Multiple-Antenna Channel Hardening and Its Implications for Rate Feedback and Scheduling. IEEE Trans. Inf. Theory
**2004**, 9, 1893–1909. [Google Scholar] [CrossRef] - Bai, D.; Mitran, P.; Ghassemzadeh, S.S.; Miller, R.R.; Tarokh, V. Rate of Channel Hardening of Antenna Selection Diversity Schemes and Its Implication on Scheduling. IEEE Trans. Inf. Theory
**2009**, 10, 4353–4365. [Google Scholar] [CrossRef] [Green Version] - Li, H.; Song, L.; Debbah, M. Energy Efficiency of Large-Scale Multiple Antenna Systems with Transmit Antenna Selection. IEEE Trans. Commun.
**2014**, 2, 638–647. [Google Scholar] [CrossRef] - Cover, T.M.; Thomas, J.A. Elements of Information Theory; Wiley: New York, NY, USA, 1991. [Google Scholar]
- Kumar, K.R.; Caire, G.; Moustakas, A.L. Asymptotic Performance of Linear Receivers in MIMO Fading Channels. IEEE Trans. Inf. Theory
**2009**, 10, 4398–4418. [Google Scholar] [CrossRef] - Mendel, J.M. Tutorial on Higher-Order Statistics (Spectra) in Signal Processing and Systems Theory: Theoretical Results and Some Applications. Proc. IEEE
**1991**, 3, 278–305. [Google Scholar] [CrossRef] - Gradshteyn, I.S.; Ryzhik, I.M. Table of Integrals, Series, and Products, 5th ed.; Academic Press: London, UK, 1994. [Google Scholar]
- Papoulis, A.; Pillai, S.U. Probability, Random Variables and Stochastic Processes, 4th ed.; McGraw-Hill, Inc.: New York, NY, USA, 2002. [Google Scholar]
- Tokgoz, Y.; Rao, B.D. Performance Analysis of Maximum Ratio Transmission Based Multi-Cellular MIMO Systems. IEEE Trans. Wirel. Commun.
**2006**, 1, 83–89. [Google Scholar] [CrossRef] - Pham, H. Handbook of Engineering Statistics; Springer: New York, NY, USA, 2006. [Google Scholar]
- Zhang, J.; Kountouris, M.; Andrews, J.G.; Heath, R.W. Multi-Mode Transmission for the MIMO Broadcast Channel with Imperfect Channel State Information. IEEE Trans. Commun.
**2011**, 3, 803–814. [Google Scholar] [CrossRef] [Green Version] - Kim, T.; Min, K.; Jung, M.; Choi, S. Scaling Laws of Optimal Training Lengths for TDD Massive MIMO Systems. IEEE Trans. Veh. Technol.
**2018**, 8, 7128–7142. [Google Scholar] [CrossRef] - Kim, Y.; Miao, G.; Hwang, T. Energy Efficient Pilot and Link Adaptation for Mobile Users in TDD Multi-User MIMO Systems. IEEE Trans. Wirel. Commun.
**2014**, 1, 382–393. [Google Scholar] [CrossRef] - 3GPP Technical Specification TS 38.214. NR; Physical Layer Procedures for Data. Available online: https://www.3gpp.org/dynareport/38214.htm (accessed on 20 July 2020).

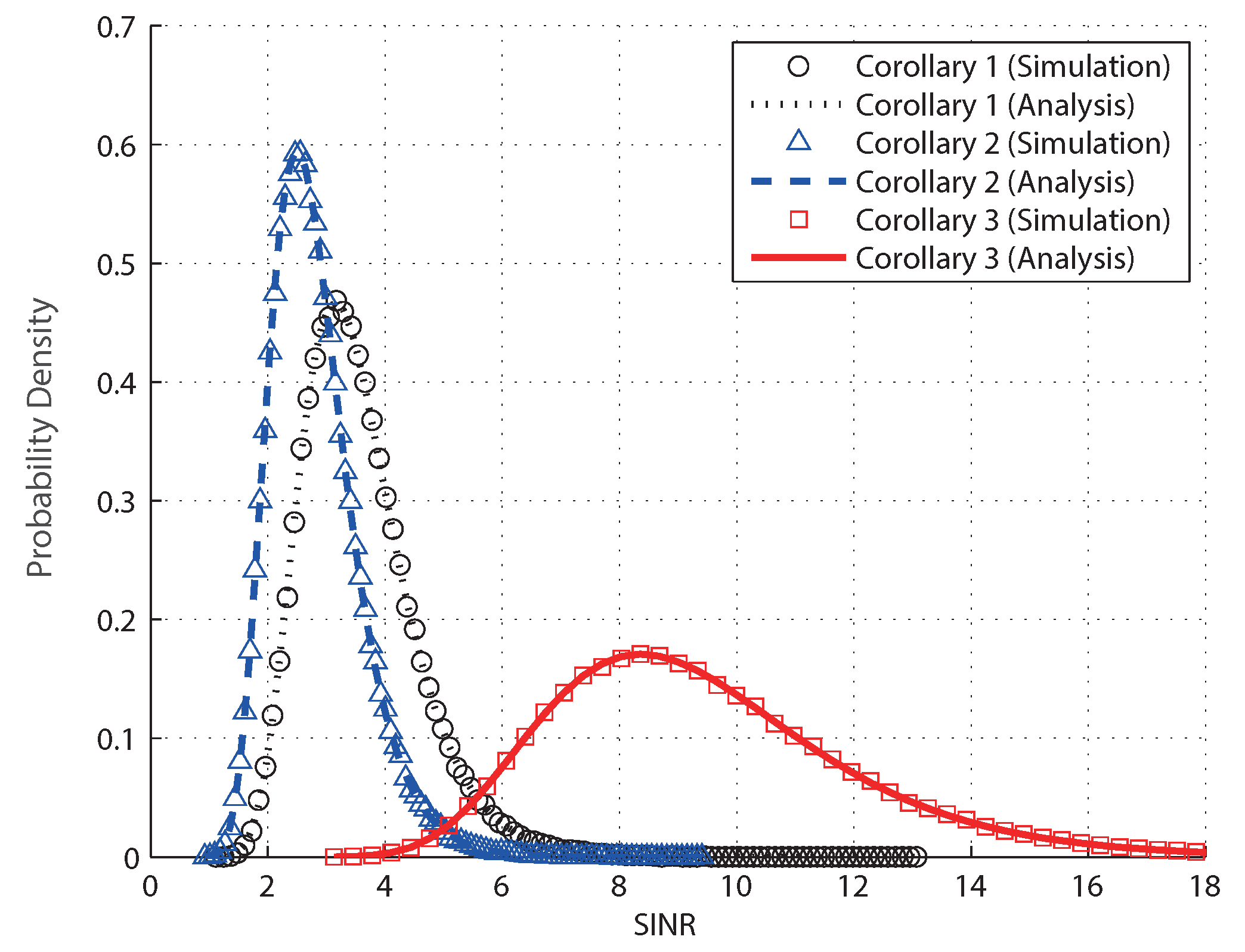

**Figure 1.**Comparison between the Monte Carlo simulations and analytical probability density functions (PDFs) of signal-to-interference-plus-noise ratio (SINR), where $M=64$, $K=20$, ${p}_{u}=20$ dB, and ${\tau}^{2}=0.2$.

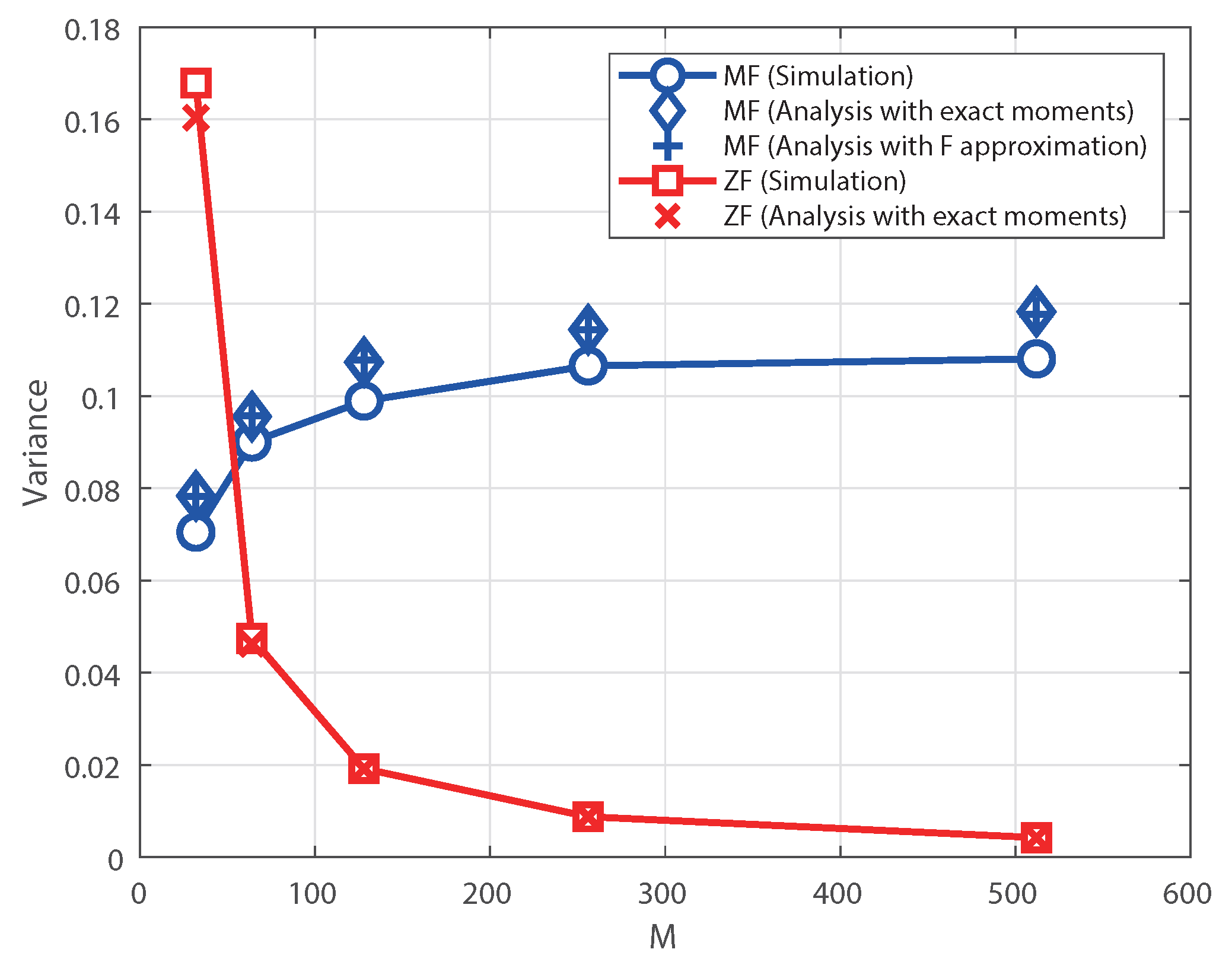

**Figure 2.**Variance of individual rate under perfect channel state information (CSI) as a function of M, where $K=20$ and ${p}_{u}=20$ dB.

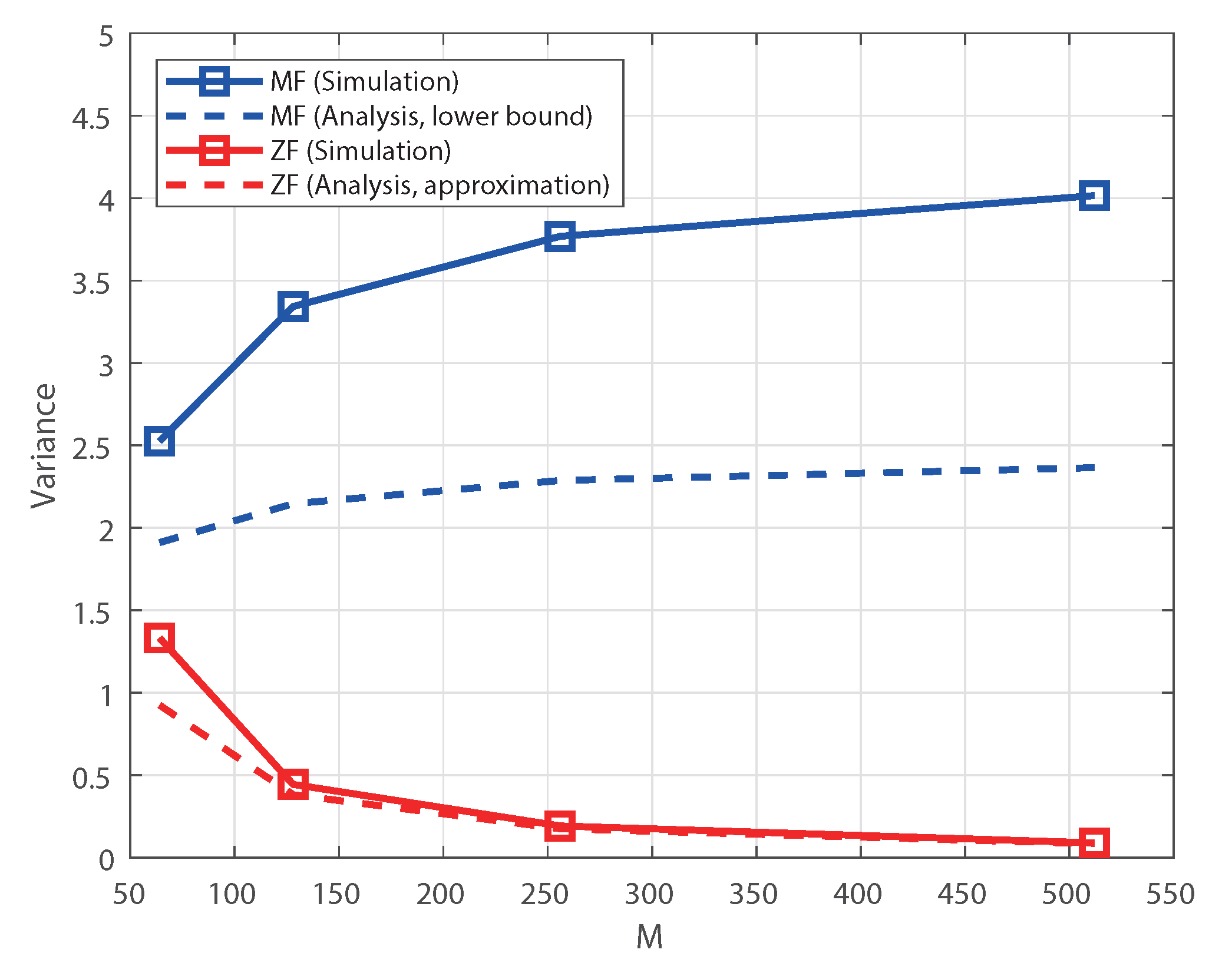

**Figure 3.**Variance of sum rate under perfect CSI as a function of M, where $K=20$ and ${p}_{u}=20$ dB.

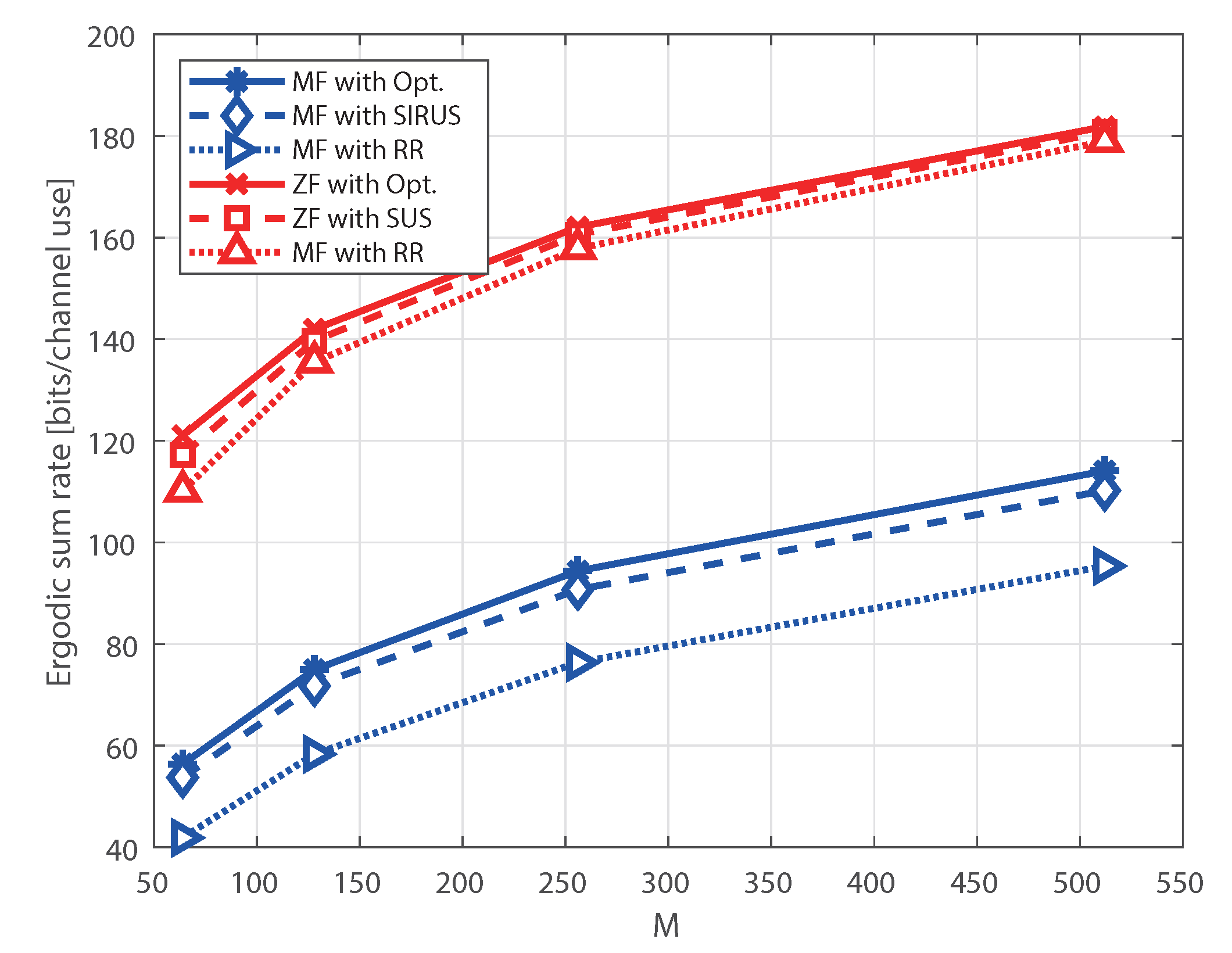

**Figure 4.**Ergodic sum rate under perfect CSI as a function of M, where $N=100$, $K=20$, and ${p}_{u}=0$ dB.

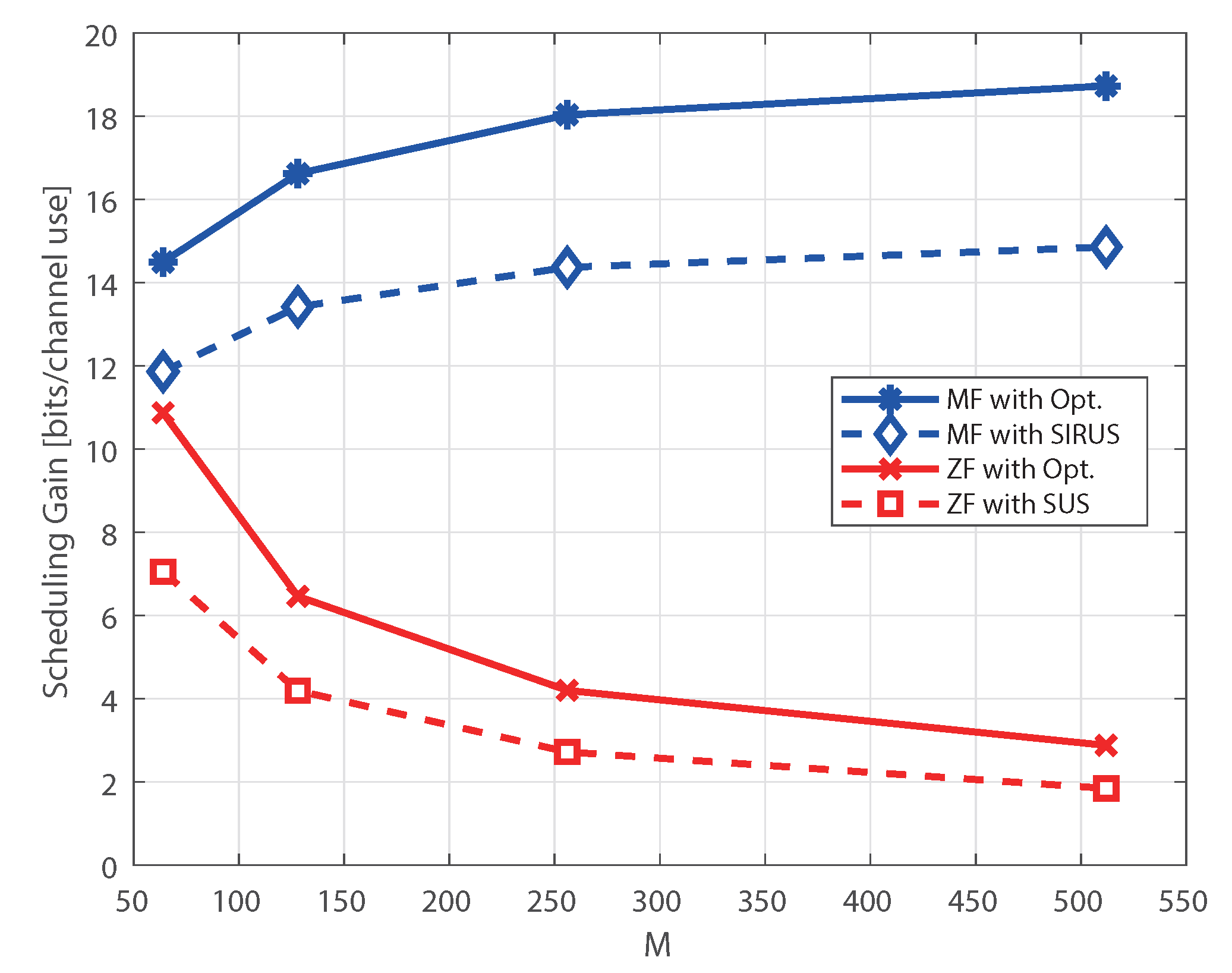

**Figure 5.**Scheduling gain under perfect CSI as a function of M, where $N=100$, $K=20$, and ${p}_{u}=0$ dB.

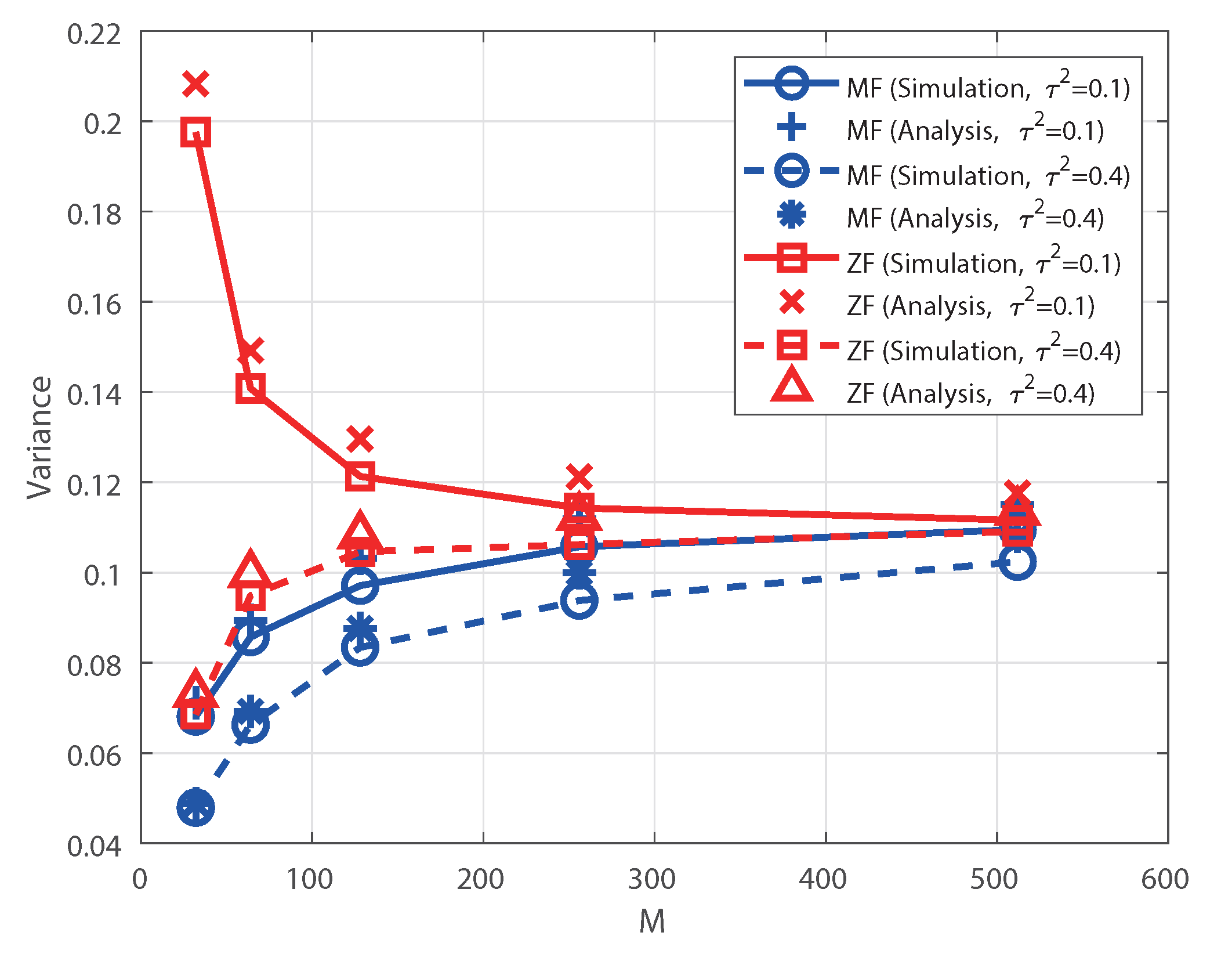

**Figure 6.**Variance of individual rate under imperfect CSI as a function of M, where $N=100$, $K=20$, and ${p}_{u}=20$ dB.

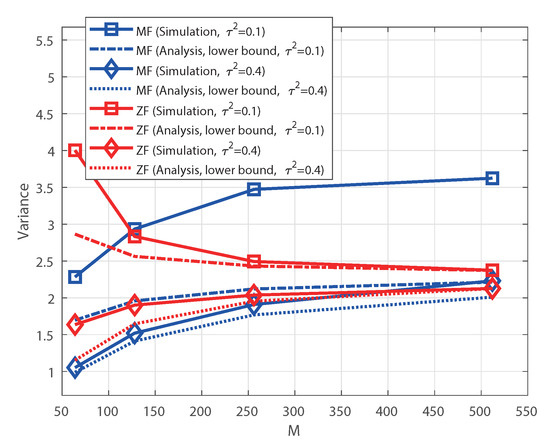

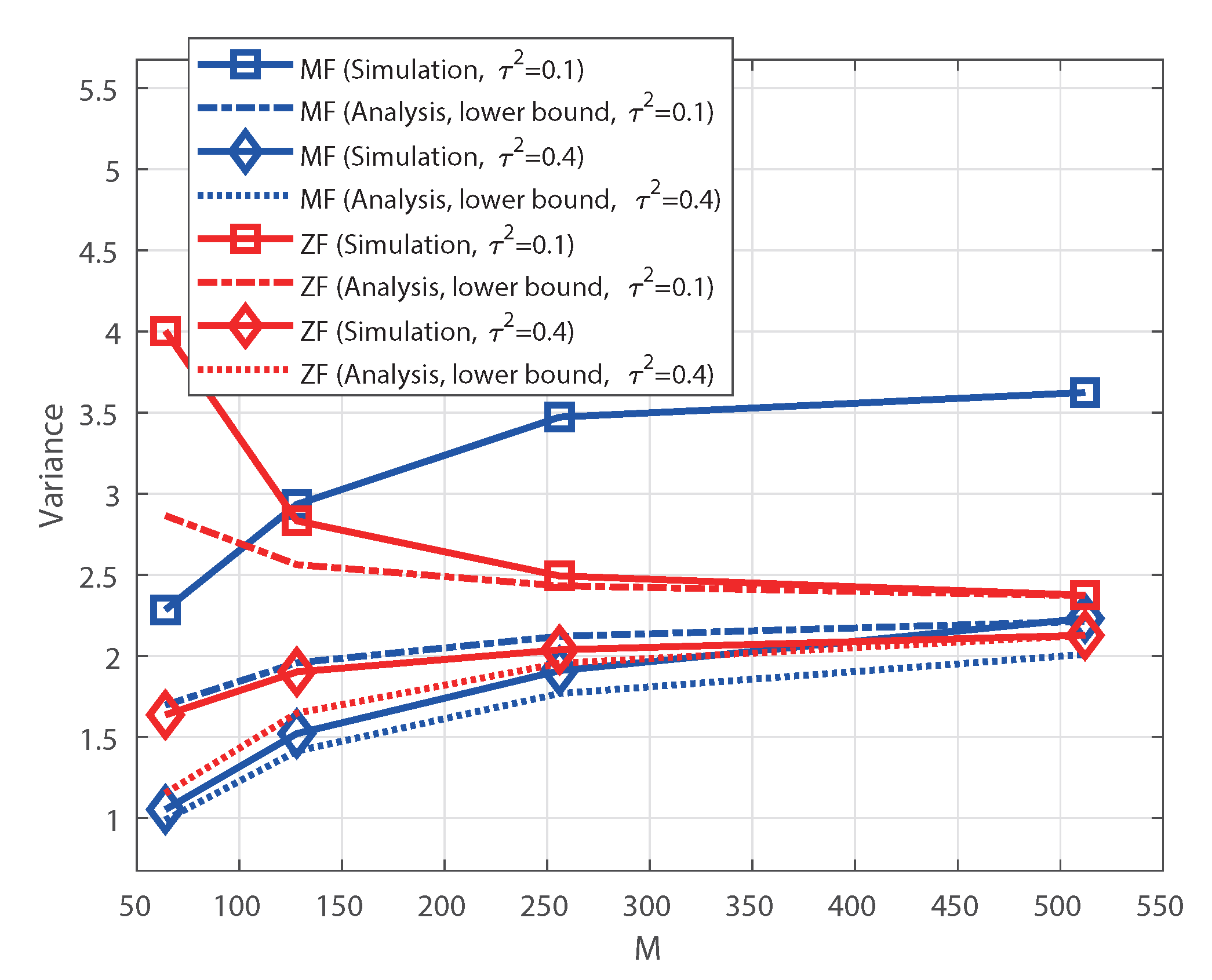

**Figure 7.**Variance of sum rate under imperfect CSI as a function of M, where $N=100$, $K=20$, and ${p}_{u}=20$ dB.

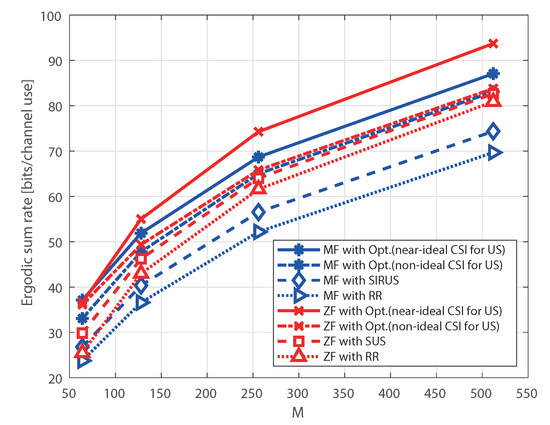

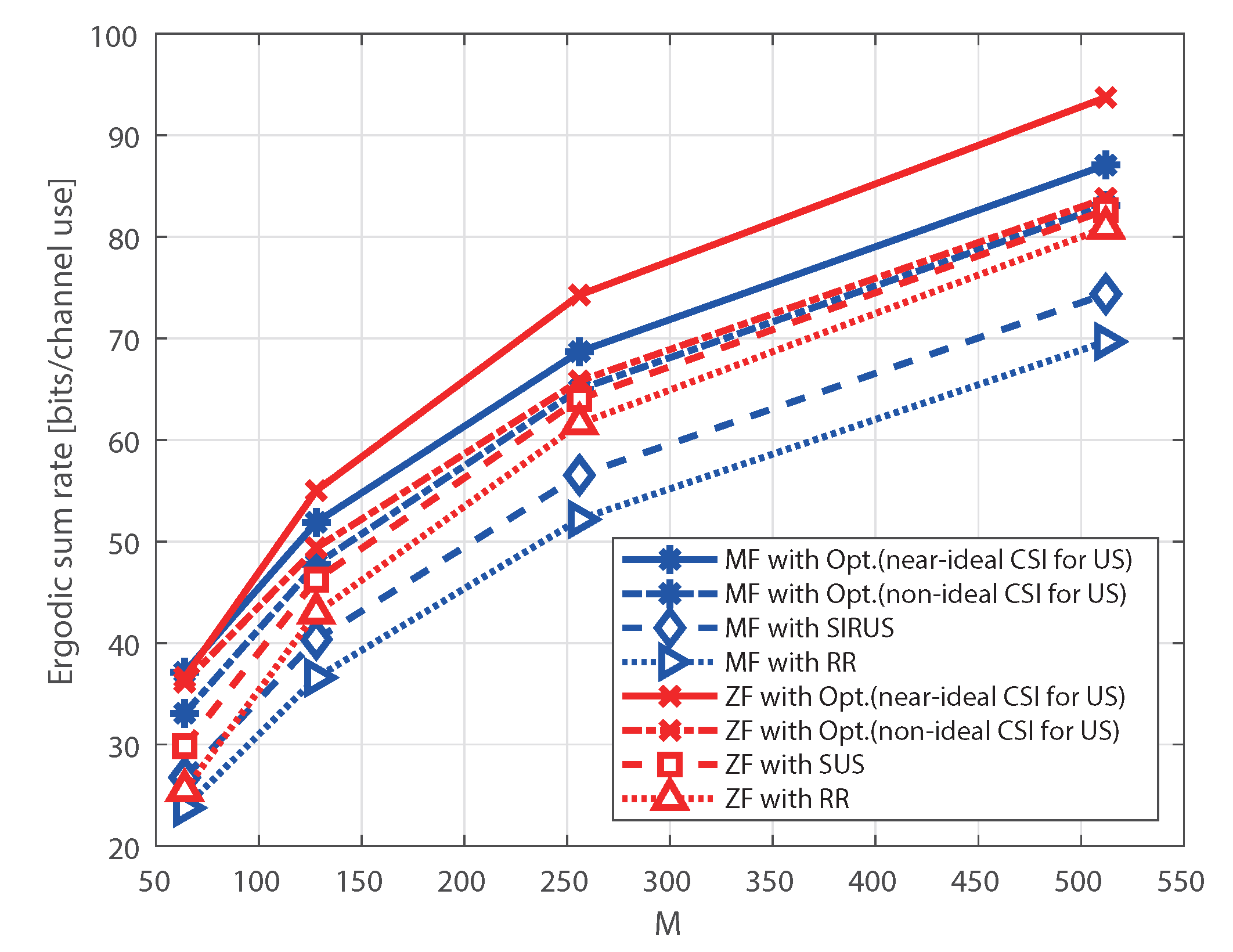

**Figure 8.**Ergodic sum rate under imperfect CSI as a function of M, where $N=100$, $K=20$, ${p}_{u}=0$ dB, and ${\tau}^{2}=0.4$.

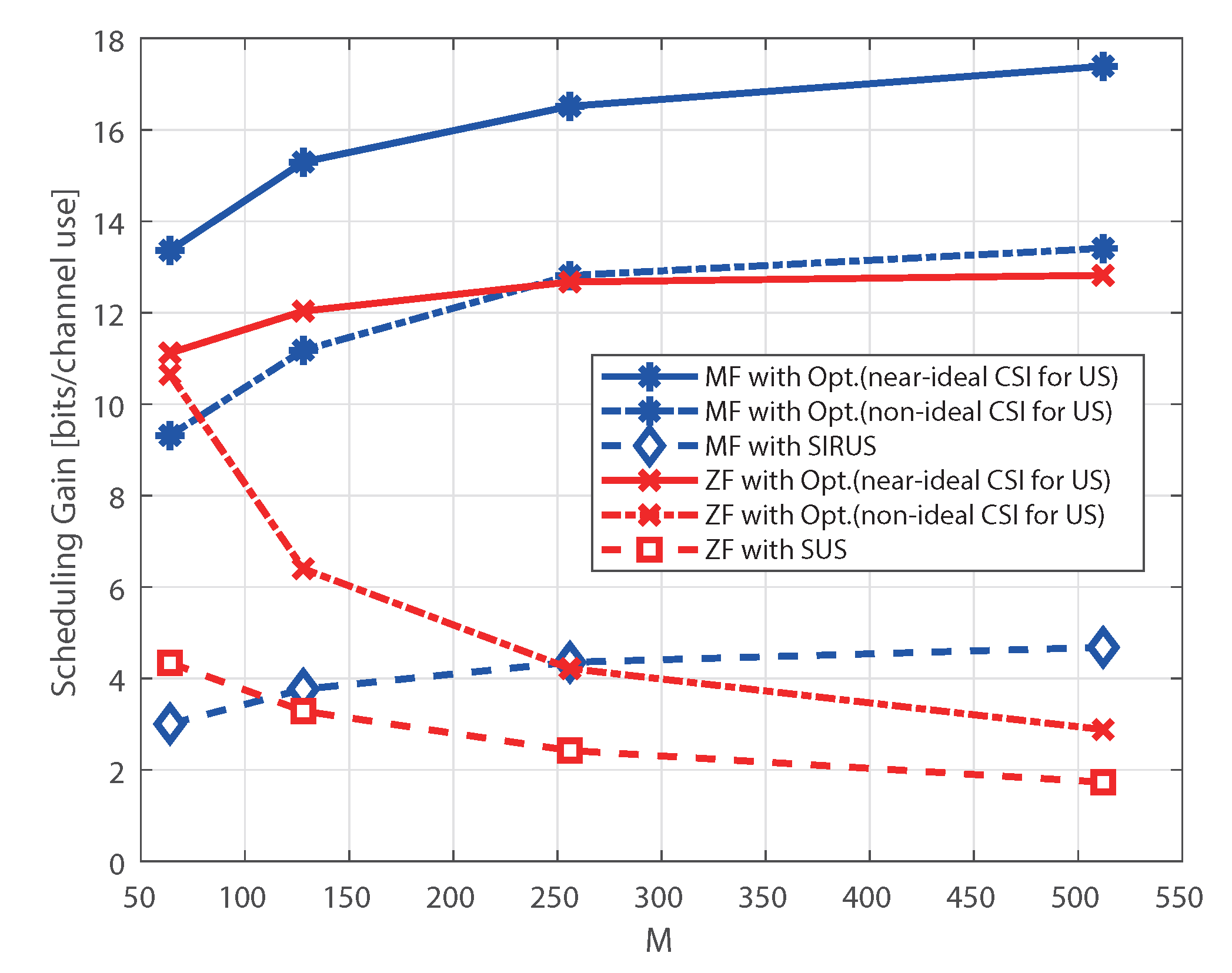

**Figure 9.**Scheduling gain under imperfect CSI as a function of M, where $N=100$, $K=20$ and ${p}_{u}=0$ dB, and ${\tau}^{2}=0.4$.

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
