Evaluation of a Straight-Ray Forward Model for Bayesian Inversion of Crosshole Ground Penetrating Radar Data

1
School of Civil Engineering, Dalian University of Technology, Dalian 116024, China
2
Key Laboratory of Geotechnical and Underground Engineering of Ministry of Education, Tongji University, Shanghai 200092, China
3
Department of Geotechnical Engineering, Tongji University, Shanghai 200092, China
4
School of Hydraulic Engineering, Dalian University of Technology, Dalian 116024, China
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(6), 630; https://doi.org/10.3390/electronics8060630
Received: 29 April 2019 / Revised: 24 May 2019 / Accepted: 31 May 2019 / Published: 4 June 2019

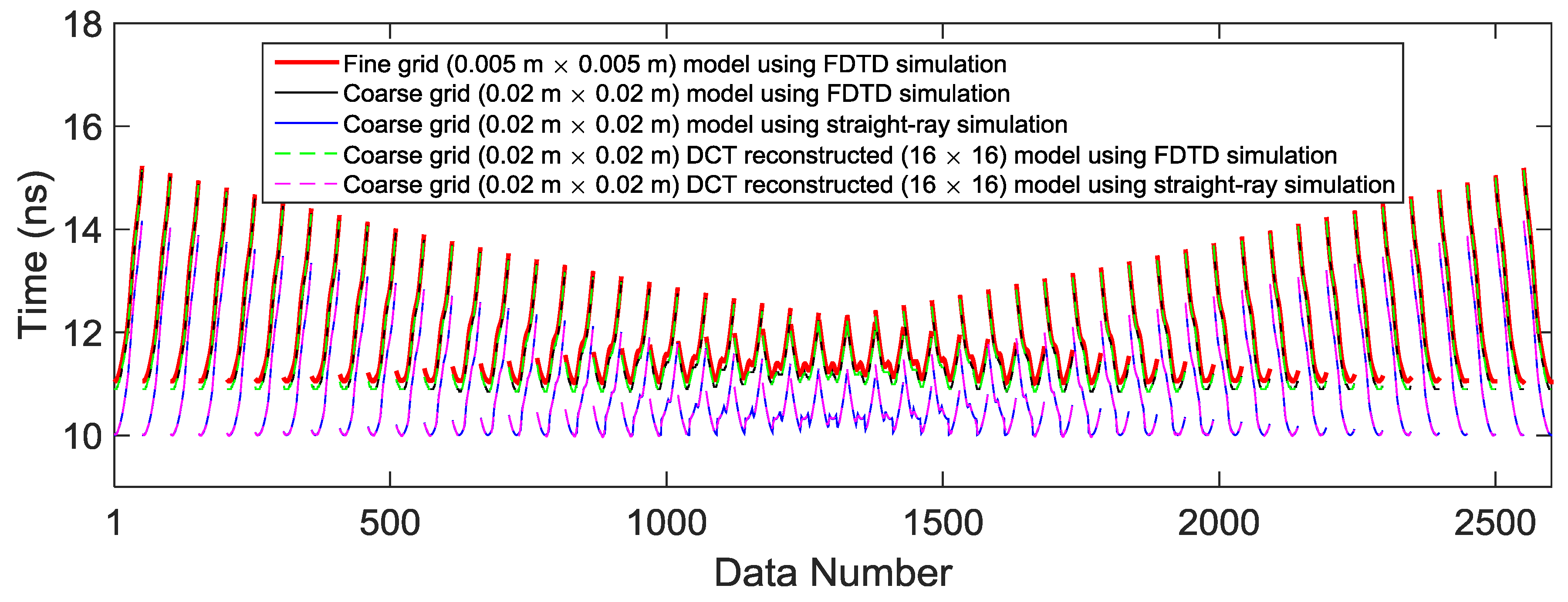

Bayesian inversion of crosshole ground penetrating radar (GPR) data is capable of characterizing the subsurface dielectric properties and qualifying the associated uncertainties. Markov chain Monte Carlo (MCMC) simulations within the Bayesian inversion usually require thousands to millions of forward model evaluations for the parameters to hit their posterior distributions. Therefore, the CPU cost of the forward model is a key issue that influences the efficiency of the Bayesian inversion method. In this paper we implement a widely used straight-ray forward model within our Bayesian inversion framework. Based on a synthetic unit square relative permittivity model, we simulate the crosshole GPR first-arrival traveltime data using the finite-difference time-domain (FDTD) and straight-ray solver, respectively, and find that the straight-ray simulator runs 450 times faster than its FDTD counterpart, yet suffers from a modeling error that is more than 7 times larger. We also perform a series of numerical experiments to evaluate the performance of the straight-ray model within the Bayesian inversion framework. With modeling error disregarded, the inverted posterior models fit the measurement data nicely, yet converge to the wrong set of parameters at the expense of unreasonably large number of iterations. When the modeling error is accounted for, with a quarter of the computational burden, the main features of the true model can be identified from the posterior realizations although there still exist some unwanted artifacts. Finally, a smooth constraint on the model structure improves the inversion results considerably, to the extent that it enhances the inversion accuracy approximating to those of the FDTD model, and further reduces the CPU demand. Our results demonstrate that the use of the straight-ray forward model in the Bayesian inversion saves computational cost tremendously, and the modeling error correction together with the model structure constraint are the necessary amendments that ensure that the model parameters converge correctly. View Full-Text
Keywords: crosshole ground penetrating radar (GPR); Bayesian inversion; Markov chain Monte Carlo (MCMC); forward model; modeling error; discrete cosine transform (DCT) crosshole ground penetrating radar (GPR); Bayesian inversion; Markov chain Monte Carlo (MCMC); forward model; modeling error; discrete cosine transform (DCT)
Show Figures

Figure 1

MDPI and ACS Style

Qin, H.; Xie, X.; Tang, Y. Evaluation of a Straight-Ray Forward Model for Bayesian Inversion of Crosshole Ground Penetrating Radar Data. Electronics 2019, 8, 630.
