Bandwidth and Gain Enhancement of Endfire Radiating Open-Ended Waveguide Using Thin Surface Plasmon Structure

1
Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China
2
EEIT Department, Vietnamese German University, Binh Duong 820000, Vietnam
3
Indian Institute of Technology, Bombay 400076, India
*
Authors to whom correspondence should be addressed.
Electronics 2019, 8(5), 504; https://doi.org/10.3390/electronics8050504
Received: 24 April 2019 / Revised: 30 April 2019 / Accepted: 2 May 2019 / Published: 7 May 2019
(This article belongs to the Special Issue Applications of Electromagnetic Waves)
  |
PDF [1591 KB, uploaded 16 May 2019]
  |

Abstract

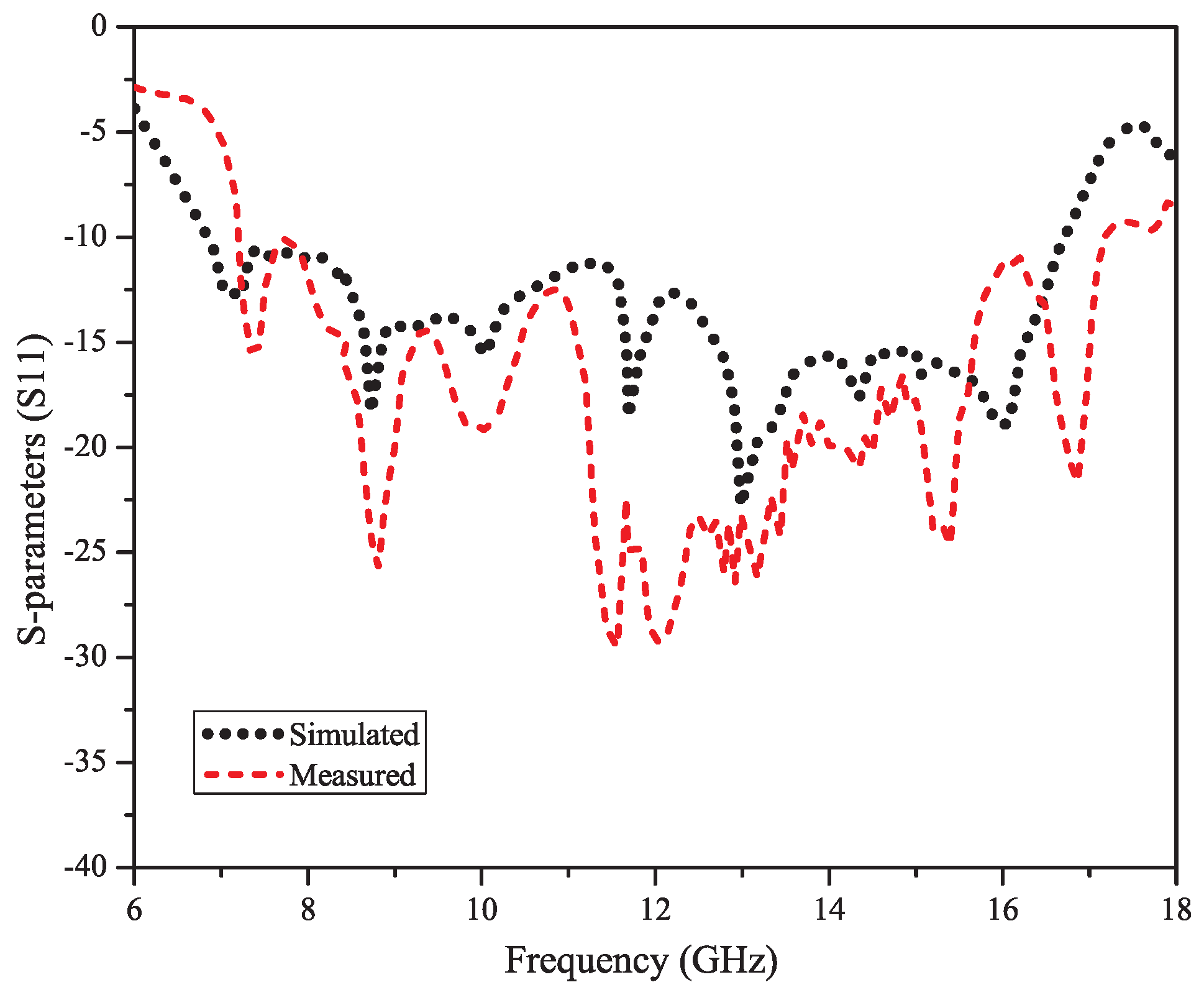

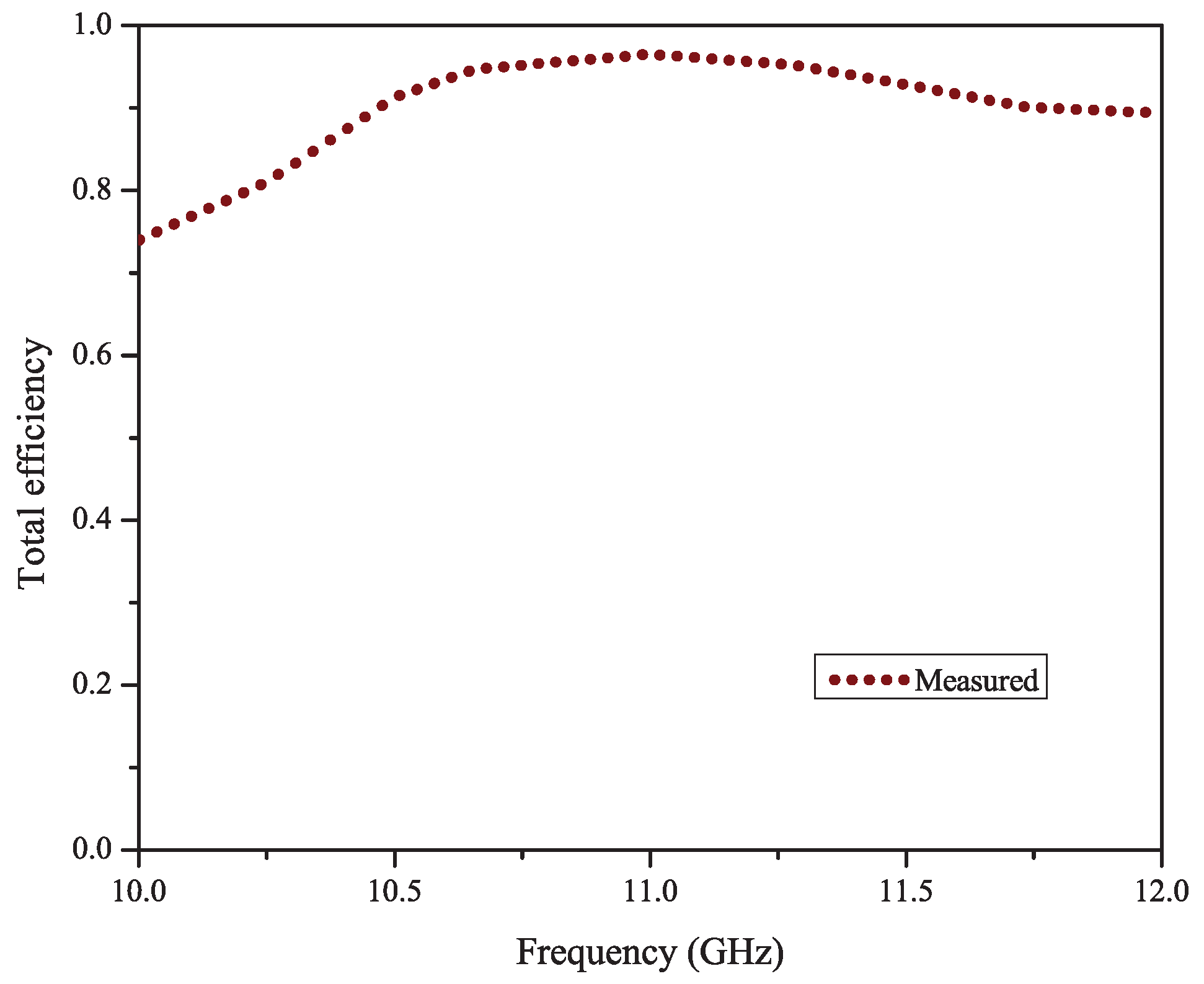

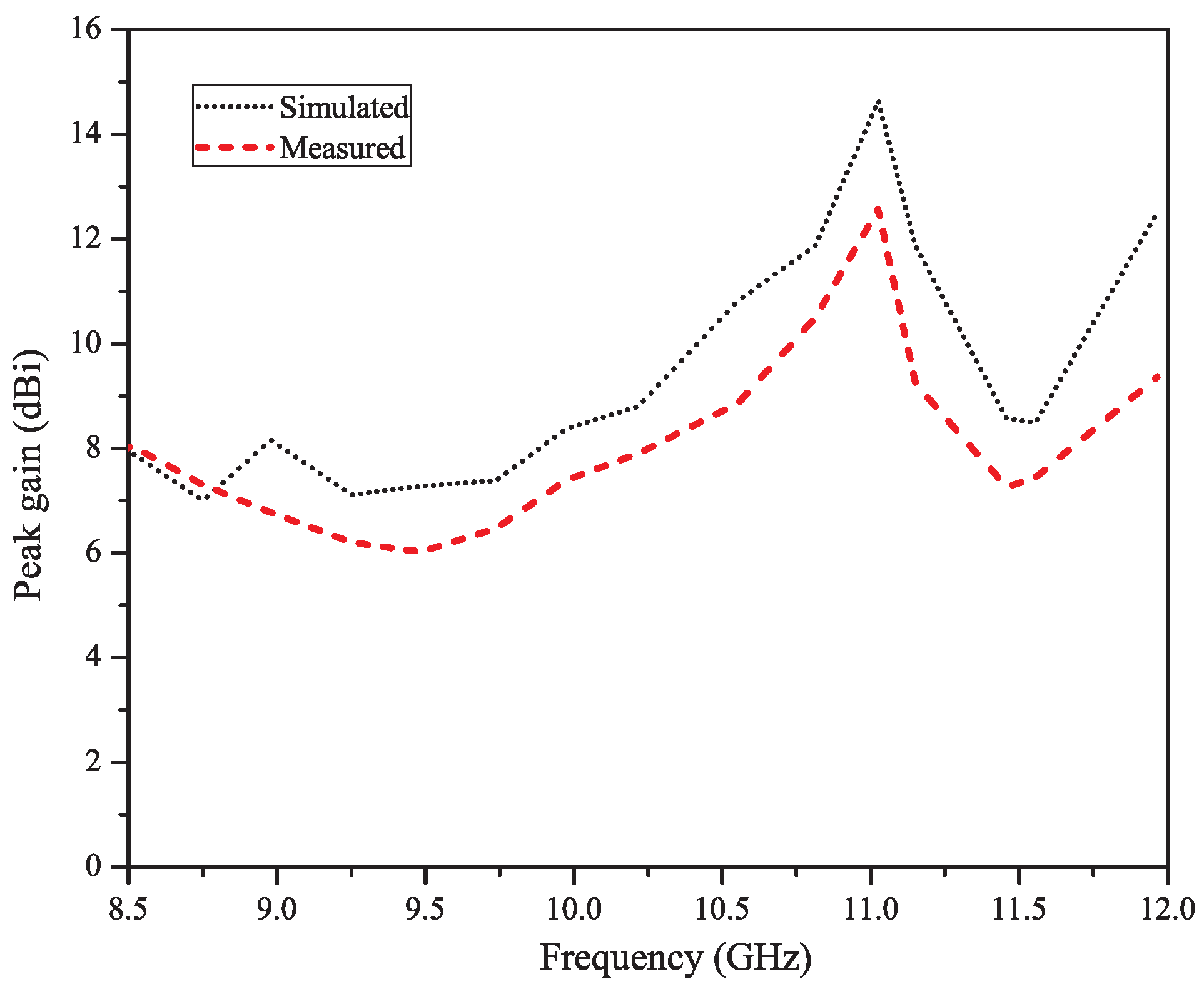

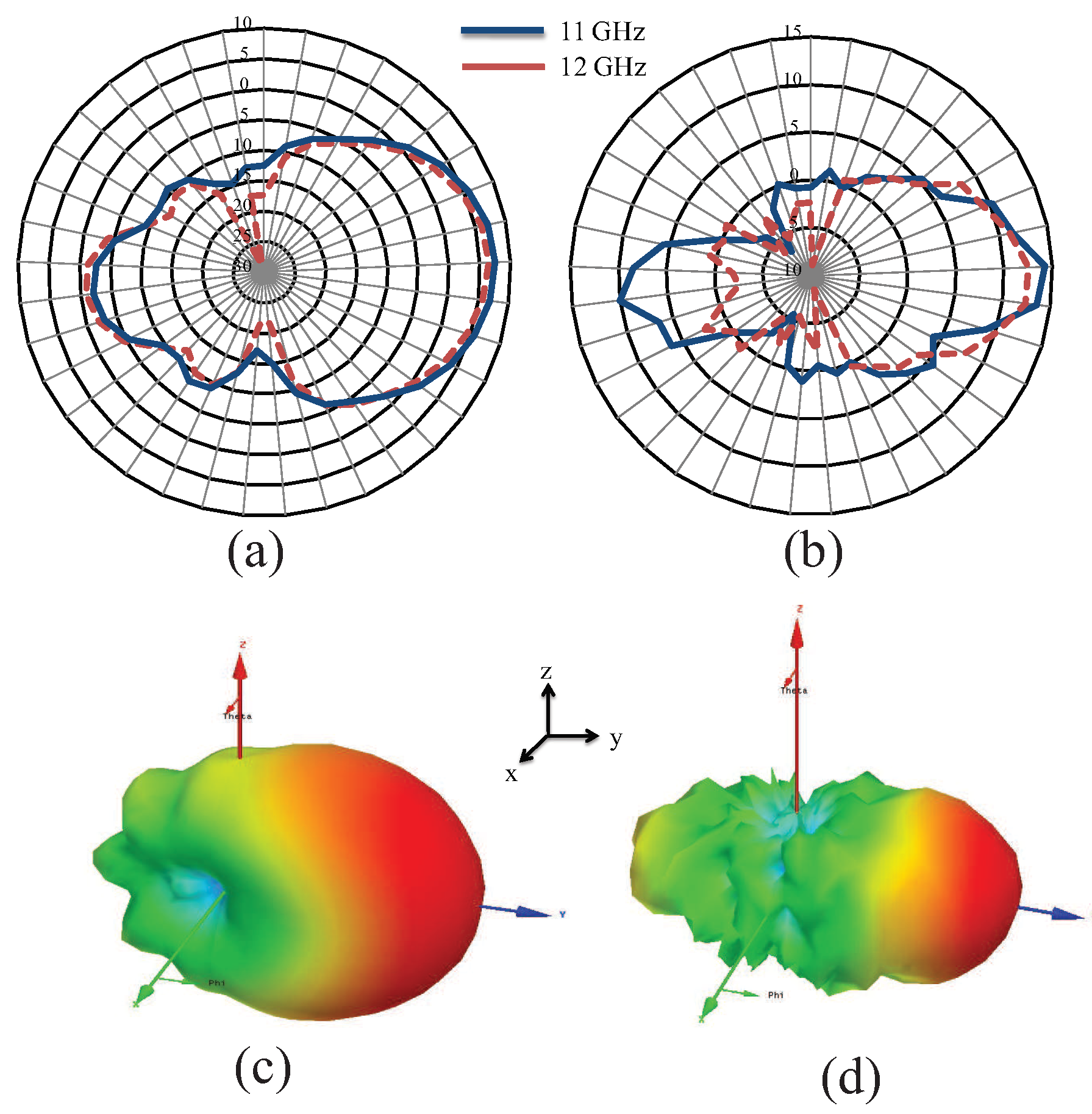

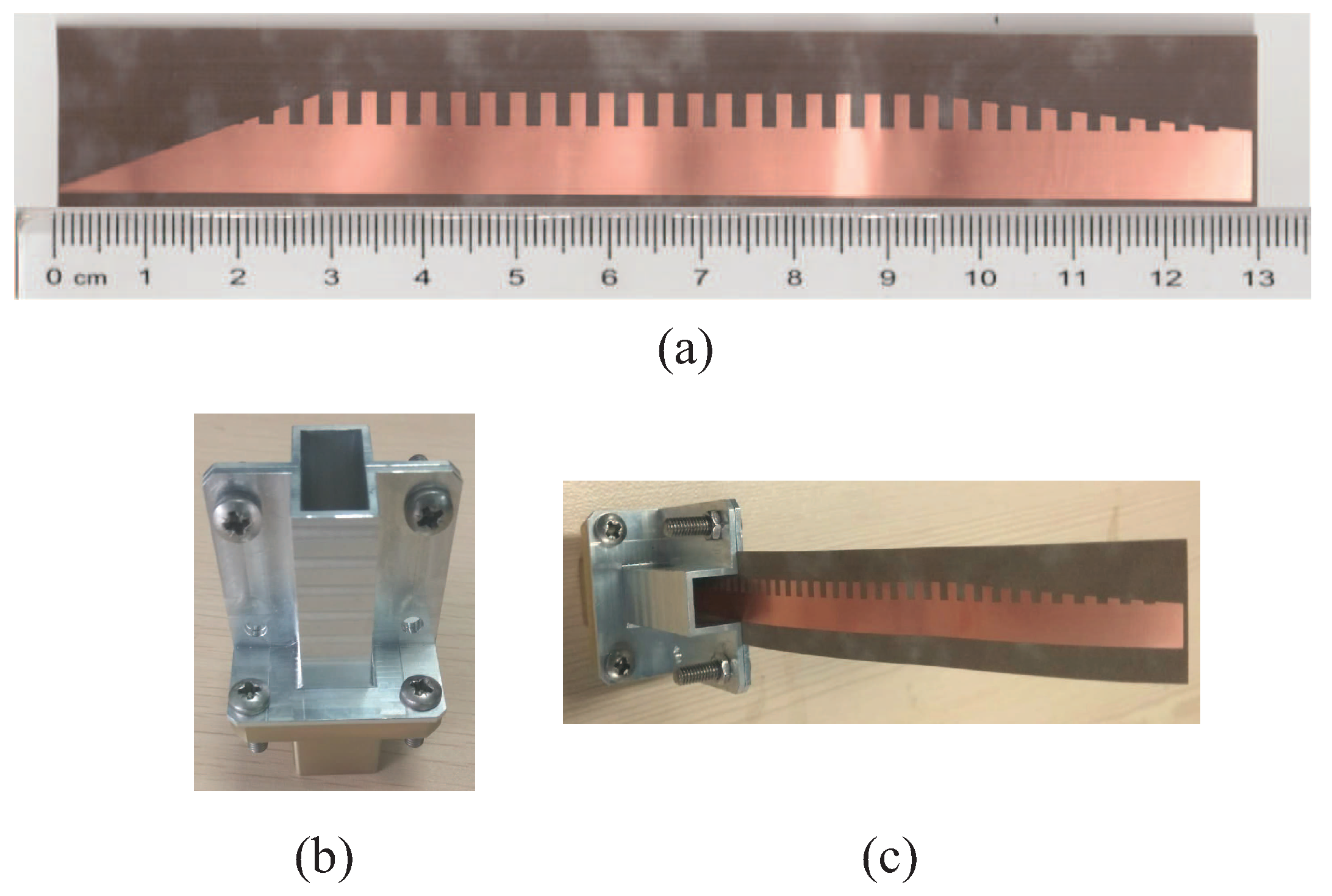

This paper proposes a technique to enhance the bandwidth and gain of an endfire radiating open-ended waveguide using a thin slow-wave surface plasmon structure. Mounted in the E-plane of the stated waveguide, a thin corrugated slow-wave structure has been used in conjunction with a waveguide transition to generate an endfire electromagnetic beam. An efficient mode conversion from waveguide transition to the corrugate plate resulted in the improved performance of the design. An impedance bandwidth from 8 GHz to 18 GHz has been achieved along with a gain enhancement from 7 dBi to 14.8 dBi using the proposed hybrid design. Endfire radiations have been obtained with a beam width of less than 25° through the proposed hybrid design with an efficiency of about 96 percent. View Full-Text

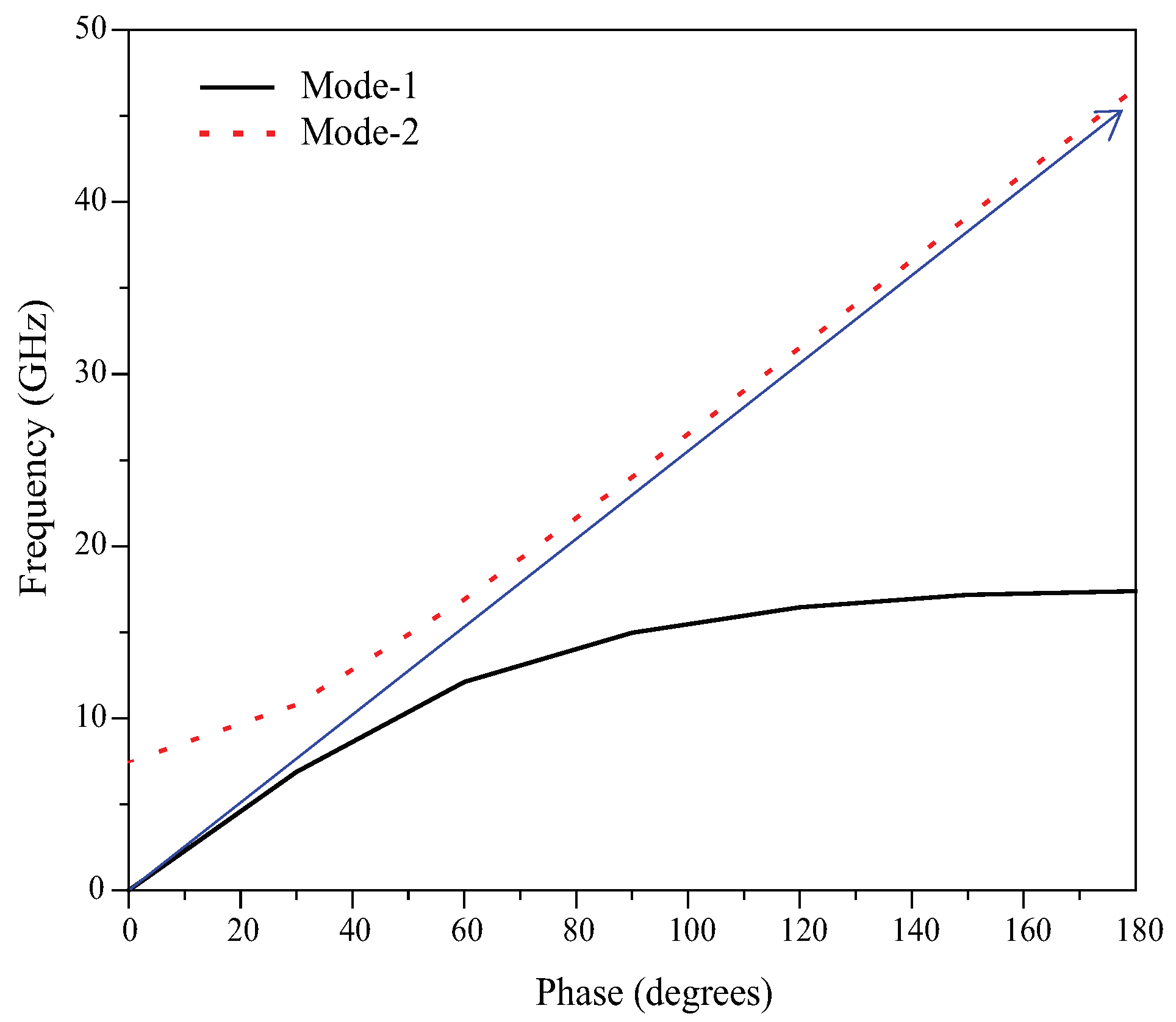

Keywords: open-ended waveguide; slow-wave; endfire; radiation; dispersion; gain open-ended waveguide; slow-wave; endfire; radiation; dispersion; gain
Figures

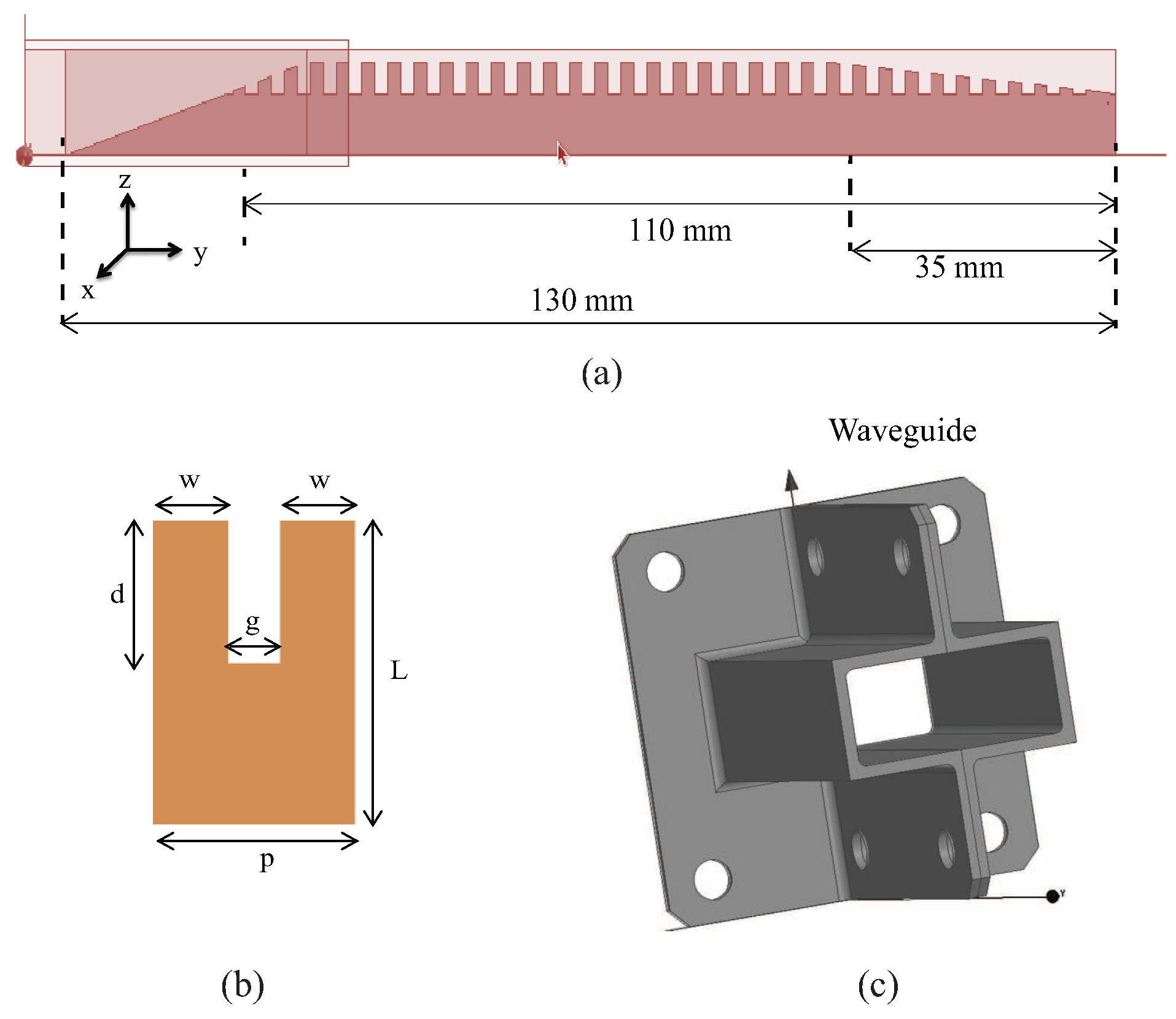

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
