Adaptive Thermal-Aware Routing Protocol for Wireless Body Area Network

,
,
and
1
Department of Computer Engineering, Jeju National University, Jejusi 63243, Jeju Special Self-Governing Provience, Korea
2
Department of Computer Science, Capital University of Science and Technology, Islamabad 44000, Pakistan
3
Department of Computer Science, University of Engineering and Technology, Taxila 47080, Pakistan
*
Author to whom correspondence should be addressed.
This article belongs to the Section Networks

Abstract

The recent advancement in information technology and evolving of the (IoT) shifted the traditional medical approach to patient-oriented approach (e.g., Telemedicine/Telemonitoring). IoT permits several services including sensing, processing and communicating information with physical and bio-medical constraints. Wireless Body Area Network (WBAN) handles the issues pertaining to the medical purposes in the form of sensor nodes and connected network. The WBAN takes human physiological data as an input to subsequently monitor the patient conditions that are transferred to other IoT components for analysis. Such monitoring and analysis demand a cohesive routing approach to ensure the safe and in-time transfer of data. The temperature rise of bio-medical sensor nodes makes the entire routing operation very crucial because the temperature of implanted nodes rises and ultimately damages body tissues. This needs dispersion in data transmission among different nodes by opting various available routes while avoiding temperature rise. In this paper, we present Adaptive Thermal-Aware Routing algorithm for WBAN. The ATAR is designed to overcome the temperature rise issue of implanted bio-medical sensors nodes. The new protocol is based on Multi-Ring Routing approach to find an alternative route in the case of increasing temperature. The simulation results indicate that proposed protocol is more efficient in terms of temperature rise and throughput than existing approaches.

1. Introduction

Internet-of-Things (IoT) is the network of interrelated physical objects embedded with electronic, software devices and wearable sensors that efficiently collect and exchange data with each other over the network [1,2,3,4,5,6]. The emerging IoT technology plays a consequential role in various walks of life e.g., business, transport, education, etc., as well as healthcare system by providing health’s facilities to the patient at low cost on his doorstep [7]. These IoT devices are harnessed to connect the patients and doctors around the world through Internet [8].
In many cases, health is one of the most important challenges and, therefore, the World Health Organization (WHO) constitutions emphasize for most people to attain health facilities. In the current era, excessive rise of various chronic and acute diseases has put the life of many people at an immense danger, which has consequently caused many to maintain good health. A large number of doctors, nurses and allied staff constantly monitor the health of a patient [9]. Patients with chronic diseases (i.e., diabetes, heart stock, high blood pressure, etc.) are required to be monitored on a regular basis. It is a requisite to monitor the vital signs of patients suffering from these diseases on a daily basis, which results in expenditure of huge amount of money. Due to the increase in the number of patients, more hospitals, doctors and greater amount of time is required to deal with them [9]. Moreover, to attain medical procedures, physical presence of patients in the hospitals is also important, which might affect the activities of daily life.
As the health factor is of concern, many healthcare organizations (e.g., WHO [10]) emphasize on the use of IT technology (i.e., Wireless Body Area Network (WBAN) [11], Telemedicine [10]). WHO reported that chronic diseases like cardiovascular and heart diseases will be one of the main causes of deaths all over the world by the year 2030 [11]. An analysis shows that the current health-care providing services to patients are insufficient and appropriate even in urban areas of many countries. Moreover, patients with multiple health problems are rapidly increasing the cost of the health-care system [10]. Health-care organizations (HIPAA (Health Insurance Portability and Accountability), WHO, Health Information Technology for Economic and Clinical Health (HITECH)) [10,12,13] make use of advanced information technology techniques and communication gadgets to efficiently deal with the complex medical issues by maintaining low costs. It is possible to utilize the latest technology for early identification and precaution of potential diseases that have a high probability to infect the patients, e.g., Telemedicine and E-health, etc. [10,14,15,16,17].
Telemonitoring [15] plays a significant role in early remote monitoring, disease detection, preventions and knowledge-based feedback from medical professionals [17,18]. Electronic prescription, Short Message Alerts (SMS) and emails are a part of patient monitoring systems that result in reliability and it diminishes the hurdles for patients to visit medical centers and recede the expenditure cost for hospitals or medical centers [19]. Nowadays, prevention of in-hospital morbidity and mortality is potentially a matter of prime interest [20]. The studies revealed that on-time diagnosis and treatment of severe diseases lessen the amount of patients at Intensive Care Units (ICUs) [21]. Contemplating all associated advantages, Telemonitoring is deemed as a paramount area of research because it renders the advanced technology to turn raw data into valuable information. It is recounted that an ideal Telemonitoring system must be capable of the (1) collection of correct medical data through bio-medical sensors, (2) conclusion and analysis on available physiological (vital sign) data (3) decision of appropriate actions with physician advice on the basis of composed information.
For collection of vital signs of patients, healthcare applications with emergence of biomedical sensor devices turned the technology into WBAN [18,22]. WBAN is an extended form of Wireless Sensor Networks (WSN) that is implemented for specific medical purposes by incorporating various networks and wireless tools that ensure distant healthcare monitoring. Hence, the implementation of WBAN results in better quality of life through timely detection and by taking proactive measures. Due to the hustle of daily lives, many people do not prefer to stay in hospitals for continuous monitoring. Monitoring of multiple patients in a real-time environment is one of the significant applications of WBAN [23]. The fundamental objective of WBAN is to get human physiological or vital sign data (i.e., temperature, glucose level, heart rate, etc.) from patient(s) for continuous monitoring [22] that ultimately demands an efficient routing mechanism. The designing of efficient and reliable routing protocols is a challenging job for WBAN due to its distinct features and limitations including overheating and energy depletion of embedded sensor nodes. The energy consumption and heat-rise affect the stability of a network and, hence, WBAN data is transmitted through various paths. The study is aimed to improving the network lifetime and WBAN network performance through efficient routing while managing temperature rise and decreasing the energy consumption.
Over the years, various WBAN routing protocols have been proposed in the literature. These protocols could be segregated into six categories, i.e., Thermal-aware routing protocols, Energy-Aware based routing protocols, QoS-aware based routing protocols, Postural-movement-based routing protocols, Cluster-based routing protocols and Cross-layered routing protocols [24]. This study focuses on the thermal-aware scheme because the prime focus of the proposed study is associated towards the introduction of novice WBAN routing protocol which is thermal-aware routing protocol. The contemporary thermal-aware routing protocols include TARA [25], LTR [26], ALTR [26], LTRT [27], HPR [28], RAIN [29], TSHR [30], M-ATTEMPT [31], TMQoS [32], RE-Attempt [33], M 2 E 2  [34], TLQoS [35], DRC [36], TTRP [37], TRPL [38] etc.
The “Thermal-Aware Routing Algorithm (TARA)”, is proposed to decrease the chances of temperature of the implanted bio-medical sensor in the body of a human. The TARA algorithm ensures the equal temperature diffusion between all the nodes via contemplating temperature. However there are some limitations of TARA, such as network lifetime, packet drop and reliable transmission. The Adaptive Least Temperature Routing (ALTR) protocol is presented to overcome the problem faced in TARA. In ALTR instead of discarding the packet after it exceeds the threshold value, it works as Shortest Hop Routing (SHR) to transfer the packet to the destination. However, it only considers average temperature metrics and less Network lifetime and high end-to-end delay.
Several mechanisms discussed above [25,26,27,28,39,40] have been adopted to handle the problem of temperature rise when data is transmitted among the nodes as well as a sink node in an IoT-based WBAN system. To the best of our knowledge, these techniques do not focus on the overall rise of temperature in the entire network and temperature rise in the forwarding node. The reliable and quick transmission of data consuming low-temperature rise is highly important in WBAN. This study presents a thermal-aware routing protocol for WBANs, which aims at the uniform diffusion of load among sensors nodes in term of temperature rise. The proposed thermal-aware WBAN routing protocol known as Adaptive Thermal-Aware Routing (ATAR). The ATAR addresses the problem of temperature rise and decreased data transmission while increasing network life.

3. Proposed Method of ATAR

3.1. Temperature Rise of Sensor Node

In this modern era, patients are remotely being monitored using a variety of techniques such as telemedicine, telemonitoring, online patient monitoring, etc. The sensor nodes are implanted in the human body, thus, forming wireless body area network (WBAN) based IoT [7]. These nodes transmit vital signs information of the patient like heartbeat monitoring, glucose level, blood pressure and pulse rate to the Sink nodes as well as the central controller. The devices transmitting these vital reading must establish new route each time when data is required to be sent to remote locations [8].
These sensor nodes have a special requirement that distinguishes them from other ad hoc networks [71]. In the WBAN based IoT, the implanted nodes continuously transmit the data over the network to find an efficient path from source node to the destination nodes. The temperature of implanted nodes increases during data transmission over a specific time interval and this temperature rise may harm to human tissue. This issue has become a serious concern for the adaptability of these nodes. The detailed problem of heat-rise of WBAN sensors at different phases is explained below with help of an example. We have 10 numbers of nodes that are implanted in a human body as shown in Figure 2 that is a glimpse of a normal communication taking place on in the WBAN based IoT.
Figure 2. Topology of Communication in IoT: A glimpse of a normal communication taking place in the network different path from source to destination is selected for communication.
Figure 2 indicates that the path A, B and C have been established and the network is converged on to a common routing table. The actual communication is following the paths as indicated in the above routing path. The paths have been established through a common link state routing protocols that have done their working before the communication started.
Figure 3 shows the source has selected the shortest path B for its data transmission.
Figure 3. Communication Path in WBAN: A glimpse of a normal communication taking place in the network. The path B from source to destination is selected for communication.
However, the temperature of a sensor node like node 8 as indicated red in Figure 4 increased due to a continuous flow of data on the same path. Since the sensor node has become the hotspot, therefore, further transmission of data through this path will damage the human tissue.
Figure 4. Hot Spot creation in IoT Network: A glimpse of a normal communication taking place in the network. The path from source to destination is selected for communication. The red node represents hotspot node that has a high temperature. Whenever the packet will be transferred to hotspot node, it will backtrack the packet to the previous node.
In Figure 5 protocol rework its convergence and uses two remaining paths that are available for communication from source to destination. Therefore, instead of always using path B, the alternative path-ways automatically get selected for communication.
Figure 5. Alternative path for traffic: The red node represents hotspot node that has a high temperature. Whenever the packet will be transferred to hotspot node it will backtrack the packet to previous node and communication will continue from the alternative path.
Now the alternative path is also processing continuous streams of data from source to destination and over time because of continuous processing its temperature has also increased. Therefore, in Figure 6 for the next set of the data stream, the node 2 (highlighted in red color) will automatically backtrack thus the entire convergence will have to be reworked for the entire network. Hence, it will adopt a new path for the rest of the communication.
Figure 6. Alternative path C for traffic: The red node represents hotspot node that has a high temperature. Whenever the packet will be transferred form Path A and Path B it will backtrack the packet to previous node and communication will continue from the path C.
As a result, the entire communication has become halted and communication will not be forwarded due to the temperature rise, as shown in Figure 7.
Figure 7. Communication halt in Network: Entire communication has become halted and communication will not be forwarded due to the hotspot node.

3.2. ATAR Network Model

In order to address the problem of temperature rise in WBAN, we have proposed an IOT based adaptive thermal-aware routing protocol by using Multi-path Ring Routing to minimize the temperature rise and less deferral to acquire the stability in data transmission and expanding network life. The proposed scheme introduces a novel way of routing to uniformly disperse the load among sensors nodes in the context of temperature rise. We have explained the details of problems associated with WBAN thermal-aware routing. This study presents a thermal-aware routing protocol for WBANs, which focuses to uniformly diffuse of load among sensors nodes in term of temperature rise. The proposed thermal-aware WBAN routing protocol is known as IOT ATAR. The ATAR addresses the problem of temperature rise and decreased data transmission while increasing network life.

System Model

The reliable and quick transmission of data consuming low temperature rise is highly important in WBAN. In some cases, quick response is required on sensed vital signs, e.g., in certain cases if the data is of emergency type like heart stoke related data. The primary objective of this research is to efficiently handle multi-hop communication to improve the overall performance of the network in term of temperature rise and throughput. The WBAN is a diverse network with different types of nodes and the deployment of nodes in/on the body is very important in WBAN to evaluate the performance of routing protocol.Therefore, to evaluate the performance of our proposed protocol have taken 8–12 implanted sensors nodes where the sink node is placed at the center of the human body, as shown in Figure 8.
Figure 8. Placement and communication of nodes on the human body.
The node(s) which are at one-hop count can directly communicate with sink node while distant node(s) can transmit through intermediate nodes (Multi-hop). The assumptions for proposed WBAN routing protocol are listed below:
  • Each sensor node in the network has a fixed position.
  • Each sensor node transmits sensed data to sink node, which is placed at the center of the human body. The resources (hardware and software) of the sink are enough for continuous energy supply.
  • Each sensor node has static transmission power and transmission range.
  • Sink node is the destination for every sensor node.
  • Fixed sized packet is transmitted by every sensor node and each node transmits data at its own time slot.
  • The location of neighboring is known to each other after the initialization phase.
The deficiencies in the existing studies are handled in our approaches in the following manner.
  • The data which are critical can be directly sent to the destination using single-hop communication.
  • Normal data are forwarded to the destination using multi-hop communication.
  • The forwarder node selection depends upon the current status in term of temperature rise.

3.3. Adaptive Thermal-Aware Routing Protocol

The primary concern for WBAN network life is the evasion of temperature rise. The maintenance of the network stability and efficiency are the main challenges that must be dealt to find the optimal forwarder nodes from the source to destination with less temperature rise for data transmission. This issue is addressed individually by existing routing protocols. Nonetheless, using the same route (optimal route) with less temperature of the node for communication of data may lead to overheat of that route or death of nodes on that route. The above-mentioned problem is resolved in this research by presenting the protocol “ATAR—Adaptive Thermal-Aware WBAN Routing Protocol”. The WBAN is derived from WSNs and Multipath ring routing is routing protocol in WSNs. We enhance the famous MRRP routing protocol in terms of temperature. The proposed protocol has a mechanism of optimal forwarders selection to avoid frequent partitioning due to temperature rise of implanted sensor nodes. The probability of selection is dependent on temperature rise metric and selection of each discovered forwarder node. The forwarder nodes selection is based on the probability value of temperature rise therefore, multi-path communication is used instead of single-path used continuously during the communication. The ATAR is a reactive source initiated protocol where setup packet is used to maintain the information of neighboring nodes. The proposed ATAR scheme consists of two phases
  • Initialization Phase
  • Data Transmission Phase

Initialization Phase

In the initialization phase, the distance of each node is calculated from destination in terms of hop-count. In this phase, the network is organized into different levels like R1, R2 and R3 etc. Considering the Figure 9a, R1 represents the first level containing two nodes (i.e., s1, s2) and their distance from the sink is 1 in terms of hop-count. Similarly, R2 contains four nodes and their hop-count distance from the sink node is 2 and R3 contains 3 nodes and their distance from the sink node is 3 as shown in Figure 9a.
Figure 9. ATAR: Initialization Phase.
Each node in the sink’s neighbor that receives this packet, will update its ring level field by incrementing 1 in the ring level value and rebroadcasts the setup packet. The process of rebroadcasting and updating ring level will continue until the entire network is organized into levels by assigning each node by its ring level, as shown in Figure 9b. At the end of this phase, every node within the network will aware of its ring level that depicts distance of the node from the sink in the form of hop-count. The format of the setup packet in initialization phase is shown below. The setup packet is broadcasted by the Source ID which is the ID of the node. The destination address of the packet is shown by Destination ID and the Temperature represents the temperature of a node.
Source IDDestination IDTemperatureRing Level
The primary goal of the initialization phase is to generate ring level through a setup packet, as shown in Figure 9a. Each node broadcasts a setup packet to explore its neighbors, as shown in Figure 9b. When a node receives a setup packet, it considers itself in level n, if the hop-count is n. If the packet is received from the node with smaller ring level then the node updates its ring level with received ring level. When the setup packet is sent by the sink, the receiving node verifies that whether its level is −1, if the level value is −1, then it accepts the packet otherwise discards the packet, as shown in Figure 10. When packet is received, the current node will increment its level by 1 and update the packet header with its level and temperature value and rebroadcast the packet. The process of rebroadcasting and updating ring level will continue until the network is organized into levels by assigning each node by its ring Level. The steps of the initialization phase is mentioned in Algorithm 1 and the flowchart is shown in Figure 11.
Figure 10. ATAR: Initialization Phase.

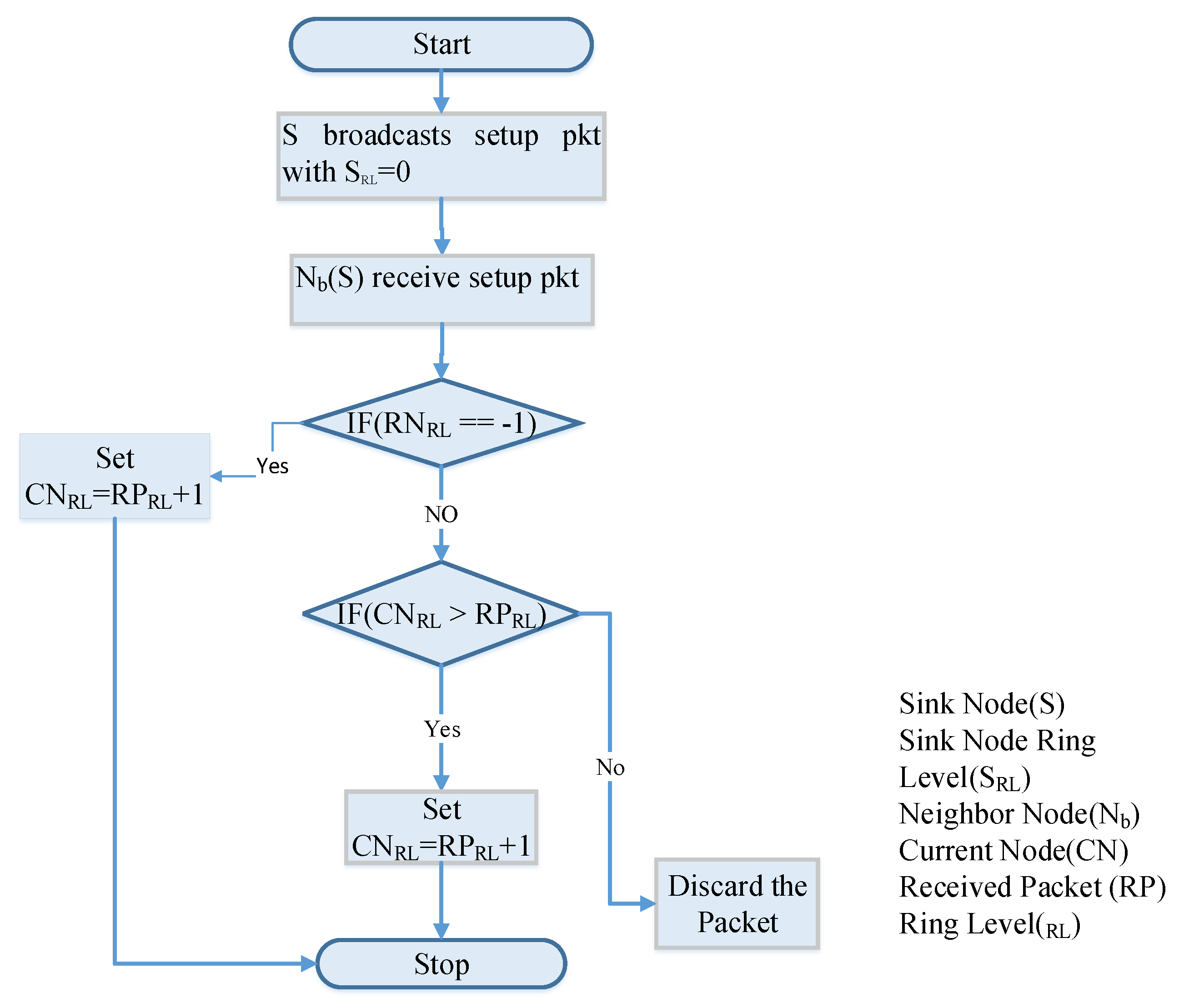

Figure 11. Flow chart of initialization phase.
The basic responsibility of the initialization phase is to organize and get information about the distance of all available sensor nodes from the sink along with the current statistics of total temperature of the route, node with temperature above threshold value ntemp > thr. The selection of appropriate route is made on the basis of route stability that is dependent upon the total route temperature and avoiding upon the node with above threshold temperature and energy. The multiple routes are discovered, probability is evaluated and selection of route depends upon probability value. To calculate the stability of a route we defined cost functions, i.e., Thermal-aware function. Before the destination node forwarded setup packet it sets its Cost field to zero, as shown in Equation (2)
C o s t ( N s ) = 0
The current node sends a data packet only to neighboring nodes whose distance to the destination is the least. Thus, only relay node N r accepts the data packet which satisfies Equation (3).
d ( N s , N d ) > d ( N r , N d )
where d ( N s , N r ) is the distance between the sending node and the relay node. All of the nodes within the network are ranked on the basis of their temperature. These ranked nodes are then selected as next hop to forward the data packet. The thermal-aware function calculates the total temperature of the nodes on the route R by applying the following cost function (4)
T R = ∑ i = 1 n - 1 T ( i , R )
where T R represents the total temperature of route R, i represents the nodes that path R constitutes.
Algorithm 1 Initialization Phase.
  1:  global variables
  2:   I n t e g e r N o d e l e v e l [ 9 ]
  3:   I n t e g e r S i n k l e v e l
  4:   I n t e g e r R e l a y l e v e l
  5:   I n t e g e r R e l a y L e v e l V a l u e
  6:   I n t e g e r S o u r c e L e v e l V a l u e
  7:   S i n k L e v e l ← 0
  8:   N o d e L e v e l [ ] ← −1▹ For all Array values
  9:   S R L ← 0 ▹ Sink broadcast setup packet
10:  end global variables
11:  if RelayLevel = = −1 O R   R e l a y L e v e l V a l u e > SourceLevelValue then
12:   SourceLevelValue ← SourceLevelValue + 1
13:   RelayLevelValue ← SourceLevelValue
14:  Rebroadcast the message to neighbors
15:  else
16:  Rebroadcast the message to neighbors
The process of rebroadcasting continues until all nodes will aware of its ring level

3.4. Data Transmission Phase

In the previous phase, each node in the network is follows its own ring level and data are ready to be forwarded to the sink. In the proposed protocol, relay node is used for sending the data rather than using direct communication from source node to destination to reduce the overhead of the temperature rise of node. The data packet is broadcasted by source node with its ring level, as shown in Figure 12a.
Figure 12. ATAR: Data Transmission Phase.
When the data packet is received by relay node, it compares its ring level with the received packet’s ring level. If the data packet ring level is less than the received packet ring level, then relay node further verifies selected ID of the received data packet, with its own ID. If the ID of the data packet is matched with the ID of the relay node then, it will receive and rebroadcast the data packet otherwise discard it. This process continues until the packet reaches to the sink node as shown in Figure 12b.
If the ring level value of neighbor node is greater than the ring level value of data packet received, then the neighbor node will keep ID, temperature of the source node and will discard the packet. Next time, this saved information will be used by the node in an intelligent way to select the next hop to forward the data packet.
The nodes with the least rank value have the highest priority of selection as a next hop for the source node. The rank value evaluated for the selection of the forwarder node is based on the following Equations (5)–(7).
R T N = m i n ( N T ) f o r a l l n o d e s
R A N = R T N f o r a l l n o d e s
O N = m i n ( R A N )
where R T N represents the rank and the value given to the temperature of each node. R A N is the rank value given to each node for the selection criteria that is based on the rank value of temperature as a constant. Finally, the node with the minimum rank value is declared as O N , the optimal node. The format of the data packet in data transmission phase is shown below.
Source IDDestination IDTemperatureRing LevelSelected IDDATA
The Source ID is the ID of the node which broadcasts the data packet, Destination ID shows the destination address and Temperature represents the temperature of the sender node. Similarly, Selected ID is the address of the selected relay node (the optimal node).
Furthermore, Data field represents the sensed data that the sensor node is required to send to the destination. The algorithm of the Data Transmission phase is described in Algorithm 2 and the respective flowchart is shown in Figure 13.
Figure 13. Flow chart of data transmission phase.
Algorithms 3 and 4 present the mechanism of selection of Optimal Neighbor Node and a unicast packet with its own ring number. If the sender ring number is greater than current node’s ring number and if the current node is sink then the packet will be processed otherwise Rebroadcast the packet with updating the s e n d e r l e v e l = C u r r e n t L e v e l .
Algorithm 2 Data Transmission Phase.
  1:  global variables
  2:   I n t e g e r R i n g l e v e l
  3:   I n t e g e r O p t i m a l N o d e
  4:   P a c k e t P
  5:   O p t i m a l N o d e ← S e l e c t N e i g h b o r ( N e i g h b o r I n f o [ i ] )
  6:   P a c k e t ← P a c k e t P ( )
  7:  end global variables
  8:   UpdateNeighbor ( NodeIP , NodTemp , PktRingLevel )
  9:   P ← Route ( OptimalNode )
Use step 7–10 to send data every time
Algorithm 3 On Receiving Data Packet.
  1:  global variables
  2:   S t r i n g C u r r e n t N o d e I P
  3:   S t r i n g O p t i m a l I P
  4:   S t r u c t N o d e {
  5:   I n t e g e r t e m p
  6:   S t r i n g i p
  7:  }
  8:  end global variables
  9:   U p d a t e N e i g h b o r ( N o d e I P , N o d T e m p , S n d e r R i n g l e v e l , R e c e v i n g R i n g l e v e l )
10:  for i from 0 to n-1 do
11:  if S n d e r R i n g l e v e l > R e c e v i n g R i n g l e v e l then
12:     if O p t i m a l I P = = C u r r e n t N o d e I P then
13:     N o d e . t e m p ← N o d e T e m p
14:     N o d e . i p ← N o d e I P
Algorithm 4 Selection of Optimal Neighbor Node.
  1:  global variables
  2:   N e i g h b o r I n f o n b r
  3:  end global variables
  4:   SelectNeighbor ( NeighborInfo [ size ] )
  5:  for i from 0 to size-1 do
  6:   NeighborInfo [ i ] . rank ← NeighborInfo [ i ] . temp
  7:   nbr ← NeighborInfo [ ]
  8:   nbr . temp ← NeighborInfo [ 0 ] . temp
  9:   nbr . ip ← NeighborInfo [ 0 ] . ip
10:   nbr . rank ← NeighborInfo [ 0 ] . rank
11:  for i from 0 to size-1 do
12:   if nbr . rank = Neighbor [ i ] . rank then
13:     nbr . id ← NeighborInfo [ i ] . ip

4. Performance Evaluation

We have used the open source component-based C++ simulation tool, OMNeT++ [72]. By employing Castalia [72,73], we have used nine sensor points (nodes) in our simulation model and to analyze the performance of our proposed routing protocol. Our approach uses the concept of sink node which is static and this node transmits data coming from various sensor nodes to a remote location such as a server process. The proposed protocol follows three assumptions, i.e., all nodes are homogeneous in all respects of their computation, temperature reading etc., reading must not beyond the sink point and the minimum packet size of 37 bytes is adequate to exchange the header information and drop out the payload. Based on these assumptions, we have compared the performance with the MRRP [47]. We have used an identified node as a relay agent and sampled its temperature readings. The simulation setup parameters along with the initial temperature values are illustrated in the Table 2. The results against the following metrics are calculated to evaluate the proposed study. A brief definition of each metric is delineated below.
Table 2. Simulation setup.
  • Temperature rise: This metric will measure the rise in the sensor nodes while they transmit data from one node to another.
  • Average Temperature rise: This value indicates the average rise in temperature of all the nodes participating in the simulation.
  • Maximum temperature rise: Maximum temperature rise is the highest temperature rise inside the whole network.
  • Average Throughput: It is the rate in which a success is measured against the number of packets transmitted through the network in each unit of time. These packets are sent by the sensor nodes that are participating in our simulation model.

4.1. Simulation Results

4.1.1. Analysis of Temperature Rise in Node

Figure 14 provides the comparison between ATAR, SHR, TARA and MRRP. We ran the simulation at the time period of 3000 s. The high-temperature reading coming from MRRP, TARA and SHR protocol indicates that it is not suitable for implanted nodes. Finally, MRRP, TARA and SHR give temperature peaks while transmitting data of sensor nodes; thus, ignoring the temperature factor in its working; whereas the ATAR takes temperature factor in its routing in the implanted nodes and it maintains the temperature below 0.04 ∘ C to avoid tissue damage. The low-temperature peaks for ATAR in the simulation are due to the reason that ATAR always selects the forwarder with minimum available temperature. In case of temperature rise of the forwarder, ATAR selects another forwarder within the next ring level to forward obtained sensor readings.
Figure 14. Temperature rise versus simulation time = 3000 s.
Figure 15 shows the simulation results of temperature variations at different times. The graph represents the variations in temperature over the course that our simulation runs. At the initial phase of simulation, the temperature values rose initially, i.e., ATAR rose up to 0.0002 ∘ C, TARA rose up to 0.025 ∘ C and SHR rose up to 0.037 ∘ C and MRRP rose up to 0.05 ∘ C. From the graph, we can argue that if we select an appropriate forwarding node as in the case of ATAR, the difference in the temperature can be controlled as compared to the MRRP, SHR and TARA protocol. When the simulation ends, i.e., reaches our target of 6000 s, the changes of the temperature were 0.00012 ∘ C, 0.080 ∘ C, 0.010 ∘ C and 0.0106 ∘ C of the ATAR and TARA, MRRP and SHR, respectively. Also from the graph below, it can be seen that once the network reaches the threshold value in the ATAR protocol then change in the temperature is negligible. Similarly, the TARA, SHR and MRRP have a higher count as the protocol does not take temperature into consideration.
Figure 15. Temperature variation versus simulation time.

4.1.2. Analysis of Average Temperature Rise in Node

The comparisons between ATAR, SHR [26], TARA [25] and MRRP [47] are shown in Figure 16. The simulation results indicate that initially the temperature of all nodes was the same, i.e., 35 ∘ C/0.035 ∘ C. The simulations are performed for the time period of 1000–6000 s. Initially, the ATAR started with the reading of 0.037 ∘ C at 1000 second and later gave a maximum reading of 0.039 ∘ C at 6000 s. The MRRP initially started from 0.048 ∘ C and at 6000 s it gave a maximum reading of 0.102 ∘ C. TARA initially started from 0.030 ∘ C and at 6000 s it gave a maximum reading of 0.080 ∘ C. Similarly, SHR initially started from 0.040 ∘ C and at 6000 s it gave a maximum reading of 0.11 ∘ C. The high-temperature reading coming from MRRP, TARA and SHR protocol indicates that it is also not suitable for implanted nodes. Finally, MRRP, TARA, SHR provides temperature peaks while transmitting data of sensor nodes thus ignoring the temperature factor in its working; whereas the ATAR takes temperature factor in its routing in the implanted nodes.
Figure 16. Average temperature rise versus simulation time.
The low-temperature peaks for ATAR in the simulation is due to the reason that ATAR always selects the forwarder with minimum available temperature. In case of temperature rise of the forwarder, ATAR selects another forwarder within the next ring level to forward obtained sensor readings.
Figure 17 represents the comparison of temperature rise of ATAR, SHR [26], TARA [25] and MRRP [47]. It can be seen that even if we increase the node density, the performance in terms of average rise in temperature of the ATAR remains far better as compared to the MRRP. If we scrutinize the MRRP graph, the increase in nodes also causes the temperature to rise at 39.002 ∘ C and it was dangerously high at 48.727 ∘ C at 1000 s that is dangerous for a normal human body. On the other hand, the ATAR has a consistent temperature even when the node density is increased at 1000 s. Therefore, we can conclude that the ATAR is far better in terms of rise of temperature for node density increase.

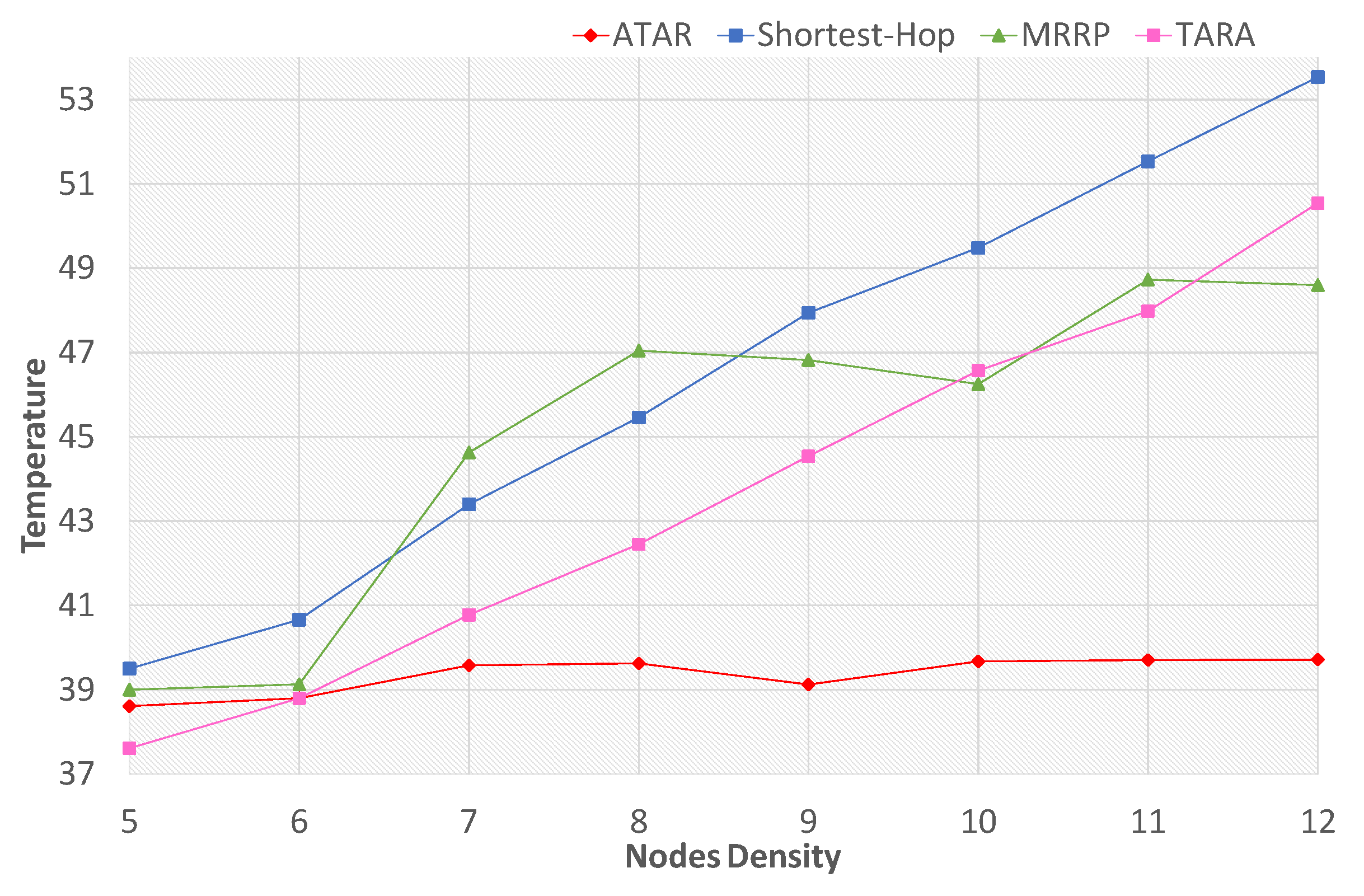

Figure 17. Average temperature with different nodes density at simulation time = 1000 s.

4.1.3. Analysis of Maximum Temperature Rise in Node

Maximum temperature rise is the temperature of the certain node inside the whole network. Figure 18 provides the comparison between ATAR, SHR [26], TARA [25] and MRRP [47]. The simulation results indicate that at initial phase of simulation, all nodes have the same temperature i.e., 0.05 ∘ C/35 ∘ C. We ran the simulation for the time period of 1000–6000 s. Initially, the ATAR started with the reading of 0.037 ∘ C at 1000 second and later gave a maximum reading of 0.039 ∘ C at 6000 s. The MRRP initially started from 0.046 ∘ C and at 6000 s it gave a maximum reading of 0.08 ∘ C. TARA initially started from 0.0602 ∘ C and at 6000 s it gave a maximum reading of 0.12 ∘ C. Similarly, SHR initially started from 0.102 ∘ C and at 6000 s it gave a maximum reading of 0.2 ∘ C. The high-temperature reading coming from MRRP, TARA and SHR protocol indicates that is also not suitable for implanted nodes. Finally, MRRP, TARA, SHR gives temperature peaks while transmitting data of sensor nodes thus ignoring the temperature factor in its working; whereas the ATAR takes temperature factor in its routing in the implanted nodes.

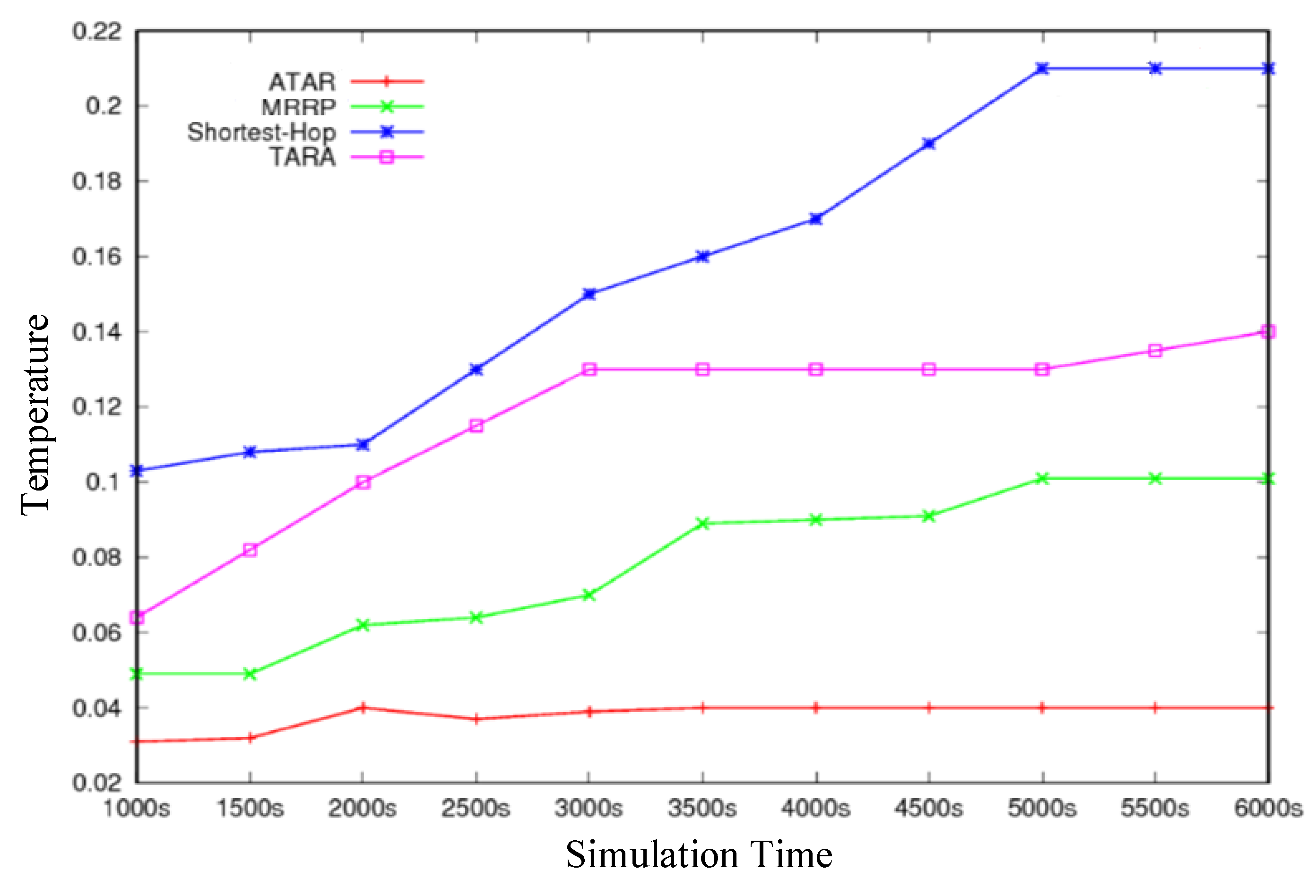

Figure 18. Maximum temperature rise versus simulation time.
The low-temperature peaks for ATAR in the simulation is due to the reason that ATAR always selects the forwarder with minimum available temperature. In case of temperature rise of the forwarder, ATAR selects another forwarder within the next ring level to forward obtained sensor readings.

4.1.4. Analysis of Network Throughput with varying Nodes Densities

Figure 19 represents the throughput comparison of ATAR, SHR [26], TARA [25] and MRRP [47] protocols having a varying number of nodes, i.e., 5–13 nodes with simulation time 1000 s. The immediate observation from figure is that even with the varying network size, ATAR shows improved performance compared to MRRP in term of network throughput. Moreover, it can be seen that ATAR protocols have the consistent network throughput. On the other hand, in case of MRRP, the network throughput is dropped to 50%. In ATAR, the throughput of the various network simulations with a different number of nodes at 1000 s. It can be observed from the graph that throughput of ATAR is 83% at 1000 s with five nodes. As the throughput is investigated with different networks and node density, it does not drop from the value of 83%, because of steadiness in a temperature rise of the nodes.
Figure 19. Average throughput with different nodes density at simulation time = 1000 s.

5. Conclusions

Good health is a focal concern for many in their daily lives. The continuous monitoring of patient’s vital signs or physiological parameters for various diseases is a challenging task in the medical field. In the present era, the customary healthcare system is undergoing a change from traditional to a modernized patient-oriented approach which supports Telemedicine. Telemedicine systems ensure the implementation of modernized patient-oriented approaches to exchange medical information with ease of communication. Telemedicine is playing a significant role in remote monitoring, early disease detection, preventions and knowledge-based feedback from medical professionals. The mechanism of collecting vital sign information of patients demands the implementation of WBAN.
In WBAN, temperature rise of nodes is the major issue that needs to be considered for the stability of the network. Considering the distinct characteristics of WBAN along with the routing issues, a routing protocol ATAR is presented in this work. ATAR performs efficient routing with the even distribution of temperature among all nodes. To evaluate the significance of ATAR, various experiments on the basis of temperature and throughput are carried out. The simulation results are compared with existing routing techniques, such as MRRP, SHR and TARA. The obtained results show the better performance of ATAR than MRRP, SHR and TARA. In addition, the temperature rise in ATAR did not cross the threshold value. Therefore, ATAR avoids tissue damage and ultimately extends the lifetime of WBAN. Furthermore, in ATAR, drop in temperature of a node (avoiding sending data after reaching threshold) improves the overall performance. The Throughput of the network also grows considerably in ATAR than in MRRP, SHR and TARA, along with the uniform distribution of temperature among the nodes.

Author Contributions

F.J. implemented the protocol in OMNet++, performed simulations and results analysis, conducted the experiments and wrote the paper; M.A.I. and R.A. assisted in model designing and experiments. D.K. conceived the overall idea of proposed protocol and proof-read the manuscript.

Funding

The Research is funded by the MSIT (Ministry of Science and ICT), Korea, under the ITRC (Information Technology Research Center) support program and IITP (Institute for Information & communications Technology Promotion).

Acknowledgments

This research(paper) was performed for the Development of Radar Payload Technologies for Compact Satellite in Korea Aerospace Research Institute, funded by the Ministry of Science and ICT, and this research was supported by the MSIT(Ministry of Science and ICT), Korea, under the ITRC(Information Technology Research Center) support program(2014-1-00743) supervised by the IITP(Institute for Information & communications Technology Promotion). Any correspondence related to this paper should be addressed to Dohyeun Kim.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Da Xu, L.; He, W.; Li, S. Internet-of-Things in industries: A survey. IEEE Trans. Ind. Inform. 2014, 10, 2233–2243. [Google Scholar]
  2. Ahmad, S.; Hang, L.; Kim, D.H. Design and Implementation of Cloud-Centric Configuration Repository for DIY IoT Applications. Sensors 2018, 18, 474. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  3. Ahmad, S.; Hussain, I.; Fayaz, M.; Kim, D.H. A Distributed Approach towards Improved Dissemination Protocol for Smooth Handover in MediaSense IoT Platform. Processes 2018, 6, 46. [Google Scholar] [CrossRef] [Scilit]
  4. Ahmad, S.; Malik, S.; Ullah, I.; Fayaz, M.; Park, D.H.; Kim, K.; Kim, D. An Adaptive Approach Based on Resource-Awareness Towards Power-Efficient Real-Time Periodic Task Modeling on Embedded IoT Devices. Processes 2018, 6, 90. [Google Scholar] [CrossRef] [Scilit]
  5. Ahmad, S.; Malik, S.; Kim, D.H. Comparative Analysis of Simulation Tools with Visualization Based on Real-Time Task Scheduling Algorithms for IoT Embedded Applications. Int. J. Grid Distrib. Comput. 2018, 11, 1–10. [Google Scholar] [CrossRef] [Scilit]
  6. Hang, L.; Jin, W.; Yoon, H.; Hong, Y.G.; Kim, D.H. Design and Implementation of a Sensor-Cloud Platform for Physical Sensor Management on CoT Environments. Electronics 2018, 7, 140. [Google Scholar] [CrossRef] [Scilit]
  7. Zhang, X.M.; Zhang, N. An open, secure and flexible platform based on Internet-of-Things and cloud computing for ambient aiding living and telemedicine. In Proceedings of the International Conference on Computer and Management (CAMAN), Wuhan, China, 19–21 May 2011; pp. 1–4. [Google Scholar]
  8. Zanjal, S.V.; Talmale, G.R. Medicine reminder and monitoring system for secure health using IOT. Procedia Comput. Sci. 2016, 78, 471–476. [Google Scholar] [CrossRef] [Scilit]
  9. Baig, M.M. Smart Vital Signs Monitoring and Novel Falls Prediction System for Older Adults. Ph.D. Thesis, Auckland University of Technology, Auckland, New Zealand, 2014. [Google Scholar]
  10. World Health Organization. Telemedicine: Opportunities and Developments in Member States. Report on the Second Global Survey on eHealth; World Health Organization: Geneva, Switzerland, 2010. [Google Scholar]
  11. Kurunathan, J.H. Study and overview on WBAN under IEEE 802.15. 6. U. Porto J. Eng. 2015, 1, 11–21. [Google Scholar] [CrossRef] [Scilit]
  12. Authentication, S.U. HIPAA: Cost-Effective Compliance with Federal Security Mandates. Available online: https://www.principlelogic.com/wp-content/uploads/2018/06/HIPAAPSC_Ch3.pdf (accessed on 1 November 2018).
  13. Brokel, J. Moving Forward with NANDA-I Nursing Diagnoses with Health Information Technology for Economic and Clinical Health (HITECH) Act Legislation: News Updates. Int. J. Nurs. Terminol. Classif. 2010, 21, 182–185. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  14. Poon, C.C.; Zhang, Y.T.; Bao, S.D. A novel biometrics method to secure wireless body area sensor networks for telemedicine and m-health. IEEE Commun. Mag. 2006, 44, 73–81. [Google Scholar] [CrossRef] [Scilit]
  15. Clark, R.A.; Inglis, S.C.; McAlister, F.A.; Cleland, J.G.F.; Stewart, S. Telemonitoring or structured telephone support programmes for patients with chronic heart failure: systematic review and meta-analysis. BMJ 2007, 334, 942. [Google Scholar] [CrossRef] [Scilit]
  16. Takahashi, D.; Xiao, Y.; Hu, F.; Chen, J.; Sun, Y. Temperature-aware routing for telemedicine applications in embedded biomedical sensor networks. EURASIP J. Wirel. Commun. Netw. 2008, 2008, 26. [Google Scholar] [CrossRef] [Scilit]
  17. Lin, C.F. Mobile telemedicine: A survey study. J. Med. Syst. 2012, 36, 511–520. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  18. Klingeberg, T.; Schilling, M. Mobile wearable device for long term monitoring of vital signs. Comput. Methods Progr. Biomed. 2012, 106, 89–96. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  19. Rothman, B.; Leonard, J.C.; Vigoda, M.M. Future of electronic health records: Implications for decision support. Mount Sinai J. Med. J. Transl. Personal. Med. 2012, 79, 757–768. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  20. Vincent, C.; Neale, G.; Woloshynowych, M. Adverse events in British hospitals: Preliminary retrospective record review. BMJ 2001, 322, 517–519. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  21. Kause, J.; Smith, G.; Prytherch, D.; Parr, M.; Flabouris, A.; Hillman, K.; Intensive Care Society (UK); Australian and New Zealand Intensive Care Society Clinical Trials Group. A comparison of antecedents to cardiac arrests, deaths and emergency intensive care admissions in Australia and New Zealand and the United Kingdom—The ACADEMIA study. Resuscitation 2004, 62, 275–282. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  22. Yilmaz, T.; Foster, R.; Hao, Y. Detecting vital signs with wearable wireless sensors. Sensors 2010, 10, 10837–10862. [Google Scholar] [CrossRef] [Scilit]
  23. Filipe, L.; Fdez-Riverola, F.; Costa, N.; Pereira, A. Wireless body area networks for healthcare applications: Protocol stack review. Int. J. Distrib. Sens. Netw. 2015, 11, 213705. [Google Scholar] [CrossRef] [Scilit]
  24. Latré, B.; Braem, B.; Moerman, I.; Blondia, C.; Demeester, P. A Survey on Wireless Body Area Networks. Wirel. Netw. 2011, 17, 1–18. [Google Scholar] [CrossRef] [Scilit]
  25. Tang, Q.; Tummala, N.; Gupta, S.K.; Schwiebert, L. TARA: Thermal-aware routing algorithm for implanted sensor networks. In Distributed Computing in Sensor Systems; Springer: Berlin/Heidelberg, Germany, 2005; pp. 206–217. [Google Scholar]
  26. Bag, A.; Bassiouni, M.A. Energy Efficient Thermal Aware Routing Algorithms for Embedded Biomedical Sensor Networks. In Proceedings of the IEEE International Conference on Mobile Ad Hoc and Sensor Systems, Vancouver, BC, Canada, 9–12 October 2006; pp. 604–609. [Google Scholar]
  27. Takahashi, D.; Xiao, Y.; Hu, F. LTRT: Least total-route temperature routing for embedded biomedical sensor networks. In Proceedings of the IEEE Global Telecommunications Conference, Washington, DC, USA, 26–30 November 2007; pp. 641–645. [Google Scholar]
  28. Bag, A.; Bassiouni, M.A. Hotspot preventing routing algorithm for delay-sensitive applications of in vivo biomedical sensor networks. Inf. Fusion 2008, 9, 389–398. [Google Scholar] [CrossRef] [Scilit]
  29. Bag, A.; Bassiouni, M.A. Routing algorithm for network of homogeneous and id-less biomedical sensor nodes (RAIN). In Proceedings of the IEEE Sensors Applications Symposium, Atlanta, GA, USA, 12–14 Febryary 2008; pp. 68–73. [Google Scholar]
  30. Ahourai, F.; Tabandeh, M.; Jahed, M.; Moradi, S. A thermal-aware shortest hop routing algorithm for in vivo biomedical sensor networks. In Proceedings of the IEEE Sixth International Conference on Information Technology: New Generations, Las Vegas, NV, USA, 27–29 April 2009; pp. 1612–1613. [Google Scholar]
  31. Javaid, N.; Abbas, Z.; Fareed, M.; Khan, Z.A.; Alrajeh, N. M-ATTEMPT: A new energy-efficient routing protocol for wireless body area sensor networks. Procedia Comput. Sci. 2013, 19, 224–231. [Google Scholar] [CrossRef] [Scilit]
  32. Monowar, M.M.; Mehedi Hassan, M.; Bajaber, F.; Hamid, M.A.; Alamri, A. Thermal-aware multiconstrained intrabody QoS routing for wireless body area networks. Int. J. Distrib. Sens. Netw. 2014, 10, 676312. [Google Scholar] [CrossRef] [Scilit]
  33. Ahmad, A.; Javaid, N.; Qasim, U.; Ishfaq, M.; Khan, Z.A.; Alghamdi, T.A. RE-ATTEMPT: A new energy-efficient routing protocol for wireless body area sensor networks. Int. J. Distrib. Sens. Netw. 2014, 10. [Google Scholar] [CrossRef] [Scilit]
  34. Rafatkhah, O.; Lighvan, M.Z. M2E2: A novel multi-hop routing protocol for wireless body sensor networks. Int. J. Comput. Netw. Commun. Secur. 2014, 2, 260–267. [Google Scholar]
  35. Monowar, M.M.; Bajaber, F. On designing thermal-aware localized QoS routing protocol for in-vivo sensor nodes in wireless body area networks. Sensors 2015, 15, 14016–14044. [Google Scholar] [CrossRef] [Scilit]
  36. Monowar, M.M.; Bajaber, F. Towards Differentiated Rate Control for Congestion and Hotspot Avoidance in Implantable Wireless Body Area Networks. IEEE Access 2017, 5, 10209–10221. [Google Scholar] [CrossRef] [Scilit]
  37. Bhangwar, A.R.; Kumar, P.; Ahmed, A.; Channa, M.I. Trust and Thermal Aware Routing Protocol (TTRP) for Wireless Body Area Networks. Wirel. Pers. Commun. 2017, 97, 349–364. [Google Scholar] [CrossRef] [Scilit]
  38. Amrita, C.M.; Babiyola, D. self healing thermal aware rpl for body area networks. Int. J. Sci. Environ. Technol. 2017, 2, 1143–1152. [Google Scholar]
  39. Sangawana, A.; Bhattacharya, P. A study on various issues in different layers of WBAN. Int. J. Comput. Appl. 2015, 129, 24–28. [Google Scholar] [CrossRef] [Scilit]
  40. Zimmerman, T.G. Personal area networks: Near-field intrabody communication. IBM Syst. J. 1996, 35, 609–617. [Google Scholar] [CrossRef] [Scilit]
  41. Saleem, M.; Ullah, I.; Farooq, M. BeeSensor: An energy-efficient and scalable routing protocol for wireless sensor networks. Inf. Sci. 2012, 200, 38–56. [Google Scholar] [CrossRef] [Scilit]
  42. Ullah, I.; Saleem, M.; Farooq, M. Bee-sensor: A step towards meta-routing strategies in hybrid ad hoc networks. In Swarm Intelligence; Springer: Berlin Heidelberg, Germany, 2010; pp. 392–399. [Google Scholar]
  43. Ullah, S.; Higgins, H.; Braem, B.; Latre, B.; Blondia, C.; Moerman, I.; Saleem, S.; Rahman, Z.; Kwak, K.S. A comprehensive survey of wireless body area networks. J. Med. Syst. 2012, 36, 1065–1094. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  44. Medical Electrical Equipment—Part 2-33: Particular Requirements For the Safety of Magnetic Resonance Equipment for Medical Diagnosis; International Electrotechnical Commission: Geneva, Switzerland, 2010; pp. 2–33.
  45. Ren, H.; Meng, M.Q.H. Rate control to reduce bioeffects in wireless biomedical sensor networks. In Proceedings of the IEEE 3rd Annual International Conference on Mobile and Ubiquitous Systems-Workshops, San Jose, CA, USA, 17–21 July 2006; pp. 1–7. [Google Scholar]
  46. Bangash, J.I.; Abdullah, A.H.; Anisi, M.H.; Khan, A.W. A survey of routing protocols in wireless body sensor networks. Sensors 2014, 14, 1322–1357. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  47. Huang, G.; Tao, W.; Liu, P.; Liu, S. Multipath ring Routing in Wireless Sensor Networks. In Proceedings of the 2nd International Symposium on Computer; Atlantis Press: Paris, France, 2013. [Google Scholar] [CrossRef] [Scilit]
  48. Kandris, D.; Tsioumas, P.; Tzes, A.; Nikolakopoulos, G.; Vergados, D.D. Power conservation through energy efficient routing in wireless sensor networks. Sensors 2009, 9, 7320–7342. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  49. Nadeem, Q.; Javaid, N.; Mohammad, S.N.; Khan, M.; Sarfraz, S.; Gull, M. Simple: Stable increased-throughput multi-hop protocol for link efficiency in wireless body area networks. In Proceedings of the 8th International Conference on Broadband and Wireless Computing, Communication and Applications, Compiegne, France, 28–30 October 2013. [Google Scholar] [CrossRef] [Scilit]
  50. Yousaf, S.; Ahmed, S.; Akbar, M.; Javaid, N.; Khan, Z.A.; Qasim, U. Co-CEStat: Cooperative Critical Data Transmission in Emergency in Static Wireless Body Area Network. In Proceedings of the IEEE 2014 Ninth International Conference on Broadband and Wireless Computing, Communication and Applications (BWCCA), Guangzhou, China, 8–10 November 2014; pp. 127–132. [Google Scholar]
  51. Maalej, M.; Cherif, S.; Besbes, H. QoS and energy aware cooperative routing protocol for wildfire monitoring wireless sensor networks. Sci. World J. 2013, 2013, 11. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  52. Guo, C.; Prasad, R.V.; Jacobsson, M. Packet forwarding with minimum energy consumption in body area sensor networks. In Proceedings of the IEEE 2010 7th Consumer Communications and Networking Conference (CCNC), Las Vegas, NV, USA, 9–12 January 2010; pp. 1–6. [Google Scholar]
  53. Tauqir, A.; Javaid, N.; Akram, S.; Rao, A.; Mohammad, S.N. Distance aware relaying energy-efficient: Dare to monitor patients in multi-hop body area sensor networks. In Proceedings of the 8th International Conference on Broadband and Wireless Computing, Communication and Applications, Compiegne, France, 28–30 October 2013. [Google Scholar] [CrossRef] [Scilit]
  54. Khan, Z.A.; Sivakumar, S.; Phillips, W.; Aslam, N. A new patient monitoring framework and Energy-aware Peering Routing Protocol (EPR) for Body Area Network communication. J. Ambient Intell. Hum. Comput. 2014, 5, 409–423. [Google Scholar] [CrossRef] [Scilit]
  55. Liang, X.; Balasingham, I.; Byun, S.S. A reinforcement learning based routing protocol with QoS support for biomedical sensor networks. In Proceedings of the IEEE First International Symposium on Applied Sciences on Biomedical and Communication Technologies, Aalborg, Denmark, 25–28 October 2008; pp. 1–5. [Google Scholar]
  56. Djenouri, D.; Balasingham, I. New QoS and geographical routing in wireless biomedical sensor networks. In Proceedings of the Sixth International Conference on Broadband Communications, Networks and Systems, Madrid, Spain, 14–16 September 2009; pp. 1–8. [Google Scholar]
  57. Razzaque, M.A.; Hong, C.S.; Lee, S. Data-centric multiobjective QoS-aware routing protocol for body sensor networks. Sensors 2011, 11, 917–937. [Google Scholar] [CrossRef] [Scilit]
  58. Khan, Z.; Sivakumar, S.; Phillips, W.; Robertson, B. QPRD: QoS-aware peering routing protocol for delay sensitive data in hospital body area network communication. In Proceedings of the 2012 Seventh International Conference on Broadband, Wireless Computing, Communication and Applications (BWCCA), Victoria, BC, Canada, 12–14 November 2012; pp. 178–185. [Google Scholar]
  59. Khan, Z.A.; Sivakumar, S.; Phillips, W.; Robertson, B. A QoS-aware routing protocol for reliability sensitive data in hospital body area networks. Procedia Comput. Sci. 2013, 19, 171–179. [Google Scholar] [CrossRef] [Scilit]
  60. Culpepper, B.J.; Dung, L.; Moh, M. Design and Analysis of Hybrid Indirect Transmissions (HIT) for Data Gathering in Wireless Micro Sensor Networks. SIGMOBILE Mob. Comput. Commun. Rev. 2004, 8, 61–83. [Google Scholar] [CrossRef] [Scilit]
  61. Watteyne, T.; Augé-Blum, I.; Dohler, M.; Barthel, D. Anybody: A self-organization protocol for body area networks. In Proceedings of the ICST 2nd International Conference on Body Area Networks, Florence, Italy, 11–13 June 2007; ICST (Institute for Computer Sciences, Social-Informatics and Telecommunications Engineering): Brussels, Belgium, 2007. [Google Scholar]
  62. Quwaider, M.; Biswas, S. Probabilistic routing in on-body sensor networks with postural disconnections. In Proceedings of the 7th ACM International Symposium on Mobility Management and Wireless Access, Tenerife, Spain, 26–27 October 2009; ACM: New York, NY, USA, 2009; pp. 149–158. [Google Scholar]
  63. Quwaider, M.; Biswas, S. On-body packet routing algorithms for body sensor networks. In Proceedings of the IEEE First International Conference on Networks and Communications, Chennai, India, 27–29 December 2009; pp. 171–177. [Google Scholar]
  64. Quwaider, M.; Biswas, S. DTN routing in body sensor networks with dynamic postural partitioning. Ad Hoc Netw. 2010, 8, 824–841. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  65. Maskooki, A.; Soh, C.B.; Gunawan, E.; Low, K.S. Opportunistic routing for body area network. In Proceedings of the EEE Consumer Communications and Networking Conference (CCNC), Las Vegas, NV, USA, 9–12 January 2011; pp. 237–241. [Google Scholar]
  66. Movassaghi, S.; Abolhasan, M.; Lipman, J. Energy efficient thermal and power aware (ETPA) routing in body area networks. In Proceedings of the IEEE 23rd International Symposium on Personal Indoor and Mobile Radio Communications (PIMRC), Sydney, Australia, 9–12 September 2012; pp. 1108–1113. [Google Scholar]
  67. Braem, B.; Latre, B.; Moerman, I.; Blondia, C.; Demeester, P. The wireless autonomous spanning tree protocol for multihop wireless body area networks. In Proceedings of the IEEE Third Annual International Conference onMobile and Ubiquitous Systems: Networking & Services, San Jose, CA, USA, 17–21 July 2006; pp. 1–8. [Google Scholar]
  68. Latre, B.; Braem, B.; Moerman, I.; Blondia, C.; Reusens, E.; Joseph, W.; Demeester, P. A low-delay protocol for multihop wireless body area networks. In Proceedings of the Fourth Annual International Conference on Mobile and Ubiquitous Systems: Networking & Services, Philadelphia, PA, USA, 6–10 August 2007; pp. 1–8. [Google Scholar]
  69. Ruzzelli, A.G.; Jurdak, R.; O’Hare, G.M.; Van Der Stok, P. Energy-efficient Multi-hop Medical Sensor Networking. In Proceedings of the 1st ACM SIGMOBILE International Workshop on Systems and Networking Support for Healthcare and Assisted Living Environments, San Juan, Puerto Rico, 11 June 2007; pp. 37–42. [Google Scholar] [CrossRef] [Scilit]
  70. Bag, A.; Bassiouni, M.A. Biocomm—A cross-layer medium access control (MAC) and routing protocol co-design for biomedical sensor networks. Int. J. Parallel Emerg. Distrib. Syst. 2009, 24, 85–103. [Google Scholar] [CrossRef] [Scilit]
  71. Makki, S.K.; Li, X.Y.; Pissinou, N.; Makki, S.; Karimi, M.; Makki, K. Sensor and Ad-Hoc Networks; Springer: Berlin/Heidelberg, Germany, 2010. [Google Scholar]
  72. Varga, A.; Hornig, R. An overview of the OMNeT++ simulation environment. In Proceedings of the 1st International Conference on Simulation Tools and Techniques for Communications, Networks and Systems & Workshops, Marseille, France, 3–7 March 2008; ICST (Institute for Computer Sciences, Social-Informatics and Telecommunications Engineering): Brussels, Belgium, 2008; p. 60. [Google Scholar]
  73. Ngo, K.A.; Huynh, T.T.; Huynh, D.T. Simulation Wireless Sensor Networks in Castalia. In Proceedings of the International Conference on Intelligent Information Technology, Ha Noi, Viet Nam, 26–28 February 2018; pp. 39–44. [Google Scholar] [CrossRef] [Scilit]

Article Metrics

Citations

Article Access Statistics

Multiple requests from the same IP address are counted as one view.
