Electronics 2018, 7(12), 445; https://doi.org/10.3390/electronics7120445

Solution-Processable ZnO Thin Film Memristive Device for Resistive Random Access Memory Application

1
Computational Electronics and Nanoscience Research Laboratory, School of Nanoscience and Biotechnology, Shivaji University, Kolhapur 416004, India
2
School of Electronics Engineering, Chungbuk National University, Cheongju 28644, Korea
Authors contributed equally to this manuscript.
*
Authors to whom correspondence should be addressed.
Received: 1 November 2018 / Revised: 4 December 2018 / Accepted: 13 December 2018 / Published: 17 December 2018
(This article belongs to the Section Microelectronics and Optoelectronics)
Full-Text   |   PDF [5034 KB, uploaded 17 December 2018]   |

Abstract

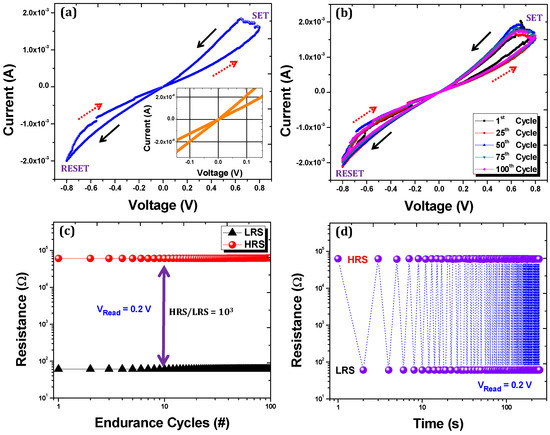

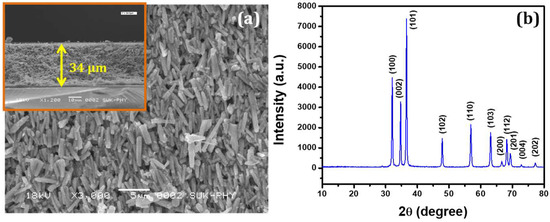

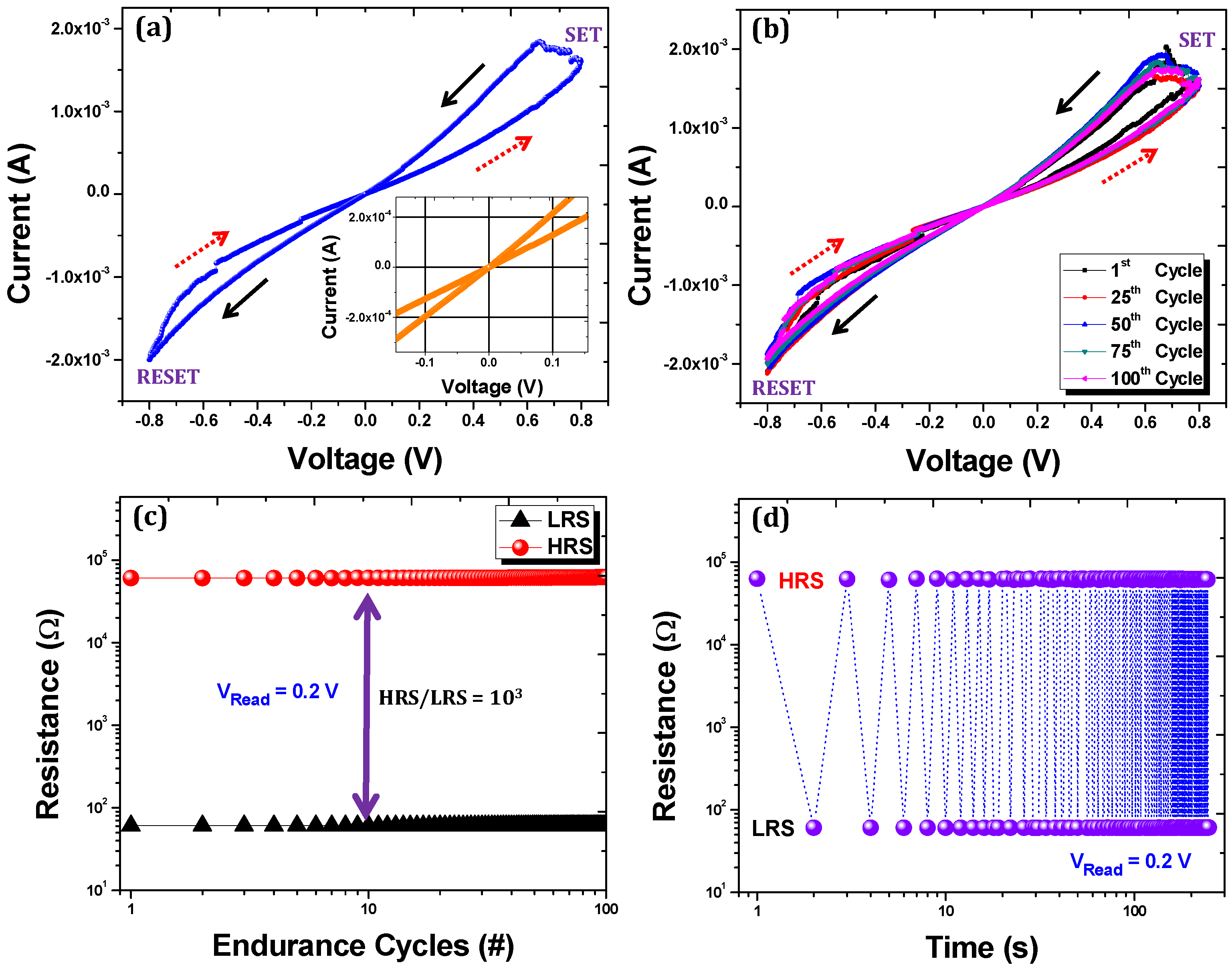

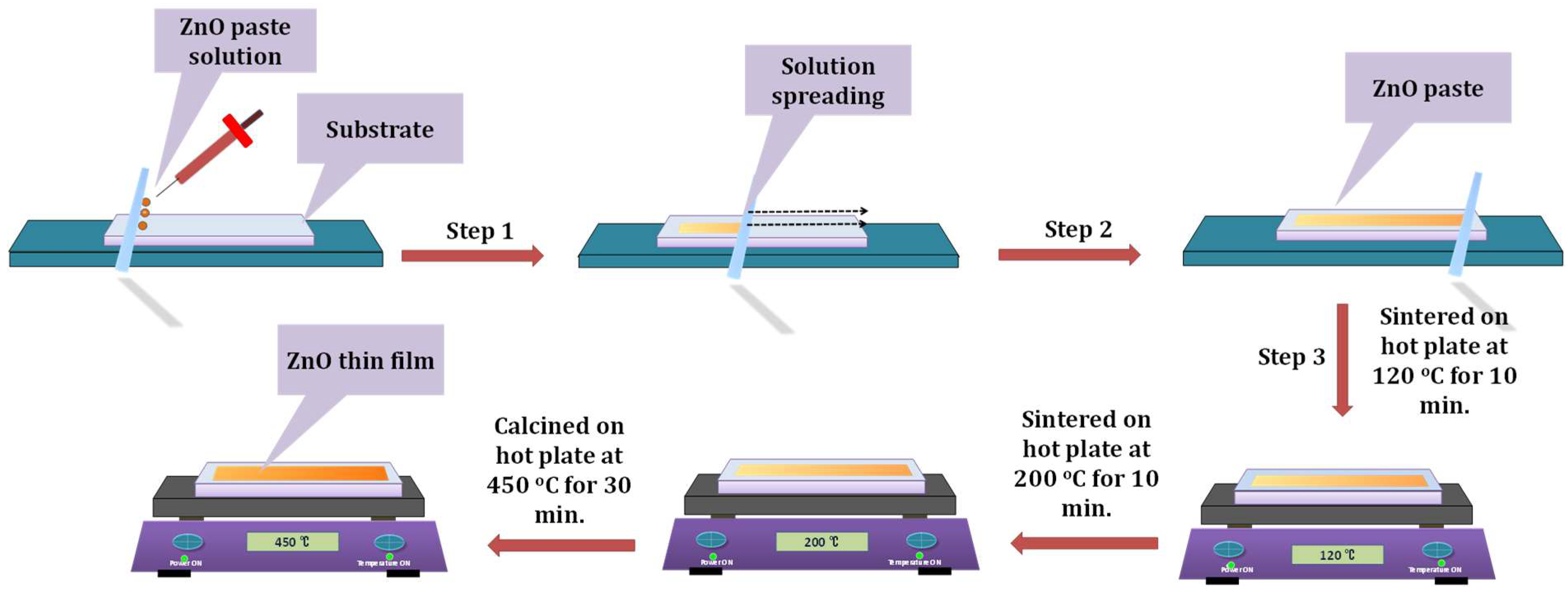

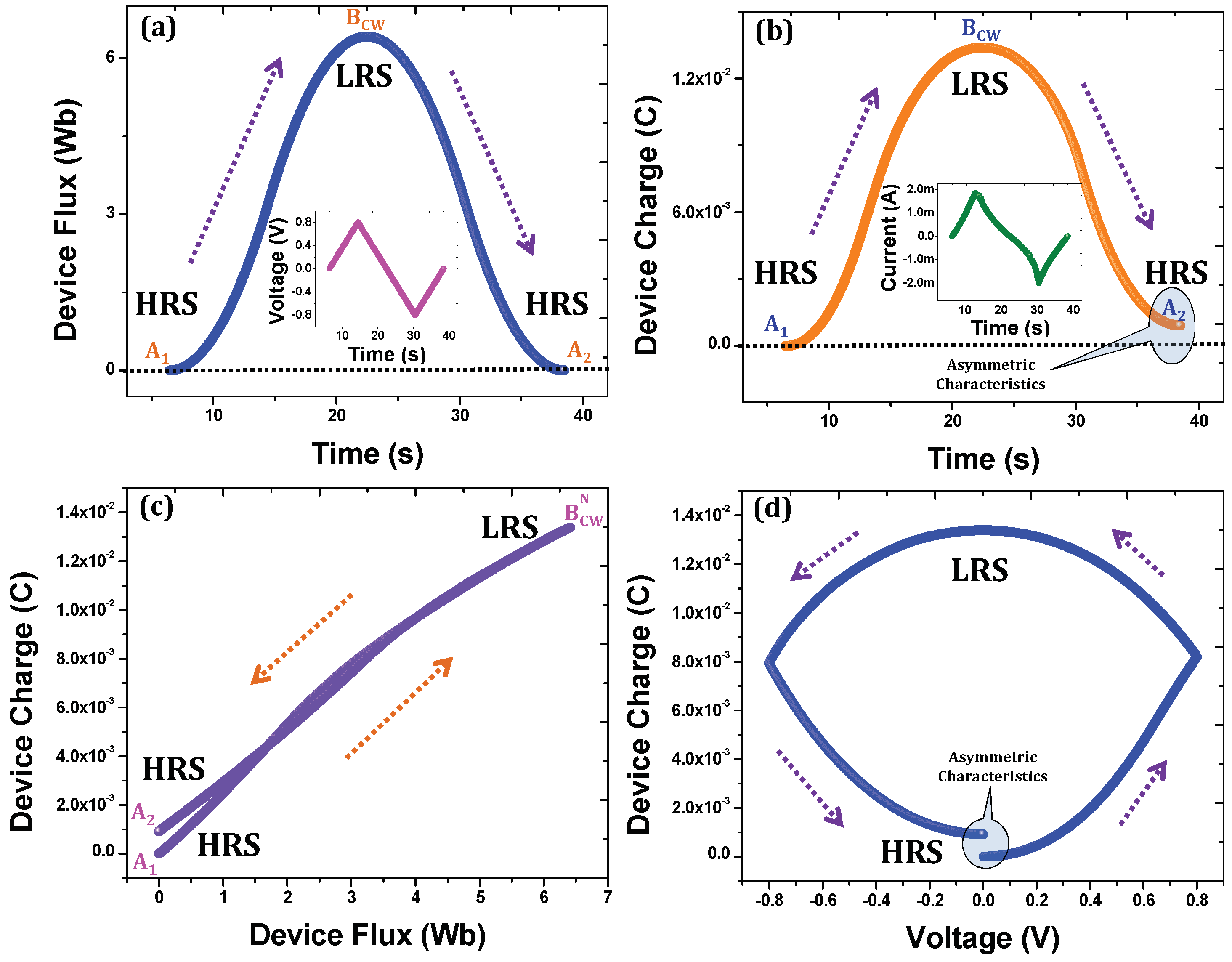

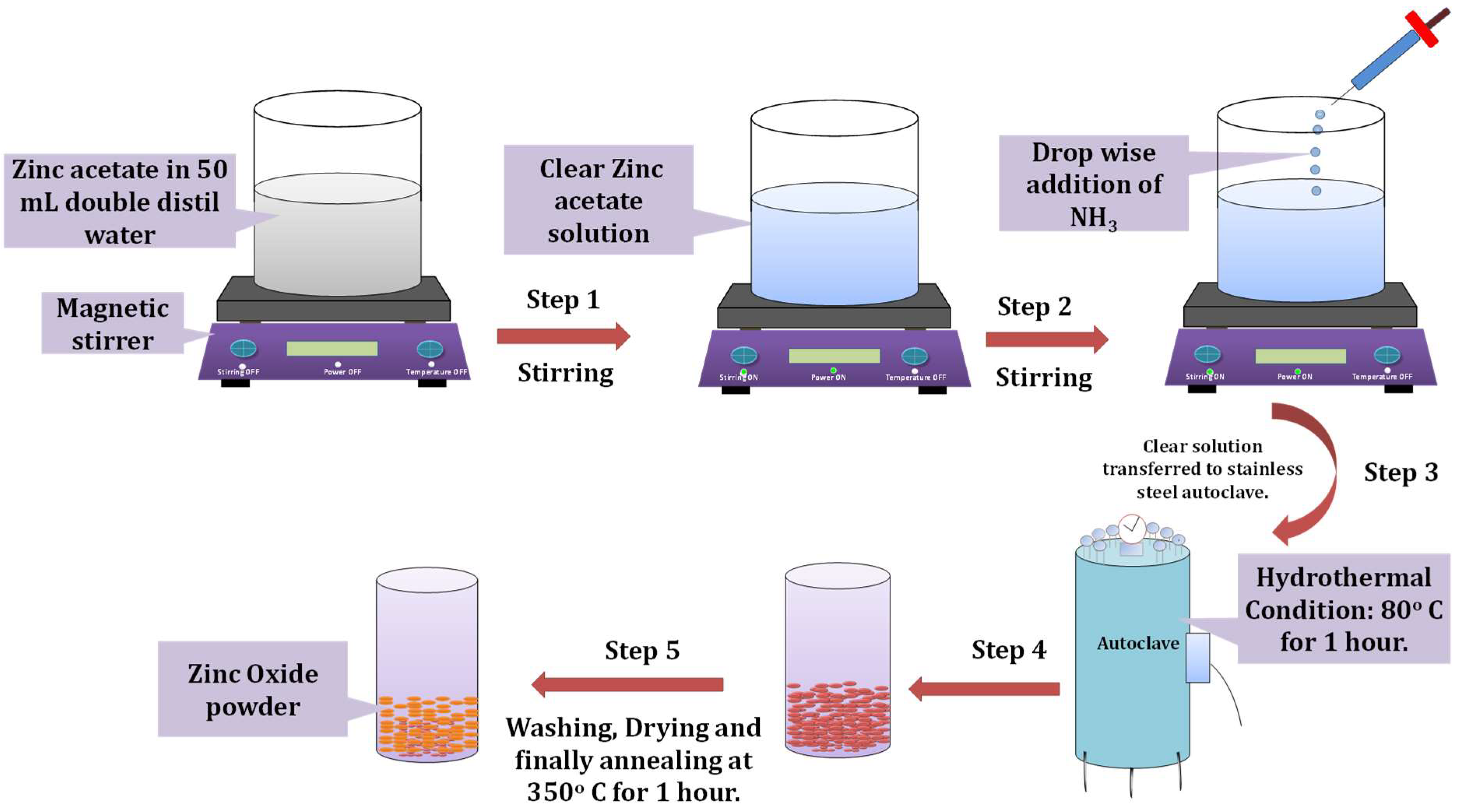

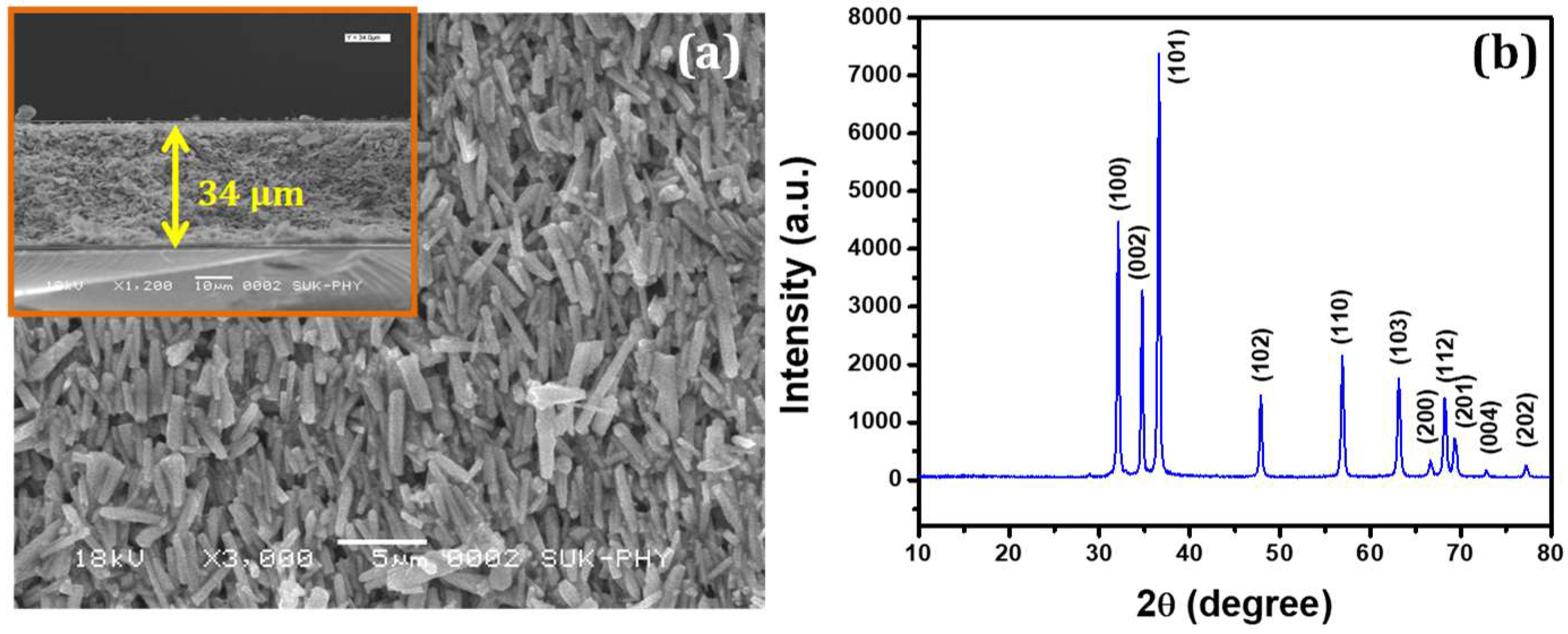

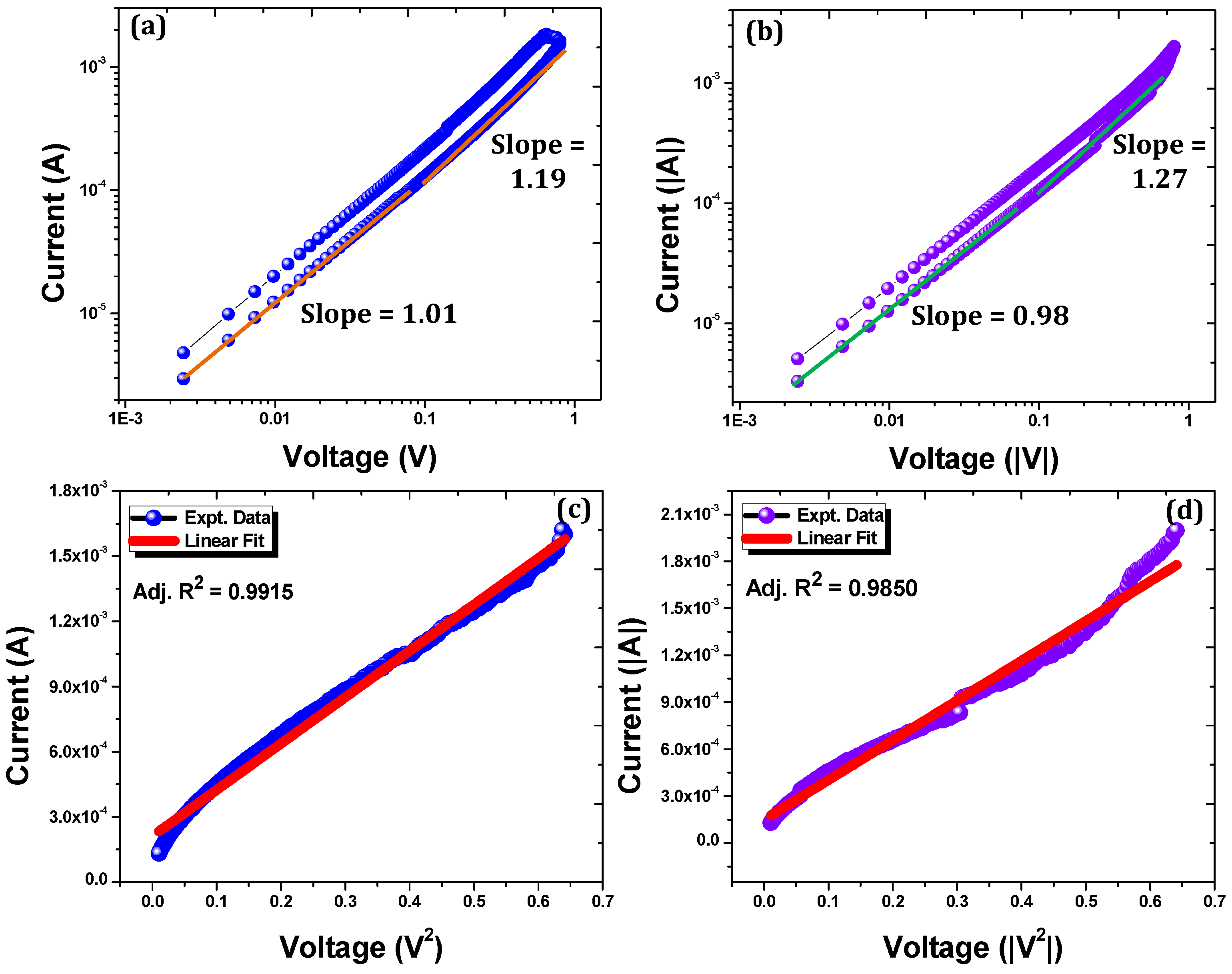

The memristive device is a fourth fundamental circuit element with inherent memory, nonlinearity, and passivity properties. Herein, we report on a cost-effective and rapidly produced ZnO thin film memristive device using the doctor blade method. The active layer of the developed device (ZnO) was composed of compact microrods. Furthermore, ZnO microrods were well spread horizontally and covered the entire surface of the fluorine-doped tin oxide substrate. X-ray diffraction (XRD) results confirmed that the synthesized ZnO was oriented along the c-axis and possessed a hexagonal crystal structure. The device showed bipolar resistive switching characteristics and required a very low resistive switching voltage (±0.8 V) for its operation. Two distinct and well-resolved resistance states with a remarkable 103 memory window were achieved at 0.2-V read voltage. The developed device switched successfully in consecutive 102 switching cycles and was stable over 102 seconds without any observable degradation in the resistive switching states. In addition to this, the charge–magnetic flux curve was observed to be a single-valued function at a higher magnitude of the flux and became double valued at a lower magnitude of the flux. The conduction mechanism of the ZnO thin film memristive device followed the space charge limited current, and resistive switching was due to the filamentary resistive switching effect. View Full-Text
Keywords: memristive device; ZnO; resistive switching; doctor blade method memristive device; ZnO; resistive switching; doctor blade method
