A Calibration-Free Fractional-N PLL with a Time-Averaged Current DAC for High Linearity

Abstract

This paper proposes a calibration-free Type-II fractional-N PLL that achieves high linearity by employing a time-averaged current DAC. By adopting a time-averaged current DAC, the proposed architecture inherently enables calibration-free operation and achieves superior linearity, successfully overcoming the fundamental limitations of conventional DTC- and PI-based approaches. The proposed time-averaged current DAC consists of two $G_m$ cells and a variable pulse-width generator. Interpolation is achieved by controlling the injection time of the $G_m$ cells’ output currents, effectively performing time-averaging between two current levels. By performing interpolation in the time domain instead of using conventional analog DAC implementations, the proposed approach simplifies the design and achieves improved linearity. The combination of the 3-bit time-averaged current DAC and the quad-phase divider reduces the quantization noise by 24 dB. The proposed PLL is designed in a 65 nm process. Simulation results show that it consumes 3.41 mW of power with a 25 MHz reference frequency and achieves an RMS jitter of 231.8 fs, integrated from 1 kHz to 100 MHz, and a figure-of-merit ($Fo{M}_N$) of −267.1 dB.

1. Introduction

Frequency synthesizers are essential components in modern wireless communication systems, requiring both fine frequency resolution and low phase noise. Fractional-N PLLs have been widely adopted due to their ability to achieve fine frequency resolution. However, fractional operation inherently introduces additional noise sources, such as quantization noise and spurious tones, which degrade phase noise performance. In general, reducing jitter requires a wider loop bandwidth to suppress VCO noise, but in fractional-N PLLs, the loop bandwidth is often limited by quantization noise, making it difficult to fully exploit this advantage. To enable a wider loop bandwidth, various techniques have been proposed to suppress quantization noise in fractional-N PLLs. Among them, the use of a digital-to-time converter (DTC) has been widely studied to cancel quantization noise in the time domain [1,2]. Owing to its high resolution, the DTC allows a wider loop bandwidth and enables the use of a high-gain phase detector. However, it typically requires a calibration loop to compensate for PVT variations, and achieving a wide delay range makes the design challenging. Another approach employs a pipelined time-domain phase interpolator (PI) [3]. Although inverter-based PIs can operate without calibration, they suffer from severe linearity degradation due to PVT variations and mismatch, and often require high power consumption. As a calibration-free alternative, DAC-based approaches have been proposed, as in [4,5]. Unlike DTC-based architectures, where the fractional control word is converted into an absolute delay and delay-gain error directly produces residual fractional phase error, DAC-based architectures perform relative interpolation between two adjacent phase samples. As DAC-based interpolation relies on the relative current ratio between adjacent phase samples rather than on an absolute delay gain, it relaxes the sensitivity to gain error and eliminates the need for DTC-like gain error calibration. In this work, a time-averaged current DAC is proposed. The proposed DAC consists of two $G_m$ cells and a variable pulse width generator, and performs DAC operation by controlling the injection time of the output currents, effectively achieving time-averaging between two current levels. The proposed time-averaging technique offers two distinct advantages over conventional analog DACs: it significantly reduces hardware complexity by eliminating the need for bulky analog current sources, and it inherently guarantees high linearity by precise time-domain division of a long reference period. This paper is organized as follows. Section 2 describes the overall architecture and operation of the proposed PLL, along with the circuit implementation of each block. Section 3 presents the noise analysis of each block. Simulation results and conclusions are given in Section 4 and Section 5, respectively.

2. Proposed Fractional-N PLL Architecture and Design

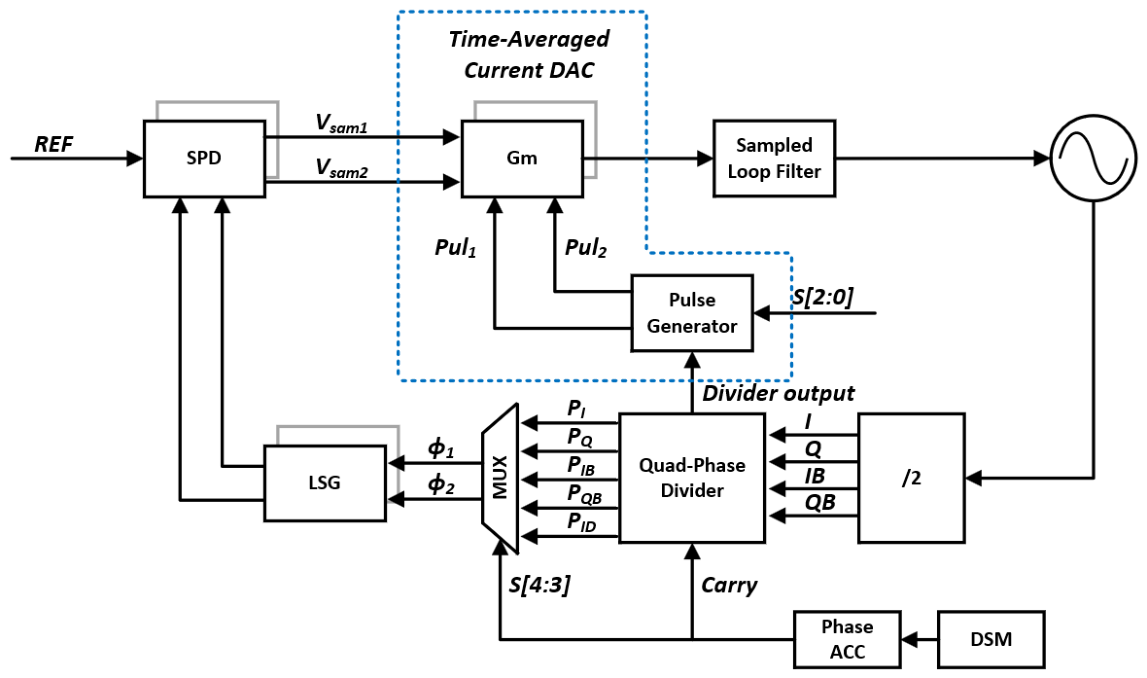

The overall architecture of the proposed PLL based on the time-averaged current DAC, which achieves fractional-N operation by controlling the pulse width of the output currents, is shown in Figure 1. The output of the LC-VCO is first divided by two to generate quadrature phases I, Q, $IB$, and $QB$. The quad-phase divider synchronizes the MMD output with the I, Q, $IB$, and $QB$ signals to generate signals $P_I$, $P_Q$, $P_{IB}$, $P_{QB}$, and $P_{ID}$, spaced by ${\displaystyle \frac{1}{2}}{T}_{VCO}$ (0°, 90°, 180°, 270°, and 360°). For phase wrapping operation, the output of a third-order DSM is accumulated by a 5-bit phase accumulator, and the carry output controls the division ratio of the MMD. A multiplexer selects one of two adjacent phases to generate the sampling edges (${\varphi }_1$, ${\varphi }_2$), and the two most significant bits ($S[4:3]$) of the phase accumulator are used as the selection signals.

The phase difference between the reference edge and the selected sampling edges (${\varphi }_1$, ${\varphi }_2$) is detected by two identical LSG/SPDs (linear slope generator/sampling PD). Two LSG/SPD circuits generate the sampled voltages $V_{sam1}$ and $V_{sam2}$, which are proportional to the phase difference. The sampled voltages are then applied to the $G_m$ cells, where they are converted into output currents. When $Pu{l}_1$ or $Pu{l}_2$ are high, the current sources in the $G_m$ cells inject currents into the loop filter. Let ${\tau }_1$ and ${\tau }_2$ denote the pulse widths of $Pu{l}_1$ and $Pu{l}_2$, respectively. The average current is determined by these pulse widths. Specifically, each $G_m$ cell injects current of $g_{m1}(V_{sam1}-V_{ref})$ and $g_{m2}(V_{sam2}-V_{ref})$ for durations of ${\tau }_1$ and ${\tau }_2$, respectively. As a result, the average output current of the $G_m$ cells is determined by the time-weighted combination of the two currents, effectively achieving interpolation between adjacent phase samples. The pulse widths ${\tau }_1$ and ${\tau }_2$ are generated based on the least significant 3 bits ($S[2:0]$) of the phase accumulator. This operation realizes fractional phase generation in the charge domain without requiring additional analog interpolation circuitry. By controlling ${\tau }_1$ and ${\tau }_2$, the proposed structure performs time-averaging between two discrete phase points, thereby suppressing quantization noise and improving linearity. Consequently, fine phase resolution is achieved while maintaining a simple and calibration-free implementation. Finally, a sampled loop filter is used, as in [6], to minimize spurs caused by current pulses injected into the loop filter by the $G_m$ cells.

2.1. LSG and SPD Circuit

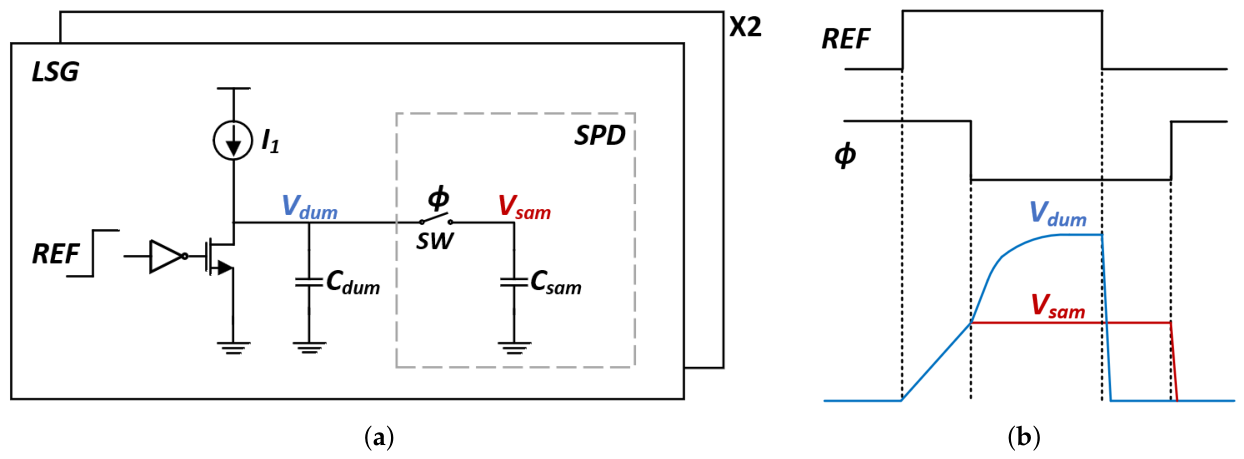

The LSG and SPD circuits adopt the structure in [3]. Their schematic and operating waveforms are shown in Figure 2a,b, respectively. When $REF$ is low and $\varphi$ is high, both $C_{sam}$ and $C_{dum}$ are discharged to ground through $M_1$. At the rising edge of $REF$, $M_1$ turns off and the current source $I_1$ starts charging $C_{sam}$ and $C_{dum}$. Because a constant current $I_1$ charges a capacitance $C_{sam}+C_{dum}$, the node voltages increase linearly with a slope of ${\displaystyle \frac{I_1}{C_{sam}+C_{dum}}}$. When $\varphi$ falls, the switch (SW) opens. At this moment, $V_{sam}$ is sampled, while $V_{dum}$ continues to increase. At the falling edge of $REF$, $M_1$ turns on again and discharges $V_{dum}$ to ground. Finally, when $\varphi$ rises, SW turns on and resets $V_{sam}$ to ground, preparing the circuit for the next cycle. In the proposed PLL, two identical LSG/SPDs detect the phase differences between the reference edge and the sampling edges (${\varphi }_1$ and ${\varphi }_2$). The resulting voltages are denoted as $V_{sam1}$ and $V_{sam2}$. $V_{sam1}$ and $V_{sam2}$ are then applied to the $G_m$ cells, as shown in Figure 1. The $G_m$ cells inject current only after $V_{sam}$ has settled, so no additional hold operation is required in the SPD.

2.2. $G_m$ Cells and Time-Averaged Current DAC

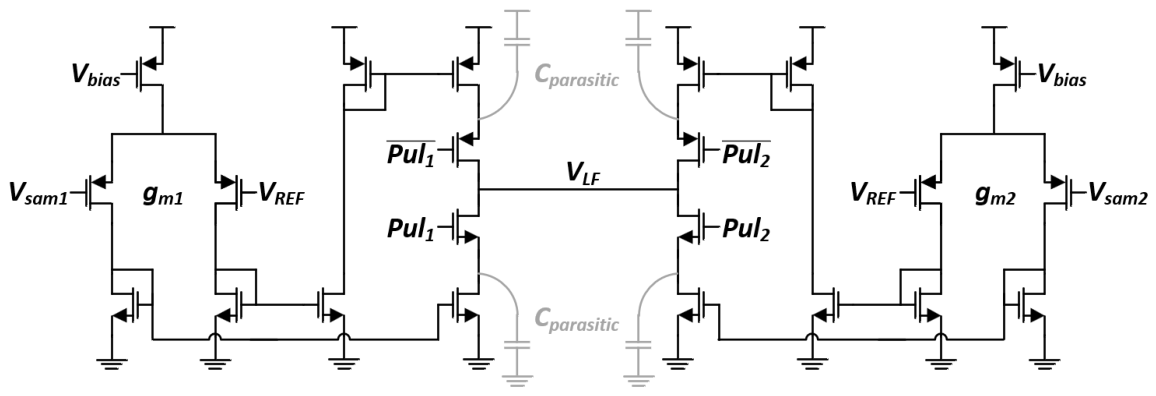

The schematics of the two $G_m$ cells are shown in Figure 3. Two identical $G_m$ cells convert the sampled voltages $V_{sam1}$ and $V_{sam2}$ into output currents proportional to their differences from $V_{ref}$. The reference voltage $V_{ref}$ is set to ${\displaystyle \frac{V_{DD}}{3}}$ so that the LSG operates within its linear region when the PLL is locked, and $G_{m1}$ and $G_{m2}$ are designed to be equal. When $Pul$ is high and $\overline{Pul}$ is low, the UP and DN current sources of the $G_m$ cells are connected to the loop filter and inject current into the loop filter. $Pu{l}_1$ and $Pu{l}_2$ are designed as non-overlapping pulses.

The proposed time-averaged current DAC is realized by the combination of the two $G_m$ cells and the pulse signals $Pu{l}_1$ and $Pu{l}_2$. The pulse signals are generated by a pulse generator using the divided VCO frequency. Let ${\tau }_s$ denote the pulse width step. Then, ${\tau }_1$ and ${\tau }_2$ can be expressed as

$${\tau }_1=(8-\alpha ){\tau }_s$$

(1)

$${\tau }_2=\alpha {\tau }_s$$

(2)

where $\alpha$ ranges from 0 to 7 and is controlled by the least significant 3 bits, $S[2:0]$, of the phase accumulator. Let $I_1$ and $I_2$ denote the currents injected into the loop filter by the two $G_m$ cells. As $g_{m1}=g_{m2}=g_m$, the currents are given by

$$I_1=(V_{sam1}-V_{ref})g_m$$

(3)

$$I_2=(V_{sam2}-V_{ref})g_m$$

(4)

The average output current over the current injection interval ${\tau }_1+{\tau }_2$ is then given by

$$I_{avg,{\tau }_1+{\tau }_2}={\displaystyle \frac{I_1{\tau }_1+I_2{\tau }_2}{{\tau }_1+{\tau }_2}}={\displaystyle \frac{I_1(8-\alpha ){\tau }_s+I_2\alpha {\tau }_s}{8{\tau }_s}}={\displaystyle \frac{8-\alpha }{8}}{I}_1+{\displaystyle \frac{\alpha }{8}}{I}_2$$

(5)

Therefore, by adjusting the value of $\alpha$, the proposed time-averaged current DAC can generate an average current between $I_1$ and $I_2$. This operation yields an average current equivalent to the weighted summation of current sources in a current DAC [4], under the same total current injection time. It should be noted that $I_{avg,{\tau }_1+{\tau }_2}$ in (5) is defined as the average current over the current injection interval ${\tau }_1+{\tau }_2$. The effective average current delivered to the loop filter over one reference period includes the duty factor $({\tau }_1+{\tau }_2)/T_{ref}$ and is given by

$$I_{avg,ref}=I_{avg,{\tau }_1+{\tau }_2}{\displaystyle \frac{{\tau }_1+{\tau }_2}{T_{ref}}}={\displaystyle \frac{I_1{\tau }_1+I_2{\tau }_2}{T_{ref}}}.$$

(6)

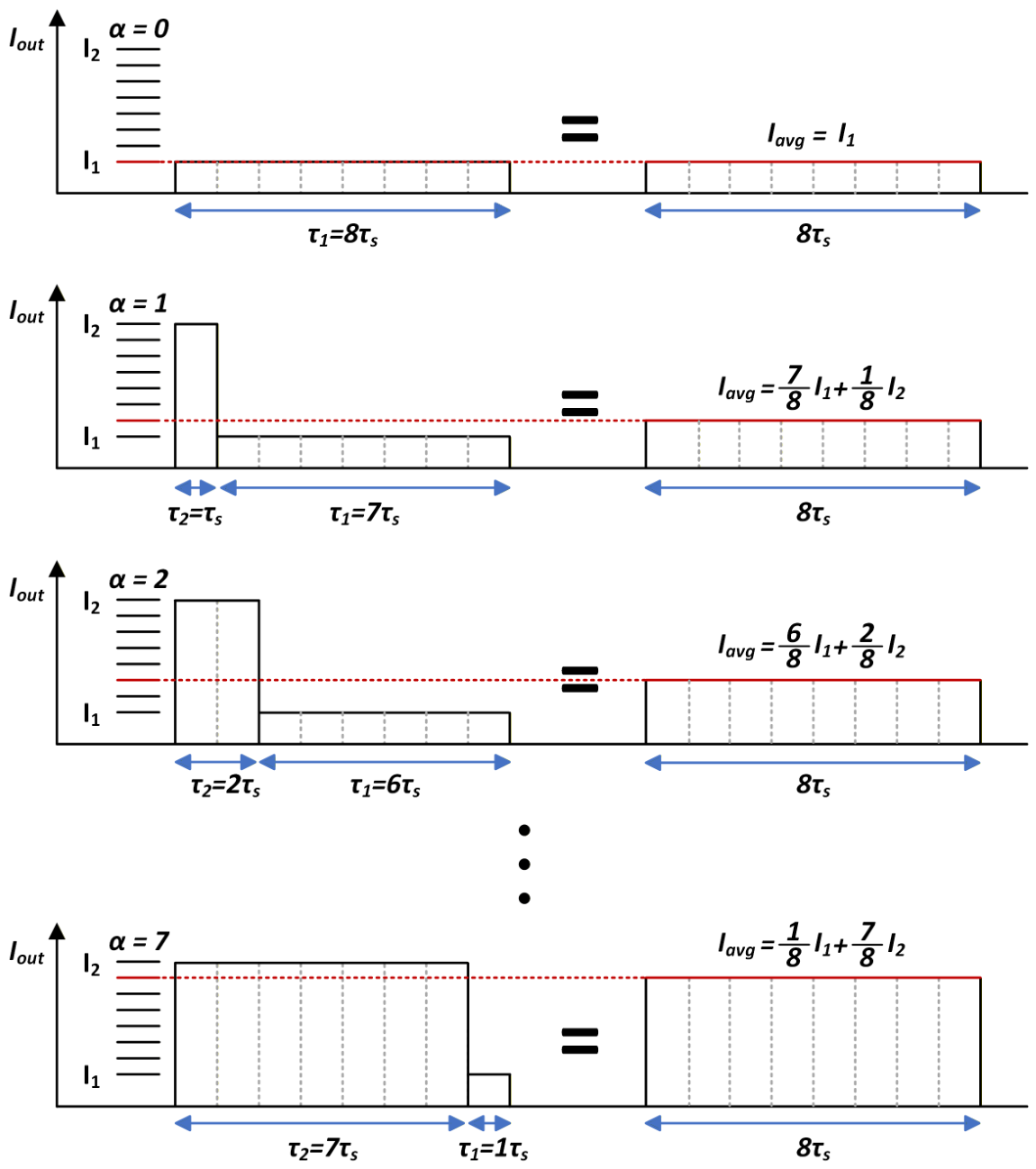

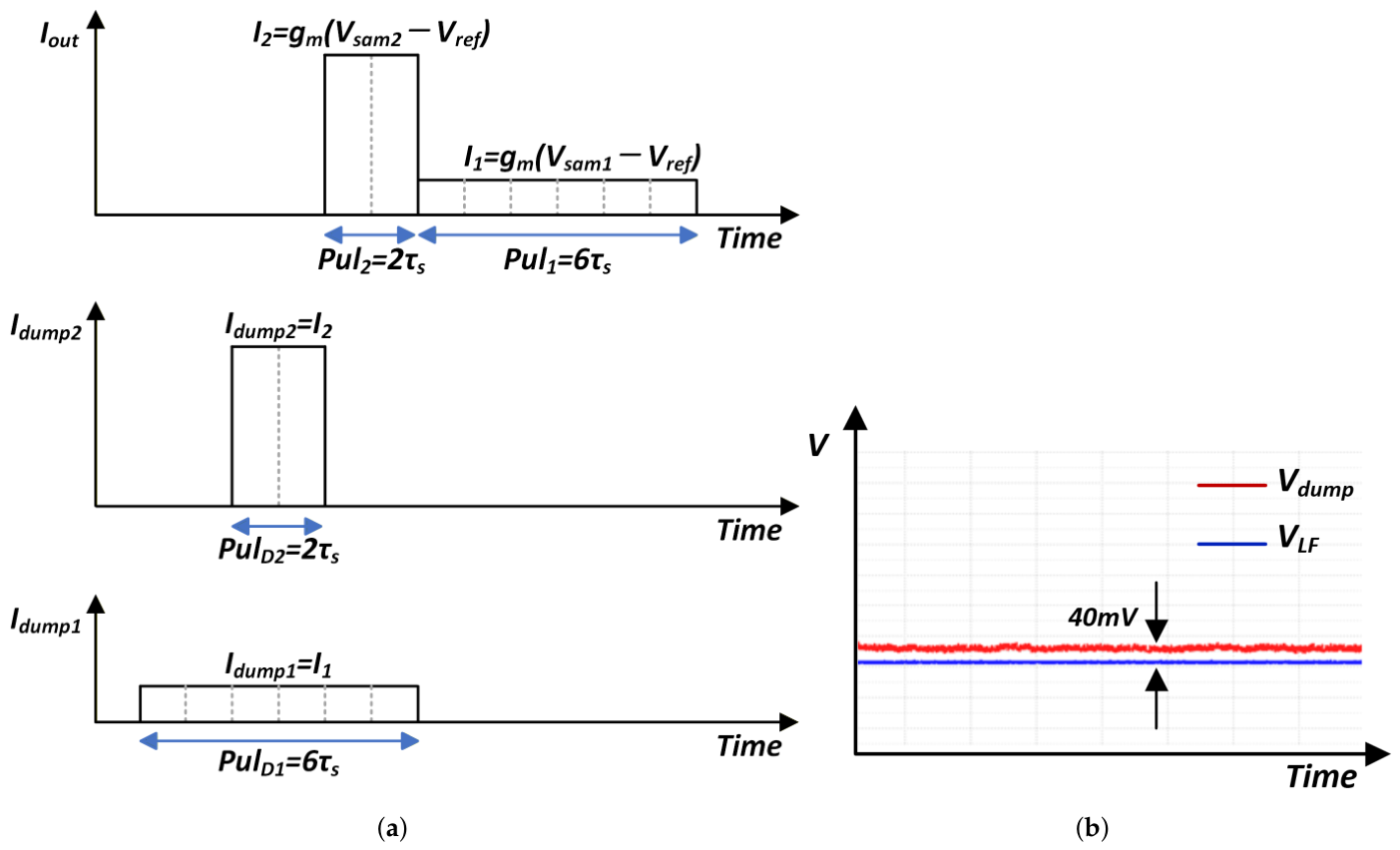

Figure 4 further illustrates the operation of the proposed time-averaged current DAC. For example, when $\alpha =0$, the average current over ${\tau }_1+{\tau }_2$ is equal to $I_1$. When $\alpha =1$, $I_1$ is injected into the loop filter for $7{\tau }_s$, while $I_2$ is injected for ${\tau }_s$. The resulting average current over ${\tau }_1+{\tau }_2$ is ${\displaystyle \frac{7}{8}}{I}_1+{\displaystyle \frac{1}{8}}{I}_2$. This behavior can be generalized for all values of $\alpha$, where the output current is interpolated between $I_1$ and $I_2$ with a resolution of ${\displaystyle \frac{1}{8}}$. Consequently, the proposed structure effectively realizes a 3-bit current DAC in the time domain, achieving current interpolation without requiring additional analog current sources. The 3-bit resolution was selected for fair comparison with the DAC-based architectures in [4]. The maximum INL target was set below 0.1 LSB for improved linearity over [4]. As the interpolation is performed in the time domain using digital pulse control over a reference period, the proposed approach achieves improved linearity.

However, in the proposed structure, when $Pul$ is low and the switch is open, the drain nodes of the current sources are charged to $V_{DD}$ for the PMOS and to ground for the NMOS. When the switch turns on, charge sharing occurs between these nodes and the loop filter capacitor, leading to current distortion. This results in degraded linearity of the proposed current DAC. While a unity-gain amplifier could suppress this effect [7], it incurs a severe power penalty. To address this trade-off, we employ an energy-efficient current dumping technique inspired by [8]. This approach pre-charges the drain node, effectively resolving the charge sharing issue without the need for power-hungry active amplifiers. However, when the $\overline{Pul}$ signal is used to inject current into the dumping node as in [8], $V_{LF}$ and $V_{dump}$ are not equal. This is because the average current injected into $C_{dump}$ differs from that injected into the loop filter. Therefore, a modified current injection scheme is required for the dumping node in the proposed structure. The final $G_m$ cells structure with improved charge sharing is shown in Figure 5. In each $G_m$ cell, an additional current path to $C_{dump}$ is introduced, and the current is steered to $C_{dump}$ when the $Pu{l}_D$ signal is high. The operation of the proposed structure is illustrated in Figure 6a.

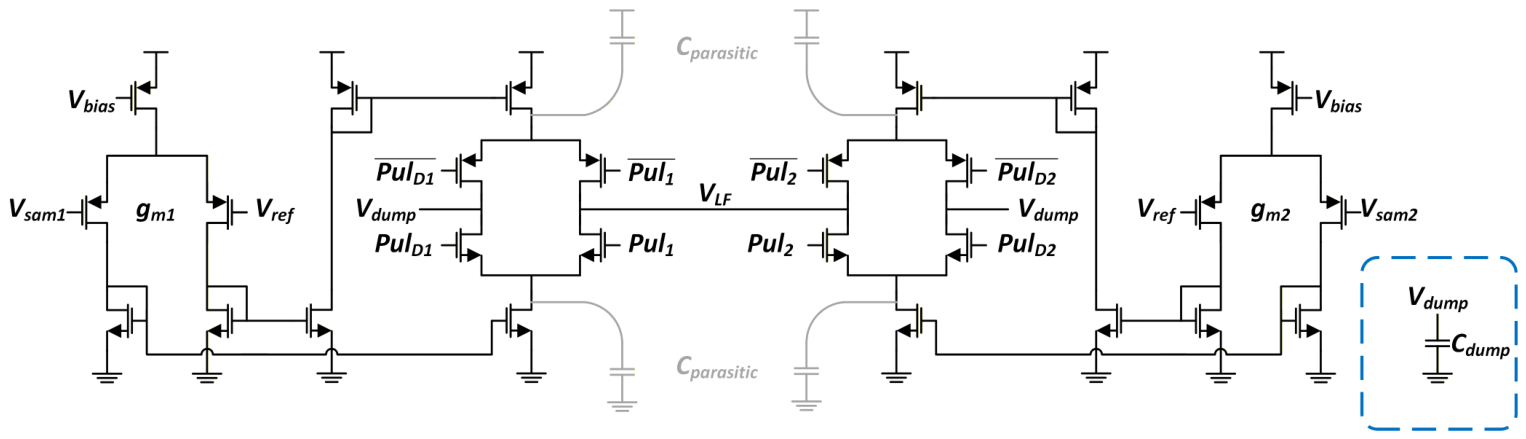

Before the main current is injected into the loop filter, auxiliary pulses $Pu{l}_D$ with the same pulse widths as $Pul$ are used to inject the same amount of current into $C_{dump}$. In this way, the voltage at $C_{dump}$ follows the loop filter voltage ($V_{LF}$) and pre-charges the drain node of the current source to the same level. For example, when $\alpha =2$, $Pu{l}_1$ and $Pu{l}_2$ operate in the same manner as in Figure 4, injecting an average current of ${\displaystyle \frac{6}{8}}{I}_1+{\displaystyle \frac{2}{8}}{I}_2$ into the loop filter. The auxiliary pulses $Pu{l}_{D2}$ and $Pu{l}_{D1}$ have the same pulse widths as $Pu{l}_2$ and $Pu{l}_1$, respectively. $Pu{l}_{D1}$ injects $I_1$ into $C_{dump}$ for a duration of ${\tau }_1=6{\tau }_s$, while $Pu{l}_{D2}$ injects $I_2$ into $C_{dump}$ for ${\tau }_2=2{\tau }_s$. Therefore, the total injected current into $C_{dump}$ is identical to that injected into the loop filter over the same period. In steady state, the net charge delivered to the loop filter and $C_{dump}$ is zero, and the voltage at $C_{dump}$ ($V_{dump}$) closely follows the loop filter voltage ($V_{LF}$) due to channel length modulation. Moreover, $Pu{l}_D$ remains high until the $Pul$ signal is applied, keeping the drain node of the current source at $V_{dump}$ prior to the main current injection. As a result, the drain node is pre-charged to the loop filter voltage, thereby significantly reducing charge sharing and improving linearity.

The simulated voltages at the $V_{dump}$ and $V_{LF}$ nodes are shown in Figure 6b. The steady-state offset between $V_{dump}$ and $V_{LF}$ is mainly caused by parasitic capacitance mismatch at the PMOS and NMOS current source drain nodes. Before the auxiliary dumping pulse $Pu{l}_D$ turns on, the PMOS drain node is charged to $V_{DD}$, whereas the NMOS drain node is discharged to ground. Thus, when $Pu{l}_D$ turns on, the capacitance mismatch between the two drain nodes introduces an additional charge error into $V_{dump}$, resulting in the steady-state offset between $V_{dump}$ and $V_{LF}$. The impact of this offset on the DAC linearity is further analyzed in Section 2.2.2.

Another design consideration is the selection of the pulse width step ${\tau }_s$. If the pulse width of $Pul$ is too short, the drain node of the current source does not have sufficient time to settle to $V_{dump}$, which still causes distortion in the output current. Therefore, in this work, the pulse width step ${\tau }_s$ is set to $4T_{VCO}$ to ensure sufficient settling time. The reference frequency is also set to 25 MHz to provide sufficient current injection time within each reference period.

2.2.1. Analytical Linearity Modeling of the Time-Averaged Current DAC

To analytically explain the linearity behavior of the proposed time-averaged current DAC, the average current is modeled by considering charge sharing induced current error, $G_m$ mismatch, and timing related non-idealities. For the 3-bit interpolation, the pulse widths ${\tau }_1$ and ${\tau }_2$ are determined by the interpolation code $\alpha$ as

$${\tau }_1=(8-\alpha ){\tau }_s$$

(7)

$${\tau }_2=\alpha {\tau }_s$$

(8)

where ${\tau }_s$ is the pulse width step. Therefore, the total current injection time is kept constant as

$${\tau }_{tot}={\tau }_1+{\tau }_2=8{\tau }_s$$

(9)

The ideal average current delivered to the loop filter over one reference period can be expressed as

$$I_{avg,ideal}\left(\alpha \right)={\displaystyle \frac{I_1{\tau }_1+I_2{\tau }_2}{T_{ref}}}={\displaystyle \frac{{\tau }_s}{T_{ref}}}\left[(8-\alpha )I_1+\alpha I_2\right]$$

(10)

where $I_1$ and $I_2$ are the output currents of the two $G_m$ cells. As ${\tau }_{\mathrm{tot}}=8{\tau }_s$ is constant, the ideal average current changes linearly with the interpolation code. In practical implementation, the residual average-current error can be decomposed into several error components as

$$\Delta I_{res}\left(\alpha \right)=\Delta I_{CS}\left(\alpha \right)+\Delta I_{G_m}\left(\alpha \right)+\Delta I_{\tau }\left(\alpha \right)$$

(11)

where $\Delta I_{\mathrm{CS}}$, $\Delta I_{G_m}$, and $\Delta I_{\tau }$ represent the residual errors due to charge sharing, $G_m$ mismatch, and timing related non-idealities, respectively.

The current domain errors caused by charge sharing and $G_m$ mismatch can be modeled as current errors during the two pulse intervals. In addition, timing related non-idealities, such as pulse edge jitter and duty cycle distortion, can be modeled as effective pulse width errors. When both current domain errors and time domain errors are included, the actual average current over one reference period can be written as

$$I_{avg,real}\left(\alpha \right)={\displaystyle \frac{(I_1+\Delta I_1)({\tau }_1+\Delta {\tau }_1)+(I_2+\Delta I_2)({\tau }_2+\Delta {\tau }_2)}{T_{ref}}}$$

(12)

where $\Delta I_1$ and $\Delta I_2$ represent the current errors during ${\tau }_1$ and ${\tau }_2$, respectively, and $\Delta {\tau }_1$ and $\Delta {\tau }_2$ represents the effective pulse width errors.

The residual average current error is then given by

$$\Delta I_{res}\left(\alpha \right)=I_{avg,real}\left(\alpha \right)-I_{avg,ideal}\left(\alpha \right)$$

(13)

$$\Delta I_{res}\left(\alpha \right)={\displaystyle \frac{\Delta I_1{\tau }_1+\Delta I_2{\tau }_2+I_1\Delta {\tau }_1+I_2\Delta {\tau }_2+\Delta I_1\Delta {\tau }_1+\Delta I_2\Delta {\tau }_2}{T_{ref}}}$$

(14)

As $\Delta I_1$ and $\Delta I_2$ are small current perturbations and $\Delta {\tau }_1$ and $\Delta {\tau }_2$ are small timing perturbations, the product terms $\Delta I_1\Delta {\tau }_1$ and $\Delta I_2\Delta {\tau }_2$ are much smaller than the first-order error terms. Therefore, these terms can be neglected, and the residual average current error can be approximated as

$$\Delta I_{res}\left(\alpha \right)\simeq {\displaystyle \frac{\Delta I_1{\tau }_1+\Delta I_2{\tau }_2}{T_{\mathrm{ref}}}}+{\displaystyle \frac{I_1\Delta {\tau }_1+I_2\Delta {\tau }_2}{T_{\mathrm{ref}}}}$$

(15)

The first term represents the current domain residual error caused by charge sharing and $G_m$ mismatch, while the second term represents the time domain residual error caused by pulse width errors. These pulse width errors mainly originate from the VCO timing variation used in the pulse generator. Even under free-running VCO conditions, the resulting timing error is expected to be only on the order of a few $ps$, which is much smaller than the minimum pulse width ${\tau }_s$ of approximately 1.67 ns. As $\Delta I$ is a few μA, the time domain error term $I\Delta \tau /T_{ref}$ is approximately two orders of magnitude smaller than the current-domain error term $\Delta I\tau /T_{ref}$ under this design condition. Therefore, the time domain residual error is negligible compared with the current domain residual error. Consequently, the residual average current error is dominated by the current domain term and can be simplified as

$$\Delta I_{res}\left(\alpha \right)\simeq {\displaystyle \frac{\Delta I_1{\tau }_1+\Delta I_2{\tau }_2}{T_{ref}}}$$

(16)

The INL is then obtained by normalizing this residual error to the ideal LSB current:

$$INL\left(\alpha \right)={\displaystyle \frac{\Delta I_{res}\left(\alpha \right)}{I_{LSB}}}$$

(17)

where the ideal LSB current over one reference period is defined as

$$I_{LSB}={\displaystyle \frac{{\tau }_s}{T_{ref}}}(I_2-I_1)$$

(18)

Based on this residual error model, the proposed time-averaged current DAC is designed to keep the maximum INL below 0.1 LSB. The charge sharing induced current error is identified as the dominant residual error, which is further verified through the $V_{dump}$ offset sweep and Monte Carlo simulations. The corresponding simulation results are discussed in detail in the following paragraphs.

2.2.2. Linearity Verification of the Proposed Time-Averaged Current DAC

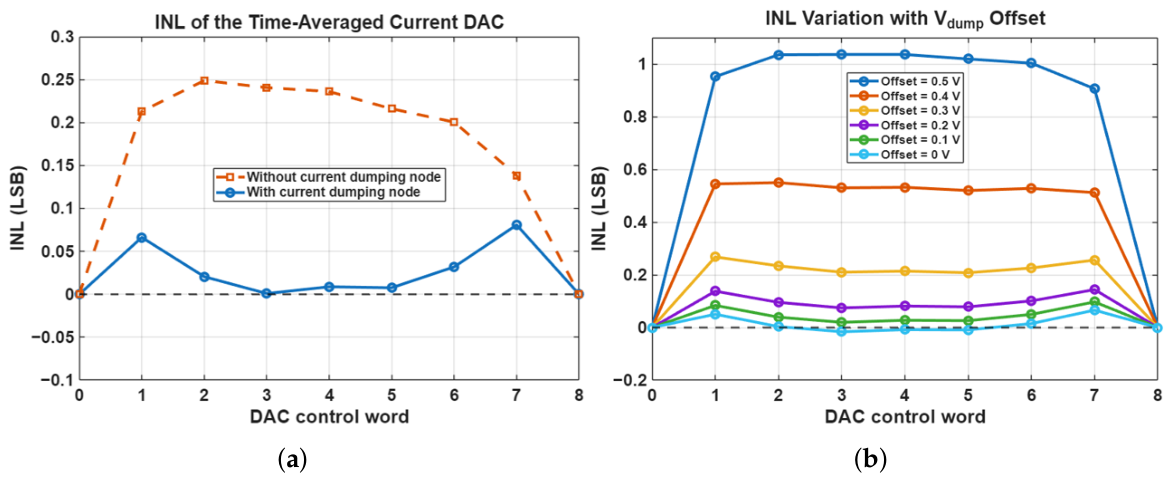

Figure 7a shows the linearity of the time-averaged current DAC with and without the charge sharing reduction structure for a typical simulation run. The structure with the current dumping node shows much better linearity than the one without it, confirming that the proposed charge sharing reduction structure effectively suppresses the current domain residual error. The INL degradation is mainly observed at DAC codes 001 and 111, where one of the pulse widths becomes the minimum value of ${\tau }_s$. It is meaningful to analyze the change in DAC linearity according to the offset between $V_{dump}$ and $V_{LF}$. Figure 7b shows the simulated INL for different offsets between $V_{dump}$ and $V_{LF}$. When the offset is large, the charge sharing reduction structure cannot effectively suppress the charge sharing effect. As a result, the INL increases over the entire DAC code range. When the offset decreases, the overall charge sharing induced error is reduced, and the residual INL degradation is mainly observed at DAC codes 001 and 111. This indicates that, after the offset between $V_{dump}$ and $V_{LF}$ is sufficiently reduced, the DAC linearity is primarily limited by the insufficient pre-charging time of the current source drain node. In this work, the offset is designed to remain below 50 mV, which is sufficient to meet the target INL requirement. To reduce the offset, the PMOS current source is sized to match the NMOS parasitic capacitance, at the cost of voltage headroom. The lengths of the current source are selected by considering the area-matching trade-off and the required output resistance, which leads to an increase in the drain node parasitic capacitance.

In this work, the two $G_m$ cells are implemented with a carefully symmetric layout to minimize mismatch. Nevertheless, mismatch between the two $G_m$ cells produces unequal transconductance values. In the proposed time-averaged current DAC, the interpolated average current is determined by the weighted combination of the two $G_m$ outputs. Therefore, the $G_m$ mismatch appears as a code-dependent current error and can degrade the linearity, resulting in INL degradation and potentially increasing fractional spurs. To verify the robustness of the DAC-based interpolation against device mismatch, Monte Carlo simulations were performed with mismatch variations applied to the two $G_m$ cells.

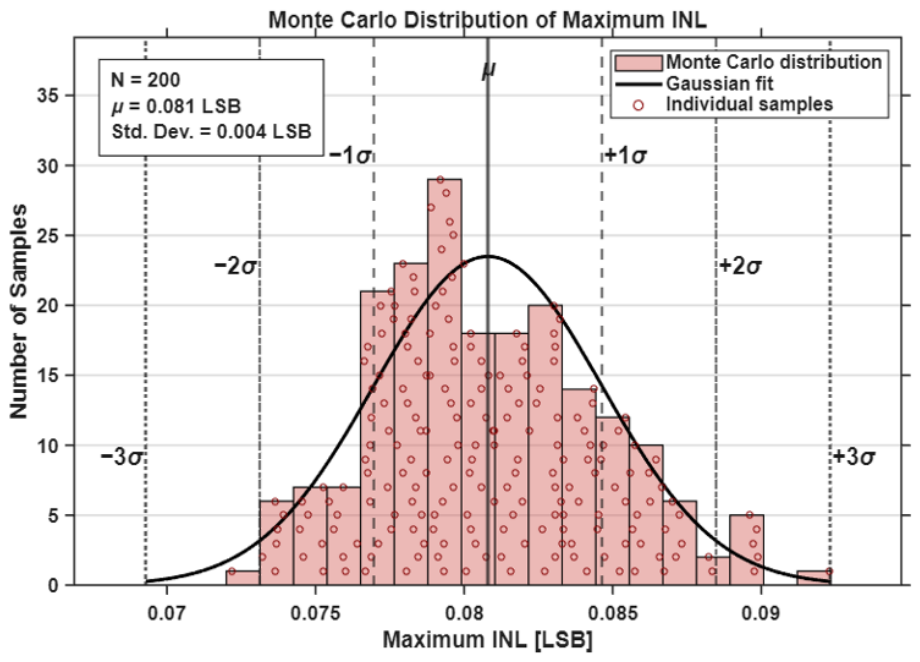

As shown in Figure 8, the simulated maximum INL remains within 0.0923 LSB within the 3$\sigma$ range over 200 Monte Carlo runs, demonstrating that the DAC-based interpolation maintains sufficient linearity under $G_m$ cell mismatch. In each Monte Carlo run, the maximum INL occurs at codes 001 and 111, indicating that the maximum INL is mainly dominated by charge sharing induced current distortion rather than by $G_m$ cell mismatch.

2.3. Quad-Phase Divider and Pulse Generator

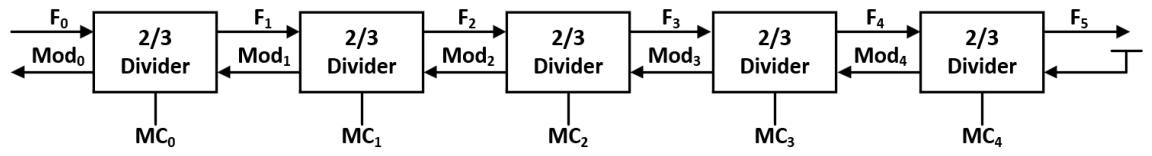

The MMD circuit is shown in Figure 9. The MMD is implemented by cascading 2/3 divider cells, as in [9]. When an input signal with a frequency of ${\displaystyle \frac{F_{VCO}}{2}}$ (denoted as $F_0$) is applied, $F_0$ is divided according to the division ratio selected by $MC$. The resulting output frequency is denoted as $F_5$ and is used in the quad-phase divider. In addition, the MMD generates another output, $Mo{d}_0$, with the same division ratio and a pulse width of $2T_{VCO}$, which is used in the pulse generator.

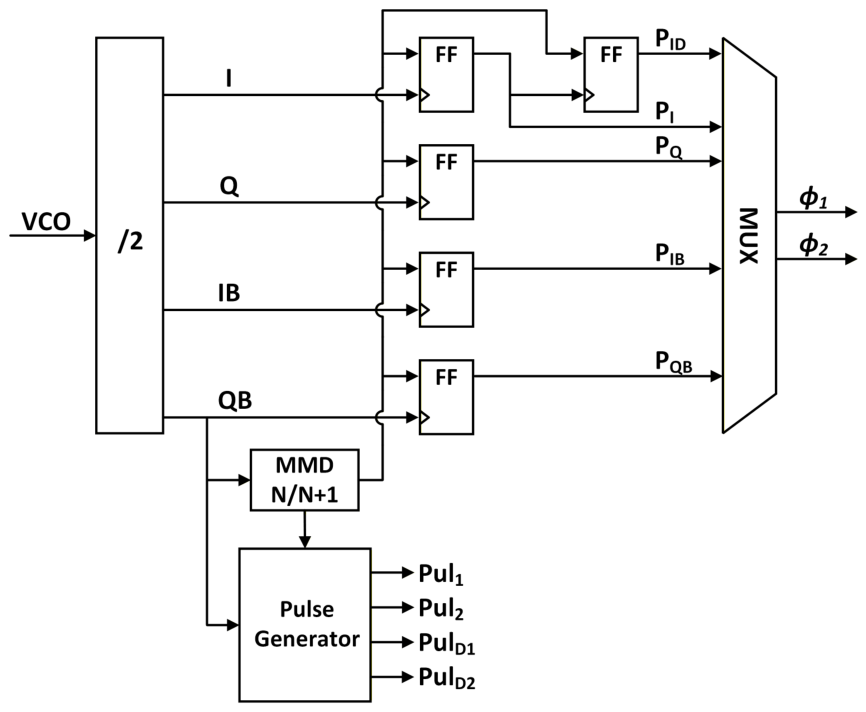

The quad-phase divider is shown in Figure 10. The operation of the quad-phase divider is as follows. A frequency divide-by-2 receives the VCO output and generates quadrature phases I, Q, $IB$, and $QB$ with a spacing of ${\displaystyle \frac{1}{2}}{T}_{VCO}$. These signals are then used to synchronize the MMD output $F_5$, generating phase signals $P_I$, $P_Q$, $P_{IB}$, $P_{QB}$, and $P_{ID}$ (corresponding to 0°, 90°, 180°, 270°, and 360°). A multiplexer uses the two most significant bits ($S[4:3]$) of the phase accumulator to select two adjacent phases from $P_I$ to $P_{ID}$ and uses them as the sampling edges (${\varphi }_1$, ${\varphi }_2$) for the LSG/SPD. To generate the pulse signals required for the time-averaged current DAC, a pulse generator is employed, as shown in Figure 11. The pulse generator consists of two main blocks: a shift register that generates multiple delayed pulse edges and a pulse selection block that selects the rising and falling edges of the output pulses. The shift register is clocked by $QB$ and generates a pulse sequence with a constant edge spacing of $2T_{VCO}$.

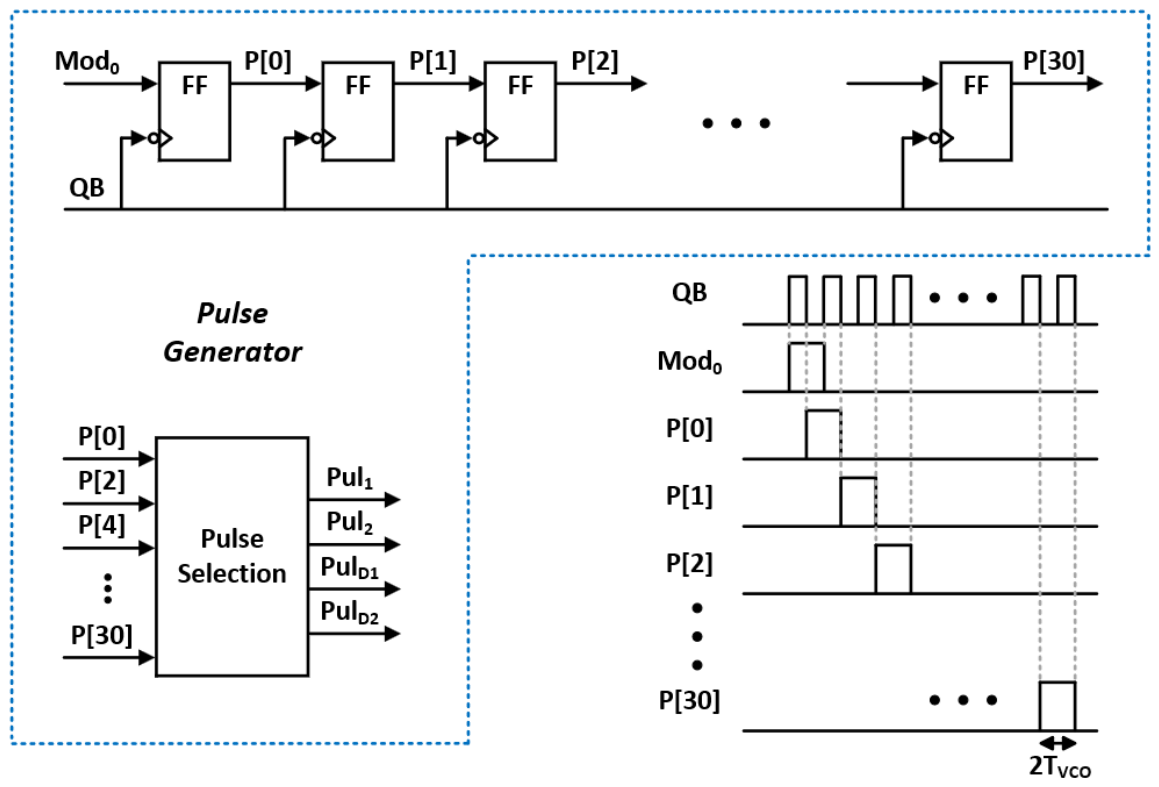

The operation of the shift register is as follows. The $Mo{d}_0$ signal is first aligned with the rising edge of $QB$ in the MMD. It is then sampled at the falling edge of $QB$ by the first flip-flop of the shift register to generate $P\left[0\right]$. The shift register then shifts $P\left[0\right]$ through each stage with a delay of $2T_{VCO}$ per flip-flop, driven by the falling edge of $QB$. This process generates the pulse sequence $P\left[0\right]$ to $P\left[30\right]$. The corresponding waveform of this operation is shown in Figure 11. The signals $P\left[0\right]$ to $P\left[30\right]$ are used in the pulse selection block to control the pulse widths of $Pu{l}_1$, $Pu{l}_2$, $Pu{l}_{D1}$, and $Pu{l}_{D2}$.

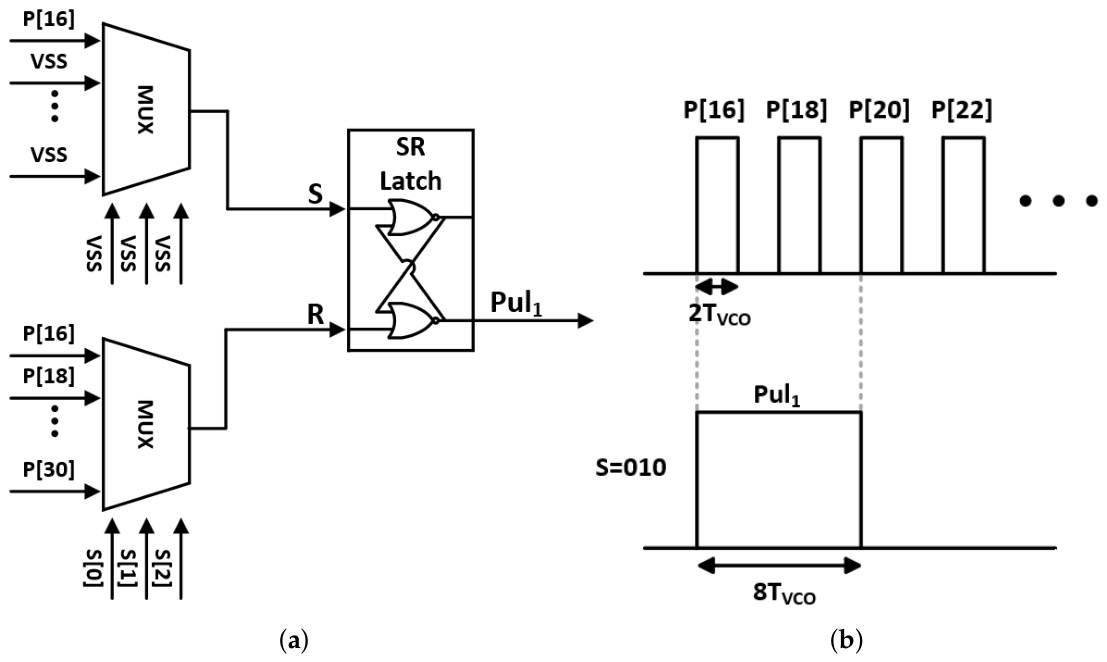

As shown in Figure 12a, the pulse selection block consists of multiplexers and SR latches, and its operating waveform is illustrated in Figure 12b. The multiplexers select two pulses from the delayed pulse sequence $P\left[n\right]$ and apply them to the S and R inputs of the SR latch. As the pulse step is set to $4T_{VCO}$, only even-indexed pulses among $P\left[n\right]$ are used as inputs to the multiplexer. The rising edge of the S-input pulse determines the rising edge of the latch output, while the rising edge of the R-input pulse determines the falling edge. The selection signals of the multiplexer are determined by the least significant 3 bits ($S[2:0]$) of the phase accumulator to generate the desired pulse width. For example, when $S[2:0]=010$, the rising edge of $Pu{l}_1$ is aligned with the rising edge of $P\left[16\right]$. The falling edge is aligned with $P\left[20\right]$, resulting in a pulse width of $2{\tau }_s=8T_{VCO}$. The remaining signals, $Pu{l}_2$, $Pu{l}_{D1}$, and $Pu{l}_{D2}$, are generated in the same manner, as illustrated in Figure 6a.

2.4. Sampled Loop Filter

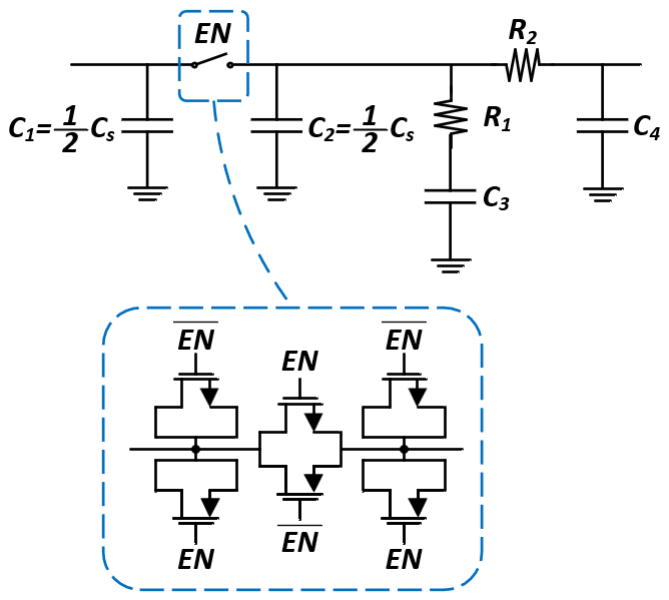

When the proposed time-averaged current DAC operates, different currents from the two $G_m$ cells are injected into the loop filter, which causes voltage variation at $V_{LF}$ and increases spurious tones. To minimize these spurs, a sampled loop filter structure, as in [6], is used, and its schematic is shown in Figure 13. The capacitor $C_s$ is divided into two equal capacitors with a switch between them. When the $EN$ signal is high, $C_1$ is connected to the rest of the loop filter. The switch is implemented using a transmission gate with a dummy switch to reduce charge injection. When current is injected from the $G_m$ cells, the switch is open, and $C_1$ integrates the current. After the current injection ends, the voltage on $C_1$ settles. Then, the switch is closed to allow charge sharing between $C_1$ and the rest of the loop filter. As a result, voltage variation is prevented from directly propagating to the loop filter, which suppresses spur components.

To quantify the contribution of the sampled loop filter, the fractional spur was compared with and without the sampled loop filter. When the sampled loop filter is enabled, the fractional spur is further reduced by approximately 1 dB. Compared to [10], which employs a wide loop bandwidth, the sampled loop filter has a smaller impact in this work, as the narrow loop bandwidth already sufficiently attenuates the fractional spur.

Even under this condition, the sampled loop filter further suppresses the residual fractional spur that remains after the loop-dynamics attenuation. Thus, it serves as an auxiliary spur suppression mechanism that offers additional design margin and robustness.

2.5. LC-VCO

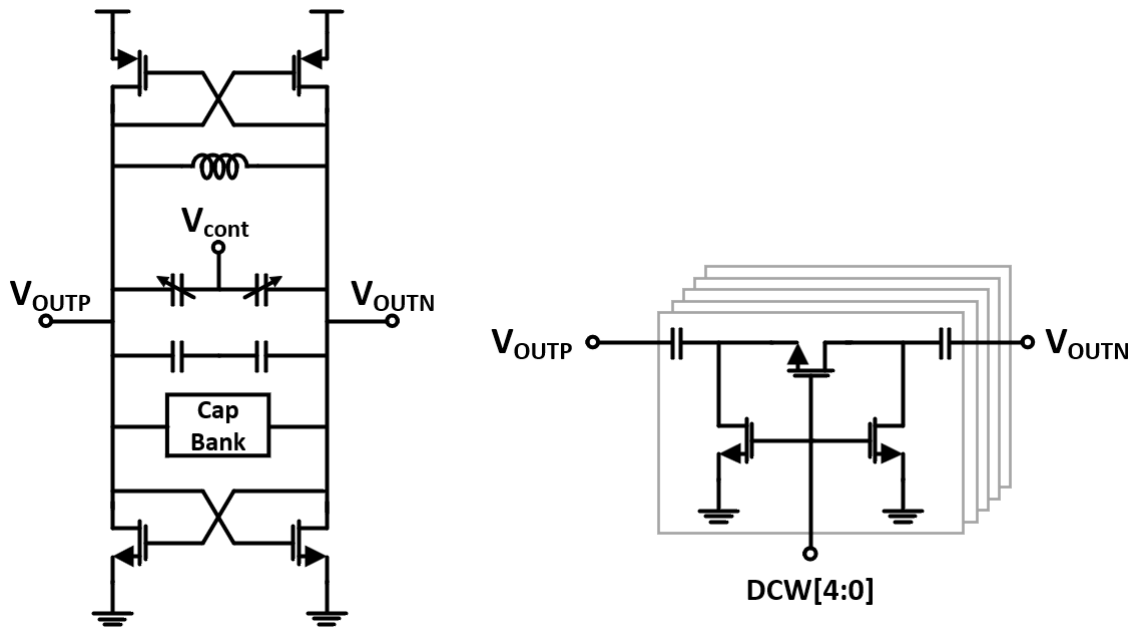

The schematic of the LC-VCO is shown in Figure 14. An NMOS and PMOS cross-coupled pair structure is used in the LC-VCO due to its power efficiency. The VCO covers a frequency range of 2.3–2.5 GHz, and $K_{VCO}$ is designed to be approximately 50 MHz/V. A 5-bit capacitor bank provides discrete coarse frequency tuning to cover the desired frequency range under PVT variations. The proposed PLL targets 2.4 GHz ISM-band wireless applications, such as Bluetooth-like low-power wireless transceivers.

3. Noise Analysis of the Proposed Architecture

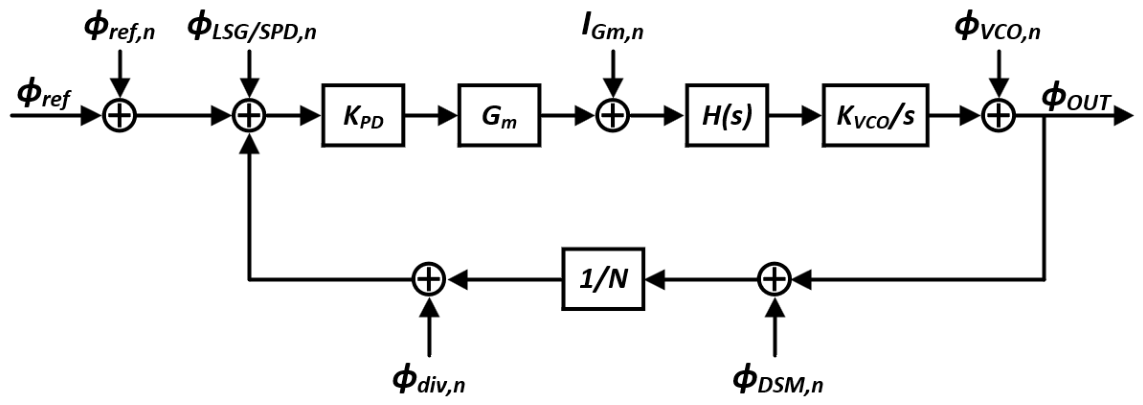

In this section, the noise contributions of each block are analyzed. The linearized phase-domain model of the proposed PLL is shown in Figure 15.

3.1. $G_m$ Cells Noise

The noise and feedback gain of the proposed $G_m$ cells are the same as those of a single $G_m$ cell with a pulser in [3]. Unlike [4], the currents of $G_{m1}$ and $G_{m2}$ do not change with the DAC code. As each $G_m$ cell injects current only during its pulse width within one reference period, the effective noise contribution includes the corresponding duty factor. Only the injection time changes with the DAC code. The thermal noise spectral density of each $G_m$ cells is given as follows.

$$S_{i,Gm1}=8kT\gamma g_{m1}{\displaystyle \frac{{\tau }_1}{T_{ref}}}$$

(19)

$$S_{i,Gm2}=8kT\gamma g_{m2}{\displaystyle \frac{{\tau }_2}{T_{ref}}}$$

(20)

k is Boltzmann’s constant and T is the absolute temperature. $S_{i,Gm1}$ and $S_{i,Gm2}$ represent the thermal noise spectral densities of $G_{m1}$ and $G_{m2}$, respectively. As $g_{m1}=g_{m2}=g_m$ and the total injection time ${\tau }_{tot}$ is given by ${\tau }_1+{\tau }_2$, the overall noise spectral density of the $G_m$ cells can be expressed as follows.

$$S_{i,Gm}=8kT\gamma g_m{\displaystyle \frac{{\tau }_{tot}}{T_{ref}}}$$

(21)

This corresponds to the noise of a single $G_m$ cell with a current injection time of ${\tau }_{tot}$. Similarly, the feedback gain of the $G_m$ cells can be written as follows.

$${\beta }_{Gm}={\displaystyle \frac{\Delta i_{Gm}}{\Delta {\varphi }_{VCO}}}={\displaystyle \frac{\frac{\Delta {\varphi }_{DIV}}{2\pi }{T}_{ref}{S}_l{g}_m}{\Delta {\varphi }_{VCO}}}{\displaystyle \frac{{\tau }_{tot}}{T_{ref}}}={\displaystyle \frac{S_l{g}_m{\tau }_{tot}}{2\pi N}}$$

(22)

The factor ${\tau }_{tot}/T_{ref}$ accounts for the duty factor of the pulsed $G_m$ cell operation, so the effective $G_m$ cell gain seen by the loop filter is scaled by this duty factor. The in-band noise contribution of the $G_m$ cells can be calculated as follows using (21) and (22).

$${\mathcal{L}}_{in-band,Gm}={\displaystyle \frac{1}{2}}{S}_{i,Gm}{\left|{\displaystyle \frac{1}{{\beta }_{Gm}}}\right|}^2={\displaystyle \frac{16kT\gamma {\pi }^2{N}^2}{T_{ref}{S}_l^2{g}_m{\tau }_{tot}}}$$

(23)

$G_m$ cell-induced noise can be reduced by increasing $G_m$ through higher current consumption. In this work, ${\tau }_{tot}$ = 13.2 ns, $S_l$ = 300 MV/s, N = 96, and $g_m$ = 0.33 mS, and the in-band noise due to the $G_m$ cells is −108 dBc/Hz, making it the dominant noise source in the in-band region.

3.2. LSG/SPD Noise

The noise contribution of the LSG/SPD is evaluated by converting the voltage noise on $C_{sam}$ into the corresponding phase error at the divider output in steady state.

$$\overline{v_{SPD,n}^2}={\displaystyle \frac{kT}{C_{sam}}}={\left(S_l{\displaystyle \frac{\Delta {\varphi }_{DIV,SPD}}{2\pi }}{T}_{ref}\right)}^2$$

(24)

As $\Delta {\varphi }_{VCO}=N\Delta {\varphi }_{DIV}$, this can be written in terms of the VCO phase error as follows.

$$\overline{v_{SPD,n}^2}={\displaystyle \frac{kT}{C_{sam}}}={\left(S_l{\displaystyle \frac{\Delta {\varphi }_{VCO,SPD}}{2\pi N}}{T}_{ref}\right)}^2$$

(25)

$$\Delta {\varphi }_{VCO,SPD}^2={\displaystyle \frac{kT}{C_{sam}}}{\left({\displaystyle \frac{2\pi N}{S_l{T}_{ref}}}\right)}^2$$

(26)

As the LSG/SPD samples at $f_{ref}$, the in-band phase noise is limited to ${\displaystyle \frac{f_{ref}}{2}}$. The in-band phase noise due to the LSG/SPD can be calculated as follows.

$$2{\mathcal{L}}_{in-band,SPD}{\displaystyle \frac{f_{ref}}{2}}=\Delta {\varphi }_{VCO,SPD}^2$$

(27)

By substituting (26) for $\Delta {\varphi }_{VCO}$, the expression can be written as follows.

$${\mathcal{L}}_{in-band,SPD}={\left({\displaystyle \frac{2\pi N}{S_l}}\right)}^2{\displaystyle \frac{kT}{C_{sam}}}{\displaystyle \frac{1}{T_{ref}}}={\left({\displaystyle \frac{2\pi }{S_l}}\right)}^2{\displaystyle \frac{kT}{C_{sam}}}{T}_{ref}{f}_{VCO}^2$$

(28)

In the LSG/SPD design, increasing $S_l$ reduces the LSG/SPD-induced noise. However, $S_l$ is limited by the requirement to ensure the linearity of the $G_m$ cell at the selected sampling edge. Although increasing the capacitance can also reduce the LSG/SPD-induced noise, a larger current is required to maintain the same $S_l$. In this circuit, $T_{ref}$ = 40 ns, $C_{sam}=C_{hold}=150\mathrm{fF}$, and $f_{VCO}=2.4\mathrm{GHz}$. The in-band phase noise of the LSG/SPD is −116 dBc/Hz and can be considered negligible.

3.3. DSM and Divider Noise

Quantization noise power can be expressed as

$${\sigma }_q^2={\displaystyle \frac{{\Delta }^2}{12}}$$

(29)

where $\Delta$ is the quantization step size. When the step size is reduced by a factor of M, the resulting quantization noise power becomes

$${\sigma }_{q,1/M}^2={\displaystyle \frac{{(\Delta /M)}^2}{12}}={\displaystyle \frac{{\Delta }^2}{12M^2}}={\displaystyle \frac{{\sigma }_q^2}{M^2}}$$

(30)

Therefore, reducing the quantization step size by a factor of M suppresses the quantization-noise power by $20lo{g}_{10}\left(M\right)$ dB. In the proposed architecture, the quad-phase divider generates phase edges from 0° to 360° with a spacing of $T_{VCO}/2$. The two adjacent edges are then selected and further interpolated by the time-averaged current DAC with 3-bit resolution. Therefore, the proposed architecture is equivalent to dividing one $T_{VCO}$ period into 16 phase steps, as in [3]. Therefore, quantization noise is reduced by $20lo{g}_{10}\left(16\right)\approx 24$ dB compared to a conventional fractional-N PLL. In addition, the phase noise of the divider is negligible because the divider output is retimed by a D flip-flop.

4. Simulation Results

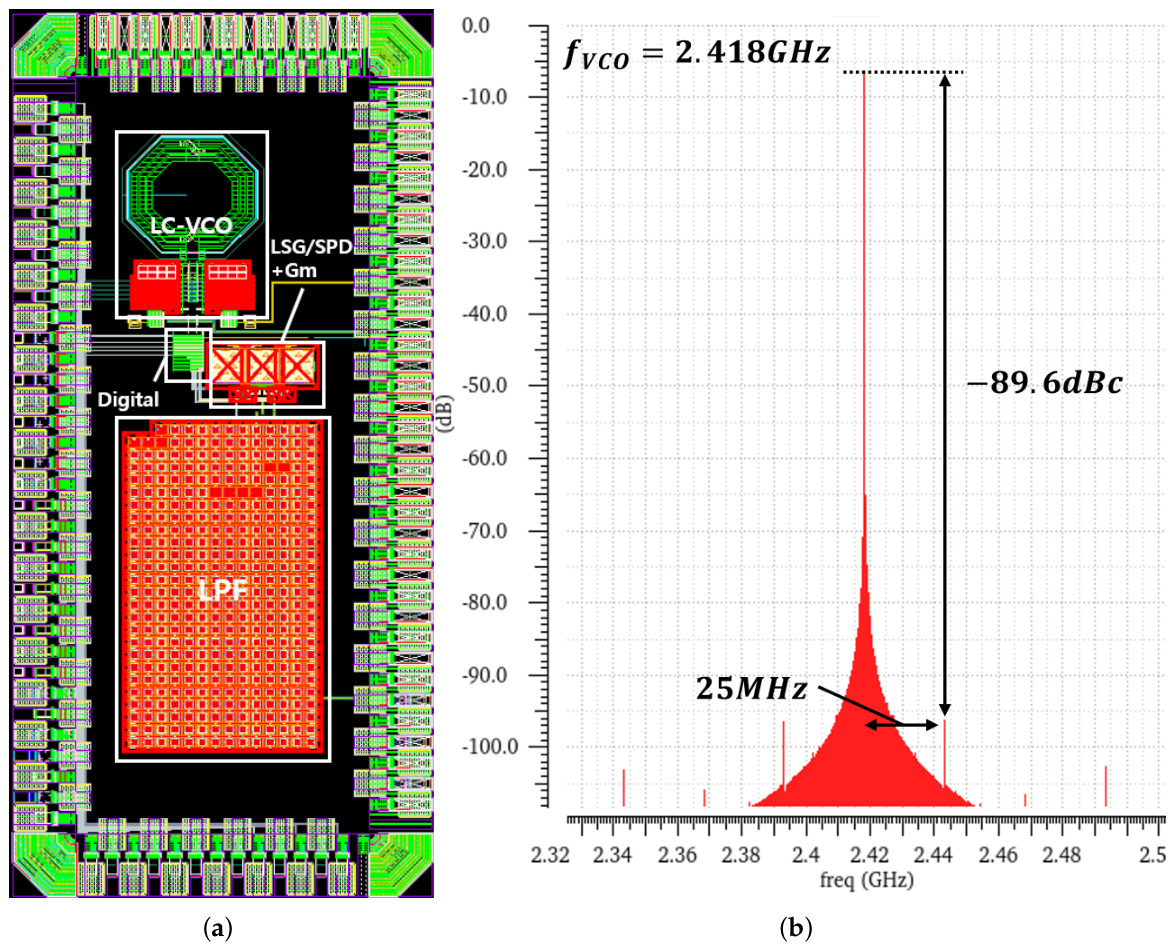

The proposed fractional-N PLL is designed in a 65 nm CMOS process with a 1 V supply, and the layout of the chip is shown in Figure 16a. The total power consumption is 3.41 mW, and the power consumption of each block is summarized in

Table 1. Power breakdown.

Block	Power Consumption (mW)
VCO	1.62
LSG/SPD	0.23
$G_m$ cells	0.47
DSM	0.18
Pulse generator/Divider	0.91

. Figure 16b shows the simulated output spectrum in fractional-N mode.The simulated in-band phase noise is −108 dBc/Hz, and the reference spur is −89.6 dBc, while the fractional spur is −65.1 dBc with the sampled loop filter. The loop bandwidth is approximately 200 kHz, and the RMS jitter, integrated from 1 kHz to 100 MHz, is 231 fs.

Table 2. Comparison with calibration-free Fractional-N PLLs.

Ref.	[3]	[4]	[5]	[10]	This Work *
	TCAS-1’2019	JSSC’2021	TCAS-2’2025	TCAS-1’2025
Process (nm)	130	130	65	40	65
Architecture	Inverter-based	DAC-based	Embedded phase	Dual loop	Time-averaged
	PI	PICP	interpolation PD	phase clamping	current DAC
Out. Freq (GHz)	1.9–2.3	1.8–2.3	5.7–5.9	3	2.3–2.5
Ref. Freq (MHz)	50	50	100	31.25	25
In-band PN (dBc/Hz)	−110	−106	−110.4	N/A	−108.2
	@200 kHz	@200 kHz	@150 kHz		@100 kHz
RMS jitter ${\sigma }_{jitter}$ (fs)	291.3	414	202	197.8	231.8 §
(Integ. range)	(10 kHz–10 MHz)	(N/A)	(N/A)	(N/A)	(1 kHz–100 MHz)
Ref. Spur (dBc)	−83	−83	−74.3	−123.6	−89.6
Frac. Spur (dBc)	−48.5	−57	−49.6	−96.6	−65.1
Power (mW)	3.2	2.8	4.8	13.2	3.41
$FoM$ †	−246	−243	−247.1	−242.8	−247.3
$Fo{M}_N$ ‡	−262.4	−259.4	−264.7	−262.6	−267.1

* Simulated, ^† $FoM=10lo{g}_{10}({\sigma }_{jitter}^2\times Power/1\mathrm{mW})$, ^‡ $Fo{M}_N=FoM+10lo{g}_{10}\left({\displaystyle \frac{F_{ref}}{F_{VCO}}}\right)$, ^§ Estimated from modeling and circuit-level simulations., N/A: not available from the referenced paper.

compares the proposed PLL with other calibration-free fractional-N PLLs. In conventional fractional-N PLLs, a lower reference frequency generally acts as a performance penalty. However, in the proposed architecture, the 25 MHz reference frequency also offers a design benefit. It provides a larger timing margin for the pulse-width operation of the time-averaged current DAC, thereby improving DAC linearity. Nevertheless, for a given output frequency, the lower reference frequency increases the division ratio and can degrade the phase noise performance. As the jitter-power $FoM$ does not include the effect of the division ratio, $Fo{M}_N$ is also reported in this work. The works in [4,5] employ 3-bit DAC-based interpolation and achieve high linearity. Compared with the DAC-based approaches in [4,5] this work shows a lower jitter-power $FoM$ due to the use of a low reference frequency. However, when evaluated using $Fo{M}_N$, the proposed PLL is comparable to those designs. Moreover, the proposed time-averaged current DAC reduces hardware complexity compared with the DAC-based approaches in [4,5] and is less sensitive to device mismatch and PVT variations.

5. Conclusions

This paper presents a calibration-free fractional-N PLL using a time-averaged current DAC. The proposed DAC achieves fractional operation by controlling the injection time of the $G_m$ output currents, enabling fine phase control in the time domain without requiring additional analog circuits. Consequently, the proposed time-averaged current DAC architecture provides a highly linear, hardware-efficient, and fully calibration-free solution for high-resolution fractional-N frequency synthesis. By combining the time-averaged current DAC with a quad-phase divider, the effective current resolution is enhanced, leading to a reduction in quantization noise. In addition, a current dumping technique is employed to suppress charge sharing, further improving linearity. The simulation results show that the proposed PLL achieves low fractional spur of −65.1 dBc. The LSG/SPD noise contribution is designed to be negligible, and the overall performance is mainly limited by the $G_m$ cells’ noise. Compared with previously reported calibration-free fractional-N PLLs, the proposed design achieves comparable performance while offering improved linearity and reduced quantization noise with a simple and calibration-free architecture.
