Integrating Unstructured EHR Data Using an FHIR-Based System: A Case Study with Problem List Data and an FHIR IPS Model

Abstract

The patient problem list is a key component of an electronic health record (EHR) and must be accurate and accessible for all professionals involved in patient care. Unfortunately, such a list is mostly found in an unstructured text format, is not easily sharable across digital health systems, and lacks semantic interoperability. Natural language processing (NLP) techniques are widely used for clinical concept extraction, particularly for English text. However, in the Canadian context, the clinical notes in a patient problem list can also be found in French. This research presents a framework based on Fast Healthcare Interoperability Resources (FHIR) consisting of an NLP clinical pipeline and a rule-based approach to converting the textual patient problem list, including notes regarding allergies, into an FHIR model. The proposed approach considers concept modifiers to map to the International Patient Summary (IPS) FHIR model element. The main contributions of this research include the early detection of FHIR resources from unstructured data written in the French language and the design of a rule-based algorithm to identify and map extracted data to the appropriate FHIR resource attributes using an annotator. A primary evaluation of the resource tag which uses the rule-based method demonstrates the feasibility of the proposed model to facilitate semantic interoperability. The assessment was conducted using the French FRASIMED corpora.

1. Introduction

The patient problem list is a key component of a patient’s health record, identified as required in the International Patient Summary (IPS) [1]. It must be accurate and accessible to all involved in patient care. However, a patient problem list is often available mainly in an unstructured format, for example, clinical notes and pathology reports, etc. Such a list is typically difficult to share because it is unstructured.

Electronic health record (EHR) systems contain patient clinical information in various formats, including unstructured formats, which impede semantic interoperability. Facilitating the semantic interoperability of healthcare data, not only for primary care but also for secondary use (e.g., clinical analysis and medical research), using natural language processing (NLP) techniques and machine learning (ML) algorithms has gained popularity for dealing with unstructured data [2]. NLP techniques and tools are mostly available in the English language. However, in the Canadian context, and specifically in the province of Quebec, clinical notes can be written in either English or French. Since NLP techniques are language-specific and there is a need to convert clinical problems written in French into a standard-based model, the focus of this study is scenarios in French.

The IPS profile has been adopted by the International Organization for Standardization (ISO), Health Level Seven (HL7), and the Integrating the Healthcare Enterprise (IHE) initiative to facilitate semantic interoperability based on clinical data normalization [1]. The IPS dataset is minimal and non-exhaustive; it is a brief summary, but still clinically relevant, and is composed of FHIR resources classified into three categories: required, recommended, and optional [3]. The FHIR IPS specification describes the FHIR implementation of the IPS. It is an implementation guide defining how to create an IPS document using the FHIR standard. From an FHIR implementation perspective, the “Condition resource” is used to store information related to the patient problem list, the diagnosis, or other clinical concepts [4]. The patient problem list also includes information about allergies that need to be clearly identified and stored in the “Allergy Intolerance resource”.

The research motivation of this study is to improve the data sharing of an existing free-text patient problem list written in French using standards that ensure semantic interoperability.

This research experiments with an FHIR-based framework consisting of an NLP clinical pipeline as well as a rule-based approach to converting a patient problem list written in French, including allergies, into an FHIR model. The proposed framework aims to transform the French unstructured text of the clinical problem list into an FHIR-based model using the IPS specification. The proposed approach considers concept modifiers while mapping to the IPS FHIR model elements. The feasibility of the proposed approach is evaluated using the FRASIMED dataset, an annotated corpus for clinical notes in French [5].

The remainder of this paper is structured as follows: Section 2 describes related works; Section 3 presents the research methodology, including research challenges, and the proposed approach; Section 4 considers the results that address the research challenges; and finally, Section 5 presents the discussion, followed by the conclusion regarding future work.

2. Related Work

A number of medication information extraction studies have proposed frameworks for transforming unstructured clinical text into FHIR models using an artificial intelligence natural language processing (NLP) pipeline composed of two main steps: (1) extracting concepts using different NLP techniques and (2) mapping the resulting concepts to a health domain ontology (e.g., UMLS, SNOMED CT) to ensure a shared understanding and enable data exchange where the meaning is preserved.

Durango et al. [6] presented different methods for automatically extracting valuable information using NLP techniques, most of which were applied to English texts. The most common open-source NLP tools highlighted in another survey [7] were (1) MetaMap, (2) MetaMap Lite, (3) Clinical Text Analysis and Knowledge Extraction System (cTAKES), and (4) Open Biomedical Annotator (OBA). Lee et al. [8] proposed the Biodirectional Encoder Representations from Transformers for Biomedical Text Mining (BIoBERT), a pre-trained language representation model, to extract valuable information from unstructured biomedical text.

NLP tools developed for the Unstructured Information Management Architecture (UIMA) architecture are widely used [9]. Their extraction process is based on several clinical NLP tools, such as cTAKES and MedXN. In another study specific to medication data [10], NLP-based mapping rules were used to convert unstructured data into an FHIR model, and the proposed model was applied to the FHIR resource “MedicationStatement”.

A more general framework proposed by Hong et al. [11], referred to as NLP2FHIR, is an FHIR-based clinical data normalization pipeline mainly comprising an NLP pipeline with mapping and normalization rules that includes a module for integrating structured data. The NLP2FHIR clinical data normalization pipeline was used and extended by Liu et al. [12]. It includes a use-case scenario from an obesity database that applies deep learning models to text classification of NLP2FHIR outputs for analytics.

To customize NLP pipelines, Soysal et al. [13] present an NLP toolkit named Clinical Language Annotation, Modeling, and Processing (CLAMP) that enables non-NLP expert users to customize their NLP pipelines via a graphical user interface. Wang et al. [14] used the CLAMP toolkit with UMLS to automatically extract opioid information from free text and map it to an FHIR.

Peterson et al. [15] converted free text into FHIR using NLP models, namely Bidirectional Encoder Representations from Transformers (BERT) and UMLS, to map extracted concepts into FHIR models. A neural network classification model allows the concept to be mapped to the corresponding element in the “Condition resource”, which includes the patient problem list.

In another study, Peterson and Liu [16] converted unstructured problem descriptions into SNOMED CT expressions using a deep learning method for relation identification between concepts and problem phrases. The concept extraction process from UMLS was performed using the MetaMap tool, a named-entity recognition tool developed by the National Library of Medicine (NLM).

The published results have shown that patient problem lists require extraction along with their context. For instance, Wu et al. [17] proposed an open-source semantic search tool to extract concepts from UMLS, including contextualized mentions (e.g., negation, temporality, and experiencer). The retrieval process is based on the NLP pipeline, which focuses on annotating the UMLS concepts in clinical notes.

SNOMED CT and related SNOMED tools [18] are widely used in English to facilitate semantic interoperability, mainly with rule-based approaches. Studies dealing with other languages, including French, remain limited. Most studies mapping to terminology use UMLS; however, there is no easy solution for aligning unstructured text with SNOMED CT. The study by Gaudet-Blavignac et al. [7] highlighted the target language, which was mainly English, while the other languages mentioned were Swedish, Czech, and Chinese. In the literature, the reported mapping methods are mainly rule-based (70%), manual (14%), hybrid (11%), and machine learning (5%) [7].

Almost all NLP techniques for the clinical field are applied to text written in English. Since NLP techniques are dependent on language, there is still research to be undertaken for other languages, such as French. A recent survey of the NLP techniques available in languages other than English for extraction and name entity recognition purposes confirmed the absence of a French pre-trained medical model [19]. Although French is an important language in UMLS, only 4% of all available concepts are linked to at least one label term in French. In the literature, one strategy for addressing this issue is to first perform a translation into English to then find a corresponding concept [19].

From this related work, we can see that no framework has addressed the semantic interoperability of a patient problem list using the FHIR format for unstructured text in French. The survey in [19] also confirmed that there is a lack of annotated datasets and models for languages other than English, including French.

3. Research Methodology

3.1. Problem Statement

The research motivation of this study is to improve the data sharing of an existing free-text patient problem list written in French using standards that ensure a common understanding (i.e., semantics) between the systems involved (i.e., allowing for better interoperability). This research focuses on converting the patient problem list and detecting allergies/intolerances from French unstructured text into an FHIR model.

This study proposes an FHIR-based framework in the Canadian context to address the challenges listed in

Table 1. Research challenges.

ID	Category	Challenge Description
1.	Data format
1.1		Information related to the patient problem list is mainly in unstructured format.
1.2		Most reports are in PDF file format.
2.	Language
2.1		Clinical notes in Canada, and other French countries, are either in English or French.
2.2		NLP models and techniques are language-dependent. Selecting the appropriate NLP pipeline requires prior identification of the language used.
2.3		Most NLP tools are for English text. There is a major need in other languages, including French, which is largely used in Quebec, for the interoperability of the patient problem list.
3.	Context and modifiers
3.1		The patient problem list may be related to an allergy/intolerance, a diagnosis, or other types of related clinical conditions. It is important to distinguish between these items to ensure correct mapping to the FHIR elements.
3.2		The proposed framework needs to consider that the extracted condition may be in a negation context.
3.3		The extracted condition may be related to the patient or their family members.
3.4		The extracted condition may be confirmed or only a hypothesis.
3.5		The extracted condition may be active or resolved (historical).
4.	Standard/guidelines
4.1		A standard (e.g., SNOMED CT) must be used to ensure semantic interoperability or common understanding and interpretability.
5.	Condition type
		The patient problem list may be related to an allergy or another type of health conditions. Allergies need to be distinguished from other condition types.

.

3.2. Method

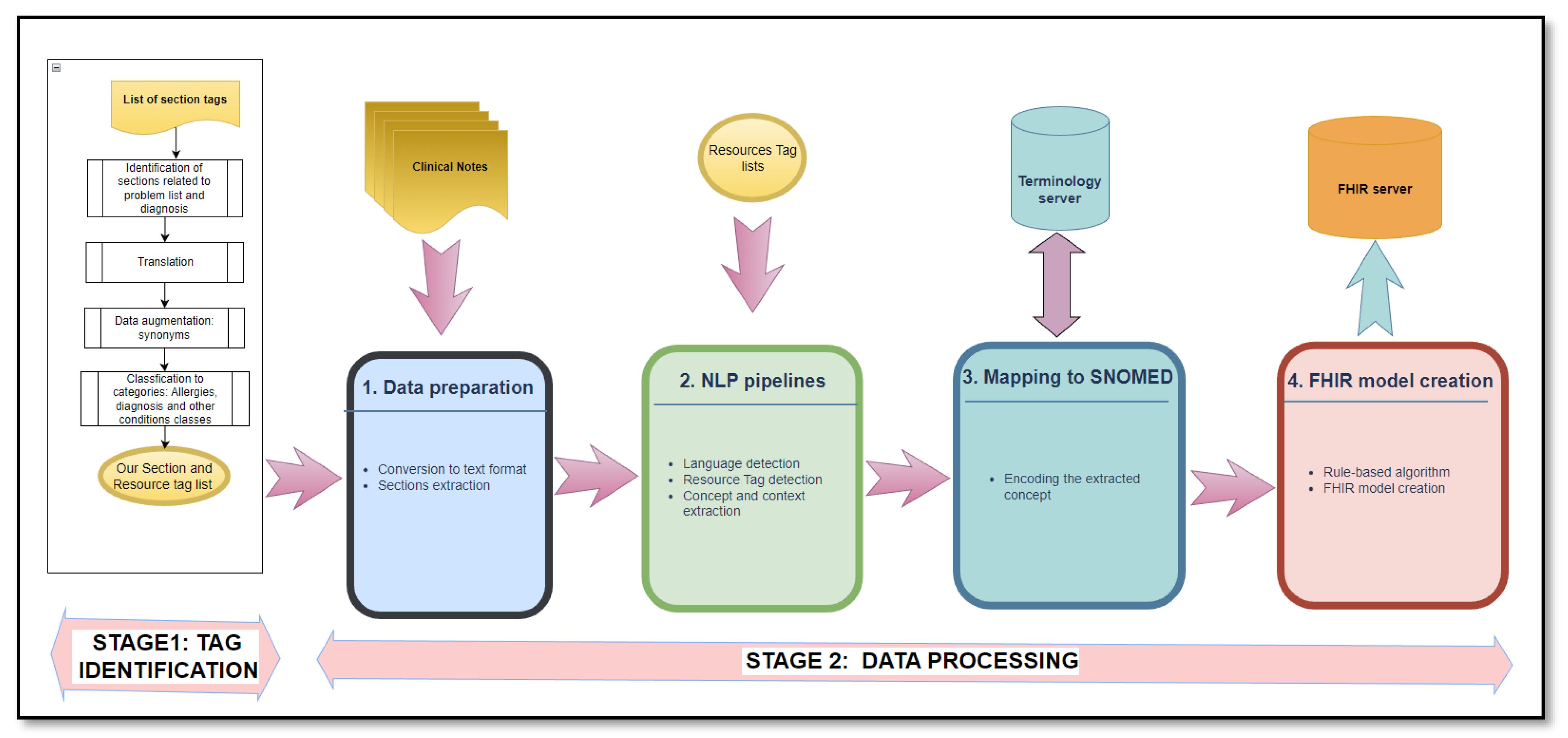

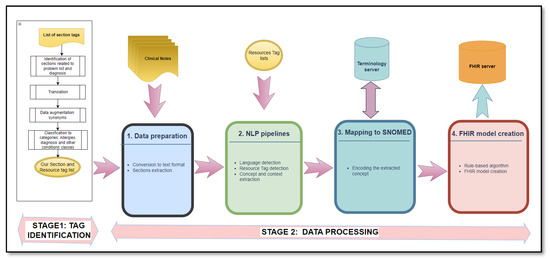

The system architecture of the proposed framework consists of two stages (Figure 1):

• Identification of the section and resource tags—executed only once (Stage 1);
• Data processing—executed for every clinical note file (Stage 2).

• Stage 1: Tag Identification

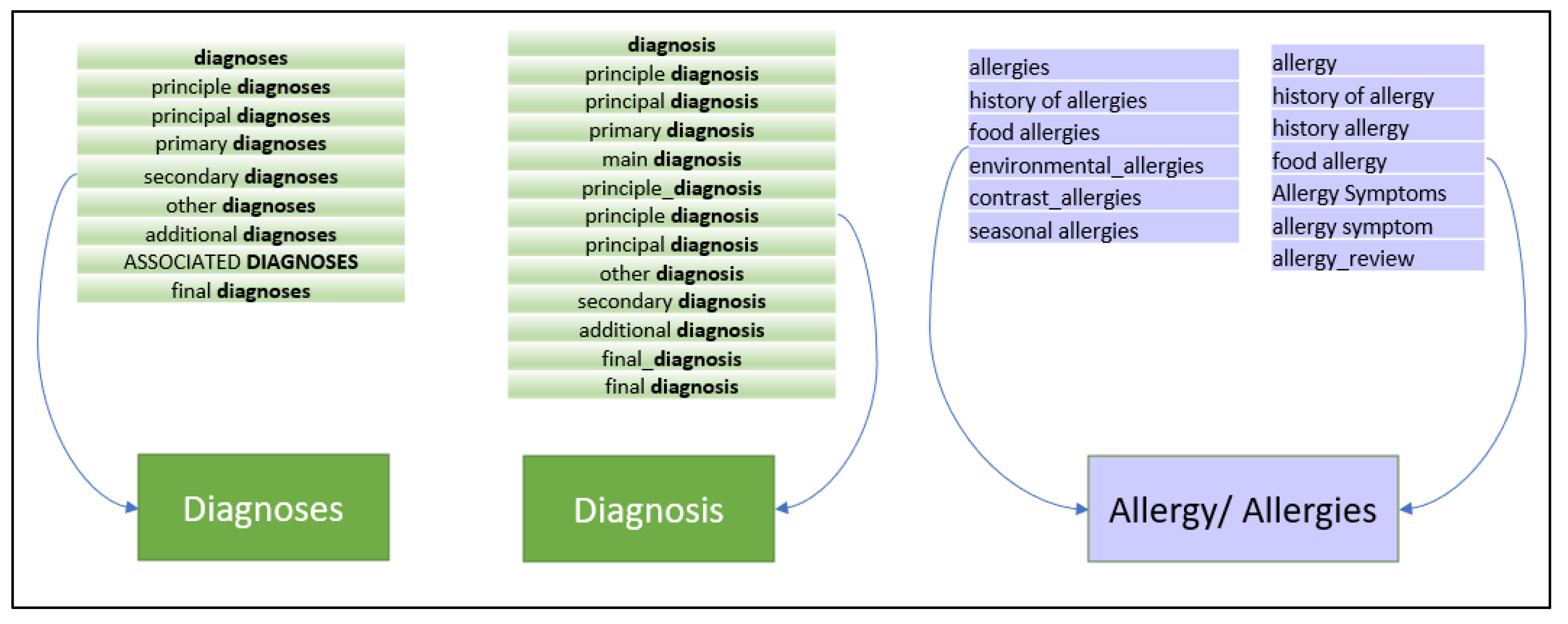

Clinical notes are typically split into sections such as “diagnosis” or “physical exam”. Knowing the section from which the concept is extracted is an important semantic indicator. Therefore, section recognition is a fundamental step in NLP pipelines for unstructured data [20,21]. Furthermore, since allergies also belong to the list of clinical problems (the same section) and may be stored in different FHIR resources (Condition vs. Allergy Intolerance), we seek a way to recognize this by using an allergy resource tag. Stage 1 involves four steps:

• The identification of sections related to the patient problem list and diagnosis: The list of section tags in [21] with 6773 items was used as the starting point to identify and extract section candidates that may contain information related to the patient problem list and diagnosis. The resulting list was then optimized by eliminating duplicates and semantic matching using a pivot term. For example, principal diagnosis and secondary diagnosis were replaced by diagnosis (Figure 2).
• Translation: Next, the optimized list was translated into French using two tools: DeepL (free version) [22] and the French medical dictionary (2025 free version) [23].
• Data augmentation: The list was enriched further with ChatGPT (free version GPT-3.5) synonyms [24] using insights from several studies that have used synonyms for data augmentation [25,26,27]. All relevant synonyms were added to our list of section candidates.
• Classification to categories: The final French tag list includes three main categories: tags related to allergies (50 elements), diagnosis (106 elements), and other conditions (156 elements) (see Supplementary Materials)

• Stage 2: Data processing

Stage 2 comprises four steps: data preparation, NLP pipelines, mapping to SNOMED, and FHIR model creation (Figure 3).

• Step 1: Data preparation

The data sources of clinical notes in English or French were converted into text format when required [28]. Next, the list of section tags related to patient problem lists was used to extract the sections where possible.

2.

Step 2: NLP pipelines

MedSpacy is an NLP toolkit designed for processing clinical and biomedical texts [29,30]. It is integrated within the SpaCy platform, an open-source NLP library for Python [31].

Language detection: MedSpacy includes tools for language and section detection. Both tools are useful because the clinical notes are written in either English or French. This step is essential because the models are language-dependent, and this study investigated French textual data.

Resource tag detection: This step is implemented with MedSpacy (version 1.3.1) and Python 3.12.3, where the module seeks to detect more context for the concept to determine whether it is related to an allergy or intolerance, as well as any diagnosis, based on the established resource tag list.

Concept and context extraction: To extract clinical concepts with their contexts, the SIFR Annotator was used [32,33]. This is a free French web-based annotating tool that integrates contextual modifiers [34]. It is developed by the laboratory of computer science, robotics and microelectronics of Montpellier in France.

3.

Step 3: Mapping to SNOMED

Canada Health Infoway has made a cloud-based terminology server available (Ontoserver) to promote semantic interoperability at the Canadian level [35]. Mapping of the extracted concepts to the Canadian SNOMED CT version was performed manually using the Shrimp tool [36].

4.

Step 4: FHIR model creation

The data output from step 3 is aggregated to construct the FHIR model. To achieve this, we used the following rule-based method that was designed to map the extracted concepts to their corresponding IPS FHIR elements (Figure 3).

This rule-based method for mapping the NLP output to FHIR model elements consists of

• Four rules related to context modifiers (experiencer, negation, temporality, and certainty);
• Two additional rules related to resource tag identification (allergy, diagnosis).

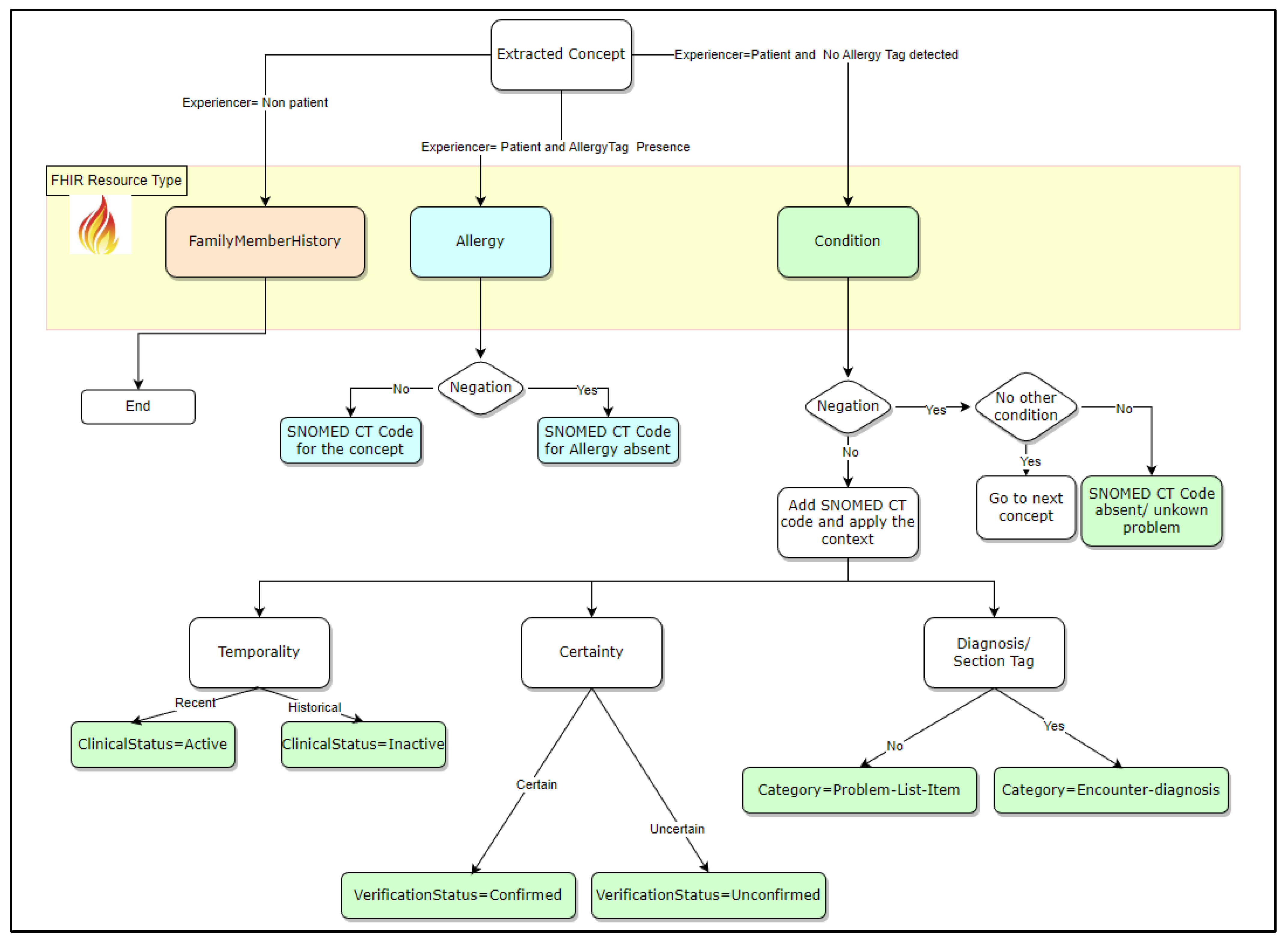

There are three alternatives for each concept in terms of FHIR resources:

• Experiencer = non-patient: Experiencer context means that the indicated problem is for the patient or their family member. In this scenario, the FHIR resource used was FamliyMemberHistory. In this study, the focus was on the patient’s clinical problems.
• Experiencer = patient and allergy tag presence: When an allergy tag is detected, the concept is mainly related to an allergy. Therefore, the FHIR resource to be used is AllergyIntolerance. The negation context is then used to confirm whether the patient had an allergy.
• Experiencer = patient and no allergy tag detected: The current patient problem is not related to an allergy, so the FHIR resource to be used is Condition. Next, the negation context is used to confirm the decision rule following these alternatives:
  • Negation = Yes (Concept is negated): If it is the only concept for a condition, then the patient has no known conditions, and the corresponding SNOMED CT code will be added. Otherwise, the process continues with the next concept.
  • Negation = No. The next step is to add the corresponding SNOMED CT code and mapping to the corresponding FHIR Condition element following these three rules:

    ○

    Temporality confirms whether the identified problem is still active. The value of the ClinicalStatus element of the Condition resource is active or inactive if the temporality is Recent or Historical, respectively.

    ○

    Certainty enables us to determine whether an identified problem is confirmed or only a hypothesis. In the first case, the VerificationStatus element value is confirmed; otherwise, it is unconfirmed.

    ○

    The diagnosis section tag enables the identification of the condition category element. The possible values are Encounter-diagnosis or Problem-List-Item.

3.3. Evaluation

The assessment involves the resource tag detection as well as the rule-based approach:

Resource tag detection: The performance of the implemented module was evaluated using the following standard measures [10,11,12]: accuracy (Equation (1)), recall (Equation (2)), precision (Equation (3)), and F1 score (Equation (4)).

$$Accuracy={\displaystyle \frac{TP+TN}{TP+TN+FP+FN}}$$

(1)

Equation (1): Accuracy calculation formula

$$R={\displaystyle \frac{TP}{TP+FN}}$$

(2)

Equation (2): Recall calculation formula

$$P={\displaystyle \frac{TP}{TP+FP}}$$

(3)

Equation (3): Precision calculation formula

$$F={\displaystyle \frac{2PR}{P+R}}$$

(4)

Equation (4): F1 score calculation formula

Where TP = true positive, TN = true negative, FP = false positive, and FN = false negative.

-

The rule-based approach results were manually validated by testing all possible cases because the dataset did not cover all scenarios of the context modifiers.

-

The result of the overall process was then viewed in the IPS viewer.

4. Results

This study used the FRASIMED dataset [5], a French-annotated corpus with 2051 clinical notes. FRASIMED comprises two types of corpora with their corresponding annotated files:

(a)

CANTEMIST-FRASIMED: The patient summary is organized into sections for medical history, physical examination, diagnosis, treatment, etc.

(b)

DISTEMIST-FRASIMED: The summary is a text with no headers.

A sample of 50 randomly selected clinical notes was used to evaluate the proposed approach (25 files from each FRAMISED corpora).

• Step 1: Data preparation:

  -

  Conversion into text format: The file format is text type.

  -

  Section extraction:

  (a)

  CANTEMIST-FRASIMED corpus: Based on the resource and section tag list, the sections related to the patient problem list were extracted (see

  Table 2. Section selection for the patient problem list in the CANTEMIST_FRAMISED corpus.

  Section Title (Original List)	Selected/Unselected	Tag Category
  Anamnèse	Selected	Other condition
  Examen physique	Unselected	-
  Examens complémentaires	Unselected	-
  Tests complémentaires	Unselected	-
  Diagnostic	Selected	Diagnosis
  DIAGNOSTIC PRINCIPAL	Selected	Diagnosis
  HISTOIRE DE LA FAMILLE	Selected	Other condition
  MALADIE ACTUELLE	Selected	Diagnosis
  CONTEXTE PERSONNEL	Selected	Other condition
  Antécédents	Selected	Other condition
  Antécédents oncologiques	Selected	Other condition
  Traitement	Unselected	-
  Évolution	Unselected	-
  L’évolution	Unselected	-
  Développements	Unselected	-

  for the list of section titles available in this corpus and their corresponding categories);

  (b)

  DISTEMIST-FRASIMED Corpus: This step is not applicable to this corpus because there are no headers.

• Step 2: NLP pipelines

  -

  Language detection: The purpose of this step is to select either the French or English model to be used based on the text file language. This study focuses on French text cases.

  -

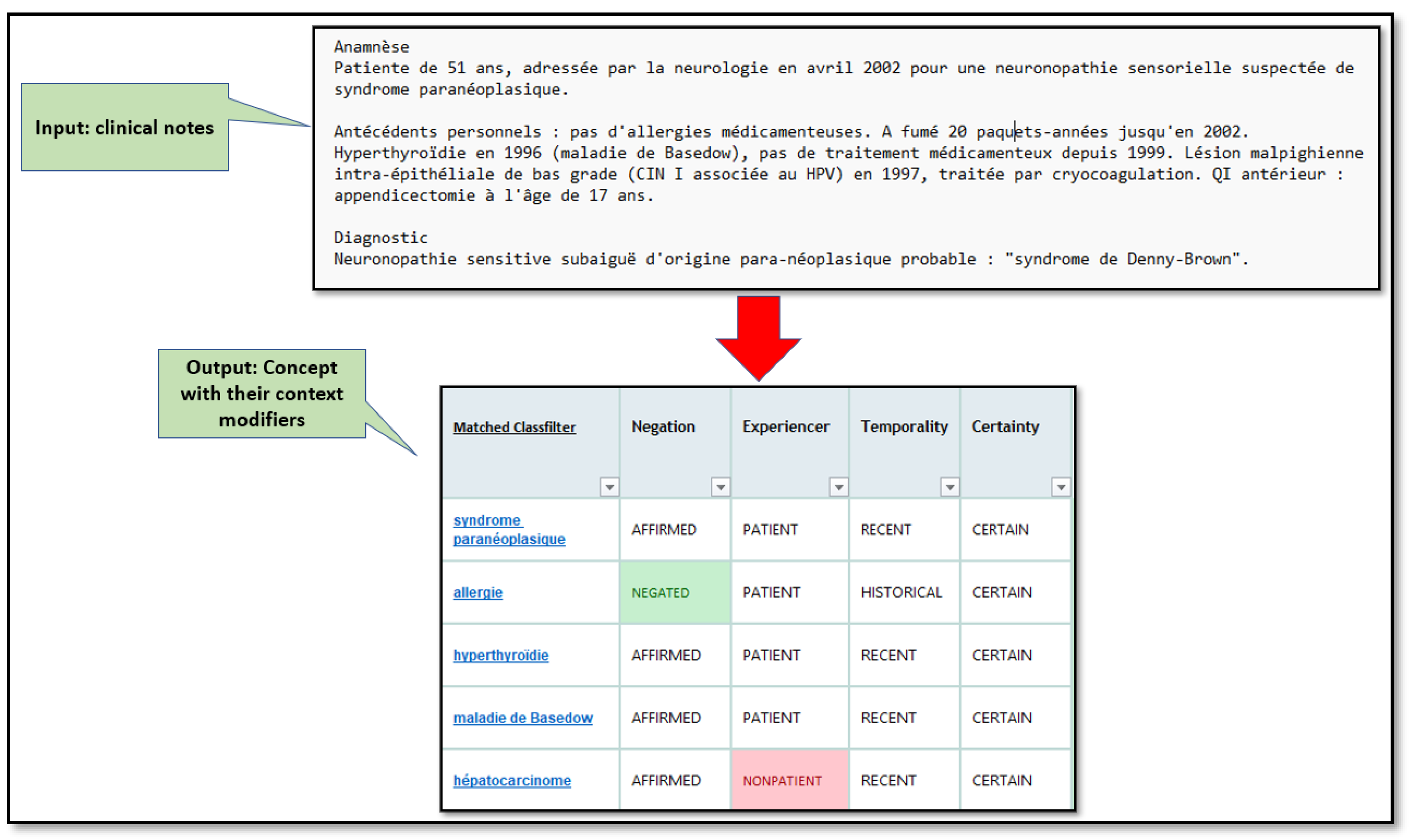

  Concepts and context extraction: Figure 4 is an example of the SIFR output for a clinical text that contains the results of context modifiers for each detected concept.

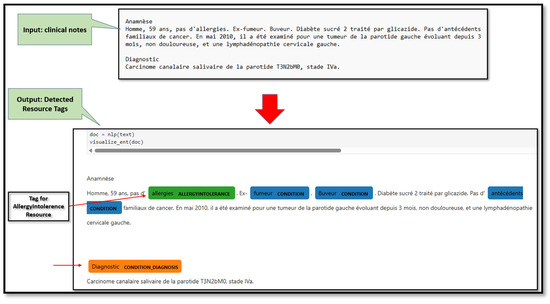

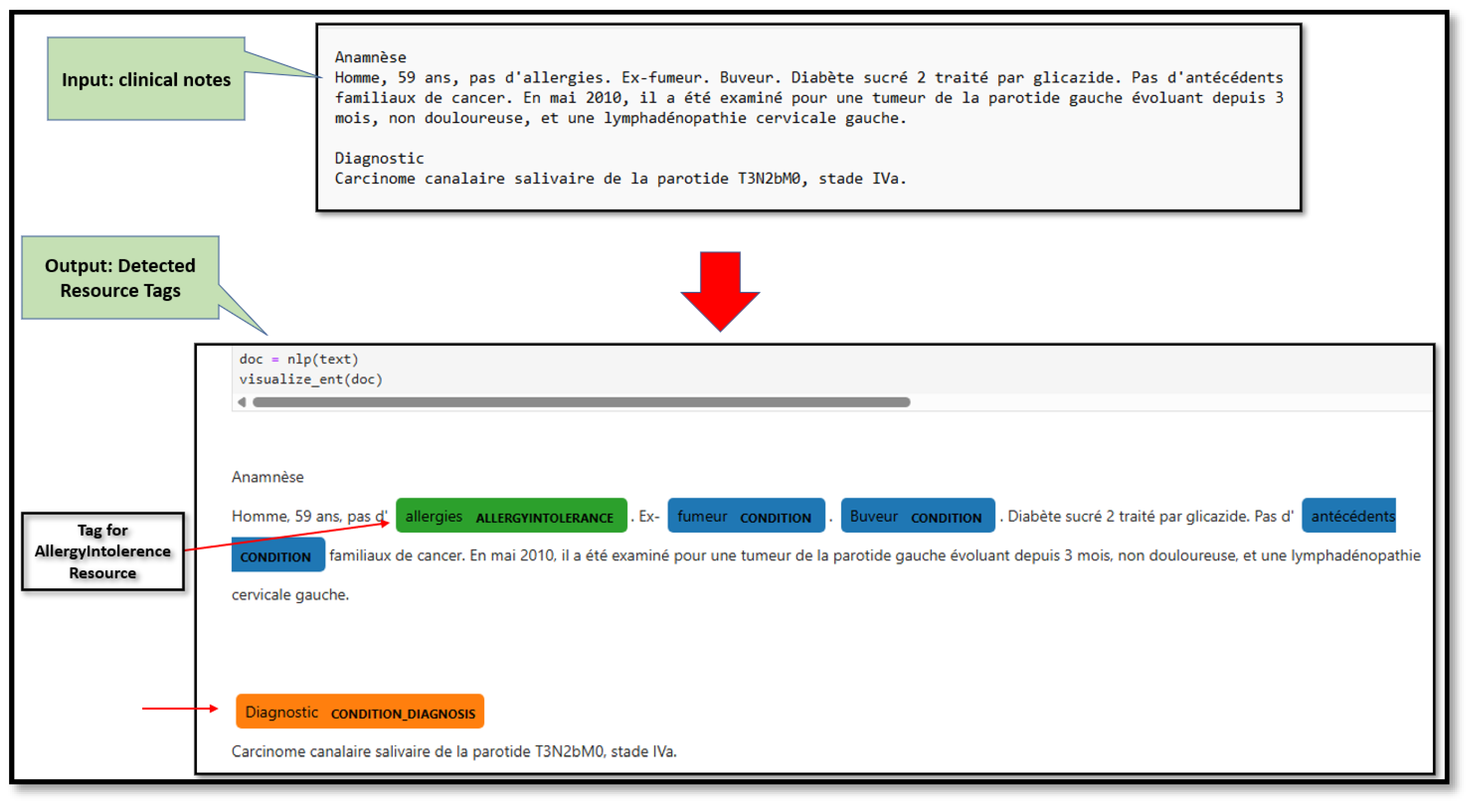

Figure 5 presents an example of the output of our resource tag module for French clinical text. The resource information is highlighted in different colors, and a label is displayed for the corresponding category.

The “Allergy resource” tag was evaluated for the French dataset using a sample of 50 randomly selected clinical notes. The evaluation results in terms of accuracy (from 0.947 to 1), recall (1), precision (from 0.8888 to 1), and F1 score (from 0.9411 to 1) are shown in

Table 3. Performance evaluation of allergy resource tag on the two FRASIMED files (n = 50).

FRAMISED Dataset Files	Language	Accuracy	Recall	Precision	F1 Score
CANTEMIST-FRASIMED	French	1	1	1	1
DISTEMIST-FRASIMED	French	0.947	1	0.8888	0.9411

.

The results obtained demonstrate the feasibility of detecting information related to the allergy resource tag from the patient problem list.

3.

Step 3: Mapping to SNOMED

The Shrimp tool was used to find the SNOMED CT code for the extracted concepts related to the problem list.

4.

Step 4: FHIR model creation

Before delving deeper into the use cases, it is important to provide a quick overview of the FHIR specifications used.

-

Most of the tools used in this study were an implementation of version 4 of FHIR [37].

-

The HAPI FHIR server, an implementation of the FHIR specifications in Java, was used to test the proposed FHIR model [38].

-

The details of the specification profile describing the FHIR resources and their format are based on the IPS implementation guide [39].

-

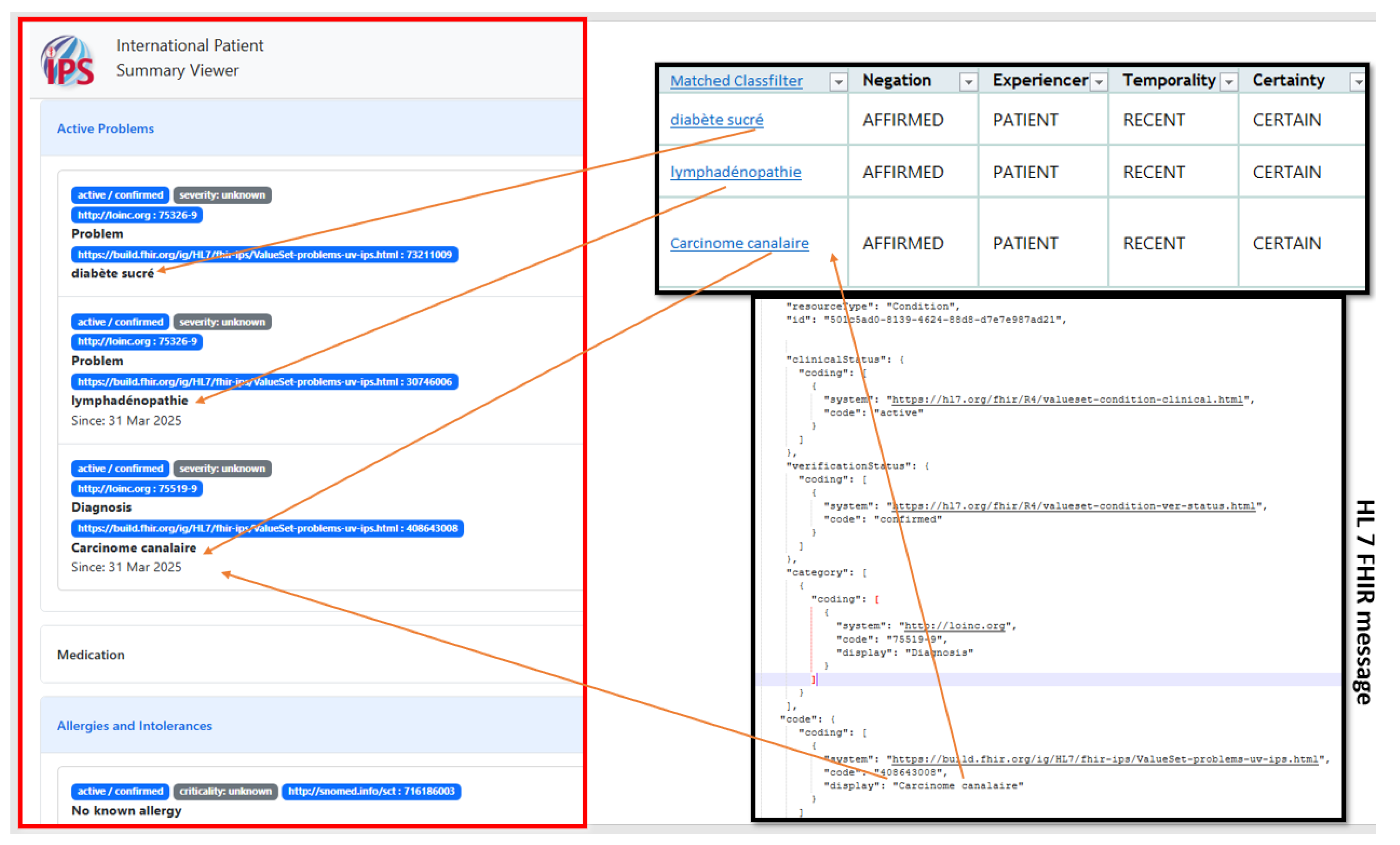

The IPS viewer is an open-source viewer that allows users to submit an IPS FHIR model and display the information [40]. Figure 6 shows IPS creation using the IPS viewer tool and how context modifiers are considered in the FHIR transaction.

Table 4. An example of the rule-based validation.

Step	Input	Decision Logic	Output
1	Experiencer = patient and no associated allergy tag	The concept is related to the patient and no flag that it is an allergy	Use the Condition resource
2	Negation	“Affirmed” means there is no negation	Three contexts to verify
3	Temporality	Apply rule for recent	ClinicalStatus = Active
4	Certainty	Apply rule for value = certain	VerificationStatus = Confirmed
5	Diagnostic section tag	Concept included in Diagnosis section	Category = Encounter-diagnosis

describes an example of the concept “Carcinome Canalaire” (Figure 4) (negation = affirmed, experiencer = patient, temporality = recent, certainty = certain).

5. Limitations

The performance of this framework depends on the NLP output using the annotator, especially for context modifiers. There are still issues regarding abbreviations that are not necessarily detected. Although NLP techniques provide promising results, there are still some limitations, as the clinical notes may include abbreviations, syntax, and grammatical errors that may have a negative impact on the quality of results.

Another important limitation is related to the absence of a gold-standard test for evaluating the full conversion of the patient problem list/condition, including allergies, from unstructured data to well-known terminologies, such as SNOMED CT.

6. Discussion, Contributions, and Future Work

Several studies on clinical data have been devoted to patient summaries, particularly on how to extract and structure valuable information from clinical notes using NLP tools.

This paper presented a method for converting an unformatted patient problem list into a formal model using an IPS profile that can be shared around the globe, satisfying semantic interoperability using SNOMED CT as terminology.

Overall, the framework described in this paper demonstrated the feasibility of converting the patient problem list from French free text into an FHIR-based model using a hybrid system of NLP and a rule-based technique. The proposed approach considers the challenges of context modifiers (negation, experiencer, temporality, and certainty). Two main FHIR resources were used in this study: Condition and Allergy Intolerance.

The primary contributions are the implementation of the module responsible for the early detection of possible FHIR resource presence (resource tag) from unstructured data in the French language (accuracy (from 0.947 to 1), recall (1), precision (from 0.8888 to 1), and F1 score (from 0.9411 to 1), followed by the design of a rule-based algorithm to identify and map the extracted data to the appropriate FHIR resource attributes using an annotator.

Unlike the current models that use translation into English, our framework is based on native French tools, which opens new perspectives to automatically generate and share patient summaries taking into consideration the context modifiers.

Although advanced English-language NLP models and tools like Google Translate offer the capability to process French text, this approach faces the following major challenges in digital translation policy:

• The translation is never perfect, especially in the healthcare domain, as it can lead to semantic loss [41,42].
• The French language is rich and can be finely tuned in a specific context (regulatory, administrative, etc.).
• The development of models in French is crucial to ensure data, digital, and technology sovereignty [43,44,45]. There is increasingly a need for different forms of independence, control, and autonomy over digital infrastructure, technologies, and data. For example, translating into English for processing potentially exposes data to third parties (US servers). Canadian public health prefers locally hosted solutions due to security, confidentiality, and other regulatory constraints.
• If no one develop NLP models in French, the language will be hidden in AI systems, and furthermore, translating may risk enforcing a linguistic and cultural bias.
• Finally, a well-trained French-language model may outperform an English model when used alongside a translation system.

Although this study focused on the patient problem list, this approach can be applied to other resources as well as the EHR, which contains a minimum amount of structured and semi-structured data.

This research addressed the possibility of converting an unstructured patient problem list into an FHIR model, considering their context modifiers (negation, experiencer, temporality, and certainty). This research focused on French-language texts because there is a significant demand for semantic interoperability in Canada and other French countries around the world.

This paper presented a proposed FHIR-based framework consisting of using an NLP clinical pipeline as well as a rule-based approach to converting the patient problem list, including allergies, into an FHIR model. The proposed approach considers concept modifiers while mapping to the IPS FHIR model elements. The feasibility of the proposed approach is evaluated using the FRASIMED dataset.

Although the approach was limited to the patient problem list in the French language, ongoing work is underway on the interoperability of many other resources, such as immunization, to cover the maximum information available on the clinical patient profile.

Future work will also include the automatization of current manual steps, such as using the terminology server API instead of a manual process. This allows for easier system-to-system access. Furthermore, additional validation and systematic evaluation using real hospital data are underway to enhance the reliability of the performance assessment.

Finally, the proposed framework considered the Canadian context of bilingual clinical notes. This will be useful for other countries with similar national contexts, particularly in Europe and Africa, where both English and French are widely used.
