Investigation of a Dual-Layer Metasurface-Inspired Fractal Antenna with Dual-Polarized/-Modes for 4G/5G Applications

Abstract

In this research article, a dual-polarized compact bow-tie-shaped irregular fractal antenna with a dual metasurface (DMS) for directional radiation applications is designed using a dual-mode simple feeding mechanism. A short-circuited strip linked between the impedance transformation feed and the radiating patch activates the induced coupling modes, which are capacitive (C-mode) and inductive (L-mode), respectively. The C-mode antenna operates at 2.39–2.53 GHz, whereas the L-mode antenna operates at 2.88–4.49 GHz. It comprises a DMS positioned at 0.22$\lambda$_∘ from the antenna with 0.016$\lambda$_∘ separation and a 4 × 4 array of checkerboard type hole-injected tiny unit cells on each metasurface. A rectangular cavity-backed slot was employed as the ground plane to emulsify the reflected energy waves from the DMS, in order to start the coupling process with the boresight radiation, resulting in high gain and suppressed backward radiations. The gain in C-mode was 6.74 dBi, and the gain in L-mode was 7.7 dBi. For validation, a miniaturized metasurface antenna with the overall size of 0.32$\lambda$_∘ × 0.32$\lambda$_∘ × 0.22$\lambda$_∘ (where $\lambda$_∘ is the free-space wavelength at 2.45 GHz) was fabricated and measured. The measured outcomes highlight its potential for 4G/5G wireless applications.

1. Introduction

The rapid progress in wireless communication systems has emerged towards the evolution of hybrid wireless networks (LTE/3G/4G/5G). These hybrid networks form analog and digital topology, which demands larger bandwidth, high antenna gain, and enhanced system capacity for efficient signal coverage in smaller base stations. To meet such indispensable cellular protocols, antennas with multi-polarization are preferred owing to signal diversity. For such system requirements, highly compact antenna systems would be effective in a premium space. Moreover, incorporating reflectors for gain enhancement, radiation stability, and bandwidth is another challenge. Hence, deficiencies in perfect electric conductor (PEC) reflectors are compensated by introducing the artificial magnetic conductor (AMC) reflectors or metasurface (MS) reflectors due to their efficient electromagnetic (EM) waves reflection properties to optimize antenna bandwidth, gain, and radiation response for the proposed antenna [1,2,3].

In [4], a monopole-based dual-band antenna engineered on complementary split-ring resonators MS with a compact footprint of 0.062$\lambda$⁵${}_{1.9\mathrm{GHz}}$ and average gain of 4.3 dBi was discussed. The MS was employed as a decoupling method in [5] for closely packed dual-band antennas for MIMO applications, with the size of 1.11$\lambda$²${}_{2.6\mathrm{GHz}}$ and an average gain of 8.2 dBi. Using MS and meta superstate as a decoupling design, LP antennas in [6] were coupled to E-plane and H-plane for 5G base stations with the size of 1.21$\lambda$²${}_{3.3\mathrm{GHz}}$ and an average gain of 7 ± 0.2 dBi. In [7], the non-uniform MS was deployed for broadband dual-polarized antenna for base stations with a size of 0.54$\lambda$²${}_{0.96\mathrm{GHz}}$ and average gain of 7.4–9.2 dBi. A wideband printed antenna based upon the $\lambda$/2 cavity was introduced in [8] with size of 0.225$\lambda$²${}_{2.3\mathrm{GHz}}$ and average gain of 4.7 dBi.

On the other hand, AMC reflectors often provide excellent uni-directional radiation properties and a low-profile structure in comparison with respect to the PEC reflectors. In [9], a wideband MIMO antenna with profile height of 0.105$\lambda$${}_{3\mathrm{GHz}}$, realized on an AMC reflector, was designed to obtain the average gain of 7.1 dBi with the antenna size of 0.75$\lambda$²${}_{3\mathrm{GHz}}$. A dual-polarized wideband LP antenna with the AMC profile height of 0.27$\lambda$${}_{2.7\mathrm{GHz}}$ was achieved in [10], which was 3.24$\lambda$²${}_{2.7\mathrm{GHz}}$ and had a gain of 6.3 dBi. To achieve miniaturization, a 0.011$\lambda$²${}_{2.9\mathrm{GHz}}$ printed slot antenna that exhibits a magnetic, complementary capacitively loaded loop (CCLL) loaded MTM was designed in [11], with realized gain of 4 dBi. In [12], a CP diversity antenna using large-sized AMC reflectors with a profile height of 0.12$\lambda$${}_{4.5\mathrm{GHz}}$ and gain of 6 dBi was designed for broadband applications. The crossed dipole radiation arms had a size of 0.24$\lambda$${}_{1.45\mathrm{GHz}}$. A bow-tie-shaped antenna [13] structured on a plum-shaped AMC reflector with a profile height of 0.101$\lambda$${}_{3.21\mathrm{GHz}}$ and gain of 9.7 dBi with an antenna size of 1.63$\lambda$²_{3.21 GHz} has been proposed for LTE applications. A fractal-shaped AMC reflector with a profile height of 0.124$\lambda$${}_{1.7\mathrm{GHz}}$ was designed in [14] below a bow-tie-shaped dipole antenna of 0.112$\lambda$²_{1.7 GHz} with a gain of 6.5 dBi.

Since modern wireless communication applications need a compact integrated antenna system. Thus, reduced antenna size and good performance are considered to be the essential combined metrics. Self-similar structures are also alternative solutions, in terms of compactness and compromise design deficiencies. In the aforementioned reported literature, antenna size with profile compactness seems to be challenging for premium space utilization. Although some literature has good antenna performances, on the other hand, antenna size seems to be a major challenge. Hence, to alleviate the above issues, the antenna, along with the reflector size, has been reduced, and its performance metrics were optimized and enhanced. In this literature, a dual-mode induced dual-polarized compact directional antenna was realized with the dual AMC-MS layers. A number of similar instances in [15,16,17,18,19,20,21] were reported, but the proposed design achieved size reduction both in antenna (0.0256$\lambda$_∘) and in MS constitutive units (0.102$\lambda$_∘). The spacing in between the AMC-MS layers was only 0.016$\lambda$_∘, and the profile height was 0.22$\lambda$_∘ (i.e., 27.2 mm nearly equal to the quarter-wavelength). By employing dual AMC-MS, gain at dual-modes was increased >3 dBi compared to conventional operating modes. The cavity-backed slot ground emulsified the radiated waves to increase boresight gain and cross-pol. There was a reduction in its radiation planes, suitable from the application point of view.

2. Antenna Configuration

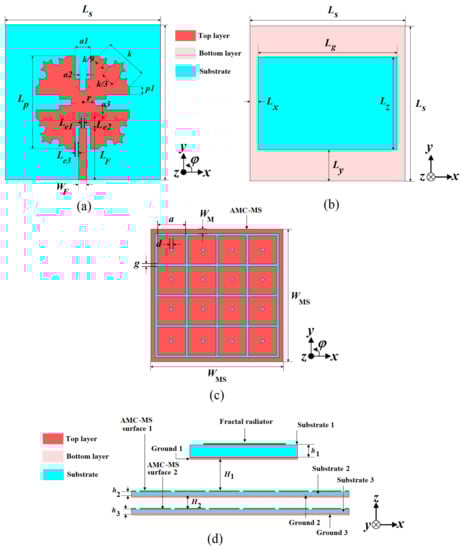

The proposed antenna configuration is presented in Figure 1. Figure 1a highlights the top view of a bow-tie-shaped fractal radiator antenna invoked with the dual-mode coupled feed. The antenna was fabricated on substrate 1 (FR-4, h₁ = 1.6 mm, $ϵ$${}_r$ = 4.3, and tan$\delta$ = 0.02) of size L_s × L_s. The cavity-backed slot ground plane (Ground 1) of the perimeter 2 × (L_g + L_z) is shown in Figure 1b. Figure 1c shows the top-view of AMC-MS reflector of size W_MS × W_MS, comprised of a 4 × 4 array of checkerboard-hole-injected unit cells nested in a squared metallic boundary of thickness W_M. Figure 1d illustrates the side view of the proposed antenna configuration, which is loaded with the dual AMC-MS layers. The antenna is separated from AMC-MS surface 1; height: H₁. AMC-MS surface 1 separates AMC-MS surface 2; height: H₂. Each AMC-MS structure is fabricated on the FR-4 substrate (substrate 2 and substrate 3) of thickness h₂, h₃ backed with the full ground planes (ground 2, ground 3).

Table 1. Dimensions of the proposed antenna configuration (unit: All are in mm).

Parameter	Value	Parameter	Value	Parameter	Value
$L_s$	20	$L_p$	12	$L_F$	6.7
$L_{e1}$	0.5	$L_{e2}$	1.75	$L_{e3}$	0.5
$W_F$	1	$a_1$	2	$a_2$	0.8
$p_1$	1	k	5.65	r	1.5
$L_x$	1	$L_y$	4	$L_z$	12
$L_g$	18	$h_1$	1.6	$h_2$	1.6
$h_3$	1.6	$H_1$	27.2	$H_2$	2
a	8.5	d	1	g	0.7
$W_m$	1.3	$W_{ms}$	40	$L_{unit1}$	35
$L_{unit2}$	28.4	$C_{unit}$	2	$g_{unit}$	1.3
$t_s$	2	$t_{cell}$	1.6

gives the information about the dimensions of the proposed antenna configuration (i.e., including radiator + AMC-MS layers).

3. Antenna Design and Its Analysis

3.1. Dual-Mode Coupling Behaviour

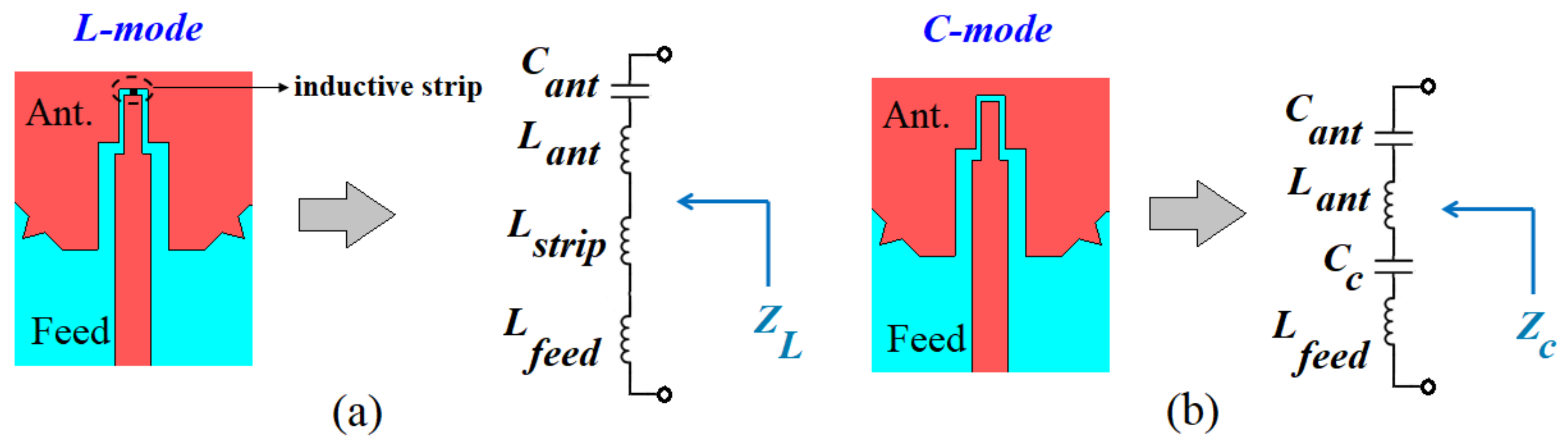

The proposed antenna operates in two coupling modes, i.e., L-mode and C-mode, as shown in Figure 2. An impedance transition feed with a short-circuited strip behaves like an inductor (L-mode), and open-circuiting acts like a capacitor (C-mode). The coupling action of the feed and bow-tie radiating fractal patch antenna exhibits induced resonance coupling behavior and operates in distinct modes. A simplified circuit model was developed to illustrate the insights of the mode coupling mechanism. The feed represents an inductance, L_feed, which couples via the short-circuited strip, L_strip into the antenna surface impedance parameters consisting of L_ant and C_ant. From Figure 2a, the L-mode equivalent impedance, Z_L and resonant frequency, f_L, are expressed as:

$$Z_L=j\omega L_{feed}+j\omega L_{strip}+j\omega L_{ant}+\frac{1}{j\omega C_{ant}}$$

(1)

$$f_L=\frac{1}{2\pi \sqrt{\left(L_{feed}+L_{strip}+L_{ant}\right)C_{ant}}}$$

(2)

Similarly, a capacitance, C_c, is introduced via L_feed and L_ant, C_ant to effectively couple antenna in C-mode. Hence, from Figure 2b, the C-mode equivalent impedance, Z_c and resonant frequency, f_c can be expressed as:

$$Z_c=j\omega L_{feed}+\frac{1}{j\omega C_c}+j\omega L_{ant}+\frac{1}{j\omega C_{ant}}$$

(3)

$$f_c=\frac{1}{2\pi \sqrt{L_{feed}\left(\frac{C_c{C}_{ant}}{C_c+C_{ant}}\right)}}$$

(4)

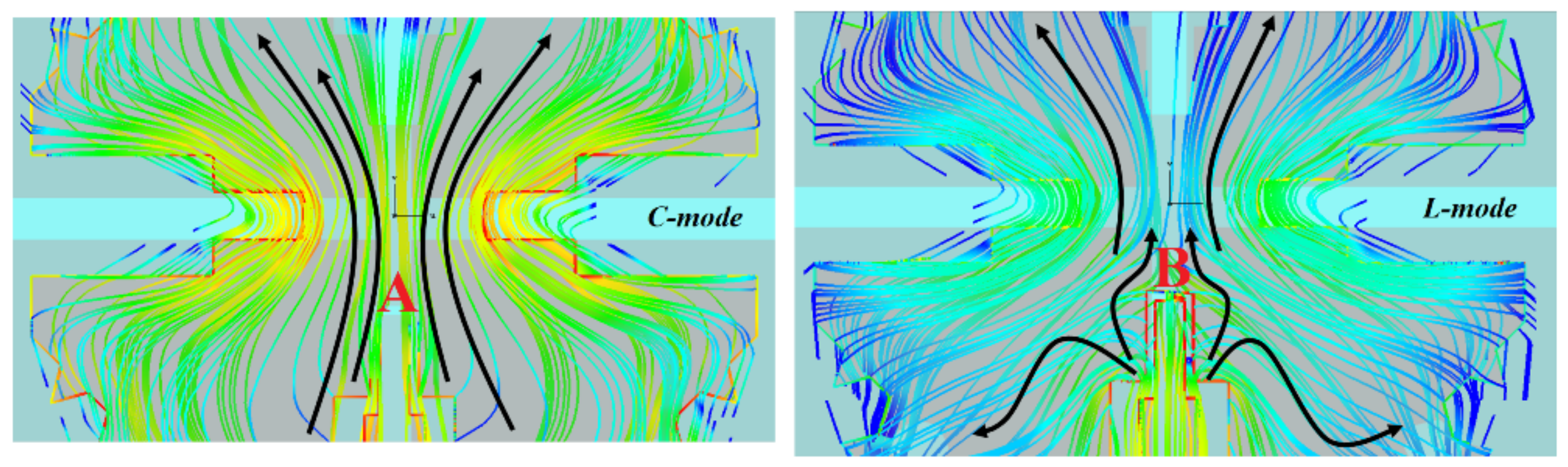

The two coupling modes can be further explained by simulated electric field streamlines. Figure 3A,B illustrates the electric field streamlines of two coupling modes. In the case of C-mode, the current at point-A are divergent due to the isolation of the feed and radiator. The isolated region has an effective stored electric field which is equivalent to the capacitance between feed and radiator. During excitation, it usually forms an equipotential region due to the induced effect. So, the field’s current streamlines are not condensed. But in the case of L-mode, the current at point-B are convergent due to the short-circuited strip between feed and radiator, and an inductive effect is generated. During the excitation, it forms a non-equipotential region due to the effect of magnetic fields that converge the currents to be condensed. So, dual mode effects are observed in the radiating surface, reported here.

3.2. AMC-MS Unit Cell Analysis and Its Circuit Conception

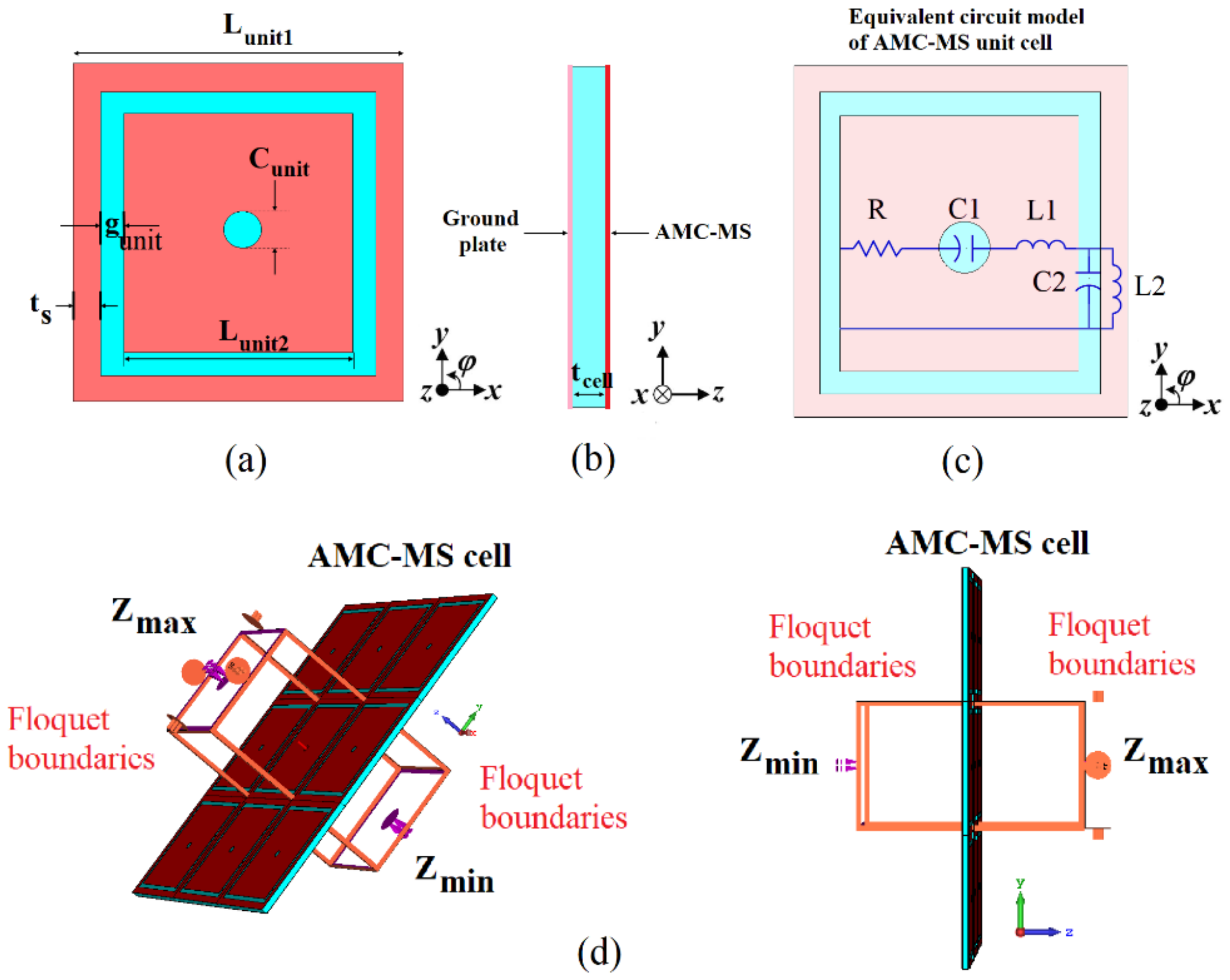

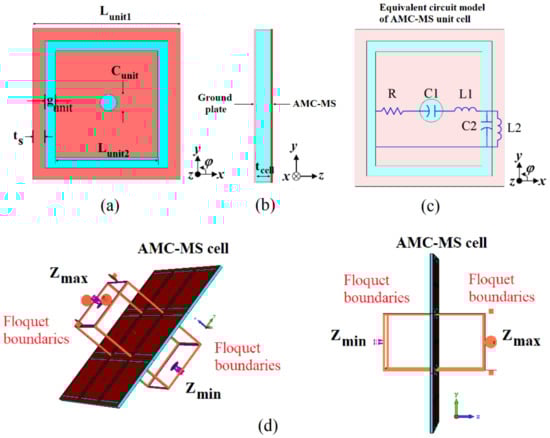

To investigate the proposed AMC-MS shown in Figure 4a,b, the unit cell structure was initially investigated and analyzed in the periodic structure template of CST MWS studio suite unit cell workflow in a frequency domain solver. Here, the unit cell consists of a checkerboard-hole-injected with a squared loop boundary at the top and a metallic ground bottom sandwiched with an FR-4 substrate, t_cell = 1.6 mm, $ϵ$${}_r$ = 4.3, and tan $\delta$ = 0.02. Then, floquent boundary conditions are usually set into the unit cell with Z_max and Z_min as reference port terminals to obtain the reflection coefficient, dB and reflection phase (degree) shown in Figure 4d.

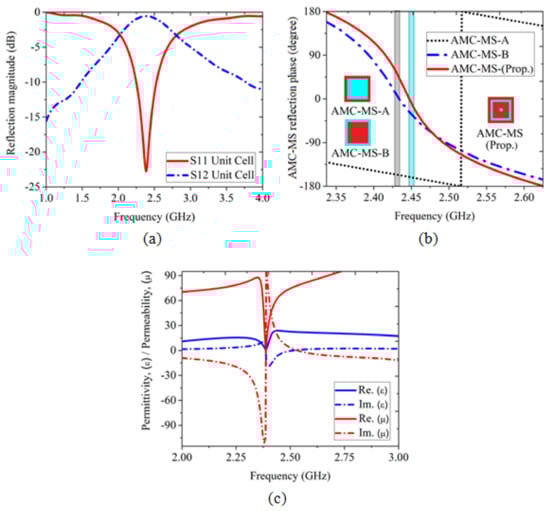

The AMC-MS unit cell had a sharp reflection S11, of magnitude −22.5 dB at 2.45 GHz, and the transmission parameter S12 almost converges to 0 dB at the same frequency, as shown in Figure 5a. Similarly, Figure 5b has an AMC-MS reflection phase at 2.45 GHz with the 0^∘ reflection phase characteristic, in which all the unit cell structures are analyzed. In Figure 5c, the permittivity and permeability characteristics are shown. Here, the (AMC-MS-A, AMC-MS-B) unit-cell structures have some insignificant 0^∘ phase reflection cross-overs, and the proposed AMC-MS structure validates the design of our criteria. It is to be noted that the length L_unit2 and the distance g_unit can modulate the AMC 0^∘ phase crossover points to higher/lower frequencies. The equivalent circuit conception of the proposed AMC-MS unit cell is shown in Figure 4c. As the circuit modeling includes cascading lumped elements, the L_unit2 represents a series R-L1-C1 unit. The outer square loop metallic boundary represents an inductance L2, whereas the gap g_unit between L_unit2 and t_s denotes a capacitance C2. Figure 6a shows the unit cell reflection magnitude for EM and circuit simulations, and Figure 6b gives an idea (insights) about the real and imaginary components for the same configuration.

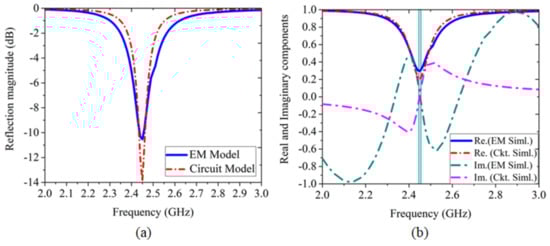

3.3. AMC-MS Equivalent Circuit Model

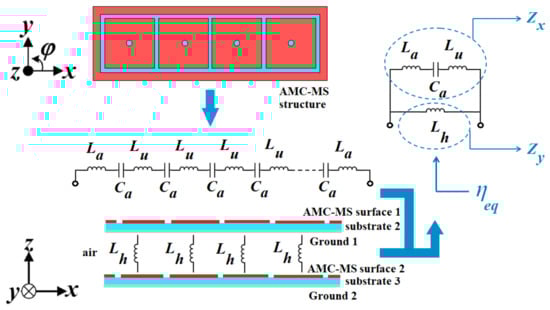

A simplified equivalent circuit model is shown in Figure 7 for the proposed AMC-MS structure [22]. The outer patch length (L_unit1) and inner patch length (L_unit2) provide inductance (L_a) and (L_u). The periodic gap (g_unit) between the successive array of unit cells corresponds to a capacitance (C_a). Since the unit cells in the periodic array are adjacent to each other, they can be viewed as a series of LC-lumped elements. Thus, the air gap between the AMC-MS1 and AMC-MS2 provides an inductance (L_h). Thus, the resulting inductance (L_h) is in parallel to the infinite series stacked array of periodic unit cells consisting of inductances and capacitance (L_a, C_a, L_u). Thus, the equivalent AMC-MS impedance can be expressed as (η_eq = Z_x||Z_y). The resulting impedance (η_eq) and resonant frequency (f_eq) of AMC-MS can be calculated as [23,24]:

$${\eta }_{eq}=\frac{Z_x{Z}_y}{Z_x+Z_y}=\frac{j\omega L_h(1-{\omega }^2{L}_a{C}_a-{\omega }^2{L}_u{C}_a)}{1-{\omega }^2{L}_a{C}_a-{\omega }^2{L}_u{C}_a-{\omega }^2{L}_h{C}_a}$$

(5)

$$f_{eq}=\frac{1}{2\pi \sqrt{\left(L_a+L_u+L_h\right)C_a}}$$

(6)

3.4. Dual-Polarized Bow-Tie Fractal Radiator

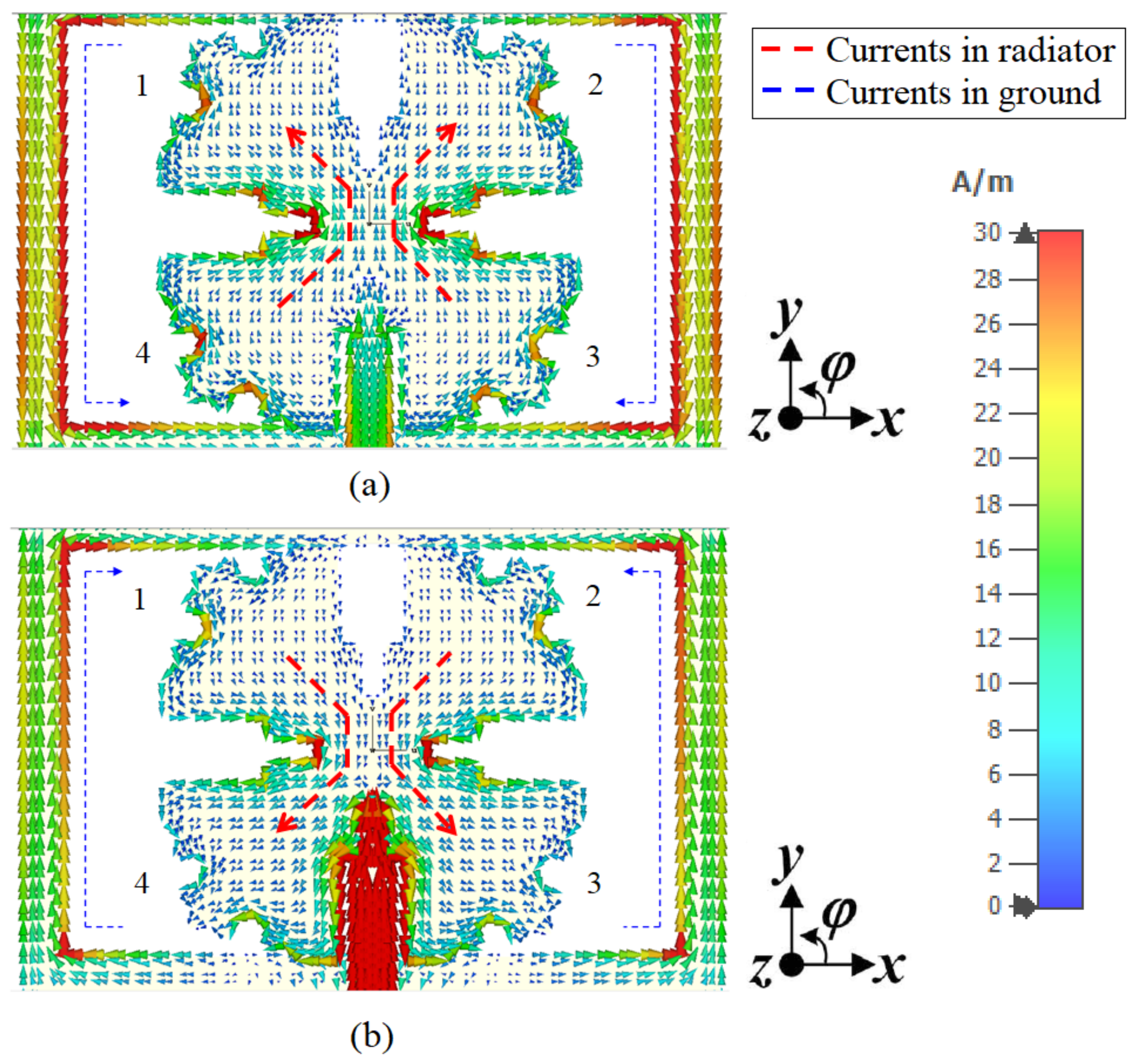

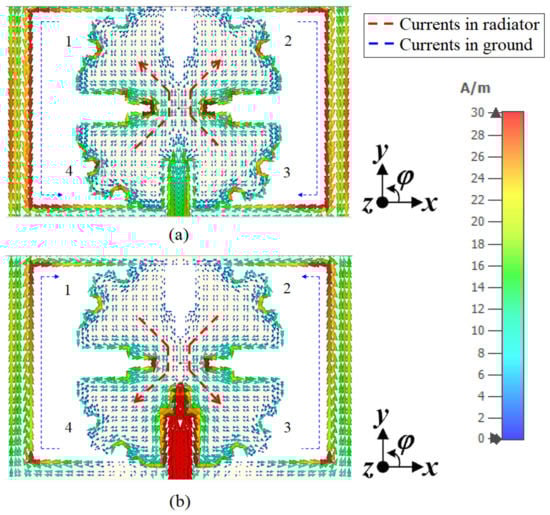

The duality behavior of bow-tie-shaped fractal radiator is primarily investigated through the surface current distribution (A/m) shown in Figure 8, for two-operating modes. In Figure 8a, for the C-mode at 2.45 GHz, surface currents are in distributed from −y to +y. As the radiator has a bow-tie-shaped configuration, the diagonal currents are aligned in the same direction—i.e., currents at (1, 3) positions and (2, 4) are uni-directional. However, currents at (1, 2) positions and (3, 4) are axially symmetrical; thus, the antenna configurations assist centro-cyclic symmetry of the current distribution (considering the surface currents in the ground plane). Similarly, for the L-mode at 4.0 GHz, surface currents are distributed from + y to −y, as shown in Figure 8b. As stated above, similar centro-cyclic surface current traces can be observed. If carefully noticed, from both surface currents’ behavior, the antenna shows a symmetry of dual current trails. Henceforth, some important observations are highlighted that showcase the duality behavior of the proposed antenna as follows:

• The surface currents observed in a C-mode and L-mode are centro-symmetric in the bow-tie-shaped fractal radiator. Due to centro-symmetry, the length of current modes is $\lambda$_∘/2, as shown in Figure 8.

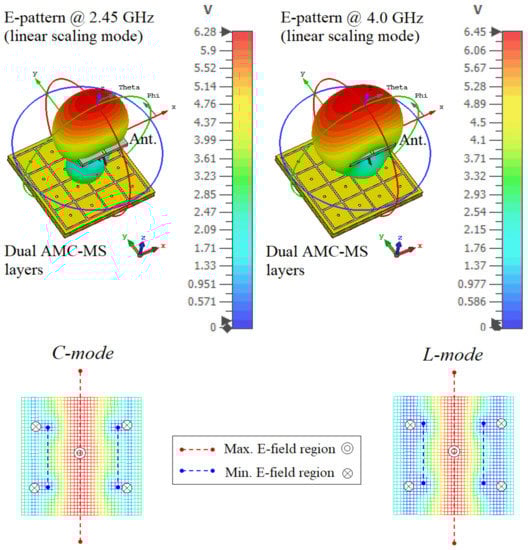

• The duality modes can be further examined through 3D far-field E-pattern fields (V), as shown in Figure 9. The E-field radiations in both modes almost exhibit equal magnitudes (V).
• Generally, the radiation magnitude in the E-field at 2.45 GHz, C-mode has a maximum E-field region at the center (⊚) and minimum E-field region at the sides (⊗). The same effects are observed at 4.0 GHz for L-mode. So, the similar effects in radiation magnitude constricted due to dominant E-fields at dual bands are distinctively analogous to the 3D patterns.

3.5. Dual AMC-MS Layer Effects

It was found that a dual AMC-MS layered structure has the advantages of improving the antenna parameters such as S11, boresight radiation pattern, gain, and suppressed backward radiation [25,26]. Thus, the insights of AMC-MS with respect to reported work are summarized as follows:

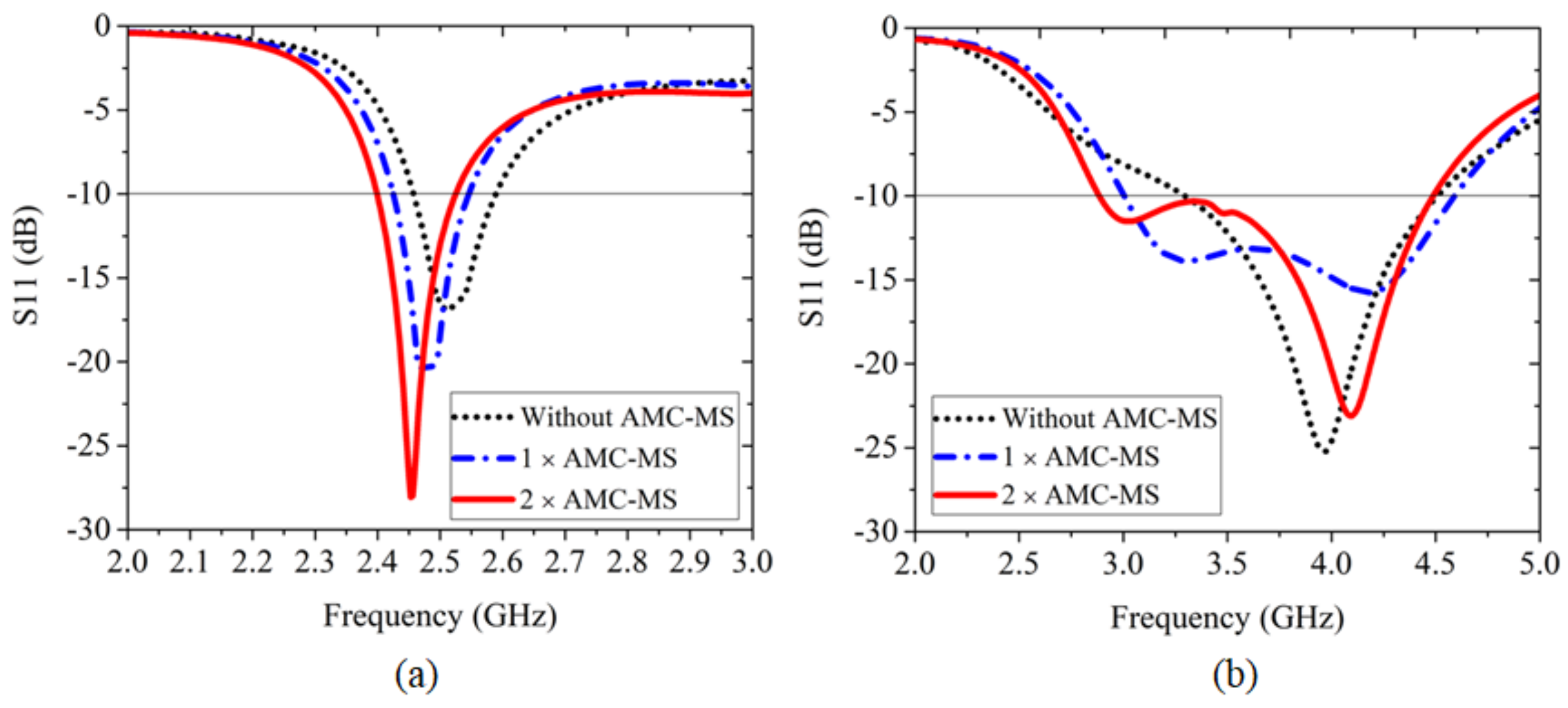

• In Figure 10a, for C-mode, the impedance matching characteristics are shown for both with and without AMC-MS cases. Due to the effects of dual-loaded AMC-MS layers, the center frequencies are shifted to the lower bands. It can be seen that matching characteristics have been improved by >25 dBi at 2.45 GHz, with the dual AMC-MS. Similarly, impedance improvement effects with wideband can be observed for L-mode at 4.0 GHz in Figure 10b, with dual AMC-MS. Thus, the improvements in impedance matching in both modes are due to the effective coupling process, where the radiation and reflection waves are sufficiently coupled between the antenna and AMC-MS.

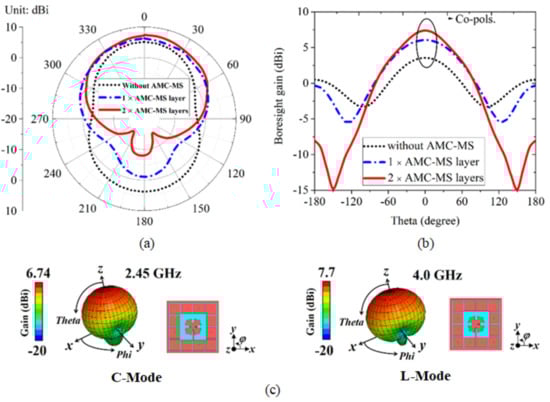

• The radiation pattern is generally bi-directional at $\theta$ = 0^∘ (+ z-axis) and 180^∘ (−z-axis) with no MS. To achieve, broadside radiation, MS was adopted (single AMC-MS) for maximum radiation at $\theta$ = 0^∘ (+ z-axis), as shown in Figure 11a. However, the backward radiation is below −5 dBi, which is not suitable for good radiation stability in wireless applications. Thus, another AMC-MS was introduced (dual AMC-MS) to reduce the back radiation and enhance boresight radiation, providing a better front-to-back ratio (FBR) of −18 to −20 dBi.
• Without MS, the antenna witnessed a gain < 3 dBi. When a single AMC-MS is adopted, the gain is improved by 3 dBi. Then, the antenna gain is further improved by 3.3 dBi when the dual AMC-MS layers are implemented, as shown in Figure 11b and

  Table 2. Comparison analysis of antenna working modes without/with the presence of AMC-MS structures (layers).

  Antenna Configurations	C-Mode, Freq.	C-Mode, Gain	L-Mode, Freq.	L-Mode, Gain
  No AMC-MS	2.46–2.59 GHz	2.8 dBi	3.26–4.5 GHz	3.0 dBi
  1 × AMC-MS	2.42–2.75 GHz	>3.0 dBi	3–4.25 GHz	>5.0 dBi
  2 × AMC-MS	2.39–2.53 GHz	>6.0 dBi	2.88–4.49 GHz	>7.0 dBi

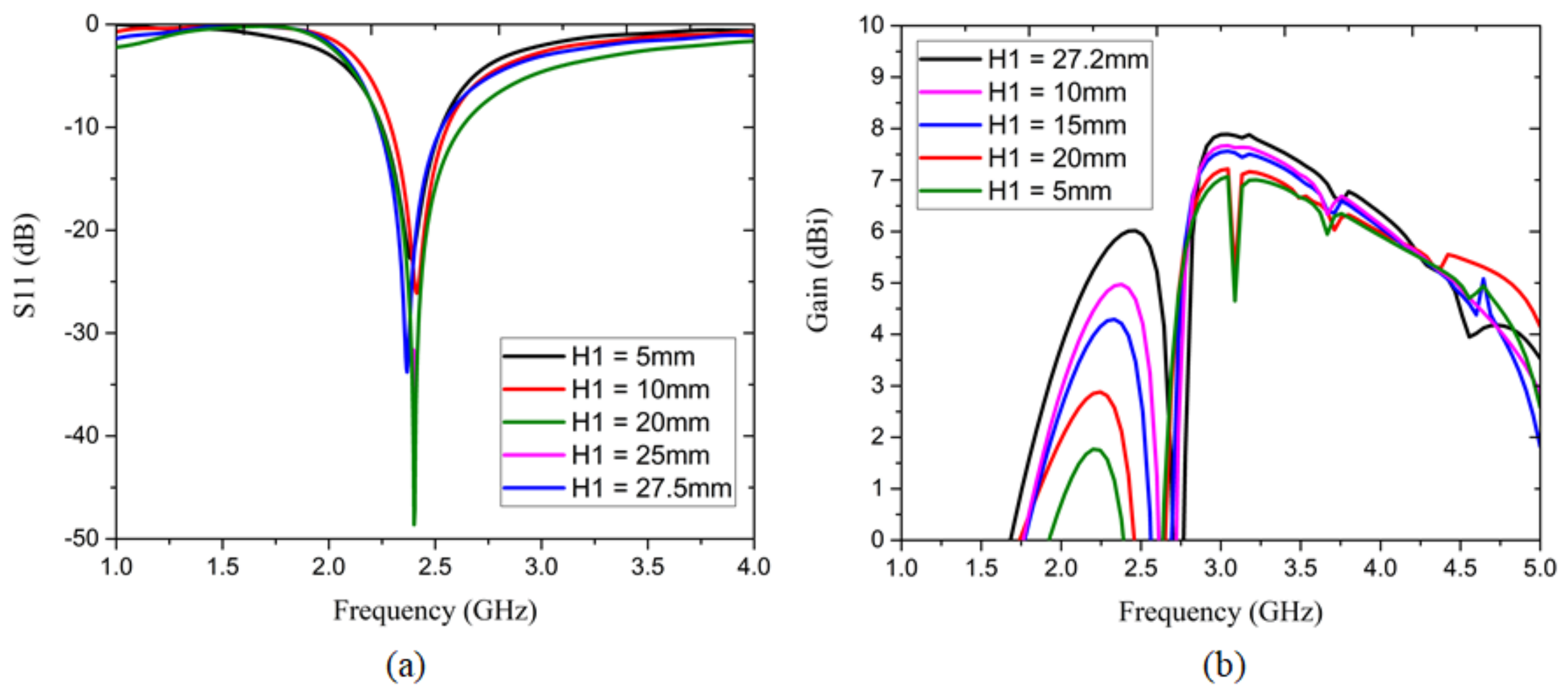

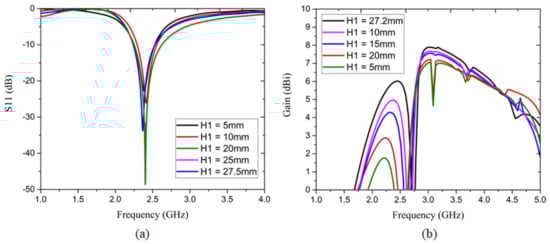

  . To understand the impact of “H1”, a parametric study is shown in Figure 12.

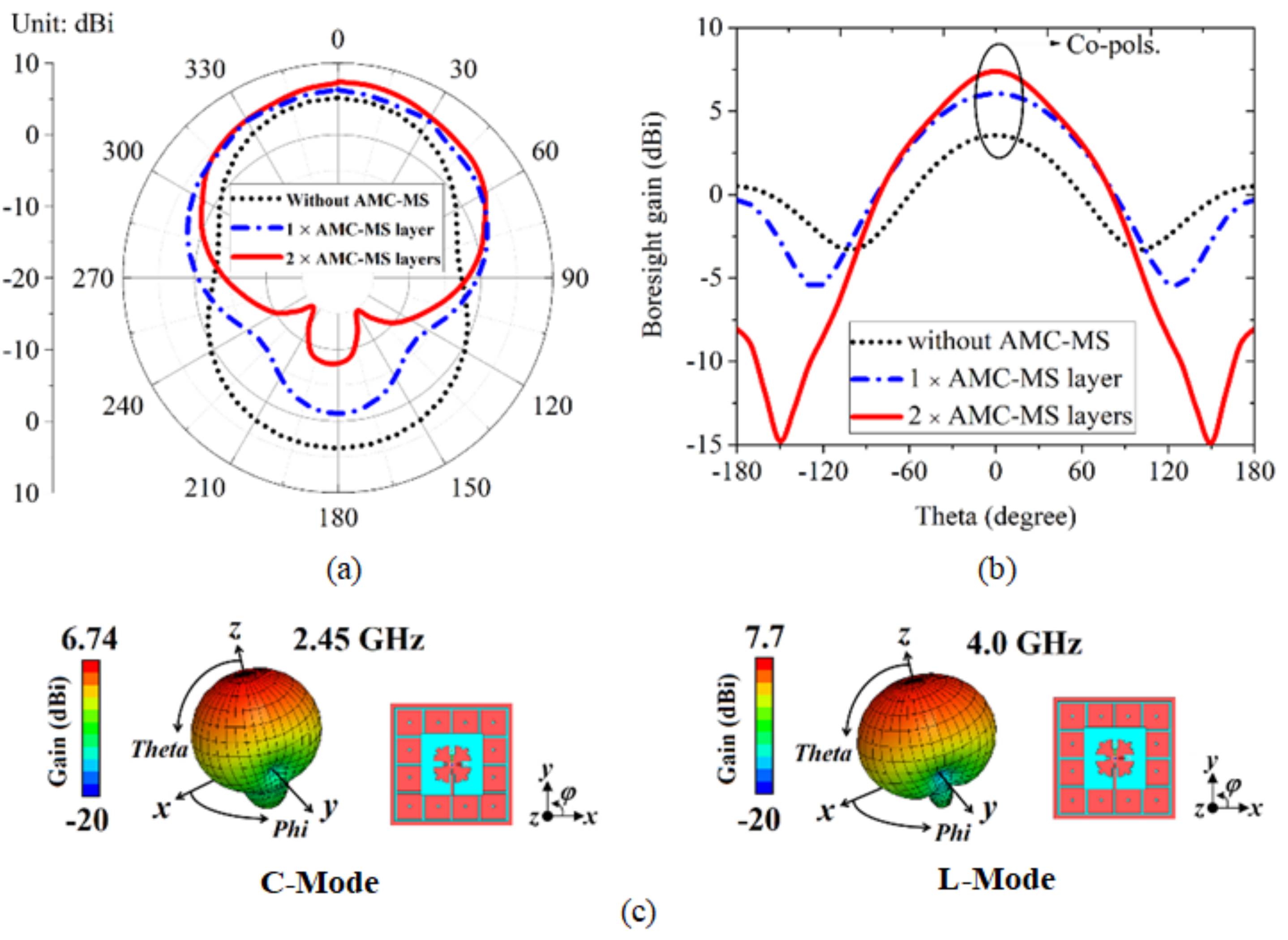

• The boresight gain at $\theta$ = 0^∘ (+ z-axis) shows an improvement in radiation performance with dual AMC-MS layers. The 3D radiation pattern at the centered frequencies for two operating modes is shown in Figure 11c. Then, the C-mode and L-mode antenna configurations’ performance summaries are presented in Table 2. Furthermore, the back lobe radiation characteristics at the corresponding modes are depicted in

  Table 3. Back lobe radiation characteristics without/with the presence of AMC-MS structures (layers).

  Antenna Configurations	C-Mode	L-Mode
  No AMC-MS	−10 dBi	−10 dBi
  1 × AMC-MS	−15 dBi	−15 dBi
  2 × AMC-MS	−20 dBi	−20 dBi

  .

3.6. Simulated Field Current Distributions

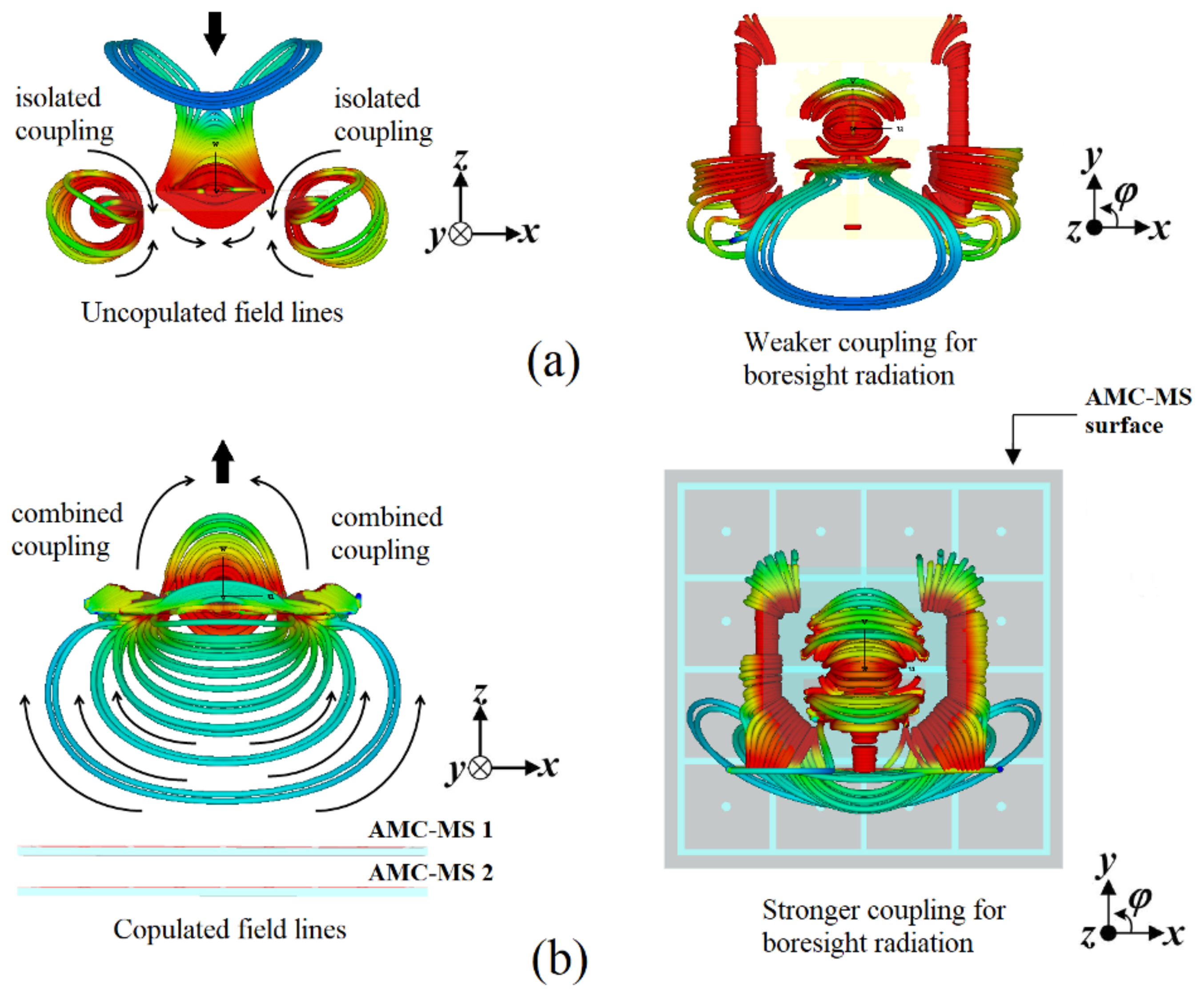

The simulated field current distributions with respect to the presence of dual AMC-MS layers on the radiator are analyzed, showing some distinctive radiation properties, as follows:

• In Figure 13a, the field’s current lines are uncopulated. The isolated loop formation of currents provides weaker coupling energy; hence, all near-field radiated waves do not participate in the coupling process.
• Figure 13b shows that the field lines have symmetrically copulated when the AMC-MS layer is introduced, as a result of which, the near-field radiated waves participate in the coupling process due to in-phase field components of the AMC-MS reflector and contribute to higher radiation energy in the + z-axis. The presence of DMS combines the reflective field energy to effectively couple in the cavity-backed ground aperture, so boresight radiation energy is improved.
• The parabolic field lines form a stronger in-phase coupling process at the ground aperture and bow-tie-shaped patch radiator. Hence, radiative fields becomes additive in nature and enhance the radiation process in the boresight direction, $\theta$ = 0^∘ (+ z-axis).

4. Evaluation of Simulated and Measured Performance

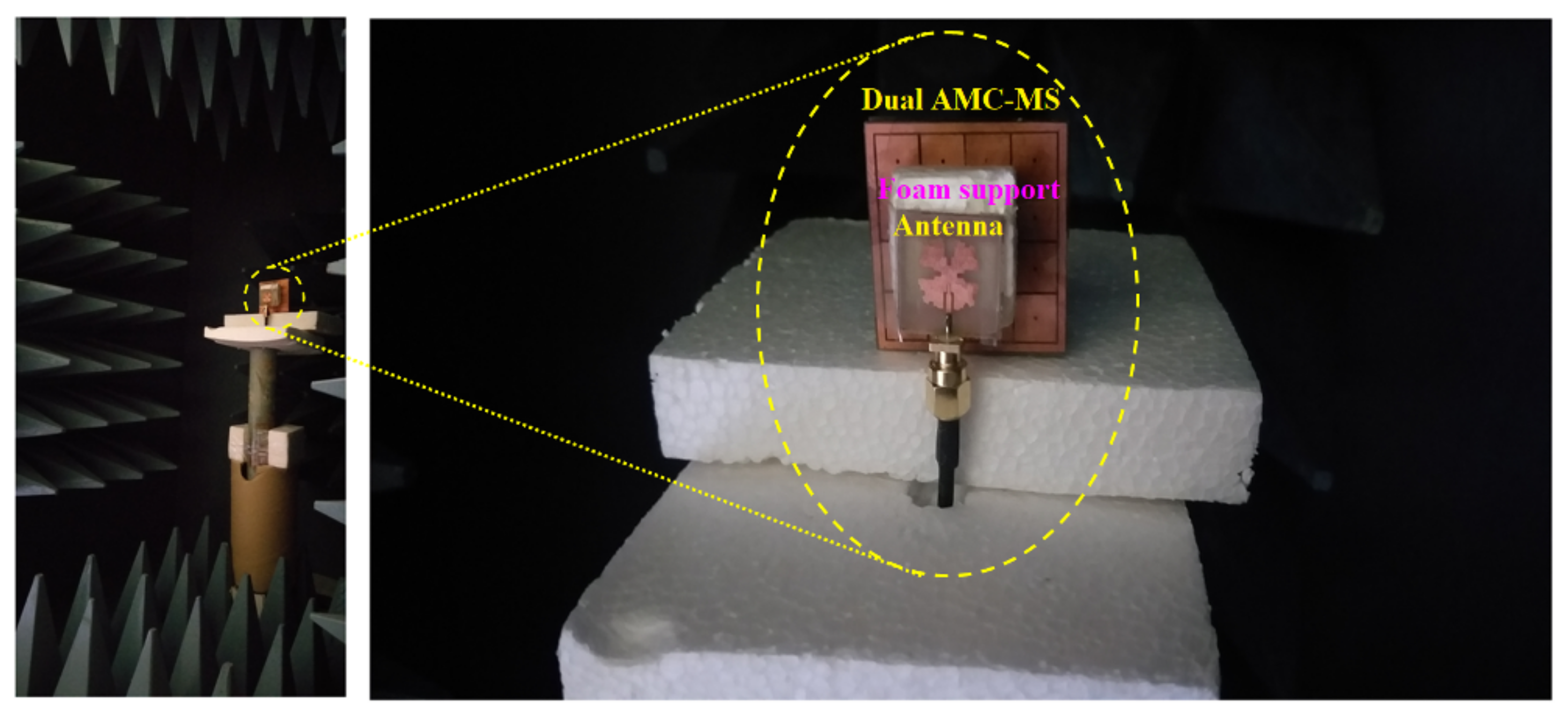

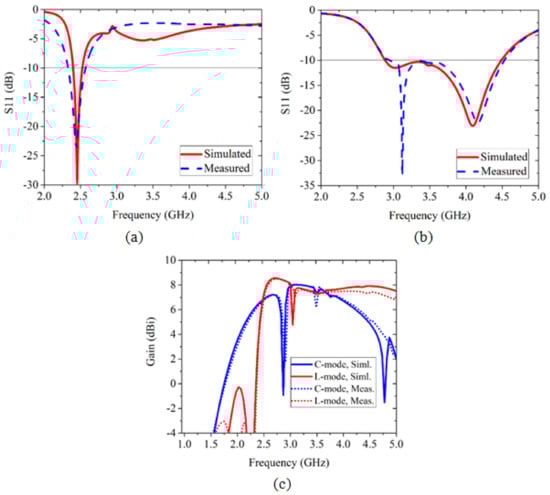

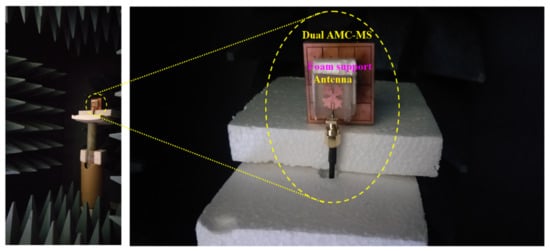

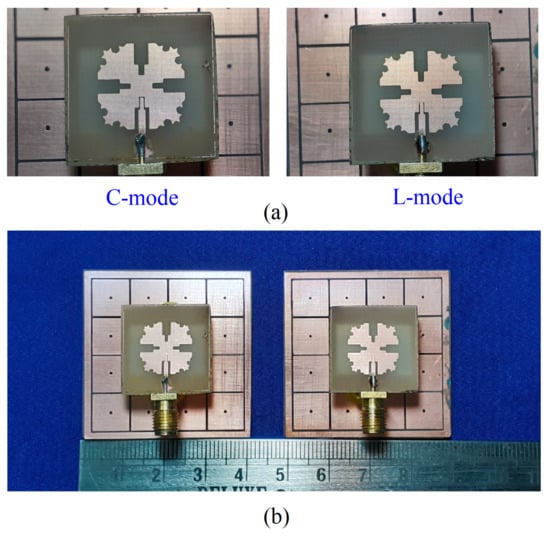

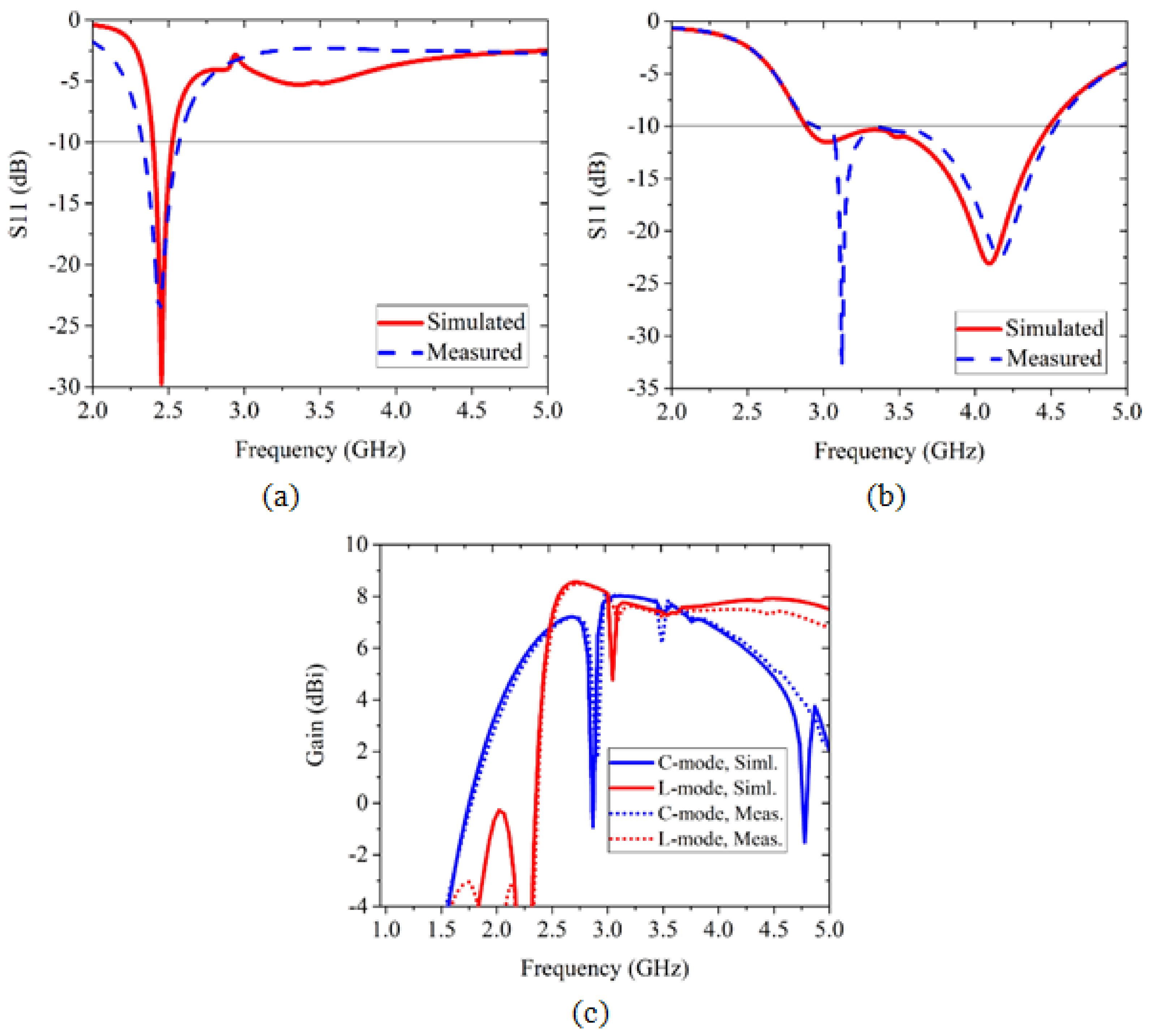

To validate the proposed antenna, a prototype was fabricated and is shown in Figure 14. The S11 parameter was measured by the PNA series Microwave Network Analyzer (Model: N5222A) from Agilent technologies, and its radiation pattern was measured in a far-field anechoic chamber. Figure 15a,b shows the S11 plots for two operating modes. For C-mode, the simulated S11 ranged from 2.39 to 2.53 GHz, a bandwidth of 0.14 GHz, whereas the measured response had an S11 of 2.33–2.57 GHz, a bandwidth of 0.24 GHz. For L-mode, the simulated S11 ranged from 2.88 to 4.49 GHz, a bandwidth of 2.21 GHz, whereas the measured response had S11 of 2.91–4.53 GHz, a bandwidth of 1.62 GHz. Due to the inductance effect, sharp resonance was observed at 3.1 GHz. However, the measured responses accommodate LTE/4G/5G wireless bands. Further, the radiation plots (measurement setup) for both operating modes measured in an anechoic chamber are shown in Figure 16. For C-mode and L-mode, centered at 2.45 and 4.0 GHz, respectively, the radiation plots for $\varphi$ = 0^∘ and $\varphi$ = 90^∘ are shown in Figure 17.

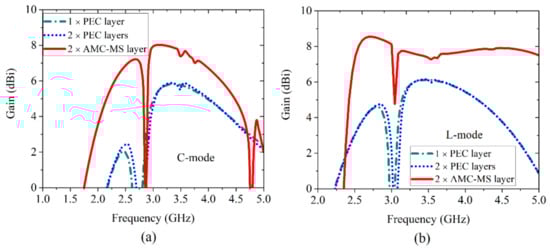

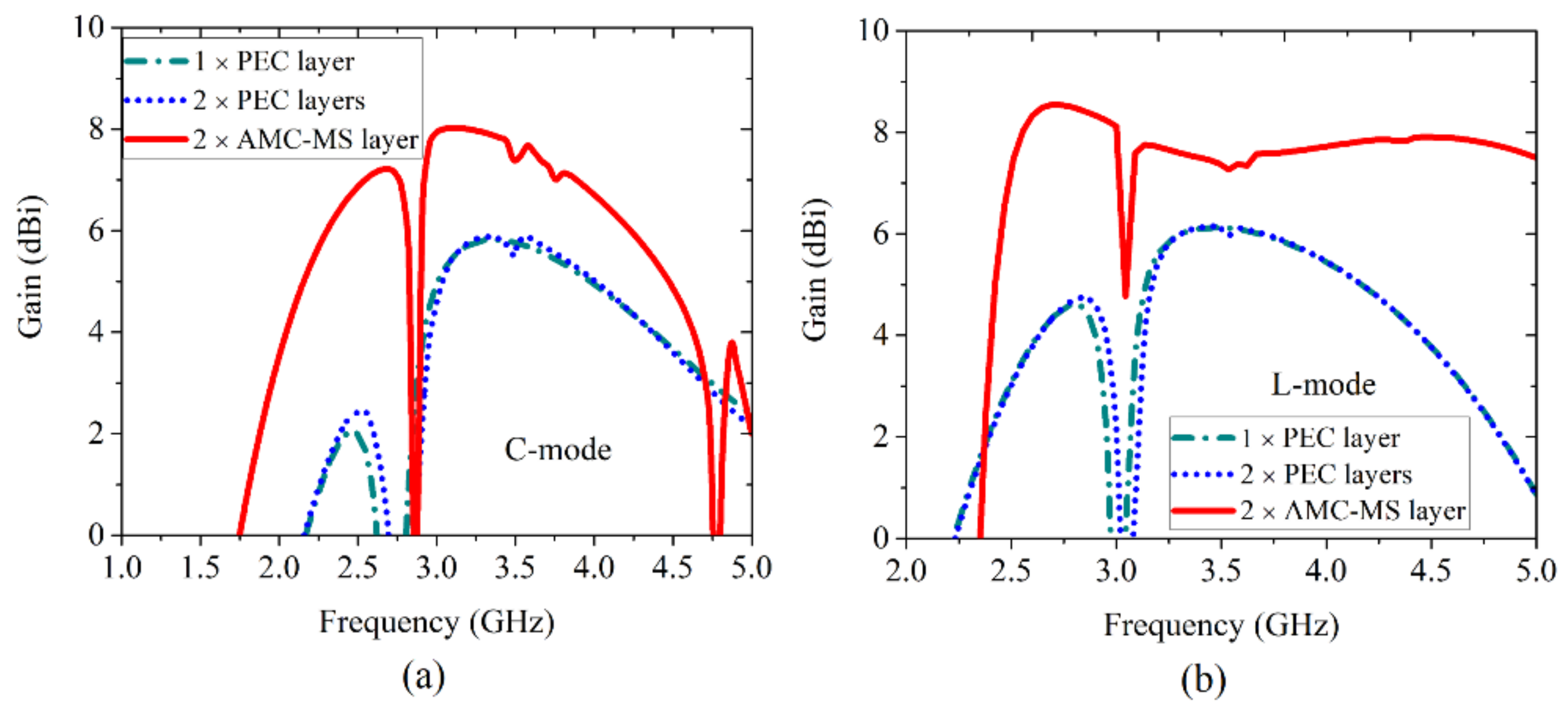

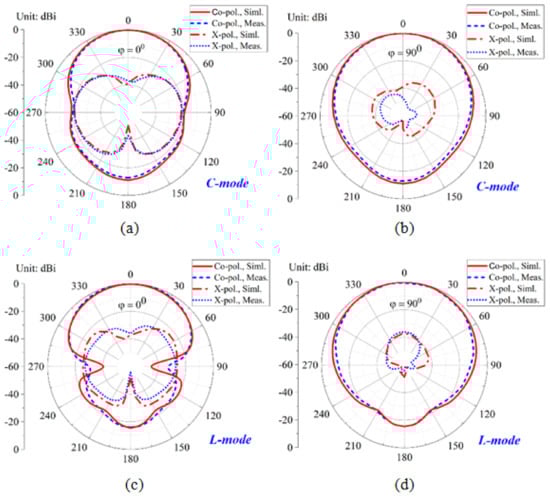

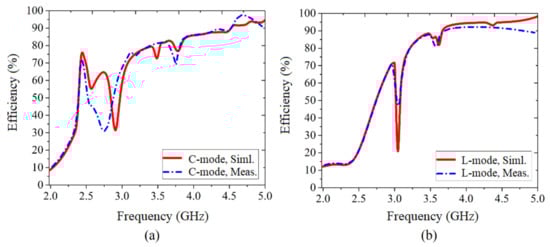

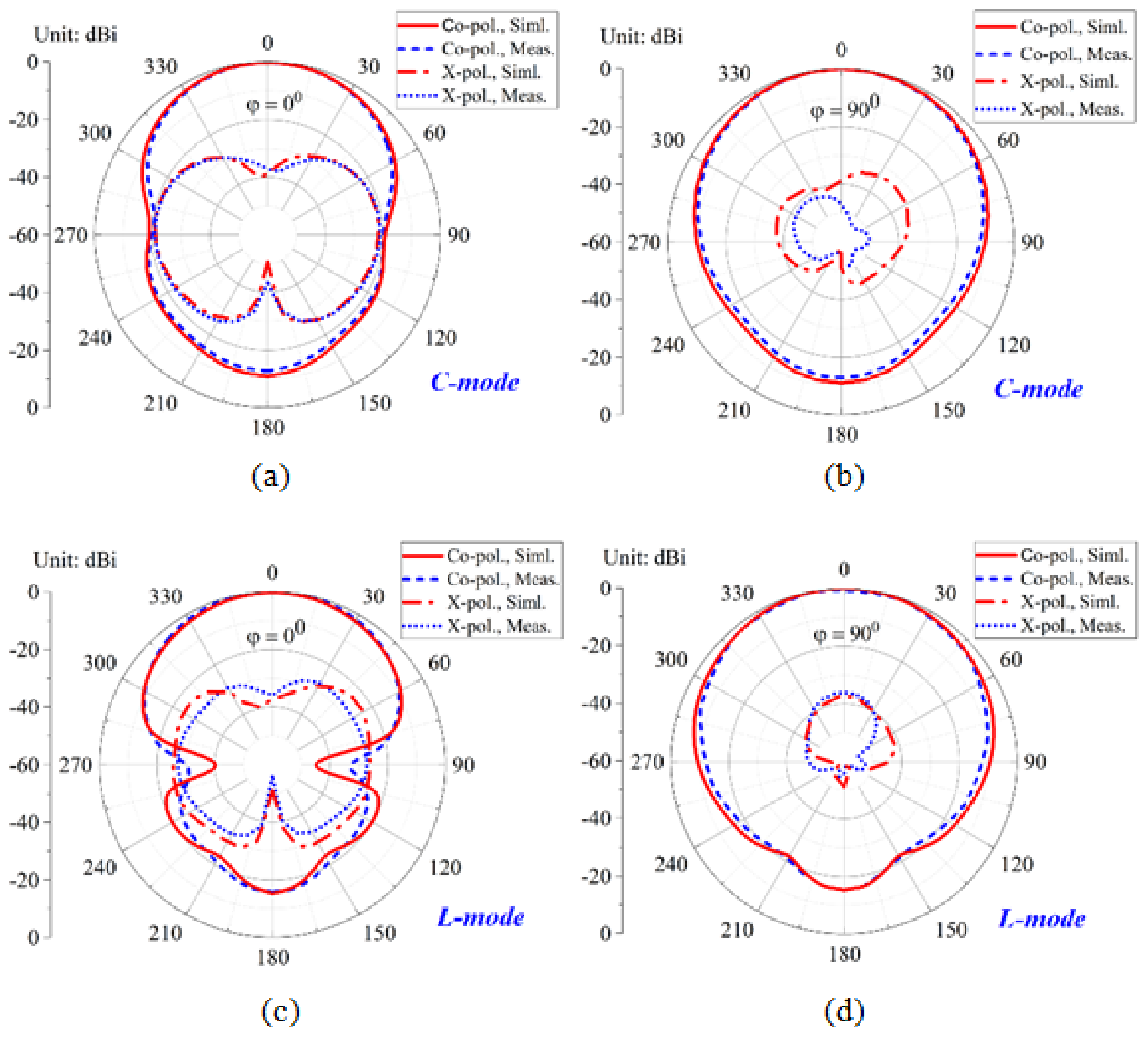

At $\varphi$ = 0^∘, we can witness a di-pole-like broad pattern, and for $\varphi$ = 90^∘, an omni-directional pattern. Due to a low x-pol. component, the normalized magnitude of far-field strength is plotted from 0 to −60 dBi, toward getting clarity of co-pol. and x-pol. discrimination. Owing to the AMC-MS reflector layers, it possesses stable FBR at both radiation planes ranging from −15 to −17.5 dBi. The boresight radiation has maximum intensity at $\theta$ = 0^∘ (+ z-axis). It is to be noted that, due to the ground aperture, the effect of capacitance plays a vital role in the reduction of x-pol. magnitudes. For $\varphi$ = 0^∘, x-pol. has <−35 dB and <−40 dB for $\varphi$ = 90^∘, respectively.

The simulated gain for C-mode was 6.74 dBi at 2.45 GHz, and the measured gain was 6.68 dBi. Similarly, L-mode gain was 7.7 dBi at 4.0 GHz, and the measured gain was 7.5 dBi. For both modes, the antenna had a peak gain variation of 8–8.6 dBi. The gain with AMC-MS layers has been compared with that from PEC reflectors for both modes, as shown in Figure 18a,b. It can be observed that the AMC-MS has superior performance compared to conventional PEC reflectors. This shows that AMC-MS has better reflection properties due to the presence of a coupling effect of inductance (L_a + L_u + L_h) and capacitance C_a, which controls the gap fringing fields to be effectively coupled with the antenna radiation fields. The simulated and measured efficiency plots are presented in Figure 19a,b. The simulated peak efficiency at 2.45 GHz was 81% and the measured peak efficiency was 78% for C-mode. For L-mode, the simulated peak efficiency at 4.0 GHz was 95%, and the measured peak efficiency was 92%. The average efficiency of the proposed antenna at two operating modes was >70%. The proposed printed antenna is supported by the AMC-MS via craft foam sheets. External unavoidable factors, such as substrate dielectric effects, reflector layers, and SMA losses, cause discrepancies between simulated and measured results. The notching effect in gain and efficiency can be observed, due to the geometrical configuration of the bow-tie slot structure of the radiator [27,28,29].

Table 4. The performance comparison of proposed antenna configuration over the reported antenna designs in [4,5,6,7,8,9,10,11,12,13,14].

Ref.	Antenna Footprint ($\mathit{\lambda }$${}_{\circ }$2)	f∘ (GHz)	Impedance Bandwidth (%)	Gain (dBi)	Antenna Height ($\mathit{\lambda }$${}_{\circ }$)	Circuit Analysis
[4]	0.062	1.9, 2.5	5.8, 4	4.52, 4.15	0.045	×
[5]	1.11	2.6, 3.5	7.7, 5.71	7.82, 8.6	0.09	×
[6]	1.211	(3.2–3.65)	13.13	(6.8–7.2)	0.324	×
[7]	0.54	(0.69–0.96)	32.72	(7.4–9.2)	0.1	×
[8]	0.225	2.3	34	(4.7–5.9)	0.23	×
[9]	0.75	(3–4.1)	31	7.1	0.15	×
[10]	1.5	(1.7–2.7)	45	6.3	0.25	×
[11]	0.0135	(2.8–3.2)	13.33	4	0.007	×
[12]	0.12	(1.19–2.37)	66.3	6	0.12	×
[13]	1.63	(2.47–2.77)	11.63	9.7	0.101	×
[14]	0.112	(1.647–1.94)	16.7	6.5	0.124	×
C-mode (Prop.)	0.00256	(2.33–2.574)	9.8	6.74	0.22	YES
L-mode (Prop.)	0.00256	(2.91–4.53)	43.54	7.7	0.22	YES

Notation used—f_∘: operating frequency, λ_∘: free-space wavelength at lowest operating frequency of corresponding antenna configuration.

depicts the performance comparison analysis of different MS antenna parameters with the proposed antenna configuration. It can be observed that for the proposed antenna, which leverages a compact design with a reduced electrical footprint for the antenna and a reduced size of the reflector, stable performances occurred in high antenna gain and directional radiation patterns in both operating modes.

5. Key Design Aspects of the Proposed Antenna Configuration

• In the proposed design, the antenna size is half the size of the reflector. The reflector size is almost 60% reduced as compared to the conventional AMC-MS reflector. Due to the reduction in its size, the AMC’s effective height is fixed at H_eff/$\lambda$${}_{\circ }$ = 0.22, for better impedance matching and stable boresight radiations. Hence, performance metrics, along with compact antenna design, are satisfied from the wireless application perspective [30].
• The inherent bow-tie-shaped fractal radiator reduces the electrical footprint by antenna size. It is difficult to excite such a compact antenna with the dual-loaded AMC reflectors; hence, tuning of the feeding mechanism has been performed, which transduces excitation energy by two induced coupling modes [31]. Thus, the feeding mechanism generates dual-mode coupling, due to induced resonance, for which dual-polarized behavior was observed.
• The dual-loaded AMC-MS reflector also initiates an effective coupling process, and the ground aperture emulsifies the coupled energy into the boresight radiation; hence, there are no spurious NULLS. The dual reflectors also increase the radiation strength, the boresight gain is enhanced, and the back lobe radiation is reduced [32,33].
• The aperture in the ground plane of the antenna is a defected ground element aiming at the reduction of x-pol. in the both radiated planes. Since the design is very compact, co-pol. radiation stability and its high differentiation from the x-pol. are also taken into consideration [34,35,36], primarily focusing towards the wireless applications point-of-view [37,38,39,40,41,42,43,44,45,46,47].
• Since the design objective was compactness, the mutual inductance effects of dual-loaded AMC-MS layers were stabilized, and optimized antenna performance was obtained due to the low-profile effective height consideration.
• The compact low-profile antenna design with a premium footprint satisfied design metrics; and impedance performances, antenna gain, and radiation efficiency satisfied performance metrics in our proposed design implementation with reference to the designs reported in [29,40].
• The initial attempt at a reconfigurable approach in the feeding mechanism has some limitations—i.e., when a diode is placed in the adjoining point of contact between radiator and feed, due to the dominant effect of inductance, as the course of frequency shifting is invariant. Thus, an independent feeding mechanism has been adopted and reported in this proposed work.

6. Conclusions

In this research article, a dual-mode-induced, dual-polarized, compact, directional, bow-tie-shaped fractal patch antenna was realized. It has dual metasurface layers with high gain for LTE/4G/5G wireless applications. The induced coupling modes have two different operating frequency bands: 2.33–2.57 GHz with a bandwidth of 0.24 GHz as C-mode and from 2.91 to 4.53 GHz with a bandwidth of 1.62 GHz as L-mode. The aperture in the ground copulates reflection waves from dual AMC-MS to radiate in the boresight direction, reducing the x-pol component with the attainment of a stable front-to-back ratio (FBR). The gain and efficiency at the two working modes are 6.68 dBi (78%) and 7.5 dBi (92%) in their respective operating bands.
