# Quasi-BIC-Based High-Q Perfect Absorber with Decoupled Resonant Wavelength and Q Factor

^{1}

^{2}

^{*}

## Abstract

**:**

^{5}is designed. This work proposes a method to tune the quasi-BIC mode, thereby introducing a new paradigm for the design of a high-Q perfect absorber.

## 1. Introduction

^{5}is designed by using this method.

## 2. Methods

_{11}, and absorptivity can be obtained by 1−R since there is no transmission in the system.

## 3. Results and Discussion

#### 3.1. Scheme of the Quasi-BIC-Based High-Q Perfect Absorber

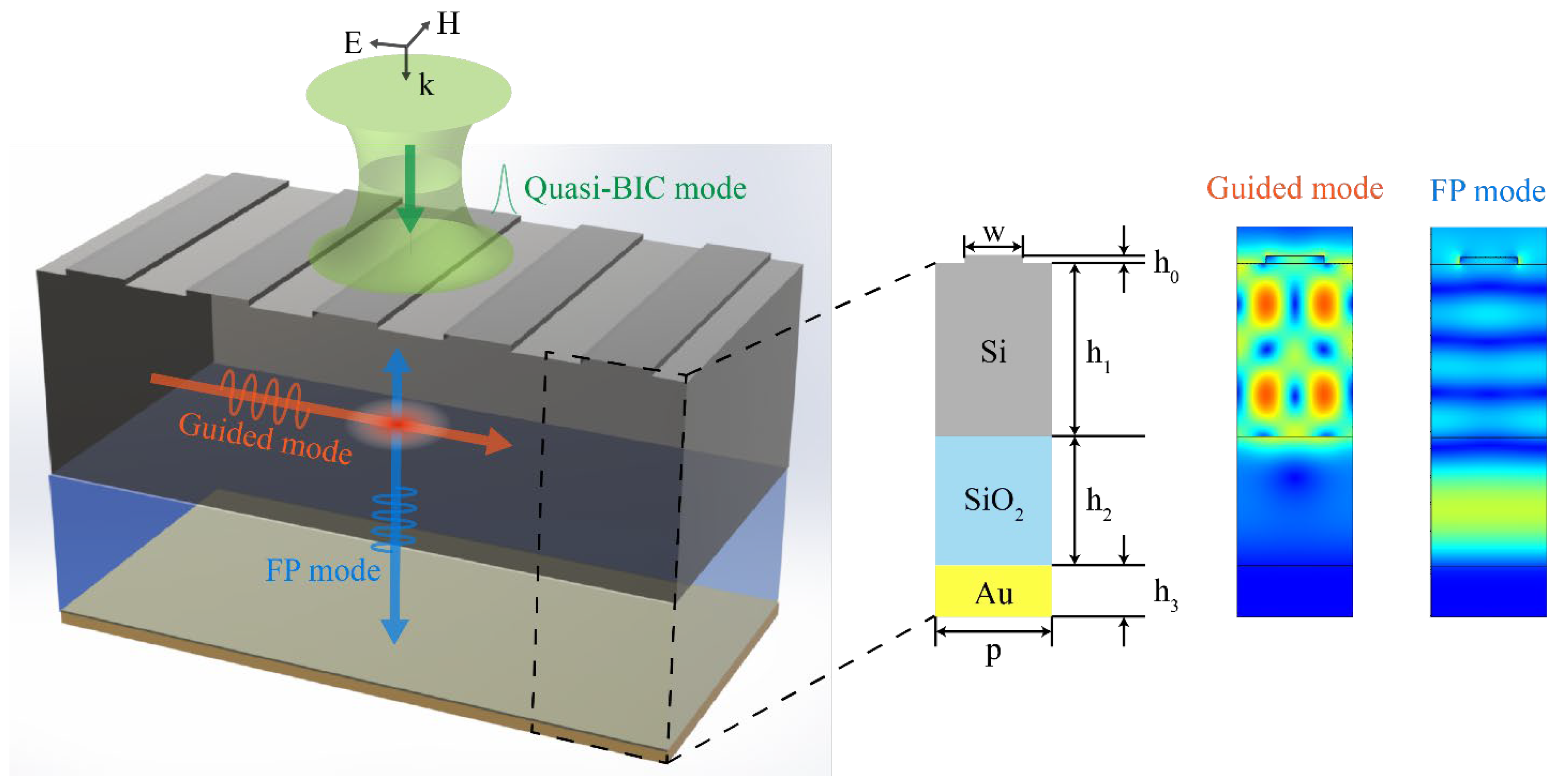

_{2}spacer, and a Si layer from bottom to top, with gratings engraved on top of the Si layer (left panel in Figure 1). In this structure, BIC originated from the coupling between a guided mode and an FP mode. The guided mode horizontally propagates inside the Si layer (since the refractive index of Si is higher than that of SiO

_{2}), while the FP mode vertically oscillates between the Si and SiO

_{2}layers (right panel in Figure 1). The Au substrate serves as a bottom mirror to prevent transmission and absorb the incident light. The SiO

_{2}layer is used to separate the guided mode from the Au substrate to reduce the resistive loss. The resonance of the guided mode is determined by the period of gratings and the thickness of the Si layer, while that of the FP mode is determined by the thickness of both Si and SiO

_{2}layers. Since the factors affecting the resonance of both modes slightly differ from each other, it is possible to tune one mode while maintaining the other. Thus, it is feasible to independently tune the resonant wavelength and the Q factor of the quasi-BIC mode. The cross-section of a single period is demonstrated in the middle panel of Figure 1, where w represents the width of the grating; p is the period; h

_{0}is the grating thickness; h

_{1}is the Si layer thickness; h

_{2}is the SiO

_{2}layer thickness, and h

_{3}is the thickness of the Au substrate.

#### 3.2. Characterization of the BIC Mode

_{2}layer thickness h

_{2}was simulated for the structures with different periods p = 430 nm, 450 nm, and 470 nm (Figure 2a–c). Other structure parameters were set as h

_{0}= 30 nm, h

_{1}= 670 nm, h

_{3}= 200 nm, and w = p/2. The track of the guided mode is parallel to the h

_{2}axis, while that of the FP mode is almost an oblique straight line (Figure 2a–c). The resonance of the FP mode experiences a redshift with increasing h

_{2}, while the guided mode maintains the same resonant wavelength. On the other hand, the track of the FP mode maintains the same position, while that of the guided mode redshifts with increasing p. Thus, the resonances of the guided mode and the FP mode can be independently tuned by either changing p or h

_{2}.

_{2}values of each BIC point are about 480 nm, 560 nm, and 660 nm corresponding to p = 430 nm, 450 nm, and 470 nm, respectively. By comparing Figure 2a–c, it is noted that the resonant wavelength of the quasi-BIC mode is relevant to the period p and is hardly influenced by the thickness of SiO

_{2}layer h

_{2}.

_{2}on the quasi-BIC modes, five absorptivity curves (Figure 2d–f) were plotted for the quasi-BIC modes in the orange dashed areas of Figure 2a–c, with the interval of h

_{2}as 10 nm. For all the periods, the difference between the resonant wavelengths is within 1 nm against the change of h

_{2}. Especially for p = 470 nm, the quasi-BIC modes resonate at the same wavelength of 1356 nm (Figure 2f), showing that the resonant wavelength is hardly influenced by h

_{2}. However, the resonant wavelength changes by nearly 40 nm when p changes by 20 nm. The resonant wavelengths are near 1275 nm, 1312 nm, and 1356 nm for p = 430 nm, 450 nm, and 470 nm, respectively (Figure 2d–f), indicating that the period is a key factor to change the resonant wavelength.

_{2}is tuned from 410 nm to 450 nm (Figure 2d); for p = 470 nm, the peak absorptivity decreases when h

_{2}is tuned from 610 nm to 650 nm (Figure 2f). These results suggest that h

_{2}cannot be used to tune the resonant wavelength, but it can help to tune the Q factor (or the bandwidth) and the peak absorptivity.

_{2}layer thickness h

_{2}.

#### 3.3. Analysis of Q Factor and Peak Absorptivity

_{2}, h

_{0}+ h

_{1}, etc.) influence the coupling between the guided mode and the FP mode in a similar way, i.e., by tuning the phase difference between these two modes. Since the period p was used to determine the resonant wavelength and the SiO

_{2}layer thickness h

_{2}was used to tune the coupling, h

_{2}was set as the only variable in the following simulation, with other structure parameters as h

_{0}= 30 nm, h

_{1}= 670 nm, h

_{3}= 200 nm, p = 450 nm, and w = 225 nm (Figure 3a). When h

_{2}is changed from 510 nm to 600 nm (the BIC point is within this range), the damping rate of resistive loss maintains the magnitude of 10

^{10}s

^{−1}, while that of radiative loss experiences a huge change from 10

^{7}s

^{−1}to 10

^{10}s

^{−1}(Figure 3b). This indicates that h

_{2}mainly influences the radiative loss and slightly influences the resistive loss. The change of resonant wavelength stays within 1 nm during the tuning of h

_{2}(Figure 3e). For h

_{2}= 550 nm (near the BIC point), the damping rate of resistive loss is nearly three orders higher than that of the radiative loss. According to the coupled mode theory [38], resistive and radiative losses serve key roles in tuning the Q factor and the peak absorptivity. Thus, the mechanism behind the Q factor and peak absorptivity tuning is that h

_{2}can change the radiative loss.

_{tot}, Q

_{res}, and Q

_{rad}represent the total Q factor, resistive Q factor, and radiative Q factor, respectively). Thus, unlike dielectric BIC structures (without resistive loss), the total Q factor of the BIC mode in this work is limited by the resistive loss and cannot approach infinity. The resistive loss in this structure is mainly from the bottom Au substrate (Figure 3d). Moreover, the dissipation mainly happens within the top 50 nm of the Au substrate, which suggests that as long as the thickness of the Au substrate is larger than 50 nm, there will be no light transmission, and the absorption will be the same.

_{2}from 510 nm to 600 nm; i.e., the highest total Q factor corresponds to the lowest peak absorptivity. Thus, there is a tradeoff between the total Q factor and the peak absorptivity for this design of the quasi-BIC high-Q absorbers presented in this work.

#### 3.4. Realizing Higher Q Factor While Maintaining High Peak Absorptivity

_{2}layer thickness h

_{2}, one idea to simultaneously realize a higher Q factor and high peak absorptivity in the quasi-BIC mode is to decrease the damping rate of resistive loss at first and then tune that of radiative loss to the same magnitude as the resistive loss by changing h

_{2}. Thus, it is critical to find a way to lower the damping rate of resistive loss in the quasi-BIC mode.

_{0}is found to have the capability to change the damping rate of resistive loss. Simulations are conducted for the structure with parameters h

_{0}+ h

_{1}= 700 nm, h

_{2}= 530 nm, h

_{3}= 200 nm, p = 450 nm, and w = 225 nm (Figure 4a). The damping rate of resistive loss increases by two orders—from 10

^{9}s

^{−1}to 10

^{11}s

^{−1}when h

_{0}is changed from 5 nm to 70 nm (Figure 4b). The damping rate of radiative loss decreases to 10

^{6}s

^{−1}at first and then increases rapidly to 10

^{11}s

^{−1}, suggesting that the resonance evolves to a BIC mode during the progress.

_{0}was set as 5 nm to decrease the damping rate of resistive loss as much as possible, and the next step was to tune the damping rate of radiative loss to the magnitude of resistive loss (Figure 4c,d). Setting h

_{0}as 5 nm and keeping other structure parameters fixed, damping rates were simulated for different h

_{2}values (from 510 nm to 600 nm). The damping rates of resistive loss and radiative loss almost equal to each other when h

_{2}= 580 nm (green circled data in Figure 4d).

_{0}= 5 nm, h

_{1}= 695 nm, h

_{2}= 580 nm, h

_{3}= 200 nm, p = 450 nm, and w = 225 nm. The absorptivity curve is shown in Figure 4e. The structure has a peak at 1323.375 nm (the electric field distribution is shown in the inset), and the peak absorptivity is unity. The FWHM (full width at half maximum) of the peak is as narrow as 2.58 × 10

^{−3}nm, corresponding to a high Q factor of 5.13 × 10

^{5}.

#### 3.5. General Steps to Design a Quasi-BIC-Based High-Q Perfect Absorber

_{0}; last, make the damping rate of radiative loss approximately equal to that of resistive loss by tuning the SiO

_{2}layer thickness h

_{2}.

## 4. Conclusions

^{5}is designed. First, the design in this work is versatile such that it can be easily scaled to different operating wavelengths, e.g., mid-IR for sensing or high-Q emitter. Second, the mechanism of decoupling the resonant wavelength and the Q factor can used on other structures with two resonances that can be independently tuned. Third, by replacing the SiO

_{2}layer with a dielectric elastomer actuator [39] (thickness could be varied dynamically), it could be possible to dynamically tune the Q factor while maintaining the resonant wavelength. Lastly, the structure proposed in this work can serve as a platform for cutting-edge technologies [40,41,42,43,44,45,46], including ultrasensitive biosensing [47], high-harmonic generations [48], and coherent and quantum light generations [49].

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Singh, R.; Cao, W.; Al-Naib, I.; Cong, L.; Withayachumnankul, W.; Zhang, W. Ultrasensitive terahertz sensing with high-Q Fano resonances in metasurfaces. Appl. Phys. Lett.
**2014**, 105, 171101. [Google Scholar] [CrossRef] [Green Version] - Ma, B.; Ouyang, A.; Zhong, J.; Belov, P.A.; Sinha, R.K.; Qian, W.; Ghosh, P.; Li, Q. All-Dielectric Metasurface for Sensing Microcystin-LR. Electronics
**2021**, 10, 1363. [Google Scholar] [CrossRef] - Herr, T.; Brasch, V.; Jost, J.D.; Wang, C.Y.; Kondratiev, N.M.; Gorodetsky, M.L.; Kippenberg, T.J. Temporal solitons in optical microresonators. Nat. Photonics
**2014**, 8, 145–152. [Google Scholar] [CrossRef] [Green Version] - Foley, J.M.; Young, S.M.; Phillips, J.D. Symmetry-protected mode coupling near normal incidence for narrow-band transmission filtering in a dielectric grating. Phys. Rev. B
**2014**, 89, 165111. [Google Scholar] [CrossRef] - Li, P.B.; Gao, S.Y.; Li, F.L. Quantum-information transfer with nitrogen-vacancy centers coupled to a whispering-gallery microresonator. Phys. Rev. A
**2011**, 83, 054306. [Google Scholar] [CrossRef] [Green Version] - Liu, Z.; Xu, Y.; Lin, Y.; Xiang, J.; Feng, T.; Cao, Q.; Li, J.; Lan, S.; Liu, J. High-Q quasibound states in the continuum for nonlinear metasurfaces. Phys. Rev. Lett.
**2019**, 123, 253901. [Google Scholar] [CrossRef] [Green Version] - De Zoysa, M.; Asano, T.; Mochizuki, K.; Oskooi, A.; Inoue, T.; Noda, S. Conversion of broadband to narrowband thermal emission through energy recycling. Nat. Photonics
**2012**, 6, 535–539. [Google Scholar] [CrossRef] - Wang, B.X.; Zhai, X.; Wang, G.Z.; Huang, W.Q.; Wang, L.L. A novel dual-band terahertz metamaterial absorber for a sensor application. J. Appl. Phys.
**2015**, 117, 014504. [Google Scholar] [CrossRef] - Pan, M.; Su, Z.; Yu, Z.; Wu, P.; Jile, H.; Yi, Z.; Chen, Z. A narrowband perfect absorber with high Q-factor and its application in sensing in the visible region. Results Phys.
**2020**, 19, 103415. [Google Scholar] [CrossRef] - Inoue, T.; De Zoysa, M.; Asano, T.; Noda, S. Single-peak narrow-bandwidth mid-infrared thermal emitters based on quantum wells and photonic crystals. Appl. Phys. Lett.
**2013**, 102, 191110. [Google Scholar] [CrossRef] - Morita, R.; Inoue, T.; De Zoysa, M.; Ishizaki, K.; Noda, S. Photonic-crystal lasers with two-dimensionally arranged gain and loss sections for high-peak-power short-pulse operation. Nat. Photonics
**2021**, 15, 311–318. [Google Scholar] [CrossRef] - Wang, B.; Yu, P.; Wang, W.; Zhang, X.; Kuo, H.C.; Xu, H.; Wang, Z.M. High-Q Plasmonic Resonances: Fundamentals and Applications. Adv. Opt. Mater.
**2021**, 9, 2001520. [Google Scholar] [CrossRef] - Meng, L.; Zhao, D.; Ruan, Z.; Li, Q.; Yang, Y.; Qiu, M. Optimized grating as an ultra-narrow band absorber or plasmonic sensor. Opt. Lett.
**2014**, 39, 1137–1140. [Google Scholar] [CrossRef] [PubMed] - Greffet, J.J.; Carminati, R.; Joulain, K.; Mulet, J.P.; Mainguy, S.; Chen, Y. Coherent emission of light by thermal sources. Nature
**2002**, 416, 61–64. [Google Scholar] [CrossRef] [PubMed] - Zhao, D.; Meng, L.; Gong, H.; Chen, X.; Chen, Y.; Yan, M.; Li, Q.; Qiu, M. Ultra-narrow-band light dissipation by a stack of lamellar silver and alumina. Appl. Phys. Lett.
**2014**, 104, 221107. [Google Scholar] [CrossRef] - Hsu, C.W.; Zhen, B.; Stone, A.D.; Joannopoulos, J.D.; Soljačić, M. Bound states in the continuum. Nat. Rev. Mater.
**2016**, 1, 16048. [Google Scholar] [CrossRef] [Green Version] - Joseph, S.; Pandey, S.; Sarkar, S.; Joseph, J. Bound states in the continuum in resonant nanostructures: An overview of engineered materials for tailored applications. Nanophotonics
**2021**, 10, 4175–4207. [Google Scholar] [CrossRef] - Gorkunov, M.V.; Antonov, A.A.; Kivshar, Y.S. Metasurfaces with maximum chirality empowered by bound states in the continuum. Phys. Rev. Lett.
**2020**, 125, 093903. [Google Scholar] [CrossRef] - Koshelev, K.; Lepeshov, S.; Liu, M.; Bogdanov, A.; Kivshar, Y. Asymmetric metasurfaces with high-Q resonances governed by bound states in the continuum. Phys. Rev. Lett.
**2018**, 121, 193903. [Google Scholar] [CrossRef] [Green Version] - Heilmann, R.; Salerno, G.; Cuerda, J.; Hakala, T.K.; Törmä, P. Quasi-BIC Mode Lasing in a Quadrumer Plasmonic Lattice. ACS Photonics
**2022**, 9, 224–232. [Google Scholar] [CrossRef] - Azzam, S.I.; Shalaev, V.M.; Boltasseva, A.; Kildishev, A.V. Formation of bound states in the continuum in hybrid plasmonic-photonic systems. Phys. Rev. Lett.
**2018**, 121, 253901. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Yang, Y.; Peng, C.; Liang, Y.; Li, Z.; Noda, S. Analytical perspective for bound states in the continuum in photonic crystal slabs. Phys. Rev. Lett.
**2014**, 113, 037401. [Google Scholar] [CrossRef] [PubMed] - Lee, S.G.; Kim, S.H.; Kee, C.S. Bound states in the continuum (BIC) accompanied by avoided crossings in leaky-mode photonic lattices. Nanophotonics
**2020**, 9, 4373–4380. [Google Scholar] [CrossRef] - Gao, X.; Zhen, B.; Soljacic, M.; Chen, H.; Hsu, C.W. Bound states in the continuum in fiber Bragg gratings. ACS Photonics
**2019**, 6, 2996–3002. [Google Scholar] [CrossRef] [Green Version] - Plotnik, Y.; Peleg, O.; Dreisow, F.; Heinrich, M.; Nolte, S.; Szameit, A.; Segev, M. Experimental observation of optical bound states in the continuum. Phys. Rev. Lett.
**2011**, 107, 183901. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wan, S.; Qin, C.; Wang, K.; Wang, K.; Li, Y.; Guan, C.; Lv, B.; Li, W.; Shi, J. Ultra-high quality perfect absorber based on quasi bound states in the continuum. J. Appl. Phys.
**2022**, 131, 213104. [Google Scholar] [CrossRef] - Hsu, C.W.; Zhen, B.; Lee, J.; Chua, S.L.; Johnson, S.G.; Joannopoulos, J.D.; Soljačić, M. Observation of trapped light within the radiation continuum. Nature
**2013**, 499, 188–191. [Google Scholar] [CrossRef] [Green Version] - Friedrich, H.; Wintgen, D. Interfering resonances and bound states in the continuum. Phys. Rev. A
**1985**, 32, 3231. [Google Scholar] [CrossRef] - Weimann, S.; Xu, Y.; Keil, R.; Miroshnichenko, A.E.; Tünnermann, A.; Nolte, S.; Sukhorukov, A.A.; Szameit, A.; Kivshar, Y.S. Compact surface Fano states embedded in the continuum of waveguide arrays. Phys. Rev. Lett.
**2013**, 111, 240403. [Google Scholar] [CrossRef] - Bogdanov, A.A.; Koshelev, K.L.; Kapitanova, P.V.; Rybin, M.V.; Gladyshev, S.A.; Sadrieva, Z.F.; Samusev, K.B.; Kivshar, Y.S.; Limonov, M.F. Bound states in the continuum and Fano resonances in the strong mode coupling regime. Adv. Photonics
**2019**, 1, 016001. [Google Scholar] [CrossRef] - Melik-Gaykazyan, E.; Koshelev, K.; Choi, J.H.; Kruk, S.S.; Bogdanov, A.; Park, H.G.; Kivshar, Y. From Fano to quasi-BIC resonances in individual dielectric nanoantennas. Nano Lett.
**2021**, 21, 1765–1771. [Google Scholar] [CrossRef] - Wu, M.; Ha, S.T.; Shendre, S.; Durmusoglu, E.G.; Koh, W.K.; Abujetas, D.R.; Sánchez-Gil, J.A.; Paniagua-Domínguez, R.; Demir, H.V.; Kuznetsov, A.I. Room-temperature lasing in colloidal nanoplatelets via mie-resonant bound states in the continuum. Nano Lett.
**2020**, 20, 6005–6011. [Google Scholar] [CrossRef] [PubMed] - Koshelev, K.; Bogdanov, A.; Kivshar, Y. Meta-optics and bound states in the continuum. Sci. Bull.
**2019**, 64, 836–842. [Google Scholar] [CrossRef] [Green Version] - Abujetas, D.R.; Barreda, Á.; Moreno, F.; Litman, A.; Geffrin, J.M.; Sánchez-Gil, J.A. High-Q Transparency Band in All-Dielectric Metasurfaces Induced by a Quasi Bound State in the Continuum. Laser Photonics Rev.
**2021**, 15, 2000263. [Google Scholar] [CrossRef] - Kim, K.H.; Kim, J.R. High-Q Chiroptical Resonances by Quasi-Bound States in the Continuum in Dielectric Metasurfaces with Simultaneously Broken In-Plane Inversion and Mirror Symmetries. Adv. Opt. Mater.
**2021**, 9, 2101162. [Google Scholar] [CrossRef] - Liu, Z.; Wang, J.; Chen, B.; Wei, Y.; Liu, W.; Liu, J. Giant enhancement of continuous wave second harmonic generation from few-layer GaSe coupled to high-Q quasi bound states in the continuum. Nano Lett.
**2021**, 21, 7405–7410. [Google Scholar] [CrossRef] [PubMed] - Hu, T.; Qin, Z.; Chen, H.; Chen, Z.; Xu, F.; Wang, Z. High-Q filtering and dynamic modulation in all-dielectric metasurfaces induced by quasi-BIC. Opt. Express
**2022**, 30, 18264–18272. [Google Scholar] [CrossRef] - Haus, H.A.; Huang, W. Coupled-mode theory. Proc. IEEE
**1991**, 79, 1505–1518. [Google Scholar] [CrossRef] [Green Version] - O’Halloran, A.; O’malley, F.; McHugh, P. A review on dielectric elastomer actuators, technology, applications, and challenges. J. Appl. Phys.
**2008**, 104, 071101. [Google Scholar] [CrossRef] - Zhu, Y.; Luo, H.; Yang, C.; Qin, B.; Ghosh, P.; Kaur, S.; Shen, W.; Qiu, M.; Belov, P.; Li, Q. Color-preserving passive radiative cooling for an actively temperature-regulated enclosure. Light Sci. Appl.
**2022**, 11, 122. [Google Scholar] [CrossRef] - Yu, J.; Ma, B.; Ouyang, A.; Ghosh, P.; Luo, H.; Pattanayak, A.; Kaur, S.; Qiu, M.; Belov, P.; Li, Q. Dielectric super-absorbing metasurfaces via PT symmetry breaking. Optica
**2021**, 8, 1290–1295. [Google Scholar] [CrossRef] - Xu, Z.; Luo, H.; Zhu, H.; Hong, Y.; Shen, W.; Ding, J.; Kaur, S.; Ghosh, P.; Qiu, M.; Li, Q. Nonvolatile optically reconfigurable radiative metasurface with visible tunability for anticounterfeiting. Nano Lett.
**2021**, 21, 5269–5276. [Google Scholar] [CrossRef] [PubMed] - Luo, H.; Zhu, Y.; Xu, Z.; Hong, Y.; Ghosh, P.; Kaur, S.; Wu, M.; Yang, C.; Qiu, M.; Li, Q. Outdoor personal thermal management with simultaneous electricity generation. Nano Lett.
**2021**, 21, 3879–3886. [Google Scholar] [CrossRef] - Tian, J.; Li, Q.; Belov, P.A.; Sinha, R.K.; Qian, W.; Qiu, M. High-Q all-dielectric metasurface: Super and suppressed optical absorption. ACS Photonics
**2020**, 7, 1436. [Google Scholar] [CrossRef] - Ying, Y.; Ma, B.; Yu, J.; Huang, Y.; Ghosh, P.; Shen, W.; Qiu, M.; Li, Q. Whole LWIR directional thermal emission based on ENZ thin films. Laser Photonics Rev.
**2020**, 2200018. [Google Scholar] [CrossRef] - Xu, Z.; Li, Q.; Du, K.; Long, S.; Yang, Y.; Cao, X.; Luo, H.; Zhu, H.; Ghosh, P.; Shen, W.; et al. Spatially resolved dynamically reconfigurable multilevel control of thermal emission. Laser Photonics Rev.
**2020**, 14, 1900162. [Google Scholar] [CrossRef] - Zito, G.; Sanità, G.; Alulema, B.G.; Yépez, S.N.L.; Lanzio, V.; Riminucci, F.; Cabrini, S.; Moccia, M.; Avitabile, C.; Lamberti, A.; et al. Label-free DNA biosensing by topological light confinement. Nanophotonics
**2021**, 10, 4279–4287. [Google Scholar] [CrossRef] - Carletti, L.; Kruk, S.S.; Bogdanov, A.A.; De Angelis, C.; Kivshar, Y. High-harmonic generation at the nanoscale boosted by bound states in the continuum. Phys. Rev. Res.
**2019**, 1, 023016. [Google Scholar] [CrossRef] [Green Version] - Azzam, S.I.; Kildishev, A.V. Photonic bound states in the continuum: From basics to applications. Adv. Opt. Mater.
**2021**, 9, 2001469. [Google Scholar] [CrossRef]

**Figure 1.**Schematic of the quasi-BIC based high-Q perfect absorber (

**left panel**), the cross-section of a single period (

**middle panel**), and electric field distributions of the guided mode and the FP mode (

**right panel**).

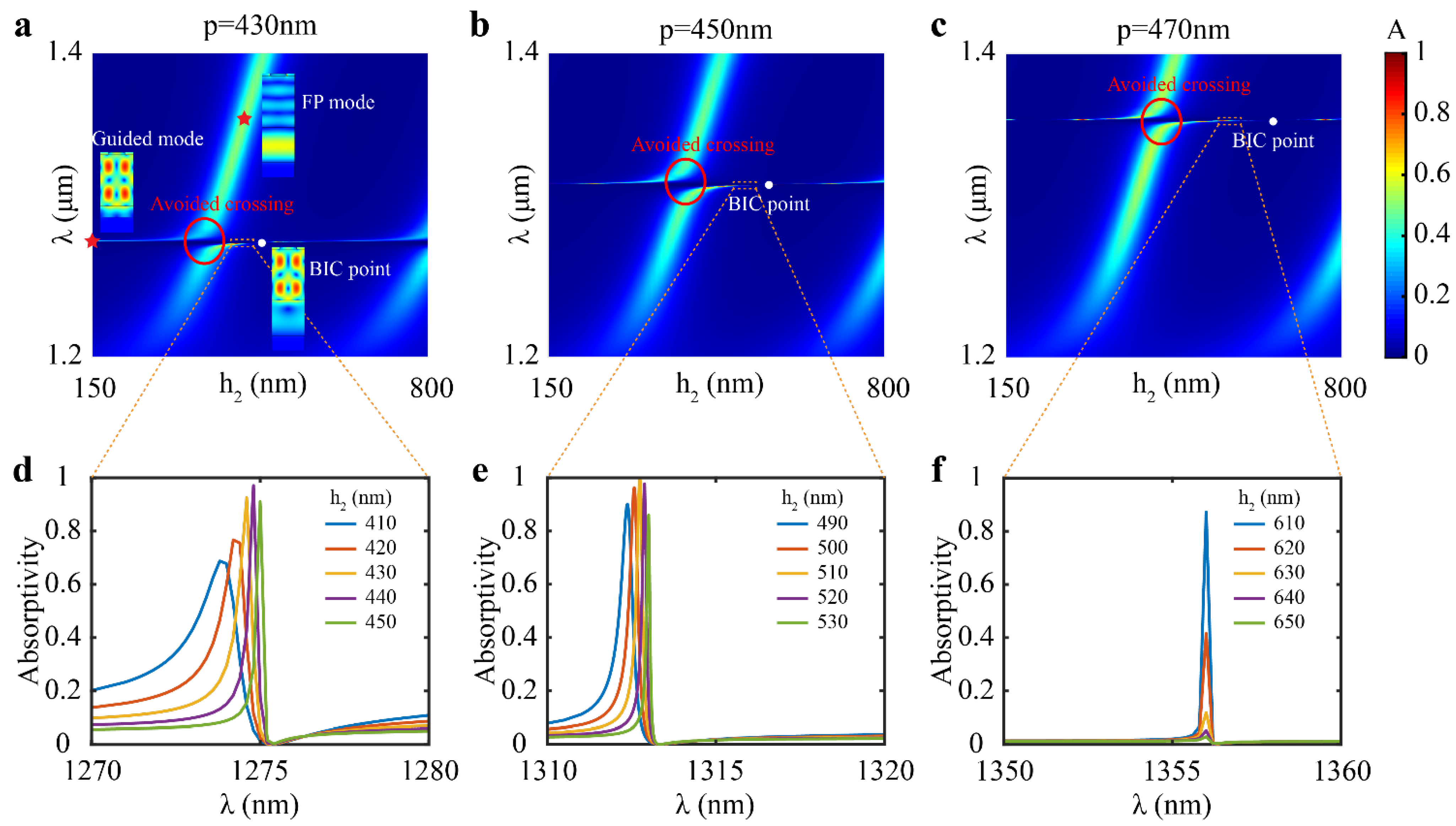

**Figure 2.**Simulation results of absorptivity. (

**a**–

**c**) Dispersion relation of absorptivity versus wavelength and the SiO

_{2}layer thickness for the period p values of 430 nm, 450 nm, and 470 nm, respectively. Insets show electric field distributions in (

**a**) corresponding to the guided mode and the FP mode (the red stars) and the BIC point (the white point). Red circled area represents the avoided crossing. (

**d**–

**f**) The absorptivity curves for different SiO

_{2}layer thicknesses h

_{2}(with the interval of 10 nm), corresponding to the indicated orange dashed area of (

**a**–

**c**), respectively.

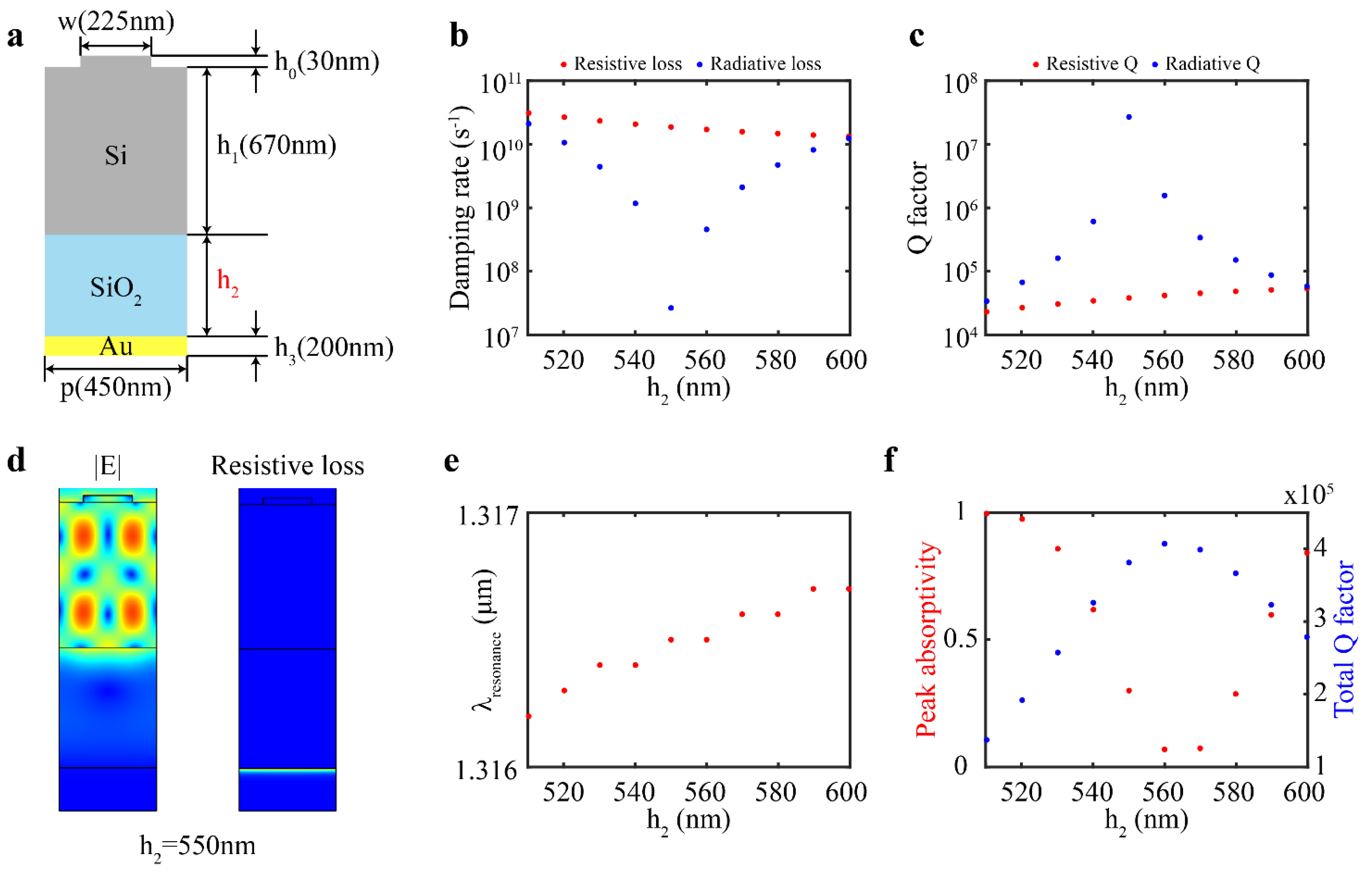

**Figure 3.**Analysis of Q factor and peak absorptivity. (

**a**) Schematic of the simulated structure. The only variable parameter is the SiO

_{2}layer thickness h

_{2}. Plots of (

**b**) damping rates and (

**c**) Q factors versus h

_{2}. Red and blue dots represent resistive and radiative losses, respectively. (

**d**) Distribution of electric field (left) and resistive loss (right) for h

_{2}= 550 nm. (

**e**) The resonant wavelength versus h

_{2}plots. (

**f**) Peak absorptivity (red dots) and total Q factor (blue dots) versus h

_{2}plots. For all the above cases, h

_{2}is tuned from 510 nm to 610 nm, with an interval of 10 nm.

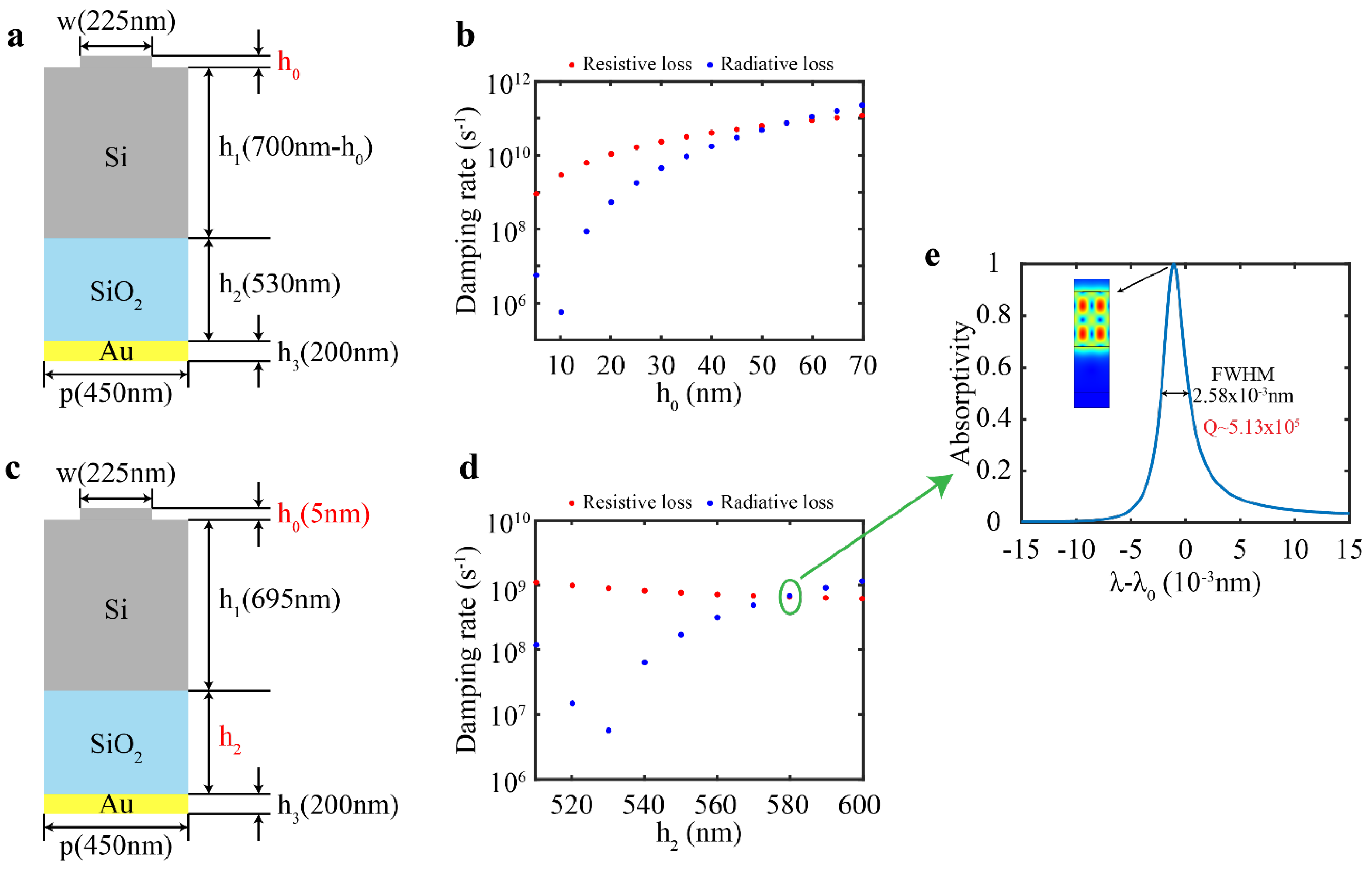

**Figure 4.**Design for increasing Q factor. (

**a**) Schematic of the structure (grating thickness h

_{0}is the variable parameter). (

**b**) Damping rates versus h

_{0}plots. Red and blue dots represent resistive and radiative losses, respectively. Grating thickness h

_{0}is varied from 5 nm to 70 nm, with an interval of 5 nm. (

**c**) Schematic of the structure (h

_{0}is set as 5 nm, and the SiO

_{2}layer thickness h

_{2}is varied). (

**d**) Damping rates versus h

_{2}plots. SiO

_{2}layer thickness h

_{2}is changed from 510 nm to 600 nm, with an interval of 10 nm. (

**e**) Absorptivity curve for the green circled structure parameter in (

**d**). Inset represents the electric field distribution at the peak, λ

_{0}= 1323.375 nm.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zha, W.; Huang, Y.; Ghosh, P.; Li, Q.
Quasi-BIC-Based High-Q Perfect Absorber with Decoupled Resonant Wavelength and Q Factor. *Electronics* **2022**, *11*, 2313.
https://doi.org/10.3390/electronics11152313

**AMA Style**

Zha W, Huang Y, Ghosh P, Li Q.
Quasi-BIC-Based High-Q Perfect Absorber with Decoupled Resonant Wavelength and Q Factor. *Electronics*. 2022; 11(15):2313.
https://doi.org/10.3390/electronics11152313

**Chicago/Turabian Style**

Zha, Weiyi, Yun Huang, Pintu Ghosh, and Qiang Li.
2022. "Quasi-BIC-Based High-Q Perfect Absorber with Decoupled Resonant Wavelength and Q Factor" *Electronics* 11, no. 15: 2313.
https://doi.org/10.3390/electronics11152313
