# Spectrum-Aware Energy Efficiency Analysis in K-tier 5G HetNets

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

- We use tools of stochastic geometry to model and analyze D2D communication underlying a multi-tier and multi-channel cellular network where the D2D transmitters are capable of harvesting RF energy from ambient interference arising from concurrent cellular downlink transmissions. Note that we analyze the impact of RF EH on both the SE and EE of the D2D-aided HetNet. In addition, we propose a framework for wireless video sharing to consider D2D requirements under realistic application scenarios and specific business requirements, where users are equipped with cache memory to store popular video files and exchange files through D2D communication.
- Our analysis is conducted for two D2D spectrum sharing scenarios (will be discussed later): overlay and underlay in-band D2D. In underlay in-band D2D, we consider cognitive D2D communication, where cognition is integrated into the cache-enabled D2D communication underlying the multi-tier/multi-channel cellular network. Specifically, by incorporating CR techniques, the cache-enabled D2D transmitter performs spectrum sensing to provide opportunistic access to a predefined non-exclusive D2D channel. As common to all schemes, errors in the form of false alarms and misdetections occur in spectrum sensing, and such errors can lead to degradation in the performance. Thus, the impact of sensing errors by the D2D transmitters is studied in our work.
- Considering the described model, we use tools from stochastic geometry to evaluate the performance of the proposed communication system model in terms of SE and EE. In general, we derive simple and closed-form expressions for the coverage probability of cellular and D2D users under the overlay and underlay in-band D2D, and also the probability of harvesting sufficient energy is obtained; finally, the EE expression of the cache-enabled cognitive D2D-aided HetNet with EH is derived. In our derivations, in contrast to previous related studies in which a traditional single-tier macrocell deployment is assumed, we consider a cellular network that consists of $K$ tiers of BSs with distinct and general network parameters in each tier, which enables us to discover further insights into the behavior of the SE and EE in dense HetNets. Furthermore, unlike those works, in our analysis, we consider more general D2D scenarios by randomly modeling the distance between D2D pairs instead of assuming a fixed distance between the pairs.
- The possible impact of the TPC $\beta $ (identified for SC BSs) as well as the D2D layer added on the network EE and SE will be studied. Furthermore, we demonstrate that EH can effectively power D2D communications underlying cellular networks. A higher SE under various parameter settings of the proposed system model is also corroborated. Finally, we will observe that cognitive channel access will help to increase the QoS of D2D users under the same network conditions as in the non-cognitive situation. As will be shown in the simulations, the proposed framework brings a considerable advantage in terms of EE and SE. More specifically, the power control/adjustment strategy of SCs, the caching placement, D2D establishment, and cognition and EH capabilities altogether can lead to a considerable improvement in the achieved network EE and SE.

## 3. System Model

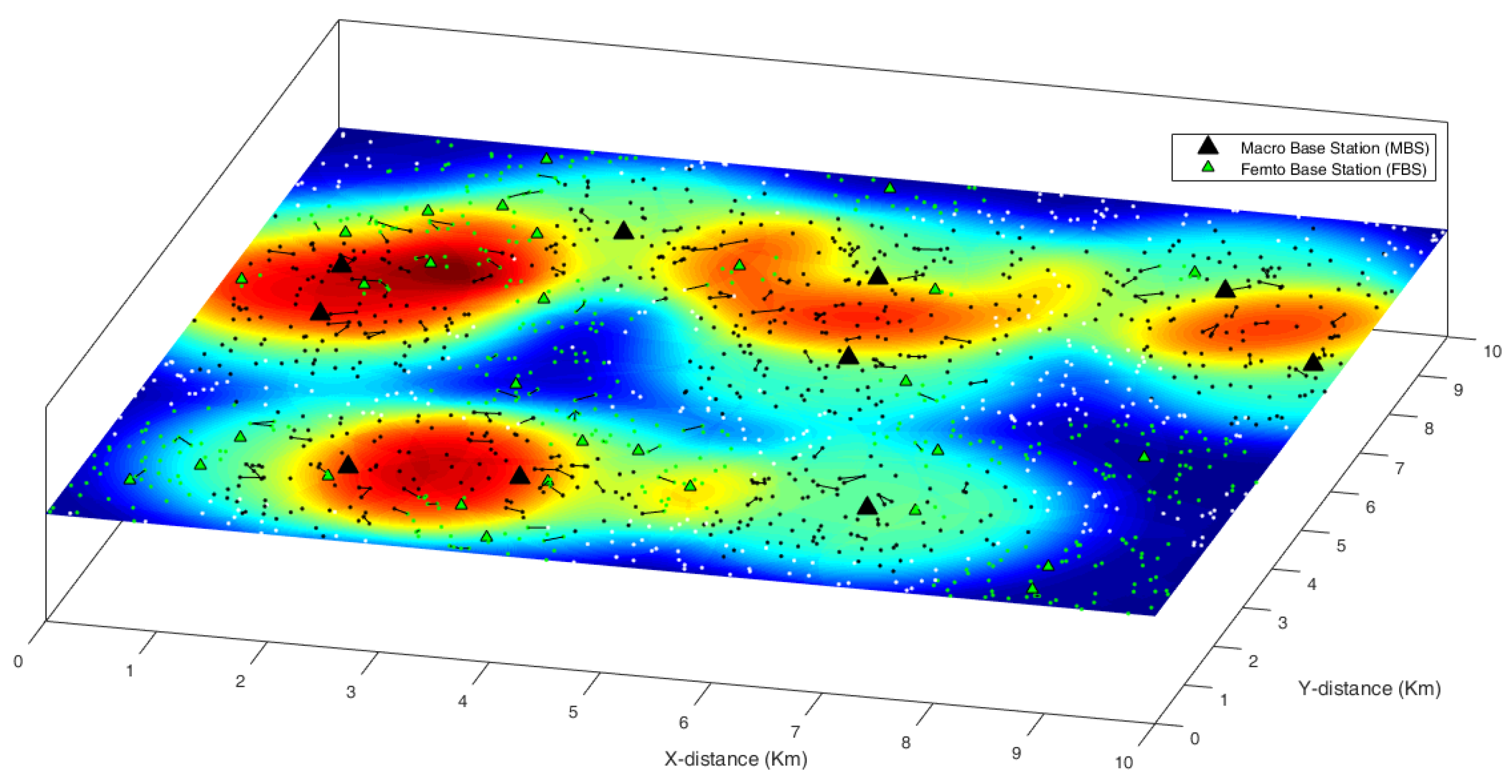

#### 3.1. Network Topology

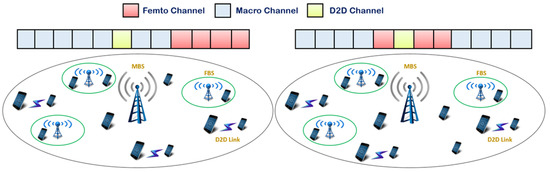

#### 3.2. Spectrum Allocation

#### 3.3. Multi-Tier EH Model

#### 3.4. Spectrum Sensing Model of D2D Users

- The D2D channel ${c}_{d}$ is used by nearby cellular BSs, and a typical D2D transmitter correctly detects the presence of cellular transmissions. The probability of this situation is $(1-{p}_{f}^{\mathrm{D}2\mathrm{D}}){p}_{DE}$, where ${p}_{f}^{\mathrm{D}2\mathrm{D}}$ is the probability that the D2D channel (i.e., ${c}_{d}$) is free, and therefore $(1-{p}_{f}^{\mathrm{D}2\mathrm{D}})$ indicates the probability of the presence of nearby cellular transmissions on channel ${c}_{d}$. In this case, the typical D2D transmitter cannot utilize the channel to transmit information.
- The channel ${c}_{d}$ is in use by nearby cellular BSs, but the typical D2D transmitter misdetects the presence of cellular transmissions. The probability of this situation is $(1-{p}_{f}^{\mathrm{D}2\mathrm{D}})(1-{p}_{DE})$. In this case, the typical D2D transmitter attempts to utilize the occupied channel ${c}_{d}$ for data transmission. However, to avoid any severe interference, the typical D2D transmitter should not be allowed to perform data transmission.
- The channel ${c}_{d}$ is not being utilized by nearby cellular BSs, and the typical D2D transmitter falsely detects the presence of cellular transmissions. The probability of this situation is ${p}_{f}^{\mathrm{D}2\mathrm{D}}{p}_{FA}$. Further, in this case, the typical D2D transmitter does not utilize the channel to transmit data.
- The channel ${c}_{d}$ is not in use by nearby cellular BSs, and the typical D2D transmitter correctly detects the absence of cellular transmissions. The probability of this situation is ${p}_{f}^{\mathrm{D}2\mathrm{D}}\left(1-{p}_{FA}\right)$. In this case, the typical D2D transmitter utilizes ${c}_{d}$ to transmit information.

#### 3.5. Spectrum Access Model for Cellular Transmissions

**Proof.**

## 4. Problem Formulation

#### 4.1. The Load-Dependent TPC

#### 4.2. Overlay Mode: Downlink Cellular and D2D Coverage Probabilities

**Theorem**

**1.**

**Proof.**

**Remark**

**1.**

**Corollary**

**1.**

**Theorem**

**2.**

**Remark**

**2.**

**Corollary**

**2.**

#### 4.3. Underlay Mode: Downlink Cellular and D2D Coverage Probabilities

**Theorem**

**3.**

**Proof.**

**Remark**

**3**

**Corollary**

**3.**

**Theorem**

**4.**

**Proof.**

**Remark**

**4.**

**Corollary**

**4.**

#### 4.4. Cellular and D2D Links Coexistence

- i.
- Calculation of ${p}_{f}^{\mathrm{D}2\mathrm{D}}$: In a $K$-tier HetNet, for a generic D2D transmitter, the probability that the D2D channel (i.e., ${c}_{d}$) is free inside the D2D protection region is given by$${p}_{f}^{\mathrm{D}2\mathrm{D}}={\displaystyle \prod}_{k\in \mathcal{K}}\mathrm{exp}\left[-{\theta}_{k}{q}_{d,k}\right]$$$${\theta}_{k}=\pi {\mathsf{\lambda}}_{k}{\left(\frac{{P}_{T}^{k}}{{\mu}_{k}\gamma}\right)}^{\raisebox{1ex}{$2$}\!\left/ \!\raisebox{-1ex}{$\alpha $}\right.}\mathsf{\Gamma}\left(1+\raisebox{1ex}{$2$}\!\left/ \!\raisebox{-1ex}{$\alpha $}\right.\right)k=1,\dots ,K$$

**Proof.**

- ii.
- Calculation of ${p}_{s}^{\mathrm{D}2\mathrm{D}}$: Although the random variable ${r}_{d}$ ($0\le {r}_{d}\le d$) is the distance between each D2D transmitter and its receiver, we consider the worst-case scenario for the calculation of ${p}_{s}^{\mathrm{D}2\mathrm{D}}$, where the receiver is at the boundary of the circle (i.e., at a distance $d$). Notice that this presumption gives an upper bound on the amount of transmission power needed for the communication link to be established, thus providing a lower bound on the probability of sufficient energy being harvested. Relaxing this presumption, without providing further insights, complicates the derived expressions [43]. We define the probability ${p}_{s}^{\mathrm{D}2\mathrm{D}}$ that a D2D transmitter harvests sufficient energy as follows:$${p}_{s}^{\mathrm{D}2\mathrm{D}}=\mathbb{P}\left[{P}_{EH}>{P}_{EH}^{th}\right]$$

**Theorem**

**5.**

**Proof.**

#### 4.5. Cellular and D2D Data Rate Analysis

**Overlay Mode:**Firstly, if a typical user obtains data via the traditional cellular network, i.e., directly from a BS in the $k$-th tier, the average achievable rate is given as follows:

**Underlay Mode:**Firstly, if a typical user receives data via the traditional cellular network, $\overline{{R}_{k}}$ can be written as follows (considering an interference-limited regime (${\sigma}^{2}\to 0$) and following the derivation in Appendix A.3)

#### 4.6. Network EE Metric

**Overlay in-band D2D mode:**In Equation (51), $\overline{{p}_{k}^{cov}}$ and $\overline{{p}_{\mathrm{D}2\mathrm{D}}^{cov}}$, i.e., the average cellular and D2D coverage probability expressions, are, respectively, taken from those in Equations (16) and (19). In addition, the $\overline{{R}_{k}}$ and $\overline{{R}_{\mathrm{D}2\mathrm{D}}}$ are, respectively, taken from those in Equations (42) and (44). Moreover, in the ${N}_{\mathrm{D}2\mathrm{D}}$ expression, ${p}_{t}^{\mathrm{D}2\mathrm{D}}={p}_{s}^{\mathrm{D}2\mathrm{D}}$.

**Underlay in-band D2D mode:**In Equation (51), $\overline{{p}_{k}^{cov}}$ and $\overline{{p}_{\mathrm{D}2\mathrm{D}}^{cov}}$ expressions are, respectively, taken from those in Equations (22) and (29). In addition, the $\overline{{R}_{k}}$ and $\overline{{R}_{\mathrm{D}2\mathrm{D}}}$ are, respectively, taken from those in Equations (45) and (47). Further, in the ${N}_{\mathrm{D}2\mathrm{D}}$ expression, ${p}_{t}^{\mathrm{D}2\mathrm{D}}=\left(1-{p}_{FA}\right){p}_{f}^{\mathrm{D}2\mathrm{D}}{p}_{s}^{\mathrm{D}2\mathrm{D}}$.

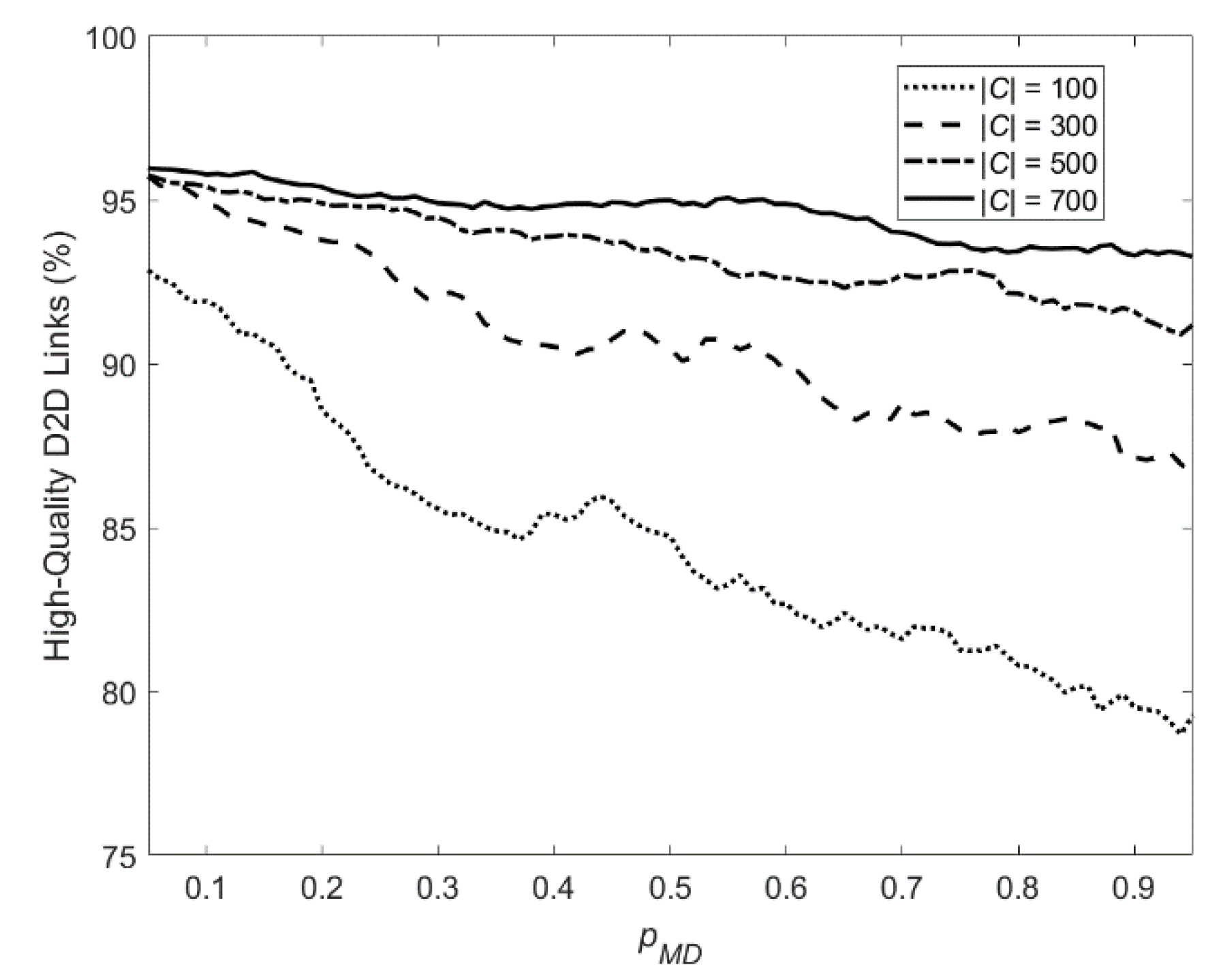

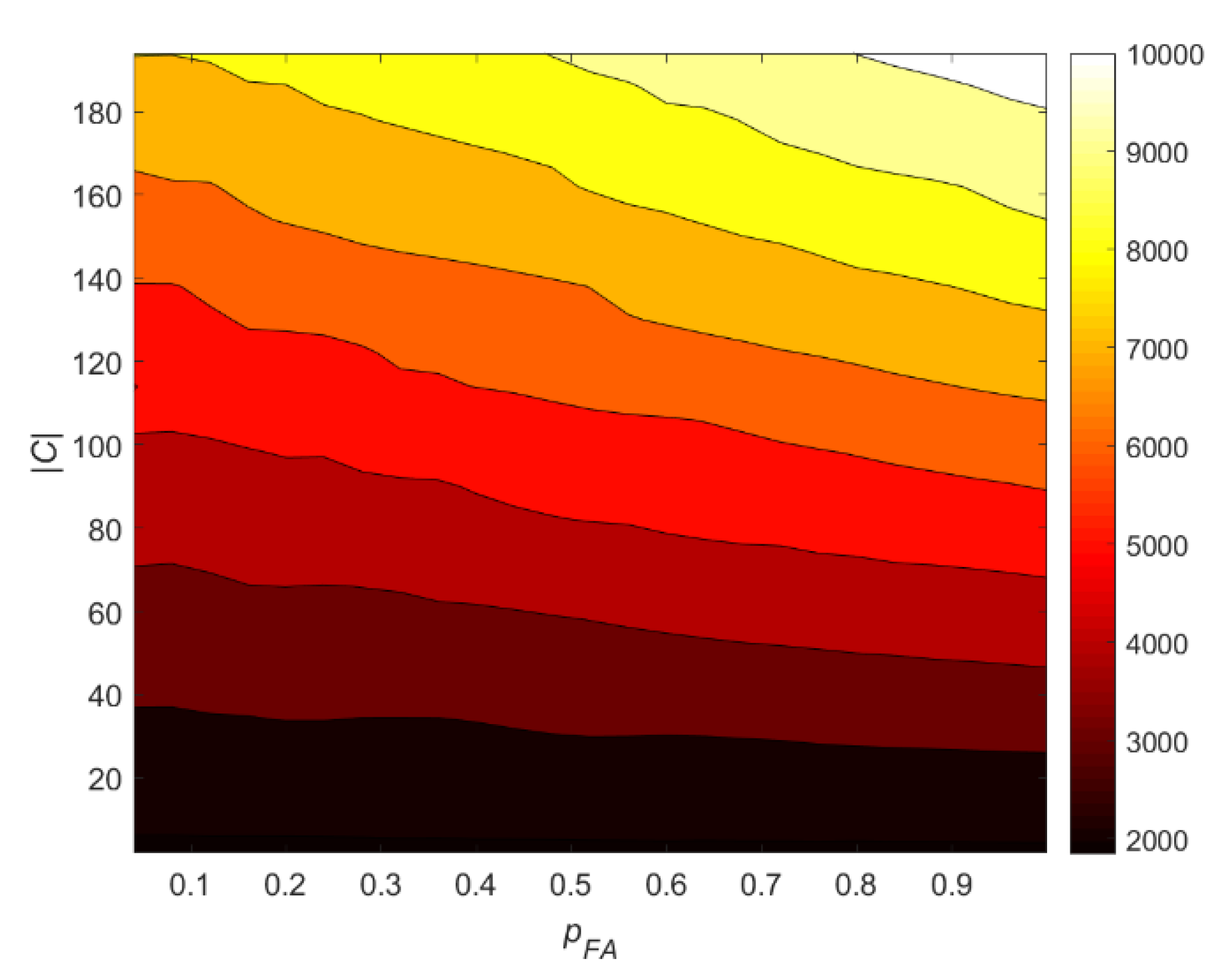

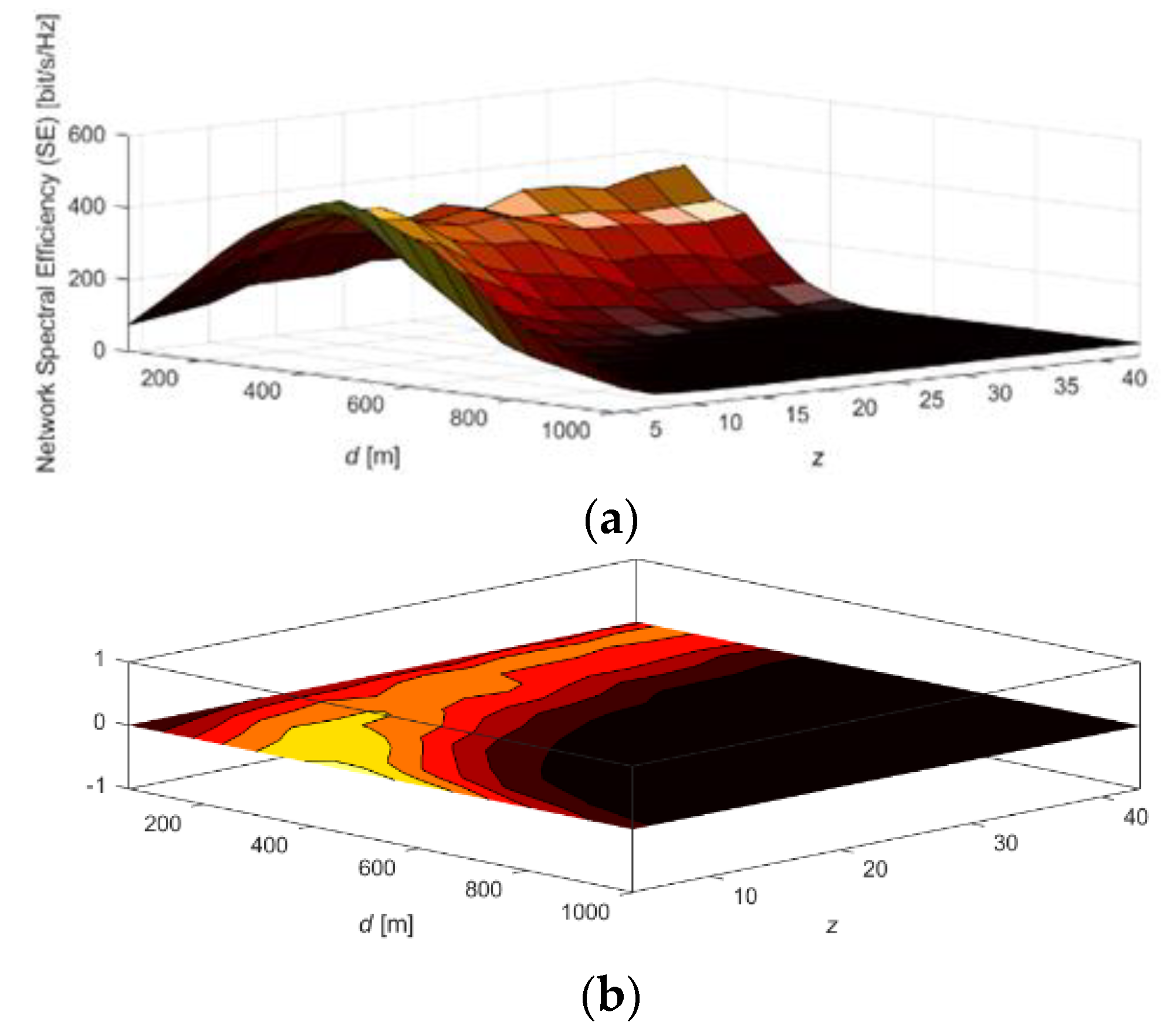

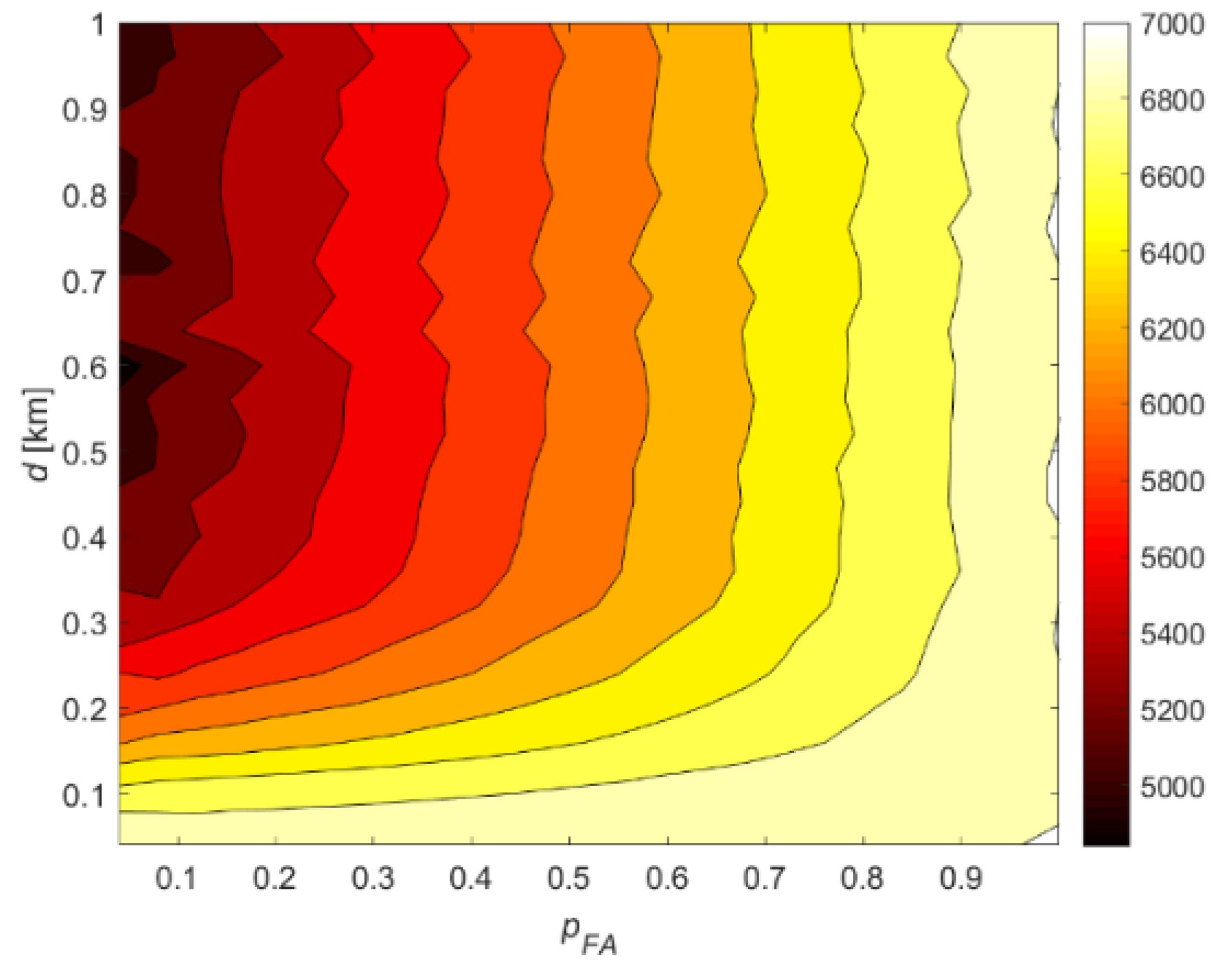

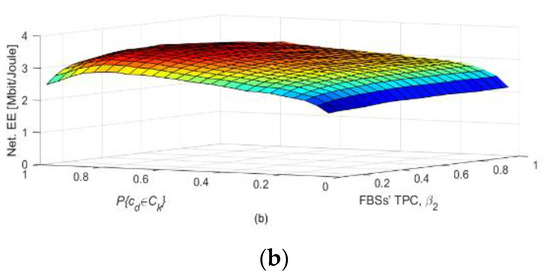

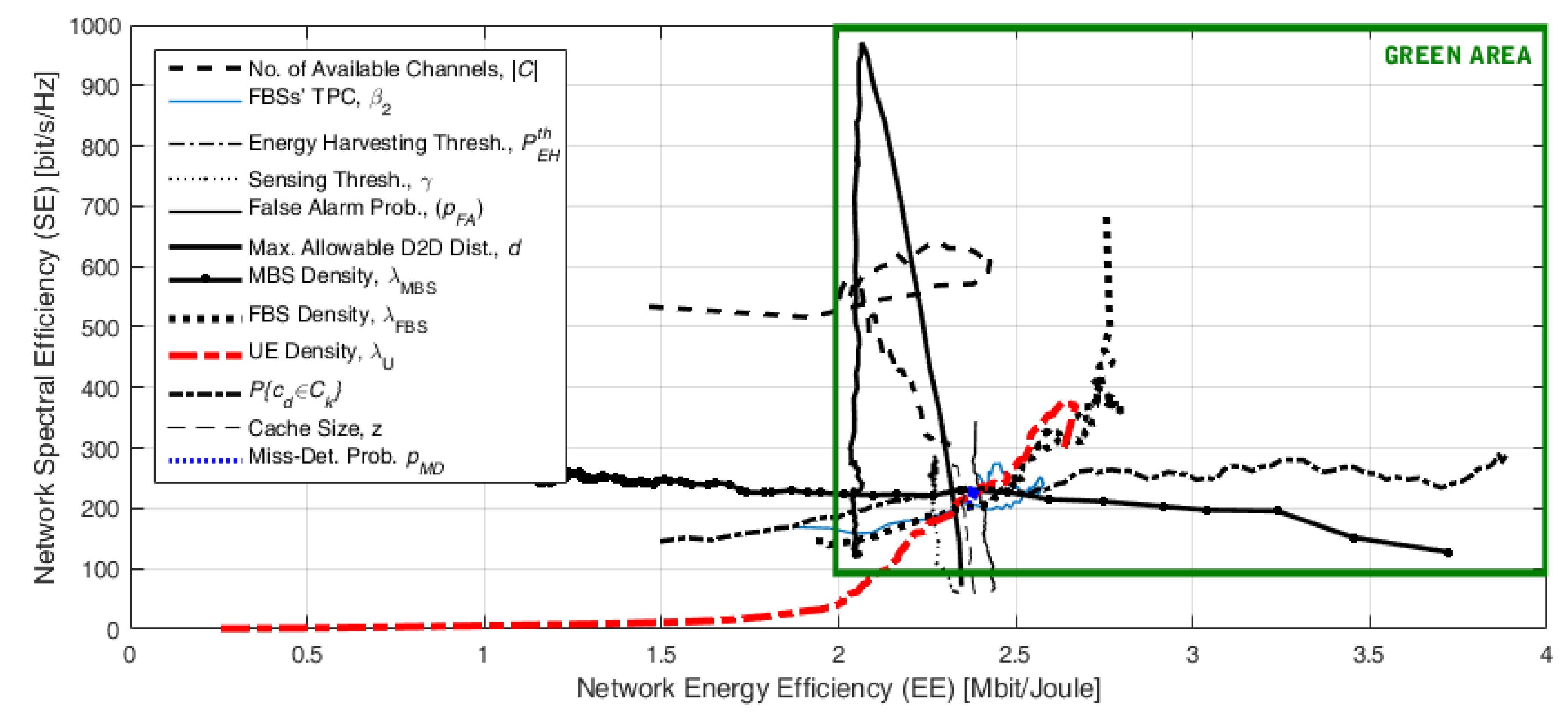

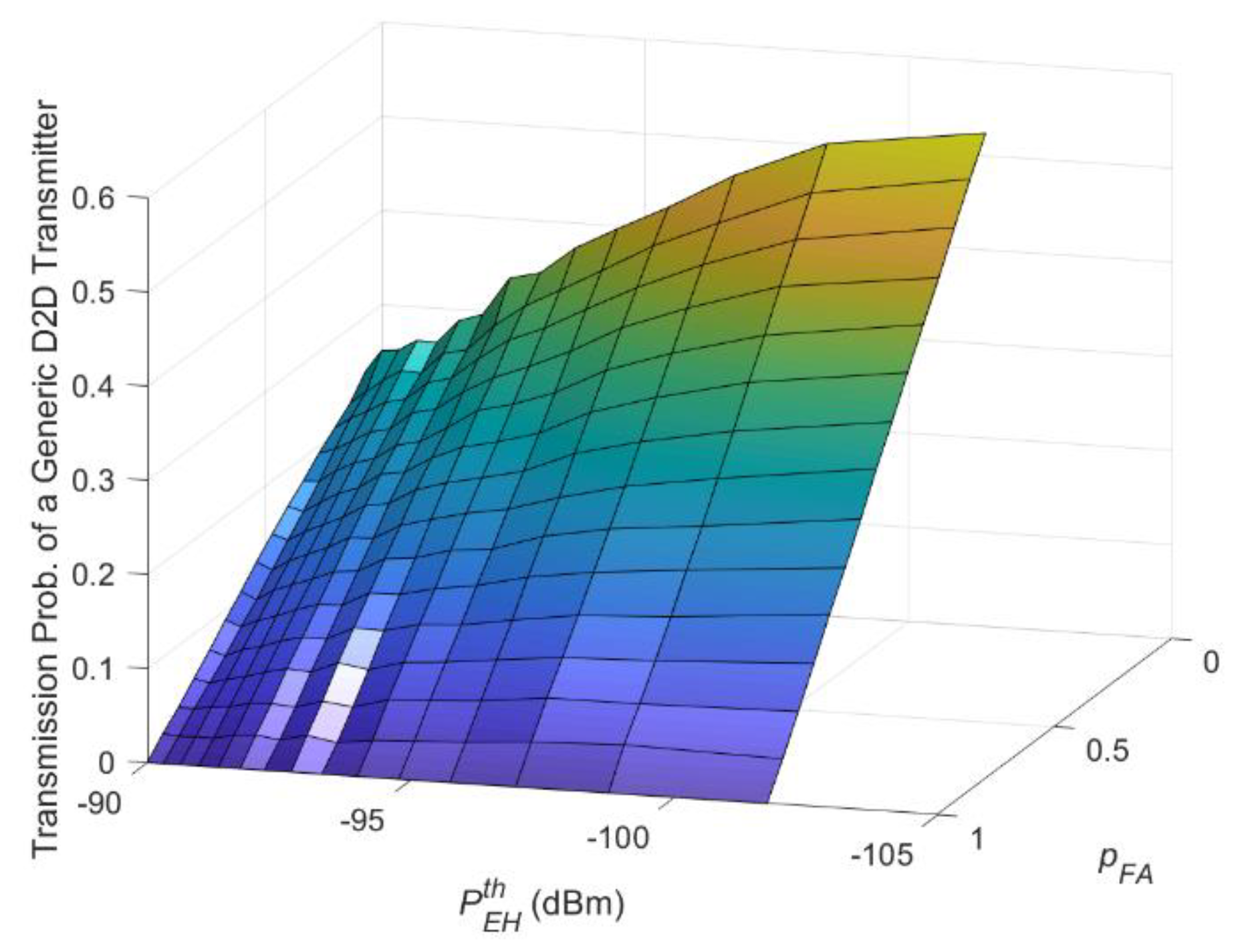

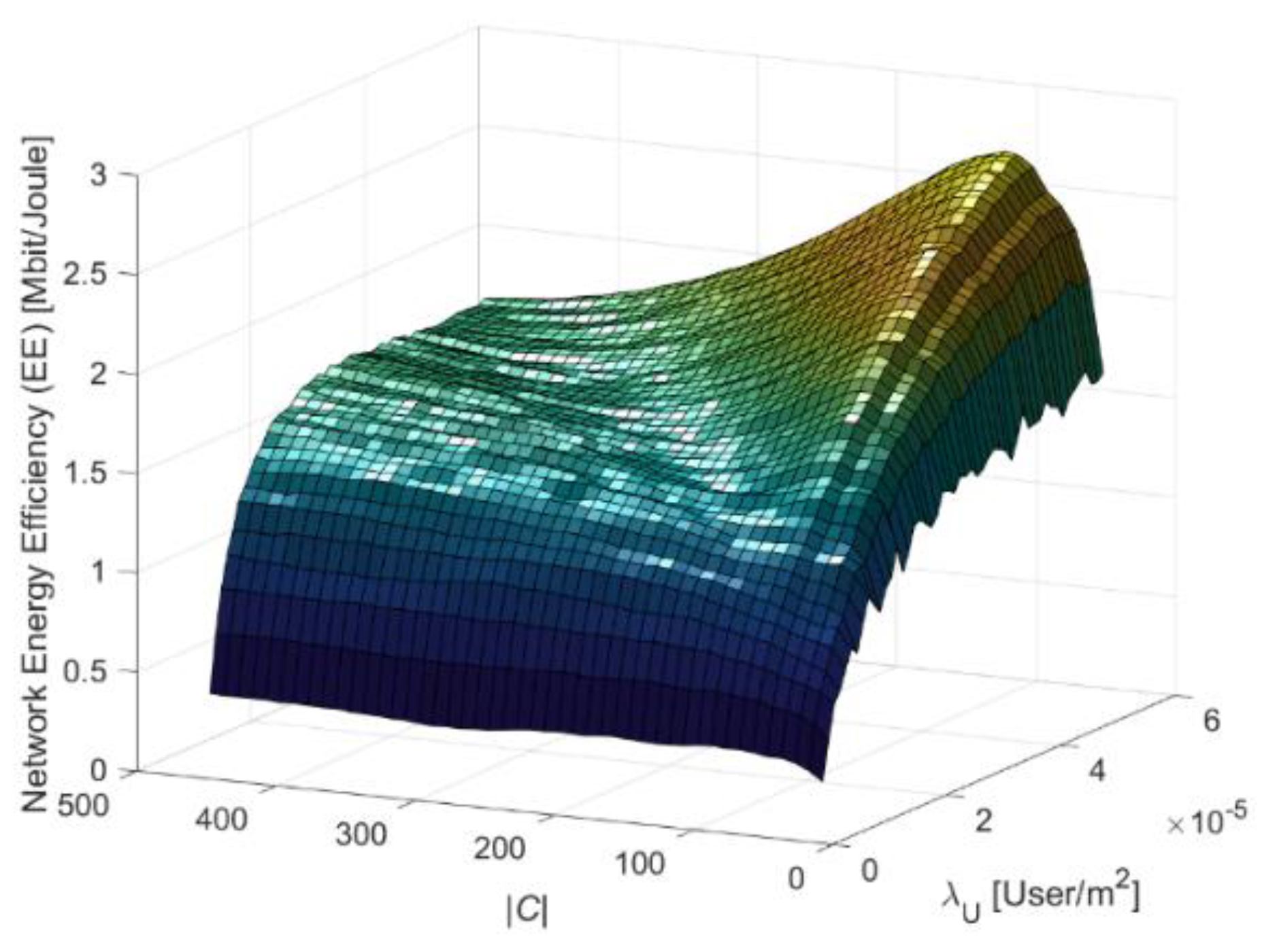

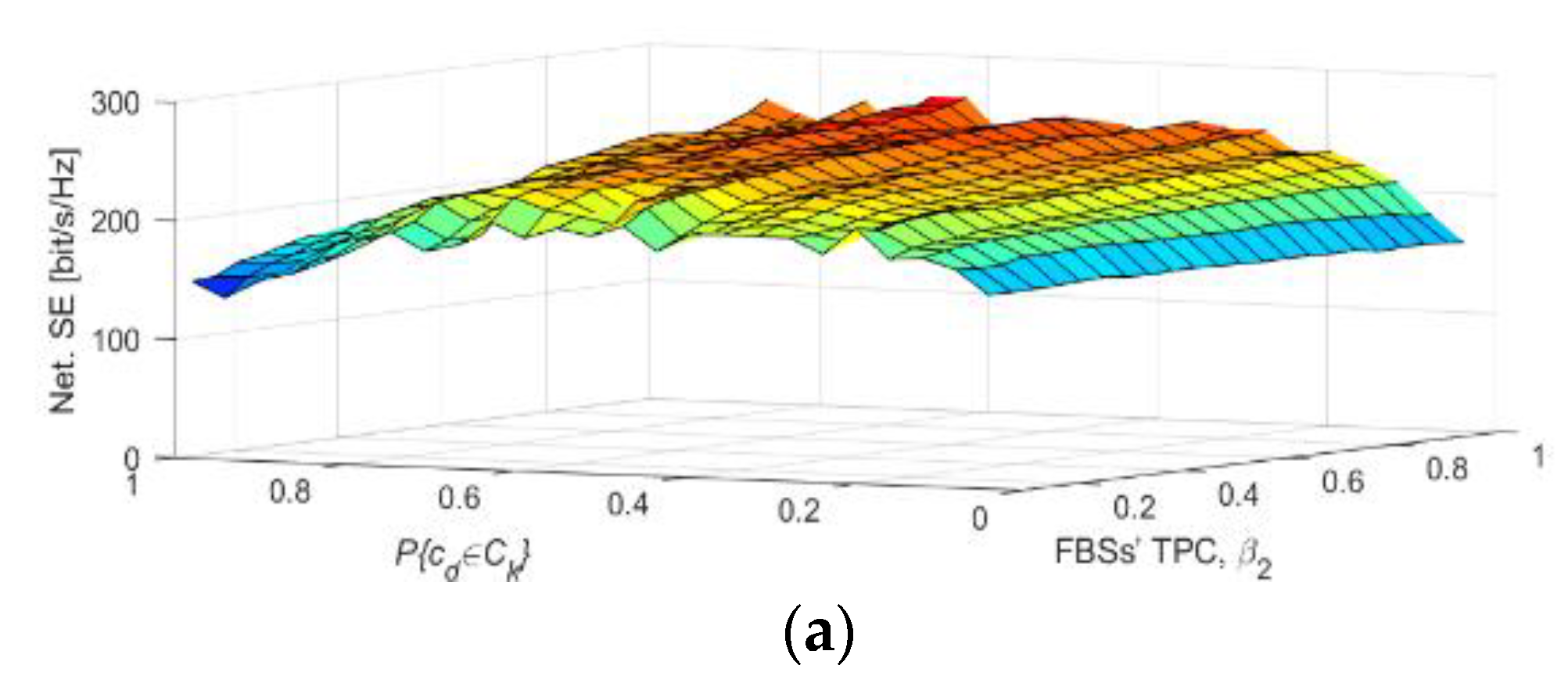

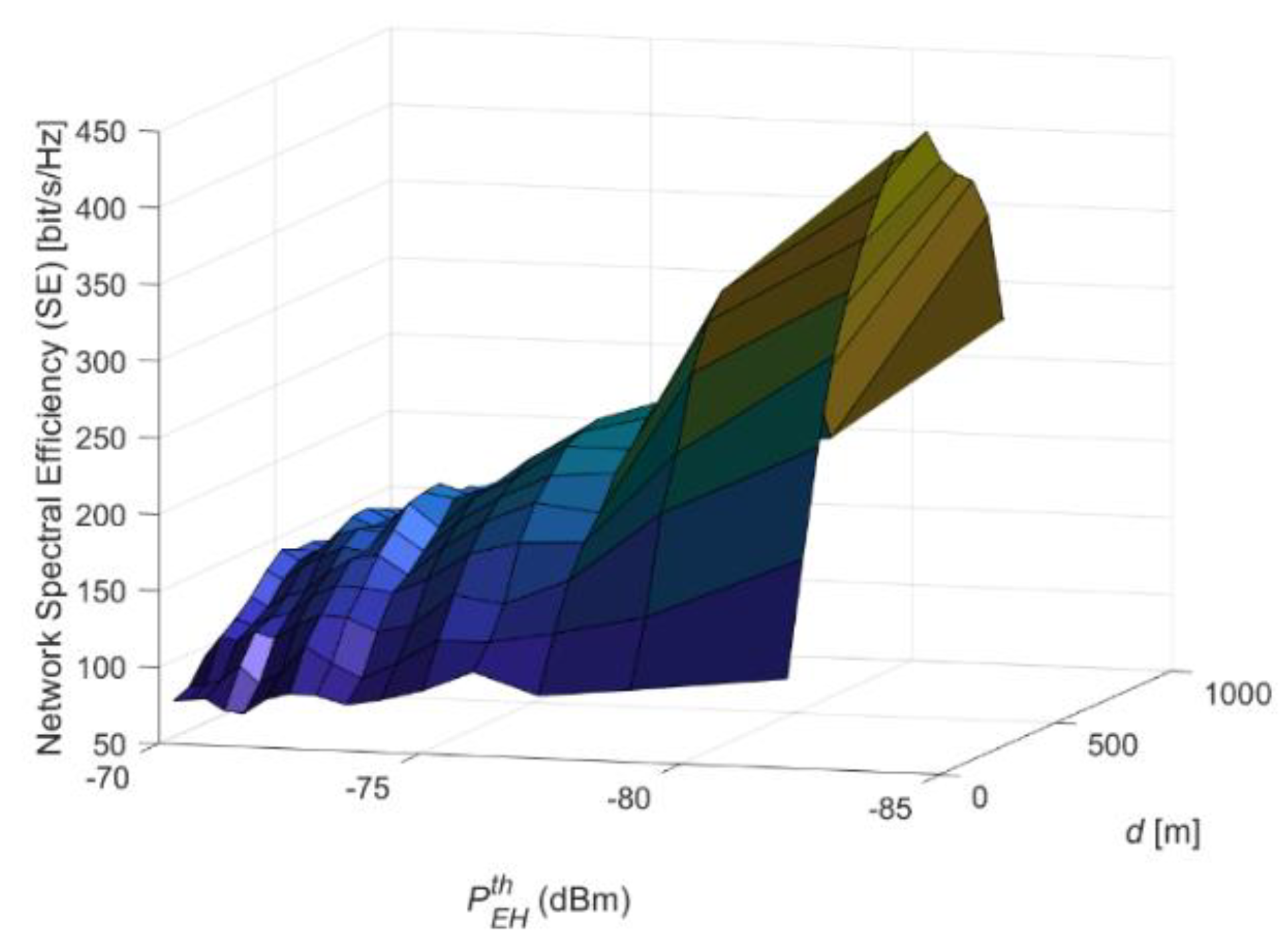

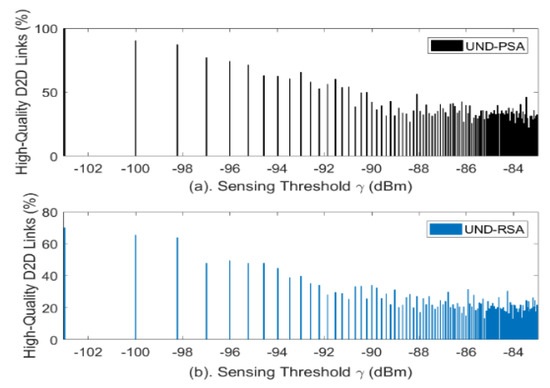

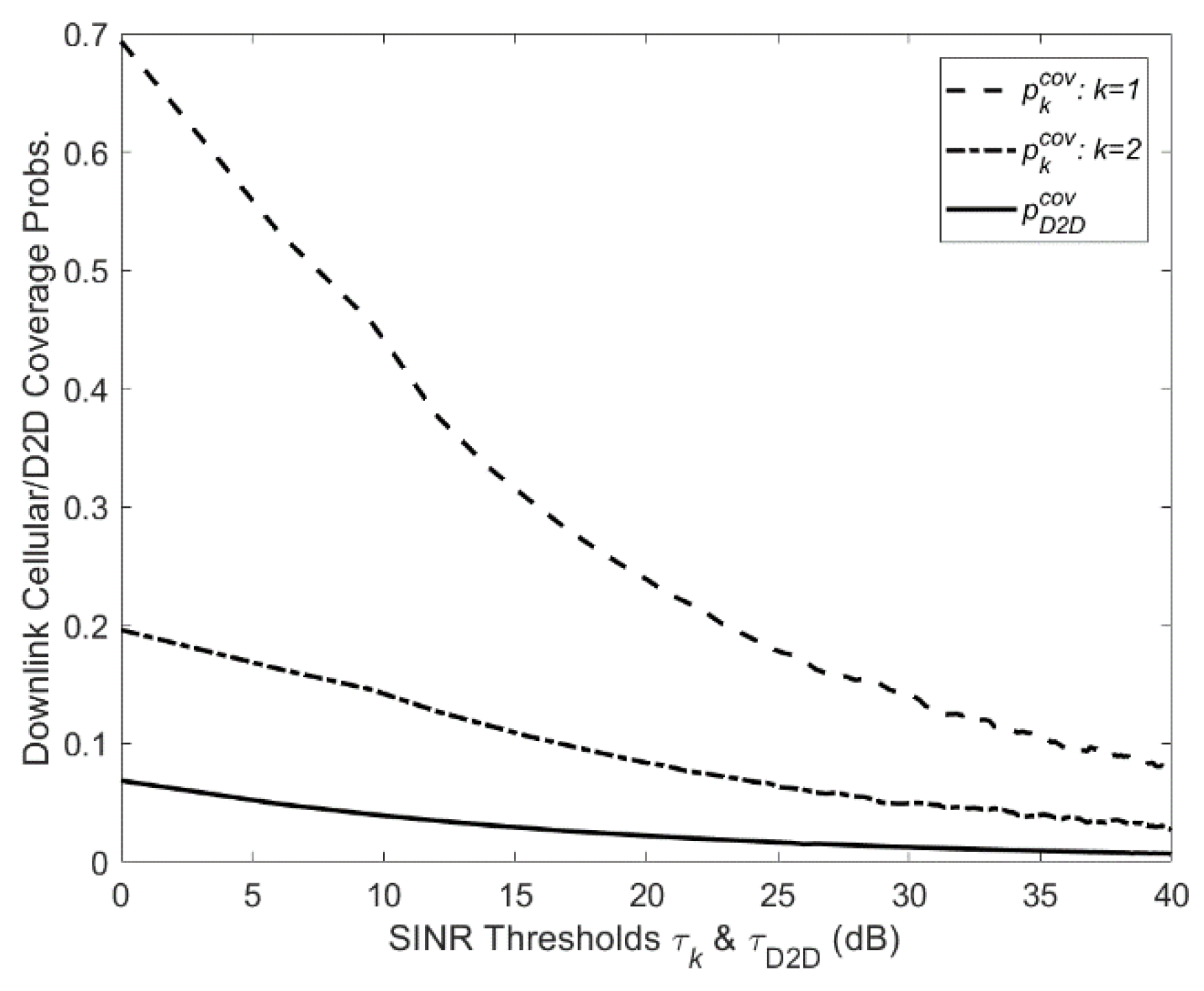

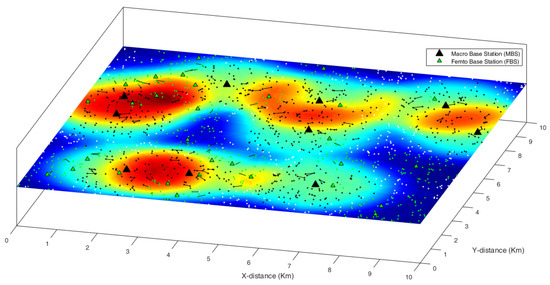

## 5. Simulation Results

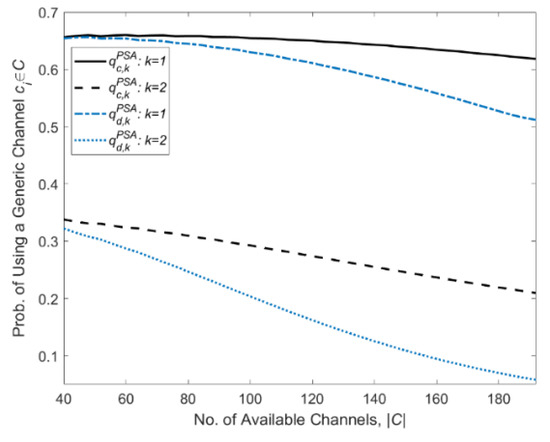

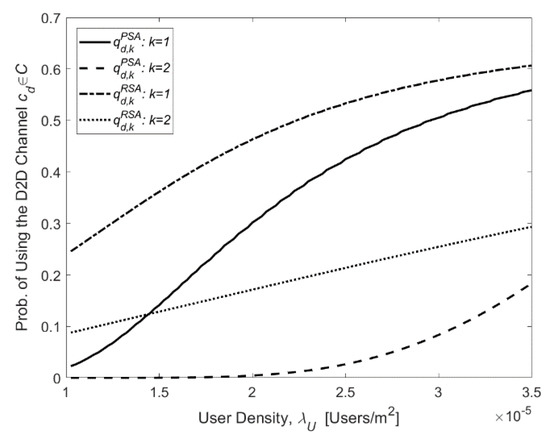

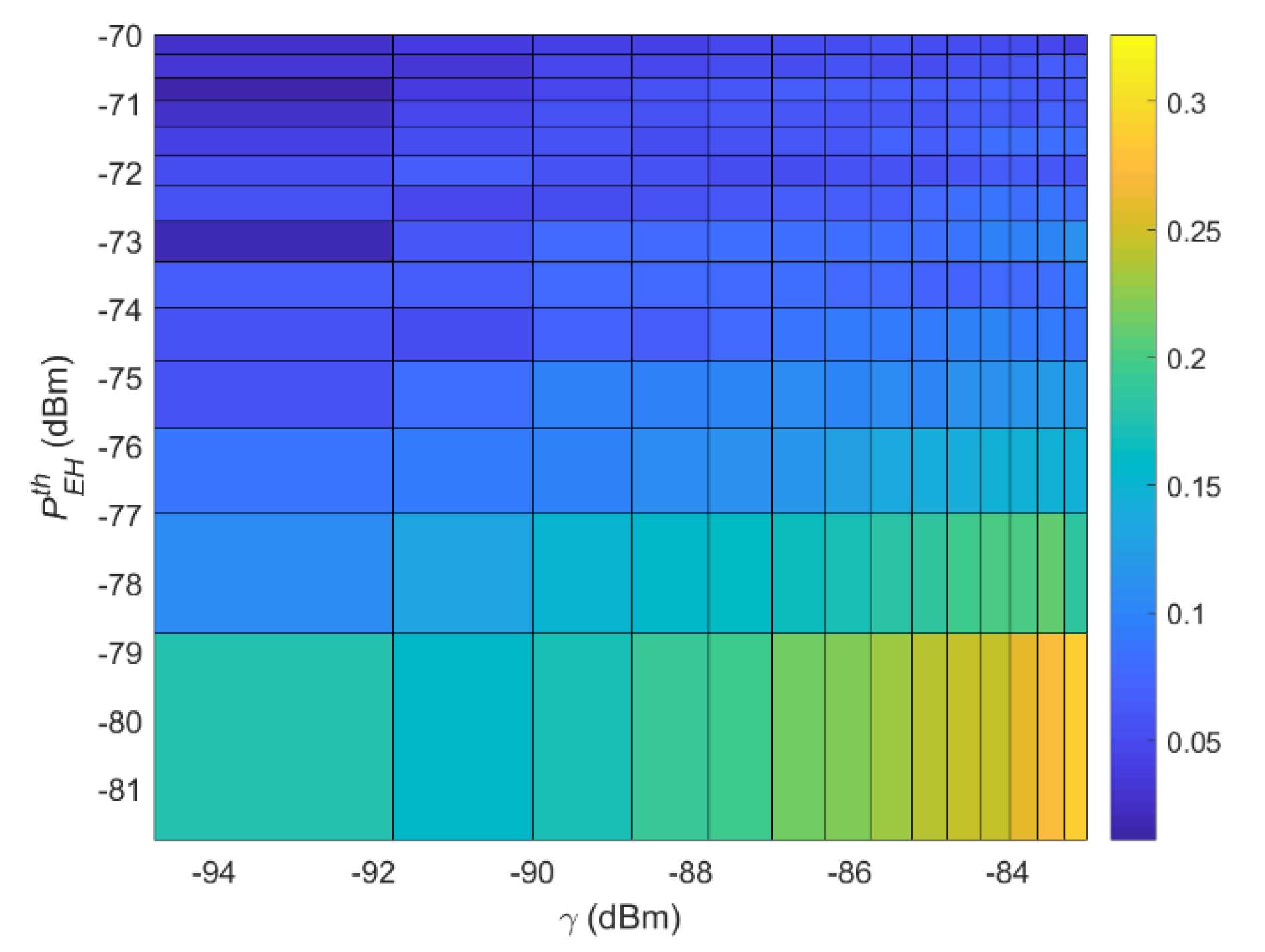

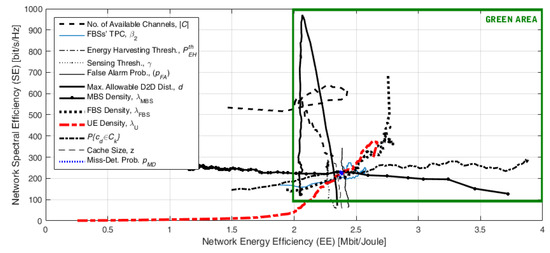

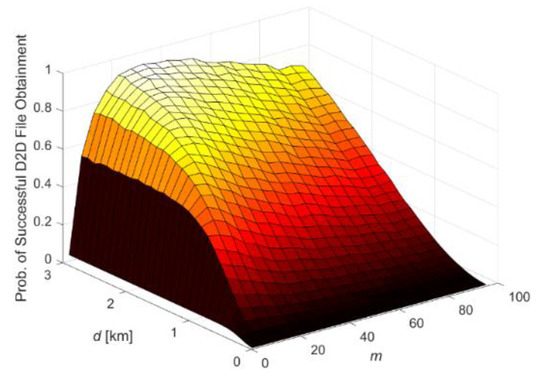

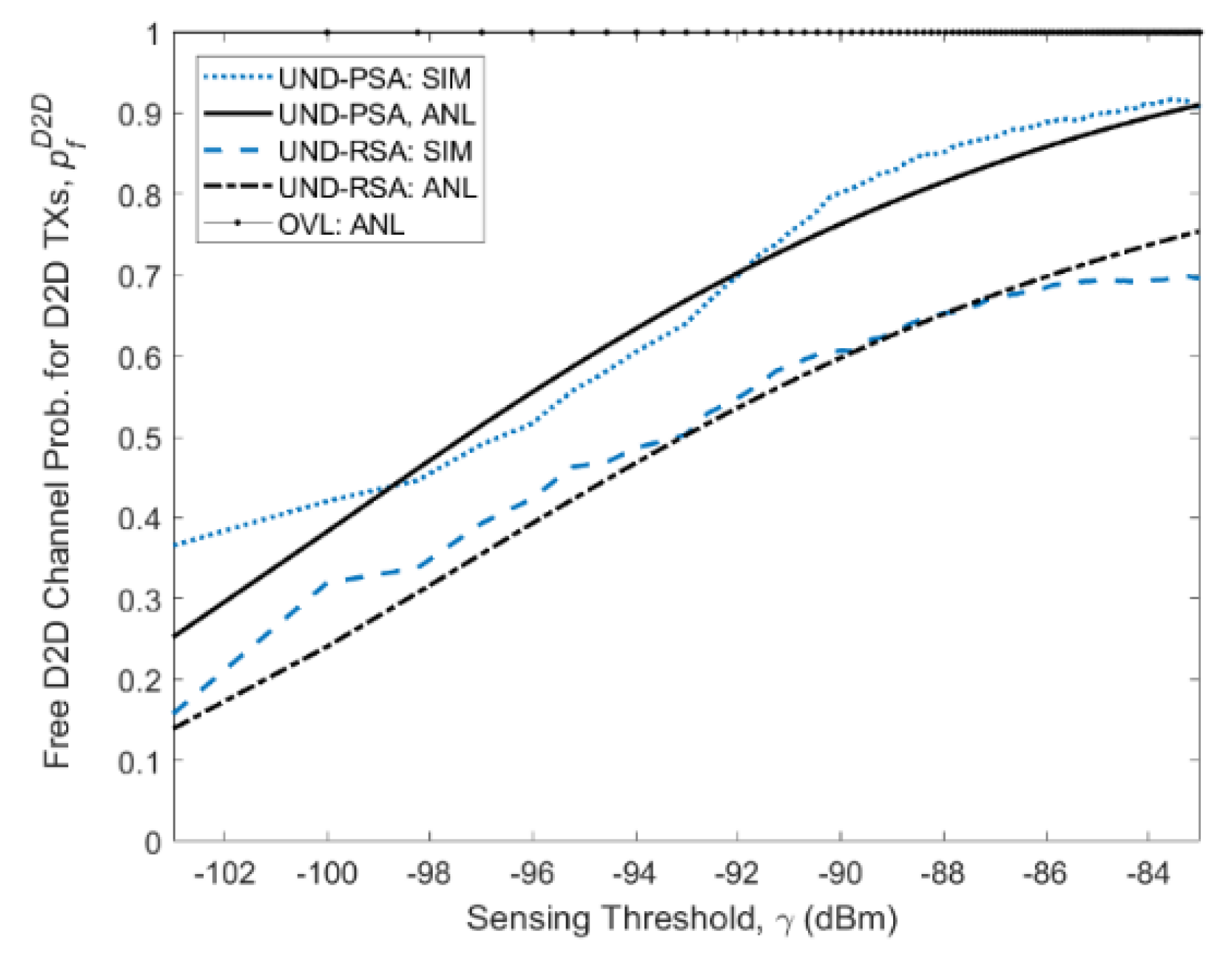

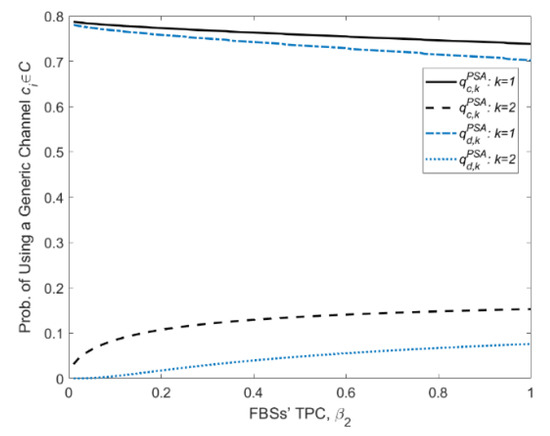

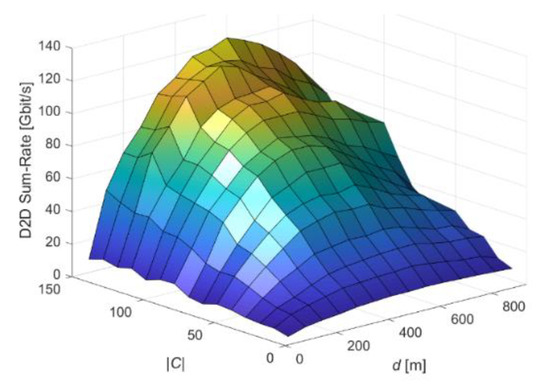

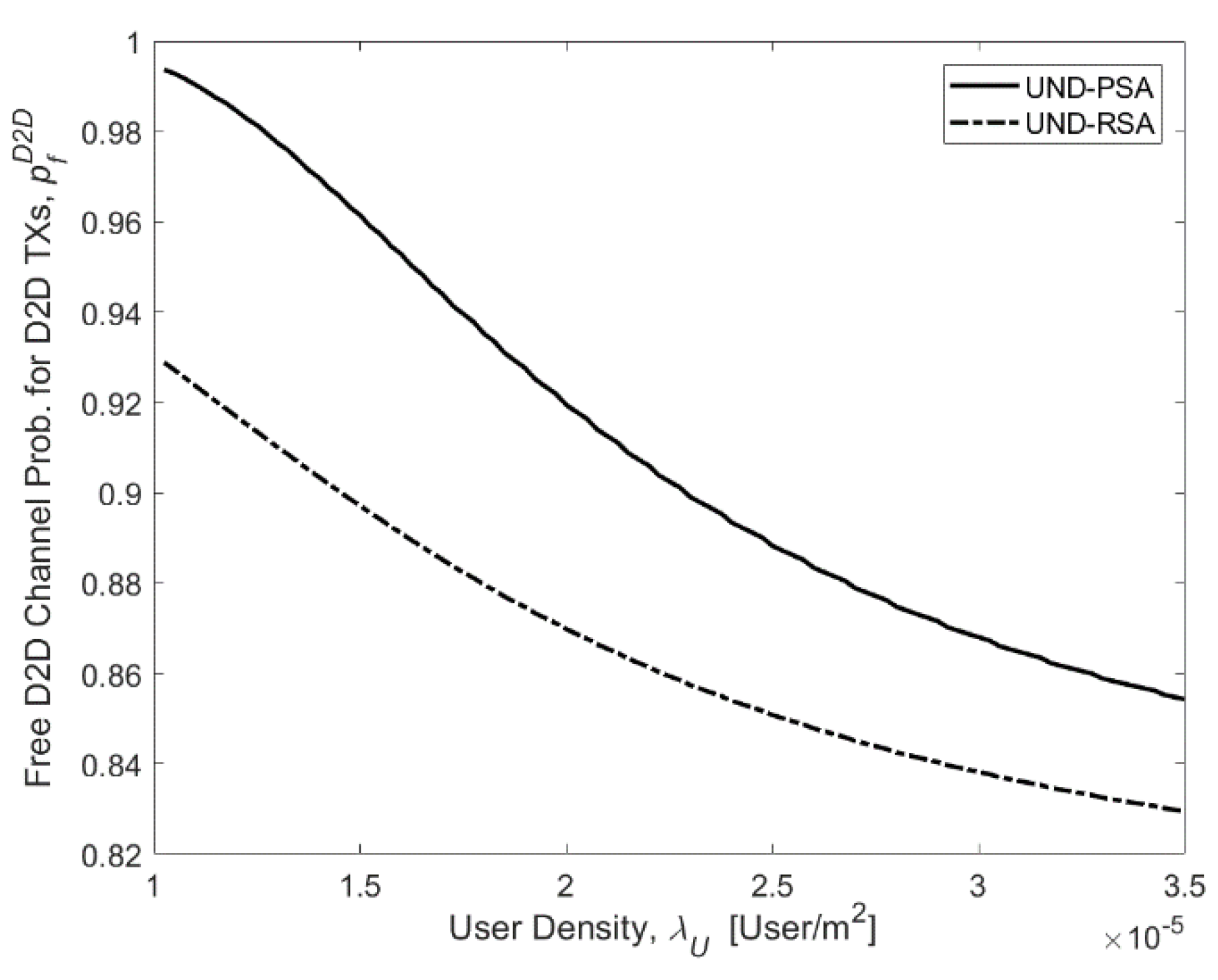

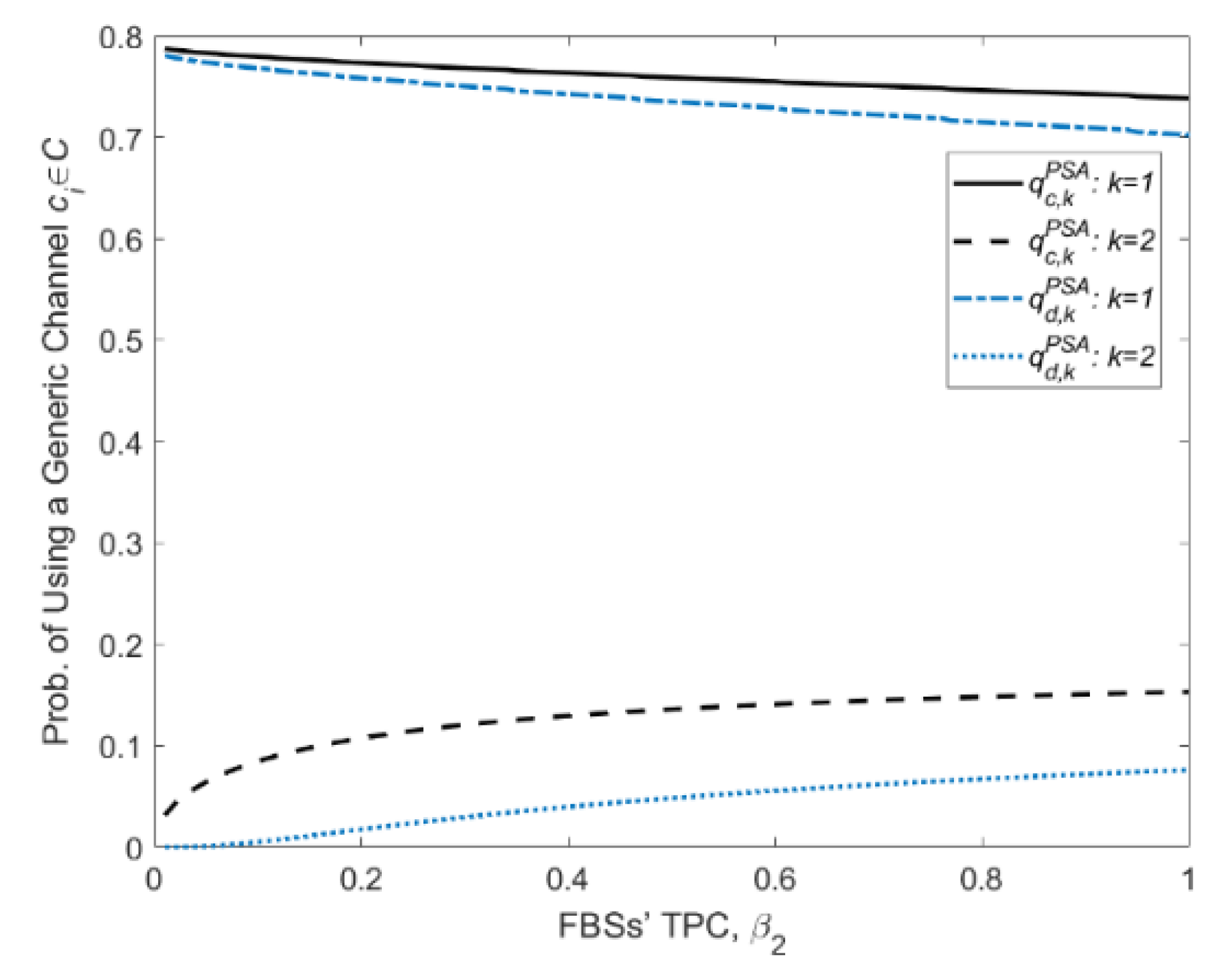

_{d}as much as possible. In addition, for the same reasons mentioned for Figure 4 and Figure 5, the probability of channel C

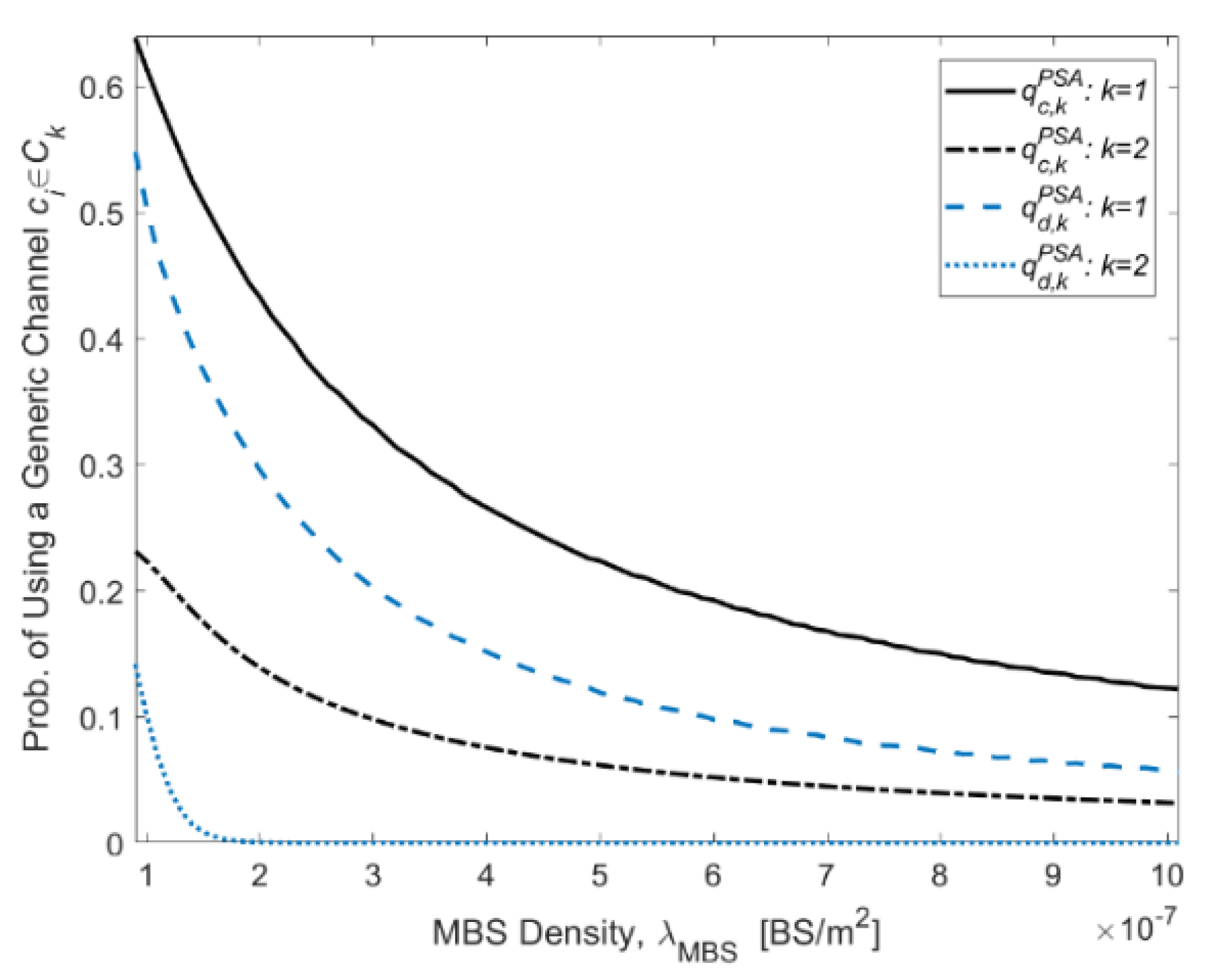

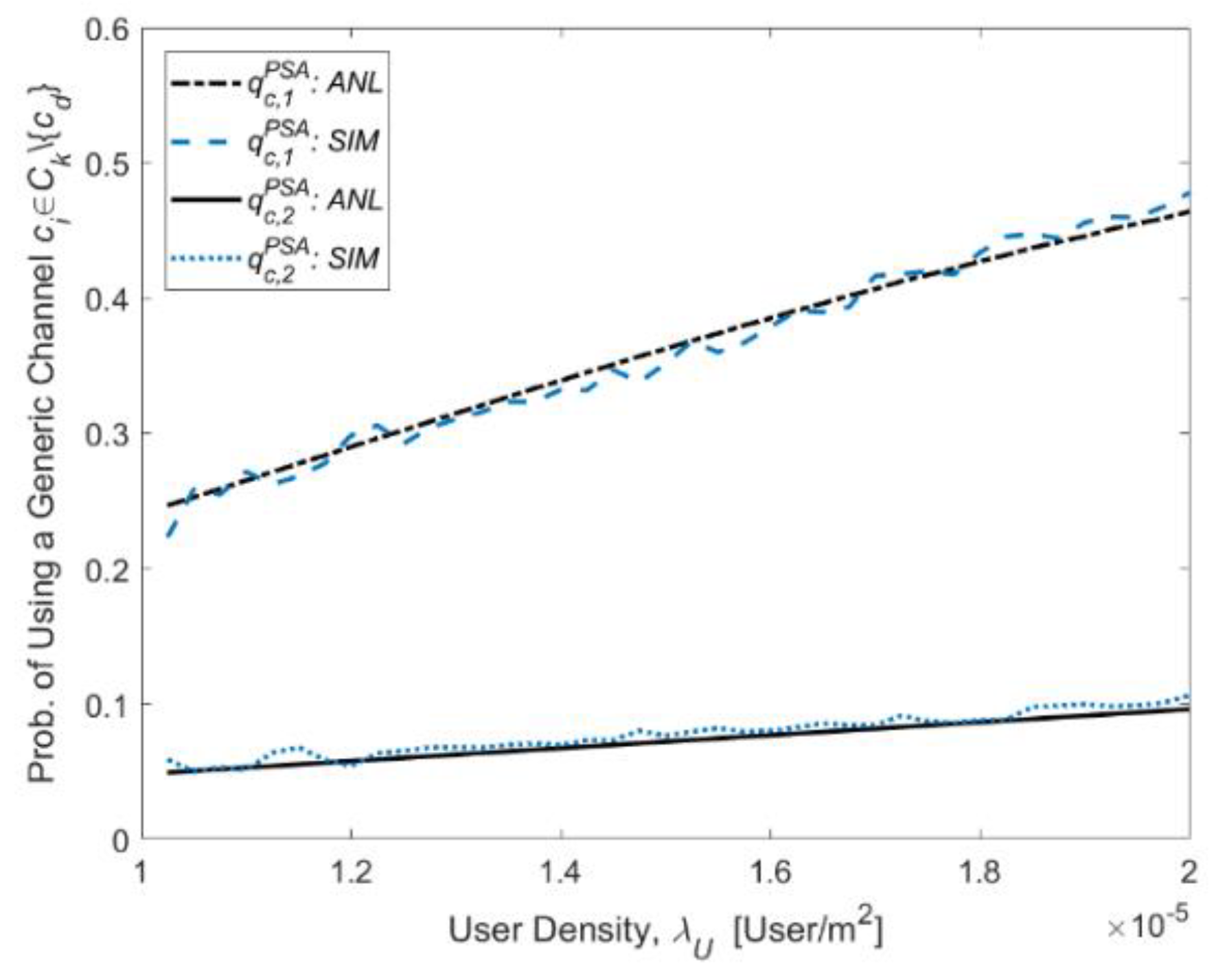

_{d}being occupied by the macro tier (${q}_{d,1}^{\mathrm{PSA}}$ and ${q}_{d,1}^{\mathrm{RSA}}$) is higher for all values of ${\lambda}_{U}$ when compared to the femto tier (${q}_{d,2}^{\mathrm{PSA}}$ and ${q}_{d,2}^{\mathrm{RSA}}$). Figure 10 depicts the effect of varying the density of users on ${q}_{c,k}^{\mathrm{PSA}}$. As it can be seen, the probability that a BS of tier $k$ uses a generic channel ${c}_{i}\in {\mathrm{C}}_{k}\backslash \left\{{c}_{d}\right\}$ to serve one of its associated cellular users is an increasing function of ${\lambda}_{U}$. Similar reasons and arguments to those we had for the previous figures hold here as well.

## 6. Conclusions and Future Research Directions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

#### Appendix A.1. Derivation of ${\mathcal{N}}_{k}$

#### Appendix A.2. Derivation of ${p}_{s}^{D2D}$

#### Appendix A.3. Derivation of $\overline{{R}_{k}}$

**Overlay mode:**From the expression of $\overline{{R}_{k}}$ in Equation (41), we have

**Underlay mode:**Similarly, from the expression of $\overline{{R}_{k}}$ in Equation (41), we have
