FMECA and MFCC-Based Early Wear Detection in Gear Pumps in Cost-Aware Monitoring Systems
Abstract
:1. Introduction
- An MFCC-based early wear detection model is proposed with validations from a case study on an AP3.5/100 external gear pump manufactured by BESCO. The proposed model exploits the sensitivity of MFCC features for discriminant feature selection and AI-based models for wear detection performance evaluation.
- The early wear effect of fluid contamination of gear pump housing is investigated and presented using surface profiles.
- An exploratory comparison is presented between the employed ML-based classifiers and their performances assessed from different empirical standpoints.
2. Background of Study
2.1. Mode of Operation of Gear Pumps

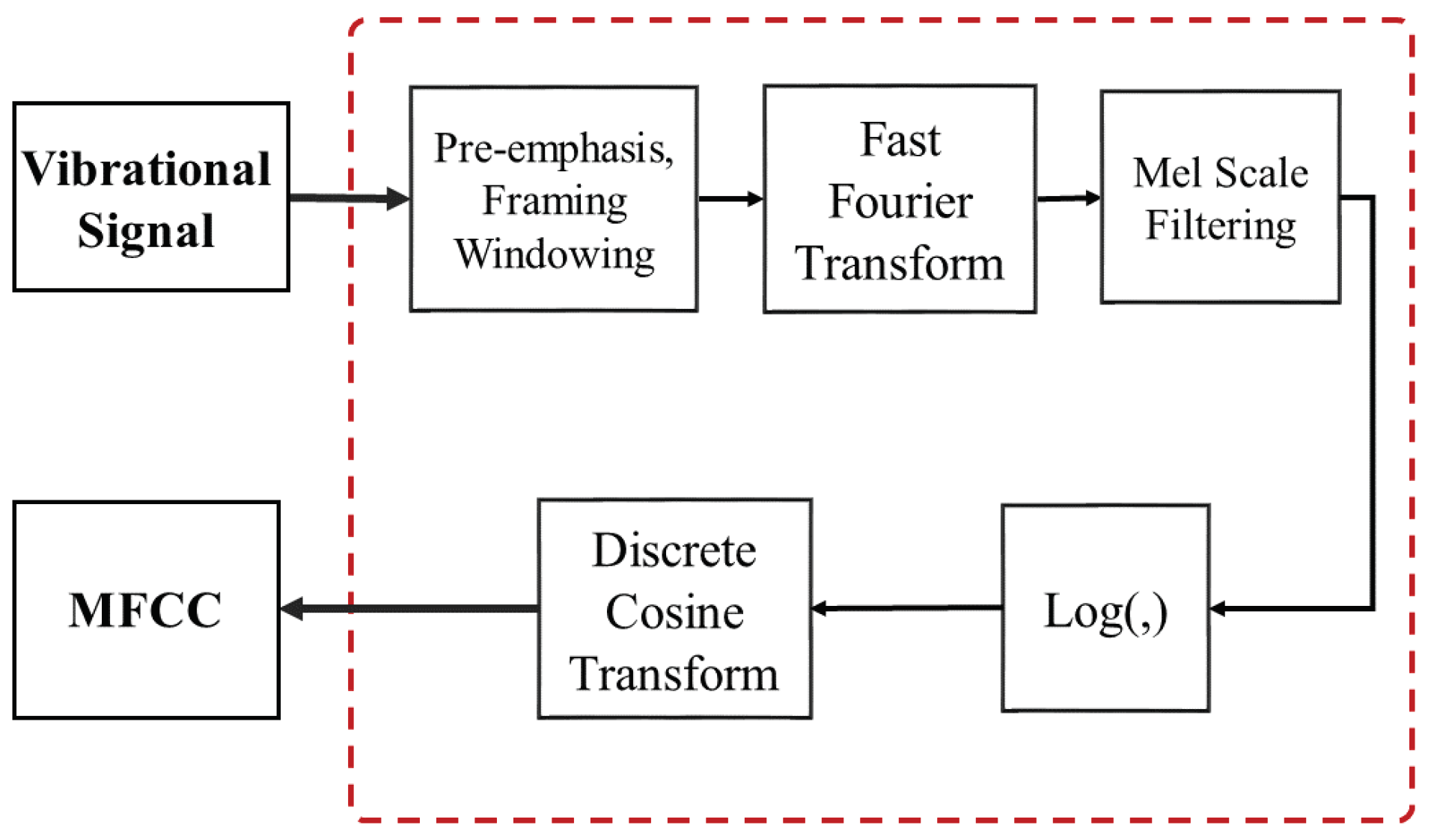

2.2. MFCC Feature Extraction
2.3. Review of ML Algorithms for FDI

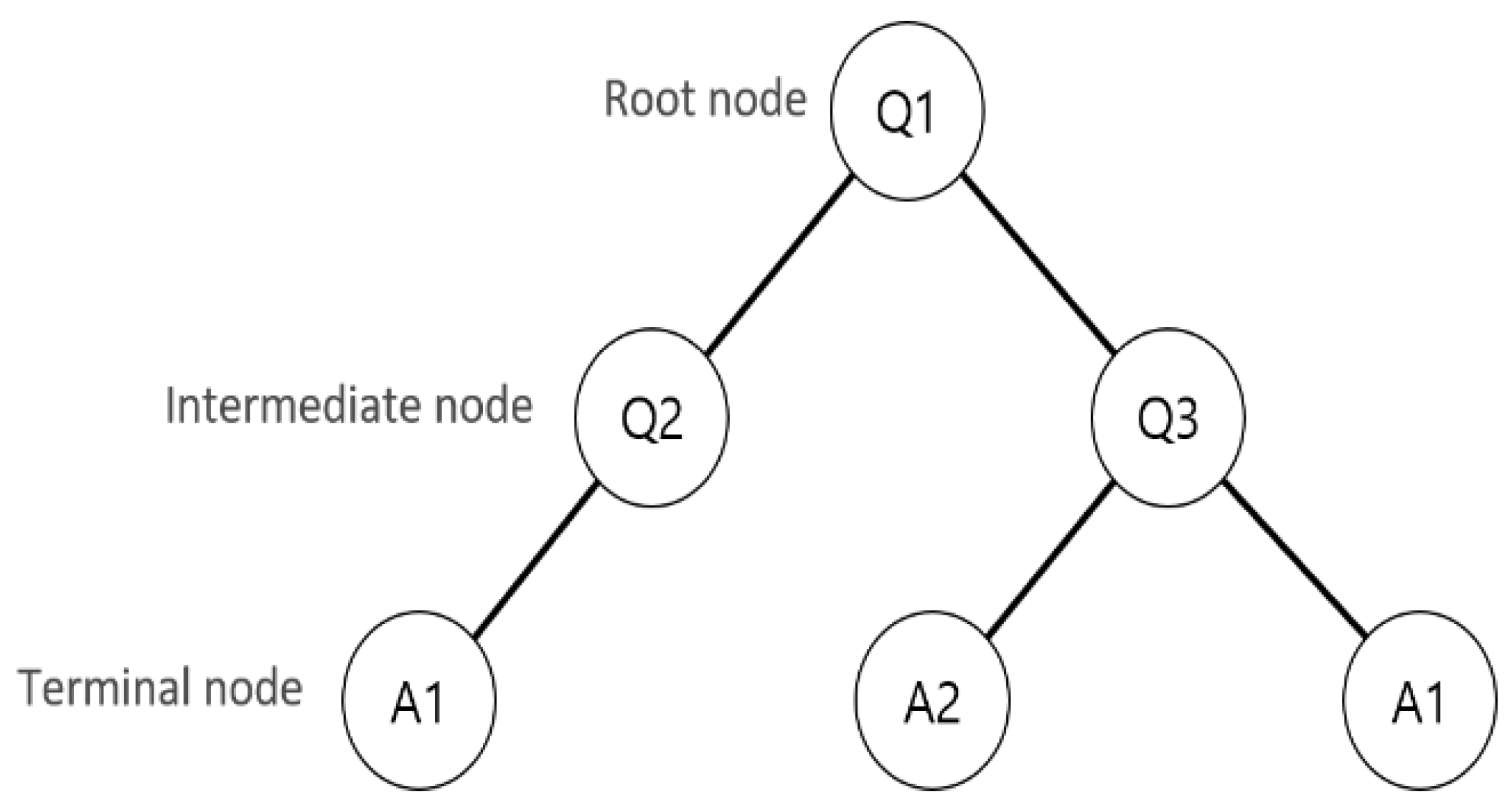

2.3.1. Decision Tree

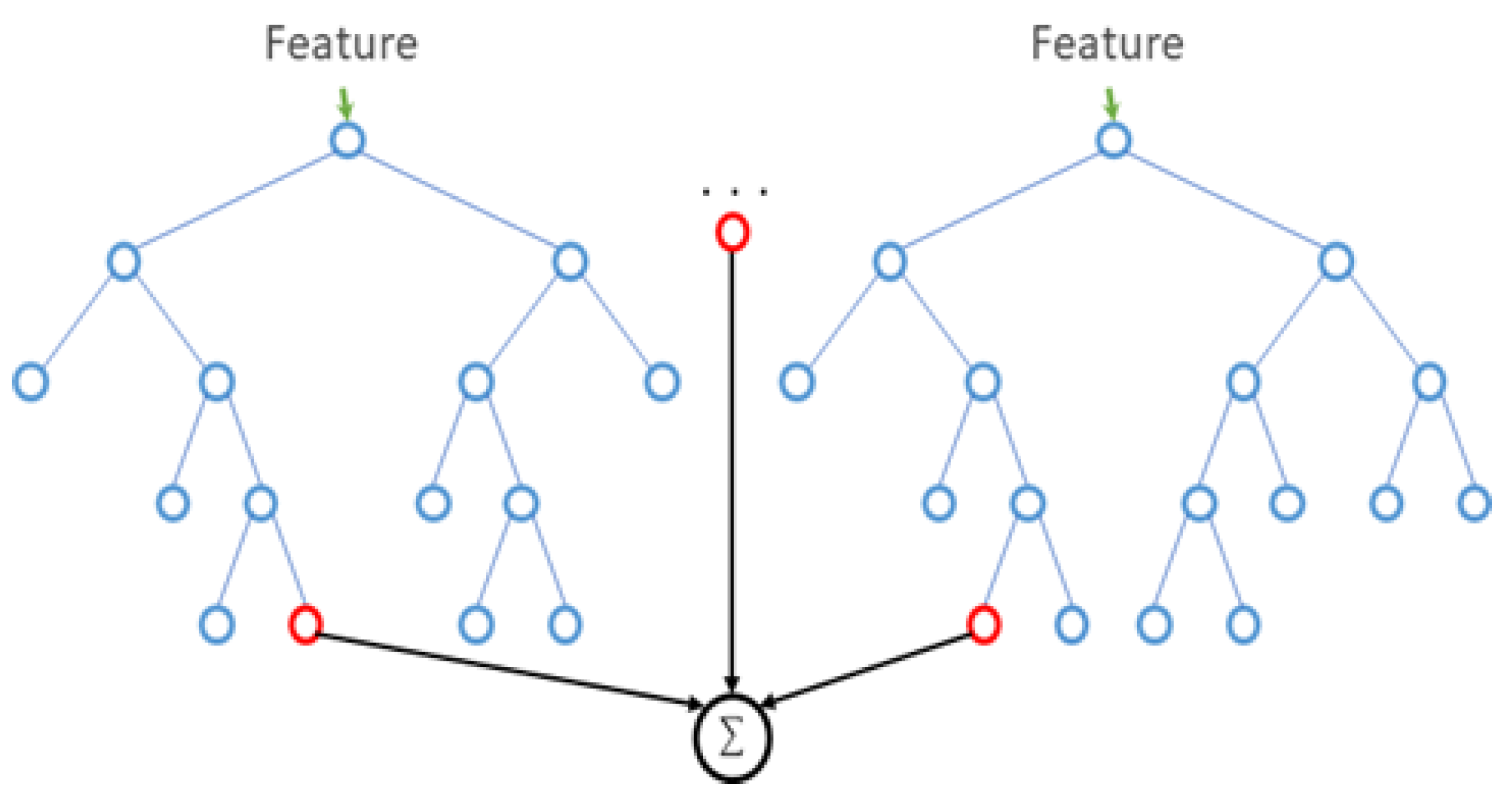

2.3.2. Random Forest

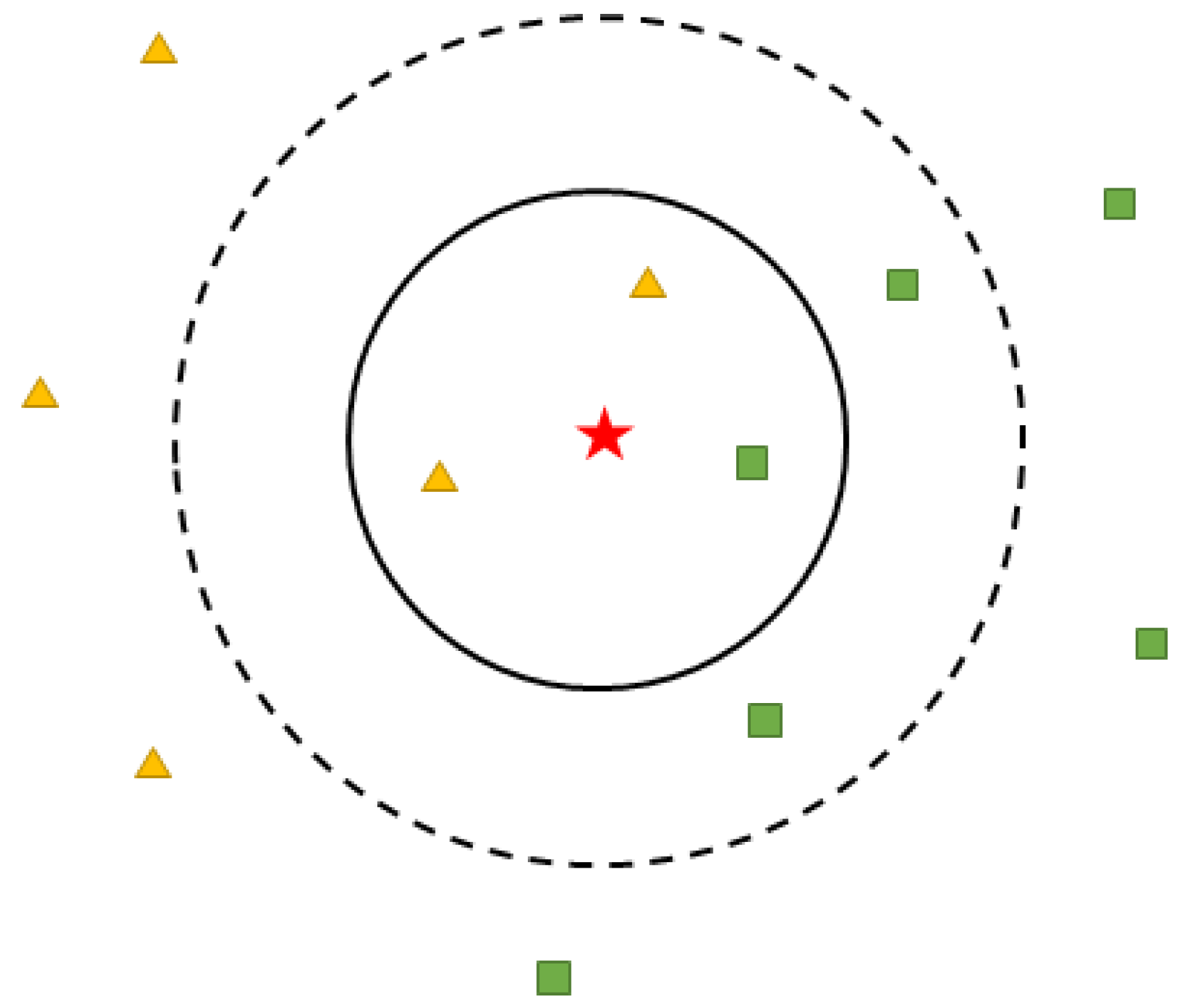

2.3.3. k-Nearest Neighbor
2.3.4. Naïve Bayes Classifier

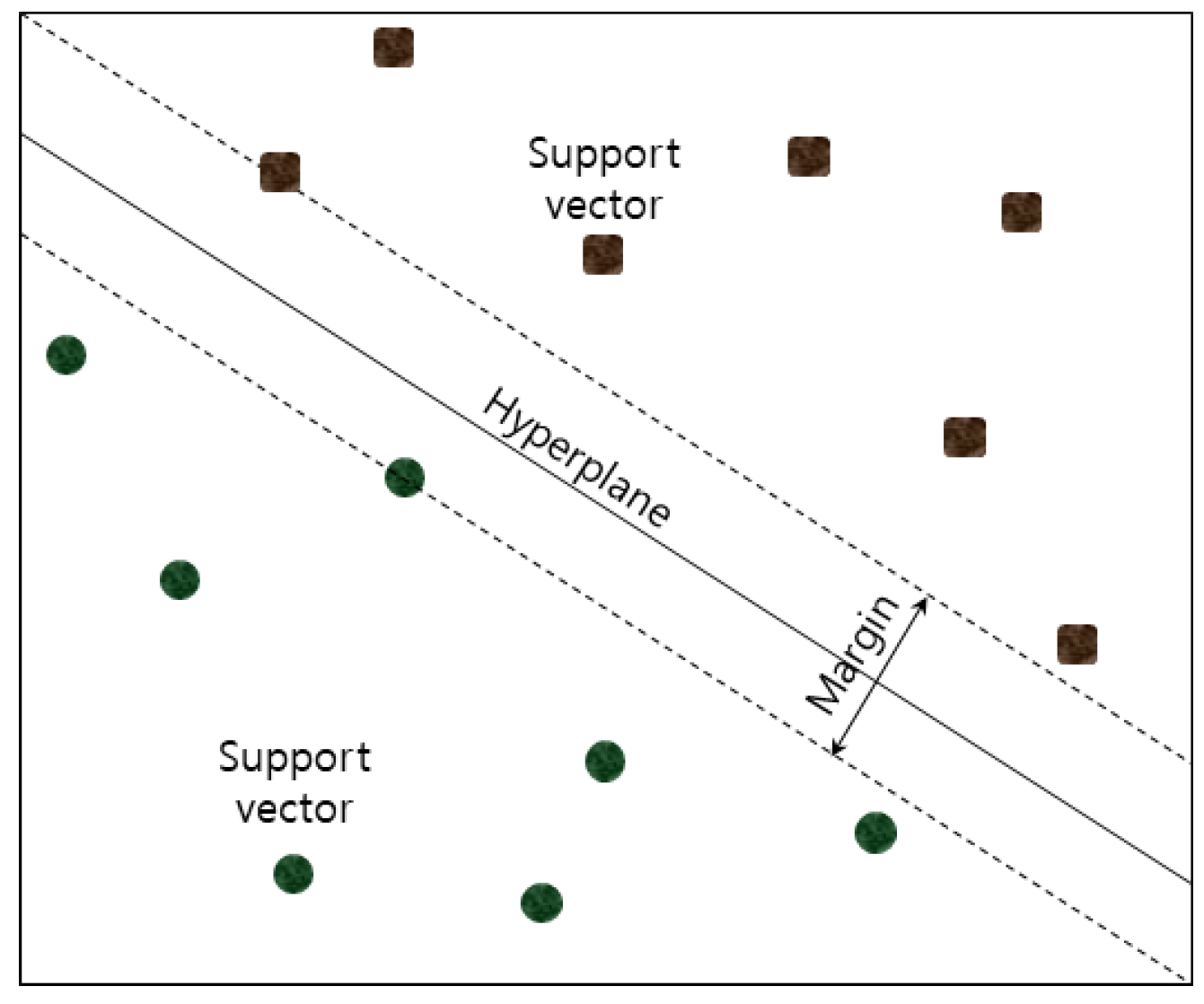

2.3.5. Support Vector Machines

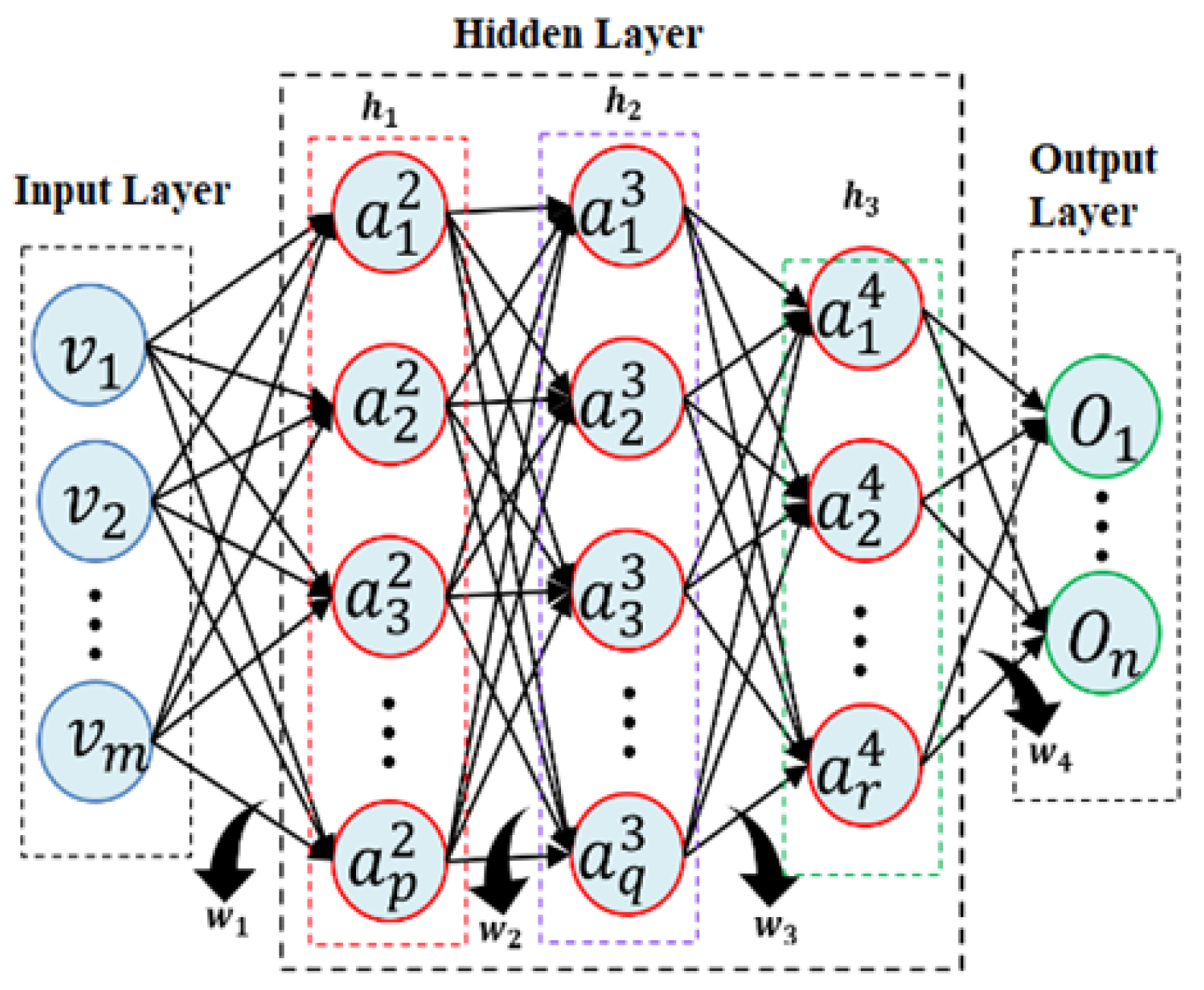

2.3.6. Multi-Layer Perceptron

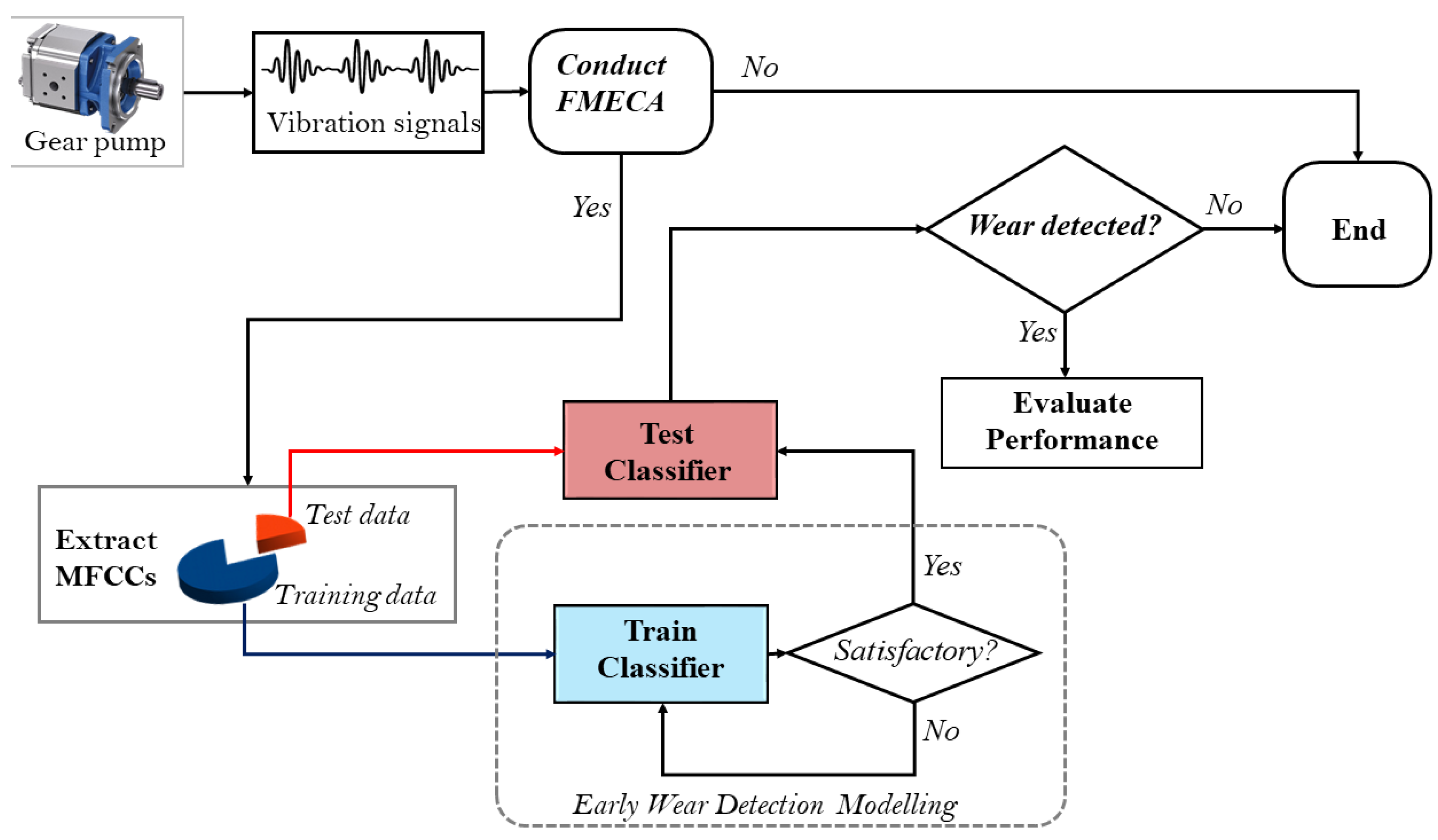

3. Proposed Wear Detection Model
3.1. FMECA
3.2. MFCC Feature Extraction
3.3. ML-Based Modelling and Wear Detection
3.4. Performance Evaluation
4. Experimental Study and Analysis
4.1. FMECA of Gear Pump

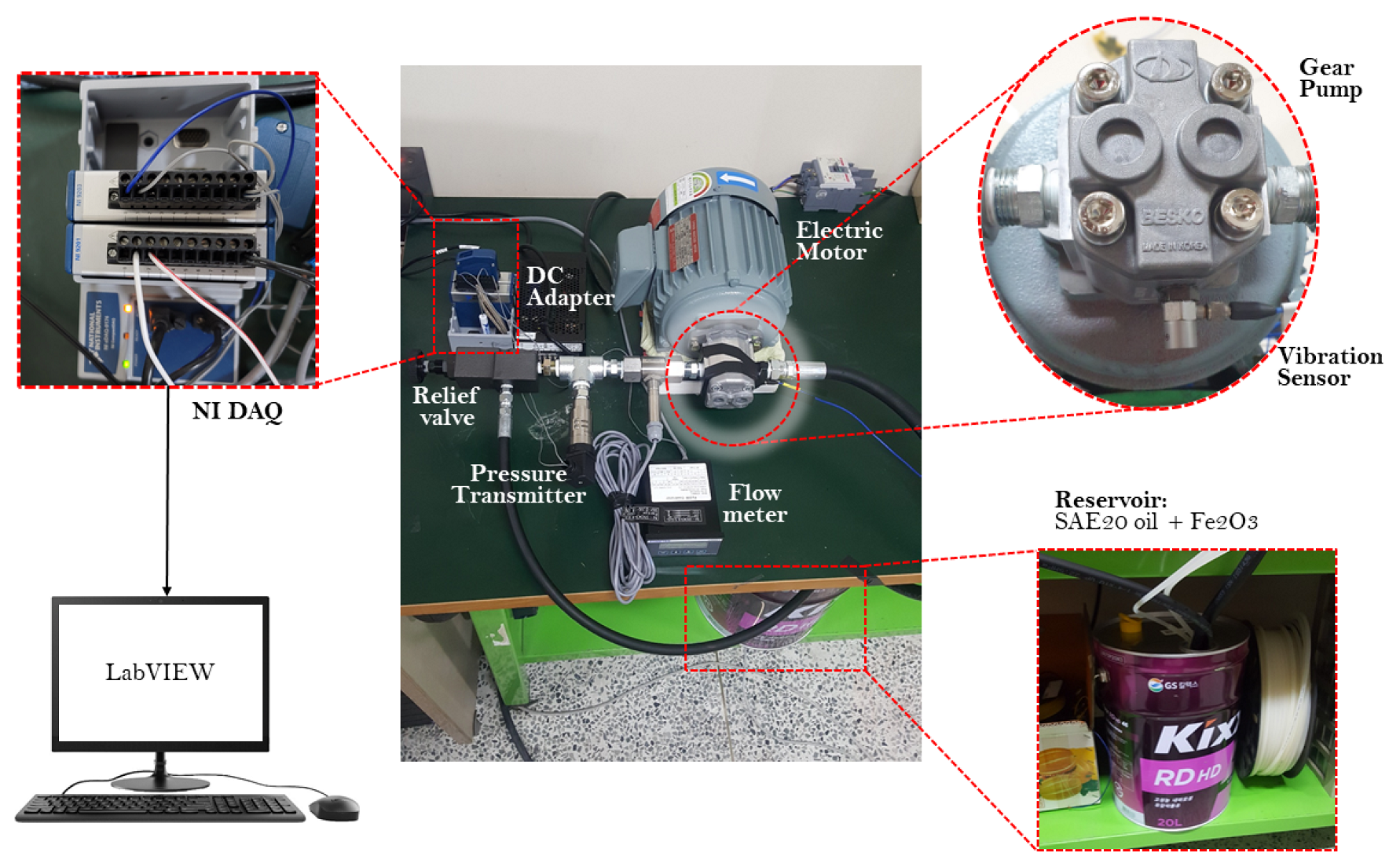

4.2. Gear Pump Abrasion Test

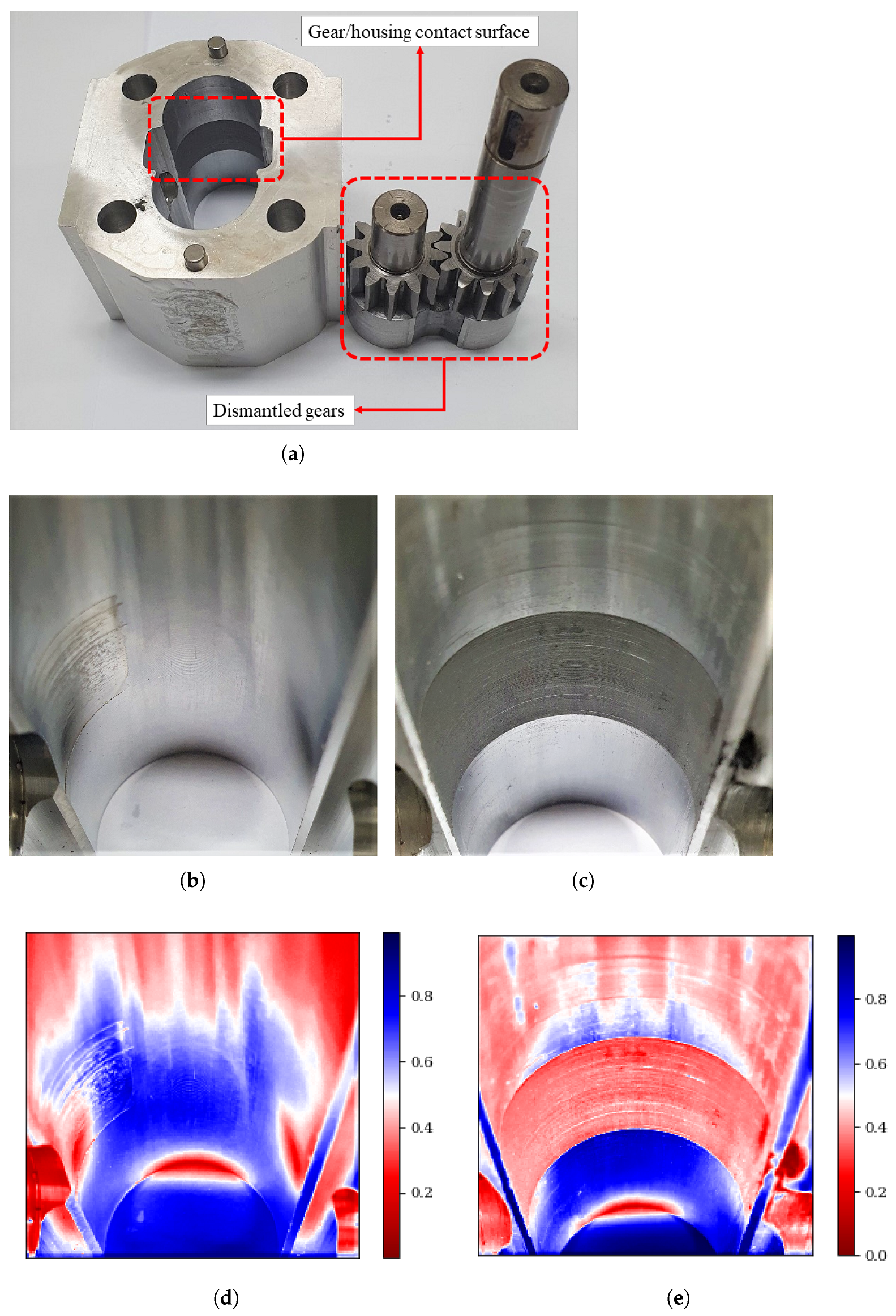

4.3. Abrasion Test Results

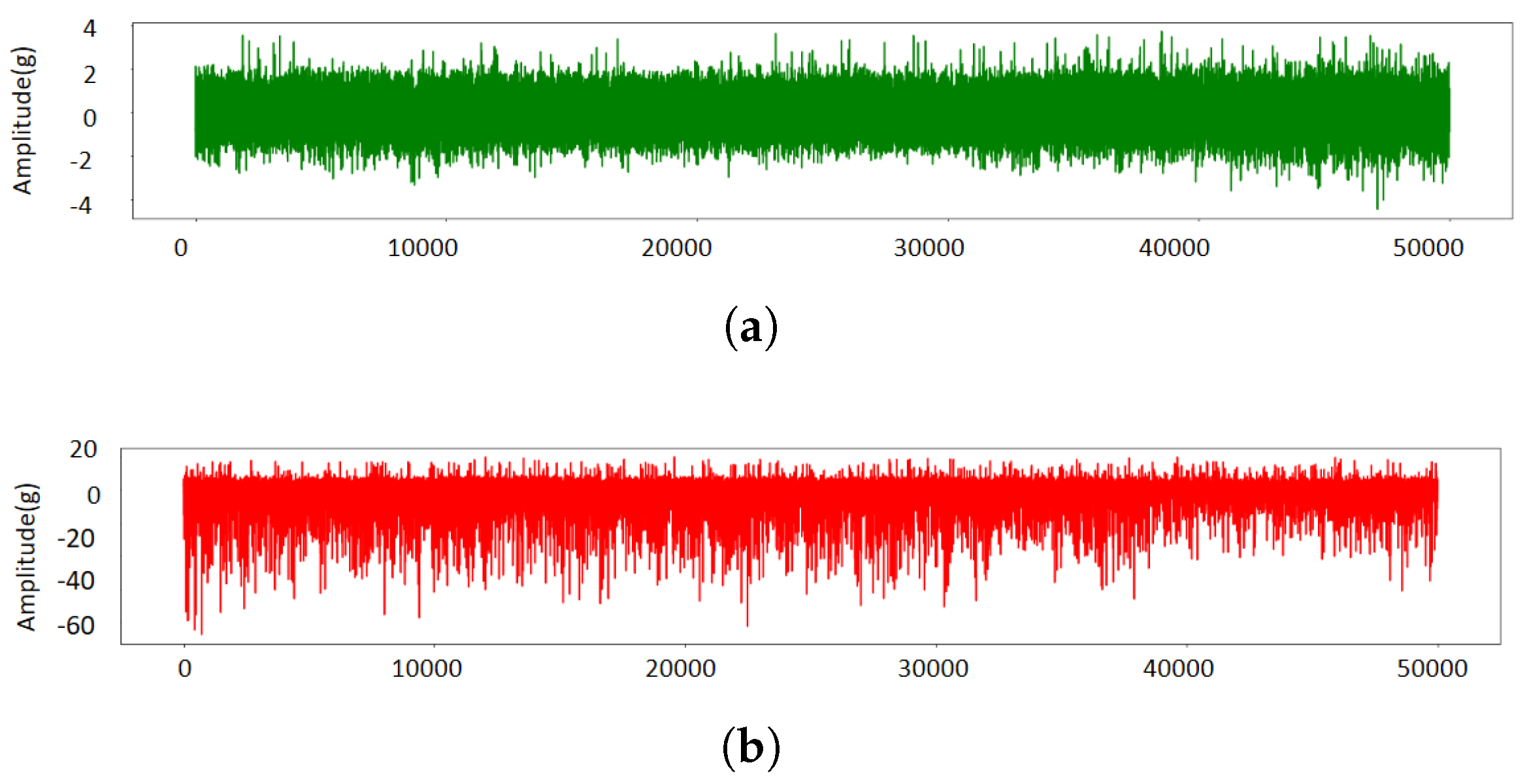

4.4. Feature Engineering
4.5. ML-Based Wear Detection

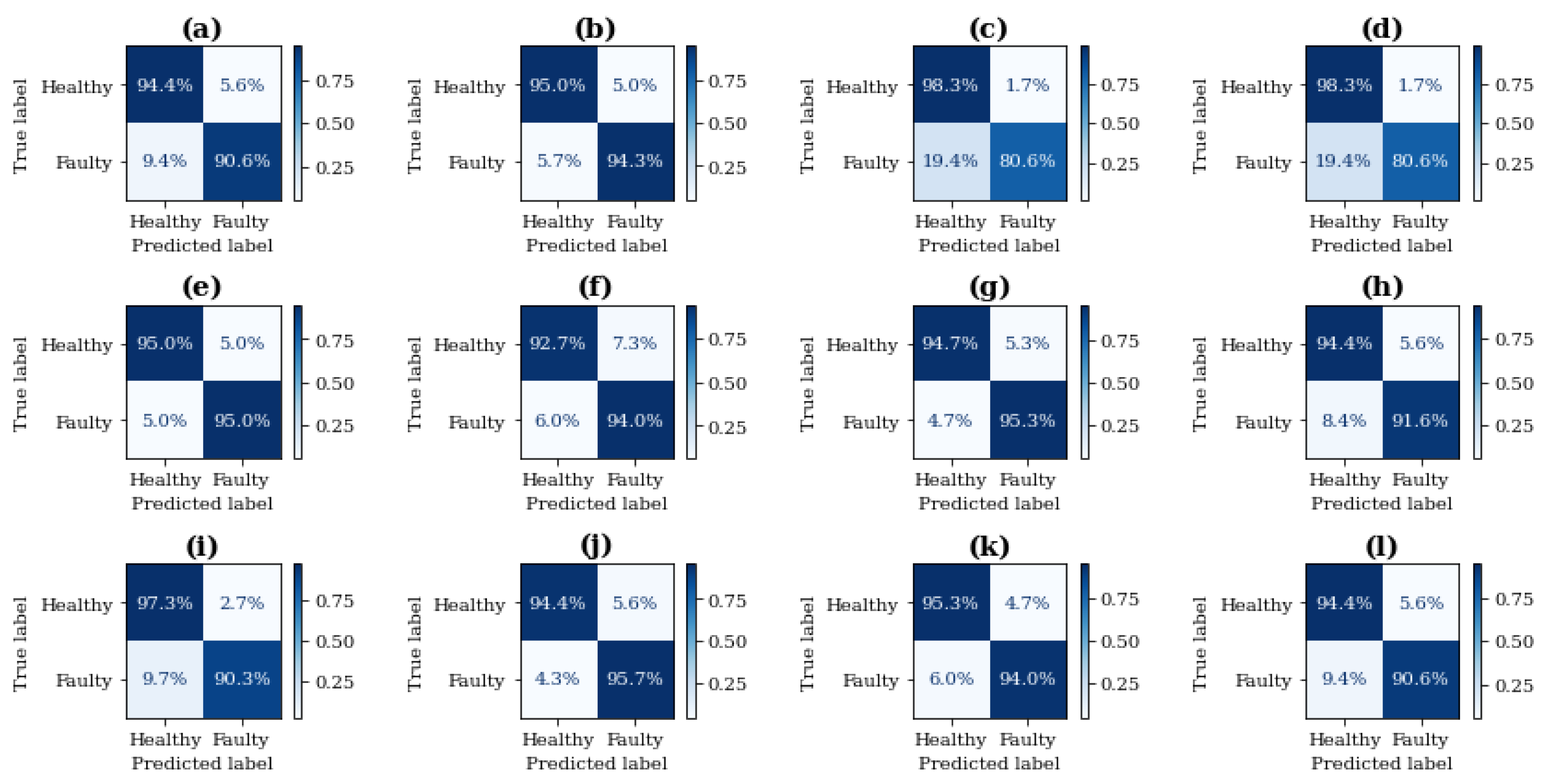

4.6. Performance Evaluations

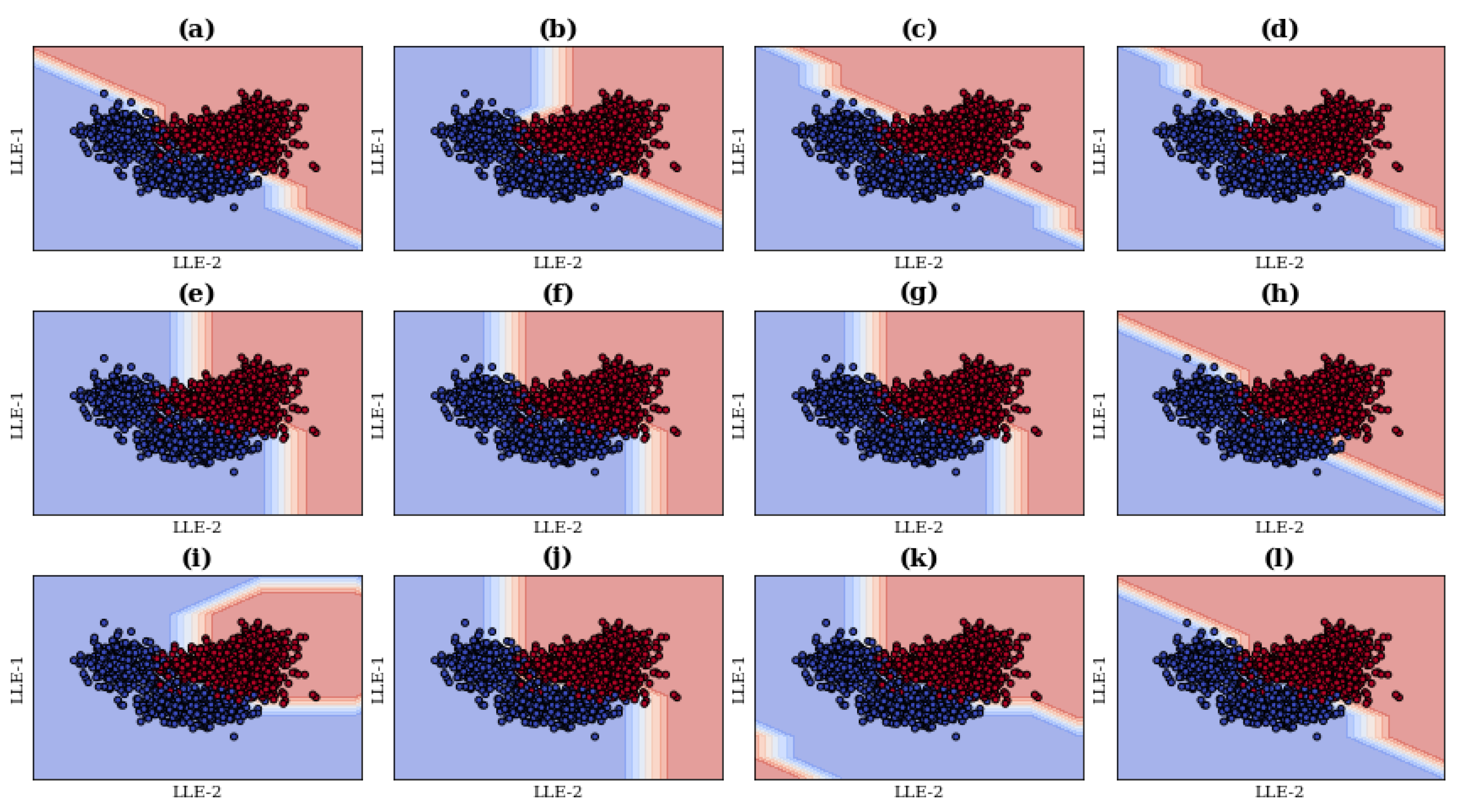

4.7. Fault Visualization
5. Conclusions and Drawn Insights
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
