3. Results
A key to the efficient development of rice hulls reuse is exploitation of the full potential of the organic and inorganic material. The initial rice hulls are shown in

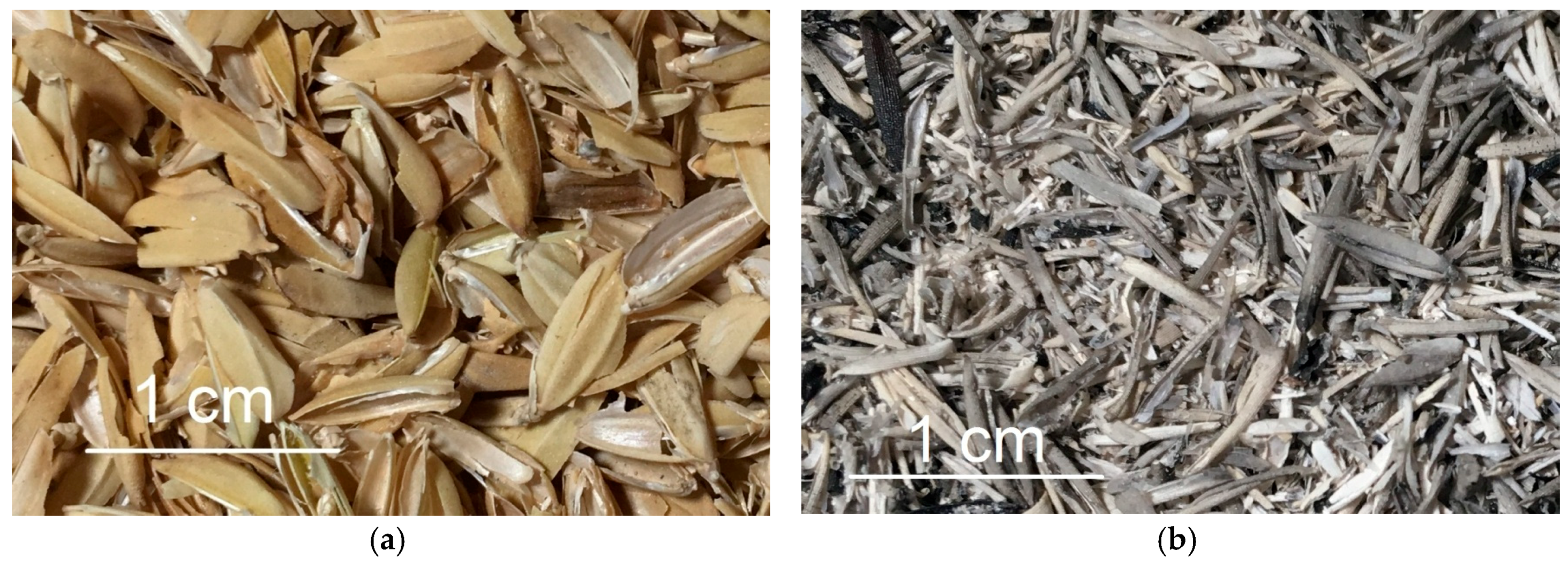

Figure 1a. The energy generation is possible by oxidation of the rice hulls in the flame. Burning proceeded slowly and with difficulty due to the high concentration of inorganic silica and the low permeability of the husk layer. The rice hulls ash that appears during the usual process of burning has a lot of residual carbon (
Figure 1b).
Generation of energy is more effective in intensive methods, for example, in pulverized fuel-fired steam. The whole organic part is oxidized in this process and it is possible to separate the energy potential of the rice hulls as much as the potential of any other organic waste. Pyrolysis without air leads to obtaining flying organic substances and coal; both can be separately used later as fuel. The resulting ash consists of amorphous silica. All these components of rice waste are considered usually as independent resources.
3.1. Weight Loss of a Sample in the Process of Pyrolysis
The thermogravimetry analysis was carried out in air and in the inert atmosphere of argon.

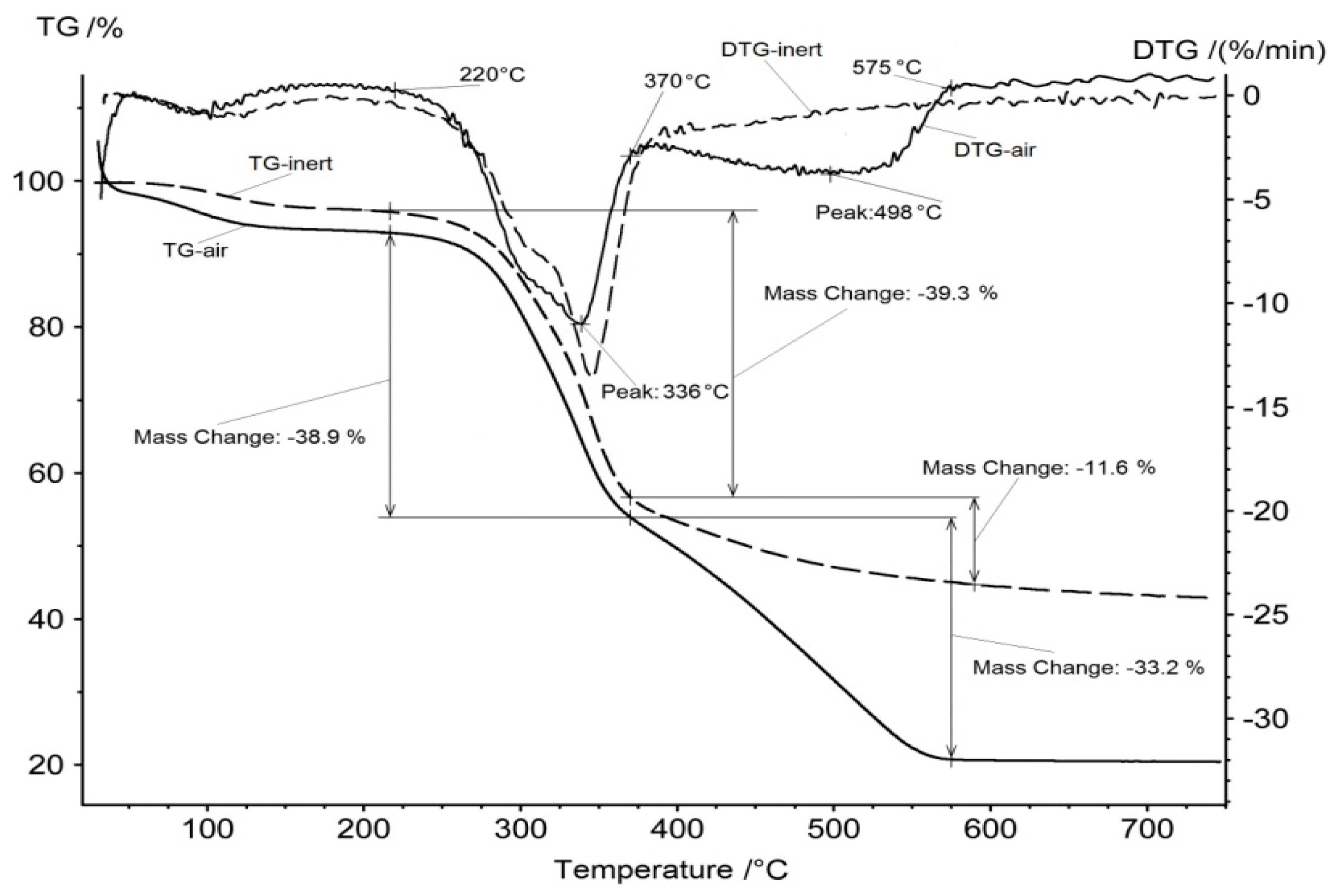

Figure 2 shows the corresponding thermogravimetry (TG) and differential thermogravimetry (DTG) curves. One can observe three stages of decomposition for a sample in air atmosphere.
The first stage of mass loss at 80–120 °C can be attributed to the removal of physical water. Further heating of the dry material does not lead to noticeable changes up to a temperature of 220 °C. The second stage of mass reduction is observed from approximately this temperature up to a temperature of 370 °C. This effect can be explained by the decomposition of the organic component down to carbon and the removal of volatile organic compounds from the sample. This version is confirmed by the TG and DTG curves similarity at the second stage and their difference at temperatures above 370 °C, when a pronounced third stage of mass loss is observed on the TG curve, for the sample in air atmosphere. However, there is no similar effect of mass loss above 370 °C for the sample in argon atmosphere.
The carbon, which remained after the removal of volatile organic compounds, is intensively oxidized by air oxygen at the third stage, at temperatures of 370–575 °C. The residual carbon remains unchanged when the sample is heated in an argon flow; the slight decrease in mass of the TG curve, in this case, can be explained by the presence of trace amounts of oxygen in the inert gas.
Thus, in the process of heating the rice hulls, three temperature intervals can be distinguished. At the first stage of 80–120 °C, the material is dried and its water is removed. At the second stage, above 220 °C, volatile organic compounds are removed from the material; this process is completed at 370 °C, when only carbon and inorganic ash remain in the material. At the third stage, from 370 °C to 575 °C, carbon oxidation occurs in the presence of oxygen. After the combustion of all the carbon, the remaining mass of about 20% of the weight of the initial sample is non-combustible residue ash, which is supposed to be composed of silica.
3.2. Gases Mass Spectrum Data
This way of decomposition is confirmed by the mass spectrum data presented in

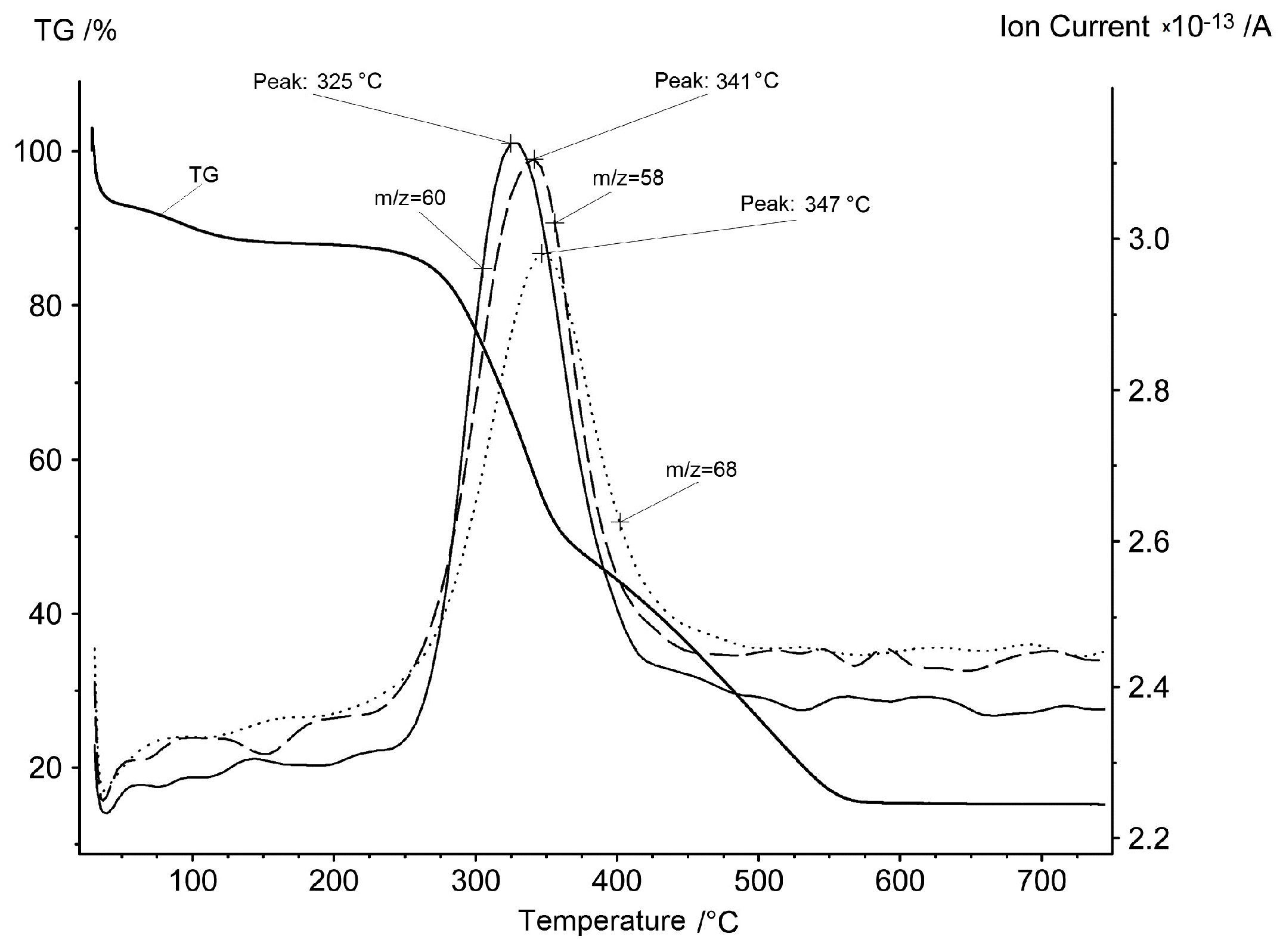

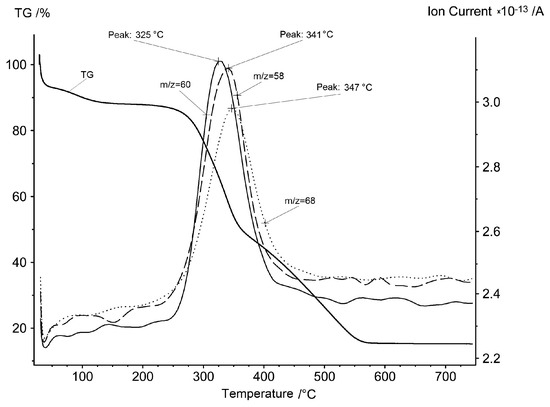

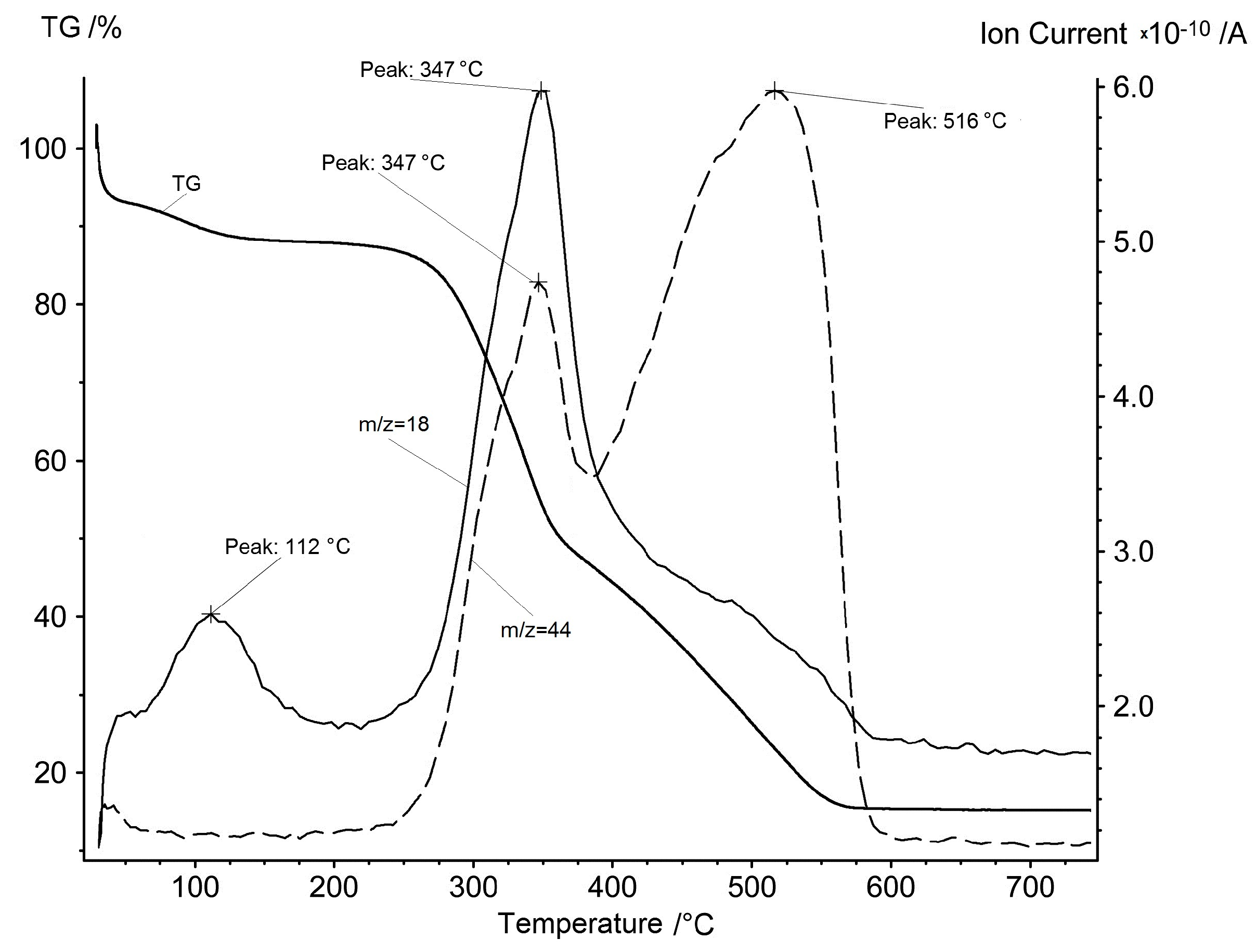

Figure 3 and
Figure 4. Acetone, acetic acid and furan are the most typical products of cellulose and wood pyrolysis. Observation shows that compounds are evolved only at the second stage of the process with a very narrow interval: 325–341–347 °C. There is an absence of any flying organic substances discharged at the third stage.
The evolution of water and carbon dioxide looks very different here compared with inorganic substances. Water steam evolution occurs for the first time at low temperatures of 70–150 °C in the first stage and it corresponds to the physical water evaporation. The aforementioned second stage of mass loss on the TG curve is attributed to the removal of volatile organic compounds. It is natural to assume that in the presence of oxygen in the atmosphere these compounds will be oxidized to water and carbon oxides. Indeed, the ion currents of water and carbon dioxide have characteristic peaks in the temperature range of the second stage, with a maximum at 347 °C.
If the third stage of mass loss of a sample in the presence of oxygen is attributed to pyrocarbon oxidation, as it was suggested above, then in the appropriate temperature range, one should assume the presence of carbon dioxide alone in the gas phase and the absence of water vapor. Indeed, on the ion current curves, a peak is observed only for the ion current of carbon dioxide, with a maximum at 516 °C.
Therefore, an assumption concerning the nature of the three stages of the rice hulls mass loss upon heating is confirmed by the results of mass spectroscopy. When the rice hulls are heated, the physical water is removed first, then the volatile organic compounds, and only then the remaining pyrolytic carbon is oxidized by oxygen.
3.3. Calorimetry of Oxidation
Taking into account the two-stage mechanism of oxidation of the material, one can assume that the maximum heat release will occur within two temperature intervals. The calorimetric and thermogravimetric curves are presented in

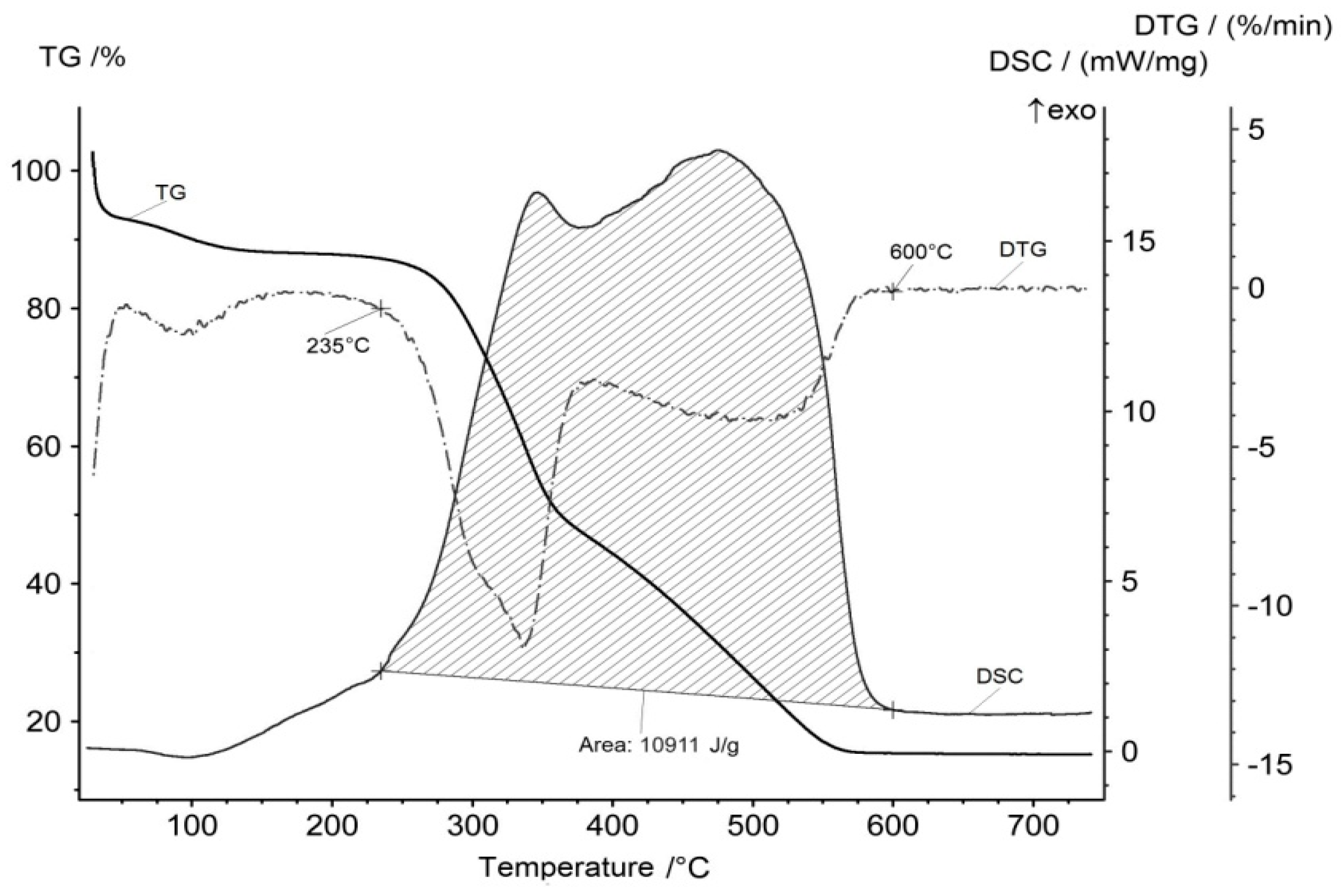

Figure 5.
The beginning of the energy generation process is correlated with that of the flying organic substances evolution at 235 °C and that of the water and carbon dioxide production. The end of the energy generation process is correlated with that of the carbon dioxide production at 600 °C. There are two maximums on the DSC curve that correspond to the maximums of the flying organic compounds oxidation and carbon oxidation processes. Integration of the DSC curve allows us to calculate the amount of released energy during the process of oxidation. This value is 10.9 MJ/kg (3.03 kW·h/kg).
The conclusion shows that one kilogram of rice hulls can be a source of 10.9 MJ of heat produced in the process of burning. The same amount of rice hulls can be a source of approximately 200 grams of amorphous silica. This potential could be the basis for an autonomous technology of reusing rice hulls.
3.4. Structure of the Rice Hulls Ash

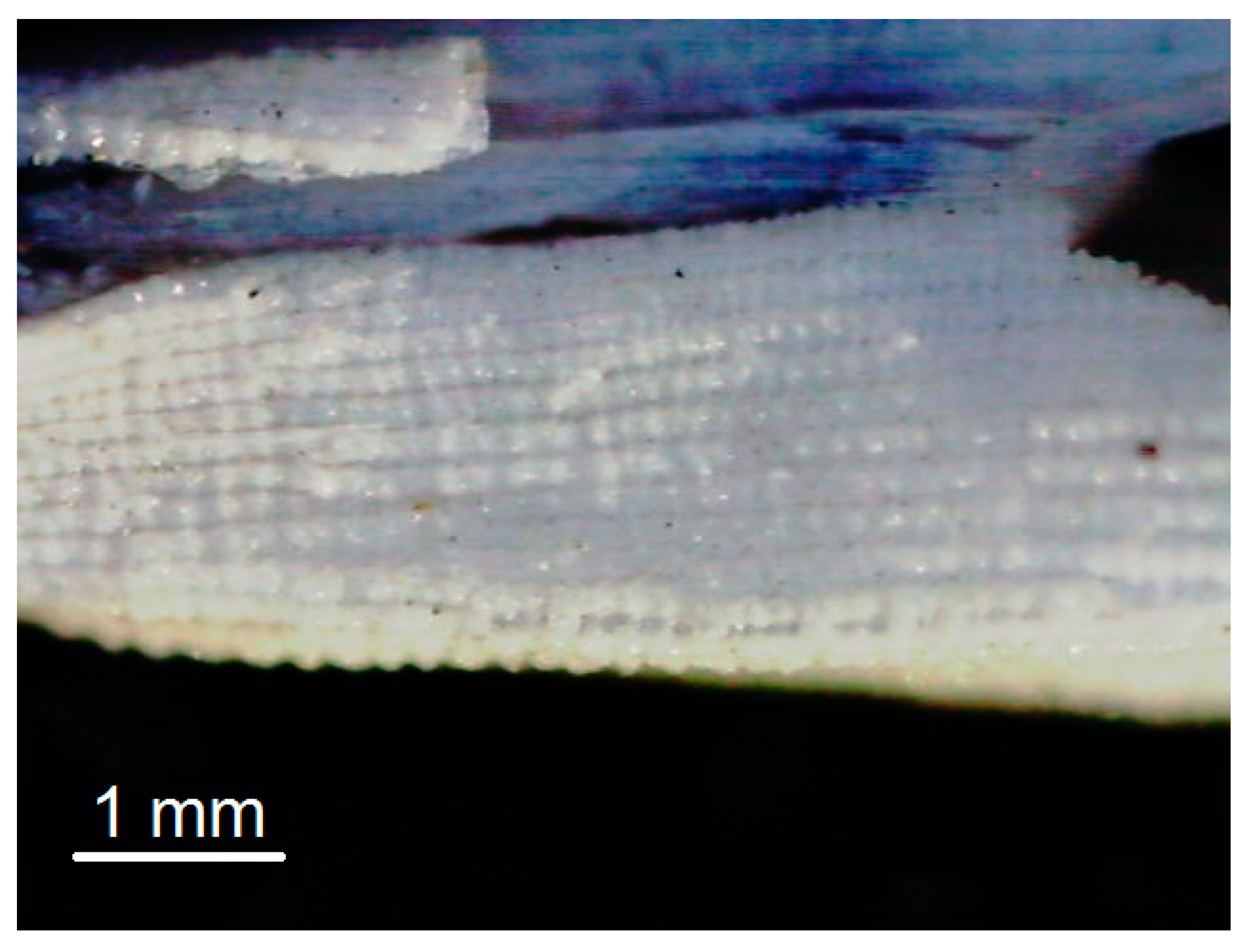

Free firing of rice hulls leads to ash with a high quantity of carbon, as it is possible to see in
Figure 6. Thermogravimetry analysis of this ash shows the content of carbon to be 6.5%. The reduction of carbon content in resulting ash is possible by various methods. One can increase the concentration of oxygen; however, the most technologically correct method is the use of a pulverized burning system. Oxidation in rich oxygen atmosphere was used for preparation of the ash, with the content of carbon reduced to 0.2%. The sample of the resulting silica product is shown in
Figure 7. The low content of carbon in the sample is obvious.

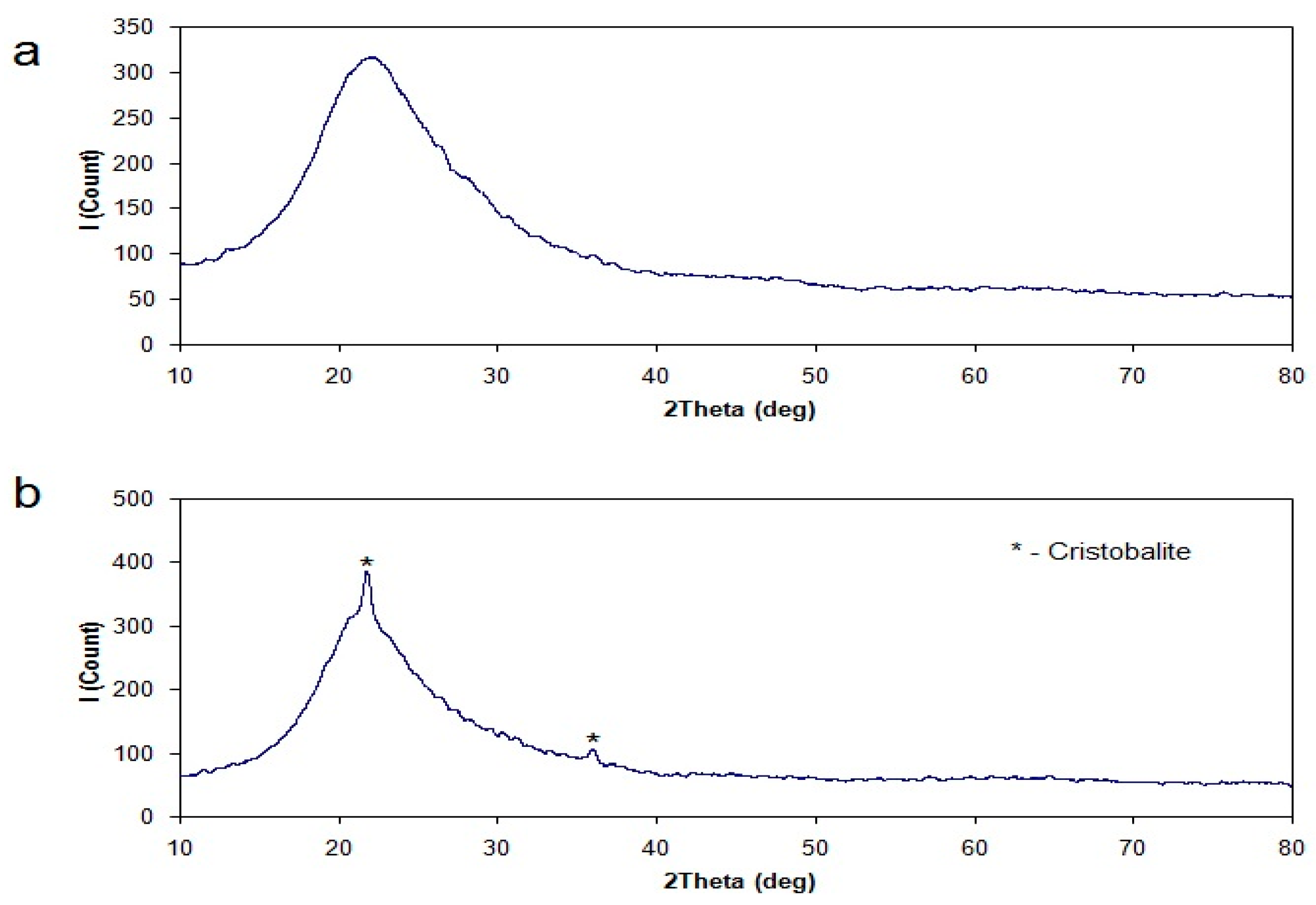

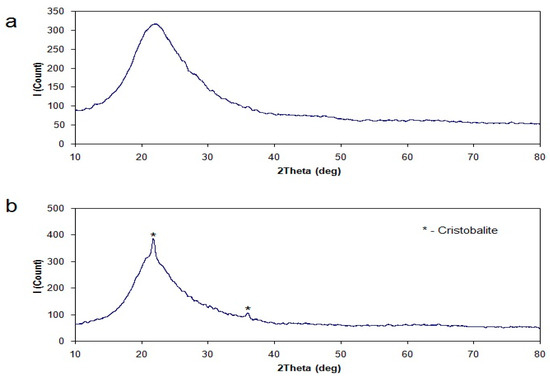

The results of the X-ray diffraction analysis are shown in
Figure 7; they confirm that the sample obtained by burning in the usual atmosphere is amorphous silica. Burning in the oxygen-rich atmosphere resulted in forming a cristobalite phase in the silica sample. Presumably, this fact is due to high temperatures of burning in cases of high concentrations of oxygen.
Amorphous silica is achieved as a result of burning the rice hulls. Intensification of the burning process and the corresponding increase of temperature in the flame lead to the formation of a cristobalite phase in the ash. However, the cristobalite content is too low and this crystal phase is unlikely to interfere in further processing of the amorphous silica.
3.5. Foamed Structure Material from Rice Hulls Ash
The amounts of gases, which evolved in the process of glass formation from polysilicates at temperatures of glass thermoplasticity, can be enough for the creation of cellular glass. Since the synthesis of glass from a polysilicate chain is essentially the process of eliminating water, it has been found that steam will be the main gas evolved in the course of heat treatment of an alkali-silica composition [
2,
3].
The cellular structure materials have been prepared according to the above-mentioned procedure, using rice hulls ash and sodium hydroxide. At temperatures of glass thermoplasticity, the steam can actively oxidize carbon through the reaction of steam conversion [
4]. The presence of carbon in silica ash promotes the increase of gas formation inside the material during heat treatment.

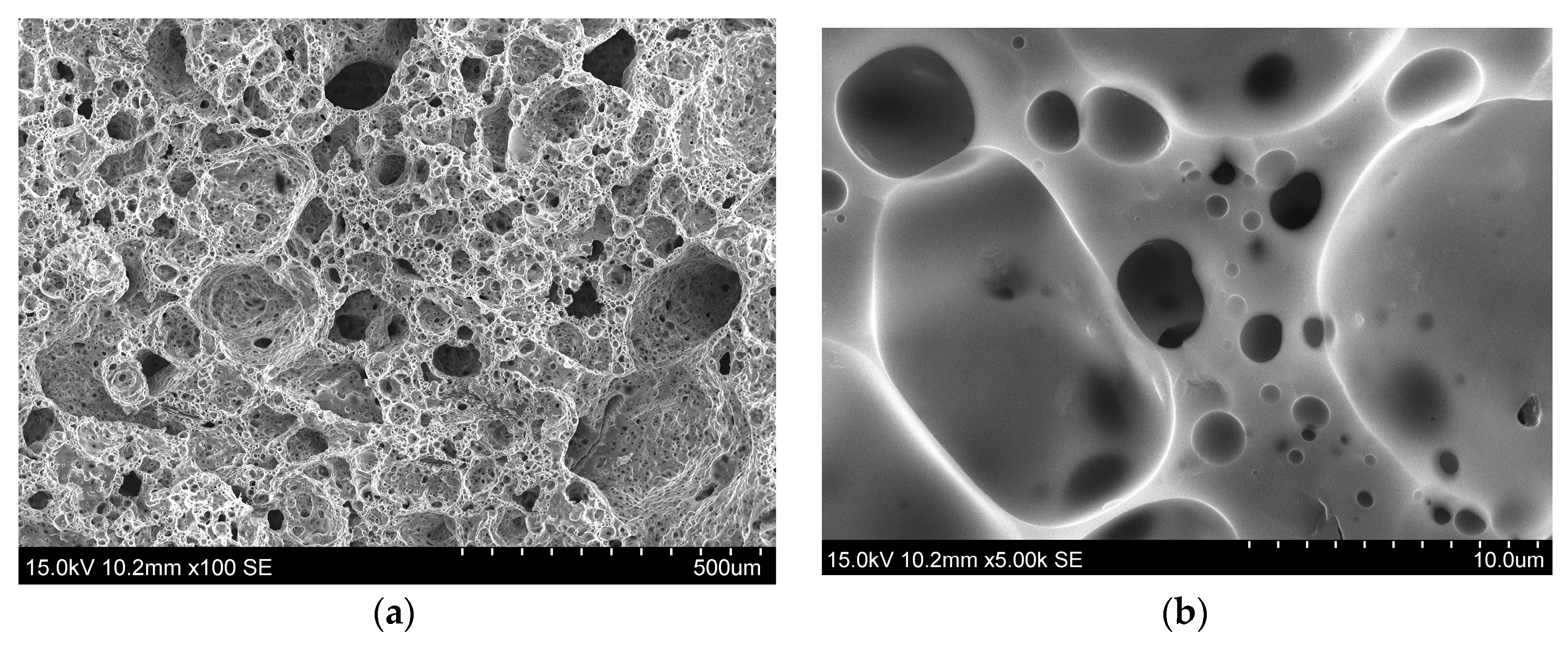

The obtained samples have the cellular structure shown in
Figure 8. The density of both samples is 210–220 kg/m
3; the effect of the cristobalites presence in one of the samples has not been found.
4. Discussion
Rice hulls are recognized as one of the major potential sources of energy production [
5]. Rice hull is known to be an important source of energy, particularly for developing countries where the economy is mainly based on agriculture and forestry. Rice hulls biomass materials maintain net calorific values between 6000 kcal/kg and 3000 kcal/kg; this is almost half that of natural gas and fossil fuel. The annual worldwide production of rice hulls is estimated to be 100 million tonnes, 90% of which is generated in developing countries. The proximate and ultimate analyses of the biomass are as follows: Moisture 7.9%, volatile matter 59.5%, fixed carbon 19.9% and ash 17.1%.
Rice hull, as a major by-product of the rice milling industry, is one of the most commonly available lignocellulosic materials that can be converted into different types of fuels and chemical feedstock through a variety of thermochemical conversion processes. In spite of a high ash content ranging from 15.3 to 24.6% (dry weight basis) and the high silica content of ash, ranging from 90 to 97%, lower heating values ranging from 13 to 16 MJ/kg (dry weight basis) have been found [
6]. This is why rice hulls are firstly considered as a renewable energy source.
Oxidation of rice hulls, however, proceeds with difficulty. The material has a low bulk density and low calorific values. Nevertheless, it can be used as an admixture to the composition of fuel briquettes with more flammable materials. Briquetting involves the compression of some material into a solid product of a higher bulk density, lower moisture content, uniform size and shape; all the properties that would allow the material to be used as fuel, just like wood or charcoal. To maximize the potential of waste paper, commonly produced biomass wastes in the form of carbonized rice hulls and sawdust were considered as key ingredients in the formation of mixtures for briquette production [
7].
To intensify oxidation, the bubbling fluidized bed combustion was found to be an effective process [
8]. The rice hull combustion was used in a 250 kW·h bubbling fluidized bed pilot plant at temperatures of 700, 750, 800 and 850 °C and with fluidization velocities of 0.3, 0.4 and 0.5 m/s. Low carbon content, up to 1.89%, was obtained in the combustion ashes. Combustion efficiency increased with the combustion temperature; however, it showed some tendency to decrease as fluidization velocity increased.
The actual burning of rice hulls is a multistage process. It was investigated that after evaporation of moisture the sample loses volatiles and carbon only oxidizes higher than 420 °C [
9]. Therefore, it is possible to obtain liquid fuel at the second stage of pyrolysis.
The rice hulls are used as a source of synthetic fuel manufactured by pyrolysis. The main stages of rice hulls pyrolysis are known. TG analysis has been used to determine the existence of organic components in rice hull [
10]. It can be seen that an initial weight loss occurs within the range of 50–150 °C, with the weight loss of 1–2% corresponding to the loss of water and other volatile substances. The second stage reveals a rapid and large weight loss at temperatures between 240–360 °C. This is due to the thermal decomposition of hemicellulose and cellulose as a major organic component of the rice hull. The third stage shows the weight loss of about 26–31% that could be due to lignin, a thermally more stable aromatic polymer which undergoes gradual decomposition at temperatures between 370 and 600 °C. The residual ash is mainly non-combustible silica (~16%, >600 °C). Along with that, the question of gas products of the pyrolysis, according to the mentioned stages, is important, as well as the energy potential of the oxidation stages.
The rice hull was used as a feedstock and pyrolyzed at 475 °C to obtain the crude bio-oil with a yield of 50 wt. %. This bio-oil was stored in oil tanks and used as a mother liquid for preparation of bio-oil/diesel-oil emulsions. The char content of the bio-oil was only 0.4 wt. % [
11]. The properties of the obtained bio-oil were compared with the commercial diesel oil. The higher heating value for the first was 15.4 MJ/kg, and for the second one it was 44 MJ/kg. The bio-oil (pH 3.2) was much more acidic than the diesel oil (pH 7.8). It also had a higher kinematic viscosity of 10.2 cSt versus that of 2.9 cSt for the diesel oil. We suppose that the high acidity and higher heating value are connected with the high concentration of water in the composition. Bio-oil is totally different from petroleum oils, it is a complex mixture of water (15–35 wt. %), solid particles (0.01–3 wt. %) and hundreds of organic compounds that are classified as acids, aldehydes, ketones, phenols, alcohols, ethers, esters, sugars, furans, nitrogen compounds, as well as large molecular oligomers. Most of the organic compounds are partially soluble in water and separation of the bio-oil from water for quality improvement is an expensive and difficult task.
The rice hulls, as an alternative biomass fuel, are considered to be a potential replacement for fossil fuels such as coal, natural gas and petroleum. The power generation system is a typical pulverized coal-fired steam cycle unit. Co-firing of the biomass fuels with coal leads to a reduction of power generation due to the lower heating value of the biomass than that of fossil fuels and the energy loss with ash [
12]. The higher heating value of rice hull is considered to be 14.98 kJ/kg and the lower heating value—13.99 kJ/kg. The quantity of ash is 14.0% of the mass. For the biomass/coal co-firing power plant, the energy efficiencies of the boiler and overall plant decrease as the amount of the biomass co-firing increases. From a thermodynamic perspective alone, firing of the biomass is not worthwhile. However, the efficiency decline can be offset by the benefits of biomass co-firing, which include enhanced plant economics, reduced environmental emissions and the substitution of fossil fuels with renewable energy sources.
It is evident that many researchers consider the rice hulls only as a source of synthetic fuel—as any other product of plant origin. However, a number of experts point to the relatively low potential of rice hull, which is connected with a high content of the inorganic component. Indeed, the above- mentioned experimental data prove the content of ash in the rice hulls is anomalous for plant products, about 20%. This ash is predominantly amorphous silica. Most proposals for re-using the rice hulls are based precisely on the use of this valuable resource.
Due to the high concentration of pure silica in the rice hulls ash, exclusive materials were obtained. A highly pure, small particle-sized and high surface area nano silica powder was prepared from the rice hull, using the alkali extraction, followed by the acid precipitation method [
13]. β-wollastonite was produced from the rice hull ash, as well as calcined limestone via green synthesizing using autoclaving [
14]. The rice hull ash, as a silica source, was transformed into MFI-type zeolites (ZSM-5 or Zeolite Socony Mobil—five zeolites) using different structure-directing agents [
15].
Utilization of the rice hulls ash as a traditional supplementary cementitious material has become more intense in the concrete industry due to its better durability properties. The rice hulls ash can reduce the quantity of cement required for concrete production [
16]. The concrete produced by using up to 30% of the rice hulls ash as a replacement for cement could be considered as a more environmentally-friendly concrete.
Recently, as a supplement of cement, the utilization of pozzolanic materials in cement and concrete manufacturing has increased significantly. The rice hulls ash as a pozzolanic waste with an alkali activated binder can be used as an alternative to cement [
17].
The rice hulls ash is considered to be a promising solid waste material for the production of geopolymers [
18]. The high compressive strength materials were obtained from the sodium hydroxide (NaOH) solution and the rice hulls ash at temperatures below waters boiling point.
X-ray diffractograms of the rice hull ash discovered the presence of a low quantity of crystalline phase of cristobalite-SiO
2 in mainly amorphous materials. Geopolymers were formed from the rice hull ash and other amorphous alumino-silicate materials by alkaline activation [
19]. The rice hull ash composition was found as SiO
2 70.1%; K
2O 1.10% and CaO 0.19% by mass. The residual of 28.6% was determined as a loss on ignition, or unburned carbon. The rice hull ash decreases the strength of geopolymerization because of the high concentration of unburned carbon in ash.
The porous geopolimer-type compositions were produced using the rice hulls ash with aluminum powder as a foaming agent [
20]. Addition of aluminum powder to the composition increases the porosity and decreases the density of the material. The resulting composite acquired a foamed structure.
Ashes derived from the combustion of vegetal wastes represent a secondary raw material for the production of alkali-activated materials. The porous geopolymer composite appears to be a promising thermal insulating material, suitable for being used as a lightweight heat barrier [
21]. Such a porous geopolymer represents the best balance in terms of low density (313 kg/m
3) and mechanical strength (0.63 MPa). Besides, it shows an interesting thermal insulating ability, with a thermal conductivity of 0.07 W/(m·K) at 30 °C and an outstanding thermal stability up to 800 °C.
It was found that hydrated polysilicates are foamed in the process of heat treatment by steam emission [
22,
23]. Cellular glass, or foamed glass, has been obtained as a result of heating polysilicates up to 700–800 °C.
One can conclude that the rice hulls are a renewable source of energy and silica ash, and the combination of these two resources could be used for the production of various useful materials. Rice hull or rice husk is a renewable source of energy and of amorphous silica. The heating value of rice hulls is substantially lower than the same characteristic of fossil fuels. Therefore, rice hulls are uncompetitive with fossil fuels in industrial energy generation. However, the use of burning rice hulls for heat generation is preferable in agricultural regions, and it contributes a lot to protecting the Earth from global warming, by using a huge amount of renewable energy instead of fossil fuels. As an example, let us consider the rice hulls used as a source of thermal energy to produce steam for parboiling raw rice [
24]. In this case, the absence of transport costs and the low cost of rice hulls as a fuel leads to effective competition with industrial sources of energy.
A similar solution is possible for using the material resources of rice hulls. The rice hulls ash consists of pure porous amorphous silica. With similar natural materials like tripoli or diatomite, the minerals are extracted from the ground in amounts of hundreds of millions of tons, annually. Rice hulls ash cannot compete with mineral analogues of industrial manufacturers; however, it is available for the solution of regional problems in agricultural regions. Use of solid waste for the development of new building materials is known to be an alternative that reduces environmental impact through preservation of natural resources at a regional level [
25].
Rice hulls are a unique resource because they combine the material resource of silica, which is available as a raw material for building materials, and an energy source sufficient for manufacturing building materials. Therefore, the manufacturing of construction materials could be set up autonomously in rice agricultural regions, using the rice hulls as a complex resource.
