Earned Value Management Agent-Based Simulation Model

Abstract

Agile project management (APM) can be defined as an iterative approach that promotes satisfying customer requirements, adjusts to change, and develops a working product in rapidly changing environments. Managers usually apply agile management as the project management approach in projects requiring extraordinary speed and flexibility in their processes. Earned value management (EVM) is a fundamental part of project management to establish practical measures. Often, managers use a task board to visually represent the work on a project and the path to completion. Still, managing an agile project can be a challenging endeavor. In this paper, we propose an agent-based model describing the management of tasks within a project using earned value assessment and a task board. Our model illustrates how EVM yields an efficient method to measure a project’s performance by comparing actual progress against planned activities, thus facilitating the formulation of more accurate predicted estimations. As proof of concept, we leverage our implementation to calculate EVM performance indexes according to a performance measurement baseline (PMB) in a task board fashion.

1. Introduction

Agile project management (APM) can be defined as an iterative approach that promotes satisfying customer requirements, adjusts to change, and develops a working product in rapidly changing environments [1]. Applying agile management as the project management approach requires extraordinary speed and flexibility in your processes and the formation of dedicated teams willing to adapt to changes, according to the Project Management Institute (PMI) [2]. Such a management approach is not only suitable for software development [3], but it has also been expanded to other environments, such as manufacturing, education, and health care, among others within the guide’s scope [4].

In the manufacturing sector, there is much interest in understanding the determinants of effective agile project management to save time and energy in a context where customer requirements are broader, and new proposals for technological innovation are appearing [5,6]. For example, there is the proposal of a matrix that suggests agile practices based on the objectives and priority principles for complex project teams [5]. In addition, a scheme has been elaborated with the necessary actions to increase the probability of success in each of the phases of agile projects (planning, implementation, and closure) in a cycle of continuous improvement [6].

The earned value management (EVM) [7] is considered a fundamental part of the project management body of knowledge (PMBOK) [2] to establish practical measures. Over the last four decades, project management professionals have used this method to measure performance and assess the status of a project [8]. Still, managing an agile project can be a challenging endeavor. Often, managers use a task board to visually represent the work on a project and the path to completion. The route includes pending, in-progress, and completed tasks performed by teams. For example, the “Kanban” methodology uses a task board to distribute assignments and activities as a fundamental part of a production process [9].

Implementing agile project management can be a complex, time-demanding undertaking, taking into consideration that different mechanisms influence the project’s performance. For example, cultural agency theory [10] proposes that operative play rules, individual traits, and cultural matters interact dynamically to produce emergent behaviors in the production system. From this theory, we could see EVM and a task board as the agency’s operative system. Such an approach could be a critical step for a comprehensive understanding of the agile process rules and development. This allows a constant evaluation of the intermediate results and allows adjustments if the users and the interested parties want them. This way, the entire project team, including stakeholders, continuously improves the product. This methodology allows for immediate product modifications as previously unknown requirements are discovered [1].

Therefore, we propose an agent-based model describing the management of tasks within a project using a task board. The model’s purpose is to illustrate how the participants in a project complete the tasks represented on the board. We consider the EVM approach to asses performance and control the work completion level compared to the set plan. In this study, we first explicitly identify the problem that motivated this work. Second, we describe the proposed model and briefly discuss the model’s benefits and limitations. Finally, we provide a set of conclusions and identify needs for future work and developments.

2. Problem Statement

According to the PMI [2], project management is the application of knowledge, skills, tools, and techniques to project activities to achieve the expected results. Generally speaking, traditional project management has been oriented to projects whose phases were programmable, with predictable endings; tasks, times, and deadlines were clearly established and defined with technical prescriptions. That is, the tasks that make them up were explicitly defined during the project planning process [11].

However, changes in technology, business, economics, and stakeholder expectations imply that project management considers a static component (pre-plannable) and a dynamic component (unpredictable and not initially programmable). Considering this dichotomy, organizations require flexibility to adopt different methodologies and techniques in project execution [12].

In addition, project management involves carrying out a set of functions performed by groups that interact reciprocally and configure an organizational system that must be appropriately coordinated. For the PMI, stakeholders are people and organizations that actively participate and whose interests may be affected due to the project execution [2]. According to the methodology of stakeholders, there are four main processes in project management: planning, design, execution and control, and closure. This study focuses on the execution and control phase, where the promoters and executors participate most in developing the activities planned through the task board [13].

Using this conceptual framework, it is possible to evaluate the elements involved in the planning and development of organizational projects with the help of models. Therefore, we propose developing an agent-based model to explore different scenarios that seek to manage the increasing complexity of the systems to be designed and implemented as an alternative solution to specific problems in project management. The EVM technique is used to compute the performance and control the level of work achieved compared to the plan [14], addressing the following questions: How do employee conditions affect the performance of an agile project? Do the number of employees and the number of tasks each simultaneously affect cost performance? Does the likelihood of employees performing their tasks faster or slower cause convenient advances or inconvenient delays affecting cost performance? Under what circumstances do projects become so unpredictable that they could be considered complex?

3. Methodology

Social simulation has been gaining ground in the social sciences as a way of approaching the complexity of social systems. Computational social science has now incorporated data science into its arsenal of techniques but has also included alternative methods, such as agent-based modeling, from the outset. Agent-based modeling (ABM) is a method of computational modeling and simulation to study complex systems’ organization and dynamics.

We consider that project management is complex for several reasons: first, because it is a process where humans make decisions (not as rational as one would expect); second, because there are structural constraints that condition their behavior; and finally, because social processes affect the culture of organizations. Consequently, we regard earned value management as a model that reduces the issue’s complexity to create the illusion of simplicity due to focusing on optimizing performance and costs.

We based the methodology’s sequence on the well-known social simulation approach in which the procedure selected and represented real-life targets in a simplified way through a model executed and outputs data [15]. In this work, we use an agent-based system to approach the EVM agency as an operating system (structure and imperatives for decisions, operative intentions, etc.) and simulate hypothetical scenarios from an exploratory and illustrative point of interest in cultural agency theory [10].

3.1. Modeling and Simulation Method

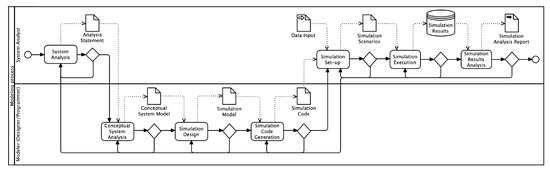

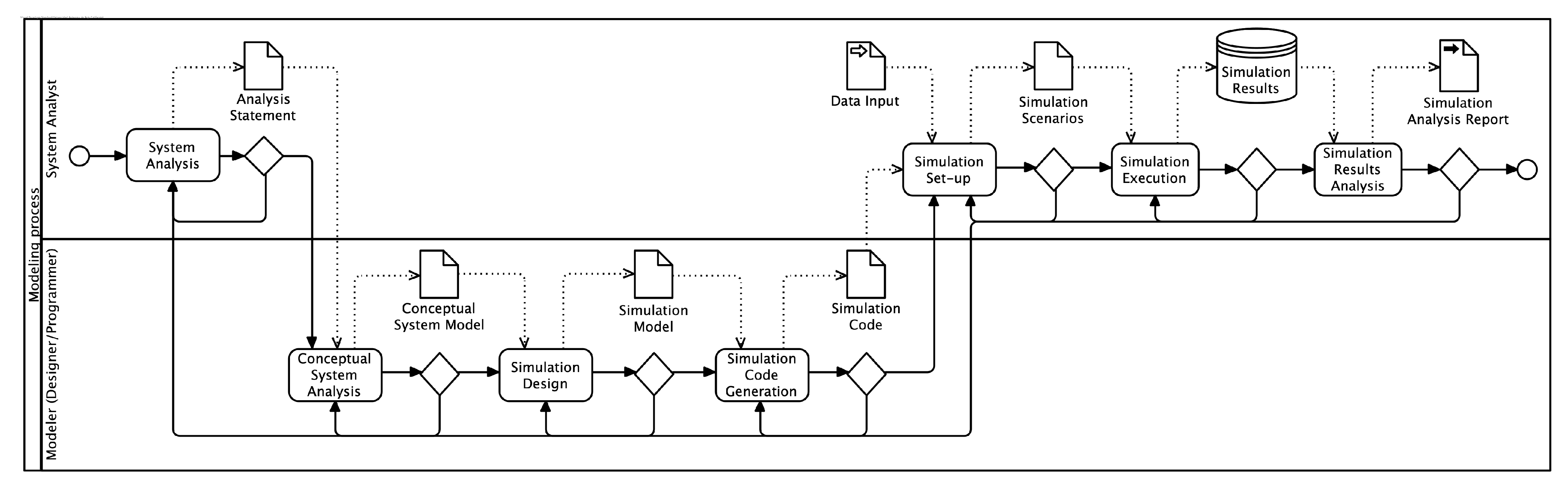

The following is a brief description of the adopted modeling and simulation easyABMS methodology [16]. In this process, all steps can go back to the previous step, so the analyst and modeler can generate multiple approaches til the objective. We finalize with results analysis, as seen in Figure 1.

• System analysis. In this activity, we establish the aim of the model based on the research questions. The result is an analysis statement. In our case, it is a narrative document based on the ODD protocol that defines the purpose and details of the model we built.
• Conceptual modeling of the system. In this activity, we analyze the problem domain’s language to make a first approximation. The result is a conceptual system model. We use the Unified Modeling Language (UML) to represent the abstractions produced in the analysis of the problem language.
• Simulation design. In this activity, we design the simulation. The result is a simulation model based on a specific framework or tool. We use the Netlogo tool as the technological basis for the design.
• Simulation Code Generation. In this activity, we write a computer executable code that implements the designed model in the selected tool. The result is a simulation code. The generated code is written in Logo for Netlogo and implements the simulator design.
• Simulation Setup. In this activity, we configure the experiment in the simulator. Using input data, we specify simulation scenarios. We used Netlogo’s BehaviorSpace tool to experiment with a dataset based on a typical software project management template with 61 core tasks and a max of seven employees. This experimentation consisted of 2100 runs resulting from the combination of input variables and their possible valid values.
• Simulation execution. In this activity, we ran the experiment within the pre-set parameters. We obtained simulation results. The data obtained are the product of each “tick” (the discrete-time in Netlogo) and the states of all the input variables, agents, and earned value management metrics produced in each of the 2100 runs. The resulting data give us system state information in the entire parameter space.
• Simulation Results Analysis. In this activity, we analyze the results to contribute to the clarification of the proposed research questions. We use the resulting data to generate a simulation analysis report. We performed the following: (a) a t-Student test to compare dissimilarities in the results of simple scenario simulations between our prototype and tools suggested by PMI to analyze the EVM in hypothetical projects; (b) a sensitivity assessment to support the interpretation; (c) an explanation of simulation model outcomes and an active nonlinear test to examine the necessary considerations in the simulation structure and thereby begin to approach complexity.

3.2. Model Description

To formalize the proposed model, we followed the “S1: ODD Guidance and Checklists,” proposed in [17], which provides guidance and checklists for writing “Overview, Design Concepts, Details” protocol (ODD) descriptions of agent-based or other simulation models. It is based on the ODD version published in earlier versions [18,19].

3.3. Model Validation

To validate the proposed model, firstly, we compared the results of simple scenario simulations between our prototype and tools suggested by PMI to analyze the EVM in hypothetical projects. For example, The Earned Value Management Calculator [20] or EVM Worksheet Package [21] could help compare results. Further, we applied a sensitivity assessment to support the interpretation and explanation of simulation model outcomes. Finally, we executed nonlinear active tests (ANTs) [22] to examine the necessary considerations in the simulation structure and thereby begin to approach complexity.

4. Results

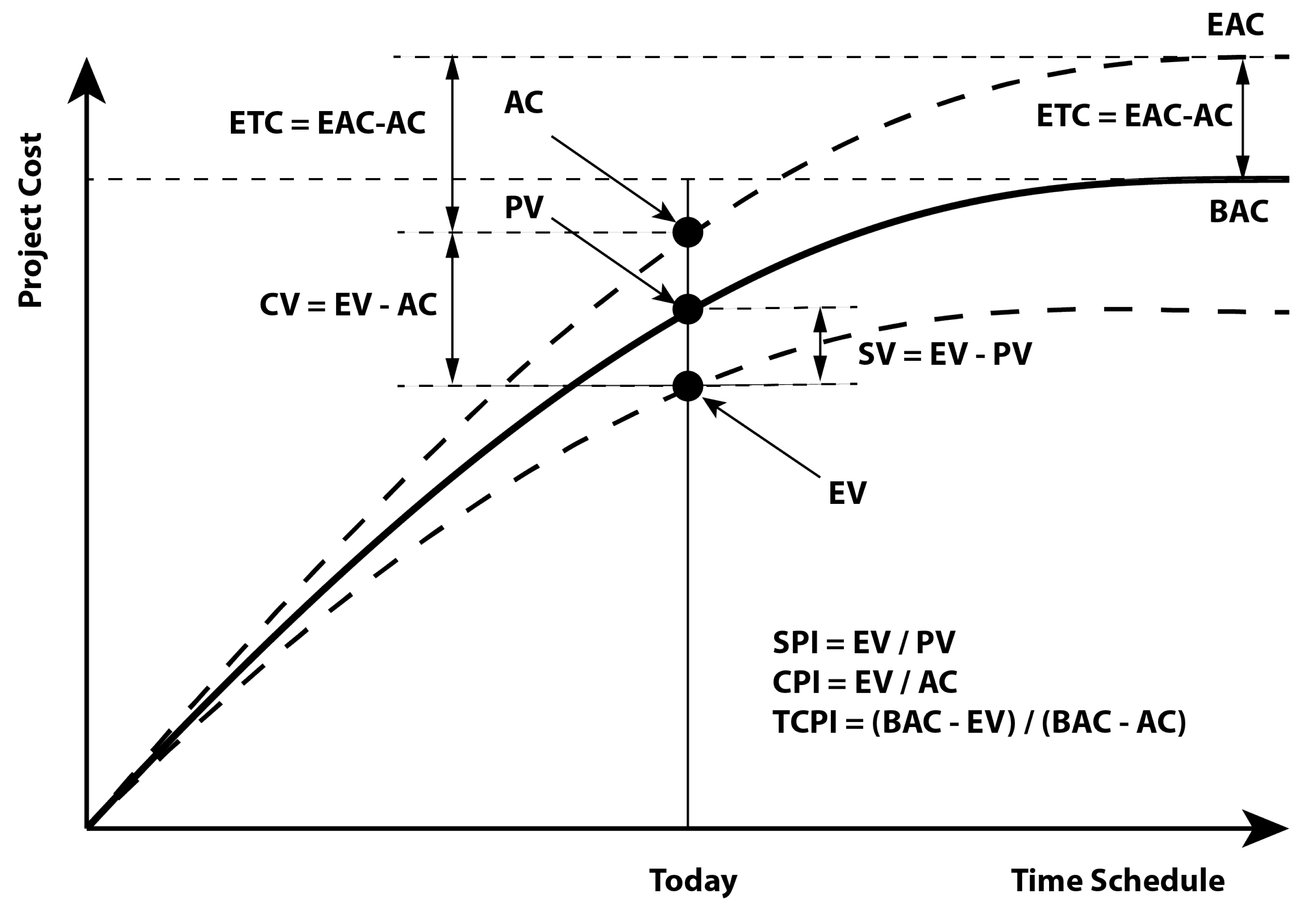

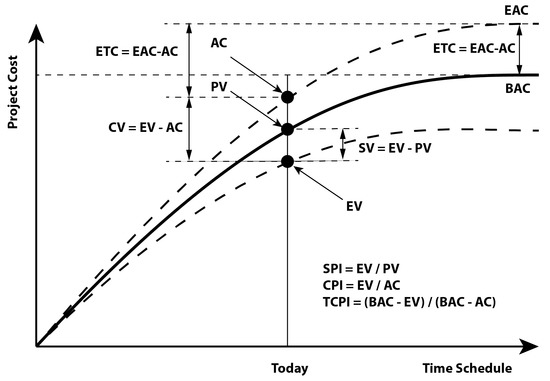

Earned value management is founded on a set of metrics focused on evaluating the progress of a project from a cost and schedule standpoint. Figure A2 in the Appendix A.3.3 shows graphically how a project can be evaluated in execution time and how these metrics characterize its development. The cost performance index (CPI) and schedule performance index (SPI) metrics measure project performance. For example, the cost performance index (CPI) depends on comparing whether the actual cost (AC) corresponds to the estimated cost (EC). The earned value (EV) metric measures whether the project has economic gains or losses. The model shows the behavior of these metrics during an artificial execution of a project (either using data obtained from a data file or artificially generated). We describe full EVM metrics in

Table A4. Earned value management metrics description.

EVM Metric	Calculation and Description
Planned Value, PV	The budget (or planned) value of work scheduled
Earned Value, EV	The “earned value” of the physical work completed
Actual Cost (AC)	The actual value of work completed
Budget at Completion, BAC	PV% = PV / BAC
	EV% = EV / BAC
	AC% = AC / BAC
Schedule Variance, SV	SV = EV – PV
	SV% = SV / PV
Cost Variance, CV	CV = EV – AC
	CV% = CV / EV
Schedule Performance Index, SPI	SPI = EV / PV
Cost Performance Index, CPI	CPI = EV /AC
To Complete Performance Index, TCPI	TCPI = (BAC – EV) / (BAC – AC)
Estimate at Completion, EAC	EAC = BAC – SV
	EAC = BAC / CPI
	EAC = BAC / (CPI * SPI)
	EAC = AC + new estimate of remaining work
Estimate to Complete, ETC	ETC = EAC – AC
Variance at Completion, VAC	VAC = BAC – EAC
	VAC% = VAC / BAC
Cost Performance Index at Conclusion, CPIAC	CPIAC = BAC / EAC
Time Estimate at	EACt = (BAC / SPI) / (BAC / PMB
Completion, EACt	Duration) = PMB duration / SPI
Time Variance at	VACt = PMB duration – EACt
Completion, VACt	VACt% = VACt / PMB duration
Time Schedule Performance	SPIACt = PMB duration / EACt
Index at Conclusion, SPIACt

in Appendix A.3.3.

The concept of EVM is introduced in the model, which is simulated through a spatial model of agents developed in the Netlogo programming environment [23]. A complete, detailed model description, following the ODD [17,18,19], is provided in Appendix A.

4.1. Netlogo Prototype

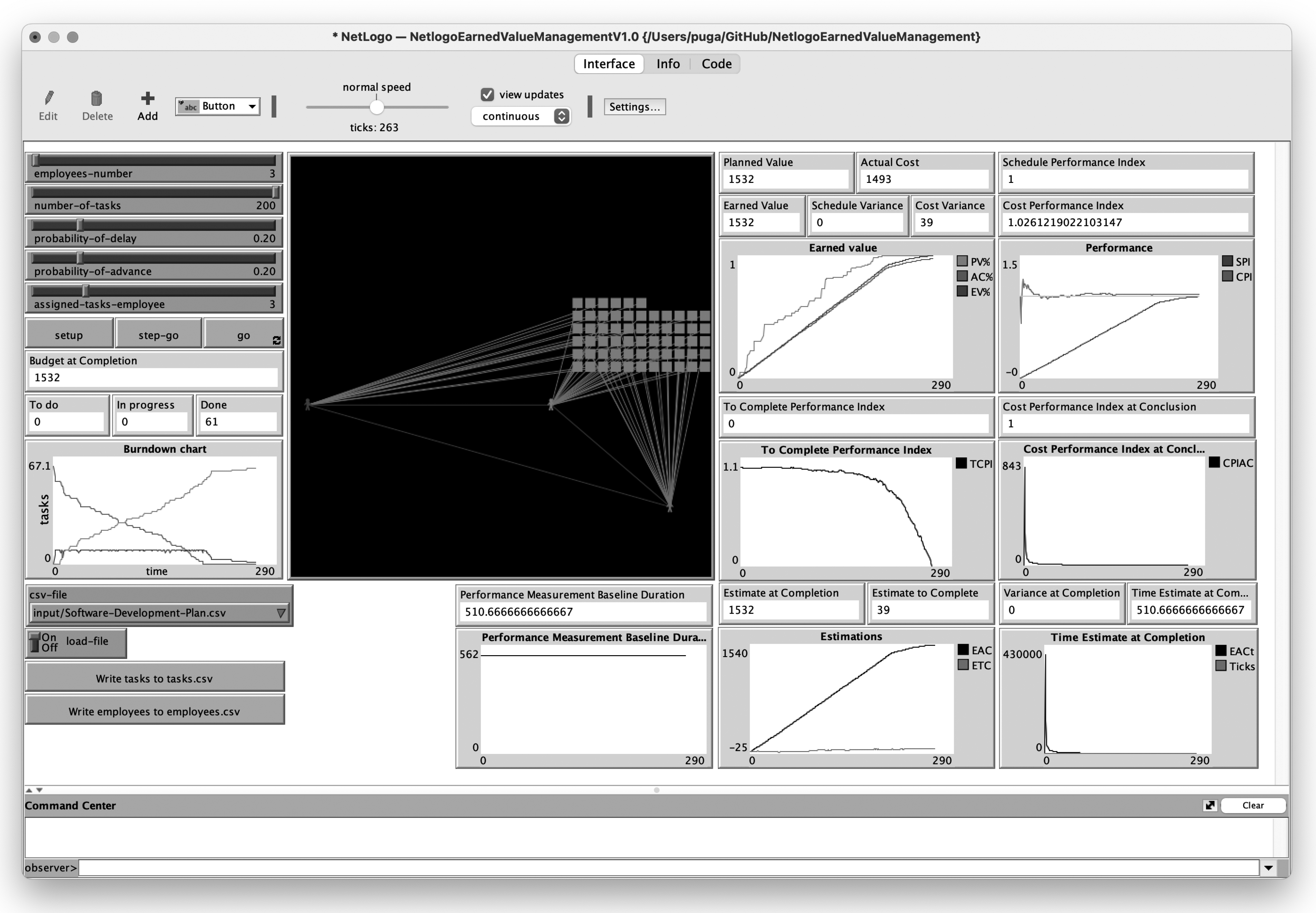

As a result of the agent-oriented analysis and design process, we produced an agent-oriented model in NetLogo based on our core code [24]. Figure 2 shows an EVM model NetLogo prototype screenshot. The NetLogo prototype used in this paper is available in [25] and can be downloaded directly from the repository online.

First, the EVM model illustrates a set of tasks (backlog) in a task board (a Kanban task board style) at the top of the visual area of the simulator. The board has three columns, where each column denotes the status of the task: “To-do,” “In progress,” and “Done” tags. Then, we represent employees in the workspace at the bottom of the visual simulation area. A graphic link connects employees with assigned tasks. They take assignments from the “To-do” column to process the jobs (“In progress” cue) and transfer the finished task mark to the “Done” column. Finally, on the left are input controls to initialize different simulation scenarios, and on the right are additional output controls. The outputs show the results of the EVM in a dynamic way that reacts to the simulation process in real-time.

We designed the interface so the user can see how the variables behave in the form of a dashboard while the model simulates the initially configured scenario. Although the interface can display these inputs and outputs, the Netlogo tool can export a log file for better results processing. For example, Figure 3 plots the most significant inputs and outputs for EVM. These are the reproduction of the “Burndown,” “Earned Value,” and “Performance” charts shown in Figure 2 from a log file.

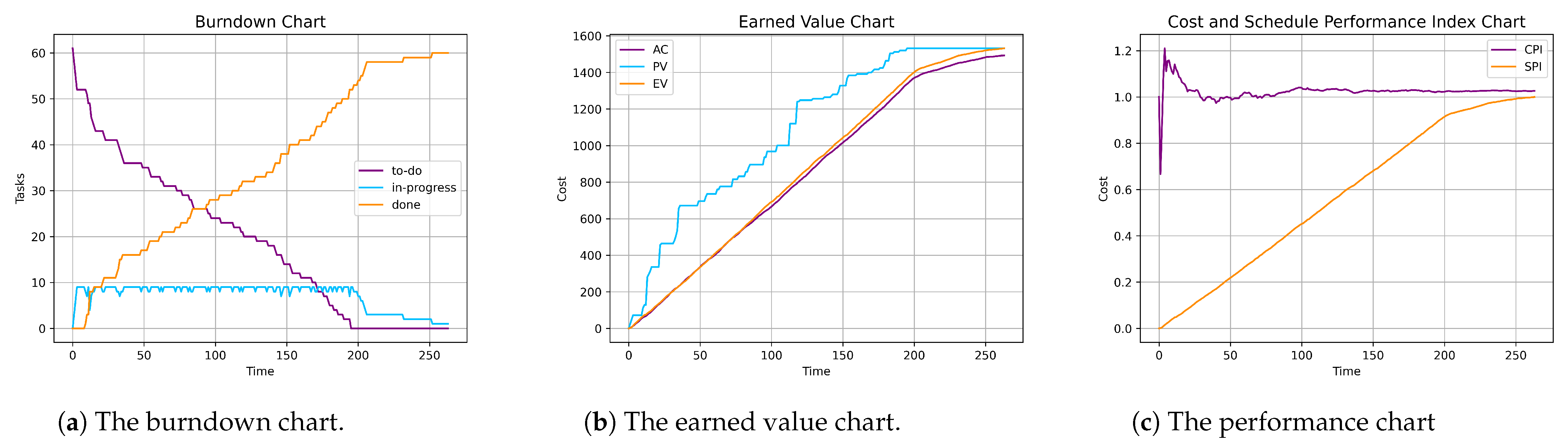

In Figure 3a, we show the burndown chart where tasks go through the to-do, in-progress, and done states during project execution. The prototype interface provides this standard visualization of task execution. In Figure 3b, we show the earned value chart that we used to compare the planned and actual costs. The prototype interface also offers this standard visualization of EVM. In Figure 3c, we show The CPI and SPI chart to depict performance. The interface shows the visualization of these metrics too. In this case, we are interested in showing the behavior of the CPI for the scope of this paper.

4.2. Model Validation

To validate the model, we tested with 2100 simulations. We established a fixed set of input tasks based on a typical planning template for a software development project. The template supplied 61 tasks with estimated costs and team members. Based on the information from this simple case study, we adjusted the values of the input variables in suitable ranges to calculate a proper sample of tests. This configuration helped us to observe the behavior of the cost performance index (CPI) and the project’s final cost under different conditions.

Table 1. Validation settings. (See the Table A3 in the Appendix A to set up the variables description.)

Variable/Metric	Type	Values Range
number-of-tasks	input	61
employees-number	input	1–7
probability-of-delay	input	0.0–0.9
probability-of-advance	input	0.0–0.9
assigned-tasks-employee	input	1–3
step	output	1–n
CPI	output	0–n

shows the input variables of the experiment and their value ranges.

The experiment produced much information, but the most relevant is the final state of the variables at the end of each simulation. We obtained a total of 2100 final results.

Table 2. CPI t-Test: Two-Sample Assuming Unequal Variances.

	CPI-Netlogo Sample	CPI-EVM Calculator Tool Sample
Mean	2.75497723	2.754977232
Variance	14.5634324	14.56343242
Observations	2100	2100
Hypothesized mean difference	0
df	160
t stat	0
P(T <= t) one-tail	0.5
t critical one-tail	1.6544329
P(T <= t) two-tail	1
t critical two-tail	1.97490156

shows the statistical description of the data obtained during this process.

Firstly, we used the EVM Calculator (“EVM Calculator V2” MS Excel file), downloadable from the PMI website, to calculate the performance indexes and other EVM metrics using the same simulated data scenarios [6]. Appendix A.3.3 of Appendix A describes the EVM main variables and performance and estimations formulas. We planned an exploratory experiment focused on planned value, actual cost, and earned value, and the scheduled performance index (SPI) and cost performance index (CPI) EVM metrics to compare similarities. Table 2 shows a t-Student test result. Practically, the results are very identical.

Subsequently, we performed a sensitivity analysis to understand how the outputs change over the full range of possible inputs. We show the basic statistic dataset description in

Table A5. Data description.

Variable	Mean	SD	Median	MAD	Min	Max	n
employees.number	4	2.00047636061173	4	2.9652	1	7	2100
assigned.tasks.employee	2	0.81669105433311	2	1.4826	1	3	2100
probability.of.delay	0.45	0.287296544411313	0.45	0.37065	0	0.9	2100
probability.of.advance	0.45	0.287296544411313	0.45	0.37065	0	0.9	2100
step	1116.98571428571	1603.01591793252	581	471.4668	146	15,980	2100
AC	2469.54904761905	2817.20670248899	1532	1245.384	125	15,939	2100
PV	1532	0	1532	0	1532	1532	2100
EV	1532	0	1532	0	1532	1532	2100
SV	0	0	0	0	0	0	2100
SPI	1	0	1	0	1	1	2100
CV	−937.549047619048	2817.20670248899	0	1245.384	−14,407	1407	2100
CPI	1.61839999350462	1.86235517369687	1	0.814674377613205	0.0961164439425309	12.256	2100

in Appendix B, and we define the requirements verification in

Table A6. Requirements verification.

Requirement	Specification	Number of Traces Where Requirement Is True	Total Number of Traces	Percent of Cases Where the Requirement Is True out of Total Cases	Assessment
employees.number >= 1	Always True	2100	2100	1	Requirement Is Met in ALL cases
employees.number <= 7	Always True	2100	2100	1	Requirement is Met in ALL cases
assigned.tasks.employee >= 1	Always True	2100	2100	1	Requirement is Met in ALL cases
assigned.tasks.employee <= 3	Always True	2100	2100	1	Requirement is Met in ALL cases
probability.of.delay >= 0	Always True	2100	2100	1	Requirement is Met in ALL cases
probability.of.delay <1	Always True	2100	2100	1	Requirement is Met in ALL cases
probability.of.advance >= 0	Always True	2100	2100	1	Requirement is Met in ALL cases
probability.of.advance <1	Always True	2100	2100	1	Requirement is Met in ALL cases

. In

Table A7. Percent of “CPI” Cases within Range 0.0961164439425309 to 3.5 = 89.5238095238095, n = 1880.

Condition	Number of Traces Where Condition Is True	Total Number of Traces	Likelihood That Condition Appears Alongside “CPI” within Range 0.0961164439425309 to 3.5	Likelihood That “CPI” within Range 0.0961164439425309 to 3.5 Contains the Condition	Sensitivity Assessment
employees.number >= 0	1880	2100	0.895238095238095	1	0.944723618090452
assigned.tasks.employee >= 0	1880	2100	0.895238095238095	1	0.944723618090452
probability.of.delay >= 0	1880	2100	0.895238095238095	1	0.944723618090452
probability.of.advance >= 0	1880	2100	0.895238095238095	1	0.944723618090452
employees.number >0	1880	2100	0.895238095238095	1	0.944723618090452
assigned.tasks.employee >0	1880	2100	0.895238095238095	1	0.944723618090452
probability.of.delay >0	1713	1890	0.906349206349206	0.911170212765957	0.908753315649867
probability.of.advance >0	1670	1890	0.883597883597884	0.888297872340426	0.885941644562334
employees.number == 0	0	0	NA	0	NA
assigned.tasks.employee == 0	0	0	NA	0	NA
probability.of.delay == 0	167	210	0.795238095238095	0.0888297872340426	0.159808612440191
probability.of.advance == 0	210	210	1	0.111702127659574	0.200956937799043
employees.number <0	0	0	NA	0	NA
assigned.tasks.employee <0	0	0	NA	0	NA
probability.of.delay <0	0	0	NA	0	NA
probability.of.advance <0	0	0	NA	0	NA
employees.number <= 0	0	0	NA	0	NA
assigned.tasks.employee <= 0	0	0	NA	0	NA
probability.of.delay <= 0	167	210	0.795238095238095	0.0888297872340426	0.159808612440191
probability.of.advance <= 0	210	210	1	0.111702127659574	0.200956937799043

, we observe that 85% of “CPI” cases are within the range of 0.0961164439425309 to 3.5 (about 1880 of the 2100 tests).

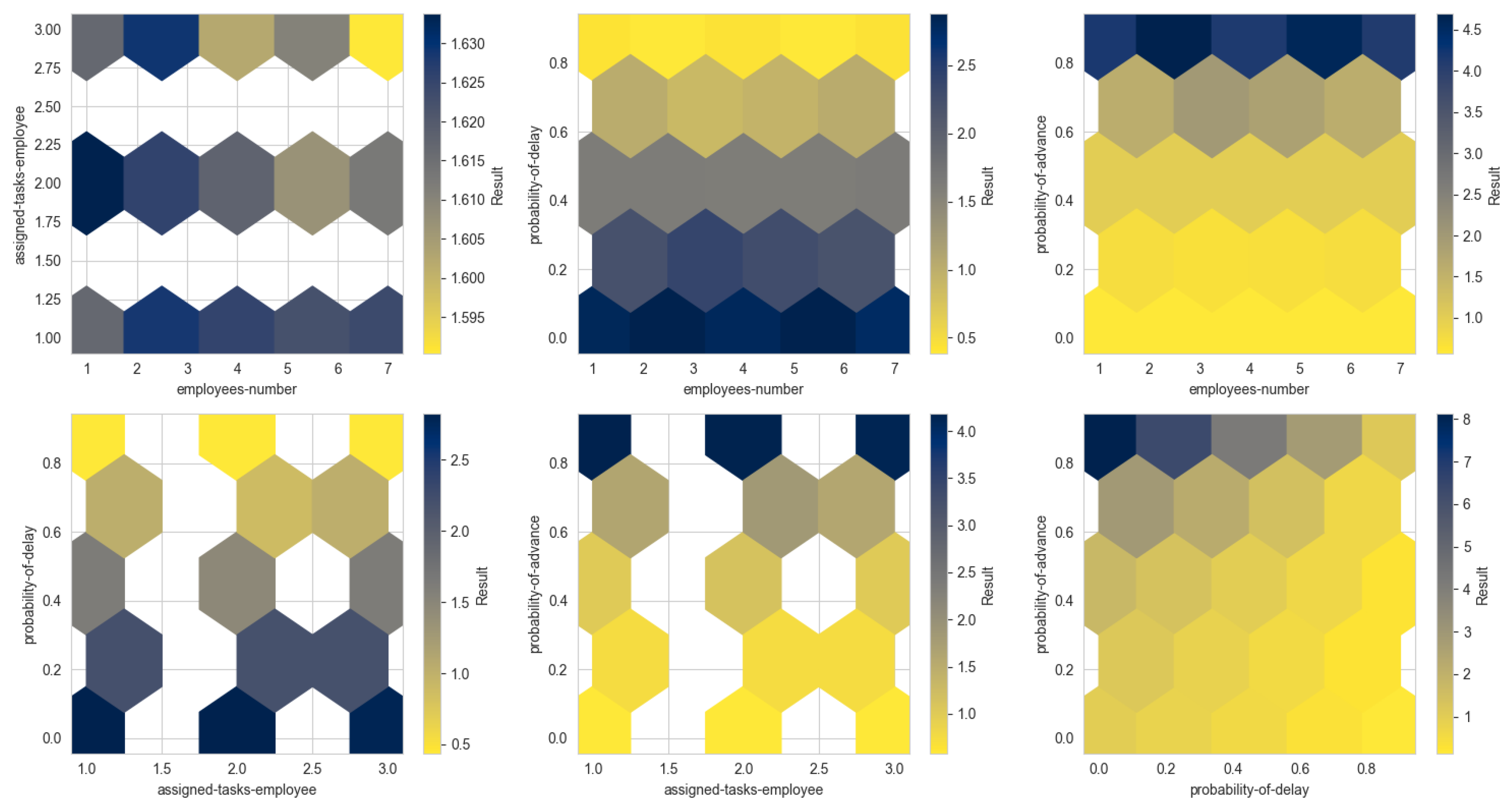

In Figure 4, we depict the result of a detailed sensitivity analysis. We display a range of possible output values associated with each set of inputs. In our case, we analyze the possible combinations between the number of employees, the number of tasks each worker could perform simultaneously, the possibility of advancing the work, and the possibility of being delayed.

Table 3. CPI sensitivity analysis results. The employees’ number versus the assigned tasks to an employee. The darker color in the table means a higher CPI value.

Assigned-Tasks-Employee	1	2	3
Employees-Number
1	1.616634	1.633812	1.616834
2	1.633606	1.614470	1.628857
3	1.623663	1.637134	1.629288
4	1.625330	1.617751	1.602271
5	1.628319	1.573290	1.607234
6	1.616457	1.640380	1.613923
7	1.624135	1.612656	1.590358

shows the results of the sensitivity analysis of the CPI concerning the number of employees and the tasks assigned to the employee. It shows that the number of employees and the number of tasks do not impact the cost performance index (CPI). The table shows high values in all cases without much variation.

Table 4. CPI sensitivity analysis results. The employees’ number versus the probability of advance. The darker color in the table means a higher CPI value.

Probability-of-Advance	0.000000	0.100000	0.200000	0.300000	0.400000	0.500000	0.600000	0.700000	0.800000	0.900000
Employees-Number
1	0.548008	0.609541	0.685730	0.783219	0.915103	1.106740	1.377564	1.846275	2.740608	5.611477
2	0.550267	0.607176	0.685457	0.787587	0.913403	1.104403	1.372748	1.817562	2.782771	5.635066
3	0.550096	0.612313	0.685667	0.787730	0.910915	1.101636	1.378627	1.841838	2.756855	5.674607
4	0.551275	0.609906	0.689134	0.788121	0.916298	1.103034	1.365377	1.839154	2.807393	5.481482
5	0.549912	0.610428	0.685860	0.779776	0.913223	1.111374	1.368596	1.828576	2.770266	5.411466
6	0.550164	0.610680	0.686776	0.785780	0.921015	1.104609	1.365208	1.859988	2.772758	5.578888
7	0.548133	0.611021	0.686966	0.785835	0.923714	1.109246	1.376516	1.819473	2.795025	5.434565

shows the results of the sensitivity analysis of the CPI concerning the number of employees and the probability of advancing. It shows that the number of employees and the advancement also affect the cost performance index (CPI). The table shows high CPI values when the probability is high and low values when the probability is low but does not vary much with the number of employees involved.

Table 5. CPI sensitivity analysis results. The employees’ number versus the probability of delay in task execution. The darker color in the table means a higher CPI value.

Probability-of-Delay	0.000000	0.100000	0.200000	0.300000	0.400000	0.500000	0.600000	0.700000	0.800000	0.900000
Employees-Number
1	2.923209	2.697309	2.356683	2.081919	1.788999	1.462714	1.165987	0.881181	0.575454	0.290812
2	2.986358	2.658718	2.394938	2.021872	1.749269	1.494834	1.172753	0.885583	0.597050	0.295065
3	2.993954	2.679616	2.397810	2.044512	1.760310	1.498649	1.168188	0.878099	0.584551	0.294594
4	2.953739	2.633249	2.347091	2.043536	1.743552	1.478904	1.176356	0.892230	0.587110	0.295405
5	2.950445	2.638388	2.290606	2.013881	1.761984	1.465932	1.158620	0.873110	0.583534	0.292974
6	3.003698	2.675100	2.340356	2.055888	1.762180	1.451223	1.187985	0.892449	0.576981	0.290005
7	2.896081	2.611585	2.321156	2.056459	1.793138	1.491311	1.171935	0.872740	0.581986	0.294104

shows the results of the sensitivity analysis of the CPI concerning the number of employees and the probability of delay. It shows that the number of employees and the delay also affect the cost performance index (CPI). The table shows high CPI values when the probability is low and low values when the probability is high but does not vary much with the number of employees involved.

Table 6. CPI sensitivity analysis results. The assigned tasks to employees versus the probability of advance in task execution. The darker color in the table means a higher CPI value.

Probability-of-Advance	0.000000	0.100000	0.200000	0.300000	0.400000	0.500000	0.600000	0.700000	0.800000	0.900000
Assigned-Tasks-Employee
1	0.550079	0.610386	0.686651	0.785175	0.915242	1.107459	1.374933	1.840992	2.750297	5.618992
2	0.549219	0.610502	0.688131	0.786606	0.916836	1.103004	1.370400	1.834234	2.794441	5.531616
3	0.549782	0.609569	0.684757	0.784525	0.916638	1.107127	1.370940	1.833146	2.780553	5.489771

shows the results of the sensitivity analysis of the CPI concerning the number of tasks assigned to an employee simultaneously and the probability of performing tasks quickly. It shows that the number of tasks and the progress also affect the cost performance index (CPI). The table shows high CPI values when the probability is high and low values when the probability is low but does not vary much with the number of tasks involved.

Table 7. CPI sensitivity analysis results. The assigned tasks to employees versus the probability of delay in task execution. The darker color in the table means a higher CPI value.

Probability-of-Delay	0.000000	0.100000	0.200000	0.300000	0.400000	0.500000	0.600000	0.700000	0.800000	0.900000
Assigned-Tasks-Employee
1	2.978426	2.663062	2.362711	2.046665	1.772522	1.479867	1.173713	0.888923	0.580200	0.294114
2	2.988602	2.658812	2.314510	2.069138	1.740356	1.477683	1.173824	0.882516	0.585297	0.294250
3	2.907608	2.646968	2.372195	2.020511	1.784022	1.475407	1.167531	0.875158	0.585931	0.291476

shows the results of the sensitivity analysis of the CPI concerning the number of tasks assigned to an employee simultaneously and the probability of being late in performing the tasks. It shows that the number of tasks and the delay also affect the cost performance index (CPI). The table shows low CPI values when the probability is high and high values when the probability is low but does not vary much with the number of tasks involved.

Table 8. CPI sensitivity analysis results. The probability of delay versus the probability of advance in task execution. The darker color in the table means a higher CPI value.

Probability-of-Advance	0.000000	0.100000	0.200000	0.300000	0.400000	0.500000	0.600000	0.700000	0.800000	0.900000
Probability-of-Delay
0.000000	1.000000	1.108873	1.250670	1.424626	1.662969	2.030450	2.467776	3.331564	5.110659	10.194536
0.100000	0.901227	0.991782	1.126371	1.282113	1.493521	1.806010	2.257168	3.012464	4.621043	9.071108
0.200000	0.801303	0.891224	0.996478	1.148412	1.339701	1.606832	1.991850	2.699662	4.007647	8.014947
0.300000	0.697102	0.779057	0.873445	0.999431	1.166258	1.405789	1.750664	2.314024	3.465186	7.003424
0.400000	0.602836	0.666494	0.746477	0.857062	1.000851	1.202470	1.490557	1.995534	3.001171	6.092882
0.500000	0.497076	0.552568	0.622811	0.714094	0.830579	1.004919	1.256750	1.665710	2.559082	5.072936
0.600000	0.397853	0.445080	0.499436	0.571599	0.666491	0.806707	1.009625	1.332263	1.995027	3.992812
0.700000	0.301044	0.331156	0.373308	0.426633	0.499541	0.596892	0.754331	1.003200	1.497278	3.038604
0.800000	0.198708	0.224264	0.250335	0.287390	0.335720	0.399535	0.495143	0.672126	0.993766	1.981109
0.900000	0.099786	0.111024	0.125797	0.142994	0.166754	0.199028	0.247045	0.334692	0.500109	1.005570

shows the results of the sensitivity analysis of the CPI concerning the probability of being ahead of schedule and the probability of being late in performing the tasks. It shows that overtaking and delay affect the cost performance index (CPI). The table shows that, when the probability of advancing is high and the probability of delay is low, then performance increases. Conversely, when the probability of advance is low and the probability of delay is high, then performance drops. There is a strong relationship between these two input variables and the output variable CPI.

Finally, we tested the model’s structure and robustness using the nonlinear search algorithm, designed to break the model’s implications actively (active nonlinear tests (ANTs) [22]). BehaviorSearch is a software tool (included in the latest Netlogo versions) to help automate the exploration of agent-based models (ABMs) by using genetic algorithms and other heuristic techniques to search the parameter space [26].

We aim to explore the necessary reflections in the simulation structure and thereby begin to approach complexity. So, we configure the tool and search in the CPI parameter space to identify the max fitness of employees-number, assigned-tasks-employee, probability-of-delay, and probability-of-advance combinations using the 2100 tests’ results dataset (we want to maximize the CPI-related space parameters that influence the project performance). In the same way, to compare, we configure the tool and search in the “step” parameter space to identify the min fitness of employees-number, assigned-tasks-employee, probability-of-delay, and probability-of-advance combinations (we want to minimize the “step”-related space parameters that influence the project duration).

Table 9. “CPI” active nonlinear tests final bests fitness.

Search-Number	Evaluation	Employees-Number	Assigned-Tasks-Employee	Probability-of-Delay	Probability-of-Advance	Num-Replicates	Best-Fitness-so-Far
1	500	6	2	0.2	0.9	10	8.125806944
2	500	5	1	0.2	0.9	10	7.92122959
3	500	3	1	0	0.6	10	2.571417207
4	500	3	2	0	0.9	10	10.18728451
5	500	4	1	0	0.9	10	10.35474418
6	500	1	3	0.4	0.9	10	5.902861442
7	500	1	2	0	0.8	10	5.015753468
8	500	7	3	0.3	0.9	10	6.719011184
9	500	5	3	0	0.9	10	10.22730573
10	500	3	1	0.3	0.9	10	6.764397903

shows an assortment of fitnesses in the search parameter space related to “CPI” in comparison with

Table 10. “step” active nonlinear tests final bests fitness.

Search-Number	Evaluation	Employees-Number	Assigned-Tasks-Employee	Probability-of-Delay	Probability-of-Advance	Num-Replicates	Best-Fitness-so-Far
1	500	7	2	0	0.7	10	163
2	500	6	2	0.2	0.1	10	223.6
3	500	4	3	0	0.9	10	180
4	500	5	2	0	0.6	10	198
5	500	7	3	0	0.1	10	146
6	500	6	3	0	0.2	10	155
7	500	6	3	0	0.3	10	155
8	500	5	3	0	0.1	10	163
9	500	6	2	0.1	0.7	10	197.5
10	490	6	3	0	0.5	10	155

, which shows a similar fitness in the search parameter space related to “step” (project duration).

The model could describe the project duration linearly, but the CPI shows uncertain behavior. In the case of the search parameter space related to “CPI,” the model is very predictable when the probability of delay and advance is close to 0. However, when close to 1, the sequence and time of execution could vary away from the estimation. We consider complexity to hide behind the tasks executed by agents that express a probability of delay or advance in an active project. In other words, the project execution could leave us in a different final stage, starting from the same initial project parameter values that are a feature of complex systems behavior.

5. Discussion

The objective of this research was to create an agent-based model that allows the exploration of different explanation alternatives to specific problems in agile project management through earned value management. Therefore, we presented a model of EVM where employees work on a task backlog in a characteristic project execution process to approach the agile development process. The to-do jobs are visually represented in a typical task board to show how the task path to completion happens. At this level of representation, the results show that the model behaves as expected: the model simulates the employees attending tasks, and the EVM metrics show the assessment.

Further to this first approach, studies related to the dynamism of project management, which seek to explain behavior and results using the fundamentals of complexity theory, are becoming more frequent [27,28]. In this context, project management gains importance among the complex sciences by studying the relevant variables involved [27,28]. Regarding the multidisciplinary character of project management, research in innovation and technology management that considers the different theoretical frameworks is perhaps the most influential emerging discipline [29,30].

So, to overcome the limitations of traditional project management, the cultural agency theory would allow the representation of the internal and external factors involved during the development of stakeholder scenarios [31]. This theory’s holistic perspective considers the cultural, personality, and operational systems. In a business context, the cultural system integrates values and beliefs (knowledge management and market orientation); the personality system considers cognitive capabilities (goals, ideology, self-schema); and the operating system integrates structural components (operational performance and self-organization) [10].

Therefore, we could go beyond a simple system design where the EVM performance result could hide the causes linearly [32]. So, we could represent the EVM as an operational subsystem according to Yolles’s cultural agency theory [33,34,35] in a complex system context. From this point of view, the EVM agency could establish the gameplay rules for the other agents in the system that constrains or motivates their behavior. Within these conditions, other stakeholder agents should negotiate and develop agreements to self-organize and accomplish their goals.

How do the agents’ conditions affect the design of complex production systems? As a result of our experience modeling EVM and operating different scenario simulations, we observed that EVM, as an agency in a complex production system, concerns the operative game rules where other agencies should persist. In this circumstance, the play rules determine the other agents’ behavior (for example, employees), execute assigned jobs, and earn value for the project following the production constraint. So, different initial conditions pre-determine the whole system’s behavior; thus, making real-time corrections would help the project to succeed.

Beyond this embryonic project management representation, we consider that there are several advantages to using this prototype for more elaborated modeling:

1.

We provide a simulation tool to explore the relationship between task planned and performance conditions and the effect in the EVM metrics observations. Additionally, the model shows a typical task board tool to visualize the job backlog processing as most managers used to. This experimentation could help EVM learners and managers explore scenarios to understand how the metrics perform in different conditions.

2.

The model is inspired by agency theory, specifically by Yolles’s cultural agency theory. Under this theoretical perspective, the model could have sense in the rationale of complexity. As the theory proposed, we can consider new features to add individual behavior and cultural factors.

3.

We defined the model according to the ODD protocol. The ODD is a protocol recommended by the social simulation scientific community to overview the model and describe design concepts and implementation details to communicate agent-based models.

4.

We programmed an agent-based model in a freely available tool. Netlogo is friendly for unskilled programmers and easily adaptable for new purposes.

5.

The PMI considers the EVM a standard in project management.

However, we consider that the most significant weaknesses of this proposed model are as follows:

1.

The tool has limitations to building high-performance simulations.

2.

The implicit systematic EVM limitations to assess other aspects of agile development management.

3.

It is limited to the execution and control processes of the tasks where the promoting and executing agents have direct participation.

Nevertheless, the current proposed model may only be able to answer some of the questions it could raise, and future expansion of the model could prove helpful.

6. Conclusions

The proposed model is a valuable tool for quantifying the operating system in project management. In particular, it makes it possible to quantify earned value management. Future research could propose a model that considers the sequentially of tasks, the organization of these tasks in work subteams, and the inclusion of the underlying systems of the cultural agency theory: the cultural system and the personality system [10]. In the cultural system, variables could be included at the organizational level (practices, corporate policies, and managerial leadership), and in the personality system, variables at the team level would be included (skills, coordination, cooperation, communication, cognition, leadership, and internal conditions) [36].
