An Information System for Infrastructure Asset Management Tailored to Portuguese Water Utilities: Platform Conceptualization and a Prototype Demonstration

1
INCITE, Escola Superior de Tecnologia do Barreiro, Instituto Politécnico de Setúbal, 2839-001 Lavradio, Portugal
2
Sustain.RD, Escola Superior de Tecnologia de Setúbal, Instituto Politécnico de Setúbal, 2914-508 Setúbal, Portugal
3
CINEA, Escola Superior de Tecnologia de Setúbal, Instituto Politécnico de Setúbal, 2914-508 Setúbal, Portugal
4
CICE, Escola Superior de Ciências Empresariais, Instituto Politécnico de Setúbal, 2914-508 Setúbal, Portugal
5
CERIS, Instituto Superior Técnico, Universidade de Lisboa, 1049-001 Lisboa, Portugal
6
Escola Superior de Tecnologia e Gestão, Instituto Politécnico de Beja, 7800-295 Beja, Portugal
*
Author to whom correspondence should be addressed.
Systems 2023, 11(2), 85; https://doi.org/10.3390/systems11020085
Submission received: 14 November 2022 / Revised: 26 January 2023 / Accepted: 3 February 2023 / Published: 7 February 2023

Abstract

:
This paper describes a new information system developed as part of the Portuguese R&D project DECIdE. The project aimed at the development of a platform for infrastructure asset management tailored to Portuguese water utilities. The platform allows the integration of different data from several information systems of the water utilities and includes several tools for the performance assessment of the water supply systems in terms of water losses, energy efficiency and quality of service (i.e., water and energy balances and key performance indicators). The developed platform was tested with data from five small to medium size Portuguese water utilities with different maturity levels in terms of technological and human resources. The obtained results are very promising because the platform allows for periodic system performance assessment which constitutes an important part of the infrastructure asset management for small and medium-sized water utilities.

1. Introduction

Urban water systems (UWS) are a valuable part of public infrastructures, providing a vital service of supplying potable water for society in quantity and quality [1]. These systems are composed of a large number of assets of different types (e.g., pipes, pumps, valves). Many UWS are currently facing high degradation levels of their assets due to normal deterioration processes (e.g., degradation of materials with time) and non-controlled processes (e.g., poor-quality production of pipes, external actions such as construction works), which results in high water losses levels, frequent pipe bursts and significant energy efficiency problems [2].
Infrastructure asset management (IAM) is essential for water utilities to efficiently manage their large variety of physical assets. Several concepts and methodologies for IAM may be found in the bibliography [2,3,4,5,6,7,8,9,10]. Nowadays, infrastructure managers adopt proactive and preventive maintenance to reduce disturbance to urban life and the environment and to minimize life cycle costs [11,12].
Data on UWS assets are of utmost importance, since many of them are buried, and their condition assessment must be based on accurate information [13,14,15]. Condition assessment aims to identify the anomalies or signs of the existence of problems in a timely fashion [16]. The identification of these problems can be carried out based on the analysis of the records of past events and on other relevant collected data. These data may be grouped into five main categories: (i) cadastral, (ii) functional and physical conditions, (iii) operation and maintenance, (iv) inflows and outflows and (v) billing and account information. These data are usually collected, stored, managed and analysed using information systems (IS) that are often dispersed in different divisions of the utility [17,18]. As a result, IAM is data-intensive and ends up using a plethora of dispersed and, sometimes, incoherent data [19].
Efficient and effective IAM requires that data are gathered and stored in a single platform in order to help water utilities to address their operational and infrastructural problems related to asset ageing, non-revenue water, water stress and scarcity, variability of hydrologic events, etc. [20,21]. A method to combine data and information is by integration and/or interoperability. Data integration refers to the process of combining several originally disconnected sources of information. The traditional approach to data integration involves physically moving data from its source system to a staging area where cleansing, mapping and transformation take place before physically moving the data to its target system. A common technique is Extract, Transform and Load (ETL), where data is physically extracted from multiple source systems, transformed into a different format and loaded into a centralized data store. The transformation into a common structure and loading into a new data store when using ETL includes the elimination of inconsistencies that may result from the process [22]. Data integration is important to enable cross-functional processes as well as to provide quality analysis of asset condition assessment. Interoperability refers to the ability of an IS to connect and communicate with another IS, even when created by different developers. When systems are interoperable, not only can they share information but also interpret the received data and present data in the original form. Interoperability brings together various systems and contributes to functional and organizational integration [18]. Since data and information management is a challenging task in urban water systems and given the large amount of assets and data involved, new tools and processes are needed to collect, gather, manage, analyse and use asset data.
Integrating the multiple, and often conflicting, sources of information available on the infrastructure, including those related to asset condition, system performance and the various predictive analyses, is a major challenge to asset managers, particularly in water utilities with a lower technological maturity level. Several solutions [23,24,25] have been developed to solve the data integration and analytics problem in water utilities. The development of the proposed solution may start within the utility itself, which has the necessary human, financial and technological resources to develop a system tailored to its needs, or through the acquisition of a commercial software solution. In many utilities, the lack of human resources and their vulnerability to commercial pressures are often the basis for reactively acquiring solutions (e.g., miraculous software packages that solve all the UWS problems), thus lacking long-term planning for the use of the acquired software. Therefore, the complete IS capabilities are usually not fully explored, since they are acquired due only to a set of functionalities. It is essential for an efficient IAM to integrate collected data in a single platform that is linked with several operational tools, rather than having a scattered set of tools to meet specific goals.
In recent years, several advances have been made regarding digitalisation in the water sector worldwide, increasing the use of real-time data, such as water and energy balance calculation, system performance assessment, hydraulic modelling, and complex Artificial Intelligence (AI) techniques to predict demand and to locate anomalous events. Nonetheless, according to the European Research Executive Agency, the main challenges currently remain in the standardisation, the interoperability and in the fragmentation of the key actors and regulatory policies [26]. Okoro et al. [19] reported that the main barriers preventing water utilities from adopting new data models are still data availability and interoperability between existing data models. In many European utilities, especially those of small to medium size, the IAM manager has a hard task every time he needs to assess the system performance, since data must be collected from different departments within the water utility in a coordinated procedure.
This paper shares with the scientific community the main difficulties encountered and learnings of the R&D project DECIdE, funded by the Portuguese National Funding Agency for Science and Technology (FCT). This project aimed at the development of a platform for infrastructure asset management tailored to small to medium-sized water utilities which integrate datasets from existing IS to support decision-making on UWS. The project had a duration of 18 months and included the participation of five Portuguese water utilities with different technological maturity levels. Although most datasets had few or unavailable data, the implemented solution was an inclusive platform in which both simple and complex analyses can be conducted depending on available data. The main functionalities are demonstrated using two case studies taken from participating water utilities with different technological maturity levels, allowing discussion of the limitations of the analysis in each case.

2. Platform Prototyping

2.1. Requirements Analysis

The analysis of the platform prototype requirements was performed with the deep involvement of end-users to identify their expectations and to define software functionalities (i.e., capabilities, usability, inputs and outputs). A workshop was held at the beginning of the project, with the participation of the research institutions and the five water utilities (i.e., end-users). The main requirement was that the platform should be able to integrate data that are already collected and allow the automatic calculation of a set of performance indicators relevant to IAM and, also, are required for the annual reporting to the water and wastewater authority (ERSAR). These performance indicators require specific input data, including metered water volumes, system characteristics and financial data, amongst others. A set of 16 performance indicators was implemented in the platform (see Table 1). These indicators were grouped into four main categories (infrastructural, environmental, economic sustainability and quality of service) and can be used to assess the performance of the system as a whole, or at subsystems or district metering area (DMA) levels; the performance assessment can be compared at the subsystem or DMA level, in order to develop rehabilitation or intervention plans.
The calculation of performance indicators required also the implementation of additional tools. Two of these tools are the water and the energy balances. The implemented water balance follows the approach of Alegre et al. [27] (Table 2), whereas the implemented energy balance was proposed by Mamade et al. [28] (Table 3). The energy balance tool allows performance of two different approaches according to available data: (1) a simplified assessment that requires minimum data and no hydraulic simulations, providing a global overview of the main components of energy consumption in the system and which can be applied to the global system or at the subsystem or DMA level; and (2) a complete assessment that is more data-demanding and requires a calibrated hydraulic model of the network, providing a detailed assessment of energy consumption in each energy balance component.
Another important tool implemented in the platform is the capital cost calculation tool, necessary for the computation of the infrastructure value index (IVI). IVI is the ratio between the current (fair) value of infrastructure and the replacement cost on a modern equivalent asset basis. IVI can be calculated following an asset-oriented or a system-oriented approach [29]. IVI calculation in the asset-oriented approach is based on the useful life of each asset, on depreciation curves and on replacement costs for each type of asset, whereas, in the service-oriented approach, IVI calculation is based on the performance of functional units of the infrastructure [30].
Different data are needed to compute the performance indicators depicted in Table 1, namely, geographical, and physical data (e.g., identification, type, location, dimensions, material), operational and maintenance data (e.g., dates, location) and billing and accounting data (e.g., revenue, replacement costs). Thus, a characterization of the information systems existing in the five water utilities was performed [17]. This characterization allowed a better understanding of the technological maturity level of each utility, as well as of existing data standards and workflow processes. In summary, this characterization showed that:
  • The use of GIS is generalized, although with different implementation degrees.
  • The use of ERP and CRM systems to manage and store commercial and accounting data is generalized.
  • Only two water utilities use an IS to store Service Work Orders, whereas the other utilities still use paper records to register and store this type of data.
  • The use of SCADA systems is not generalized and is mostly used to monitor the input water volumes or flow rates.

2.2. Platform Conceptualization and Architecture

Integrating data and information from several utilities is a challenging task since utilities have distinct technological maturity levels and workflows. A data integration system’s goal is to provide uniform access to a set of data sources that may be distributed across different computer systems. To create such systems, some relevant factors must be considered [31]:
  • ▪ Heterogeneity: A typical data integration scenario involves data sources that were developed independently of one another.
  • ▪ Autonomy: Data sources do not always belong to a single entity. Keeping this in mind, it should not be assumed that the data can be accessed whenever needed.
  • ▪ Number of sources: Integrating data sources is a challenge that becomes more complex as the number of data sources to be integrated grows.
  • ▪ Search: When a search is conducted in an integrated system, it is necessary to define appropriate queries.
To address the above-mentioned heterogeneity, autonomy and research issues, the data must be made available in a standardised manner by all parties, allowing uniform access to data across IS. For data integration, various architectures are available, the two most popular architectures being the Data Lake and Data Warehouse.
A Data Lake is defined as “a methodology enabled by a massive data repository based on low-cost technologies that improves the capture, refinement, archival, and exploration of raw data within an enterprise” [32]. The basic concept of data lake is straightforward: all data generated by the organisation will be stored in a single data structure known as a data lake. Data will be stored in the lake in their original format, remaining in its sources but not necessarily in one location, and accessed as needed at query time. Once data is placed in the lake, it is accessible to everyone in the organisation for analysis.
Similarly, a Data Warehouse is also a repository for business data. However, unlike a data lake, only highly structured and unified data lives in a data warehouse to support specific business intelligence and analytics needs. In the warehouse, data from individual data sources are structured based on a single piece of physical data and it is possible to request these data using queries. Despite differences in their approaches, both architectures share challenges related to data integration [32]. A cloud data warehouse is a database stored as a managed service in a public cloud and optimised for scalable business intelligence and analytics. Data warehouses offer three major advantages:
  • Little or no data pre-processing is needed, making it far easier for analysts and business users to access and analyse this data.
  • Accurate and complete data are more quickly available, in order that businesses can more quickly turn information into insight.
  • Unified, harmonized data offers a single source of truth, building trust in data insights and decision-making across business lines.
The selection of the integration method is of utmost importance as several features or analysis techniques depend on the data upload and update regularity. Considering the available technology and state-of-the-art techniques, the integration module could have been developed as a continuous connection between utility’s IS databases and the platform databases (i.e., remote database access), or through a raw data file submission and setup module (i.e., manual raw data file upload and semi-automatic mapping between database attributes). Although the first option could lead to a better platform usability, as data is constantly and automatically uploaded and updated, it requires initial setup and continuous assistance by a utility’s IT technician. It was concluded that remote database access could not be adopted in the short term due to the unavailability of IT technicians in most utilities. Thus, the prototype platform had to meet the technological limitations or advances of each participating water utility and overcome the challenges of how to integrate the required data from different IS, data model structures and ontologies into a common platform for all water utilities [17].
Accordingly, the choice was to use a data warehouse, since it allows an easier access to water utilities data and its analysis. The task of unifying and harmonising data from various sources is one of the most difficult aspects of developing a data warehouse. Before loading and parsing data from sources, a mediated schema must be created. It is necessary to verify if data from different sources uses the same names to represent the same concepts representing objects in the water utility and build a data dictionary with this main vocabulary. Different approaches can be used to define this schema. One of the possibilities is building an ontology. An ontology is a formal language-defined set of concepts and relationships about a subject. Ontologies concentrate on meaning and use an inference engine to reason.
A web-based application on cloud services was chosen as the most adequate platform architecture, since it allows universal availability using web-connected devices (as no further requirement than a web browser is needed to use the platform) and it has easier maintenance and update by the platform development. The platform was implemented using Django, a free and open-source Python Web framework, to obtain a quickly-developed, scalable and secure platform. The client application on the front end of the framework uses the D3 JS library and Bokeh. These solutions offer a wide range of possibilities for defining the specific visualization that was needed to represent the water and energy balances as well as the dashboard components that represent the performance indicators. An application programming interface (API) was developed to provide access to the database by the front-end application. Additionally, the platform offers a set of directly accessible services as the API may be consulted by other applications if authenticated. Docker technology was used for developing, shipping and running several applications (i.e., API, frontend and database). Two Docker containers were created: the first container comprises the frontend and backend applications while the second container includes the Database Management System (DBMS) and the database. Thus, it is possible to independently update the frontend or backend application and database.

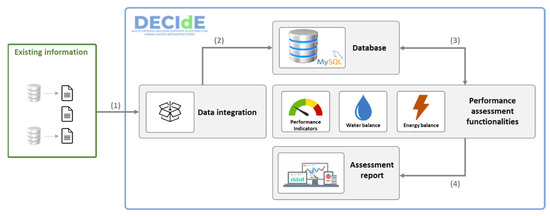

Figure 1 shows the flow of platform usage. Initially, the platform database has no data. The first step in the use of the platform is the import of raw data files from existing information sources. To this end, existing information is uploaded to the data integration module by the user (1). Data is inserted into the platform database (2), After file import and parsing, the performance assessment functionalities access the necessary data (in the database) through queries using the provided API which, in turn, returns the necessary data (3). Once the assessment is completed, a report is provided to the user with the obtained results (4).
The platform has also been developed allowing the future integration of real-time data from sensors installed in water distribution networks, such as pressure and flow rate, which need to be stored in adequate database solutions. Potential uses for these time series can be in the detection and location of anomalous events (e.g., pipe burst) using AI techniques: machine learning, deep learning, and optimization algorithms.

2.3. Data Modelling and Import

The different technological maturity levels of the participating water utilities are greatly reflected in the IS used and the available data. Therefore, the first challenge to overcome was to design a domain model that could represent all the necessary concepts for performance assessment based on the available data from different utilities. Due to the heterogeneity of IS and the data models used by these utilities, an ontology-based domain-driven design was followed.
Table 4 presents the designed domain model with the required attributes to import the different types of assets considered. MySQL was selected as a DBMS solution after its efficiency was studied at a later stage due to the short duration of the project and the lack of human resources. Although this solution may be adequate for the aim of the project, it may not be the best solution in the medium to long term due to the expected increase in the amount of data (in particular the real-time data from the sensors). In this case, other types of database technology may be more efficient, such as document-oriented databases, graph databases, or even hybrid solutions. However, the study on the efficiency of various DBMS solutions is beyond the scope of this paper.
The platform supports the upload of incomplete data (i.e., missing fields in files due to confidential data and fields with incorrect records), though limiting the platform outcomes. Furthermore, the data model is prepared to maintain a history of the infrastructure and other time-dependent data. When updating such data, the previous record is time-stamped and kept in the database, allowing for analysis of its evolution.
Two options were considered to import and update data into the platform: (1) automatic connection to the IS databases and (2) using a raw submission file import module. Ideally, the platform should directly connect through a web service to each IS to collect the data to be integrated. This option would improve platform usability because data would be uploaded and updated on a regular and automatic basis. Nonetheless, this requires an initial setup and regular maintenance to be conducted by a utility IT specialist. Additionally, the General Data Protection Regulation (GDPR) may impose some restrictions regarding the access of third-party software (such as the platform) to sensitive data. It was concluded that remote database access solutions could not be adopted in the short term due to the unavailability of utility IT specialists at most utilities. As such, a compromised solution based on a raw data file submission and a data integration module was considered and implemented, since it is comprehensive and allows the platform to be used by all utilities. A common interface was developed to parse the uploaded files, by identifying the related data model elements, tables and formats to target.
During the file submission for data integration, an initial mapping is needed between data model elements and file content attributes. Additionally, and for some data model elements, a second mapping is required between the options considered in the specific data model element and the file content attribute. For instance, the meter status is considered as “1” for active status in the database of the platform. However, the file content can have a different record such as “On”, “Active” or “In Service”.
Measurements can be assigned once the infrastructural elements have been imported. In most utilities, the billing system is the most common method to obtain water consumption measurements, which in the best-case scenario are recorded monthly. After metres associated with billing are imported, aggregated monthly measurements can be associated with some assets (e.g., storage tanks, abstractions, pumping stations and delivery points). It is assumed that aggregated volumes were validated by a validation process. A template spreadsheet can be downloaded from the platform by selecting the period and the type of infrastructure measurements to upload or update. After filling in the measurements in the template spreadsheet, they should be uploaded to the platform. In the second phase, the inclusion of a model is expected to automatically validate and generate aggregated volumes from SCADA records. Additionally, some additional data may be manually inserted for complementary information, such as the reference elevation in the simplified energy balance.

2.4. Implemented Tools

Three tools for the performance assessment analysis in a user-defined period of analysis (e.g., 12 months) were developed: the performance assessment; the water balance; and the energy balance. Sectoral analysis at the subsystem level is also possible, allowing the comparison of results between subsystems. The platform includes different types of information representation, namely, pie, bar and bullet charts and tabular forms. This information can be exported as an image in PNG file format to be included in reports.
The water balance was implemented according to the IWA standard methodology as described in Section 2. Most Portuguese water utilities do not have hydraulic models, thus, at this stage, only the simplified version of the energy balance was implemented.
The water and energy balances modules allow the assessment of water and energy consumptions along the system, contributing to reducing water losses and energy costs. These balances rely on different data (e.g., input volumes and energy consumption, billed and unbilled consumptions, elevations), which are usually spread over several IS. After these balances are calculated for network sectors, the utility manager’s data collection and management responsibilities can become overwhelming. As such, and upon the selection of a given area of analysis in a defined period, the required data for the balances are prepared by querying the database. For the chosen period, the assets within the area of analysis are collected and the respective measurements are summed to provide the total volumes. The user should validate and may change the calculated/suggested input values.
From the 16 performance indicators presented in Table 1, the infrastructure value index was not implemented. The main reason for this decision was the difficulty of collecting the financial data necessary to determine the current value of infrastructure and the replacement cost on a modern equivalent asset basis. Thus, the performance assessment module incorporates 15 of the 16 indicators. Associated with the water and energy balances, some additional performance indicators were included (e.g., CO2 gas emissions due to pumping stations, measured as tonnes of CO2 equivalent).
The graphical visualization of these performance indicators was challenging, especially for allowing comparisons between areas of analysis. As such, a dashboard was developed in which the user may select the single or multiple areas to analyse (e.g., subsystems or DMAs) as well as the period of analysis. The required data to calculate all the performance indicators is automatically fetched from the database and each indicator is presented in a customized chart, in which different filters and types of representation may be applied. Figure 2 shows the graphical user interface (GUI) for the data import module.
The platform is freely available on the web (https://decide.ips.pt/, accessed on 3 January 2023), though only a Portuguese version is currently implemented; in the near future, an English version will be developed. After a registration process, users need to upload their infrastructural data from their GIS and measurement files. The infrastructural data should be in the shapefile format since this is the most common format among GIS software.

3. Demonstration

The use of the platform is illustrated herein with two water utilities with different maturity levels. Useful results can be obtained with a limited data set or with a complete data set. For each water utility, limitations are discussed.

3.1. Water Utility 1

The first demonstration of the platform is with data from a municipality located in Lisbon’s metropolitan area (Portugal), which manages a water distribution network with a total extension of 309.5 km serving about 79,000 inhabitants, divided into several subsystems and DMA. The utility has complete information about the existing assets stored in a GIS, motivated by several cadastral surveys, as well as a billing system and an information system to manage their service work orders.
Consider that the utility wants to develop a tactical asset management plan for a specific DMA and, for that purpose, needs to perform the performance assessment of the current situation of the system. The utility imports the physical asset data from its GIS using shapefiles, the monthly consumption from the billing system through spreadsheets and the available work orders also through spreadsheets. No aggregated water volumes nor energy consumption in assets (e.g., storage tanks, abstractions, pumping stations, delivery points) are included. With the uploaded data, the utility can only calculate some of the performance indicators presented in Table 1, those shown in Figure 3. This example of bar representations shows the distribution of pipes in the analyzed DMA classified, using a three-colour scale, as good (green), average (yellow) or unsatisfactory (red) in each performance indicator.

3.2. Water Utility 2

The second demonstration of the platform use is with data from a municipal company located in a touristic area, in the southernmost region of Portugal, which manages a water distribution network with a total extension of 85 km, serving a population varying between 3000 inhabitants, in the low season, and 15,000 inhabitants, in the high season. This utility has complete information about existing assets on a GIS which is regularly updated by a dedicated technician. It has also an information system to manage the work orders and has its network completely monitored by several sensors (e.g., flow, pressure) connected to a SCADA system. Hydraulic simulation models of their complete network are also available. In comparison with water utility 1, this utility can calculate the same performance indicators (Figure 4), as well as both the water balance (Figure 5) and the simplified energy balance (Figure 6), all classified using the three-colour scale according to the respective reference values of good, average and unsatisfactory performance.

4. Discussion

The DECIdE project aimed at the development of a prototype platform to assist water utilities in the IAM of their systems. A robust IAM is data-intensive and, for that reason, data integration or interoperability between existing IS is desirable. Nonetheless, data models are often unstructured in most utilities with a lower technological maturity level, containing inaccurate, incomplete, redundant and out-of-date data, which ultimately turns data integration into a great challenge. These data are stored in various, often incompatible, IS. However, the process of replacing an inadequate IS with a more suitable one is not always simple, as it may imply deep changes in the utility’s information management processes. This fact may be aggravated in utilities with a lack of human and financial resources; the acquisition of a new IS implies a given amount of time dedicated to training, which in most cases they do not have. The above circumstances do not help the interoperability between IS of small and medium-sized utilities.
Utilities with good financial capacity usually have the necessary resources to develop middleware applications for IAM, either internally or by subcontracting third parties. However, small to medium-sized utilities do not have the same financial capacity and often have difficulty in increasing their organizational and technological maturities. The national regulator can play an important role in data standardization by publishing recommendations in technical guides which can help utilities with lower maturity levels.
During the development of the platform, circumstantial choices about some technological aspects were made that now need further reflection. The use of MySQL technology for the database may not be the most adequate if in the future the platform is intended to be upgraded to receive real-time measurements from the sensors installed in the networks and to use them in AI algorithms to perform advanced assessments. In this case, other types of database technology may be more feasible, such as document-oriented databases, graph databases, or even hybrid solutions.
Although the results of the performance indicators system are relevant to the water utility, the major advantage is the possibility of assessing the evolution of each indicator on a timely basis. This is of utmost importance to assess if the defined targets in the IAM plan are being achieved over time.
The use of telemetry creates unprecedented opportunities for water management, water consumption efficiency, leak localization and the recognition of anomalous consumptions [33]. The monitored parameters by the installed sensors—such as pressure and flow rate—give rise to abundant and informative multivariate time series [34]. Therefore, in future developments, the platform should improve the performance metrics related to water losses [35,36,37,38] and energy efficiency use [39,40] by allowing real-time assessment and also include modules for (1) exploratory data analysis; (2) predictive analysis; (3) spatial leak location; (4) advanced recognition of anomalous behaviour. Such features pave the way towards the digital twin of the UWS.
Several factors, with special emphasis on climate change and environmental sustainability issues, are changing the paradigm of how UWS are managed. In other words, the focus is shifting from the concern of mere economic and financial sustainability point-of-view to a broader scope which includes societal challenges, environmental sustainability and increasing system resilience. Although the developed solution and used analysis are mainly concerned with financial and economic sustainability, it could easily be adapted to include other analyses (and the respective required data). The result of the two analyses could also be compared and would allow more grounded and robust decision-making. The world is rapidly evolving and, although environmental sustainability may be a major concern in the future, water utilities in most developed countries will face, in the next decades, huge problems related not only to infrastructure degradation and the need for urgent rehabilitation but also to water scarcity and lack of available freshwater sources.
It is recommended that water utilities, especially those struggling to manage ageing infrastructure with minimal staff, gradually evolve towards the digitalization of their systems. The water utilities may not need a massive digital renovation, but stepwise solutions tailored to their capacity and needs, since the best offer may not be affordable for everyone. The digital transformation will not happen immediately, thus, if the water utility is preparing broader system changes, it can align them with digitalized services. Technology advances quickly every year but the water utility should not pursue exciting solutions disregarding the ultimate goal of improving the provided service [41].
In the future, water needs to be managed more sustainably and effectively. Nowadays, drinking water management is performed separately of the wastewater management. Nonetheless, water circulates in a loop through different uses and is scarce in several locations on the planet. Therefore, water management should be performed in an integrated mode. Integrated Water Resources Management is definitely the future of water-wise management. Additionally, water circularity should be intensified by using and reusing water in the best way possible. Most existing cities in the world have been concerned to build concrete infrastructures, usually called grey infrastructures, but they increase city floods. Thus, cities should include in their design green infrastructures, based on nature-based solutions. This bright future brings challenges that the digital transformation of water utilities may help to overcome.

5. Final Remarks

The platform presented herein represents a first step towards the development of a national reference tool to assist small and medium-sized water utilities to implement IAM processes. The platform will be further developed to include additional tools, namely: a flow rate and pressure time series data processing and analysis module, hydraulic simulation capabilities to carry more advanced performance assessment techniques, and IVI calculation. Additionally, the data model is expected to change to a different technology aiming to accommodate modules for more advanced techniques, such as pattern recognition, demand forecasting and leak detection. The rationale behind the platform development can be further extended to different fields in engineering where IAM is required, such as wastewater and stormwater, transportation, and oil and gas.

Author Contributions

Conceptualization, N.C., B.F., A.A., D.I.C.C. and J.F.S.; methodology, N.C., B.F., A.A., C.I.C.G., R.B., A.M., D.I.C.C., L.M., J.F.S. and I.S.B.; software, A.A. and C.I.C.G.; validation, B.F., R.B., A.M., L.M. and I.S.B.; investigation, N.C., B.F., A.A., C.I.C.G., R.B., A.M., D.I.C.C., L.M., J.F.S. and I.S.B., data curation, N.C., B.F. and A.A.; writing—original draft preparation, N.C. and B.F.; writing—review and editing, A.A. and D.I.C.C.; supervision, N.C., R.B., A.M., C.I.C.G., D.I.C.C. and J.F.S.; funding acquisition, N.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fundação para a Ciência e a Tecnologia, Programa Operacional Regional Lisboa 2020 and Programa Operacional Regional Alentejo 2020, grant number SAICT-POL/24135/2016 and|LISBOA-01-0145-FEDER-024135|ALT20-03-0145-FEDER-024135. The APC was funded by Instituto Politécnico de Setúbal.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to being obtained from third parties.

Acknowledgments

The authors acknowledge Fundação para a Ciência e a Tecnologia, Programa Operacional Regional Lisboa 2020 and Programa Operacional Regional Alentejo 2020 for funding this research and Instituto Politécnico de Setúbal for funding the APC. The authors also acknowledge the experts from the participating water utilities for their relevant and constructive contributions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alegre, H.; Coelho, S.T. Infrastructure Asset Management of Urban Water Systems. Water Supply Syst. Anal.-Sel. Top. 2012, 1–26. [Google Scholar] [CrossRef]
  2. Almeida, M.C.; Cardoso, M.A. Infrastructure Asset Management of Wastewater and Stormwater Services. An Approach Based on Rehabilitation (in Portuguese). In Technical Guide; ERSAR, LNEC: Lisbon, Portugal, 2010; ISBN 978-989-8360-05-2. [Google Scholar]
  3. IPWEA; NAMS. International Infrastructure Management Manual, 5th ed.; IPWEA: Sydney, Australia; NAMS Group: Wellington, New Zealand, 2015; ISBN 978-0-473-10685-0. [Google Scholar]
  4. PAS 55-1:2008; Asset Management. Specification for the Optimized Management of Physical Assets. BSI: London, UK, 2008.
  5. Alegre, H.; Covas, D. Infrastructure Asset Management of Water Services. An Approach Based on Rehabilitation (in Portuguese). In Technical Guide; ERSAR, LNEC, IST: Lisbon, Portugal, 2010; ISBN 978-989-8360-04-5. [Google Scholar]
  6. Fjeldhus, K.; Ugarelli, R. Infrastructure Asset Management—A Proposed Framework for Norwegian Water Utilities. Vann 2014, 4, 473–481. [Google Scholar]
  7. Osman, H. Agent-Based Simulation of Urban Infrastructure Asset Management Activities. Autom. Constr. 2012, 28, 45–57. [Google Scholar] [CrossRef]
  8. Beuken, R.; Eijkman, J.; Savic, D.; Hummelen, A.; Blokker, M.; Evides, J.E. Twenty Years of Asset Management Research for Dutch Drinking Water Utilities. 2020, 20, 2941–2950. Water Supply 2020, 20, 2941–2950. [Google Scholar] [CrossRef]
  9. Matthews, J.C.; Selvakumar, A.; Sterling, R.; Condit, W. Analysis of Wastewater and Water System Renewal Decision-Making Tools and Approaches. J. Pipeline Syst. Eng. Pract. 2012, 3, 99–105. [Google Scholar] [CrossRef]
  10. IAM. Asset Management—An Anatomy; IAM: Bristol, UK, 2015. [Google Scholar]
  11. Noshahri, H.; Scholtenhuis, L.L.O.; Doree, A.G.; Dertien, E.C. Linking Sewer Condition Assessment Methods to Asset Managers’ Data-Needs. Autom. Constr. 2021, 131, 103878. [Google Scholar] [CrossRef]
  12. Kanakoudis, V.K. Vulnerability Based Management of Water Resources Systems. J. Hydroinformatics 2004, 6, 133–156. [Google Scholar] [CrossRef]
  13. Halfawy, M.R. Integration of Municipal Infrastructure Asset Management Processes: Challenges and Solutions. J. Comput. Civ. Eng. 2008, 22, 216–229. [Google Scholar] [CrossRef]
  14. Halfawy, M.R. Municipal Information Models and Federated Software Architecture for Implementing Integrated Infrastructure Management Environments. Autom. Constr. 2010, 19, 433–446. [Google Scholar] [CrossRef]
  15. Elsawah, H.; Guerrero, M.; Moselhi, O. Decision Support Model for Integrated Intervention Plans of Municipal Infrastructure. In Proceedings of the ICSI 2014: Creating Infrastructure for a Sustainable World, Long Beach, CA, USA, 6–8 November 2014; pp. 1039–1050. [Google Scholar] [CrossRef]
  16. Liu, Y.; Bao, Y. Review on Automated Condition Assessment of Pipelines with Machine Learning. Adv. Eng. Inform. 2022, 53, 101687. [Google Scholar] [CrossRef]
  17. Carriço, N.; Ferreira, B.; Barreira, R.; Antunes, A.; Grueau, C.; Mendes, A.; Covas, D.; Monteiro, L.; Santos, J.; Brito, I.S. Data Integration for Infrastructure Asset Management in Small to Medium-Sized Water Utilities. Water Sci. Technol. 2020, 82, 2737–2744. [Google Scholar] [CrossRef]
  18. Carriço, N.; Ferreira, B. Data and Information Systems Management for the Urban Water Infrastructure Condition Assessment. Front. Water 2021, 3, 670550. [Google Scholar] [CrossRef]
  19. Okwori, E.; Pericault, Y.; Ugarelli, R.; Viklander, M.; Hedström, A. Data-Driven Asset Management in Urban Water Pipe Networks: A Proposed Conceptual Framework. J. Hydroinformatics 2021, 23, 1014–1029. [Google Scholar] [CrossRef]
  20. Cardoso, M.A.; Poças, A.; Silva, M.S.; Ribeiro, R.; Almeida, M.C.; Brito, R.S.; Coelho, S.T.; Alegre, H. Innovation Results of IAM Planning in Urban Water Services. Water Sci. Technol. 2016, 74, 1518–1526. [Google Scholar] [CrossRef]
  21. Güngör, M.; Yarar, U.; Cantürk, Ü.; Fırat, M. Increasing Performance of Water Distribution Network by Using Pressure Management and Database Integration. J. Pipeline Syst. Eng. Pract. 2019, 10, 04019003. [Google Scholar] [CrossRef]
  22. Strong, D.M.; Lee, Y.W.; Wang, R.Y. 10 Potholes in the Road to Information Quality. Computer 1997, 30, 38–46. [Google Scholar] [CrossRef]
  23. Haider, A. Information Systems for Engineering and Infrastructure Asset Management; Springer Gabler: Wiesbaden, Germany, 2007; ISBN 978-3-8349-4233-3. [Google Scholar]
  24. Harvey, R.; de Lange, M.; McBean, E.; Trenouth, W.; Singh, A.; James, P. Asset Condition Assessment of Municipal Drinking Water, Wastewater and Stormwater Systems–Challenges and Directions Forward. Can. Water Resour. J. 2017, 42, 138–148. [Google Scholar] [CrossRef]
  25. Jurkovac, B.; Alegre, H.; Coelho, S.T. Visual Decision Support Tool for Supporting Asset Management Performance, Risk, and Cost Analysis In Collaboration with Gwinnett County Department of Water Resources; IWA Publishing: London, UK, 2016; Volume 15. [Google Scholar]
  26. Stein, U.; Bueb, B.; Englund, A.; Elelman, R.; Amorsi, N.; Lombardo, F.; Corchero, A.; Brékine, A.; Lopez Aquillar, F.; Ferri, M. Digitalisation in the Water Sector Recommendations for Policy Developments at EU Level; Publications Office of the European Union: Luxembourg, 2022; ISBN 978-92-95080-52-2. [Google Scholar]
  27. Alegre, H.; Baptista, J.M.; Cabrera, E.; Cubillo, F.; Duarte, P.; Hirner, W.; Merkel, W.; Parena, R. Performance Indicators for Water Supply Services, 3rd ed.; Alegre, H., Baptista, J.M., Cabrera, E., Jr., Cubillo, F., Duarte, P., Hirner, W., Merkel, W., Parena, R., Eds.; IWA Publishing: London, UK, 2017; ISBN 978-1-84339-051-0. [Google Scholar]
  28. Mamade, A.; Loureiro, D.; Alegre, H.; Covas, D. A Comprehensive and Well Tested Energy Balance for Water Supply Systems. Urban Water J. 2017, 14, 853–861. [Google Scholar] [CrossRef]
  29. Amaral, R.; Alegre, H.; Matos, J.S. A Service-Oriented Approach to Assessing the Infrastructure Value Index. Water Sci. Technol. 2016, 74, 542–548. [Google Scholar] [CrossRef]
  30. Alegre, H.; Vitorino, D.; Coelho, S. Infrastructure Value Index: A Powerful Modelling Tool for Combined Long-Term Planning of Linear and Vertical Assets; Elsevier Ltd.: Amsterdam, The Netherlands, 2014; Volume 89, pp. 1428–1436. [Google Scholar]
  31. Principles of Data Integration; Doan, A.; Halevy, A.; Ives, Z. (Eds.) Morgan Kaufmann: Boston, MA, USA, 2012; ISBN 978-0-12-416044-6. [Google Scholar]
  32. Fang, H. Managing Data Lakes in Big Data Era: What’s a Data Lake and Why Has It Became Popular in Data Management Ecosystem. In Proceedings of the 2015 IEEE International Conference on Cyber Technology in Automation, Control, and Intelligent Systems (CYBER), Shenyang, China, 8–12 June 2015; pp. 820–824. [Google Scholar]
  33. Loureiro, D.; Mamade, A.; Cabral, M.; Amado, C.; Covas, D. A Comprehensive Approach for Spatial and Temporal Water Demand Profiling to Improve Management in Network Areas. Water Resour. Manag. 2016, 30, 3443–3457. [Google Scholar] [CrossRef]
  34. Barrela, R.; Amado, C.; Loureiro, D.; Mamade, A. Data Reconstruction of Flow Time Series in Water Distribution Systems- a New Method That Accommodates Multiple Seasonality. J. Hydroinformatics 2017, 19, 238–250. [Google Scholar] [CrossRef]
  35. Kanakoudis, V.K.; Tolikas, D.K. The Role of Leaks and Breaks in Water Networks: Technical and Economical Solutions. J. Water Supply Res. Technol.-Aqua 2001, 50, 301–311. [Google Scholar] [CrossRef]
  36. Kanakoudis, V.; Tsitsifli, S.; Zouboulis, A.I. WATERLOSS Project: Developing from Theory to Practice an Integrated Approach towards NRW Reduction in Urban Water Systems. Desalin. Water Treat. 2015, 54, 2147–2157. [Google Scholar] [CrossRef]
  37. Kanakoudis, V.; Tsitsifli, S.; Samaras, P.; Zouboulis, A.; Banovec, P. A New Set of Water Losses-Related Performance Indicators Focused on Areas Facing Water Scarcity Conditions. Desalin. Water Treat. 2013, 51, 2994–3010. [Google Scholar] [CrossRef]
  38. Kanakoudis, V.; Tsitsifli, S.; Demetriou, G. Applying an Integrated Methodology toward Non-Revenue Water Reduction: The Case of Nicosia, Cyprus. Desalin. Water Treat. 2016, 57, 11447–11461. [Google Scholar] [CrossRef]
  39. Cabrera, E.; del Teso, R.; Gómez, E.; Cabrera, E.; Estruch-Juan, E. Deterministic Model to Estimate the Energy Requirements of Pressurized Water Transport Systems. Water 2021, 13, 345. [Google Scholar] [CrossRef]
  40. Souza, R.G.; Meirelles, G.; Brentan, B. Energy and Hydraulic Efficiency in Intermittent Operation of Water Distribution Networks. J. Water Resour. Plan. Manag. 2022, 148, 04022017. [Google Scholar] [CrossRef]
  41. Pokhrel, N. Five Lessons For Digitizing Asia’s Water Systems. Available online: https://blogs.adb.org/blog/five-lessons-digitizing-asia-s-water-systems (accessed on 12 September 2022).
Figure 1. The flow of requests according to the platform architecture.
Figure 1. The flow of requests according to the platform architecture.
Systems 11 00085 g001

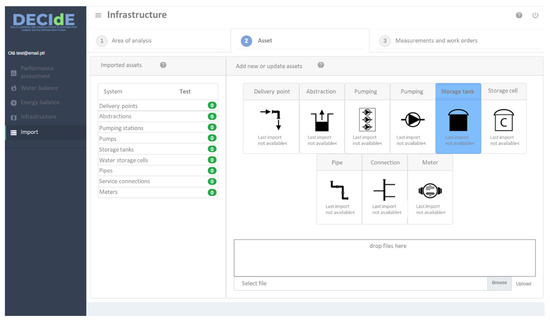

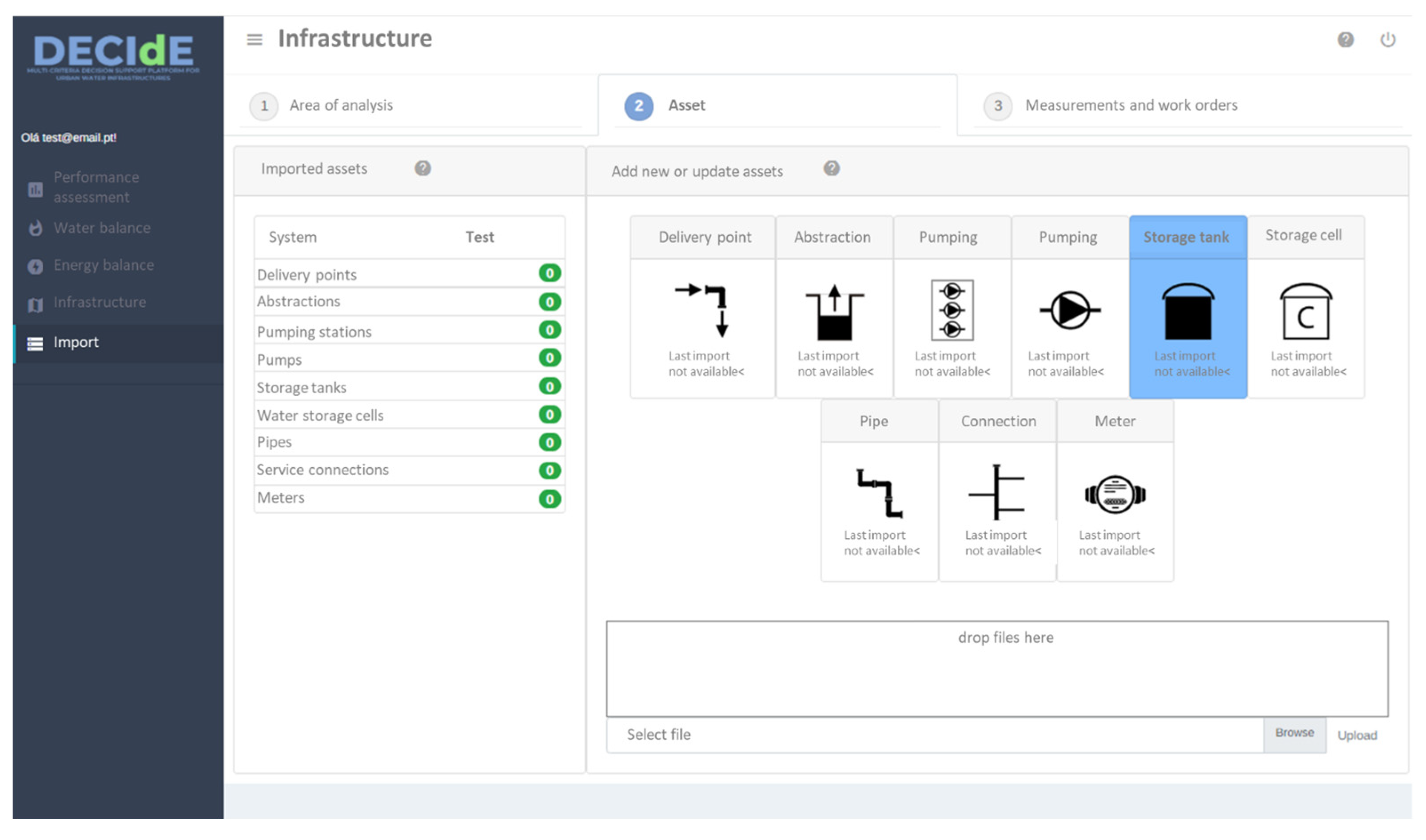

Figure 2. GUI of the data import module (Adapted from the Portuguese version).
Figure 2. GUI of the data import module (Adapted from the Portuguese version).
Systems 11 00085 g002

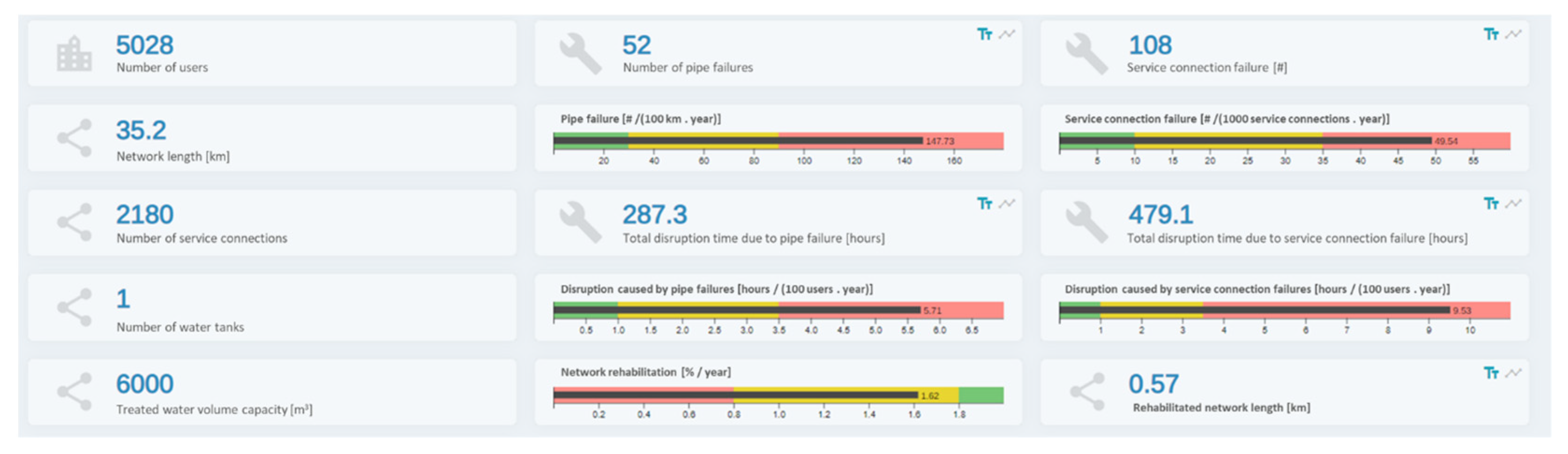

Figure 3. Summary of the performance indicators for water utility 1 (Adapted from the Portuguese version).
Figure 3. Summary of the performance indicators for water utility 1 (Adapted from the Portuguese version).
Systems 11 00085 g003

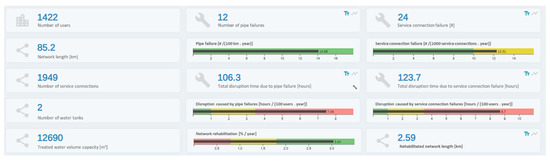

Figure 4. Summary of the performance indicators for water utility 2 (Adapted from the Portuguese version).
Figure 4. Summary of the performance indicators for water utility 2 (Adapted from the Portuguese version).
Systems 11 00085 g004

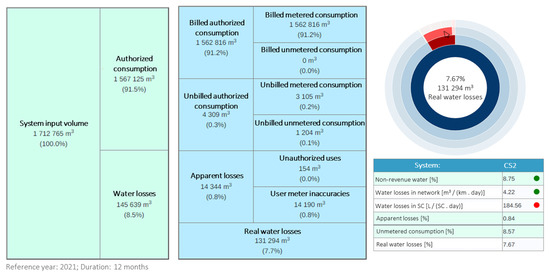

Figure 5. Water balance for water utility 2 (on the left) and the water losses performance indicators (on the right) (Adapted from the Portuguese version).
Figure 5. Water balance for water utility 2 (on the left) and the water losses performance indicators (on the right) (Adapted from the Portuguese version).
Systems 11 00085 g005

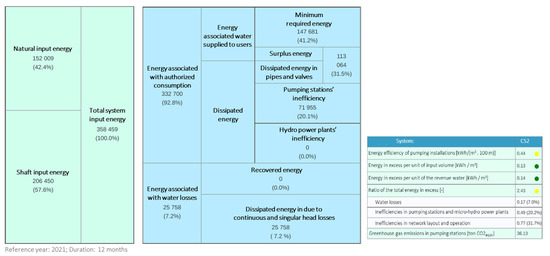

Figure 6. Energy balance for water utility 2 (on the left) and the energy efficiency performance indicators (on the right) (Adapted from the Portuguese version).
Figure 6. Energy balance for water utility 2 (on the left) and the energy efficiency performance indicators (on the right) (Adapted from the Portuguese version).
Systems 11 00085 g006
Table 1. Set of performance indicators identified by the utilities for implementation in the platform.
Table 1. Set of performance indicators identified by the utilities for implementation in the platform.
ObjectivePerformance IndicatorUnits
Infrastructural sustainabilityNetwork rehabilitation(%/year)
Infrastructure value index (IVI)(-)
Pipe failure(#/(100 km/year))
Service connection failure(#/(1000 service connections/year))
Environmental sustainabilityReal water losses in the network(m3/(km/year))
Real water losses in service connections(litres/(service connection/day))
Energy efficiency of pumping installations(kWh/(m3/100 m))
Energy in excess per unit of input volume(kWh/m3)
Energy in excess per unit of the revenue water(kWh/m3)
Ratio of the total energy in excess(-)
Economical sustainabilityUnmetered consumption(%)
Non-revenue water(%)
Real water losses(%)
Treated water volume capacity(days)
Quality of serviceDisruption caused by pipe failures(hour/(100 users/year))
Disruption caused by service connection failures(hour/(100 users/year))
Table 2. Implemented water balance [27].
Table 2. Implemented water balance [27].
System input volumeAuthorized consumptionBilled authorized consumptionBilled metered consumptionRevenue water
Unbilled authorized consumptionBilled unmetered consumption
Water lossesApparent lossesUnbilled metered consumptionNon-revenue water
Unbilled unmetered consumption
Customer meter inaccuracies
Real lossesLeakage on distribution pipes
Leakage and overflow at storage tanks
Leakage on service connections up to point of customer meter
Table 3. Implemented energy balance [28].
Table 3. Implemented energy balance [28].
Natural input energyTotal system energy inputEnergy associated with authorized consumptionEnergy associated with water supplied to consumersMinimum required energy
Supply energy
Dissipated energyPipe friction
Valve head losses
Pumping stations’ inefficiency
Shaft input energyHydropower plants’ inefficiency
Recovered energyAssociated with authorized consumption
Energy associated with water lossesAssociated with water losses
Dissipated energy in nodes with water losses
Dissipated energyPipe friction
Valve head losses
Pumping stations’ inefficiency
Hydropower plants’ inefficiency
Table 4. Designed domain-driven model.
Table 4. Designed domain-driven model.
SymbolAssetAttributeSymbolAssetAttribute
Systems 11 00085 i001Subsystem
-
Unique identifier
-
Description
Systems 11 00085 i002Storage Tank
-
Unique identifier
-
Description
-
Subsystem identifier
Systems 11 00085 i003District Metered Area
-
Unique identifier
-
Description
-
Subsystem identifier
Systems 11 00085 i004Storage Cell
-
Unique identifier
-
Description
-
Storage tank identifier
-
Storage capacity
-
Elevation
-
Water level
Systems 11 00085 i005Delivery point
-
Unique identifier
-
Description
-
Subsystem identifier
-
DMA identifier
-
Elevation
-
Service pressure
Systems 11 00085 i006Pipe
-
Unique identifier
-
Subsystem identifier
-
DMA identifier
-
Length
-
Diameter
-
Material
-
Installation date
Systems 11 00085 i007Water abstraction
-
Unique identifier
-
Description
-
Subsystem identifier
-
Hydraulic head
-
Water level
Systems 11 00085 i008Service connection
-
Unique identifier
-
Subsystem identifier
-
DMA identifier
-
Length
-
Diameter
-
Material
-
Installation date
Systems 11 00085 i009Pumping Station
-
Unique identifier
-
Description
-
Subsystem identifier
Systems 11 00085 i010Water meter
-
Unique identifier
-
Subsystem identifier
-
DMA identifier
-
Status
-
Type of use
Systems 11 00085 i011Pump
-
Unique identifier
-
Description
-
Subsystem identifier
-
Hydraulic head
Systems 11 00085 i012Service work order
-
Unique identifier
-
Subsystem identifier
-
DMA identifier
-
Affected asset identification
-
Cause
-
Type of intervention
-
Intervention extension
-
Intervention date
-
Date and time of service disruption
-
Date and time of service reestablishment
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Carriço, N.; Ferreira, B.; Antunes, A.; Grueau, C.I.C.; Barreira, R.; Mendes, A.; Covas, D.I.C.; Monteiro, L.; Santos, J.F.; Brito, I.S. An Information System for Infrastructure Asset Management Tailored to Portuguese Water Utilities: Platform Conceptualization and a Prototype Demonstration. Systems 2023, 11, 85. https://doi.org/10.3390/systems11020085

AMA Style

Carriço N, Ferreira B, Antunes A, Grueau CIC, Barreira R, Mendes A, Covas DIC, Monteiro L, Santos JF, Brito IS. An Information System for Infrastructure Asset Management Tailored to Portuguese Water Utilities: Platform Conceptualization and a Prototype Demonstration. Systems. 2023; 11(2):85. https://doi.org/10.3390/systems11020085

Chicago/Turabian Style

Carriço, Nelson, Bruno Ferreira, André Antunes, Cédric I. C. Grueau, Raquel Barreira, Ana Mendes, Dídia I. C. Covas, Laura Monteiro, João Filipe Santos, and Isabel Sofia Brito. 2023. "An Information System for Infrastructure Asset Management Tailored to Portuguese Water Utilities: Platform Conceptualization and a Prototype Demonstration" Systems 11, no. 2: 85. https://doi.org/10.3390/systems11020085

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
