# The Adaptive Seismic Resilience of Infrastructure Systems: A Bayesian Networks Analysis

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

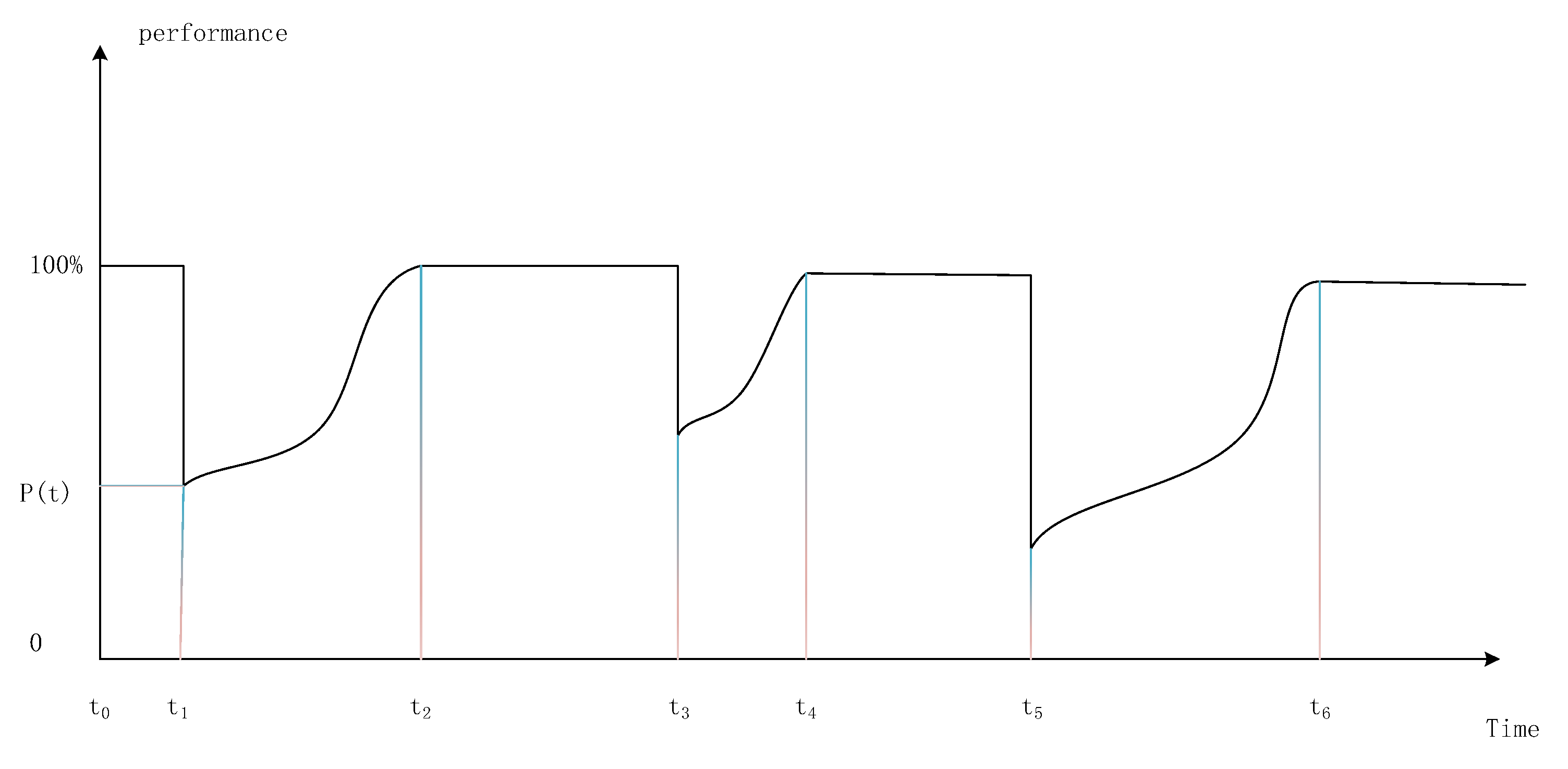

#### 1.1. Related Research in Resilience

#### 1.2. Existing Literature Related to Bayesian Networks in Seismic Resilience

- Lack of research on infrastructure adaptability as a critical feature of resilience.
- Lack of understanding on how to quantify adaptability and account for interdependencies between different infrastructure systems and factors, as may be provided by a Bayesian network BN analysis.

- Classifying the underlying factors of interdependent networks with respect to the concept of adaptability.
- Developing a new conceptual BN framework for interdependent networks.
- Using different types of inferences to provide a better insight regarding the result of the BN model.

## 2. Background

#### 2.1. Background of Bayes Theorem

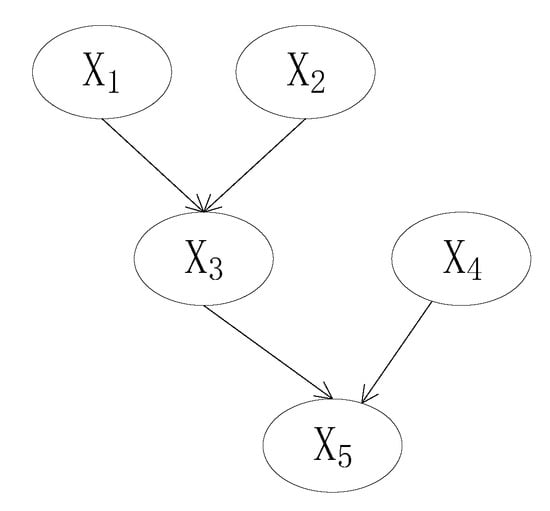

#### 2.2. Background of Bayesian Network

#### 2.3. The Methodology

- Undergo adaptability modeling: the adaptability key variables and link of the BN are acquired from expert knowledge and published studies.
- Determine the parameters of Bayesian networks: the unconditional probability of the root node, the conditional probability of intermediate nodes and leaf nodes all derive from historical data, published literature and expert judgment.
- Conduct an inference: calculate the adaptability of the infrastructure system in the target area by way of forward reasoning of the Bayesian network model in order to identify important influencing factors of the adaptability through the unique backward reasoning of the Bayesian network. This is done so as to propose targeted adaptability improvement measures.

## 3. Adaptability Modeling Using Bayesian Networks

#### 3.1. Variables Selection

**Step 1**: Identify the factor. Identify a list of key factors affecting the adaptability of infrastructure systems from the existing literature.**Step 2**: Cluster the factor. The identified 19 key factors affecting the adaptability of infrastructure systems were divided into five categories.**Step 3**: Construct a Bayesian network structure. Apply the parent-child structure and causal relationship to construct the Bayesian network structure.

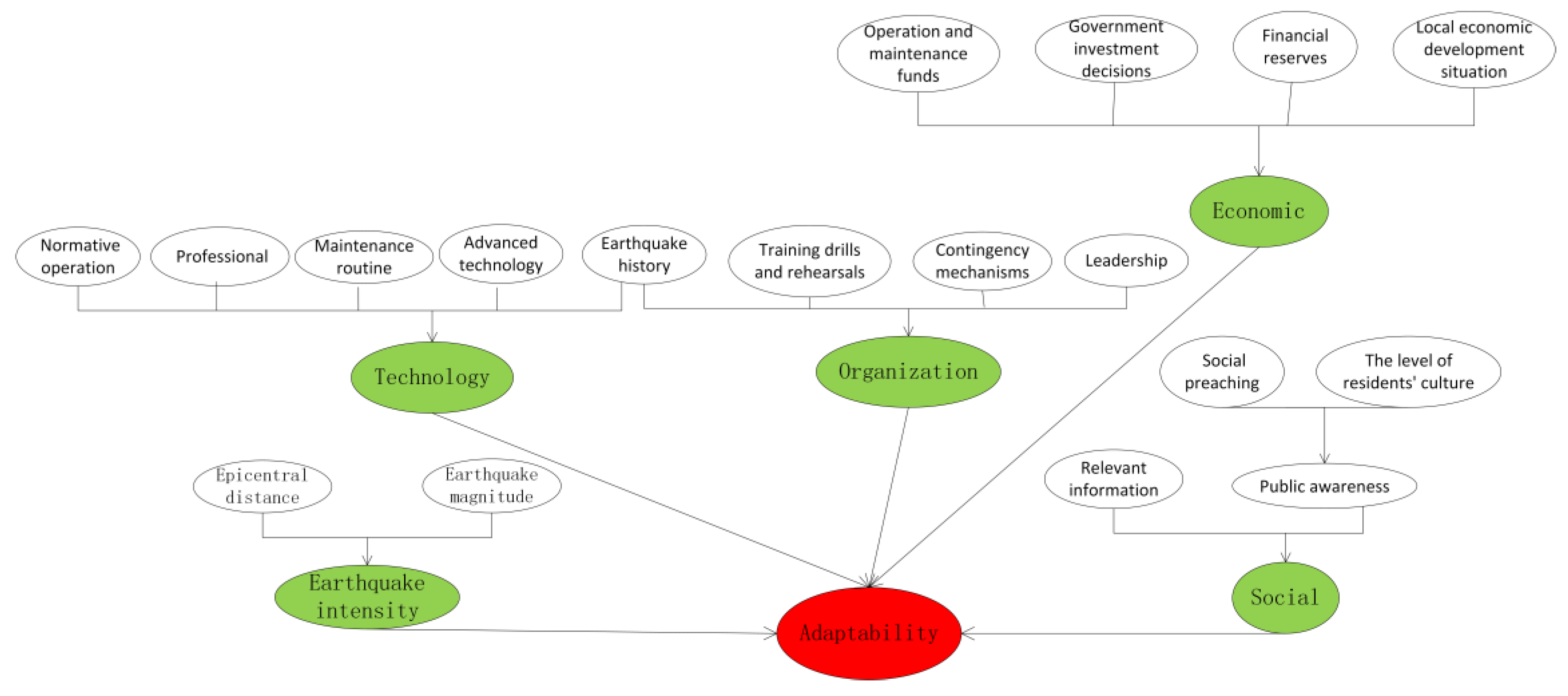

#### 3.2. Variables Connectivity

- Factors associated with seismic events are clustered to determine response capabilities matched to magnitude of earthquake damage.
- The basic elements and operational specifications required to maintain the normal service of the infrastructure system are clustered, which support daily supply services and provide technical support in the event of an earthquake.
- Policy and mechanism factors are clustered and conduct coordinated drills between systems to ensure effective integration of resources from all parties for rapid recovery when the next earthquake occurs.
- Factors related to economic reserves are clustered for possible economic support.
- The potential support factors of stakeholders in the assessed area are clustered to determine the degree of cooperation of stakeholders when the next earthquake occurs.

#### 3.2.1. Earthquake Intensity

#### 3.2.2. Technology

#### 3.2.3. Organization

#### 3.2.4. Economic Variables

#### 3.2.5. Social

#### 3.3. Interdependent Infrastructure

## 4. Conditional Probabilities

#### 4.1. Unconditional Probabilities

#### 4.2. Conditional Probabilities

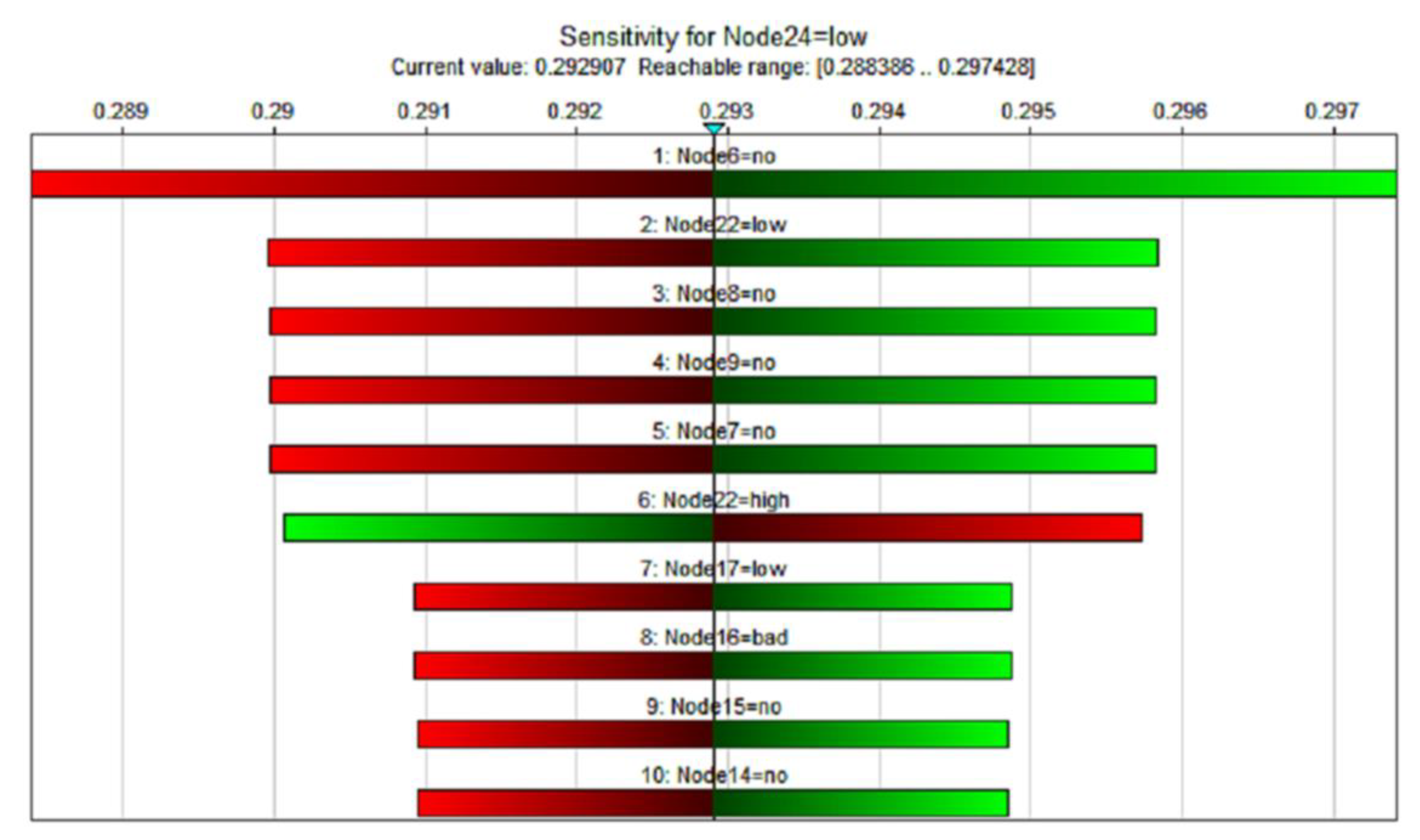

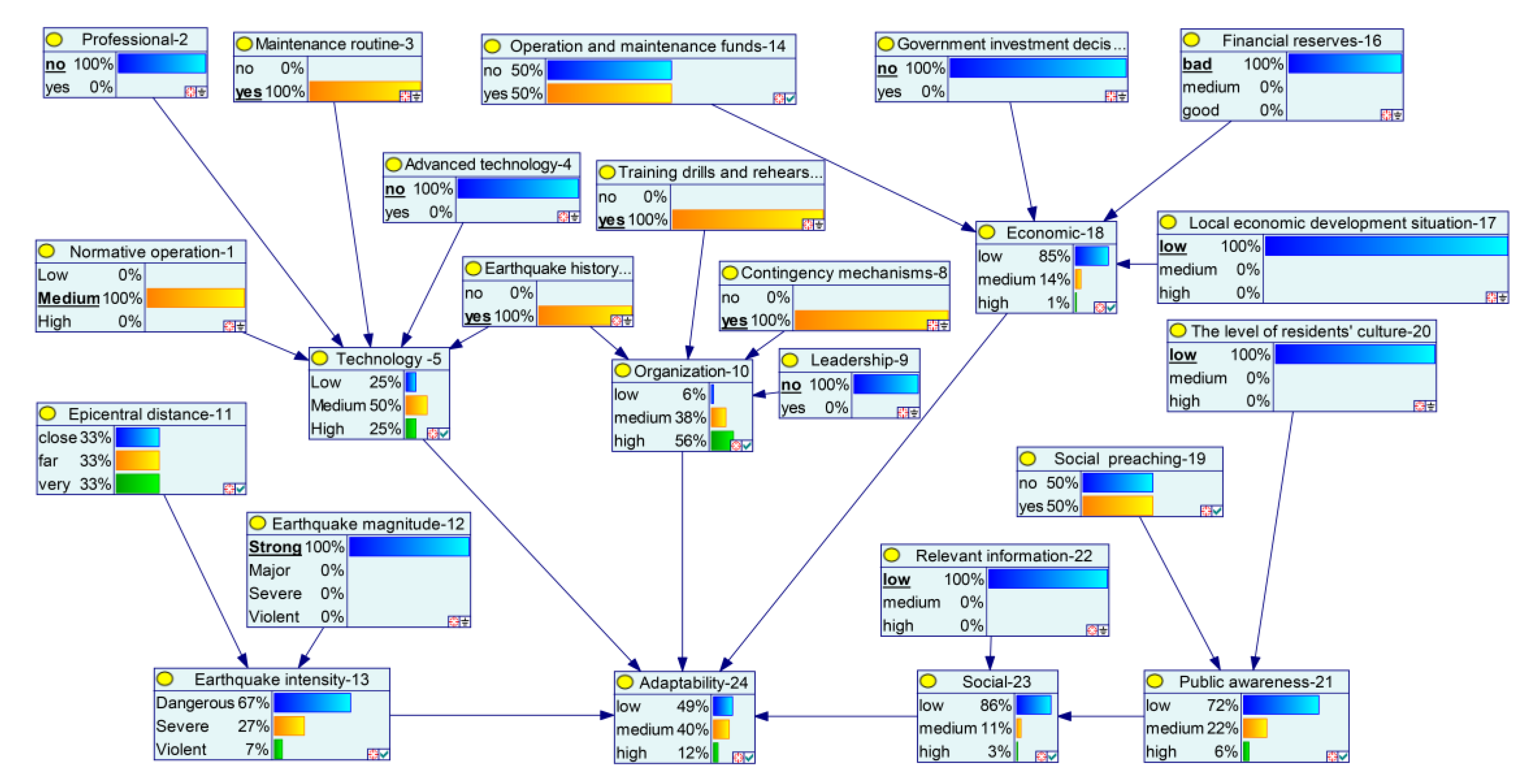

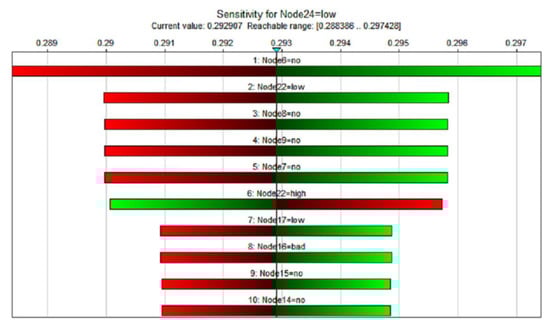

## 5. Case Study and Inference

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- EM-DAT. Available online: https://public.emdat.be/data (accessed on 10 April 2022).
- Lin, S.Y.; El-Tawil, S. Time-dependent resilience assessment of seismic damage and restoration of interdependent lifeline systems. J. Infrastruct. Syst.
**2020**, 26, 04019040. [Google Scholar] [CrossRef] - Ellis, J.; Fisher, D.; Longstaff, T.; Pesante, L.; Pethia, R. Report to the President’s Commission on Critical Infrastructure Protection; Carnegie-Mellon Univ Pittsburgh PA Software Engineering Inst.: Pittsburgh, PA, USA, 1997. [Google Scholar]
- Hokstad, P.; Utne, I.; Vatn, J. Vulnerability Analyses of Interdependent Technical Infrastructures. In Risk and Interdependencies in Critical Infrastructures; Springer Series in Reliability Engineering; Springer: Berlin/Heidelberg, Germany, 2012; Chapter 6; pp. 67–94. [Google Scholar] [CrossRef]
- Rinaldi, S.M.; Peerenboom, J.P.; Kelly, T.K. Identifying, understanding, and analyzing critical infrastructure interdependencies. IEEE Control. Syst. Mag.
**2001**, 21, 11–25. [Google Scholar] [CrossRef] - Graham, S. Constructing premium network spaces: Reflections on infrastructure networks and contemporary urban development. Int. J. Urban Reg. Res.
**2000**, 24, 183–200. [Google Scholar] [CrossRef] - Saidi, S.; Kattan, L.; Jayasinghe, P.; Hettiaratchi, P.; Taron, J. Integrated infrastructure systems—A review. Sustain. Cities Soc.
**2018**, 36, 1–11. [Google Scholar] [CrossRef] - Buldyrev, S.V.; Parshani, R.; Paul, G.; Stanley, H.E.; Havlin, S. Catastrophic cascade of failures in interdependent networks. Nature
**2010**, 464, 1025–1028. [Google Scholar] [CrossRef] [PubMed] - Eusgeld, I.; Nan, C.; Dietz, S. “System-of-systems” approach for interdependent critical infrastructures. Reliab. Eng. Syst. Saf.
**2011**, 96, 679–686. [Google Scholar] [CrossRef] - Little, R.G. Controlling Cascading Failure: Understanding the Vulnerabilities of Interconnected Infrastructures. J. Urban Technol.
**2002**, 9, 109–123. [Google Scholar] [CrossRef] - Franchin, P.; Cavalieri, F. Probabilistic Assessment of Civil Infrastructure Resilience to Earthquakes. Comput. Civ. Infrastruct. Eng.
**2014**, 30, 583–600. [Google Scholar] [CrossRef] - Bruneau, M.; Chang, S.E.; Eguchi, R.T.; Lee, G.C.; O’Rourke, T.D.; Reinhorn, A.M.; Shinozuka, M.; Tierney, K.; Wallace, W.A.; Von Winterfeldt, D. A Framework to Quantitatively Assess and Enhance the Seismic Resilience of Communities. Earthq. Spectra
**2003**, 19, 733–752. [Google Scholar] [CrossRef] [Green Version] - Johansen, C.; Horney, J.; Tien, I. Metrics for Evaluating and Improving Community Resilience. J. Infrastruct. Syst.
**2017**, 23, 04016032. [Google Scholar] [CrossRef] - Ouyang, M.; Wang, Z. Resilience assessment of interdependent infrastructure systems: With a focus on joint restoration modeling and analysis. Reliab. Eng. Syst. Saf.
**2015**, 141, 74–82. [Google Scholar] [CrossRef] - Zhou, W.; Kalonji, G.; Chen, C.; Zheng, H.; Martek, I. A three-staged framework for measuring water supply resilience in rural China based on PLS-SEM. Sci. Rep.
**2022**, 12, 1–15. [Google Scholar] [CrossRef] - Webster, J.; Smith, J.; Smith, T.; Okello, F. Water Safety Plans in Disaster Management: Appropriate Risk Management of Water, Sanitation and Hygiene in the Context of Rural and Peri-Urban Communities in Low-Income Countries. In Risk Management of Water Supply and Sanitation Systems; Springer: Berlin/Heidelberg, Germany, 2009; pp. 145–152. [Google Scholar] [CrossRef]
- Sweya, L.N.; Wilkinson, S.; Kassenga, G.; Mayunga, J. Developing a tool to measure the organizational resilience of Tanzania’s water supply systems. Glob. Bus. Organ. Excell.
**2020**, 39, 6–19. [Google Scholar] [CrossRef] - Ryu, J.; Park, H. Resilience assessment for interdependent water supply systems based on a system dynamics model. WIT Trans. Ecol. Environ.
**2018**, 215, 241–245. [Google Scholar] [CrossRef] - Farahmandfar, Z.; Piratla, K.R.; Andrus, R.D. Resilience Evaluation of Water Supply Networks against Seismic Hazards. J. Pipeline Syst. Eng. Pract.
**2017**, 8, 04016014. [Google Scholar] [CrossRef] - Ouyang, M.; Duenas-Osorio, L. Multi-dimensional hurricane resilience assessment of electric power systems. Struct. Saf.
**2014**, 48, 15–24. [Google Scholar] [CrossRef] - De Iuliis, M.; Kammouh, O.; Cimellaro, G.P.; Tesfamariam, S. Quantifying restoration time of power and telecommunication lifelines after earthquakes using Bayesian belief network model. Reliab. Eng. Syst. Saf.
**2021**, 208, 107320. [Google Scholar] [CrossRef] - Chang, S.E.; Shinozuka, M. Measuring Improvements in the Disaster Resilience of Communities. Earthq. Spectra
**2004**, 20, 739–755. [Google Scholar] [CrossRef] - Ouyang, M.; Duenas-Osorio, L. Time-dependent resilience assessment and improvement of urban infrastructure systems. Chaos Interdiscip. J. Nonlinear Sci.
**2012**, 22, 033122. [Google Scholar] [CrossRef] - Kammouh, O.; Gardoni, P.; Cimellaro, G.P. Probabilistic framework to evaluate the resilience of engineering systems using Bayesian and dynamic Bayesian networks. Reliab. Eng. Syst. Saf.
**2020**, 198, 106813. [Google Scholar] [CrossRef] - Beckford, J. An Overview of Systemic Interdependencies of the UK National Infrastructure; Beckford Consulting: Berkshire, UK, Draft (Unpublished); Available online: http://beckfordconsulting.com/wp-content/uploads/2008/10/Modernising-National-Infrastructure-Draft-2009.pdf (accessed on 23 January 2023).
- Cheng, Y.; Elsayed, E.A.; Huang, Z. Systems resilience assessments: A review, framework and metrics. Int. J. Prod. Res.
**2021**, 60, 595–622. [Google Scholar] [CrossRef] - Nastov, B.; Kamisoko, D.; Chapurlat, V. An Improved Decision Support Method for Resilience Assessment Based on Multi-Viewpoint Modeling and Functional Analysis of Interconnected Systems. Int. J. Decis. Support Syst. Technol.
**2021**, 13, 54–70. [Google Scholar] [CrossRef] - Miles, S.B.; Chang, S.E. Modeling Community Recovery from Earthquakes. Earthq. Spectra
**2006**, 22, 439–458. [Google Scholar] [CrossRef] - Cimellaro, G.P.; Reinhorn, A.M.; Bruneau, M. Framework for analytical quantification of disaster resilience. Eng. Struct.
**2010**, 32, 3639–3649. [Google Scholar] [CrossRef] - Pirbhulal, S.; Gkioulos, V.; Katsikas, S. Towards Integration of Security and Safety Measures for Critical Infrastructures Based on Bayesian Networks and Graph Theory: A Systematic Literature Review. Signals
**2021**, 2, 771–802. [Google Scholar] [CrossRef] - Hossain, N.U.I.; Jaradat, R.; Hosseini, S.; Marufuzzaman, M.; Buchanan, R.K. A framework for modeling and assessing system resilience using a Bayesian network: A case study of an interdependent electrical infrastructure system. Int. J. Crit. Infrastruct. Prot.
**2019**, 25, 62–83. [Google Scholar] [CrossRef] - Johansen, C.; Tien, I. Probabilistic multi-scale modeling of interdependencies between critical infrastructure systems for resilience. Sustain. Resilient Infrastruct.
**2017**, 3, 1–15. [Google Scholar] [CrossRef] - Koop, G.; Leongonzalez, R.; Strachan, R. Bayesian inference in a cointegrating panel data model. In Bayesian Econometrics; Emerald Group Publishing Limited: Bingley, UK, 2008; pp. 433–469. [Google Scholar] [CrossRef] [Green Version]
- Bensi, M.T.; Der Kiureghian, A.; Straub, D. A Bayesian Network Framework for Post-Earthquake Infrastructure System Performance Assessment. In Proceedings of the TCLEE 2009: Lifeline Earthquake Engineering in a Multihazard Environment, Oakland, CA, USA, 28 June–1 July 2009; pp. 1–12. [Google Scholar] [CrossRef]
- Kameshwar, S.; Cox, D.T.; Barbosa, A.R.; Farokhnia, K.; Park, H.; Alam, M.S.; van de Lindt, J.W. Probabilistic decision-support framework for community resilience: Incorporating multi-hazards, infrastructure interdependencies, and resilience goals in a Bayesian network. Reliab. Eng. Syst. Saf.
**2019**, 191, 106568. [Google Scholar] [CrossRef] - Cimellaro, G.P.; Noori, A.Z.; Kammouh, O.; Terzic, V.; Mahin, S.A. Resilience of critical structures, infrastructures and communities. arXiv Prepr.
**2022**, arXiv:2202.09567. [Google Scholar] - CEA. 2020-07-The Chinese Seismic Intensity Scale. Edited by China Earthquake Administration. Available online: http://c.gb688.cn/bzgk/gb/showGb?type=online&hcno=6FD8F9071FAC980D5B2A636A9EA79DE9 (accessed on 18 April 2022).
- Zhu, J.; Manandhar, B.; Truong, J.; Ganapati, N.E.; Pradhananga, N.; Davidson, R.A.; Mostafavi, A. Assessment of infrastructure resilience in the 2015 Gorkha, Nepal, earthquake. Earthq. Spectra
**2017**, 33 (Suppl. 1), 147–165. [Google Scholar] [CrossRef] - Dickson, S.E.; Schuster-Wallace, C.J.; Newton, J.J. Water Security Assessment Indicators: The Rural Context. Water Resour. Manag.
**2016**, 30, 1567–1604. [Google Scholar] [CrossRef] - Croope, S.V. Managing Critical Civil Infrastructure Systems: Improving Resilience to Disasters. Ph.D. Thesis, University of Delaware, Newark, DE, USA, 2010. [Google Scholar]
- Karakoc, D.B.; Almoghathawi, Y.; Barker, K.; González, A.D.; Mohebbi, S. Community resilience-driven restoration model for interdependent infrastructure networks. Int. J. Disaster Risk Reduct.
**2019**, 38, 101228. [Google Scholar] [CrossRef] - Mostafavi, A.; Ganapati, N.E.; Nazarnia, H.; Pradhananga, N.; Khanal, R. Adaptive Capacity under Chronic Stressors: Assessment of Water Infrastructure Resilience in 2015 Nepalese Earthquake Using a System Approach. Nat. Hazards Rev.
**2018**, 19, 05017006. [Google Scholar] [CrossRef] - Zhao, X.; Cai, H.; Chen, Z.; Gong, H.; Feng, Q. Assessing urban lifeline systems immediately after seismic disaster based on emergency resilience. Struct. Infrastruct. Eng.
**2016**, 12, 1634–1649. [Google Scholar] [CrossRef] - Zhang, X.; Tang, W.; Huang, Y.; Zhang, Q.; Duffield, C.F.; Li, J.; Wang, E. Understanding the causes of vulnerabilities for enhancing social-physical resilience: Lessons from the Wenchuan earthquake. Environ. Hazards
**2018**, 17, 292–309. [Google Scholar] [CrossRef] - Lee, A.V.; Vargo, J.; Seville, E. Developing a tool to measure and compare organizations’ resilience. Nat. Hazards Rev.
**2013**, 14, 29–41. [Google Scholar] [CrossRef] - Dezhi, L.; Jie, W.; Peng, C. Evaluation index system of disaster resilience of urban community composite ecosystem. Const. Econ.
**2018**, 39, 92–96. [Google Scholar] - Cutter, S.L.; Burton, C.G.; Emrich, C.T. Disaster Resilience Indicators for Benchmarking Baseline Conditions. J. Homel. Secur. Emerg. Manag.
**2010**, 7. [Google Scholar] [CrossRef] - Balaei, B.; Wilkinson, S.; Potangaroa, R.; Hassani, N.; Alavi-Shoshtari, M. Developing a Framework for Measuring Water Supply Resilience. Nat. Hazards Rev.
**2018**, 19, 04018013. [Google Scholar] [CrossRef] - Liu, X.; Fang, Y.-P.; Zio, E. A Hierarchical Resilience Enhancement Framework for Interdependent Critical Infrastructures. Reliab. Eng. Syst. Saf.
**2021**, 215, 107868. [Google Scholar] [CrossRef] - Almoghathawi, Y.; Barker, K.; Albert, L.A. Resilience-driven restoration model for interdependent infrastructure networks. Reliab. Eng. Syst. Saf.
**2019**, 185, 12–23. [Google Scholar] [CrossRef] - Agustin, A.D.; Adi, T.J.W. Prediction Models of Infrastructure Resilience as a Decision Support System Based on Bayesian Network. IOP Conf. Ser. Earth Environ. Sci.
**2021**, 832, 012014. [Google Scholar] [CrossRef] - Opdyke, A.; Javernick-Will, A.; Koschmann, M. Infrastructure hazard resilience trends: An analysis of 25 years of research. Nat. Hazards
**2017**, 87, 773–789. [Google Scholar] [CrossRef] - Kammouh, O.; Nogal, M.; Binnekamp, R.; Wolfert, A.R. Multi-system intervention optimization for interdependent infrastructure. Autom. Constr.
**2021**, 127, 103698. [Google Scholar] [CrossRef] - Nahar, N.; Hossain, F.; Hossain, M.D. Health and socioeconomic effects of groundwater arsenic contamination in rural Bangladesh: New evidence from field surveys. J. Environ. Health
**2008**, 70, 42–47. [Google Scholar] [PubMed] - Balaei, B.; Wilkinson, S.; Potangaroa, R.; Adamson, C.; Alavi-Shoshtari, M. Social factors affecting water supply resilience to disasters. Int. J. Disaster Risk Reduct.
**2019**, 37, 101187. [Google Scholar] - Osei-Kyei, R.; Almeida, L.M.; Ampratwum, G.; Tam, V. Systematic review of critical infrastructure resilience indicators. Constr. Innov. 2022; ahead-of-print. [Google Scholar]
- BayesFusion, LLC. “GeNIe Modeler”. User Manual. 2017. Available online: https://support.bayesfusion.com/docs/ (accessed on 21 October 2019).
- Olivier, A.; Shields, M.D.; Graham-Brady, L. Bayesian neural networks for uncertainty quantification in data-driven materials modeling. Comput. Methods Appl. Mech. Eng.
**2021**, 386, 114079. [Google Scholar] [CrossRef]

Factor | State | Performance Measure | Reference |
---|---|---|---|

Epicentral distance | Close | Visual inspection/Expert opinion | [21] |

Far | |||

Very far | |||

Earthquake magnitude | Strong | M5–5.9 | |

Major | M6–6.9 | ||

Severe | M7–7.9 | ||

Violent | M8-Above | ||

Earthquake intensity | Dangerous | Ⅴ–Ⅶ | [37] |

Severe | Ⅷ–Ⅸ | ||

Violent | Ⅹ–Ⅻ |

Factor | State | Performance Measure | References |
---|---|---|---|

Normative operation | Low | $\sigma $ ≤ 80% | [5] |

Medium | 80% < $\sigma $ ≤ 90% | ||

High | $\sigma $ > 90% | ||

Professional | No | Inadequate | [15,16,38,39] |

Yes | Adequate | ||

Maintenance routine | No | Irregular maintenance | [40,41] |

Yes | Regular maintenance | ||

Advanced technology | No | Inadequate | [31] |

Yes | Adequate | ||

Earthquake history | No | Did not happen | [42,43,44] |

Yes | Happened |

Factor | State | Performance Measure | References |
---|---|---|---|

Training drills and rehearsals | No | None | [17,24,45] |

Yes | Not less than once | ||

Leadership | No | Unsatisfied | [17,45,46,47] |

Yes | Satisfied | ||

Contingency mechanisms | No | Inadequate/No update | [24,46,48] |

Factor | State | Performance Measure | References |
---|---|---|---|

Operation and maintenance funds | No | Inadequate | [23,41,49,50] |

Yes | Adequate | ||

Government investment decisions | No | No special investment | [5,24,51] |

Yes | Special investment | ||

Financial reserves | Bad | Deficit | [23,24,41,49,52,53] |

Medium | Balance | ||

Good | Surplus | ||

Local economic development situation | Low | Below average | [52,54] |

Medium | Equal to average | ||

High | More than average |

Factor | State | Performance Measure | References |
---|---|---|---|

Social information sharing | No | None | [12,48] |

Yes | Done | ||

The level of residents’ culture | Low | Below average | [38,46,47,55] |

Medium | Equal to average | ||

High | More than average | ||

Public awareness | Low | Unwillingness | [24,52] |

Medium | Average | ||

High | Willingness | ||

Relevant information | Low | Inadequate/no communication | [24,56] |

Medium | Average but not sufficient | ||

High | Adequate/communicate sufficiently |

Node State | Probability |
---|---|

Operation and maintenance funds | |

No | 1/2 |

Yes | 1/2 |

Government investment decisions | |

No | 1/2 |

Yes | 1/2 |

Financial reserves | |

Bad | 1/3 |

Medium | 1/3 |

Good | 1/3 |

Local economic development situation | |

Low | 1/3 |

Medium | 1/3 |

High | 1/3 |

Father Nodes | $\mathit{s}$ | Son Node: Economic | |||||
---|---|---|---|---|---|---|---|

Operation and Maintenance Funds | Government Investment Decisions | Financial Reserves | Local Economic Development Situation | $s=\frac{{{\displaystyle \sum}}_{i=1}^{n}{p}_{i}}{n\times max}$ | High ${s}^{2}$ | Medium $2s\left(1-s\right)$ | Low ${\left(1-s\right)}^{2}$ |

1 | 1 | 2 | 2 | 1.0000 | 1.0000 | 0.0000 | 0.0000 |

1 | 1 | 2 | 1 | 0.8333 | 0.6944 | 0.2778 | 0.0278 |

1 | 1 | 2 | 0 | 0.6667 | 0.4444 | 0.4444 | 0.1111 |

0 | 0 | 1 | 1 | 0.3333 | 0.1111 | 0.4444 | 0.4444 |

0 | 0 | 1 | 0 | 0.1667 | 0.0278 | 0.2778 | 0.6944 |

0 | 1 | 2 | 0 | 0.5000 | 0.2500 | 0.5000 | 0.2500 |

… | … | … | … | … | … | … | … |

Scenario | Earthquake History | Relevant Information | Contingency Mechanisms | Adaptability (%) | ||
---|---|---|---|---|---|---|

Low | Medium | High | ||||

Base Case | yes | low | yes | 49 | 40 | 12 |

1 | no | low | yes | 63 | 30 | 7 |

2 | yes | medium | yes | 42 | 42 | 16 |

3 | yes | high | yes | 35 | 45 | 20 |

4 | yes | low | no | 59 | 32 | 9 |

5 | no | low | no | 75 | 21 | 4 |
