Correction: Sarria-Sarria et al. A New Genus of Andean Katydid with Unusual Pronotal Structure for Enhancing Resonances. Biology 2024, 13, 1071
1
School of Environmental and Life Sciences, University of Lincoln, Lincoln LN6 7DL, Lincolnshire, UK
2
Department of Biology, University of Toronto at Mississauga, Mississauga, ON L5L 1C6, Canada
*
Author to whom correspondence should be addressed.
Biology 2025, 14(3), 262; https://doi.org/10.3390/biology14030262
Submission received: 25 February 2025
/
Accepted: 26 February 2025
/
Published: 5 March 2025
(This article belongs to the Special Issue Adaptation of Living Species to Environmental Stress)
Missing Information
In the original publication [1], the type species for Tectucantus gen. nov. was not assigned in the Results in Section 3.1.1, before paragraph 1. The assigned type species is T. tinnulus and should read as follows:
Type species: T. tinnulus sp. nov. here described.
Text Correction
There was an error in the original publication [1]. There is a Latin grammatical error in the species epithet for T. planatum.
A correction has been made to Sections 3.1.4, 3.2 and 3.2.3 of the Results, Section 4.1 of the Discussion; the accurate form should be T. planatus. This amendment should be consistently reflected throughout the text, as well as in the labeling and legends of the figures and tables included (Figures 1–7 and Tables 1 and 2).
Error in Figure/Table
In the original publication [1], there was a mistake in the legends for Figures 1–7 and Tables 1 and 2 as published. There is a Latin grammatical error in the species epithet for T. planatum, and the correct spelling should be T. planatus. The corrected legends, Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7, and Table 1 and Table 2 appear below.
The authors state that the scientific conclusions are unaffected. This correction was approved by the Academic Editor. The original publication has also been updated.
Reference
- Sarria-Sarria, F.A.; Morris, G.K.; Montealegre-Z, F. A New Genus of Andean Katydid with Unusual Pronotal Structure for Enhancing Resonances. Biology 2024, 13, 1071. [Google Scholar] [CrossRef] [PubMed]

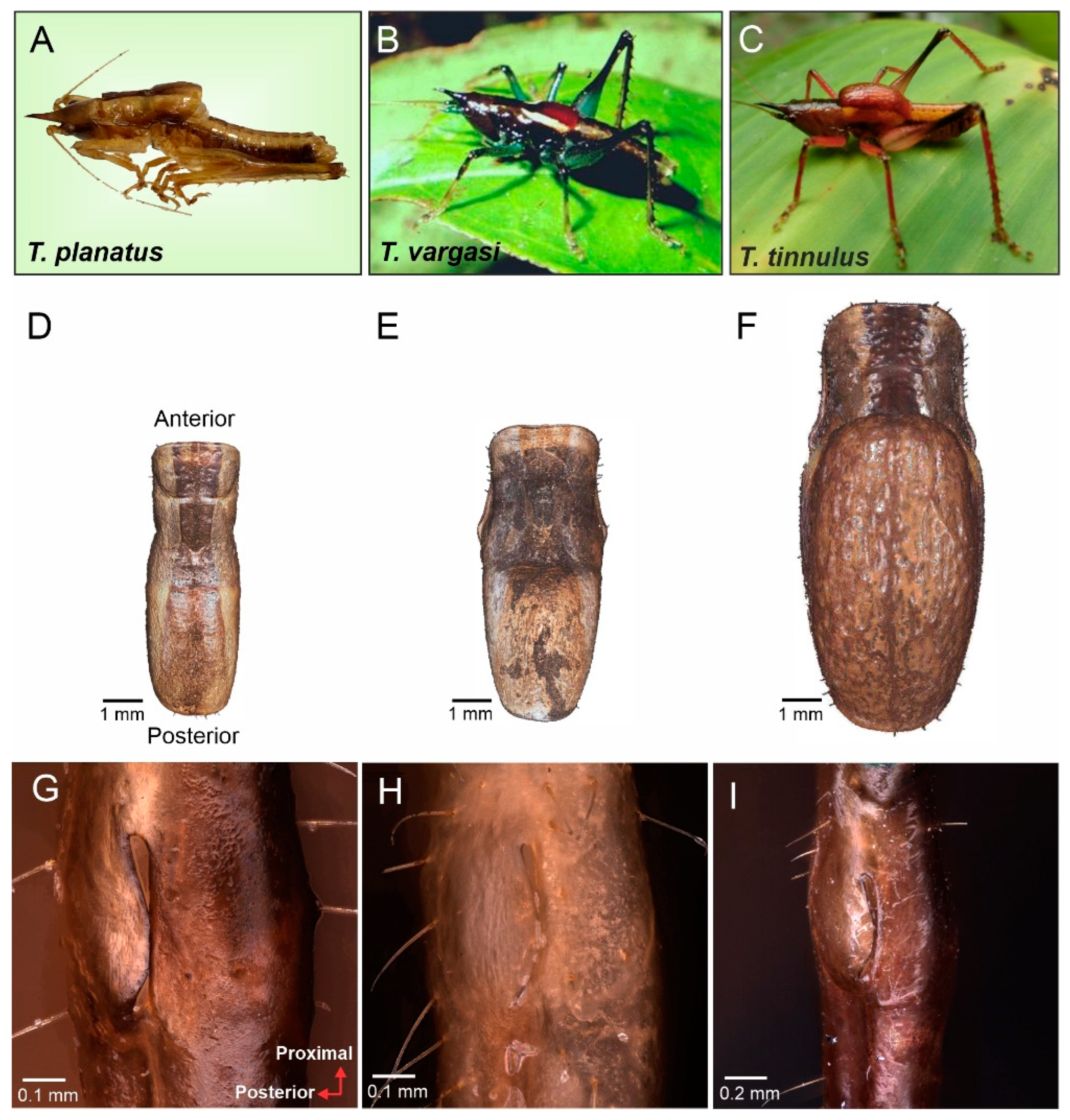

Figure 1.
Morphological characters of Tectucantus spp. (A–C) Habitus of male of T. planatus, T. vargasi, and T. tinnulus. (D–F) Dorsal view and size comparison of pronotum. (G–I) Tectucantus spp. tympanal slits design.
Figure 1.
Morphological characters of Tectucantus spp. (A–C) Habitus of male of T. planatus, T. vargasi, and T. tinnulus. (D–F) Dorsal view and size comparison of pronotum. (G–I) Tectucantus spp. tympanal slits design.

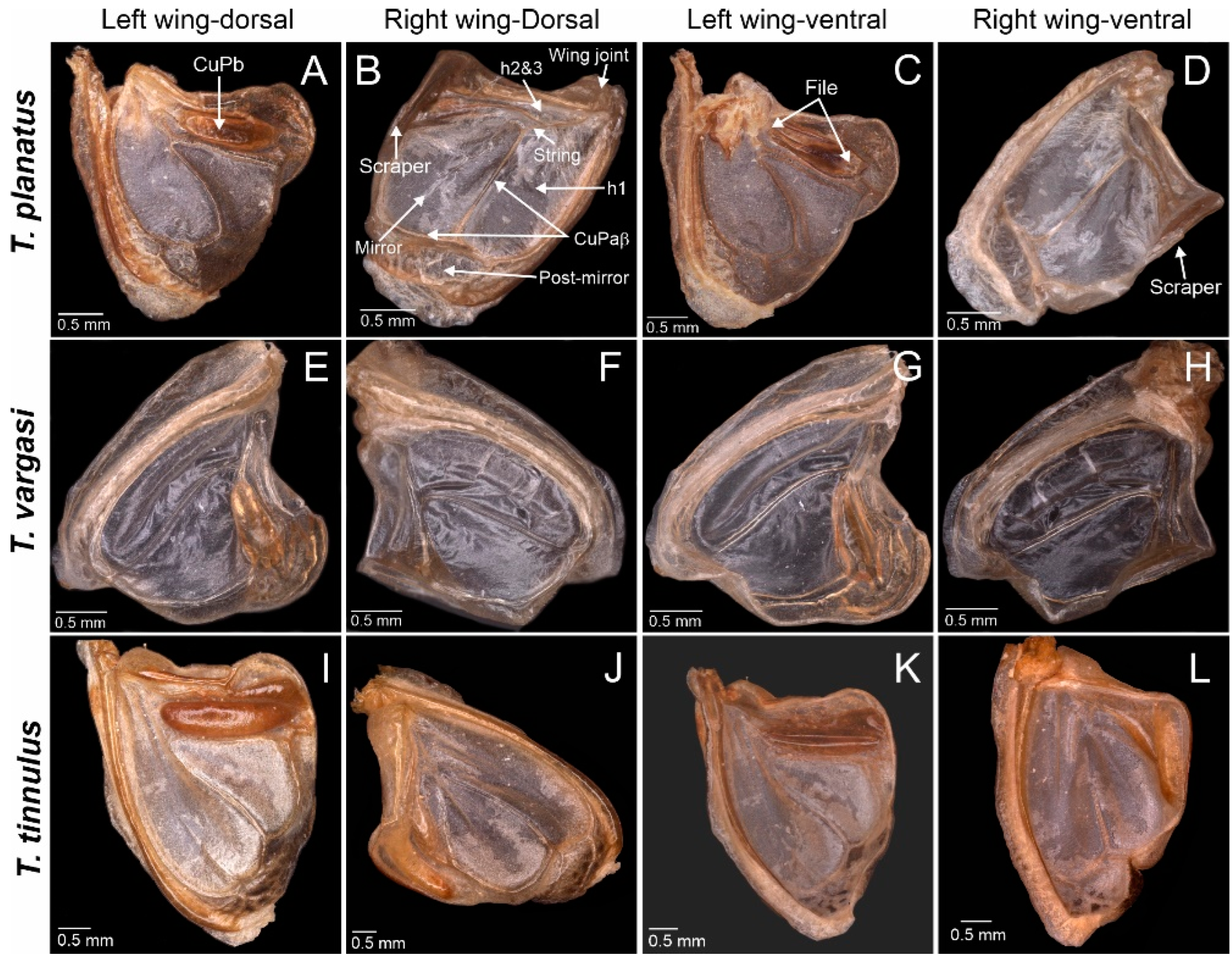

Figure 2.
Tectucantus spp. wing morphology, dorsal and ventral view. (A–D) T. planatus (E–H) T. vargasi (I–L) T. tinnulus.
Figure 2.
Tectucantus spp. wing morphology, dorsal and ventral view. (A–D) T. planatus (E–H) T. vargasi (I–L) T. tinnulus.

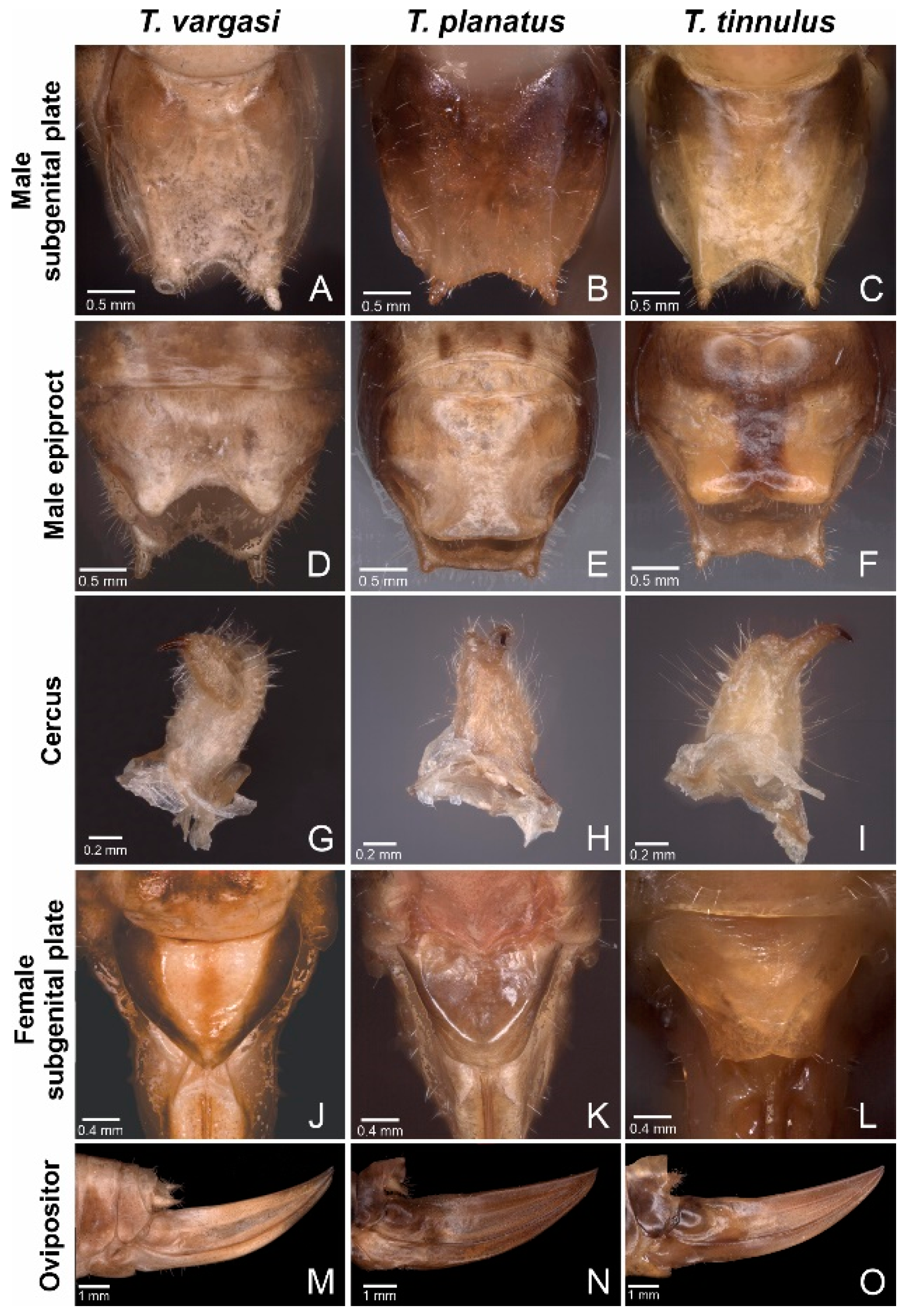

Figure 3.
Tectucantus spp. abdominal morphological features. (A–C) Ventral view of male subgenital plate. (D–F) Dorsal view of male epiproct. (G–I) Male right cercus. (J–L) Dorsal view of female subgenital plate. (M–O) Side view of female ovipositor.
Figure 3.
Tectucantus spp. abdominal morphological features. (A–C) Ventral view of male subgenital plate. (D–F) Dorsal view of male epiproct. (G–I) Male right cercus. (J–L) Dorsal view of female subgenital plate. (M–O) Side view of female ovipositor.

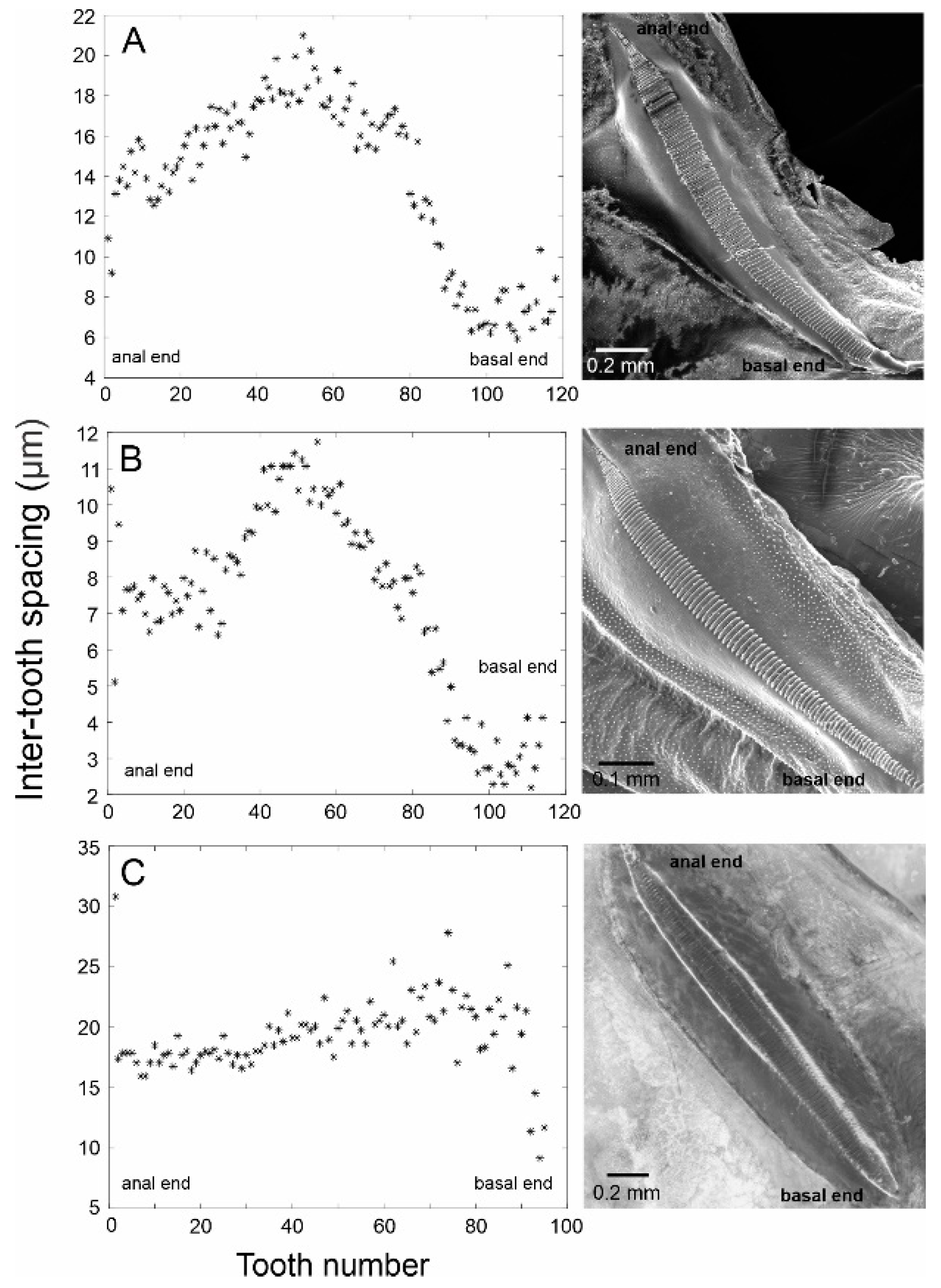

Figure 4.
The stridulatory file of Tectucantus spp. Graph panels on the left show the measurements of inter-tooth distances in the direction of scraper motion during stridulation (anal to basal), and the panels on the right show SEM pictures of the files of each species, except for T. tinnulus. (A) T. planatus, (B) T. vargasi, and (C) T. tinnulus.
Figure 4.
The stridulatory file of Tectucantus spp. Graph panels on the left show the measurements of inter-tooth distances in the direction of scraper motion during stridulation (anal to basal), and the panels on the right show SEM pictures of the files of each species, except for T. tinnulus. (A) T. planatus, (B) T. vargasi, and (C) T. tinnulus.

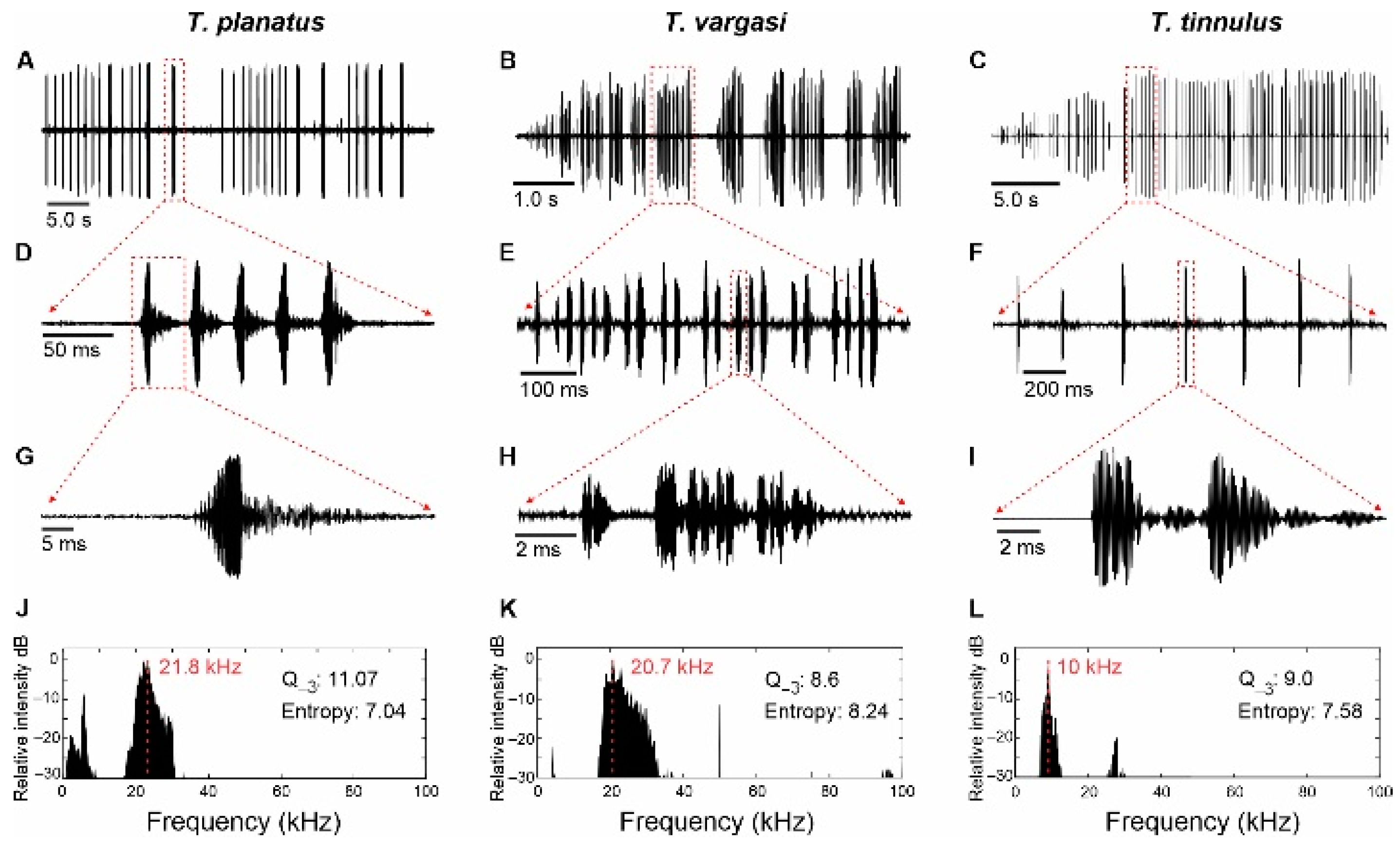

Figure 5.
Acoustic analysis of Tectucantus spp. (A–C) Calling song of a recorded section. (D–F) Close-up view of an echeme. (G–I) Close-up view of a syllable (J–L) Frequency spectrum of a single syllable, red dashed line indicates peak frequency.
Figure 5.
Acoustic analysis of Tectucantus spp. (A–C) Calling song of a recorded section. (D–F) Close-up view of an echeme. (G–I) Close-up view of a syllable (J–L) Frequency spectrum of a single syllable, red dashed line indicates peak frequency.

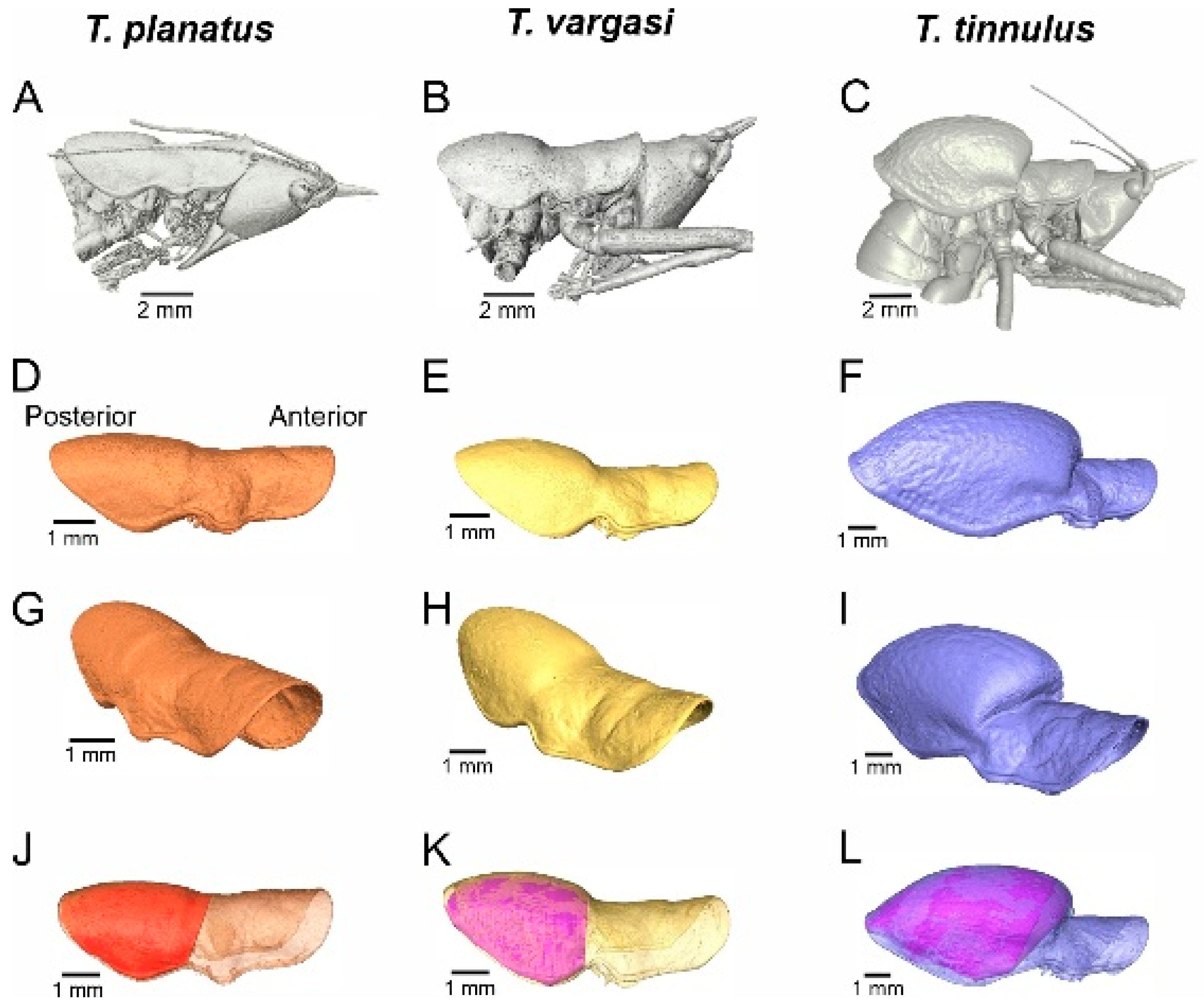

Figure 6.
Three-dimensional segmentation and volumetric features. (A–C) Side view of head and thorax. (D–L) Pronotum 3D reconstruction, side view and pronotal cavity volume. (J–L) Pronotal volume represented by the shaded area.
Figure 6.
Three-dimensional segmentation and volumetric features. (A–C) Side view of head and thorax. (D–L) Pronotum 3D reconstruction, side view and pronotal cavity volume. (J–L) Pronotal volume represented by the shaded area.

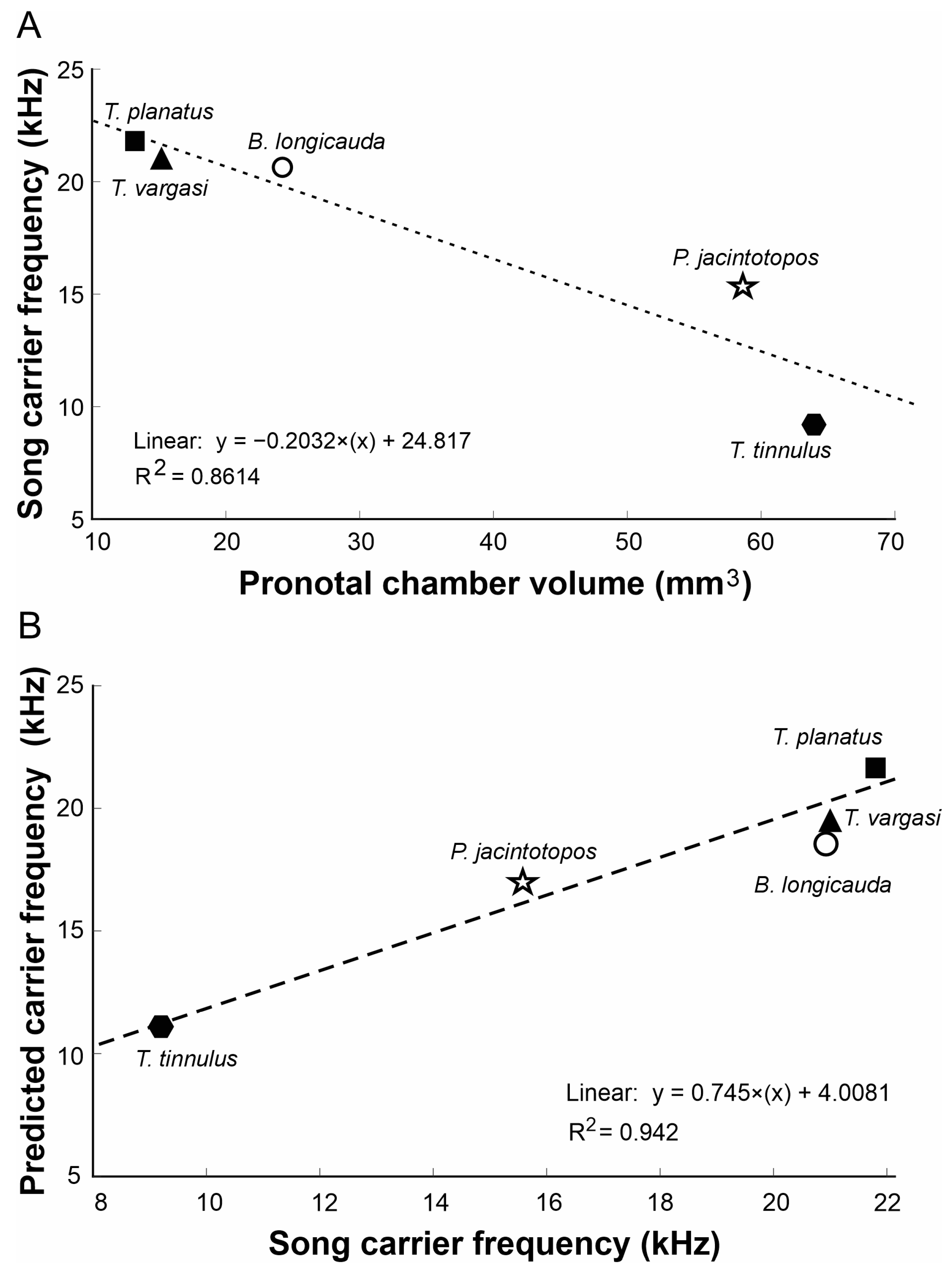

Figure 7.
Relationships between Tectucantus spp. pronotal cavity and calling songs. (A) Correlation between pronotal volume and carrier frequency. (B) Correlation between carrier frequency and predicted carrier frequency.
Figure 7.
Relationships between Tectucantus spp. pronotal cavity and calling songs. (A) Correlation between pronotal volume and carrier frequency. (B) Correlation between carrier frequency and predicted carrier frequency.
Table 1.
Body measurements. All measurements are in mm. For paired features (e.g., legs), left/right features were reported, respectively. n.a. = not applicable, where the structure was not present to be measured (e.g., damaged, absent, or absent due to sex differences).
Table 1.
Body measurements. All measurements are in mm. For paired features (e.g., legs), left/right features were reported, respectively. n.a. = not applicable, where the structure was not present to be measured (e.g., damaged, absent, or absent due to sex differences).
| Species | T. planatus | T. vargasi | T. tinnulus | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body Part | ♂ (n = 5) | SD | ♀ (n = 2) | SD | ♂ (n = 3) | SD | ♀ (n = 1) | SD | ♂ (n = 6) | SD | ♀ (n = 1) | SD |
| Fastigium | 2.18 | 0.3 | 2.4 | 0 | 2.23 | 0.28 | 2.5 | 0 | 2.92 | 0.13 | 2.63 | 0 |
| Fastigium base | 0.82 | 0.07 | 0.81 | 0.08 | 0.7 | 0.07 | 0.88 | 0 | 0.92 | 0.05 | 0.95 | 0 |
| Frons | 3.41 | 0.05 | 3.88 | 0.18 | 3.25 | 0.28 | 3.7 | 0 | 3.89 | 0.12 | 4.3 | 0 |
| F-Femur | 4.98 | 0.11 | 5.56 | 0.05 | 4.82 | 0.02 | 5.25 | 0 | 5.65 | 0.07 | 5.8 | 0.07 |
| F-Tibia | 5.16 | 0.11 | 5.78 | 0.11 | 5.07 | 0.25 | 5.3 | 0.07 | 6.11 | 0.06 | 6 | 0.35 |
| M-Femur | 4.95 | 0.14 | 5.44 | 0.48 | 4.69 | 0.16 | 4.95 | 0.07 | 5.31 | 0.11 | 5.45 | 0.07 |
| M-Tibia | 5.26 | 0.01 | 5.6 | 0.11 | 4.9 | 0 | 5.38 | 0.18 | 6 | 0.11 | 6.25 | 0 |
| H-Femur | 9.03 | 1.51 | 10.6 | 0.28 | 9.07 | 0.17 | 10.15 | 0.21 | 10.03 | 0.11 | 10.55 | 0.07 |
| H-Tibia | 9.16 | 1.39 | 11.2 | 0.07 | 9.18 | 0.11 | 10.1 | 0.14 | 10.18 | 0.06 | 11.15 | 0.21 |
| Eye | 0.9 | 0.02 | 0.94 | 0.01 | 0.8 | 0.04 | 0.9 | 0 | 0.9 | 0.01 | 0.99 | 0.02 |
| inter eye space | 2.03 | 0.07 | 2.25 | 0 | 2.08 | 0.16 | 2.1 | 0 | 2.32 | 0.1 | 2.38 | 0 |
| Pronotum length | 6.56 | 0.2 | 4.68 | 0.25 | 6.55 | 0.18 | 4.5 | 0 | 9.23 | 0.4 | 4.3 | 0 |
| Pronotum width | 3.08 | 0.14 | 3.63 | 0.53 | 3.13 | 0.38 | 3.25 | 0 | 3.63 | 0.13 | 3.95 | 0 |
| Subgenital plate length | 2.16 | 0.28 | 1.2 | 0 | 2.16 | 0.4 | 1.25 | 0 | 2.24 | 0.1 | 1.5 | 0 |
| Subgenital plate width | 1.96 | 0.16 | 1.5 | 0.35 | 1.87 | 0.4 | 1.62 | 0 | 2.24 | 0.07 | 2 | 0 |
| Epiproct | 1.47 | 0.07 | 0 | 0 | 1.08 | 0.19 | 0.62 | 0 | 1.24 | 0.06 | 0.5 | 0 |
| Abdomen length | 9.28 | 1.23 | 12.25 | 1.48 | 7.83 | 1.53 | 7.5 | 0 | 8.57 | 1.13 | 11 | 0 |
| Ovipositor | n.a. | n.a. | 7.1 | 0.57 | n.a. | n.a. | 6 | 0 | n.a. | n.a. | 8 | 0 |
| Ovipositor base | n.a. | n.a. | 2 | 0 | n.a. | n.a. | 1.75 | 0 | n.a. | n.a. | 2.25 | 0 |
Table 2.
Estimated carrier frequency using Equation (2) for a neckless Helmholtz resonator.
| Species | Volume (mm3) | Radius (mm) | CF Song (kHz) | Predicted Resonant Frequency (kHz) |
|---|---|---|---|---|
| T. tinnulus | 63.95 | 1.39 | 9.5 | 10.4 |
| T. vargasi | 15.22 | 1.05 | 21 | 19.5 |
| T. planatus | 13.2 | 1.06 | 21.8 | 21 |
| B. longicauda | 24.48 | 1.47 | 20.8 | 18.2 |
| P. jacintotopos | 58.71 | 3.02 | 15.6 | 16.8 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
