Systematic Review

Cardiac Arrhythmia Risk after Anti-Cancer Drug Exposure and Related Disease Molecular Imaging Outlook: A Systematic Review, Meta-Analysis, and Network Meta-Analysis

by
Hongzheng Li
1,†,
Wenwen Yang
2,†,
Yuxuan Peng
3,
Mingyan Huang
2,
Feifei Liao
3,
Aimei Lu
3,
Zikai Yu
2,* and
Xin Zhao
2,*
1
Postdoctoral Management Office, China Academy of Chinese Medical Sciences, Dongcheng District, Beijing 100700, China
2
Graduate School, China Academy of Chinese Medical Sciences, Dongcheng District, Beijing 100700, China
3
Graduate School, Beijing University of Chinese Medicine, Chaoyang District, Beijing 100029, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work, and should be regarded as co-first authors.
Biology 2024, 13(7), 465; https://doi.org/10.3390/biology13070465
Submission received: 23 April 2024 / Revised: 18 June 2024 / Accepted: 21 June 2024 / Published: 25 June 2024
(This article belongs to the Special Issue Molecular Mechanisms and Molecular Imaging of Cancer)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Anthracyclines have a central role in anti-cancer therapy, but their side effects of chemotherapy-induced cardiotoxicity (AIC) during systemic administration have always been a problem for both patients and clinicians. The application of anthracycline agents leads to arrhythmias, causing nonspecific ECG changes. And the incidence rates of abnormal QT changes could be early markers of AIC. Therefore, we conducted a systematic review, meta-analysis, and network meta-analysis to evaluate the arrhythmic risk of anthracyclines and the comparative risk for each agent. We included 4 cohort studies, 8 RCTs, and 18 single-arm studies, and the result shows anthracyclines were associated with a statistically significant 90% increase in the risk of arrhythmia and a 114% increase in the risk of supraventricular arrhythmia. Among them, epirubicin ranked the most likely to have the highest risk of arrhythmia compared with non-anthracycline antineoplastic drugs in the analysis. The purpose of this research is to improve the monitoring of ECGs by clinicians while applying anthracyclines and to try to use molecular imaging technology to study the mechanism of drug action on cardiac electrophysiology in the future. The effects of anthracycline agents on the electrophysiological properties of cardiac cells can be better understood with the help of imaging molecular targets in cardiac cells, which may result in safer and more effective clinical use of the drugs.

Abstract

Background: Chemotherapy is the main first-line treatment, but there is a problem of adverse reactions to systemic drugs. Chemotherapeutic agents may cause adverse effects on the body, influencing the prognosis. Whether the clinical application of anthracyclines is associated with an increased arrhythmic risk remains controversial. To evaluate the arrhythmic risk of anthracyclines as a class, and the comparative risk for each drug, we conducted a systematic review, meta-analysis, and network meta-analysis. Methods: PubMed, Web of Science, EMBASE, and the Cochrane Library were searched, up to March 2022, for randomized controlled trials, cohort studies, and case–control studies that investigated the association between anthracyclines treatment and the risk of arrhythmia. We followed the PRISMA 2020 guidelines for data selection and extraction. Outcomes were pooled using fixed effects models in cohort studies and randomized controlled studies, and random models in single-arm studies. Direct and indirect comparisons in network meta-analysis were performed using frequentist methods. Results: In total, 4 cohort studies, 8 RCTs, and 18 single-arm studies were included in our analysis. Anthracyclines’ use was associated with a statistically significant 90% increase in the risk of arrhythmia (odds ratio [OR] 1.90; 95% confidence interval [CI] 1.62–2.24) and a 114% increase in the risk of supraventricular arrhythmia (OR 2.14; 95% CI 1.18–3.89). And the single-arm studies also indicated that the incidence of arrhythmia rate is 20% and the 95% CI is 15/100–25/100. Epirubicin ranked most likely to have the highest risk of arrhythmia compared with non-anthracycline antineoplastic drugs in the analysis (OR 43.07 [95% CI 2.80–2105.83]) by network meta-analysis. Conclusions: Our findings show a significant association between anthracyclines’ use and an increased risk of arrhythmia, especially supraventricular arrhythmia. Epirubicin ranked with the highest probability of arrhythmia. These results indicated that cardiac rhythm should be strictly monitored during the application of anthracyclines in clinical practice, and a possible therapy for anthracycline-associated arrhythmia should be explored. Molecular imaging technology is an important means to study the mechanism of drug action on cardiac electrophysiology in the future. By imaging molecular targets in cardiac cells, the effects of drugs on the electrophysiological properties of cardiac cells can be understood, which provides information for the development of safer and more effective drugs.

1. Introduction

Chemotherapy is the predominant first-line treatment of various cancers at present [1], but its side effects during systemic administration have always been a problem for patients and doctors. Among chemotherapeutic treatments, the use of therapeutic drugs often has adverse effects on the body and may even affect the prognosis. Anthracyclines have a central role in anti-cancer therapy, which is widely used to treat lymphoma, sarcoma, breast cancer, and pediatric leukemia [2]. However, their cardiac toxicity remains a serious clinical problem and has become the primary cause of chemotherapy-induced cardiotoxicity (AIC) [3]. The estimated prevalence rate for all kinds of AIC is 16–23% [4]. Previous studies have shown that patients given anthracycline agents are at risk of heart failure, cardiomyopathy, and even death, with a significantly impaired life expectancy and quality of life.
Anthracyclines are glycoside drugs comprising the amino sugar daunosamine linked to a hydroxy anthraquinone aglycone, and they act by DNA intercalation, oxidative stress generation, and topoisomerase II poisoning towards patients with cancers [5]. These pathological contributors lead to the development of cardiomyopathy including oxidative stress and intracellular iron, ultimately leading to apoptosis [6]. Importantly, these electrocardiograph (ECG) changes predate the decline in the ejection fraction in patients with obvious dose-dependent cardiac toxicity [7,8,9], which lead to a major cause of death in cancer survivors [10]. Recently, researchers have suggested that anthracycline agents may be a risk factor for arrhythmias, which cause nonspecific ECG changes, such as ST-T changes, QT interval prolongation, and atrial fibrillation (AF) [11,12,13,14,15]. Whereas, there have also been some studies demonstrating the importance of the left ventricular ejection fraction (LVEF) reduction or NT-BNP plasma level rather than the risk of arrhythmias [16,17]. Even though the observed arrhythmias were rather benign [18], the incidence rates of abnormally prolonged QT dispersion intervals, QT dispersion, and corrected QT dispersion could be early markers of AIC [19].
In addition, the existing evidence is relatively limited and inconclusive. This systematic review, meta-analysis, and network meta-analysis were conducted to comprehensively evaluate the risk of arrhythmias among patients given anthracycline agents compared to individuals without anthracycline treatment by identifying all relevant studies and combining their results.

2. Materials and Methods

2.1. Protocol

The protocol used for the current systematic review and network meta-analysis is included in the Supplementary Materials. The protocol was registered in the PROSPERO registry (registration number CRD42021286232).

2.2. Study Design

A systematic review and network meta-analysis were performed with a frequentist statistical approach, based on a prespecified study protocol (Supplementary Materials). The results of the present study are reported according to the PRISMA extension statement for network meta-analysis.

2.3. Search Strategy, Selection Criteria, and Data Extraction

We performed a systematic search of PubMed, EMBASE, Web of Science, and the Cochrane Library that investigated the association between anthracycline treatment and the risk of arrhythmia from inception to 18 March 2022; studies with missing data were excluded. The systematic search strategy and search terms are documented in the Supplementary Materials.
We considered randomized controlled trials (RCTs), cohort studies, and case–control studies written in the English language and investigating the occurrence of arrhythmia of the main drug. Pharmacological agents are listed in Table 1. A manual search of the reference lists of review articles and original studies was performed to identify additional reports. No language was used during the search. Target studies were limited to populations with anthracycline-induced arrhythmia, enrolled in the outpatient setting or after stabilization following hospitalization. Articles were also excluded from the analysis if they had insufficient published data to estimate the risk ratio, odds ratio (OR), and confidence interval (CI). Studies were excluded when the entire population included patients with arrhythmia before adopting anthracyclines to reduce the potential for confounding by indication.
The studies were obtained from four medical databases and were independently screened by two reviewers (Hongzheng Li and Wenwen Yang) based on their titles and abstracts. A comprehensive search of the reference lists of the review articles and original studies was performed to identify additional reports. Disagreements were resolved through a consensus or referral to a third reviewer (Xin Zhao) when no consensus was reached. Data were extracted by two independent reviewers (Feifei Liao and Mingyan Huang). Disagreements were resolved through a consensus or referral to a third reviewer (Xin Zhao) when needed. Data regarding the following characteristics were extracted: study details (study design, geographical location, publication year, funding sources, and duration of follow-up); participants’ details (number, study population, age, and sex); intervention and comparator characteristics (drug name, dosage regimen); outcomes and measurements; and covariate adjustments. Data were collected independently by two reviewers (Zikai Yu and Mingyan Huang) and checked by a third reviewer (Yuxuan Peng).

2.4. Study Quality and Critical Appraisal

The quality of the studies was assessed according to the Newcastle–Ottawa Quality Assessment Scale Cohort Studies (NOS) and Risk of Bias-2 (RoB) for RCTs [20]. NOS includes three aspects (selection, comparability, and exposure for case–control studies or outcomes for cohort studies), as well as scores of 4, 2, and 3, respectively. These assessments of quality were undertaken by two reviewers (Hongzheng Li and Wenwen Yang). Any differences in the quality assessments were resolved by a consensus or referral to a third reviewer (Zikai Yu). The certainty of the evidence was evaluated by using the Grading of Recommendations Assessment, Development, and Evaluation (GRADE) approach that was specifically developed for concluding a network meta-analysis, and the GRADE approach adopted a minimally contextualized framework that has been described elsewhere in detail. The certainty of the evidence was expressed as high certainty and low certainty. The classification of intervention was expressed as Category 2 (among the most effective), Category 1 (inferior to the most effective, or superior to the least effective), and Category 0 (among the least effective). Trained GRADE methodologists analyzed the data to assess the quality of evidence, given the strength of the recommendation (Supplementary Materials).

2.5. Outcomes

In network meta-analysis, we focused on any kind of arrhythmia as the primary outcome of interest, and we analyzed the outcome of supraventricular arrhythmia, tachycardia, and ventricular arrhythmias. Meanwhile, in pooled analysis in single-arm studies, we focused on the risk of arrhythmias.

2.6. Statistical Analysis

Raw data were extracted from individual studies using a predefined data extraction form created using Excel, and the pooled ORs and corresponding 95% CIs were calculated for each primary outcome. The heterogeneity of the data was quantified using the Q and I2 statistics. High heterogeneity was considered significant when p < 0.1 for the Q statistic or when I2 was >50%. The effect sizes of anthracyclines as a class were pooled using random-effects models. These analyses were performed using STATA software version 15.1. Prevalence was estimated based on the total population at risk and the number of anthracycline users by using the Poisson distribution for the calculation of 95% CIs, as appropriate, and STATA software version 15.1. The pooled prevalence was assessed using the Der Simonian and Laird random-effects model when significant heterogeneity was present (I2 > 50% or p < 0.005) or a fixed-effects model in the absence of significant heterogeneity.
Additionally, we conducted a network meta-analysis according to PRISMA-NMA 2020 to pool direct and indirect comparisons of the marketed anthracyclines (namely, epirubicin, doxorubicin, pegylated liposomal doxorubicin, and other anthracyclines) concerning their relative arrhythmia risks. This analysis and the network graphs were generated using the ‘GeMTC 0.14.3’ package in the R environment (version 4.1.3). Moreover, we ranked the risk of arrhythmia associated with anthracyclines using p-scores derived from network point estimates and standard errors. The ranking indicated the probability of being associated with the highest risk of arrhythmia, the second highest risk, the third highest risk, and so on. Rank 1 corresponded to the lowest and Rank N to the highest probability of inducing arrhythmia [21]. Inconsistency was assessed using the Q statistic and by comparing the results of direct and indirect estimates using the ‘GeMTC 0.14.3’ package in the R environment (version 4.1.3).
Possible publication bias was assessed using a graphical visualization of the funnel plot, Begg’s test, and Egger’s test [22]. A meta-regression was performed to identify influential variables; p < 0.05 indicated a significant effect. Sensitivity analyses were performed as post hoc analyses according to the study type and study period. We performed subgroup analyses according to the study design (cohort studies and RCTs). Because of the limited number of studies for each analysis, we did not perform a subgroup analysis of the included studies.

3. Results

3.1. Description of the Selected Studies

Our search generated 1236 records for evaluation. Duplicate records were removed before screening, resulting in 933 potentially relevant works that were further evaluated based on the abstract. After excluding irrelevant abstracts, 122 articles were selected for full-text evaluation. In total, 9 articles, including 3 cohort studies, 6 RCTs, and 18 single-arm studies, were included in our analysis. The search process is illustrated in Figure 1. The selected cohort studies and RCTs involved the use of anthracyclines as a group and the use of epirubicin, doxorubicin, pegylated liposomal doxorubicin, and rubidazone individually. The study characteristics (study design, geographical location, funding sources, duration of allocation, races, type of cancer, duration of treatment, duration of follow-up, sample size, mean age, gender, type of anthracyclines, treatment control, and quality scores, specifically) are summarized in Table 2. Additional information, including quality assessments of observational studies and the overall risk of bias of RCTs, is available in the Supplementary Materials. The comparator group was most commonly treated with non-anthracycline antineoplastic drugs, such as cyclophosphamide, methotrexate, fluorouracil, carboplatin, and paclitaxel. The characteristics of the 18 single-arm studies are summarized in Table 3.

3.2. Bias Assessment

Among these 12 studies, 3 were industry-sponsored and 3 were sponsored by national science foundations. The three studies sponsored by the industry provided only 12.4% and 10.7% of the patients included in the meta-analysis and network meta-analysis, respectively. The study size was heterogeneous, ranging from 40 to 5026 patients in individual studies. The cancer types varied. Seven studies included patients with breast cancer. One study focused on advanced non-small-cell lung cancer. The remaining four studies included patients with non-Hodgkin’s lymphoma, ovarian cancer, prostate carcinoma, and various malignancies. There were some differences in the duration of follow-up of the studies. Four studies did not mention the follow-up duration and six studies involved more than 12 months of follow-up. However, one study had a follow-up duration of 6 months and one study had a follow-up duration of 6.5 months. Additionally, the anthracycline treatment varied. Five studies used epirubicin, two studies used doxorubicin, three studies used pegylated liposomal doxorubicin, and two studies used different types of anthracyclines. Although we assessed publication bias quantitatively, all studies exhibited a minimum partial response (Table 2, Supplementary Materials).

3.3. Meta-Analysis

3.3.1. Risk of Arrythmias

Nine studies with 8537 participants (three cohort studies and six RCTs) reported arrhythmia among anthracycline users. Regarding cohort studies, compared with non-anthracycline antineoplastic drug users, anthracycline users had a summary OR of 1.83 (95% CI, 1.56–2.16; three studies). Regarding RCTs, the summary OR was 5.54 (95% CI, 1.91–16.08; six studies) for anthracycline users. No significant differences were observed between subgroups (I2 = 0%, p = 0.431; I2 = 0%, p = 0.823). This pooled analysis showed a significant association between anthracycline use and an increased risk of arrhythmia (OR, 1.90; 95% CI, 1.62–2.24), with no heterogeneity (p = 0.580; I2 = 0%) (Figure 2). A funnel plot of the standard error of the logarithm of the transformed proportion is shown in Figure S2; Begg’s test and Egger’s test suggested no publication bias (p = 0.602; t = 7.53).

3.3.2. Risk of Supraventricular Arrhythmia

Three studies with 5543 participants (one cohort study and two RCTs) reported supraventricular arrhythmias among anthracycline users. Regarding cohort studies, compared with non-anthracycline antineoplastic drug users, anthracycline users had a summary OR of 1.85 (95% CI, 0.98–3.49; one study). Regarding RCTs, the summary OR was 6.34 (95% CI, 0.76–52.94; two studies) for anthracycline users. No significant differences were observed between subgroups (I2 = 0% and p = 0.839 for RCTs). The pooled analysis showed a significant association between anthracycline use and an increased risk of supraventricular arrhythmia (OR, 2.14; 95% CI, 1.18–3.89), with no heterogeneity (p = 0.543; I2 = 0%) (Figure 3). Begg’s test and Egger’s test suggested no publication bias (p = 1.0; t = 2.62).

3.3.3. Risk of Arrythmia in Single-Arm Studies

The pooled analysis of the prevalence of anthracycline-associated arrhythmia included 6566 patients with 227 reported arrhythmias. The pooled prevalence of anthracycline users in our cohort was 20% (95% CI, 0.15–0.25), with significant heterogeneity between the studies (I2 = 93.2%; p = 0), as it shown in Figure 4. We repeated the analysis stratified by anthracycline type, geographical location, and cancer type. We found no regional variation and statistically similar prevalence estimates for North America (9 studies; 17%; 95% CI, 0.08–0.25), Europe (8 studies; 27%; 95% CI, 0.15–0.39), and Asia (1 study; 28%; 95% CI, 0.14–0.42). The prevalence was high in North America (p = 0; I2 = 92.7%) and Europe (p = 0; I2 = 93.2%). We repeated the analysis stratified by the decade of the study and anthracycline type; however, secular trends in the prevalence of arrhythmia in those studies were not observed.

3.4. Network Meta-Analysis

Four cohort studies and eight RCTs with 9875 patients were included in this network meta-analysis. Patients were treated with epirubicin plus non-anthracycline antineoplastic drugs in four studies, and with different anthracyclines in three studies. Among them, doxorubicin plus non-anthracycline antineoplastic drugs were used in two studies. Pegylated liposomal doxorubicin plus non-anthracycline antineoplastic drugs were used in one study. A comparison between anthracyclines and non-anthracycline antineoplastic drugs was performed in two studies. A comparison of different dosages of pegylated liposomal doxorubicin was performed in one study. A comparison of different dosages of epirubicin was performed in one study. A comparison of different dosages of pirarubicin was performed in one study. A comparison of different dosages of doxorubicin was performed in one study (Figure 5).
During the network meta-analysis of arrhythmia (network plot in Figure 6), epirubicin was ranked most likely to be associated with the highest risk of arrhythmia compared with non-anthracycline antineoplastic drugs (OR, 43.07; 95% CI, 2.80–2105.83), and non-anthracycline antineoplastic drugs were most likely to be associated with the lowest risk of arrhythmia (Figure 6). And a comparative ORs for the incidence of arrythmia with different anthracycline treatments and non-anthracycline treatments was showed in Figure 7. The probability of each intervention inducing the highest risk of arrhythmia was ranked according to seven possible positions (Table 4). Rank 7 corresponded to the highest probability of inducing arrhythmia and Rank 1 corresponded to the lowest probability of inducing arrhythmia. Besides, a ranking table is also provided (Figure S1). Doxorubicin and pegylated liposomal doxorubicin had the highest probability of inducing the highest risk of arrhythmia. Additionally, non-anthracycline antineoplastic drugs appeared to be associated with a lower risk of arrhythmia than other anthracycline treatments.

4. Discussion

This meta-analysis focused on the association between anthracyclines and the risk of arrhythmia. Our results identified a consistent association between anthracycline use and arrhythmia, with a statistically significant 90% increase in the risk of arrhythmia and 114% increase in the risk of supraventricular arrhythmia. According to network meta-analyses, epirubicin treatment was associated with the highest probability of being associated with the risk of arrhythmia compared to other anthracycline and non-anthracycline treatments. Overall, these findings support a link between arrhythmia and anthracyclines and provide a relatively rational explanation regarding why anthracyclines significantly increase the risks of cardiac events and mortality in addition to heart failure.
Anthracyclines are widely used to treat adult and pediatric cancers. Despite their therapeutic efficacy, anthracyclines are associated with both acute-onset and late-onset cardiac toxicities [50]. Meta-analyses have reported an overt cardiotoxicity incidence of 6.3% and a subclinical cardiotoxicity incidence of 17.9% [51]. Among these AICs, the induction of arrhythmia may not be as serious as cardiomyopathy or heart failure. However, anthracyclines are associated with electrocardiographic alterations [52]. In 1981, a patient with non-small-cell lung cancer developed acute-onset AF with a rapid ventricular response during the first administration of Adriamycin; thereafter, physicians became aware of possible life-threatening arrhythmias during or soon after Adriamycin administration [53]. However, anthracycline-induced arrhythmia did not gain much attention until Bender first described the prolongation of the QT interval with anthracycline therapy in 1984 [54]. Two years later, epirubicin was reported to cause transient cardiac arrhythmias and electrocardiogram alterations [55]. The impact of anti-cancer drugs on cardiac repolarization (i.e., QT prolongation) and the potential risk of life-threatening arrhythmia torsades de pointes, which are common challenges in the field, have been gradually noticed and reduced.
In our study, supraventricular arrhythmia was the most common adverse effect of anthracyclines. Previous studies have reported that AF, one of the representatives of supraventricular arrhythmia, was detected using Holter monitoring for 10.3% of patients treated with doxorubicin [56]. Studies have revealed that AF onset always occurs before the development of heart failure in patients and that the incidence of AF increases with anthracycline doses; therefore, new-onset AF might be a sensitive indicator of AICs [11,57]. An experimental study of sheep also reported that atrial remodeling favoring AF development was observed in doxorubicin-induced heart failure models [58]. Experiments involving rats also confirmed that anthracycline exposure resulted in an 86% incidence of ventricular tachycardia or ventricular fibrillation [59].
Although QT prolongation is not a perfect marker of the arrhythmia risk, it has become a primary safety metric for oncologists [60]. The variability in the QT interval, a probable marker of an arrhythmogenic substrate, reflects an increase in regional differences in ventricular repolarization [61] and has been associated with life-threatening ventricular arrhythmias and sudden death [62]. Our results also suggest that QT prolongation is common in anthracycline-induced arrhythmia, similar to the results of previous reports [63].
Left ventricular dysfunction caused by AIC has been believed to be irreversible; however, the early initiation of standard medical treatment for heart failure may lead to left ventricular functional recovery with AIC [64]. In this meta-analysis, we found that anthracycline use may increase arrhythmia-related risks. The close monitoring of ECG changes would clarify the occurrence of acute-onset and delayed-onset cardiac toxicity caused by anthracyclines, which may have some significance in preventing irreversible AIC and the occurrence of serious adverse cardiac events. Further studies of life-long cardiac follow-up for patients undergoing anthracycline-based chemotherapy are necessary [65].
Our study has several strengths. First, the results are generalizable because of the large number of participants involved in the arrhythmia analyses and the use of raw data. Subgroup, sensitive, and regression analyses were performed to support these findings. Furthermore, to our knowledge, this is the first study to conduct indirect comparisons using a network meta-analysis to assess differences in the arrhythmia risks associated with individual anthracyclines.
Our study has several potential limitations as well. First, our study was not designed to explore the interaction between comorbidity and the arrhythmic adverse effects of anthracyclines; therefore, the observed risk does not reflect the risk in special populations such as patients with conduction disorders and patients with prior cardiovascular events. Second, many of these studies did not provide information regarding important lifestyle factors that influence the arrhythmic risk, patient compliance, and chemotherapy regimen. Third, a misclassification bias may have occurred because arrhythmia screening is not sufficiently intensive to detect several paroxysmal arrhythmias such as paroxysmal AF and infrequent premature contractions. Fourth, the meta-analysis was highly heterogeneous among single-arm studies. The high heterogeneity can be attributed to different indications for the types of carcinomas and anthracyclines, different dosages of anthracyclines, different treatment and follow-up durations, different coexisting conditions, different countries, different ages, and different sexes. We used a random-effects model for our calculations to account for the possibility of study-dependent variations in effects and conducted a sensitivity analysis. Finally, this analysis was not sufficiently strong to provide the basis for any changes in practice. These findings need to be formally assessed by larger, prospective, real-world studies and clinical trials with strict ECG monitoring.
Molecular imaging techniques are increasingly being recognized as an important tool in the study of drug effects on cardiac electrophysiology. With advancements in science and technology, molecular imaging has become an essential approach to investigating the mechanism of drug action. By visualizing molecular targets within cardiac cells, we can gain valuable insights into how drugs impact the electrophysiological properties of the heart, thereby facilitating the development of safer and more effective medications. In the field of cardiac electrophysiology, molecular imaging can be employed to examine the influence of drugs on various molecular targets, including ion channels, receptors, and enzymes. For instance, anti-cancer drugs may alter the intracellular calcium ion channels in the heart, affecting the excitability and contractility of cardiac cells. Through molecular imaging, we can observe the effects of drugs on calcium channels, enabling a better understanding of their mechanisms and impacts. Furthermore, molecular imaging can also shed light on the effects of drugs on other molecular targets in cardiac cells, such as sodium channels, potassium channels, and hydrogen channels, all of which play crucial roles in the electrophysiological properties of the heart. Therefore, studying the effects of drugs on these channels using molecular imaging is vital for the development of safer and more effective medications. In conclusion, molecular imaging technology will undoubtedly emerge as a key approach in future studies on the mechanisms of drug action. By investigating the imaging of molecular targets within cardiac cells, we can enhance our understanding of how drugs affect the electrophysiological properties of the heart, thus providing essential information for the development of safer and more effective medications. At the same time, molecular imaging technology can also be used to study the mechanism of drug action in other organs and tissues, providing important reference information for drug development and clinical application.

5. Conclusions

The clinical application of anthracycline was associated with an increased risk of arrhythmia, especially supraventricular arrhythmia. Epirubicin ranked with the highest probability for arrhythmia. These results indicated that cardiac rhythm should be strictly monitored during the application of anthracyclines, and possible therapy for anthracyclines-associated arrhythmia should be explored.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biology13070465/s1, Table S1: Search strategy; Figure S1: Tests for publication bias for arrhythmia in anthracycline users versus non-users; Figure S2: Funnel plot for publication bias for arrhythmia in anthracycline users versus non-users; Figure S3: Sensitive analysis for arrhythmia in anthracycline users versus non-users; Figure S4: Regression analysis for arrhythmia in anthracycline users versus non-users by study types and years; Figure S5: Tests for publication bias for supraventricular arrhythmia in anthracycline users versus non-users; Figure S6: Regression analysis for supraventricular arrhythmia in anthracycline users versus non-users via type of study; Figure S7: Funnel plot for publication bias for arrhythmia in anthracycline users in single-arm studies; Figure S8: Sensitive analysis for arrhythmia in anthracycline users in single-arm studies; Figure S9: Regression analysis via type of study for arrhythmia in anthracycline users in single-arm studies; Figure S10: Subgroup analysis via type of anthracyclines for arrhythmia in single-arm studies; Figure S11: Subgroup analysis via countries for arrhythmia in single-arm studies; Figure S12: Subgroup analysis via different type of carcinomas for arrhythmia in single-arm studies; Figure S13: Subgroup analysis via continents for arrhythmia in single-arm studies; Figure S14: Treatment ranked by probability of highest risk of arrhythmia; Figure S15: Direct comparisons in the network.

Author Contributions

H.L., X.Z., and Z.Y. conceived of the study, formulated its design and methodology and drafted the manuscript. W.Y., F.L., A.L., M.H., Y.P., and X.Z. advised on the study objectives and methodology and helped with drafting the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Escort Project Phase II (Key Personnel Training Project) (No. GAMHH9324032), the National Natural Science Foundation of China for Young Scholars (No. 82104679), and the Fundamental Research Funds for the Central Public Welfare Research Institutes (No. ZZ15-YQ-004).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article as no datasets were generated or analyzed during the current study, but can be check from the supplements.

Acknowledgments

We thank Guang Chen from Harvard Medical School for advising on the referencing software.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yang, C.; Li, P.; Chen, Y.; Zheng, J.; Zhang, X.; Gao, H.F.; Zhang, L.; Wang, K. Pooled analysis of NeoCARH and NeoCART trials: Patient-reported outcomes in patients with early-stage breast cancer receiving platinum-based or anthracycline-based neoadjuvant chemotherapy. Support Care Cancer 2024, 32, 401. [Google Scholar] [CrossRef]
  2. Vejpongsa, P.; Yeh, E.T. Prevention of anthracycline-induced cardiotoxicity: Challenges and opportunities. J. Am. Coll. Cardiol. 2014, 64, 938–945. [Google Scholar] [CrossRef]
  3. Singal, P.K.; Siveski-Iliskovic, N. Doxorubicin-induced cardiomyopathy. N. Engl. J. Med. 1998, 339, 900–905. [Google Scholar] [CrossRef]
  4. Lotrionte, M.; Biondi-Zoccai, G.; Abbate, A.; Lanzetta, G.; D’Ascenzo, F.; Malavasi, V.; Peruzzi, M.; Frati, G.; Palazzoni, G. Review and meta-analysis of incidence and clinical predictors of anthracycline cardiotoxicity. Am. J. Cardiol. 2013, 112, 1980–1984. [Google Scholar] [CrossRef]
  5. Martins-Teixeira, M.B.; Carvalho, I. Antitumour Anthracyclines: Progress and Perspectives. ChemMedChem 2020, 15, 933–948. [Google Scholar] [CrossRef]
  6. Horan, P.G.; McMullin, M.F.; McKeown, P.P. Anthracycline cardiotoxicity. Eur. Heart J. 2006, 27, 1137–1138. [Google Scholar] [CrossRef]
  7. Herrmann, J. Adverse cardiac effects of cancer therapies: Cardiotoxicity and arrhythmia. Nat. Rev. Cardiol. 2020, 17, 474–502. [Google Scholar] [CrossRef]
  8. Markman, T.M.; Nazarian, S. Arrhythmia and Electrophysiological Effects of Chemotherapy: A Review. Oncology 2016, 91, 61–68. [Google Scholar] [CrossRef]
  9. Grenier, M.; Lipshultz, S. Epidemiology of anthracycline cardiotoxicity in children and adults. Semin. Oncol. 1998, 25, 72–85. [Google Scholar]
  10. Nabati, M.; Janbabai, G.; Esmailian, J.; Yazdani, J. Effect of Rosuvastatin in Preventing Chemotherapy-Induced Cardiotoxicity in Women With Breast Cancer: A Randomized, Single-Blind, Placebo-Controlled Trial. J. Cardiovasc. Pharmacol. Ther. 2019, 24, 233–241. [Google Scholar] [CrossRef]
  11. Amioka, M.; Sairaku, A.; Ochi, T.; Okada, T.; Asaoku, H.; Kyo, T.; Kihara, Y. Prognostic Significance of New-Onset Atrial Fibrillation in Patients With Non-Hodgkin’s Lymphoma Treated With Anthracyclines. Am. J. Cardiol. 2016, 118, 1386–1389. [Google Scholar] [CrossRef]
  12. Kaukel, E.; Koschel, G.; Gatzemeyer, U.; Salewski, E. A phase II study of pirarubicin in malignant pleural mesothelioma. Cancer 1990, 66, 651–654. [Google Scholar] [CrossRef]
  13. Galetta, F.; Franzoni, F.; Cervetti, G.; Cecconi, N.; Carpi, A.; Petrini, M.; Santoro, G. Effect of epirubicin-based chemotherapy and dexrazoxane supplementation on QT dispersion in non-Hodgkin lymphoma patients. Biomed. Pharmacother. 2005, 59, 541–544. [Google Scholar] [CrossRef]
  14. Chen, Z.; Lu, K.; Zhou, L.; Liu, D.; Li, X.; Han, X.; Tao, H.; Tse, G.; Zhang, H.; Liu, T. Electrocardiographic characteristics of diffuse large B-cell lymphoma patients treated with anthracycline-based chemotherapy. J. Electrocardiol. 2020, 60, 195–199. [Google Scholar] [CrossRef]
  15. Nakamae, H.; Tsumura, K.; Akahori, M.; Terada, Y.; Yamane, T.; Hayashi, T.; Saito, I.; Kaneko, M.; Okamoto, N.; Ichihara, Y.; et al. QT dispersion correlates with systolic rather than diastolic parameters in patients receiving anthracycline treatment. Intern. Med. 2004, 43, 379–387. [Google Scholar] [CrossRef]
  16. Shamai, S.; Rozenbaum, Z.; Merimsky, O.; Derakhshesh, M.; Moshkovits, Y.; Arnold, J.; Topilsky, Y.; Arbel, Y.; Laufer-Perl, M. Cardio-toxicity among patients with sarcoma: A cardio-oncology registry. BMC Cancer 2020, 20, 609. [Google Scholar] [CrossRef]
  17. Sulaiman, L.; Hesham, D.; Abdel Hamid, M.; Youssef, G. The combined role of NT-proBNP and LV-GLS in the detection of early subtle chemotherapy-induced cardiotoxicity in breast cancer female patients. Egypt. Heart J. 2021, 73, 20. [Google Scholar] [CrossRef]
  18. Kilickap, S.; Barista, I.; Akgul, E.; Aytemir, K.; Aksoy, S.; Tekuzman, G. Early and late arrhythmogenic effects of doxorubicin. South. Med. J. 2007, 100, 262–265. [Google Scholar] [CrossRef]
  19. Gupta, M.; Thaler, H.T.; Friedman, D.; Steinherz, L. Presence of prolonged dispersion of qt intervals in late survivors of childhood anthracycline therapy. Pediatr. Hematol. Oncol. 2002, 19, 533–542. [Google Scholar] [CrossRef]
  20. Sterne, J.A.C.; Savović, J.; Page, M.J.; Elbers, R.G.; Blencowe, N.S.; Boutron, I.; Cates, C.J.; Cheng, H.Y.; Corbett, M.S.; Eldridge, S.M.; et al. RoB 2: A revised tool for assessing risk of bias in randomised trials. BMJ 2019, 366, l4898. [Google Scholar] [CrossRef]
  21. Rücker, G.; Schwarzer, G. Ranking treatments in frequentist network meta-analysis works without resampling methods. BMC Med. Res. Methodol. 2015, 15, 58. [Google Scholar] [CrossRef] [PubMed]
  22. Egger, M.; Davey, S.G.; Schneider, M.; Minder, C. Bias in meta-analysis detected by a simple, graphical test. BMJ 1997, 315, 629–634. [Google Scholar] [CrossRef]
  23. Valagussa, P.; Zambetti, M.; Biasi, S.; Moliterni, A.; Zucali, R.; Bonadonna, G. Cardiac effects following adjuvant chemotherapy and breast irradiation in operable breast cancer. Ann. Oncol. 1994, 5, 209–216. [Google Scholar] [CrossRef]
  24. Martoni, A.; Guaraldi, M.; Piana, E.; Strocchi, E.; Petralia, A.; Busutti, L.; Preti, P.; Robustelli, G.; Raimondi, M.; Ferrara, G.; et al. Multicenter randomized clinical trial on high-dose epirubicin plus cis-platinum versus vinorelbine plus cis-platinum in advanced non small cell lung cancer. Lung Cancer 1998, 22, 31–38. [Google Scholar] [CrossRef]
  25. Fargeot, P.; Bonneterre, J.; Roché, H.; Lortholary, A.; Campone, M.; Van Praagh, I.; Monnier, A.; Namer, M.; Schraub, S.; Barats, J.C.; et al. Disease-free survival advantage of weekly epirubicin plus tamoxifen versus tamoxifen alone as adjuvant treatment of operable, node-positive, elderly breast cancer patients: 6-year follow-up results of the French adjuvant study group 08 trial. J. Clin. Oncol. 2004, 22, 4622–4630. [Google Scholar] [CrossRef]
  26. Owczuk, R.; Wujtewicz, M.A.; Sawicka, W.; Wujtewicz, M.; Swierblewski, M. Is prolongation of the QTc interval during isoflurane anaesthesia more prominent in women pretreated with anthracyclines for breast cancer? Br. J. Anaesth. 2004, 92, 658–661. [Google Scholar] [CrossRef]
  27. Fountzilas, G.; Kalofonos, H.P.; Dafni, U.; Papadimitriou, C.; Bafaloukos, D.; Papakostas, P.; Kalogera-Fountzila, A.; Gogas, H.; Aravantinos, G.; Moulopoulos, L.A.; et al. Paclitaxel and epirubicin versus paclitaxel and carboplatin as first-line chemotherapy in patients with advanced breast cancer: A phase III study conducted by the Hellenic Cooperative Oncology Group. Ann. Oncol. 2004, 15, 1517–1526. [Google Scholar] [CrossRef]
  28. Feher, O.; Vodvarka, P.; Jassem, J.; Morack, G.; Advani, S.H.; Khoo, K.S.; Doval, D.C.; Ermisch, S.; Roychowdhury, D.; Miller, M.A.; et al. First-line gemcitabine versus epirubicin in postmenopausal women aged 60 or older with metastatic breast cancer: A multicenter, randomized, phase III study. Ann. Oncol. 2005, 16, 899–908. [Google Scholar] [CrossRef]
  29. Hutchins, L.F.; Green, S.J.; Ravdin, P.M.; Lew, D.; Martino, S.; Abeloff, M.; Lyss, A.P.; Allred, C.; Rivkin, S.E.; Osborne, C.K. Randomized, controlled trial of cyclophosphamide, methotrexate, and fluorouracil versus cyclophosphamide, doxorubicin, and fluorouracil with and without tamoxifen for high-risk, node-negative breast cancer: Treatment results of Intergroup Protocol INT-0102. J. Clin. Oncol. 2005, 23, 8313–8321. [Google Scholar] [CrossRef]
  30. Pignata, S.; Scambia, G.; Savarese, A.; Breda, E.; Scollo, P.; De Vivo, R.; Rossi, E.; Gebbia, V.; Natale, D.; Del Gaizo, F.; et al. Safety of a 3-weekly schedule of carboplatin plus pegylated liposomal doxorubicin as first line chemotherapy in patients with ovarian cancer: Preliminary results of the MITO-2 randomized trial. BMC Cancer 2006, 6, 202. [Google Scholar] [CrossRef]
  31. Nickel, A.C.; Patel, A.; Saba, N.F.; Leon, A.R.; El-Chami, M.F.; Merchant, F.M. Incidence of Cancer Treatment-Induced Arrhythmia Associated With Novel Targeted Chemotherapeutic Agents. J. Am. Heart Assoc. 2018, 7, e010101. [Google Scholar] [CrossRef] [PubMed]
  32. Heidenreich, A.; Sommer, F.; Ohlmann, C.H.; Schrader, A.J.; Olbert, P.; Goecke, J.; Engelmann, U.H. Prospective randomized Phase II trial of pegylated doxorubicin in the management of symptomatic hormone-refractory prostate carcinoma. Cancer 2004, 101, 948–956. [Google Scholar] [CrossRef] [PubMed]
  33. Zhai, L.; Guo, C.; Cao, Y.; Xiao, J.; Fu, X.; Huang, J.; Huang, H.; Guan, Z.; Lin, T. Long-term results of pirarubicin versus doxorubicin in combination chemotherapy for aggressive non-Hodgkin’s lymphoma: Single center, 15-year experience. Int. J. Hematol. 2010, 91, 78–86. [Google Scholar] [CrossRef] [PubMed]
  34. Vici, P.; Colucci, G.; Giotta, F.; Sergi, D.; Filippelli, G.; Perri, P.; Botti, C.; Vizza, E.; Carpino, A.; Pizzuti, L.; et al. A multicenter prospective phase II randomized trial of epirubicin/vinorelbine versus pegylated liposomal doxorubicin/vinorelbine as first-line treatment in advanced breast cancer. A GOIM study. J. Exp. Clin. Cancer Res. 2011, 30, 39. [Google Scholar] [CrossRef] [PubMed]
  35. Ragab, A.H.; Sutow, W.W.; Komp, D.M.; Starling, K.A.; Lyon, G.M., Jr.; George, S. Adriamycin in the treatment of childhood acute leukemia. A Southwest Oncology Group study. Cancer 1975, 36, 1223–1226. [Google Scholar] [CrossRef]
  36. Von Hoff, D.D.; Rozencweig, M.; Layard, M.; Slavik, M.; Muggia, F.M. Daunomycin-induced cardiotoxicity in children and adults. A review of 110 cases. Am. J. Med. 1977, 62, 200–208. [Google Scholar] [CrossRef]
  37. Bonfante, V.; Villani, F.; Bonadonna, G. Toxic and therapeutic activity of 4′-epi-doxorubicin. Tumori 1982, 68, 105–111. [Google Scholar] [CrossRef] [PubMed]
  38. Antman, K.; Suit, H.; Amato, D.; Corson, J.; Wood, W.; Proppe, K.; Harmon, D.; Carey, R.; Greenberger, J.; Blum, R. Preliminary results of a randomized trial of adjuvant doxorubicin for sarcomas: Lack of apparent difference between treatment groups. J. Clin. Oncol. 1984, 2, 601–608. [Google Scholar] [CrossRef]
  39. Steinberg, J.S.; Cohen, A.J.; Wasserman, A.G.; Cohen, P.; Ross, A.M. Acute arrhythmogenicity of doxorubicin administration. Cancer 1987, 60, 1213–1218. [Google Scholar] [CrossRef]
  40. Umsawasdi, T.; Felder, T.B.; Jeffries, D.; Newman, R.A. Phase II study of 4-demethoxydaunorubicin in previously untreated extensive disease non-small cell lung cancer. Investig. New Drugs 1990, 8, S73–S78. [Google Scholar] [CrossRef]
  41. Fountzilas, G.; Skarlos, D.; Pavlidis, N.A.; Makrantonakis, P.; Tsavaris, N.; Kalogera-Fountzila, A.; Giannakakis, T.; Beer, M.; Kosmidis, P. High-dose epirubicin as a single agent in the treatment of patients with advanced breast cancer. A Hellenic Co-operative Oncology Group study. Tumori 1991, 77, 232–236. [Google Scholar] [CrossRef]
  42. Villani, F.; Galimberti, M.; Comazzi, R. Early cardiac toxicity of 4′-iodo-4′-deoxydoxorubicin. Eur. J. Cancer 1991, 27, 1601–1604. [Google Scholar] [CrossRef] [PubMed]
  43. Larsen, R.L.; Jakacki, R.I.; Vetter, V.L.; Meadows, A.T.; Silber, J.H.; Barber, G. Electrocardiographic changes and arrhythmias after cancer therapy in children and young adults. Am. J. Cardiol. 1992, 70, 73–77. [Google Scholar] [CrossRef]
  44. Ando, M.; Yokozawa, T.; Sawada, J.; Takaue, Y.; Togitani, K.; Kawahigashi, N.; Narabayashi, M.; Takeyama, K.; Tanosaki, R.; Mineishi, S.; et al. Cardiac conduction abnormalities in patients with breast cancer undergoing high-dose chemotherapy and stem cell transplantation. Bone Marrow Transplant. 2000, 25, 185–189. [Google Scholar] [CrossRef] [PubMed]
  45. Postma, A.; Elzenga, N.J.; Haaksma, J.; Schasfoort-Van Leeuwen, M.J.; Kamps, W.A.; Bink-Boelkens, M.T. Cardiac status in bone tumor survivors up to nearly 19 years after treatment with doxorubicin: A longitudinal study. Med. Pediatr. Oncol. 2002, 39, 86–92. [Google Scholar] [CrossRef] [PubMed]
  46. Evans, S.A.; Cooke, J.N. Cardiac effects of anthracycline treatment and their implications for aeromedical certification. Aviat. Space Environ. Med. 2003, 74, 1003–1008. [Google Scholar] [PubMed]
  47. Chen, C.; Heusch, A.; Donner, B.; Janssen, G.; Göbel, U.; Schmidt, K.G. Present risk of anthracycline or radiation-induced cardiac sequelae following therapy of malignancies in children and adolescents. Klin. Padiatr. 2009, 221, 162–166. [Google Scholar] [CrossRef]
  48. Ricevuto, E.; Cocciolone, V.; Mancini, M.; Cannita, K.; Romano, S.; Bruera, G.; Pelliccione, M.; Adinolfi, M.I.; Ciccozzi, A.; Bafile, A.; et al. Dose-dense nonpegylated liposomal Doxorubicin and docetaxel combination in breast cancer: Dose-finding study. Oncologist 2015, 20, 109–110. [Google Scholar] [CrossRef] [PubMed]
  49. Markman, T.M.; Ruble, K.; Loeb, D.; Chen, A.; Zhang, Y.; Beasley, G.S.; Thompson, W.R.; Nazarian, S. Electrophysiological effects of anthracyclines in adult survivors of pediatric malignancy. Pediatr. Blood Cancer 2017, 64, e26556. [Google Scholar] [CrossRef]
  50. Geisberg, C.A.; Sawyer, D.B. Mechanisms of anthracycline cardiotoxicity and strategies to decrease cardiac damage. Curr. Hypertens. Rep. 2010, 12, 404–410. [Google Scholar] [CrossRef]
  51. Shankar, S.M.; Marina, N.; Hudson, M.M.; Hodgson, D.C.; Adams, M.J.; Landier, W.; Bhatia, S.; Meeske, K.; Chen, M.H.; Kinahan, K.E.; et al. Monitoring for cardiovascular disease in survivors of childhood cancer: Report from the Cardiovascular Disease Task Force of the Children’s Oncology Group. Pediatrics 2008, 121, e387–e396. [Google Scholar] [CrossRef] [PubMed]
  52. Keller, G.A.; Ponte, M.L.; Di Girolamo, G. Other drugs acting on nervous system associated with QT-interval prolongation. Curr. Drug Saf. 2010, 5, 105–111. [Google Scholar] [CrossRef] [PubMed]
  53. Oster, M.W.; Rakowski, T.J. Myocardial injury immediately following adriamycin administration. Med. Pediatr. Oncol. 1981, 9, 463–465. [Google Scholar] [CrossRef] [PubMed]
  54. Bender, K.S.; Shematek, J.P.; Leventhal, B.G.; Kan, J.S. QT interval prolongation associated with anthracycline cardiotoxicity. J. Pediatr. 1984, 105, 442–444. [Google Scholar] [CrossRef] [PubMed]
  55. Cersosimo, R.J.; Hong, W.K. Epirubicin: A review of the pharmacology, clinical activity, and adverse effects of an adriamycin analogue. J. Clin. Oncol. 1986, 4, 425–439. [Google Scholar] [CrossRef] [PubMed]
  56. Guglin, M.; Aljayeh, M.; Saiyad, S.; Ali, R.; Curtis, A.B. Introducing a new entity:chemotherapy-induced arrhythmia. Europace 2009, 11, 1579–1586. [Google Scholar] [CrossRef] [PubMed]
  57. Hussain, M.; Misbah, R.; Donnellan, E.; Alkharabsheh, S.; Hou, Y.; Cheng, F.; Crookshanks, M.; Watson, C.J.; Toth, A.J.; Houghtaling, P.; et al. Impact of timing of atrial fibrillation, CHA2DS2-VASc score and cancer therapeutics on mortality in oncology patients. Open Heart 2020, 7, e001412. [Google Scholar] [CrossRef] [PubMed]
  58. Lau, D.H.; Psaltis, P.J.; Mackenzie, L.; Kelly, D.J.; Carbone, A.; Worthington, M.; Nelson, A.J.; Zhang, Y.; Kuklik, P.; Wong, C.X.; et al. Atrial remodeling in an ovine model of anthracycline-induced nonischemic cardiomyopathy: Remodeling of the same sort. J. Cardiovasc. Electrophysiol. 2011, 22, 175–182. [Google Scholar] [CrossRef] [PubMed]
  59. Ramond, A.; Sartorius, E.; Mousseau, M.; Ribuot, C.; Joyeux-Faure, M. Erythropoietin pretreatment protects against acute chemotherapy toxicity in isolated rat hearts. Exp. Biol. Med. 2008, 233, 76–83. [Google Scholar] [CrossRef]
  60. Porta-Sánchez, A.; Gilbert, C.; Spears, D.; Amir, E.; Chan, J.; Nanthakumar, K.; Thavendiranathan, P. Incidence, Diagnosis, and Management of QT Prolongation Induced by Cancer Therapies: A Systematic Review. J. Am. Heart Assoc. 2017, 6, e007724. [Google Scholar] [CrossRef]
  61. Vloka, M.E.; Steinberg, J.S. QT dispersion: Current and future clinical role. J. Invasive Cardiol. 1996, 8, 363–369. [Google Scholar]
  62. Barr, C.S.; Naas, A.; Freeman, M.; Lang, C.C.; Struthers, A.D. QT dispersion and sudden expected death in chronic heart failure. Lancet 1994, 343, 327–329. [Google Scholar] [CrossRef]
  63. Arbel, Y.; Swartzon, M.; Justo, D. QT prolongation and Torsades de Pointes in patients previously treated with anthracyclines. Anticancer Drugs 2007, 18, 493–498. [Google Scholar] [CrossRef]
  64. Ohtani, K.; Fujino, T.; Ide, T.; Funakoshi, K.; Sakamoto, I.; Hiasa, K.I.; Higo, T.; Kamezaki, K.; Akashi, K.; Tsutsui, H. Recovery from left ventricular dysfunction was associated with the early introduction of heart failure medical treatment in cancer patients with anthracycline-induced cardiotoxicity. Clin. Res. Cardiol. 2019, 108, 600–611. [Google Scholar] [CrossRef] [PubMed]
  65. Postma, A.; Bink-Boelkens, M.T.; Beaufort-Krol, G.C.; Kengen, R.A.; Elzenga, N.J.; Schasfoort-van Leeuwen, M.J.; Schraffordt koops, H.; Kamps, W.A. Late cardiotoxicity after treatment for a malignant bone tumor. Med. Pediatr. Oncol. 1996, 26, 230–237. [Google Scholar] [CrossRef]
Biology 13 00465 g001

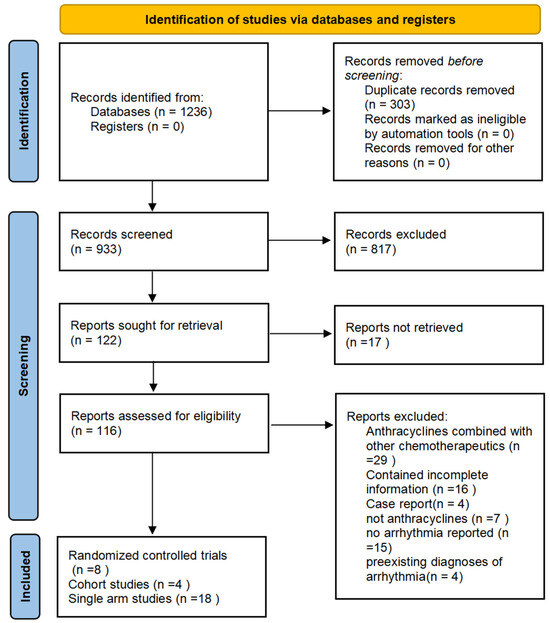

Figure 1. Selection process. Each article was retrieved, screened, and selected for the quantitative analysis.
Figure 1. Selection process. Each article was retrieved, screened, and selected for the quantitative analysis.
Biology 13 00465 g001
Biology 13 00465 g002

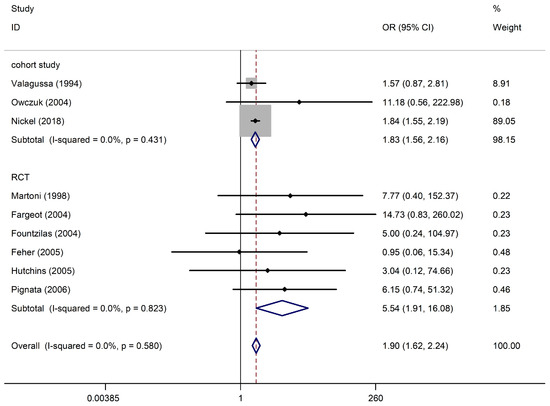

Figure 2. Arrhythmia in anthracycline users and nonusers. The forest plot demonstrates point estimates of the odds ratios (ORs) surrounded by 95% confidence intervals (CIs) calculated using the fixed-effects model [23,24,25,26,27,28,29,30,31]. RCT, randomized controlled trial.
Figure 2. Arrhythmia in anthracycline users and nonusers. The forest plot demonstrates point estimates of the odds ratios (ORs) surrounded by 95% confidence intervals (CIs) calculated using the fixed-effects model [23,24,25,26,27,28,29,30,31]. RCT, randomized controlled trial.
Biology 13 00465 g002
Biology 13 00465 g003

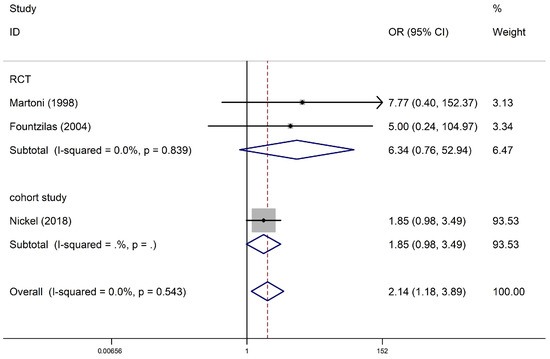

Figure 3. Supraventricular arrhythmia in anthracycline users and nonusers. The forest plot demonstrates point estimates of the odds ratios (ORs) surrounded by 95% confidence intervals (CIs) calculated using the fixed-effects model [24,27,31]. RCT, randomized controlled trial.
Figure 3. Supraventricular arrhythmia in anthracycline users and nonusers. The forest plot demonstrates point estimates of the odds ratios (ORs) surrounded by 95% confidence intervals (CIs) calculated using the fixed-effects model [24,27,31]. RCT, randomized controlled trial.
Biology 13 00465 g003
Biology 13 00465 g004

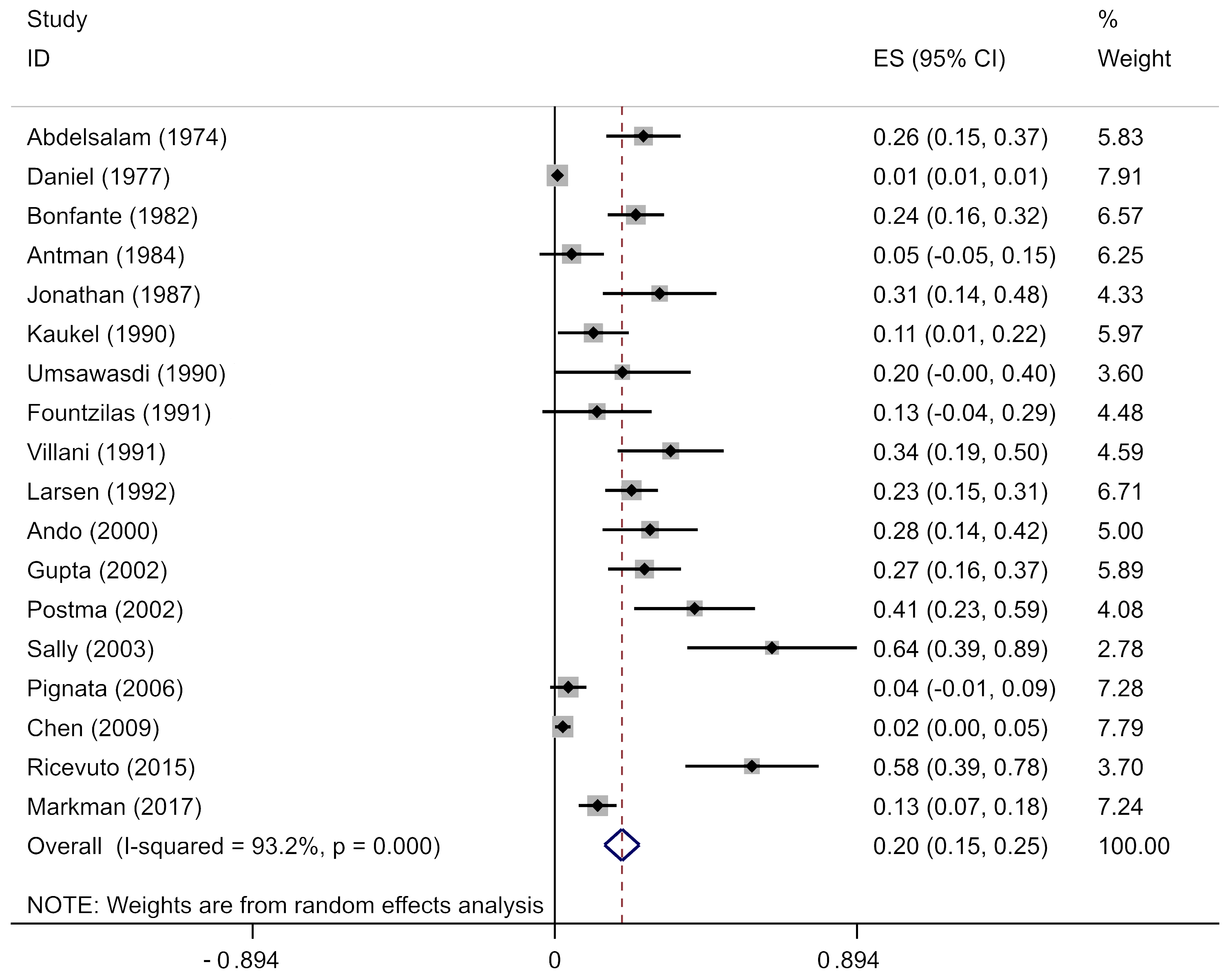

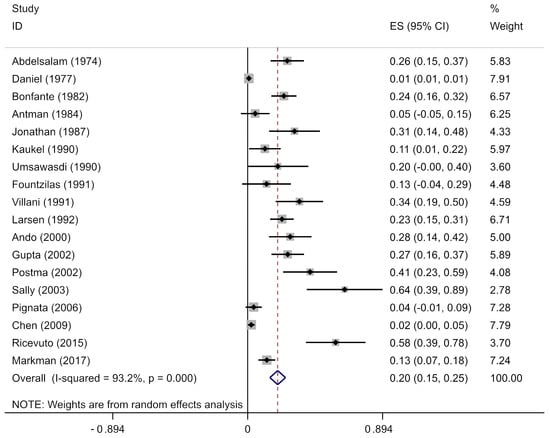

Figure 4. Arrhythmia in anthracycline users in single-arm studies. Prevalence estimates (ES) and confidence intervals (CIs) from studies with zero events were evaluated by adding 0.5 cases to both the numerator (number of anthracycline users) and the denominator (total number of arrhythmic events), consistent with the recommended practice [12,19,30,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49].
Figure 4. Arrhythmia in anthracycline users in single-arm studies. Prevalence estimates (ES) and confidence intervals (CIs) from studies with zero events were evaluated by adding 0.5 cases to both the numerator (number of anthracycline users) and the denominator (total number of arrhythmic events), consistent with the recommended practice [12,19,30,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49].
Biology 13 00465 g004
Biology 13 00465 g005

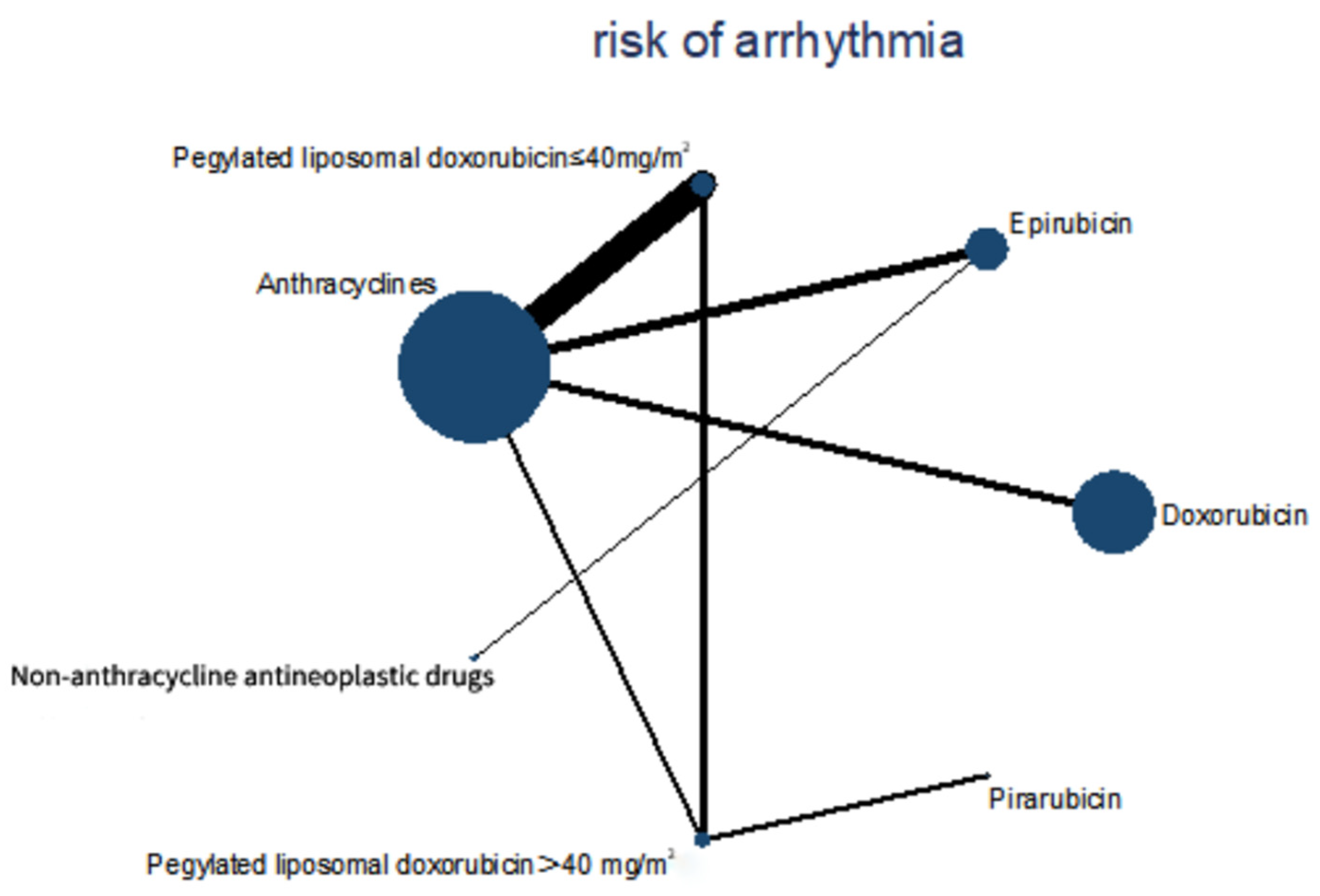

Figure 5. Comparisons during the Bayesian network meta-analysis. Lines connect the interventions that were studied during head-to-head (direct) comparisons of eligible controlled trials. The interrupted lines connect indirect comparisons. The size of the nodes is proportional to the number of patients (in parentheses) who received treatment. The width of the lines is proportional to the number of trials (next to the line) involving the connected treatment.
Figure 5. Comparisons during the Bayesian network meta-analysis. Lines connect the interventions that were studied during head-to-head (direct) comparisons of eligible controlled trials. The interrupted lines connect indirect comparisons. The size of the nodes is proportional to the number of patients (in parentheses) who received treatment. The width of the lines is proportional to the number of trials (next to the line) involving the connected treatment.
Biology 13 00465 g005
Biology 13 00465 g006

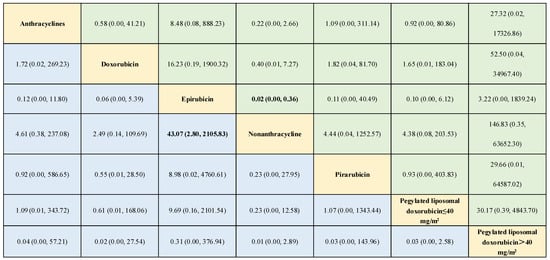

Figure 6. Outcomes of the network meta-analysis of the risk of arrhythmia using the consistency model. The results are the odds ratios (ORs) (95% confidence intervals [CIs]) based on the network meta-analysis of the interventions defined in the columns and rows. Comparisons are shown from left to right. Numbers in bold represent statistically significant results. Different drugs are presented in yellow, and both green and blue represents the ORs of interventions.
Figure 6. Outcomes of the network meta-analysis of the risk of arrhythmia using the consistency model. The results are the odds ratios (ORs) (95% confidence intervals [CIs]) based on the network meta-analysis of the interventions defined in the columns and rows. Comparisons are shown from left to right. Numbers in bold represent statistically significant results. Different drugs are presented in yellow, and both green and blue represents the ORs of interventions.
Biology 13 00465 g006
Biology 13 00465 g007

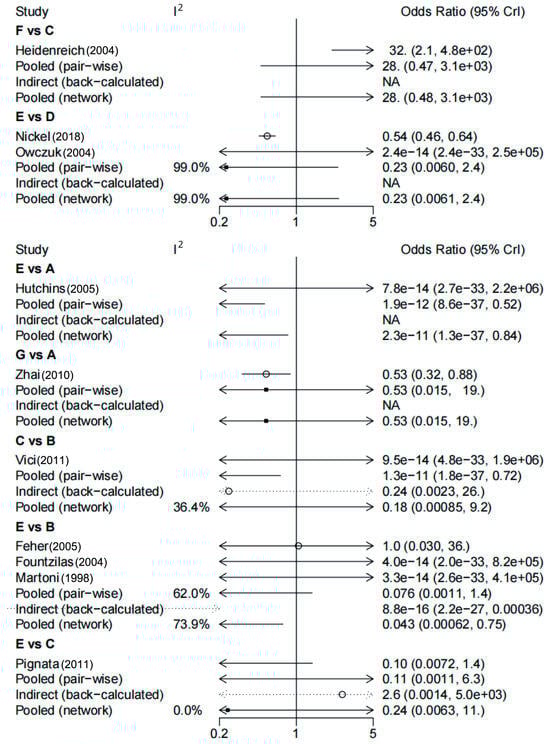

Figure 7. Comparative odds ratios (ORs) for the incidence of arrythmia with different anthracycline treatments and non-anthracycline treatments. The forest plot demonstrates point estimates of the risk ratio surrounded by 95% confidence intervals (CIs) calculated using the random-effects model [25,26,27,28,29,30,31,32,33,34]. A: doxorubicin; B: epirubicin; C: pegylated liposomal doxorubicin ≤ 40 mg/m2; D: anthracyclines; E: non-anthracycline antineoplastic drugs; F: pegylated liposomal doxorubicin > 40 mg/m2; G: pirarubicin.
Figure 7. Comparative odds ratios (ORs) for the incidence of arrythmia with different anthracycline treatments and non-anthracycline treatments. The forest plot demonstrates point estimates of the risk ratio surrounded by 95% confidence intervals (CIs) calculated using the random-effects model [25,26,27,28,29,30,31,32,33,34]. A: doxorubicin; B: epirubicin; C: pegylated liposomal doxorubicin ≤ 40 mg/m2; D: anthracyclines; E: non-anthracycline antineoplastic drugs; F: pegylated liposomal doxorubicin > 40 mg/m2; G: pirarubicin.
Biology 13 00465 g007
Table 1. Classification and corresponding anthracycline agents.
Table 1. Classification and corresponding anthracycline agents.
ClassificationDrugs
First-generation anthracycline drugsDoxorubicin, epirubicin, idarubicin, pirarubicin, valrubicin, aclarubicin, aclacinomycin, daunorubicin, cerubidine, mithracin, plicamycin
Second-generation anthracycline drugsAnthracyclines, annamycin, sabarubicin, zorubicin
Third-generation anthracycline drugsAldoxorubicin, GPX-150, SP1049C, DOXO-EMCH.A
Unclassified anthracycline drugsValstar, zoptarelin doxorubicin, luteinizing hormone-releasing hormone, 5-imino-13-deoxydoxorubicin
Table 2. Characteristics of the included cohort studies and RCTs.
Table 2. Characteristics of the included cohort studies and RCTs.
First Author and YearStudy DesignGeographical LocationFunding SourcesDuration of AllocationRaceCancerDuration of TreatmentDuration of Follow-UpNumber
(T/C)		Mean Age
(Years)		Gender
(Male/Female)		AnthracyclinesTreatmentControlQuality Scores *
TCTC
Valagussa 1994 [23]Cohort studyItalyNot mentionedNot mentionedNot mentionedBreast cancer21-day cycle, 4 cycles8 years501/324Not applicableNot applicable0/5010/324DoxorubicinDoxorubicin + cyclophosphamide + fluorouracil + methotrexateCyclophosphamide + fluorouracil + methotrexate6
Martoni 1998 [24]RCTItalyNot mentionedAugust 1992 to February 1996Not mentionedAdvanced NSCLC21-day cycle, 12 cyclesNot mentioned102/110626186/1693/17EpirubicinEpirubicinVinorelbineSome concerns
Fargeot 2004 [25]RCTFrenchPfizer, FranceMarch 1991 to April 2001Not mentionedBreast cancer3 years72 months174/16469690/1740/164EpirubicinEpirubicin + tamoxifenTamoxifenSome concerns
Owczuk 2004 [26]Cohort studyPolandNot mentionedNot mentionedNot mentionedBreast cancer33.1 daysNot mentioned20/2052.252.80/200/20Doxorubicin, epirubicinAnthracyclines (doxorubicin, epirubicin)Non-anthracycline antineoplastic drugs6
Fountzilas 2004 [27]RCTGreeceHellenic Cooperative Oncology GroupJanuary 1999 to April 2002Not mentionedBreast cancer21-day cycle, 6 cycles23.5 months162/16059590/1620/160EpirubicinEpirubicin + paclitaxelPaclitaxel + carboplatinLow
Feher 2005 [28]RCTBrazil, Czech Republic, Germany, Singapore, USA, GermanyEli Lilly and CompanyNot mentionedNot mentionedBreast cancer28-day cycle, 12 cycles19.1 months199/19868690/1990/198EpirubicinEpirubicinGemcitabineSome concerns
Hutchins 2005 [29]RCTUSANational Cancer Institute, Department of Health and Human ServicesJuly 1989 to February 1993White, non-Hispanic; Black, non-Hispanic; Hispanic; othersBreast cancer28-day cycle, 6 cycles2.5 years669/67648480/6690/676DoxorubicinDoxorubicin + cyclophosphamide + fluorouracilMethotrexate + cyclophosphamide + fluorouracilSome concerns
Pignata 2011 [30]RCTItalyAssociazione Italiana per la Ricerca sul CancroJanuary 2003 to July 2004Not mentionedOvarian cancer21-day cycle, 6 cyclesNot mentioned403/40857570/4030/408Pegylated liposomal doxorubicinPegylated liposomal doxorubicin 30 mg/m2 + carboplatinCarboplatin + pegylated liposomal doxorubicinLow
Nickel 2018 [31]Cohort studyUSANot mentionedJanuary 2010 to December 2015Not mentionedNot specifiedNot mentioned6 months2075/295155.3 ± 13.9959.1 ± 13.81099/9761309/1642Doxorubicin, epirubicin, daunorubicinAnthracyclines (doxorubicin, epirubicin, daunorubicin)Non-anthracycline antineoplastic drugs (bevacizumab, nivolumab, pembrolizumab, ibrutinib, imatinib, ipilimumab, erlotinib, lapatinib, sorafenib, sunitinib, trastuzumab, vemurafenib)5
Heidenreich 2004 [32]RCTGermanyNot mentionedNot mentionedNot mentionedProstate carcinoma24 weeks6.5 months22/2669.3 ± 11.567.5 ± 11.222/026/0Pegylated liposomal doxorubicinPegylated liposomal doxorubicin
25 mg/m2		Pegylated liposomal doxorubicin
50 mg/m2		Some concerns
Zhai 2010 [33]Cohort studyChinaGuangdong National Science1987–2003Not mentionedNon-Hodgkin’s lymphomaNot mentioned5 years205/254Not applicableNot applicable126/79173/81Pirarubicin, doxorubicinPirarubicin, cyclophosphamide, vincristine, and prednisonedoxorubicin, cyclophosphamide, vincristine, and prednisone6
Vici 2011 [34]RCTItalyNot mentionedMarch 2003 to November 2005Not mentionedBreast cancer21-day cycle, 8 cycles, 28-day cycle, 8 cyclesNot mentioned54/5063610/540/50Epirubicin, pegylated liposomal doxorubicinEpirubicin, vinorelbinePegylated liposomal doxorubicin 40 mg/m2, vinorelbineLow
T: treatment arm; C: control arm; RCT: randomized controlled trials. * Cohort studies were assessed by quality assessment according to the Newcastle–Ottawa Quality Assessment Scale. RCTs were assessed according to Risk of Bias-2.
Table 3. Characteristics of the included single-arm studies.
Table 3. Characteristics of the included single-arm studies.
First Author and YearGeographical LocationFunding SourcesDuration of AllocationCancerDuration of Follow-UpNumberMean Age
(Years)		Gender (Male/Female)Carrier/Tested SubjectsFrequencies%Type of ArrhythmiaTypes of Anthracycline
Abdelsalam 1974 [35]USAThe National Cancer InstituteNot mentionedAcute leukemiaNot applicable616.643/2316/6126.23(1) (2)Adriamycin
Daniel 1977 [36]USAThe Investigational Drug Branch and Cancer Therapy Evaluation Program, Division of Cancer TreatmentNot mentionedNot applicable80 days5613Not applicableNot mentioned45/56130.80(1) (2) (3) (4) (6) (7)Daunomycin
Bonfante 1982 [37]ItalyFarmitalia Carlo ErbaNot applicableVarious types of advanced malignancyNot applicable108 (100)5061/4724/10024.00(1) (2) (7)4′-epi-doxorubicin
Antman 1984 [38]USANot mentioned1978–1982IIB -IVA sarcomas5 y ears20Not mentionedNot mentioned1/205.00(2)Doxorubicin
Jonathan 1987 [39]USANot mentionedNot mentionedNot applicable16 days2957 ± 1616/139/2931.03(2)Doxorubicin
Kaukel 1990 [12]USANot mentionedNot mentionedMalignant pleural mesotheliomaAugust 1985 to November 19863568.529/64/3511.43(6) (7)Pirarubicin
Umsawasdi 1990 [40]USAAdria Laboratories, Columbus, OhioNot mentionedVarious types of cancer73 weeks155810/53/1520.00(5) (6)4-demethoxydaunorubicin
Fountzilas 1991 [41]GreeceNot mentionedFebruary 1988 to December 1989Breast cancerNot mentioned52 (16)520/522/1612.50(7)Epirubicin
Villani 1991 [42]ItalyNot mentionedNot mentionedGastrointestinal carcinomas, kidney carcinomas, non-small-cell lung carcinomas, unknown primary carcinomas, hepatocellular carcinomas, breast cancer, melanomas, sarcomas, ovarian carcinoma, non-Hodgkin lymphoma21 days354724/1112/3534.29(1) (6) (7)4’-iodo-4’-deoxydoxorubicin
Larsen 1992 [43]USANational Institutes of Health Research Career DevelopmentNot mentionedAcute lymphoblastic leukemia, acute nonlymphocytic leukemia, Hodgkin’s disease, non-Hodgkin’s lymphoma, Wills tumor, neuroblastoma, rhabdomyosarcoma, osteosarcoma, Ewing sarcoma, other sarcomas, teratoma, central nervous system tumors3 months–21 years11015 ± 4Not mentioned25/11022.73(3) (6) (7)Anthracyclines
Ando 2000 [44]JapanThe Ministry of Health and Welfare of JapanMarch 1990 and August 1998Breast cancerNot applicable39460/3911/3928.21(1)Doxorubicin
Gupta 2002 [19]USANot mentionedNot mentionedNon-Hodgkin lymphoma, Hodgkin lymphoma, rhabdomyosarcoma, osteogenic sarcoma, acute lymphocytic leukemia, Ewing sarcoma, Wilms tumor, hemangiopericytomaNot mentioned6411 ± 534/3017/6426.56(3) (7)Anthracyclines
Postma 2002 [45]The NetherlandsNot mentionedNot applicableBone tumor14.1 years3932.525/1412/2941.38(1) (2)Anthracyclines
Sally 2003 [46]UKNot mentionedNot mentionedNot applicableNot applicable14Not mentioned13/19/1464.29(6)Anthracyclines
Pignata 2006 [30]ItalyAssociazione Italiana per la Ricerca sul CancroJanuary 2003 to July 2004Ovarian cancer21-day cycle, 6 cycles50600/502/504.00Not applicablePegylated liposomal doxorubicin
Chen 2009 [47]GermanyNot mentioned2000–2004Malignant tumor3.2–8 years1688.1 ± 5.3110/584/1682.38(6)Anthracyclines
Ricevuto 2015 [48]ItalyNot mentionedNot mentionedBreast cancerNot mentioned24Not mentioned0/2414/2458.33(6) (7)Nonpegylated liposomal doxorubicin
Markman 2017 [49]USANot mentioned1984–2015Various types of cancer14 ± 7 y13430.4 ± 5.670/6417/13412.69(3) (7)Anthracyclines
(1): ST-T change; (2): sinus arrhythmia; (3): QT prolongation; (4): bradycardia; (5): atrial fibrillation; (6): tachycardia; (7): others.
Table 4. Treatment ranked by the probability of the highest risk of arrhythmia.
Table 4. Treatment ranked by the probability of the highest risk of arrhythmia.
MedicationRank Probabilities a
Rank 1Rank 2Rank 3Rank 4Rank 5Rank 6Rank 7
Anthracyclines0.0710.3700.2740.1860.0810.0130.005
Doxorubicin0.0060.0190.0150.0220.0320.3040.601
Epirubicin0.0080.0660.2020.4120.2410.0450.026
Non-anthracycline antineoplastic drugs0.6920.2260.0700.0110.0010.0000.000
Pirarubicin0.0300.0170.0190.0220.0400.5930.280
Pegylated liposomal doxorubicin ≤40 mg/m20.1710.2670.3460.1720.0310.0110.001
Pegylated liposomal doxorubicin ˃40 mg/m20.0210.0350.0740.1750.5730.0340.087
a Rank probabilities were derived from the network meta-analysis. The ranking indicates the probability of being the best treatment, second best treatment, third best treatment, and so on. Rank 7 corresponded to the highest probability of inducing arrhythmia. Rank 1 corresponded to the lowest probability of inducing arrhythmia.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, H.; Yang, W.; Peng, Y.; Huang, M.; Liao, F.; Lu, A.; Yu, Z.; Zhao, X. Cardiac Arrhythmia Risk after Anti-Cancer Drug Exposure and Related Disease Molecular Imaging Outlook: A Systematic Review, Meta-Analysis, and Network Meta-Analysis. Biology 2024, 13, 465. https://doi.org/10.3390/biology13070465

AMA Style

Li H, Yang W, Peng Y, Huang M, Liao F, Lu A, Yu Z, Zhao X. Cardiac Arrhythmia Risk after Anti-Cancer Drug Exposure and Related Disease Molecular Imaging Outlook: A Systematic Review, Meta-Analysis, and Network Meta-Analysis. Biology. 2024; 13(7):465. https://doi.org/10.3390/biology13070465

Chicago/Turabian Style

Li, Hongzheng, Wenwen Yang, Yuxuan Peng, Mingyan Huang, Feifei Liao, Aimei Lu, Zikai Yu, and Xin Zhao. 2024. "Cardiac Arrhythmia Risk after Anti-Cancer Drug Exposure and Related Disease Molecular Imaging Outlook: A Systematic Review, Meta-Analysis, and Network Meta-Analysis" Biology 13, no. 7: 465. https://doi.org/10.3390/biology13070465

APA Style

Li, H., Yang, W., Peng, Y., Huang, M., Liao, F., Lu, A., Yu, Z., & Zhao, X. (2024). Cardiac Arrhythmia Risk after Anti-Cancer Drug Exposure and Related Disease Molecular Imaging Outlook: A Systematic Review, Meta-Analysis, and Network Meta-Analysis. Biology, 13(7), 465. https://doi.org/10.3390/biology13070465

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
