Doublecortin in the Fish Visual System, a Specific Protein of Maturing Neurons

by
Laura DeOliveira-Mello
1,2,*,
Isabel Vicente
3,
Veronica Gonzalez-Nunez
1,2,
Adrian Santos-Ledo
1,2,
Almudena Velasco
1,2,
Rosario Arévalo
1,2,
Juan M. Lara
1,2 and
Andreas F. Mack
4
1
Institute of Neurosciences of Castilla and León, University of Salamanca, 37007 Salamanca, Spain
2
Institute for Biomedical Research of Salamanca (IBSAL), University of Salamanca, 37007 Salamanca, Spain
3
Department of Agriculture, Food and Environment, University of Pisa, 56124 Pisa, Italy
4
Institute of Clinical Anatomy and Cell Analysis, Eberhard-Karls Universität Tübingen, 72074 Tübingen, Germany
*
Author to whom correspondence should be addressed.
Biology 2022, 11(2), 248; https://doi.org/10.3390/biology11020248
Submission received: 9 January 2022 / Revised: 31 January 2022 / Accepted: 4 February 2022 / Published: 6 February 2022
(This article belongs to the Special Issue New Era in Neuroscience)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Doublecortin (DCX) is an essential protein in the development of the central nervous system and in lamination of the mammalian cortex. It is known that the expression of DCX is restricted to newborn neurons. The visual system of teleost fish has been postulated as an ideal model since it continuously grows throughout the animal’s life. Here, we report a comparative expression analysis of DCX between two teleost fish species as well as a bioinformatic analysis with other animal groups. Our results demonstrate that DCX is very useful for identifying new neurons in the visual systems of Astatotilapia burtoni, but is absent in Danio rerio.

Abstract

Doublecortin (DCX) is a microtubule associated protein, essential for correct central nervous system development and lamination in the mammalian cortex. It has been demonstrated to be expressed in developing—but not in mature—neurons. The teleost visual system is an ideal model to study mechanisms of adult neurogenesis due to its continuous life-long growth. Here, we report immunohistochemical, in silico, and western blot analysis to detect the DCX protein in the visual system of teleost fish. We clearly determined the expression of DCX in newly generated cells in the retina of the cichlid fish Astatotilapia burtoni, but not in the cyprinid fish Danio rerio. Here, we show that DCX is not associated with migrating cells but could be related to axonal growth. This work brings to light the high conservation of DCX sequences between different evolutionary groups, which make it an ideal marker for maturing neurons in various species. The results from different techniques corroborate the absence of DCX expression in zebrafish. In A. burtoni, DCX is very useful for identifying new neurons in the transition zone of the retina. In addition, this marker can be applied to follow axons from maturing neurons through the neural fiber layer, optic nerve head, and optic nerve.

1. Introduction

Doublecortin (DCX; also known as doublin or lissencephalin-X) is a microtubule-associated protein which is typically expressed in the early neuronal differentiation stage, both in precursors and immature neurons [1,2]. Due to DCX expression being nearly exclusive to developing neurons, several research groups are using it as a marker for neurogenesis in a wide range of vertebrate species, e.g., mammals [3], lampreys [4], sharks [5], and teleosts [6].
Brain formation depends on microtubules (MTs) and accompanying microtubule associated proteins (MAPs) to regulate specific migration of different neural cell types [7]. Brain development includes nuclear displacement and process formation that require the action of MTs and specific MAPs [8]. Furthermore, MTs are essential in the formation of growth cones [9]. The de-stabilization of MTs leads to the collapse of the migrating cell body and cessation of nuclear translocation [10]. Faulty of DCX expression causes critical brain defects, which implies that other MTs stabilizing proteins cannot compensate for DCX function in the central nervous system (CNS) [7,11]. In newly formed neurons, DCX are involved in the growth of neuronal processes [12,13].
The continuous life-long growth of the visual system of anamniotes (such as teleost fish) has been an intriguing phenomenon [14,15], especially since such extensive growth does not occur in mammals [16,17]. Several studies have used different fish species to understand the mechanism of adult neurogenesis in vertebrates [2,18,19]. The retina has been proposed as an ideal model to study the generation of new neurons in adults due to the presence of well-delimited neurogenic zones [20,21]: the peripheral germinal zone (PGZ), formed by stem cells; the transition zone, occupied by differentiating cells; and the layered retina, harboring completely differentiated cells, except for the generation of new rods which are added to the outer nuclear layer from rod precursors [22]. Among the many markers used to label differentiating neurons, DCX stands out both in mammals and some teleosts such as cichlid fish [6,23]. Given that commercially available anti-DCX-antibodies efficiently label processes from maturing neurons [12], we were interested in testing DCX as a potential marker to study differentiating neurons within the retinal transition zone of the fish retina.
The aim of the present study was to identify newly generated DCX-positive neurons in the adult fish retina and to follow their axonal pathway into the optic nerve. We used two fish, the zebrafish (Danio rerio) and Burton’s mouthbrooder fish (Astatotilapia burtoni, formerly known as Haplochromis burtoni). The zebrafish is the main non-mammalian vertebrate animal model used in scientific research including visual studies [24], and A. burtoni is a model organism for behavior showing a substantial growth of retinal tissue throughout its life [15,25].
Here, we report the immunohistological reactivity for DCX in A. burtoni retina, which was conspicuously absent in the zebrafish retina. In addition, we performed in silico and western blotting analyses in order to clearly define the presence of DCX in different models—from flies to mice—to study neurogenesis.

2. Materials and Methods

2.1. Animals

We used adult specimens of Astatotilapia burtoni (Ostariophysi; Cichlidae) measuring between 2–6 cm standard length and Danio rerio (Acanthopterygii; Cyprinidae) measuring more than 1.5 cm. All animals were bred in our own animal facilities, in the Institute of Clinical Anatomy and Cell Analysis (University of Tübingen, Tübingen, Germany) and in the Institute of Neuroscience of Castilla y León (University of Salamanca, Salamanca, Spain). For protein expression assays, mice tissue was obtained from brains (excluding olfactory bulb and cerebellum) of newborn mice (C57BL/6 strain at p10) kindly provided by Dr. J.R. Alonso’s group of University of Salamanca [26].
Both fish species were kept at 28.5 ± 1 °C, with a photoperiod on 12 h light/dark cycle, and without feeding restrictions. All procedures were performed in accordance with the guidelines of the European Union Council Directive (2010/63/EU). Local authorities (Regierungspräsidium Tübingen and the Animal Ethical Committee of The University of Salamanca) approved animal use before experimentation in both institutions.

2.2. Tissue Preparation

We used the eyes and optic nerves from at least four animals of each fish species for histological analysis. Adult fish were deeply anaesthetized with tricaine methane sulphonate (MS222; Sigma-Aldrich, St. Louis, MO, USA, E10521) and sacrificed by decapitation. Samples were fixed in 4% paraformaldehyde dissolved in phosphate buffer saline 0.1M pH 7.2 (PBS) during overnight at 4 °C. After fixation, samples were rinsed in PBS and cryoprotected in 30% sucrose, overnighted at 4 °C, embedded in Tissue-Tek O.C.T. compound (Sakura, Tokyo, Japan, 4583) and sectioned on a cryostat at 14 μm thickness.
For tissue clearing, the entire eyeballs with a short piece of optic nerve were dissected for each species, removing the sclera and outer pigmented tissue. Before tissue clearing, we applied a bleaching protocol to eliminate pigment granules. Samples were incubated in a bleaching solution constituted of 0.5% (v/v) KOH, and 1% (v/v) Na2HPO4 in H2O plus 3% H2O2 (Sigma-Aldrich, St. Louis, MO, USA, H1009). Sequential incubations of two hours at room temperature were performed until sample bleaching was achieved, followed by washing in acid acetic for 1 h at room temperature. Then, we applied our adjusted clearing protocol [27]. Briefly, samples were fixed overnight in a hydrogel monomer solution constituted by 10% (v/v) acrylamide, 2.5% (v/v) bis-acrylamide, 4% (wt/v) paraformaldehyde, and 0.25% (wt/v) VA-044 Initiator (FUJIFILM Wako Pure Chemical, Neuss, Germany,, 017-19362) in PBS (pH 7.4). The gel was polymerized in a vacuum oven at 40–45 °C for 3 h. Embedded eyes were cleared in an 8% (wt/v) sodium dodecyl sulfate solution (SDS) in PBS at 45–50 °C for 1–2 weeks. Clearing solution was changed every 2 days.

2.3. Immunostaining

The cryosections were pre-incubated for 90 min at room temperature in PBS with 0.02% (v/v) Triton X100 (Sigma-Aldrich, St. Louis, MO, USA, X100-100ML), 5% (v/v) normal donkey serum (Jackson ImmunoResearch, West Grove, PA, USA) and 1% (v/v) dimethyl sulfoxide (DMSO; Sigma-Aldrich, St. Louis, MO, USA). For PCNA labeling, sections were treated with 2 N HCl in PBS for 30 min before pre-incubation. After blocking, samples were incubated with anti-DCX (1:100. Santa Cruz Biotechnology, Dallas, TX, USA; sc-8066) and anti-PCNA (1:300. Santa Cruz Biotechnology, Dallas, TX, USA; sc-56) antibodies diluted in PBS with 0.02% (v/v) Triton X, and 5% (v/v) normal donkey serum, and incubated overnight at 4 °C. After 3 washes for 10 min with PBS, sections were incubated in anti-goat Alexa 488 (1:400) conjugated antibody (Jackson ImmunoResearch, West Grove, PA, USA; 705-545-003) and anti-mouse Cy3 (1:250) conjugated antibody (Jackson ImmunoResearch, West Grove, PA, USA; 715-165-150) for 90 min at room temperature in PBS with 0.02% (v/v) Triton X, and 5% (v/v) normal donkey serum. Nuclei were labeled with DRAQ5 (Thermo Fisher Scientific, Waltham, MA, USA). Negative controls without first or secondary antibodies were included, and no staining was detected. Sections were mounted with Mowiol® or Fluoromont®.
In the clearing samples, after washing SDS solution, we performed immunostains to detect DCX in entire eyes of teleost fish. Pre-incubation was performed overnight by using donkey serum. The following day, samples were incubated in anti-DCX primary antibody for 4 days followed by an overnight incubation with secondary antibody and DRAQ5. Several washing steps were performed to eliminate background fluorescence, followed by an incubation in 80% glycerol for refractive index matching.

2.4. Image Acquisition and Analysis

Images were acquired on an LSM Exciter confocal microscope (Zeiss, Jena, Germany) or an LSM510 using laser excitations at 488, 543, and 633 nm in sequential scans with appropriate sets. Images, as well as the three-dimensional reconstructions, were generated with ZEN 2009 software. Once adjusted for contrast and brightness, the image plates were assembled with Photoshop CS6.

2.5. Western Blotting

Total proteins were extracted from the brains of wild type adult zebrafish (AB strain), from adult A. burtoni, and from newborn mice (C57BL/6 strain at P10). Tissues were mechanically homogenized with hand-held sterile pestles and insulin syringes and lysed in RIPA buffer (50 mM Tris (VWR International Eurolab S.L, Barcelona, Spain, 0027C481) pH 8; 150 mM NaCl; 1% Igepal; 0.5% sodium deoxycholate; 0.1% SDS) containing a protease inhibitor cocktail (VWR; M222-1ML). Samples were centrifuged (10.000× g for 10 min at 4 °C) to eliminate the debris, and supernatants were transferred to clean Eppendorf tubes. Protein concentration was determined using the Bradford methodology.
Lysates were resuspended in 2× Laemmli buffer (4% SDS; 20% glycerol; 10% β-mercaptoethanol; 0.004% bromophenol blue; 0.125M TrisHCl pH 6.8) and boiled for 7 min. Amounts of 40 µg, 60 µg and 80 µg of total proteins were separated using conventional SDS-PAGE in reduced conditions and transferred to polyvinylidene difluoride membrane (PVDF, Amersham). Membranes were blocked with 3% bovine serum albumin (BSA) in TBS-T (Tris buffer; 0.1% Tween20, Sigma-Aldrich, St. Louis, MO, USA) for 1 h at room temperature and incubated with anti-DCX (Santa Cruz Biotechnology, Dallas, TX, USA; sc-8066) and anti-doublecortin-like kinase (DCLK; Abcam, Cambridge, UK, ab106639) 1:1.000 diluted in blocking buffer overnight at 4 °C. After 3 washes of 10 min each with TBS-T, membranes were incubated for 1 h at room temperature with the secondary antibody goat anti-rabbit conjugated with horseradish peroxidase (HRP) (1:10.000 dilution; Jackson InmunoResearch, West Grove, PA, USA; 111-035-003 Lot nº. 131599). Membranes were washed again, and HRP signal was developed using the chemoluminescence detection system (ECL; Advansta, San Jose, CA, USA, WesternBright™, 16101705) in MicroChemi 4.2 (DNR Bio-Imaging Systems). For the stripping procedure, membranes were washed in sequential incubations for 10 min each at room temperature in TBS-T, Gly 0.1 M (pH = 2), 1% SDS, and TBS-T. β-actin antibody (1:1.000 diluted in blocking buffer; Cell Signalling, Danvers, USA, 4697. Lot nº. 10/2016) was used as loading control.
Protein expression was determined by densitometric analysis using Adobe Photoshop CS6. Total integrated density was obtained for each band (DCX, DCLK, and β-actin) and background integrated density was subtracted to obtain the specific integrated density for each protein.

2.6. In Silico Identification and Analysis of DCX in Teleost Fish

Amino acid sequences of DCX and DCLK proteins of teleost fish were obtained by BLASTp analysis using the Homo sapiens DCX (Accession number: O43602) and DCLK (Accession number: AAI52457) protein sequences as queries against the non-redundant protein database of the National Center of Biotechnology Information (NCBI; Available online: www.ncbi.nlm.nih.gov (accessed on 19 April 2021).
In order to set up an accurate protein database, a two-parameter approach was followed: (i) exclusion of all DCX conserved domain-containing protein (DCDC) sequences, and (ii) selection of those proteins containing both the DCX1 (IPR003533; PF03607; cd16109) and DCX2 (IPR003533; PF03607; cd17069) conserved domains identified using InterPro Scan v5.44-79.0 [28] and the NCBI Conserved Domain Database. Finally, a total of 159 proteins were included in the database, containing all the sequences described by Reiner et al. [29] and those obtained here by BLASTp analysis.
Visualization and extraction of DCX1 or DCX2 conserved domains (Figure S1) were performed using Jalview v2.11.1.4 [30]. Multiple-sequence alignments of either the entire proteins or only DCX1 and DCX2 conserved domains were performed separately using MAFFT v7.450 [31].
We performed a tblastn analysis to detect dcx and dclk sequences in the genomes of two teleost fish: Danio rerio [Genome assembly number: GCA_000002035.4_GRCz11; [32]] and Astatotilapia burtoni [Genome assembly number: GCF_000239415.1_AstBur1.0; [33]], available at the NCBI database. The genomes of Drosophila melanogaster (Genome assembly number: GCA_000001215.4; [34]), and Caenorhabditis elegans (Genome assembly number: GCA_000002985.3; [35]) were used as controls. The DCX protein sequences and DCLK isoforms (DCLK1_ID: ENSG00000133083; DCLK2_ID: ENSG00000170390; DCLK3_ID: ENSG00000163673) from human available at the ENSEMBL database (Available online: www.ensembl.org (accessed on 25 July 2021)) were used as queries to search for dcx and dclk orthologous genes in the genomes of D. rerio, A. burtoni, D. melanogaster and C. elegans.

3. Results

3.1. DCX Is Present in A. burtoni Retina but Not D. rerio

Antibody stains applied to histological sections enabled the detection of DCX expression in the A. burtoni retina (Figure 1A,B). In contrast, no specific immunofluorescence was found in the zebrafish retina (Figure 1C,D). DCX positive cell bodies were located in the transition zone (Figure 1A,B), next to the PGZ, of the retina of A. burtoni and their axons passing through the nerve fiber layer to the optic nerve head (Figure 1E). No cell bodies expressing DCX were observed in the differentiated retina and/or in the optic nerve.

3.2. DCX Proteins Are Present in All the Genomes Analyzed but Not in Zebrafish

We generated a database containing 159 protein sequences belonging to 14 teleost fish (Triplophysa tibetana, Danio rerio, Betta splendens, Parambassis ranga, Oryzias latipes, Nothobranchius furzeri, Astatotilapia burtoni, Gadus morhua, Anabarilius grahami, Nothobranchius pienaari, Oryzias melastigma, Carassius auratus, Labeo rohita, and Tetraodon nigroviridis), 6 mammals (Mus musculus, Homos sapiens, Pan troglodytes, Canis lupus, Bos taurus, and Rattus norvegicus), one bird (Gallus gallus), and one shark (Callorhinchus milii), as well as D. melanogaster and C. elegans as invertebrate species (Table 1).
Alignment of DCX amino acidic sequences showed a high conservation degree within and among analyzed groups (Table 2). Interestingly, shark and human DCX homologues share 96% of similarity, but no DCX coding sequence was found in the genome of zebrafish.
Since we could not find DCX in zebrafish, we also considered the DCLK proteins, which have been previously described in zebrafish, and belong to the DCX superfamily [29]. DCLK sequences showed around 50–55% pairwise identity among species (Table 2). No DCLK sequences were found in the genomes of invertebrate species (D. melanogaster and C. elegans). However, analysis of DCX proteins from D. melanogaster revealed a catalytic “protein C kinase-like” domain (IPR000719, PF00069) (Figure S2) located between residues 477–743. Based on these results, we performed a multiple-sequence alignment of all the retrieved DCX and DCLK sequences. Results revealed more than 50% sequence similarity between DCX and DCLK sequences (Table 2).
We then extracted the DCX1 conserved domain from DCX and DCLKs proteins, which was used to perform a multiple-sequence alignment. A similar analysis was conducted for DCX2 conserved domain. In both cases, a high conservation degree was observed between DCX and DCLKs proteins (Table 3). The same approach was applied to the kinase domain found in DCLK proteins from vertebrates, using the “protein C kinase-like” catalytic domain of the D. melanogaster DCX sequence as reference (Accession number: AAM11416) (Figure S2). Remarkably, results revealed that the DCX2 domain is much more conserved than DCX1 and the kinase domains among species analyzed, and the latter, appears to be not much conserved in the evolutionary scale (Table 3). Comparison of DCX1 and DCX2 domains of DCLK proteins from zebrafish and of DCX proteins from A. burtoni fish revealed a high similarity of sequence and structure (Table 3).
To verify the absence of DCX in the zebrafish genome, we performed a tblastn analysis using human DCX amino acidic sequence as query. Although no DCX orthologous genes were found on zebrafish, we found three loci putatively encoding different DCLK isoforms. Likewise, the genomes of the two invertebrate species did not show any conserved region corresponding to DCLK sequences. This supports the hypothesis that the DCLK-encoding gene is absent in invertebrates.

3.3. Western Blot Analysis Confirms the Presence of DCX in Burton’s Mouthbrooder Fish and Mice, but Not Zebrafish

Using a commercially available anti-DCX antibody, western blot assays revealed an intense and specific band of 40 KDa in protein samples from mice and A. burtoni fish (Figure 2 and Figure S3), which corresponded to the weight described for DCX protein (information related to sequence similarity between mice and A. burtoni DCX can be found in Figure 3A). No specific DCX band was found in zebrafish samples (Figure 2). A positive immunoreactive band for β-actin (loading control) in all samples proved that protein lysates from zebrafish brain were correct. In contrast, DCLK expression was found in protein lysates from the three studied organisms (Figure 2 and Figure S3); a strong immunoreactive band at 82 KDa is observed in lysates from mice brains, as well as a less intense band at 130 KDa. These two isoforms were also detected in samples from the A. burtoni brain, especially when 60 mg and 80 mg proteins were loaded, although the expression of the 82 KDa isoform is significantly lower. In the case of zebrafish, a specific immunoreactive 130 KDa band was found for the three tested protein concentrations (information related to conservation of the immunogen sequence among the studied species can be found in Figure 3B).

4. Discussion

Doublecortin (DCX) is a microtubule-binding protein expressed in differentiating and migrating neurons of the nervous system during embryonic and postnatal development [1,36]. Various reports have associated DCX to migrating cells, especially during the formation of cortical layers [1,3,37]. Our results indicate that DCX is also expressed in non-migrating neurons such as those located in the transition zone of the retina next to proliferating cells. In contrast, precursor cells giving rise to new rods are known to migrate but were negative for DCX. This is consistent with our previous finding in the fish telencephalon, where DCX is expressed by new neurons but not in migrating cells [38].
DCX gene expression have been described in different species, including invertebrates [29,39,40,41]. Apart of the MTs association, Friocourt et. al. identified and characterized a DCX-interacting protein in D. melanogaster, which is involved in cleaving ubiquitin from protein-ubiquitin conjugates [42]. In adults of the afrotherian tenrecs, DCX was shown to be expressed in the paleocortex [43,44]. In adult mammals, DCX is highly expressed in newly produced cells in the neurogenic zones; the subventricular zone along the lateral ventricle and the subgranular zone of the dentate gyrus [7,45]. Indeed, DCX has been adopted as a marker for neuronal precursors during adult neurogenesis [46]. In the visual system, DCX positive cells were found in the retinas of rats [47,48], sharks [5], teleost fish [6,23], and lampreys [4]. Here, we support the use of DCX as a marker for maturing neurons in the A. burtoni visual system. However, these results might not be extensive to all species since we were unable to find DCX in zebrafish in any of our experiments. This might suggest that DCX function could be compensated by other proteins.
An important question for understanding DCX function concerns its intracellular localization, since DCX may act similarly to classical MAPs and influence microtubule stability [49]. Although mutations in human DCX produces several defects in neuronal migration, a genetic deletion of DCX in mice causes a milder deformity [11,12,41]. Deuel et al. identified a different locus, doublecortin-like-kinase (DCLK), that encodes a protein with a similar “doublecortin domain” and microtubule stabilization properties that could compensate DCX function in rodents [50,51,52]. DCX and DCLK could directly or indirectly regulate microtubule-based vesicle transport, a process critical to both axon growth and neuronal migration [41,51,53,54].
The high level of conservation found in the evolutionary branches [11,29,41] and the very specific neuronal cell type that express DCX [2,45,46,55] would make this protein an excellent marker to detect neurogenesis events, not only during development but also in adulthood. It could be suggested that the absence of DCX in zebrafish could be compensated by DCLK. However, the exact compensatory mechanism and its implications during neuron migration and microtubule dynamics would require further investigation. The absence of DCX in zebrafish genome in addition to the lack of a corresponding amino acid sequence raises the question of how neurogenesis in zebrafish compensates for the missing DCX protein. This might ultimately help in investigating and better understanding neurogenesis in the vertebrate CNS.

5. Conclusions

The different techniques applied to detect the DCX protein in the visual system of teleost fish allowed us to determine the expression in A. burtoni but not in D. rerio. This work brings to light the high conservation of DCX sequences between different evolutionary groups, which makes DCX an ideal marker to study neurogenesis in various species. In A. burtoni, DCX is very useful for identifying new neurons generated in the retina and to follow their axons through components of the fish visual system. In addition, in teleosts, DCX apparently is not associated to migrating cells but could be related to axonal growth. Taking together, DCX represents an excellent marker for neurogenesis of most but not all animal models.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/biology11020248/s1, Figure S1: Scheme of DCX1 and DCX2 conserved domains found in DCX protein sequences. Figure S2: Scheme of the kinase conserved domain found in DCX protein sequences. Figure S3: Relative intensity quantification of western blot. File S1: Full Western Blot.

Author Contributions

Conceptualization, L.D.-M., J.M.L. and A.F.M.; formal analysis, L.D.-M., I.V. and V.G.-N.; investigation, L.D.-M. and A.F.M.; resources, A.V., J.M.L. and R.A.; data curation, L.D.-M., V.G.-N. and A.F.M.; writing—original draft preparation, L.D.-M.; writing—review and editing, L.D.-M., I.V., V.G.-N., A.S.-L., A.V., R.A., J.M.L. and A.F.M.; visualization, L.D.-M., I.V. and A.F.M.; supervision, V.G.-N., R.A., J.M.L. and A.F.M.; project administration, A.F.M.; funding acquisition, A.V., J.M.L. and R.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Junta de Castilla y León, Consejería de Sanidad. Centro en Red de Terapia Celular de la Junta de Castilla y León, grant number GRS2167/1/2020. L. DeOliveira-Mello was supported by a grant from The University of Salamanca and Santander Bank during her predoctoral period.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Europa Union (2010/63/UE) and Spanish legislation (RD 53/2013 y LEY 32/2007), and approved by the Ethics Committee of The University of Salamanca (protocol code 310/08.11.2018).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank U. Mattheus for his excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gleeson, J.G.; Lin, P.T.; Flanagan, L.A.; Walsh, C. Doublecortin Is a Microtubule-Associated Protein and Is Expressed Widely by Migrating Neurons. Neuron 1999, 23, 257–271. [Google Scholar] [CrossRef] [Green Version]
  2. Tozzini, E.T.; Baumgart, M.; Battistoni, G.; Cellerino, A. Adult neurogenesis in the short-lived teleost Nothobranchius furzeri: Localization of neurogenic niches, molecular characterization and effects of aging. Aging Cell. 2012, 11, 241–251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Brown, J.P.; Couillard-Despres, S.; Cooper-Kuhn, C.M.; Winkler, J.; Aigner, L.; Kuhn, H.G. Transient expression of doublecortin during adult neurogenesis. J. Comp. Neurol. 2003, 467, 1–10. [Google Scholar] [CrossRef]
  4. Fernández-López, B.; Romaus-Sanjurjo, D.; Senra-Martínez, P.; Anadón, R.; Barreiro-Iglesias, A.; Rodicio, M.C. Spatiotemporal pat-tern of doublecortin expression in the retina of the sea lamprey. Front. Neuroanat. 2016, 10, 5. [Google Scholar] [CrossRef] [Green Version]
  5. Sánchez-Farías, N.; Candal, E. Doublecortin is widely expressed in the developing and adult retina of sharks. Exp. Eye Res. 2015, 134, 90–100. [Google Scholar] [CrossRef] [PubMed]
  6. Garcia-Pradas, L.; Gleiser, C.; Wizenmann, A.; Wolburg, H.; Mack, A.F. Glial Cells in the Fish Retinal Nerve Fiber Layer Form Tight Junctions, Separating and Surrounding Axons. Front. Mol. Neurosci. 2018, 11, 367. [Google Scholar] [CrossRef]
  7. Reiner, O. LIS1 and DCX: Implications for Brain Development and Human Disease in Relation to Microtubules. Scientifica 2013, 2013, 393975. [Google Scholar] [CrossRef] [Green Version]
  8. Gupta, A.; Tsai, L.-H.; Wynshaw-Boris, A. Life is a journey: A genetic look at neocortical development. Nat. Rev. Genet. 2002, 3, 342–355. [Google Scholar] [CrossRef]
  9. Tint, I.; Jean, D.; Baas, P.W.; Black, M.M. Doublecortin Associates with Microtubules Preferentially in Regions of the Axon Displaying Actin-Rich Protrusive Structures. J. Neurosci. 2009, 29, 10995–11010. [Google Scholar] [CrossRef] [Green Version]
  10. Feng, Y.; Walsh, C.A. Protein–Protein interactions, cytoskeletal regulation and neuronal migration. Nat. Rev. Neurosci. 2001, 2, 408–416. [Google Scholar] [CrossRef]
  11. Fourniol, F.; Perderiset, M.; Houdusse, A.; Moores, C. Structural Studies of the Doublecortin Family of MAPs. Methods Cell Biol. 2013, 115, 27–48. [Google Scholar] [CrossRef]
  12. Friocourt, G.; Koulakoff, A.; Chafey, P.; Boucher, D.; Fauchereau, F.; Chelly, J.; Francis, F. Doublecortin Functions at the Extremities of Growing Neuronal Processes. Cereb. Cortex 2003, 13, 620–626. [Google Scholar] [CrossRef] [PubMed]
  13. Moores, C.; Perderiset, M.; Kappeler, C.; Kain, S.; Drummond, D.; Perkins, S.J.; Chelly, J.; Cross, R.; Houdusse, A.; Francis, F. Distinct roles of doublecortin modulating the microtubule cytoskeleton. EMBO J. 2006, 25, 4448–4457. [Google Scholar] [CrossRef] [PubMed]
  14. Easter, S.; Bratton, B.; Scherer, S. Growth-related order of the retinal fiber layer in goldfish. J. Neurosci. 1984, 14, 2173–2190. [Google Scholar] [CrossRef] [Green Version]
  15. Fernald, R.D. Teleost vision: Seeing while growing. J. Exp. Zool. 1990, 256, 167–180. [Google Scholar] [CrossRef]
  16. Kitambi, S.S.; Chandrasekar, G.; Addanki, V.K. Teleost fish—Powerful models for studying development, function and diseases of the human eye. Curr. Sci. 2011, 100, 1815–1823. [Google Scholar]
  17. Parrilla, M.; Lillo, C.; Herrero-Turrion, M.J.; Arévalo, R.; Lara, J.M.; Aijón, J.; Velasco, A. Pax2 in the optic nerve of the goldfish, a model of continuous growth. Brain Res. 2009, 1255, 75–88. [Google Scholar] [CrossRef] [PubMed]
  18. Ghosh, S.; Hui, S.P. Regeneration of Zebrafish CNS: Adult Neurogenesis. Neural Plast. 2016, 2016, 5815439. [Google Scholar] [CrossRef] [Green Version]
  19. Sîrbulescu, R.F.; Ilieş, I.; Vitalo, A.G.; Trull, K.; Zhu, J.; Traniello, I.M.; Zupanc, G.K. Adult stem cells in the knifefish cerebellum. Dev. Neurobiol. 2015, 75, 39–65. [Google Scholar] [CrossRef]
  20. Raymond, P.A.; Barthel, L.K.; Bernardos, R.L.; Perkowski, J.J. Molecular characterization of retinal stem cells and their niches in adult zebrafish. BMC Dev. Biol. 2006, 6, 36. [Google Scholar] [CrossRef] [Green Version]
  21. Müller, H. Bau und wachstum der netzhaut des Guppy (Lebistes reticulates). Zool. Jahrbücher Abt. Für Allg. Zool. Und Physiol. Der Tiere. 1952, 63, 275–324. [Google Scholar]
  22. Johns, P.R.; Fernald, R.D. Genesis of rods in teleost fish retina. Nature 1981, 293, 141–142. [Google Scholar] [CrossRef] [PubMed]
  23. DeOliveira-Mello, L.; Lara, J.M.; Arevalo, R.; Velasco, A.; Mack, A.F. Sox2 expression in the visual system of two teleost species. Brain Res. 2019, 1722, 146350. [Google Scholar] [CrossRef] [PubMed]
  24. Lieschke, G.J.; Currie, P. Animal models of human disease: Zebrafish swim into view. Nat. Rev. Genet. 2007, 8, 353–367. [Google Scholar] [CrossRef]
  25. Mack, A.F.; Papanikolaou, D.; Lillo, C. Investigation of the migration path for new rod photoreceptors in the adult cichlid fish retina. Exp. Neurol. 2003, 184, 90–96. [Google Scholar] [CrossRef]
  26. Pérez-Revuelta, L.; Téllez de Meneses, P.G.; López, M.; Briñón, J.G.; Weruaga, E.; Díaz, D.; Alonso, J.R. Secretagogin expression in the mouse olfactory bulb under sensory impairments. Sci. Rep. 2020, 10, 21533. [Google Scholar] [CrossRef]
  27. Neckel, P.H.; Mattheus, U.; Hirt, B.; Just, L.; Mack, A.F. Large-scale tissue clearing (PACT): Technical evaluation and new perspectives in immunofluorescence, histology and ultrastructure. Sci. Rep. 2016, 6, 34331. [Google Scholar] [CrossRef] [Green Version]
  28. Jones, P.; Binns, D.; Chang, H.-Y.; Fraser, M.; Li, W.; McAnulla, C.; McWilliam, H.; Maslen, J.; Mitchell, A.; Nuka, G.; et al. InterProScan 5: Genome-scale protein function classification. Bioinformatics 2014, 30, 1236–1240. [Google Scholar] [CrossRef] [Green Version]
  29. Reiner, O.; Coquelle, F.M.; Peter, B.; Levy, T.; Kaplan, A.; Sapir, T.; Orr, I.; Barkai, N.; Eichele, G.; Bergmann, S. The evolving doublecortin (DCX) superfamily-0. BMC Genom. 2006, 7, 188. [Google Scholar] [CrossRef] [Green Version]
  30. Waterhouse, A.M.; Procter, J.B.; Martin, D.M.A.; Clamp, M.; Barton, G.J. Jalview Version 2—A multiple sequence alignment editor and analysis workbench. Bioinformatics 2009, 25, 1189–1191. [Google Scholar] [CrossRef] [Green Version]
  31. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Howe, K.; Clark, M.D.; Torroja, C.F.; Torrance, J.; Berthelot, C.; Muffato, M.; Collins, J.E.; Humphray, S.; McLaren, K.; Matthews, L.; et al. The zebrafish reference genome sequence and its relationship to the human genome. Nature 2013, 496, 498–503. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Brawand, D.; Wagner, C.; Li, Y.; Malinsky, M.; Keller, I.; Fan, S.; Simakov, O.; Ng, A.; Lim, Z.; Bezault, E.; et al. The genomic substrate for adaptive radiation in African cichlid fish. Nature 2014, 513, 375–381. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Hoskins, R.A.; Carlson, J.W.; Wan, K.H.; Park, S.; Mendez, I.; Galle, S.E.; Booth, B.W.; Pfeiffer, B.D.; George, R.A.; Svirskas, R.; et al. The Release 6 reference sequence of the Drosophila mela-nogaster genome. Genome Res. 2015, 25, 445–458. [Google Scholar] [CrossRef] [Green Version]
  35. Sulston, J.; Waterston, R.C. Elegans Sequencing Consortium. Genome Sequence of the Nematode C. Elegans: A Platform for Investigating Biology. Science 1998, 282, 2012–2018. [Google Scholar]
  36. Des Portes, V.; Pinard, J.M.; Billuart, P.; Vinet, M.C.; Koulakoff, A.; Carrié, A.; Gelot, A.; Dupuis, E.; Motte, J.; Berwald-Netter, Y. A novel CNS gene required for neuronal migration and involved in x-linked subcortical laminar heterotopia and lissencephaly syndrome. Cell 1998, 92, 51–61. [Google Scholar] [CrossRef] [Green Version]
  37. Sánchez-Farías, N.; Candal, E. Identification of Radial Glia Progenitors in the Developing and Adult Retina of Sharks. Front. Neuroanat. 2016, 10, 65. [Google Scholar] [CrossRef] [Green Version]
  38. Mack, A.F.; DeOliveira-Mello, L.; Mattheus, U.; Neckel, P.H. Organization of radial glia reveals growth pattern in the telencephalon of a percomorph fish Astatotilapia burtoni. J. Comp. Neurol. 2021, 529, 2813–2823. [Google Scholar] [CrossRef]
  39. Bechstedt, S.; Albert, J.T.; Kreil, D.P.; Müller-Reichert, T.; Göpfert, M.C.; Howard, J. A doublecortin containing microtubule-associated protein is implicated in mechanotransduction in Drosophila sensory cilia. Nat. Commun. 2010, 1, 11. [Google Scholar] [CrossRef] [Green Version]
  40. Gönczy, P.; Bellanger, J.-M.; Kirkham, M.; Pozniakowski, A.; Baumer, K.; Phillips, J.B.; Hyman, A. zyg-8, a Gene Required for Spindle Positioning in C. elegans, Encodes a Doublecortin-Related Kinase that Promotes Microtubule Assembly. Dev. Cell 2001, 1, 363–375. [Google Scholar] [CrossRef] [Green Version]
  41. Sapir, T.; Horesh, D.; Caspi, M.; Atlas, R.; Burgess, H.; Wolf, S.; Francis, F.; Chelly, J.; Elbaum, M.; Pietrokovski, S.; et al. Doublecortin mutations cluster in evolutionarily conserved functional domains. Hum. Mol. Genet. 2000, 9, 703–712. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Friocourt, G.; Kappeler, C.; Saillour, Y.; Fauchereau, F.; Rodriguez, M.S.; Bahi, N.; Vinet, M.-C.; Chafey, P.; Poirier, K.; Taya, S.; et al. Doublecortin interacts with the ubiquitin protease DFFRX, which associates with microtubules in neuronal processes. Mol. Cell. Neurosci. 2004, 28, 153–164. [Google Scholar] [CrossRef] [PubMed]
  43. Alpár, A.; Künzle, H.; Gärtner, U.; Popkova, Y.; Bauer, U.; Grosche, J.; Reichenbach, A.; Härtig, W. Slow age-dependent decline of doublecortin expression and BrdU labeling in the forebrain from lesser hedgehog tenrecs. Brain Res. 2010, 1330, 9–19. [Google Scholar] [CrossRef] [PubMed]
  44. Mack, A.F.; Künzle, H.; Lange, M.; Mages, B.; Reichenbach, A.; Härtig, W. Radial glial elements in the cerebral cortex of the lesser hedgehog tenrec. Anat. Embryol. 2018, 223, 3909–3917. [Google Scholar] [CrossRef]
  45. von Bohlen und Halbach, O. Immunohistological markers for proliferative events, gliogenesis, and neurogenesis within the adult hippocampus. Cell Tissue Res. 2011, 345, 1–19. [Google Scholar] [CrossRef]
  46. Couillard-Despres, S.; Winner, B.; Schaubeck, S.; Aigner, R.; Vroemen, M.; Weidner, N.; Bogdahn, U.; Winkler, J.; Kuhn, H.-G.; Aigner, L. Doublecortin expression levels in adult brain reflect neurogenesis. Eur. J. Neurosci. 2005, 21, 1–14. [Google Scholar] [CrossRef]
  47. Trost, A.; Schroedl, F.; Marschallinger, J.; Rivera, F.J.; Bogner, B.; Runge, C.; Couillard-Despres, S.; Aigner, L.; Reitsamer, H.A. Characterization of dsRed2-positive cells in the doublecortin-dsRed2 transgenic adult rat retina. Histochem. Cell Biol. 2014, 142, 601–617. [Google Scholar] [CrossRef]
  48. Wakabayashi, T.; Kosaka, J.; Mori, T.; Takamori, Y.; Yamada, H. Doublecortin expression continues into adulthood in horizontal cells in the rat retina. Neurosci. Lett. 2008, 442, 249–252. [Google Scholar] [CrossRef]
  49. Horesh, D.; Sapir, T.; Francis, F.; Grayer Wolf, S.; Caspi, M.; Elbaum, M.; Chelly, J.; Reiner, O. Doublecortin, a stabilizer of microtubules. Hum. Mol. Genet. 1999, 8, 1599–1610. [Google Scholar] [CrossRef] [Green Version]
  50. Deuel, T.A.S.; Liu, J.S.; Corbo, J.C.; Yoo, S.-Y.; Rorke-Adams, L.B.; Walsh, C.A. Genetic interactions between doublecortin and double-cortin-like kinase in neuronal migration and axon outgrowth. Neuron 2006, 49, 41–53. [Google Scholar] [CrossRef] [Green Version]
  51. Kim, M.H.; Cierpicki, T.; Derewenda, U.; Krowarsch, D.; Feng, Y.; Devedjiev, Y.; Dauter, Z.; Walsh, C.A.; Otlewski, J.; Bushweller, J.H.; et al. The DCX-domain tandems of doublecortin and doublecortin-like kinase. Nat. Struct. Mol. Biol. 2003, 10, 324–333. [Google Scholar] [CrossRef] [PubMed]
  52. Shu, T.; Tseng, H.-C.; Sapir, T.; Stern, P.; Zhou, Y.; Sanada, K.; Fischer, A.; Coquelle, F.; Reiner, O.; Tsai, L.-H. Doublecortin-like Kinase Controls Neurogenesis by Regulating Mitotic Spindles and M Phase Progression. Neuron 2006, 49, 25–39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Burgess, H.; Reiner, O. Doublecortin-like Kinase Is Associated with Microtubules in Neuronal Growth Cones. Mol. Cell. Neurosci. 2000, 16, 529–541. [Google Scholar] [CrossRef] [PubMed]
  54. Shimomura, S.; Nagamine, T.; Hatano, N.; Sueyoshi, N.; Kameshita, I. Identification of an endogenous substrate of zebrafish doublecortin-like protein kinase using a highly active truncation mutant. J. Biochem. 2010, 147, 711–722. [Google Scholar] [CrossRef] [PubMed]
  55. Ayanlaja, A.A.; Xiong, Y.; Gao, Y.; Ji, G.; Tang, C.; Abdullah, Z.A.; Gao, D. Distinct Features of Doublecortin as a Marker of Neuronal Migration and Its Implications in Cancer Cell Mobility. Front. Mol. Neurosci. 2017, 10, 199. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Biology 11 00248 g001 550
Figure 1. Sections of retina (A–D) and cleared tissue (E). DCX positive cells (green arrows) are detected in A. burtoni retina (A) but not in zebrafish (C). Magnification of (A,C) are presented in (B,D). The proliferating cell nuclear antigen (PCNA; red arrows) binding antibodies detect cells in the peripheral germinal zone (PGZ; of both species. In addition, DCX (green arrows) and PCNA (red arrows) are detected in the ONL corresponding to cones and rod precursors, respectively. Nuclei are stained with DRAQ5 (blue). No double positive cells for DCX (green arrows) and PCNA (red arrows) are found. By analyzing the whole transparent eyeball, it is possible to follow DCX positive processes in the neural fiber layer (green arrow) into the optic nerve (E; white arrow). Scale bar 20 µm (A,C); 10 µm (B,D). ONL: outer nuclear layer; INL: inner nuclear layer; GCL: ganglion cell layer; NFL: neural fiber layer.
Figure 1. Sections of retina (A–D) and cleared tissue (E). DCX positive cells (green arrows) are detected in A. burtoni retina (A) but not in zebrafish (C). Magnification of (A,C) are presented in (B,D). The proliferating cell nuclear antigen (PCNA; red arrows) binding antibodies detect cells in the peripheral germinal zone (PGZ; of both species. In addition, DCX (green arrows) and PCNA (red arrows) are detected in the ONL corresponding to cones and rod precursors, respectively. Nuclei are stained with DRAQ5 (blue). No double positive cells for DCX (green arrows) and PCNA (red arrows) are found. By analyzing the whole transparent eyeball, it is possible to follow DCX positive processes in the neural fiber layer (green arrow) into the optic nerve (E; white arrow). Scale bar 20 µm (A,C); 10 µm (B,D). ONL: outer nuclear layer; INL: inner nuclear layer; GCL: ganglion cell layer; NFL: neural fiber layer.
Biology 11 00248 g001
Biology 11 00248 g002 550

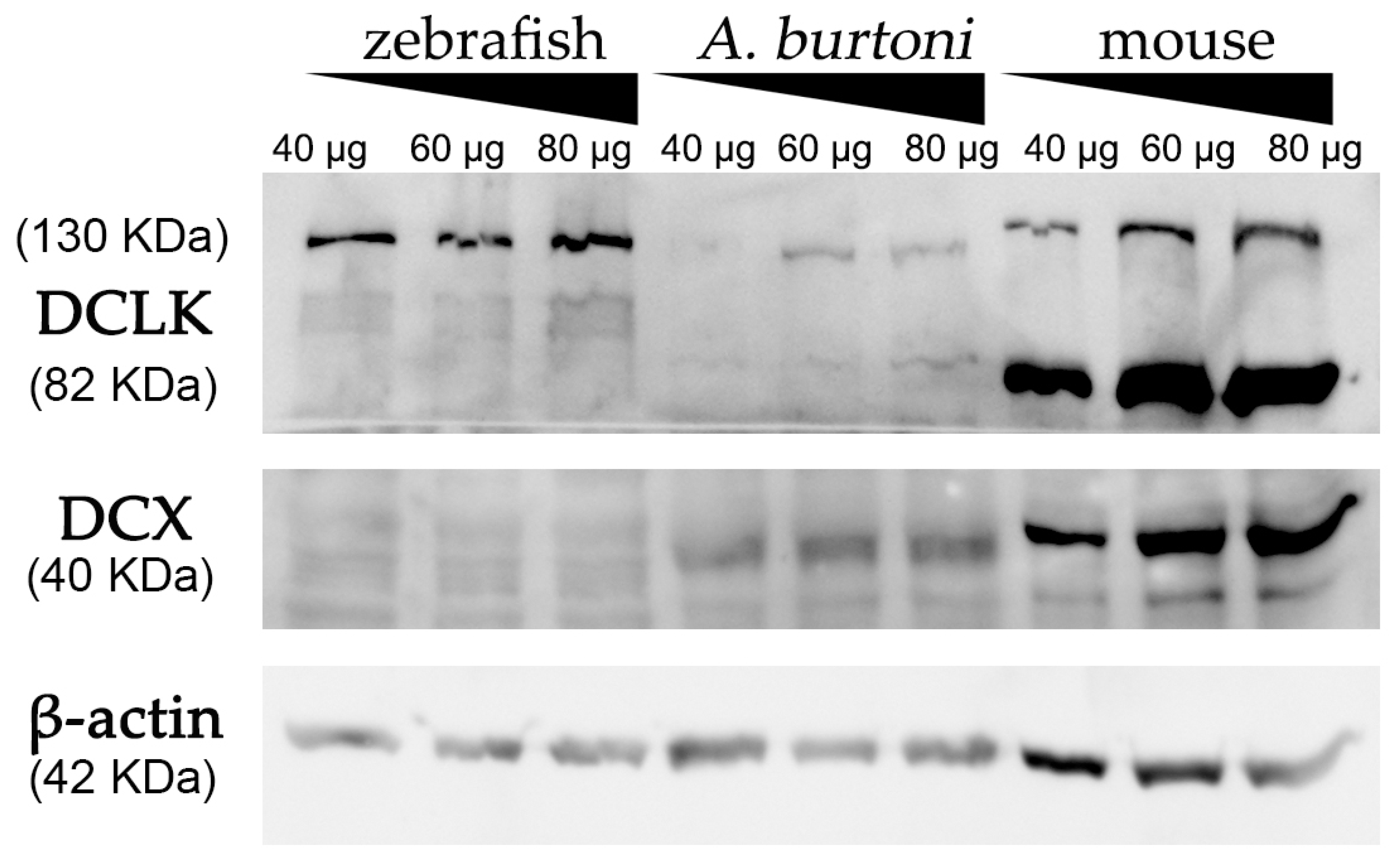

Figure 2. Western blot analysis of protein extracts derived from zebrafish, A. burtoni, and mice brains. Increasing concentrations of proteins were loaded in each well (40, 60 and 80 μg per well). Analysis shows the expression of DCX in A. burtoni and mice, but not in zebrafish extracts. β-actin was used as the loading control after the membrane stripping.
Figure 2. Western blot analysis of protein extracts derived from zebrafish, A. burtoni, and mice brains. Increasing concentrations of proteins were loaded in each well (40, 60 and 80 μg per well). Analysis shows the expression of DCX in A. burtoni and mice, but not in zebrafish extracts. β-actin was used as the loading control after the membrane stripping.
Biology 11 00248 g002
Biology 11 00248 g003 550

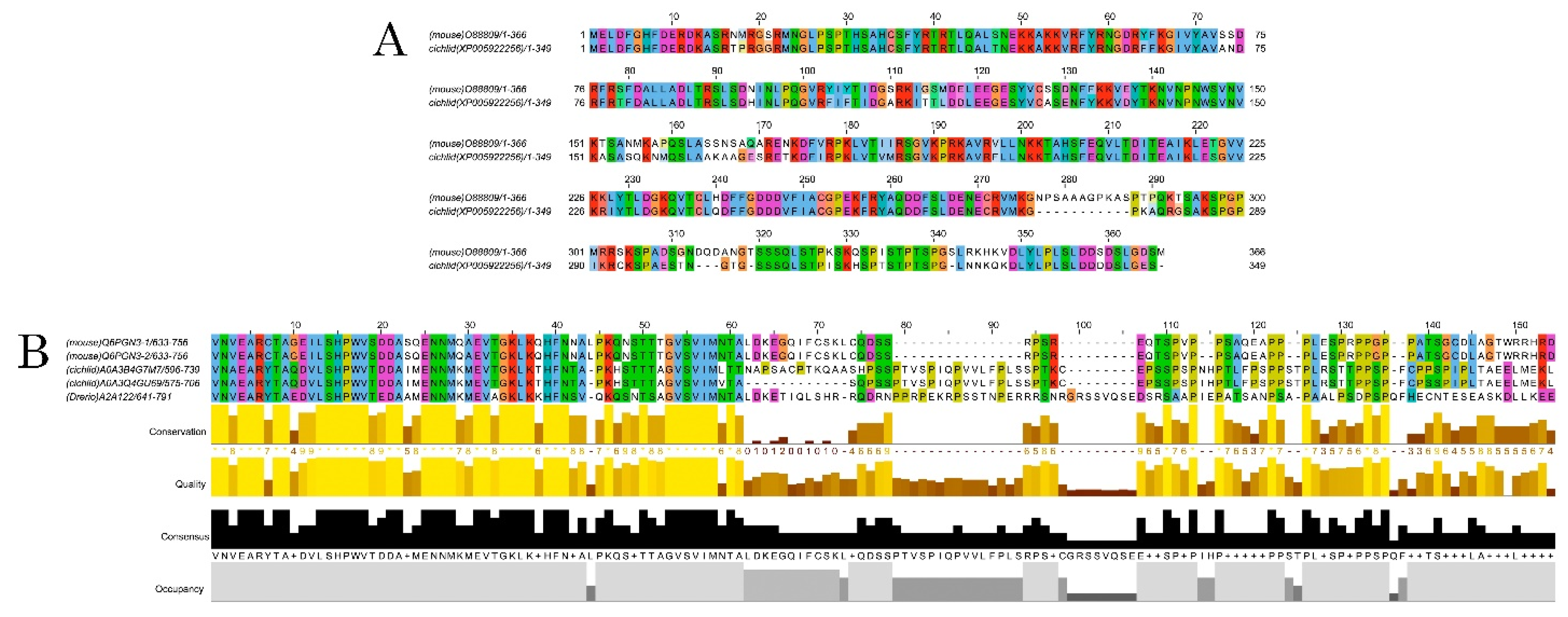

Figure 3. Alignments of DCX and DCLK amino acid sequences. Conserved residues between mice and A. burtoni DCX proteins (A); Conservation of the DCLK2 immunogen sequence use to detecting DCLK protein among the studied species (B).
Figure 3. Alignments of DCX and DCLK amino acid sequences. Conserved residues between mice and A. burtoni DCX proteins (A); Conservation of the DCLK2 immunogen sequence use to detecting DCLK protein among the studied species (B).
Biology 11 00248 g003
Table
Table 1. Database of 159 amino acidic sequences selected to perform protein alignments. Different species are used to compare DCX and DCLK sequence identity. From this database we also extract DCX1 and DCX2 conserved domains for further sequence analyses.
Table 1. Database of 159 amino acidic sequences selected to perform protein alignments. Different species are used to compare DCX and DCLK sequence identity. From this database we also extract DCX1 and DCX2 conserved domains for further sequence analyses.
Protein and SpeciesAccession NumberProtein and SpeciesAccession NumberProtein and SpeciesAccession Number
DCLK from Kanglang fishROJ66296DCLK from HumanNP_004725DCLK from ZebrafishAAI63926
DCLK from Kanglang fishROL01462DCLK from HumanXP_016876336DCLK from ZebrafishAAI68500
DCLK from Kanglang fishROL42582DCLK from HumanXP_016876337DCLK from ZebrafishBAF45322
DCLK from Kanglang fishROL54251DCLK from MedakaXP_004075345DCLK from ZebrafishBAF45323
DCLK from Betta fishXP_029027475DCLK from MedakaXP_011474963DCLK from ZebrafishBAF45324
DCLK from Betta fishXP_029027480DCLK from MedakaXP_011474968DCLK from ZebrafishBAF45325
DCLK from Betta fishXP_029027952DCLK from MedakaXP_011474974DCLK from ZebrafishBAF45326
DCLK from Betta fishXP_029027953DCLK from MedakaXP_011480649DCLK from ZebrafishNP_001128593
DCLK from Betta fishXP_029027954DCLK from MedakaXP_011481611DCLK from ZebrafishNP_001139259
DCLK from Betta fishXP_029027955DCLK from MedakaXP_011485544DCLK from ZebrafishNP_001139260
DCLK from Betta fishXP_029030116DCLK from MedakaXP_020563782DCLK from ZebrafishNP_001139261
DCLK from A. burtoni fishXP_005926513DCLK from MedakaXP_020564443DCLK from ZebrafishXP_005172728
DCLK from A. burtoni fishXP_005926514DCLK from MedakaXP_024115177DCLK from ZebrafishXP_009290868
DCLK from A. burtoni fishXP_005928154DCLK from MedakaXP_024143878DCLK from ZebrafishXP_009303718
DCLK from A. burtoni fishXP_005935114DCLK from MouseAAH21354DCLK from ZebrafishXP_009303720
DCLK from A. burtoni fishXP_005935115DCLK from MouseAAH50903DCLK from ZebrafishXP_021325742
DCLK from A. burtoni fishXP_005935116DCLK from MouseAAH64783DCLK from ZebrafishXP_021334856
DCLK from A. burtoni fishXP_005951753DCLK from MouseAAI33686DCX from Betta fishXP_029029871
DCLK from A. burtoni fishXP_005951754DCLK from MouseAF155819_1DCX from ChickAF330009
DCLK from A. burtoni fishXP_014186335DCLK from MouseNP_001104521DCX from ChimpPNI40040
DCLK from A. burtoni fishXP_014190393DCLK from MouseNP_001104522DCX from A. burtoni fishXP_005922256
DCLK from A. burtoni fishXP_014190900DCLK from MouseNP_001104523DCX from CowNP_001193894
DCLK from A. burtoni fishXP_014190901DCLK from MouseNP_001182467DCX from DogXP_022271525
DCLK from A. burtoni fishXP_014190902DCLK from MouseNP_001182468DCX from DogXP_022271526
DCLK from A. burtoni fishXP_014190903DCLK from MouseNP_001344395DCX from DogXP_022271527
DCLK from A. burtoni fishXP_014190904DCLK from MouseNP_001344397DCX from DogXP_022271528
DCLK from A. burtoni fishXP_014190905DCLK from MouseNP_001344398DCX from DogXP_022271529
DCLK from A. burtoni fishXP_014190906DCLK from MouseNP_001344404DCX from DogXP_022271530
DCLK from A. burtoni fishXP_014190907DCLK from MouseNP_001344405DCX from DogXP_022271531
DCLK from A. burtoni fishXP_014193189DCLK from MouseNP_064362DCX from DogXP_022271532
DCLK from A. burtoni fishXP_014193190DCLK from MouseQ9JLM8DCX from FlyAAM11416
DCLK from A. burtoni fishXP_014193191DCLK from MouseXP_006501044DCX from Glassy fishXP_028278320
DCLK from CodfishXP_030217849DCLK from MouseXP_006501045DCX from Glassy fishXP_028278321
DCLK from Glassy fishXP_028258882DCLK from MouseXP_006501046DCX from Glassy fishXP_028278322
DCLK from Glassy fishXP_028258890DCLK from MouseXP_017174936DCX from HumanAAC31696
DCLK from Glassy fishXP_028258898DCLK from MouseXP_030108271DCX from HumanAAC31797
DCLK from Glassy fishXP_028258907DCLK from MouseXP_036018776DCX from HumanAAC52037
DCLK from Glassy fishXP_028275059DCLK from RatNP_445795DCX from HumanAAH27925
DCLK from Glassy fishXP_028275060DCLK from Tibetan fishKAA0702164DCX from HumanCAA05867
DCLK from HumanAAI52457DCLK from Tibetan fishKAA0704105DCX from HumanCAA06617
DCLK from HumanNP_001317000DCLK from Tibetan fishKAA0710366DCX from HumanNP_001182482
DCLK from HumanNP_001317001DCLK from Tibetan fishKAA0722200DCX from HumanNP_001356299
DCX from HumanNP_001356300DCX from MouseAAT58219DCX from RatAAG18479
DCX from HumanNP_001356301DCX from MouseAF155820_1DCX from RatNP_445831
DCX from HumanNP_835364DCX from MouseBAA33387DCX from RatQ9ESI7
DCX from HumanNP_835365DCX from MouseNP_001103692DCX from RatXP_006257444
DCX from HumanNP_835366DCX from MouseNP_001103693DCX from RatXP_006257447
DCX from HumanO43602DCX from MouseNP_001103694DCX from RatXP_006257448
DCX from KillifishAEY83972DCX from MouseNP_034155DCX from RatXP_017457656
DCX from MedakaXP_023818290DCX from MouseO88809DCX from SharkAFP00992
DCX from MouseAAC31799DCX from MouseXP_006528761DCX from Tibetan fishKAA0710823
DCX from MouseAAH56391DCX from MouseXP_030107072Synapsin from ZebrafishBAH84839
DCX from MouseAAH57010DCX from MouseXP_030107073
DCX from MouseAAH62974DCX from MouseXP_030107074
Table
Table 2. Sequence similarities between selected proteins containing DCX1 and DCX2 domains. Comparison of entire DCX and/or DCLK amino acid sequences to assess protein conservation between different species.
Table 2. Sequence similarities between selected proteins containing DCX1 and DCX2 domains. Comparison of entire DCX and/or DCLK amino acid sequences to assess protein conservation between different species.
ProteinOrganismNumber of Aligned SequencesSimilarity
DCXHuman + Shark1596.7%
Mammals4789%
Mammals + A. burtoni fish4888.8%
Mammals + Teleost Fish5883.3%
Teleost Fish1182.5%
Mammals + Teleost Fish + Drosophila + Shark + Chick6178.6%
DCLKMammals3055.9%
Teleost Fish7153.5%
Mammals + Teleost Fish10149.3%
DCLK from zebrafish + DCX from D. melanogaster1672.5%
DCLKs + DCX15950.1%
Table
Table 3. Sequece similarities between DCX1 and DCX2 domains after its extraction from DCX and/or DCLK. Comparison of DCX1 and DCX2 conserved domains to analyze the identity between different species.
Table 3. Sequece similarities between DCX1 and DCX2 domains after its extraction from DCX and/or DCLK. Comparison of DCX1 and DCX2 conserved domains to analyze the identity between different species.
DomainOrganismNumber of SequencesSimilarity
DCX1All15973.4%
DCX2All15977.4%
KinaseAll15947.4%
DCX1Teleost Fish7974.5%
DCX2Teleost Fish7979.1%
KinaseTeleost Fish7969.9%
DCX1DCLK ZF + DCLK A. burtoni + DCX from another organisms9779.6%
DCX2DCLK ZF + DCLK A. burtoni + DCX from another organisms9783.7%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

DeOliveira-Mello, L.; Vicente, I.; Gonzalez-Nunez, V.; Santos-Ledo, A.; Velasco, A.; Arévalo, R.; Lara, J.M.; Mack, A.F. Doublecortin in the Fish Visual System, a Specific Protein of Maturing Neurons. Biology 2022, 11, 248. https://doi.org/10.3390/biology11020248

AMA Style

DeOliveira-Mello L, Vicente I, Gonzalez-Nunez V, Santos-Ledo A, Velasco A, Arévalo R, Lara JM, Mack AF. Doublecortin in the Fish Visual System, a Specific Protein of Maturing Neurons. Biology. 2022; 11(2):248. https://doi.org/10.3390/biology11020248

Chicago/Turabian Style

DeOliveira-Mello, Laura, Isabel Vicente, Veronica Gonzalez-Nunez, Adrian Santos-Ledo, Almudena Velasco, Rosario Arévalo, Juan M. Lara, and Andreas F. Mack. 2022. "Doublecortin in the Fish Visual System, a Specific Protein of Maturing Neurons" Biology 11, no. 2: 248. https://doi.org/10.3390/biology11020248

APA Style

DeOliveira-Mello, L., Vicente, I., Gonzalez-Nunez, V., Santos-Ledo, A., Velasco, A., Arévalo, R., Lara, J. M., & Mack, A. F. (2022). Doublecortin in the Fish Visual System, a Specific Protein of Maturing Neurons. Biology, 11(2), 248. https://doi.org/10.3390/biology11020248

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
