Gold Nanoparticles as Monoanion Sensors through Modified Electrophilicity

Abstract

Derived from malachite green, new triaryl-carbonium-ion-functionalized gold nanoparticles have been synthesized for detecting anions. The detection process, and concomitant colour change, is based on charge compensation on the surface of nanoparticles, which triggers their aggregation, resulting in a bathochromic shift of the plasmon resonance band. The difference in electrophilicity of the malachite green triaryl ions in solution or on gold nanoparticles makes it possible to distinguish different anions related to their nucleophilic character.

1. Introduction

Electrophilicity and nucleophilicity are key concepts in chemistry to understand reaction mechanisms and quantify their reaction rate and thus gain insight into the molecular behaviour. In 1953, Swain and Scott [1] were the first authors to attempt a systematic quantification of the nucleophilicity in S_N2 reactions. They defined nucleophilicity, n, as an inherent property of a substance according to the following equation: log (k/K_H20) = sn, where s stands for the sensitivity (specific for each electrophile). Later, in 1972, Richie introduced a new parameter, N+, to characterize this property, which is independent of the nature of the electrophile [2]. On the other hand, in 1994, based on the reaction rates of some carbocations, and diazonium ions with n- and π-nucleophiles, Mayr and Patz introduced a three-parameter equation: log k_{(20 °C)} = s_N(N + E), where k_{(20 °C)} is the second-order rate constant at 20 °C, N is the nucleophilicity parameter, E is the electrophilicity parameter and sN is the nucleophile-specific sensitivity parameter (which is solvent-dependent) [3,4]. Critical dependence of several factors, such as basicity, polarizability, oxidation potential and solvation, were well confirmed. Parr et al. considered the electrophilicity concept on the basis of density functional theory (DFT) [5]. They proposed the ω index as the measure of electrophilicity, which is directly related to the energy difference corresponding to the charge transfer process. Parr found a correlation between the index and the electron affinity of atoms and molecules. Based on this analysis, Kiyooka et al. introduced a theoretical intrinsic reactivity index (IRI). This index is valid as a single scale directed towards both electrophilicity and nucleophilicity using the energy levels of frontier molecular orbitals [6].

Table 1. Nucleophilicity parameters, in acetonitrile, of some nucleophiles used in this study.

	Nucleophilicity Parameters
Nucleophile	n	N	SN	ω/ε	IRI
HS−	5.1
CN−	5.1	16.27	0.70
Cl−	2.7	17.20	0.60	1.74/0.37	0.34
F−		10.88 *	0.83 *	4.52/0.45	0.50
AcO−	2.7	16.90	0.75	0.43/0.23	0.05
Malachite green		−42.0	0.82

* 2% water.

shows the different parameters of some of the nucleophiles used in this study according to different scales. In consequence, there have been numerous attempts in the literature [7,8] in recent years to provide a unified theoretical framework for quantifying electrophilicity and nucleophilicity, but unfortunately none of them have been completely successful to date.

Following our studies on the use of functionalized gold nanoparticles with triarylmethane derivatives as sensors [9], we have found an important effect of these nanoparticles in the electrophilicity of triarylmethane dyes that we want to describe here.

Triarylmethane dyes constitute a very important class of dyes that have been used in several fields, including biochemical applications [10,11,12,13], recognition of anions [14,15], cations [16,17] and neutral molecules [18], as well as pH indicators [19].

One structurally interesting class of carbocations are the 4-dialkylamino arylmethane dyes. The highly electron-donating character of 4-diakylaminophenyl groups endow carbonium ions with remarkable stability in aqueous solutions. Further, steric hindrance of the aryl groups around the central carbocation results in considerably slower reaction rates with nucleophiles than those of most of other cations of similar stability [20].

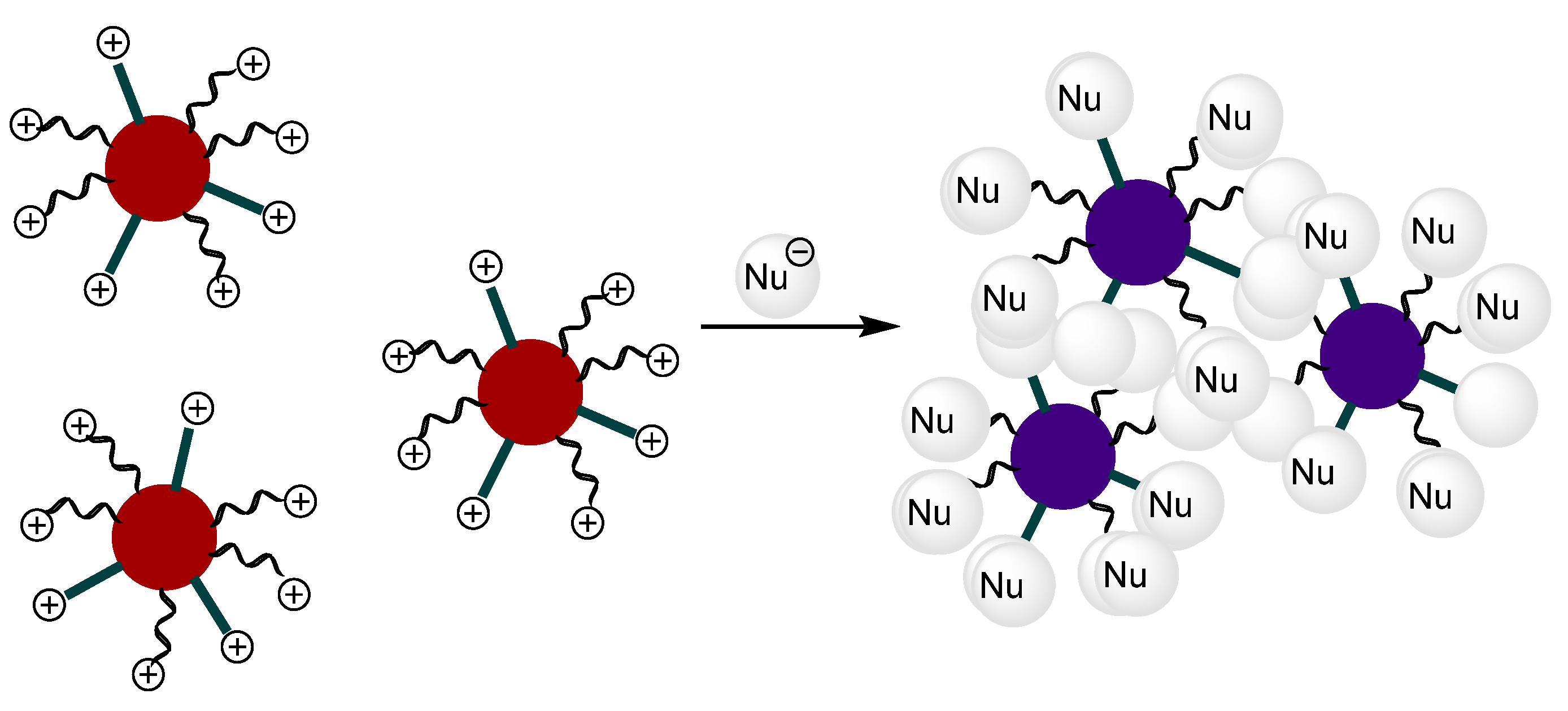

Functionalized gold nanoparticles (AuNPs) have recently attracted interest in sensor applications [21,22,23,24,25]. Following our interest in the development of probes for the detection of anions, we have studied the use of gold nanoparticles functionalized with triarylmethane dyes as signalling systems. The sensing strategy is based on the colour change that arises from the shift in the surface plasmon resonance band that occurs during the aggregation of AuNPs or the dispersion of AuNPs aggregates. The red colour of dispersed nanoparticles turns dark blue upon aggregation and the colour change can be observed by the naked eye even at low concentrations [26,27]. Triarylmethane-functionalized AuNPs remain dispersed in solution due to the electrostatic repulsion of the cationic charges at the triaryl carbonium ions. In the presence of reactive anions, their nucleophilic addition to the electrophilic carbocations will neutralize the positive charges, triggering the aggregation process (see Figure 1).

2. Materials and Methods

Hydrogen tetrachloaurate (III) tetrahydrate, p-bromobencyalcohol, n-Buli, Malachite green carbinol 90% dye, sodium citrate tribasic dyhidrate and 4,4′-bis(dimethylamino)-benzophenone were obtained from Sigma-Aldrich. NH₄PF₆, NH₄OAc, KCN, NaCl, NaClO₄, NaSH and KF were also obtained from Sigma-Aldrich.

2.1. General Procedures

All reagents were commercially available and were used without further purification. Silica gel 60 F₂₅₄ (Merck) plates were used for TLC. Milli-Q ultrapure water was used for the synthesis of the AuNPs and in the sensing experiments. ¹H and ¹³C NMR spectra were recorded with a Bruker Avance 300 MHz spectrometer. Chemical shifts are reported in ppm with tetramethylsilane as an internal standard. High-resolution mass spectra were recorded in the positive ion mode with a VG-AutoSpec mass spectrometer. UV-vis absorption spectra were recorded in a 1 cm path length quartz cuvette with a Shimadzu UV-2101PC spectrophotometer. All measurements were carried out at 293 K (thermostatically controlled). Zeta potentials were measured with a Malvern Zetasizer ZS three times in 10–25 cycles. X-ray photoelectron spectroscopy (XPS) was employed to verify the success of the molecular modification of the NP surfaces. The spectra were recorded with an Escalab 210 spectrometer from Thermo VG Scientific. The base pressure in the analysis chamber was 1.010–10 mbar. Photoelectrons were extracted by using the Mg-Kα excitation line (hν = 1253.6 eV). The binding energy of the spectra refers to the Fermi level. The electronic images were obtained with a JEOL-1010 transmission electron microscope operating at 100 kV. Samples were prepared for TEM characterization by applying a drop of colloidal solution to a carbon-coated copper grid.

2.2. Synthesis of Compound 1

Compound 1 was synthesized according to the literature [28]. The Malachite green (MG⁺) dye (1.6 g, 4.6 mmol) was dissolved in 15 mL of DMSO and heated to 60 °C. A concentrated HCl solution was added (10 M, 4.6 mmol) followed by the addition of KCN (0.65 g, 10 mmol), and the resulting pale solution was stirred for 10 min. The mixture was allowed to cool down to room temperature. Next, 50 mL of water was added, and the mixture was extracted with ethyl acetate (50 mL). The organic layer was washed with 50 mL of brine, dried over anhydrous MgSO₄ and evaporated in vacuum. The compound was purified by column chromatography (SiO₂, DCM/AcOEt 9:1) and a pale green solid was obtained (1.143 g, 70%).

¹H-NMR (300 MHz, CDCl₃): δ = 7.39–7.22 (m, 5H), 7.07 (d, J = 9.1 Hz, 4H), 6.68 (d, J = 9.03, 4H), 2.97 (s, 12H) ppm; ¹³C-NMR (75.4 MHz, CDCl₃): δ = 150.2; 142.0; 133.1; 129.8; 128.8; 128.5; 124.7; 112.3; 110.9; 44.4; 40.4 ppm.

2.3. Synthesis of Compound 5

In a typical run, p-bromobenzyl alcohol (0.187 g, 1.00 mmol) was dissolved in 20 mL of anhydrous THF under argon atmosphere. The solution was cooled to −70 °C. n-Butyllithium (1.0 mL of a 2.5 M solution in hexane, 2.5 mmol) was added dropwise with a syringe under continuous stirring. The mixture was left at −70 °C for 15 min. Then, 4,4′-bis(dimethylamino)-benzophenone (0.188 g, 0.7 mmol) was added as a solid under stirring, and the mixture was allowed to warm to room temperature and left for 2 h. Saturated solution of NaHCO₃ (50 mL) was added to quench the reaction, and ethyl acetate (50 mL) was used to extract the crude product. The organic phase was washed with 30 mL of brine and dried over anhydrous MgSO₄. The insoluble solids were removed by vacuum filtration, and ethyl acetate was concentrated using a rotary evaporator. The crude product was further purified by silica gel column chromatography using hexane/ethyl acetate (1:3, v/v) as eluent. After removing all the solvents, the product, 4, was obtained as a green solid (0.160 g, yield: 60%).

¹H-NMR (300 MHz, CDCl₃): δ = 7.15 (d, J = 6.8 Hz, 2H), 7.05 (d, J = 6.8 Hz, 2H), 6.80 (d, J = 6.7 Hz, 4H), 6.63 (d, J = 6.7 Hz, 4H); 4.50 (s, 2H), 2.91 (s, 12H) ppm; ¹³C-NMR (75.4 MHz, CDCl₃): δ = 150.2; 149.6; 140.3; 135.1; 129.8; 127.8; 126.9; 113.7; 81.5; 69.4; 40.5.

A 50 mL round-bottom flask was charged with lipoic acid (0.112 g, 4.91 mmol), DCC (0.112 g, 4.91 mmol) and anhydrous DCM (20 mL). The reaction mixture was cooled to 0 °C in an ice water bath, and a solution of 4 (0.160 g, 4.25 mmol), DMAP (catalytic amount) and anhydrous CH₂Cl₂ (25 mL) was added dropwise over a period of 1 h under magnetic stirring. After the addition was completed, the reaction mixture was stirred at 0 °C for 1 h and then allowed to warm to room temperature for 12 h. After removing the insoluble salts via vacuum filtration, the filtrate was concentrated and further purified by silica gel column chromatography using hexane/ethyl acetate (1:6, v/v) as eluent. After removing all the solvents with a rotary evaporator, the product, 5, was obtained as a green solid (0.068 g, yield: 40%).

¹H-NMR (300 MHz, CDCl₃): δ = 7.25 (d, J = 8.1 Hz, 2H), 7.15 (d, J = 8.1 Hz, 2H), 6.80 (d, J = 8.0 Hz, 4H), 6.60 (d, J = 8.0 Hz, 4H), 5.05 (s, 2H), 2.90 (s, 12H), 2.5–2.3 (m, 5H), 1.80–1.60 (m, 2H), 1.55–1.45 (m, 4H), 1.42 (m, 2H) ppm; ¹³C-NMR (75.4 MHz, CDCl₃): δ = 173.8; 157.2; 150.0; 147.5; 140.5; 129.6; 129.2; 128.1; 114.1; 81.9; 66.3; 56.7; 40.9; 40.6; 38.9; 34.3; 29.1; 26.8; 25.0.

2.4. Preparation of the Functionalized AuNPs: NP1

Gold nanoparticles were prepared by reducing HAuCl₄ with trisodium citrate. All glassware was thoroughly cleaned with freshly prepared aqua regia (HCl:HNO₃ in 3:1 molar ratio), rinsed thoroughly with water and dried in air. NPs with a diameter of 13 nm were synthesized as reported previously [29,30]. Briefly, 5 mL of 38.8 mM trisodium citrate solution was added into 50 mL of 1 mM HAuCl₄ boiling solution, and the resulting solution was then kept continuously boiling for 30 min until a red solution was obtained. The solution was cooled to room temperature, and then the mixture was filtrated through a 0.22 μm membrane filter to remove the precipitate and the filtrate was then stored in a refrigerator at 4 °C for further use. The size of NPs was measured with a transmission electron microscope. Modification of NPs through the ligand-exchange reaction was performed at room temperature by mixing 10 mL of the as-prepared NPs with 20 μL of aqueous solution of 1 mM of compound 5 in DMF. NP1 was centrifuged for 20 min (13.000 rpm) and then suspended in DMF.

3. Results

3.1. Study of Commercial Malachite Green (MG⁺) Dye versus Anions in Solution

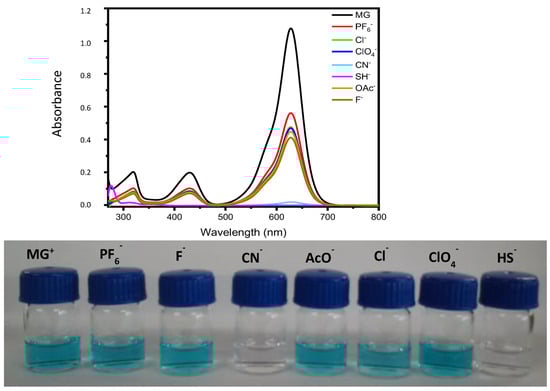

First, the behaviour of the commercial malachite green (MG⁺) triarylmethane dye was studied in solution. This compound has a strong absorption band in the visible region to produce intense, brilliant shades of blue-green [31]. Its absorption spectrum in DMF (Figure 2, top) is characterized by an intense absorption band at 619 nm (ɛ = 62,980 cm⁻¹ mol⁻¹ L), arising from a π → π* transition, along with two less intense π → π* transitions at 420 nm (ɛ = 11,440 cm⁻¹ mol⁻¹ L) and 312 nm (ɛ = 11,430 cm⁻¹ mol⁻¹ L), respectively. It is well established that MG⁺ cations react with a variety of nucleophiles (such as cyanide and bisulfide anions or amines) in different solvents following second-order kinetics [32].

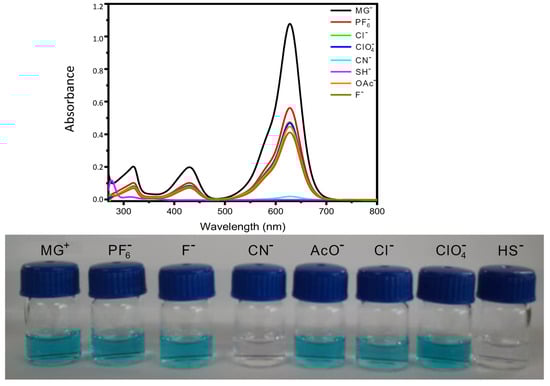

This nucleophilic addition can be easily followed by the disappearance of the main absorption bands in the visible region of the UV-vis spectra, resulting in a bleaching of the solution [33]. In fact, when aqueous solutions of different anions (CN⁻, SH⁻, AcO⁻, F⁻, Cl⁻, ClO₄⁻ and PF₆⁻) (3 × 10⁻³ M) were added to a solution of MG⁺ in DMF (1 × 10⁻⁵ M), only cyanide and bisulfide anions led to an important decrease in the intensity of the three characteristic UV-vis absorption bands of MG⁺ with concomitant disappearance of the blue-green colour of the solution (see Figure 2, bottom).

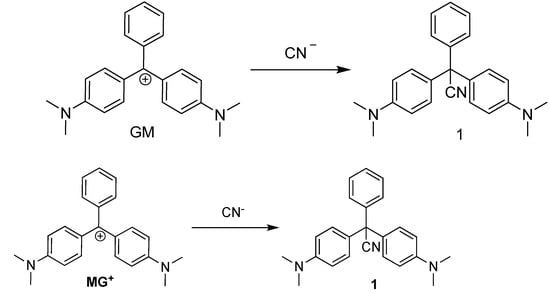

The nucleophilic addition of cyanide anion to MG⁺ was confirmed by the independent synthesis of the corresponding leucocyanide adduct from the reaction of the carbinol derivative of MG⁺ with excess of KCN in acidic media (see Supplementary Materials). We envisaged that the observed colour change in the titration of MG⁺ with CN⁻ may arise from the addition reaction of CN⁻ at the carbocationic core, resulting in the formation of the colourless species 1 (Scheme 1). To corroborate this hypothesis, when a DMF solution of GM was reacted with an excess of CN⁻, the blue-green colour of MG⁺ changed to colourless. To confirm the formation of 1, the reaction was performed according to the literature [28]. Subsequent to the disappearance of the blue-green colour of MG⁺, ¹H and ¹³C NMR spectra were recorded, which unequivocally confirmed the formation of 1 (see Supplementary Materials). In the ¹³C NMR spectrum, a signal at 207.1 ppm, corresponding to the carbocation, was observed. On rection with ^-CN, this signal disappeared and a signal at 110.9 ppm, corresponding to the nitrile moiety, appeared instead.

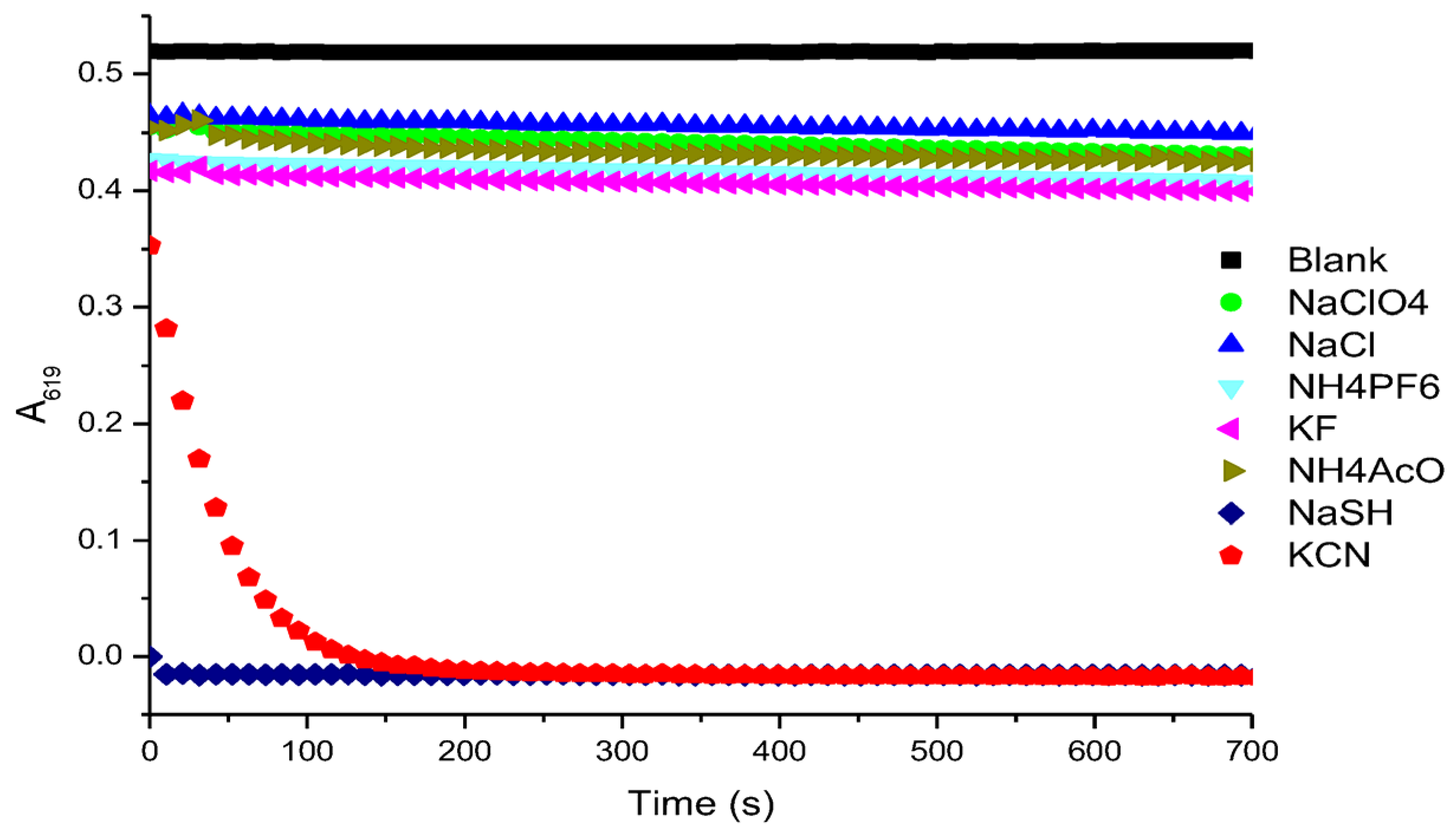

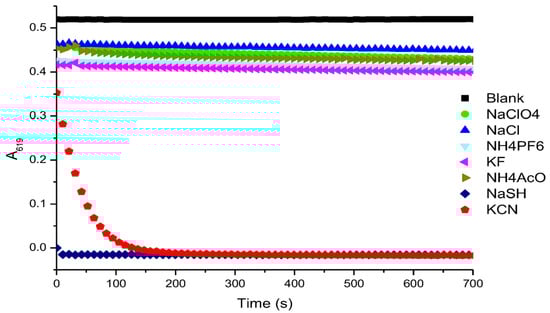

Figure 3 summarizes the kinetic reactivity studies of MG⁺ with different anions in DMF. The decrease of the characteristic absorption band of MG⁺ at 619 nm in the presence of HS⁻ was too fast to be measured.

UV-vis titration studies performed with DMF solutions of MG⁺ in the presence of increasing amounts of KCN and NaSH showed a decrease in the intensity of the band centred at 619 nm (see Figure S2 of Supplementary Materials). In a similar trend to the kinetic study, MG⁺ gave a linear response from small amounts of HS⁻, whereas the CN⁻ anion requires a threshold concentration to give a linear response.

3.2. Study of MG⁺ Functionalized AuNPs versus Anions in Solution

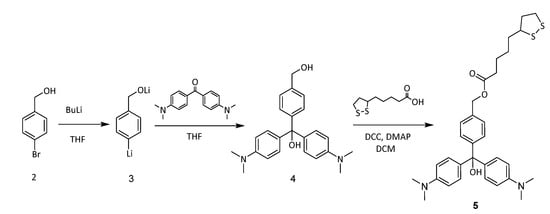

AuNPs react easily with disulfide groups and then, for the synthesis of MG⁺-functionalized AuNPs we decided to synthesize a malachite green derivative bearing an appending thioctic ester (compound 5 in Scheme 2). Thus, triarylcarbinol 4 was synthesized, in 60% yield, from 4-bromobenzyl alcohol, butyllithium and 4-(dimethylamino)benzophenone. The less hindered primary alcohol in 4 was esterified with thioctic acid in the presence of DCC and DMAP to yield compound 5 in a 40% yield after column chromatography [9]. The chemical structure and purity of 5 were confirmed by spectroscopic techniques (see Supplementary Materials). It is noteworthy that this compound did not show any absorption bands in the visible region of the UV-vis spectrum, indicating that no carbocation was generated. To generate the corresponding triaryl carbonium ion, concentrated HCl was added to DMF or acetonitrile solutions of 5, and a broad UV-vis absorption band centred at 619 nm (5 × 10⁻⁵ M in DMF) was observed.

The functionalized AuNPs were synthesized through a two-step procedure. First, citrate-stabilized nanoparticles were prepared by reducing tetrachloroauric acid with trisodium citrate in boiling water [29,30]. Monodisperse citrate-stabilized nanoparticles were thus obtained with an average size of 13 nm, as determined by TEM. In a second step, in a ligand-exchange reaction, the citrate was replaced from the surface of the nanoparticles by cation of ligand 5. According to our experience [34], this ligand exchange does not significantly increase the size, and consequently, the typical SPR band at 530 nm appears in the UV-vis spectrum for dispersed AuNPs smaller than 25 nm. The functionalized AuNPs (NP1) were then centrifuged and re-dissolved in DMF. The concentration of NP1 was calculated to be 1.9 × 10⁻⁹ M from an estimated molar extinction coefficient of ε = 2.47 × 10⁸ M⁻¹ cm⁻¹ [35]. These nanoparticles were neither stable in water nor in aqueous buffer solutions, probably due to a slow hydration of the triaryl carbonium ion, leading to aggregation processes.

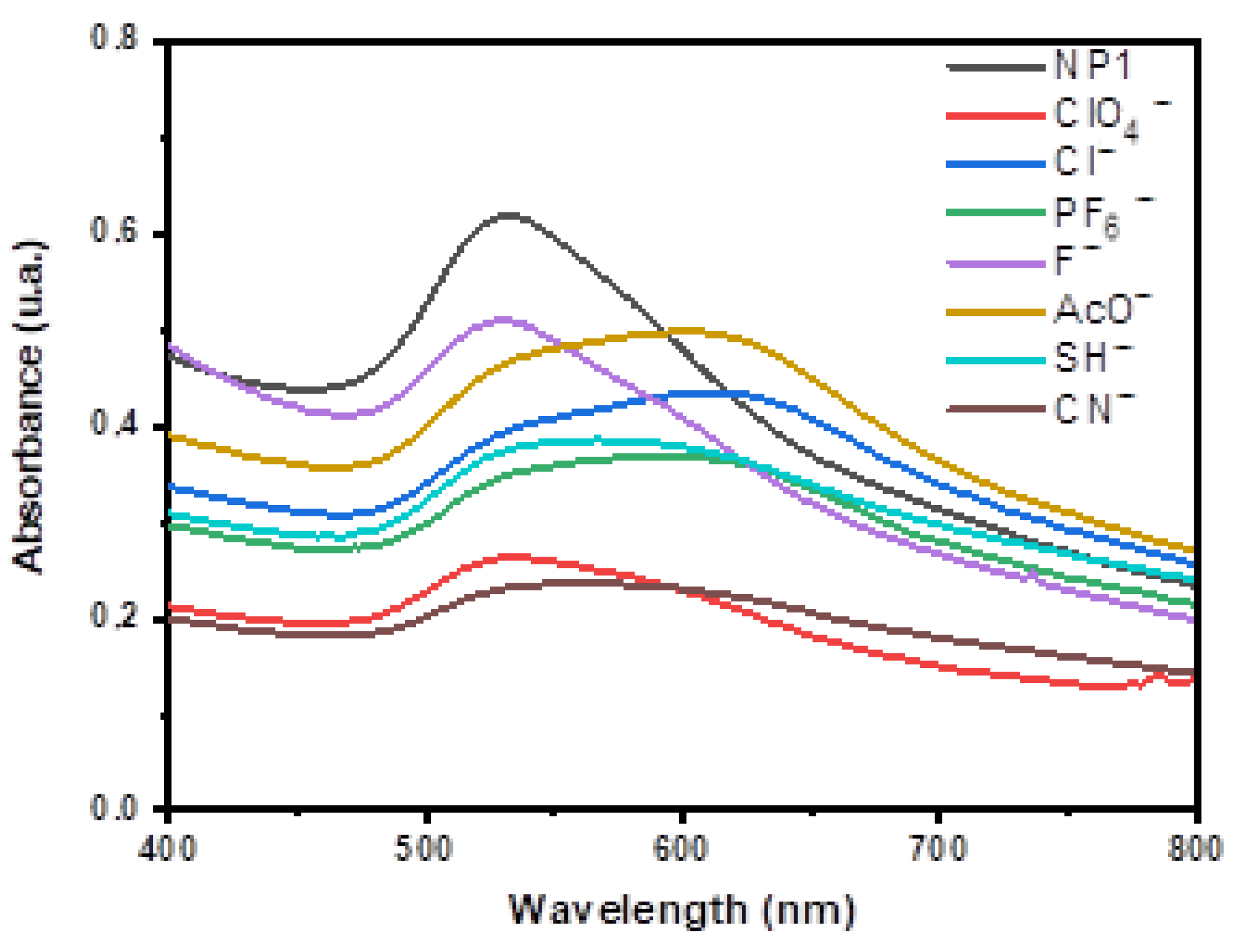

DMF solutions of dispersed triaryl-carbonium-ion-functionalized AuNPs (NP1) exhibited the characteristic surface plasmon resonance (SPR) band at 530 nm in the UV-vis spectrum and showed a wine-red colour. Figure 4 depicts the UV-vis spectra of DMF solutions of NP1 (blank) after the addition of 300 µL aqueous solutions (3 × 10⁻³ M) of different anions (CN⁻, AcO⁻, F⁻, Cl⁻, ClO₄⁻ and PF₆⁻). As expected, the presence of some anions promoted a decrease in the intensity of disperse AuNPs at 530 nm and the appearance of a new peak at around 620 nm, which is consistent with an aggregation of the nanoparticles (as can be seen in the TEM Figure S1, right). This was observable to the naked eye as a colour change from red to blue, although, as can be seen in Figure 4, both bands coexist to some extent. This is due to the addition of nucleophilic anions towards the carbocation of MG⁺ moiety or through the compensation of the electrostatic charges. For CN⁻ anions, only 180 µL of a 3 × 10⁻³ M solution was added because the aggregation process was very fast, leading to the precipitation of the AuNP aggregates.

Titration studies performed with DMF solutions of NP1 in the presence of increasing amounts of different anions are included in the Supplementary Materials. In the case of AcO⁻, Cl⁻ and PF₆⁻ anions, these changes in the spectra were concomitant with a change in the colour of the solution from red to dark blue. The variation of the ratio of the absorbance intensities of NP1 at 620 nm and 530 nm (A620/A530) versus anion concentration is also presented in Figure S3 (Supplementary Materials).

The limits of detection (LOD), expressed in mol L⁻¹, were calculated from the plots of the ratio of the intensity of the absorbance at ca. 620 nm and ca. 530 (A₆₁₉/A₅₃₀) versus anion concentration expressed in ppm (mg/L) [36] (see Table S4 in Supplementary Materials), and are shown in

Table 2. LODs of different anions with NP1.

	CN−	AcO−	F−	Cl−	ClO4−	PF6−
LOD (mol/L)	3.099·10−3	5.08·10−4	---	4.547·10−4	---	5.22·10−4

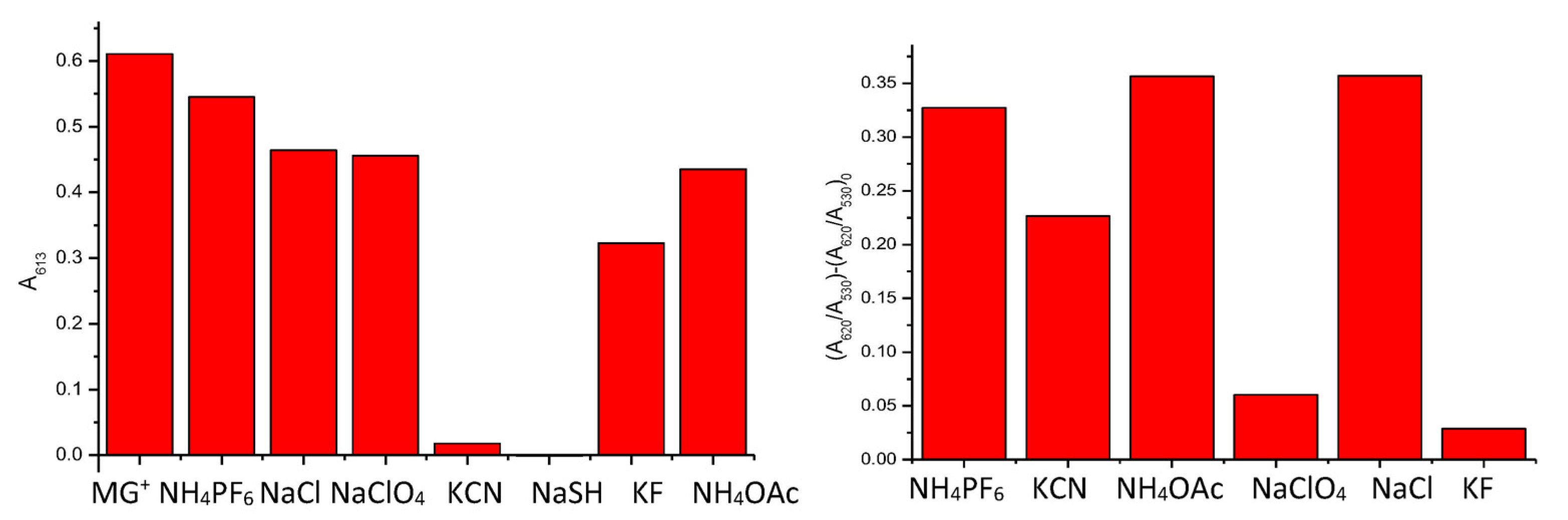

. Diagrams comparing the behaviour of MG⁺ and NP1 in the presence of different anions are shown in Figure 5.

4. Discussion

Different trends in the reactivity of monoanionic nucleophiles towards MG⁺ are observed when the cationic dye is free in solution and when it is attached to the surface of AuNPs. In the first case, only the stronger nucleophiles (CN⁻ and HS⁻) are able to react with MG⁺. On the contrary, when the triaryl carbonium ion is attached to the AuNPs, it is also able to detect, with good LODs, AcO⁻, Cl⁻ and PF₆⁻. It is not clear whether a reaction or a charge compensation process, leading to aggregation of the Nps, is responsible. However, a modification of the electrophilicity of the supported cation is likely, as only the hard nucleophiles ClO₄⁻ and F⁻ do not promote the aggregation.

5. Conclusions

In summary, we have synthesized MG⁺-functionalized AuNPs, NP1, for the detection of anions. The detection process is based on the compensation of the positive charges at the surface of the nanoparticles, which triggers their aggregation, resulting in a bathochromic shift in the plasmon resonance band. A different electrophilicity capacity is observed for the carbocation in solution or linked to the AuNPs, which made it possible to distinguish the nucleophilic character of different anions. Only the strong and soft nucleophile anions such as cyanide and hydrogen sulphide decolorate malachite green in DMF solution. However, when a malachite green derivative is anchored to AuNPs, fewer nucleophilic anions are able to promote aggregation, except for hard nucleophiles such as ClO₄⁻ and F⁻.
