Bonding Wood Veneer with Biobased Poly(Lactic Acid) Thermoplastic Polyesters: Potential Applications for Consolidated Wood Veneer and Overlay Products
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Poly(Lactic Acid) (PLA) Foil Preparation
2.3. Hot Pressing PLA Laminated Veneer Panels
2.4. Tensile Testing

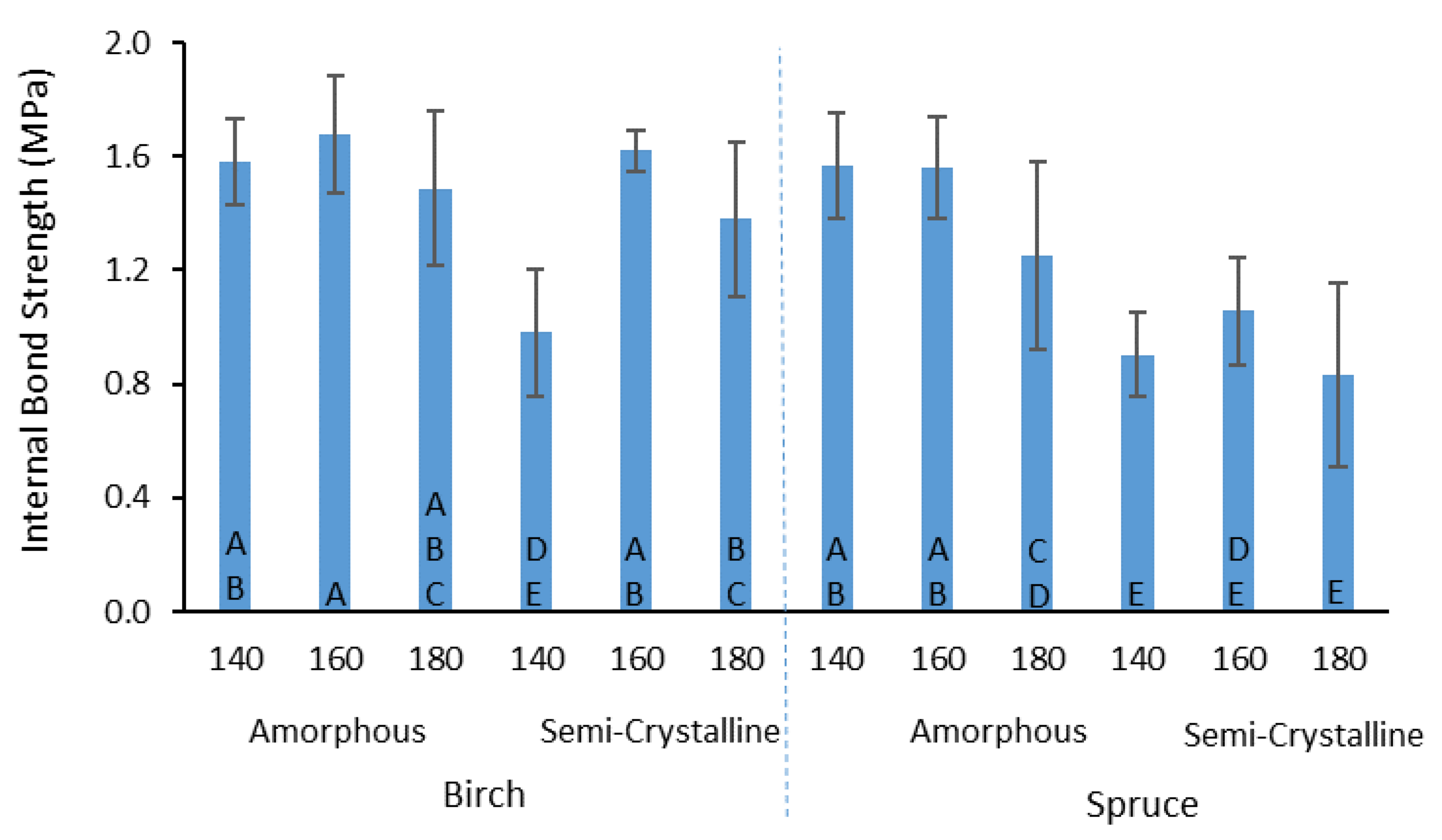

2.5. Internal Bond Strength Testing
3. Results

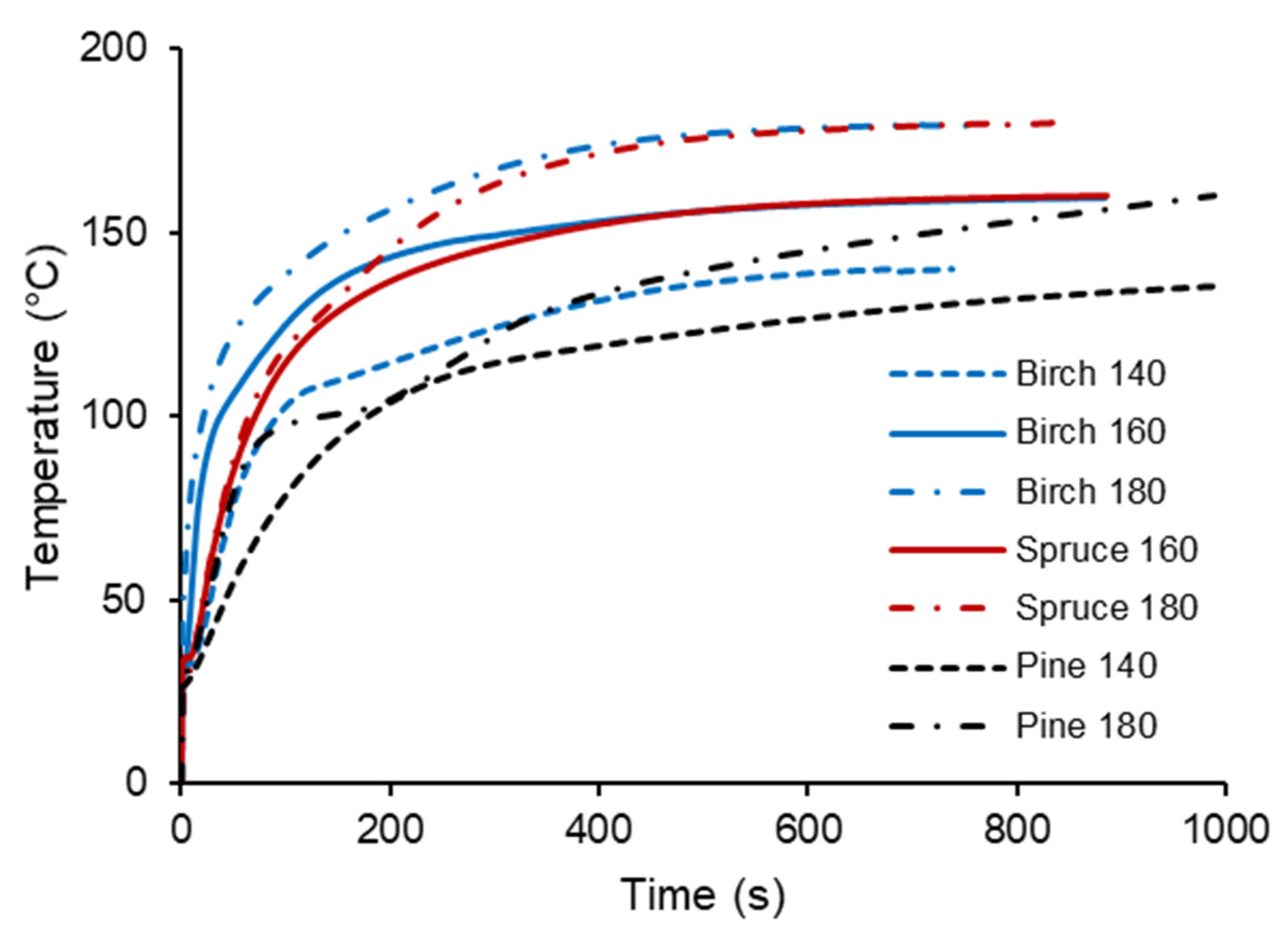

3.1. Press Cycle Development

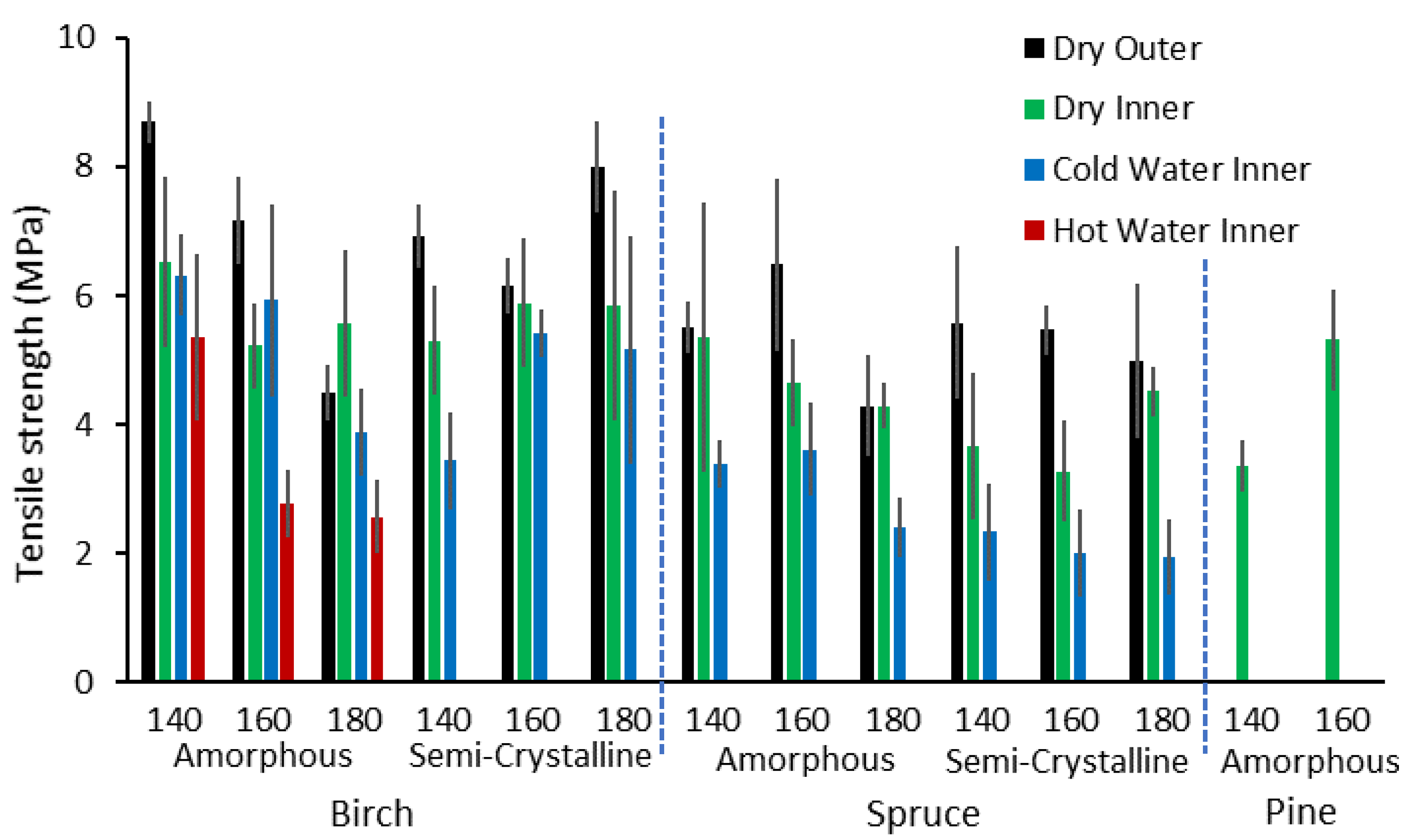

3.2. Wood-PLA Laminate Performance
3.3. Bondline Performance on Water Soaking
4. Discussion
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Chen, Y.; Geever, L.M.; Killion, J.A.; Lyons, J.; Higginbotham, C.L.; Devine, D. Review of Multifarious Applications of Poly(Lactic Acid). Polym. Technol. Eng. 2016, 55, 1057–1075. [Google Scholar] [CrossRef]
- Shogren, R.; Wood, D.; Orts, W.; Glenn, G.M. Plant-based materials and transitioning to a circular economy. Sustain. Prod. Consum. 2019, 19, 194–215. [Google Scholar] [CrossRef]
- Knauf, M. Applying opportunity costs to correctly interpret resource efficiency in LCA studies and environmental product declarations. Holz Als Roh-Und Werkst. 2014, 73, 251–257. [Google Scholar] [CrossRef]
- Taylor, A.M.; Bergman, R.; Puettmann, M.E.; Alanya-Rosenbaum, S. Impacts of the Allocation Assumption in Life-Cycle Assessments of Wood-Based Panels. For. Prod. J. 2017, 67, 390–396. [Google Scholar] [CrossRef] [Green Version]
- Salthammer, T. Formaldehyde sources, formaldehyde concentrations and air exchange rates in European housings. Build. Environ. 2019, 150, 219–232. [Google Scholar] [CrossRef]
- Liu, W.; Zhang, Y.; Yao, Y.; Li, J. Indoor decorating and refurbishing materials and furniture volatile organic compounds emission labeling systems: A review. Chin. Sci. Bull. 2012, 57, 2533–2543. [Google Scholar] [CrossRef] [Green Version]
- Mertens, O.; Gurr, J.; Krause, A. The utilization of thermomechanical pulp fibers in WPC: A review. J. Appl. Polym. Sci. 2017, 134, 45161. [Google Scholar] [CrossRef] [Green Version]
- Hubbe, M.A.; Grigsby, W. From Nanocellulose to Wood Particles: A Review of Particle Size vs. the Properties of Plastic Composites Reinforced with Cellulose-based Entities. BioResources 2020, 15, 2030–2081. [Google Scholar]
- Kajaks, J.A.; Bakradze, G.; Viksne, A.V.; Reihmane, S.A.; Kalnins, M.M.; Krutohvostov, R. The use of polyolefins-based hot melts for wood bonding. Mech. Compos. Mater. 2009, 45, 643–650. [Google Scholar] [CrossRef]
- Chan, C.M.; Vandi, L.J.; Pratt, S.; Halley, P.J.; Richardson, D.; Werker, A.; Laycock, B. Composites of wood and biodegradable thermoplastics: A review. Polym. Rev. 2017, 58, 1–51. [Google Scholar] [CrossRef]
- Carrasco, F.; Pagés, P.; Gamez-Perez, J.; Santana, O.O.; Maspoch, M. Processing of poly(lactic acid): Characterization of chemical structure, thermal stability and mechanical properties. Polym. Degrad. Stab. 2010, 95, 116–125. [Google Scholar] [CrossRef]
- Tao, Y.; Wang, H.; Li, Z.; Li, P.; Shi, S.Q. Development and Application of Wood Flour-Filled Polylactic Acid Composite Filament for 3D Printing. Materials 2017, 10, 339. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ayrilmis, N.; Kariz, M.; Kwon, J.H.; Kuzman, M.K. Effect of printing layer thickness on water absorption and mechanical properties of 3D-printed wood/PLA composite materials. Int. J. Adv. Manuf. Technol. 2019, 102, 2195–2200. [Google Scholar] [CrossRef]
- Singamneni, S.; Warnakula, A.; Smith, D.A.; Le Guen, M.J. Biopolymer Alternatives in Pellet Form for 3D Printing by Extrusion. 3D Print. Addit. Manuf. 2019, 6, 217–226. [Google Scholar] [CrossRef]
- Gaugler, M.; Luedtke, J.; Grigsby, W.J.; Krause, A. A new methodology for rapidly assessing interfacial bonding within fibre-reinforced thermoplastic composites. Int. J. Adhes. Adhes. 2019, 89, 66–71. [Google Scholar] [CrossRef]
- Niaraki, P.R.; Krause, A. Correlation between physical bonding and mechanical properties of wood–plastic composites: Part 2: Effect of thermodynamic factors on interfacial bonding at wood–polymer interface. J. Adhes. Sci. Technol. 2019, 34, 756–768. [Google Scholar] [CrossRef]
- Luedtke, J.; Gaugler, M.; Grigsby, W.J.; Krause, A. Understanding the development of interfacial bonding within PLA/wood-based thermoplastic sandwich composites. Ind. Crop. Prod. 2019, 127, 129–134. [Google Scholar] [CrossRef]
- Grigsby, W.J.; Gager, V.; Recabar, K.; Krause, A.; Gaugler, M.; Luedtke, J. Quantitative Assessment and Visualisation of the Wood and Poly(Lactic Acid) Interface in Sandwich Laminate Composites. Fibers 2019, 7, 15. [Google Scholar] [CrossRef] [Green Version]
- Bakken, A.; Taleyarkhan, R. Plywood wood based composites using crystalline/amorphous PLA polymer adhesives. Int. J. Adhes. Adhes. 2020, 99, 102581. [Google Scholar] [CrossRef]
- Marra, A.A. Technology of Wood Bending: Principles in Practice; Springer: New York, NY, USA, 1992. [Google Scholar]
Pressing Temperature (°C) | Hot-Pressing Time (s) | Cooling Time (s) | PLA Foil Thickness (mm) |
---|---|---|---|
140 | 740 | 800 | 0.3 |
160 | 920 | 950 | 0.3, 0.5 |
180 | 725 | 1020 | 0.3, 0.5 |
Sample | Dry, Outer | Dry, Inner | p-Value | |||
---|---|---|---|---|---|---|
PLA Grade | Pressing Temperature | Tensile Strength | Tensile Strength | - | ||
(°C) | (MPa) | (MPa) | - | |||
Average | Standard Deviation | Average | Standard Deviation | - | ||
Birch | ||||||
Amorphous | 140 | 8.7 | 0.3 | 6.5 | 1.3 | 0.04 * |
160 | 7.2 | 0.7 | 5.4 | 0.6 | 0.002 * | |
180 | 4.5 | 0.4 | 5.6 | 1.1 | 0.004 * | |
Semi-crystalline | 140 | 6.9 | 0.5 | 5.3 | 0.8 | 0.008 * |
160 | 6.2 | 0.4 | 5.9 | 1 | 0.61 | |
180 | 8 | 0.7 | 5.8 | 1.8 | 0.054 | |
Spruce | ||||||
Amorphous | 140 | 5.5 | 0.4 | 5.3 | 2.1 | 0.88 |
160 | 6.5 | 1.3 | 4.7 | 0.7 | 0.03 * | |
180 | 4.3 | 0.8 | 4.3 | 0.4 | 0.99 | |
Semi-crystalline | 140 | 5.6 | 1.2 | 3.7 | 1.1 | 0.03 * |
160 | 5.5 | 0.4 | 3.3 | 0.8 | 0.002 * | |
180 | 5 | 1.2 | 4.5 | 0.4 | 0.45 | |
Pinus Radiata | ||||||
Amorphous | 140 | - | - | 3.4 | 0.4 | - |
160 | - | - | 5.3 | 0.8 | - |
Species | Pressing Temperature (°C) | PLA Foil Thickness (mm) | Tensile Strength (MPa) | p-Value | |||
---|---|---|---|---|---|---|---|
Samples per Foil Thickness | All Samples | ||||||
Average | Standard Deviation | Average | Standard Deviation | ||||
Birch | 160 | 0.5 | 5.47 | 0.28 | 5.4 | 0.6 | 0.91 |
0.3 | 5.38 | 0.93 | |||||
180 | 0.5 | 5.7 | 1.97 | 5.6 | 1.1 | 0.78 | |
0.3 | 5.19 | 1.04 | |||||
Spruce | 160 | 0.5 | 4.35 | 0.39 | 4.7 | 0.7 | 0.43 |
0.3 | 4.85 | 0.84 | |||||
180 | 0.5 | 4.08 | 0.14 | 4.3 | 0.4 | 0.29 | |
0.3 | 4.42 | 0.41 | |||||
Radiata pine | 160 | 0.5 | 5.21 | 0.83 | 5.3 | 0.8 | 0.80 |
0.3 | 5.45 | 1.06 |
Sample | Dry | Cold Water Soaking | p-Value | |||
---|---|---|---|---|---|---|
PLA Grade | Pressing Temperature (°C) | Tensile Strength | Tensile Strength | - | ||
(MPa) | (MPa) | - | ||||
Average | Standard Deviation | Average | Standard Deviation | - | ||
Birch | ||||||
Amorphous | 140 | 6.5 | 1.3 | 6.3 | 0.6 | 0.02 * |
160 | 5.4 | 0.6 | 5.9 | 1.5 | 0.73 | |
180 | 5.6 | 1.1 | 3.9 | 0.7 | 0.005 * | |
Semi-Crystalline | 140 | 5.3 | 0.8 | 3.4 | 0.8 | <0.001 * |
160 | 5.9 | 1 | 5.4 | 0.4 | 0.06 | |
180 | 5.8 | 1.8 | 5.2 | 1.8 | 0.17 | |
Spruce | ||||||
Amorphous | 140 | 5.3 | 2.1 | 3.4 | 0.4 | 0.001 * |
160 | 4.7 | 0.7 | 3.6 | 0.7 | 0.006 * | |
180 | 4.3 | 0.4 | 2.4 | 0.5 | <0.001 * | |
Semi-Crystalline | 140 | 3.7 | 1.1 | 2.3 | 0.7 | 0.002 * |
160 | 3.3 | 0.8 | 2 | 0.7 | 0.001 * | |
180 | 4.5 | 0.4 | 1.9 | 0.6 | <0.001 * | |
Pinus Radiata | ||||||
Amorphous | 140 | 3.4 | 0.4 | - | - | - |
160 | 5.3 | 0.8 | - | - | - |
