Engineering Properties of Waste Badminton String Fiber

Abstract

This work addresses the feasibility of using waste badminton string fiber in cement and polymer matrices. A badminton racquet, once used, is torn and needs replacement with new strings. These torn strings, once cut from the badminton racquet system, become waste, and these fibers cannot be recycled and remain debris. Hence, this study examines the microstructural and mechanical properties of new fibers and old torn fibers comparatively. Scanning electron microscopy, X-ray diffraction, Fourier transform infrared spectroscopy, and energy dispersive spectroscopy are used to study the microstructural properties of the fiber. Direct tensile stress is applied to new and old fibers in the universal testing machine varying by one, three, and five strands of the fibers and varying the gauge length to 60, 80, and 100 mm, and the respective energy absorption is calculated. From investigation with a varying number of strands, similar results were observed in both old and new fibers from energy absorption and residual force ratio. From investigation with varying gauge length, the tensile stress of new fibers varies between 648.53 and 749.03 MPa, and that of old fibers is 537.40–625.55 MPa. Young’s modulus for new and old fibers is 4870.00 and 4843.50 MPa, respectively. The Weibull statistical approach is used to test the variability of test results. The Weibull modulus varies between 5.27 and 9.17, which shows lower variability. Thus, the tensile stress results obtained for the discarded badminton fibers pave way for incorporating these fibers in cement and polymer matrices to improve the matrix properties.

1. Introduction

The use of recycled fibers [1,2,3,4] as a reinforcement in cement and polymer matrices has been extensively research in the past 30 years [5,6,7,8]. The performance of concrete is enhanced by using various commercial fibers as well as recycled fibers. Among many recycled fibers such as fishing net waste [9,10,11], carpet waste [12,13,14], recycled steel wires [5,15,16], glass fibers [17,18,19], optical cable [20], and scrap nylon [21], the use of waste badminton strings as a reinforcement to the concrete is a new idea [22]. Fishing net waste [9] and recycled scrap nylon brushes [21] are twisted fibers with good tensile properties, which, when used as reinforcement in cementitious material, enhance the tensile property of concrete. Though these recycled polyamide fibers are good in long-term strength and durability behavior, researchers work on the assessment of many other recycled fibers for improvement in composites. Waste badminton string fiber (WBSF) is one such fiber that is found to have a twisted multifilament layer similar to other recycled nylon fibers. Hence, this study is aimed at determining the suitability of WBSF as a reinforcing material in concrete [22]. WBSF consist of more than 350 monofilament fibers twisted together into a single fiber and withstand very high tensile strength compared to other commercial and recycled synthetic fibers. Badminton is the second most famous sport, with over 220 million people playing badminton around the world. These strings, once used and torn, cannot be recycled, which leads to a high quantity of waste fibers that remain as debris [23].

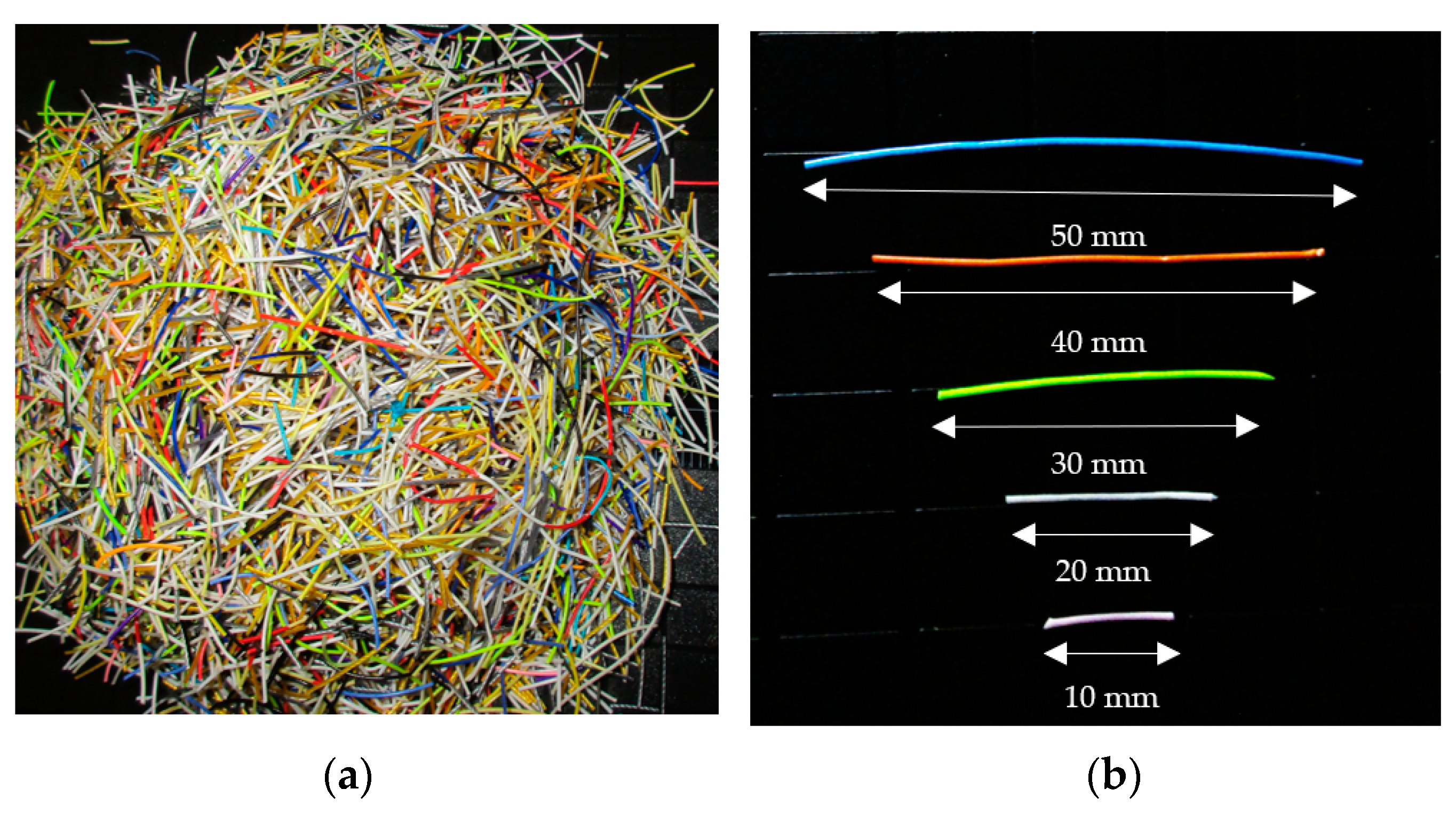

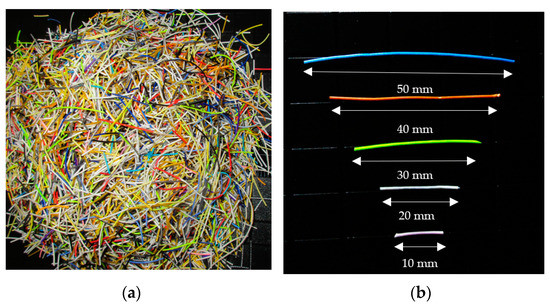

These WBS can be used as fibers in cement and polymer matrices to strengthen their nature. WBSF does not require any additional treatment such as repolymerization when being used in concrete. WBSF just needs to be washed and properly cut for the desired aspect ratio. WBSF being used thus reduces the cost of the fiber required and is environmentally friendly. The badminton strings are a braided multifilament made up of nylon 6,6 [24,25]. Used waste badminton strings are collected from local sports shop. Many shops in different regions of the world have posted that these fibers are available as waste in abundance and can be procured for free, as shown in Figure 1 [26,27].

The key idea of incorporating these badminton fibers into cement and polymer matrices is to improve their toughness and impact resistance. Through the bridging action of this fiber with concrete, shrinkage and post-cracking are reduced [28]. Hence, the physical and microstructural properties of this fiber should be studied before incorporating it into concrete. The intermolecular bonding, crystalline phase, and elemental composition of the fibers are studied using Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and energy dispersive spectroscopy (EDS), respectively. Scanning electron microscopy (SEM) helps in the identification of the cross-sectional area and the diameter of the fiber. The SEM images are examined using ImageJ software for accuracy as the diameter of the fibers is less than 0.8 mm. Researchers have found that only 10% of the fibers in badminton racquets are damaged in the sweet spot, and the remaining undamaged fibers in the racquet show similar properties to that of new fibers [29]. WBSF in this study denotes the old fibers that are most severely damaged.

2. Methodology

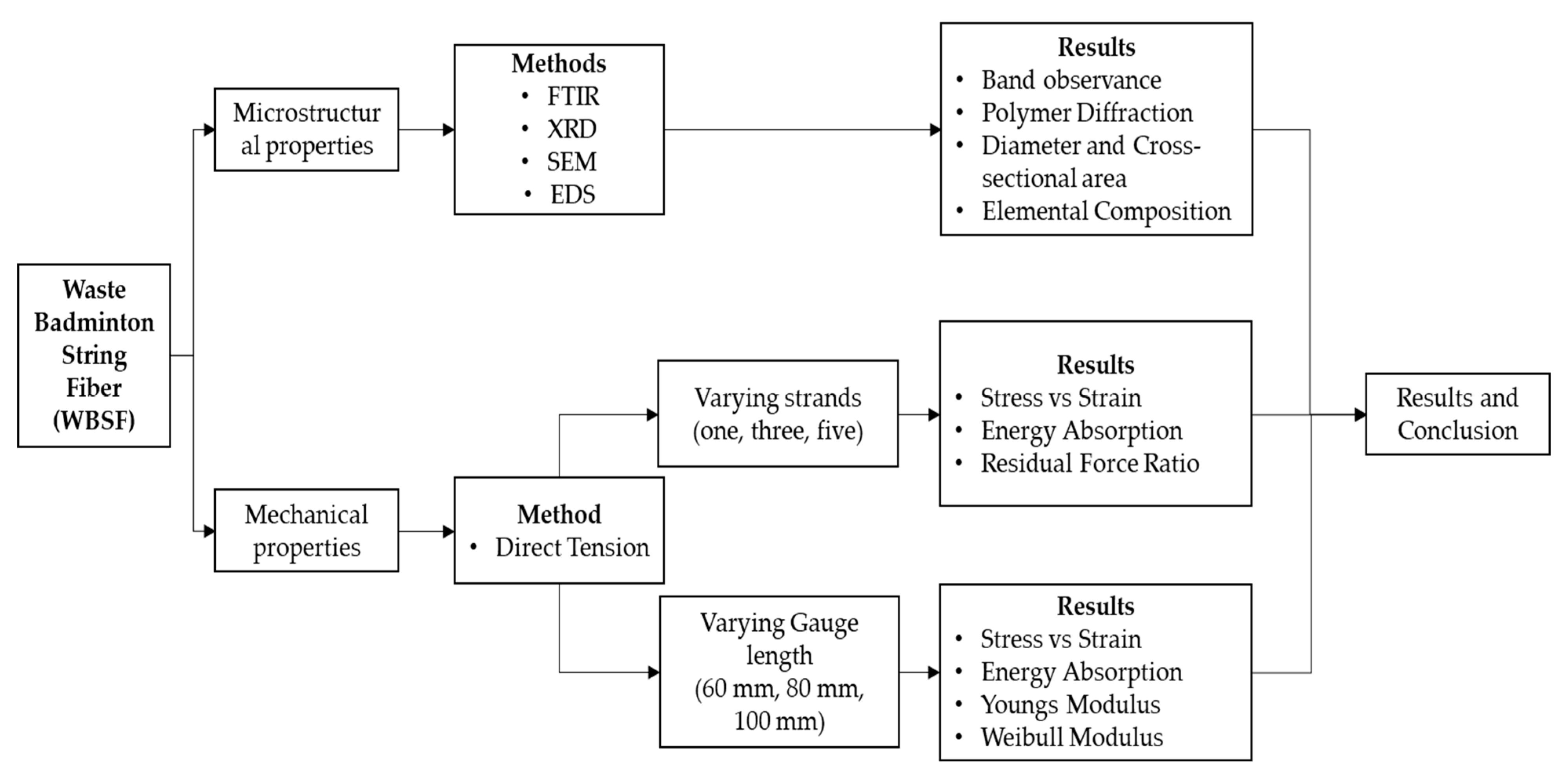

In this study, old and new fibers are examined in terms of their microstructural and mechanical properties. Mechanical characteristics include the tensile strength of the fiber with varying strands (one, three, and five) and varying gauge lengths (60, 80, 100 mm) with reference to Majid Ali et al. [30] to study the energy absorption of the fiber and ASTM C-1557 [31] to study the Young’s modulus of the fiber, respectively. To determine the tensile stress of old and new fibers, the net cross-sectional area is calculated as it plays a major role. The performance of the fibers with varying strands is determined by energy absorption, whereas the performance of the fibers with varying gauge lengths can be determined by the direct tensile stress. The force distribution for fibers with varying strands (three and five) is determined by the residual force loss ratio. The Weibull distribution approach is used to determine the variability of the test results. The methodology is shown in Figure 2.

3. Experimental Methods

A microstructural analysis was conducted to study the characteristics of a multifilament nylon fiber, which was braided with more than 350+ microfibers, using FTIR [32], XRD [33], EDS [34], and SEM [35]. The mechanical characteristics were studied by conducting the direct tensile test on fibers by varying the number of strands (one, three, and five) and varying the gauge length (60, 80, and 100 mm).

3.1. Microstructural Analysis

The method followed and type of equipment used for FTIR, XRD, SEM, and EDS are given below.

3.1.1. Fourier Transform Infrared Spectroscopy

The spectrum obtained from FTIR shows the fingerprints of the structure and functional group response. A FTIR spectrum is often used to determine the material characterization of a new substance through observing various spectrum bands [36]. Infrared spectra were collected on a IR Tracer-100-Shimadzu FTIR spectrometer with a 4 cm⁻¹ resolution, which reduces the environmental variations as it has a built-in automatic dehumidifier.

3.1.2. X-ray Diffraction

The polymer was characterized by XRD analysis to confirm its polymorphic structure. The films were studied using BRUKER USA D8 Advance, Davinci in the 2 theta range of 10°–80°.

3.1.3. Scanning Electron Microscopy and Energy Dispersion Spectroscopy

The microstructural analysis of WBSF such as SEM (for imaging) and EDS (for elemental mapping) was carried out in Thermoscientific Apreo S. The samples were prepared after washing with clean water followed by dehydration in atmospheric temperature. Among all imaging techniques, SEM is the most accurate for examining the physical properties of the fiber. The cross-sectional morphology of the fiber is examined at 200× using SEM.

3.2. Mechanical Study

The direct tensile load is applied to examine the mechanical properties. The sample preparation method, the equipment used, and the testing procedure are described in this section.

4. Results and Discussion

The results obtained from the microstructural and mechanical studies are discussed in this section.

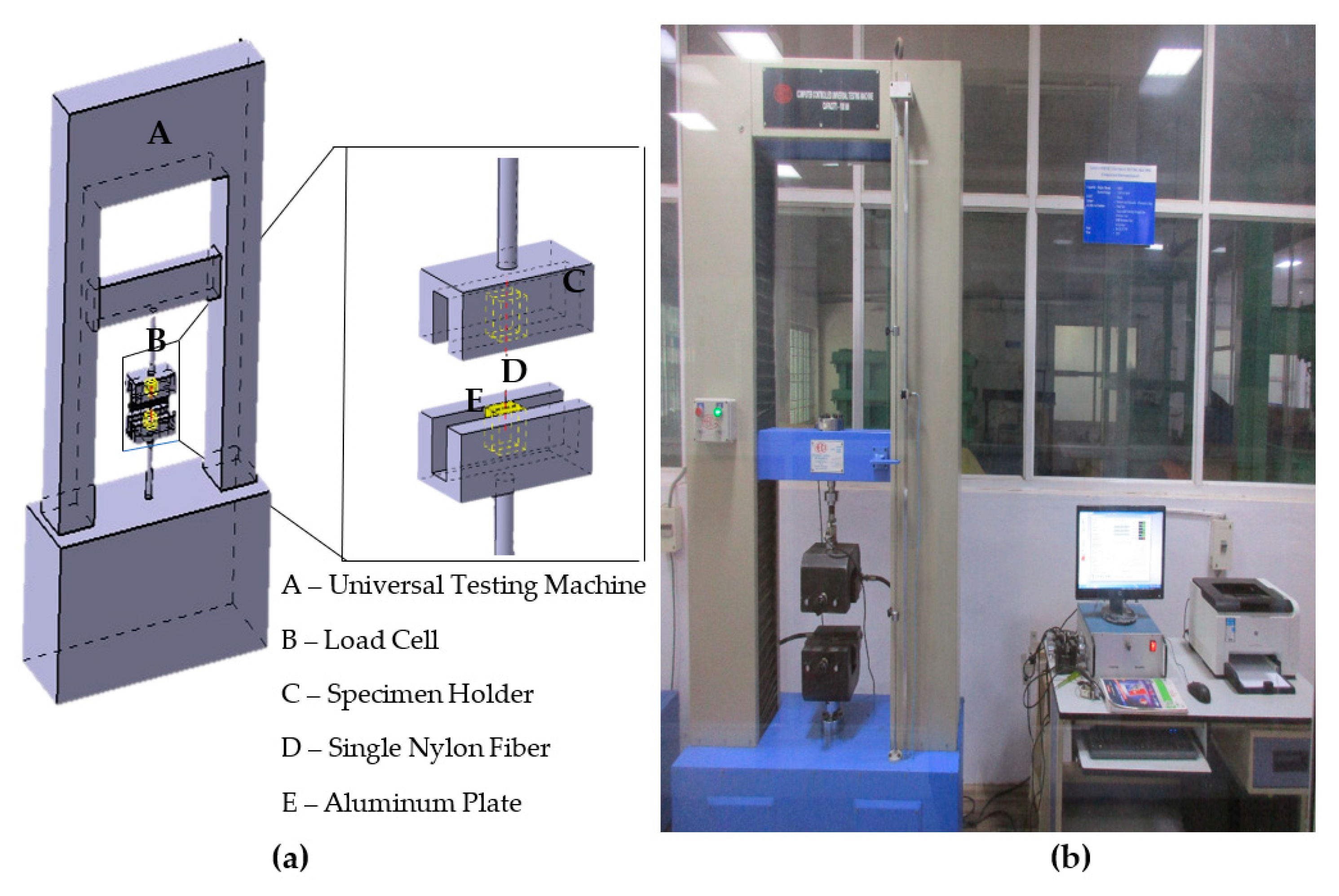

Direct Tension Test Setup

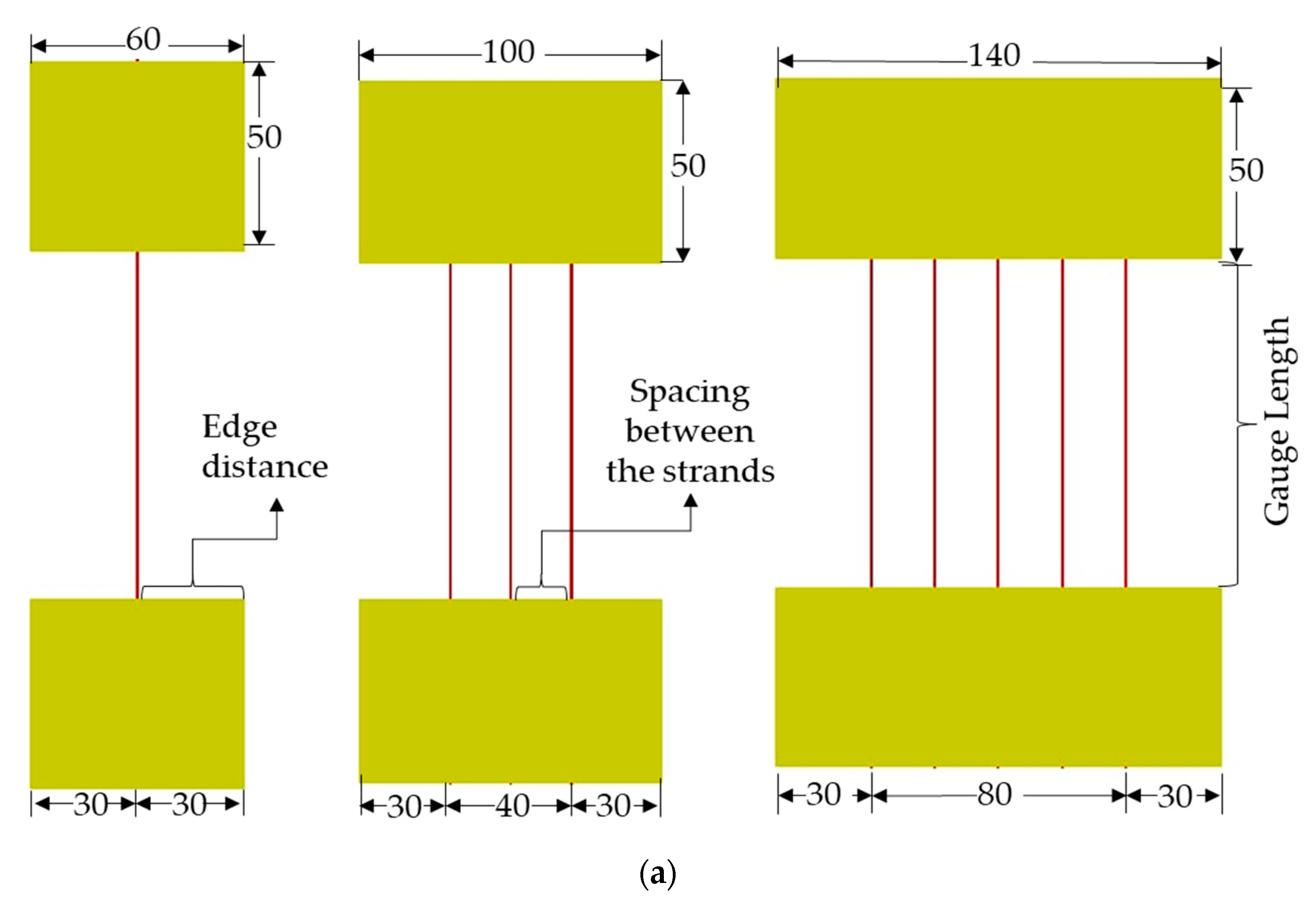

The old and new fiber samples were gripped on an aluminum plate using a strong adhesive for a rigid gripping system [31], as shown in Figure 3. This gripping system was implemented to avoid the effect of compressive forces on the fiber due to the clamping of ends. The gauge length and spacing of the fibers were marked on a piece of paper, and then the aluminum plate (3 mm thickness; 50 mm width and length as per requirement) with fiber was positioned accordingly with a temporary adhesive. The rigid system was set by placing another plate using a strong epoxy, which ensures that the clamping force is not transferred to the fiber during testing. Proper care was taken with the epoxy used for the gripping system between the plates so that the diameter of the fiber between the plates was ensured.

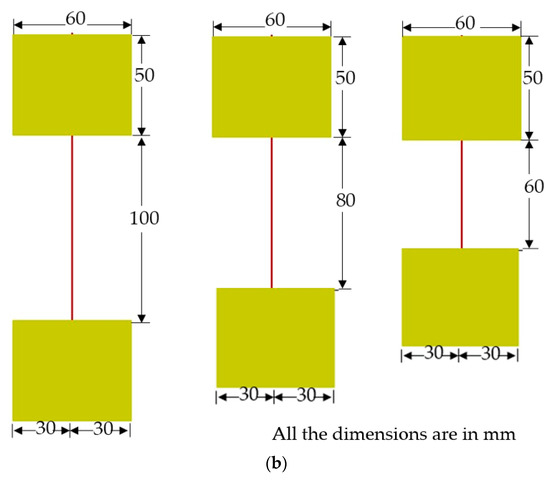

For the condition of varying strands (one, three and five), the gauge length was fixed as 100 mm and the edge distance and spacing between the fibers was maintained as 30 and 20 mm, respectively. For the condition of varying gauge lengths (60, 80 and 100 mm), the number of strands was fixed as a single-strand and the edge distance was maintained as 30 mm. The test specimen for varying conditions is shown in Figure 3.

The tensile test was conducted in computer-controlled universal testing machine, as shown in Figure 4. Testing was performed for samples with varying strands of the fibers and varying gauge lengths at a constant strain rate of 1 [37] and 2 mm/min [38], respectively. The fracture load was extracted with a load cell of 250 kg in capacity. The data acquired from the system are within ±1% standard uncertainty.

4.1. Microstructural Analysis

The results of WBSF obtained from FTIR, XRD, SEM and EDS are given below.

4.1.1. Fourier Transform Infrared Spectroscopy

Generally, the FTIR spectra bands are associated with both crystalline and amorphous phases, where the crystalline phase is usually sharper when compared with the amorphous phase. The three-test samples—S1, S2, and S3—also confirm the same pattern of band observance.

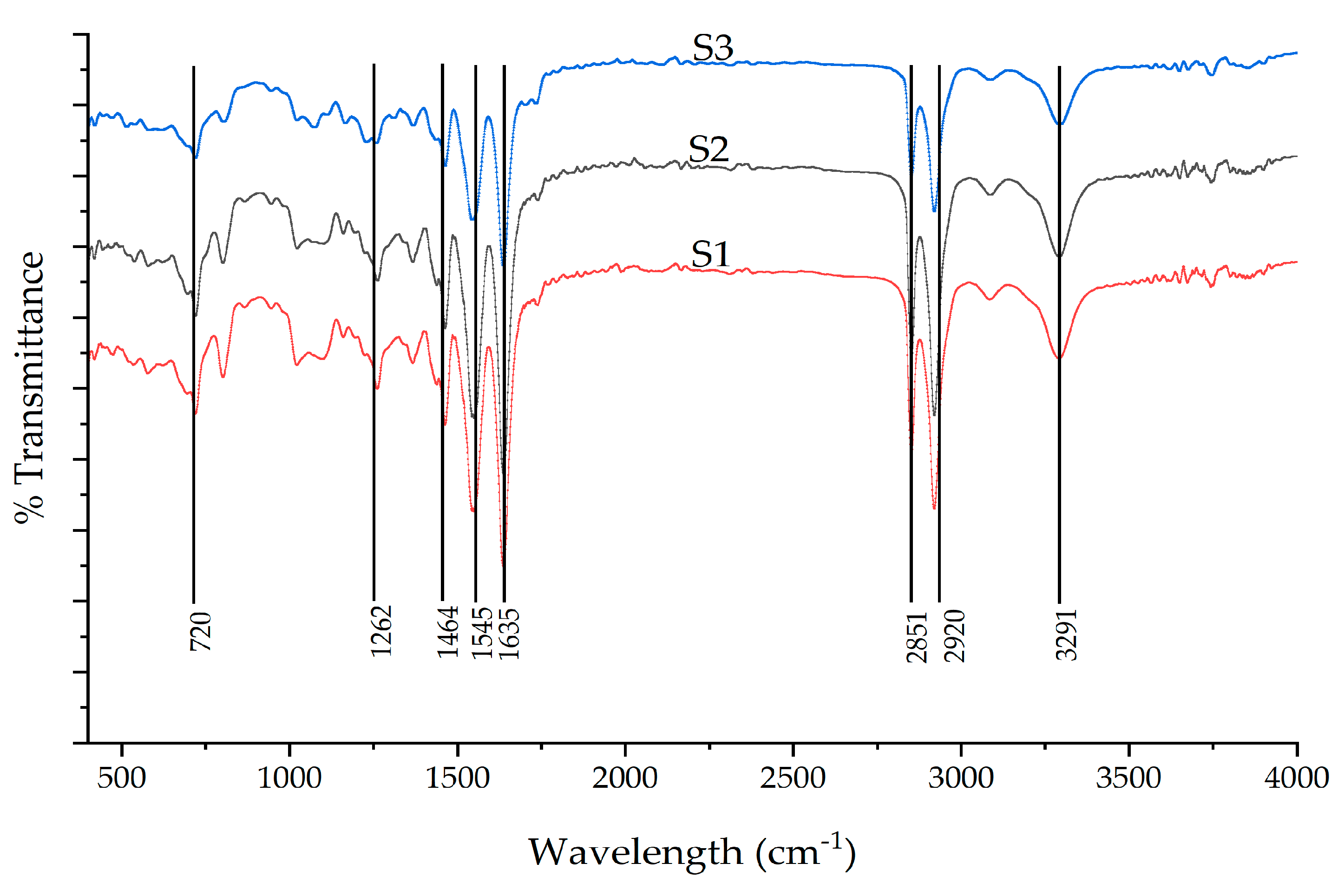

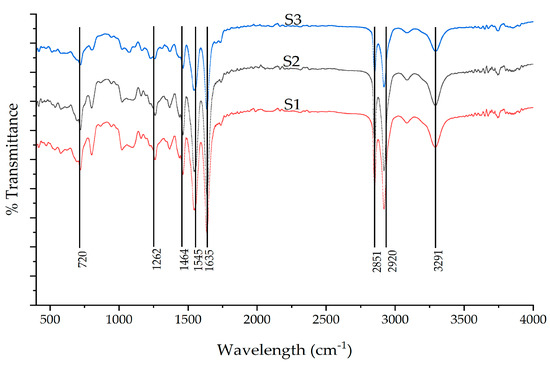

From the obtained band results of FTIR as shown in Figure 5, the medium peak at 3291 cm⁻¹ can be attributed to the amino group of N-H stretch [39], and further medium peaks observed at 2920 and 2851 cm⁻¹ show the vibration of alkane groups of asymmetric CH₂ and symmetric CH₂ stretch, respectively. The two strong peaks at 1635 and 1545 cm⁻¹ were detected due to amide I and II bands [40]. Generally, the C=O stretch forms the peak between 1760 and 1665 cm⁻¹_. However, here, the peak obtained at 1635 cm⁻¹ for the C=O stretch is due to the bonding of the amino I group with the hydrogen bond. The amide II band peak at 1545 cm⁻¹ is due to the appearance of the N-H stretch. All the band values are given in

Table 1. Band Assignment for the Badminton Fiber.

Band Position/cm−1	Assignments
3291	N-H stretch
2920	Asymmetric CH2 stretch
2851	Symmetric CH2 stretch
1635	C=O stretch
1545	N-H stretch
1464	CH2 scissors
1262	CH2 twist-wagging
720	N-H deformation

. The peaks after 1500 cm⁻¹ are of low intensity and the observance is weak. Hence, from the above results, the membrane shows a clear picture of the carbonyl group bonded with the hydroxyl group. This bonding reveals that the nylon 6,6 material is in its purest form.

4.1.2. X-ray Spectroscopy

Generally, polymers contain two types of crystal—in the monoclinic α-form and in the monoclinic γ-form [41].

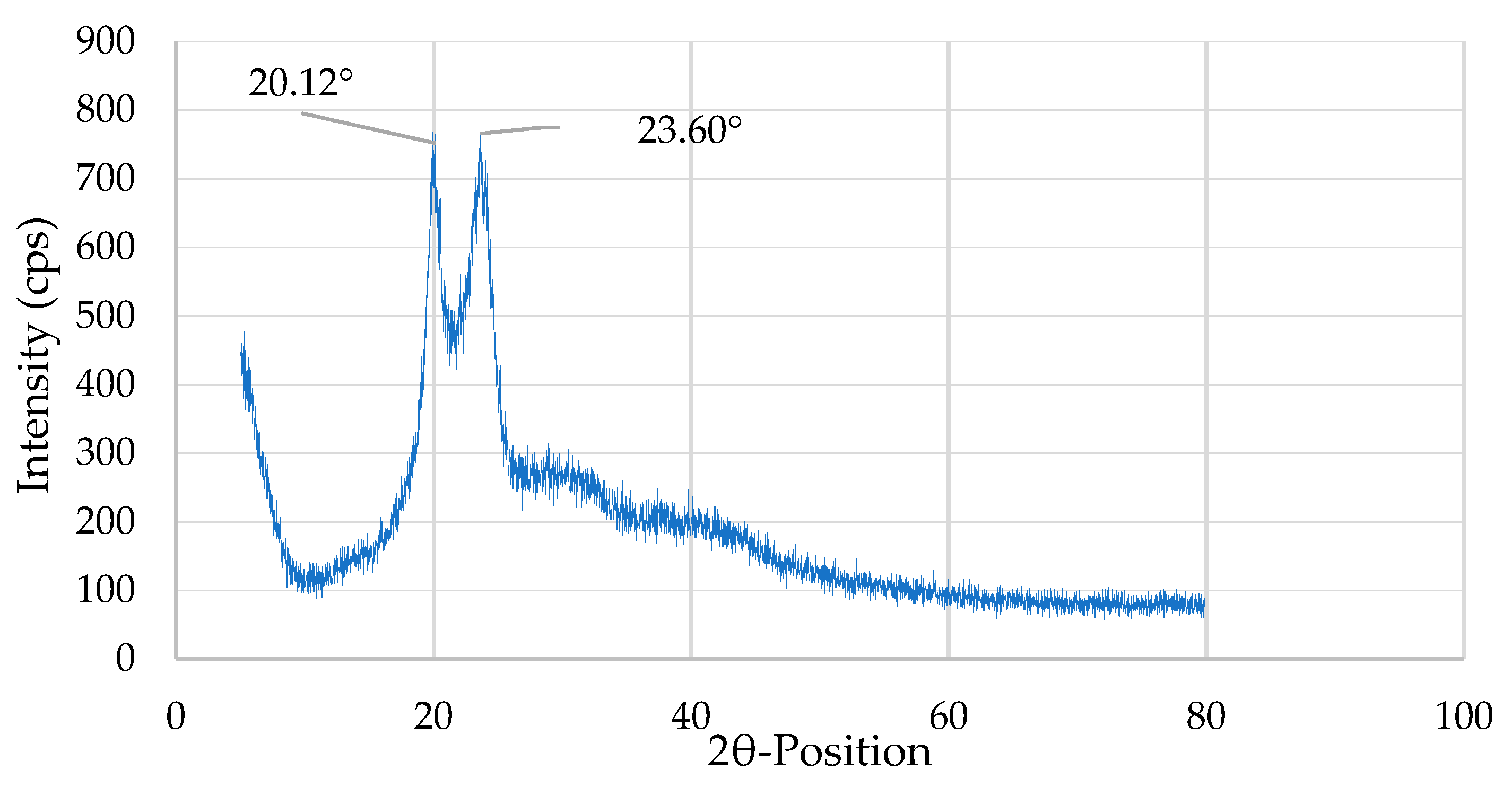

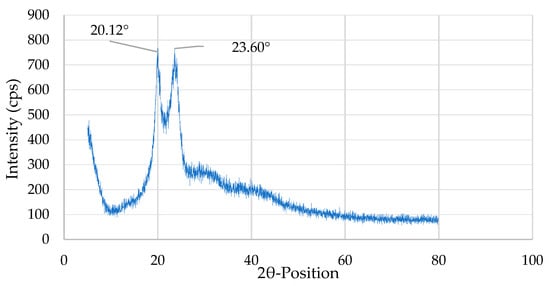

From the XRD pattern, two main high peaks of 2θ = 20.12° and 23.60° are visible. From this, the α-crystalline form is observed in both the high-intensity peaks, i.e., 2θ = 20.12° and 23.60°, and the γ-crystalline form is observed in the 20.12° peak. These results indicate that the crystalline structure of polyamide 6,6 is revealed [42], as shown in Figure 6.

4.1.3. Scanning Electron Microscopy and Energy Dispersion Spectroscopy

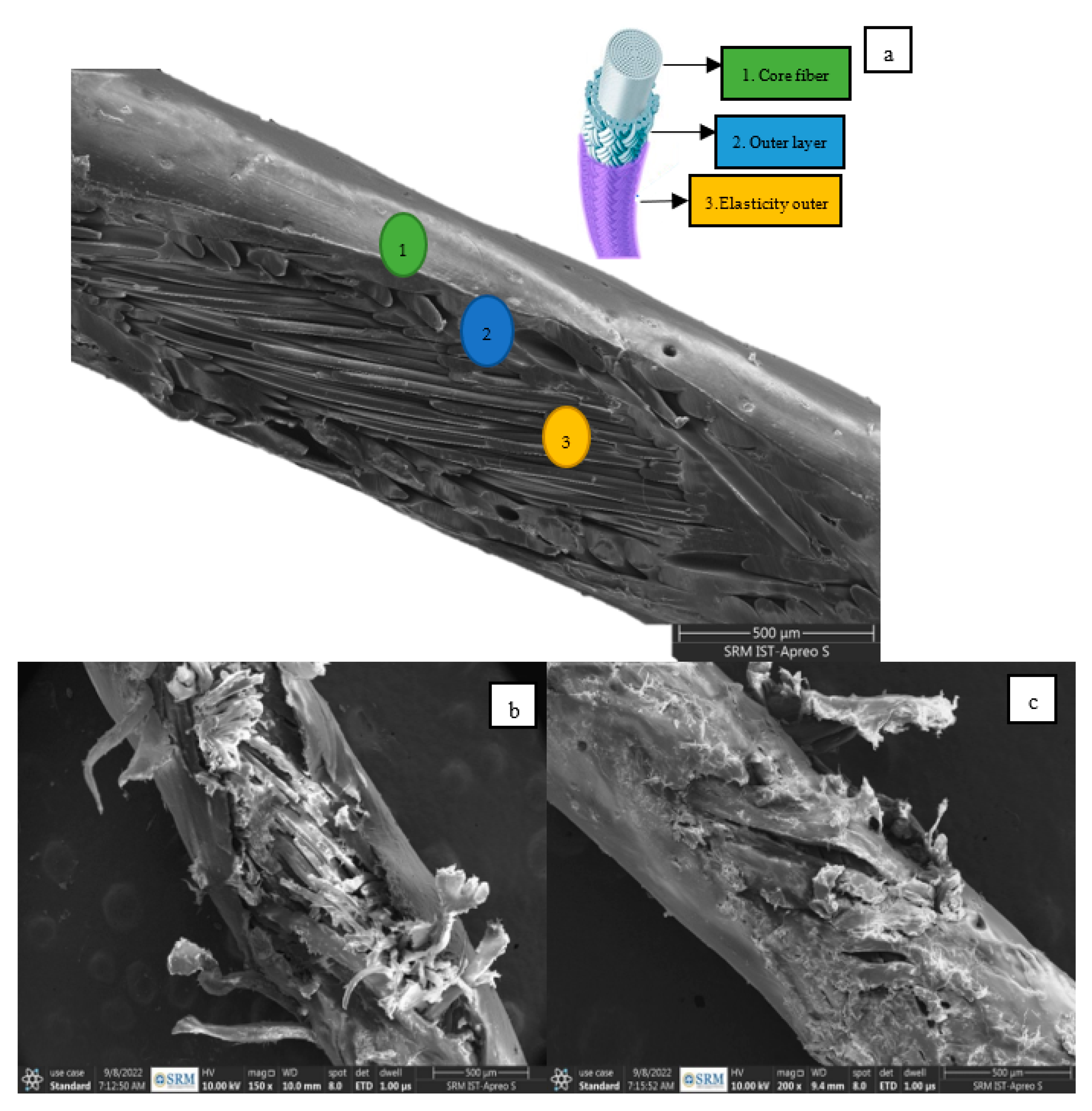

The fiber is cut longitudinally on the top surface to examine the layers imparted inside [43]. The typical image of WBSF from SEM is shown in Figure 7 and Figure 8.

The SEM image of the fibers reveals three distinct layers (an outer layer, an intermediate layer, and an inner layer) which are referred to as the elasticity outer, the outer layer, and the core fiber, as shown in Figure 6. In the grid system arrangement in the racquet, these fibers are subjected to more stretch. These three layers of the fibers help to withstand the high tension due to stretch. Figure 7b,c shows the SEM image of the fibers from the sweet spot of the racquet system. From the SEM image, it was noticed that only the elasticity outer and the outer layer are affected and the core fiber remains undisturbed. The elemental composition of the fiber layers is tabulated in

Table 2. Elemental composition of Badminton Fibers.

Elements	Net Counts			Weight %
	Core Fiber	Outer Layer	Elasticity Outer	Core Fiber	Outer Layer	Elasticity Outer
Carbon (C)	19,657	5938	17,766	44.39	88.05	51.53
Nitrogen (N)	1259	-	793	25.80	-	25.05
Oxygen (O)	2144	83	1154	29.48	8.63	22.74
Sodium (Na)	105	-	-	0.32	-	-
Silica (Si)	-	271	-	-	3.32	-
Aluminum (Al)	-	-	264	-	-	0.68

.

In elasticity outer, aluminum was detected as a minor element and the major elements detected are carbon, nitrogen, and oxygen, with a weightage of 51.53%, 25.05%, and 22.74%, respectively. In the outer layer, oxygen and silica are detected as minor elements and the major element detected is carbon, with a weightage of 88.08%. In the core fiber, sodium is detected as a minor element and the major elements detected are carbon, nitrogen, and oxygen with, a weightage of 44.39%, 25.80%, and 29.48%, respectively shown in (Supplementary Figure S1).

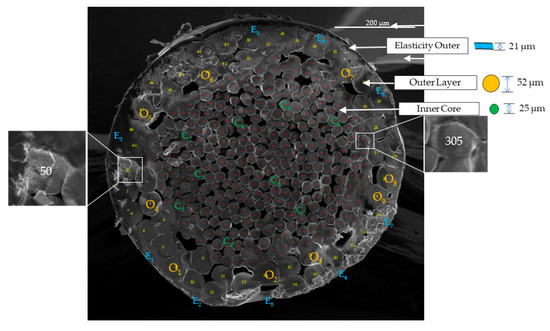

The entire fiber structure is arranged in such a way that nearly 350+ microfibers are bundled together. The elasticity outer of the fiber which protects the inner engineered fiber system is 21 µm in thickness, and is tabulated in

Table 3. Microfiber diameter in the outer layer, core fiber and thickness in the elasticity outer.

Layers	O1,C1,E1	O2,C2,E2	O3,C3,E3	O4,C4,E4	O5,C5,E5	O6,C6,E6	O7,C7,E7	O8,C8,E8	O9,C9,E9	Mean	SD
Outer Layer (ϕ) µm	53.843	50.500	51.272	53.171	52.016	53.334	51.816	51.150	53.408	52.278	1.190
Core Fiber (ϕ) µm	25.793	26.479	25.783	25.395	27.096	25.496	26.268	24.262	25.024	25.732	0.832
Elasticity Outer (t) µm	25.281	28.874	20.456	13.351	35.032	17.682	21.910	25.548	9.650	21.976	7.816

Note: (ϕ)—diameter; (t)—thickness.

.

After a close examination through the outer layer and the core fiber, of the total number of microfibers, approximately 300+ are noticed in the core fiber and 50+ are noticed in the outer layer with a diameter of 25 and 52 µm, respectively. The typical pictorial representation of this system is given in Figure 8.

4.1.4. Determination of Net Cross-Sectional Area

The cross-section of the entire fiber and the microfibers in the outer and core are reasonably circular. Figure 8 shows the close image and arrangement of microfibers in the outer layer and the core fiber [44]. To characterize the diameter and area of the fiber, ImageJ software is used [45,46]. The net cross-sectional area of new and old fibers is required to determine the tensile stress and Young’s modulus of the fibers. For which, three individual sample fibers are cut in an exactly perpendicular manner and are kept vertically to perform SEM. From the SEM image, as shown in Figure 9, the cross-section borderline is traced carefully using ImageJ software. The net cross-section of the fiber is determined by deducting the area of voids from the overall cross-section of the fiber. The comparison of the net cross-sectional area of old fibers (O) and new fibers (N) is tabulated in

Table 4. Comparison of the net cross-sectional area of the fibers.

Fiber Sample	Mean Diameter (μm)	Standard Deviation of Diameter (μm)	Overall Cross-Sectional Area of the Fiber (μm2)	Area of Voids (μm2)	Net Cross-Sectional Area of the Fiber (μm2)
New Fiber (N)	799.1	9.8	509,470.3	4684.0	504,786.3
Old Fiber (O)	776.3	25.3	500,446.0	2321.0	498,125.0

.

After examining three samples of new and old fibers in both the axes of symmetry, the mean diameter with standard deviation (SD) of new fibers and old fibers is 799.1 µm with 9.8 µm and 776.3 µm with 25.3 µm, respectively. A reduction in the mean diameter of the old fiber is observed, as the fiber is already tense (up to a maximum of 36 lbs) [47] at the time of stringing in the racquet system. As the old fiber is already used, so the SD in diameter is also high compared to new fibers. The diameter and SD values are tabulated in Table 4.

4.2. Mechanical Study

The mechanical properties which include stress–strain relationship, energy absorption, the residual force loss ratio, Young’s modulus, the Weibull modulus for varying strands and varying gauge lengths are discussed in this section.

4.2.1. Results of the Fibers by Varying Strands

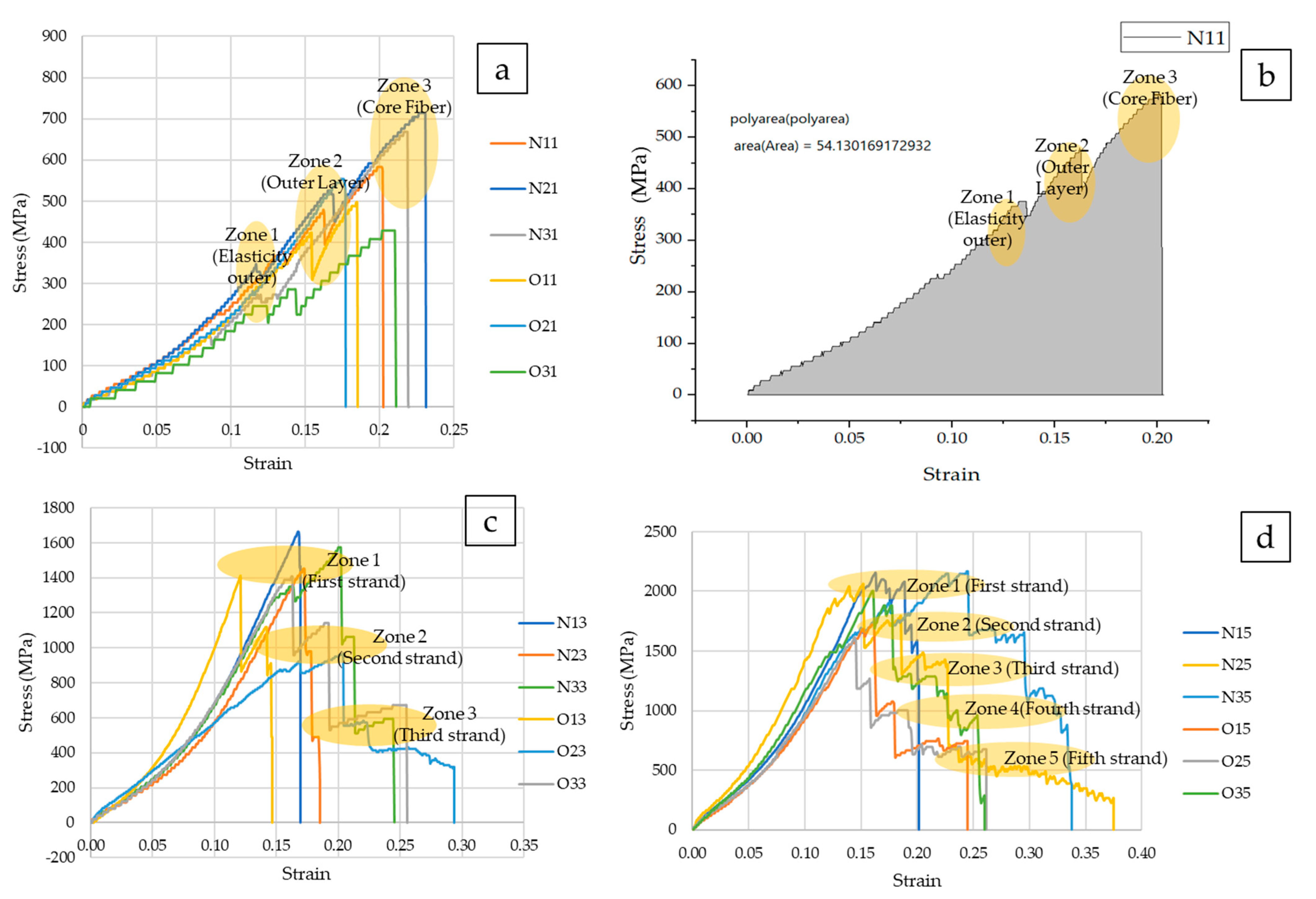

Many samples of new and old fibers with one, three and five strands were considered for this study. The stress–strain relationship of these fibers was discussed based on the successful results of three samples under each category. For single-strand fiber samples (old and new), the maximum stress is calculated by dividing the ultimate strength of the single fiber with the net cross-sectional area of the corresponding fiber. For multi-strand fibers (old and new), the maximum stress is calculated by dividing the ultimate strength of the fiber which fails first with the net cross-sectional area of the corresponding fiber, as shown in Table 4. For all the above samples, the corresponding strain is also noted given in (Supplementary Table S1).

(a)

Tensile Strength of the Fiber with One Strand

The typical stress–strain curve of the fiber sample (new and old) with one strand is shown in Figure 10a. From the curve, a drop in stress was observed in three zones, namely zone 1 (elasticity outer), zone 2 (outer layer), and zone 3 (core fiber), which is due to the successive failure of three layers in the fiber. The drop in zone 1 is the failure of the elasticity outer layer, which fails at a stress approximately ranging from 200 to 350 MPa, with a corresponding approximate strain of 0.125. The drop in zone 2 is the failure of the outer layer, which fails at a stress of approximately ranging from 305 to 550 MPa, with a corresponding approximate strain of 0.16. The drop in zone 3 is the failure of the core fiber, which fails at a stress approximately ranging from 420 to 710 MPa, with a corresponding approximate strain of 0.225. Beyond this, a sudden drop to zero stress is observed. For new fibers, the average maximum stress is 654.76 MPa (standard deviation of 54.44 MPa) and its corresponding average strain is 0.21, which represents the ductile behavior of the fibers. However, for old fibers, the average maximum stress is 490.77 MPa (standard deviation of 47.66 MPa) and its corresponding average strain is 0.19. A decrease of 25% in the maximum stress and a lower difference in elongation, i.e., approximately 2%, is observed between the new and old fibers. This variation is noticed as the old fibers are stressed within the elastic limit only. The curve of stress–strain is nonlinear between the subsequent zones, due to the development of plastic strain.

The energy absorption (EA) of all fibers is calculated using Origin graphing software and the typical results for sample N11 are shown in Figure 10b. For new fibers. the average EA is 63.16 N.mm/mm³, with a standard deviation of 9.036 N.mm/mm³; and for old fibers, the average EA is 39.95 N.mm/mm³, with a standard deviation of 1.33 N.mm/mm³. As the stress and strain values of old fibers are lower than that of new fibers, a reduction of 37.63% in EA is observed in old fibers [30].

(b)

Tensile Strength of the Fiber with Three Strands

The typical stress–strain curve of the fiber sample (new and old) with varying three strands is shown in Figure 10c. Like single-strand fibers, a drop in stress is observed in three zones, namely zone 1 (first strand), zone 2 (second strand), and zone 3 (third strand), which is due to the successive failure of individual fibers in three strands. The maximum stress of three fibers is obtained by dividing the ultimate stress of the fiber, which fails in zone 1, to the cross-sectional area of a single fiber. For new fibers, the average maximum stress of three fibers is 1561.93 MPa (standard deviation of 87.91 MPa) and its corresponding average strain is 0.18. However, for old fibers, the average maximum stress of three fibers is 1262.53 MPa (standard deviation of 208.23 MPa) and its corresponding average strain is 0.16. As the peak load is shared among all the fibers, the maximum stress of a single fiber is calculated by dividing the maximum average stress of all fibers with the number of strands. The EA is similarly calculated from the stress–strain curve. For new fibers, the average EA is 55.34 N.mm/mm³ with a standard deviation of 3.60 N.mm/mm³, and for old fibers, the average EA is 33.65 N.mm/mm³ with a standard deviation of 3.09 N.mm/mm³. As the stress and strain values of old fibers are lower than that of new fibers, a reduction of 39.19% in EA is observed in old fibers.

(c)

Tensile Strength of the Fibers with Five Strands

The typical stress–strain curve of the fiber sample (new and old) with varying five strand is shown in Figure 10d. Like three-strand fibers, a drop in stress is observed in five zones, namely zone 1 (first strand), zone 2 (second strand), zone 3 (third strand), zone 4 (fourth strand) and zone 5 (fifth strand), which is due to successive failure of individual fibers in five strands. The maximum stress of five fibers is obtained by dividing the ultimate stress of the fiber which fails in zone 1 to the cross-sectional area of a single fiber. For new fibers, the average maximum stress of five fibers is 2127.19 MPa (standard deviation of 45.31 Mpa) and its corresponding average strain is 0.19. However, for old fibers, the average maximum stress of three fibers is 1738.95 Mpa (standard deviation of 109.01 Mpa) and its corresponding average strain is 0.16. As the peak load is shared among all the fibers, the maximum stress of a single fiber is calculated by dividing the maximum average stress of all fibers with the number of strands as given in

Table 5. Residual force loss ratio for varying strands.

No of Fibers Failed	Three-Strand Fibers								Five-Strand Fibers
	New Fibers (NF3)				Old Fibers (OF3)				New Fibers (NF5)						Old Fibers (OF5)
	0	1	2	3	0	1	2	3	0	1	2	3	4	5	0	1	2	3	4	5
	Fu	Fur			Fu	Fur			Fu	Fur					Fu	Fur
Ultimate Force After Failure (in N)	788.42	510.71	249.14	0	625.77	422.49	222.40	0	1073.77	849.14	682.41	614.26	410.96	0	882.039	637.63	525.68	362.00	318.51	0
Residual Force loss Ratio (in %)	0	35.22	68.40	100	0	32.48	64.45	100	0	20.9	36.44	42.79	61.72	100	0	27.70	40.40	58.95	63.88	100
% Difference	35.22	33.18	31.60	-	32.48	31.97	35.55	-	20.90	15.54	6.35	18.93	38.28	-	27.70	12.17	18.55	4.93	36.12	-

. The energy absorption is similarly calculated from the stress–strain curve. For new fibers, the EA absorption is 68.04 N.mm/mm³, with a standard deviation of 12.56 N.mm/mm³, and for old fibers, the average EA is 40.09 N.mm/mm³, with a standard deviation of 2.78 N.mm/mm³. As the stress and strain values of old fibers are lower than that of new fibers, a reduction of 41.07% in EA is observed in old fibers.

(d)

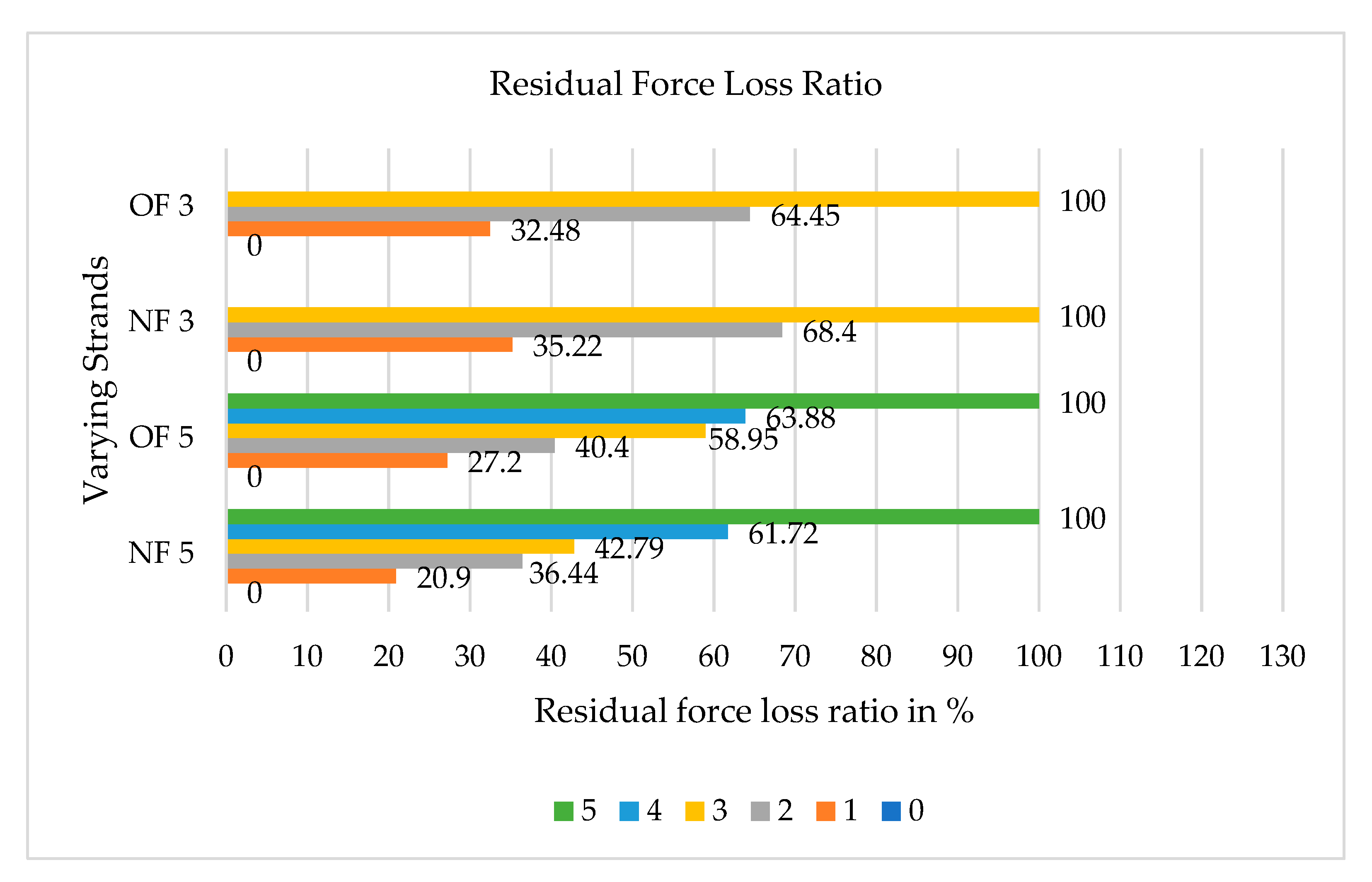

Residual Force loss ratio

In multi-strand fibers, the ultimate force is reduced as the individual fibers show successive failure at different stages. A loss of force is observed due to the distribution of ultimate stress among the fibers in the strand. Thus, a better understanding of force distribution in fibers is gained by calculating the residual force loss ratio using the Equation (1) [48],

$$\mathrm{Residual} \mathrm{force} \mathrm{loss} \mathrm{ratio}=\frac{\left|\mathrm{Fur} – \mathrm{Fu}\right| }{\mathrm{Fu}}\ast 100$$

(1)

The ultimate force (F_u) and the force at different stages of break (F_ur) are given in Table 5. For new fiber samples with three strands, the residual force loss percentage was 0, 35.22, 68.40, and 100.00; and for old fiber samples with three strands, the residual force loss percentage was 0, 32.48, 64.45, and 100. Similarly for samples with five strands, the residual force loss percentage of 0, 20.90, 36.44, 42.79, 61.72, 100.00 for new fibers and 0, 27.7, 40.40, 58.95, 63.88, 100 for old fibers were observed as shown in Figure 11. This loss in force is due to the successive failure of individual strands. From the results in

Table 6. Weibull parameters on the performance of tensile strength.

Parameters	New Fiber			Old Fiber
	100 mm	80 mm	60 mm	100 mm	80 mm	60 mm
Equation of the slope	y = 6.3462x − 41.517	y = 5.2776x − 34.949	y = 7.3154x − 48.858	y = 7.2446x − 45.979	y = 9.1796x − 59.112	y = 8.5796x − 55.681
R2 value	0.88	0.93	0.79	0.89	0.97	0.94
Weibull modulus (m)	6.34	5.27	7.31	7.24	9.17	8.58
Weibull reference strength (σₒ)	693.68	751.55	795.35	570.58	626.09	658.47
Average tensile strength (σAvg) of the fiber from tests conducted for this study	648.53	695.14	749.03	537.40	596.65	625.55
Difference in %	6.96	8.11	6.18	6.17	4.93	5.26

, for multi-strand fibers (five in numbers), a minimum % of difference in observed in the residual force loss ratio as 6.35 and 4.93, which is due to the sudden failure of successive strands within a limited period.

4.2.2. Results of the Fibers by Varying Gauge Lengths

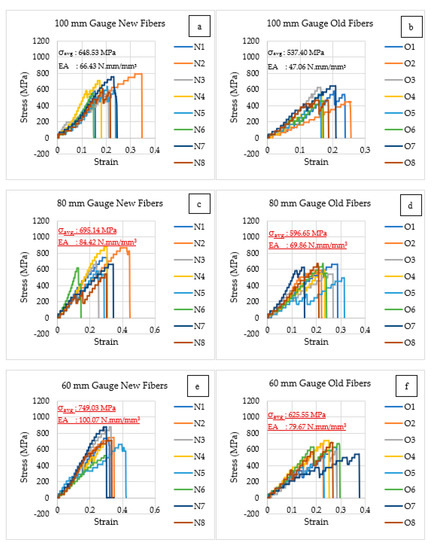

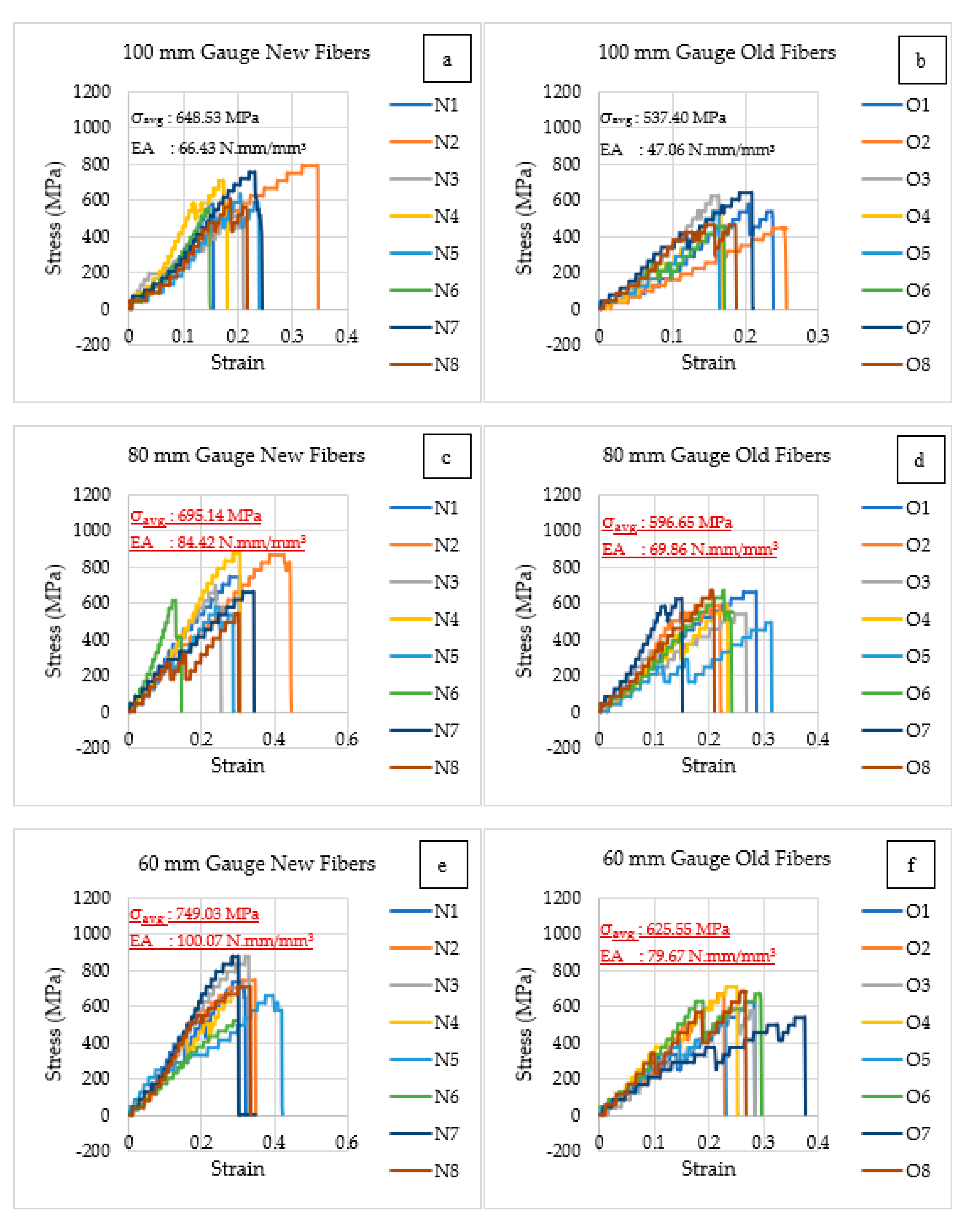

Many samples of new and old fibers with 60, 80 and 100 mm gauge length were considered for this study. The results are discussed considering two different conditions—the same gauge length with different fibers and the same fiber with different gauge lengths. The stress–strain relationship of these fibers was discussed based on the successful results of eight samples under each category given in (Supplementary Table S2).

Same Gauge Length with Different Fibers

Here, the results are compared between the same gauge length under different fibers (new and old).

(a)

Results of the Fiber with a 100 mm Gauge Length

The maximum and minimum values of tensile stress for new fibers with a 100 mm gauge length are 792.20 and 548.59 MPa, respectively. Additionally, the average maximum stress for new fibers is 648.53 Mpa (standard deviation of 88.02 Mpa) and its corresponding average strain is 0.23. The average energy absorption for new fibers is 66.43 N.mm/mm³, with a standard deviation of 23.58 N.mm/mm³. However, the maximum and minimum values of tensile stress for old fibers with a 100 mm gauge length are 644.37 and 458.64 MPa, respectively. Additionally, the average maximum stress for old fibers is 537.40 Mpa (standard deviation of 64.23 Mpa) and its corresponding average strain is 0.19. The average EA for old fibers is 47.06 N.mm/mm³, with a standard deviation of 33.17 N.mm/mm³. The typical stress–strain graph of the fibers with a 100 mm gauge length is represented in Figure 12a,b. The difference in average stress and average EA between the new and old fibers is 17.13% and 29.15%, respectively.

(b)

Results of the Fiber with a 80 mm Gauge Length

The maximum and minimum values of tensile stress for new fibers with a 80 mm gauge length are 875.59 and 543.11 MPa, respectively. Additionally, the average maximum stress for new fibers is 695.14 MPa (standard deviation of 116.75 MPa) and its corresponding average strain is 0.30. The average EA for new fibers is 84.42 N.mm/mm³, with a standard deviation of 32.34 N.mm/mm³. However, the maximum and minimum values of tensile stress for old fibers with a 80 mm gauge length are 666.15 and 493.74 MPa, respectively. Additionally, the average maximum stress for old fibers is 596.65 MPa (standard deviation of 56.19 MPa) and its corresponding average strain is 0.25. The average EA for old fibers is 69.86 N.mm/mm³, with a standard deviation of 14.98 N.mm/mm³. The typical stress–strain graph of the fibers with a 100 mm gauge length is represented in Figure 12c,d. The difference in average stress and average EA between the new and old fibers is 14.16% and 17.24%, respectively.

(c)

Results of the Fiber with a 60 mm Gauge Length

The maximum and minimum values of tensile stress for new fibers with a 60 mm gauge length are 905.18 and 658.31 MPa, respectively. Additionally, the average maximum stress for new fibers is 749.03 MPa (standard deviation of 86.06 MPa) and its corresponding average strain is 0.33. The average EA for new fibers is 100.07 N.mm/mm³, with a standard deviation of 24.05 N.mm/mm³. However, the maximum and minimum values of tensile stress for old fibers with a 60 mm gauge length are 708.81 and 534.88 MPa, respectively. Additionally, the average maximum stress for old fibers is 625.55 MPa (standard deviation of 62.88 MPa) and its corresponding average strain is 0.28. The average EA for old fibers is 79.67 N.mm/mm³, with a standard deviation of 21.05 N.mm/mm³. The typical stress–strain graph of the fibers with a 60 mm gauge length is represented in Figure 12e,f. The difference in average stress and average EA between the new and old fibers is 16.48% and 20.00%, respectively.

Same Fibers with Different Gauge Lengths

Here, the results are compared between the same fibers under different gauge lengths (100, 80, and 60 mm).

(a)

Results of new fiber

For new fibers, an increase of 7.18% is observed in the average tensile stress of the fiber with a 80 mm gauge length compared to the fiber with a 100 mm gauge length. Additionally, an increase of 7.75% is observed in the average tensile stress of the fiber with a 60 mm gauge length compared to the fiber with a 80 mm gauge length. Similarly, there is an increase of 30.43% in the average tensile strain of the fiber with a 80 mm gauge length compared to the fiber with a 100 mm gauge length. Additionally, an increase of 10.00% is observed in the average tensile strain of the fiber with a 60 mm gauge length compared to the fiber with a 80 mm gauge length.

(b)

Results of old fiber

For old fibers, an increase of 11.02% is observed in the average tensile stress of the fiber with a 80 mm gauge length compared to the fiber with a 100 mm gauge length. Additionally, an increase of 4.8% is observed in the average tensile stress of the fiber with a 60 mm gauge length compared to the fiber with a 80 mm gauge length. Similarly, there is an increase of 31.57% in the average tensile strain of the fiber with a 80 mm gauge length compared to the fiber with a 100 mm gauge length. Additionally, an increase of 12.00% is observed in the average tensile strain of the fiber with a 60 mm gauge length compared to the fiber with a 80 mm gauge length.

From the above results, it was observed that both the stress and strain values increase with decreasing gauge length. The same trend has been reported by Ida maria et al., using fishing net waste fiber [49].

4.2.3. Failure of the Fibers after Tensile Testing

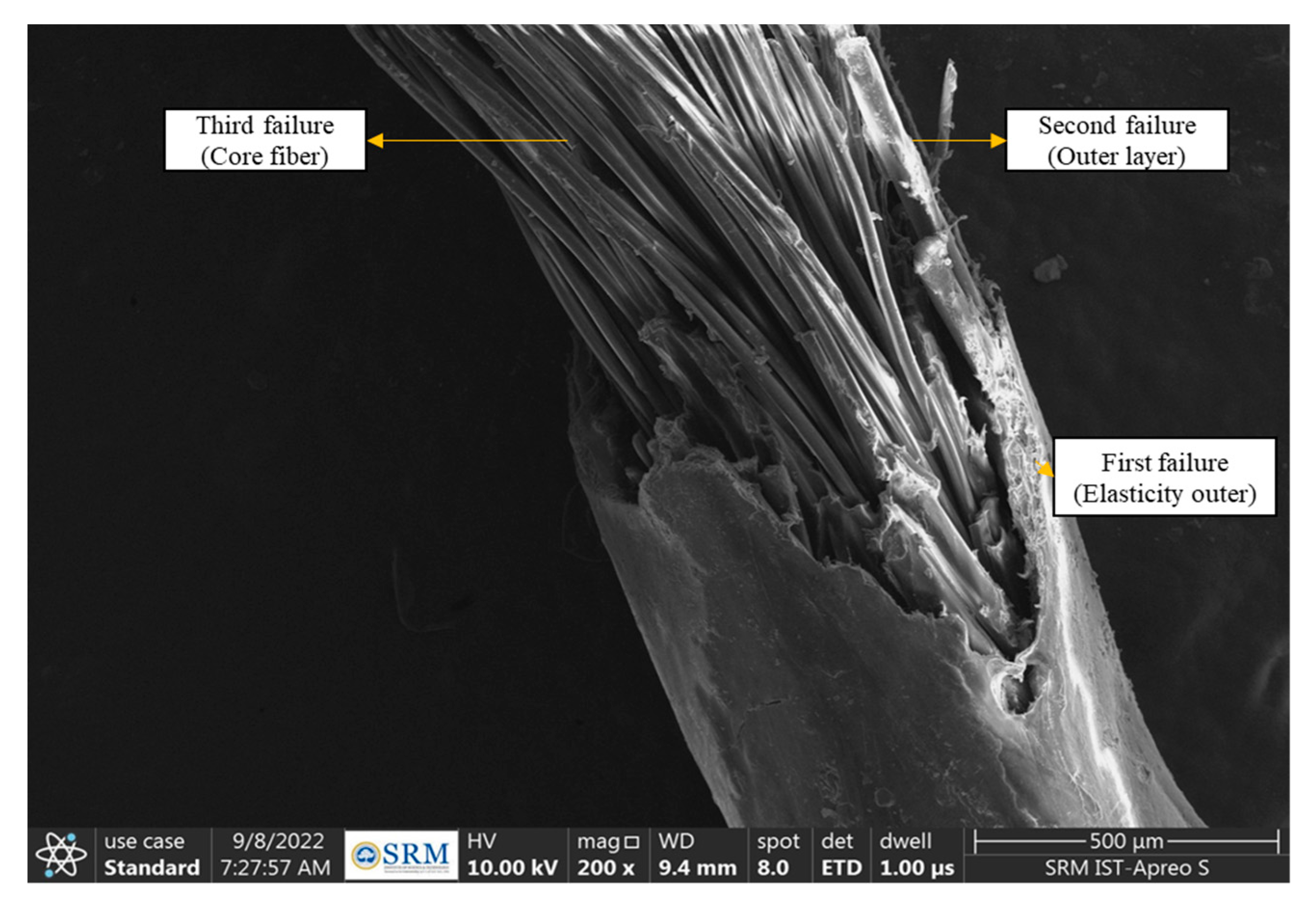

After being subjected to failure, the fiber sample is studied using SEM. From the image, the sequence of failure was noted. The first failure occurred in the elasticity outer layer followed by the failure of the outer layer and the core fiber, as shown in Figure 13. Thus, the trend in the failure pattern in all the graphs of the above test results also indicates a similar sequence.

4.2.4. Young’s Modulus of Fiber

According to the ASTM C1557-03 standard of testing procedure, if strain is not directly measurable for Young’s modulus, then the relationship given in Equation (2) is considered [31].

$$\frac{\mathsf{\Delta }\mathrm{L}}{\mathrm{F}}=\frac{\mathsf{\Delta }l}{\mathrm{F}}+Cs=\frac{lₒ}{\mathrm{EA}}+Cs$$

(2)

$\mathsf{\Delta }\mathrm{L}$—Total measured displacement,

F—Failure load,

Cs—System compliance,

$lₒ$—Gauge length,

E—Young’s modulus, and

A—Cross-sectional area.

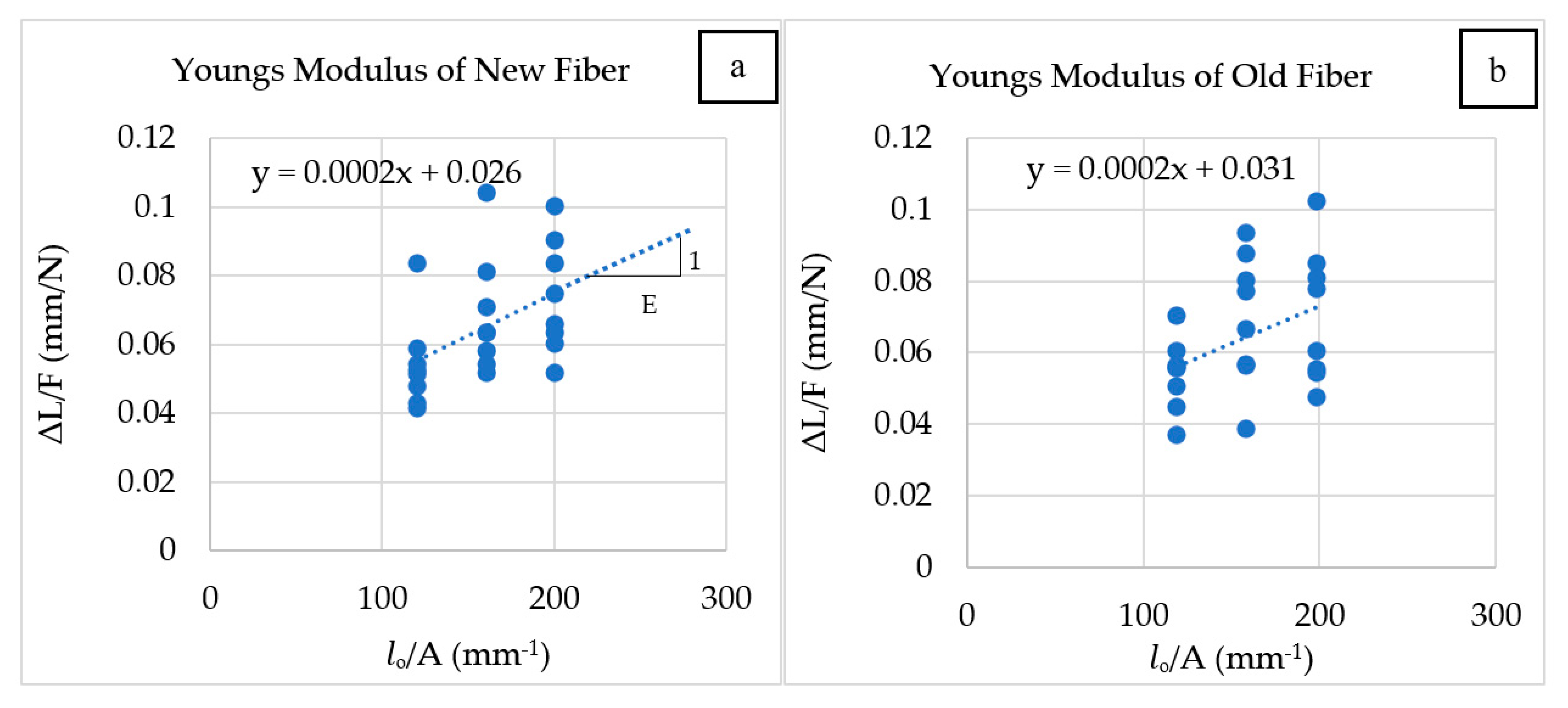

The linear regression of varying gauge lengths is plotted for ΔL/F vs. lₒ/A as shown in Equation (1). The slope of the line gives the constant E and the intercept to the y-axis gives the system compliance (Cs). Figure 14a,b shows the slope 1 in E equation of new and old fibers as y = 0.0002x + 0.026 and y = 0.0002x + 0.031, respectively. From the equation, the Young’s modulus of new and old fibers is calculated as E = 4870.00 MPa and E = 4843.50 MPa, respectively. Thus, not much difference is observed between the Young’s modulus of old and new fibers. Generally, the Young’s modulus of virgin nylon 6,6 lies between 1000 and 3000 MPa [49]. Additionally, the fiber used for this study is found to have a Young’s modulus of 5000 MPa, which is observed to have higher stiffness than any other commercial nylon fibers.

4.2.5. Validation of Results by Weibull Distribution

The statistical behavior of the tensile strength of the fiber is studied by Weibull distribution. From the Weibull analysis, the Weibull modulus (m) shows the probability of variation [50]. The probability of Weibull analysis is given by Equation (3).

$$\mathrm{P}\left(\mathsf{\sigma }\right)=exp-{( \frac{\sigma }{\sigma ₒ})}^m$$

(3)

where σ is the tensile strength of the fiber, m is the Weibull modulus, and σₒ is the Weibull reference strength. The fiber strength ranking for the i^th value from the number of the fibers tested (N) is given by Equation (4).

$${\mathrm{P}\left(\mathsf{\sigma }\right)}_{\mathrm{i}} =(1-\frac{i}{N+1})$$

(4)

P(σ)_i is the probability corresponding to the i^th value. Substituting Equation (4) in Equation (3) gives Equation (5).

$$lnln( \frac{N+1}{N+1-i})=m\left(ln\sigma -ln\sigma ₒ\right)$$

(5)

The Weibull model is analyzed by $lnln( \frac{N+1}{N+1-i})$ vs. ln(σ), as shown in Figure 15a,b, which yields the Weibull parameters (m) and (σₒ).

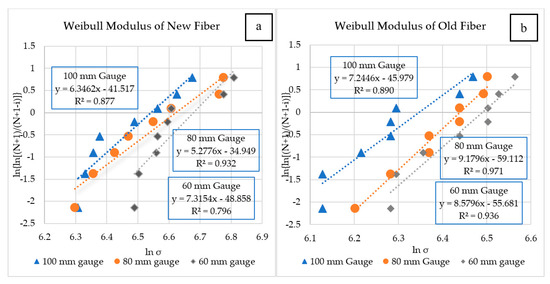

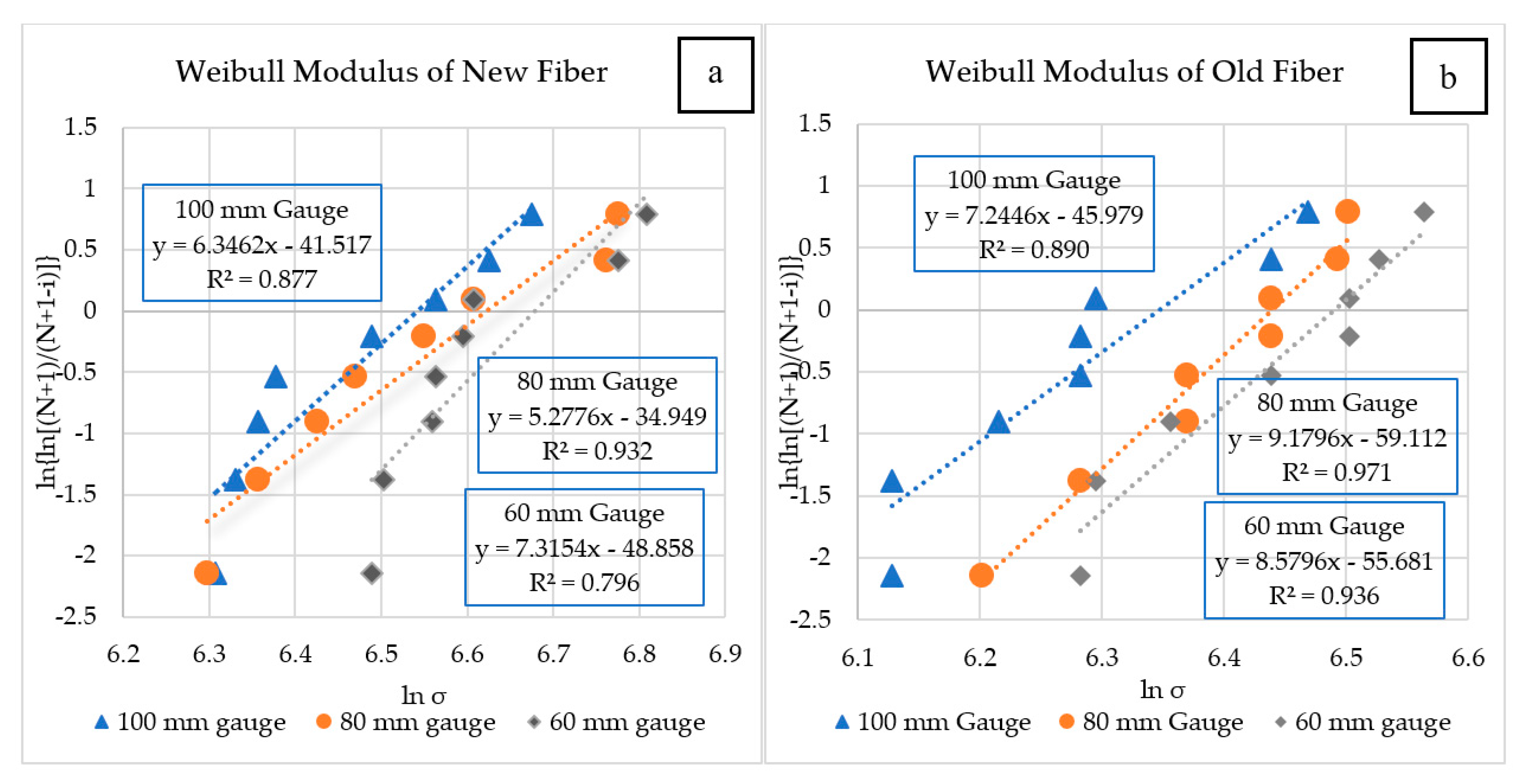

Figure 15a shows the Weibull modulus for the new fibers in varying gauge lengths. The equation of the slope y = ax + b yields a = m, which is the Weibull modulus and the Weibull reference strength, σₒ = exp(−b/a).

Generally, in measuring the Weibull modulus, the higher the (m) value, the lower the strength variability; and a Weibull modulus greater than 3 gives good results with lower variability [50,51]. Table 6 gives the Weibull parameters for varying gauge lengths of the fibers, where the Weibull modulus (m) for both old and new fibers varies between 5.27 and 9.17. Hence, the results of tensile strength exhibit lower variability. The difference in percentage between the estimated Weibull reference strength (σₒ) and the experimental average tensile strength (σ_Avg) is approximately 6%. From Figure 15a,b, a linear trend for new and old fibers is observed, which indicates an increase in the Weibull modulus with a decrease in gauge length [52].

5. Comparison of the Tensile Strength of WBSF with Other Recycled Nylon Fibers

Comparing the tensile strength results of WBSF with other recycled nylon fibers, WBSF has a higher tensile strength, as shown in

Table 7. Comparison of the tensile strength of recycled nylon fibers.

Material (Nylon Fibers)	Tensile Strength (MPa)	Elongation at Break (%)	Young’s Modulus (MPa)
Waste badminton string fiber (WBSF)	490	20–33	4843
Waste fishing net [6,10,53,9,54]	173–440	15–33	785–3000
Waste carpet fiber [21,53]	110–402	15–30	2000–5150
Waste textile fiber [55]	285	19	5000
Waste scrap brush [56]	400	-	-

. From the table, the tests conducted for either monofilament or multifilament recycled nylon fibers (waste fishing net, scrap paint brushes, carpet waste, etc.) show that the tensile strength ranges between 110 and 440 MPa, the elongation at break lies between 15 and 33% and the Young’s modulus ranges between 785 and 5150 MPa. However, WBSF is only of a multifilament arrangement. In this arrangement, the core layer alone is capable of withstanding a tensile strength of 490 MPa even if the outer two layers fail. This shows the highest tensile property of WBSF when compared to other recycled nylon fibers. Hence, WBSF is an efficient reinforcing material in a cement matrix.

6. Conclusions

The microstructural properties and tensile behavior of new and old fibers have been investigated. Their physical and mechanical properties are related to the morphology of new and old fibers. The Weibull statistical approach was studied. The following results are concluded from this work.

• Microstructural analysis using EDS, FTIR, and XRD reveals that nylon 6,6 is the purest form of the fiber.
• From the SEM imaging of the fibers, the overall diameter and the net cross-sectional area are 799.10 μm and 504,786.30 μm², respectively, for new fibers and 776.30 μm and 498,125.00 μm², respectively, for old fibers.
• From the various strand fibers, the average energy absorption of a single fiber ranges from 68.04 to 55.34 N.mm/mm³ for new fibers and 40.09 to 33.65 N.mm/mm³ for old fibers.
• The pattern of the residual force loss percentage for new and old fibers with three strands was similar and calculated as 0, 35.22, 68.40, 100.00 and 0, 32.48, 64.45, and 100, respectively.
• The pattern of the residual force loss percentage for new and old fibers with five strands was similar and calculated as 0, 20.90, 36.44, 42.79, 61.72, and 100.00, and 0, 27.7, 40.40, 58.95, 63.88, and 100.00, respectively.
• From the varying gauge lengths, the difference in the average stress and average energy absorption between the new and old fibers is 17.13% and 29.15% for a 100 mm gauge length, 14.16% and 17.24% for a 80 mm gauge length, and 16.48% and 20.00% for a 60 mm length, respectively.
• The Young’s modulus of new and old fibers is 4870.00 and 4843.50 MPa, respectively, and no significant difference was observed.
• The Weibull modulus (m) varies between 5.27 and 9.17, which shows a lower variability of tensile test results for both new and old fibers.
• The tensile strength of WBSF is 490.00 MPa, which is higher when compared to other recycled nylon fibers.
• Therefore, the feasibility of incorporating WBSF in polymer and cement matrices would be a better idea, which would effectively improve the toughness and impact strength.
• Furthermore, the use of recycled fibers from industrial or post-consumer waste offers additional advantages of waste reduction and resource conservation. These advantages can be realized through the incorporation of WBSF.

7. Patents

An Indian patent was published from this research work under the title “Multifilament Nylon Cutter with various aspect ratio for embedding in Concrete Mixtures for reinforcement” on 8 July 2022. Patent publication no. 202241037954 A.
