Open AccessArticle
Coatings 2019, 9(2), 147; https://doi.org/10.3390/coatings9020147

Manufacturing of Double Layer Optical Fiber Coating Using Phan-Thien-Tanner Fluid as Coating Material

1
Department of Computer Science, Sarhad University of Science and Information Technology Peshawar, KP 25000, Pakistan
2
Department of Mathematics, College of Science Al-Zulfi, Majmaah University, Al-Majmaah 11952, Saudi Arabia
3
Faculty of Mathematics and Statistics, Ton Duc Thang University, C004-19 Nguyen Huu Tho Street, Tan Phong ward, District 7, Ho Chi Minh City 700000, Vietnam
4
Fundamental and Applied Science Department Universiti Teknologi Petronas 32610, Perak, Malaysia
*
Author to whom correspondence should be addressed.
Received: 9 November 2018 / Revised: 10 January 2019 / Accepted: 14 January 2019 / Published: 24 February 2019
(This article belongs to the Special Issue Recent Trends in Coatings and Thin Film–Modeling and Application)
Full-Text   |   PDF [4967 KB, uploaded 24 February 2019]   |
  |   Review Reports

Abstract

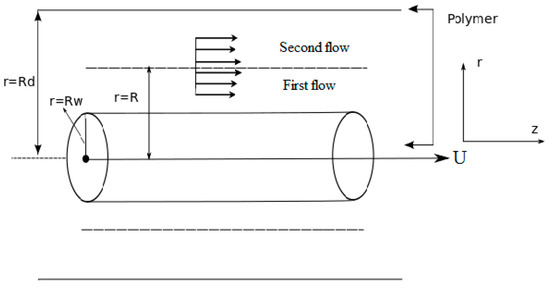

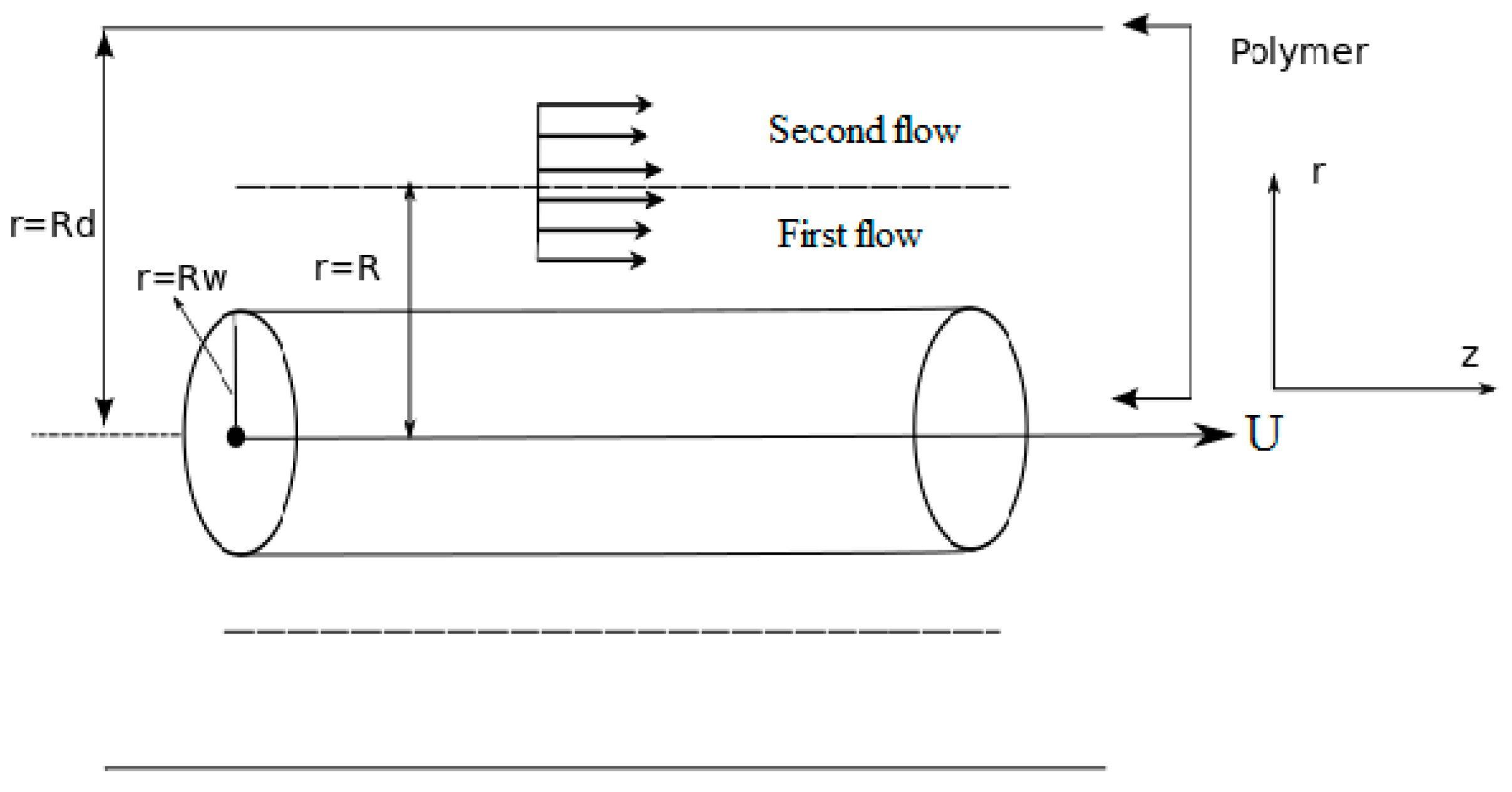

Modern optical fiber required a double-layer resin coating on the glass fiber to provide protection from signal attenuation and mechanical damage. The most important plastics resin used in coating of fiber optics are plasticized polyvinyle (PVC), low/high density polyethylene (LDPE/HDPE), nylon, and polysulfone. Polymer flow during optical fiber coating in a pressure type coating die has been simulated under non-isothermal conditions. The flow dependent on the wire or fiber velocity, geometry of the die, and the viscosity of the polymer. The wet-on-wet coating process is an efficient process for two-layer coating on the fiber optics. In the present study, the constitutive equation of polymer flow satisfies viscoelastic Phan-Thien-Tanner (PTT) fluid, is used to characterize rheology of the polymer melt. Based on the assumption of the fully developed incompressible and laminar flow, the viscoelastic fluid model of two-immiscible resins-layers modeled for simplified-geometry of capillary-annulus where the glass fiber drawing inside the die at high speed. The equation describing the flow of the polymer melt inside the die was solved, analytically and numerically, by the Runge-Kutta method. The effect of physical characteristics in the problem has been discussed in detail through graphs by assigning numerical values for several parameters of interest. It is observed that velocity increases with increasing values of ε D 1 2 , ε D 2 2 , X 1 , and X 2 . The volume flow rate increases with an increasing Deborah number. The thickness of coated fiber optic increases with increasing ε D 1 2 , ε D 2 2 , and δ . Increase in Brinkman number and Deborah number enhances the rate of heat transfer. It is our first attempt to model PTT fluid as a coating material for double-layer optical fiber coating using the wet-on-wet coating process. At the end, the present study is also compared with the published work as a particular case, and good agreement is found. View Full-Text
Keywords: optical fiber coating; double-layer coating; viscoelastic PTT fluid; analytic and numerical simulations optical fiber coating; double-layer coating; viscoelastic PTT fluid; analytic and numerical simulations
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
