Next Article in Journal
Production of Phosphorescent Coatings on 6082 Aluminum Using Sr0.95Eu0.02Dy0.03Al2O4-δ Powder and Plasma Electrolytic Oxidation
Next Article in Special Issue
Wettability of Wood Surface Layer Examined From Chemical Change Perspective
Previous Article in Journal
Tunable Plasmonic Resonances in TiN Nanorod Arrays
Previous Article in Special Issue
Paint Pull-Off Strength and Permeability in Nanosilver-Impregnated and Heat-Treated Beech Wood


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Coatings
Volume 9
Issue 12
10.3390/coatings9120864
coatings-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Comparison of Exterior Coatings Applied to Oak Wood as a Function of Natural and Artificial Weathering Exposure

by
Eliška Oberhofnerová
1,
Kristýna Šimůnková
1,
Ondřej Dvořák
1,
Irena Štěrbová
1,
Salim Hiziroglu
2,
Přemysl Šedivka
1 and
Miloš Pánek
1,*
1
Department of Wood Processing and Biomaterials, Faculty of Forestry and Wood Sciences, Czech University of Life Sciences in Prague, Kamýcká 129, 165 00 Prague, Czech Republic
2
Department of Natural Resource Ecology and Management, Oklahoma State University, 303-G Agricultural Hall, Stillwater, OK 74078, USA
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(12), 864; https://doi.org/10.3390/coatings9120864
Submission received: 13 November 2019 / Revised: 2 December 2019 / Accepted: 14 December 2019 / Published: 16 December 2019
(This article belongs to the Special Issue Advances in Surface Modification and Treatment of Wood)
Browse Figures
Versions Notes

Abstract

:
Artificial weathering can significantly reduce the testing time needed for proving coating durability, nevertheless its reliability is still not thoroughly proven. In this study, eight different transparent and pigmented coating systems, namely oil, acrylate, alkyd and urethane alkyd were evaluated through natural and artificial weathering tests on oak samples by measuring colour, gloss and surface wettability and by macroscopic and microscopic evaluation. The oil coatings performed well in wood colour stability evaluations, while the best gloss and wettability change results were noted for acrylate coatings. Pigmented coatings were characterized by significantly lower colour changes than transparent ones. The gloss and wettability changes were more sensitive to coating disruption than to total colour changes of coated wood associated with chemical changes in wood. The findings in this work showed that values of gloss changes and surface wettability for all types of coatings exposed to artificial and natural weathering resulted in significant differences from each other. The data obtained by artificial weathering method provide basic results of coatings durability and, ideally, natural weathering should be performed at the same time to support the results from laboratory tests by exposing wood under real conditions.

1. Introduction

Oak (Quercus petraea L.) wood is often used for the exterior applications, mostly in construction of bridges, pergolas, balconies or garden furniture, where higher natural durability [1] is required. Oak contains a relatively high amount of phenol extractives, mainly vescalagin, castalagin, gallic and ellagic acids [2], creating problems in the field of surface treatment durability [3,4]. Tannins in oak wood also retard coating hardening [5]. The complex open vessel morphological structure of oak wood complicates the overall application of coatings. A photodegradation process of oak wood accompanied with significant discolouration and leaching of extractives from the surface takes place during the initial phases of outdoor exposure [6], more intensely in the heartwood zone [7], which leads to the need to protect oak wood by coatings to maintain its natural appearance.
Exterior wood coatings are used to improve the properties of substrate wood [8], reduce the effects of degradation factors [9,10,11] and prolong the service life of the material. The exterior coating generally protects against moisture uptake and related dimensional changes, protects against photochemical degradation, and prevents microbiological degradation [12,13]. The problems with transparent coatings have been well discussed by Evans et al. [13]. Their advantage is the ability to protect wood and preserve the natural look and colour [13], but they have the disadvantage of not protecting the substrate wood against UV and visible light radiation as well as pigmented coatings [14]. The different performance of coatings is also caused by their polymer base [15], the type of solvent [16] or even by the underlying wood species [17,18]. Coatings protect underlying wood, but they are exposed to weathering process causing their degradation [17,19,20]. The durability of coatings against atmospheric degradation is assessed via natural weathering (NW) or artificial weathering (AW) tests [8,21,22,23,24,25] with parameters given in international standards. The older and more common method is natural weathering [26], which provides reliable results of coating durability due to the synergistic action of outdoor factors. Accelerated artificial weathering [27] is carried out in laboratory conditions, to simulate the exterior environment [22,28]. Artificial weathering can significantly reduce the required testing time, however its reliability is still often questioned. Correlations between weathering methods were done in several studies [23,29,30,31] however the results were ambiguous. Valverde and Moya [32] developed a model to predict total colour difference between natural weathering and accelerated weathering for different kinds of finishes of three tropical species. Cogulet et al. [11] focused on how the impacts of different weathering methods challenges the reliability of AW and states that it is necessary to test coating systems in an end-use environment for accurate assessment of their likely performance.
In these works, where wood weathering was studied, more qualitative parameters of wood coatings during both exposures were evaluated–change of colour parameters [3,11,30], coating thickness [23,30], coating adhesion [30,33] or gloss [3,34]. Especially the change of colour during weathering serves as a basic indicator of the rate of degradation [18,22,30]. In a study of Moya et al. [30], colour change was higher in all species after NW than after AW due to the constant variation of solar radiation, moisture, water, air contamination and biotic agents, which accelerates colour degradation processes [8,35]. These findings are consistent with previous studies indicating the difficulty of reproducing the synergistic action of NW factors during AW [11,17,23,24,36].
Currently there is very limited information on characteristics of transparent and pigmented coatings on oak wood when they are exposed to both natural and artificial weathering. Therefore, the objective of this study was to compare the performance of eight different transparent and pigmented coating systems applied on oak samples using natural and artificial weathering tests. The efficiency of specific coating systems was determined by measurements of colour, gloss and surface wettability changes and by regular visual macroscopic and microscopic evaluation of the samples.

2. Materials and Methods

2.1. Sample Preparation, Coatings and Weathering Process

Samples of oak (Quercus petraea L.) wood harvested in the Czech Republic having an average oven dry density of ρ0 = 705 kg/m3 [37] were used for the experiment. The samples were conditioned to 12 ± 2% moisture content. Test samples were prepared from the heartwood zone and they were visually sorted in order to minimalize the colour variability of the tested wood materials. The dimensions of the samples were 375 mm × 78 mm × 20 mm for natural weathering and 45 mm × 45 mm × 8 mm for the artificial weathering tests. Tangential surfaces were exposed to weathering in both cases. Two samples for NW and four samples for AW for each type of treatment were used.
Eight different transparent or pigmented coatings were applied to the samples based on the producer’s recommendation. Their specification and application details are given in Table 1. One group of samples was left untreated as control samples to compare coatings performance on treated samples. The cross ends of samples were sealed with silicon to minimize additional water uptake.
The natural weathering (NW) test was performed at Suchdol, Prague (50°07′49.68″ N, 14°22′13.87″ E) for 12 months. The climatic conditions during exposure are given in Table 2. The samples were exposed at a 45° inclination, facing south, and placed approximately 1 m above the ground according to the procedure previously described [26].
The artificial weathering (AW) test was performed in UV-chamber QUV (Q-Lab, Cleveland, OH, USA) according to a modified EN 927-6 method [27]. The total time consisted of six cycles (1008 h) of weathering in the UV chamber and 36 h of temperature cycling. During the each weekly cycle of irradiation and spraying, the samples were transferred to a Discovery My DM340 conditioning chamber (ACS, Massa Martana, Italy) and exposed to three cycles each lasting 2 h of temperature changes from −25 to +80 °C (with 25% RH). The alternation of UV radiation, spray, and low temperature cycles, leading to a better imitation of the exterior conditions in Central and Northern Europe, was previously used by Van den Bulcke et al. and Pánek et al. [22,39].

2.2. Colour Change (ΔE*) Test

Colour variations of the specimens were evaluated through natural and artificial weathering exposure of oak samples with 8 different coatings. The colour parameters L*a*b* [40] of the test specimens were measured after 0, 6 and 12 months of NW and after 0, 1, 3 and 6 weeks of AW using CM-600d Spectrophotometer (Konica Minolta, Osaka, Japan). For the observation of reflection, the specular component was included (SCI mode) at a 10° angle and d/8 geometry with an illumination standard of D65 (corresponding to daylight in 6500 K). Six measurements of each tested sample were carried out for each weathering time. Colour changes evaluations were done in CIE L*a*b* colour space where L* is lightness from 0 (black) to 100 (white); a* is chromaticity coordinate + (red) or − (green); b* is chromaticity coordinate + (yellow) or − (blue).
The total colour difference ΔE* [40] was subsequently calculated from relative changes of colour (ΔL*, Δa*, and Δb*) using Equation (1):
Δ E * = ( Δ L * ) 2 + ( Δ a * ) 2 + ( Δ b * ) 2

2.3. Gloss Change (ΔG*) Test

The gloss of the different coatings before and during weathering tests was measured using MG268-F2 glossmeter (KSJ, Quanzhou, China) on the basis of [41]. Six measurements at a 60° angle per sample after 0, 6 and 12 months of NW and after 0, 1, 3, and 6 weeks of AW were carried out to evaluate gloss changes of the samples.

2.4. Surface Wettability Change (ΔW*) Test

The sessile drop method with static contact angle measurement was performed using a Krüss DSA 30E goniometer (Krüss, Hamburg, Germany) with the methodology used in previous studies [42,43]. Twenty measurements were taken for each sample, with distilled water drops with a dosing volume of 5 μL. The contact angle values were determined after 5 s of drop deposition on surface of the sample before weathering and after 0, 6 and 12 months of NW and after 0, 1, 3 and 6 weeks of AW.

2.5. Macroscopic and Microscopic Evaluation

Tested surfaces of the samples were regularly macroscopically evaluated using a Canon 2520 MFP scanner with 300 DPI resolution (Canon, Tokyo, Japan). Creations of cracks, defoliation of coating systems were visually analysed. Microscopic structural changes of coatings and surface of the samples, creation of ruptures, 3D-images of surface profiles were also studied employing confocal laser scanning microscope Lext Ols 4100 (Olympus, Tokyo, Japan) with 108-fold magnification.

2.6. Statistical Analysis

Data were analysed using MS Excel (Microsoft, Redmond, WA, USA) and STATISTICA 13.2 (StatSoft, Palo Alto, CA, USA) using mean values, bar graphs and ANOVA for analysing the statistical significance of selected factors with significance level α = 0.05. Spearman rank correlation between NW after 12 months and AW after 6 weeks on the basis of ΔE*, ΔL*, ΔG* and ΔW* values of tested coatings was also analysed. The Spearman rank correlation coefficient was calculated by Equation (2):
R h o s = 1 − [ 6 · ∑ ( Rank   Difference ) 2 n 3 − n ]
where n is number of items evaluated.

3. Results and Discussion

Results on coated samples exposed to artificial and natural weathering showed different behaviours. The type of coating system applied on oak wood samples has a statistically significant effect (p < 0.05) on the evaluated properties both during AW and NW (Table 3).

3.1. Colour Change of the Samples

Total colour difference ΔE* calculated from measured colour parameters was the main indicator representing coating durability during weathering [18,22,30]. The specific colour parameters (L*, a*, b*) describe the colour change more closely. During AW, the observed increase of values a* and decrease of b* values showed a tendency of the wood surface to turn reddish and become less yellow shade. Decreases of both a* and b* parameters were observed during NW, which indicates the opposite trend. But in most cases, ΔE* was affected mainly by changes in lightness (ΔL*) as in the study of Oberhofnerová et al. [31]. Changes in lightness of different coating during weathering is illustrated in Figure 1. There are obvious differences in lightness parameters based on the weathering type-decrease (negative value) of lightness during AW (except reference samples) indicating a tendency to turn into darker and increase during NW indicating lightening. This trend is caused by the different weathering conditions and ratio of degradation and leaching of photodegraded extractives and lignins observed mainly on the transparent tested coatings. NW differing also in the presence of mould and dust and other pollution in exterior which infiltrate in the degraded surface of wood or coating [10]. These conditions are not simulated in laboratory testing [21,43]. But darkening of the surfaces caused by the action of pollutants and moulds was negligible during this period of NW and mainly leaching of darker oak extractives and changes in pigmented coatings caused increasing of L* parameter.
Total colour difference (ΔE*) of tested coatings, was closely linked to lightness changes. Control samples manifested the highest colour differences during both types of weathering. Total colour difference values are characterized by a systematic increase during exposure [43,44], with higher changes during initial phases of weathering [28,43]. In this study, only coatings AC2 and AL1 followed this trend during AW (Figure 2). The lowest colour difference was noticed for O1 during AW and O2 during NW, which is in accordance with lightness changes in Figure 1. Those were the only coatings able to protect the wood to the extent of ∆E* < 3, which is considered as a low colour difference that cannot be distinguished by a subjective observer [45]. These oil coatings differed from each other only by the type of pigments used (Table 1). The pigmented coatings (O1, O2, AL2, S1) were characterized by significantly lower colour changes than transparent ones.

3.2. Gloss Change of the Samples

Except for small fluctuations, all coatings were characterized by decreased gloss values during both weathering methods (Figure 3). The reference samples, on the other hand, manifested increases in this property (with the decrease in the final phase of NW). The same findings regarding protected and unprotected weathered wood were found by Ghosh et al. [46]. The best results were noted for acrylate and AL1 coatings, while the highest changes were recorded for oil coatings.

3.3. Surface Wettability of the Samples

The contact angle, which indicates the wettability by water on the exposed surfaces of coated wood, is an important indicator of the rate of weathering [22,24]. Surface wetting changes (Figure 4) indicated the overall impairment of the protective function of the coating systems against water [24,39]. During AW, the most stable values were noted for acrylate coating systems and O3. The rest of the samples were characterized by decreased surface wettability (the most in the case of reference samples and AL2). During NW, the wettability decreased for all samples, but the smallest changes were also recorded for acrylate and O3 coating.
The Spearman rank correlation of properties after 12 months of NW in comparison with 6 weeks of AW measured both the strength and direction of the relationship between the ranks of data (Table 4).
Based on the results of Spearman rank correlation, strong statistically significant relationships between results from AW and NW were only found with gloss changes of all coatings and surface wettability changes and gloss changes of transparent coatings (p < 0.05). Further evaluation revealed the remaining results from AW and NW, including total colour difference were statistically insignificant (p > 0.05) and very poorly correlated with each other.

3.4. Macroscopic and Microscopic Evaluation of the Samples

The coating performance of the samples during NW was also evaluated visually in accordance with other studies [18,20]. The visual evaluation confirmed that weathering causes colour changes and surface degradation both in natural and laboratory conditions [23,24]. Visual inspection (Figure 5 for AW and Figure 6 for NW) confirmed the exact previously measured values–darkening of coated samples during AW and lightening of samples during NW (Figure 1) and associated total colour (∆E*) and gloss changes (Figure 2 and Figure 3).
Confocal laser scanning microscopy was employed to assess degradation of selected coatings. Figure 7 illustrates the degradation of oil coating (O1) and acrylate coating (AC1) after 6 weeks of AW or 12 months of NW. Lower colour changes were noted for oil coatings (Figure 2), but also a more obvious disruption and degradation of the coating surface (Figure 7) which are more connected with the higher gloss and surface wettability changes. In the line with this, the acrylate coatings were characterized by lower gloss and surface wettability changes associated with the lower degree of coating degradation.
3D images of samples roughness profile for selected tested coatings with higher gloss change (AL2 and O3) are shown in Figure 8. It is possible to see increasing of roughness of the surfaces after 6 weeks of accelerated weathering. These images (Figure 8) also confirm that decreasing of gloss is influenced mainly by decomposition of coating film (O3) or its top layer (AL2) (see also Figure 5).
Native oak wood has higher natural durability and lower colour changes in comparison with other hardwood species during weathering [47], but to find durable coatings systems suitable for its specific chemical and morphological structure is desirable. The findings of this study confirmed the effect of polymer base on the overall performance of coatings [12,48]. It is clear that effect of surface protection against weathering was demonstrated by the difference between uncoated reference and coated samples (Figure 1, Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6). Generally, the oil coatings (O1–O3) performed well in the colour analyses, the acrylate coatings (AC1–AC2) reached the best results in the gloss and wettability evaluation. These properties are more likely connected with coating degradation and disruption than with chemical changes in wood [34,39]. Acrylate and oil coatings reached the best performance on larch wood also in study of Šimůnková et al. [15]. In opposite, in the study of Sivrikaya et al. [48], the better performance against atmospheric conditions on oak wood was recorded for alkyd coatings compared with other tested coatings.
The total colour changes (ΔE*) were the most connected with the change of lightness parameter ΔL* (Figure 1 and Figure 2) as in the other studies [43,49]. The lowest colour changes were observed for oil coatings O1 and O2 (thin-layer oil-based with micronized pigments TiO2 and Fe2O3). The positive effect of white TiO2 pigments on photodegradation was already discussed in the work of Moya et al. [30]. The thickness of the coating system is a criterion affecting its service life [23] but for tested coatings in this work, the pigment content was the more important factor (Table 1, Figure 5 and Figure 6). The pigmented coatings generally provided more effective protection and reached the lower colour changes during NW than transparent ones as in the study of Sivrikaya et al. [48].
In the gloss and surface wettability evaluation of the samples, the performance of coating differed in comparison with colour analysis. All the tested samples except control samples were noted for loss of gloss during NW and AW. The best results were observed for acrylate AC1-AC2 and AL1 coatings. Although the role of gloss change is still discussed - according to Pánek et al. [39], the gloss change is more sensitive to the coating degradation than to total colour difference (Figure 8). Merlatti et al. [34] stated that loss of gloss should not be systematically correlated to the advance in chemical degradation during weathering. The lowest change of surface wettability was recorded for acrylate coating systems AC1-AC2 and oil coating O3 both after AW and NW. The rest of the samples were characterized by decrease of surface wettability, this was the most significant in the case of control and AL2 samples.
The comparison of both weathering methods only by evaluating colour difference would be insufficient, as stated in other previously done studies [23,28,30]. The combination of different testing parameters of coating systems and visual evaluation gives a better idea about the durability of coatings [49,50], despite that the total colour difference still remains the main indicator of coating degradation. Coatings defoliated after AW were in most cases highly degraded after 12 months of NW (Figure 5 versus Figure 6). Based on this, AW can be recommended as the first step for selection of nondurable coatings mainly on woods with specific chemical or morphological structure. The non-linear correlations were performed to compare the strength of the relationship between the total colour differences, gloss and surface after NW and AW of transparent and pigmented coatings as in the study of Pánek and Reinprecht [51]. The results were highly varied, and, in the most cases, without any statistical significance. Comparisons of colour changes mainly showed weak correlation for tested oak, as for black locust and spruce wood in the work Pánek and Reinprecht [52]. The strong correlation was found only for the gloss changes of all coatings, in agreement with the work Q-Lab [53], and surface wettability and gloss change of transparent coatings separately. Both methods revealed the certain durability among the tested coating systems and come to the greater agreement than in the case of unprotected wood weathering. These inconsistent results confirm the previously stated difficulty to mathematically correlate data from outdoor and laboratory conditions [22,30]. The significant impact of climatic and local environmental conditions at the testing site is still one of the dominant factors preventing the accurate prediction of real weathering in the exterior via artificial accelerated weathering [36,54]. Even there is an effort to simulate outdoor conditions in UV chamber by setting the parameters of weathering, the more accurate correlation for prediction changes of coated wood via artificial weathering in laboratory has proven to be difficult. Despite the obvious advantages of artificial weathering, the results provided by this method still lack reliability of natural weathering and they should always be carefully interpreted and in the best scenario accompanied by natural weathering tests to verify the performance of coatings in an end-use environment [11].

4. Conclusions

Eight different transparent and pigmented coating systems were applied on oak samples and tested using artificial and natural weathering. Total colour difference was mostly related to the lightness parameter change. Evaluation of discolouration with other criteria such as gloss, surface wettability and visual and microscopic evaluation more accurate predicted service life of coatings. Pigmented coatings had significantly lower colour changes than transparent ones, for both artificial and natural weathering. Oil coatings were more colour stable, acrylate coatings achieved the best results of gloss and wettability changes. The gloss and surface wettability changes better copy degradation and disruption of coated wood in comparison with total colour changes. Even there were some visually observed similarities in the test results of AW and NW exposed samples, this was not confirmed statistically. The Spearman rank correlation showed strong statistically significant relationship between results after artificial and natural weathering only for the gloss changes of all coatings and surface wettability and gloss changes of transparent coatings separately.

Author Contributions

Conceptualization and Methodology M.P.; Formal Analysis, E.O.; Investigation, K.Š., O.D., I.Š.; Writing—Original Draft Preparation, E.O.; Writing—Review & Editing, E.O., M.P., S.H.; Supervision, M.P.; Project Administration, P.Š.

Funding

This work was supported by the grant “Improving of coatings durability on selected kinds of wood in the exterior applications,” No. TH02020873, financed by TA ČR.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. EN 350. Durability of Wood and Wood-Based Products—Testing and Classification of the Durability to Biological Agents of Wood and Wood-Based Materials; European Committee for Standardization: Brussels, Belgium, 2016. [Google Scholar]
  2. Zahri, S.; Belloncle, C.; Charrier, F.; Pardon, P.; Quideau, S.; Charrier, B. UV light impact on ellagitannins and wood surface colour of European oak (Quercus petraea and Quercus robur). Appl. Surf. Sci. 2007, 253, 4985–4989. [Google Scholar] [CrossRef]
  3. Sivrikaya, H. Impregnability and Durability Characteristics of Sapwood and Heartwood. Ph.D. Thesis, Zonguldak Karaelmas University, Graduate School of Natural and Applied Sciences, Zonguldak, Turkey, 2003. [Google Scholar]
  4. Ayadi, N. Vieillissement Climatique d’un Systéme Bois-Vernis-Absorbeur UV Inorganique. Ph.D. Thesis, Université de Nantes, Nantes, France, 2004. [Google Scholar]
  5. Browne, F.L. Wood Properties that Affect Paint Performance; U.S. Forest Service, Forest Products Laboratory: Madison, WI, USA, 1958.
  6. Oberhofnerová, E.; Pánek, M.; García-Cimarras, A. The effect of natural weathering on untreated wood surface. Maderas Ciencia y Tecnología 2017, 19, 173–184. [Google Scholar] [CrossRef] [Green Version]
  7. George, B.; Suttie, E.; Merlin, A.; Deglise, X. Photodegradation and photostabilisation of wood—The state of the art. Polym. Degrad. Stab. 2005, 88, 268–274. [Google Scholar] [CrossRef]
  8. Auclair, N.; Riedl, B.; Blanchard, V.; Blanchet, P. Improvement of photoprotection of wood coatings by using inorganic nanoparticles as ultraviolet absorbers. For. Prod. J. 2011, 61, 20–27. [Google Scholar] [CrossRef]
  9. Feist, W.C.; Hon, D.N.S. Chemistry of weathering and protection. In The Chemistry of Solid Wood; ACS: Washington, DC, USA, 1984; pp. 401–451. [Google Scholar]
  10. Evans, P.D. Weathering and photoprotection of wood. In Development of Commercial Wood Preservatives; ACS: Washington, DC, USA, 2008; Volume 982, pp. 69–117. [Google Scholar] [CrossRef]
  11. Cogulet, A.; Blanchet, P.; Landry, V. Evaluation of the impacts of four weathering methods on two acrylic paints: Showcasing distinctions and particularities. Coatings 2019, 9, 121. [Google Scholar] [CrossRef] [Green Version]
  12. De Meijer, M. Review on the durability of exterior wood coatings with reduced VOC-content. Prog. Org. Coat. 2001, 43, 217–225. [Google Scholar] [CrossRef]
  13. Evans, P.; Haase, J.; Seman, A.S.B.M.; Kiguchi, M. The search for durable exterior clear coatings for wood. Coatings 2015, 5, 830–864. [Google Scholar] [CrossRef] [Green Version]
  14. Miniutti, V.P. Microscale changes in cell structure at softwood surfaces during weathering. For. Prod. J. 1964, 14, 571–576. [Google Scholar]
  15. Šimůnková, K.; Oberhofnerová, E.; Reinprecht, L.; Pánek, M.; Podlena, M.; Štěrbová, I. Durability of selected transparent and semi-transparent coatings on Siberian and European larch during artificial weathering. Coatings 2019, 9, 39. [Google Scholar] [CrossRef] [Green Version]
  16. Forsthuber, B.; Ecker, M.; Truskaller, M.; Grüll, G. Rapid prediction of surface characteristics of European and Siberian larch wood by FT-NIRS. Eur. J. Wood Wood Prod. 2017, 75, 569–580. [Google Scholar] [CrossRef]
  17. Gobakken, L.R.; Lebow, P.K. Modelling mould growth on coated modified and unmodified wood substrates exposed outdoors. Wood Sci. Technol. 2010, 44, 315–333. [Google Scholar] [CrossRef]
  18. De Windt, I.; Van den Bulcke, J.; Wuijtens, I.; Coppens, H.; Van Acker, J. Outdoor weathering performance parameters of exterior wood coating systems on tropical hardwood substrates. Eur. J. Wood Wood Prod. 2014, 72, 261–272. [Google Scholar] [CrossRef] [Green Version]
  19. Gaylarde, C.C.; Morton, L.H.G.; Loh, K.; Shirakawa, M.A. Biodeterioration of external architectural paint films—A review. Int. Biodeterior. Biodegrad. 2011, 65, 1189–1198. [Google Scholar] [CrossRef]
  20. Grüll, G.; Truskaller, M.; Podgorski, L.; Bollmus, S.; Tscherne, F. Maintenance procedures and definition of limit states for exterior wood coatings. Eur. J. Wood Wood Prod. 2011, 69, 443–450. [Google Scholar] [CrossRef] [Green Version]
  21. Dawson, B.S.; Singh, A.P.; Kroese, H.W.; Schwitzer, M.A.; Gallagher, S.; Riddiough, S.J.; Wu, S. Enhancing exterior performance of clear coatings through photostabilization of wood. Part 2: Coating and weathering performance. J. Coat. Technol. Res. 2008, 5, 207–219. [Google Scholar] [CrossRef]
  22. Van den Bulcke, J.; De Windt, I.; Defoirdt, N.; De Smet, J.; Van Acker, J. Moisture dynamics and fungal susceptibility of plywood. Int. Biodeterior. Biodegrad. 2011, 65, 708–716. [Google Scholar] [CrossRef] [Green Version]
  23. Grüll, G.; Tscherne, F.; Spitaler, I.; Forsthuber, B. Comparison of wood coating durability in natural weathering and artificial weathering using fluorescent UV-lamps and water. Eur. J. Wood Wood Prod. 2014, 72, 367–376. [Google Scholar] [CrossRef]
  24. Žlahtič, M.; Humar, M. Influence of artificial and natural weathering on the hydrophobicity and surface properties of wood. BioResources 2016, 11, 4964–4989. [Google Scholar] [CrossRef] [Green Version]
  25. Miklečić, J.; Turkulin, H.; Jirouš-Rajković, V. Weathering performance of surface of thermally modified wood finished with nanoparticles-modified waterborne polyacrylate coatings. Appl. Surf. Sci. 2017, 408, 103–109. [Google Scholar] [CrossRef]
  26. EN 927-3. Paints and Varnishes. Coating Materials and Coating System for Exterior Wood, Part 3: Natural Weathering Test; European Committee for Standardization: Brussels, Belgium, 2006. [Google Scholar]
  27. EN 927-6. Paints and Varnishes. Coating Materials and Coating Systems for Exterior Wood, Part 6: Exposure of Wood Coatings to Artificial Weathering Using Fluorescent UV Lamps and Water; European Committee for Standardization: Brussels, Belgium, 2006. [Google Scholar]
  28. Reinprecht, L.; Pánek, M. Effects of wood roughness, light pigments, and water repellent on the color stability of painted spruce subjected to natural and accelerated weathering. BioResources 2015, 10, 7203–7219. [Google Scholar] [CrossRef] [Green Version]
  29. Deflorian, F.; Rossi, S.; Fedrizzi, L.; Zanella, C. Comparison of organic coating accelerated tests and natural weathering considering meteorological data. Prog. Org. Coat. 2007, 59, 244–250. [Google Scholar] [CrossRef]
  30. Moya, R.; Rodríguez-Zúñiga, A.; Vega-Baudrit, J.; Puente-Urbina, A. Effects of adding TiO2 nanoparticles to a water-based varnish for wood applied to nine tropical woods of Costa Rica exposed to natural and accelerated weathering. J. Coat. Technol. Res. 2017, 14, 141–152. [Google Scholar] [CrossRef]
  31. Oberhofnerová, E.; Pánek, M.; Böhm, M. Effect of surface pretreatment with natural essential oils on the weathering performance of spruce wood. BioResources 2018, 13, 7053–7070. [Google Scholar] [CrossRef]
  32. Valverde, J.C.; Moya, R. Correlation and modeling between color variation and quality of the surface between accelerated and natural tropical weathering in Acacia mangium, Cedrela odorata and Tectona grandis wood with two coating. Color Res. Appl. 2014, 39, 519–529. [Google Scholar] [CrossRef]
  33. Jirous-Rajkovic, V.; Bogner, A.; Radovan, D. The efficiency of various treatments in protecting wood surfaces against weathering. Surf. Coat. Int. B Coat. Trans. 2004, 87, 15–19. [Google Scholar] [CrossRef]
  34. Merlatti, C.; Perrin, F.X.; Aragon, E.; Margaillan, A. Natural and artificial weathering characteristics of stabilized acrylic–urethane paints. Polym. Degrad. Stab. 2008, 93, 896–903. [Google Scholar] [CrossRef]
  35. Oltean, L.; Teischinger, A.; Hansmann, C. Wood surface discolouration due to simulated indoor sunlight exposure. Holz Roh-und Werkst. 2008, 66, 51. [Google Scholar] [CrossRef]
  36. Creemers, J.; De Meijer, M.; Zimmermann, T.; Sell, J. Influence of climatic factors on the weathering of coated wood. Eur. J. Wood Wood Prod. 2002, 60, 411–420. [Google Scholar] [CrossRef]
  37. ČSN 49 0108. Drevo. Zist’ovanie Hustoty [Wood. Determination of the Density]; Český Normalizační Institut: Prague, Czech Republic, 1993.
  38. Meteostation of the Faculty of Agronomy—Department of Agroecology and Biometeorology, Prague, Czech Republic. 2019. Available online: http://meteostanice.agrobiologie.cz (accessed on 27 November 2019).
  39. Pánek, M.; Oberhofnerová, E.; Zeidler, A.; Šedivka, P. Efficacy of hydrophobic coatings in protecting oak wood surfaces during accelerated weathering. Coatings 2017, 7, 172. [Google Scholar] [CrossRef] [Green Version]
  40. Commission Internationale de l’Eclairage (CIE). Colorimetry, 2nd ed.; (CIE Pub. No. 15.2); Commission Internationale de l’Eclairage: Vienna, Austria, 1986. [Google Scholar]
  41. EN ISO 2813. Paints and Varnishes—Determination of Gloss Value at 20 Degrees, 60 Degrees and 85 Degrees; European Committee for Standardization: Brussels, Belgium, 2014. [Google Scholar]
  42. Bastani, A.; Adamopoulos, S.; Militz, H. Water uptake and wetting behaviour of furfurylated, N-methylol melamine modified and heat-treated wood. Eur. J. Wood Wood Prod. 2015, 73, 627–634. [Google Scholar] [CrossRef]
  43. Ozgenc, O.; Hiziroglu, S.; Yildiz, U.C. Weathering properties of wood species treated with different coating applications. BioResources 2012, 7, 4875–4888. [Google Scholar] [CrossRef]
  44. Turkoglu, T.; Baysal, E.; Toker, H. The effects of natural weathering on color stability of impregnated and varnished wood materials. Adv. Mater. Sci. Eng. 2015. [Google Scholar] [CrossRef] [Green Version]
  45. Sehlstedt-Persson, M. Color responses to heat-treatment of extractives and sap from pine and spruce. In Proceedings of the 8th IUFRO International Wood Drying Conference: Improvement and Innovation in Wood Drying: A Major Issue for a Renewable Material, Brasov, Romania, 24–29 August 2003; Faculty of Wood Industry, Transilvania University of Brasov: Brasov, Romania, 2003; pp. 459–464. [Google Scholar]
  46. Ghosh, M.; Gupta, S.; Kumar, V.S. Studies on the loss of gloss of shellac and polyurethane finishes exposed to UV. Maderas Ciencia y Tecnología 2015, 17, 39–44. [Google Scholar] [CrossRef] [Green Version]
  47. Kubovský, I.; Oberhofnerová, E.; Kačík, F.; Pánek, M. Surface changes of selected hardwoods due to weather conditions. Forests 2018, 9, 557. [Google Scholar] [CrossRef] [Green Version]
  48. Sivrikaya, H.; Hafizoglu, H.; Yasav, A.; Aydemir, D. Natural weathering of oak (Quercus petrae) and chestnut (Castanea sativa) coated with various finishes. Color Res. Appl. 2011, 36, 72–78. [Google Scholar] [CrossRef]
  49. Temiz, A.; Terziev, N.; Eikenes, M.; Hafren, J. Effect of accelerated weathering on surface chemistry of modified wood. Appl. Surf. Sci. 2007, 253, 5355–5362. [Google Scholar] [CrossRef]
  50. Singh, T.; Singh, A.P. A review on natural products as wood protectant. Wood Sci. Technol. 2012, 46, 851–870. [Google Scholar] [CrossRef]
  51. Pánek, M.; Reinprecht, L. Colour stability and surface defects of naturally aged wood treated with transparent paints for exterior constructions. Wood Res. 2014, 59, 421–430. [Google Scholar]
  52. Pánek, M.; Reinprecht, L. Critical view on the possibility of color changes prediction in the surfaces of painted wood exposed outdoors using accelerated weathering in Xenotest. J. Coat. Technol. Res. 2019, 16, 339–352. [Google Scholar] [CrossRef]
  53. Q-LAB. Correlation of Laboratory to Natural Weathering. Technical Bulletin LU-0824. 1977. Available online: www.q-lab.com/resources/technical-articles.aspx (accessed on 16 December 2019).
  54. Mattos, B.D.; De Cademartori, P.H.G.; Lourençon, T.V.; Gatto, D.A. Colour changes of Brazilian eucalypts wood by natural weathering. Int. Wood Prod. J. 2014, 5, 33–38. [Google Scholar] [CrossRef]
Coatings 09 00864 g001a 550Coatings 09 00864 g001b 550

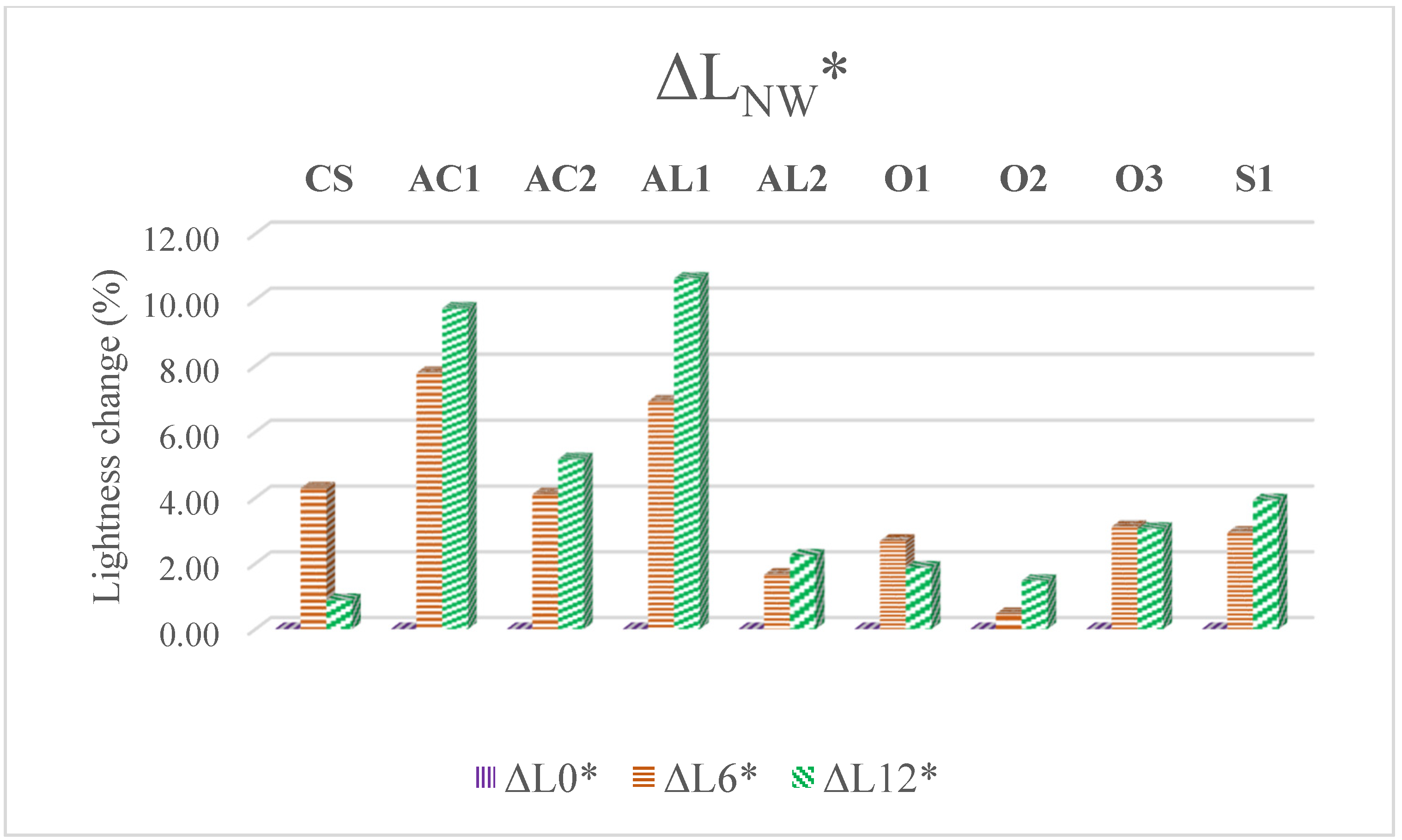

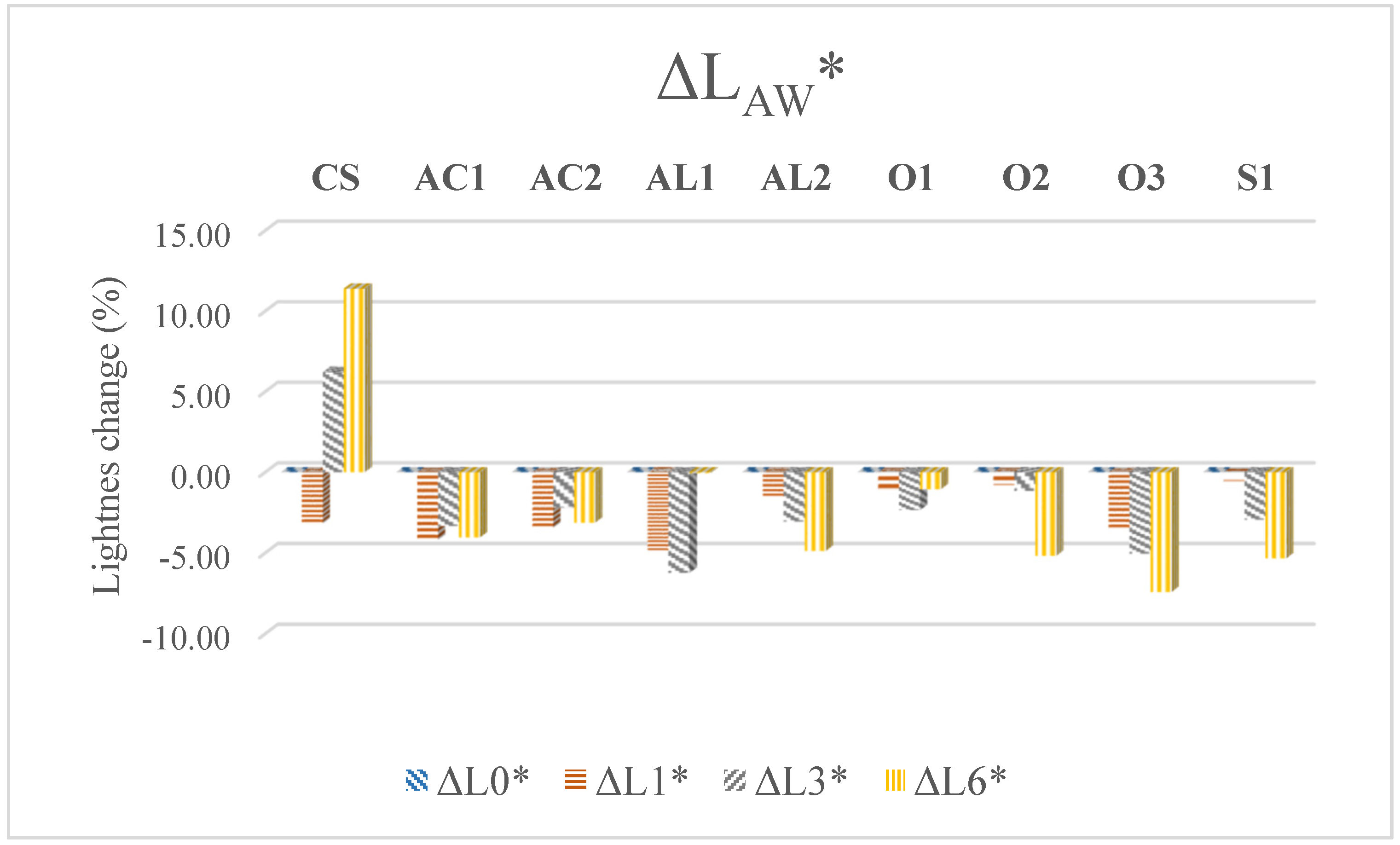

Figure 1. Lightness difference (ΔL*) of tested coating systems during artificial and natural weathering (CS means control sample).
Figure 1. Lightness difference (ΔL*) of tested coating systems during artificial and natural weathering (CS means control sample).
Coatings 09 00864 g001aCoatings 09 00864 g001b
Coatings 09 00864 g002a 550Coatings 09 00864 g002b 550

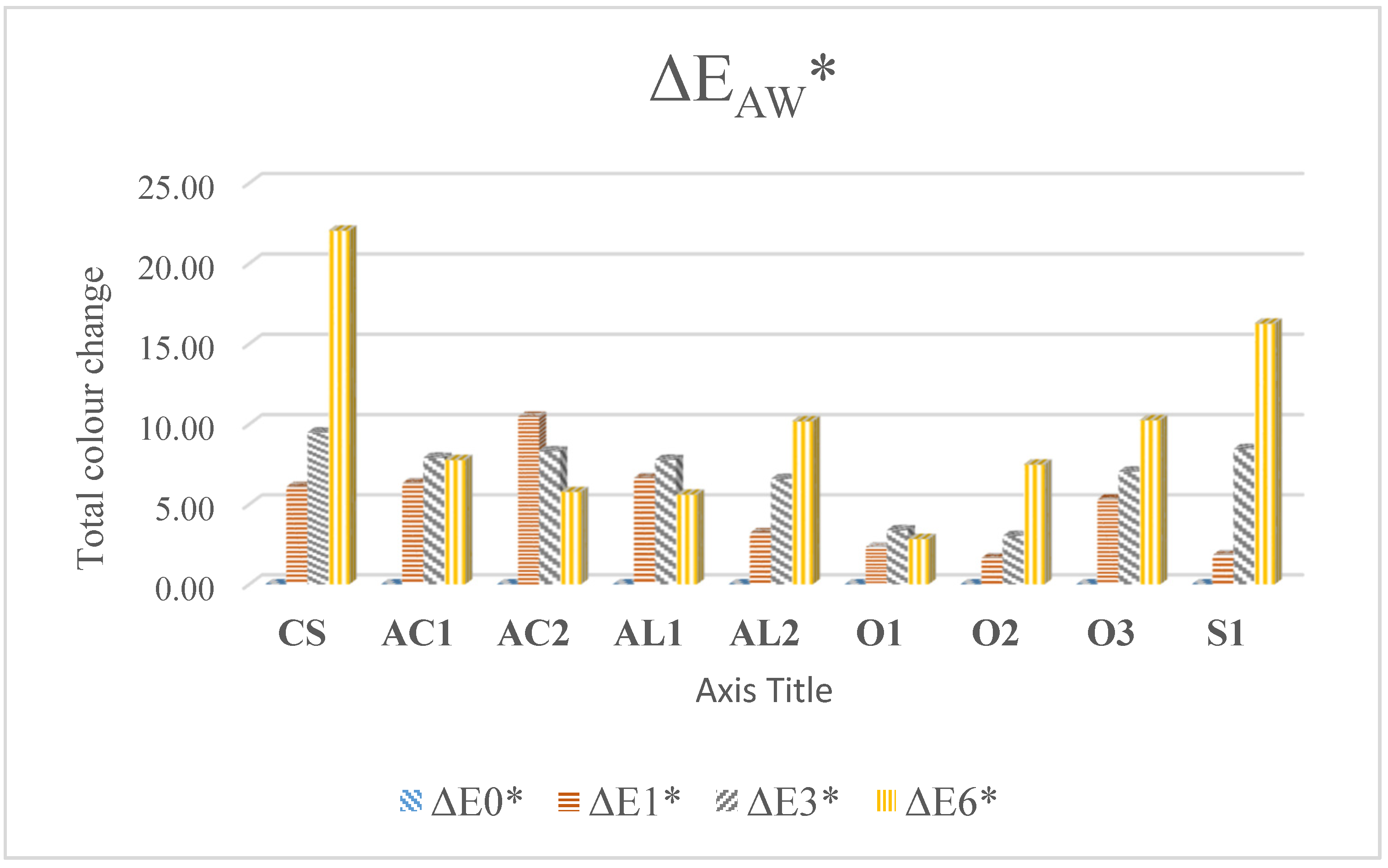

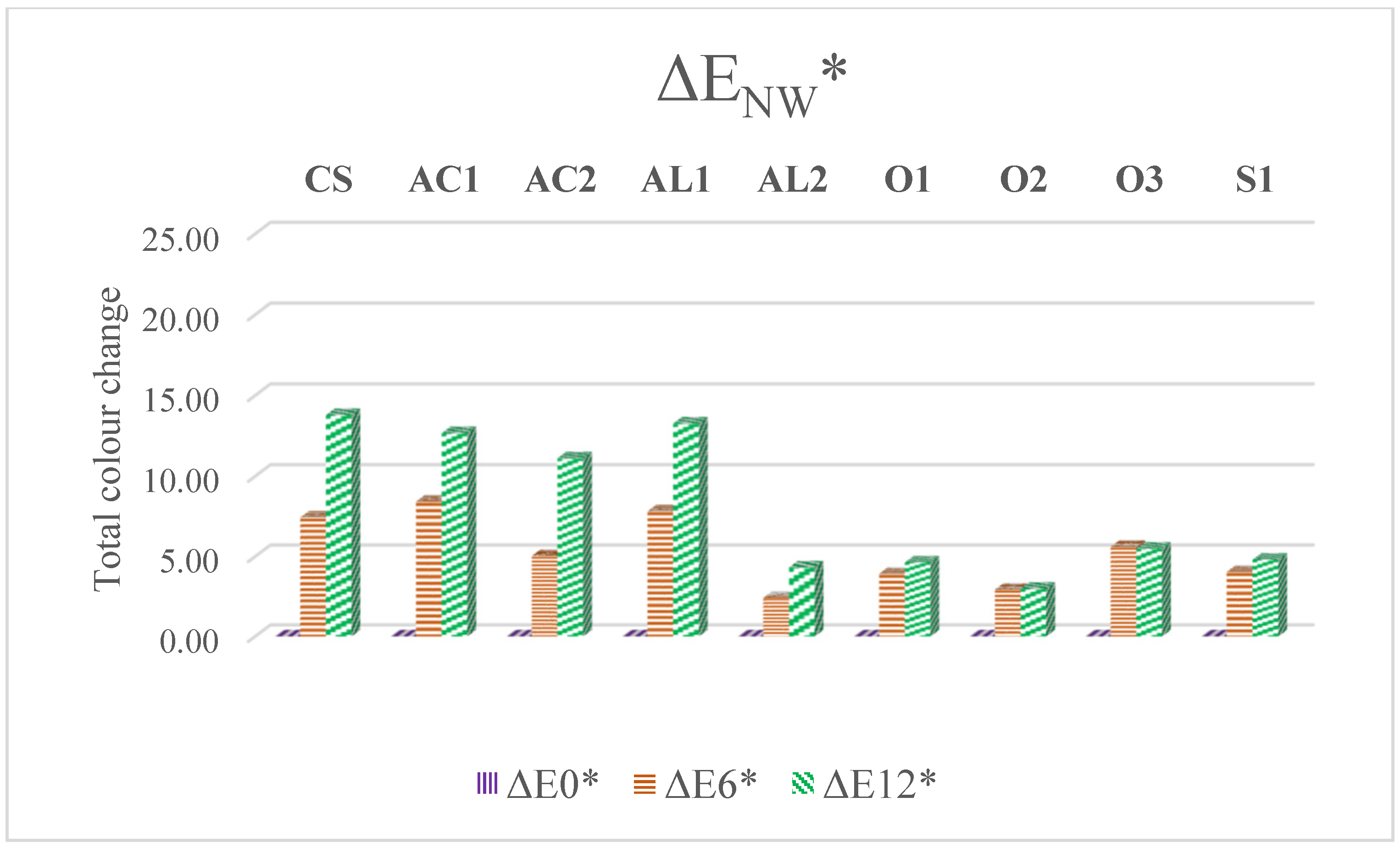

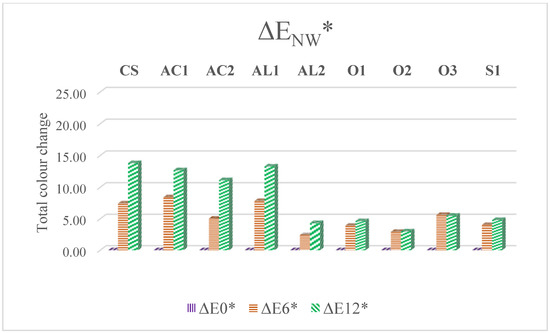

Figure 2. Total colour difference (ΔE*) of tested coating systems during artificial and natural weathering (CS means control sample).
Figure 2. Total colour difference (ΔE*) of tested coating systems during artificial and natural weathering (CS means control sample).
Coatings 09 00864 g002aCoatings 09 00864 g002b
Coatings 09 00864 g003a 550Coatings 09 00864 g003b 550

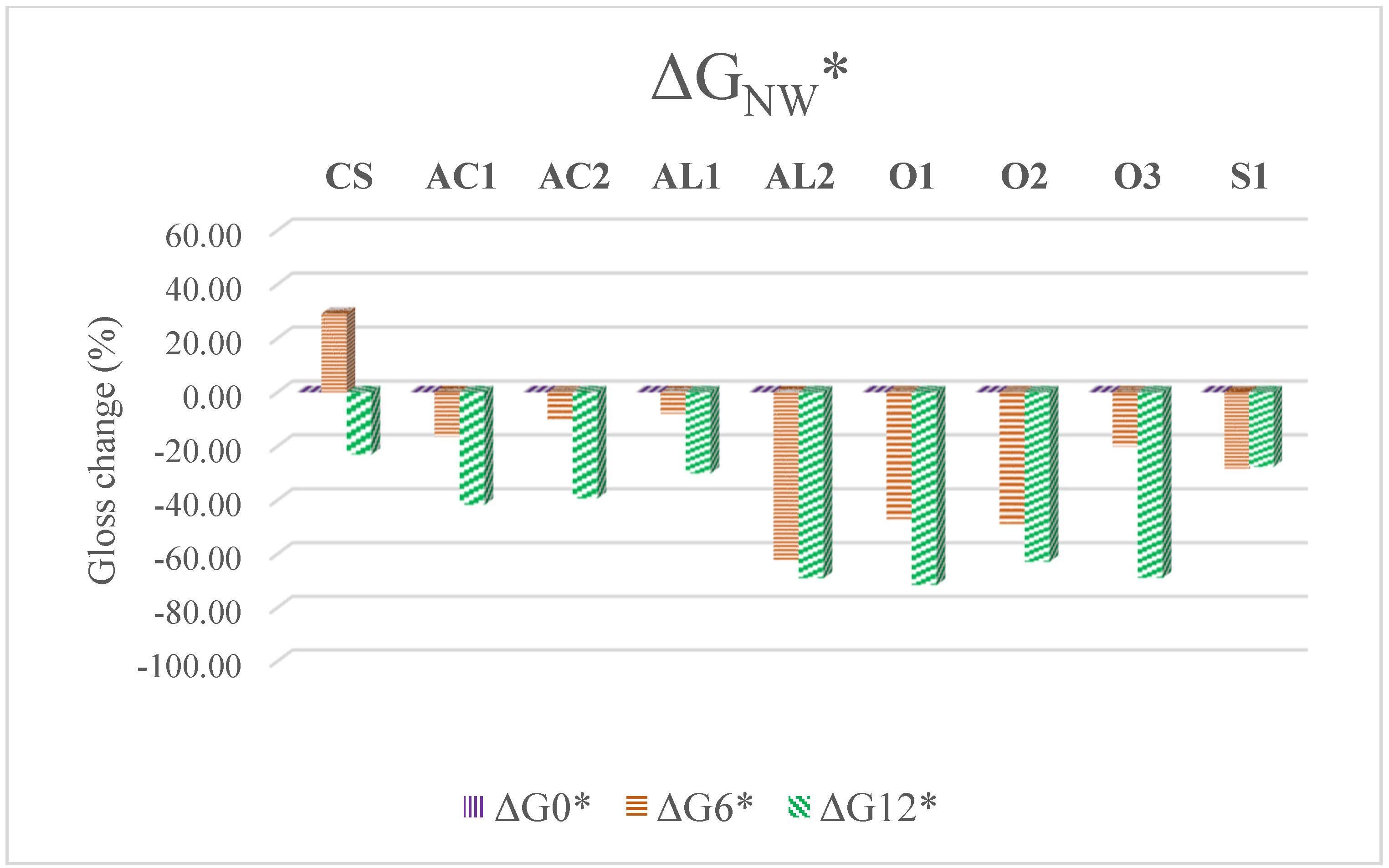

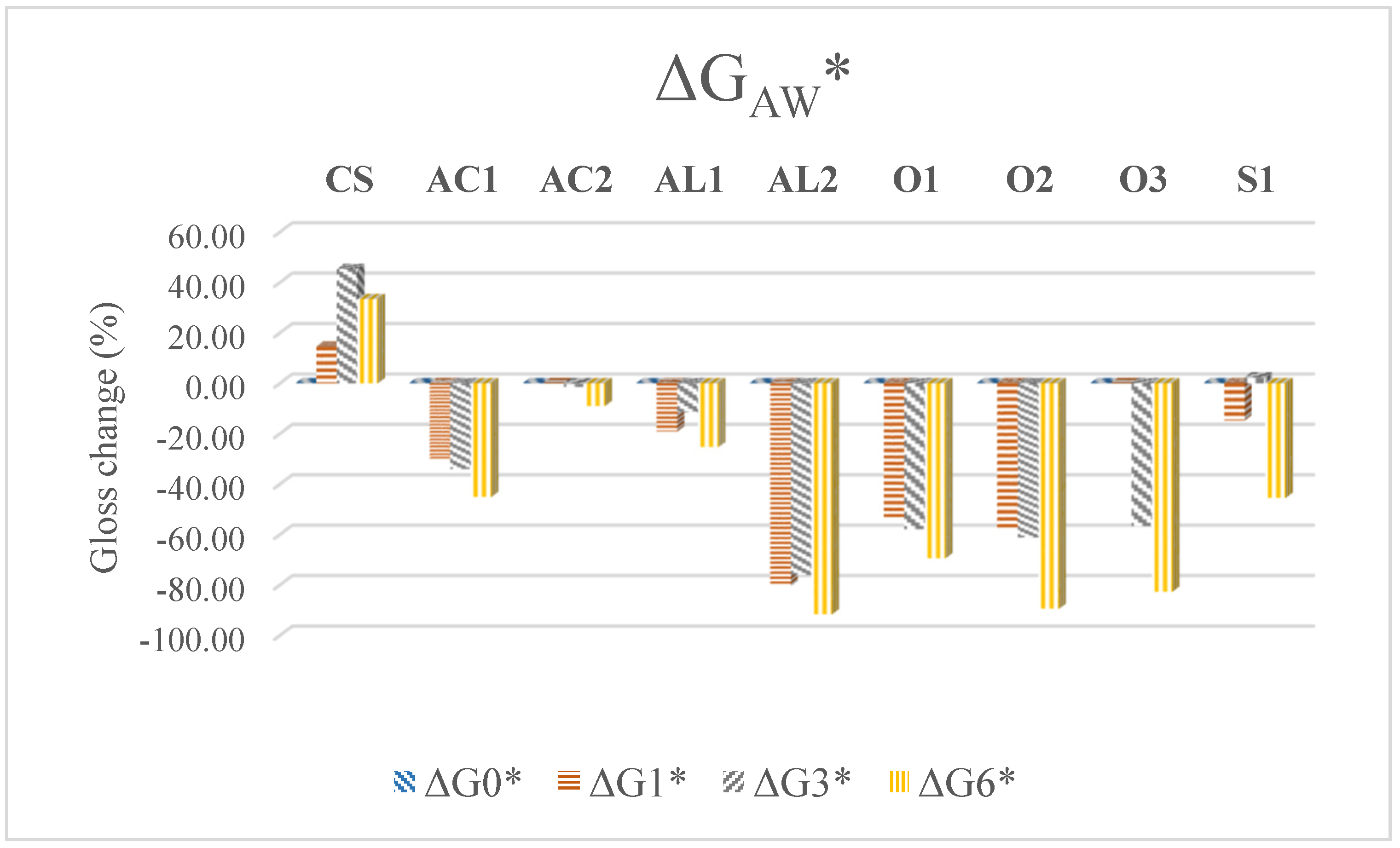

Figure 3. Gloss difference (ΔG*) of tested coating systems during artificial and natural weathering (CS means control sample).
Figure 3. Gloss difference (ΔG*) of tested coating systems during artificial and natural weathering (CS means control sample).
Coatings 09 00864 g003aCoatings 09 00864 g003b
Coatings 09 00864 g004a 550Coatings 09 00864 g004b 550

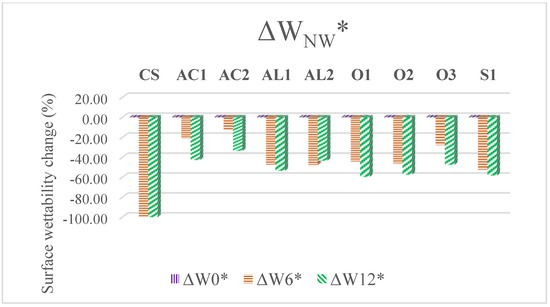

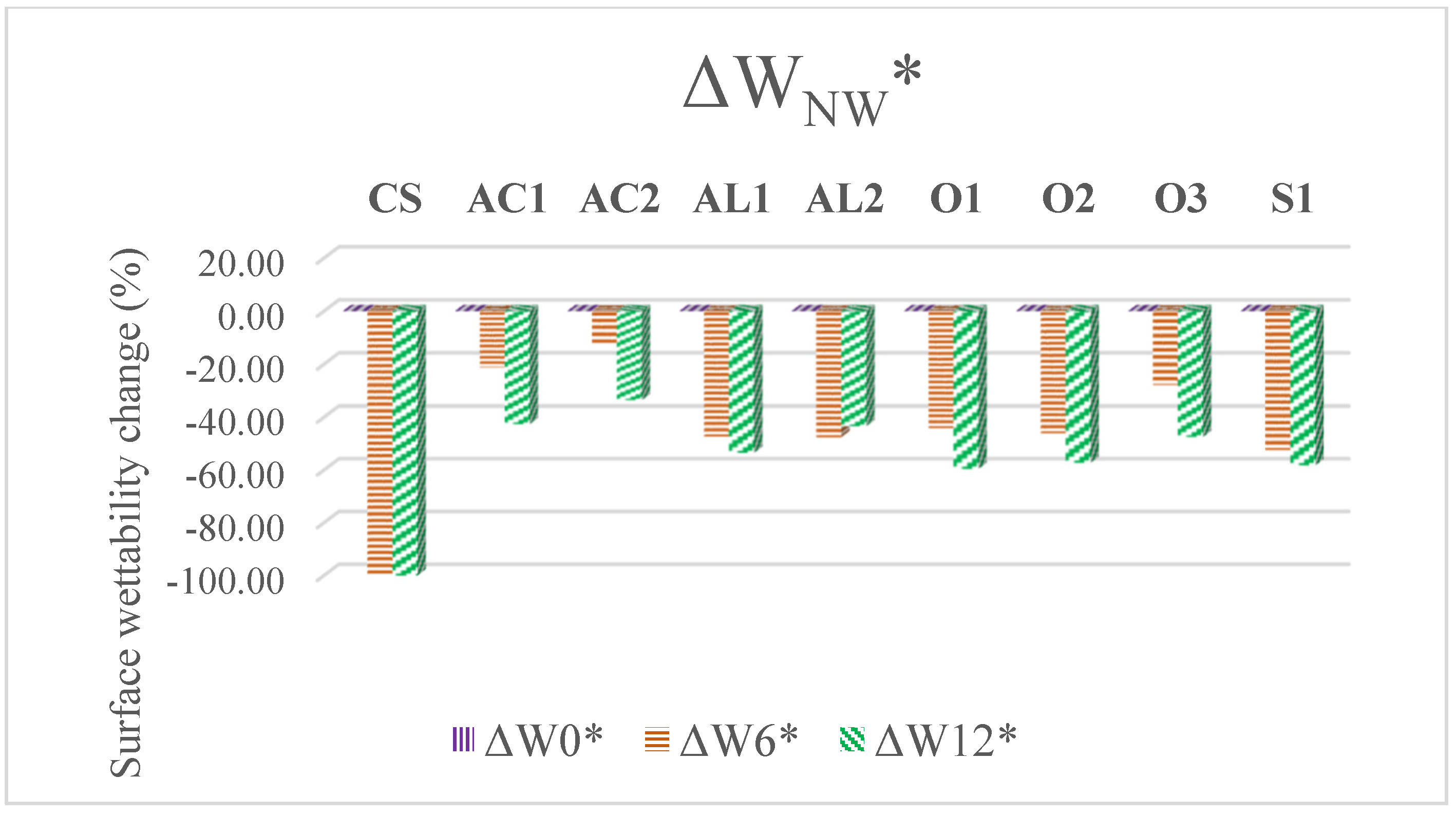

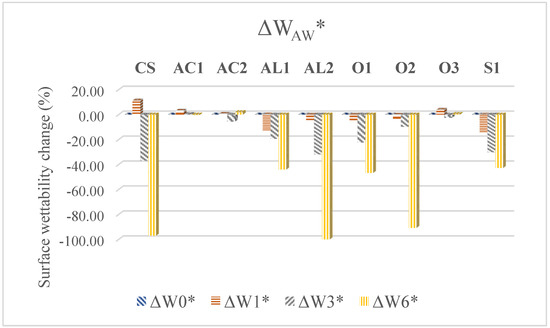

Figure 4. Surface wettability difference (ΔW*) of the tested coating systems during artificial and natural weathering (CS means control sample).
Figure 4. Surface wettability difference (ΔW*) of the tested coating systems during artificial and natural weathering (CS means control sample).
Coatings 09 00864 g004aCoatings 09 00864 g004b
Coatings 09 00864 g005 550

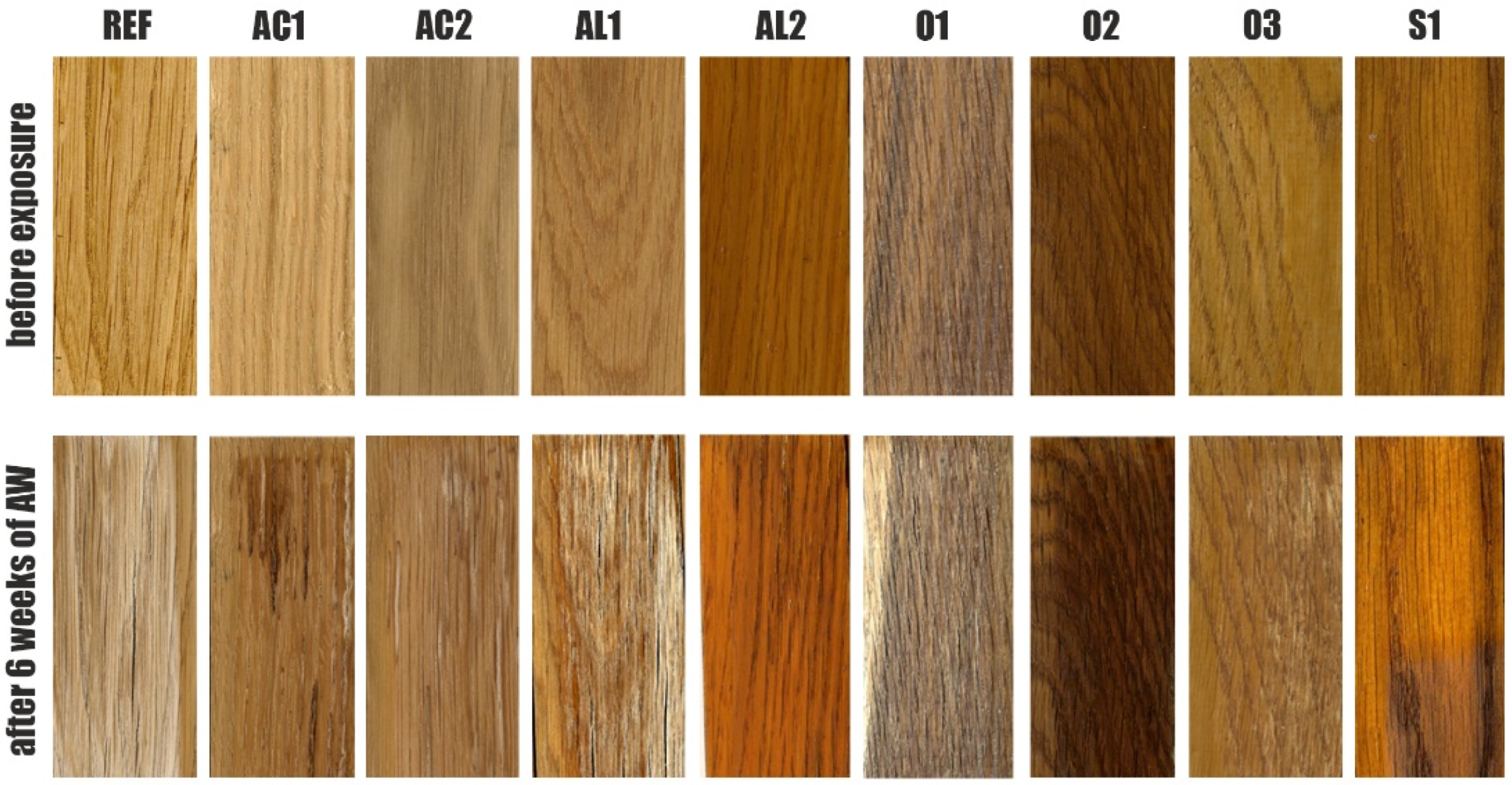

Figure 5. Visual evaluation of tested coatings before and after 6 weeks of AW exposure.
Figure 5. Visual evaluation of tested coatings before and after 6 weeks of AW exposure.
Coatings 09 00864 g005
Coatings 09 00864 g006 550

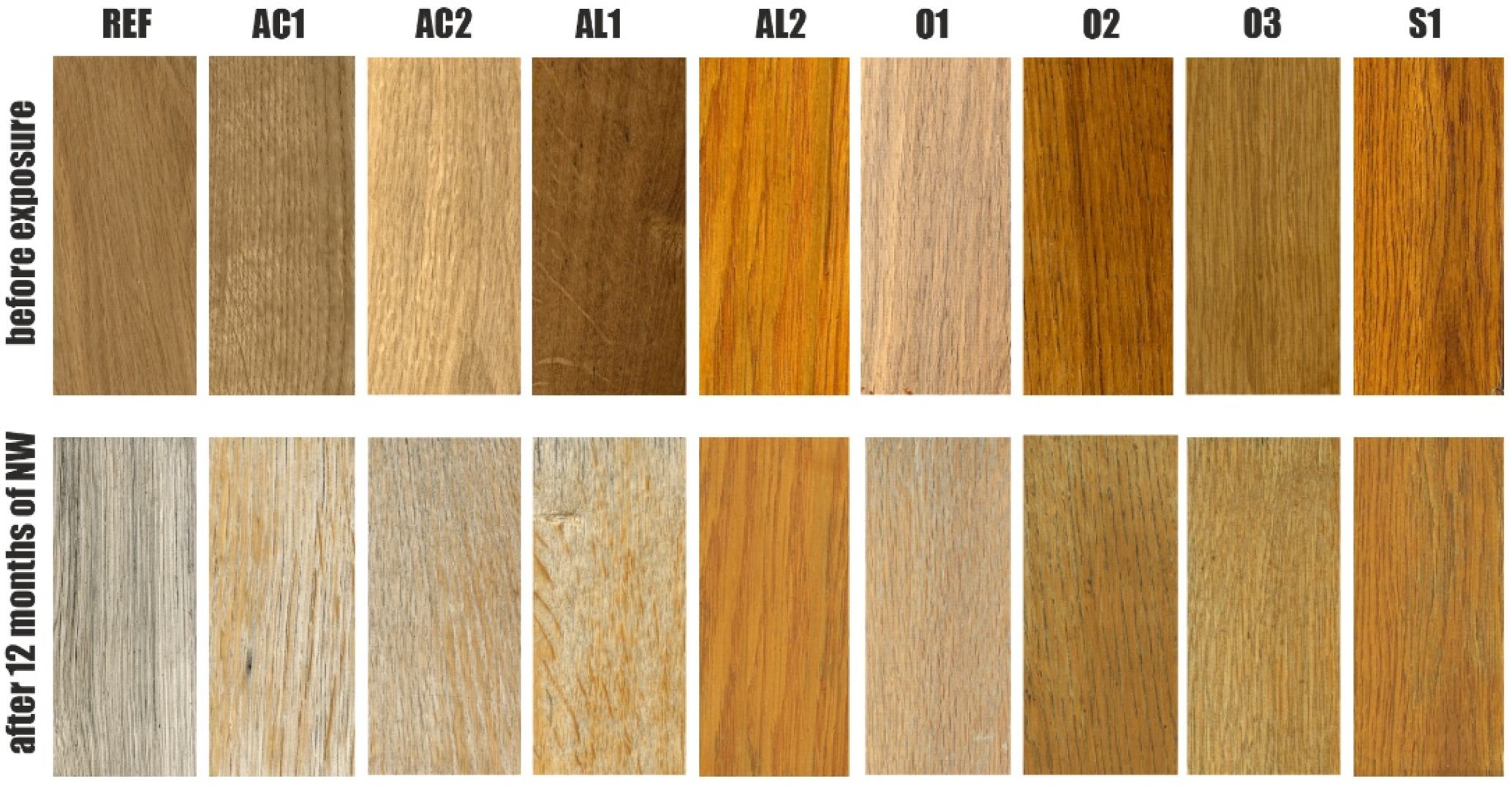

Figure 6. Visual evaluation of tested coatings before and after 12 months of NW exposure.
Figure 6. Visual evaluation of tested coatings before and after 12 months of NW exposure.
Coatings 09 00864 g006
Coatings 09 00864 g007 550

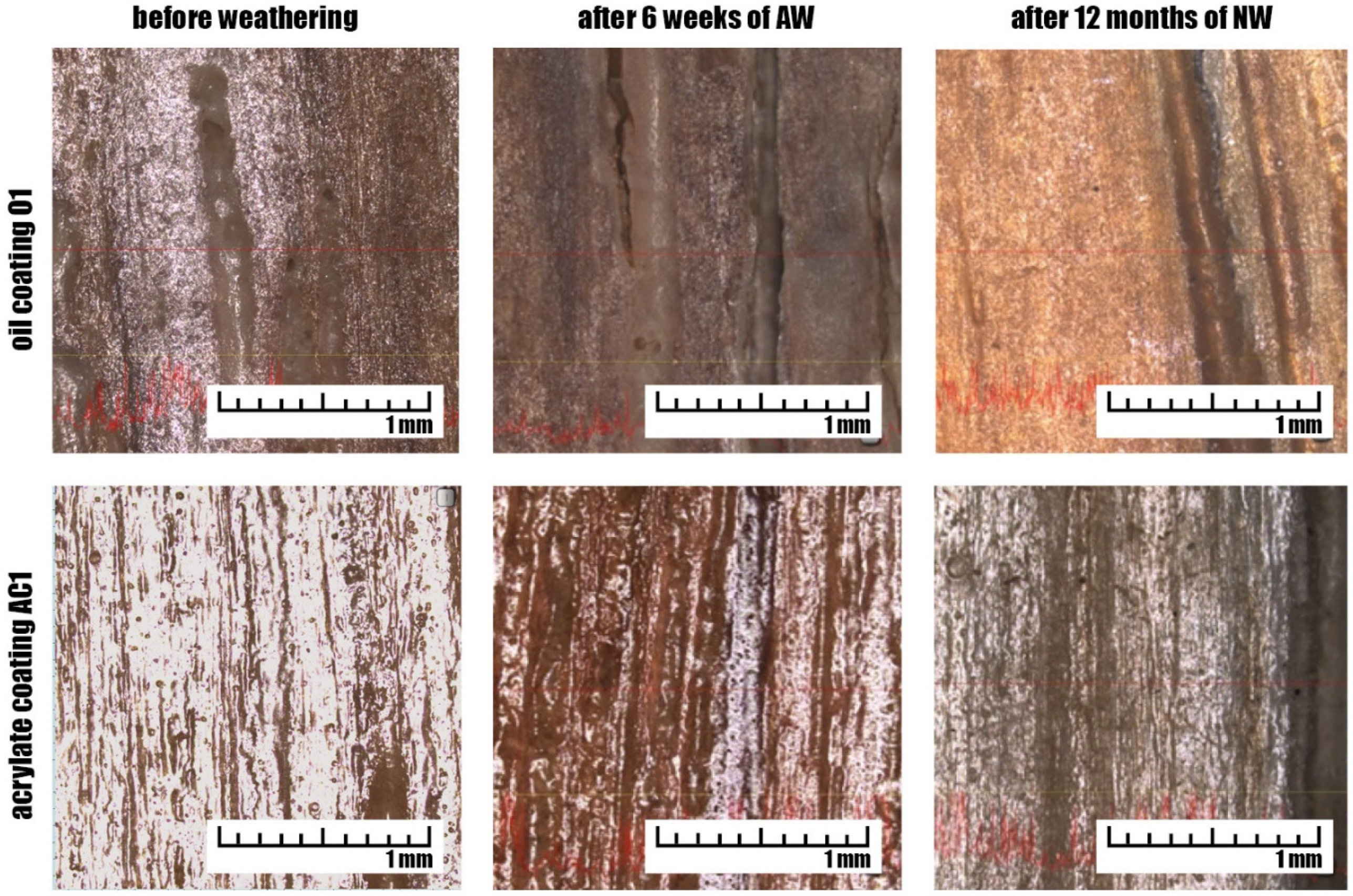

Figure 7. Confocal microscopy of oil (O1) and acrylate (AC1) coating after 6 weeks of AW and 12 months of NW.
Figure 7. Confocal microscopy of oil (O1) and acrylate (AC1) coating after 6 weeks of AW and 12 months of NW.
Coatings 09 00864 g007
Coatings 09 00864 g008 550

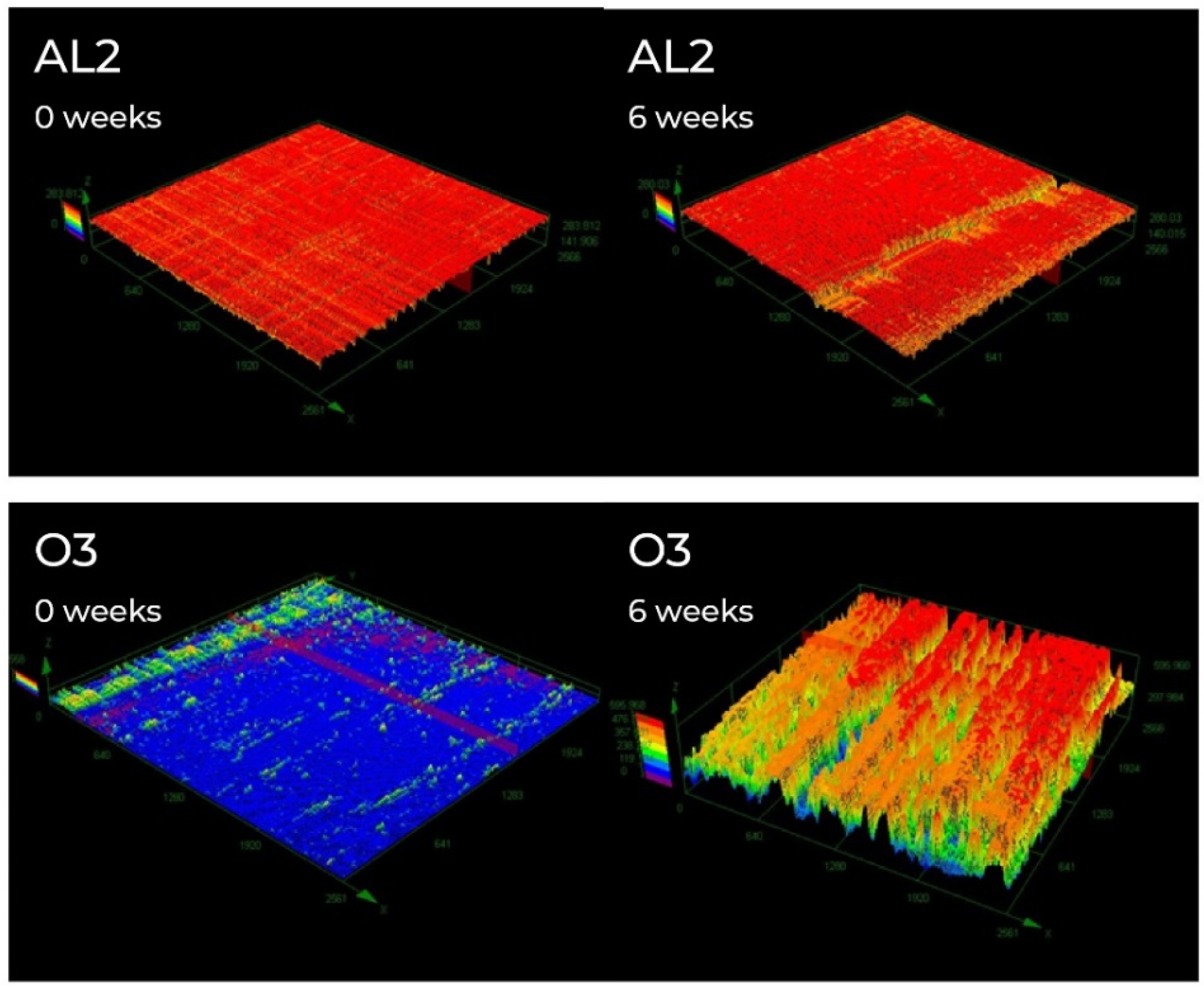

Figure 8. 3D images of surfaces before (left) and after 6 weeks of artificial accelerated weathering (right). Figures were created using Confocal laser scanning microscope with 108-fold magnification. Size of analysed area is 2560 µm × 2560 µm.
Figure 8. 3D images of surfaces before (left) and after 6 weeks of artificial accelerated weathering (right). Figures were created using Confocal laser scanning microscope with 108-fold magnification. Size of analysed area is 2560 µm × 2560 µm.
Coatings 09 00864 g008
Table
Table 1. Specifications of the tested coatings according to the producers.
Table 1. Specifications of the tested coatings according to the producers.
Coating SymbolCoating SpecificationType of CoatingTransparent (T) or Pigmented (P)Number of Layers (Dry Film Thickness)
CSControl reference (REF) native samples without any coating system---
AC1Acrylate thick-layer water-based stain with fungicides (5-chloro-2-methylisothiazol-3(2H)-one)AcrylateT2
(40 µm)
AC2Acrylate thin-layer water-based coating with a UV light absorber (1,2-benzoisothiazol-3(2H)-one), IPBC as fungicideAcrylateT3
(20 µm)
AL1Thixotropic alkyd coating with microparticles as a UV-stabilizerAlkydT3
(40 µm)
AL2Thick-layer mixture of alkyds and oils with IPBC and pigmentsAlkyd/OilP2
(40 µm)
O1Thin-layer oil-based with micronized pigments (TiO2) and fungicides (propiconazole < 1%)OilP2
(10 µm)
O2Thin-layer oil-based with dark micronized pigments (Fe2O3) and fungicides (propiconazole < 1%)OilP2
(5 µm)
O3Oil-based coating with fungicides (propiconazole 0.5%)OilT3
(10 µm)
S1Thin-layer solvent-based stain—urethane alkyds with additives in white spirit with IPBCUrethane alkydP2
(25 µm)
Note: IPBC = 3-iodo-2-propynyl butylcarbamate.
Table
Table 2. Climatic conditions during NW. use a period (.) for decimals.
Table 2. Climatic conditions during NW. use a period (.) for decimals.
Period of Outdoor Exposure in 2018 (months)
Measured data per day123456789101112
Average temperature (°C)3.5−1.92.113.817.418.721.622.016.010.74.72.9
Average relative humidity (%)81.273.470.357.859.763.449.253.464.070.384.582.2
Total precipitation (mm)17.24.629.114.220.887.98.856.543.523.96.540.6
Average solar radiation (kJ/m2)24326473830517,36521,42820,25322,17718,25012,455791532801992
Note: based on the data from http://meteostanice.agrobiologie.cz [38].
Table
Table 3. Statistical evaluation of significance of selected factors.
Table 3. Statistical evaluation of significance of selected factors.
ΔL *ΔE *ΔG *ΔW *
Type of coating systemAW0.000 *0.001 *0.000 *0.000 *
NW0.000 *0.000 *0.000 *0.000 *
* signifies p < 0.05 (statistically significant at significance level 0.05).
Table
Table 4. Spearman rank correlation between AW and NW.
Table 4. Spearman rank correlation between AW and NW.
Type of CoatingNumber of Valid TestsSpearman Rp-Value
ΔE6AW * × ΔE12NW *Transparent50.100.87
Pigmented40.400.60
All coatings90.180.64
ΔL6AW * × ΔL12NW *Transparent5−0.100.87
Pigmented4−0.400.60
All coatings9−0.030.93
ΔG6AW * × ΔG12NW *Transparent50.900.04 *
Pigmented40.400.60
All coatings90.770.02 *
ΔW6AW * × ΔW12NW *Transparent50.900.04 *
Pigmented4−0.800.20
All coatings90.530.14
Note: * means statically significant at 95% level (p < 0.05); R = 1 is a perfect positive correlation; R = −1 is a perfect negative correlation; R = 0 is no correlation.

Share and Cite

MDPI and ACS Style

Oberhofnerová, E.; Šimůnková, K.; Dvořák, O.; Štěrbová, I.; Hiziroglu, S.; Šedivka, P.; Pánek, M. Comparison of Exterior Coatings Applied to Oak Wood as a Function of Natural and Artificial Weathering Exposure. Coatings 2019, 9, 864. https://doi.org/10.3390/coatings9120864

AMA Style

Oberhofnerová E, Šimůnková K, Dvořák O, Štěrbová I, Hiziroglu S, Šedivka P, Pánek M. Comparison of Exterior Coatings Applied to Oak Wood as a Function of Natural and Artificial Weathering Exposure. Coatings. 2019; 9(12):864. https://doi.org/10.3390/coatings9120864

Chicago/Turabian Style

Oberhofnerová, Eliška, Kristýna Šimůnková, Ondřej Dvořák, Irena Štěrbová, Salim Hiziroglu, Přemysl Šedivka, and Miloš Pánek. 2019. "Comparison of Exterior Coatings Applied to Oak Wood as a Function of Natural and Artificial Weathering Exposure" Coatings 9, no. 12: 864. https://doi.org/10.3390/coatings9120864

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
