Coatings 2019, 9(11), 740; https://doi.org/10.3390/coatings9110740

Article
Anti-Graffiti Behavior of Oleo/Hydrophobic Nano-Filled Coatings Applied on Natural Stone Materials
1
Istituto di Scienze del Patrimonio Culturale, CNR-ISPC, Prov.le Lecce-Monteroni, 73100 Lecce, Italy
2
Department of Engineering for Innovation, University of Salento, 73100 Lecce, Italy
*
Author to whom correspondence should be addressed.
Received: 7 October 2019 / Accepted: 5 November 2019 / Published: 7 November 2019

Abstract

:
In recent years, graffiti writings are increasingly regarded as a form of art. However, their presence on historic building remains a vandalism and different strategies have been developed to clean or, preferably, protect the surfaces. In this study, an experimental nano-filled coating, based on fluorine resin containing SiO2 nano-particles, and two commercial products have been applied on compact and porous calcareous stones, representative of building materials used in the Mediterranean basin, and their anti-graffiti ability has been analyzed. All the tested experimental and commercial coatings exhibited high hydrophobicity and oleophobicity, thus meeting one of the basic requirements for anti-graffiti systems. The effects of staining by acrylic blu-colored spray paint and felt-tip marker were, then, assessed; the properties of the treated stone surfaces after cleaning by acetone were also investigated. Visual observations, contact angle measurements and color evaluations were performed to this aim. It was found that the protective coatings facilitated the spray paint removal; however high oleophobicity or paint repellence did not guarantee a complete cleaning. The stain from the felt-tip marker was confirmed to be extremely difficult to remove. The cleaning with a neat unconfined solvent promoted the movement of the applied polymers (and likely of the paint, as well) in the porous structure of the stone substrate.
Keywords:
hydrophobic treatments; oleophobicity; nano-particles; stone protection; anti-graffiti coatings; chemical cleaning; acrylic-based paints; felt-tip markers

1. Introduction

Over the last few years, holistic approaches are trying to tackle the global graffiti phenomenon [1]. Any proposed solution is shared with all the involved stakeholders, including those who manage graffiti or utilize street art for city regeneration. The current studies are addressing not only to the graffiti removal, but also to the knowledge and protection of the street art murals [2,3,4].
However, graffiti on building façades, especially those with a cultural and historical value, still remain a vandalism [5]. Several strategies are used to either remove these graffiti or protect the surfaces against their harmful effects [6].
Mechanical, chemical or laser techniques are typically employed for the cleaning procedures [7,8,9,10,11]; biocleaning methods have been also proposed [12,13]. Graffiti removal is expensive and, in some cases, may cause stone damage due to chemical contamination, by-products formation and physical changes. Therefore, preventive actions are preferred, especially on artifacts of historical and artistic relevance.
To this aim, coatings acting as anti-graffiti barrier have been developed in the last years and many products are nowadays commercially available. The anti-graffiti products can be grouped into three main classes: sacrificial, semi-permanent and permanent [14]. The sacrificial coatings are removed during the cleaning process and they need to be renewed; the semi-permanent systems endure a few cleaning cycles (normally, not more than two or three); the permanent products are not taken away during the cleaning process and they are able to withstand several cleaning cycles. The formulations suitable for application on stone materials [15,16,17,18,19,20,21,22,23] are mainly based on waxes, fluorinated polymers, silicon resins or polyurethanes; more recently, coatings incorporating nano-particles [17,24,25,26], organic–inorganic hybrid products [27,28,29] and surface functionalization [30] have been investigated as potential anti-graffiti systems. The fundamental characteristics that these treatments must display are: transparency, permeability to water vapor, durability under outdoor conditions. In addition, non-wettable coatings are preferred to enable the treated surfaces to repel paints and other staining agents [31].
Wetting is the ability of a liquid to maintain contact with a solid surface; the balance between the intermolecular interactions of adhesive type (liquid to surface) and cohesive type (liquid to liquid) controls this feature. Wettability of a solid surface can be described by the contact angles and sliding angle; models (Young, Wenzel, Cassie–Baxter) have been developed to illustrate the wetting phenomena on surfaces [32,33]. The decrease of the wettability corresponds to an increase in liquid-phobicity. Regarding water, a surface is called hydrophobic when water drops on it exhibit contact angles greater than 90°. When the contact angles are 150° or higher, the surface is classified as superhydrophobic. Despite their high level properties, superhydrophobic surfaces have low mechanical wear resistance and poor long-term durability, therefore, their utilization in real applications is still limited [33,34,35]. Water-repellency is achieved in super-hydrophobic surfaces with water contact angle hysteresis <10°, that is a low difference between the advancing and receding contact angles. In these conditions, a water droplet can move with little applied force and easily rolls off from the surface [36]. Similar considerations are applied to oleo-phobic/-repellent surfaces [37].
Several methods have been used to design and produce non-wettable stone surfaces, often bioinspired to either plants or insects surfaces. The most common procedures include the application of polymer coatings able to reduce the surface tension of the substrate, sol-gel processes and controlled nano-particle embedding into polymer matrices [29].
Hydrophobicity and oleophobicity are assumed as basic properties to provide protection against graffiti [38,39,40,41,42,43,44,45,46]; however, the related actual anti-graffiti action is taken for granted and few are the studies where this property has been proved in oleo/hydrophobic coatings applied on stone substrates [43,45]. Starting from these issues, an experimental work, aimed at investigating the performance of oleo/hydrophobic coatings and their behavior as anti-graffiti systems applied on building stone materials, has been undertaken. The present study is a part of a wide research on products suitable for superficial protection of stone materials.
Three products have been applied on both compact and porous calcareous stones representative of building materials used in the Mediterranean basin. Two of the used products are already commercially available and are suggested to provide water and anti-graffiti protection to stone surfaces. An experimental nano-filled system, based on fluorine resin containing SiO2 nano-particles, has been also investigated.
Blu-colored spray paint and felt-tip marker were used as staining agents. Traditional and easy-to-apply methods usually used by restores and professionals were chosen for the stain removal. Cleaning procedures by warm water and, subsequently, by acetone, were applied to the stained stone surfaces. The properties of the stone surfaces were, then, analyzed by visual observations, contact angle measurements and color evaluations, on stained and neat surfaces, as well as after the paint removal. The percentage of residual stain and the efficacy of the cleaning procedures, in comparison with the unprotected stone surfaces, were used to measure the paint removal.

2. Materials and Methods

2.1. Protective Products, Stone Materials, and Staining Agents

An experimental formulation and, for comparison purposes, two commercial products were investigated.
The experimental product, hereinafter nanoF, is a water-based fluorine resin (12.7 wt.%) containing SiO2 nano-particles (10 wt.%), 40–50 nm in dimensions (supplied by Kimia S.p.A., Perugia, Italy); nanoF has density of 1.04 g/cm3 and pH between 7 and 8; the viscosity, similar to those of the commercial systems, was appropriate for the application by brush [47]. The first commercial product, F (trade mark Fluoline PE, supplied by C.T.S. S.r.l., Altavilla Vicentina, Italy), is an aqueous dispersion of fluoropolyethers (10 wt.%); this system was selected to compare the experimental nano-filled formulation to a unfilled chemically similar product already on the market (nanoF and F are, indeed, both fluorine-based). The second commercial system, hereinafter SW (trade mark Kimistone DEFENDER, supplied by Kimia S.p.A., Italy), consisting of a mixture of organic silicon compounds and microcrystalline waxes in water solution; SW was included in the study because it belongs to a family of products, i.e., the silicon-based, widely and successfully used in the field of stone conservation. According to the technical sheets, both the commercial systems are able to provide a reversible and hydrophobic coating on the treated surfaces, with dirt-repellent and anti-graffiti properties. Additional information about the protective systems has been reported in a previous study [47].
The three protective products were tested on two natural calcareous stone materials, representative of construction materials used for historic and civil buildings in many countries in the Mediterranean basin. A highly porous calcarenite (PS), named ‘‘Lecce stone’’, and a compact limestone (CS), known as “Trani stone”, were used.
The principal constituent of ‘‘Lecce stone’’ is calcite (93%–97% [48]); in this material, very small quantities of clay, phosphates and other non-carbonate minerals are also present [49,50]. Petrographically, “Lecce stone” is a packstone [51], made of microfossils and fossil remains within a groundmass of fine calcareous detritus (Figure 1a). The used samples exhibited a porosity of 39%, with pore sizes mainly between 0.5 and 6 µm (Figure 1b), as analyzed by mercury-intrusion porosimetry (MIP) [52].

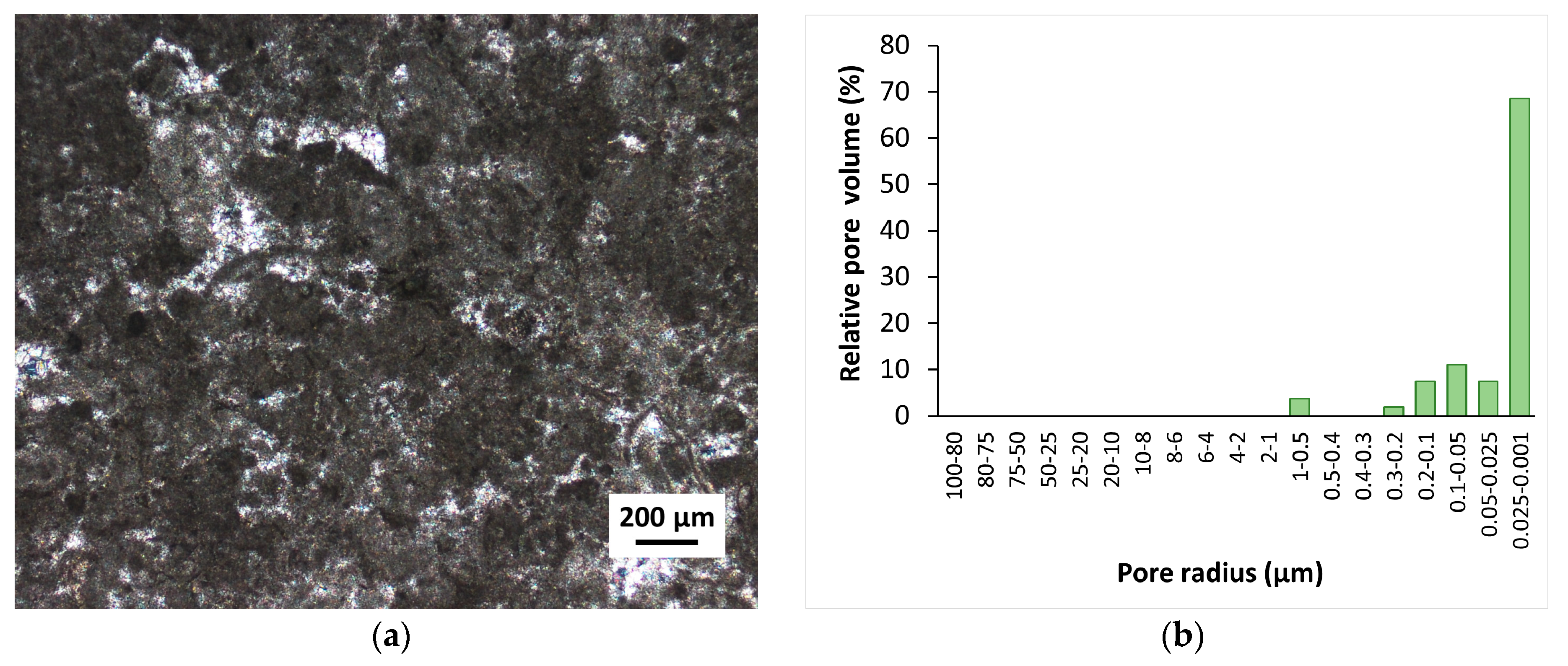

“Trani stone” is mainly composed of calcite (>95% [36]), and low amounts of clay minerals and iron oxides [33]. “Trani stone” is a packstone [51] made of calcareous detritic grains, very well cemented by a crystalline cement filling the interparticle porosity (Figure 2a). The open porosity, measured by MIP, was very low (2%); the pore size was mainly between 0.025 and 0.001 µm (Figure 2b).
Two staining agents were applied to test the protective action of each coating applied on the stones, i.e., (1) a commercial acrylic spray paint (Cilvani RAL by Cilvani S.r.l., Caivano, Italy), blu-colored (RAL code 5015), provided in a pressurized can; (2) a water-based acrylic paint marker (POSCA by UNI Mitsubishi pencil, Tokyo, Japan), blu-colored (RAL code 5005), having a bullet tip 1.8–2.5 mm wide (PC-5M).

2.2. Stone Specimens

Prismatic specimens of PS and CS stones, with dimensions of 5 cm × 5 cm × 1 cm, were cut by a saw from quarry blocks. According to the UNI10921 standard protocol [53], the samples were smoothed with abrasive paper (180-grit silicon carbide), cleaned with a soft brush and washed with deionized water in order to remove dust deposits. The stone specimens were completely dried in oven at 60 °C, until the dry weight was achieved, and stored in a desiccator with silica gel (relative humidity (R.H.) = 15%) at 23 ± 2 °C. Before the application of each protective product, the stone specimens were conditioned in equilibrium with the surrounding environment (24 h in the laboratory, at 23 ± 2 °C and 45% ± 5% R.H.).
The treatments were applied by brush on 3 sample surfaces (5 cm × 5 cm) for each product.
For F and SW, the amounts of product suggested in the technical sheets were applied. Preliminary tests were used to verify the optimal amount of nanoF to effectively treat the two stone materials [47]. Following the minimum intervention criteria, the quantities suitable to obtain highly hydrophobic surfaces along with minimal color changes were identified. For all the products, greater amounts were necessary to guarantee good performances in the highly porous stone (PS).
The actual amount of the applied product was evaluated by weighting the specimens before and after the treatment. After the application of the products, all the specimens were kept in the laboratory at 23 ± 2 °C and 45% ± 5% R.H. for 30 days; then, they were dried in oven at 40 °C until the weight stabilization was achieved, the stabilization being controlled by periodical weight measurements. The treatments’ harmlessness, assessed in terms of surface color variations and reduction in water vapor permeability, was proved in a previous study [47]; the main results are summarized in Table 1.
The staining of the surfaces was performed 2 months after the application of the protective coatings, as detailed in Section 2.3.
During the preparation of the specimens, their subsequent treatments and relative tests, the environmental conditions were monitored by means of a thermo-hygrometer (Mod. EMR812HGN, Oregon Scientific, Hong Kong, China). This instrument is able to collect temperature data from −50 to 70 °C (with resolution of 0.1 °C) and relative humidity data in the range 2%–98% (with resolution of ±1%). All weight measurements were registered using an analytical balance (Model BP 2215, Sartorius, Goettingen, Germany) with an accuracy of ±0.1 mg.

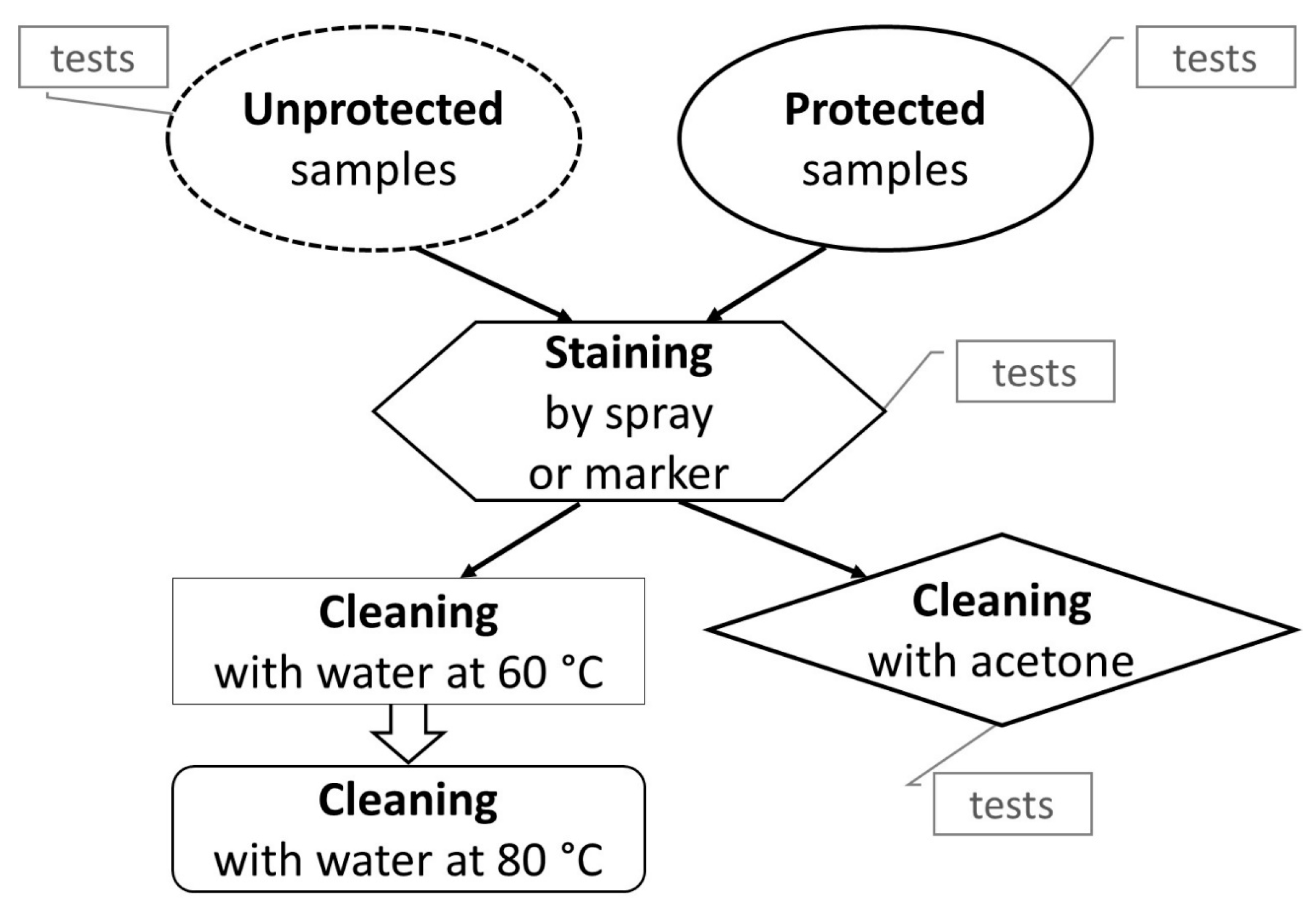

All the procedures carried out on the stone samples are illustrated in Figure 3.

2.3. Staining Methods and Removal Procedures

2.3.1. Spray Paint

The staining with the spray paint was carried out on untreated and protected stone samples, conditioned in equilibrium with the surrounding environment (24 h in the laboratory, at 23 ± 2 °C and 50% ± 5% R.H.). Two coats of paint were sprayed on specimens placed on a 45° tilted surface (Figure 4a). The distance between the sample surface and the nebulizer was about 15 cm. In order to limit the deposition of paint to an area of 1.5 cm × 5 cm, the staining was performed with the aid of a stencil and the lateral sides of the specimens were protected with a polyester (PET) film.
After the application of the paint, the samples were stored for 2 days in the laboratory at 23 ± 2 °C and 50% ± 5% R.H. The removal procedures were performed 20 days after the staining. Starting from the data reported in the technical sheet of the SW product, a first cleaning with warm water (at 60 °C and next at 80 °C) and paper towels, was firstly attempted on testing areas. Since this method resulted totally ineffective, it was no more applied to the stained specimens and its effects were not further investigated. Then, following the recommendation reported in the international code [54], cleaning with an organic solvent was tried. Acetone was selected because it is (alone or in mixture with other organic solvents) a traditional solvent for the cleaning of stone materials affected by graffiti [6]; it has been successfully used to remove acrylic paints, as reported in previous studies [9,55]. Acetone analytical grade, supplied by Carlo Erba Reagents (Val de Reuil, France) was used. For each sample, a wet paper towel was rubbed across the stained area (Figure 4b) for 25 complete back and forth cycles [54]; the towel was dunked in acetone every 5 cycles.

2.3.2. Felt-Tip Paint Marker

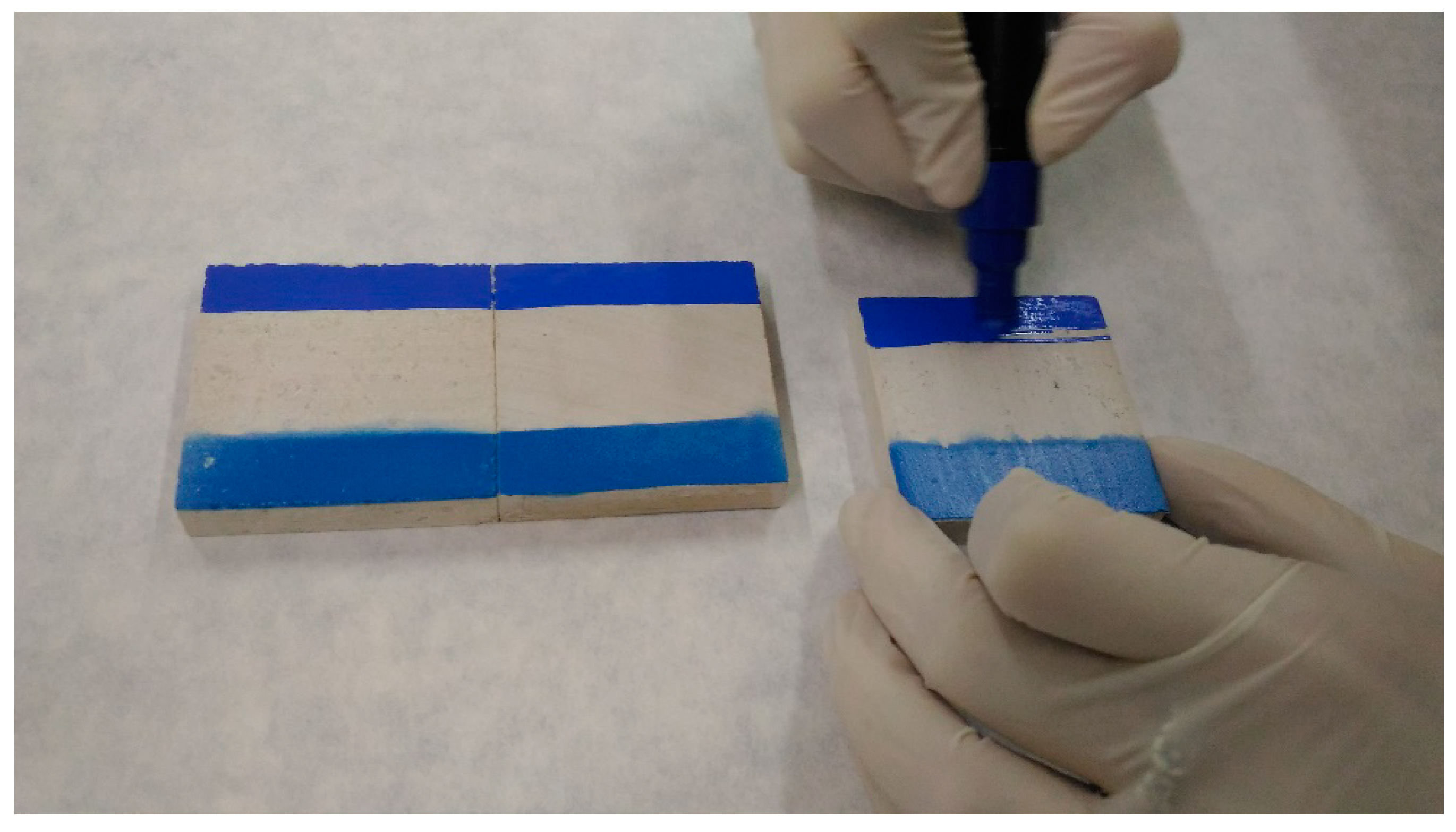

The staining with the felt-tip marker was performed on untreated and protected stone samples conditioned in equilibrium with the surrounding environment (24 h in the laboratory, at 23 ± 2 °C and 50% ± 5% R.H.). The paint was applied to an area of approximately 1.5 cm × 5 cm in the same specimens stained with the spray paint, but in a different zone (Figure 5).
The samples were, then, kept in the laboratory conditions (23 ± 2 °C and 50% ± 5% R.H) for 2 days. The same removal procedures used to clean the samples stained with the spray paint (described in Section 2.3.1) were carried out 18 days after the staining with the marker.

2.4. Analytical Investigations

In order to evaluate hydrophobicity and oleophobicity of the stone surfaces, static contact angle measurements were performed before and after the coatings’ application. A Costech apparatus was used to deposit micro-drops of the wetting liquid on the stone surfaces. The shape of the drop was recorded with a camera and the related contact angle was calculated by means of the “anglometer 2.0” software (Costech). To assure the reproducibility of the test, the image of each drop was acquired 15s after its deposition.
The water-stone contact angles were measured on 30 different positions of the surface of each specimen using deionized water as wetting liquid, according to the European standard [56]. A commercial olive oil (purchased from a local market) was used to determine the oil-stone static contact angle, following a procedure already proposed in other studies [57,58,59]; 5 measurements were performed on each sample and the results were averaged.
For the unprotected Lecce stone (PS), the absorption of wetting liquids is rapid because of the high stone porosity. Consequently, during the test, the drops of both water and oil were suddenly absorbed inside the stone and the contact angle was not determinable.
The water-stone contact angle measurements were repeated after the staining and after the paint removal.
Color measurements [60] were performed with a spectrophotometer (mod. CM-700d, Konica Minolta Sensing, Singapore), using CIE Standard illuminant D65 and the target mask 8 mm in diameter. Ten measurements were performed on each sample area and the instrument was recalibrated to a white calibration cap at the start of each measurement session. The color coordinates were measured on the unprotected surfaces, after the coatings’ application, after the staining and after the paint removal.
The colour changes (ΔE*ab) were calculated through the L*a*b* (CIE 1976) system, using Equation (1):
ΔE*ab = [(ΔL*)2 + (Δa*)2 + (Δb*)2]1/2
where L* is the lightness/darkness coordinate, a* the red/green coordinate (+a* indicating red and −a* green), and b* the yellow/blue coordinate (+b* indicating yellow and −b* blue).
All the colour variations were determined by the comparison with the untreated surfaces, using the averaged values of L*, a*, and b* for each sample.
The residual stain (RS) after cleaning was evaluated as a percentage by Equation (2):
RS = [(ΔE*ab)c/(ΔE*ab)s] × 100%
where (ΔE*ab)c is the colour variation of the cleaned surfaces and (ΔE*ab)s is the colour variation of the stained surfaces.
In addition, the efficacy of the cleaning procedure, as compared with the unprotected surfaces, was evaluated by Equation (3):
Relative Efficacy% = [(RSu – RSt)/RSu] × 100%
where: RSu and RSt are the residual stain values, as defined in Equation (2), for the unprotected and protected surfaces, respectively.
The stained surfaces were examined under a binocular stereomicroscope (Stemi SV11, Zeiss, Oberkochen, Germany) at magnifications of up to 100×.

3. Results and Discussion

3.1. Assessment of Basic Prerequisite for Antigraffiti Protection

The products used as an anti-graffiti barrier typically have a low surface energy at interface, which results in minimizing the contact with the applied paints or inks mainly because the protected surfaces become water and oil repellent. Therefore, treatments able to give good hydrophobicity and oleophobicity to the surfaces are assumed to act as effective systems of graffiti protection [45].
In our case, after the coating’s application, most of the protected stone surfaces were able to repel both water and oil, even if to different extent, as it can be clearly inferred from the observation of images reported in Figure 6. Oleophobicity was not observed only in the case of the SW coating, irrespective of the stone substrate.
The contact angle values (reported in Table 2) confirmed these surface properties, since water-stone contact angles greater than 90° are typical of hydrophobic surfaces, while oil-stone contact angles above 70°–80° account for oleophobicity. The lower values measured for oil contact angles with respect to water ones are due to the low surface tension of the oil drops (32 mN/m for olive oil [61], 72 mN/m for water [57]).

3.2. Staining by Spray Paint and Removal

The superficial distribution of the spray paint on the stone surfaces was observed through the stereomicroscope. The images recorded by the instrument on the different specimens are illustrated in Figure 7.
In the case of the untreated CS specimens, the paint covered the surface with a uniform film, totally hiding the stone beneath. The presence of protective coatings modified the distribution of the paint. In particular, on the samples treated with SW, the paint coating was affected by cracks due to the drying shrinkage. This latter was likely restrained by the protective layer since cracking was not observed for the unprotected samples. Passing to analyze the specimens treated with nanoF and F products, the protected surfaces seemed to repel the spray paint, which mainly arranged as separate droplets [15,25,40,62,63,64], leaving several portions of the stone uncovered. The distribution of the paint affected the color variations, leading to lower differences where the staining agent was repelled, as can be deduced from the data reported in Table 3.
The different appearance is also in agreement with the surface oleophobicity. In fact, oil-stone contact angles higher than 90° were measured only on the nanoF and F treated samples (114° and 93°, respectively).
Comparable behaviors were observed in the case of PS specimens. A uniform coverage of the stone surface was observed for the unprotected specimens, while a paint coating with cracks was found on the samples coated by SW product. Although less noticeable, uncovered portions of stone and repellence against the paint were observed on the specimens protected by nanoF and F systems, which exhibited the highest oleophobicity. Actually, the high porosity along with the large pore radius likely promoted the accumulation of paint inside the cavities of the porous stone, making less evident the paint repellence. In addition, these effects equalized the color differences and, thus, comparable ΔE*ab were measured in the stained PS samples (see results reported in Table 3).
The cleaning procedure of this kind of stain with acetone did not give good results. The paint removal was unsuccessful, as already clear to the visual inspection by the naked eye (Figure 8).
To this regard, different methods have been proposed to assess the efficacy of stain removal [26,65,66]. A first one was based on the ΔE*ab measured after the cleaning: values below 5 account for adequate cleaning, while values higher than 10 cannot be accepted; for ΔE*ab between 5 and 10, the color variations are well visible but still tolerable. In addition, RS can be used to evaluate the removal efficacy [67,68]: values below 10% can be judged suitable; RS above 20% means ineffective stain removal; RS values between 10% and 20% are not optimal, but tolerable.
Taking into account these classifications, the cleaning with acetone resulted acceptable only for the CS samples treated with the F product, where ΔE*ab of approximately 6 CIELAB units and RS of 13% were measured. Nevertheless, the application of a protective layer was helpful in facilitating the removal of the spray paint. As illustrated in Figure 9a, the RS percentages were always lower than those calculated for the unprotected specimens, except for CS treated with nanoF for which comparable values were found.

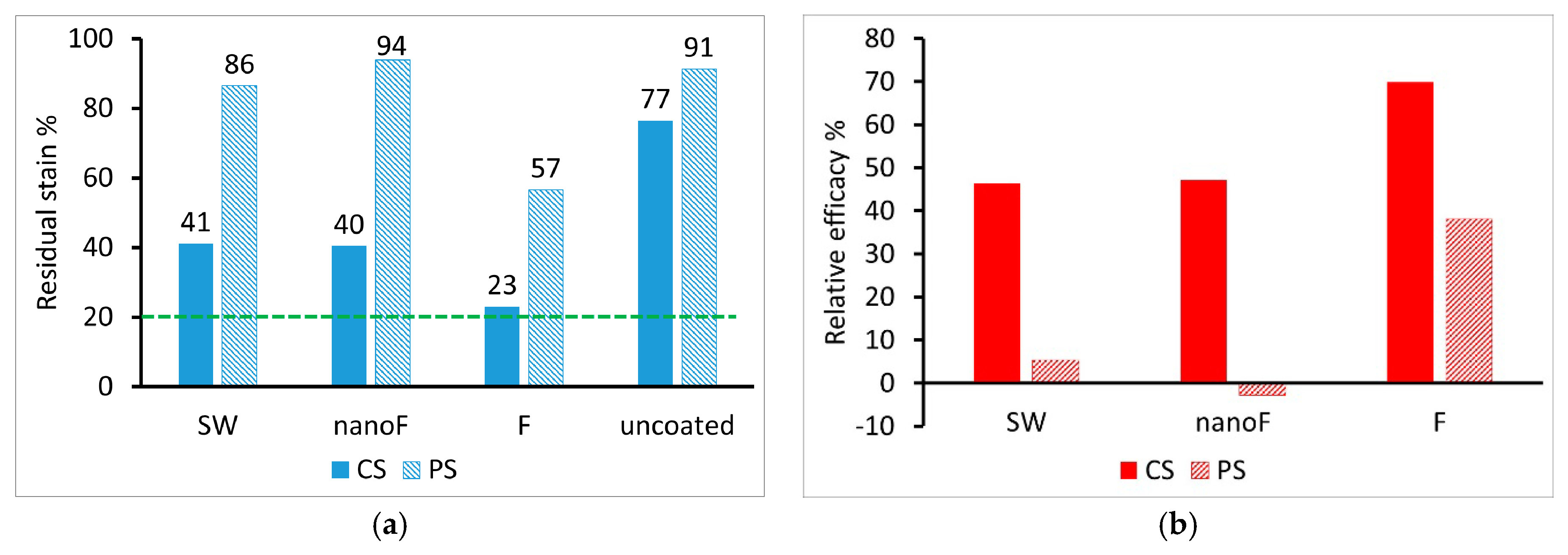

The relative efficacy, reported in Figure 9b, of the complete procedures (i.e., protection + cleaning) was found to be good in the case of the F-treated specimens; on the other side, it resulted low in the case of the samples where the nanoF coating was applied. Overall, higher values were found for the porous stone, where the paint removal was appreciably more difficult without the presence of a protective layer.
The results of the cleaning seemed to be not related to the observed superficial morphology of the sprayed paint. Neither high oleophobicity nor paint repellence assured good outcomes. On the other hand, as also found in other studies, an observed repellence against the paint did not assure the complete stain removal [69].
The contact angle measurements, whose results are reported in Table 4, were able to supply important information.
The staining caused a reduction in contact angles in all the samples, with values comparable to those measured on the unprotected surfaces and consistent with the presence of a superficial layer of paint. After the removal with acetone, the contact angle values were still high and measurable. It can be concluded that neither the stain nor the protective coatings were removed, since the hydrophobic character of the surfaces was modified only to a limited extent. An increase in the contact angle values was even observed in the case of the F-treated samples after the cleaning. Other studies report similar behaviors [45,65,70], but the related mechanisms are not clearly explained. A possible explanation for this behavior is the so-called “reverse migration” [71,72,73]: the used solvent penetrates into the pores of the stone, but migration towards the external surface occurs for evaporation. During these processes, the solvent is able to carry the polymer protective with it. Consequently, greater amounts of product can reach the surface, accounting for a higher hydrophobicity. Even if in fine-porous stone materials (as CS) this phenomenon should be restricted [74,75], comparable behaviors were observed irrespective of the porosimetric features of the stone samples. On the other hand, the type of solvent, its tendency to dissolve polymers, and the drying conditions mainly affect the “reverse migration” [75,76,77]; in addition, the dimensions of the molecules and the solution viscosity can influence the movements of the polymer inside the stone structure.

3.3. Staining by Felt-Tip Marker and Removal

The surface appearance of the stone stained by felt-tip marker was investigated through the stereomicroscope, that recorded the images reported in Figure 10.
After the staining, the paint applied by felt-tip marker considerably covered the stone surfaces. In the unprotected samples, the morphological features of the stone were still recognizable and accumulation of the paint in the cavities of the surface was limited. Conversely, in the protected samples, the staining by the marker produced films affected by cracks, as already found in other studies [25]. Additionally, accumulation of stain within the superficial hollows was observed in the PS protected samples.
Dissimilar craquelure patterns were observed on the different specimens. More fractured films were seen in the case of the nanoF and SW treated-samples, regardless of the stone substrate. The paint applied on the F-treated samples displayed sporadic and less evident cracks, instead. Generally speaking, the thickness of any kind of coating influences morphologies and fragment size of cracks [78,79], with a critical value below which no fracturing occurs [79,80]. The limited cracking on the F treated-samples suggested a lower thickness of the paint level, probably due to absorption by the protective coating.
The stain applied by the felt-tip marker was not removed with acetone from the stone surfaces; neither the protective coatings improved the cleaning results. In fact, markers are considered the most aggressive staining agents among the methods for graffiti writings. This is mainly due to the fact that their inks contain high percentages of solvents, are very fluid and are, thus, prone to easily fill the pores of the substrate [81,82] already during the staining action.
Following the evaluation detailed in Section 3.2, the stain removal with acetone cannot be judged effective, as also visible to the naked-eye observation (Figure 11).
Accordingly, unacceptable ΔE*ab were measured after the cleaning of all the samples (see data reported in Table 5), with RS values (Figure 12a) much greater than the tolerable threshold (i.e., 20%). Only the treatments with the F product yielded low RS percentages.
This result might arise from the embedding of the paint into the protective coating, as previously described. The incorporation of the stain enhanced, even if only slightly, the anti-graffiti effectiveness [68,83]. The relative efficacy showed that the cleaning procedure worked better on the CS samples, unlike the spray paint removal, as witnessed by the results presented in Figure 12b.
The correlation of these results with those relative to the oleophobicity of the surfaces did not show a clear trend. Anyway, the most oleophobic surfaces (i.e., that treated with nanoF) were not cleaned to a larger extent.
The results of the contact angle measurements, reported in Table 6 confirmed the failed removal of both paint and protective coating.
After the staining, contact angles between 70° and 97° were measured. Hydrophobicity was recovered on the cleaned samples, but the contact angles remained below the values obtained after the application of the protective treatment. The phenomenon of “reverse migration” can be hypothesized also in these samples. This effect, particularly evident for the unprotected surfaces, where unexpected high contact angles (>90°) were found after the cleaning, was most likely due to transfer of the absorbed paint binder activated by the cleaning solvent towards the surface on the stone. On the other hand, the occurrence of movements of the solvent and the dissolved stain were well visible to the naked-eye, since, during the cleaning, the paint spread beyond the previously stained area (Figure 9 and Figure 11).

4. Conclusions

The anti-graffiti behavior of three protective treatments has been tested on compact and porous calcareous stone materials. An experimental formulation, based on fluorine resins and SiO2 nano-particles, and two commercial products were applied. The results of cleaning procedures after the staining by spray paint and felt-tip marker were discussed.
The applied products provided surfaces able to repel both water and oil, thus meeting a fundamental requirement for anti-graffiti systems.
The simulation of staining actions gave rise to a distribution of the paints on the surfaces dependent on the presence and nature of the protective coating. Uniform films covering the surface, totally hiding the stone beneath, were observed in the case of untreated specimens. In most of the protected surfaces, the paint film was affected by cracks due to its shrinkage upon drying. The protective coatings restrained this cracking, which, in fact, was not noticed for the unprotected samples. Evidence of repellence against the stain was optically observed only after the application of the spray paint. In accordance with the higher surface oleophobicity, separate droplets of paint, together with portions of uncovered stone, were seen on the nanoF and F treated-samples. The morphological and porosimetric features of the stone seemed influence the paint spreading on the surface to a limited extent.
Although the removal with acetone affected the paint layer to different degrees, this procedure was not able to supply good results. The residual stain percentage was always above the threshold limit of 20%, except for the compact stone surfaces coated with F product and stained by spray paint. The paint removal was more difficult on the highly porous stone, where greater values of residual stain were found. The presence of protective coatings enhanced the spray paint removal On the contrary, the stain from the felt-tip marker was not removed even where protective coatings were applied, thus confirming a stronger action of this graffiti agent. The relative efficacy of the cleaning was influenced by the type of staining agent rather than the porosity of the substrate. In both cases, the proved hydrophobicity and oleophobicity, as well as the observed paint repellence, did not provide positive outcome of the cleaning.
The protective coatings were not eliminated from the surfaces during the cleaning; rather, the polymer protectives migrated into the porous structure of the stone under the effect of solvent evaporation. In fact, as a consequence of greater amounts of hydrophobic product moved at the surface, increased contact angle values were measured after the cleaning with acetone. This result further supports the inefficacy of the cleaning procedure with neat acetone. The unconfined solvent can spread the dissolved paint into the pores of the substrate. In this case, the stain may affect also the internal part of the stone materials making almost impossible an effective cleaning.
In conclusion, although hydrophobicity and oleophobicity are considered basic requirements of anti-graffiti coatings, these surface properties do not assure good removal of vandalic writings. The success of the anti-graffiti action depends on the applied staining agent, on the used cleaning procedure and, to a more limited extent, on the affected substrate. Therefore, the actual performance of an anti-graffiti system cannot be deduced from the coating’s properties but the effectiveness needs to be assessed in the specific applicative conditions.
Further investigations are in progress to verify the anti-graffiti efficacy under additional cleaning methods, specifically, chemical cleaners in gel matrices; the coatings’ performance after the application of higher amounts of product is another ongoing evaluation.
