Coatings 2018, 8(8), 273; doi:10.3390/coatings8080273

Article
Composition versus Wear Behaviour of Air Plasma Sprayed NiCr–TiB2–ZrB2 Composite Coating
1
Department of Material Science and Engineering, Shenyang University of Technology, Shenyang 110870, China
2
Dalian Huarui Heavy Industrial Special Spare Parts Co., Ltd., Dalian 116052, China
*
Author to whom correspondence should be addressed.
Received: 13 June 2018 / Accepted: 5 August 2018 / Published: 6 August 2018

Abstract

:
The NiCr–TiB2–ZrB2 composite coating was deposited on the surface of blades made of steel (SUS304) using high-energy ball milling technology and air plasma spraying technology, which aimed to relieve the wear of the blades during operation. The influence of titanium diboride (TiB2) and zirconium diboride (ZrB2) on the microstructure and wear resistance of the coatings was investigated by X-ray diffraction, scanning electron microscopy, Vickers microhardness tester, and a wear tester. The results showed that the TiB2 and ZrB2 particles were unevenly distributed in the coatings and significantly increased the hardness and anti-wear, which contributed to their ultra-high hardness and extremely strong ability to resist deformation. The performance of the coatings was improved with the increase of the number of ceramic phases, while the hardness and wear resistance of the coating could reach their highest value when the TiB2 and ZrB2 respectively took up 15 wt.% of the total mass of the powder.
Keywords:
TiB2; ZrB2; coating blade; anti-wear

1. Introduction

The coating of a blade has a crucial influence on the quality of fine art coated paper and coated white paper. However, with the further development of coating technology resulting in a higher production efficiency, the speed of the coating blade has also been increased from 5 to 16 m/s. The traditional carbon steel blade is gradually being replaced by a wear-resistant ceramic coating blade because its service life is too short, it is about 3–4 h, as a result of severe three-body abrasive wear. The process of changing blades and the running-in stage has reduced the efficiency of the coating production [1].
At present, countries around the world are using the oxide (Al2O3·TiO2 and ZrO2) and carbide (Cr3C2 and WC) ceramic blades produced by the three companies of BTG (Eclépens, Switzerland), GREEN COAT (Siheung, Korea), and PSK (Portland, OR, USA) [2]. The performance of oxide ceramic blades has been significantly improved compared to the carbon steel blades, as the main component of the coating is kaolin, which contains Al2O3·2SiO2·2H2O, CaCO3, TiO2, and so on. Furthermore, the intersolubility of the same materials is large. However, adhesion wear can easily occur between these oxide ceramics [3], and thus, the oxide ceramic coating is not very suitable for practical production applications. Tungsten carbide (WC) has a relatively high thermal conductivity [4] and the thermal conductivity rose linearly from 29.3 to 86 W/(m·K) when the temperature increased from 20 to 500 °C [5]. Therefore, it is easy to transfer a large amount of heat to the blade steel strip during the initial stage of contact between the blade and the paper, causing the blade edge to become uneven, which is unfavorable for the production of coatings. The hardness of chromium carbide (Cr3C2) is relatively low, and its wear resistance is far inferior to the WC [6,7,8]. Therefore, a new type of ceramic coating is urgently needed to solve these problems.
Boride ceramics (TiB2 and ZrB2) have a higher hardness (Moh’s hardness of 9–10) and an outstanding wear resistance. Compared to WC (15.63 g/cm3), boride ceramics have a density that is lower by about 75% (4.51 and 5.8 g/cm3), and a lower thermal conductivity (24.3–23.03 W/(m·K) and 24.28–41.87 W/(m·K) in the temperature range of 20–500 °C [9,10,11]. Therefore, boride ceramics are potential materials for replacing the oxides and carbide ceramics.
Jones et al. [12] prepared Fe(Cr)–TiB2 coatings using self-propagation high-temperature synthesis (SHS) and high velocity oxygen-fuel spraying (HVOF) technology. They found that the wear-coefficient of a 30% FeCr–TiB2 coating (7.235 μg/(m·N)) was lower than that of a 17% Co–WC (10.707 μg/(m·N)), 30% Fe(Cr)–TiC (9.061 μg/(m·N)), and 25% Cr3C2–NiCr (19.069 μg/(m·N)) coating. In addition, the wear rate of the TiB2-based composite coating was only 50% of the TiC-based coating, and was far superior to other materials when the grinding material was abrasive silica. Xu et al. [13] used SHS and atmospheric plasma spraying technology to prepare ZrC–ZrB2/Ni composite coatings with a variety of different proportions of Ni. The study showed that the highest hardness of coating reached 525 ± 96 HV0.1 and had the maximum resistance to wear when the content of Ni was 10%.
The thermal conductivity of ZrB2 is lower than that of the TiB2 coating, while the resistance to wear of TiB2 is better than that of the ZrB2 coating [14]. Most importantly, the addition of TiB2 and ZrB2 in the same coating can significantly improve its wear resistance [15,16,17]. Hence, the TiB2–ZrB2 ceramic composite coatings were the best choice to improve the quality of the coating blade. However, the pure ceramic is too brittle, so it is necessary to add a ductile metal (NiCr) with a good wettability to form a cermet composite material in order to better meet the use conditions [18,19]. Furthermore, plasma spraying is especially suitable for ceramic materials with a high melting point because of the higher flame temperature and faster jet speed of the plasma spraying. In this paper, the air plasma spraying technology was used to prepare a NiCr–TiB2–ZrB2 composite coating, and its tribological properties were analyzed.

2. Materials and Methods

2.1. Feedstock Materials

Commercially available nickel chromium (NiCr), TiB2, ZrB2 powders, and SUS304 stainless steel were purchased in this study. The NiCr powder (Ti Metal Materials Co., Ltd., Changsha, China) was atomized into a spherical shape by an inert gas with an average size of 50 μm. The TiB2 and ZrB2 powders were obtained from Xiangtian Nano Materials Co., Ltd. (Shanghai, China) as irregular powders with an average particle size of 50 μm. The substrates (SUS304) were provided by Shenzhen Bao Metal Products Co., Ltd. (Shenzhen, China), which have dimensions of approximately 30 mm × 50 mm × 5 mm. The information on all of the feedstock materials is listed in Table 1.

2.2. Powder Preparation

The first stage of the experiment involved the preparation of NiCr–TiB2–ZrB2 powders by the high-energy ball milling method. Firstly, we mixed the three types of powders in equal proportions, before the mixture of the powders and the same quality of agate balls (ball-to-powder weight ratio of 1:1) were placed in the same agate jar with a high purity argon (99.999%) protection. This was then placed in the ball mill (XQM-0.4, Delixi Hangzhou Inverter Co., Ltd., Hangzhou, China) at 6.67 r/s for 640 min. The mixture was rested for 20 min every 80 min to maintain the powders at a lower temperature. After this, the moisture was removed from the powders in a digital electric blast dry oven (101A-2, Shanghai JinPing Instrument Co., Ltd., Shanghai, China). Finally, three different types of target cermet composite powders (NiCr (5 wt.%)–TiB2 (5 wt.%)–ZrB2, NiCr (10 wt.%)–TiB2 (10 wt.%)–ZrB2, and NiCr (15 wt.%)–TiB2 (15 wt.%)–ZrB2) were prepared by adjusting the proportions of NiCr, TiB2, and ZrB2.

2.3. APS Spraying Experiments

The NiCr–TiB2–ZrB2 composite coatings were prepared on the surface of the SUS304 using the SG-100DC plasma torch (Praxair 3710, Cleveland, OH, USA) and ball milled powders. The parameters of the spraying are summarized in Table 2. Prior to the spraying, one side of the substrate was grit-blasted with 0.6 mm of Al2O3 particles to achieve the required experimental surface. The Ar served both as a protective gas and as a powder-feeding gas to reduce the degree of oxidation, while H2 was used as a fuel gas to provide energy for the experiment during the process of spraying. The specimens were cut into small pieces to facilitate the investigation of the morphology and phase composition after the experiments.

2.4. Microstructural Characterisation

A scanning electron microscope (SEM, S-3400, Hitachi, Tokyo, Japan) with an energy dispersive spectrometer (EDS) (Va/c = 20.0 kV) was employed to observe the microstructure of the cross-section and the worn surface topographies, as well as for the local elemental analysis. The X-ray diffraction equipment (XRD, Shimadzu 7000, Shimadzu, Kyoto, Japan) using monochromatic Cu Kα radiation (λ = 0.1541 nm) at 40 kV, 30 mA was used to distinguish the phases composition of the powders and coatings, which had a scanning range of 20°–90° and a scanning speed of 4°/min.

2.5. Performance Tests of Coatings

In order to reduce the roughness to less than 0.01 μm and to present mirror conditions, which can minimize the influence of surface roughness on the hardness and tribological properties of the coatings as much as possible, it is necessary to polish the cross section and upper surface of the specimens before the performance tests. After this, the microhardness of the coatings was measured by means of an HVS-1000 Vickers microhardness tester (Jiangdong Kunning, Ningbo, China) with a 0.1-kg (0.98 N) load and 15-s dwell time. The average microhardness value was calculated on the base of ten measurements. In addition, the distance between every two indentations in this experiment is more than three imprints, in order to ensure that the individual indentations do not interfere with each other. The Al2O3 balls (with a diameter of 6 mm) were used as a counterpart to better simulate the actual application environment of the coating blades. The ability of the coatings to resist wear was tested through the ball-on-disk wear test (SFT-2M, Zhongke Kaihua Technology Development Co., Lanzhou, China) with a 30-N loading at a sliding speed of 0.4 m/s for 30 min, so the reciprocating wear distance is about 720 m. The experiments were performed in triplicate on the same sample in order to reduce the random error. After the wear test, the three-dimensional morphology of wear scratches was observed through laser scanning confocal microscopy (OLS4100, Olympus, Tokyo, Japan).

3. Results and Discussion

3.1. Microstructure and Phase Composition

The XRD analysis results for the NiCr–TiB2–ZrB2 powders are shown in Figure 1. It can be seen that the strongest peaks are attributed to Ni, while the remaining small peaks are referred to TiB2 and ZrB2 as well as the newly generated CrB phase. This meant that the powders obtained energy during the ball milling process, which led to the decomposition of the old phases (NiCr, TiB2, and ZrB2) and the generation of the new phase (CrB). In addition, there were no common oxidation phases [20], such as TiO2, Ti2O3, NiTiO3, and ZrO2 that reduced the performance of the coating in the powders prepared using the high-energy ball milling method, which illustrates that the quality of the powders is relatively good.
The XRD diagrams of the three powders are almost the same, except for the different intensity of the peaks. This may be because the composition of the three powders is consistent, but the proportions of each powder are different, which leads to a difference in the content of the reactants, even under the same ball milling parameters. It can also be seen from Figure 1 that with an increase in the TiB2 and ZrB2 content, the corresponding peak intensity gradually increases, but the change in CrB is relatively small. The mechanism of the content of the generated materials needs further study.
The XRD patterns obtained from the top surface of the as-deposited coatings are shown in Figure 2. It was found that the ceramic reinforcement phases of TiB2 and ZrB2 still exist in the coatings, although the peak intensities are significantly lower compared with the mixed powders. This is a good indication that the TiB2 and ZrB2 phases in the coatings are the un-reacted reactants from the starting powders, not the new generators. It is difficult to decompose the TiB2 and ZrB2 particles during the rapid melting and solidification process, so they are used to prepare the ceramic reinforced base coatings in this experiment. In addition, there are also some minor peaks existing in the coatings, such as BNi2 and Ni4B3. These minor peaks can be attributed to the liberated particles formed by a small amount of decomposition of the TiB2 and ZrB2 particles that chemically react with NiCr.
Figure 3 shows the upper surface morphology of the NiCr–15ZrB2–15ZrB2 composite coatings with the distribution of all of the elements. The process of the mechanical stacking of plasma spraying powders is clearly shown in Figure 3a, and the pores of the coating were small, which proved that the density of the coating was relatively good. In addition, ZrB2, TiB2, and the compounds of the Ni, B, and Cr existing in the coating can be analyzed from Figure 3a–f and the results of the XRD.
The cross-sectional morphology of the NiCr–TiB2–ZrB2 composite coating using different proportions of source materials in Figure 4, showed that all of the coatings had a dense layered structure [21]. This is due to the fact that individual particles are rapidly heated and accelerated by Ar and H2 in air plasma spraying. Typically, these particles are partially melted before being deposited in the substrate, because the temperature is already close to the melting point of the materials (3000 °C). After this, they will quickly cool to a lower temperature and flatten to form a thin sheet when they hit the substrate.
As observed from Figure 4a,c,e, the thicknesses of the composite coatings are in the range of 150–200 μm. All of the coatings have a small amount of porosity, especially in the interface between the coating and the substrate. This may be because the temperature difference between the coating and substrate is large, so the deformations of the particles have a significantly condensation contraction in this area, which finally produce pores. Furthermore, pores are also formed when there is not a complete covering between the different layers during the process of the coating deposition [22].
As seen from Figure 4b,d,f, the porosity of the coatings increases with increase of the ceramic phases. This may be due to the spraying process, as the degree of rebound of the ceramic phases is much greater than that of the metallic binder phases. Thus, with an increase in the ceramic phases, the gaps in the coating process increase gradually and the degree of melting of the ceramic phases is considerably less than the metal bonding phase. This reduces the probability that these gaps will be filled in time, resulting in an increased porosity. In addition, although this reduces the porosity of the three types of coatings, increasing the content of the bonding phase can significantly reduce the probability of the ceramic phase rebound, which subsequently reduces the porosity [23,24].
Based on the microstructure of Figure 4 and the energy spectrum data in Table 3, the phase composition of the coating can be simply divided into three categories. Firstly, the areas colored in black (A, F, and I in Figure 4) contain the pure TiB2 that exists alone in the coatings. They are surrounded by large areas of grey bonding phases (Ni, CrB, BNi2, and Ni4B3), as shown in B, E, and H in Figure 4. There are also striped mixed phases (C, D, and G in Figure 4), which contain bonding phases and ZrB2. As the color of the stripe becomes darker, the concentration of ZrB2 increases gradually. In these coatings, the wear resistance is mainly provided by the TiB2 and ZrB2 phases, while the bonding phases mainly increase the toughness and reduce the difference of the coefficients of expansion between the substrate and the coating. Therefore, a reasonable proportion of ceramic/metal can be conducive to improve the comprehensive performance of the coating.

3.2. Performance Test of Coatings

It can be seen from Figure 5 that the average hardness obtained on the coating cross-section was 753, 957, and 1102 HV0.1, respectively. However, the microhardness value of each coating was floating up and down in a range. This is due to several reasons. Firstly, the parts of the ceramic phases do not dissolve in the bonding phases, which prevents uniform hardness. Furthermore, the presence of fine pores will reduce the hardness. In addition, it is attributed to the high hardness of the ceramic phases, as an increase in the proportion of ceramic results in a gradual increase in the hardness of the composite coating. Moreover, the generally accepted opinion in the field of friction and wear is that the ceramic phases in the metal ceramic composite coating are mainly able to provide wear resistance to the coating because of their high hardness. The main role of the metal phase is to maximize the retention of the ceramic phases in the coating and to improve the ductility of the coating and the bonding strength between the substrate materials due to the high toughness and the coefficient of thermal expansion being similar to the substrate. Therefore, a higher content of ceramic phases results in a greater hardness and better wear resistance when the toughness and bonding strength fulfill the requirements.
The Weibull distribution is widely used in reliability engineering as we can easily infer its distribution parameters using probability values. The coating contains two types of phases (hard phase and binder phase) with a large difference in hardness, and the hardness measurement in the experiment is random, so the Weibull distribution can be used in this paper to analyze the continuity of the coating hardness from the view of probability and statistics. The formula can be described as follows [25]:
F(H) = 1 − exp[−(H/η)β]
where H is the hardness data, β is the Weibull shape parameter, and η is a normalized tested parameter. The equation can also be transformed into the following:
ln[−ln(−F(H))] = β[ln(H) − ln(η)]
As shown in Figure 6, all of the points can be synthesized into a straight line and the equations (y = βx + b) and reliability parameter (R) are listed separately in each diagram. With the addition of the ceramic phases (TiB2 and ZrB2), the β values of the coatings rose from 67.39 to 134.28, implying that the coating had a minimal variation when the content of the ceramic phases (TiB2 and ZrB2) in the powder reached 30% [26]. However, the range of the R values was 0 to 1, and an increase in the R value resulted in an increase in the coating stability. In addition, the R value of all of the coatings is greater than 0.9 and it can be seen that the overall change of the coatings was small.
It can be seen from Figure 7 that the average friction coefficient curves of the three types of NiCr–TiB2–ZrB2 composite coatings against the Al2O3 ball were approximately 0.57, 0.50, and 0.45 in the steady wear stage, respectively. The friction coefficient is lower, with a large fluctuation found in the running-in stage, which may be attributed to the changes in the surface roughness. In general, the coefficient of friction is mainly related to the test parameters, the properties of materials, surface roughness, and lubrication state between the sample and grinding material (Al2O3). Considering that the three types of experiments differ only in the material composition, it can be understood that increasing the number of ceramic phases can reduce the friction coefficient of the coatings, which indicates that the ceramic phases are appropriate reinforcements to further enhance the wear resistance of the composite coatings. Moreover, as seen from the curves in Figure 6, the friction coefficients become more stable with an increase in the content of the ceramic phases, especially in the content of the ceramic phases TiB2 and ZrB2, which increased from 20 to 30 wt.%.
Figure 8, Figure 9 and Figure 10 separately show the average wear depth and mass loss of NiCr–TiB2–ZrB2 composite coatings after the wear test, while the surface topographies corresponding to the mapping in Figure 9 are inserted in the top-left. They show a trend that is similar to the friction coefficient of the NiCr–TiB2–ZrB2 (Figure 6), which gradually decreases with the increased content of the ceramic phases, although the decreasing trend was less marked. In addition, the NiCr–15TiB2–15ZrB2 had a minimal wear loss (0.00784 g) and the shallowest wear depth (19 μm) of about 39.17% and 60.31% of the maximum, respectively, which showed the best anti-wear performance among the three types of coating.
To better understand the wear behaviour of the NiCr–TiB2–ZrB2 composite coatings, SEM morphologies and EDS analyses (Table 4) of the worn surfaces are shown in Figure 11. As shown in Figure 11a, the worn surface of NiCr–5TiB2–ZrB2 was characterised by superficial and narrow grooves (zones A, D, and H), adhesive craters and a few cracks (zone B) with severe plastic deformation, oxygen element (zones C, E, G, and J) (from Table 4), TiB2 phases (zones F and I) (from Table 4), and the white light zone. This implies that abrasive wear, adhesive wear, fatigue wear, and oxidation wear occurred.
During the test, the temperature between the coating and the counterbody increased gradually with a prolonged operation time, and thus, the adhesion between them may occur as a result of the direct contact. Through the research of Kliagua [27], this adhesion occurred between a ceramic material and cermet under a high temperature and high pressure. Therefore, the splats on the surface of the coating can adhere to the ball before being dragged out, which caused the emergence of the transfer layer. The peeling of the splats can be attributed to the limited interlamellar bonding, which was very common in the thermal-sprayed coatings [28]. The EDS analysis results showed that the white zones were oxidized with an oxygen content of up to 16.94 at.% (Table 4). The friction process released heat and caused an increase in the temperature on the upper sliding surface, which finally leads to oxidation. In addition, the oxidized phases can be crushed, and fine oxide particles were formed. Under the load applied, these fine oxide particles played the part of ploughs and the furrows along the sliding direction formed. It was reported that the fatigue wear resistance of the materials increased with the surface hardness [29]. Hence, when the hardness of the materials was lower, the probability of fatigue wear increased with the increasing wear time.
Many fragments of wear debris were also accumulated (Figure 11b–d), the morphologies of which were similar to the NiCr–5TiB2–ZrB2 coating, except for the cracks. However, the degree of adhesive wear gradually decreased, which may be because the hardness of the coatings rose significantly. In addition, the NiCr–15TiB2–15ZrB2 composite coating had the best tribological properties.

4. Conclusions

The NiCr–TiB2–ZrB2 composite coatings were successfully fabricated on the SUS304 surface using high-energy ball milling and air plasma spraying technology. The microstructure and mechanical properties of the NiCr–TiB2–ZrB2 coatings with various TiB2 and ZrB2 contents were investigated. The following results can be highlighted:
  • With an increase in the proportion of ceramics, the microhardness of the composite coating gradually increased. The average hardness obtained on the coating cross-section was 753, 957, and 1102 HV0.1 for NiCr (5 wt.%)–TiB2 (5 wt.%)–ZrB2, NiCr (10 wt.%)–TiB2 (10 wt.%)–ZrB2, and NiCr (15 wt.%)–TiB2 (15 wt.%)–ZrB2 coatings.
  • From the analyses of the Weibull distributions, the R value of all of the coatings was greater than 0.9 and there was little overall change of the coatings. With the addition of the ceramic phases (TiB2 and ZrB2), the β-values of the coatings rose from 67.39 to 134.28, implying that the coating had a minimal variation when the content of the ceramic phases (TiB2 and ZrB2) increased.
  • The wear mechanism of the coatings was mixed, involving abrasive wear, adhesive wear, oxidation wear, and fatigue wear. The ceramic phases in the coatings gave outstanding resistance to wear and oxidation. The NiCr–15TiB2–15ZrB2 composite coating had the best tribological properties.

Author Contributions

Investigation, N.Z.; Conceptualization and Supervision, N.N.Z.; SEM (scanning electron microscope) Analysis, S.G.; XRD (X-ray diffraction) Analysis, S.L.; Data Reduction, G.Z.; Writing–Original Draft, N.Z; Writing–Review & Editing, Y.Z.

Funding

This research was funded by the Natural Science Foundation of Liaoning Province (201602553) and Chinese National Natural Science Foundation (51301112).

Acknowledgments

Thanks to Yingdong Qu for giving help on the wearing surface observation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alam, P.; Toivakka, M. Deflection and plasticity of soft-tip bevelled blades in paper coating operations. Mater. Design 2009, 30, 871–877. [Google Scholar] [CrossRef]
  2. Hua, Y.; Xu, L.; Hua, W. Development of tungsten carbide blade. Chin. Pulp. Pap. 2013, 32, 49–52. [Google Scholar] [CrossRef]
  3. Wang, H.; Li, H.; Zhu, H.; Cheng, F.; Wang, D.; Li, Z. A comparative study of plasma sprayed TiB2-NiCr and Cr3C2-NiCr composite coatings. Mater. Lett. 2015, 153, 110–113. [Google Scholar] [CrossRef]
  4. Zhang, C.; Luo, G.; Zhang, J.; Dai, Y.; Shen, Q.; Zhang, L. Synthesis and thermal conductivity improvement of W-Cu composites modified with WC interfacial layer. Mater. Design 2017, 127, 233–242. [Google Scholar] [CrossRef]
  5. Zhang, Y.; Ma, J. Tungsten carbide ceramics. In Practical Handbook of Ceramic Materials, 1st ed.; Chemical Industry Press: Beijing, China, 2006; pp. 390–399. ISBN 7-5025-8469-2. (In Chinese) [Google Scholar]
  6. Vashishtha, N.; Khatirkar, R.K.; Sapate, S.G. Tribological behaviour of HVOF sprayed WC-12Co, WC-10Co-4Cr and Cr3C2-25NiCr coatings. Tribol. Int. 2017, 105, 55–68. [Google Scholar] [CrossRef]
  7. Zhu, H.B.; Li, H.; Li, Z.X. Plasma sprayed TiB2-Ni cermet coatings: Effect of feedstock characteristics on the microstructure and tribological performance. Surf. Coat. Technol. 2013, 235, 620–627. [Google Scholar] [CrossRef]
  8. Zhang, Y.; Yu, F.; Hao, S.; Dong, F.; Xu, Y.; Geng, W.; Zhang, N.; Gey, N.; Grosdidier, T.; Dong, C. Evolution of nanostructure and metastable phases at the surface of a HCPEB-treated WC-6% Co hard alloy with increasing irradiation pulse numbers. Coatings 2017, 7, 178. [Google Scholar] [CrossRef]
  9. Zhang, M.; Qu, K.; Luo, S.; Liu, S. Effect of Cr on the microstructure and properties of TiC-TiB2 particles reinforced Fe-based composite coatings. Surf. Coat. Technol. 2017, 316, 131–137. [Google Scholar] [CrossRef]
  10. Yan, H.; Zhang, P.; Yu, Z.; Lu, Q.; Yang, S.; Li, C. Microstructure and tribological properties of laser-clad Ni-Cr/TiB2, composite coatings on copper with the addition of CaF2. Surf. Coat. Technol. 2012, 206, 4046–4053. [Google Scholar] [CrossRef]
  11. Lotfi, B.; Shipway, P.H.; Mccartney, D.G.; Edris, H. Abrasive wear behaviour of Ni(Cr)-TiB2 coatings deposited by HVOF spraying of SHS-derived cermet powders. Wear 2003, 254, 340–349. [Google Scholar] [CrossRef]
  12. Jones, M.; Horlock, A.J.; Shipway, P.H.; McCartney, D.G.; Wood, J.V. A comparison of the abrasive wear behavior of HVOF sprayed titanium carbide-and titanium boride-based cermet coatings. Wear 2001, 251, 1009–1016. [Google Scholar] [CrossRef]
  13. Xu, J.; Zou, B.; Zhao, S.; Hui, Y.; Huang, W.; Zhou, X.; Wang, Y.; Cai, X.; Cao, X. Fabrication and properties of ZrC-ZrB2/Ni cermet coatings on a magnesium alloy by atmospheric plasma spraying of SHS powders. Ceram. Int. 2014, 40, 1537–15544. [Google Scholar] [CrossRef]
  14. Umanskyi, O.; Poliarus, O.; Ukrainets, M.; Antonov, M.; Hussainova, I. High temperature sliding wear of NiAl-based coatings reinforced by borides. Mater. Sci. 2016, 22, 49–53. [Google Scholar] [CrossRef]
  15. Farhadinia, F.; Sedghi, A. Wear behaviour of Al/(Al2O3 + ZrB2 + TiB2) hybrid composites fabricated by hot pressing. Int. J. Mater. Res. 2015, 106, 160–165. [Google Scholar] [CrossRef]
  16. Chakraborty, S.; Debnath, D.; Mallick, A.R.; Das, P.K. Mechanical and thermal properties of hot pressed ZrB2, system with TiB2. Int. J. Refract. Met. Hard Mater. 2014, 46, 35–42. [Google Scholar] [CrossRef]
  17. Li, B. Effect of ZrB2 and SiC addition on TiB2-based ceramic composites prepared by spark plasma sintering. Int. J. Refract. Met. Hard Mater. 2014, 46, 84–89. [Google Scholar] [CrossRef]
  18. Luo, P.; Xiong, C.; Wang, C.; Qin, F.; Xiao, Y.; Li, Z.; Liu, K.; Guan, X.; Dong, S. Comparative failure analysis of electrodes coated with TiB2-ZrB2 and TiB2-ZrB2/Ni layers. Surf. Coat. Technol. 2017, 317, 83–94. [Google Scholar] [CrossRef]
  19. Zhang, L.; Wang, C.; Qian, S.; Yu, Q.; Dong, C. Microstructure and wear resistance of laser-clad (Co,Ni)61.2B26.2Si7.8Ta4.8 coatings. Metals 2017, 7, 419. [Google Scholar] [CrossRef]
  20. Wu, Y.; Zeng, D.; Liu, Z.; Qiu, W.; Zhong, X.; Yu, H.; Li, S. Microstructure and sliding wear behavior of nanostructured Ni60–TiB2 composite coating sprayed by HVOF technique. Surf. Coat. Technol. 2011, 206, 1102–1108. [Google Scholar] [CrossRef]
  21. Zhang, N.; Lin, D.; He, B.; Zhang, G.; Li, D. Effect of oxyacetylene flame remelting on wear behaviour of supersonic air-plasma sprayed NiCrBSi/h-BN composite coatings. Surf. Rev. Lett. 2017, 24, 83–90. [Google Scholar] [CrossRef]
  22. Pawlowski, L. Coating growth. In The Science and Engineering of Thermal Spray Coatings, 1st ed.; Li, H., He, D., Eds.; China Machine Press: Beijing, China, 2011; pp. 135–136. ISBN 978-7-111-32163-7. (In Chinese) [Google Scholar]
  23. Zhang, N.; Zhang, N.; Wei, X.; Zhang, Y.; Li, D. Microstructure and tribological performance of TiB2-NiCr composite coating deposited by APS. Coatings 2017, 7, 238. [Google Scholar] [CrossRef]
  24. Zhu, H.; Li, H.; Yang, H.; Li, Z. Microstructure and sliding wear performance of plasma-sprayed TiB2-Ni coating deposited from agglomerated and sintered powder. J. Therm. Spray. Technol. 2013, 22, 1310–1319. [Google Scholar] [CrossRef]
  25. An, Y.; Li, S.; Hou, G.; Zhao, X.; Zhou, H.; Chen, J. Mechanical and tribological properties of nano/micro composite alumina coatings fabricated by atmospheric plasma spraying. Ceram. Int. 2017, 43, 5319–5328. [Google Scholar] [CrossRef]
  26. Zhang, F.; He, J.; Chen, K.; Qin, Y.; Li, C.; Yin, F. Microstructure evolution and mechanical properties of TiCN-Cr nano/micro composite coatings prepared by reactive plasma spraying. Appl. Surf. Sci. 2017, 427, 905–914. [Google Scholar] [CrossRef]
  27. Kliagua, A.M.; Travessa, D.; Ferrante, M. Al2O3/Ti interlayer/AISI 304 diffusion bonded joint: Microstructural characterization of the two interfaces. Mater. Charact. 2001, 46, 65–74. [Google Scholar] [CrossRef]
  28. Tian, L.; Feng, Z.; Xiong, W. Microstructure, microhardness, and wear resistance of AlCoCrFeNiTi/Ni60 coating by plasma spraying. Coatings 2018, 8, 112. [Google Scholar] [CrossRef]
  29. Lu, Z.; Zhou, Y.; Rao, Q.; Jin, Z. An investigation of the abrasive wear behavior of ductile cast iron. J. Mater. Process. Technol. 2001, 116, 176–181. [Google Scholar] [CrossRef]

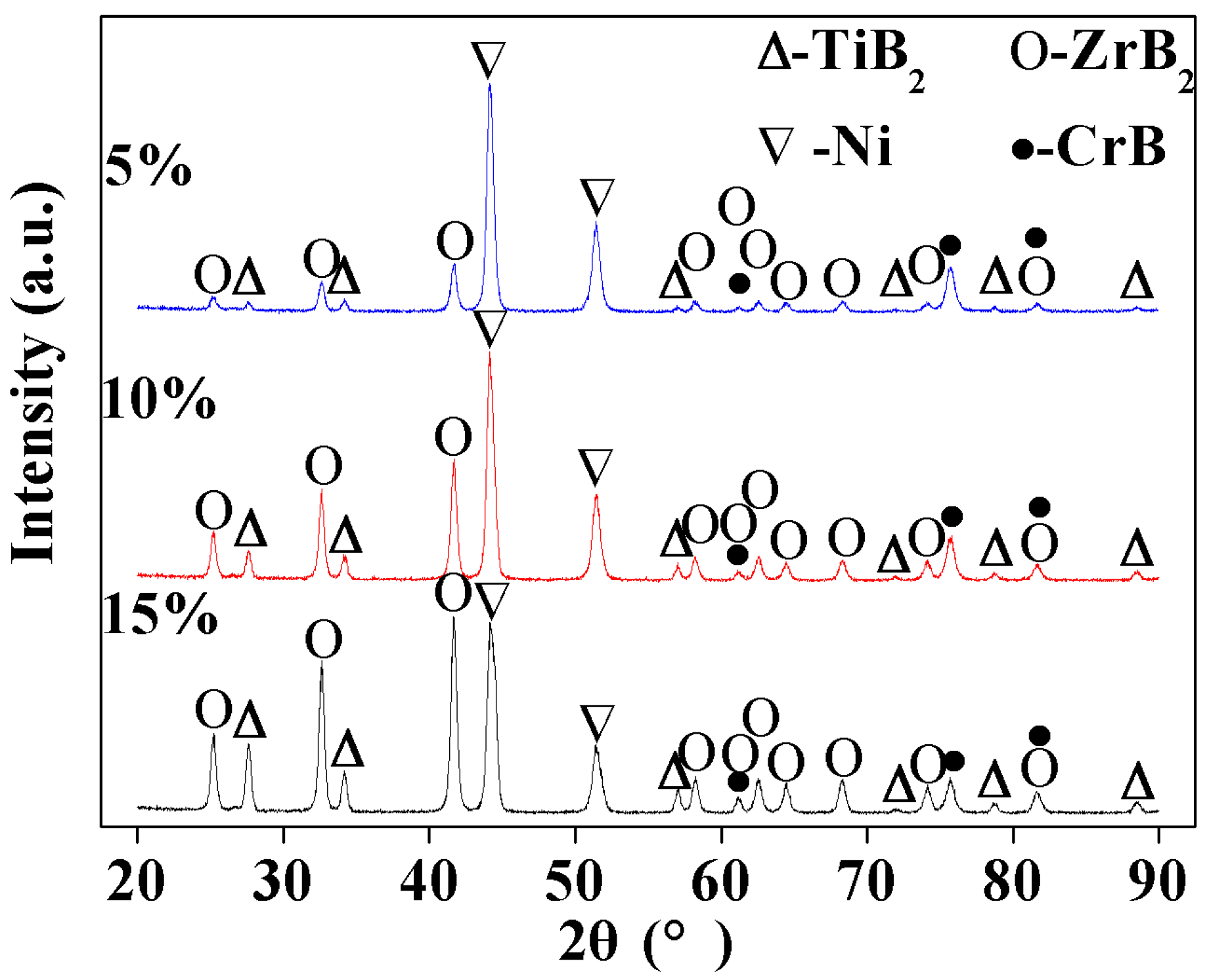

Figure 1. X-ray diffraction (XRD) spectra of three kinds of NiCr–TiB2–ZrB2 powders.
Figure 1. X-ray diffraction (XRD) spectra of three kinds of NiCr–TiB2–ZrB2 powders.
Coatings 08 00273 g001

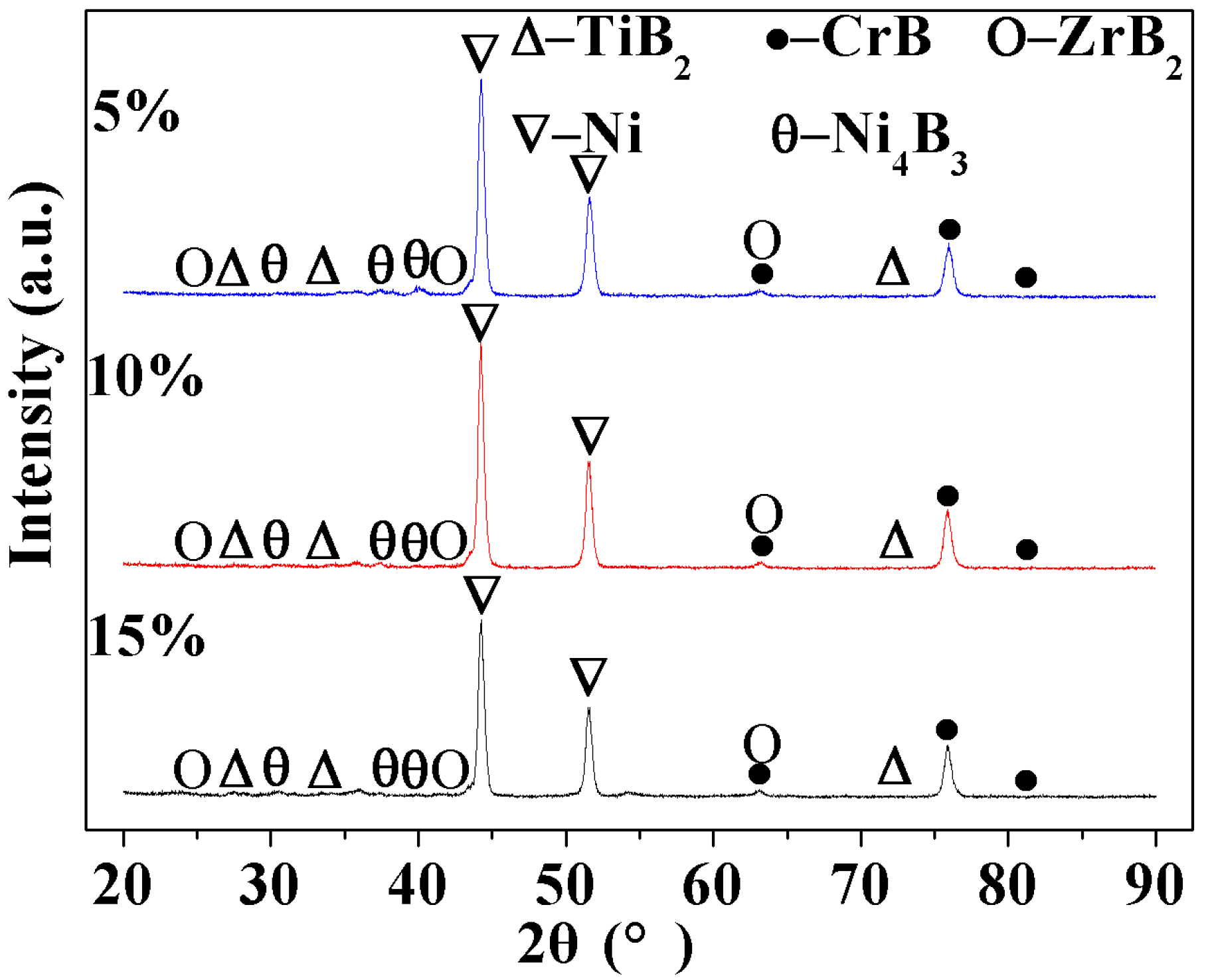

Figure 2. X-ray diffraction (XRD) spectra of three kinds of NiCr–TiB2–ZrB2 coatings.
Figure 2. X-ray diffraction (XRD) spectra of three kinds of NiCr–TiB2–ZrB2 coatings.
Coatings 08 00273 g002
Figure 3. Elements distribution on the upper surface of NiCr–TiB2–ZrB2 coating: (a) NiCr–TiB2–ZrB2 coating; (b) B; (c) Ti; (d) Zr; (e) Ni; and (f) Cr.
Figure 3. Elements distribution on the upper surface of NiCr–TiB2–ZrB2 coating: (a) NiCr–TiB2–ZrB2 coating; (b) B; (c) Ti; (d) Zr; (e) Ni; and (f) Cr.
Coatings 08 00273 g003

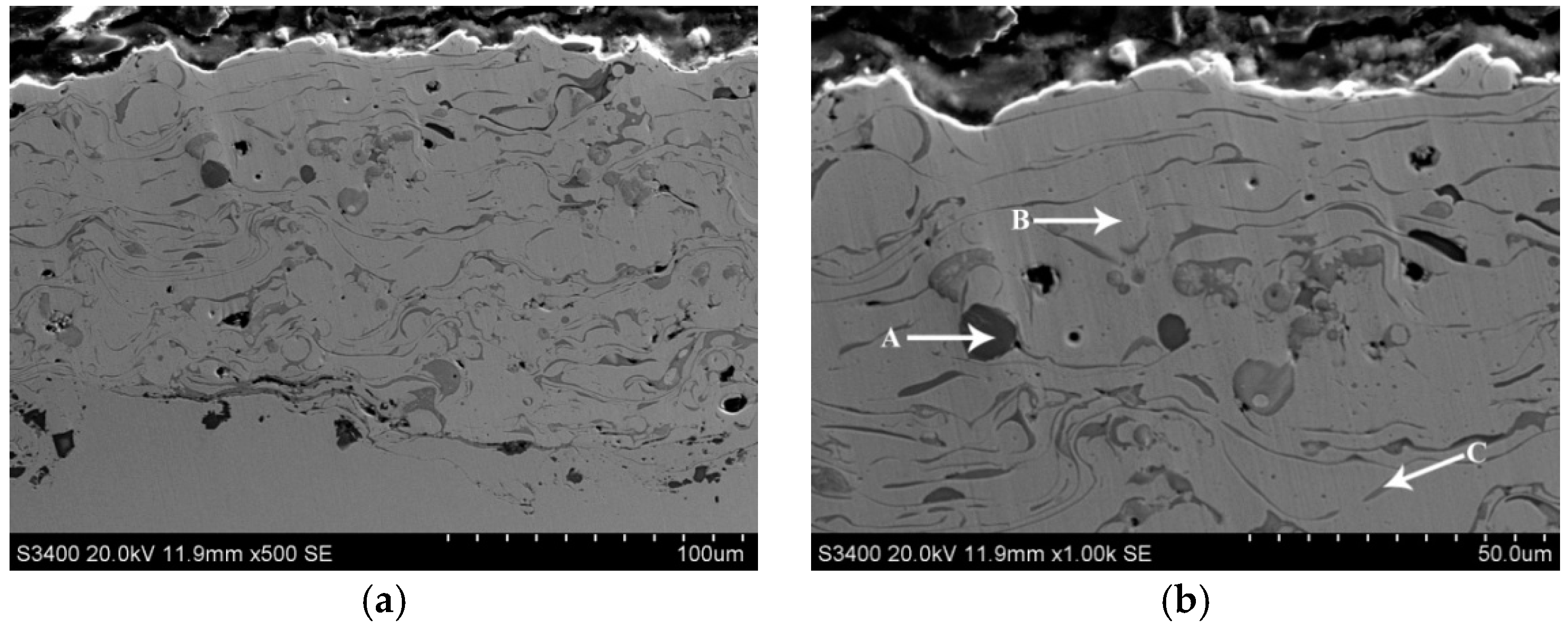

Figure 4. Microstructure of the coatings: (a) 5TiB2–5ZrB2–NiCr; (b) higher magnification image of 5TiB2–5ZrB2–NiCr; (c) 10TiB2–10ZrB2–NiCr; (d) higher magnification image of 10TiB2–10ZrB2–NiCr; (e) 15TiB2–15ZrB2–NiCr; and (f) higher magnification image of 15TiB2–15ZrB2–NiCr.
Figure 4. Microstructure of the coatings: (a) 5TiB2–5ZrB2–NiCr; (b) higher magnification image of 5TiB2–5ZrB2–NiCr; (c) 10TiB2–10ZrB2–NiCr; (d) higher magnification image of 10TiB2–10ZrB2–NiCr; (e) 15TiB2–15ZrB2–NiCr; and (f) higher magnification image of 15TiB2–15ZrB2–NiCr.
Coatings 08 00273 g004aCoatings 08 00273 g004b

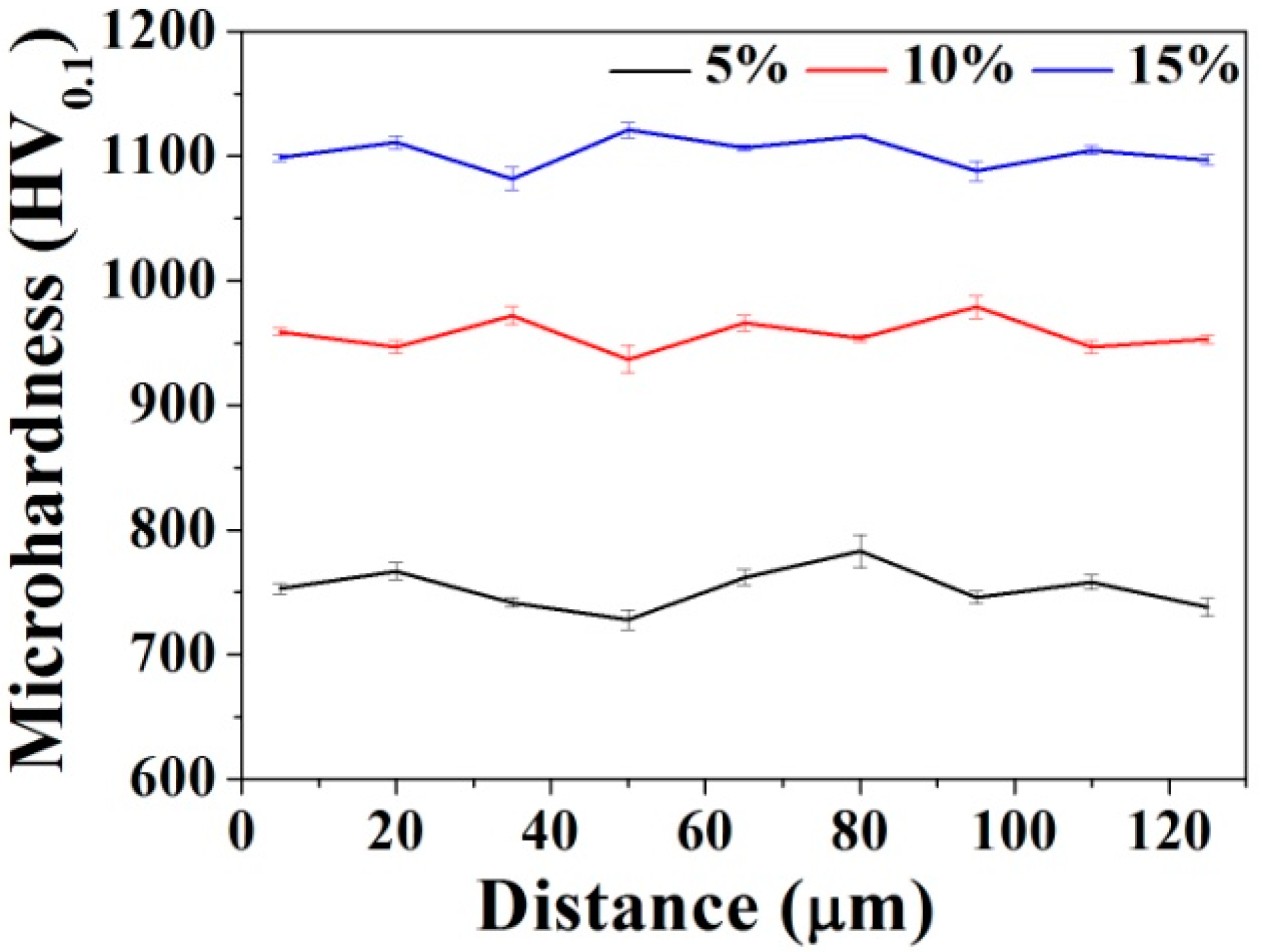

Figure 5. Microhardness value of the coatings.
Figure 5. Microhardness value of the coatings.
Coatings 08 00273 g005

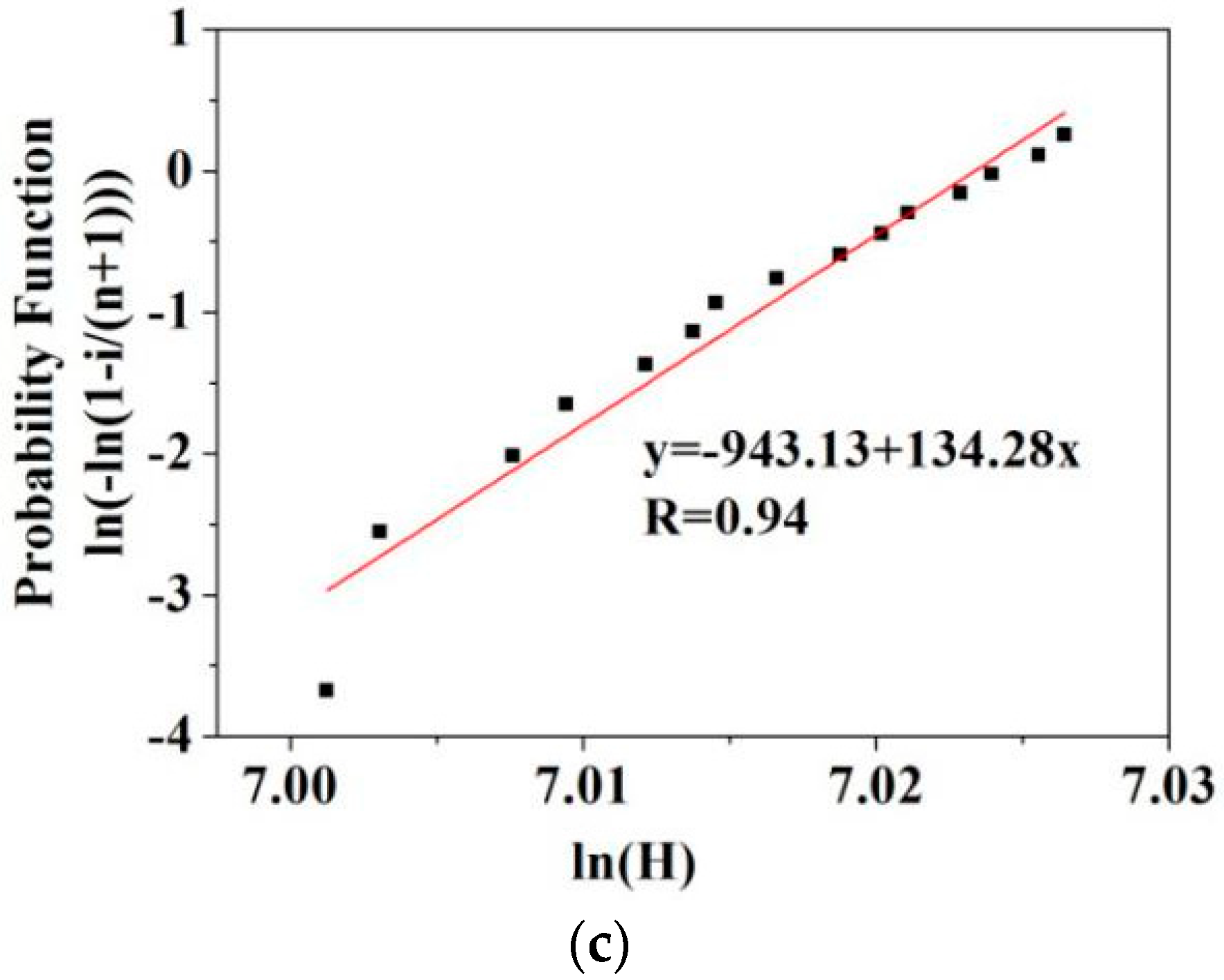

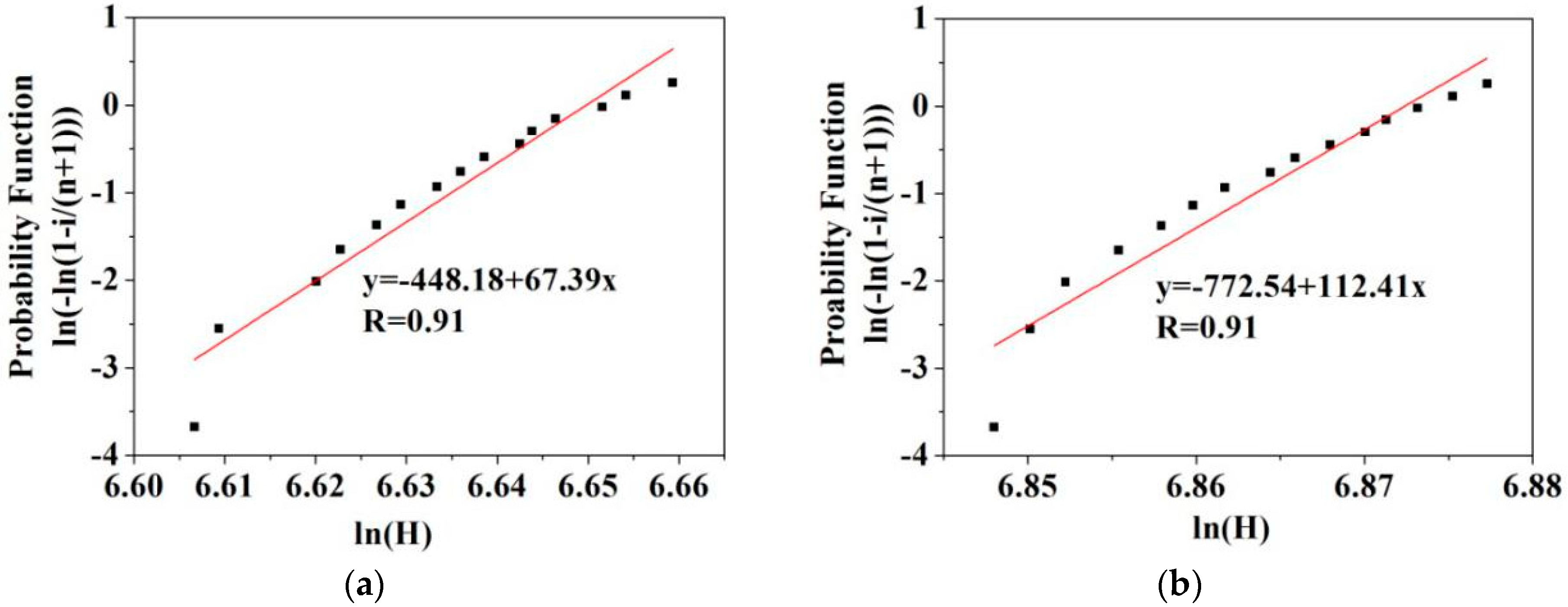

Figure 6. Linear fit of Weibull distribution of each load: (a) NiCr–5TiB2–5ZrB2; (b) NiCr–10TiB2–10ZrB2; and (c) NiCr–15TiB2–15ZrB2.
Figure 6. Linear fit of Weibull distribution of each load: (a) NiCr–5TiB2–5ZrB2; (b) NiCr–10TiB2–10ZrB2; and (c) NiCr–15TiB2–15ZrB2.
Coatings 08 00273 g006aCoatings 08 00273 g006b

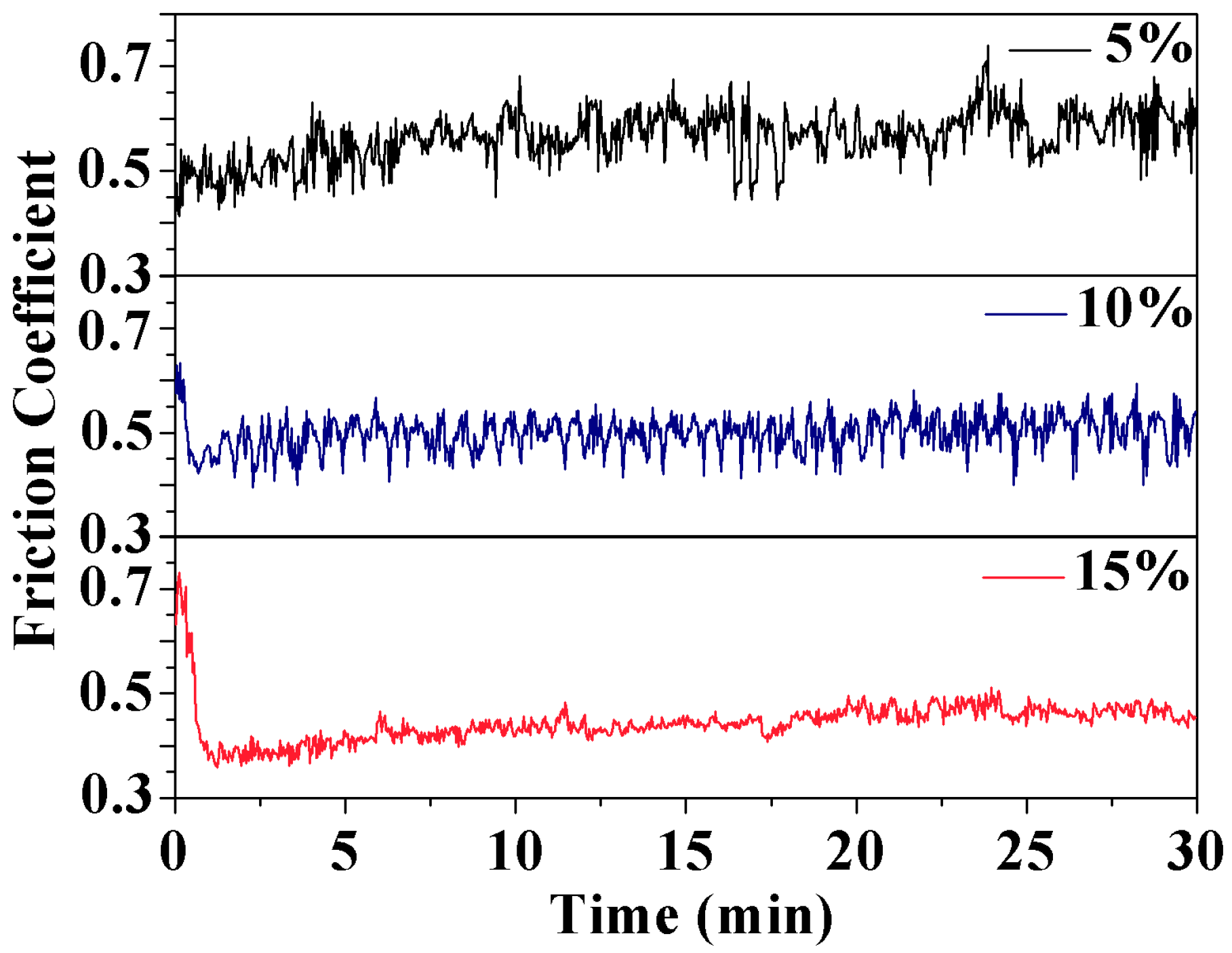

Figure 7. Friction coefficient of the NiCr–TiB2–ZrB2 coatings.
Figure 7. Friction coefficient of the NiCr–TiB2–ZrB2 coatings.
Coatings 08 00273 g007

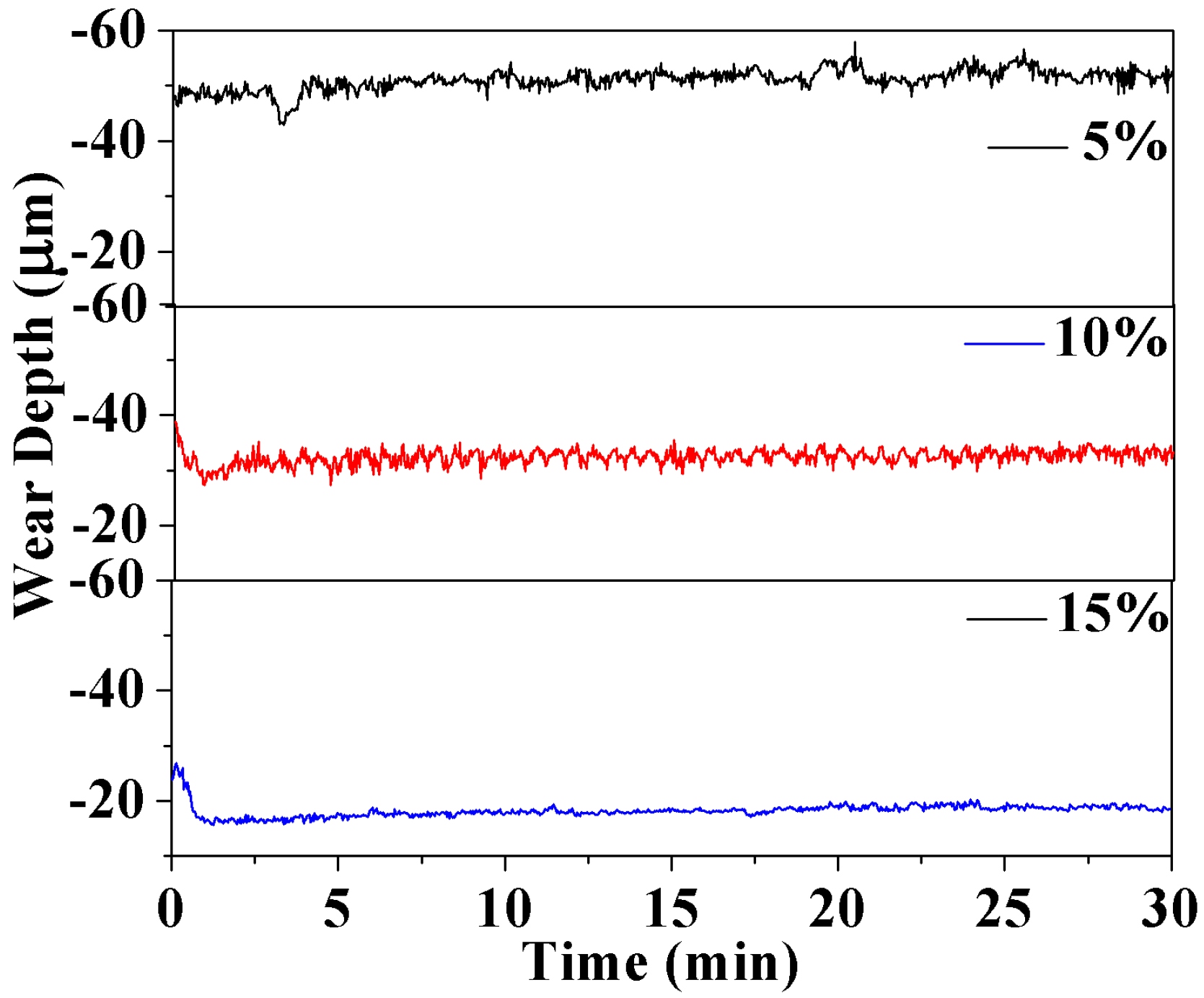

Figure 8. Wear depth of NiCr–TiB2–ZrB2 coatings.
Figure 8. Wear depth of NiCr–TiB2–ZrB2 coatings.
Coatings 08 00273 g008

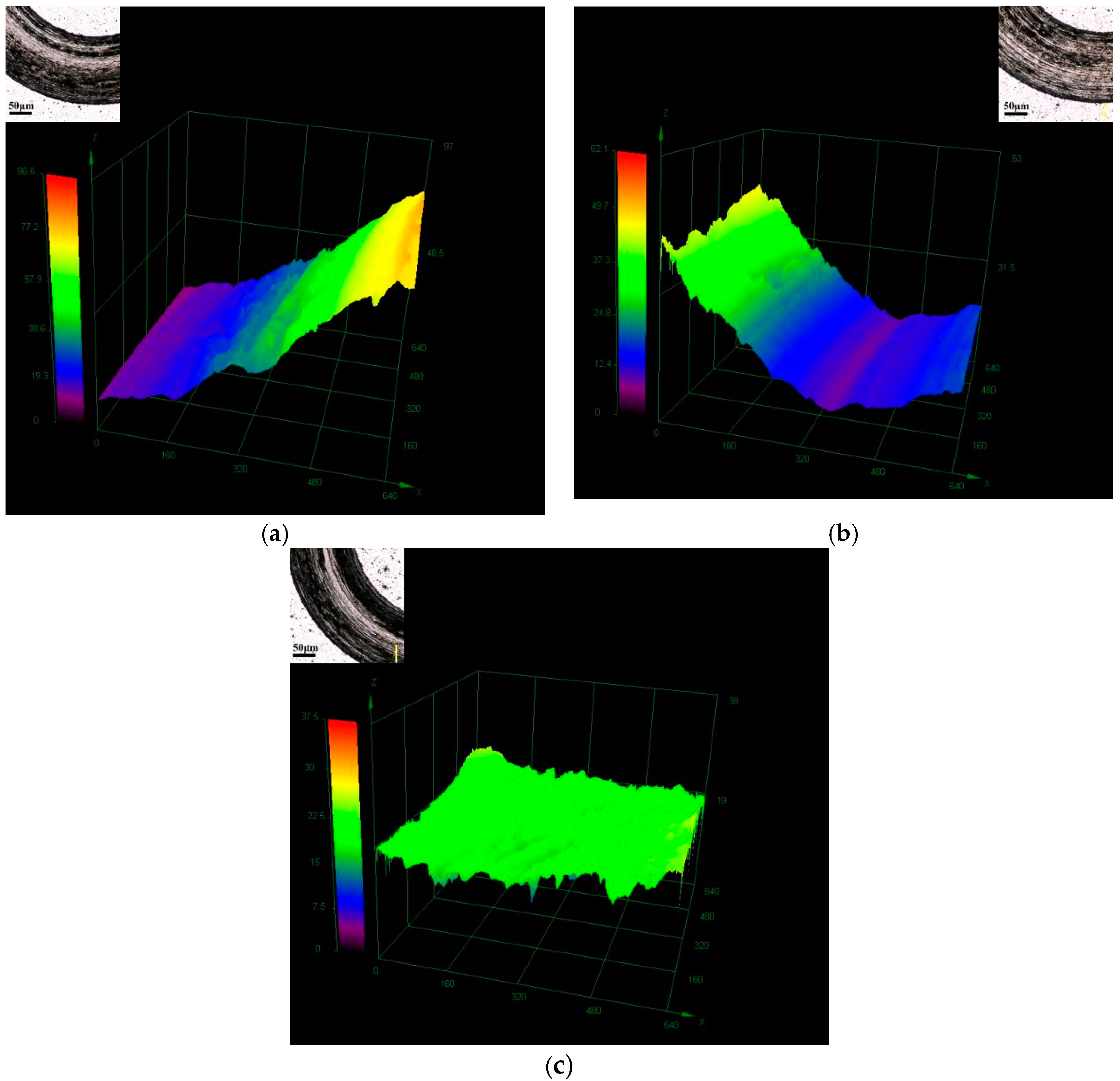

Figure 9. Three-dimensional (3D) non-contact surface mapping of the wear scars of (a) NiCr–5TiB2–5ZrB2; (b) NiCr–10TiB2–10ZrB2; and (c) NiCr–15TiB2–15ZrB2.
Figure 9. Three-dimensional (3D) non-contact surface mapping of the wear scars of (a) NiCr–5TiB2–5ZrB2; (b) NiCr–10TiB2–10ZrB2; and (c) NiCr–15TiB2–15ZrB2.
Coatings 08 00273 g009

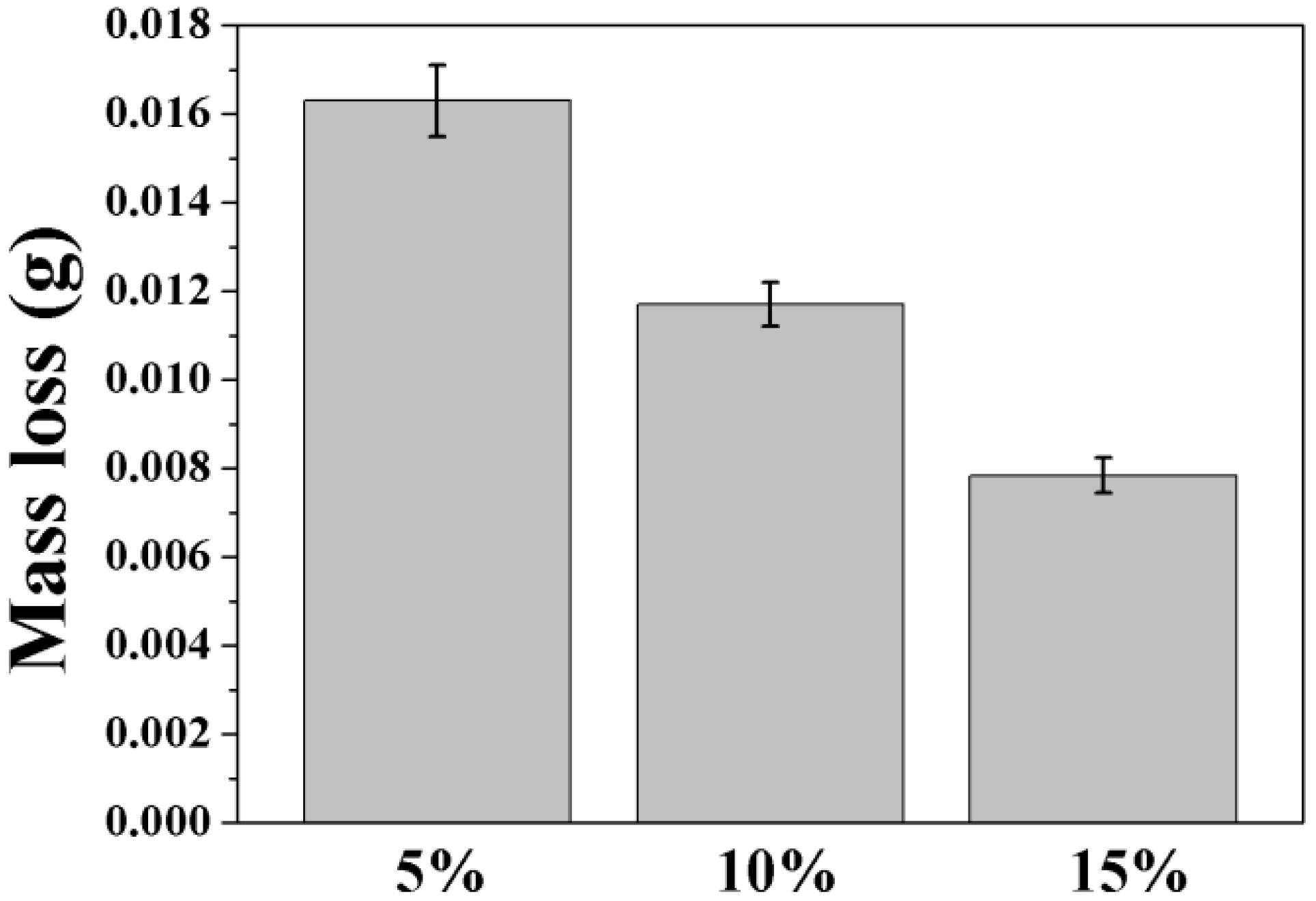

Figure 10. Mass loss of the NiCr–TiB2–ZrB2 coatings.
Figure 10. Mass loss of the NiCr–TiB2–ZrB2 coatings.
Coatings 08 00273 g010

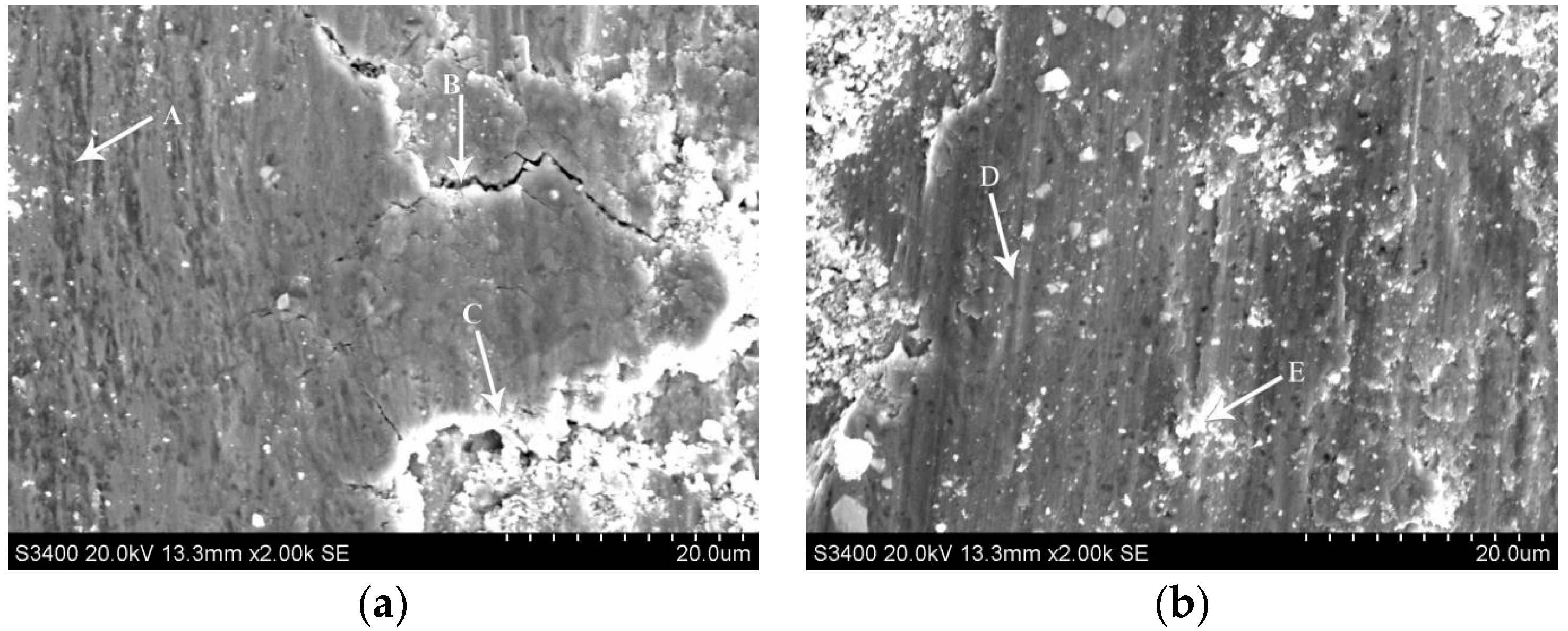

Figure 11. Worn morphologies of surface: (a) NiCr–5TiB2–5ZrB2; (b) NiCr–10TiB2–10ZrB2; (c) NiCr–15TiB2–15ZrB2; and (d) higher magnification image NiCr–15TiB2–15ZrB2.
Figure 11. Worn morphologies of surface: (a) NiCr–5TiB2–5ZrB2; (b) NiCr–10TiB2–10ZrB2; (c) NiCr–15TiB2–15ZrB2; and (d) higher magnification image NiCr–15TiB2–15ZrB2.
Coatings 08 00273 g011aCoatings 08 00273 g011b
Table 1. Composition of the raw materials (at.%).
Table 1. Composition of the raw materials (at.%).
MaterialsPurity ZrTiBCrNiFeCOthers
NiCr99.019.8680.080.01Bal.
TiB299.568.2330.750.140.13Bal.
ZrB299.979.2719.300.090.15Bal.
SUS30418.659.7368.540.07Bal.
Table 2. Operation parameters of plasma spraying.
Table 2. Operation parameters of plasma spraying.
ParametersValue
Current (A)600
Voltage (V)40
Ar (dm3/s)0.67
H2 (dm3/s)0.17
Powder feed rate (g/s)0.58–0.75
Gun traverse speed (mm/s)90
Spray distance (mm)100
Pre-heating temperature (°C)120
Table 3. Chemical composition (at.%) in different regions in Figure 4.
Table 3. Chemical composition (at.%) in different regions in Figure 4.
ZoneNiCrZrTiB
A34.2165.79
B72.4315.980.240.6210.73
C15.9319.9810.0712.4141.61
D29.9514.9510.717.8236.57
E61.1317.640.621.2519.36
F36.4763.53
G20.6812.065.7313.7047.83
H65.4314.910.110.8318.72
I33.5266.48
Table 4. Chemical composition (at.%) in different regions in Figure 11.
Table 4. Chemical composition (at.%) in different regions in Figure 11.
ZoneNiCrTiZrBO
C47.8612.692.861.2918.3616.94
E42.8910.434.073.1125.8713.63
F33.5466.46
I34.7365.27
J35.978.545.663.2934.7211.82
