Next Article in Journal
Sliding Wear Behavior of Fe-Al Coatings at High Temperatures
Next Article in Special Issue
Composition versus Wear Behaviour of Air Plasma Sprayed NiCr–TiB2–ZrB2 Composite Coating
Previous Article in Journal
Surface Analysis and Optical Properties of Cu-Doped ZnO Thin Films Deposited by Radio Frequency Magnetron Sputtering
Previous Article in Special Issue
Raman Spectroscopy for Reliability Assessment of Multilayered AlCrN Coating in Tribo-Corrosive Conditions
Open AccessArticle

The Potential of Tribological Application of DLC/MoS2 Coated Sealing Materials

Polymer Competence Center Leoben GmbH, Roseggerstraße 12, 8700 Leoben, Austria
Chair of Chemistry of Polymeric Materials, Montanuniversität Leoben, 8700 Leoben, Austria
Institute of Surface Technologies and Photonics, Joanneum Research Forschungsgesellschaft mbH, 8712 Niklasdorf, Austria
SKF Sealing Solutions Austria GmbH, 8750 Judenburg, Austria
Author to whom correspondence should be addressed.
Coatings 2018, 8(8), 267;
Received: 13 June 2018 / Revised: 19 July 2018 / Accepted: 29 July 2018 / Published: 31 July 2018
(This article belongs to the Special Issue Coatings Tribology)
PDF [8415 KB, uploaded 31 July 2018]

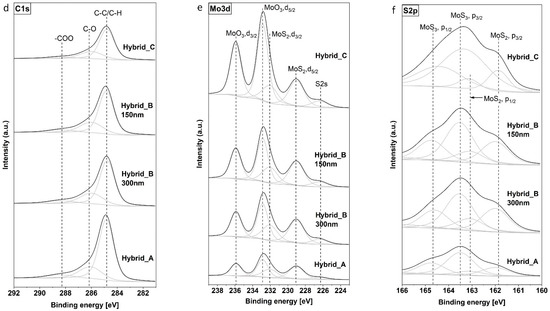

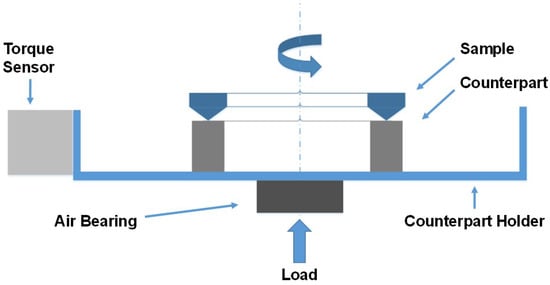

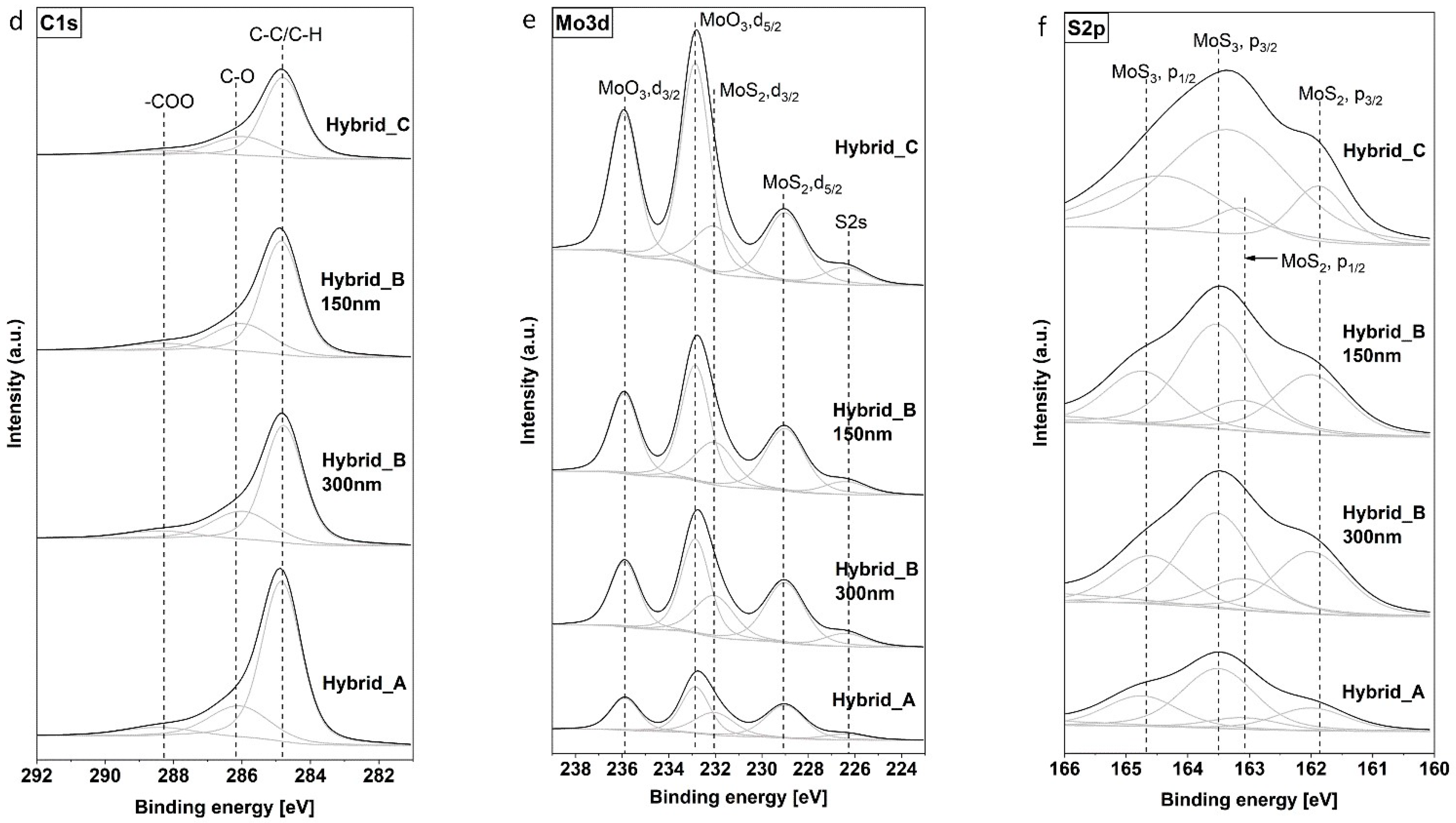

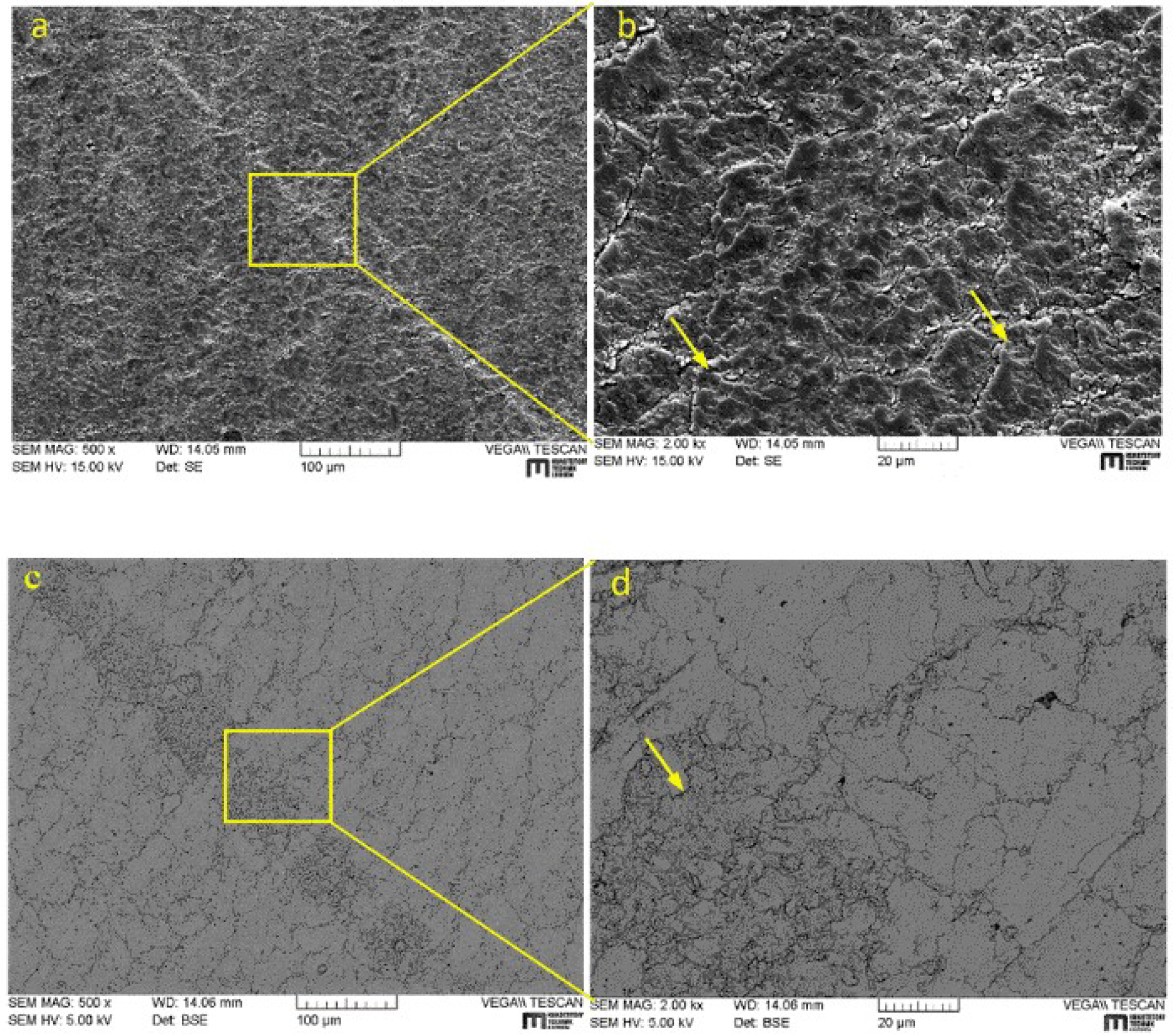

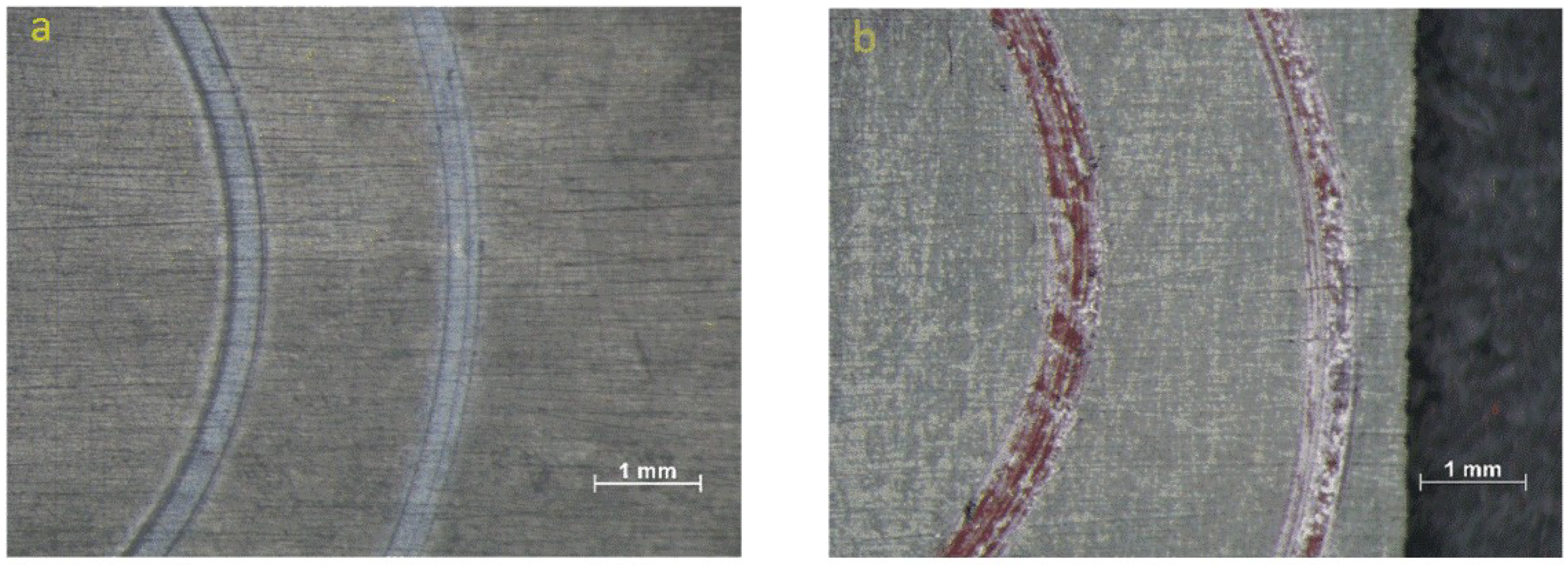

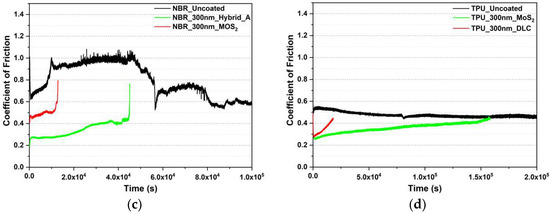

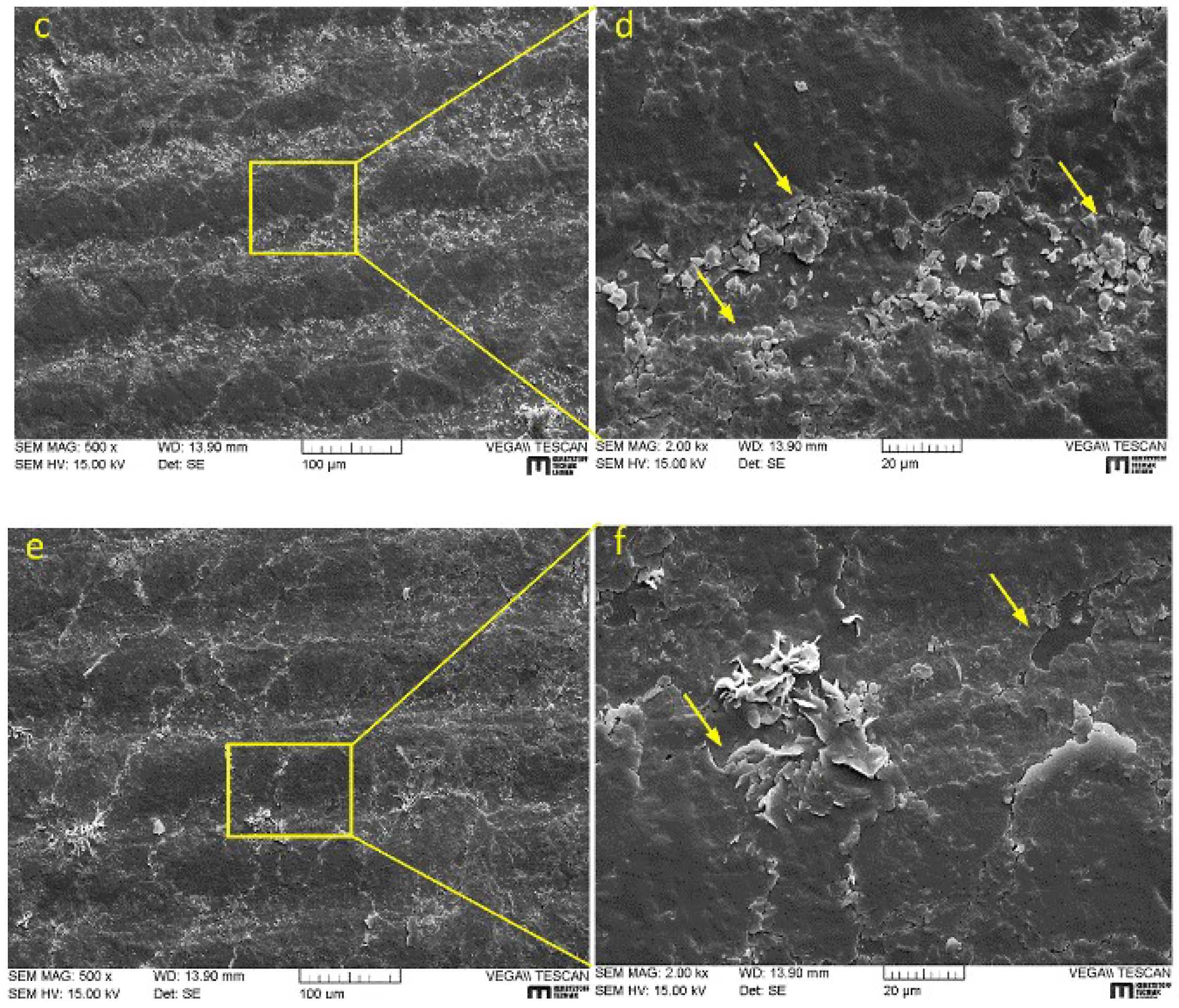

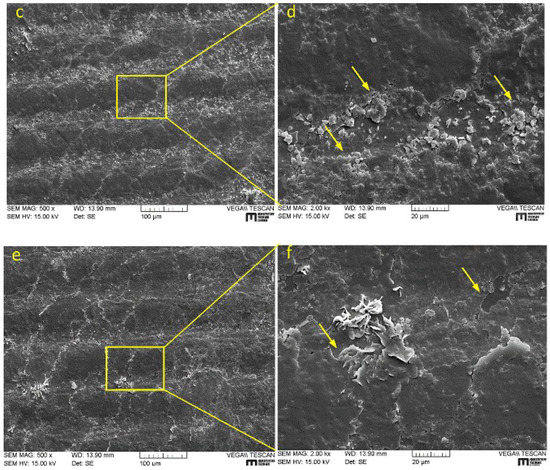

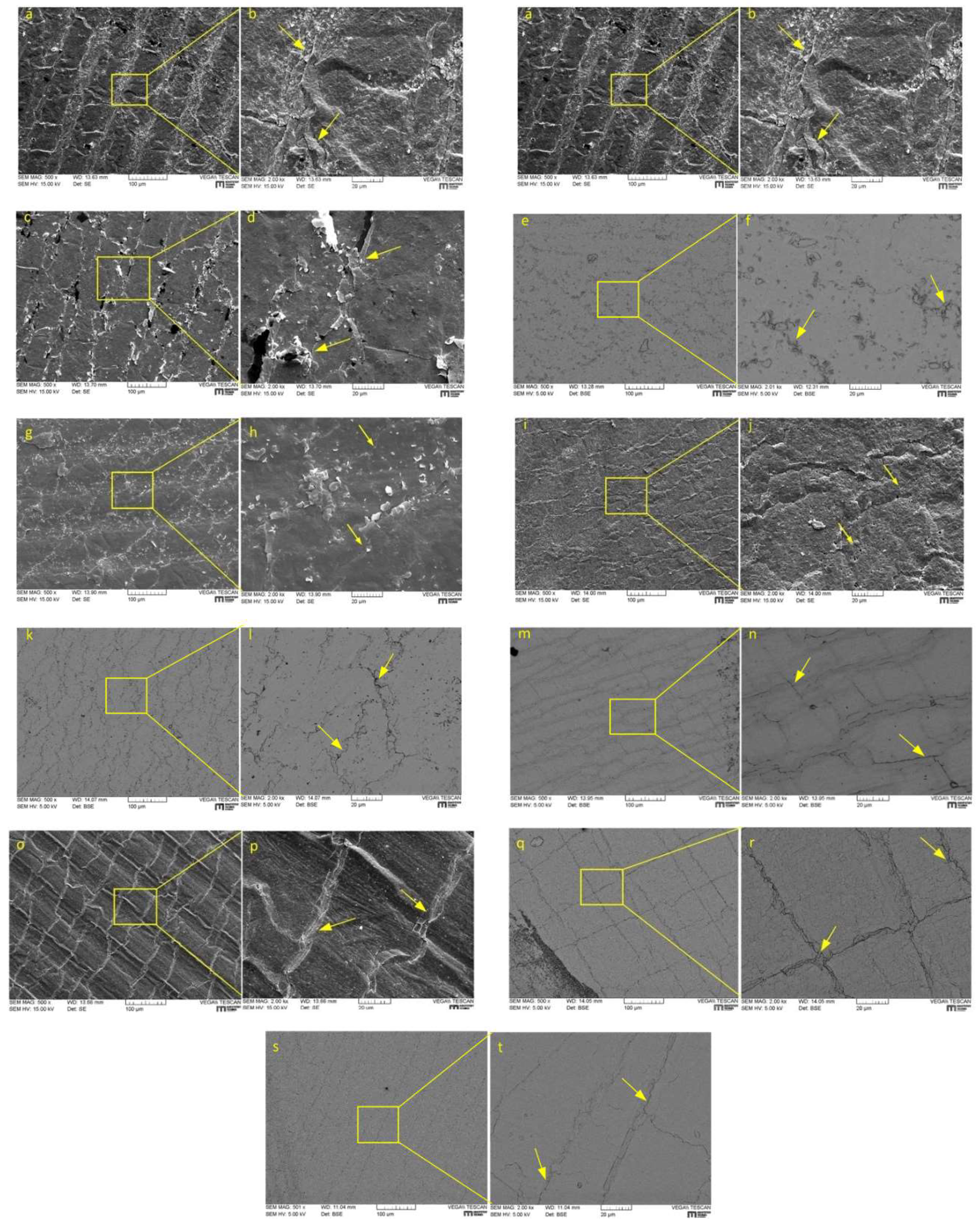

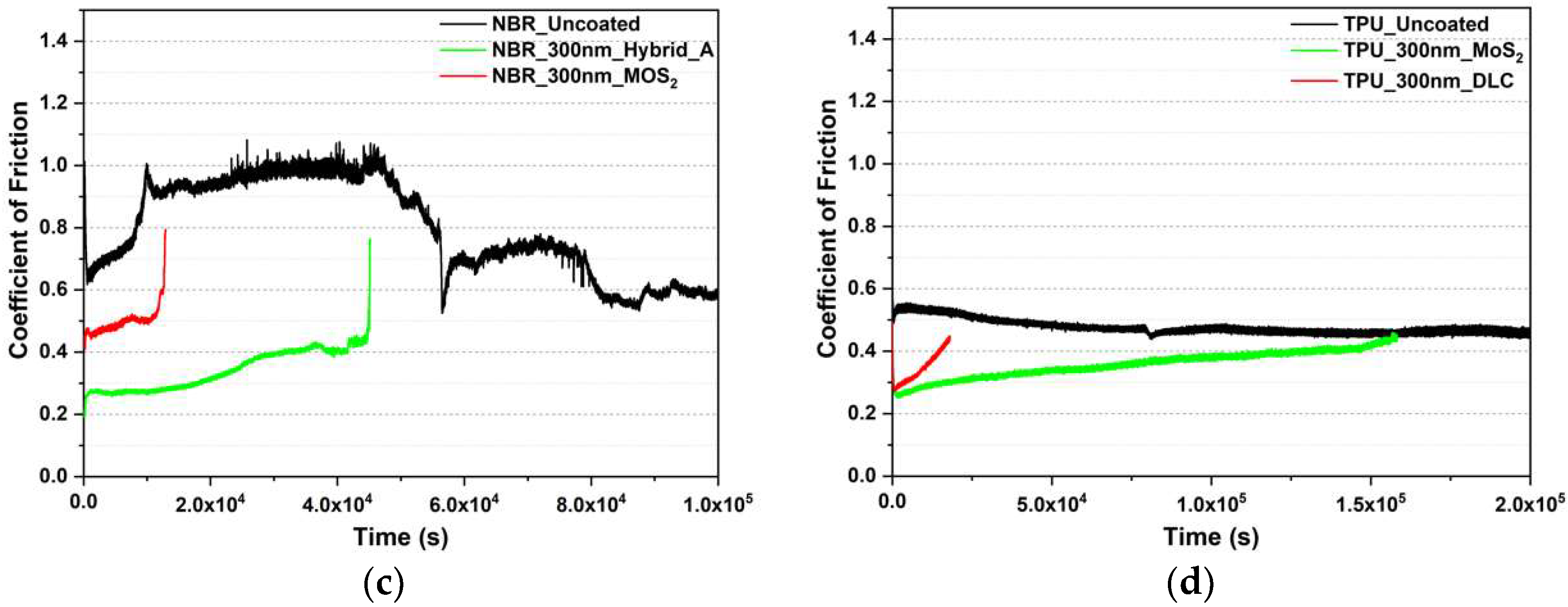

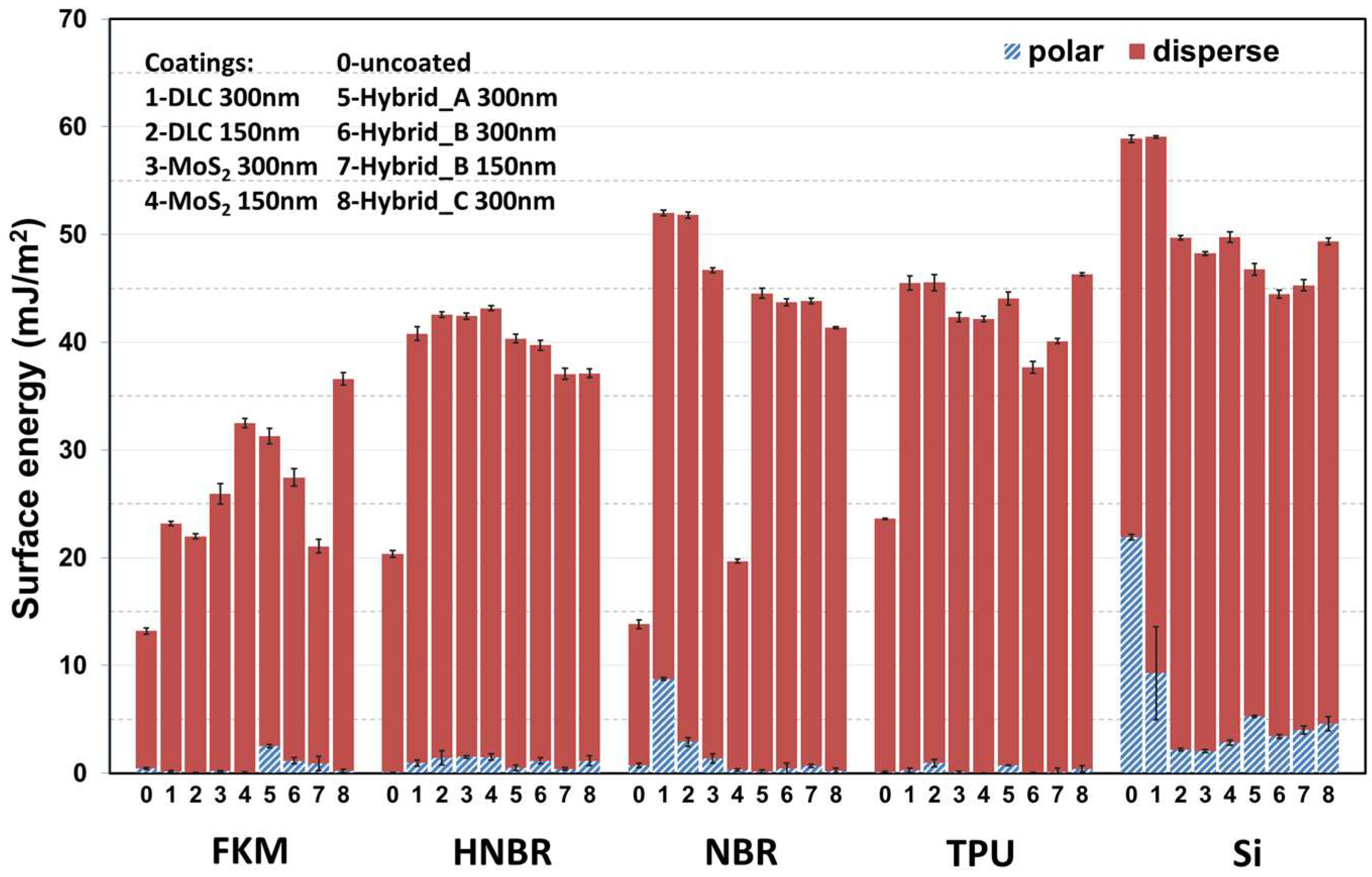

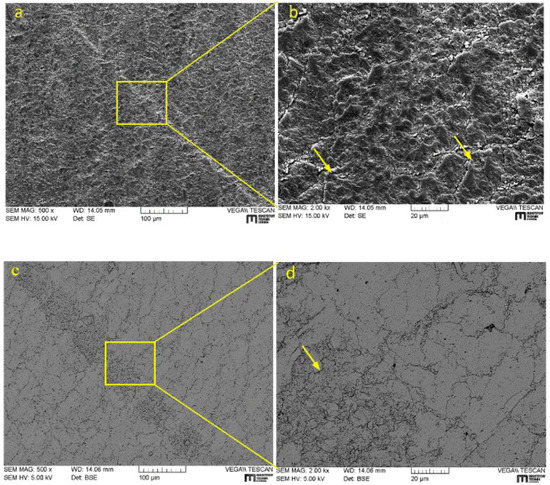

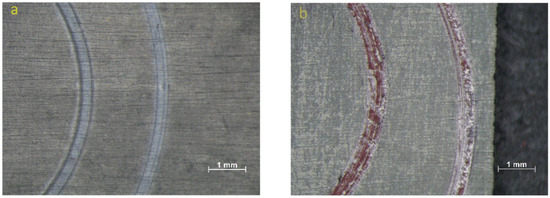

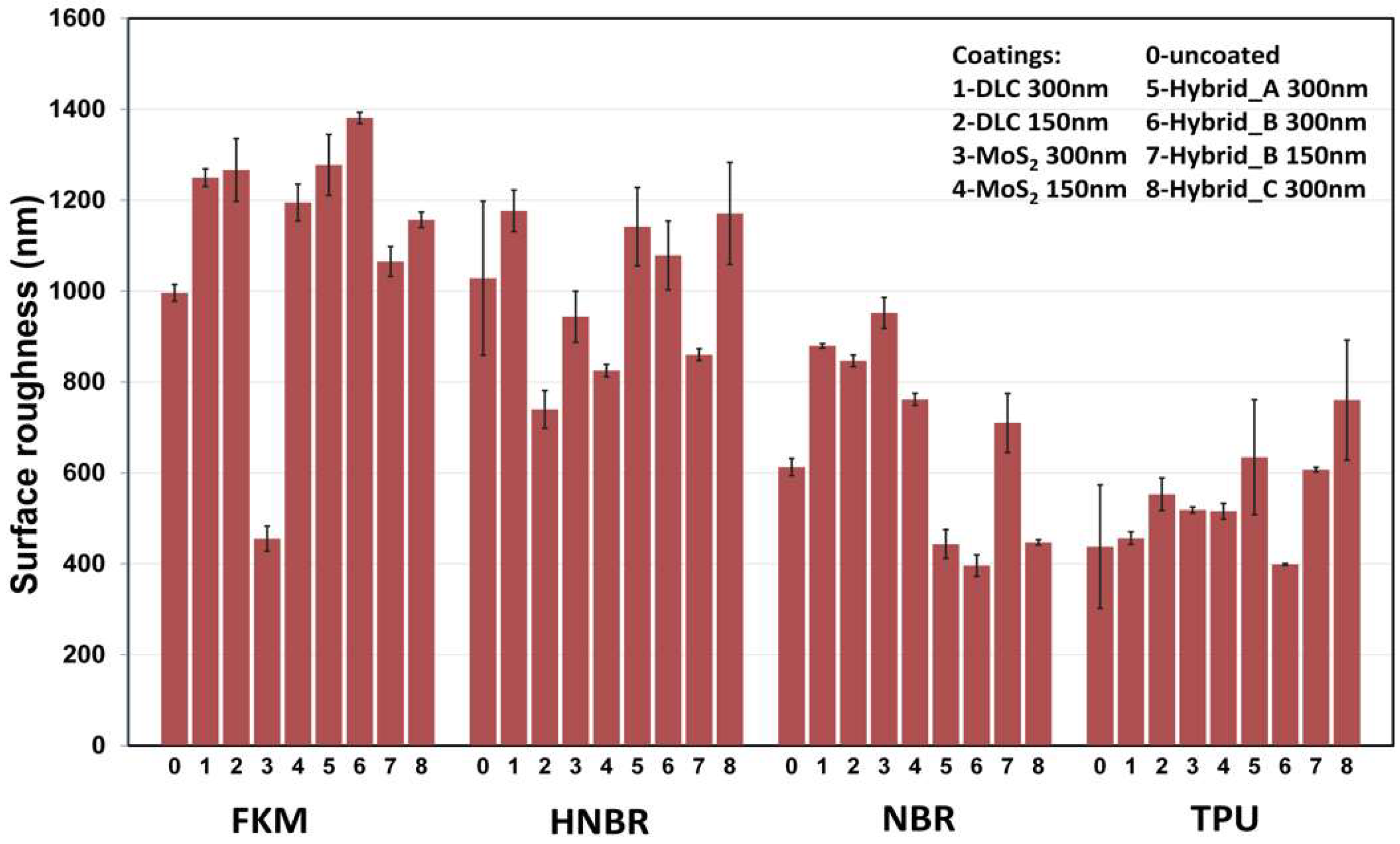

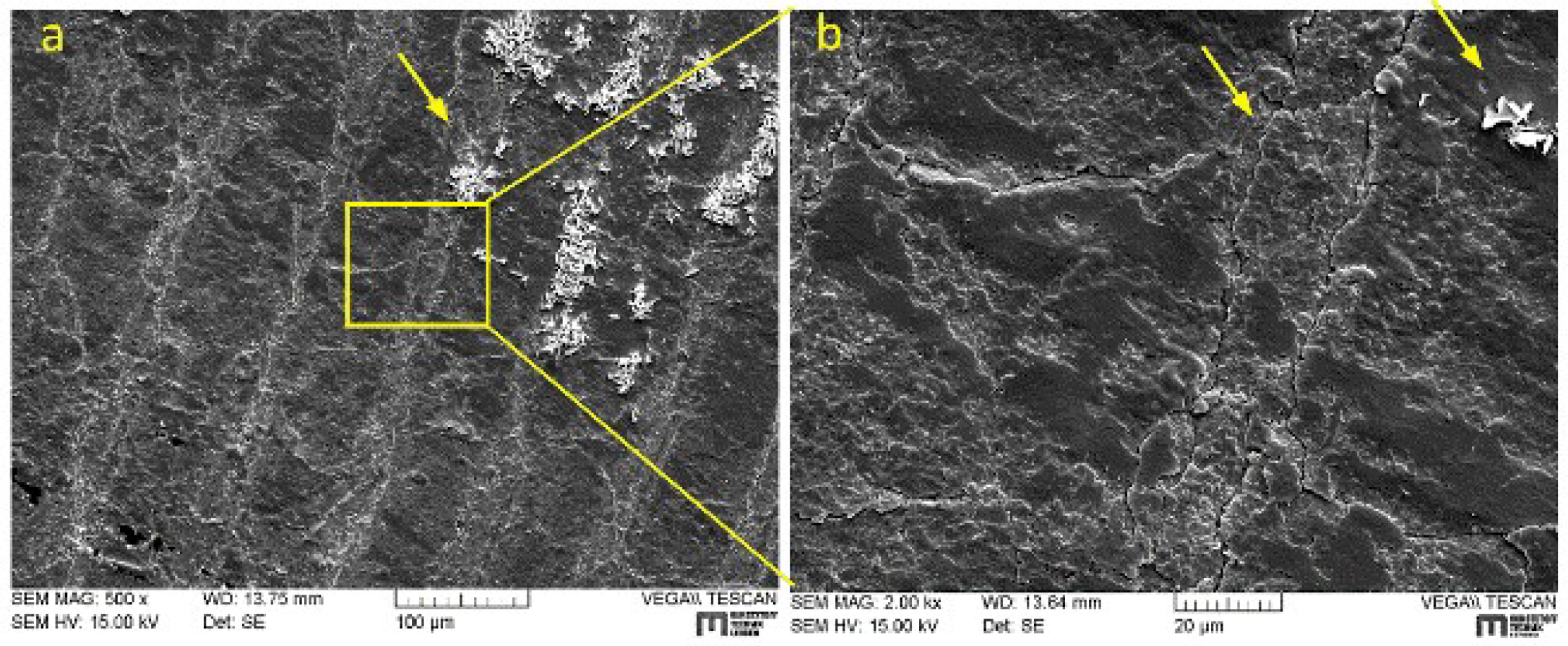

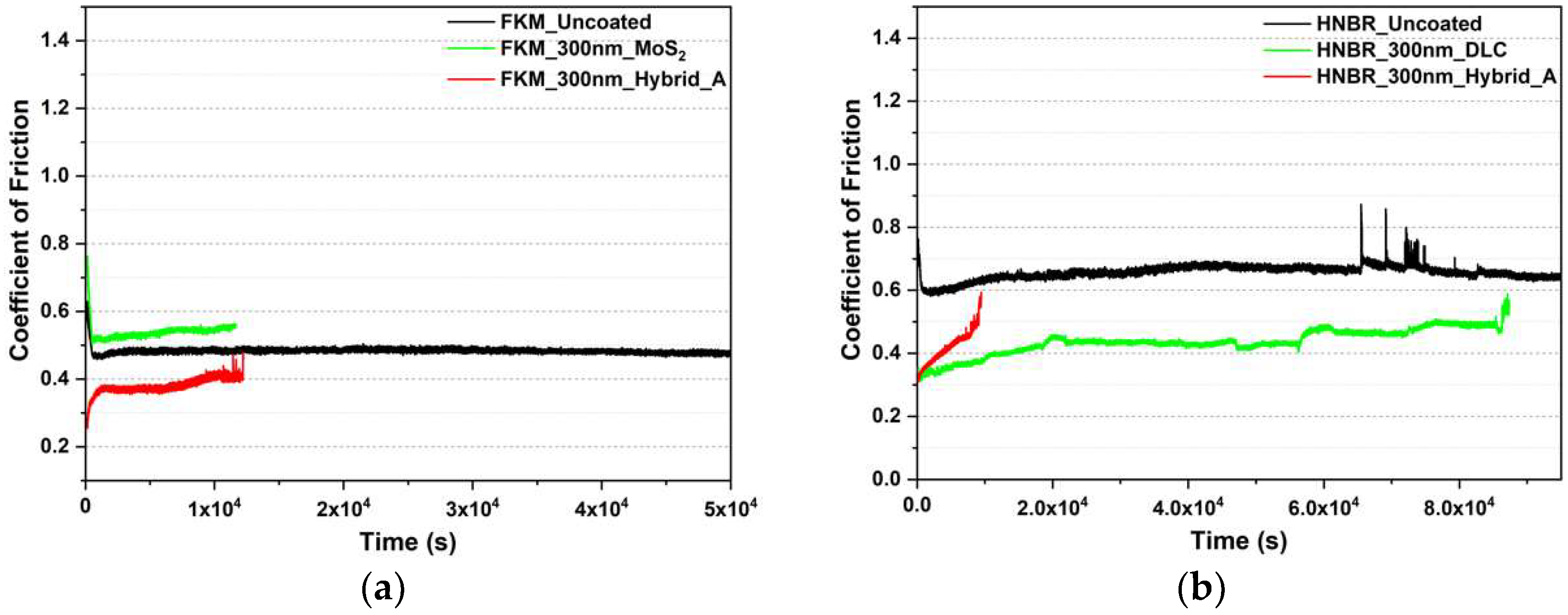

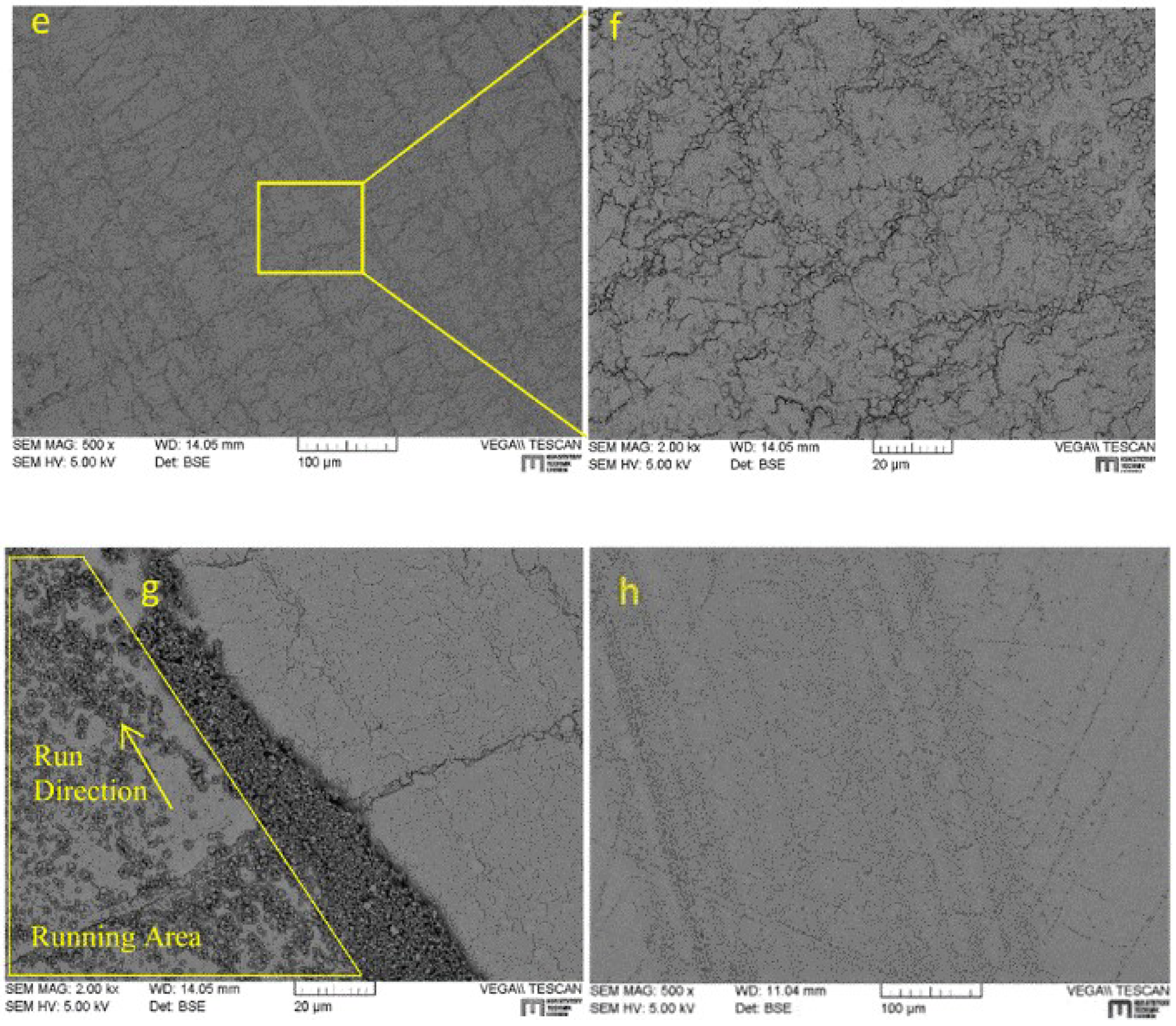

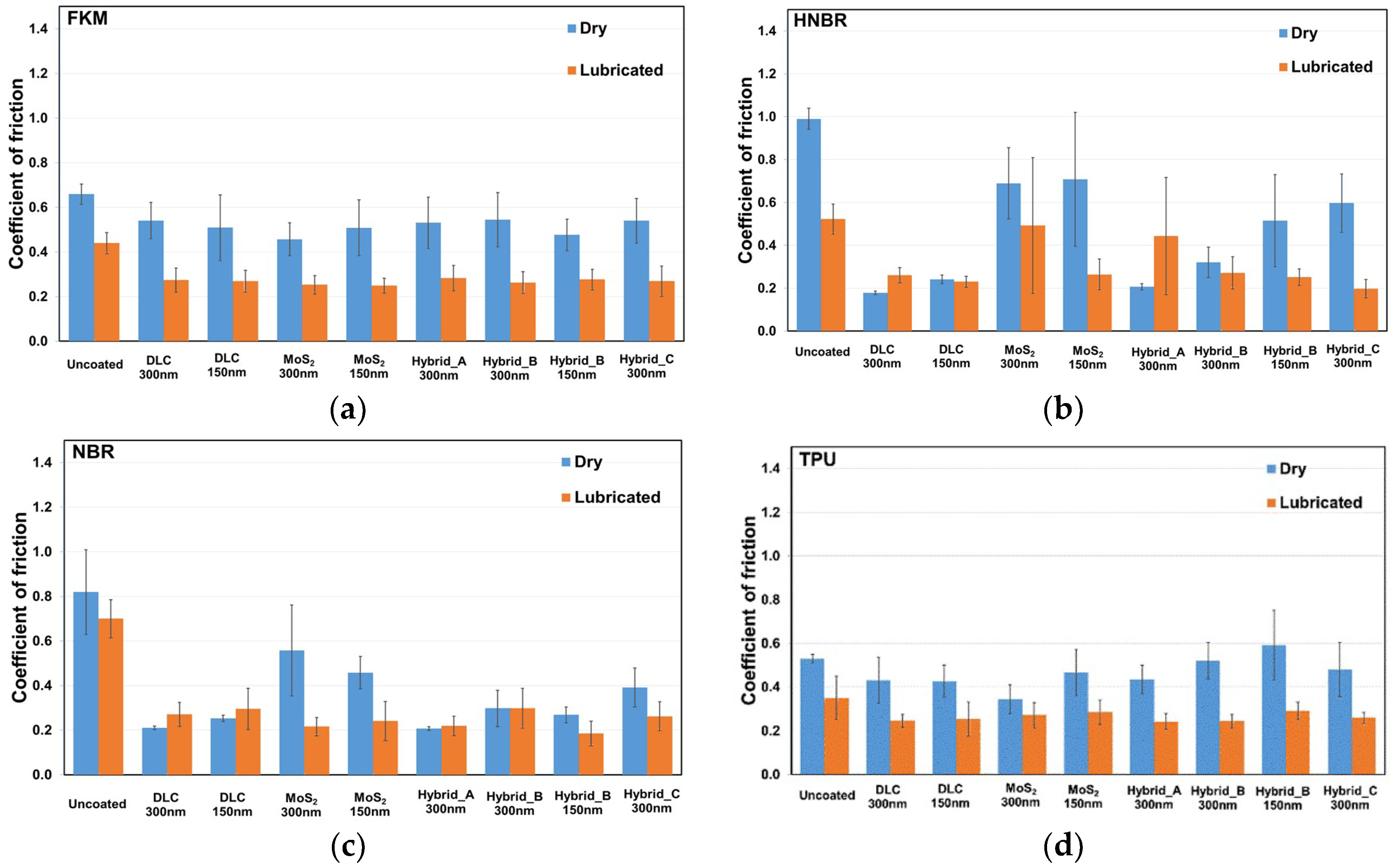

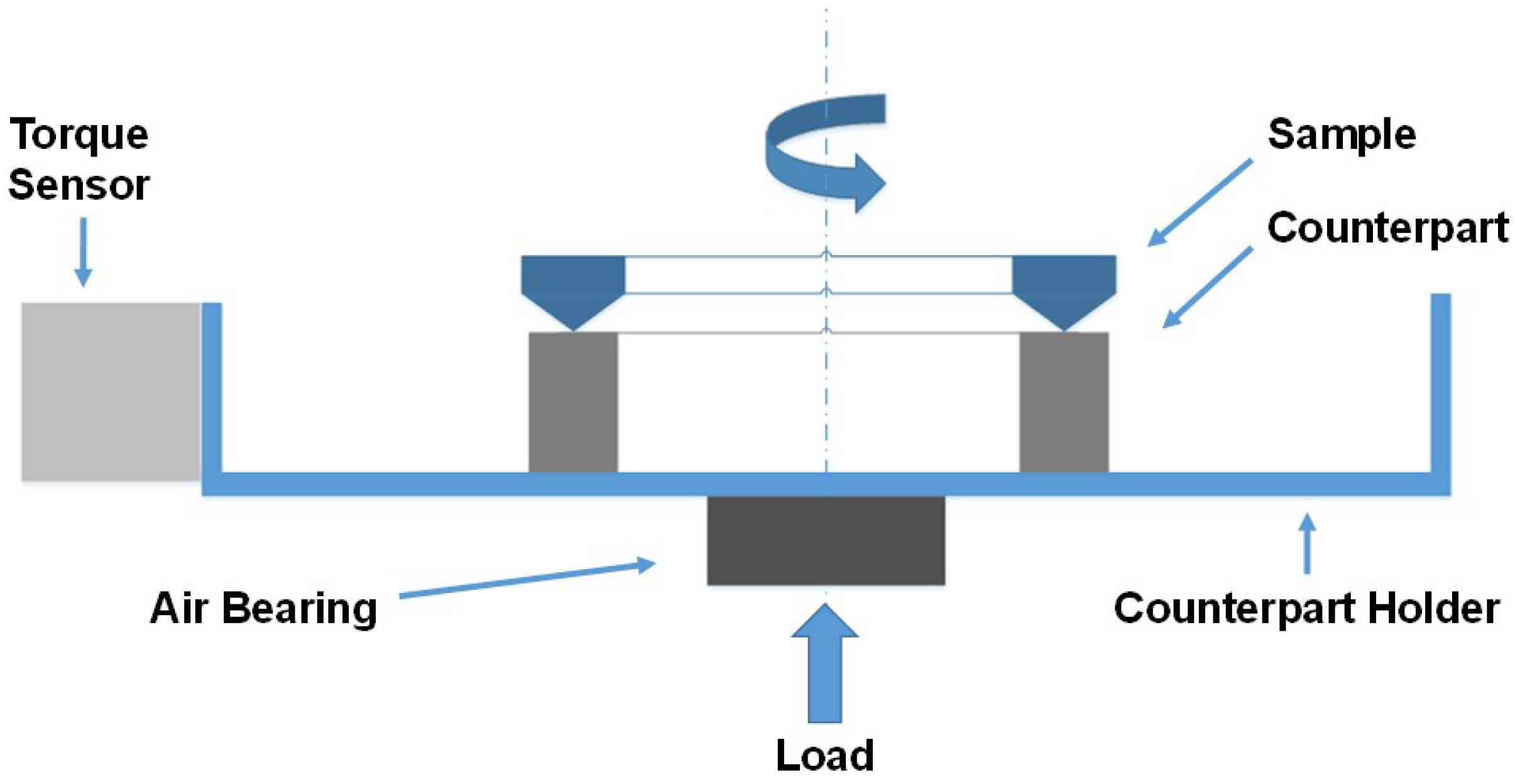

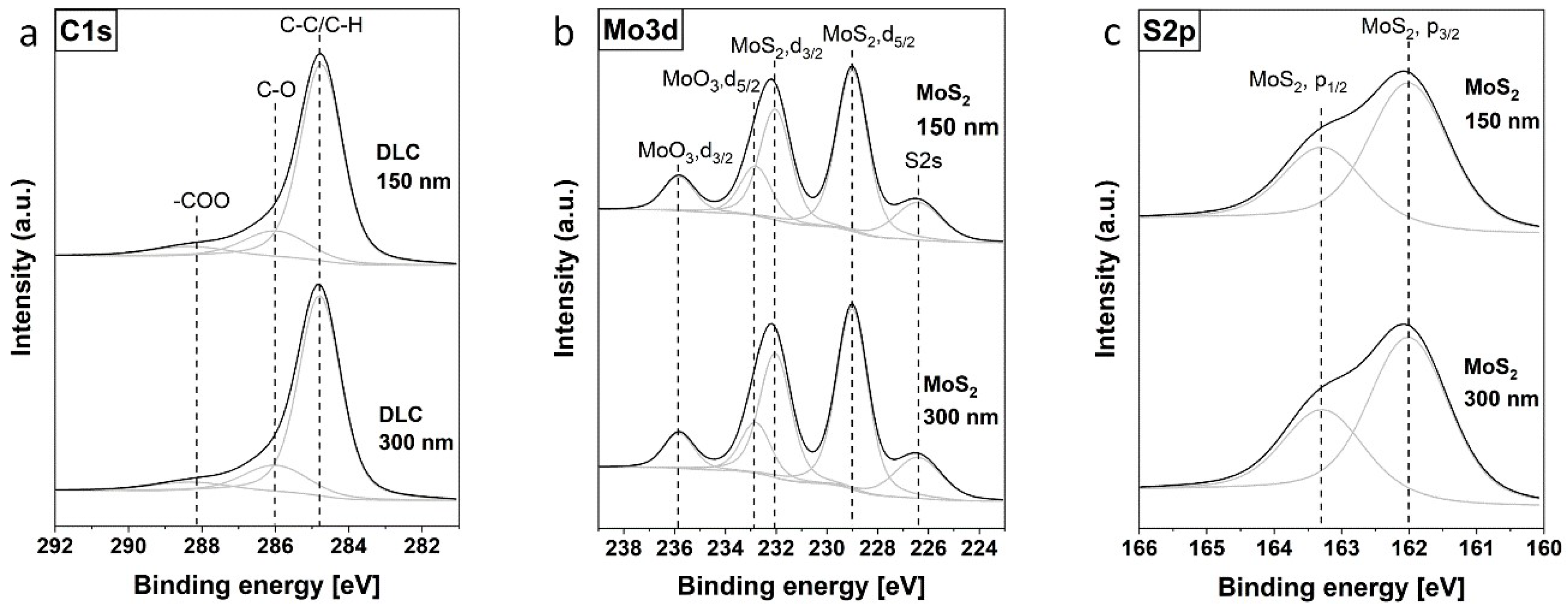

The potential of the combination of hard and soft coating on elastomers was investigated. Diamond-like carbon (DLC), molybdenum disulfide (MoS2) and composite coatings of these two materials with various DLC/MoS2 ratios were deposited on four elastomeric substrates by means of the magnetron sputtering method. The microstructures, surface energy of the coatings, and substrates were characterized by scanning electron microscopy (SEM) and contact angle, respectively. The chemical composition was identified by X-ray Photoelectron Spectroscopy (XPS). A ball on disc configuration was used as the model test, which was performed under dry and lubricated conditions. Based on the results from the model tests, the best coating was selected for each substrate and subsequently verified in component-like test. There is not one coating that is optimal for all substrates. Many factors can affect the coatings performance. The topography and the rigidity of the substrates are the key factors. However, the adhesion between coatings and substrates, and also the coating processes, can impact significantly on the coatings performance. View Full-Text
Keywords: DLC; MoS2; coating; elastomer; seals DLC; MoS2; coating; elastomer; seals

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, C.; Hausberger, A.; Nothdurft, P.; Lackner, J.M.; Schwarz, T. The Potential of Tribological Application of DLC/MoS2 Coated Sealing Materials. Coatings 2018, 8, 267.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
