Composition and Structure Evolution of Bi2O3 Coatings as Efficient Photocatalysts
by 1, 1,* and 2
1
Tianjin Key Laboratory of Integrated Design and On-line Monitoring for Light Industry & Food Machinery and Equipment, College of Mechanical Engineering, Tianjin University of Science & Technology, Tianjin 300222, China
2
College of Mechanical Engineering & Graduate School, Chiba University, Chiba 263-8522, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Charles C. Sorrell
Received: 20 November 2017 / Accepted: 27 December 2017 / Published: 29 December 2017

Abstract

:
To overcome the recovery disadvantages of Bi2O3 photocatalyst in the form of powder, Bi2O3 photocatalyst coatings were developed via a ball milling, followed by the calcination method. The composition and structure evolution rules of the as-synthesized samples were analyzed based on XRD (X-ray powder diffraction) patterns and SEM (scanning electron microscope) observations. XPS (X-ray photoelectron spectroscopy) and UV-Vis (Ultraviolet-visible) spectra were also employed to characterize the samples. The results showed that monoclinic Bi2O3 coatings were obtained after sintering Bi coatings at 673 or 773 K for 2 h, while calcination at a higher temperature and for a longer time resulted in monoclinic and triclinic mixed-phase Bi2O3 coatings. Bi2O3 coatings with a radial growth structure assembled by nanosheets could be realized at a lower temperature lasting for a longer time, while sintering at a higher temperature with relatively short oxidation time led to tangential growth structure. Photodegradation of malachite green solution under simulated solar irradiation for 180 min showed that the largest degradation efficiency of 91.49% was achieved over the photocatalyst coatings calcined at 873 K for 5 h. Additionally, the degradation efficiency was maintained above 80% even after three cycles.
Keywords:
Bi2O3; coatings; ball milling; photocatalyst

1. Introduction

Nowadays, environmental pollution and energy crisis cause extremely severe and destructive effects for human health and society development. Fortunately, photocatalysis technology appears as an efficient, economical, and environmental friendly technology, which can be applied in environmental remediation, as well as solar energy conversion, since it was discovered in 1972 [1,2,3]. To date, various types of semiconductor photocatalysts have been explored, especially the TiO2-based photocatalysts which are always being ranked as the most researched ones [4,5,6]. However, their applications are retarded by low ultilization efficiency for solar light absorption or a high recombination of charge carriers, thus making development of photocatalysts with visible light responsive ability indispensable. Recently, bismuth-based semiconductor photocatalysts have been demonstrated to exhibit superior photocatalytic activity under visible-light irradiation, and the interest in bismuth-based semiconductors is continuing to grow [7,8,9,10,11,12].
In order to push the applications of photocatalysts in practical industry fields, such as waste water treatment, the dispersity, recovery, and repeatability of the photocatalysts are of great significance. Yet, it is difficult to realize such an objective with photocatalysts in powder form, which impels the pursuit of a valid method to achieve improved recovery properties of photocatalysts. Among various approaches, immobilizing photocatalyst particles onto some kind of supporter is effective at achieving such an objective. Hence, ZnO nanoparticles immobilized montmorillonite [13], Nano-TiO2-loaded activated carbon fiber [14], TiO2-montmorillonite composite [15], acid-treated vermiculite supported TiO2 [16], TiO2 supported silica nanolayers [17], TiO2/HZSM-5 composite [18], and Ag–TiO2 photocatalyst supported on glass fiber [19] were synthesized to improve the dispersity of photocatalyst particles and, consequently, photocatalytic performances.
With regard to bismuth-based loaded photocatalysts, there have been some reports as well. Wang et al. [20] synthesized Bi2O3/HZSM-5 composite photocatalysts via a facile ion-exchange method. The results showed that the Bi2O3/HZSM-5 composite photocatalyst acquires the highest photocatalytic activity for rhodamine B degradation at the optimal loading with 18 wt % Bi2O3 and proposed the synergistic effect between HZSM-5 and Bi2O3, namely, the special structure of HZSM-5 increased the number of the active sites to adsorb more dye molecules and photodegraded them on the Bi2O3 photocatalyst. Zhang et al. [21] immobilized the Bi2WO6/Bi2O3 composite onto the polyurethane sponge and obtained enhanced photocatalytic activity and reusability towards rhodamine B degradation. Jiao et al. [22] prepared the Mg/Al layered double hydroxide loaded Pd(II)-Bi2O3 via impregnation and calcination technique. The results displayed that the sample possessed high crystallinity, large specific surface area, and broad absorption in the visible region, which contributed to its excellent photocatalytic activity for methylene blue degradation.
To overcome the recycle problem thoroughly, Al2O3 balls with an average diameter of 1 mm were used as the substrate to prepare bismuth-based photocatalyst coatings. Metallic Bi powder was employed as the starting material to be coated on the surface of Al2O3 balls via a mechanical ball milling method, and Bi2O3 coatings were obtained by sintering the above Bi coatings. The composition and structure evolution rules of the as-synthesized samples were analyzed based on XRD (X-ray powder diffraction) patterns and SEM (scanning electron microscope) observations. The optical properties and the photo-degradation performances of the samples were also studied with the aim of providing a new type of bismuth-based semiconductor photocatalyst coating that is applicable to practical water cleaning or other contaminants disposal.

2. Experimental

2.1. Preparation of Bi2O3 Photocatalyst Coatings

Metallic Bi powder (purity of 99.5%) and Al2O3 balls (purity of 98.5%, average diameter of 1 mm) were used as the coating material and the substrate, respectively. The Bi coatings were prepared according to the following process: 20 g Bi powder and 30 g Al2O3 balls were poured into an Al2O3 bowl with a volume of 250 mL, which subjected to milling in a planetary ball mill at the rotation speed of 290 rpm for 10 h.
The series of Bi2O3 coatings were fabricated by calcining the above Bi coatings in an electric furnace at 673, 773, 873, and 973 K for different time (2, 5, and 10 h) and the corresponding samples were denoted as BC-673-2, BC-673-5, BC-673-10, BC-773-2, BC-773-5, BC-773-10, BC-873-2, BC-873-5, BC-873-10, BC-973-2, BC-973-5, and BC-973-10, respectively.

2.2. Characterization

X-ray diffraction (XRD) analysis was performed on a Bruker D8 ADVANCE unit (Bruker, Billerica, MA, USA) using Cu Kα radiation to identify the crystalline phases of the coatings. The surface and cross-section morphologies of the coatings were observed by scanning electronic microscopy (SEM) on a Hitachi S-4800 microscope (Hitachi, Tokyo, Japan). The element valence state of Bi was analyzed with X-ray photoelectron spectroscopy (XPS) on a Thermo ESCALAB 250Xi energy spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). The UV-Vis diffuse reflectance spectra of the coatings were recorded on a Lambda 750S UV/VIS/NIR spectrometer (PerkinElmer, Waltham, MA, USA). Additionally, the absorbance of malachite green (MG) aqueous solution was tested with a 722 Vis spectrophotometer (Sunny Optical Technology (Group) Company Limited, Yuyao, China).

2.3. Photocatalytic Activity

The photocatalytic activities of the coatings were investigated by photodegradation of MG solution with concentration of 10 mg/L, which was performed in a CEL-LAB500 Photocatalytic Reactor from CEAULIGHT (Beijing, China). In detail, 0.1 g coatings were dispersed in 50 mL MG solution. Then, 500 W Xe lamp (light density was 75% ± 5% mW/cm²) was turned on to carry out the degradation experiment. During the reaction period, certain amount of MG solution was taken out, centrifuged to separate the photocatalyst, and the residual MG concentration was analyzed by the spectrophotometer at regular intervals.

3. Results and Discussion

3.1. XRD Patterns

The XRD patterns of Bi and Bi2O3 coatings prepared at different oxidation temperature or time are displayed in Figure 1. The characteristic diffraction peaks of the as-prepared Bi coatings can be indexed to hexagonal Bi consistent with PDF card No. 44-1246. After thermal oxidation above 673 K, the Bi coatings all transformed to Bi2O3 coatings even though the oxidation was only maintained for 2 h. When the Bi coatings were oxidized at 673 and 773 K for 2 h, monoclinic Bi2O3 coatings were prepared. With the time extending to 5 and 10 h, the as-prepared Bi2O3 coatings not only consisted of monoclinic Bi2O3 phase (labeled by hollow square, PDF card No. 41-1449) but also triclinic Bi2O3 phase (labeled by circle, PDF card No. 50-1088). Nevertheless, for the coatings oxidized at 873 and 973 K, mixed-phase Bi2O3 were always obtained with the oxidation time ranging from 2 to 10 h. Additionally, the diffraction peaks from triclinic Bi2O3 became stronger with the temperature or time raising. Consequently, the coatings composition evolved from single phase to mixed phases with prolonged time at lower temperature or heightened temperature. Moreover, almost all the diffraction peaks of the samples shifted to smaller angel with the oxidation time prolonged, which may result from stress release that accumulated during the ball milling process.

3.2. Microstructure Evolution of the Coatings

Figure 2a shows the surface and cross-section SEM images of initial Bi coatings. It could be found that continuous Bi coatings were formed by coalescence of the discrete islands on Al2O3 ball after mechanical ball milling at 290 rpm for 10 h. The surface of Bi coatings was relatively smooth and the connection trace was obvious. From the cross-section image, one can see Bi coatings with average thickness of 30 μm were obtained. After the Bi coatings were thermally oxidized at different temperature for different time, a series of Bi2O3 coatings with harsh surface derived from distinctly different oxidation degree were synthesized. As a typical example, the micromorphologies of the BC-873-5 sample are displayed in Figure 2b.
To clarify the microstructure transformation of the Bi2O3 coatings with calcination temperature and time, the high-resolution SEM images of the coatings are revealed in Figure 3. When the Bi coatings were oxidized at 673 K for 2 h, Bi2O3 crystals grew into thin nanosheets along the radial direction of the ball and interwined with each other to form flower-like shapes at some surface areas. With the oxidation time prolonged to 5 h, large amounts of small nanosheets along the tangential direction of the ball were visibly displayed, and some nanosheets debris also existed along the radial direction. After the oxidation that lasted for 10h, the Bi coatings were oxidized adequately and formed large staggered nanosheets along the radial direction of the ball. Elevating the temperature to 773 K resulted in completely different growth direction of Bi2O3 crystals. Specifically, at the first oxidation stage, the Bi2O3 crystals appeared as irregular particles, which grew along the tangential direction of the ball. Then, nanosheets along the radial direction of the ball gradually occurred with the oxidation preserved for 5 h, and flower-like structure stacked by nanosheets were almost completely formed when the time prolonged to 10 h. The same structure evolution tendency was observed for Bi2O3 coatings sintered at 873 K, except that larger polygonal Bi2O3 crystals scattered fine nanoparticles on its surface were formed, and much fewer nanosheets along the radial direction of the ball were observed, even when the time increased to 5 and 10 h. For Bi2O3 coatings prepared at 973 K, much larger polygonal Bi2O3 crystals similarly scattered fine nanoparticles always emerged along the tangential direction of the ball in spite of the oxidation duration of 10 h. Hence, from the structure evolution rules of Bi2O3 coatings, it could be generally concluded that lower temperature apt to form radial growth structure with nanosheets was interlaced, and yet higher temperature apt to generate tangential growth structure consisted of irregular polygonal crystals and nanoparticles.

3.3. Structure Evolution Mechanism

Based on the above SEM images analysis, the structure evolution mechanism was deduced as follows. When the Bi coatings were oxidized at 673 K, Bi and O2 diffusion first simultaneously occurred, resulting from sufficient O2 around the coatings surface and active Bi element; then, with time prolonged, O2 around the coatings surface decreased and therefore Bi diffusion dominated, which led to overall radical growth of Bi2O3 crystals along the surface of Al2O3 ball. However, when temperature was elevated to 773, 873, and 973 K, the oxidation rates of Bi coatings were accelerated and the Bi2O3 coatings were relatively thicker, which hindered the Bi diffusion and thereby O2 diffusion dominated the oxidation, leading to tangential growth of Bi2O3 crystals. When time increased, O2 around the coatings’ surface decreased. Thus, the oxidation was dominated by Bi diffusion and radical growth of Bi2O3 crystals emerged. The growth tendency of Bi2O3 crystals on the surface of Al2O3 ball with calcination time is briefly illustrated in Figure 4. Specifically, the irregular crystals gradually grew larger along the tangential direction of the balls with the oxidation time extended and at appropriate time; Bi2O3 nanosheets along the radial of the balls appeared, which continued to increase and completely spread over the whole surface of the balls. Thus, Bi2O3 coatings with radial growth structure assembled by nanosheets could be easily realized at lower temperature lasting for longer time, while those with tangential growth structure could be simply achieved by controlling the temperature at higher level accompanied by relatively shorter oxidation time.

3.4. XPS

The surface chemical composition and valence state of Bi element in BC-873-5 were investigated by XPS analysis, as illustrated in Figure 5. The binding energy was corrected by C 1s adventitious peak. Figure 5a shows the XPS survey spectra of BC-873-5, in which Bi and O elements can be clearly identified, confirming the formation of bismuth oxide. From the high resolution spectra of Bi element (Figure 5b), two strong peaks located at 158.98 and 164.28 eV are assigned to Bi 4f7/2 and Bi 4f5/2, respectively, which is in agreement with the reported values, indicating Bi3+ in the coating. The binding energy of Bi 4f peaks in BC-873-5 shifted to a larger value compared to BC-873-2 [23], implying the local environment and electron density surrounding Bi cation changed with the oxidation further proceeding. Figure 5c presents the high-resolution O 1s spectrum. The spectrum can be deconvoluted into two peaks. The peak at 529.7 eV is characteristic of O2 in Bi–O bonds, while that at 530.9 eV is characteristic of surface hydroxyl groups, which is very closed to the values reported in the literature [24,25].

3.5. UV-Vis Diffuse Reflectance Spectra

UV-Vis diffuse reflectance spectra were measured to learn the optical properties of the as-prepared Bi2O3 coatings, shown in Figure 6. It can be noticed that when the calcination temperature was not higher than 773 K, the coatings sintered for 5 and 10 h showed apparently enhanced absorption abilities for visible light compared to those sintered for 2 h. However, there was no obvious difference among the absorption spectra of the BC-873 and BC-973 samples except BC-873-5, which displayed stronger absorption for visible light. According to the extrapolation principle, the absorption edges for BC-673 and BC-773 samples ranged from 526 to 536 nm, while those for BC-873 and BC-973 samples ranged from 532nm to 563nm, corresponding to band gaps of 2.20 to 2.41 eV according to the relationship between band gap (Eg) and absorption edge (λ) expressed as Eg = 1240/λ.

3.6. Photocatalytic Activities for Organic Dye

The photocatalytic activities of as-prepared coating samples were evaluated via photo-degradation of MG aqueous solution under simulated solar irradiation. The MG degradation efficiencies over the series of Bi2O3 photocatalyst coatings are displayed in Figure 7a. As shown, Bi2O3 photocatalyst coatings calcined at higher temperature (873 or 973 K) generally demonstrated higher activities for MG degradation comparable to that calcined at lower temperature (673 or 773 K). Additionally, the coatings calcined for 5 h possessed little better performances than those obtained at 2 or 10 h for all the series of samples. It is deduced that composition-like ratio of the two different Bi2O3 phases, microstructure, and particle size, and other related properties such as light absorption ability, comprehensively contributed to the activity difference among these coatings. Based on the XRD patterns, it can be inferred that mixed-phase Bi2O3 coatings degraded more dye than singe-phase ones as triclinic Bi2O3 possessed better activity than monoclinic Bi2O3, as evidenced in the literature [26]. Besides, appropriate ratio of triclinic Bi2O3 and monoclinic Bi2O3 phases also played key role for the coating photocatalytic performances. The coatings with relatively higher ratio of triclinic Bi2O3 to monoclinic Bi2O3 demonstrated better performances, which was confirmed by higher activities of the BC-873 and BC-973 samples than BC-673 and BC-773 samples; yet, if the ratio of triclinic Bi2O3 to monoclinic Bi2O3 further increased, the coating photocatalytic activities basically showed a downward trend, exactly as the BC-973 samples contrast to BC-873 samples. In addition, in our case, Bi2O3 coatings with tangential growth structure and polygonal Bi2O3 crystals showed red shift of absorption edges, which led to much superior photocatalytic performances as well. Last, the highest activity was observed over BC-873-5 and approximately 91.49% of MG degradation efficiency was achieved after irradiating for 180min.The control experiments were also carried out and the results are shown in Figure 7b, from which one can see that when the substrate was used, approximately 29.93% of MG was degraded. Moreover, if no catalyst was added or no light used, the degradation efficiencies of MG decreased to 14.66% and 6.3%, respectively, which confirmed the key role of both photocatalyst and light. Besides, the reaction rate constants of the samples for MG degradation were obtained according to the method described in the literature [23] and were summarized in Table 1.
The reusability of the photocatalyst coating was also investigated by selecting BC-873-5 as the example. The repeated experimental results are shown in Figure 7c, from which it can be noticed that the photocatalytic activity of BC-873-5 reduced by a certain extent after three cycles, in spite of this, the degradation efficiency for MG was still maintained above 80%. These results evidently proved the validity of the coating as excellent and easily recycled photocatalysts for organic dye degradation.

4. Conclusions

Bi2O3 photocatalyst coatings were developed via a ball milling followed by the thermal oxidation method. Oxidation under different temperatures and times resulted in quite different compositions and structures, which affected the related performances. The results showed that monoclinic Bi2O3 coatings were obtained at 673 or 773 K for 2 h, while oxidation at a higher temperature and a longer time resulted in mixed-phase Bi2O3 coatings. Moreover, Bi2O3 coatings with radial growth structure assembled by nanosheets could be easily realized at a lower temperature lasting for longer time, while those with a tangential growth structure could be simply achieved by controlling the temperature at a higher level accompanied by a relatively shorter oxidation time. Photo-degradation of malachite green solution under simulated solar irradiation demonstrated that the developed coatings possessed good photocatalytic activities and cycle performances. The easily recycled coatings provide a type of visible-light-driven photocatalyst suitable for practical water treatment application.

Acknowledgments

This work is supported by the Youth Innovation Foundation of Tianjin University of Science & Technology (No. 2015LG11), the Innovation Team Program of Tianjin University of Science & Technology (No. 10117), and the National Nature Science Foundation of China (No. 51404170).

Author Contributions

Lijun Cheng conducted the experiments and was the lead author. Liang Hao was the internal guider and Yun Lu was the external consultant.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cheng, L.; Kang, Y. Synthesis and characterization of Bi2O3/NaBiO3 composite visible light-driven photocatalyst. Mater. Lett. 2013, 97, 125–128. [Google Scholar] [CrossRef]
  2. Cao, S.; Huang, Q.; Zhu, B.; Yu, J. Trace-level phosphorus and sodium co-doping of g-C3N4 for enhanced photocatalytic H2 production. J. Power Sources 2017, 351, 151–159. [Google Scholar] [CrossRef]
  3. Navabpour, P.; Cooke, K.; Sun, H.L. Photocatalytic properties of doped TiO2 coatings deposited using reactive magnetron sputtering. Coatings 2017, 7, 10. [Google Scholar] [CrossRef]
  4. Lin, T.; Yang, C.; Wang, Z.; Yin, H.; Lü, X.; Huang, F.; Lin, J.; Xie, X.; Jiang, M. Effective nonmetal incorporation in black titania with enhanced solar energy utilization. Energy Environ. Sci. 2014, 7, 967–972. [Google Scholar] [CrossRef]
  5. Wu, J.; Lu, H.; Zhang, X.; Raziq, F.; Qu, Y.; Jing, L. Enhanced charge separation of rutile TiO2 nanorods by trapping holes and transferring electrons for efficient cocatalyst-free photocatalytic conversion of CO2 to fuels. Chem. Commun. 2016, 52, 5027–5029. [Google Scholar] [CrossRef] [PubMed]
  6. Ratova, M.; Kelly, P.J.; West, G.T.; Tosheva, L. A novel technique for the deposition of bismuth tungstate onto titania nanoparticulates for enhancing the visible light photocatalytic activity. Coatings 2016, 6, 29. [Google Scholar] [CrossRef]
  7. Wang, S.; Zhang, Y.; Zhang, T.; Dong, F.; Huang, H. Readily attainable spongy foam photocatalyst for promising practical photocatalysis. Appl. Catal. B Environ. 2017, 208, 75–81. [Google Scholar] [CrossRef]
  8. Gadhi, T.A.; Hernandez-Gordillo, A.; Bizarro, M.; Jagdale, P.; Tagliaferro, A.; Rodil, S.E. Efficient alpha/beta-Bi2O3 composite for the sequential photodegradation of two-dyes mixture. Ceram. Int. 2016, 42, 13065–13073. [Google Scholar] [CrossRef]
  9. Cheng, L.; Kang, Y. Bi5O7I/Bi2O3 composite photocatalyst with enhanced visible light photocatalytic activity. Catal. Commun. 2015, 72, 16–19. [Google Scholar] [CrossRef]
  10. Medina, J.C.; Bizarro, M.; Silva-Bermudez, P.; Giorcelli, M.; Tagliaferro, A.; Rodil, S.E. Photocatalytic discoloration of methyl orange dye by delta-Bi2O3 thin films. Thin Solid Films 2016, 612, 72–81. [Google Scholar] [CrossRef]
  11. Yan, Y.; Zhou, Z.; Cheng, Y.; Qiu, L.; Gao, C.; Zhou, J. Template-free fabrication of α- and β-Bi2O3 hollow spheres and their visible light photocatalytic activity for water purification. J. Alloys Compd. 2016, 605, 102–108. [Google Scholar] [CrossRef]
  12. Wang, Y.; Zhao, J.; Zhou, B.; Zhao, X.; Wang, Z.; Zhu, Y. Three-dimensional hierarchical flowerlike microstructures of α-Bi2O3 constructed of decahedrons and rods. J. Alloys Compd. 2014, 592, 296–300. [Google Scholar] [CrossRef]
  13. Kıranşan, M.; Khataee, A.; Karaca, S.; Sheydaei, M. Artificial neural network modeling of photocatalytic removal of a disperse dye using synthesized of ZnO nanoparticles on montmorillonite. Spectrochim. Acta A 2015, 140, 465–473. [Google Scholar] [CrossRef] [PubMed]
  14. Tamilselvi, S.; Asaithambi, M.; Sivakumar, P. Nano-TiO2-loaded activated carbon fiber composite for photodegradation of a textile dye. Desalin. Water Treat. 2016, 57, 15495–15502. [Google Scholar] [CrossRef]
  15. Djellabi, R.; Ghorab, M.F.; Cerrato, G.; Morandi, S.; Gatto, S.; Oldani, V.; Di Michele, A.; Bianchi, C.L. Photoactive TiO2-montmorillonite composite for degradation of organic dyes in water. J. Photochem. Photobiol. A 2014, 295, 57–63. [Google Scholar] [CrossRef]
  16. Jin, L.; Dai, B. TiO2 activation using acid-treated vermiculite as a support: Characteristics and photoreactivity. Appl. Surf. Sci. 2012, 258, 3386–3392. [Google Scholar] [CrossRef]
  17. Wang, L.; Wang, X.; Cui, S.; Fan, X.; Zu, B.; Wang, C. TiO2 supported on silica nanolayers derived from vermiculite for efficient photocatalysis. Catal. Today 2013, 216, 95–103. [Google Scholar] [CrossRef]
  18. Zhang, W.; Bi, F.; Yu, Y.; He, H. Phosphoric acid treating of ZSM-5 zeolite for the enhanced photocatalytic activity of TiO2/HZSM-5. J. Mol. Catal. A Chem. 2013, 372, 6–12. [Google Scholar] [CrossRef]
  19. Pham, T.D.; Lee, B.K. Feasibility of silver doped TiO2 glass fiber photocatalyst under visible irradiation as an indoor air germicide. Int. J. Environ. Res. Public Health 2014, 11, 3271–3288. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, Q.Z.; Hui, J.; Yang, L.; Huang, H.H.; Cai, Y.X.; Yin, S.Q.; Ding, Y.M. Enhanced photocatalytic performance of Bi2O3/H-ZSM-5 composite for rhodamine B degradation under UV light irradiation. Appl. Surf. Sci. 2014, 289, 224–229. [Google Scholar] [CrossRef]
  21. Zhang, F.; Wang, Z.; Wang, T.; Jia, L.; Wang, C.; Zhang, S. Facile synthesis of Bi2WO6/Bi2O3-loaded polyurethane sponge with enhanced visible light photocatalytic activity. Funct. Mater. Lett. 2016, 9, 1650026. [Google Scholar] [CrossRef]
  22. Zhou, Y.; Shuai, L.; Jiang, X.; Jiao, F.; Yu, J. Visible-light-driven photocatalytic properties of layered double hydroxide supported-Bi2O3 modified by Pd(II) for methylene blue. Adv. Powder Technol. 2015, 26, 439–447. [Google Scholar] [CrossRef]
  23. Cheng, L.; Hu, X.; Hao, L. Easily recycled Bi2O3 photocatalyst coatings prepared via ball milling followed by calcination. Appl. Phys. A 2017, 123, 443. [Google Scholar] [CrossRef]
  24. Liu, G.; Li, S.; Lu, Y.; Zhang, J.; Feng, Z.; Li, C. Controllable synthesis of α-Bi2O3 and γ-Bi2O3 with high photocatalytic activity by α-Bi2O3→γ-Bi2O3→α-Bi2O3 transformation in a facile precipitation method. J. Alloys Compd. 2016, 689, 787–799. [Google Scholar] [CrossRef]
  25. Zou, H.; Song, M.; Yi, F.; Bian, L.; Liu, P.; Zhang, S. Simulated-sunlight-activated photocatalysis of Methyl Orange using carbon and lanthanum co-doped Bi2O3–TiO2 composite. J. Alloys Compd. 2016, 680, 54–59. [Google Scholar] [CrossRef]
  26. Huang, J.; Chen, H.; Pang, S.; Liu, G.; Cui, H.; Dong, L.; Liu, X. Preparation and electrocatalytic performance of Bi-modified quartz column particle electrode for phenol degradation. J. Chem. 2015, 2015, 812752. [Google Scholar] [CrossRef]

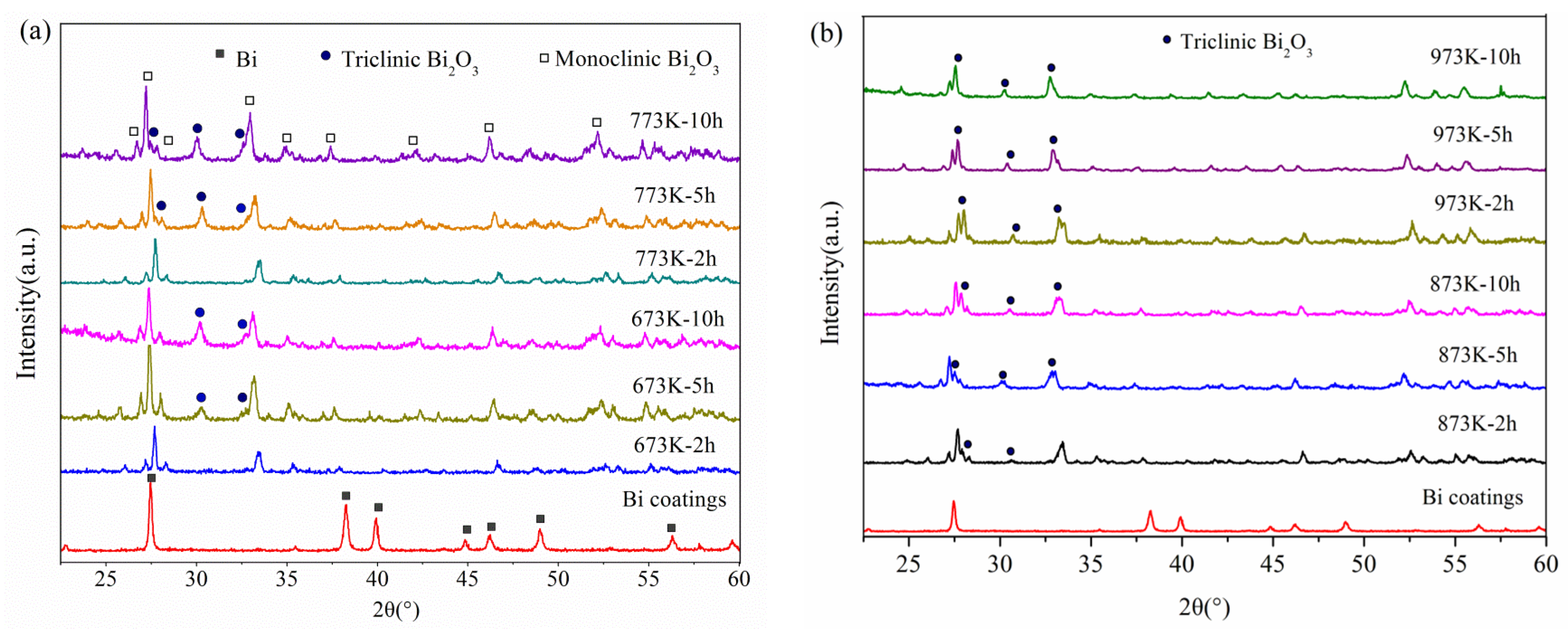

Figure 1. XRD patterns of the as-prepared coatings: (a) BC-673-2, BC-673-5, BC-673-10, BC-773-2, BC-773-5, BC-773-10; (b) BC-873-2, BC-873-5, BC-873-10, BC-973-2, BC-973-5, BC-973-10.
Figure 1. XRD patterns of the as-prepared coatings: (a) BC-673-2, BC-673-5, BC-673-10, BC-773-2, BC-773-5, BC-773-10; (b) BC-873-2, BC-873-5, BC-873-10, BC-973-2, BC-973-5, BC-973-10.
Coatings 08 00014 g001

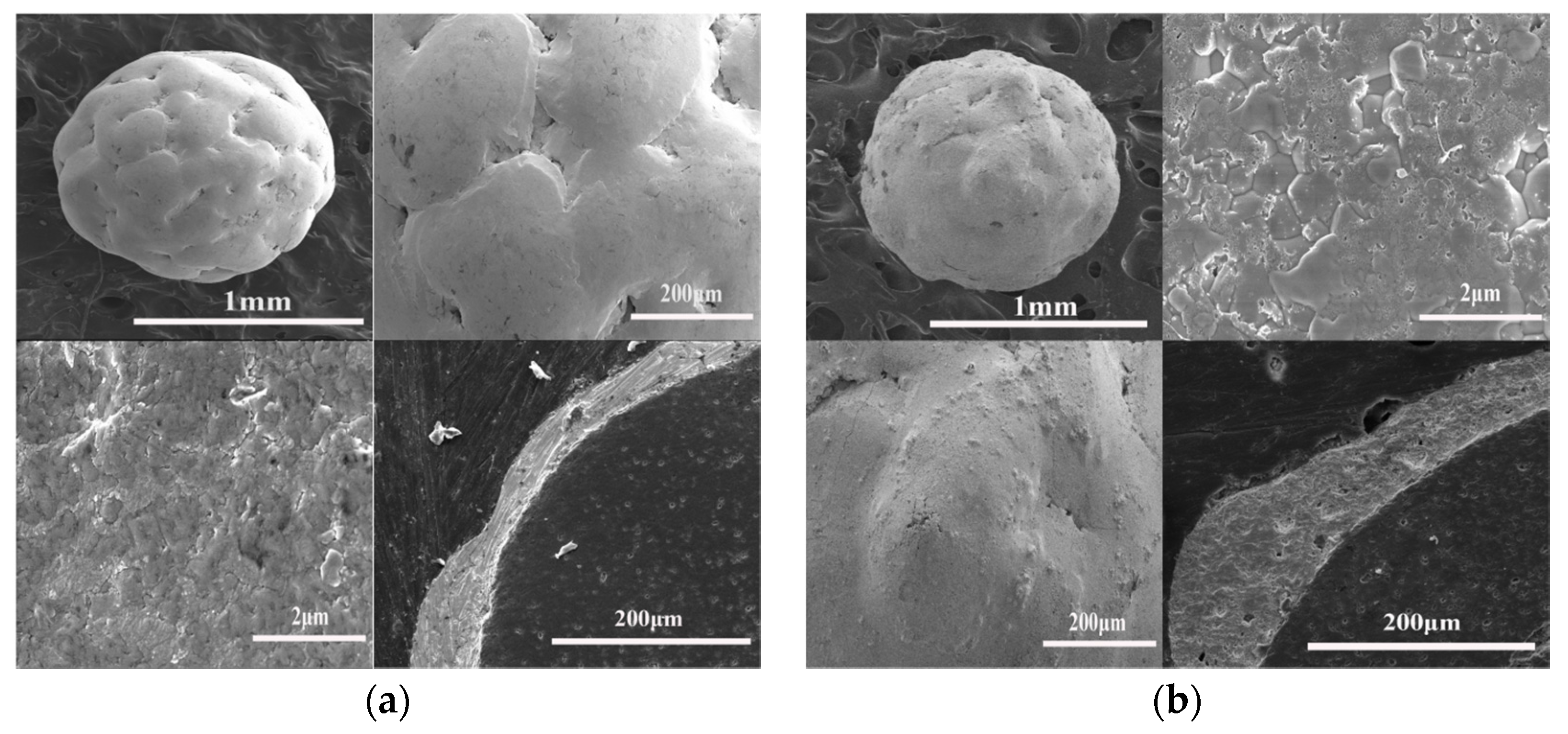

Figure 2. The surface and cross-section morphologies of (a) Bi coatings and (b) BC-873-5.
Figure 2. The surface and cross-section morphologies of (a) Bi coatings and (b) BC-873-5.
Coatings 08 00014 g002

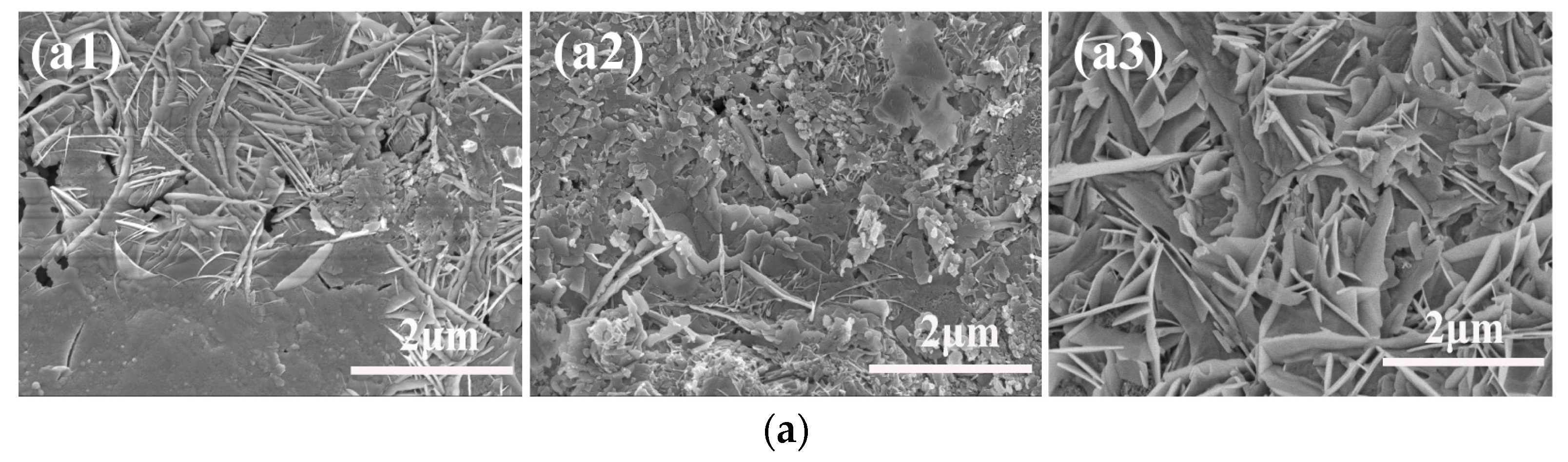

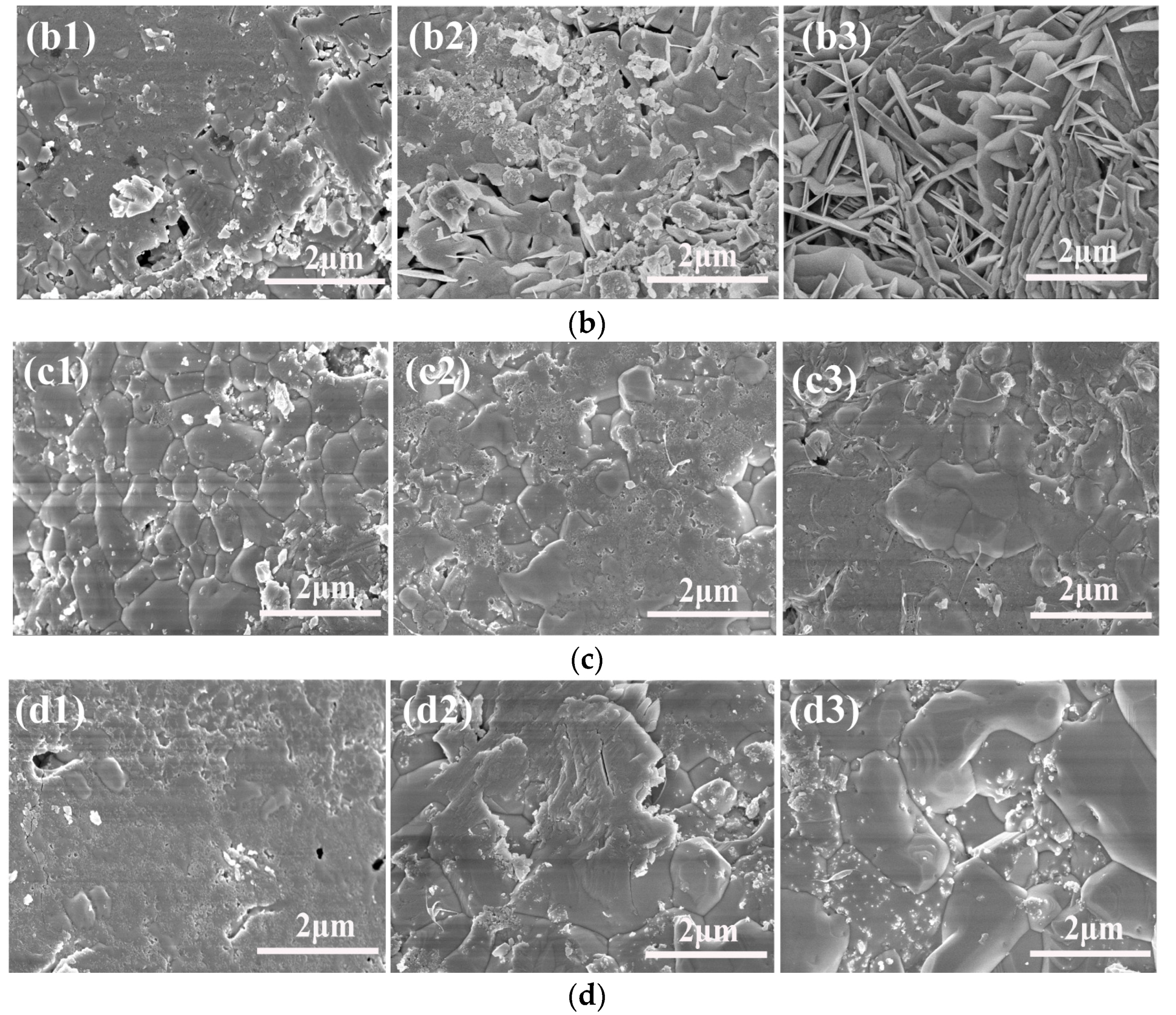

Figure 3. The surface morphologies of Bi2O3 coatings: (a1) BC-673-2; (a2) BC-673-5; (a3) BC-673-10; (b1) BC-773-2; (b2) BC-773-5; (b3) BC-773-10; (c1) BC-873-2; (c2) BC-873-5; (c3) BC-873-10; (d1) BC-973-2; (d2) BC-973-5; (d3) BC-973-10.
Figure 3. The surface morphologies of Bi2O3 coatings: (a1) BC-673-2; (a2) BC-673-5; (a3) BC-673-10; (b1) BC-773-2; (b2) BC-773-5; (b3) BC-773-10; (c1) BC-873-2; (c2) BC-873-5; (c3) BC-873-10; (d1) BC-973-2; (d2) BC-973-5; (d3) BC-973-10.
Coatings 08 00014 g003aCoatings 08 00014 g003b

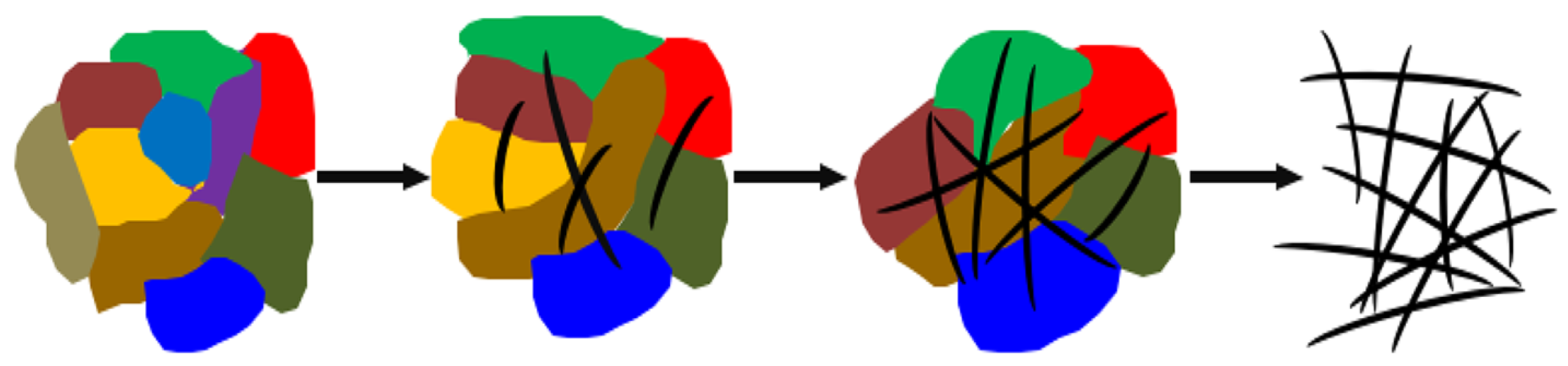

Figure 4. The growth tendency of Bi2O3 crystals on the surface of Al2O3 ball with calcination time increasing.
Figure 4. The growth tendency of Bi2O3 crystals on the surface of Al2O3 ball with calcination time increasing.
Coatings 08 00014 g004
Figure 5. (a) XPS spectrum of BC-873-5; High-resolution XPS spectra of (b) Bi 4f and (c) O 1s in BC-873-5.
Figure 5. (a) XPS spectrum of BC-873-5; High-resolution XPS spectra of (b) Bi 4f and (c) O 1s in BC-873-5.
Coatings 08 00014 g005

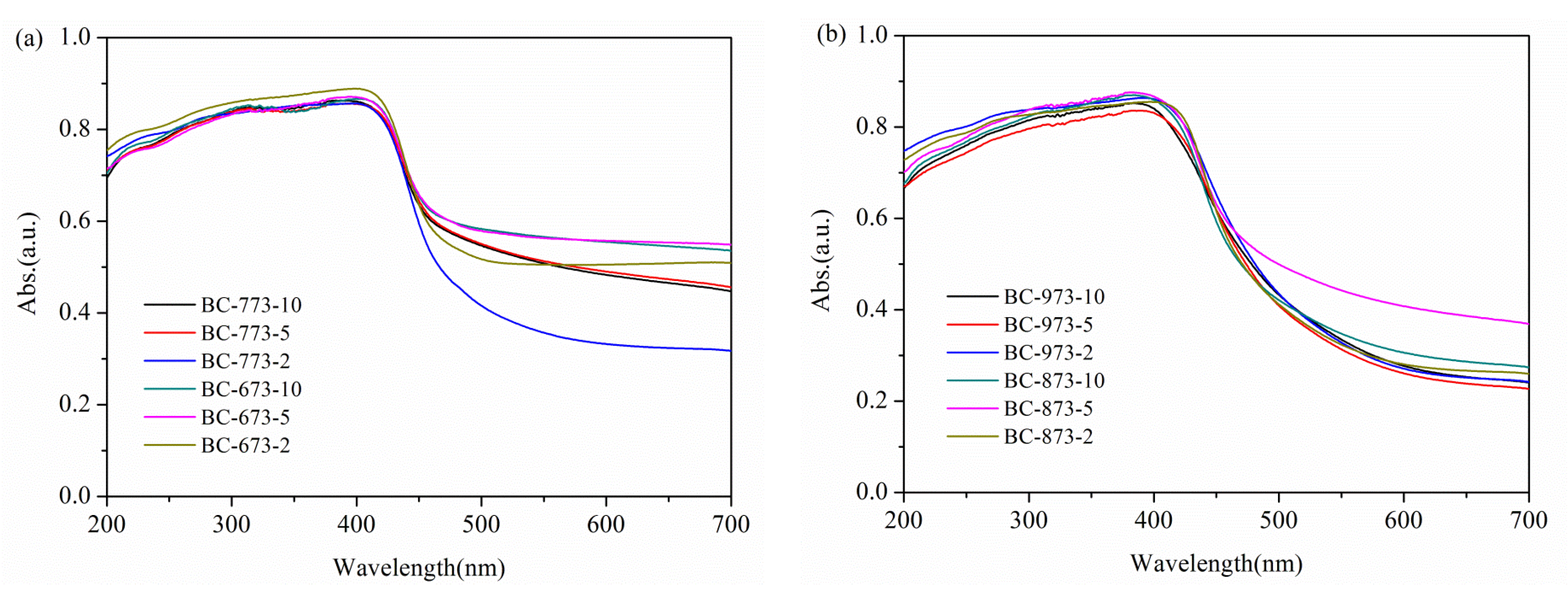

Figure 6. UV-Vis diffuse reflectance spectra of the as-prepared coatings: (a) BC-673-2, BC-673-5, BC-673-10, BC-773-2, BC-773-5, BC-773-10; (b) BC-873-2, BC-873-5, BC-873-10, BC-973-2, BC-973-5, BC-973-10.
Figure 6. UV-Vis diffuse reflectance spectra of the as-prepared coatings: (a) BC-673-2, BC-673-5, BC-673-10, BC-773-2, BC-773-5, BC-773-10; (b) BC-873-2, BC-873-5, BC-873-10, BC-973-2, BC-973-5, BC-973-10.
Coatings 08 00014 g006

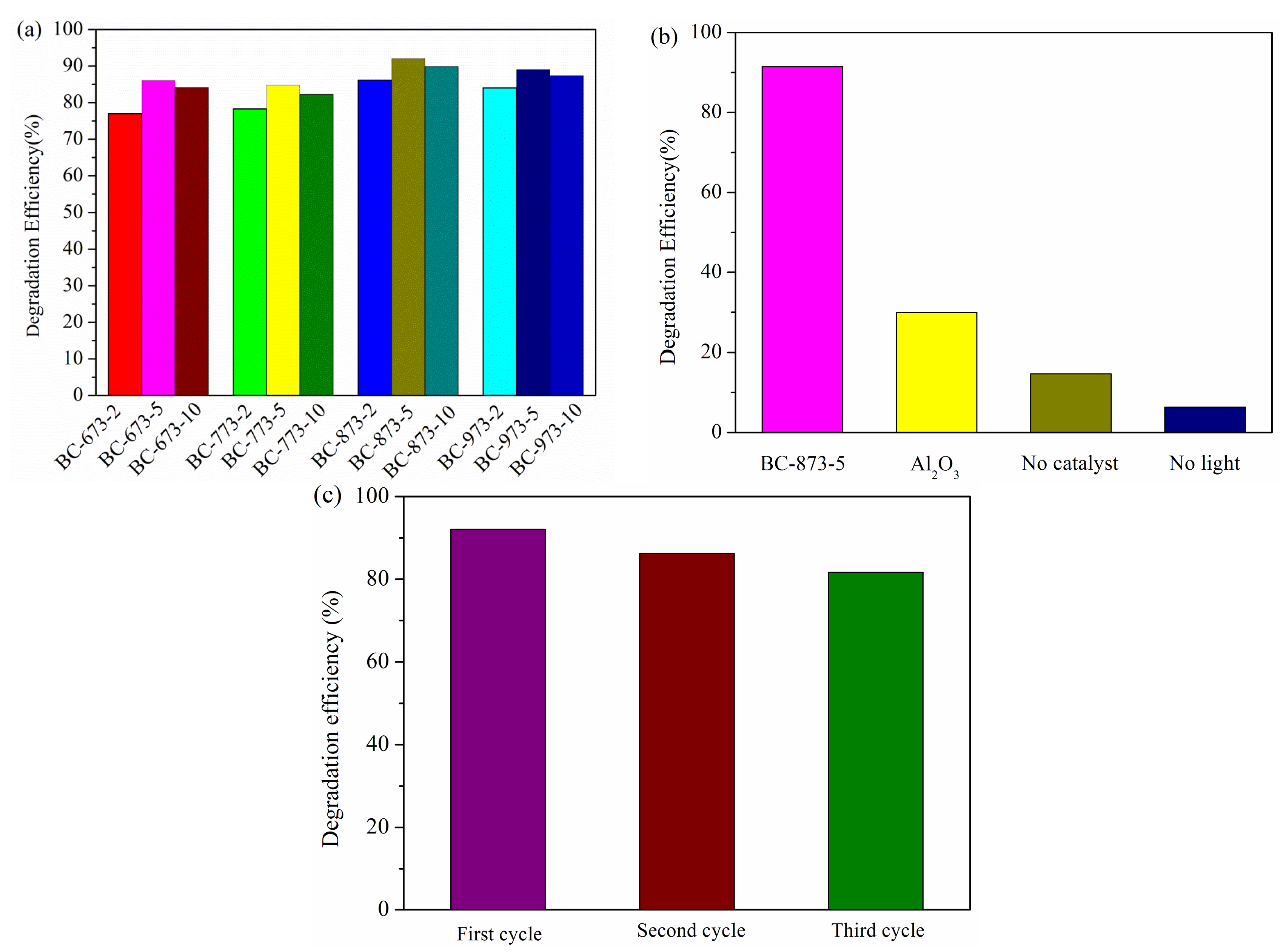

Figure 7. The degradation efficiencies of MG solution over the series of Bi2O3 photocatalyst coatings: (a) after irradiating for 180 min; (b) control experiment results; and (c) the reusability of BC-873-5.
