Next Article in Journal
IPN Polysiloxane-Epoxy Resin for High Temperature Coatings: Structure Effects on Layer Performance after 450 °C Treatment
Next Article in Special Issue
CuO and CuO/Graphene Nanostructured Thin Films as Counter Electrodes for Pt-Free Dye-Sensitized Solar Cells
Previous Article in Journal
Flexible Thermoelectric Composite Films of Polypyrrole Nanotubes Coated Paper
Article Menu
Issue 12 (December) cover image

Export Article

Open AccessArticle

In-Situ Growth and Characterization of Indium Tin Oxide Nanocrystal Rods

School of Material Science and Engineering, Qilu University of Technology, Jinan 250353, China
State Key Laboratory of Crystal Materials, Shandong University, Jinan 250100, China
Authors to whom correspondence should be addressed.
Academic Editors: Pietro Mandracci and Paola Rivolo
Coatings 2017, 7(12), 212;
Received: 31 October 2017 / Revised: 16 November 2017 / Accepted: 22 November 2017 / Published: 25 November 2017
(This article belongs to the Special Issue Functional Oxide and Oxynitride Coatings)
PDF [2683 KB, uploaded 25 November 2017]

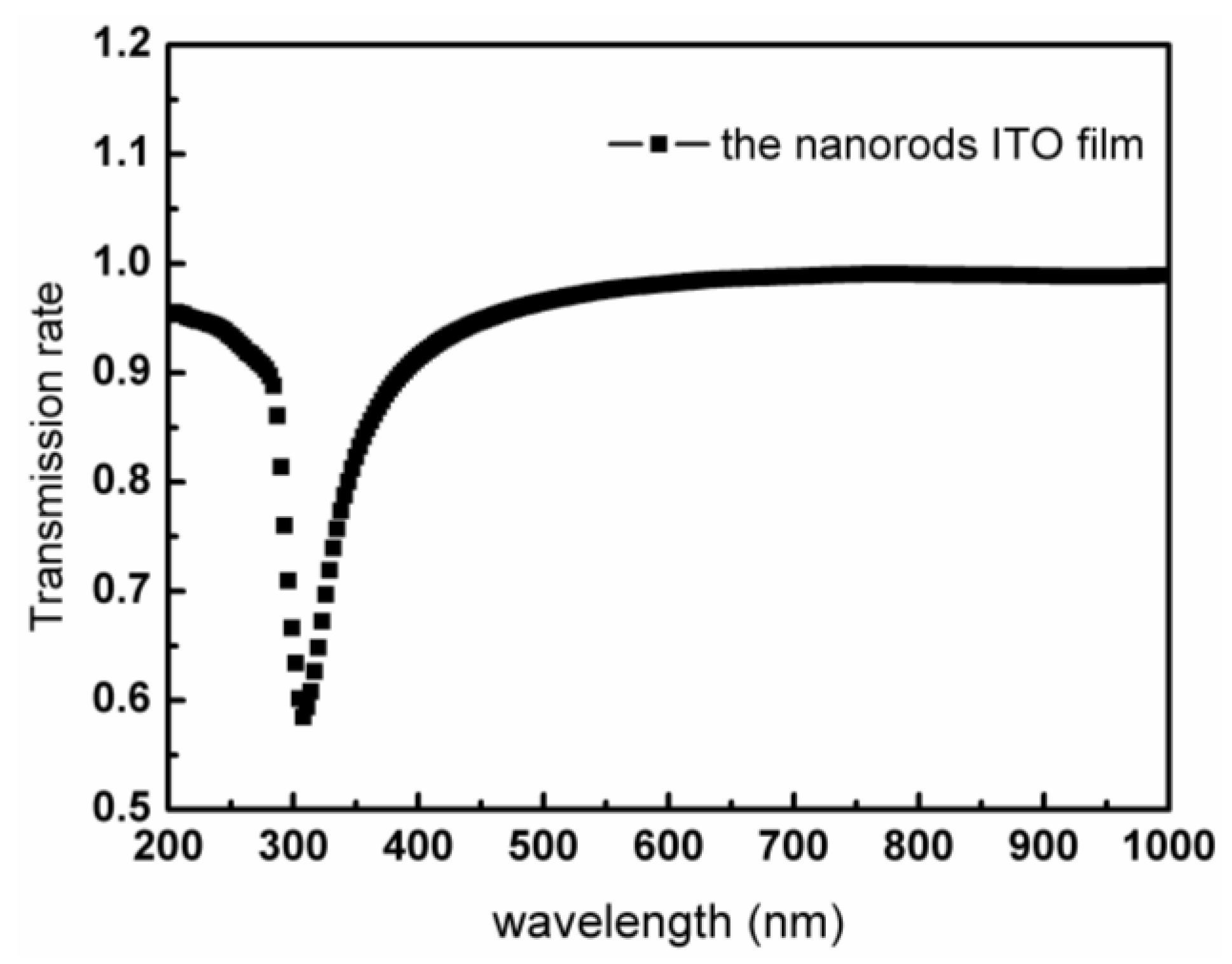

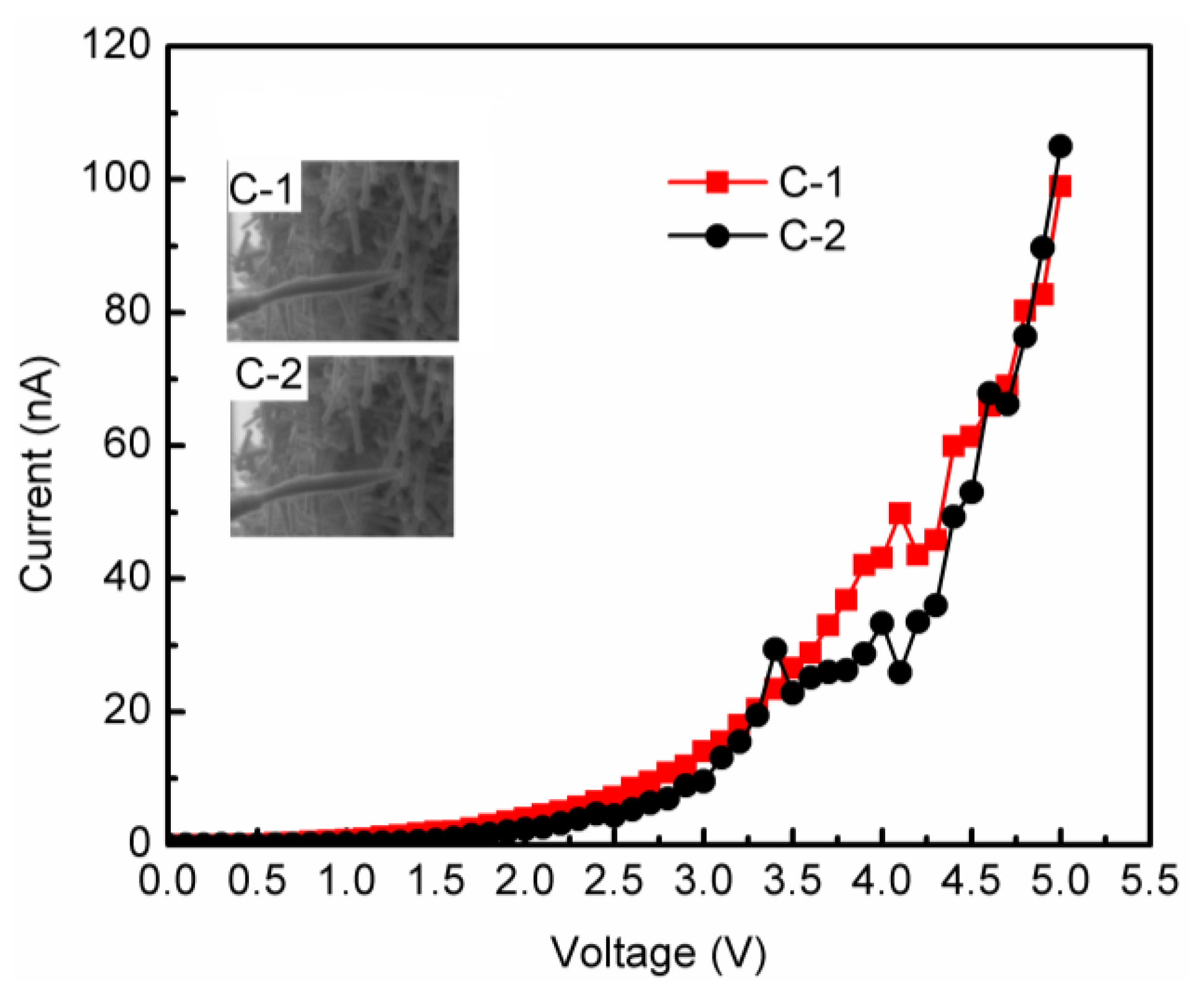

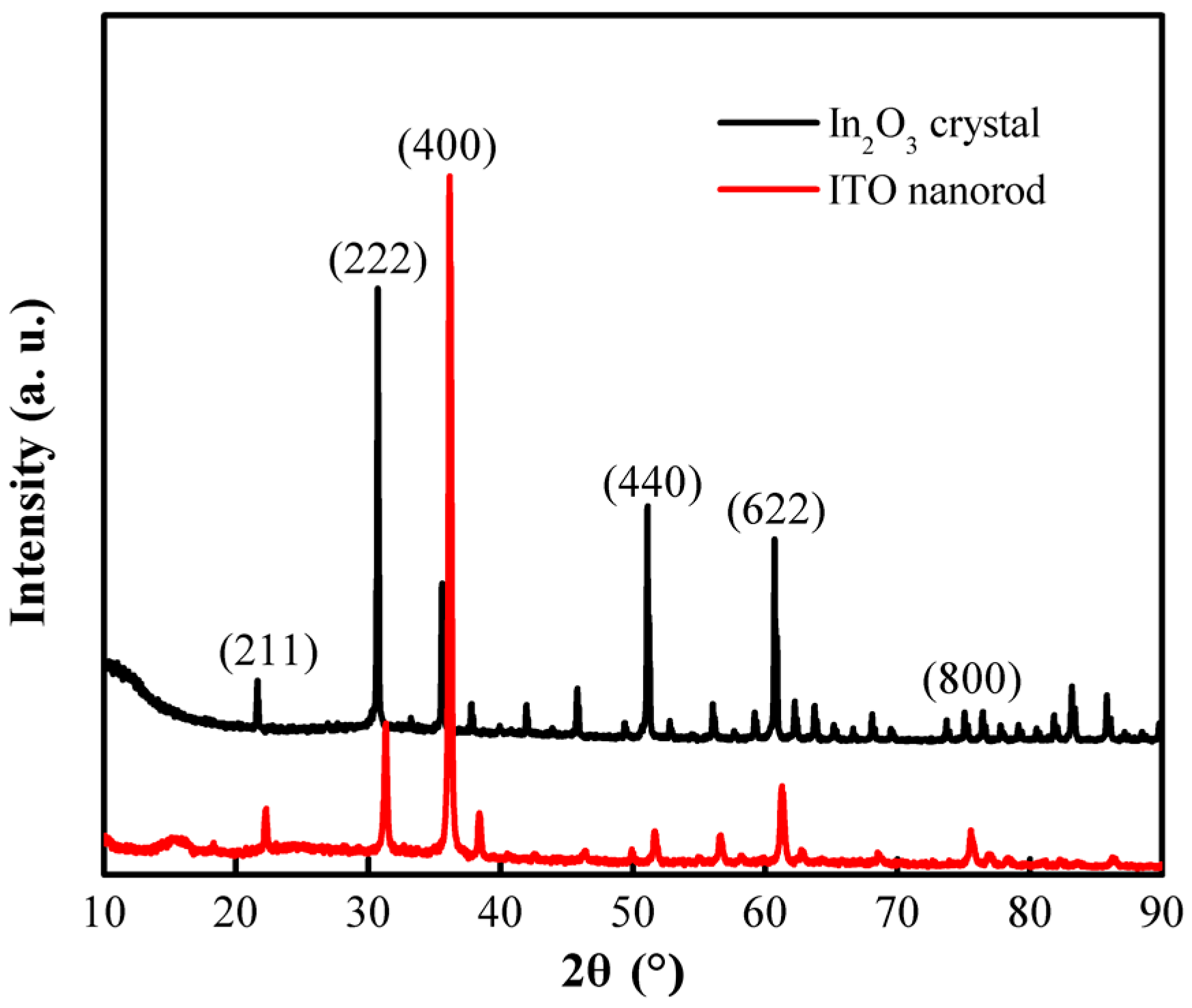

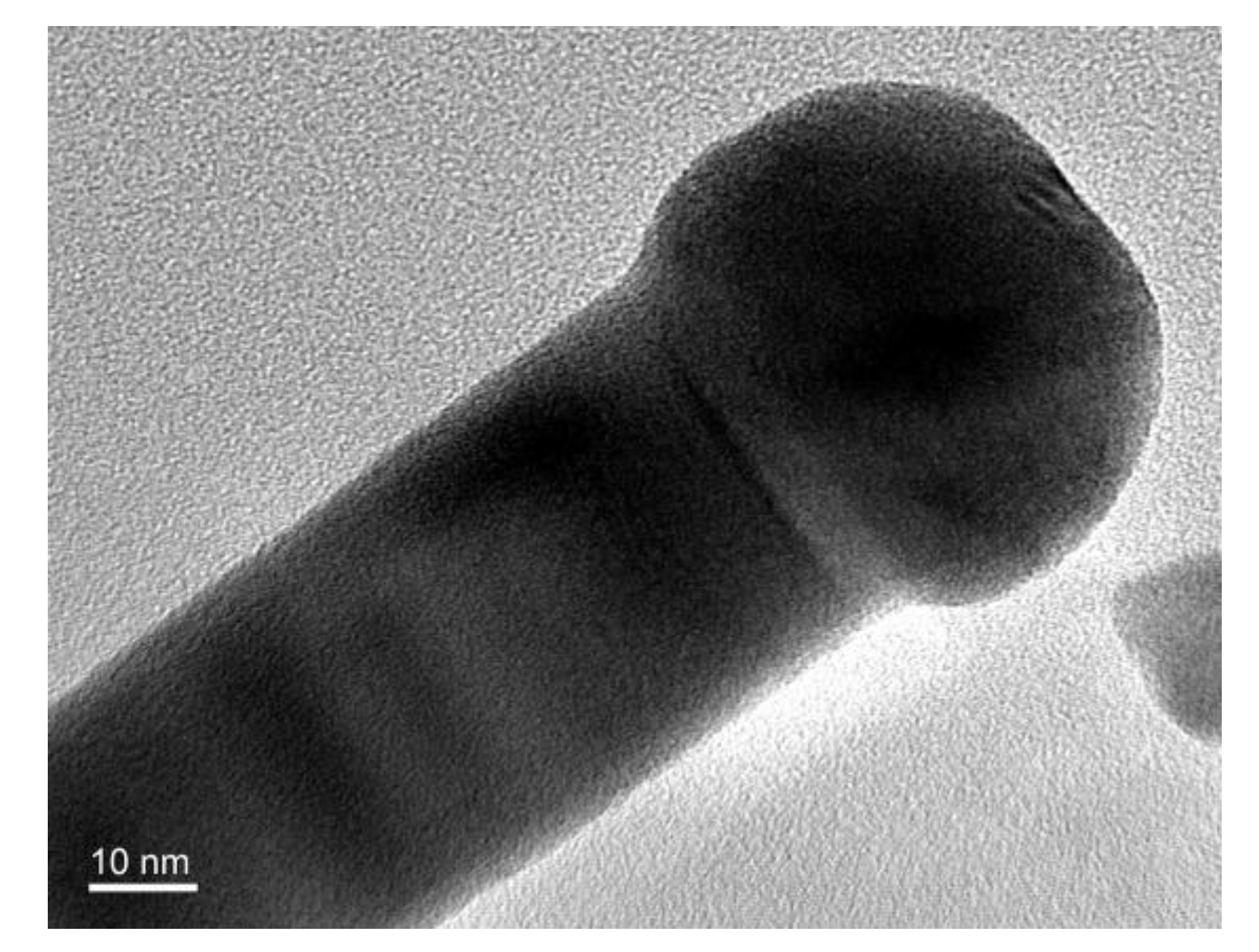

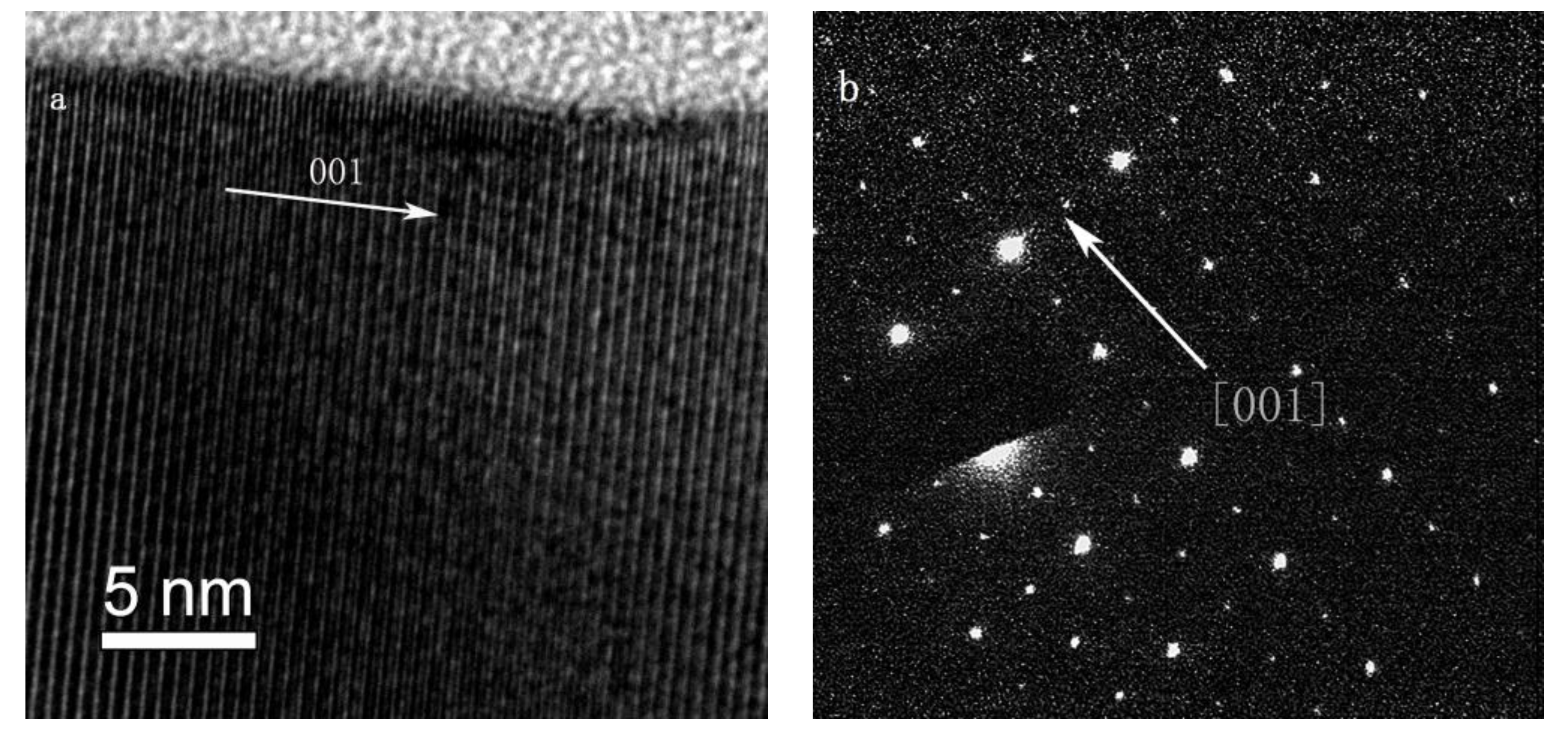

Indium tin oxide (ITO) nanocrystal rods were synthesized in-situ by a vapor-liquid-solid (VLS) method and electron beam evaporation technique. When the electron-beam gun bombarded indium oxide (In2O3) and tin oxide (SnO2) mixed sources, indium and tin droplets appeared and acted as catalysts. The nanocrystal rods were in-situ grown on the basis of the metal catalyst point. The nanorods have a single crystal structure. Its structure was confirmed by X-ray diffraction (XRD) and transmission electron microscopy (TEM). The surface morphology was analyzed by scanning electron microscopy (SEM). During the evaporation, a chemical process was happened and an In2O3 and SnO2 solid solution was formed. The percentage of doped tin oxide was calculated by Vegard’s law to be 3.18%, which was in agreement with the mixture ratio of the experimental data. The single crystal rod had good semiconductor switch property and its threshold voltage of single rod was approximately 2.5 V which can be used as a micro switch device. The transmission rate of crystalline nanorods ITO film was over 90% in visible band and it was up to 95% in the blue green band as a result of the oxygen vacancy recombination luminescence. View Full-Text
Keywords: indium tin oxide; in-situ growth; Vegard’s law; solid solution indium tin oxide; in-situ growth; Vegard’s law; solid solution

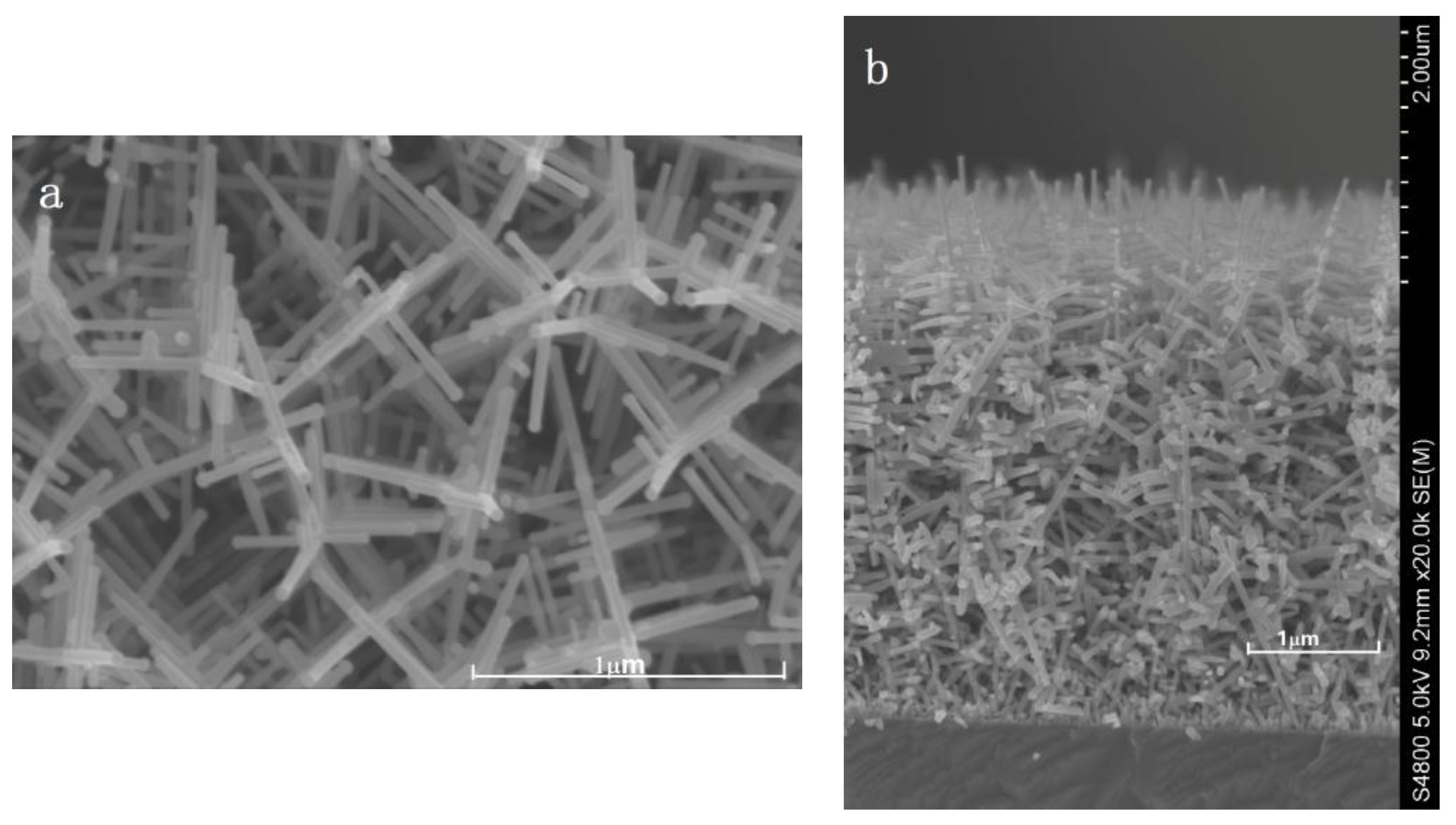

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Shen, Y.; Lou, Y.; Wang, Z.; Xu, X. In-Situ Growth and Characterization of Indium Tin Oxide Nanocrystal Rods. Coatings 2017, 7, 212.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
