A Method for Preparing Electrically Conductive SiC Ceramics Through Hot-Press Sintering Followed by Nitrogen Pressure Heat Treatment

1
School of Materials Sciences and Engineering, Shanghai University, Shanghai 200444, China
2
Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 201899, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Coatings 2025, 15(6), 618; https://doi.org/10.3390/coatings15060618
Submission received: 15 April 2025 / Revised: 16 May 2025 / Accepted: 20 May 2025 / Published: 22 May 2025

Abstract

:
This paper demonstrates a novel method for preparing electrically conductive silicon carbide (SiC) ceramics by combining hot-press sintering and nitrogen pressure heat treatment. By incorporating graphite and AlN-Y2O3 sintering additives, conductive SiC ceramics with intergranular regions containing Y, C, and O elements were fabricated via low-temperature hot-pressing in a hot-press furnace. Following this, the samples were subjected to heat treatment in nitrogen atmosphere at varying temperatures using a gas pressure sintering furnace. It is revealed that Y and N elements were successfully dissolved into SiC grains, enhancing electrical conductivity. Additionally, localized nitridation occurred, and the Y2Si4CN6 phase—a newly identified phase in nitrided regions—was discovered for the first time, potentially contributing to reduced resistivity. After heat treatment, the sample resistivity decreased significantly from an initial 3.1 × 10−1 Ω·cm to the minimum of 7.56 × 10−3 Ω·cm.

1. Introduction

Silicon carbide (SiC) ceramics, as high-performance inorganic non-metallic materials, have attracted significant attention due to their excellent mechanical properties, thermal stability [1], and chemical inertness [2]. They have been extensively applied in both traditional and emerging energy sectors [3] and the automotive coatings industry [4]. However, with the continuous expansion of the international semiconductor market in recent years, the demand for materials that can be processed into various SiC electronic devices via electrical discharge machining (EDM) has also increased, bringing conductive SiC ceramics into the spotlight [5]. In recent years, we have seen a gradual increase in reports on novel applications of SiC-based devices in sensors [6] and thermoelectric converters [7]. The widespread adoption of chemical vapor deposition SiC (CVD-SiC) in semiconductor manufacturing—particularly for plasma etching chambers, ion implantation fixtures, and electrostatic dissipation components—stems from its precise electrical resistivity control. However, the prohibitive production costs associated with CVD-SiC (estimated to be 3–5 times higher than conventional methods) have driven substantial research efforts to develop cost-effective alternatives [8]. Recent studies suggest that hot-pressed SiC (HP-SiC), with optimized dopant concentrations during sintering, demonstrates a comparable electrical performance at significantly reduced fabrication expenses [8]. Kim reported on the factors affecting liquid-phase-sintered silicon carbide (LPS-SiC) and successfully prepared conductive SiC ceramics using hot-press sintering, achieving a resistivity ranging between 3.5 × 10−3 and 3 × 1013 Ω·cm [9]. Qing-Qing Shao, Ting-Ting Zhao et al. reported the observation of stacking faults and core–rim structures in silicon carbide (SiC), which affect the material’s properties [10,11]. Kim et al. also discovered through EDS analysis that by introducing N into SiC grains or adding a conductive secondary phase, SiC powders with resistivity in the range of 1000–100 Ω·cm can be sintered to form ceramics with resistivity reduced to 0.1–0.001 Ω·cm. The electrical conductivity of SiC ceramics has been significantly enhanced [12,13,14].
However, due to the large energy bandgap of SiC (for example, the energy bandgaps of the 3C, 6H, and 4H polytypes are 2.4 eV, 3.0 eV, and 3.3 eV, respectively, at room temperature), the intrinsic resistivity of SiC is relatively high compared to that of single-crystal or polycrystalline silicon [15]. Additionally, introducing nitrogen (N) atoms into SiC to substitute for carbon (C) atoms in order to reduce its resistivity is challenging due to the low diffusivity of N atoms in SiC [16].
Among the multiple examples of successfully achieving nitrogen doping to produce conductive SiC ceramics, using yttrium nitrate tetrahydrate Y(NO3)3·4H2O as a sintering additive during hot-press sintering effectively reduced the electrical resistivity of the resulting 3C-SiC ceramics to 10−3 Ω·cm at room temperature [17]. This finding, along with the results from electron probe microanalysis (EPMA), suggests that the YN-sintered SiC samples achieved effective N doping. The nitrogen atoms substitute for carbon sites in the 3C-SiC lattice (zinc blende structure), thereby creating donor levels near the conduction band [18]. This substitution facilitates easier electron transitions, consequently reducing the resistivity. In the previously mentioned YN-sintered SiC samples, the Y2O3 phase present at the grain boundaries transforms into an amorphous Y-Si oxycarbonitride glass phase during hot-press sintering conducted in nitrogen atmosphere. This transformation is achieved through a dissolution and reprecipitation mechanism, which aids in the densification of SiC [9]. At the same time, under the effects of temperature and pressure, some nitrogen atoms migrate from the grain boundaries into the SiC grains with the assistance of yttrium. This incorporation of nitrogen into the SiC lattice achieves effective YN doping, leading to a reduction in the resistivity of the SiC samples.
However, the above reports did not investigate from a more microscopic perspective regarding how much of the Y and N elements entered into the SiC grains, how they were distributed within the grains, or whether the phase formed at the grain boundaries was indeed a glassy phase.
In this study, compared to conventional sintering methods, the strategy of YN doping to improve the electrical conductivity of SiC was adopted for innovative low-temperature secondary heat treatment, which effectively reduced their resistivity. To better facilitate nitrogen’s entry from the grain boundaries into the SiC lattice for substituting carbon atoms and to retain more of the 3C-SiC structure, SiC samples doped with Y2O3 and graphite were fabricated via low-temperature hot-press sintering. Subsequently, these samples underwent a secondary nitriding treatment at different temperatures. Following the treatment, scanning electron microscopy (SEM) and transmission electron microscopy (TEM), coupled with analytical techniques, revealed the distribution of Y and N elements within the SiC grains and nitridation regions, further elucidating their compositional content and phase constitution.

2. Experimental Procedure

In order to prepare SiC containing graphite and trace amounts of Al, N and Y, micron-sized β-SiC (Xi’an BOERNM New Materials Co., Ltd., Xi’an, China, average particle size 0.5 µm), nano-sized β-SiC (Xi’an BOERNM New Materials Co., Ltd., Xi’an, China, average particle size 50 nm), graphite (Beijing Yinuokai Chemical Co., Ltd., Beijing, China, purity ≥ 99.999%), AlN (Beijing Yinuokai Chemical Co., Ltd., Beijing, China, N ≥ 32%), and Y2O3 (Shanghai Diyang Chemical Co., Ltd., Shanghai, China, purity ≥ 99.999%) were prepared. They were mixed in a weight ratio of 90:8:1:0.5:0.5 (0.5 µmSiC:50 nmSiC:graphite:AlN:Y2O3). The mixture was treated by high-speed ball milling in ethanol for 12 h in a polypropylene jar using SiC media. The incorporation of a small amount of nanoscale SiC powder enhances the milling activity during ball milling, promoting a more uniform dispersion of the SiC powder matrix. The addition of AlN was intended to fully utilize the mechanism of liquid-phase sintering [12], enabling SiC to achieve maximum densification at a lower temperature, while the incorporation of small amounts of AlN and Y2O3 aimed to fabricate SiC ceramics with high purity and density, minimizing the increase in electrical resistivity [19]. The incorporation of graphite facilitates subsequent nitrogen substitution for carbon during secondary processing, enabling the introduction of more nitrogen atoms from grain boundaries into the SiC grains. The mixture was dried, sieved three times (60 mesh), and then uniaxially pressed at 15 MPa. The compact was then heat-treated at 1450 °C for 30 min, followed by hot-pressing under nitrogen atmosphere at 40 MPa for 2 h at 1850 °C to obtain the SAN-C sample.
SAN-C ceramics were further heat-treated in 3 MPa nitrogen atmosphere under 1500 °C, 1650 °C, and 1800 °C for 3 h, respectively, followed by rapid cooling to 950 °C, to prevent nitrogen loss during high-temperature processing. The heat-treated samples are labeled 1500SAN, 1650SAN, and 1800SAN.
The relative densities of the four samples were measured using the Archimedes method, with mercury as the immersion medium. This approach relies on buoyancy principles, where each sample is first weighed in air and then submerged in mercury to determine its apparent mass loss due to displacement. Density was calculated using the following formula:
D e n s i t y = M a s s   i n   a i r M a s s   i n   a i r M a s s   i n   m e r c u r y × D e n s i t y   o f   m e r c u r y ( 13.6   g cm 3 )
Relative density is defined as the measured density divided by the theoretical density of the SiC sample (3.21 g/cm3). The calculation is as follows:
R e l a t i v e   d e n s i t y = D e n s i t y D e n s i t y   o f   S i C ( 3.21   g / cm 3 ) × 100 %
Phase identification and crystal structure analysis were performed using an X-ray powder diffractometer (SmartLab II, Rigaku, Tokyo, Japan) using Cu-Kα1 radiation (λ = 0.154056 nm), and high-resolution diffraction spectra were collected in the range of 20° < 2θ < 80°. The microstructure and morphology of the four samples were observed using SEM (model Gemini 300, Carl Zeiss, Oberkochen, Germany). An elemental analysis of the SAN-C and 1650SAN samples was conducted using EDS (model X-Max, Oxford Instrument, Oxfordshire, UK) at a voltage of 10 kV.
For the measurement of direct current resistivity, the standard four-point probe method was used. The sample dimensions were 10 mm × 3 mm × 3 mm in block form, and a bias current of 1 mA was applied for the measurement. The resistivity of the sample was calculated based on the measured voltage under the bias current. Hall effect measurements were conducted at room temperature using the Van der Pauw technique to determine the carrier mobility of the sample.

3. Result and Discussion

Through hot-pressing treatment at 1850 °C with 40 MPa pressure applied for 2 h, the relative density exceeded 93% (measured relative to the theoretical density of SiC (3.21 g/cm3)). Specifically, the relative densities of the samples were 93.2% for SAN-C, 98.1% for 1500SAN, 99.2% for 1650SAN, and 99.7% for 1800SAN. The addition of AlN and Y2O3 is beneficial for achieving the densification of SiC via liquid-phase sintering. In the SAN-C sample, the combination of AlN-Y2O3 additives with graphite enabled densification at lower temperatures [19].
As shown in Figure 1, SAN-C primarily consists of equiaxed grains with a small fraction of elongated grains, with overall grain sizes ranging from 2 to 4 μm. This indicates the minimal phase transformation of SiC during hot-pressing and limited grain growth due to the relatively low sintering temperature. Some grains exhibit a core–rim structure, likely caused by compositional variations in Al or N within the SiC lattice [20]. EDS analysis reveals that Y2O3 and C predominantly segregate at grain boundaries, forming intergranular secondary phases. The successful incorporation of graphite into the grain boundaries not only enhances the overall electrical conductivity but also facilitates N substitution for C during heat treatment, promoting nitrogen solubility in SiC grains during growth [19]. Yttrium accumulates at intergranular regions, forming Y-Al-Si amorphous glass phases or remaining as Y2O3, which contributes to densification.
As shown in Figure 2, the elemental composition distribution within SiC grains is highly uniform. Combined with the quantitative elemental analysis results of SiC grains in the SAN-C sample listed in Table 1, the low self-diffusion coefficient of nitrogen (N) prevented its incorporation into the SiC grains under the applied sintering conditions. Only trace amounts of Al were dissolved into the SiC grains, leading to the observed core-rim structure. The minimal Al incorporation does not significantly reduce the overall electrical conductivity of the sample. Additionally, the SAN-C sample—characterized by a high proportion of 3C-SiC and high SiC purity—is highly suitable for secondary growth via nitrogen pressure heat treatment.
As shown in Figure 3, the morphology of the samples undergoes significant changes after heat treatment at 1500 °C, 1650 °C, and 1800 °C. BSD (Backscattered Electron Diffraction) analysis reveals that the 1500SAN sample retains equiaxed grains dominated by 3C-SiC, indicating that most of the β-SiC did not undergo a β→α phase transformation under nitrogen pressure. However, compared to the SAN-C sample, the grain size of 1500SAN decreases, with nitrogen-rich regions forming at grain boundaries. These regions contain precipitated Y2O3 crystals and residual non-nitrided graphite.
As the temperature increases, the nitrogen-rich regions expand, and SiC grain sizes further decrease. XRD analysis (Figure 4) confirms the formation of secondary phases in 1650SAN and 1800SAN samples after gas pressure sintering. This is attributed to enhanced nitrogen diffusion and phase segregation at higher temperatures, consistent with the dissolution–reprecipitation mechanism during liquid-phase sintering.
As shown in Figure 5, an EDS analysis of the 1650SAN sample reveals the enrichment of both N and Y in the nitrogen-rich regions, indicating the potential presence of the Y2Si4CN6 crystalline phase in these areas. Figure 6 further demonstrates compositional variations within some SiC grains, which manifest as contrast differences in backscattered electron (BSE) signals. By correlating SEM images with EDS line scans, quantitative elemental analysis confirms that Y/N content in bright-contrast areas is much higher than in dark-contrast areas. This suggests that Y/N doping into the SiC lattice under nitrogen pressure enhances the electrical conductivity of the sample.
An XRD analysis of the 1650SAN sample revealed additional diffraction peaks beyond those of 3C-SiC and 6H-SiC, consistent with the Y2Si4CN6 phase. A TEM diffraction pattern analysis (Figure 7) of the nitrogen-rich regions in 1650SAN confirmed the presence of monoclinic Y2Si4CN6 (space group: P21/c) through indexing from three crystallographic orientations. Combined with EDS quantitative analysis (Table 2), the nitrogen-rich regions and contrast variations in SiC grains indicate the formation of YN-doped SiC alongside the Y2Si4CN6 second phase. In contrast, the 1500SAN sample lacked distinct peaks for this phase, while the 1800SAN sample confirmed its presence via morphology, EDS, and XRD analyses. Current research on Y2Si4CN6 is limited, and computational studies indicate that the theoretical band gap of Y2Si4CN6 (3.1 eV) is lower than that of SiC (3.4 eV) [21]. In addition, under constant nitrogen pressure, the increasing Y2Si4CN6 content with higher annealing temperatures correlates with reduced resistivity (from 2.11 × 101 Ω·cm to 7.56 × 10−3 Ω·cm) and increased carrier mobility (from 1.3 cm2/(V·s) to 3.1 cm2/(V·s), Figure 8, Table 3). In Y2Si4CN6, nitrogen exists as a substitutional impurity in the -3-oxidation state, and its energy level functions as a donor level, providing electrons to participate in electrical conduction. This suggests that Y2Si4CN6 may replace the non-conductive amorphous phase in the crystal boundary and act as a donor center or form conductive pathways to improve SiC’s electrical conductivity.
Yeongjun Oh et al. [22] recently fabricated graphite-doped conductive SiC under pressureless conditions and observed that increased graphite doping led to the formation of a conductive network between grains, progressively reducing electrical resistivity. In this study, post-heat-treated samples exhibited a lower Si/C ratio (Table 2) within grains compared to pre-treatment samples, indicating enhanced carbon incorporation into SiC grains. This further improves grain conductivity and overall sample conductivity.
While Kim et al. [15] incorporated nitrogen into SiC through hot-pressing sintering with nitrogen-containing sintering aids and introduced nitrogen-enriched secondary phases to enhance conductivity, this study employed a secondary gas pressure treatment to introduce nitrogen elements and nitrogen-containing secondary phases. The designed samples also exhibited excellent electrical conductivity and relative density, and with the increase in the relative density of the heat-treated samples, the electrical conductivity was continuously enhanced (Table 3).

4. Conclusions

Electrically conductive SiC samples were prepared via hot-pressing in a nitrogen atmosphere with minor additions of AlN and Y2O3 and a controlled amount of graphite. Subsequent nitrogen pressure heat treatment using a gas pressure sintering furnace at varying temperatures, combined with rapid cooling after high-pressure annealing, further enhanced conductivity, achieving a maximum electrical resistivity of 7.56 × 10−3 Ω·cm. The characterization of the 1650 °C-treated sample revealed N and Y co-doping in some SiC grains, introducing donor levels that significantly promoted electron transitions and enhanced electrically conductivity. TEM diffraction patterns and XRD peak analysis confirmed the formation of Y2Si4CN6 (monoclinic phase) in nitrogen-rich regions during heat treatment, which likely contributed to the improved electrical performance.
Compared to conventional sintering methods, this work employed a novel low-temperature rapid processing approach to fabricate highly conductive SiC ceramics. Future efforts could focus on further simplifying the fabrication process and deeply investigating the formation mechanism of Y2Si4CN6 and its impact on the electrical, thermal, and mechanical properties of SiC.

Author Contributions

Conceptualization, Y.S. and J.X.; Methodology, Y.S.; Formal analysis, X.W.; Investigation, Y.S.; Data curation, X.W.; Writing—original draft, Y.S.; Writing—review & editing, J.X.; Visualization, J.X.; Supervision, X.W.; Project administration, X.W.; Funding acquisition, J.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key R&D Program of China (2022YFB3707700). The author would like to thank Zhaoquan Zhang for their beneficial discussion.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hanzel, O.; Tatarková, M.; Netriová, Z.; Šajgalík, P. Effect of phase composition on thermal and electrical conductivity of additive-free silicon carbide ceramics. J. Eur. Ceram. Soc. 2025, 45, 117077. [Google Scholar] [CrossRef]
  2. Chung, Y.; Yoshida, K. Effect of sintering atmosphere on the electrical properties of aluminum and boron-added porous silicon carbide ceramics. Ceram. Int. 2025, 51, 6740–6747. [Google Scholar] [CrossRef]
  3. Wang, X.; Zhu, L.; You, Y.; Zhang, Z. The Influence of Tri-Structural Isotropic Fuel on the Microstructure and Thermal Conductivity of SiC Tri-Structural Isotropic Composite Fuels. Energies 2025, 18, 1216. [Google Scholar] [CrossRef]
  4. Zhang, F.; Wang, Q.; Shen, H.; Bai, C.; Li, C.; Tian, D.; Wang, B. Effect of SiC Concentration on the Microstructure and Anti-Wear Performance of Electrodeposited Ni-SiC Composite Coatings Constructed for Piston Ring Application. Materials 2025, 18, 1117. [Google Scholar] [CrossRef]
  5. Das, D.; Sosa Lucio, M.D.; Oh, Y.; Kim, Y.-W. Tuning the electrical, thermal, and mechanical properties of porous SiC ceramics using metal carbides. J. Eur. Ceram. Soc. 2024, 44, 3020–3030. [Google Scholar] [CrossRef]
  6. Deucher, T.M.; Okojie, R.S. Temperature Effects on Electrical Resistivity of Selected Ceramics for High-Temperature Packaging Applications. J. Am. Ceram. Soc. 2025, 107, 2295–2303. [Google Scholar] [CrossRef]
  7. Anwar, M.S.; Bukhari, S.Z.A.; Ha, J.-H.; Lee, J.; Song, I.-H.; Kim, Y.-W. Controlling the electrical resistivity of porous silicon carbide ceramics and their applications: A review. Int. J. Appl. Ceram. Technol. 2025, 19, 1814–1840. [Google Scholar] [CrossRef]
  8. Cho, T.Y.; Kim, Y.W.; Kim, K.J. Thermal, electrical, and mechanical properties of pressureless sintered silicon carbide ceramics with yttria-scandiaaluminum nitride. J. Eur. Ceram. Soc. 2016, 36, 2659–2665. [Google Scholar] [CrossRef]
  9. Kim, Y.W.; Kim, Y.H.; Kim, K.J. Electrical properties of liquid-phase sintered silicon carbide ceramics: A review. Crit. Rev. Solid. State Mater. Sci. 2019, 45, 66–84. [Google Scholar] [CrossRef]
  10. Shao, Q.-Q.; Gu, H. Transition-layer of core–rim structures and β→α transformation in SiC ceramics. J. Materiomics 2023, 9, 299–309. [Google Scholar] [CrossRef]
  11. Zhao, T.-T.; Gu, H.; Wang, X.-H.; Xing, J.-J.; Zhang, Z.-J.; Zhu, W.-L. Revealing correlation of core—Rim structures, defects and stacking-faults in SiC ceramics by integrated scanning electron microscopy. J. Eur. Ceram. Soc. 2021, 41, 204–212. [Google Scholar] [CrossRef]
  12. Kim, K.J.; Kim, Y.-W.; Lim, K.-Y.; Nishimura, T.; Narimatsu, E. Electrical and thermal properties of SiC–AlN ceramics without sintering additives. J. Eur. Ceram. Soc. 2015, 35, 2715–2721. [Google Scholar] [CrossRef]
  13. Kim, K.J.; Lim, K.-Y.; Kim, Y.-W.; Lee, M.-J.; Seo, W.-S. Electrical resistivity of α-SiC ceramics sintered with Al2O3 or AlN additives. J. Eur. Ceram. Soc. 2014, 34, 1695–1701. [Google Scholar] [CrossRef]
  14. Kim, Y.; Lee, J.Y.; Cho, M.K.; Ahn, J.-P.; Kim, Y.-W. Electrical resistivity at the micron scale in a polycrystalline SiC ceramic. Ceram. Int. 2021, 47, 27100–27106. [Google Scholar] [CrossRef]
  15. Lim, K.-Y.; Kim, Y.-W.; Kim, K.J. Mechanical Properties of Electrically Conductive Silicon Carbide Ceramics. Ceram. Int. 2014, 40, 10577–10582. [Google Scholar] [CrossRef]
  16. Kim, Y.-H.; Kim, Y.-W.; Kim, K.J. Electrically conductive SiC ceramics processed by pressureless sintering. Int. J. Appl. Ceram. Technol. 2019, 16, 843–849. [Google Scholar] [CrossRef]
  17. Kim, K.J.; Lim, K.-Y.; Kim, Y.-W. Electrical and Thermal Properties of Ceramics Sintered with Yttria and Nitrides. J. Am. Ceram. Soc. 2014, 97, 2943–2949. [Google Scholar] [CrossRef]
  18. Dou, Y.-K.; Li, J.-B.; Fang, X.-Y.; Jin, H.-B.; Cao, M.-S. The enhanced polarization relaxation and excellent high-temperature dielectric properties of N-doped SiC. Appl. Phys. Lett. 2014, 104, 052102. [Google Scholar] [CrossRef]
  19. Choyke, W.J.; Pensl, G. Physical Properties of SiC. MRS Bulletin 1997, 22, 25–29. [Google Scholar] [CrossRef]
  20. Huang, R.; Gu, H.; Aldinger, F. Intergranular Oxynitride to Regulate Solution–Reprecipitation Process in Gas–Pressure-Sintered SiC Ceramics with AlN–Y2O3 Additives. Adv. Eng. Mater. 2019, 21, 1800821. [Google Scholar] [CrossRef]
  21. Togo, A. Ab-initio phonon calculation for Y2Si4CN6/P21/c(14)/materials id 6353. NIMS. 2023. Available online: https://cir.nii.ac.jp/crid/1510297681079819904 (accessed on 14 May 2023).
  22. Oh, Y.; Heo, M.; Kim, Y.-W.; Kim, H.-S. Effect of Carbon Content on Electrical, Thermal, and Mechanical Properties of Pressureless Sintered SiC Ceramics. J. Am. Ceram. Soc. 2025, e20562. [Google Scholar] [CrossRef]

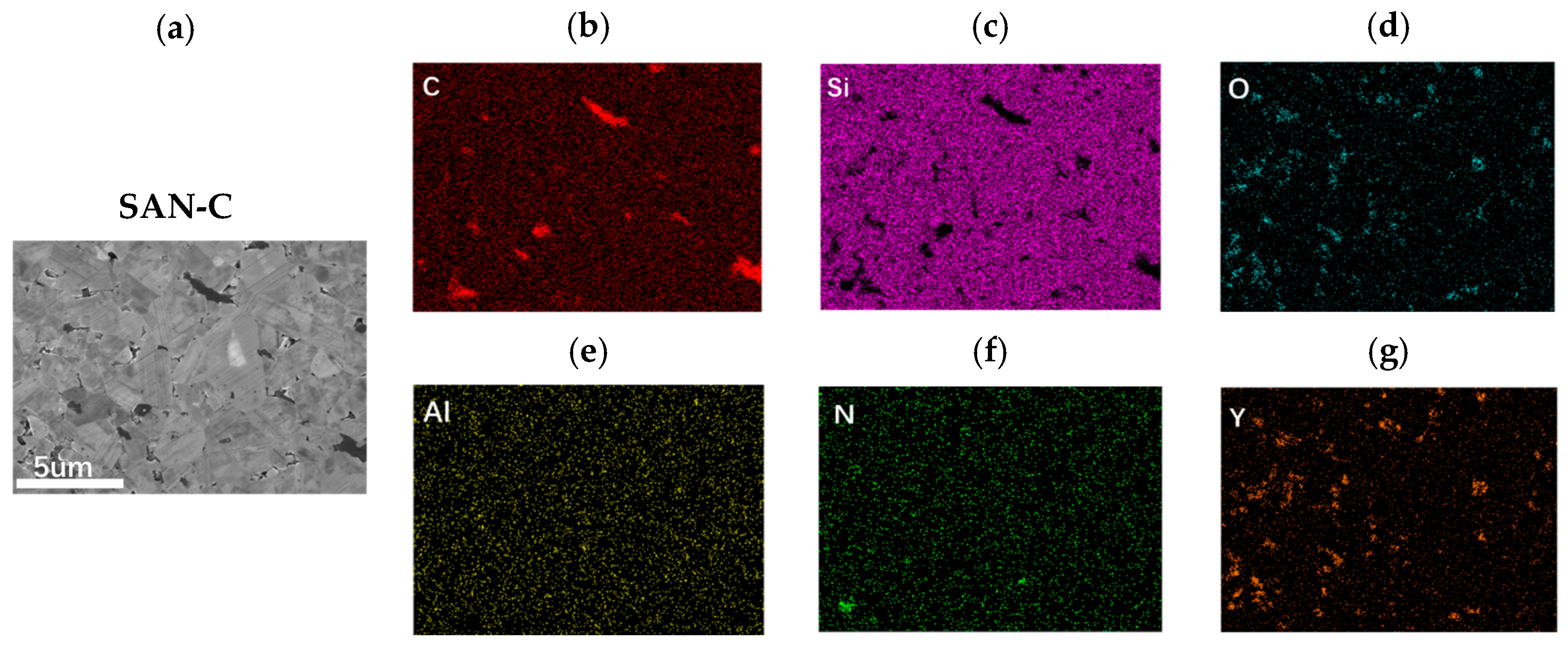

Figure 1. Typical microstructure of SAN-C sample and corresponding EDS mappings: (a) SEM image (SE signal), (b) C, (c) Si, (d) O, (e) Al, (f) N, and (g) Y element.
Figure 1. Typical microstructure of SAN-C sample and corresponding EDS mappings: (a) SEM image (SE signal), (b) C, (c) Si, (d) O, (e) Al, (f) N, and (g) Y element.
Coatings 15 00618 g001

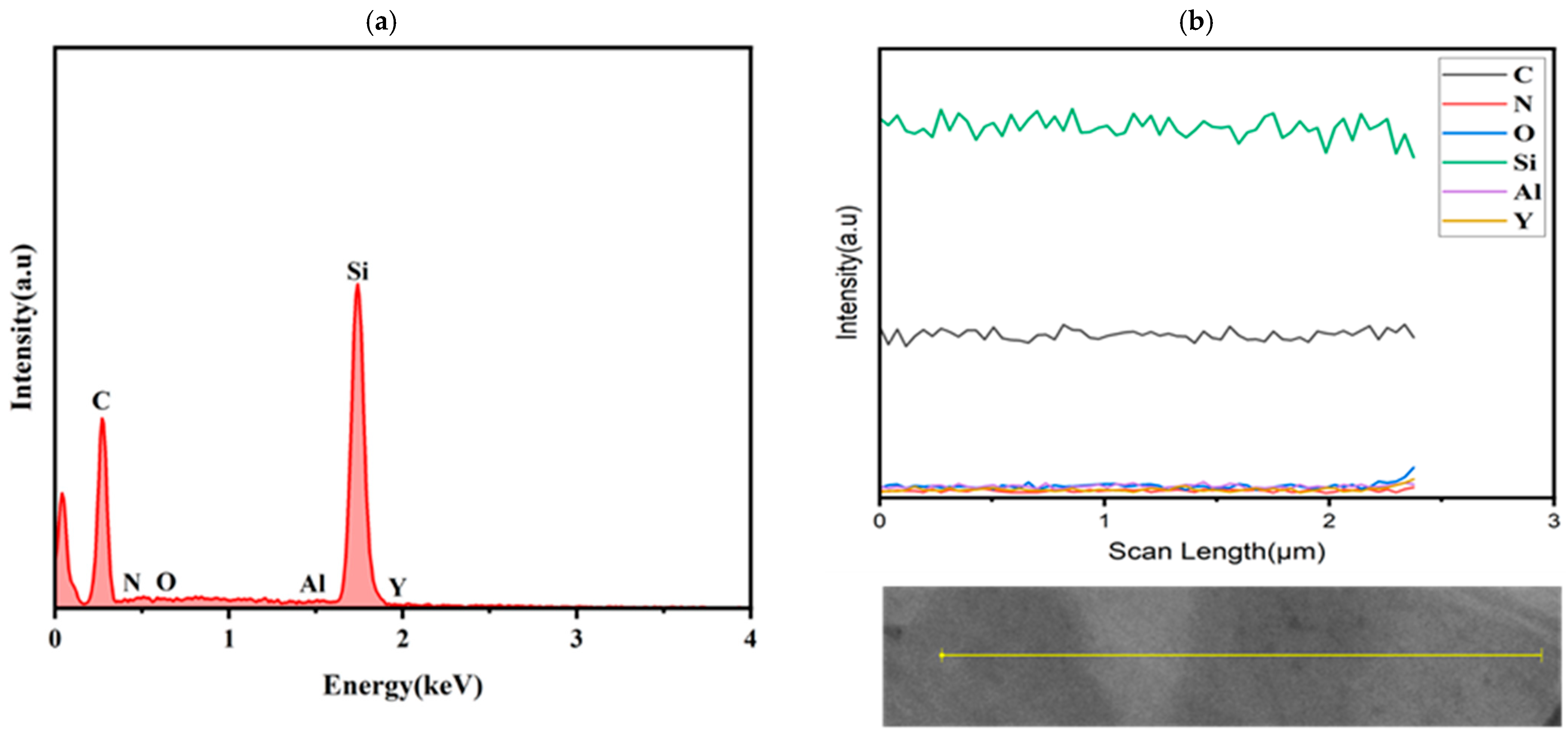

Figure 2. Content and distribution of elements within SiC grains in SAN-C sample: (a) Elemental distribution peaks in SiC grains, (b) variation in elemental distribution within SiC grains.
Figure 2. Content and distribution of elements within SiC grains in SAN-C sample: (a) Elemental distribution peaks in SiC grains, (b) variation in elemental distribution within SiC grains.
Coatings 15 00618 g002

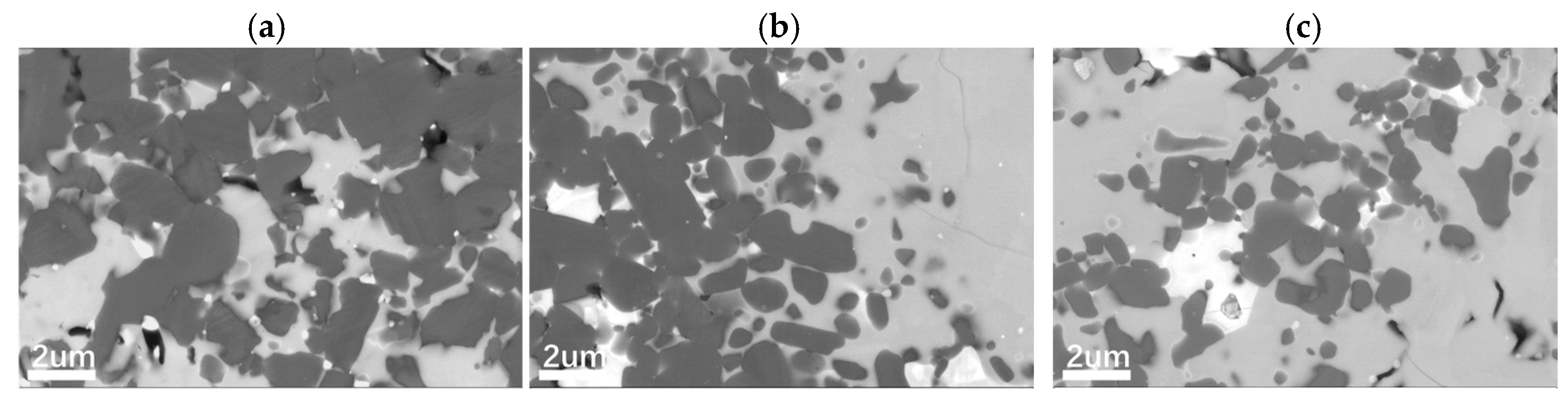

Figure 3. Typical microstructures (BSE signals) formed in the SAN-C samples after heat treatment at different temperatures: (a) 1500SAN, (b) 1650SAN, (c) 1800SAN.
Figure 3. Typical microstructures (BSE signals) formed in the SAN-C samples after heat treatment at different temperatures: (a) 1500SAN, (b) 1650SAN, (c) 1800SAN.
Coatings 15 00618 g003

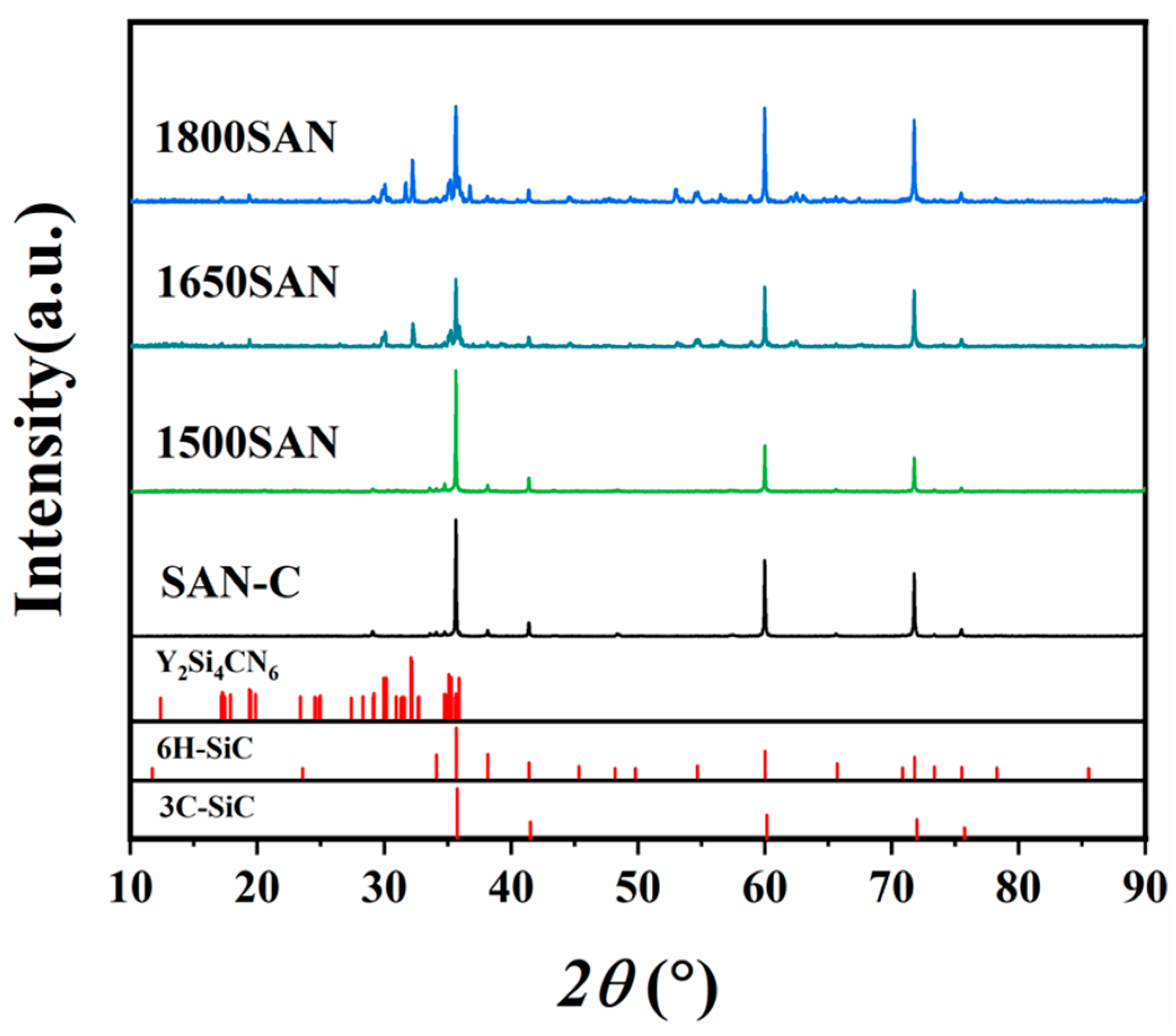

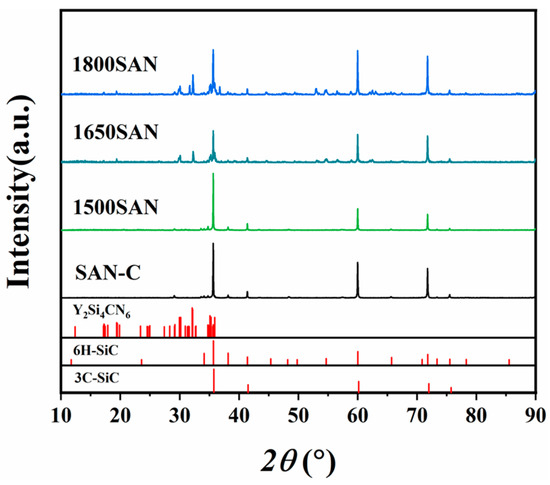

Figure 4. XRD patterns of SiC ceramics.
Figure 4. XRD patterns of SiC ceramics.
Coatings 15 00618 g004

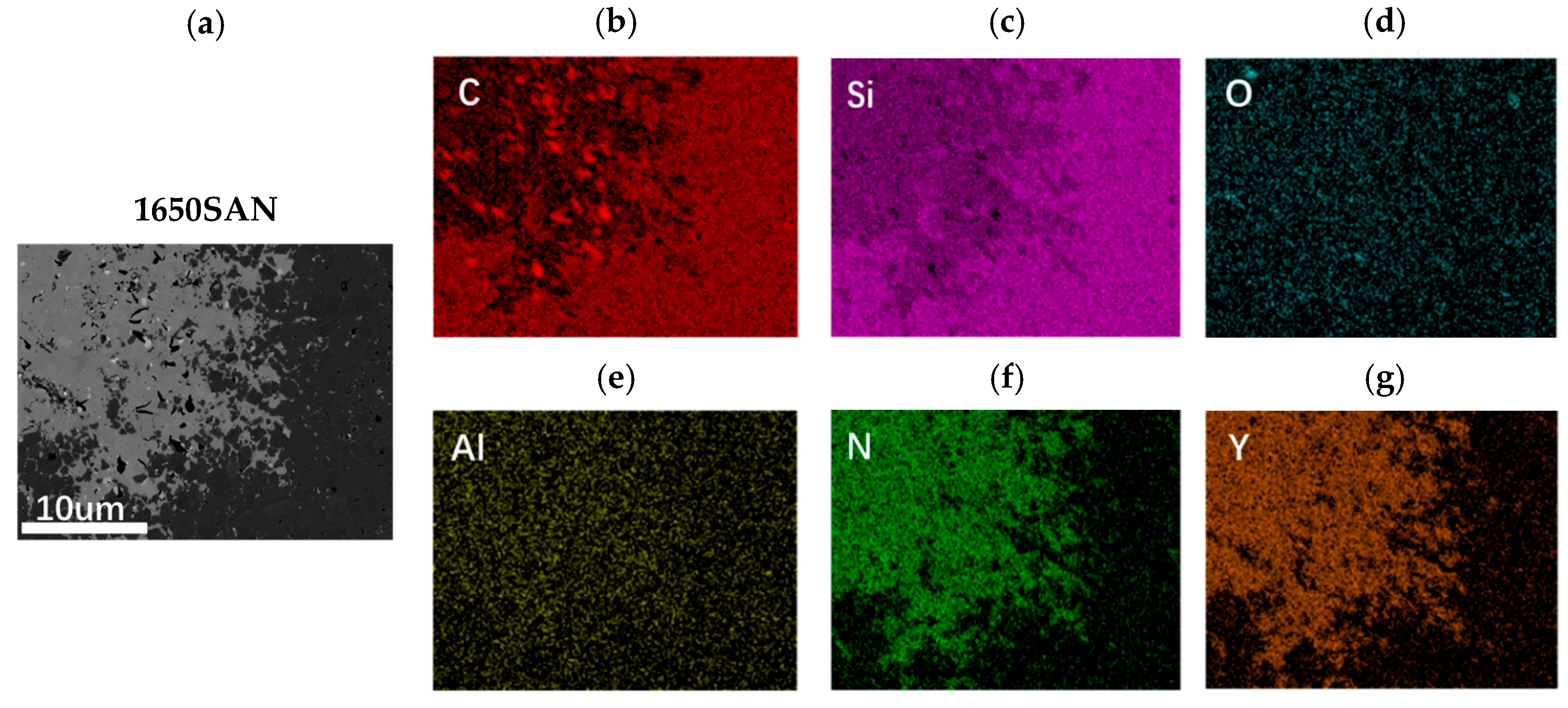

Figure 5. Typical microstructure of 1650 °C-heat treatment SiC sample and its EDS mapping: (a) SEM image (BSE signal), (b) C, (c) Si, (d) O, (e) Al, (f) N, and (g) Y element.
Figure 5. Typical microstructure of 1650 °C-heat treatment SiC sample and its EDS mapping: (a) SEM image (BSE signal), (b) C, (c) Si, (d) O, (e) Al, (f) N, and (g) Y element.
Coatings 15 00618 g005

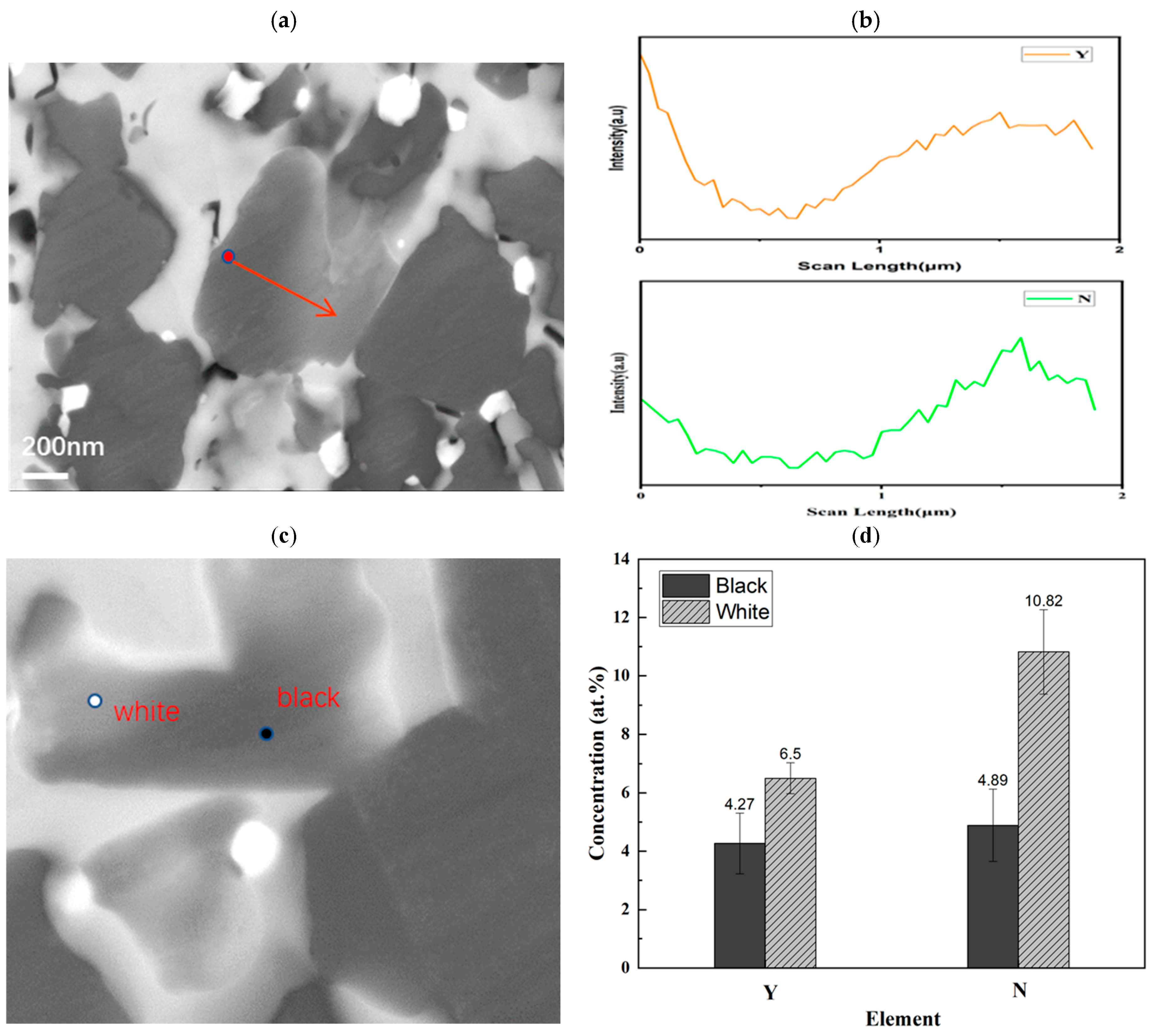

Figure 6. In the 1650SAN sample, the solid solution degree of Y and N elements in different contrast regions of silicon carbide grains: (a) the line-scanning image (BSE), (b) EDS line of Y and N, (c) point quantification image (BSE signal), (d) quantitative ratio of Y to N elements.
Figure 6. In the 1650SAN sample, the solid solution degree of Y and N elements in different contrast regions of silicon carbide grains: (a) the line-scanning image (BSE), (b) EDS line of Y and N, (c) point quantification image (BSE signal), (d) quantitative ratio of Y to N elements.
Coatings 15 00618 g006

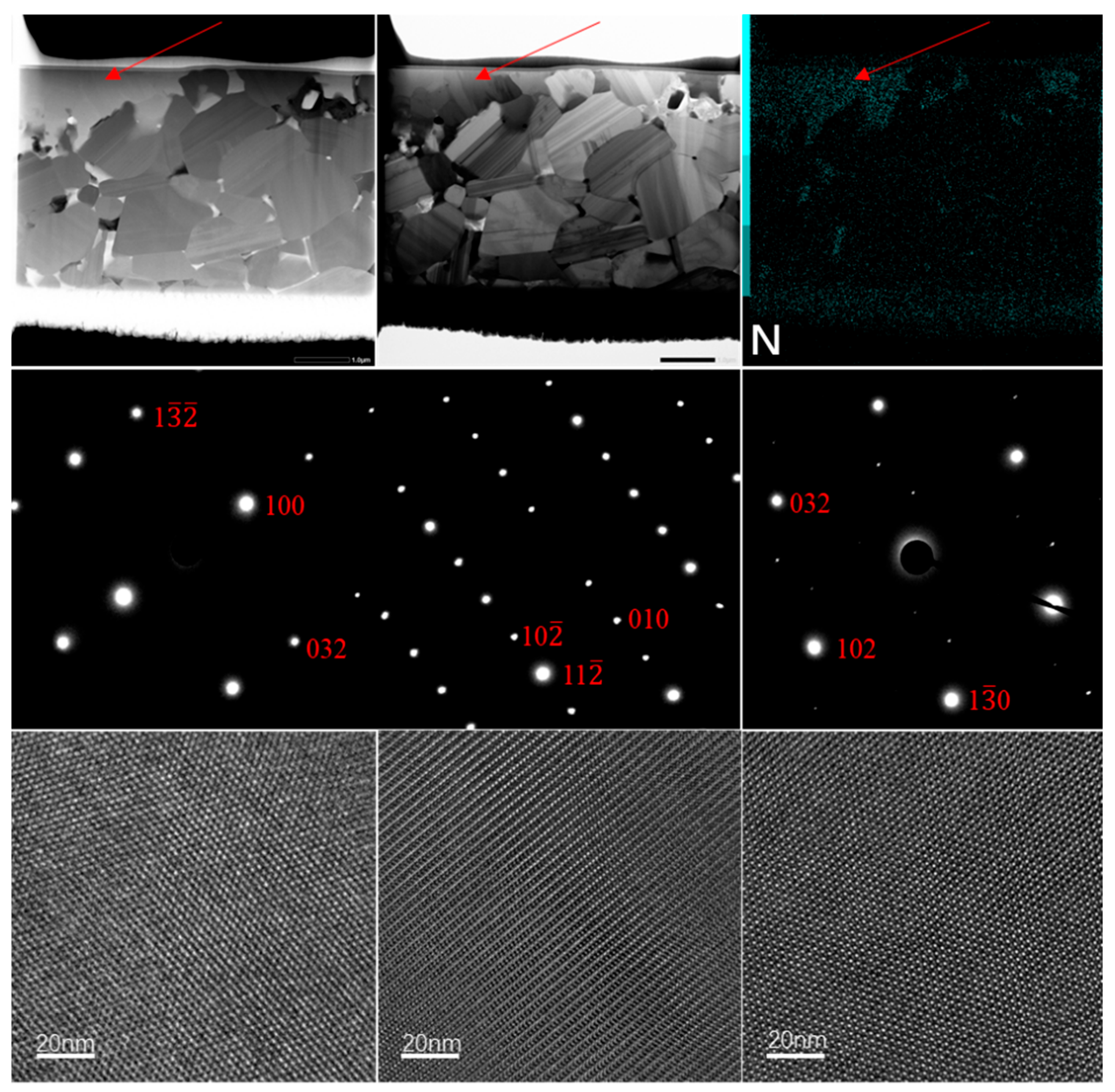

Figure 7. TEM diffraction images of the nitrided region in the 1650SAN sample along three crystal axes.
Figure 7. TEM diffraction images of the nitrided region in the 1650SAN sample along three crystal axes.
Coatings 15 00618 g007

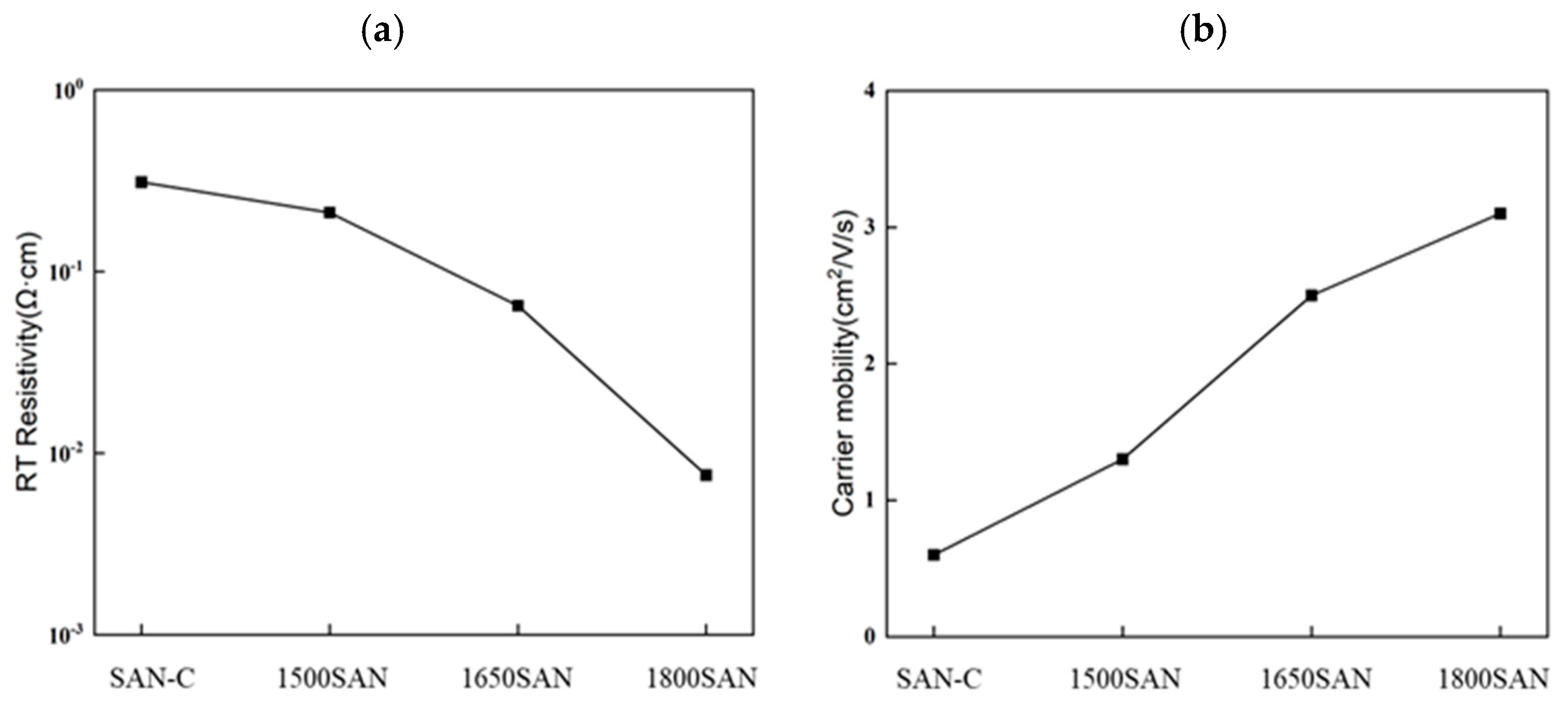

Figure 8. The RT resistivity and carrier mobility of SiC ceramics: (a) RT resistivity, (b) carrier mobility.
Figure 8. The RT resistivity and carrier mobility of SiC ceramics: (a) RT resistivity, (b) carrier mobility.
Coatings 15 00618 g008
Table 1. The content of each element in the silicon carbide grains of the SAN-C sample (at%) (10 kV voltage).
Table 1. The content of each element in the silicon carbide grains of the SAN-C sample (at%) (10 kV voltage).
ElementSiC Grain
C56 ± 1.18
Si43.66 ± 1.09
Al0.33 ± 0.31
N0
Y0
O0
Table 2. The content of each element in the nitrided region and at two points in the 1650SAN sample(at%) (10 kV voltage).
Table 2. The content of each element in the nitrided region and at two points in the 1650SAN sample(at%) (10 kV voltage).
ElementWhite PointBlack PointNitrided Region
C47.99 ± 0.6051.31 ± 2.2616.15 ± 0.69
Si32.70 ± 3.6437.81 ± 2.1427.1 ± 1.28
Al0.62 ± 0.100.56 ± 0.010.77 ± 0.05
N10.82 ± 1.454.89 ± 1.2436.18 ± 4.64
Y6.50 ± 0.534.27 ± 1.0416.06 ± 0.73
O1.37 ± 0.041.17 ± 0.133.74 ± 1.98
Table 3. The relative density, resistivity, and carrier mobility of SiC ceramics.
Table 3. The relative density, resistivity, and carrier mobility of SiC ceramics.
SampleRT Resistivity (Ω·cm)Carrier Mobility (cm2/V/s)Relative Density (%)
1800SAN7.56 × 10−33.199.7
1650SAN6.48 × 10−22.599.2
1500SAN2.11 × 10−11.398.1
SAN-C3.1 × 10−10.693.2
