Molecular Dynamics Simulation of Surface Wettability of Tobermorite Modified by Functionalized Graphene Sheets
Abstract
1. Introduction
2. Methods

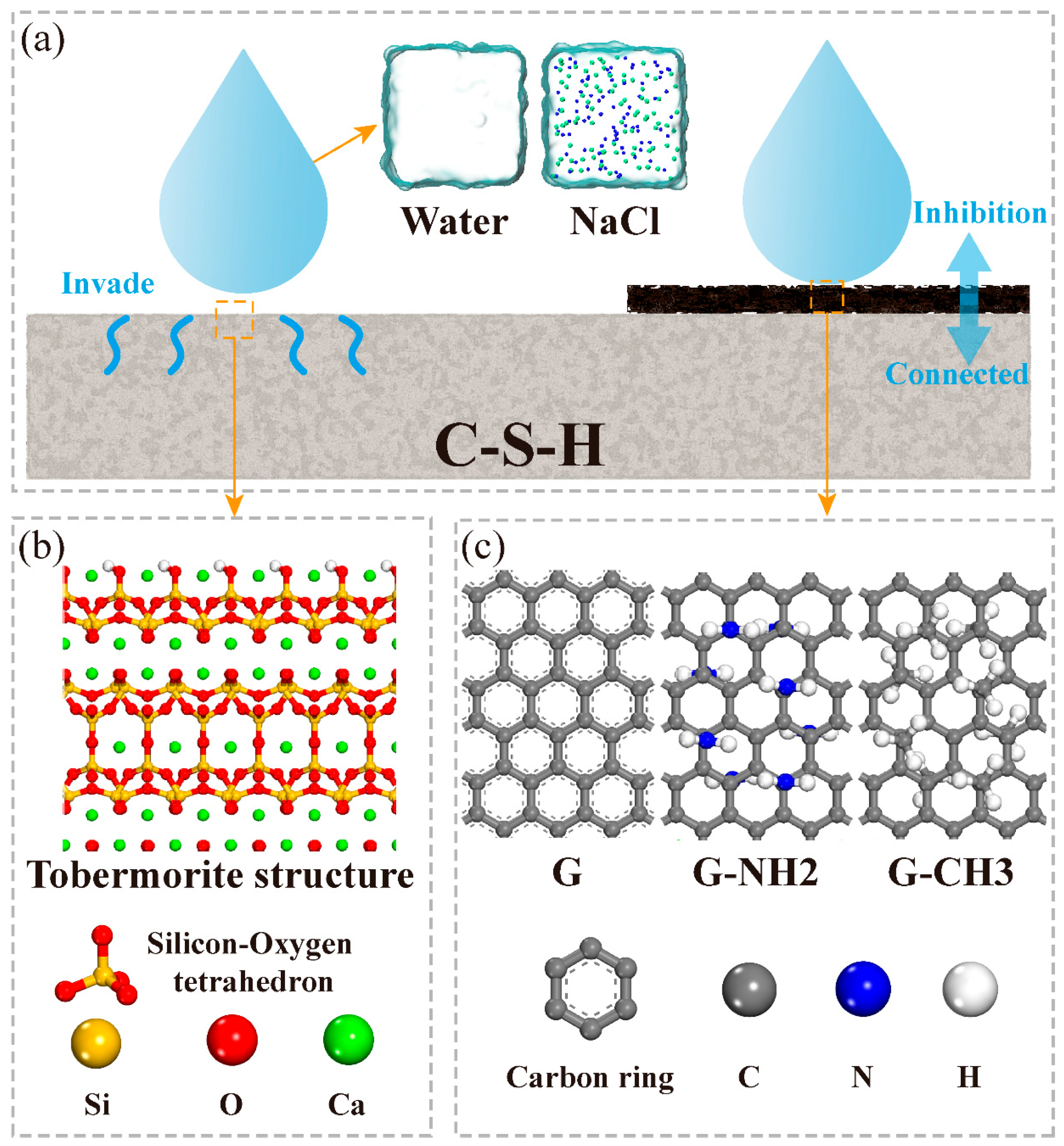

2.1. Model Construction
2.2. Force Fields and Simulation Environments
3. Results and Discussion

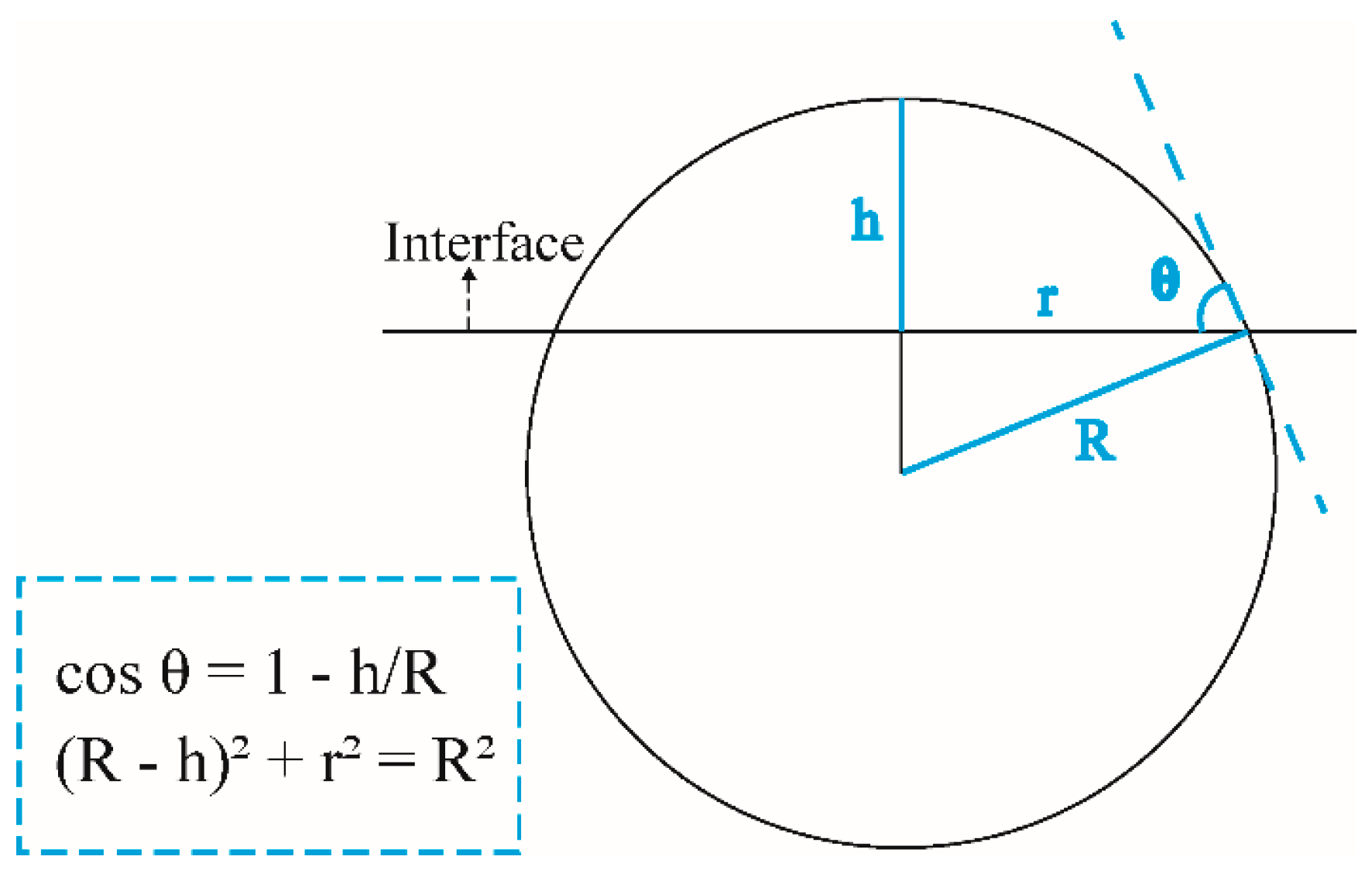

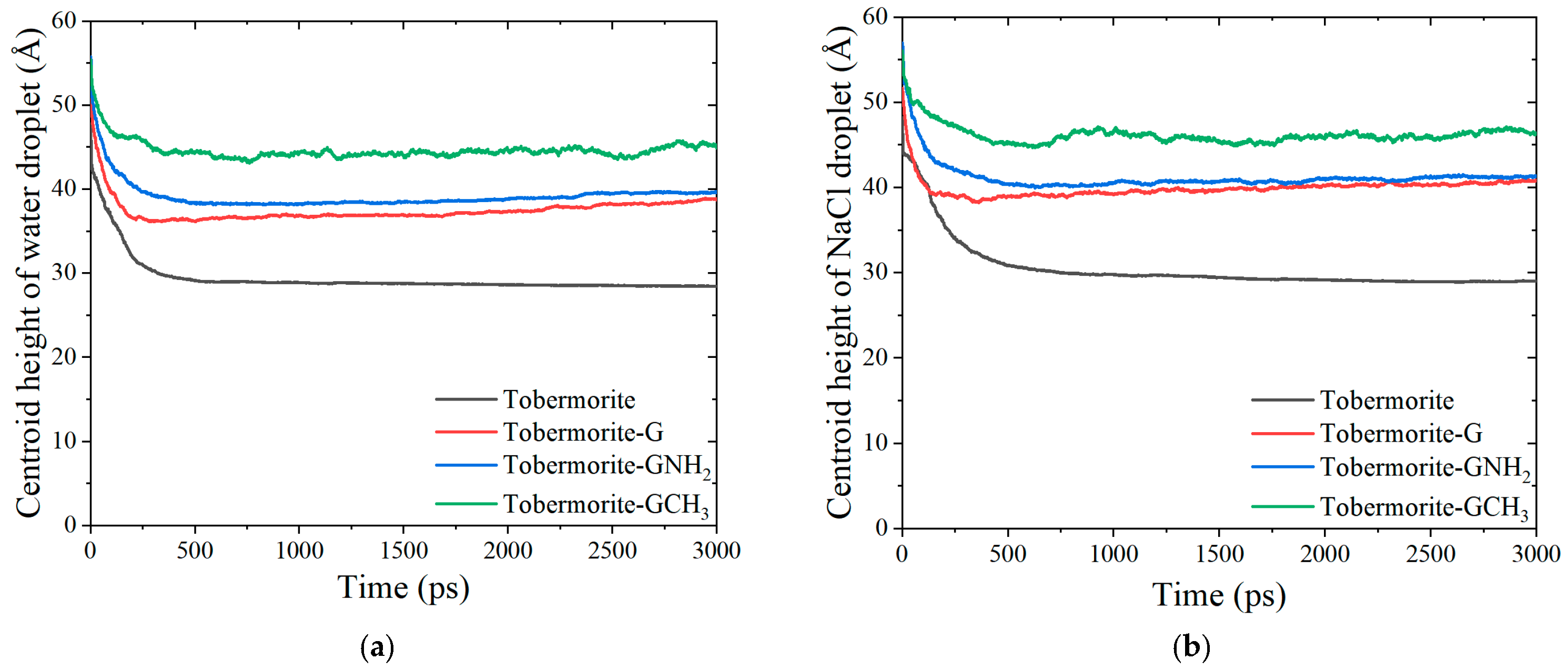

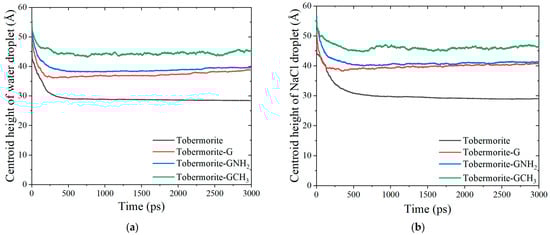

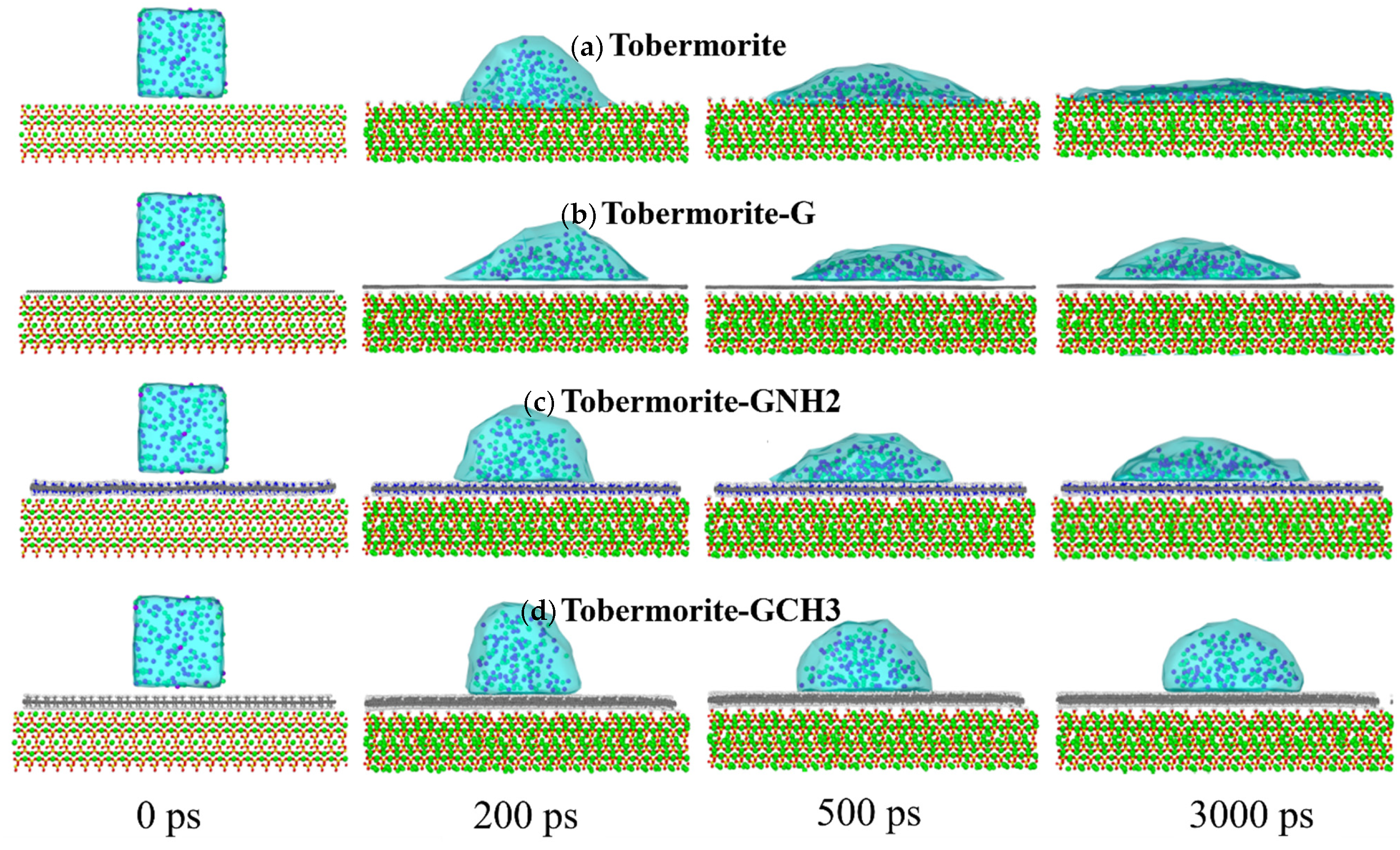

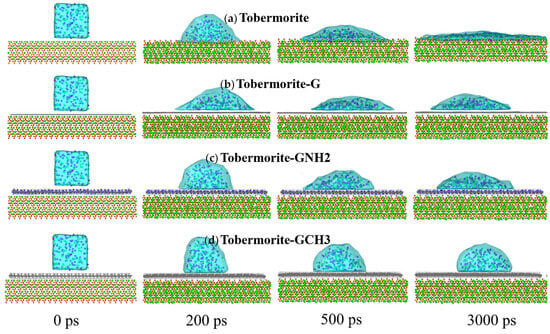

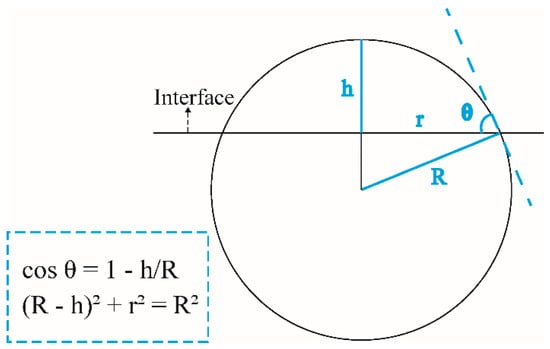

3.1. Quantitative Characterization of Droplet Wettability

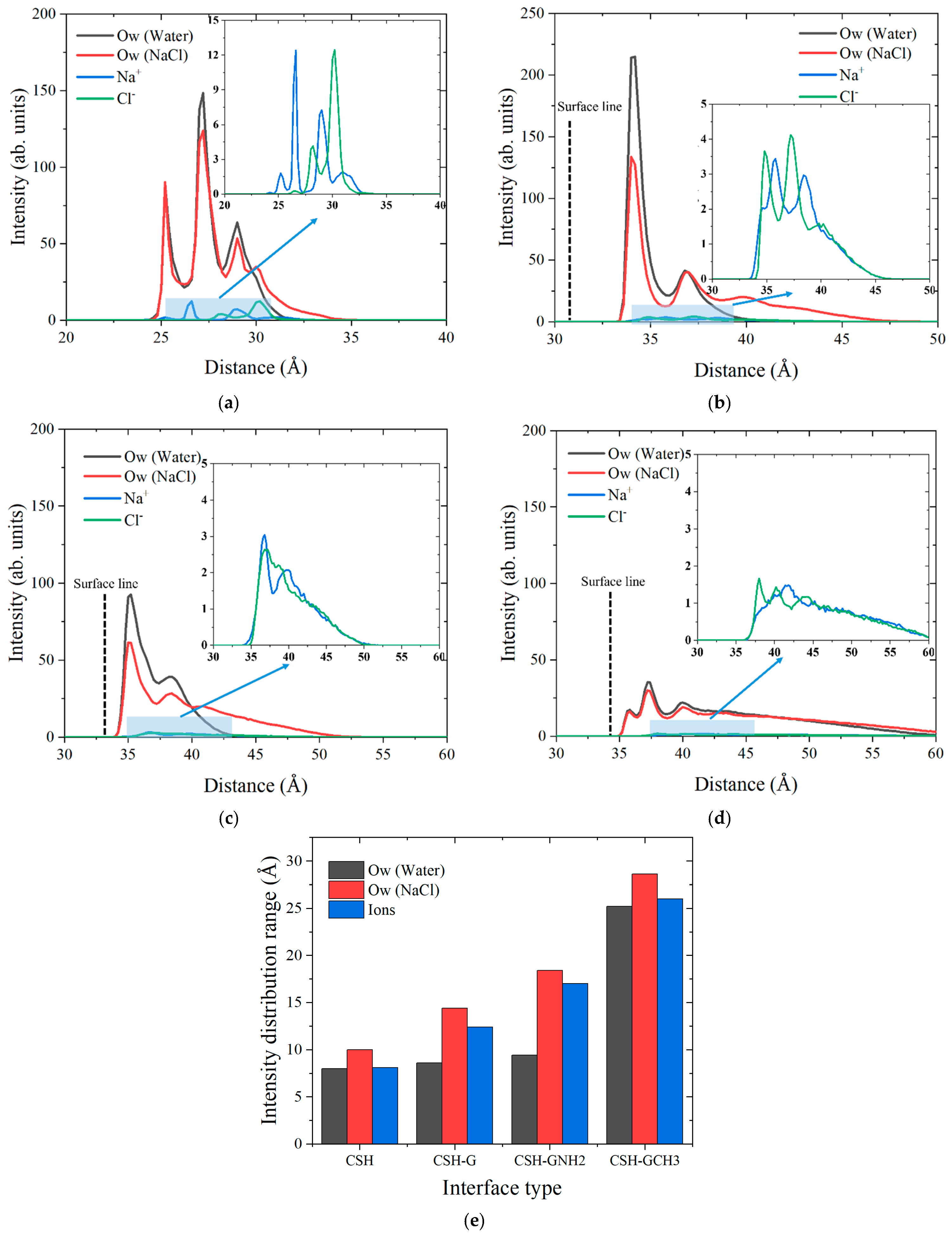

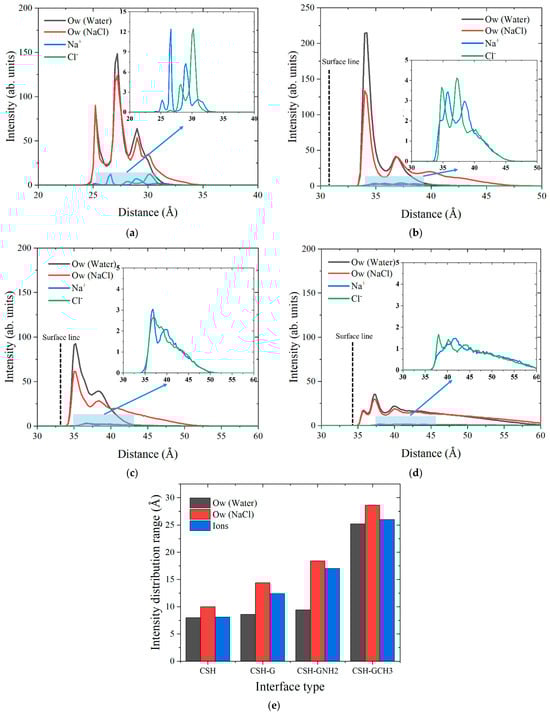

3.2. Atomic Intensity Distribution Properties

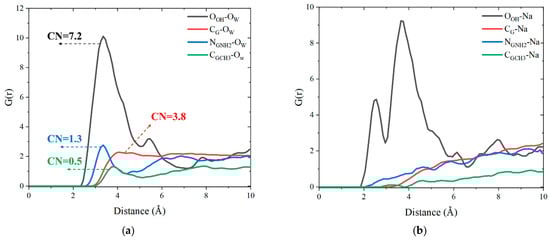

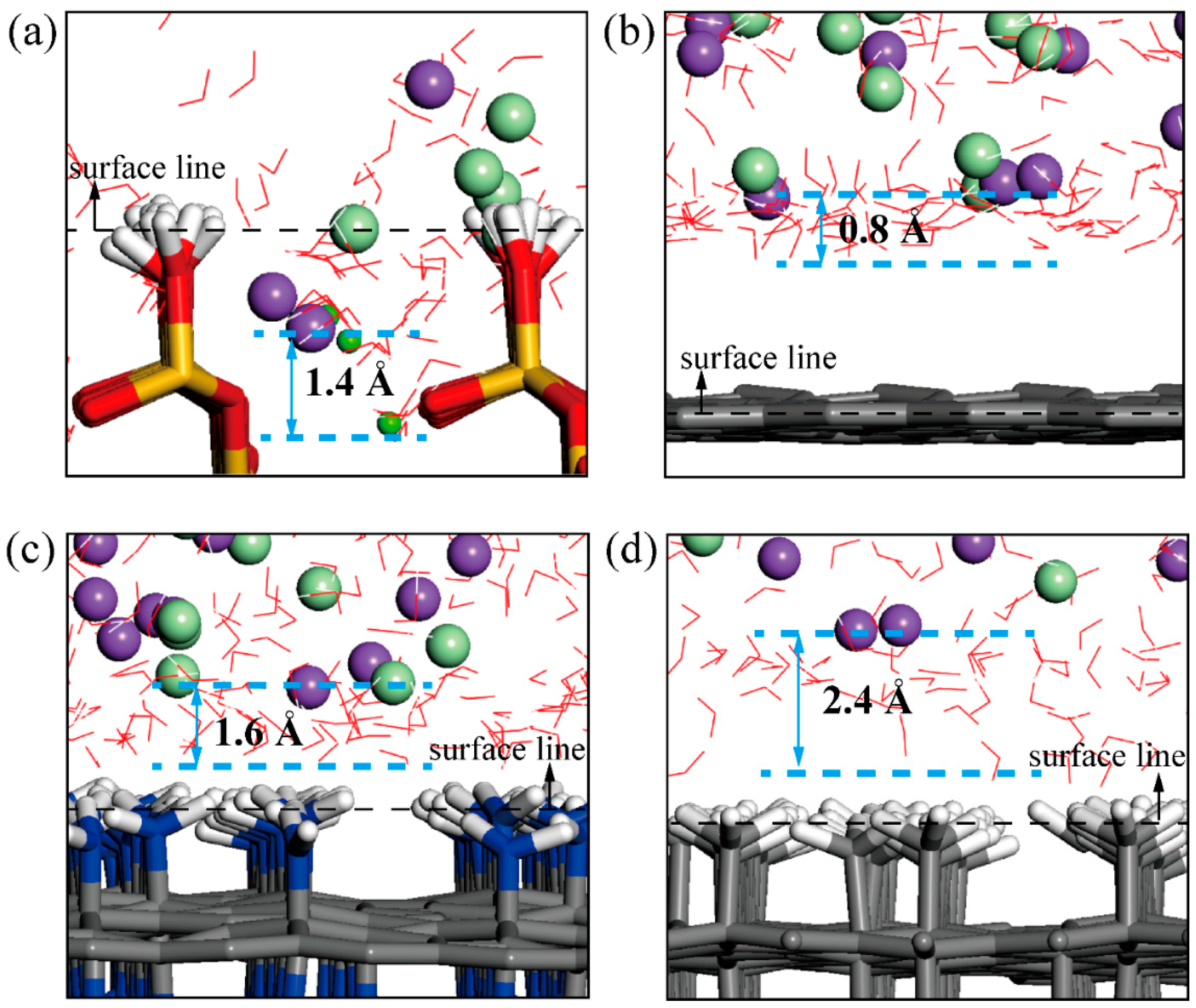

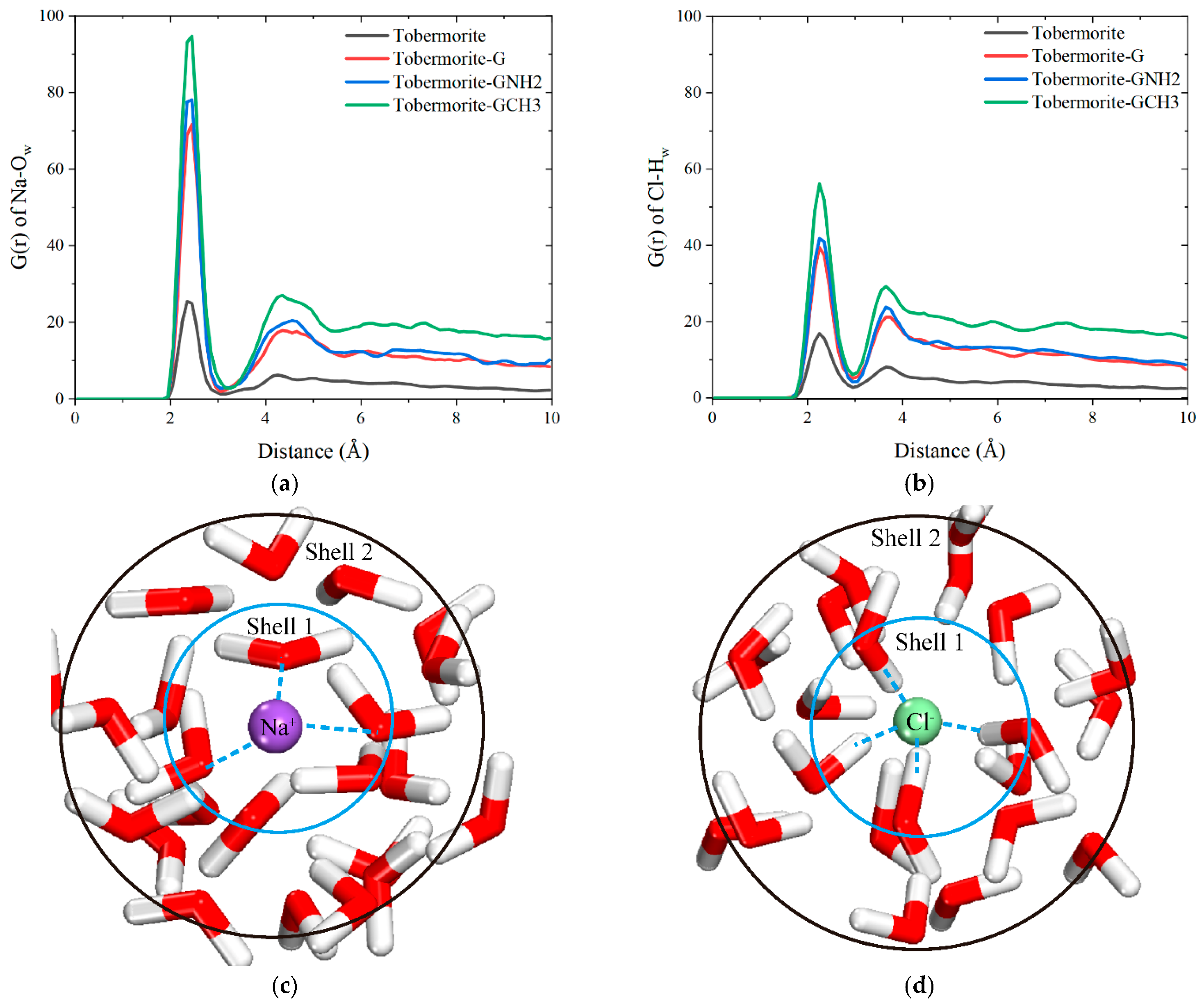

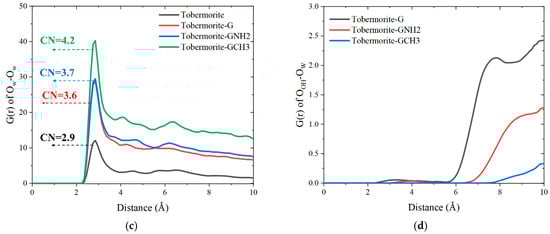

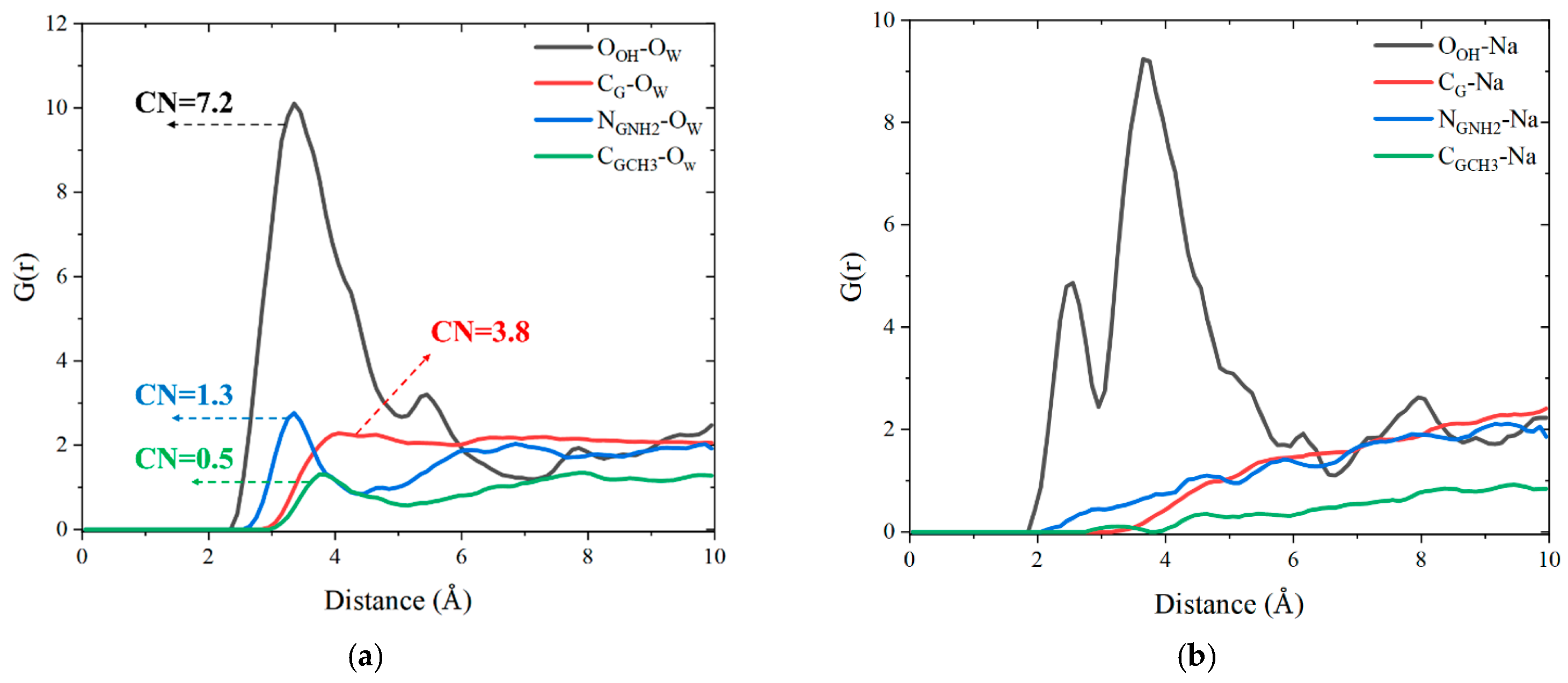

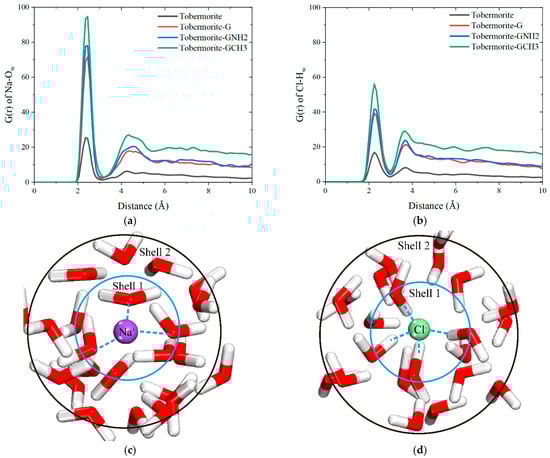

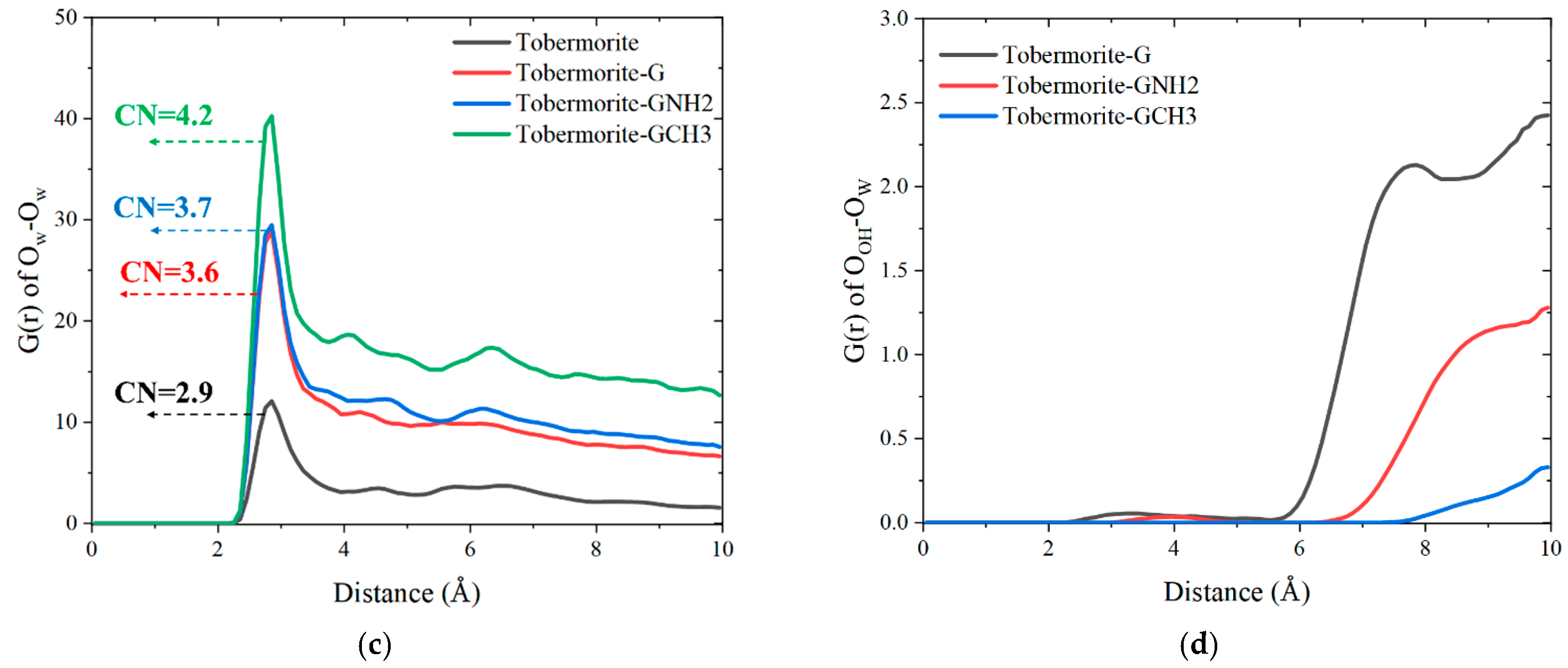

3.3. Local Structures Among Nanodroplets, Tobermorite and FGSs

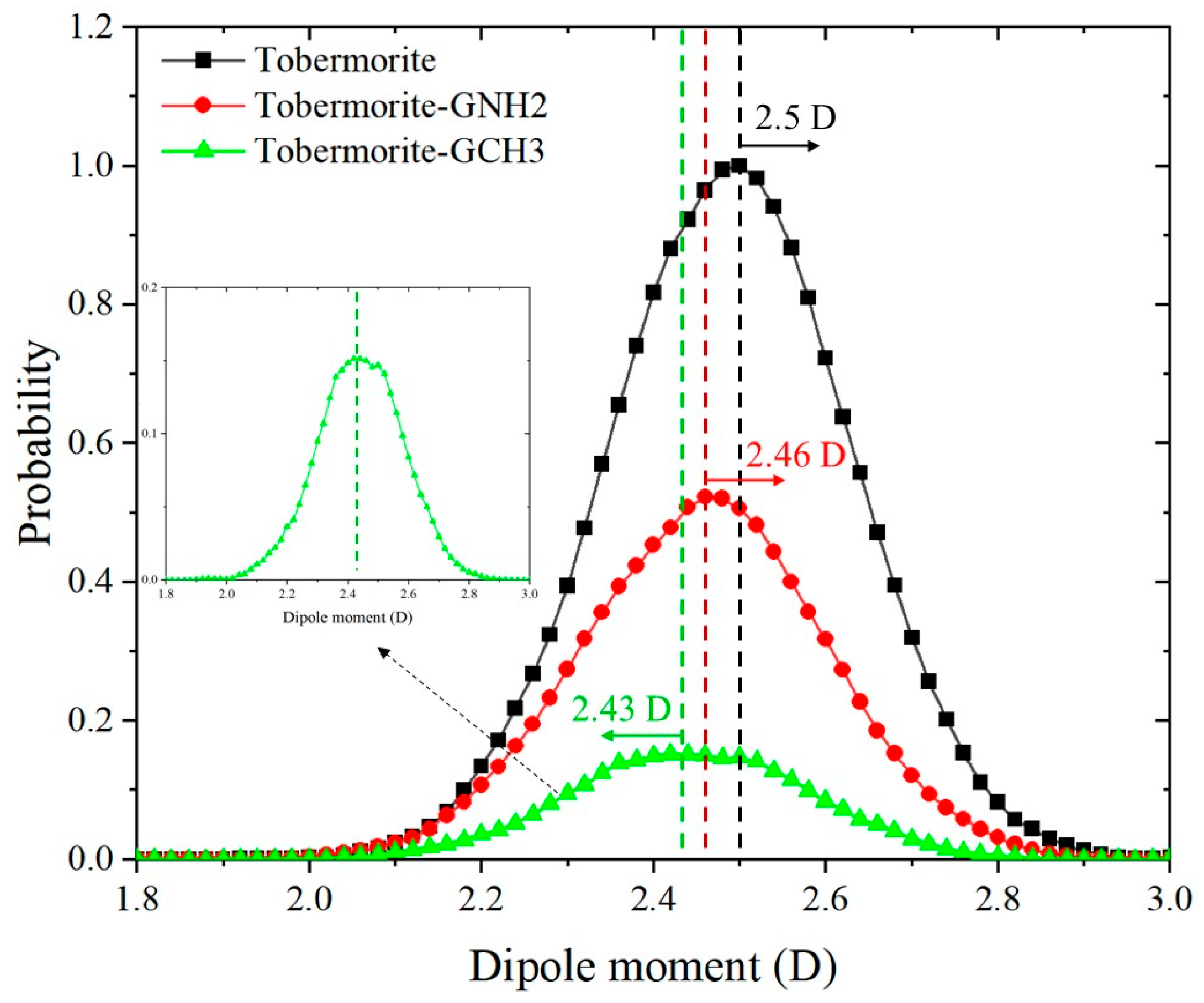

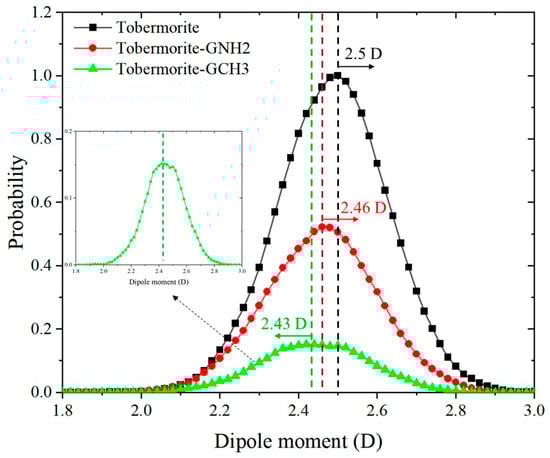

3.4. Dipole Moment Magnitude Distribution of Water Molecules

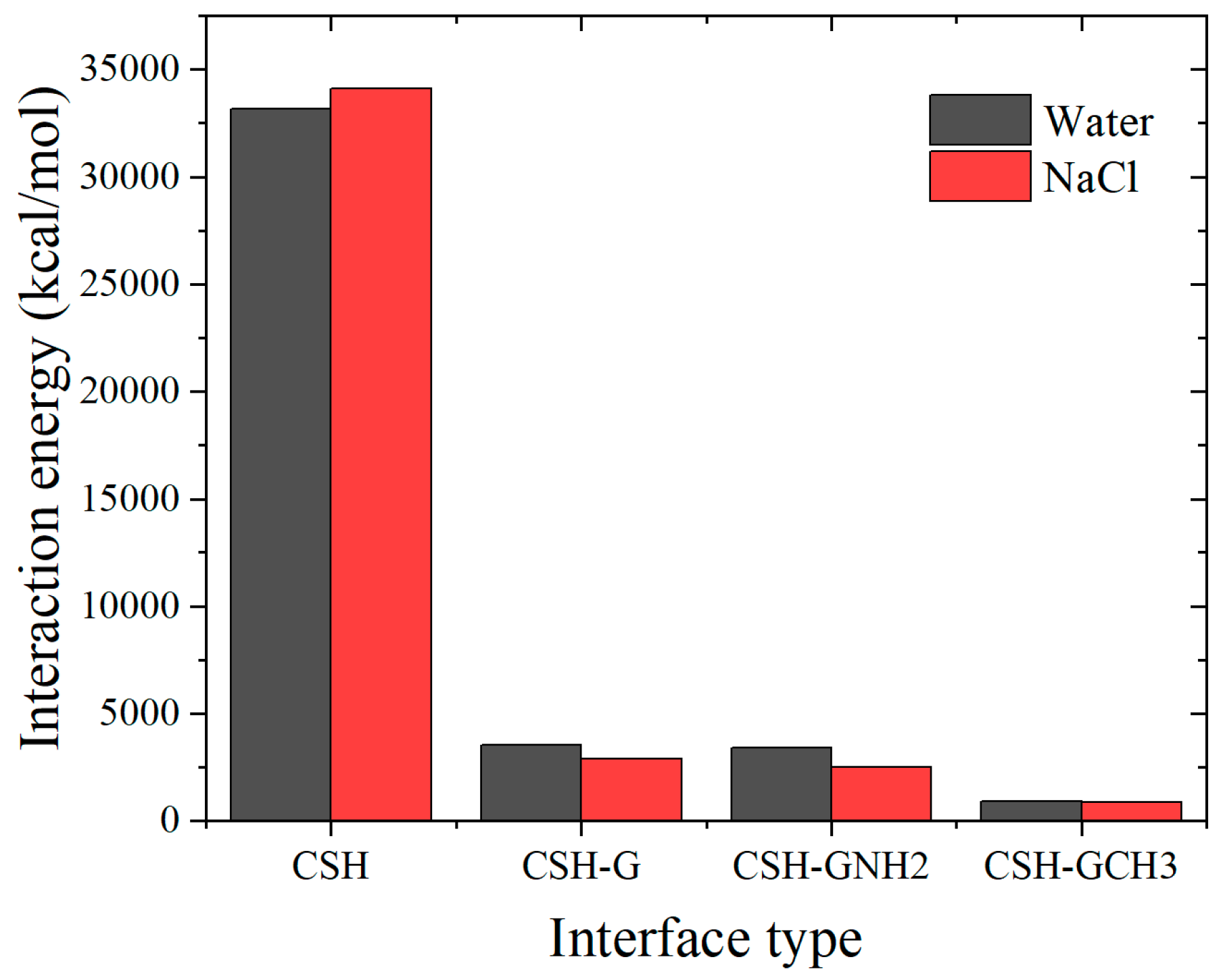

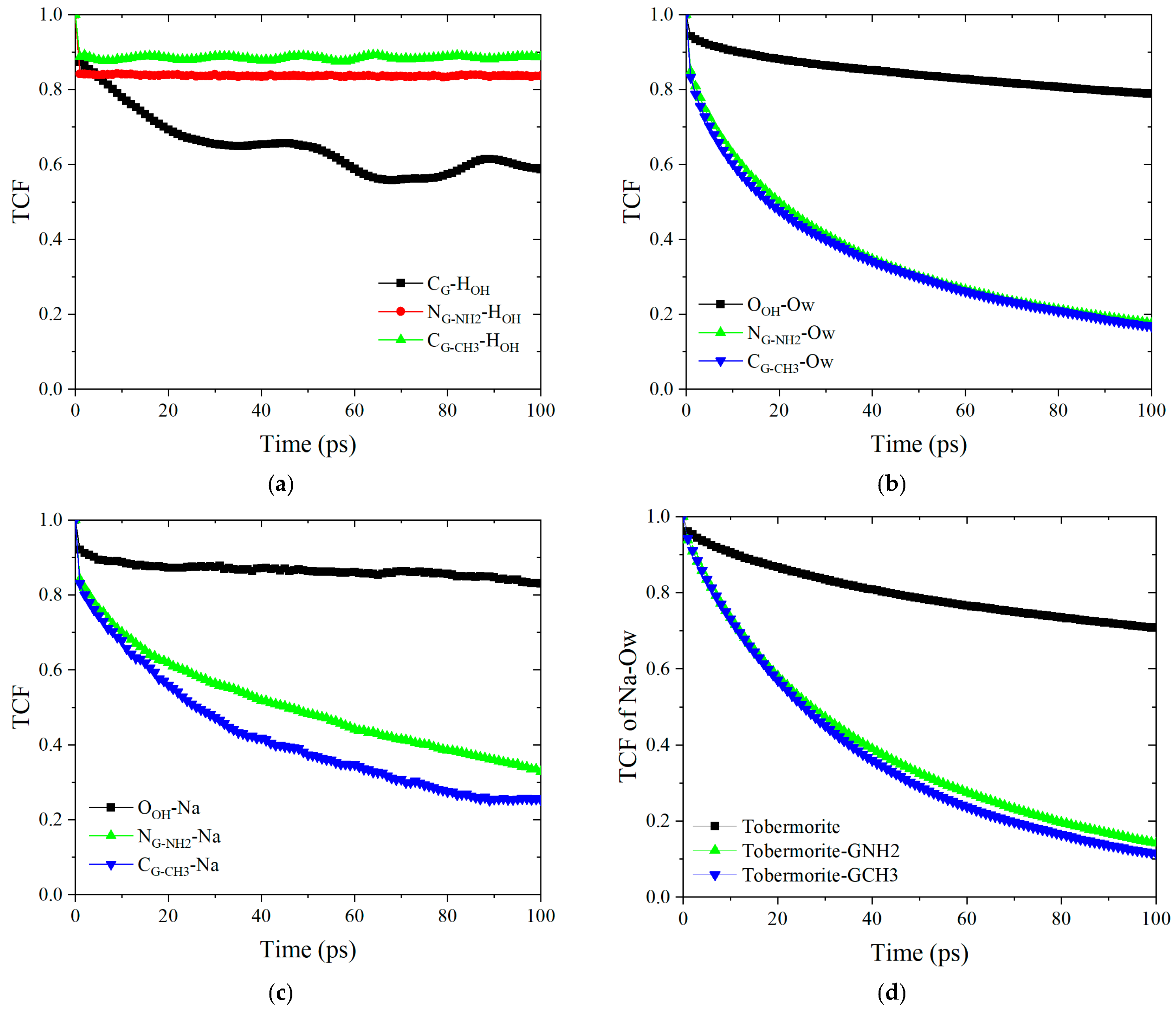

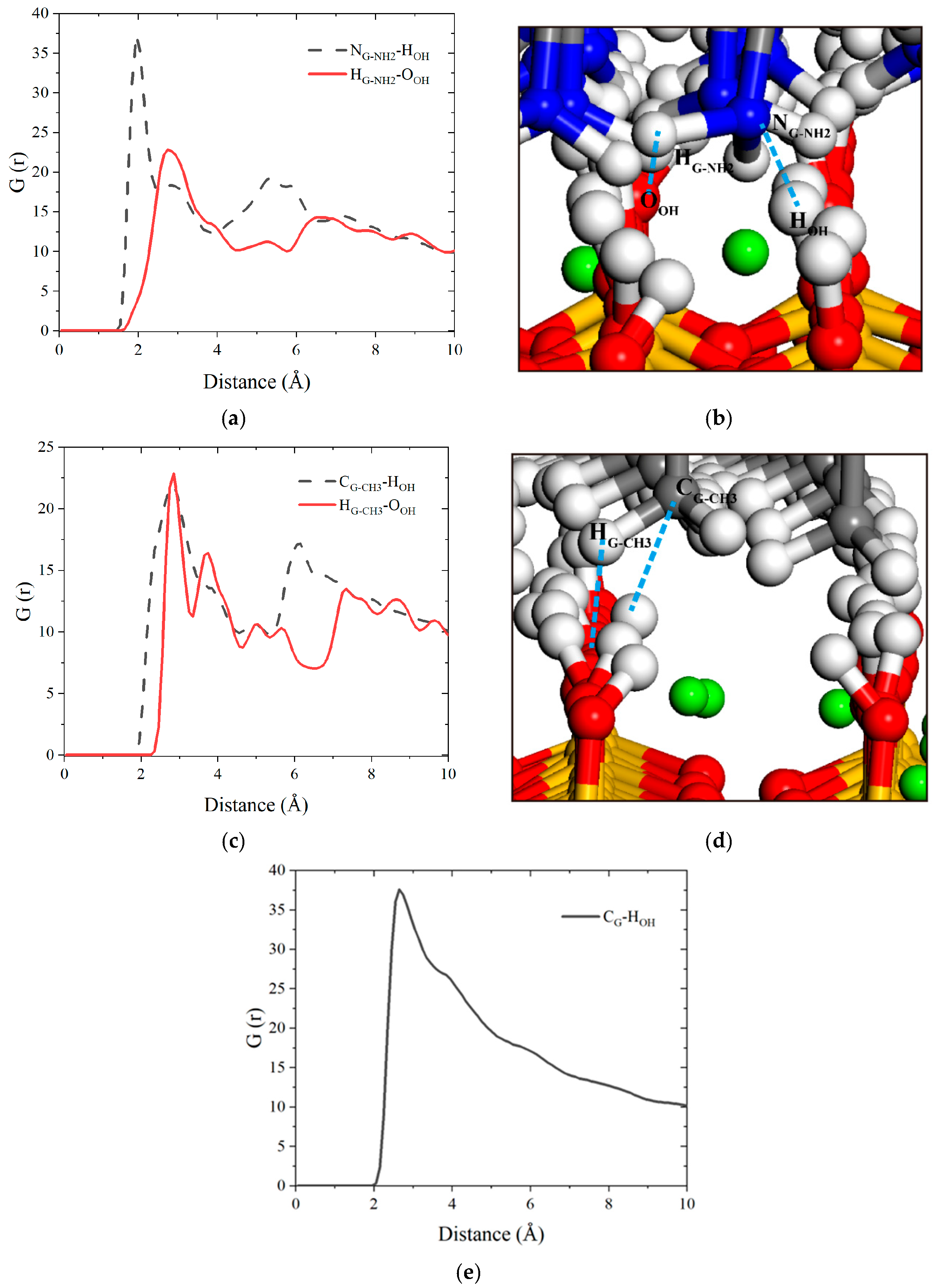

3.5. Bond Stability Analysis Between Interfaces and Droplets
4. Conclusions
- (1)
- The combination of FGSs with a tobermorite substrate can significantly reduce the wettability of water and NaCl droplets. The wettability of droplets on different interfaces can be ranked as tobermorite > graphene > G-NH2 > G-CH3. Compared with the tobermorite surface, the increase in contact angle at the interface of graphene-based coatings under NaCl droplet wetting is significantly greater than that under water droplet wetting, which largely depends on the functional group properties of graphene-based coatings.
- (2)
- Structurally, the strong OOH-Ow and OOH-Na bonding structures on the tobermorite surface promote the wettability, whereas weak interactions between Ow, Na and graphene functional groups suppress it. The surface–ion configuration further influences the ionic hydration shell, and graphene-based coatings intensify ionic cage confinement. Moreover, compared with pristine graphene, functionalized graphene sheets exhibit stronger interfacial interlocking, thereby improving coating adhesion.
- (3)

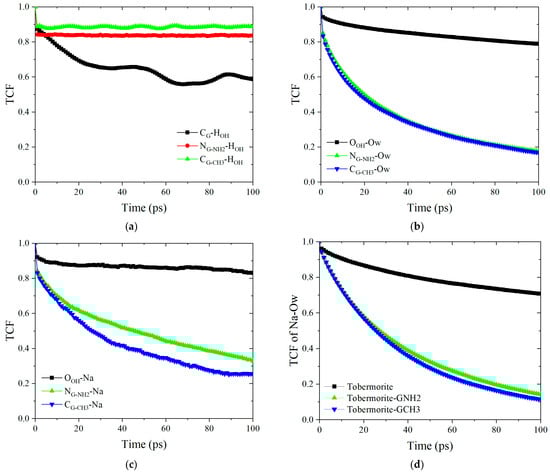

- Dynamically, wettability correlates with interfacial bonding stability of water and ions. Hydrophilic sites on tobermorite prolong binding of water and ions, facilitating sustained droplet spreading. Conversely, hydrophobic functional groups in graphene coatings reduce bond lifetimes, inhibiting wetting. Critically, interfacial bonding stability modulates ionic hydration shell integrity: weak immobilization at FGS interfaces generates more free ionic hydration shells, thereby enhancing ionic suppression of wetting.
