Design of an Azopolymer for Photo-Switchable Adhesive Applications

Abstract

Significant research endeavors have been devoted to developing adhesives with reversible switching capabilities, allowing them to activate adhesion in response to diverse environmental stimuli. Among these, photo-switchable adhesives stand out as particularly promising. The presence of a photo-reversible solid-to-liquid transition, characterized by a transition temperature (T_SL), in certain azobenzene-containing polymers offers a compelling avenue for creating such adhesives. The development of a method based on Atomic Force Microscopy to measure both the glass transition temperature (T_g) and T_SL provided an opportunity to investigate the impact of various structural parameters on the solid-to-liquid transition of azopolymers. Our findings revealed that increasing the molecular weight (Mn) from 3400 to 8100 g/mol needed to achieve a highly cohesive adhesive resulted in an elevation in T_SL (>10 °C), making the solid-to-liquid transition at room temperature more challenging. However, incorporating a highly flexible substituent at the para position of the azobenzene group proved effective in significantly reducing the T_SL value (from 42 °C to 0 °C). This approach allows for the creation of photo-switchable adhesives with intriguing properties. We believe that our results establish a pathway toward developing a robust room-temperature photo-switchable adhesive.

1. Introduction

While advancements in adhesion technology have been noticeable in recent decades, creating materials with on-demand stickiness continues to pose a challenge. Extensive research efforts have been dedicated to the creation of switchable adhesives featuring an adjustable and reversible bonding–debonding process that can be activated in response to various environmental stimuli [1]. Among them, light is regarded as a highly promising external stimulus due to its benefits, including athermal operation, precise control, and environmental friendliness. Despite advancements in switchable adhesives, enhancing adhesion strength and reusability remains a formidable challenge.

It is widely acknowledged that the three main properties for characterizing the nature of an adhesive are tack (initial adhesion), adhesion (interaction with the substrate), and cohesion (intermolecular interactions), which all depend on the thermo-mechanical properties of the polymeric material [2]. Consequently, opting for materials capable of controlled solid–liquid phase transitions holds promise for the development of improved switchable adhesives. Because light can induce a reversible change in the mechanical properties of the material called a solid-to-liquid phase transition [3,4], azobenzene-functionalized polymers, the so-called azopolymers, generate a strong enthusiasm for elaboration of photo-switchable adhesives [1,5,6,7,8,9,10,11,12,13]. Until recently, the characterization of the photo-reversible solid-to-liquid transition of azopolymer was made in almost all situations in a qualitative way. Typically, optical microscopy was used for bulk materials [11,14,15]. While convenient, this method proves unsatisfactory for the precise determination of transition conditions [16]. In a recent article [17], we demonstrated for the first time that the photo-reversible solid-to-liquid transition can be characterized by a transition temperature (T_SL). By using a method based on Atomic Force Microscopy (AFM), this temperature can be accurately measured, allowing us to propose a mechanism for the photo-reversible solid-to-liquid transition.

In the present article, the AFM method is used to measure both T_SL and Tg on thin coatings composed of various azopolymer architectures. By correlating the T_SL value with the chemical structure of the azopolymer, we gain insights into the chemical parameters governing the photo-reversible solid–liquid transition. Based on these findings, the selection of an optimized azopolymer architecture for the formulation of a room-temperature photo-switchable adhesive is performed and its properties are tested.

2. Materials and Methods

2.1. Azopolymer Synthesis

To synthesize the different azopolymers, we used Nitroxide-Mediated Polymerization (NMP). All the azopolymers synthesis details and characterization can be found in [16]. Size exclusion chromatography was used in THF as an eluent to check the molecular weight and the dispersity values of polymers. The chemical formula of azopolymers based on acrylate or the methacrylate polymerizable group and their main properties are presented in

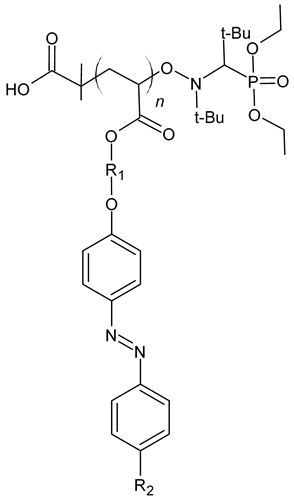

Table 1. Structure of the azopolymers synthetized and considered in this study.

Formula	R1	R2	Name	Mn (g/mol)	DP(1)	Conversion (%)
	C6H12	CH3	P6-azo-CH3	3400	7	93
				4900	10	96
				5900	16	96
				8100	27	95
	C10H20	CH3	P10-azo-CH3	6000	10	92
				11,400	27	97
	C6H12	C6H13	P6-azo-C6H13	7100	10	100
	C6H12	O-C6H13	P6-azo-OC6H13	7400	10	100

. Number-average molar mass (Mn) was calculated from a calibration derived from polystyrene standards. All the synthesized polymers present a dispersity between 1.2 and 1.3. Once purified, the polymers were kept in the dark at a low temperature (3 °C).

2.2. Azopolymer Coating

Azopolymer coatings were applied onto a meticulously cleaned microscopic glass slide. The cleaning procedure involved immersing the slide in a mixture of methanol and hydrochloric acid (in an equal volume ratio) for 30 min. Subsequently, the glass was thoroughly rinsed with ultrapure water, dried, and subjected to a 15-min treatment in a UV-ozone cleaner (Novascan PSD-UVT, Ames, IA, USA). For film preparation, a 10 g/L solution of azopolymer in dichloromethane (CH₂Cl₂) was slowly deposited onto a heated plate at 40 °C. The resulting films are homogeneous (Supplementary Figure S1) with a thickness ranging from 1 to 1.2 µm and an RMS roughness of 10 to 20 nm, as measured by AFM.

2.3. Atomic Force Microscopy (AFM)

AFM measurements were conducted using an Agilent 5500 equipped with an environmental chamber. Temperature control was achieved using a PID controller (Lakeshore-Westerville, OH, USA) coupled with a heating plate. Experiments covered a temperature ranging from −20 °C to 200 °C with an accuracy of 0.1 °C, facilitated by a Peltier and a heater stage. Stage temperature calibration was performed using different standard fusion point solids to cover the experimental temperature range. Force–distance measurements were obtained using CP-FM-SiO-B tips (NanoandMore, Paris, France) featuring a silica sphere (R = 3.5 µm). The spring constant, ranging from 0.5 to 1.2 N.m⁻¹, depending on the tip, was determined using the thermal noise method. A calibrated z-close loop scanner (90 × 90 µm²) controlled the indentation depth and maximum load on films to prevent any deterioration. For each temperature, a 4 × 4 mapping on a 2 × 2 µm² surface was generated, with each pixel averaging 10 force-distance curves acquired at 1 Hz. Pull-off force intensities, Young moduli (JKR model, Poisson ratio of 0.33), and uncertainties were extracted from these measurements using Atomic J [18]. Relative pull-off force was calculated by dividing all the pull-off forces by the minimum pull-off force value.

2.4. Ellipsometry

Ellipsometry measurements were carried out using a Horiba spectroscopic ellipsometer. This instrument consists of a xenon source covering a wide spectral range from far infrared to ultraviolet (250–1700 nm), as well as a polarizer, an analyzer, and a monochromator responsible for managing dispersion and selecting wavelengths for a photomultiplier. The ellipsometer was equipped with a heating plate (LinKAM® TMS600—London, UK) to control thermal variations (30–145 °C) and transitions in the azopolymer films. Measurements for each sample were taken at 3 °C intervals between 25 and 106 °C, preceded by a 2-min equilibration period at a fixed temperature. The heating rate between the two measurements was set at 1°/min. To confirm the reproducibility of the measurements, at least three measurements were carried out on several samples. The thermal transitions of the trans isomer were assessed by introducing a UV filter (Longpass OD4—Edmund Optics, Villeurbane, France) that blocks UV radiation below 400 nm from the incident beam. This precautionary measure was taken to avoid any bias toward the cis state of the azopolymer. To analyze ellipsometry measurements, it is normally necessary to define a model representing the internal structure of the film in order to fit the curves. The limitations of this approach are that it can be difficult to define the most appropriate model, for example, the number of layers needed to perfectly describe the film morphology, etc. The choice of model can influence the adjustments and, therefore, the results obtained. Another analysis method [19] consists of observing the behavior of the raw data as a function of temperature, without modeling and adjustment. In this way, it is possible to detect transitions that would be less visible by choosing a model.

2.5. Adhesion Strength Measurement

Initially, two polycarbonate (PC) substrates, measuring 20 mm in length, 10 mm in width, and 3 mm in thickness, were manually polished for 15 s using 400 mesh sandpapers (resulting in RMS roughness = 100 nm). Subsequently, they were washed with ethanol and allowed to air dry. Next, approximately 1–2 mg of the selected azopolymer was placed on the rough surface of one PC substrate, followed by exposure to UV irradiation for 30 s (365 nm, 300 mW.cm⁻²). This UV treatment aimed to reach the T_SL of the azopolymer, ensuring it became fully molten. Afterward, another rough-surfaced PC substrate was manually pressed onto the molten azopolymer for 30 s. Upon cooling to room temperature, an azopolymer specimen was obtained with an approximate bonding area of 100 mm². Subsequently, the specimen was affixed to the grips of a universal tensile test machine (Mecmesin^®-, London, UK) and subjected to stretching at a rate of 2 mm.min⁻¹ to generate the force–elongation curve [9].

2.6. Reversible Bonding–Debonding Experiment

Polyethylene Naphthalate (PEN), Polycarbonate (PC), and Polyethylene Terephthalate (PET) strips with dimensions of 10 cm (length) × 5 mm (width) × 0.3 mm (thickness) were used. First, 1–2 mg of azopolymer was placed on one end of the strip. After 2 min of UV irradiation, the azopolymer was molten and was then glued (by thumb pressure for 30 s) with the other end of the stripe to acquire a ring. The ring was again submitted to UV light (365 nm, 300 mW.cm⁻²) for the debonding process [9].

3. Results

3.1. Measurement of T_g and T_SL

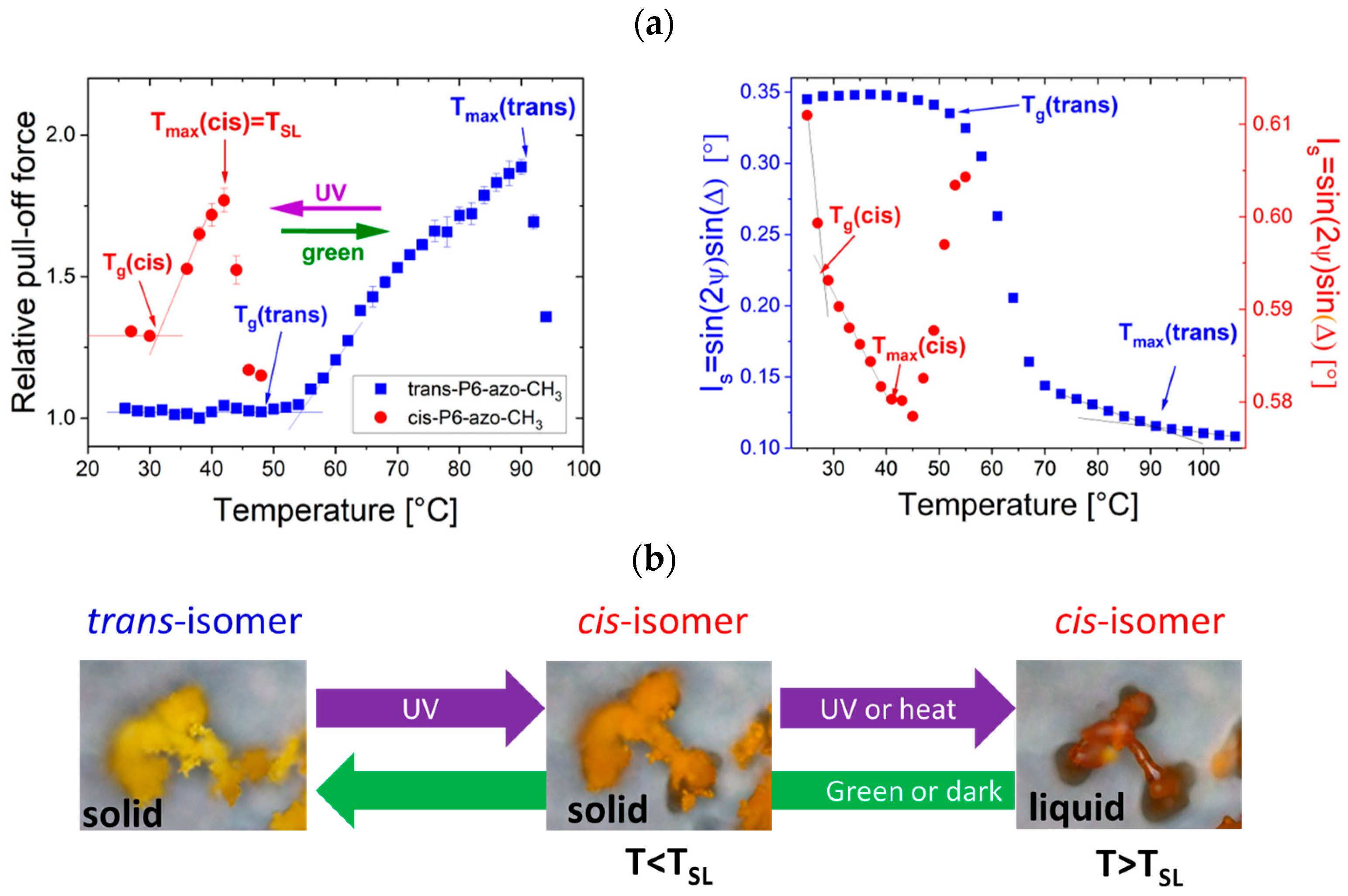

The comprehensive experimental methodology for measuring T_SL on the azopolymer coating has been thoroughly elucidated in earlier publications [17,20]. In summary, by performing pull-off force measurement between the AFM tip and the surface of an azopolymer coating as a function of the film temperature, different transition temperatures can be detected. As seen in Figure 1a for P6-azo-CH3 azopolymer (Mn = 8100 g/mol), the glass temperature transition (T_g) for both trans (T_g(trans) = 54(2) °C) and cis (T_g(cis) = 32(2) °C) isomers are identified as the first slope breakage of the pull-off force vs. the temperature curve. We also demonstrated in our previous articles that the position of the maximum pull-off force (i.e., T_max) corresponds to a solid-like to liquid-like transition [17,20]. For P6-azo-CH3 azopolymer with Mn = 8100 g/mol, we measured T_max(trans) = 90(2)° and T_max(cis) = 42(2) °C. All these temperature transitions were also detected on azopolymer coatings by multiwavelength ellipsometry. Figure 1b shows the quantity I_S extracted from the output signal by harmonic analysis (synchronous detection at the modulator frequency) and related to the ellipsometric angles (ψ and Δ) by $I_s=\sin \left(2\psi \right)\sin \left(\Delta \right)$. Its behavior as a function of temperature is entirely consistent with the AFM measurements. These earlier investigations have contributed to the understanding of the photo-reversible solid-to-liquid transition mechanism. As shown in Figure 1b, the trans-to-cis isomerization of the azopolymer coating by UV irradiation (UV–visible spectra are provided in Supplementary Figure S2) is not sufficient to reach the solid-to-liquid transition. A greater irradiation intensity (or external heating) is required to surpass T_max(cis). Reversibility is achieved either through storage of the material in the dark or exposure to green light irradiation. Consequently, T_SL and T_max(cis) represent the same transition temperature [17]. With the ability to accurately measure T_g and T_SL, we are able to study the influence of the polymer architecture on the photo-reversible solid-to-liquid transition.

3.2. Influence of Azopolymer Chain Length

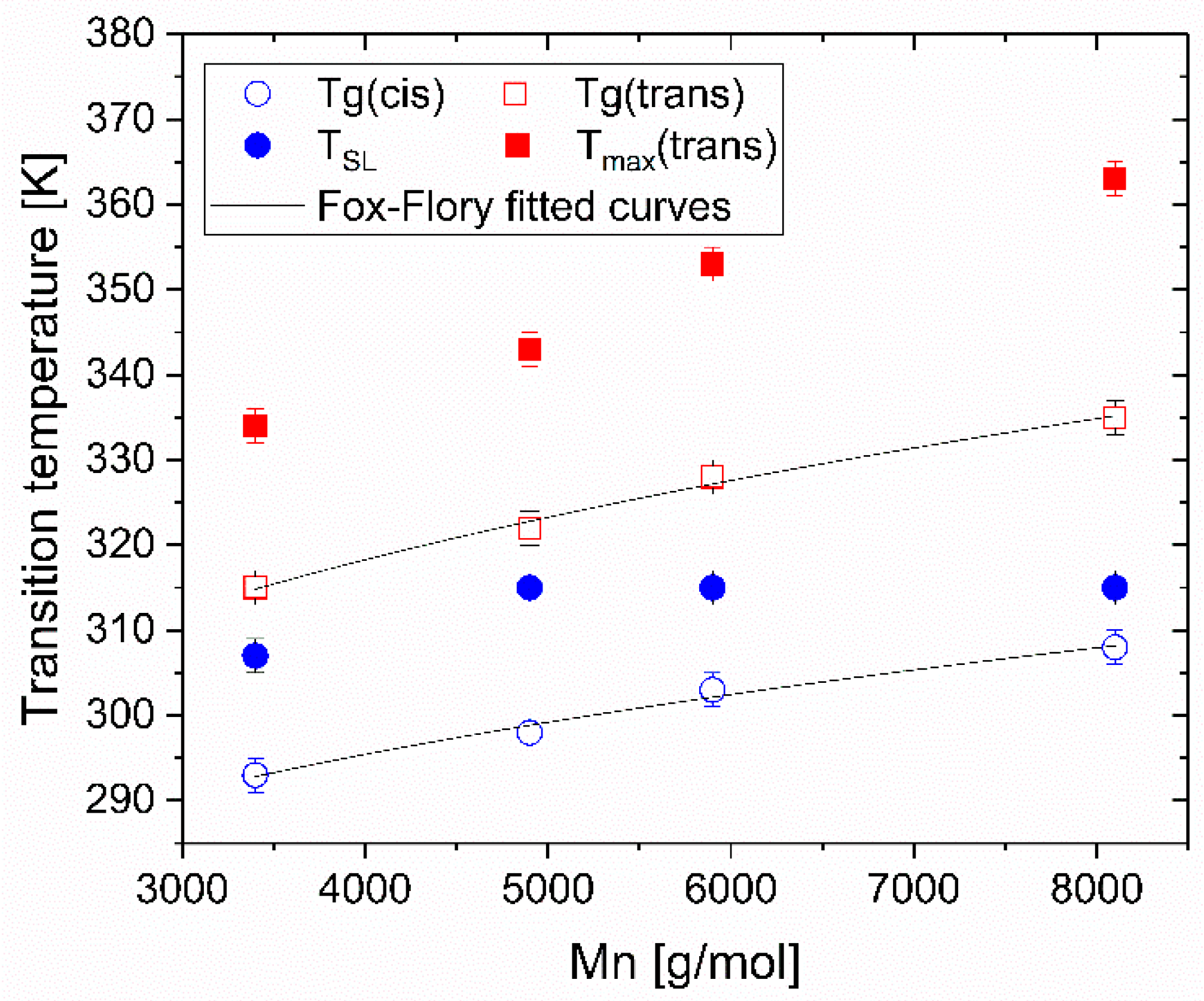

In 2020, Chen et al. synthesized azopolymers with the same chemical structure as P6-azo-CH3. They measured an increase in T_g(trans) from 48 to 80 °C for a molecular weight (Mn) from 5000 to 100,000 g/mol [21]. In this work, pull-off force vs. temperature experiments were performed on P6-azo-CH3 with Mn = 3400 to 8100 g/mol in order to measure the evolution of both T_g and T_SL with Mn. The extracted T_g and T_SL values from the pull-off force vs. temperature curves (Supplementary Figure S3) are plotted as a function of Mn in Figure 2. At first, it can be seen that T_g(trans) is always measured above T_g(cis). This may be explained by the conformation of the azomolecule substituent. Indeed, the trans-to-cis photo-isomerization leads to a modification of the geometry of the azomolecule substituent, which passes from a rod-like shape favoring good packing with adjacent azomolecules to a banana-like shape increasing the free volume of the polymer material. Although the measured T_g(trans) values of the P6-azo-CH3 azopolymers are in agreement with those measured by Chen et al. [21], here, we demonstrate that both T_g(trans) and T_g(cis) increase with Mn. This evolution, expected for linear polymers with low Mn, follows the Fox–Flory equation: $T_g=T_{g,\infty }-\frac{K}{Mn},$ where T_g,∞ is a parameter that can be associated with the glass transition for an infinity high Mn and K is a material dependent parameter [22]. The fitting parameters are available in Supplementary Table S1 and show a similar K parameter (K~72,000–73,000 g/mol) for both the trans and cis isomers, which is closed from the calculated critical entanglement molecular weight (i.e., Mc = 68,000 g/mol) for this azopolymer [21]. Finally, we can observe that for this polymer architecture, whereas T_max(trans) increases with Mn, T_SL seems to saturate for Mn greater than 5000 g/mol. At present, the absence of theoretical work concerning the solid-to-liquid transition hinders drawing any definitive conclusions about this evolution.

3.3. Influence of the Alkyl Length Ligand

For acrylate azopolymers, Weiss et al. observed that the solid-to-liquid transition is impacted by the alkyl spacer length since the transition was only observed for n = 6 and n = 12 (with n the number of carbon atoms) [23]. Here, we compare azopolymers with alkyl spacer lengths of n = 6 (P6-azo-CH3) and n = 10 (P10-azo-CH3) with two different Mn (Supplementary Figure S4).

When comparing azopolymers with different linker lengths but similar Mn, it can be seen (

Table 2. Influence of the linker length on transition temperatures T_g and T_max. All the measured data have measurement uncertainties of 2 °C.

		Tg (°C)	Tmax (°C)
P6-azo-CH3 Mn=5900 g/mol	Trans	52	80
	Cis	30	42 (TSL)
P10-azo-CH3 Mn=6000 g/mol	Trans	52	75
	Cis	0	15 (TSL)
P6-azo-CH3 Mn=8100 g/mol	Trans	54	90
	Cis	32	42 (TSL)
P10-azo-CH3 Mn=11400 g/mol	Trans	60	85
	Cis	47	60 (TSL)

) on one side that T_g(trans) and T_max(trans) are close and thus fairly impacted by the linker length. On the other side, an increase in the linker length leads to a strong decrease (ΔT < −20 °C) of both T_g(cis) and T_SL. For a similar Mn (i.e., 8600 g/mol), Weis measured T_g(cis) = −14 °C on powder for the n = 12 linker [23], which is in agreement with the evolution observed here. These results may indicate that the linker length has a stronger impact on the thermo-mechanical properties of the cis form than on those of the trans form. The molecule packing of the trans rod-like shape azomolecule may be fairly impacted by the linker length, whereas in the cis conformation, the banana shape with a higher linker length may create a consequent excess of free volume and thus a strong decrease in the transition temperatures.

3.4. Influence of the Substituent Nature

In order to study the influence of the azobenzene chemical structure, we compared the values of T_g and T_SL for three azopolymers, namely, (P6-azo-CH3, P6-azo-C6H13, and P6-azo-OC6H13) (Supplementary Figure S5). These azopolymers have similar Mn and the same alkyl linker length (n = 6) but a different substituent on the para position of the azobenzene group.

When comparing P6-azo-CH3 and P6-azo-C6H13 (

Table 3. Influence of the substituent nature on the transition temperatures. All the measured data have measurement uncertainties of 2 °C.

		Tg (°C)	Tmax (°C)
P6-azo-CH3 Mn=8100 g/mol	Trans	54	90
	Cis	32	42 (TSL)
P6-azo-C6H13 Mn=7100 g/mol	Trans	33	57
	Cis	<−10	0 (TSL)
P6-azo-OC6H13 Mn=7400 g/mol	Trans	45	87
	Cis	<20	30 (TSL)

), we can see that the increase in the alkyl tail of the substituent leads to a net decrease in all the transition temperatures. Our results agree with the work of Liang et al. [24], who measured T_g(trans) = 68 °C and T_g(cis) = −27 °C for n = 10, and with Li et al. [25], who studied the effect of substituents length on the transition temperature of alkyl on poly(n-alkyl-acrylate) polymer and demonstrated that T_g decreases with the substituent length, reflecting the greater side chain mobilities of long alkyl substituents.

Whereas P6-azo-C6H13 and P6-azo-OC6H13 have comparable substituent lengths, they show different behavior. Indeed, both the T_g and T_max transition temperatures of P6-azo-OC6H13 are much higher. Compared with P6-azo-C6H13, the presence of the oxygen group in P6-azo-OC6H13 may, via a mesomeric effect with the azobenzene group, lead to a higher rigidity of the substituent [26,27]. This loss of flexibility may explain the observed increase in both T_g and T_max. This outcome illustrates that the crucial factor in adjusting T_SL may not be the length of the substituent but rather its flexibility.

3.5. Photo-Switchable Adhesive

Hot melt adhesives (HMAs) are widely used in the industry because they are solvent-free, they form a strong bond quickly, simply by cooling, are compatible with most materials, and are clean and easy to handle [28]. Such adhesives undergo a phase transition into a liquid state when heated, facilitating their application between two substrates. Upon cooling, the adhesive solidifies via physical crosslinks and creates a bond between the substrates. For photo-switchable adhesives, the goal is to replace the heating/cooling step of the HMA with light irradiation. As a consequence, a good candidate should present (1) a temperature of solid–liquid transition (T_SL) slightly above the operating temperature. This is essential because, during the bonding process, the liquid form can be rapidly achieved using moderate UV irradiation. Subsequently, reversible debonding can be accomplished by UV irradiation of the assembly (cis liquid form and loss of adhesive cohesion). (2) The glass transition temperature of the trans state (T_g trans) should surpass the operating temperature, and (3) Mn should be high. These two last conditions ensure that after the bonding process, a solid form can be attained with thermal cis-to-trans isomerization and that physical crosslink may append both enhancing the cohesion of the adhesive. As a consequence, in order to prepare an adhesive with an operating temperature of 20 °C, the selected formulation should fulfill the following conditions: (1) T_SL ≤ 35 °C; (2) T_g(trans) > 20 °C; and (3) high Mn. Even if high Mn azopolymers could not be obtained in this study, among the synthesized azopolymers, only two fulfill these conditions: P6-azo-C6H13 and P6-azo-OC6H13.

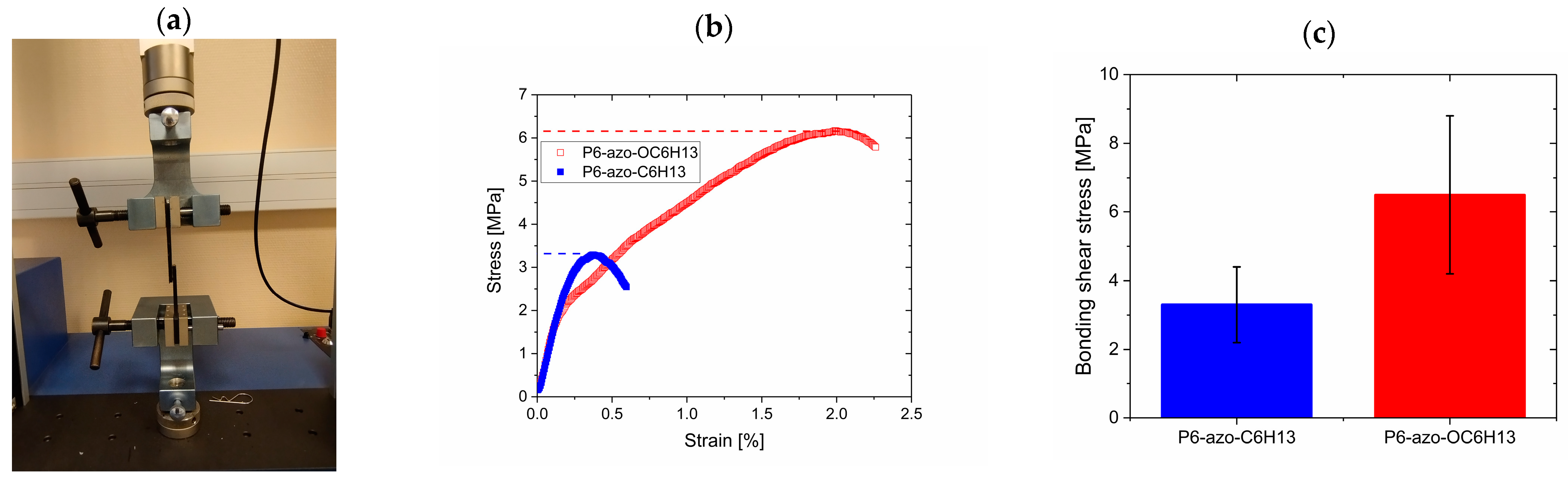

At first, the adhesion strengths were investigated by lap shear strength tests using polycarbonate substrates to determine the best adhesive candidate. The stress−strain curves of P6-azo-C6H13 and P6-azo-OC6H13 are shown in Figure 3. The bonding shear strengths of the two adhesives were 3.3 MPa and 6.1 MPa, respectively. Even though the absolute values of adhesive strength have to be taken with caution because they are related to the condition of the bonded substrate, the measured values are comparable with the ones measured by Lee et al. [8] and are higher than Li et al. [10,13]. It is clear that P6-azo-OC6H13 shows a higher adhesive strength than P6-azo-C6H13 in the trans state. This can be explained by the difference in T_g(trans). Indeed, the T_g(trans) of P6-azo-C6H13 is lower than the T_g(trans) of P6-azo-OC6H13 and much closer to the ambient temperature. As a result, the mechanical properties at 20 °C (i.e., modulus, cohesive energy…) of P6-azo-C6H13 are lower than P6-azo-OC6H13.

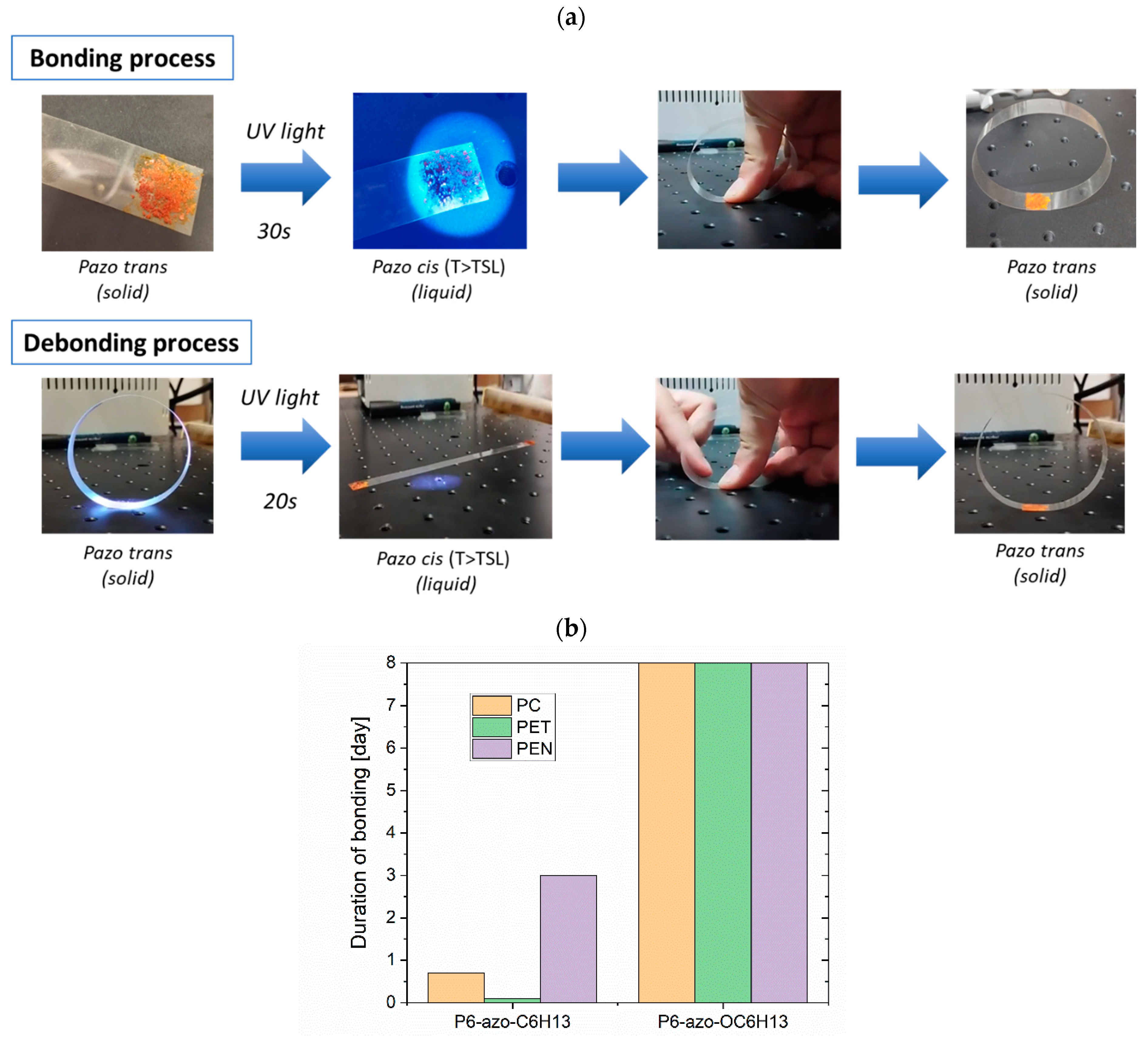

Based on the good adhesive strength of the two candidates, the reversible opening and closing of a plastic ring were successfully achieved (Figure 4) [9]. After the deposition of azopolymer powder on one end of the strip, the powder was UV irradiated for 30 s (365 nm, 100 mW.cm⁻²) in order to cause the trans–cis isomerization and the reaching of T_SL where the solid-to-liquid transition occurs. The polymer strip was then pressed end-to-end under room light to acquire a ring. We checked that the pressing time of t = 30 s was enough for the back cis–trans isomerization to proceed. Debonding of the ring can be performed upon UV irradiation, where the ring opens within 30 s. The opening and closing of the ring could be reversibly achieved when the adhesive position was exposed to alternating UV and pressure. Different polymer film substrates were tested as a ring strip either with P6-azo-OC6H13 or P6-azo-C6H13 glue. To compare the different assemblies, the time for the ring to self-debond when kept at room temperature was measured. The results presented in Figure 4b show that whatever the substrate, P6-azo-OC6H13 is a stronger adhesive than P6-azo-C₆H₁₃, indicating that P6-azo-OC6H13 seems to be a good candidate for a photo-switchable adhesive.

4. Conclusions

In summary, the possibility of using the pull-off force vs. temperature method to measure both T_g and T_SL gave us the opportunity to study the effect of different structural parameters on the solid-to-liquid transition of azopolymers. Our study has demonstrated that the increase in Mn needed to have high cohesive adhesive led to an increase in T_SL, rendering the solid-to-liquid transition more difficult to access. However, the use of a highly flexible substituent on the para position of the azobenzene group gives the opportunity to strongly decrease the value of T_SL and obtain photo-switchable adhesives with interesting properties. Upon alternating UV light exposure, the adhesive showed reversible debonding and bonding, which was applicable to various substrates. The result indicates that P6-azo-OC6H13 had superior adhesive performance and reusability, which may be applicable in the near future. We believe that our results pave the way for the route toward a robust photo-switchable adhesive.
