Influence of Flow and Pressure of Carburising Mixture on Low-Pressure Carburising Process Efficiency

Abstract

Low-pressure carburising (LPC) of steel is an industrially accepted method for improving the properties of a steel surface. LPC is environmentally friendly, does not cause intergranular oxidation and consumes less energy. Its effectiveness depends on the correct choice of process inputs. This paper aims to determine the effect of this type of carboniferous gas, pressure and flow rate on the efficiency of carbon transfer to the surface layer under low-pressure carburisation. A total of 40 disks of 16MnCr5 steel were carburised using pure acetylene or a mixture of acetylene, ethylene and hydrogen as a carboniferous gas, pressures of 2 or 6 hPa and two gas flow rates. The specimens were gravimetrically tested for the increase in the mass of carbon in the carburised layer. The results were analysed with U Mann–Whitney analysis and t-Student test. It was evidenced that carburising with pure acetylene resulted in a higher increase in carbon mass than carburising with the mixture (p < 0.05). Pressure and gas flow rates are important for carburising efficiency (p < 0.05).

1. Introduction

Low-pressure carburising (LPC) is a modern method of steel surface strengthening. The higher temperature of vacuum carburising (as compared to gas carburising) results in higher carbon transfer than in the traditional carburising method and the process time is shorter. Furthermore, LPC is environmentally friendly; it does not cause intergranular oxidation and consumes less energy [1]. After quenching, carburised steel is often harder than raw steel. In this version, it can be used for any industrial applications where wear resistance under operating conditions is important [1,2,3,4].

2. Low-Pressure Carburizing

The low-pressure carburising process is organised in cyclically repeated boost and diffusion stages where, in the boost stage, the intense surface and diffusion processes occur in the treated piece and, in the diffusion stage, only diffusion processes take place, without carbon being supplied to the surface. In a vacuum furnace chamber, a reduced pressure (1–10 hPa) is created and then, at a temperature of 900–1050 °C, small amounts of hydrocarbons (

Table 1. Carboniferous gases and mixtures used in low-pressure carburising (LPC) [10,15].

Family	Combinations
Acetylene and Aceylene mixtures	100% Acetylene (C2H2) [16]
	Acetylene + Nitrogen a
	Acetylene + Hydrogen b [17]
	Acetylene + Etylene (C2H4) + Hydrogen c [5] Acetylene + Cyclohexane
Cyclohexane and Cyclohexane Mixtures	100% Cycloxehane (C6H12) [6]
	Cycloxehane + Acetylene
Methane and Methane Mixtures	100% Methane (CH4)
	Methane + Propane
Propane and Propane Mixtures	100% Propane (C3H8)
	Propane + Methane d
	Propane + Hydrogen
	Propane + Butane (C4H10)

^a Typical dilutions up to 50%. ^b Typical dilution 7:1. ^c Typical ratios of acetylene to ethylene to hydrogen are 3:2:1 or 2:2:1. ^d Typical dilution: 40/60 to 60/40 (methane/propane).

)—which are the source of carbon—are cyclically supplied. The raw steel is heated in this environment for the time required to obtain the desired distribution of carbon concentrations in the surface layer [5,6].

Carburising is a process involving three basic phenomena: (1) the transfer of carbon atoms from the atmosphere to the steel surface; (2) chemical reactions (adsorption and absorption) on the surface; and (3) diffusion of absorbed carbon atoms into the material in accordance with the direction of the concentration gradient [7,8]. The total rate of carbon transfer from the atmosphere to the steel is, therefore, determined by the limiting process, which kinetically becomes the stage controlling the carburisation rate. From this point of view, it is essential to supply carboniferous gas to the steel surface in an amount adequate to the carbon demand, otherwise it could become a process decelerating factor [9,10]. Too little an amount of carboniferous gas in the carburising chamber results in obtaining an uneven carburised layer and, consequently, a batch of elements would already be rejected from use at the production stage. Too large an amount of gas causes carbon derivative substances (soot and tar) to deposit in the furnace chamber, which means taking the equipment out of service for cleaning [11,12,13,14]. The amount of active carbon atoms in the chamber is determined by the type of carboniferous gas, the manner of its decomposition and its pressure and flow rate.

The decomposition process of carboniferous gases (light hydrocarbons) at high temperature(s) is well-studied [11,12,13,18,19,20,21,22,23,24]. The dosage of gas quantity is optimised based on empirical formulas such as the Harris equation (1944) [9,25] or numerical formulas [26]. However, since the pressure and gas flow rate in the chamber are closely related, their exact influence on process efficiency has not been clearly explained. An additional factor that makes the determination of the proper amount of carboniferous gas difficult is that not all gas introduced into the carburising chamber dissociates completely. The degree of dissociation depends on temperature and on changes over time, and its value can be determined only experimentally [9]. For traditional atmospheric carburisation, it is assumed that the batch absorbs no more than a few percent of the carbon available from the carburising atmosphere. Therefore, when calculating the flow rate, to ensure a homogeneous layer, gas is supplied with an excess of several dozens of times. In low-pressure carburising the dosed size of carburising mixture is three to four times bigger than the calculated surface absorption capacity. The method of calculating the flow rate of carburising gas for acetylene was proposed by Antes, who noted that the procedure requires knowing the curve of a fraction of acetylene dissociated in temperature and time function, determined experimentally [9]. This is an important scientific problem and continues to be a gap in the literature that needs to be filled.

This paper aims to determine the effect of the type of carboniferous gas, pressure and flow rate on the efficiency of carbon transfer to the surface layer under low-pressure carburisation, which is a step towards filling the knowledge gap described above. The three following null hypotheses were tested: (1) no differences in carbon transfer effectiveness would be found between specimens that were in 100% C₂H₂ gas carburised and those that were in C₂H₂, C₂H₄ and H₂ mixture carburised; (2) pressure would not affect carbon transfer into steel; and (3) gas flow would not affect carbon transfer into steel.

3. Materials and Methods

The experiment was designed according to a bivariate (two-level) plan used to model linear dependencies with possible two-factor interactions. Forty disc-shaped specimens of 16MnCr5 steel were washed and weighed on a laboratory scale with a 0.001 g measurement accuracy. The discs were then carburised in a vacuum furnace (VPT 20/24, SecoWarwick, Swiebodzin, Poland) at 960 °C in one of two carboniferous mediums presented in Table 1—pure acetylene or a mixture of acetylene, ethylene and hydrogen in a 2:2:1 ratio. The same process segmentation was used for all processes in which the carboniferous gas boost stages lasted for 10 min in total, and the diffusion stages lasted for 60 min in total. The process variables included the type of carboniferous gas (acetylene, mixture of acetylene and ethylene), pressure (1–7 hPa) and flow (6–11.25 dm³/min). The types of carboniferous gas were selected based on data used in practice [16,27]. The range of pressures and their fluctuations were selected based on publications on low-pressure carburisation [5,27,28]. The range of flows was matched to the size of the estimated absorptivity of 16MnCr5 steel at 960 °C. Immediately after the carburising phase, the specimens were cooled rapidly to stop the carbon absorption process. After the thermo-chemical treatment, the specimens were washed and weighed again (gravimetric method). The results were then analysed in terms of the research hypotheses for each series of processes (C₂H₂ and C₂H₂:C₂H₄:H₂).

4. Results

The results of the measurements of carbon transferred into the surface layer of the specimens are shown in

Table 2. The mass of carbon introduced into the surface layer in low-pressure carburising processes using acetylene.

Process	Gas Type	Pressure [hPa]	Flow [dm3/min]	Mass Increasing Mean ± SD [g]
1	C2H2	1–3	6	0.301 ± 0.002
2	C2H2	5–7	6	0.318 ± 0.004
3	C2H2	5–7	9	0.314 ± 0.001
4	C2H2	1–3	9	0.320 ± 0.001
Total	-	-	-	0.313 ± 0.008
Statistical analysis
Factor		Range	t	p
Pressure		1–3 hPa	−20.34	<0.001
		5–7 hPa	2.56	<0.05

and

Table 3. The mass of carbon introduced into the surface layer in low-pressure carburisation processes using a carboniferous mixture (C₂H₂:C₂H₄:H₂ in a 2:2:1 ratio).

Process	Gas Type	Pressure [hPa]	Flow [dm3/min]	Mass Increasing Mean ± SD [g]
5	C2H2:C2H4:H2	1–3	7.5	0.278 ± 0.008
6	C2H2:C2H4:H2	5–7	7.5	0.311 ± 0.003
7	C2H2:C2H4:H2	5–7	11.25	0.306 ± 0.004
8	C2H2:C2H4:H2	1–3	11.25	0.296 ± 0.005
Total	-	-	-	0.298 ± 0.015
Statistical analysis
Factor		Range	t	p
Pressure		1–3 hPa	−4.49	<0.01
		5–7 hPa	2.34	<0.05

. By analysing the results in terms of the effect of the type of carboniferous medium, a higher mass increase was observed in processes where pure acetylene was used. The differences in the average increase in mass of carbon between the groups carburised with acetylene and the mixture were significant (Mann–Whitney U test, p < 0.001).

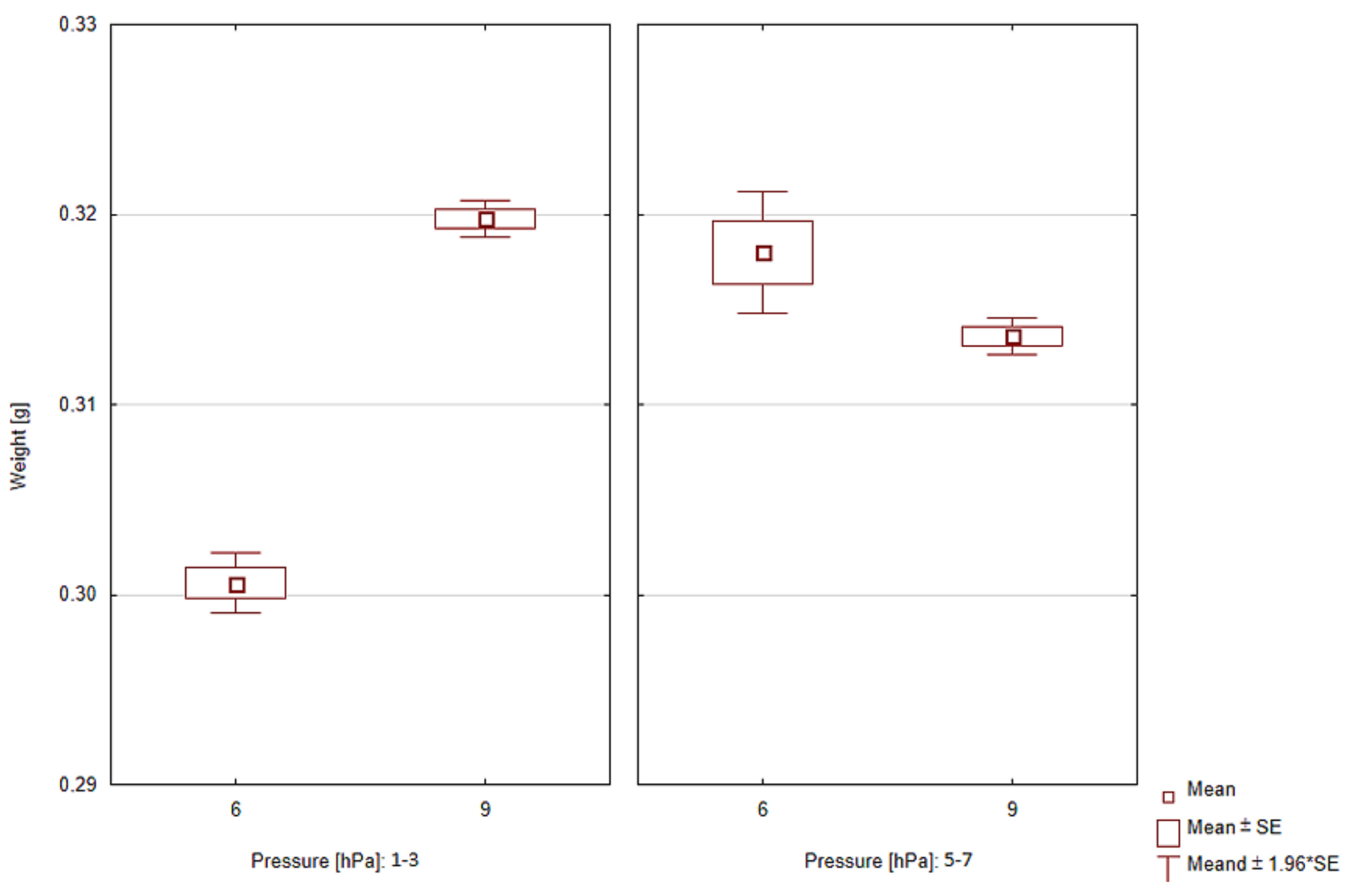

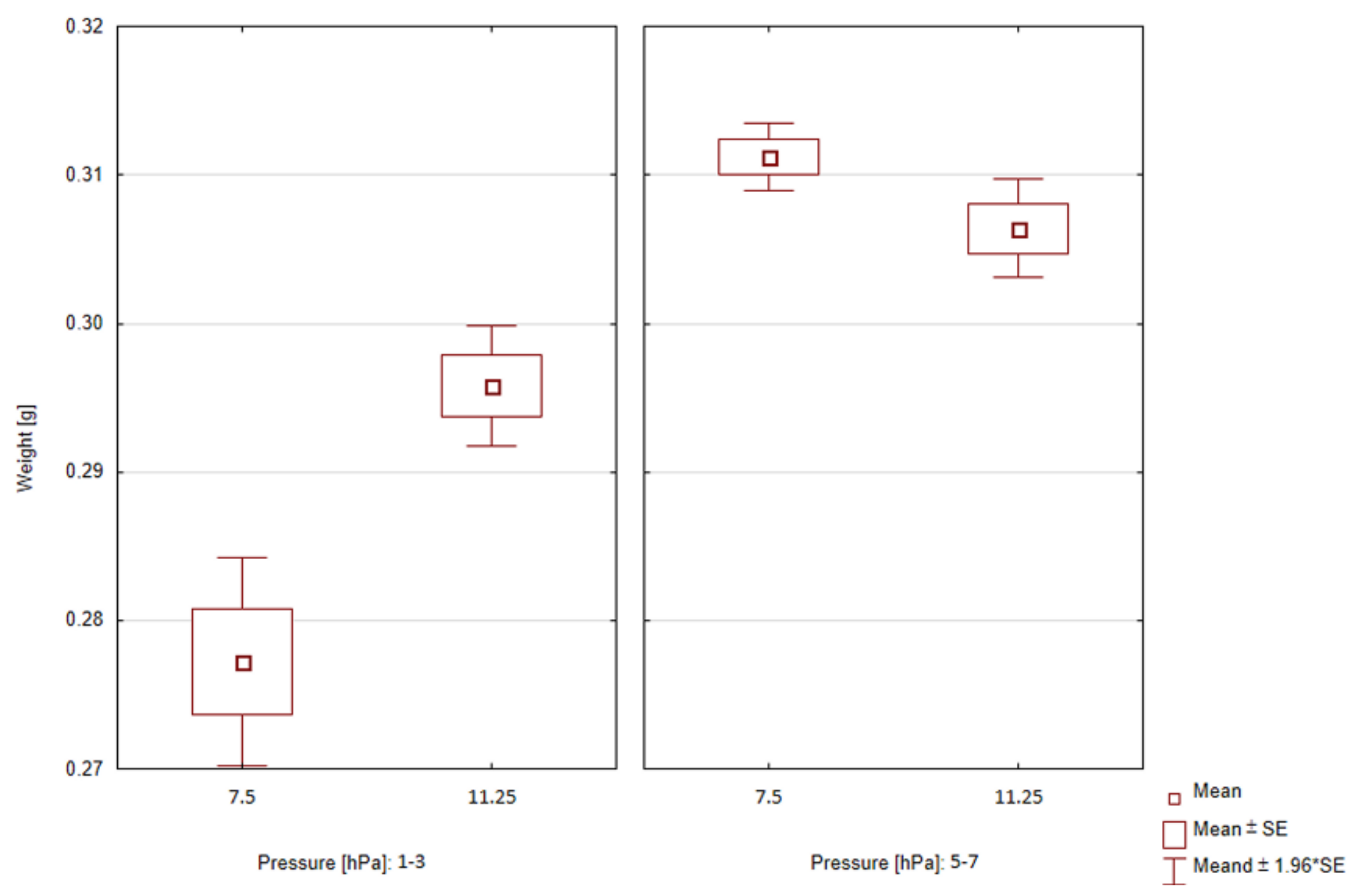

In processes where pure acetylene was used and in processes where a mixture of hydrocarbons was used for both pressure values tested, the effect of carboniferous gas flow rate was significant (p < 0.05) (Figure 1 and Figure 2). For the low-pressure range (1–3 hPa), it was observed that the higher the flow rate, the mass of carbon in the carburised specimens increased. For the higher-pressure range (5–7 hPa), an opposite tendency was observed: the higher the flow rate (to 9 dm³/min for acetylene and to 11.25 dm³/min for the mixture, respectively), the slower the mass increase.

5. Discussion

5.1. Effect of Carboniferous Gas Type on Carburisation Intensity

An analysis of the results of the experiment (Mann–Whitney U test) revealed that 100% acetylene is a more intensely carburising carboniferous gas than the Ac-Et-H mixture (p < 0.001). This is probably for two reasons. Firstly, it is the number of carbon atoms per mole of gas in pure acetylene and in the tested mixture; in acetylene, this number is 20% higher. The second factor is the sorption capacity of the carboniferous gases into metals. Gas of a high sorption strength is directly responsible for carburisation, while gas of lower sorption strength does not take part in carburisation until the amount of gas of a higher sorption strength is insufficient to cover the entire carburised surface [29]. Acetylene is a gas of higher sorption strength than ethylene, so carburisation with carbon atoms from its molecules occurs faster. Moreover, the bonding strength of carbon atoms in an acetylene molecule (198 kcal/mol) is higher than the bonding strength of ethane (83 kcal/mol) and ethene (ethylene) (145 kcal). This explains why, during carburising, acetylene better penetrates narrow blind holes in the carburised parts without disintegrating along the way and forms uniform layers. Regarding the soot-forming phenomena, Watanabe and Hirata [29] report that the decomposition reaction of a soot-forming hydrocarbon is expressed by the Equation (1):

$${\mathrm{C}}_{\mathrm{n}}{\mathrm{H}}_{\mathrm{m}}\stackrel{}{\to }{\mathrm{nC}}_{\left(\mathrm{soot}\right)}+\frac{\mathrm{m}}{2}{\mathrm{H}}_2$$

(1)

In the case of a gas of high bonding strength, the reaction does not proceed to the right, even if the H₂/C_nH_m partial pressure ratio is low. This explains why acetylene, at the correct pressure, allows carburising without the formation of soot.

However, carburising as intense as in pure acetylene is not always desirable; a mixture of acetylene, ethylene and hydrogen will result in less intense carburising, which is suitable for producing thin layers or carburising elements with small radius convex curves. Intense carburisation would result in carburising the whole cross-section of the element.

5.2. Effect of Pressure and Flow Rate on Carburisation Intensity

For a low range of process pressures (1–3 hPa), as the flow increased a significant increase in the mass of carbon in the carburised layer was observed in both mixtures. For the pressure range of 5–7 hPa, an opposite tendency was observed: an increase in flow rate resulted in a slower mass increase. This shows that a higher process pressure has a negative effect on the carburised layer formation. In acetylene carburising processes, 6.435 and 9.642 g/min of carbon atoms were supplied to the chamber during the process (at flow rates of 6 and 9 dm³/min, respectively). In the case of mixture carburising, it was 6.314 and 9.471 g/min of carbon atoms (at flow rates of 7.5 and 11.25 dm³/min). The calculated carbon quantities are independent of the pressure in the carburising chamber as the flow rate was measured upstream the chamber inlet at a pressure of 1013 hPa and a temperature of 20 °C. Most likely, at a pressure of 5–7 hPa and a higher flow rate, the conditions for carbon derivatives formation on the carburised surface occurred in the chamber. Mendiara et al. report that acetylene used in excess amounts tends to form soot while ethylene forms tar-generating compounds [13,21]. Kula and Pietrasik report that soot formation and partial polymerisation of atmosphere components to tar forms occurs not only on carburised surfaces as these compounds can also condense on cold parts of the furnace and in the pump system, causing their inefficiency and damage. However, the authors emphasise that this phenomenon is significantly less frequently observed than when propane is used [30,31].

The research results presented in the “Results” section are compatible with the observations of Gorockiewicz and Łapiński, which reported that during LPC in pressure 5–7 hPa, an active carbon layer settles in the form of fine-crystalline graphite and hydrocarbon radicals on the surface of the parts (carbon deposit). The layer is appropriately thin when the supply of carbon from the atmosphere slightly exceeds the amount of carbon that can be absorbed by the surface. In this case, the carburizing process runs properly. In the case of a carbon supply largely exceeding the demand, the excess of carbon results in the precipitation of a considerable quantity of carbon deposit. In an extreme case, this occurs in the form of a tarry substance or soot, hampering the control of the carburizing process [32]. The formation of carbon derivatives at a pressure of 5–7 hPa would explain the deceleration of carbon transfer through the surface. At pressures of 1–3 hPa, these phenomena (i.e., soot- and tar-generating phenomena) would be reduced. For the pressure of 1–3 hPa the carbon supply was apparently insufficient even at high flows; thus, the further increase in flow increased the mass of carbon gains in the carburised layers. The research shows that pressure is a more important parameter for the correct carburising process. Process purity depends on the proper pressure value. To sum up, for a fixed size of carburised surface, the flow rate should be an output value adapted to the type of mixture and pressure.

Based on the testing, all null hypotheses were rejected (p < 0.05). This means that carburizing in pure acetylene is significantly different from carburizing in acetylene mixtures, even on mixtures containing other carbon-bearing gases (ethylene, ethene). This results from the sorption capacity of carbon-bearing gases to metals and the bond strength of carbon atoms in acetylene molecules as described above. The pressure of the carbon-bearing gases to carburising has an influence on the diffusion effectiveness. It is not a trivial relationship. Too much pressure may slow down sorption. The gas flow affects the efficiency of the process as well. In connection with that, it is possible to determine, experimentally, a range of pressures in which increasing gas flow increases the kinetic of the diffusion of carbon into the steel. Above this range, further increasing flow does not make a difference to the intensification of the process. Previous studies have failed to demonstrate that there is an interaction between pressure and flow of carbon-bearing gas. In the authors opinion, this does not mean that the interaction does not exist, but lack of proof results from the limitations of the conducted experiments.

The research described in the article does not apply to gas carburizing, which was not considered during the experiments. With regard to low pressure carburizing, it should be stated that only pressure and flow calculations performed with computer methods are useful for practical use. They give only an approximate result, but in terms of the calculation time and the possibility of their execution, they are the only method of credibly estimating the surface demand for carbon-bearing gas in low-pressure processes.

6. Summary

Within the limitations of this study, the following conclusions were drawn:

• Carburising in pure acetylene is significantly different from carburising in acetylene mixtures, even on mixtures containing other carbon-bearing gases (ethylene, ethene) with carbon in the same amount.
• It is possible to determine, experimentally, a range of pressures in which increasing gas flow increases the kinetics of the diffusion of carbon into the steel.
• Only pressure and flow calculations performed with computer methods make it possible to credibly estimate the surface demand for carbon-bearing gas in low-pressure processes.
