Evaluation of the Bonding Strength between Various Dental Zirconia Models and Human Teeth for Dental Posts through In Vitro Aging Tests

Abstract

In dentistry, root canal treatment reduces support of the tooth, making it necessary to insert a cylindrical body into the treated tooth to strengthen the crown. In the past, metal or fiberglass was often used. However, metal is too different in color from teeth, so the esthetics are poor, and fiberglass is not as strong as metal. Therefore, an alternative is zirconia, which has the characteristics of high light transmittance, esthetics, good biocompatibility, and high breaking strength. The surface morphology and composition of zirconia ceramics are the key to their bond strength with teeth. Therefore, in this study, the surface characteristics of different brands of zirconia commonly used in clinical practice were evaluated in terms of their surface morphology and surface elements. The surface was modified by sandblasting, and its effect on the bonding strength was discussed. Finally, the stability of the material was evaluated through artificial aging. The results showed that the surface roughness of the zirconia specimens increased after sandblasting, whereas the surface microhardness decreased. The shear test results showed that the 3D shape of the zirconia surface could help improve the bonding strength. The bonding strength of DeguDent increased the most after sandblasting. After 20,000 cycles of aging treatment, the shear strength of each specimen decreased. Field emission scanning electron microscopy results showed that the adhesive remained intact on the surface of zirconia, indicating that adhesion failure occurred between the adhesive and the teeth. This confirms that sandblasting can improve the bonding strength of zirconia. Based on the results obtained, it was concluded that the surface roughness of zirconia is the main factor affecting the bond strength.

1. Introduction

Dentists insert a “post” into the root of a patient’s tooth after root canal treatment to support the crown. The conventional post materials used in dentistry are metal and fiberglass. However, metal materials have shortcomings such as unnatural color, poor light transmittance, and the metal color being exposed at the gums [1]. Although fiberglass is more esthetically pleasing in color than metal, it is not as strong [2]. Therefore, other materials are sought as alternatives. Zirconia is one such material that has excellent mechanical properties, chemical stability, and esthetics [3] and is being used in clinical practice as a post material. Prefabricated zirconia posts have been shown to reduce the time and cost of treatment. The zirconia post itself is a high-density ceramic that results in high X-ray image contrast. Therefore, zirconia posts can help physicians identify recurrent dental caries [4]. However, the main reason for the failure of post retention is poor adhesion [5]. Therefore, clinicians must understand the bonding strength and retention conditions of different cylindrical post specimens to reduce the risk of root fractures [6]. Despite this, the bonding of zirconia with the teeth remains a major clinical challenge. The solutions are to increase the adhesive strength of zirconia by changing the type of adhesive or applying surface treatment [7,8,9].

Surface treatments for zirconia can be divided into two types: physical and chemical. Currently, common methods include sandblasting [10,11,12,13,14,15,16,17,18], acid etching (hydrofluoric acid) [11,19,20], silicon dioxide coating sandblasting [10,20,21,22,23], Er: YAG laser irradiation [11,13,24], and the application of coatings containing metal [13]. In addition, it is reported in the literature that the surface roughness can be increased with a proper milling strategy before sintering the zirconia or glass-ceramics [25,26,27].

In these methods, the ceramic surface area is increased to obtain a rough surface and create the contact area and micropores, or chemical bonding conditions are employed to improve the retention between the ceramic and the adhesive. For example, hydrofluoric acid can be used to corrode or chemically modify the ceramic surface, thereby strengthening the bonding between zirconia and the adhesive. However, simply using acid etching to increase the bond strength between zirconia and the resin adhesive is insufficient. Sandblasting the surface of zirconia using alumina particles with a silicone coating causes rubbing and generates high temperatures. The silicone on the surface of the alumina particles then adheres to the zirconia surface and undergoes silane treatment [20,22]. This process can improve the chemical bonding between zirconia and resin.

The bonding between a dental restoration and a tooth determines the stability of the prosthesis. The adhesive will have poor stability because of the dynamic oral environment (temperature, chemistry, and mechanics). To make the test results of the material more consistent with the clinical results, artificial aging tests are conducted along with the bonding strength test. In this method, the test material is placed in an environment similar to the oral cavity, and a thermal cycler is used to circulate the material at extremely high and low temperatures for a fixed duration. This helps simulate the alternating hot and cold environments in the mouth as an assessment of the long-term usability of the material [17,22,23].

The performance and strength of a dental zirconia root stem are determined by the bond strength between the ceramic and the tooth veneer. Currently, there is no optimal treatment procedure for bonding the zirconia post surface and teeth. The surface properties of zirconia, which is used commonly in clinical practice, were analyzed in this study. The roughness, hardness, and grain size of zirconia were compared and sandblasting was applied for surface modification to observe whether these conditions affected the adhesion strength. We simulated the environment of the human oral cavity by varying the humidity and temperature and then conducted an aging test with 20,000 hot and cold cycles to evaluate the bonding strength. The influence of temperature on the bonding force between zirconia and the adhesive is discussed. The material characteristics of each group of zirconia specimens were analyzed and compared with the results of the sandblasted surface to obtain the best adhesion effect. The results of this study could contribute to restoration after root canal treatment with zirconia posts.

2. Materials and Methods

2.1. Preparation of Zirconia

In this study, the zirconia samples were divided into five groups based on the name of the disc producer (Metoxit, NexxZr, Upcera, Dentaswiss, DeguDent), with each group containing a total of 10 test pieces (

Table 1. Materials, Codename, Characteristic, and Composition of all tested materials.

Name	Codename	Coefficient of Thermal Expansion (25–500 °C)	Flexural Strength (Mpa)	Composition (Wt.%)
DeguDent Cercon ht Disk	DeguDent	10.5 × 10−6 K−1	1200	Zirconium oxide, Yttrium oxide 5%, Hafnium oxide < 3%, Aluminium oxide and Silicon oxide < 1%
Ceramic Blanks System	Metoxit	11.2 × 10−6 K−1	1250	ZrO2 + HfO2 + Y2O3 > 99.5%, Y2O3 5.2%, Al2O3 < 0.05% and Other Oxides ≤ 0.5%
NexxZr T Dental Zirconia Blanks	NexxZr	10 × 10−6 K−1	1150	ZrO2 + HfO2 + Y2O3 > 99.5, ZrO2 91.6, Y2O3, HfO2, Al2O3 < 0.15 and Other Oxides < 0.2
Upcera Dental Zirconia Blank	Upcera	10.5 × 10−6 K−1	1200	ZrO2 + HfO2 + Y2O3 99.6%, Y2O3 5.2%, Al2O3 0.2–0.5% and Other oxide < 0.2%
Dentaswiss Zirconia Disc-Translucent	Dentaswiss	10.5 × 10−6 K−1	800	ZrO2 + HfO2 + Y2O3 99%, Y2O3 ≤ 6.0%, Al2O3 ≤ 0.5% and Other oxide ≤ 0.5%

The above data sources are all product manuals. Flexural strength is three-point flexural testing.

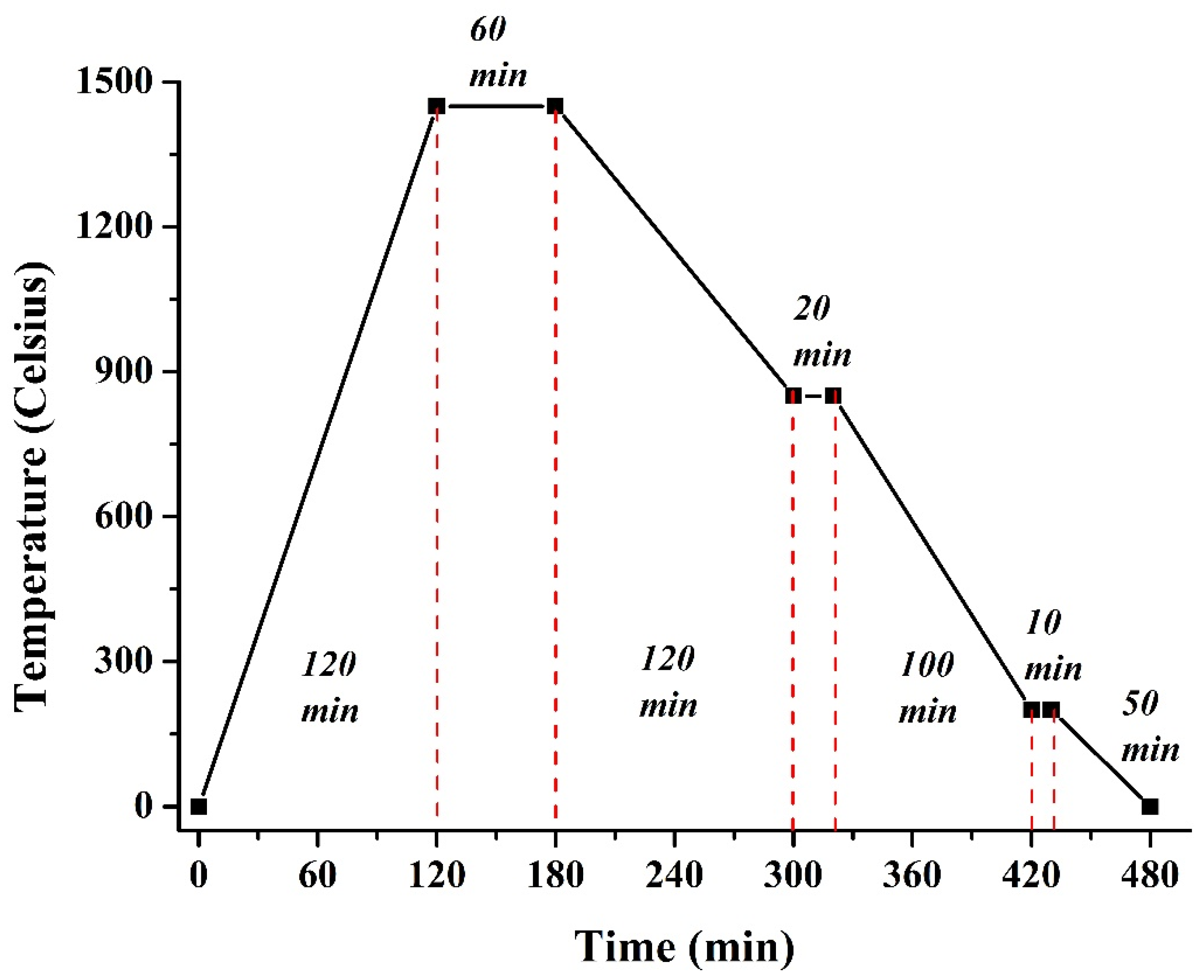

). Each zirconia disc was cut into a fixed-size test piece (15 mm × 10 mm × 2 mm) through computer-aided design/computer-aided manufacturing (CAD/CAM, Motion2, Amann Girrbach, Kobrach, Austria). The mill diameters used were Lyra conical tool Ø0.3 mm, Ø0.6 mm, Ø1.0 mm, and Ø2.5 mm (Amann Girrbach). Subsequently, each test piece was placed in a sintering furnace and sintered at 1450 °C for a dwell time of 1 h (Figure 1).

2.2. Surface Modification of Zirconia

The surface of the sintered test piece was sandblasted using alumina particles with a particle size of 110 μm. The sample was fixed with a clamp at a distance of 10 mm to maintain the vertical sandblasting at 90 degrees, and a pressure of 3 kg/cm² was set to sandblast samples for 20 s. Finally, the sample was cleaned using an ultrasound bath for 10 min and dried at room temperature.

2.3. Characterization of Zirconia

The surface morphology of zirconia was examined using field-emission scanning electron microscopy (FESEM, JSM-6700F, JEOL, Tokyo, Japan). In this study, Au was plated on the sample surface to improve its conductivity, which helps obtain a better image resolution. In addition, image analysis software (Image J, 1.51K, National Institutes of Health, Bethesda, Maryland, MD, USA) was used to calculate the grain size. An energy dispersive spectrometer (EDS) was attached to the FESEM device to analyze the surface of the zirconia test piece qualitatively and quantitatively.

2.4. Surface Microhardness Test

The surface microhardness, as an important mechanical property reflecting the elastic and plastic deformations of a material, was determined. The diagonal length of the indent after a Vickers test (using a microhardness tester HMV-G 20S, SHIMADZU, Kyoto, Japan) was measured to calculate the hardness value. A force of 1.96 N for 15 s was applied to compare the effects of surface hardness and adhesion of each group of strengthened zirconia specimens.

2.5. Surface Roughness Test (Image Pro)

The surface roughness refers to the small spacing and unevenness of the peaks and valleys on the surface of a material. The distance between the peaks or valleys is small (<10 µm) and cannot be distinguished by the naked eye; it is a microscopic geometric error. The lower the surface roughness value, the smoother the surface. In addition, the surface roughness has a significant influence on the long-term usability and reliability of the product. In this study, the average surface roughness of each group of test pieces was measured using a SURFCORDER (SE-40G, Kosaka Laboratory Ltd., Tokyo, Japan). A speed of 0.5 mm/s and distance of 2.5 mm were used to measure 5 parts on the surface of the sample. Five parts were measured and the number of test pieces in each group was N = 5.

2.6. Preparation and Bonding of Test Pieces of Teeth

In this experiment, teeth extracted due to trauma or correction were collected as the research samples. First, the teeth were cleaned with 75% ethanol in an ultrasonic cleaner for 60 s, rinsed with deionized water for 30 s, and dried. Each tooth was placed in a plastic round tubular mold (diameter 1.5 cm, height 3 cm) and filled with a transparent temporary crown resin (Tempron, GC, Tokyo, Japan). The resin was hardened for 20 min (Figure 2A). Subsequently, a slow-cutting machine was used to cut the test piece in half from the buccal side to the lingual side. The tooth surface was then polished with water sandpaper for homogenization treatment (SIC: #800, #1200) (Figure 2B).

A self-setting adhesive (Poly-F Plus, Dentsply, Konstanz, Germany) was used to bond each group of zirconia test pieces to the human teeth. The adhesive was mixed according to the manufacturer’s instructions, and the ratio was one spoon of powder and two drops of liquid (distilled water) for 15 s. The sample was adhered to the surface of the crown of the tooth with a square size of 0.16 mm² and kept for 10 min (Figure 2C). Finally, the excess adhesive was removed, and the adhered test piece was allowed to stand for 24 h.

2.7. Evaluation of Bonding Strength

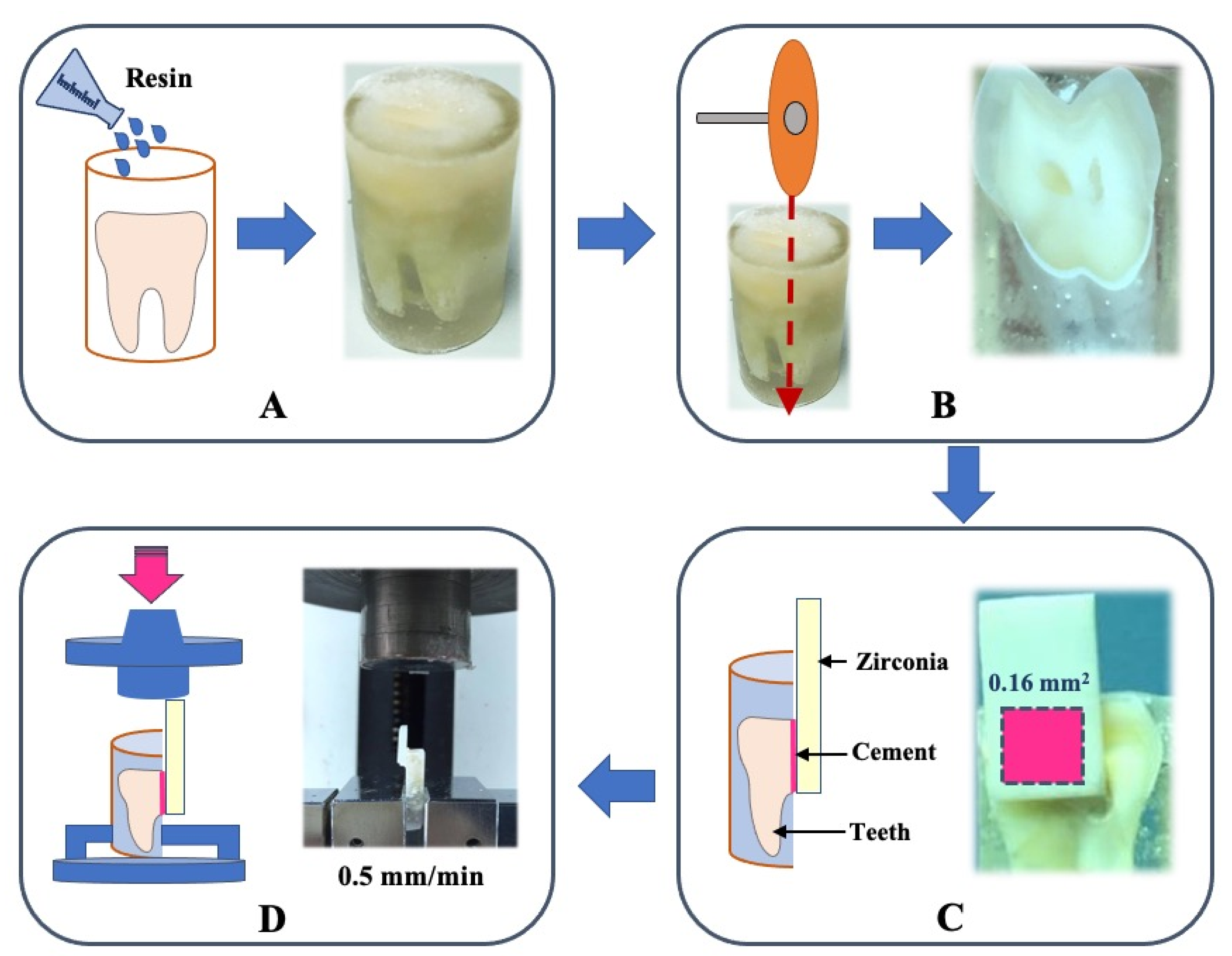

In clinical practice, the bond between teeth and zirconia is damaged by bite force. Therefore, the samples were placed in the fixture and a special metal plate was used as a baffle at the top of the instrument. The strength tester (EZ-Test CE, SHIMADZU, Tokyo, Japan) was used to press it down from the crown to the apex at a speed of 0.5 mm/min until the zirconia sample was separated from the tooth (Figure 2D). Eventually, the maximum pressure was recorded and statistical analysis performed. In addition, the fracture of the sample was evaluated through FESEM.

2.8. Aging Test

The adhesive strength established by the adhesive deteriorates with long-term use in the oral cavity. Therefore, hot and cold cycle testing was applied to study the long-term performance of the material (aging test) [28]. We simulated the temperature change in the mouth by repeatedly soaking the samples at different temperatures to accelerate the aging time, and observed the effect of adhesion. The samples were immersed in a water tank at alternating temperatures of 5 and 55 °C using a double tank thermal impact machine (TBN-971105, TEN Billion, Tainan, Taiwan). Each temperature was maintained for 30 s and the transfer time between temperature cycles was 5 s; this was repeated for 20,000 cycles each time (total 389 h). After the aging test was completed, the shear test was evaluated again.

2.9. Statistical Analysis

All the data are expressed as mean ± standard deviation (SD) from four repeat samples. The data were analyzed using the JMP 13 software (Statistical Analysis System, North Carolina State University, Raleigh, NC, USA). A one-way ANOVA followed by a Tukey’s HSD post hoc test was used to determine the level of significance, where p < 0.05 was considered to be significant.

3. Results and Discussion

3.1. Characterization of Zirconia

The surface morphology of the zirconia test piece was observed using FESEM, and the grain size was calculated using image analysis software (Image Pro). Metoxit, NexxZr, Upcera, and Dentaswiss had dense and smooth surfaces formed by irregular grain boundaries. However, the surface morphology of the DeguDent sample was different from that of the other groups. In addition to an irregular grain boundary, pores were observed between the grain boundaries, producing a 3D surface morphology (Figure 3). The size of the grains on the surface of all zirconia samples was between 2.8 and 13 μm² (Figure 3). The grain size of the Upcera samples was the largest, with a statistical significance of p < 0.05. The grain boundaries of the zirconia surfaces of the different brands mentioned above were mainly elliptical and had significant differences in terms of grain size. Figure 3 shows the zirconia surface of the alumina particles (with a particle size of 110 μm) after sandblasting. The results show that the grain boundary lattice structure on the surface was completely destroyed, with irregular and undulating fragments. This is similar to that reported in the literature, where the original crystal morphology was damaged by the impact of alumina particles [29]. However, the surface structure of the DeguDent test piece was not destroyed, presumably because of its 3D surface morphology. The alumina particles cannot enter during the sandblasting process, and thus, the original appearance is retained. Therefore, after sandblasting, the surface of zirconia is destroyed, producing a rougher surface morphology.

3.2. Surface Microhardness Test

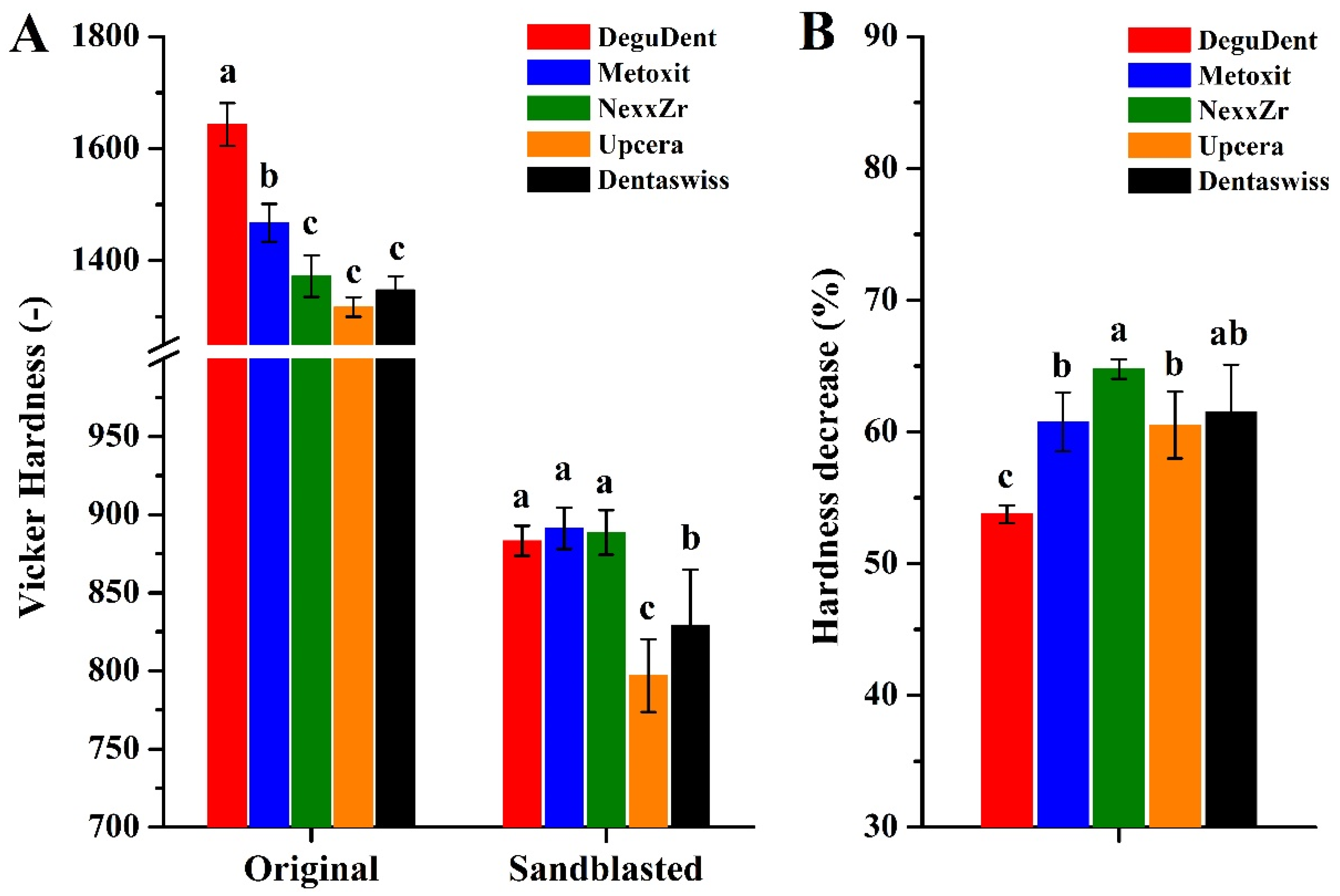

Compared to other hardness tests, the Vickers hardness (−) test provides a clear hardness value without having to change the indenter for materials with different hardness. A square indentation contour has clear edges and is easy to measure. It is often applied to thin test materials. Therefore, the surface hardness of zirconia was evaluated using Vickers hardness in this study. The results show that the hardness of the zirconia sample before sandblasting was between HV_0.2 = 1337 and HV_0.2 = 1734 (Figure 4A). DeguDent exhibited the highest hardness, followed by Metoxit, with a significant difference (p < 0.05). There was no difference between the other groups (p > 0.05). The surface hardness of the zirconia specimens of different brands tended to decrease after sandblasting, and the surface hardness values were between HV_0.2 = 741.75 and HV_0.2 = 973.0 (Figure 4B). The results are similar to those of the original samples. The rate of decrease in the hardness of the surface of each group of samples was approximately 54%–64% (Figure 4B). DeguDent had the lowest reduction in hardness value. The decrease in the Vickers hardness value can be explained by the surface morphology of the sample; the crystal structure on the surface was destroyed after sandblasting, resulting in a decrease in the value of surface hardness.

3.3. Surface Roughness Test

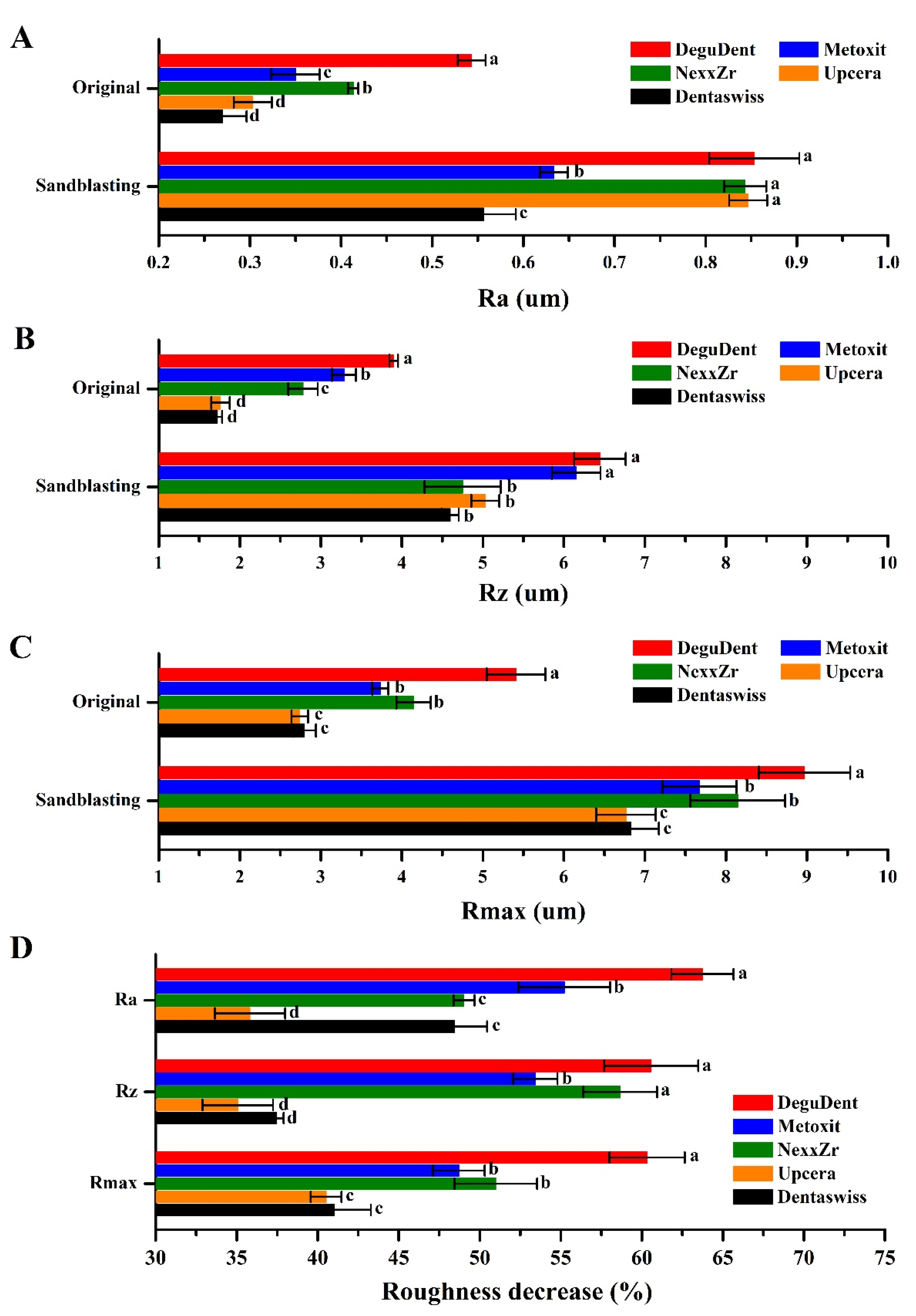

In clinics, dental technicians often use sandblasting steps to improve the bonding effect between zirconia abutment and metal crowns. In this study, the sample was subjected to surface treatment using alumina particles with a diameter of 110 μm to improve the roughness of the oxidation surface. The centerline average roughness (Ra), mean peak to valley height of roughness profile (Rz), and maximum height of the profile (Rmax) on the surface of the zirconia sample were measured using a surface roughness meter. The results showed that the values of Ra, Rz, and Rmax of the samples were in the ranges of 0.25–0.55, 1.7–4.0, and 2.6–5.5 μm (Figure 5), respectively. There were significant differences between the above groups (p < 0.05). All the zirconia samples exhibited a significant increase in surface roughness after sandblasting. This result is similar to that reported in the literature. The roughness obtained after sandblasting was approximately 0.5 μm [30]. The surface roughness results were consistent with the surface topography results. The original flat zirconia surface was destroyed after sandblasting, resulting in a high surface roughness. In addition, the DeguDent sample exhibited high surface roughness because of the increased depth of field after sandblasting. Compared to other zirconia specimens, DeguDent exhibited the best surface roughness effect after sandblasting. A rough zirconia surface helps the resin adhesive to provide a wider contact area and micropores, thereby improving the bonding strength [13].

3.4. Surface Element Analysis

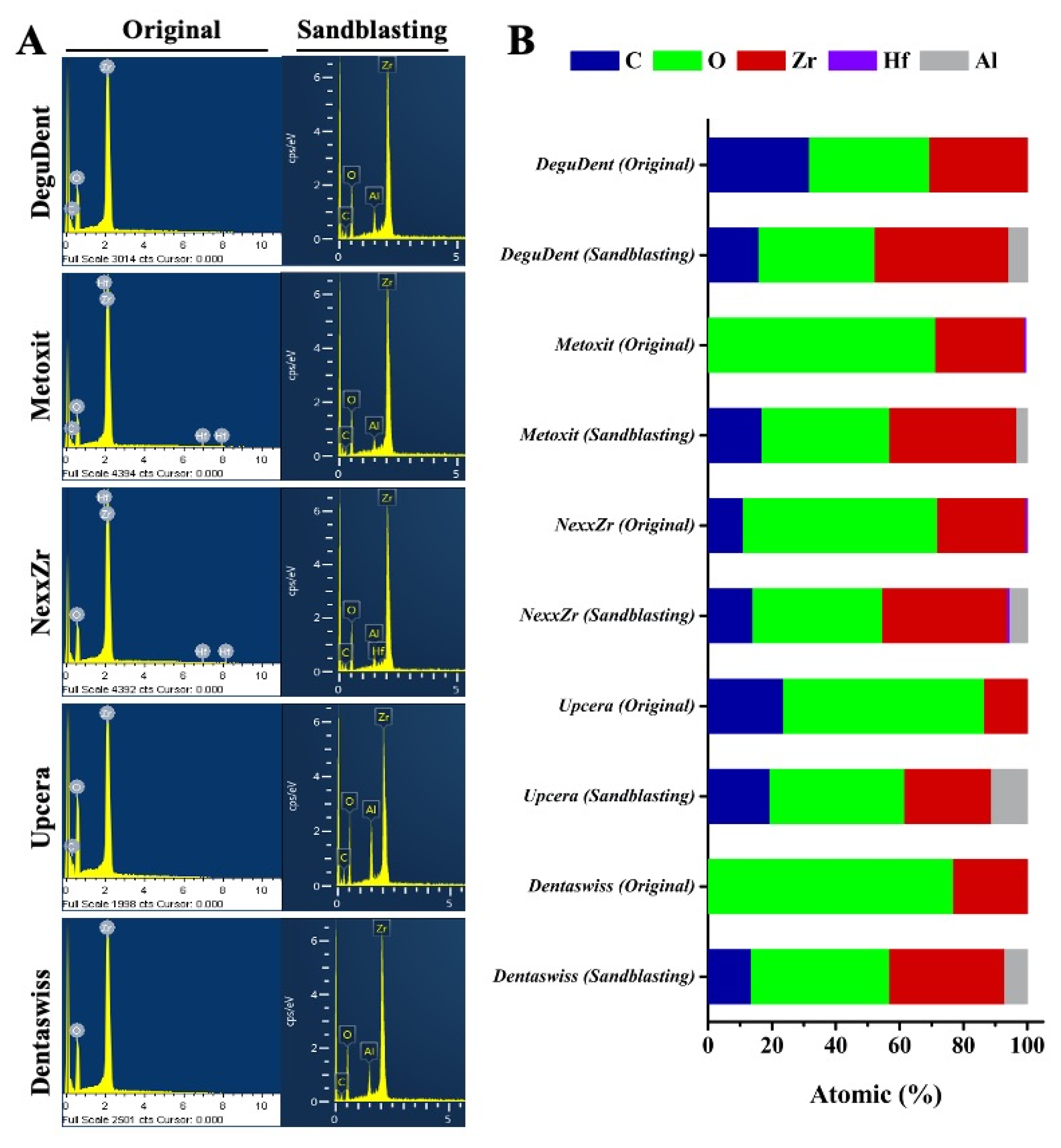

The surface of each zirconia test piece was analyzed qualitatively and quantitatively using an X-ray EDS. In addition to oxygen and zirconium, other elements were observed on the surface of the zirconia samples (Figure 6A). The EDS results of all the samples were consistent with the original composition, mainly oxygen and zirconium. Carbon was found on the original surface of DeguDent, NexxZr, and Upcera. The ratio ranges from 11.02 atomic% to 40.09 atomic%. This may be due to the addition of the zirconia disc during production, or the adsorption of carbon dioxide or tiny carbon particles from the air during storage. After sandblasting, aluminum was observed on the surfaces of all the samples (Figure 6). The results confirmed that sandblasting treatment could help effectively coat aluminum on the surface of zirconia. A study has shown that only a small amount of alumina particles on the surface of zirconia do not seem to damage the resin bond [31]. Hallmann et al. also reported that the use of alumina particles under different blasting pressures may give better results than using silica coated alumina particles [29]. Therefore, the residual aluminum on the surface may facilitate bonding.

3.5. Evaluation of Bonding Strength and Aging Test

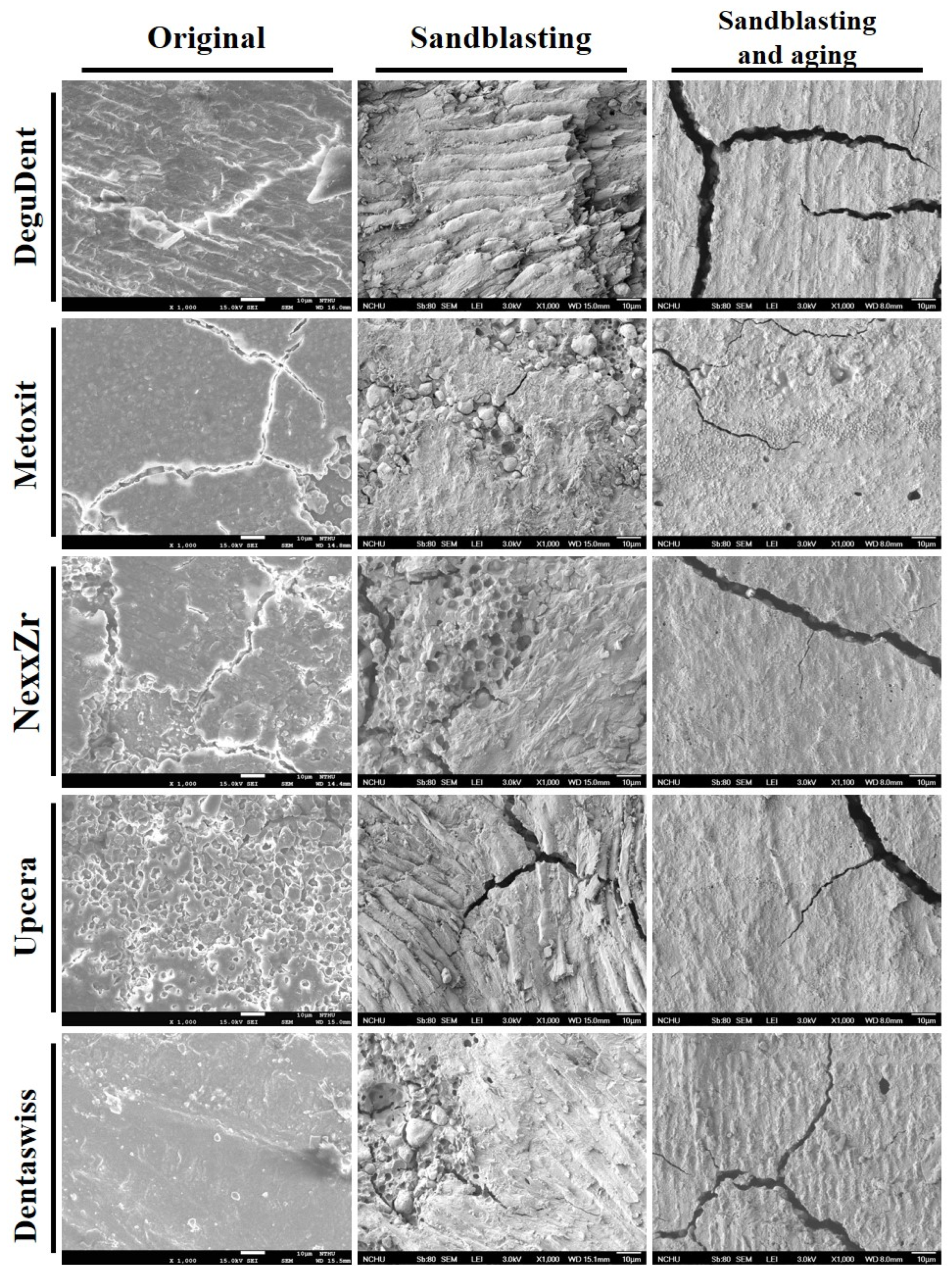

FESEM was used to evaluate the adhesion of the zirconia sample to the tooth slice, and then a shear test was performed to observe the fracture of the adhesive on the zirconia test piece (Figure 7). The DeguDent, Metoxit, NexxZr, and Dentaswiss groups are flat flake surfaces with minor cracks and small particles. These flat sheet-like structures of inconsistent sizes are left behind by the fracture of the resin adhesives. In the Upcera group, an almost irregular particle morphology was clearly visible. This is because of poor bonding between the adhesive and the zirconia surface, which results in fractured surfaces between the two. According to the literature, the fracture is due to improper adhesion between the adhesive and the ceramic [32]. The surface was modified by sandblasting with alumina particles to facilitate better adhesion to the teeth before a shear test was carried out. The remaining adhesive could be observed with the naked eye on the test pieces of each group. FESEM was used to observe the surface morphology of the fracture surface of the adhesive. There were resin residues on the surfaces of all groups. In particular, the pores on the surface of the Upcera group were covered with the adhesive, indicating that there was more surface bonding between the resin and zirconia. Finally, the surface of the zirconia test piece was almost intact with the resin residue after sandblasting and aging treatment.

However, after the sample was repeatedly immersed in a water bath at 5 and 55 °C for 20,000 cycles of heat and cold, cracks appeared on the surface of the resin adhesive due to hot and cold stimulation (Figure 7). Nevertheless, the FESEM images show that the surface sandblasting of zirconia improves bonding with the resin adhesive. Resin adhesives crack because of hot and cold stimulation and cause structural damage to zirconia. In addition, the FESEM images of each group of shear tests showed that the bonding strength between the adhesive and the teeth was relatively low. Moreover, most of the surfaces separated from the teeth appeared smooth, and the adhesive hardly penetrated the tooth cavities. The cause of adhesion failure is the poor bonding between the adhesive and the tooth surface. Therefore, the teeth should also be treated during the adhesive procedure to improve the bonding between the adhesive and teeth [33].

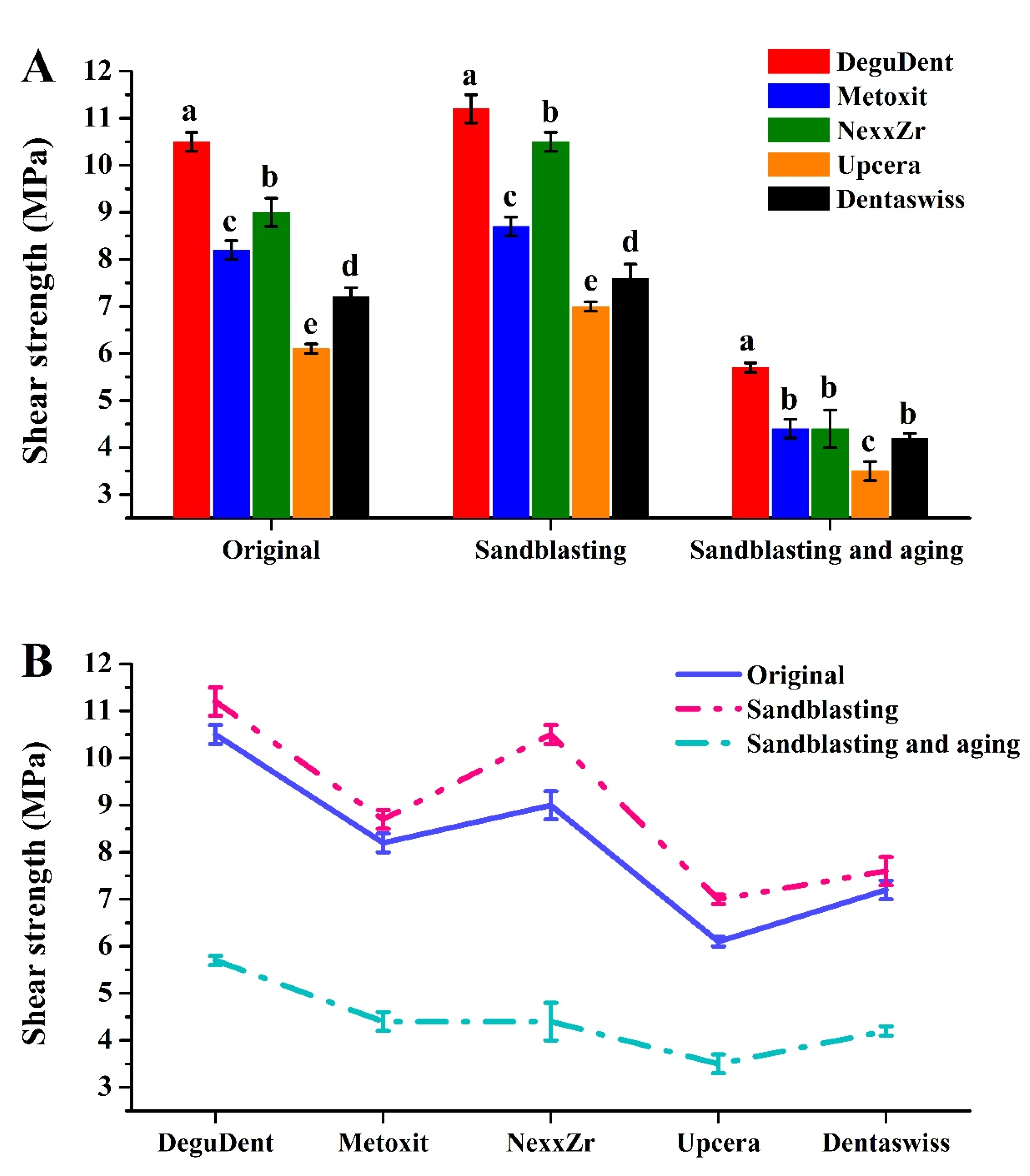

The strength of the zirconia test piece was calculated after shear testing (Figure 8A). The results showed that the shear strength of the zirconia test piece ranged from 6.1 to 10.5 MPa. Among them, DeguDent was the highest with a statistical difference (p < 0.05). The shear strength of the zirconia sample after sandblasting ranged from 7.0 to 13.5 MPa. The shear strength of the test pieces after the aging test ranged from 3.5 to 5.5 MPa. These two trends are consistent with the results of the original zirconia samples, with DeguDent showing the highest results for both (p < 0.05). The results of sandblasting and aging tests on the surfaces of different brands of zirconia showed that the sandblasting treatment effectively improved the bonding between the zirconia and the resin adhesive (Figure 8B). Previous studies have shown that alumina with a particle size of 50 μm can be used to adjust the ceramic surface by sandblasting it at an operating distance of 0.25 MPa. Increasing the surface roughness to improve the bond strength yielded results similar to those reported in this study [34,35].

The surface roughness of zirconia increased after sandblasting, and this increased the mechanical interlocking area. Therefore, an appropriate micron level roughness can increase the mechanical interlocking effect [36]. A study has also shown that surface treatment can remove surface dirt and improve wettability, so that the resin binder can flow into the rough surface of zirconia more easily [37]. However, the resin adhesive stimulated by hot and cold cycles destroyed the internal structure of the zirconia. As a result, the shear strength was significantly reduced (Figure 8B). Syed Rashid Habib et al. reported that the shear bond strength of zirconia repaired using various methods and adhesive systems is approximately in the range of 9.77–13.44 MPa. The results show that the adhesive will also affect the bond strength [38]. Therefore, the bonding effect of the adhesive needs to be investigated in future research.

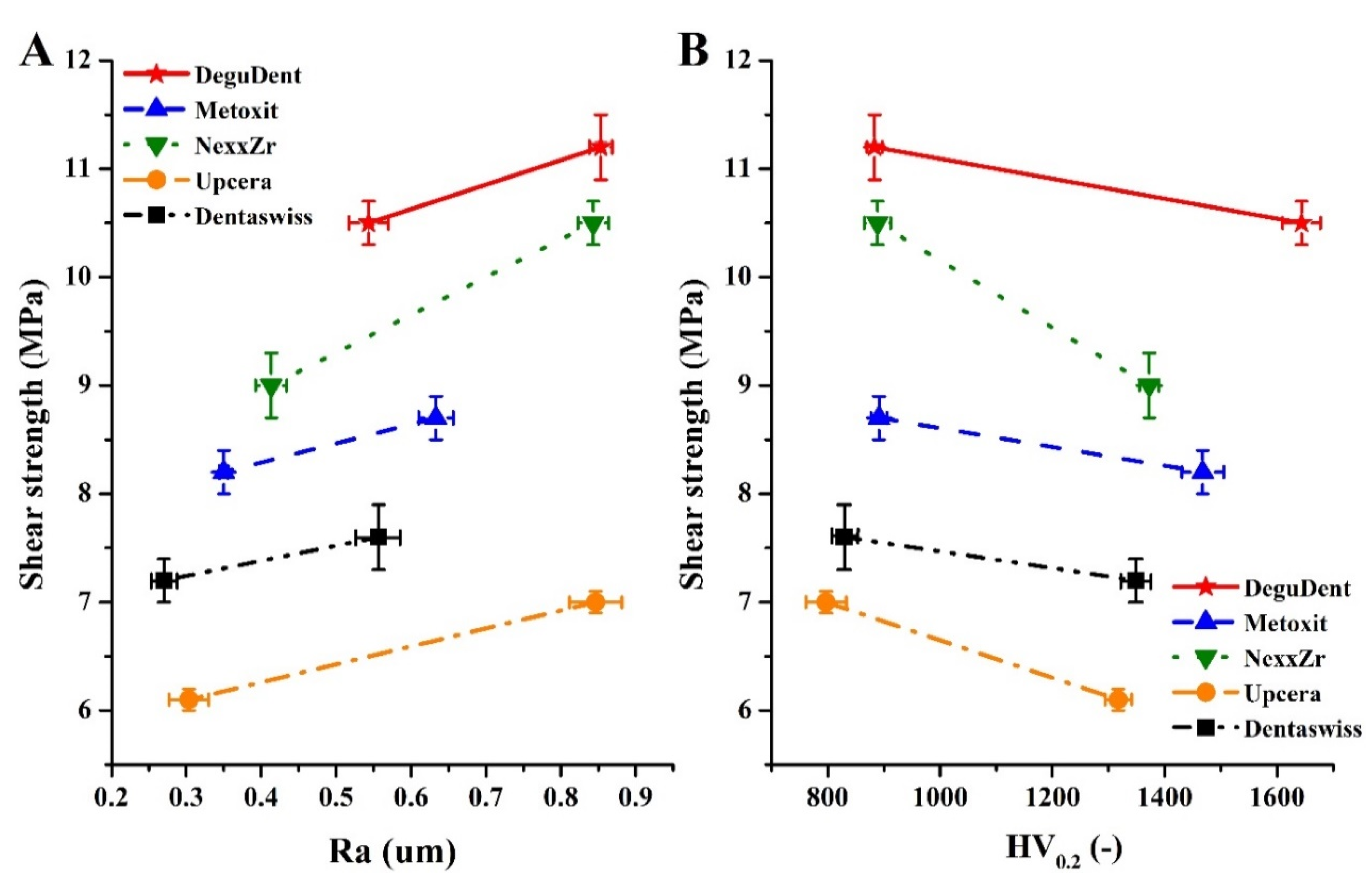

In addition, this study explored the influence of the change in the morphology of the zirconia surface treatment on the bonding effect. The results showed a positive correlation between the surface roughness and the shear strength (Figure 9A), whereas the microhardness of the surface was inversely correlated with the shear strength (Figure 9B). This study explored the influence of the bond strength of zirconia with teeth, including (1) grain size, (2) surface microhardness, (3) surface roughness, and (4) surface elements. The above results indicate that the choice of zirconia brand in clinical practice is not the most important factor influencing the bonding strength, but rather, increasing the surface roughness can improve the bonding effect. Therefore, it is recommended that sandblasting or other methods are used in clinical practice to improve the surface roughness of zirconia and hence promote adhesion to teeth.

4. Conclusions

In this study, different brands of zirconia were explored and evaluated for use as zirconia posts. The effect of surface treatment on the bond strength of zirconia was evaluated by sandblasting. The results showed improvement in the surface roughness of the sandblasted zirconia samples. After the aging test (20,000 hot and cold cycles), the bonding strength of each group of zirconia samples showed a downward trend. By analyzing FESEM images of samples subjected to shear tests, it was found that the fractured surface was located between the resin and the tooth. This shows that the bond of zirconia is not damaged after surface treatment. Therefore, the main factor affecting the bonding of zirconia was found to be the surface roughness. In the future, we will continue to explore the effects of different sandblasting and mixing methods on the bonding of zirconia. We hope to provide valuable information for better clinical treatments.
