Design and Optimization of the Antireflective Coating Properties of Silicon Solar Cells by Using Response Surface Methodology
Abstract
:1. Introduction
2. Materials and Methods

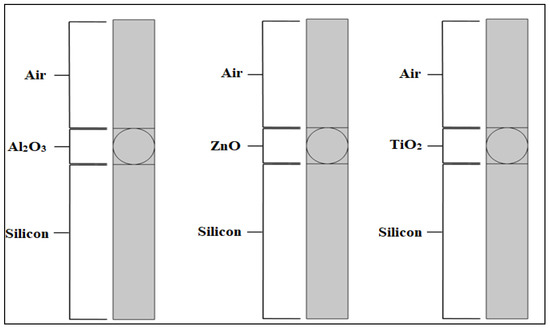

2.1. 2D Model Simulation and Analysis
2.2. Operational Parameter Statistical Analysis
2.3. Continuous Factors
2.4. Categorical Factors
3. Results and Discussion
3.1. Interpretation of Regression Model and Analysis

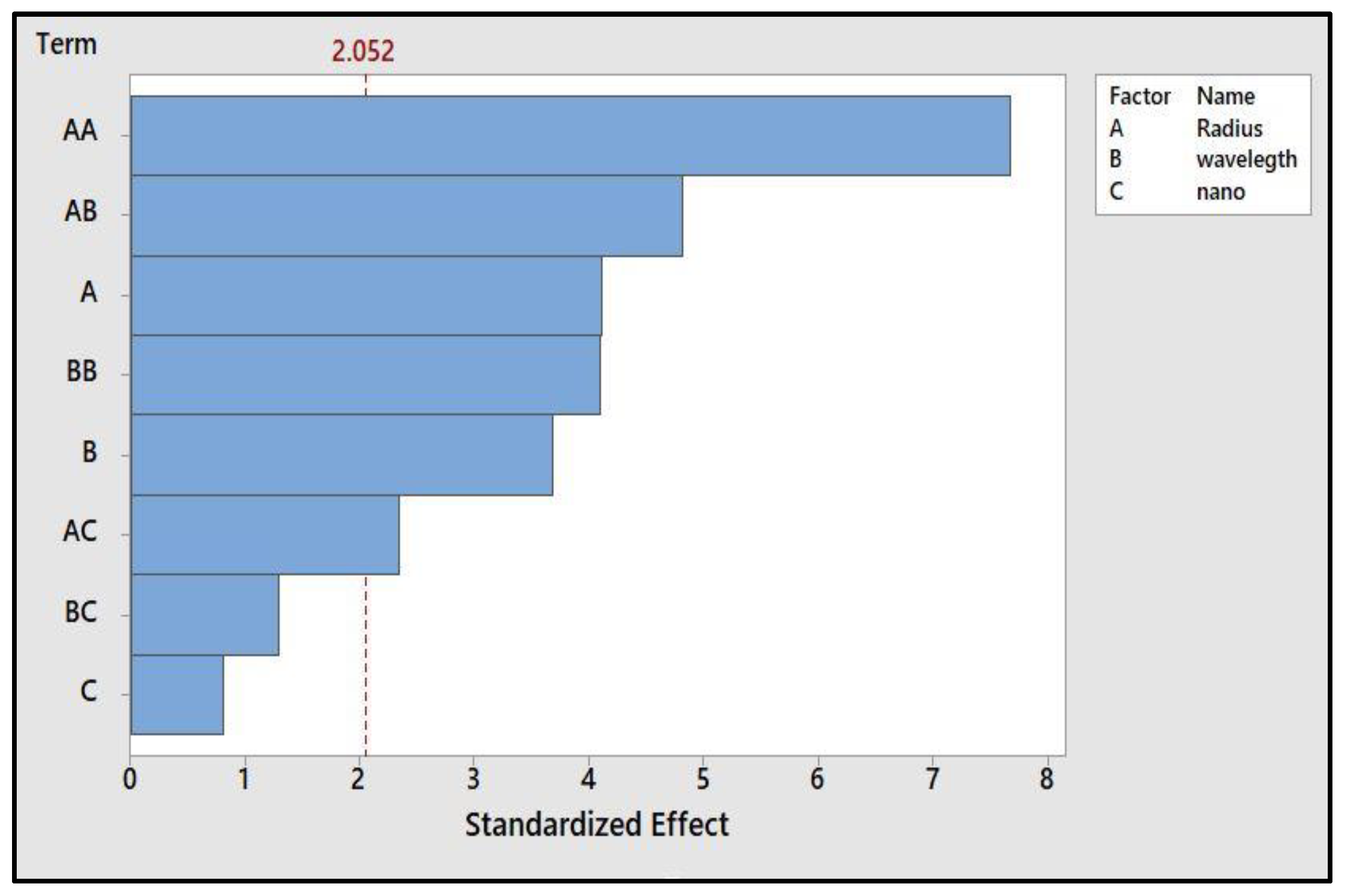

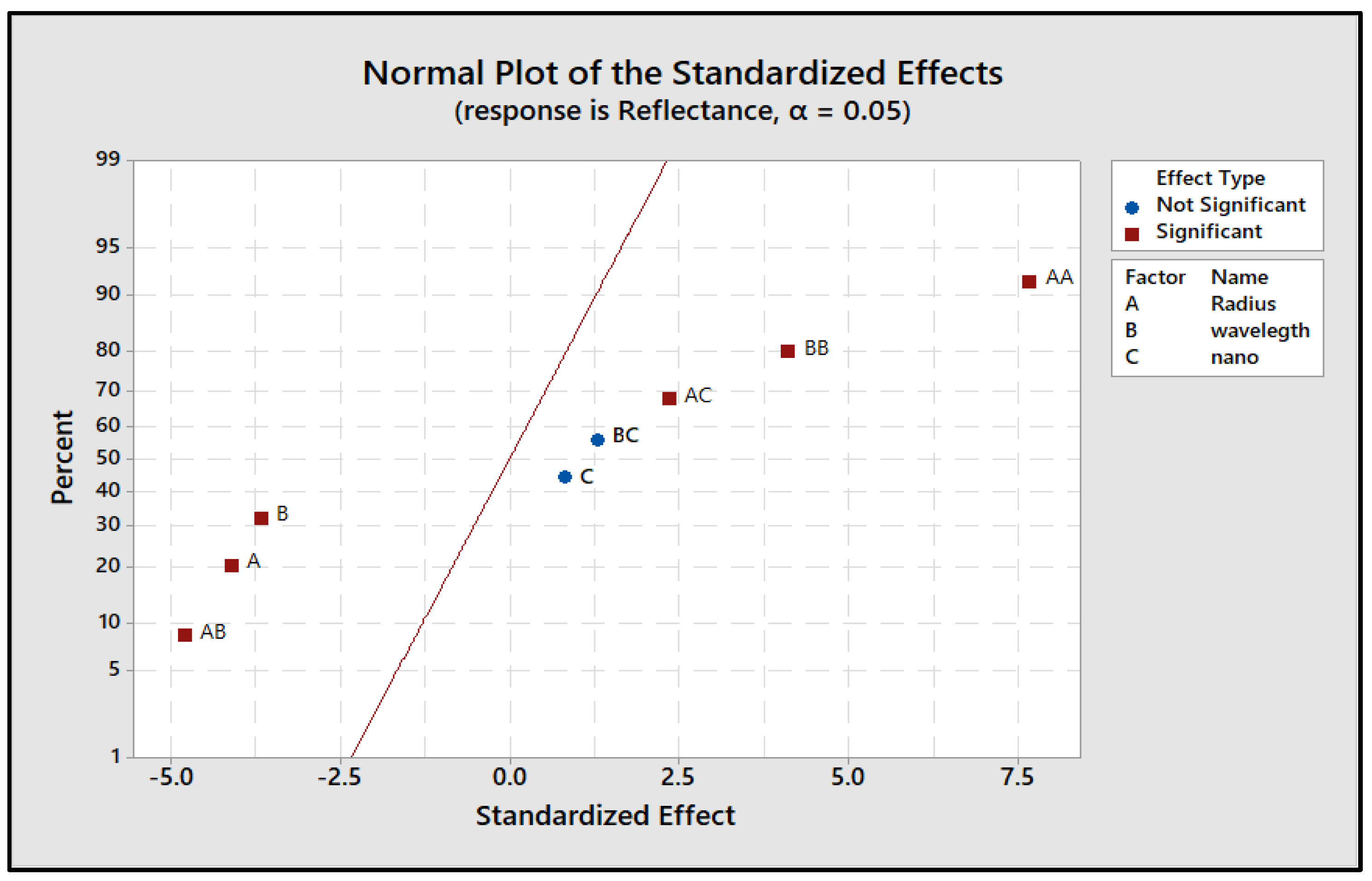

3.2. Estimation of Factor Effects

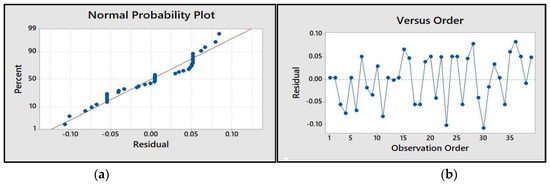

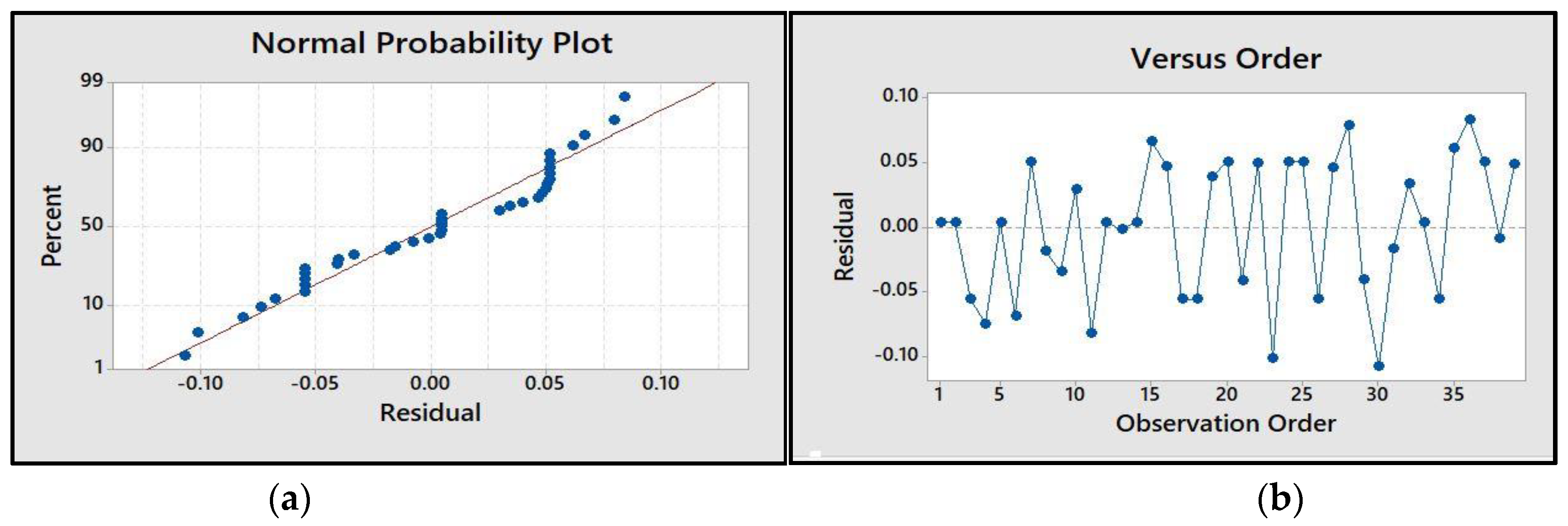

3.3. Interpretation of Residual Plots
3.4. Response Surface Methodology—Interpretation of Contour Plots

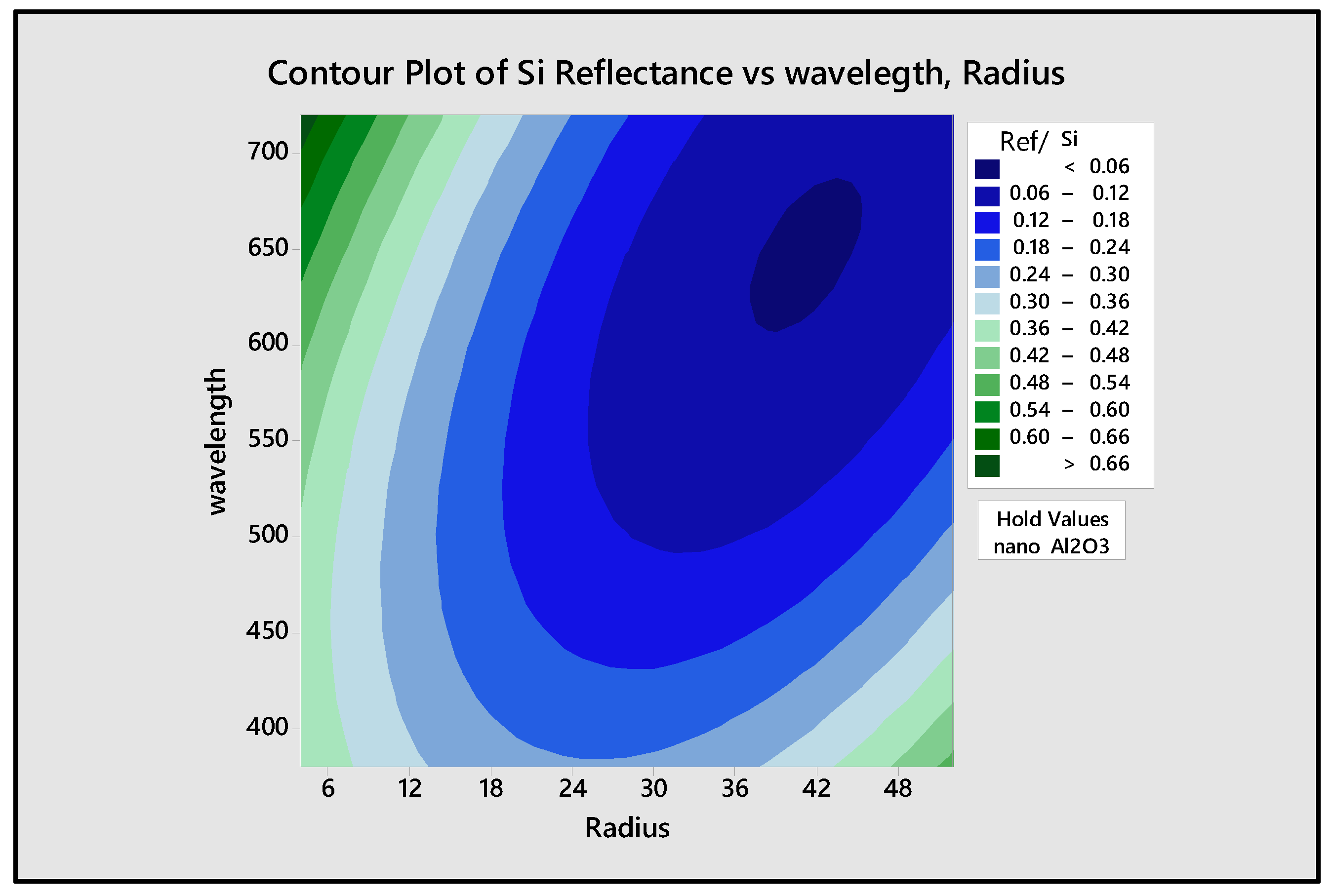

3.4.1. Aluminum Dioxide ARC Results

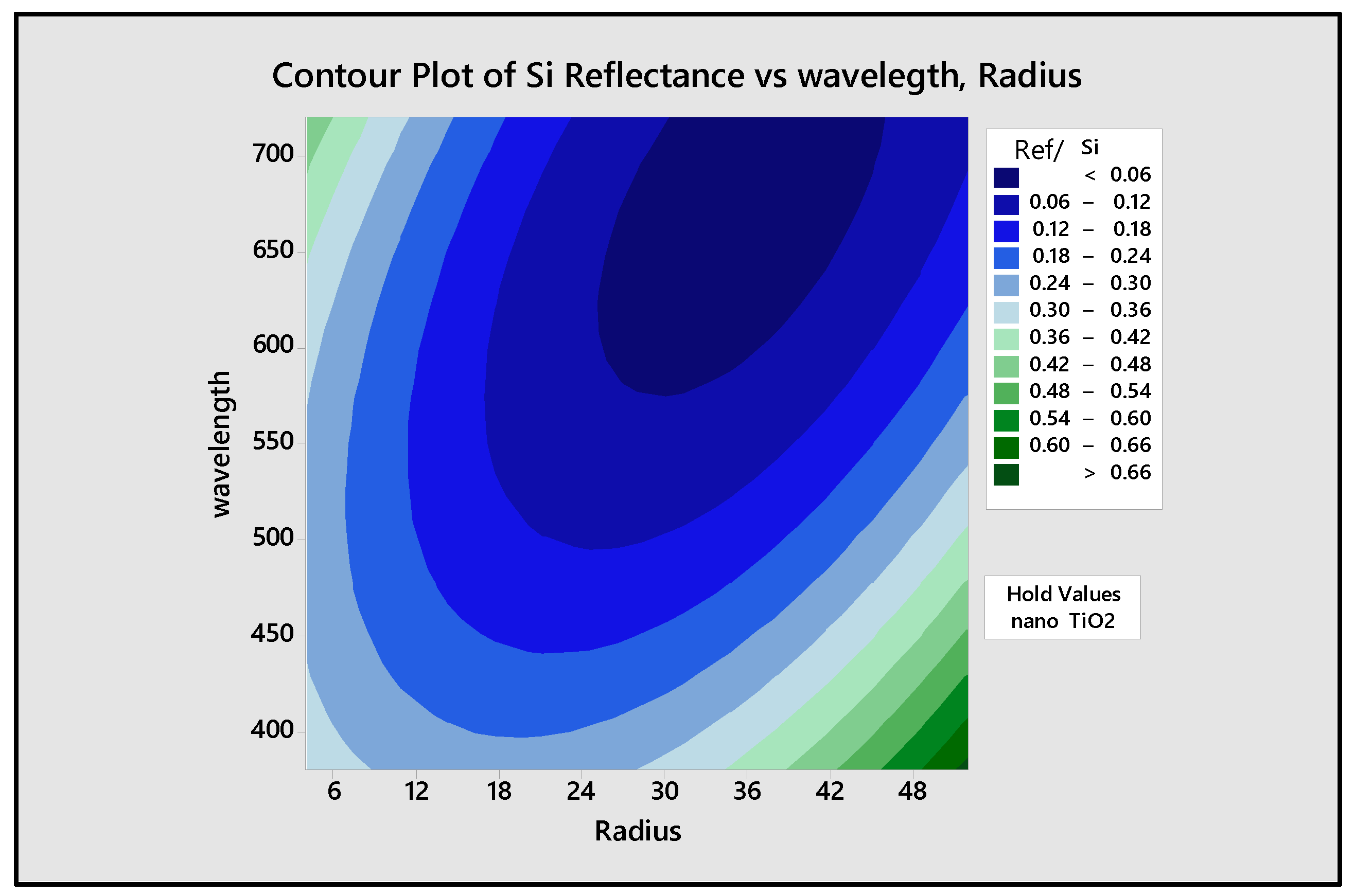

3.4.2. Titanium Dioxide ARC Results

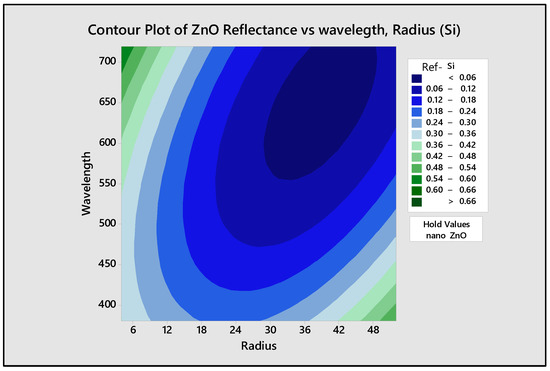

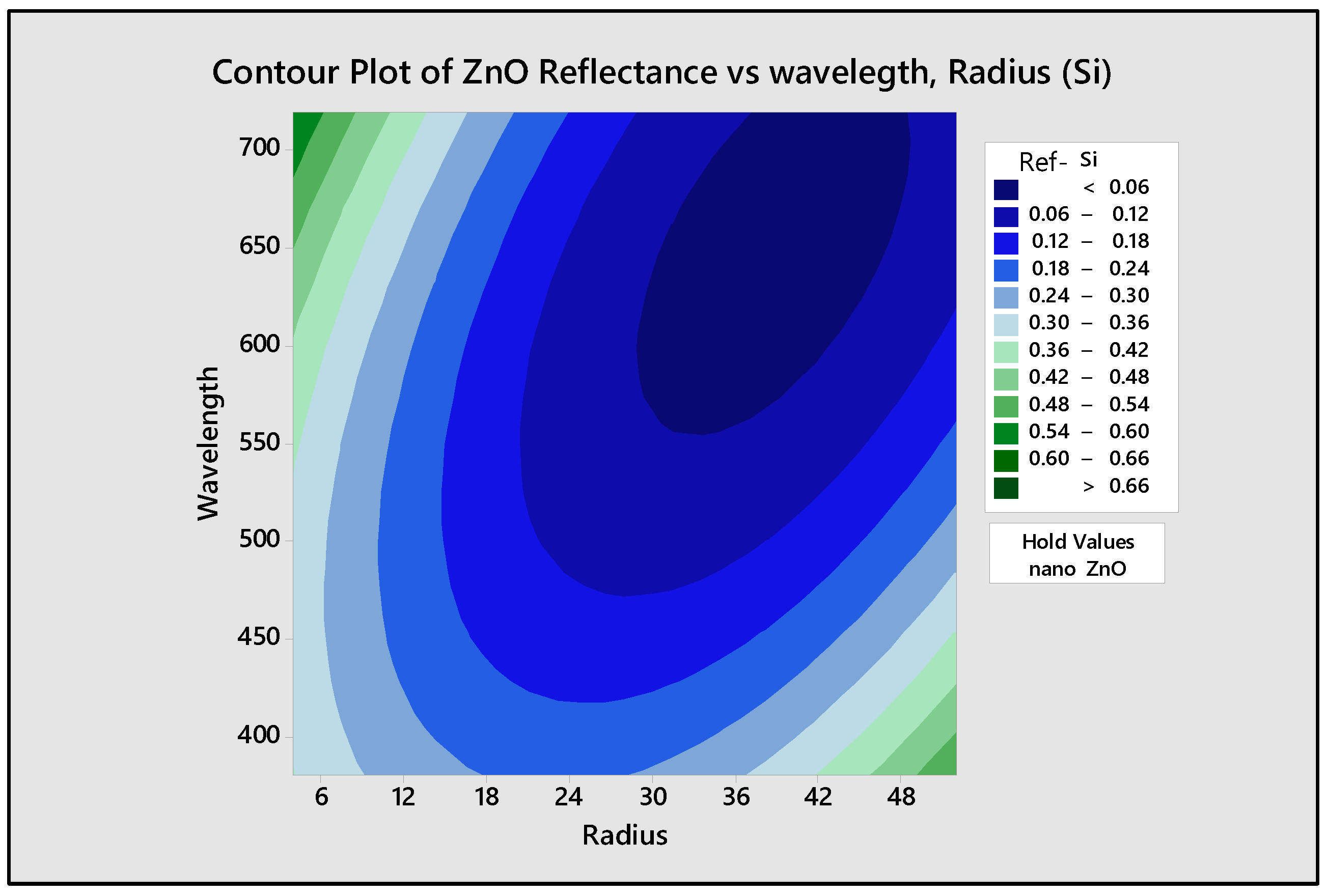

3.4.3. Zinc Oxide ARC Results

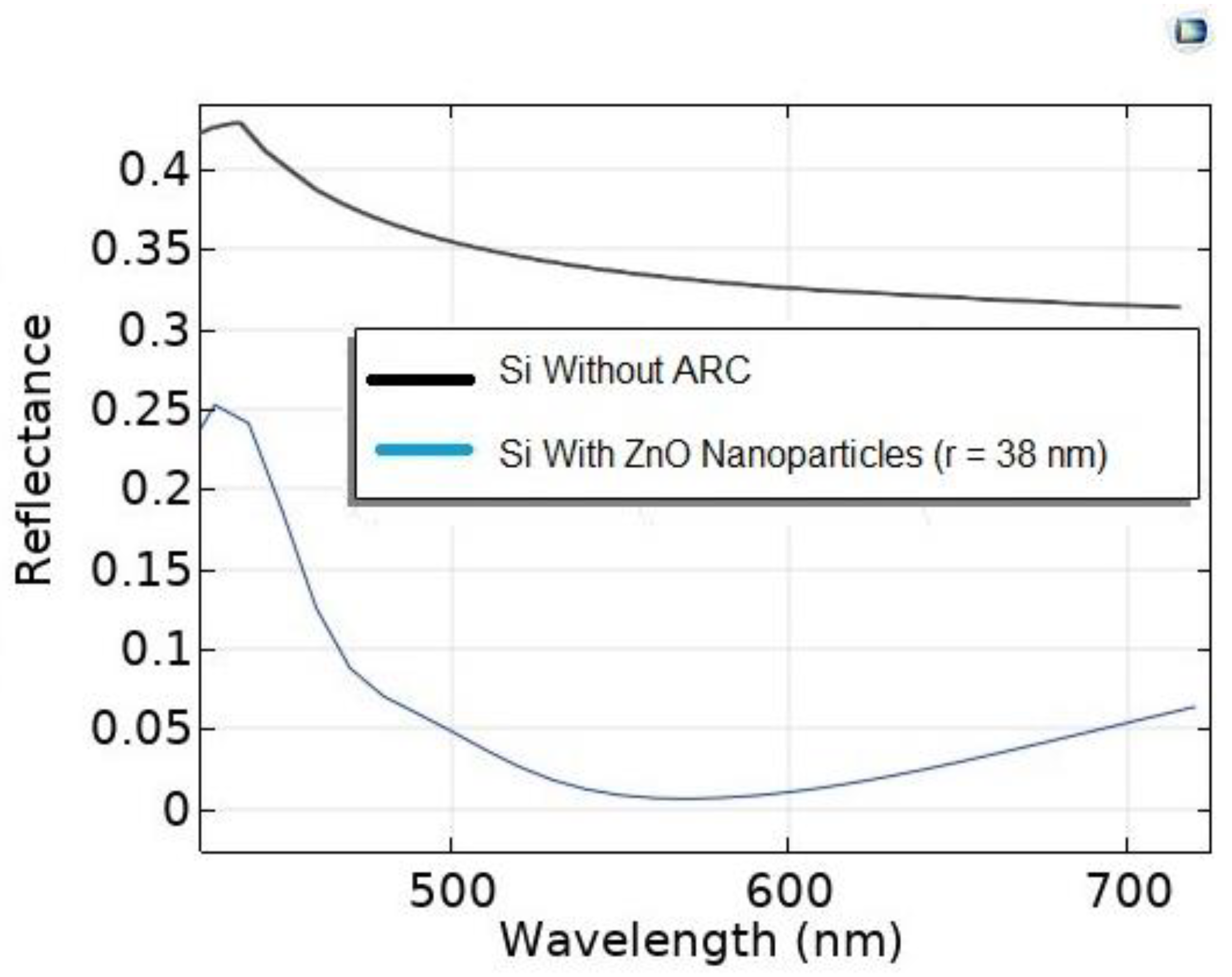

3.5. COMSOL Multiphysics Results
4. Conclusions
