Research on Tribological Characteristics of Hard Metal WC-Co Tools with TiAlN and CrN PVD Coatings for Processing Solid Oak Wood

by
Deividas Kazlauskas
1,*,
Vytenis Jankauskas
1,* and
Simona Tučkutė
2
1
Institute of Power and Transport Machinery Engineering, Vytautas Magnus University, K. Donelaičio st. 58, Kaunas 44248, Lithuania
2
Center for Hydrogen Energy Technologies, Lithuanian Energy Institute, Breslaujos st. 3, Kaunas 44403, Lithuania
*
Authors to whom correspondence should be addressed.
Coatings 2020, 10(7), 632; https://doi.org/10.3390/coatings10070632
Submission received: 17 April 2020 / Revised: 27 June 2020 / Accepted: 27 June 2020 / Published: 30 June 2020
(This article belongs to the Special Issue Wear and Corrosion Behavior of Ceramic- and Ceramic-Metal Based Coatings)
Browse Figures
Review Reports Versions Notes

Abstract

:
The article presents research results that demonstrate the impacts of mechanical and tribological characteristics on the efficiency of cutting tools made from hard metal WC-Co. Uncoated tools and tools coated with physical vapor deposition (PVD) coatings (CrN and TiAlN) were tested. The thickness of coatings was determined, and tests of roughness, microhardness, and adhesion were performed. The coefficient of friction (COF) was established by different methods, and the wear of the tested cutters which occurs during the milling of solid oak wood, and the impact of this on surface roughness, were determined. The results revealed that uncoated WC-Co cutters are the least resistant to wear, while cutters coated with chromium nitride (CrN) are the most resistant. Both PVD coatings were damaged in the 9050 m in area of the cutting edge.

1. Introduction

The turnover of the wood industry in the European Union in 2010–2011 exceeded 122 billion euros [1], and the amount of wood processed in the EU grew from 3.8 × 108 to 4.9 × 108 m3 from 2009 to 2018 [2]. A significant factor in the value of wood products is the cost of raw materials, energy, work, tools, and machinery.
The cutting of wood and its materials is a complex process [3]. This is due to the specific characteristics of wood, including anisotropy, internal stresses, the presence of solid mineral particles, and the variable cross-sectional density [3]. The processing of wood and its composite materials is characterized by several factors: high processing speeds (20–40 m·s−1), the need for especially sharp edges on cutting tools and sharp cutting angles in order to achieve better quality, and the low thermal conductivity of wood [3,4]. Cutting tools are subjected to large mechanical and thermal loads, plastic deformation, adhesive and diffusive wear, and oxidation [5,6,7,8,9]. Therefore, their efficiency depends on their resistance to mechanical loads, the stability of their physical and chemical characteristics, their structure, and the characteristics of their superficial layers [10,11].
High speed steel and alloy-treated steel tools get worn out quickly; therefore, their use results in reduced output, increased energy expenses, and a decrease in the quality of the processed surface. In order to reduce the wear of tools, hard metal is used for wood processing. Tough, hard metals containing 5–15% cobalt are used to process massive pieces of wood, while harder metals that contain up to 5% cobalt and finer grains are used to process wood products (oriented strand boards, medium density fiber boards, wood–plastic composites, etc.) [12]. In order to increase the output of hard-metal tools, they are modified with hard coatings of micrometric thicknesses using physical vapor deposition (PVD) and chemical vapor deposition (CVD). The coatings protect the substrata of the metal from mechanical wear and corrosion, while spreading heat and reducing stresses [13,14]. The requirements set for tool coatings are good adhesion with the substratum, high hardness at the relevant operating temperature, high strength, chemical inactivity of the processed material, a fine-grained crystalline microstructure, high residual stresses, a smooth surface morphology (without cracks), and a low thermal conductivity coefficient [15].
The PVD coatings increase the strength of the tool surfaces, improve their tribological and anticorrosive characteristics, and increase resistance to wear and the operating temperature [16,17,18,19,20,21]. It is probable that tools without PVD coatings will not be used for commercial purposes in 20 years [22,23,24,25,26].
PVD methods are suitable for coating wood processing tools because they qualitatively coat the cutting edges, where the radius is below 20 μm. Compared to CVD coatings, PVD coatings are more resistant to wear because they have hardness and compression stresses that provide additional hardness and reliability to the tool. When fine-grained (up to 1 µm) hard metal is used, the blades are even more resistant to wear [14], while the use of a PVD coating increases the strength even more [18,26,27]. The main coatings applied on tools for the treatment of wood and wood products are Ti, Cr, Al, and diamond like carbon (DLC) [10,13,28,29].
WC-Co tools coated with PVD are used in the wood industry when strong cutting tools and sharp edges are needed [30,31,32].
The main factors that affect the quality of coatings are hardness, adhesion, and thickness. To achieve coatings with high hardness values, nitrides, carbides, borides (<25 GPa), cubic boron nitride (approximately 48 GPa), diamond (70–100 GPa), DLC, and CNx are used [15,27,28,29,33]. Adhesion with the substratum is safeguarded by surface cleaning, using an appropriate roughness, and increasing the adhesion in the interlayer; this is assessed by a scratch test [34,35,36]. The coating thickness affects a tool’s resistance to wear, output, and cutting forces. The optimal thickness is from 1 to 10 μm [15].
Various wood types are processed around the world. They are characterized by complex structures and characteristics. It is known that different wear mechanisms affect the cutting tools used to process different types of wood [36,37,38,39], so in order to reduce the costs of the tools and to increase the processing productivity, it is necessary to purposefully select tool coatings for specific types of wood so that minimal wear can be guaranteed. PVD coatings comprising Cr and Ti have been widely analyzed; however, studies on the resistance of hard-metal tools coated with these materials and used for wood milling are only now beginning to emerge, and have not been performed concerning the milling of oak wood.
The purpose of this research is to analyze the influence of the mechanical and tribological properties of CrN and TiAlN coatings formed using PVD methods on the wear of tools during oak wood processing. We conducted tests on the coating composition, structure, thickness, roughness, microhardness, and coefficient of friction, as well as carrying out scratch and industrial tests.

2. Materials and Methods

In terms of samples, we used WC-Co cutters made of hard metal T06MG (Table 1), measuring 30 mm × 12 mm × 1.5 mm and weighing 6.75 ± 0.03 g, from the manufacturer TIGRA GmbH (Gewerbering, Germany, Figure 1). The surface grinding trace with the cutting edge formed an angle δ of about 10°. These samples were coated with a 2-μm-thick PVD layer (CrN and TiAlN) by Cemecon Scandinavia A/S (Hinnerup, Denmark). The characteristics of the PVD coatings are presented in Table 2.
Surface roughness and topography measurements were made using a stylus profilometer (MahrSurf GD 25, Mahr GmbH, Göttingen, Germany) with a stylus tip radius of 2 μm roughness and a measurement length of 5.6 mm. The mean of five measurements was recorded.
Microhardness was measured using a Micro Combi Tester (Anton Paar Switzerland AG, Aargau, Switzerland) device at a load of 50 mN (30 s load addition, 10 s maintenance, and 30 s removal time), and the mean of measurements 4–6 was recorded.
Scratch testing of coatings was performed by a sharp diamond Rockwell indenter on a CETR/Bruker UMT-2 tribometer (Bruker Corporation, Campbell, CA, USA) at a speed of 1 mm·min−1. The load increased to 137.3 N. The conic angle of the indenter was 120°, and its radius was 200 µm. The scratch length was 7 mm. The test was performed by drawing lines parallel to the cutting edge. The results are shown as the mean of four measurements.
The static COF of oak wood and specimens was established using the inclined plane when the angle-changing speed was 5 min−1, and the mean of 5 measurements was recorded.
The cutting edge radius ρ was measured using an optical metallographic microscope (Eclipse MA-100, Nikon, Tokyo, Japan). The results are shown as the mean of five measurements.
The wear of the cutter’s rake face Wd and damage caused to the coatings were analyzed using an optical metallographic microscope (Eclipse MA-100, Nikon), according to the scheme provided in Figure 2a. The wear Wd and roughness of the milled surface (Rz, µm) after the tool had worked cutting paths of 1, 1050, 2050, 3050, 6050, and 9050 m (up to 2.16 million cutting cycles of 4.2 mm each) were measured optically. The results are shown as the mean of five measurements. The cutting path is expressed as the basic cutting motion.
The roughness of the processed surface Rz was measured along the wood fiber using a MahrSurf GD 25 contact profilometer (Mahr GmbH, Göttingen, Germany) (run 5 mm, speed 5 mm·s−1), and the mean of five measurements was recorded.
PVD coating analysis was performed using a Hitachi S-3400N-II (Hitachi, Ltd., Tokyo, Japan) scanning electron microscope (SEM).
The studies on the wear of hard metal WC-Co cutters with and without TiAlN and CrN PVD coatings were performed while working with a fixed milling tool with one cutting tooth. The characteristics of the milling tool and the cutting tooth are provided in Table 3 and Figure 2. The scheme used for specimen milling is illustrated in Figure 2c.
The down milling process was chosen to obtain a better quality treated surface [47]. The wear of the milling tool cutters was examined while milling glued oak-wood panels (1000 mm × 1000 mm × 20 mm) that were made after gluing beams (1000 mm × 67 mm × 20 mm) using polyvinyl acetate dispersion (Danafix 437 D3, Dana Lim A/S, Køge, Denmark). The timber characteristics were as follows: average humidity ω = 8%, average number of rings in the trunk 1 cm–4.6 pcs., and density ρ = 737.8 kg/m3.
The Holzher ProMaster 7123 (Michael Weinig AG, Tauberbischofsheim, Germany) CNC machining center was used for milling at the modes presented in Table 4. The machining conditions were as follows: temperature in premises t = 19 ± 2 °C, and relative air humidity ψ = 60% ± 5%.

3. Results

3.1. Choice of Coatings

CrN and TiAlN coatings were selected according to their characteristics on the basis on information from various sources [3,48,49].
The SEMs of TiAlN and CrN coatings are provided in Figure 3.
The average thickness of the PVD coatings, as determined by SEM, was 1.8–1.9 µm (Figure 3). Nitride coatings are characterized by a dense, fine-grained microstructure with low porosity, small internal stresses, excellent adhesion, chemical inertia, and a good thermal stability [50]. However, these coatings have a significant defect: their column structure. Micropores are present between the columns. The corrosive medium may reach a substratum through them and destroy it. The most effective method for improving the quality of the coatings is to form coatings where growth of the columns is prevented. This method reduces the possibility of corrosion appearing between the columns [51]. There is no literature about the influence of the direction of columns on the abrasive wear of the coating. However, Kondo et al. stated that dense column structures have better resistance to adhesive wear [52].

3.2. Roughness Testing

The roughness of the tool’s rake face affects the roughness of the processed surface and the friction forces which occur during processing [53]. There is no doubt that the processing trace on the cutter surface and the cutter rake angle γ also affect the roughness of the processed surface.
When the surfaces are coated with a PVD coating, their roughness increases [54]. Uncoated hard metal WC-Co cutters have the least roughness. If measured in parallel to the cutting edge, Ra = 0.04 µm, and if measured perpendicularly, Ra = 0.08 µm (Figure 4). In terms of the roughness of specimens with PVD coatings, Ra is bigger by 24.8–31.4% along the cutting edge and by 3.7–28.6% across the cutting edge, as shown in Figure 4.

3.3. Microhardness Testing

Hard metal WC-Co (18 ± 1 GPa) and CrN coatings (19.4 ± 2 GPa) have similar levels of hardness. The hardness of TiAlN is greater (24.5 ± 5 GPa). The determined hardness of the hard metal WC-Co and CrN coating corresponds to the values reported in the literature (Table 2). However, the hardness of the TiAlN coating was found to be lower than that reported in the literature (Table 2) due to its too deep indentation with respect to the coating thickness. This was due to the significantly softer substrate of the WC-Co [55]. The indentations of the hardness measuring indenter in the cutters of hard metal WC-Co with and without PVD coating are presented in Figure 5.
The morphology of the uncoated WC-Co cutter surface is uneven. It has craters with an irregular form. The polishing trace and surface “tearing” defects can be seen clearly (Figure 5a). The indentation is clear.
CrN coating has a rough structure that is clearly different in the processing direction. Traces of the mechanical processing of the substratum are absent, and thus, the difference of the surface roughness parameter Ra in the perpendicular direction is negligible (Figure 5b). The grooves of the surface processing trace are visible on the coating. Various forms of “grain” defects of 1–2 µm in size appear along the processing direction during the precipitation process, having a negative impact on the surface morphology, roughness, and coating durability [56]. The coating has a column structure (Figure 3a), so the corrosive medium may reach and destroy the substratum through the microgaps between the adjacent “columns” [57]. The hardness levels of CrN and WC-Co were similar, but the indentation left by the indenter on the CrN coating was more visible. There were cracks in the coating.
Pores of up to 1.5 µm in diameter and single “grain”-type defects (up to 1.0 µm) could be seen on the surface of the TiAlN coating (Figure 5c). Defects in the form of pores appeared along the entire thickness of the coating. They formed due to defects in the substratum (craters) that appeared mainly during polishing, or when micro- and macro- particles separate from the coating. These defects have a negative impact on the coating’s resistance to corrosion and gas permeability [56,57]. The traces of mechanical processing of the substratum were indistinct. The indentations of the indenter were clear and had cracks in the corners. This shows the high level of hardness and fragility of the TiAlN coating.

3.4. Scratch Test

The scratches made in the hard metal WC-Co specimen with PVD coatings are presented in Figure 6.
The characteristics of the coatings established by the scratch test are presented in Table 5.
CrN coating is more resistant to the scratching impact of the indenter, probably because of its plasticity. The load that generates damage during adhesion of the coating and the substratum was 44.7 N, while the width of the scratch on the coating was the smallest (118.8 µm). Meanwhile, the TiAlN coating was damaged by a much smaller indenter load: 32.8 N. The CrN coating had better adhesive parameters than TiAlN. This is very important for cutting tools [34,35,36].

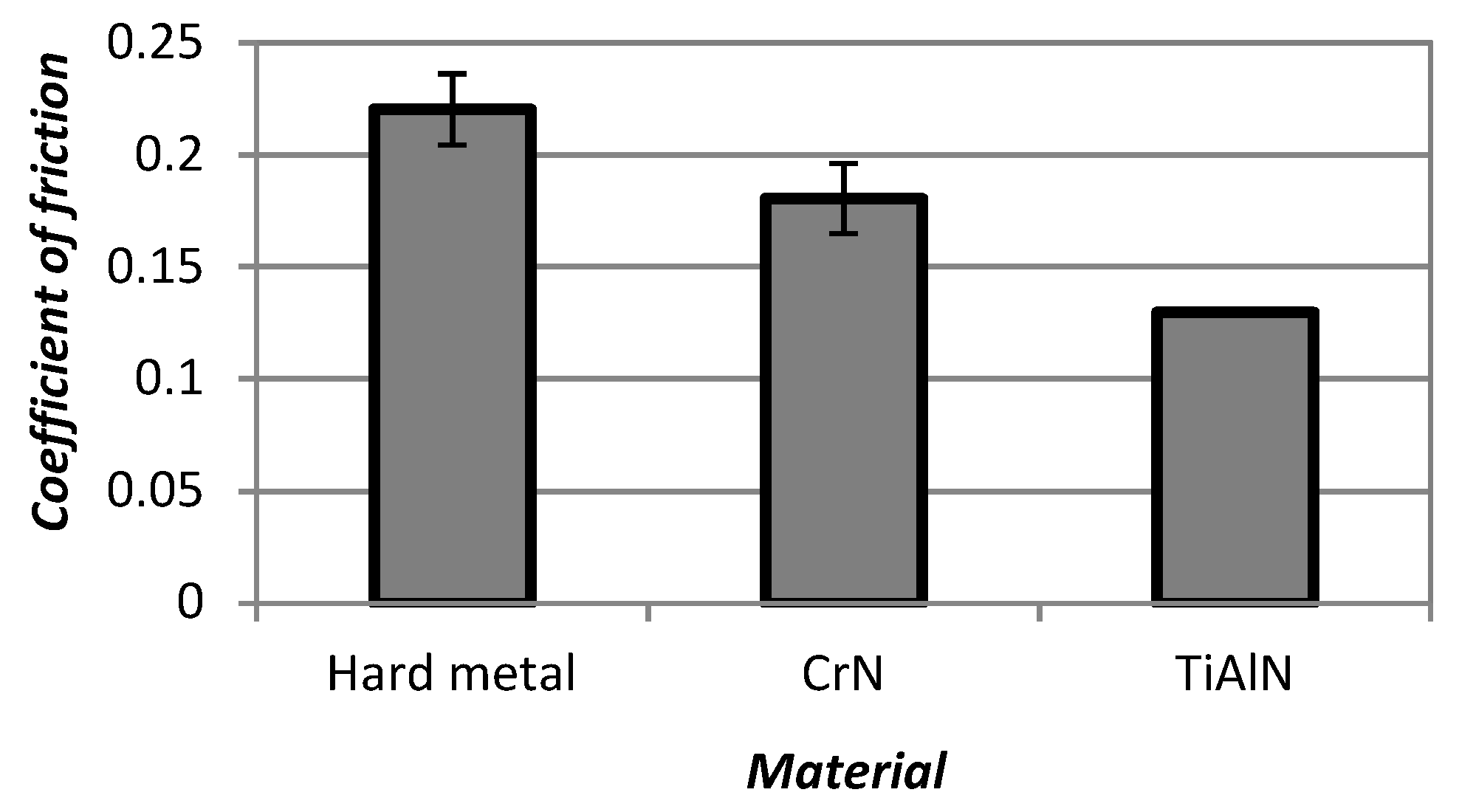

The coefficients of friction of the surfaces of the diamond indenter and hard metal WC-Co with and without PVD coatings across the cutting edge are presented in Figure 7.
The coefficients of friction of hard metal WC-Co and the indenter were the biggest (0.22), whereas those with CrN and TiAlN coatings were smaller by 18% and 28%, respectively. Therefore, when wood is processed using tools with PVD coatings, a smaller resistance to cutting is probable. This is also a precondition for reduced wear.

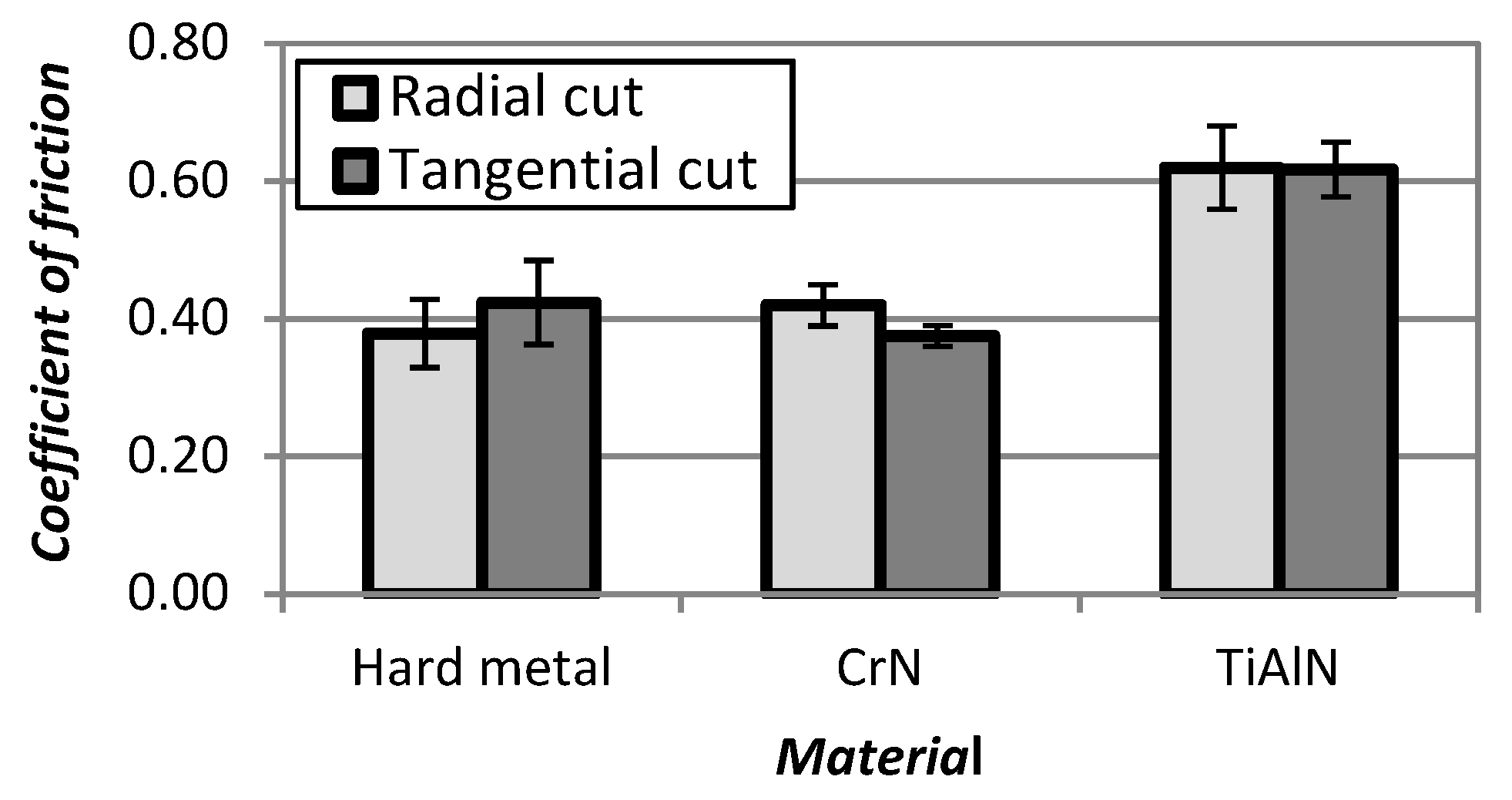

The static COFs of different cuts of oak wood (radial and tangential) and WC-Co with and without PVD coatings are presented in Figure 8.
The static coefficients of friction did not differ significantly between oak wood and hard metal WC-Co with CrN coating. The cutting direction did not affect the coefficient of the friction of wood and hard metal WC-Co (with and without PVD coating) (Figure 8). The coefficient of friction of TiAlN coating and wood is the biggest (0.62 ± 0.03). Thus, it is probable that the greatest resistance to cutting and wear exists in this case. The cutting direction has a negligible influence on the static coefficient of friction between the CrN coating and wood. For the radial section, it was 0.411, and for the tangent, it was 0.375 (Figure 8). Therefore, if oak wood is processed by a hard-metal WC-Co with CrN, this will result in a small difference in the need for power in the case of radial and tangential processing.

3.5. Cutting Edge Radius Measurement

PVD coatings increases the radius of the cutting edge ρ. The smallest ρ value occurs for cutters which are not coated with WC-Co (8 µm). A WC-Co with PVD coating has a bigger radius (WC-Co with CrN—11 µm and WC-Co with TiAlN—10 µm).

3.6. Research of Tool Wear

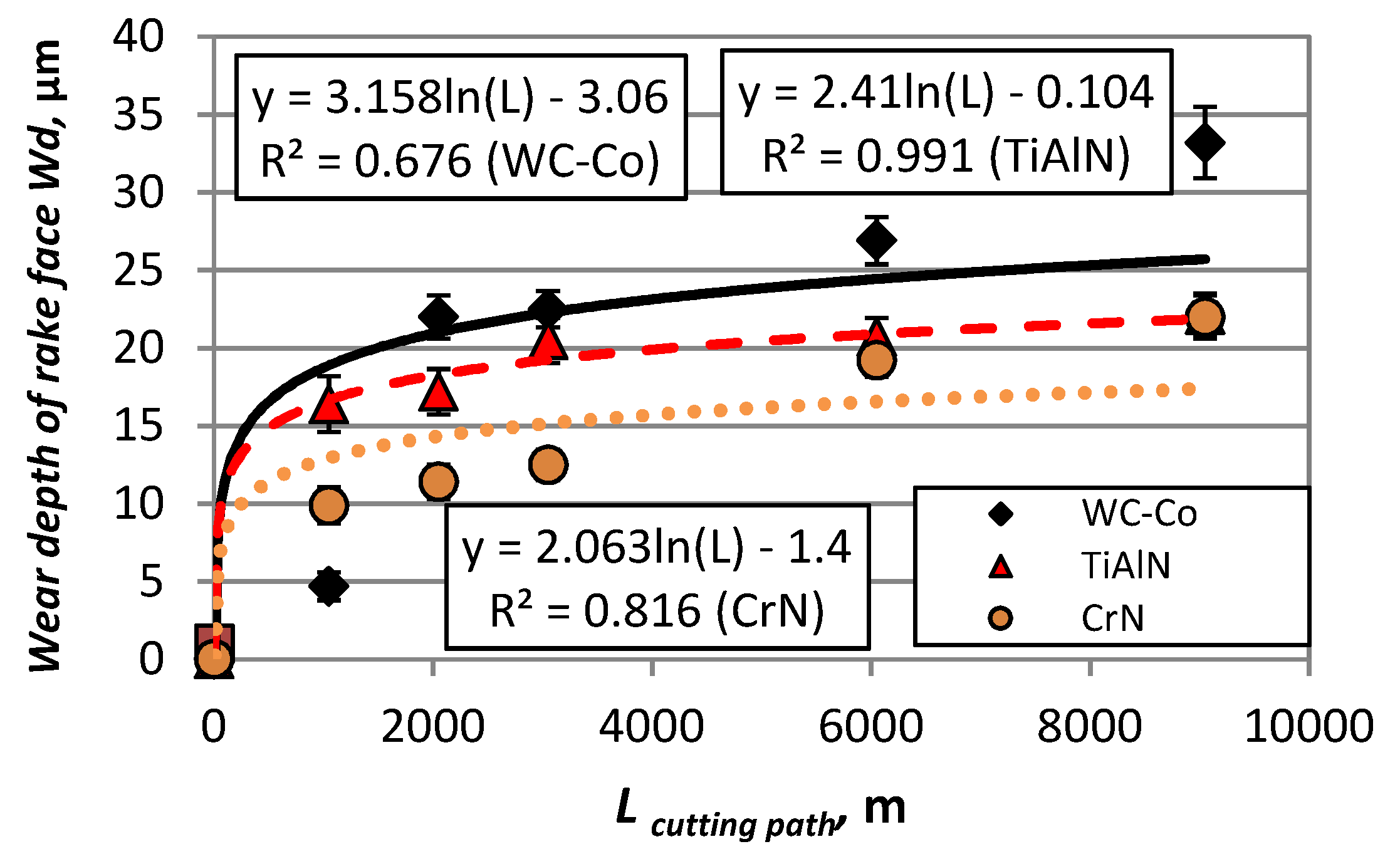

The wear of the rake face of the blades of cutters of WC-Co milling tools and WC-Co milling tools with PVD coatings is presented in Figure 9 (measurement scheme is presented in Figure 2a). The wear of the rake face Wd of all of the tested tools changed according to the logarithmical law. The wear occurred suddenly in the working path of 1050–2050 m. It was run-in and later passed into a mode of stable wear. These wear dynamics correspond to the wear indicated in [58]. When the tool exceeded the working path of 9050 m, the rake face of the hard-metal WC-Co cutter was worn by ~ 33 µm, and WC-Co cutters with TiAlN and CrN coatings had wear of up to 22 µm. Greater wear more rapidly changes the angles of the hard-metal WC-Co cutter, the cutting edge is loaded more, it is heated, and its wear becomes more intensive. Thus, the tool’s output is potentially smaller. The biggest cause of wear of the rake face of the WC-Co blade is the reduced hardness and bigger COF (Figure 7). Also, the WC-Co surface is susceptible to chemical corrosion from the beginning of the tool’s operation. Co, as a binder of WC, is actively affected by the wood extraction substance, tannic acid, so the wear of WC-Co is more active [59]. The CrN coating is more corrosion resistant [50].
The influence of the cutting path L (up to 9050 m) on the roughness of the milled surface Rz is as follows (Figure 10):
  • When the WC-Co tool started working, the roughness was stable and small (4.4 µm). When the working path increased, the roughness of the processed surface increased by up to 5.8 µm; however, it remained smaller than the roughness of surfaces processed by tools with PVD.
  • When the cutter coated with CrN started working, the roughness was 5.6 µm. The roughness reached its maximum value (9.2 µm) after the cutter passed 3050 m.
  • When the cutter coated with TiAlN started working, the roughness was 6.1 µm. The roughness reached its maximum value (9.5 µm) at 1050 m, and when processing continued, it remained stable and changed in the interval of 5–8.7 µm.
When milling by cutters coated with PVD was started, the processed surface was rougher than in the case of WC-Co. This was attributed to two factors: Firstly, the surfaces of PVD coatings were rougher than the surface of hard metal WC-Co, and secondly, coating with PVD increased the radius of the tool’s cutting edge. A negative influence of the static coefficient of friction is possible in the case of TiAlN, because when there is greater friction between the shaving and the cutter’s rake face, the shaving is separated from the blank with greater difficulty.
It can be seen that when the WC-Co cutter was used for milling up to 9050 m, the roughness of the processed surface increased. This can be explained by the fact that the wear of the rake surface resulted in an increase in the sharpness angle β (reduction of the angle γ), so sliding the shaving along the rake surface of the tool becomes more difficult, and thus, the roughness increased.
When tools with CrN and TiAlN coatings were used for milling, the roughness of the processed surface changedand had peaks. This could be explained by the fact that damage caused to the rake surface of the PVD coating during processing (Figure 11) made the separation process of the shaving more difficult. According to the SEM of the cutter with CrN (Figure 11b), the damage to the coating was in the form of a step, which aggravated the sliding of the shavings along the rake surface significantly and reduced the processing quality.

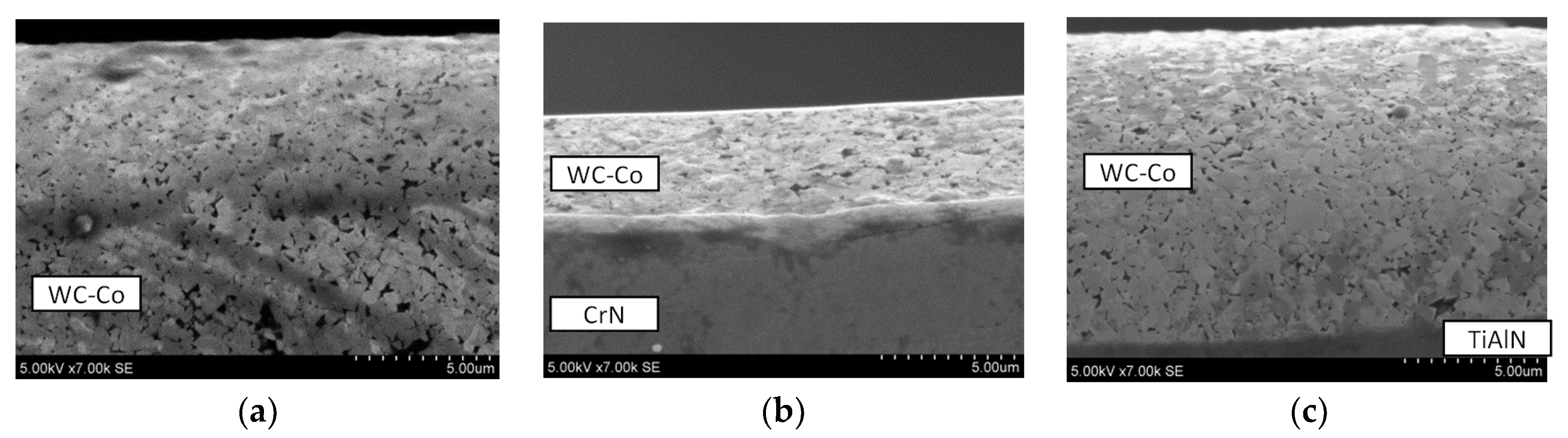

SEM images of the surface roughness of cutters of WC-Co with and without PVD coatings after the 9050 m path (or after 2.16 million work cycles) are presented in Figure 11.
The CrN coating was worn on the rake surface by ≈ 4 µm (Figure 11b). The friction of shavings against the rake surface across a width of approximately 55–60 µm resulted in a reduced coating roughness. The cutter’s cutting edge was clear (perpendicular). The TiAlN coating was worn by approximately 10–11 µm (Figure 11c), and the surface roughness was reduced under the wear impact across a width of 95 µm (this corresponded to the thickness of the cut shavings). Smooth rounding of the cutting edge was seen. This showed that the CrN coating was more resistant to wear than the TiAlN coating.
The roughness levels of the rake surface of the new cutters and cutters after the 9050 m path are presented in Figure 12.
The roughness levels of the rake surface of new cutters and cutters after the 9050 m path were reduced significantly in the direction perpendicular to the cutting edge (from 2.38 to 2.67 times) (see Figure 12). The surface roughness of the used cutters showed no difference (i.e., in the interval of 0.034–0.042 µm).

4. Conclusions

The thickness of the PVD coatings (CrN and TiAlN) was 1.8 to 1.9 µm. The hardness of the hard-metal WC-Co tool was 18 ± 1 GPa; with the CrN coating, it was 19.4 ± 2 GPa, and with TiAlN, it was 30.8 ± 5 GPa. A scratch test helped to determine that the TiAlN coating was damaged by a load of 32.8 N, and the CrN coating was damaged by a load of 44.7 N.
Coating with PVD increased the surface roughness and radius of the cutting edge of the hard-metal WC-Co tool, while the dynamic coefficient of friction was reduced.
A bigger coefficient of friction may cause greater roughness of the processed surface.
In terms of experimental processing in the working path of 9050 m:
  • A strip with a width of 4 µm was worn from the cutting edge of the hard-metal WC-Co tool with CrN coating, and a strip of 11 µm in width was worn from the cutter coated by TiAlN;
  • The hard-metal WC-Co cutter was worn by 33 µm on the cutting plane, and by 22 µm when CrN and TiAlN coatings were used. All of the tools had active run-in wear in the cutting path of (1–2) × 103 m;
  • The hard-metal WC-Co cutter processed the oak wood with a roughness of Rz 4.4–5.8 µm, while the cutter with a CrN coating processed the wood with a roughness of 5.6–9.2 µm, and the cutter with a TiAlN coating processed the wood with a roughness of 5.1–9.5 µm.
It is probable that the increased wear of the TiAlN coating was caused by lower resistance to corrosion, worse adhesion parameters, and a bigger static coefficient of friction.
Due to the bigger radius of the cutting edge and the rougher surface of the tool, the cutters with PVD coatings processed the wood more roughly compared to milling using hard-metal WC-Co tools. When the cutters with PVD coatings were used, the roughness was affected by the growing wear of rake face Wd that reduced angle γ. This changed the roughness of the processed surface as the tool became worn.

Author Contributions

Conceptualization, D.K. and V.J.; methodology, D.K. and V.J.; software, S.T.; validation, V.J.; investigation, D.K.; resources, D.K.; data curation, V.J.; writing—original draft preparation, D.K.; writing—review and editing, V.J.; visualization, D.K. and V.J.; supervision, V.J.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Available online: https://ec.europa.eu/growth/sectors/raw-materials/industries/forest-based/woodworking_en (accessed on 29 June 2020).
  2. Available online: https://ec.europa.eu/eurostat/statistics-explained/index.php/Wood_products_-_production_and_trade (accessed on 29 June 2020).
  3. Ratajski, J.; Gulbiński, W.; Staśkiewicz, J.; Walkowicz, J.; Myśliński, P.; Czyżniewski, A.; Suszko, T.; Gilewicz, A.; Warcholiński, B. Hard coatings for woodworking tools—A review. J. Achiev. Mater. Manuf. Eng. 2009, 37, 668–674. [Google Scholar]
  4. Nouveau, C.; Ladibi, C.; Collet, R.; Benlatreche, Y.; Djouadi, M.A. Effect of surface finishing such as sand blasting and CrAlN hard coatings on the cutting edge peeling tools wear resistance. Wear 2009, 267, 1062–1067. [Google Scholar] [CrossRef] [Green Version]
  5. Porankewicz, B. Theoretical simulation of cutting-edge wear when milling wood and wood-based products. Wood Sci. Technol. 2006, 40, 107–117. [Google Scholar] [CrossRef]
  6. Darmawan, W.; Rahayu, I.; Nandika, D.; Marchal, R. The importance of extractives and abrasives in wood materials on the wearing of cutting tools. Biol. Res. 2012, 7, 4715–4729. [Google Scholar] [CrossRef] [Green Version]
  7. Pamfilov, E.A.; Lukashov, S.V.; Prozorov, Y.S. Mechanochemical fracture of the components of wood cutting equipment. Mater. Sci. 2014, 50, 148–155. [Google Scholar] [CrossRef]
  8. Sokovic, M.; Kopac, J.; Dobrzanski, L.A.; Mikula, J.; Golombek, K.; Pakula, D. Cutting characteristics of PVD and CVD-coated ceramic tool inserts. Tribol. Ind. 2006, 28, 3–8. [Google Scholar]
  9. Mia, M.; Królczyk, G.; Maruda, R.; Wojciechowski, S. Intelligent optimization of hard-turning parameters using evolutionary algorithms for smart manufacturing. Materials 2019, 12, 879. [Google Scholar] [CrossRef] [Green Version]
  10. Dobrzanski, L.A.; Pakula, D. Comparison of the structure and properties of the PVD and CVD coatings deposited on nitride tool ceramics. J. Mater. Process. Technol. 2005, 164, 832–842. [Google Scholar] [CrossRef]
  11. Wojciechowski, S.; Twardowski, P. The influence of tool wear on the vibrations during ball end milling of hardened steel. Procedia CIRP 2014, 14, 587–592. [Google Scholar] [CrossRef] [Green Version]
  12. Available online: https://www.tigra.com/media/pdf/3b/68/dc/Kap-2_Wendeschneidplatten.pdf (accessed on 29 June 2020).
  13. Chayeuski, V.; Zhylinski, V.; Cernashejus, O.; Visniakov, N.; Mikalauskas, G. Structural and mechanical properties of the ZrC/Ni-nanodiamond coating synthesized by the PVD and electroplating processes for the cutting knifes. J. Mater. Eng. Perform. 2018, 28, 1278–1285. [Google Scholar] [CrossRef]
  14. Wojciechowski, S.; Twardowski, P. Tool life and process dynamics in high speed ball end milling of hardened steel. Procedia CIRP 2012, 1, 289–294. [Google Scholar] [CrossRef] [Green Version]
  15. Habig, K.H. Chemical vapor deposition and physical vapor deposition coatings: Properties, tribologicalbehaviour, and applications. Sci. Technol. 1986, 4, 2832–2843. [Google Scholar] [CrossRef]
  16. Hawryluk, M. Review of selected methods of increasing the life of forging tools in hot die forging processes. Arch. Civ. Mech. Eng. 2016, 16, 845–866. [Google Scholar] [CrossRef]
  17. Pakuła, D.; Dobrzański, L.A. Investigation of the structure and properties of PVD and CVD coatings deposited on the Si3N4 nitride ceramics. J. Achiev. Mater. Manuf. Eng. 2007, 24, 79–82. [Google Scholar]
  18. Watmon, T.B.; Jeh, A.C. Coating Cutting Tools with Hard Substance Lowers Friction Co-efficient and Improves Tool Life—A Review. In Proceeding of the International Multiconference of Engineers and Computer Scientist, London, UK, 4–6 July 2012; Volume 2182, pp. 1695–1697. [Google Scholar]
  19. Krolczyk, G.M.; Nieslony, P.; Legutko, S. Determination of tool life and research wear during duplex stainless steel turning. Achiev. Civ. Mech. Eng. 2015, 15, 347–354. [Google Scholar] [CrossRef]
  20. Krolczyk, G.M.; Legutko, S. Investigations into surface integrity in the turning process. Trans. FAMENA 2014, 38, 77–82. [Google Scholar]
  21. Krolczyk, G.M.; Legutko, S. Experimental analysis by measurement of surface roughness variations in turning process of duplex stainless steel. Metrol. Meas. Syst. 2014, 21, 759–770. [Google Scholar] [CrossRef]
  22. Gronostajski, Z.; Kaszuba, M.; Widomski, P.; Smolik, J.; Ziemba, J.; Hawryluk, M. Analysis of wear mechanisms of hot forging tools protected with hybrid layers performed by nitriding and PVD coatings deposition. Wear 2019, 420, 269–280. [Google Scholar] [CrossRef]
  23. Koyilada, B.; Gangopadhyay, S.; Thakur, A. Comparative evaluation of machinability characteristics of Nimonic C-263 using CVD and PVD coated tools. Measurement 2016, 85, 152–163. [Google Scholar] [CrossRef]
  24. Matei, A.A.; Pencea, I.; Branzei, M.; Tranca, D.E.; Tepes, G.; Staf, C.E.; Ciovica, E.; Gherghilescu, A.I.; Stanciu, G.A. Corrosion resistance appraisal of TiN, TiCN and TiAlN coatings deposited by CAE-PVD method on WC-Co cutting tools exposed to artificial sea water. Appl. Surf. Sci. 2015, 358, 572–578. [Google Scholar] [CrossRef]
  25. Pahade, V.S.; Pankaj, S.C.; Baisan, V.P. A review paper on vapour deposition coating. Int. J. Eng. Appl. Sci. 2016, 3, 75–78. [Google Scholar]
  26. Fernández-Abia, A.I.; Barreiro, J.; Fernández-Larrinoa, J.; López de Lacalle, L.N.; Fernández-Valdivielso, A.; Pereira, O.M. Behaviour of PVD coatings in the turning of austenitic stainless steels. Procedia Eng. 2013, 63, 133–141. [Google Scholar] [CrossRef] [Green Version]
  27. Mrkvica, I.; Neslušan, M.; Čep, R.; Sléha, V. Properties and comparison of PVD coatings. Tehničkivjesnik 2016, 23, 569–574. [Google Scholar] [CrossRef] [Green Version]
  28. Djouadi, M.A.; Nouveau, C.; Beer, P.; Lambertin, M. CrxNy hard coatings deposited with PVD method on tools for xywoodmachining. Surf. Coat. Technol. 2000, 133, 478–483. [Google Scholar] [CrossRef]
  29. Gilewicz, A.; Warcholinski, B.; Szymanski, W.; Grimm, W. CrCN/CrN + ta-C multilayer coating for applications in wood processing. Tribol. Int. 2013, 57, 1–7. [Google Scholar] [CrossRef]
  30. Kazlauskas, D.; Keturakis, G. Investigation of wear resistance of router cutters coated different antiwear coatings. In Proceedings of the Innovative (Eco-) Technology, Entrepreneurship and Regional Development, Kaunas University of Technology, Kaunas, Lithuania, 4 March 2015. [Google Scholar]
  31. Kazlauskas, D.; Jankauskas, V.; Bendikienė, R.; Keturakis, G. Wear of cemented tungsten carbide (WC) router cutters during oak wood milling. In Proceedings of the 22nd International Conference “Mechanika 2017”, Kaunas University of Technology, Kaunas, Lithuania, 19 May 2017; pp. 307–311. [Google Scholar]
  32. Kazlauskas, D.; Keturakis, G. Wear of TiCN, CrN and DLC Coated Tungsten Carbide Router Cutters during Oak Wood Milling. In Proceedings of the 20th International Conference Mechanika 2015, Kaunas University of Technology, Kaunas, Lithuania, 23–24 April 2015. [Google Scholar]
  33. Oliver, W.C.; Pharr, G.M. An improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments. J. Mater. Res. 1992, 7, 1564–1583. [Google Scholar] [CrossRef]
  34. Stallard, J.; Poulat, S.; Teer, D.G. The study of the adhesion of a TiN coating on steel and titanium alloy substrates using a multi-mode scratch tester. Tribol. Int. 2006, 39, 159–166. [Google Scholar] [CrossRef]
  35. Bouzakis, K.D.; Asimakopoulos, A.; Michailidis, N.; Kompogiannis, S.; Maliaris, G.; Giannopoulos, G.; Pavlidou, E.; Erkens, G. The inclined impact test, an efficient method to characterise coatings cohesion and adhesion properties. Thin Solid Films 2004, 469, 254–262. [Google Scholar] [CrossRef]
  36. Porankiewicz, B.; Iskra, P.; Sandak, J.; Tanaka, C.; Jozwiak, K. High-speed steel tool wear during wood cutting in the presence of high-temperature corrosion and mineral contamination. Wood Sci. Technol. 2006, 40, 673–682. [Google Scholar] [CrossRef]
  37. Winkelmann, H.; Badisch, E.; Roy, M.; Danninger, H. Corrosion mechanisms in the wood industry, especially caused by tannins. Mater. Corros. 2009, 60, 40–48. [Google Scholar] [CrossRef]
  38. Porankiewicz, B.; Iskra, P.; Jozwiak, K.; Tanaka, C.; Zborowski, W. High speed steel tool wear after wood milling in the presence high temperature tribochemical reactions. Biol. Res. 2008, 3, 838–858. [Google Scholar]
  39. Darmawan, W.; Rahayu, I.S.; Tanaka, C.; Marchal, R. Chemical and mechanical wearing of high speed steel and tungsten carbide tools by tropical woods. J. Trop. For. Sci. 2006, 18, 255–260. [Google Scholar] [CrossRef]
  40. Available online: https://www.tigra.de/fileadmin/user_upload/PDF/2018/Woodworking%202019.pdf (accessed on 29 June 2020).
  41. Ibrahim, R.N.; Rahmat, M.A.; Oskouei, R.H.; Singh Raman, R.S. Monolayer TiAlN and multilayer TiAlN/CrN PVD coatings as surface modifiers to mitigate treating fatigue of AISI P20 steel. Eng. Fract. Mech. 2015, 137, 64–78. [Google Scholar] [CrossRef]
  42. Leyendecker, T.; Lemmer, O.; Esser, S.; Ebberink, J. The development of the PVD coating TiAlN as a commercial coating for cutting tools. Surf. Coat. Technol. 1991, 48, 175–178. [Google Scholar] [CrossRef]
  43. Navinsek, B.; Panjan, P.; Milosev, I. Industrial applications of CrN (PVD) coatings, deposited at high and low temperatures. Surf. Coat. Technol. 1997, 97, 182–191. [Google Scholar] [CrossRef]
  44. Choi, E.Y.; Kang, M.C.; Kwon, D.H.; Shin, D.W.; Kim, K.H. Comparative studies on microstructure and mechanical properties of CrN, Cr–C–N and Cr–Mo–N coatings. J. Mater. Process. Technol. 2007, 187, 566–570. [Google Scholar] [CrossRef]
  45. Fox-Rabinovich, G.S.; Beake, B.D.; Endrino, J.L.; Veldhuis, S.C.; Parkinson, R.; Shuster, L.S.; Migranov, M.S. Effect of mechanical properties measured at room and elevated temperatures on the wear resistance of cutting tools with TiAlN and AlCrN coatings. Surf. Coat. Technol. 2006, 200, 5738–5742. [Google Scholar] [CrossRef]
  46. Liu, A.; Deng, J.; Cui, H.; Chen, Y.; Zhao, J. Friction and wear properties of TiN, TiAlN, AlTiN and CrAlN PVD nitride coatings. Int. J. Refract. Met. Hard Mater. 2012, 31, 82–88. [Google Scholar] [CrossRef]
  47. Darmawan, W.; Azhari, M.; Rahayu, I.S.; Nandika, D.; Dumasari, L.; Malela, I.; Nishio, S. The chips generated during up-milling and down-milling of pine wood by helical router bits. Indian Acad. Wood Sci. 2018, 15, 172–180. [Google Scholar] [CrossRef]
  48. Sheikh-Ahmad, J.; Morita, T. Tool Coatings for Wood Machining. In Proceedings of the15th International Wood Machining Seminar, Los Angeles, CA, USA, 30 July–1 August 2001. [Google Scholar]
  49. Darmawan, W.; Tanaka, C.; Usuki, H. Performance of coated carbide tools when grooving wood-based materials: Effect of work materials and coating materials on the wear resistance of coated carbide tools. J. Wood Sci. 2001, 47, 94–101. [Google Scholar] [CrossRef]
  50. Ahn, S.H.; Choi, Y.S.; Kim, J.G.; Han, J.G. A study on corrosion resistance characteristics of PVD Cr–N coated steels by electrochemical method. Surf. Coat. 2002, 150, 319–326. [Google Scholar] [CrossRef]
  51. Gilewicz, A.; Chmielewska, P.; Murzynski, D.; Dobruchowska, E.; Warcholinski, B. Corrosion resistance of CrN and CrCN/CrN coatings deposited using cathodic arc evaporation in Ringer’s and Hank’s solutions. Surf. Coat. Technol. 2016, 299, 7–14. [Google Scholar] [CrossRef]
  52. Kondo, A.; Oogami, T.; Sato, K.; Tanaka, Y. Structure and properties of cathodic arc ion plated CrN coatings for copper machining cutting tools. Surf. Coat. Technol. 2004, 177, 238–244. [Google Scholar] [CrossRef]
  53. Azemovića, E.; Hormana, I.; Busuladžić, I. Impact of planing treatment regime on solid fir wood surface. Procedia Eng. 2014, 69, 1490–1498. [Google Scholar] [CrossRef] [Green Version]
  54. Ali, M.; Hamzah, E.; Quazi, I.A.; Toff, M.R.M. Effect of cathodic arc PVD parameters on roughness of TiN coating on steel substrate. Curr. Appl. Phys. 2010, 10, 471–474. [Google Scholar] [CrossRef]
  55. Zhang, Y.; Dhaigude, M.; Wang, J. The anvil effect in the spherical indentation testing of sheet metals. J. Manuf. Process. 2017, 27, 169–178. [Google Scholar] [CrossRef]
  56. Panjan, P.; Čekada, M.; Panjan, M.; Kek-Merl, D. Growth defects in PVD hard coatings. Vacuum 2010, 84, 209–214. [Google Scholar] [CrossRef]
  57. Panjan, P.; Drnovšek, A.; Gselman, P.; Čekada, M.; Panjan, M.; Bončin, T.; KekMerl, D. Influence of growth defects on the corrosion resistance of sputter-deposited TiAlN hard coatings. Coatings 2019, 9, 511. [Google Scholar] [CrossRef] [Green Version]
  58. Keturakis, G.; Lisauskas, V. Influence of the sharpness angle on the initial wear of the wood milling knives. Mater. Sci. (Medžiagotyra) 2010, 16, 205–209. [Google Scholar]
  59. Wang, Q.; Zhou, F.; Wang, C.; Yuen, M.F.; Wang, M.; Qian, T.; Matsumoto, M.; Yan, J. Comparison of tribological and electrochemical properties of TiN, CrN, TiAlN and a-C:H coatings in simulated body fluid. Mater. Chem. Phys. 2015, 158, 74–81. [Google Scholar] [CrossRef]
Coatings 10 00632 g001 550
Figure 1. Specimens: (a) Hard metal WC-Co (Co 6%) cutters; (b) Angle between the polishing trace and the cutting edge δ; 1: direction parallel to the cutting edge; 2: direction perpendicular to the cutting edge (the slip direction of the chip on the rake face).
Figure 1. Specimens: (a) Hard metal WC-Co (Co 6%) cutters; (b) Angle between the polishing trace and the cutting edge δ; 1: direction parallel to the cutting edge; 2: direction perpendicular to the cutting edge (the slip direction of the chip on the rake face).
Coatings 10 00632 g001
Coatings 10 00632 g002 550
Figure 2. Cutting tool and down milling processing modes: (a) Measurement scheme of the wear of the cutting edge, α: clearance angle; β: sharpness angle; γ: rake angle; ρ: cutting edge radius; Wd: wear; (b) Fixation of cutter; 1: fixed milling tool; 2: cutter; 3: HSK 63F gripper device; (c) Down milling scheme: 1: milling tool; 2: cutter; 3: oak wood; 4: direction of the wood fiber; h: radial depth of cut; uz: feed per tooth; u: feed; n: rotation direction of the milling tool; l: length of contact arc; aΔ: average shaving thickness.
Figure 2. Cutting tool and down milling processing modes: (a) Measurement scheme of the wear of the cutting edge, α: clearance angle; β: sharpness angle; γ: rake angle; ρ: cutting edge radius; Wd: wear; (b) Fixation of cutter; 1: fixed milling tool; 2: cutter; 3: HSK 63F gripper device; (c) Down milling scheme: 1: milling tool; 2: cutter; 3: oak wood; 4: direction of the wood fiber; h: radial depth of cut; uz: feed per tooth; u: feed; n: rotation direction of the milling tool; l: length of contact arc; aΔ: average shaving thickness.
Coatings 10 00632 g002
Coatings 10 00632 g003 550

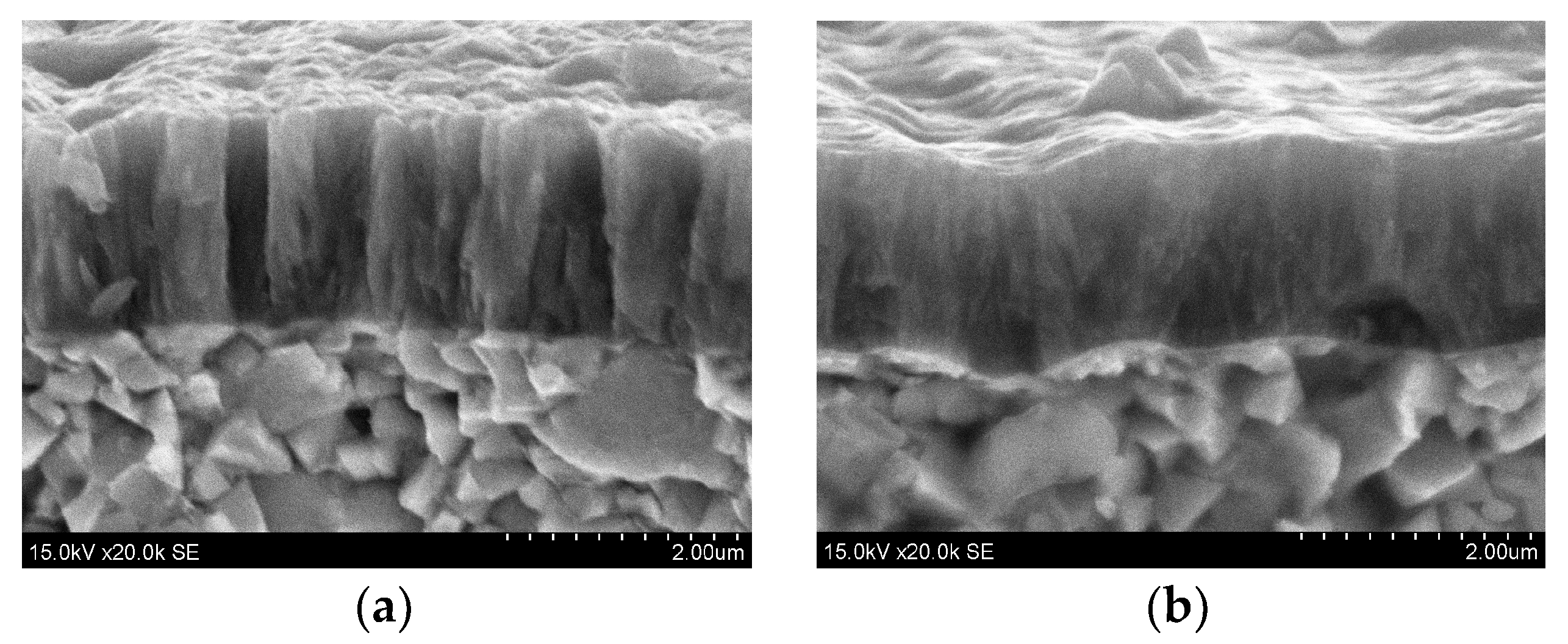

Figure 3. Breaks of hard metal WC-Co specimens with PVD coatings (×20,000): (a) CrN (1.83–1.89 µm), (b) TiAlN (1.77–1.79 µm).
Figure 3. Breaks of hard metal WC-Co specimens with PVD coatings (×20,000): (a) CrN (1.83–1.89 µm), (b) TiAlN (1.77–1.79 µm).
Coatings 10 00632 g003
Coatings 10 00632 g004 550
Figure 4. Roughness of WC-Co cutters with and without PVD coatings in the parallel and perpendicular directions to the cutting edge.
Figure 4. Roughness of WC-Co cutters with and without PVD coatings in the parallel and perpendicular directions to the cutting edge.
Coatings 10 00632 g004
Coatings 10 00632 g005 550

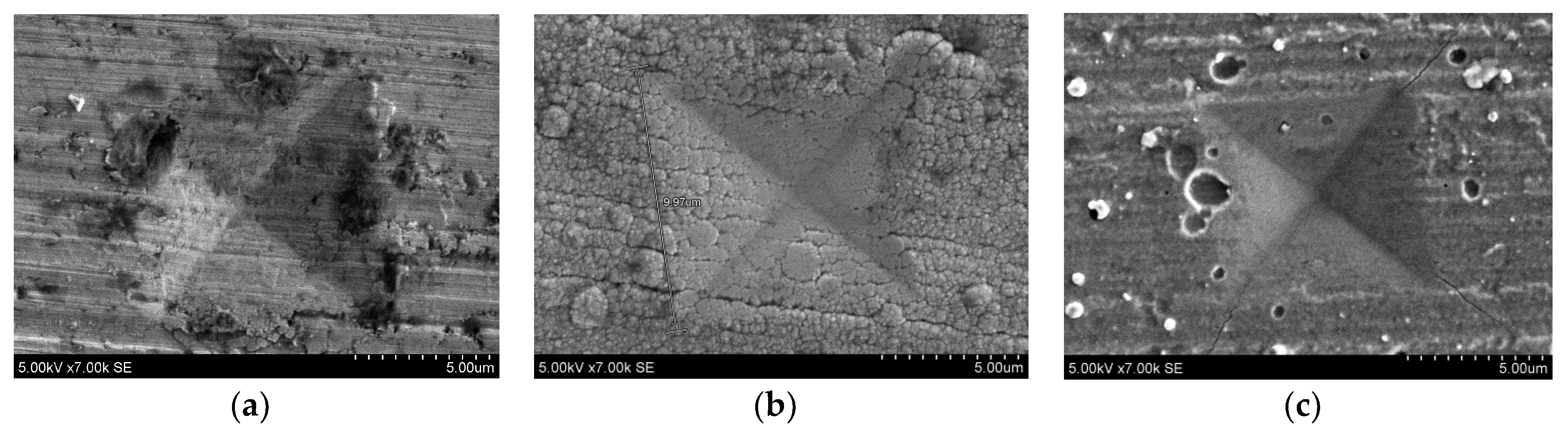

Figure 5. Trace of the Vickers indenter on surfaces (50 mN, ×7000): (a) Uncoated hard metal WC-Co; (b) With CrN coating; (c) With TiAlN coating.
Figure 5. Trace of the Vickers indenter on surfaces (50 mN, ×7000): (a) Uncoated hard metal WC-Co; (b) With CrN coating; (c) With TiAlN coating.
Coatings 10 00632 g005
Coatings 10 00632 g006 550
Figure 6. Scratch test results for PVD coatings (×15): (a) CrN coating; (b) TiAlN coating.
Figure 6. Scratch test results for PVD coatings (×15): (a) CrN coating; (b) TiAlN coating.
Coatings 10 00632 g006
Coatings 10 00632 g007 550
Figure 7. Coefficients of friction of the indenter and WC-Co specimens with and without PVD coatings.
Figure 7. Coefficients of friction of the indenter and WC-Co specimens with and without PVD coatings.
Coatings 10 00632 g007
Coatings 10 00632 g008 550
Figure 8. Static coefficient of friction between different cuts of oak wood (radial and tangential) and hard metal WC-Co with and without PVD coatings.
Figure 8. Static coefficient of friction between different cuts of oak wood (radial and tangential) and hard metal WC-Co with and without PVD coatings.
Coatings 10 00632 g008
Coatings 10 00632 g009 550
Figure 9. Influence of the cutting path L on the wear of the rake surface of the hard metal WC-Co cutter with and without PVD coatings when a milling speed of 17 m·s−1 is applied on the cutting plane.
Figure 9. Influence of the cutting path L on the wear of the rake surface of the hard metal WC-Co cutter with and without PVD coatings when a milling speed of 17 m·s−1 is applied on the cutting plane.
Coatings 10 00632 g009
Coatings 10 00632 g010 550
Figure 10. Influence of the cutting path L on the roughness of the surface Rz (µm) processed with the tool from hard metal WC-Co (with and without PVD coatings)
Figure 10. Influence of the cutting path L on the roughness of the surface Rz (µm) processed with the tool from hard metal WC-Co (with and without PVD coatings)
Coatings 10 00632 g010
Coatings 10 00632 g011 550
Figure 11. SEM images of the rake surface of the cutter of hard metal WC-Co with and without PVD coatings and the cutting edge after the 9050 m path (2.15 × 106 work cycles) (×7000): (a) WC-Co; (b) CrN; (c) TiAlN.
Figure 11. SEM images of the rake surface of the cutter of hard metal WC-Co with and without PVD coatings and the cutting edge after the 9050 m path (2.15 × 106 work cycles) (×7000): (a) WC-Co; (b) CrN; (c) TiAlN.
Coatings 10 00632 g011
Coatings 10 00632 g012 550
Figure 12. Roughness levels of the rake surface (area of cutting edge) of new cutters and cutters after the 9050 m path (with and without PVD coatings).
Figure 12. Roughness levels of the rake surface (area of cutting edge) of new cutters and cutters after the 9050 m path (with and without PVD coatings).
Coatings 10 00632 g012
Table
Table 1. Hard metal characteristics [40].
Table 1. Hard metal characteristics [40].
Hard Metal GradeBinder Co, %Size of WC Grains, μmHardness, HV 10Bending Strength, N/mm2Fracture Toughness, K1C/MPa·m−1/2Operating Temperature, °CCoefficient of FrictionSurface Roughness Ra, µm
T06MG60.7–1.0180027008.4800–10000.4–0.60.04
Table
Table 2. Characteristics of physical vapor deposition (PVD) coatings [27,41,42,43,44,45,46].
Table 2. Characteristics of physical vapor deposition (PVD) coatings [27,41,42,43,44,45,46].
CoatingNumber of LayersMaximum Operating Temperature, °CHardness, GPa
TiAlNSingle layer80030 ± 10
CrNSingle layer70018
Table
Table 3. Characteristics of the fixed milling tool.
Table 3. Characteristics of the fixed milling tool.
Cutting Diameter D, mmLength of the Fixed Milling Tool l2, mmRake Angle γ, °SharpnessAngle β, °Clearance Angle α, °Cutting Angle λ, °
Ø185527531087
Table
Table 4. Milling modes.
Table 4. Milling modes.
Tool Rotation Speed n, 103 min−1Cutting Speed v, m·s−1Thickness of Cut Layer h, mmFeed per Cutter uz, mmLength of Contact Arch l, mmAverage Shaving Thickness aΔ, mmWidth of Cut Layer b, mm
18.01710.14.20.0246
Table
Table 5. Characteristics of hard metal and PVD coatings established by scratch testing.
Table 5. Characteristics of hard metal and PVD coatings established by scratch testing.
Sample/CoatingCOF When Coating Is DamagedLoad for Appearance of Adhesion Damages Fx, NDamage Width at Load of 137.3 N, µm
CrN0.1444.7118.8
TiAlN0.1632.8121.9

Share and Cite

MDPI and ACS Style

Kazlauskas, D.; Jankauskas, V.; Tučkutė, S. Research on Tribological Characteristics of Hard Metal WC-Co Tools with TiAlN and CrN PVD Coatings for Processing Solid Oak Wood. Coatings 2020, 10, 632. https://doi.org/10.3390/coatings10070632

AMA Style

Kazlauskas D, Jankauskas V, Tučkutė S. Research on Tribological Characteristics of Hard Metal WC-Co Tools with TiAlN and CrN PVD Coatings for Processing Solid Oak Wood. Coatings. 2020; 10(7):632. https://doi.org/10.3390/coatings10070632

Chicago/Turabian Style

Kazlauskas, Deividas, Vytenis Jankauskas, and Simona Tučkutė. 2020. "Research on Tribological Characteristics of Hard Metal WC-Co Tools with TiAlN and CrN PVD Coatings for Processing Solid Oak Wood" Coatings 10, no. 7: 632. https://doi.org/10.3390/coatings10070632

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
