Influence of Phenylmethylsilicone Oil on Anti-Fouling and Drag-Reduction Performance of Silicone Composite Coatings

Abstract

In this study, we explore the effect of phenylmethylsilicone oil (PSO) addition amount and viscosity in a fouling release coating based on polydimethylsiloxane (PDMS). The surface properties, mechanical properties, anti-fouling and drag-reduction performance of the coating were studied. Meanwhile the influence of the basic properties of the coating on the anti-fouling and drag-reduction performance was also studied. Subsequently, the antifouling performance of the coating was investigated by the Navicula Tenera and bacteria adhesion test. As a result, the high content of PSO paint has a high foul removal rate. The incorporation of PSO into paint can reduce the elastic modulus and surface energy of the coating to reduce its relative adhesion factor (RAF). The lower the RAF, the better the antifouling effect of the coating. The drag-reduction performance of the coating was verified by the torque selection experiment, and the results showed that incorporation of PSO into paint can enhance the elongation and hydrophobicity of the coating, thereby increasing the drag reduction rate of the coating.

1. Introduction

In recent years, the concept of energy saving and emission reduction has gradually attracted people’s attention. In the shipping industry, the most efficient way to save energy is to reduce the forward drag of ships [1]. While the ship is moving forward, not only the seawater drag, but also the adhesion of marine fouling organisms like diatoms and bacteria, they both accelerate biological corrosion and increases surface roughness [2,3,4,5].

Polydimethylsiloxane (PDMS), an elastomer, has low surface energy and roughness, which reduces the adhesion between it and marine organism [6,7,8]. Unfortunately, the PDMS has a high interfacial energy with water, it is beneficial to adhesion bacteria and sludge, and limits the use of the organic silicon coating under static conditions [9]. Moreover, PDMS is hard to apply under dynamic conditions, because it is difficult to inhibit the adhesion of diatoms. Even if the ship speed is as high as 30 knots, the diatoms may still adhere firmly to the coating surface [10].

At present, a large number of studies have shown that modifying the performance of silicone coating can improve its anti-fouling and drag reduction effect to a certain extent. Common modification methods include building a super-hydrophobic surface [11,12,13], biomimetics [14], adding functional additives [15] and so on. Super-hydrophobic coatings and biomimetic coating have good anti-fouling and drag-reducing effects, but the manufacture of the materials is complicated and the surface structure is unstable, which have great limitations in practical use. Adding functional additives to the coating can effectively improve the performance of the coating, and the operation is simple and efficient [16].

As a kind of functional additive, silicone oil has attracted wide attention for its hydrophobicity, lubricity and other characteristics [17]. Amini et al. [18] injected silicone oil into PDMS to manufacture silicone oil modified silicone coating, studied the coating performance by simulating the marine environment, and found that the addition of silicone oil can significantly reduce the protein secretion and adhesion of mussels. Gui et al. [19] injected silicone oil into the self-assembled nano-scale coating and found that when the content of silicone oil is 20 wt.%, its ice-removing ability exceeds that of superhydrophobic surfaces. Ba et al. [20] prepared PSO and silicone blend film by a two-step method, explored the effect of the viscosity of PSO on silicone oil precipitation time, and found that the increase in viscosity can reduce the precipitation time of silicone oil. Galhenage [21] designed silicone oil-modified siloxane-polyurethane coating and found that the modified coating significantly improve the antifouling performance. The modified coating still has high hydrophobicity after soaking for a long time.

So far, people have mainly studied the surface properties and protein adhesion of silicone oil-modified silicone coatings, but the adhesion and drag reduction properties of diatoms have not been researched in depth. In this paper, phenyl silicone oils of different molecular weights were added to the silicone coating by means of mechanical stirring. To study the drag reduction performance of silicone coating diatoms, the water contact angle, surface energy and elastic modulus of PSO were measured. The experimental results show that when the addition amount of low molecular weight PSO (30 mPa·s) is more than 5%, the organic silicon coating has less Navicula Tenera attachment and higher drag reduction rate.

2. Materials and Methods

2.1. Experimental Materials and Equipment

Hydroxyl-terminated polydimethylsiloxane (PDMS, 31900-57-9) with the viscosity of 10,000 mPa·s was purchased from Dayi Chemical Industry Co. Ltd. (Yantai, China). Phenylmethylsilicone oil (PSO, 63148-58-3) with the viscosities of 30, 75 and 100 mPa·s was obtained from Dayi Chemical Industry (Yantai, China). Tetraethylorthosilicate (TEOS, 68412-37-3), Dibutyltin dilaurate (DBTDL, 77-58-7) was obtained from Kemiou Chemical Reagent Co. Ltd. (Tianjin, China) as analytical grade. Navicula Tenera was bought from Qingdao Chinese Academy of Sciences Seaweed Germplasm Bank (Qingdao, China).

2.2. Preparation of the Composite Coating

2.2.1. Preparation of Silicone Topcoat

The topcoat consists of three components:

• Component A: It is composed of Polydimethylsiloxane (PDMS), phenylmethylsilicone oil (PSO) and powder according to the formula ratio. The specific ratio is shown in

  Table 1. Formulation of coating component A.

  Sample	W-0	B30-3	B30-5	B30-7	B30-9	B75-9	B100-9
  PDMS (g)	100.00	100.00	100.00	100.00	100.00	100.00	100.00
  Additives (g)	9.00	9.00	9.00	9.00	9.00	9.00	9.00
  Pigments (g)	36.00	36.00	36.00	36.00	36.00	36.00	36.00
  PSO (g)	0.00	4.48	7.63	10.91	14.34	14.34	14.34

  .
• Component B: curing agent, mixed with xylene and TEOS in a mass ratio of 7:3.
• Component C: catalyst, mixed with xylene and DBTDL in a mass ratio of 7:3.

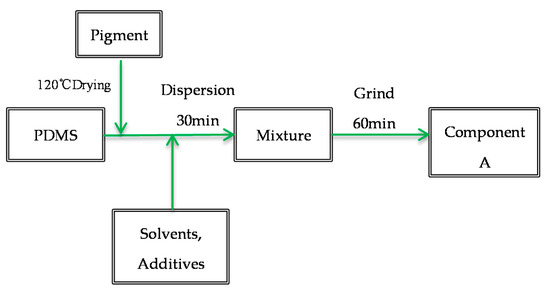

PSO is the only variable. Mix PDMS, PSO, pigments, and additives according to the formula ratio, and used a BGD 750 Versatile Sand-Milling Dispersion-agitator (Guangzhou Biuged Laboratory Instrument Supplies Co, Ltd., Guangzhou, China) at 4500 rpm blend for 30 min. After that, pour the mixed liquid into a tinplate container for use as the paint component A. The specific process is shown in Figure 1. Mix the three components A, B, and C at 25:4:1. According to different painting requirements, a certain amount of xylene can be added to adjust the coating viscosity.

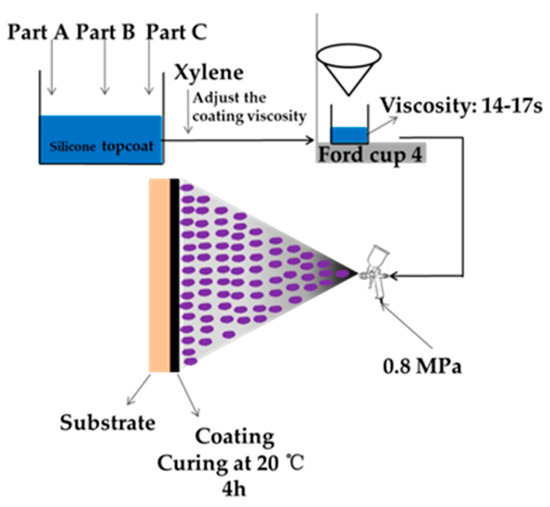

For testing the surface property and antifouling property of the silicone topcoat, the paint was sprayed on glass slides with a dimension of 75 mm × 25 mm × 1 mm. In order to study the mechanical properties of the silicone topcoat, it was poured into a Teflon mold with a dimension of 150 mm × 150 mm × 2 mm.

According to the addition amount and viscosity of PSO to mark, which is shown in Table 1, the “X” in BX-Y represents the viscosity of PSO. The viscosity of PSO is 30, 75 and 100 mPa·s. The “Y” in BX-Y represents the ratio of the mass of PSO and component A, multiplied by 100.

2.2.2. Preparation of Composite Coating

We chose WS T-207 epoxy strontium yellow paint (P4) as the primer, and WS T-208 SM epoxy paint (HT1) as the intermediate paint. P4, HT1 was obtained from the 53rd Research Institute of China North Industries Group (Jinan, China). The silicone connecting paint was prepared by Liu [22]. The preparation method of the silicone topcoat is shown in Section 2.2.1. The spraying process is shown in Figure 2.

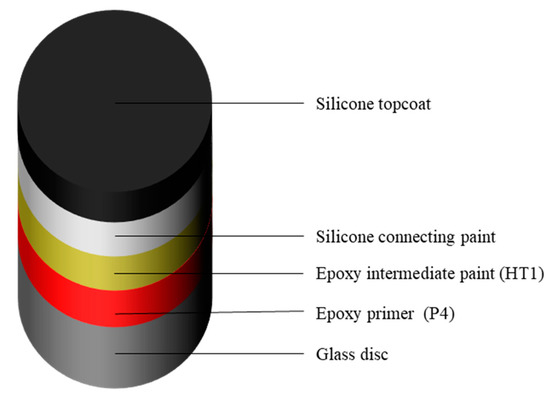

The specific coating distribution of the composite coating is shown in Figure 3. The thickness of epoxy primer, epoxy intermediate paint, silicone connecting paint and silicone topcoat were 80–120, 80–100, 50–70 and 150–200 μm, respectively. In order to study drag-reduction of composite coating, the paint was sprayed on the glass disc.

2.3. Experiment and Characterization

2.3.1. Contact Angle Test

The JC2000 contact angle measuring instrument (Shanghai Zhongchen Digital Technic Apparatus Co., Ltd., Shanghai, China) is used to measure the water contact angle and diiodomethane contact angle of the coating. Pick three points randomly on the coating and take the average value. The size of the detection liquid is 3 μL, and the image is frozen and recorded after the liquid contacts the sample surface for 3 s. According to the Owens two-liquid method [23], surface free energy of the sample has been calculated.

2.3.2. Tensile Performance Test

According to the national standard GB/T 528-2009 (IS037-2005), the coating was cut into 4 mm × 45 mm dumbbell-shaped tensile specimen. The UTM5105 computer-controlled electronic universal testing machine (Jinan Wance Electrical Equipment Co., Ltd., Jinan, China) was used to perform the tensile properties of the coating sample, and the tensile rate was 50 mm/min. We selected the tensile data with a strain not exceeding 0.01 mm/mm to figure, and obtained the corresponding curve slope after linear fitting, which is the elastic modulus of the tensile specimen.

2.3.3. Morphology Analysis

Morphology of the silicone topcoat surface and fractures were measured with the Olympus OLS4000 CLSM (OLYMPUS (China) Co., Ltd., Beijing, China). The line roughness (Ra) of the coating was measured using LEXT analysis software (version 2.2.4).

2.3.4. Bacteria Removal Ability

The antifouling performance of the silicone coating was characterized by bacterial adhesion. The test bacteria were selected from the natural seawater of Dalian Yellow Sea. We took 6 samples for each formula, three of which were marked as P and the other was marked as Q. We placed the samples in fresh natural seawater and soaked them for 24 h. After the soaking was completed, they were rinsed with P, washed with Q, and we brushed the bacteria into the sterilized seawater with a cotton swab to make a bacterial suspension. Sterilized seawater was used to dilute the bacteria suspension to a volume of 10⁻⁶. Take 10 μL from it, inoculate it on 2216E solid medium, and spread evenly. We took pictures to record the experimental results. We used IMAGE PRO PLUS software (version 6.0) to observe the amount of bacteria attached to the surface of the solid medium [24]. The formula of 2216E solid medium can be found in paper [25].

2.3.5. Navicula Tenera Attachment Test

For each formula, we took 6 coated slide samples that had cured for more than 7 days, and placed them in a 2000 mL beaker. We added 500 mL sterile seawater and 50 mL boat-shaped Navicula Tenera liquid in a beaker. We placed it in an HPG-280BX light incubator (Harbin Donglian Electronic Technic Co., Ltd., Harbin, China), with a temperature of (18 ± 1) °C, and ratio of light to dark of 12 h:12 h. We took photos to record the adhesion of diatoms in the beaker regularly. Then we took the sample out after 2 days, washed part of them i and rinsed another part. The evaluation method of Navicula Tenera adhesion can be found in paper [26].

2.3.6. Drag Reduction Test

According to the national standard GB/T 7791-2014 drag reduction was tested [27]. We fixed the coating sample on the rotating shaft and placed the shaft in the cylindrical experimental water tank (height 0.62 m, radius 0.3 m). The water tank was equipped with 175 L of natural seawater to ensure that the height of the seawater on the upper surface of the sample was greater than 0.3 m to generate swirl during the rotation. Before and after the test, we ensured that the position of the seawater in the tank and the position of the rotating shaft remained unchanged.

The rotation speed and simulated speed of ship are shown in

Table 2. The corresponding simulated speed of the disc at different speeds.

Rotating Speed (rpm)	800	1000	1200	1400	1600	1800
Simulated speed of ship (kn)	8.14	10.18	12.21	14.25	16.28	18.32

. We tested the speeds over two hours, and recorded the data for 10 s. Then we took the average of the data in the last hour.

3. Results

3.1. Surface Properties

3.1.1. Roughness

The surface roughness of the coating is the primary parameter which affects most of the paint’s functional properties. The required coating was prepared by spraying technics. The roughness of the coating was tested by Olympus OLS4000 CLSM (field of view area of 1024 µm × 1024 μm), and the specific results are shown in

Table 3. Surface roughness of coating.

Coating	W-0	B30-3	B30-5	B30-7	B30-9	B75-9	B100-9
Roughness (μm)	0.42 ± 0.26	0.49 ± 0.32	0.53 ± 0.05	0.59 ± 0.21	0.43 ± 0.17	0.51 ± 0.32	0.43 ± 0.22

.

It is found that the initial roughness of all coatings is approximately the same. Roughness will not be used as a variable to affect other properties of the coating.

3.1.2. Surface Energy

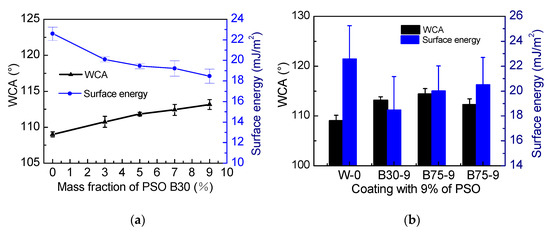

The influence of the addition amount of PSO (30 mPa·s) on the water contact angle (WCA) is shown in Figure 4a. The results show that the incorporation of PSO can improve the hydrophobicity of the coating to a certain extent. In terms of the functional groups, the hydrophobicity of phenyl groups is better than that of methyl groups. Therefore, the more phenyl groups in the coating, the stronger the coating hydrophobicity. When the amount of PSO is the same (Figure 4b), the increase of viscosity will reduce the hydrophobic effect of PSO.

According to the Owens two-liquid method, we calculated the surface energy of the coating [23]. In Figure 4, with the increase of PSO content, the surface energy of the coating gradually decreases. Because the surface energy of PSO is lower than that of PDMS. According to related studies, the surface energy of PSO (7–100 mPa·s) is about 22.2 to 24 mJ/m² [28], so low-viscosity PSO can significantly reduce the surface energy of the coating, which is consistent with the results presented in this article.

3.2. Mechanical Properties

The influence of the addition amount and viscosity of PSO on the tensile properties of the silicone topcoat is shown in

Table 4. Mechanical properties of coating.

Coating	Elastic Modulus (MPa)	Fracture Elongation (%)	Breaking Strength (MPa)
W-0	2.44 ± 0.16	191.54 ± 2.26	0.46 ± 0.03
B30-3	1.88 ± 0.67	210.68 ± 3.82	0.56 ± 0.03
B30-5	1.81 ± 0.56	222.00 ± 1.45	0.59 ± 0.06
B30-7	1.82 ± 0.03	226.84 ± 4.83	0.80 ± 0.08
B30-9	1.79 ± 0.46	251.34 ± 3.20	0.69 ± 0.05
B75-9	2.10 ± 0.26	208.02 ± 3.36	0.59 ± 0.05
B100-9	1.73 ± 0.19	293.60 ± 2.26	0.81 ± 0.08

, Figure 5.

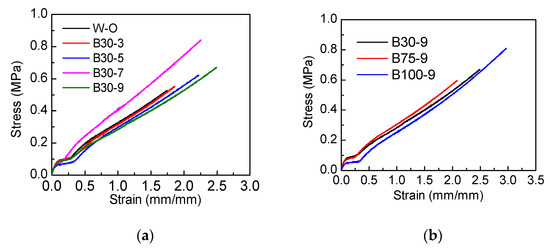

It can be seen from Table 4 and Figure 5 that the incorporation of PSO will decrease the elastic modulus of the coating. Because of the non-reactiveness of PSO, being stored in the gaps of molecular chains would reduce the crosslink density of the coating [20]. With the decrease of crosslink density, the mechanical properties of the coating decrease as well. The molecular weight of PDMS is much larger than that of PSO, so the viscosity of PSO has little effect on the stretching curve.

3.3. Antifouling Performance

In the ocean, biofouling is a dynamic process that can be divided into three stages: (1) Formation of a nutrient film, (2) Bacteria and diatoms attach to the nutrient film to form a biofilm, (3) Large plankton attach. According to research, the existence of biofilm is conducive to the attachment of large plankton, which provides a foothold and food for large plankton [29]. The study of the anti-adhesion properties of the coating to bacteria and Navicula Tenera is an important means to explore the antifouling properties.

3.3.1. Bacteria Attachment Performance

A bacteria attachment test was used to verify the antifouling performance of the coating. With the addition amount and viscosity of PSO as variables, different silicone topcoat samples were made. The images of original bacterial colonies are shown in Figure 6 (different PSO addition amount). The number of bacterial colonies and the removal rate of fouling in each medium are shown in

Table 5. Amounts of colonies and fouling removal rate.

Coating	Colony Concentration (×106 CFU/mL)		Removal Rate (%)
	Rinsed	Washed
HTI	760 ± 2.63	730 ± 2.50	4.47
W-0	330 ± 3.39	270 ± 3.42	17.74
B30-3	326 ± 4.36	253 ± 5.89	21.56
B30-5	170 ± 3.64	95 ± 3.57	42.42
B30-7	85 ± 559	47 ± 5.46	45.23
B30-9	36 ± 1.50	16 ± 1.91	55.56
B75-9	73 ± 2.30	44 ± 1.96	39.72
B100-9	126 ± 1.26	75 ± 2.52	40.18

. CFU is the abbreviation of Colony-forming units.

Figure 6 shows that under the same washing conditions, the silicone coating had significantly less colonies than the HT1 coating, which is related to the low surface energy. Due to the fact that surface energy is low [7], bacteria do not easily adhere or adhere unsteadily.

Under the same flushing conditions, as the addition amount of PSO increases, the number of bacteria attached to the coating will gradually decrease. When the addition amount of PSO is constant, compared to the rinsed sample, the washed sample has less bacterial adhesion. This is related to the hydrophobicity of PDMS. Studies have shown that for fouling release coatings, the wider the water contact angle, the stronger the self-cleaning ability of the coating [29].

In Table 5, under the same flushing conditions, as the viscosity increases, the amounts of bacterial colonies of coating gradually increase. This is because the increase of PSO viscosity cannot significantly lead to growth of the hydrophobicity of the coating, which is shown in Figure 4b. The antifouling effect of the coating, and the bacteria removal rate increases from 17.74% to 55.56%.

3.3.2. Navicula Tenera Attachment Performance

This experiment studied the effect of PSO incorporating the silicone topcoat on Navicula Tenera. The experimental variables are the viscosity and addition amount of PSO. Use WS T-208 SM epoxy paint (HT1) as a contrast coating. We used an ultraviolet–visible spectrophotometer (Labtech UV-2000, Labtech Co., Ltd., Beijing, China) to measure the chlorophyll-a in the coating; the more chlorophyll-a, the more Navicula Tenera attached to the coating surface. The specific results are shown in Figure 7.

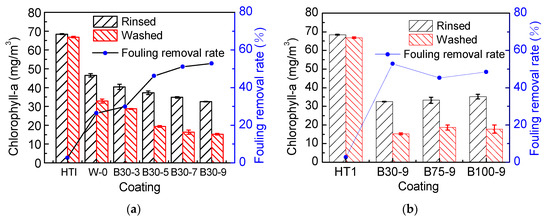

It can be seen from Figure 7 that, compared with epoxy coating HT1, less Navicula Tenera attached to the silicone coating, which is related to the low surface energy of silicone resin [8]. With the increase of PSO addition amount, the removal rate gradually increases. Because the increase of PSO addition amount will reduce the surface energy (Figure 4a) and elastic modulus (Table 4) of the coating, the low elastic modulus could reduce the force to remove fouling organisms from fouling release coatings [30], and high hydrophobicity can inhibit the adhesion of fouling organisms [31], which are the factors that enhance the antifouling properties of the coating.

According to Figure 7b, when the addition amount of PSO is constant, the change of viscosity cannot significantly reduce the adhesion of Navicula Tenera because the change of viscosity cannot reduce the surface energy and elastic modulus of the coating.

3.4. Drag Reduction Performance

The influence of PSO (30 mPa·s) content on drag reduction rate (DR) of coatings is shown in Figure 8. Epoxy paint HT1 was chosen as the comparative coating. This is the drag reduction rate Formula (1).

$$\mathrm{DR}=\frac{\left(T_{HT1}-T_{BX-Y}\right)}{T_{HT1}}\times 100\%$$

(1)

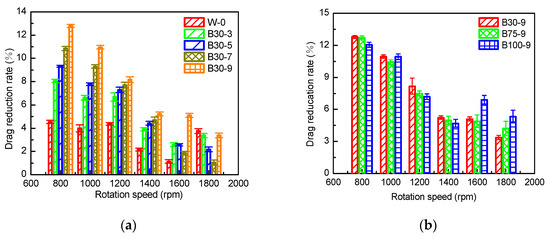

According to Figure 8a, at the speed of 800–1400 rpm, as the addition amount of PSO increases, the drag reduction rate of the coating gradually increases because the increase of the PSO addition amount could enhance the hydrophobicity and reduce the elastic modulus. For organic coatings, high hydrophobicity can shrink the solid–liquid connected surface and slow down seawater turbulence [32]. Flexible materials have obvious drag-reduction effects, because of the low elastic modulus of the flexible material, and the surface is easy to deform when subjected to frictional resistance which can be released and play a buffering role [12]. At the speed of 1600–1800 rpm, with the increase of PSO addition amount, the increasing trend of the drag reduction rate is not obvious. Even under some conditions, as the addition amount of PSO increases, the drag reduction rate decreases.

As shown in Figure 8b, the increase in PSO viscosity will not increase the drag reduction rate of the coating, because when the addition amount of PSO is constant, the change in viscosity will not have a major impact on the surface properties and elastic modulus of the coating.

3.5. Stability in Seawater

We selected W-0, B30-9 and B75-9 coatings for the seawater immersion experiment, and set the immersion time to 0, 3, 7, 15 days. We measured the contact angle and surface roughness before and after immersion.

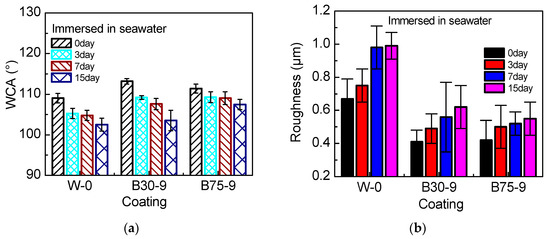

In Figure 9a, as the immersion time increases, WCA gradually decreases. With the same immersion time, the coating which has more PSO content, WCA decreases more slowly. When the silicone coating is immersed in seawater, the surface of the coating will rearrange under the thermodynamic drive [33], resulting in the decrease of static water contact angle. Adding PSO to PDMS will form a more stable coating, and the cross-linking of silicone oil can make the coating have suitable interface energy [21], thereby reducing the decrease in static contact angle.

In Figure 9b, the longer the immersion time, the rougher the coating surface. After being immersed for 7 days, the surface line roughness of W-0, B30-9 and B75-9 coatings has been increased to 1.46, 1.36 and 1.23 times, respectively. When the coating was immersed in seawater, with the movement of the molecular chains or the polarity of the seawater, the micro-nano powders originally evenly distributed will agglomerate, resulting in an increase in surface roughness.

4. Discussion

4.1. Effect of Relative Adhesion Factor (RAF)

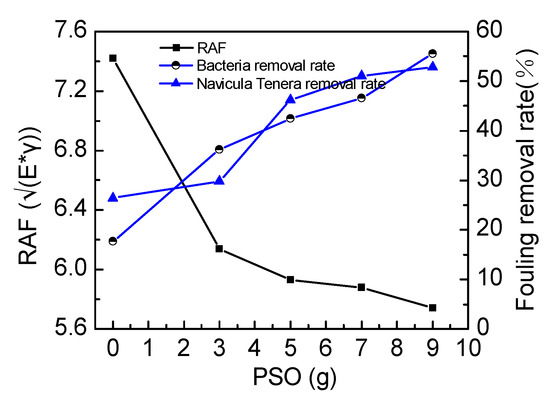

Brady proposed the concept of relative adhesion factor (RAF) [34], with RAF = $\sqrt{\mathrm{E}·\mathsf{\gamma }}$, where E is the surface energy of the coating, and γ is the elastic modulus of the coating. RAF is an important parameter to characterize the performance of silicone coatings. Brady pointed out that the amount of coating surface marine fouling organisms directly influences RAF. According to Figure 10, with the addition amount of PSO increasing, the RAF decreases and the removal rate is increasing gradually. The experiment proves that RAF is inversely proportional to the fouling removal rate, which in Brady’s theory is consistent. Relative adhesion factors can be used to explain the adhesion of bacteria and Navicula Tenera. PSO-modified silicone coating improves the antifouling performance of the coating by reducing the RAF. After modification, the removal rate of bacteria increased from 17.74% to 55.56%, and the removal rate of primer diatoms increased from 22.46% to 52.79%. Therefore, PSO enhances the antifouling performance of the coating.

4.2. Effect of Water Contact Angle (WCA) and Elongation

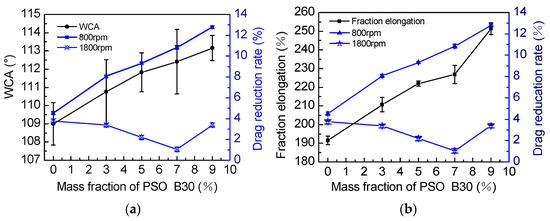

As shown in Figure 11a, at 800 rpm, the WCA and drag reduction rate gradually increase, as the addition amount of PSO increases. Spraying makes the surface of the coating have a certain surface roughness (Table 3). According to the research of Ming et al. [32], as the WCA increases, the coating with micro-nano structure will reduce the wettability and contact area between it and the fluid. Macroscopically, at 800–1400 rpm, the larger the contact angle was, the higher the drag reduction rate was, as shown in Figure 8a.

The higher the coating fraction elongation, the better flexibility. Studies have shown that a flexible hydrophobic coating is an ideal drag-reducing material [12]. Wu found that when the elongation reaches 83.3%, drag reduction of the hydrophobic coating performs best [32]. Therefore, it can prove that increasing elongation will enhance the drag reduction effect of the coating.

When the speed reaches more than 1400 rpm, the seawater is in a turbulent state. As shown in Figure 11, at 1800 rpm, the water contact angle and elongation of the coating have no obvious influence on the drag reduction rate.

5. Conclusions

In this study, PSO was used to modify PDMS, and a series of silicone oil-modified silicone coatings were successfully manufactured to explore the effect of PSO addition amount and viscosity on the performance of silicone coating.
