Next Article in Journal
Surface Properties of Beech Wood after CO2 Laser Engraving
Previous Article in Journal
Sensitivity Analysis of Rotor/Stator Interactions Accounting for Wear and Thermal Effects within Low- and High-Pressure Compressor Stages
Open AccessArticle

Effects of Process Parameters on Geometrical Characteristics, Microstructure and Tribological Properties of TiB2 Reinforced Inconel 718 Alloy Composite Coatings by Laser Cladding

1
Institute of Field Engineering, Army Engineering University of PLA, Nanjing 210007, China
2
State Key Laboratory of Explosion & Impact and Disaster Prevention & Mitigation, Army Engineering University of PLA, Nanjing 210007, China
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(1), 76; https://doi.org/10.3390/coatings10010076 (registering DOI)
Received: 18 December 2019 / Revised: 14 January 2020 / Accepted: 14 January 2020 / Published: 16 January 2020
(This article belongs to the Section Tribology)

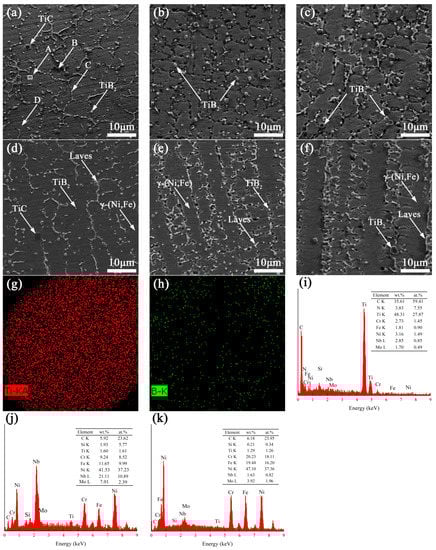

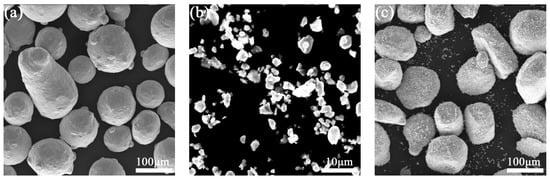

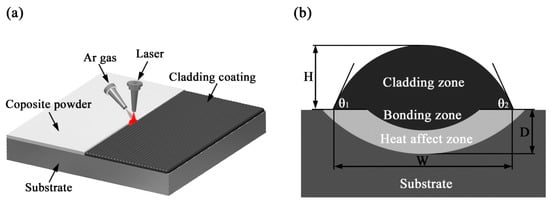

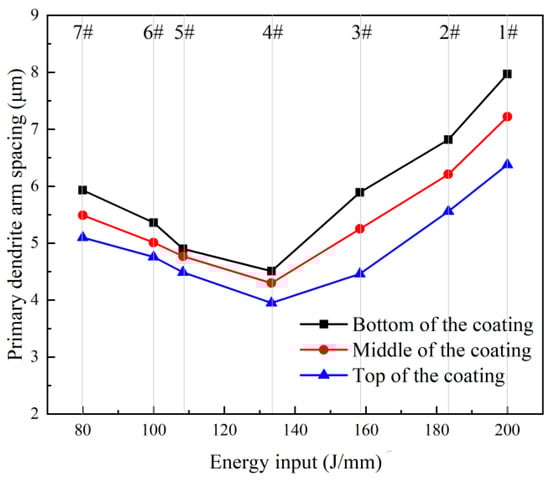

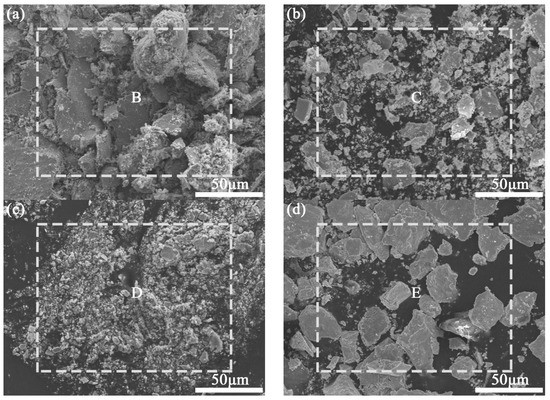

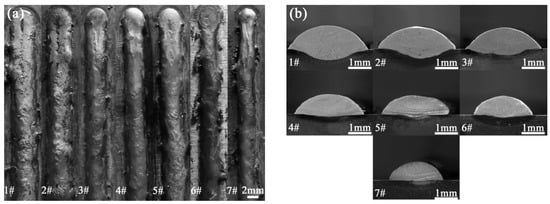

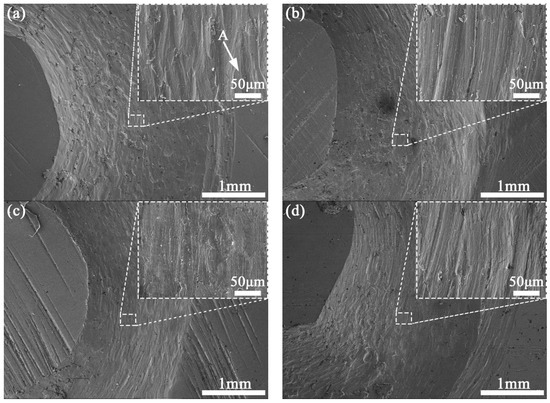

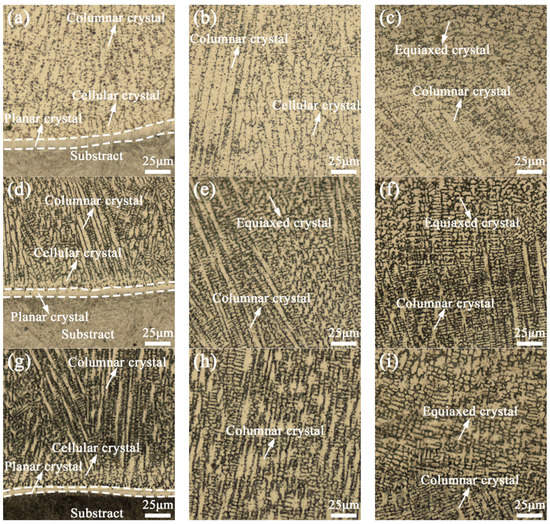

The TiB2 reinforced Inconel 718 alloy composite coatings were prepared on carbon steel by laser cladding. The energy input (the ratio of laser power and scanning speed, E) was introduced to investigate the effects of process parameters on geometrical characteristics, microstructure and tribological properties of composite coatings. The results show that the dilution rate decreases and the contact angle increases, respectively, as E decreases from 200.00 J/mm to 80.00 J/mm, which causes the decrease of the boding strength from 1.91 GPa to 0.39 GPa. The composite coatings contain the phases of γ-(Ni, Fe), Laves, TiB2, TiB, TiC, Ni3B, CrB4 and Cr23C6. As E decreases from 200.00 J/mm to 133.33 J/mm, the primary dendrite arm spacing (PDAS) and the Laves content of the composite coating decrease for the increase of cooling rate, leading to the increase of microhardness, the improvement of tribological properties and the change of wear mechanism from the severe multi-plastic deformation wear, adhesive wear and oxidative wear to the slight abrasive wear. However, as E decreases from 133.33 J/mm to 80.00 J/mm, for the weak Marangoni convection, TiB2 particles are prone to aggregate in the top of the composite coating which causes the increase of the PDAS and the Laves content, leading to the decrease of the microhardness and the degradation of tribological properties, and the wear mechanism change to the multi-plastic deformation wear and abrasive wear gradually. View Full-Text
Keywords: laser cladding; process parameters; TiB2; Inconel 718 alloy; composite coating; tribological properties laser cladding; process parameters; TiB2; Inconel 718 alloy; composite coating; tribological properties
Show Figures

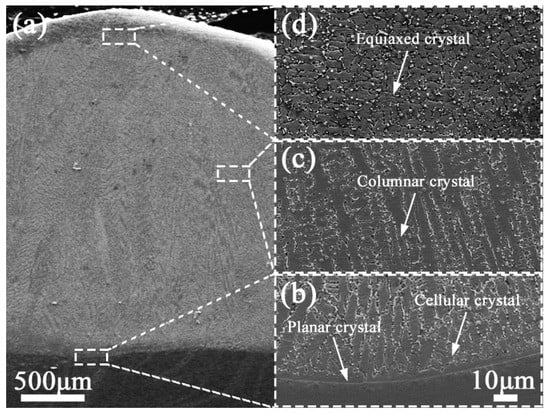

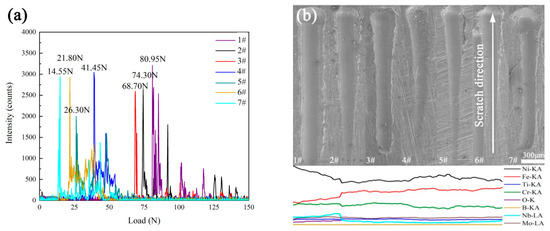

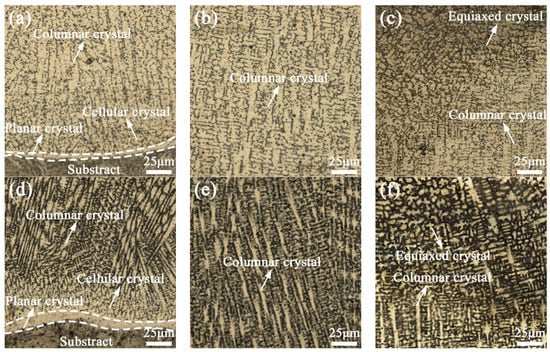

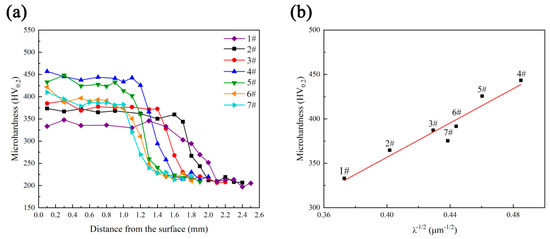

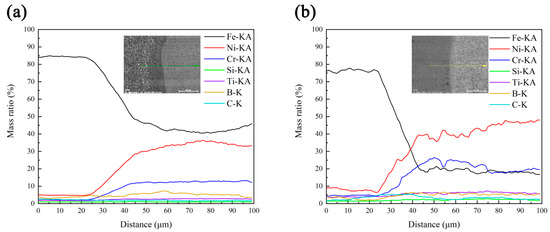

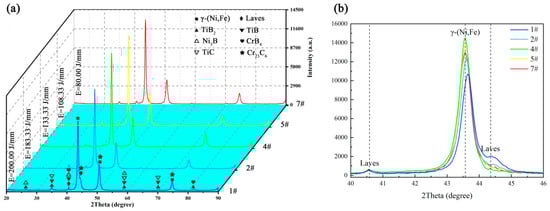

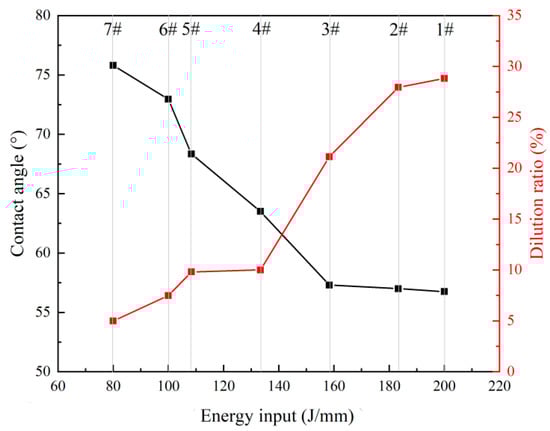

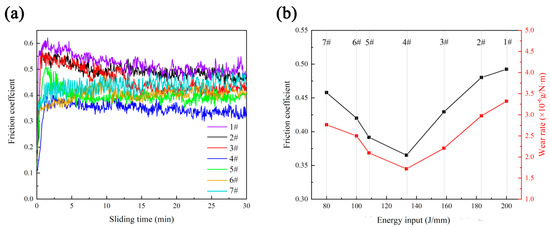

Figure 1

MDPI and ACS Style

Tang, B.; Tan, Y.; Zhang, Z.; Xu, T.; Sun, Z.; Li, X. Effects of Process Parameters on Geometrical Characteristics, Microstructure and Tribological Properties of TiB2 Reinforced Inconel 718 Alloy Composite Coatings by Laser Cladding. Coatings 2020, 10, 76.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
