N-Nonyloxypentyl-l-Deoxynojirimycin Inhibits Growth, Biofilm Formation and Virulence Factors Expression of Staphylococcus aureus

Department of Molecular Medicine and Medical Biotechnology, University of Naples Federico II, Via S. Pansini 5, 80131 Naples, Italy
Department of Chemical Sciences, University of Naples Federico II, Via Cintia, 80126 Naples, Italy
Department of Public Health, University of Naples Federico II, Via S. Pansini 5, 80131 Naples, Italy
Complex Operative Unit of Clinical Pathology, “Ospedale del Mare-ASL NA1 Centro”, 80131 Naples, Italy
Authors to whom correspondence should be addressed.
Antibiotics 2020, 9(6), 362;
Submission received: 28 May 2020 / Revised: 15 June 2020 / Accepted: 24 June 2020 / Published: 26 June 2020
(This article belongs to the Special Issue Novel Strategies to Control Antimicrobial Resistance)


Staphylococcus aureus is one of the major causes of hospital- and community-associated bacterial infections throughout the world, which are difficult to treat due to the rising number of drug-resistant strains. New molecules displaying potent activity against this bacterium are urgently needed. In this study, d- and l-deoxynojirimycin (DNJ) and a small library of their N-alkyl derivatives were screened against S. aureus ATCC 29213, with the aim to identify novel candidates with inhibitory potential. Among them, N-nonyloxypentyl-l-DNJ (l-NPDNJ) proved to be the most active compound against S. aureus ATCC 29213 and its clinical isolates, with the minimum inhibitory concentration (MIC) value of 128 μg/mL. l-NPDNJ also displayed an additive effect with gentamicin and oxacillin against the gentamicin- and methicillin-resistant S. aureus isolate 00717. Sub-MIC values of l-NPDNJ affected S. aureus biofilm development in a dose-dependent manner, inducing a strong reduction in biofilm biomass. Moreover, real-time reverse transcriptase PCR analysis revealed that l-NPDNJ effectively inhibited at sub-MIC values the transcription of the spa, hla, hlb and sea virulence genes, as well as the agrA and saeR response regulator genes.

1. Introduction

Staphylococcus aureus is an important human pathogen responsible for a variety of community- and healthcare-associated infections [1,2], which are difficult to treat and to eradicate because of the acquisition of multiple antibiotic resistance [3] and biofilm growth of this organism on implantable medical devices [4]. S. aureus produces several virulence factors, such as adhesins [5,6], secreted toxins and extracellular enzymes [7,8,9], which contribute to biofilm growth and host damage during infection [7,8,9]. The rapid emergence of increasingly resistant S. aureus strains [1,2,3] has led to the necessity to develop novel therapeutic agents against persistent infections caused by this organism [1,4,10,11].
Iminosugars are natural or synthetic sugar analogues having an amino function in place of the endocyclic oxygen of the corresponding carbohydrate [12]. Due to their excellent ability to inhibit and/or enhance the catalytic properties of ubiquitous carbohydrate processing enzymes, such as glycosidases and glycosyltransferases, iminosugars represent the most promising class of glycomimetics, exhibiting broad-spectrum therapeutic potential [13,14]. Three iminosugar-based drugs (Figure 1A) are currently marketed for treating type II diabetes (Glyset®) and lysosomal storage disorders, including Gaucher and Niemann–Pick diseases type C (Zavesca®, N-butyl- deoxynojirimycin, NBDNJ) and Fabry diseases (Galafold®, deoxygalactonojirimycin, DGJ) [12,13,15]. In addition, a variety of other iminosugars have been proposed as therapeutic candidates against malignancies [16], viral infections [17,18] and other genetic disorders, including cystic fibrosis [19,20,21,22]. Conversely, iminosugars have displayed only in a few cases efficacy against bacterial pathogens (Figure 1B). Nojirimycin (NJ) exhibited antibacterial activity against Xanthomonas oryzae, Shigella flexneri and Mycobacterium smegmatis ATCC 607 [23], while deoxynojirimicyn (DNJ) was found to inhibit Streptococcus mutans biofilm formation [24,25,26]. Other modified iminosugars such as Batzellaside A and Bulgecin A held interesting properties against Staphylococcus epidermidis and Gram-negative bacteria, respectively [23]. Eventually, selected piperidine and indolizidine iminosugars were found to inhibit the early biofilm formation of Pseudomonas aeruginosa [27].
Despite their powerful pharmacological activity, the access of iminosugars to clinics is hampered in many cases by the limited selectivity in vivo, mainly owing to the side inhibition of various off target glycosidases. In order to balance biological activity and toxicity, many structural modifications have been proposed over recent years [28]. Among the most important elements so far identified, N-alkylation of iminosugars is known to considerably enhance the target selectivity [12]. On the other hand, changes in the configuration of iminosugar stereocenters have often provided unexpected yet promising results [29]. Particularly l-iminosugars, which were non-superimposable mirror images of the corresponding d-iminosugars, showed higher selectivity towards specific enzymes [21,30,31] and an even more interesting pharmacological potential towards several diseases than their d-enantiomers [20,21,32,33,34]. Among l-iminosugars with a gluco configuration, our recent findings highlighted the potential of l-NBDNJ (the enantiomer of the iminosugar drug d-NBDNJ, Zavesca®) as a promising and selective new candidate for the combination therapy of Pompe disease [34]. Moreover, l-NBDNJ and its congeners showed interesting pharmacological properties as anti-inflammatory agents in cystic fibrosis [21,22].
In the present study, we analyzed the inhibition of S. aureus growth by L-DNJ and its N-alkylated derivatives (Figure 2) and the effects on the biofilm formation and virulence factors expression of S. aureus of N-nonyloxypentyl-l-DNJ (l-NPDNJ) (Figure 2), the iminosugar enantiomer showing the highest antibacterial activity against S. aureus.

2. Results and Discussion

2.1. Antimicrobial Activity of D- and L-DNJ and of A Library of Their N-Alkyl Derivatives

The synthesis of unnatural l-DNJ was accomplished exploiting a de novo previously reported methodology [34,35,36]. N-alkylation of l-DNJ, as well as of d-DNJ, provided the corresponding N-alkylated derivatives as previously described (Figure 2) [21].
To analyze the effect of the small library of deoxyiminosugars in both enantiomeric forms on the growth of S. aureus ATCC 29213, the minimum inhibitory concentration (MIC) and minimum bactericidal concentration (MBC) were determined by a broth microdilution assay (Table 1).
Previous studies showed that d-DNJ has antimicrobial activity against S. mutans [24,25]. Conversely, DNJ and NBDNJ in both enantiomeric forms were inactive against S. aureus ATCC 29213 cells (Table 1, entries 1 to 4). Both enantiomers of NNDNJ (entries 5 and 6) showed very low antimicrobial activity at the MIC value of 1000 μg/mL. d- and l-AMP-DNM (entries 9 and 10) and d-NPDNJ (entry 7) showed poor antimicrobial activity, with MIC values ranging from 256 to 512 µg/mL. The antibacterial activity of l-NPDNJ (entry 8) was found to be the best one in this series, with an MIC value of 128 μg/mL and an MBC value of 256 μg/mL. The data clearly suggest a role of the lipophilicity in the antimicrobial potential of the examined iminosugars, as only the more hydrophobic piperidines showed an inhibitory effect. Differently from previous results [21,34], sugar chirality did not appear to have a major role in the antibacterial activity of the corresponding iminosugars. Even in the case of NPDNJ, only a slight preference for the l-enantiomer was detected. In addition, it should be noted that the antimicrobial activity was lower than that of the marketed drug gentamicin, used as the reference compound (entry 11). The absence of cytotoxicity for all the tested compounds has been previously evaluated [21].
Then, we analyzed the antimicrobial activity of l-NPDNJ against a panel of ten S. aureus clinical isolates showing different antibiotic resistance profiles (Table S1). The MIC and MBC values of l-NPDNJ against S. aureus clinical isolates were identical to those obtained against the reference S. aureus ATCC 29213 strain (Table S2). Moreover, all S. aureus clinical isolates and the S. aureus ATCC 29213 strain showed an MBC/MIC ratio of 2 for l-NPDNJ (Table S2), thus indicating that this compound exhibited bactericidal activity [37].
The bactericidal effect induced by l-NPDNJ was evaluated also by time kill studies. The bacteria were challenged with 1× MIC (128 μg/mL), 2× MIC (256 μg/mL) or 4× MIC (512 μg/mL) of l-NPDNJ and the time course of bacterial growth inhibition was followed by monitoring the viable bacterial counts (Figure 3).
At the concentration of 512 μg/mL, l-NPDNJ completely killed the strain after incubation for 7 h. No viable S. aureus ATCC 29213 cells were recovered after 24-hours exposure at 256 μg /mL (2× MIC). l-NPDNJ at the concentration of 128 μg/mL did not completely kill the strain after incubation for 24 h, although the concentration of the bacteria was reduced to 2 × 103 CFU/mL after l-NPDNJ treatment for 8 h (Figure 3). The time kill kinetic studies confirmed the efficacy of compound l-NPDNJ against S. aureus.
In subsequent experiments, we studied whether l-NPDNJ may have combination effects when mixed with other compounds. To define the nature of the interaction (antagonistic, indifferent or synergistic) between enantiomeric species, the combination effect mixing d- and l-NPDNJ was evaluated by a broth microdilution checkerboard assay, using the fractional inhibitory concentration method described by Hall et al. [38]. When both enantiomers were combined in equimolar amounts, a two-fold reduction in the MIC value for both d-NPDNJ (from 256 to 128 μg /mL) and l-NPDNJ (from 128 to 64 μg/mL) was observed, indicating an enhancement of the antimicrobial activity as a consequence of an additive effect by the racemic mixture (fractional inhibitory concentration index (FICI) value = 1). To assess whether l-NPDNJ was able to potentiate or restore the antibacterial activity of currently available antibiotics against S. aureus, the iminosugar was evaluated in combinations with gentamicin and oxacillin against the clinical isolate S. aureus 00717 [39], which was resistant to both antimicrobials (Table S1). The checkerboard microdilution assay showed that l-NPDNJ markedly lowered the MIC values of gentamicin (from 256 to 8 μg/mL) and oxacillin (from 128 to 1 μg/mL) against the bacterial strain (Table 2). These results demonstrated that the combination of l-NPDNJ with either gentamicin or oxacillin had an additive effect, as the FICI values were 0.5078 and 0.5312, respectively (Table 2). Interestingly, our data revealed that l-NPDNJ was able to restore the efficacy of oxacillin against methicillin-resistant S. aureus strains, while improving the antimicrobial activity of gentamicin.

2.2. Effects of l-NPDNJ on Formation of S. Aureus Biofilm

Most S. aureus strains form biofilms on several biotic and abiotic surfaces, and this greatly contributes to the pathogenicity of this species [5,6]. To assess whether the antimicrobial iminosugar l-NPDNJ affected the biofilm formation of the S. aureus ATCC 29213 strain, the biofilm biomass of S. aureus ATCC 29213 cells treated with increasing concentrations of l-NPDNJ in static conditions at 37 °C was analyzed using abiotic crystal violet staining. Sub-inhibitory concentrations of l-NPDNJ were able to reduce the biofilm formation of S. aureus ATCC 29213 compared with the untreated control in a dose-dependent manner (Figure 4).
In particular, a reduction of 98%, 60% and 45% in the biofilm biomass of S. aureus ATCC 29213 was found at the l-NPDNJ concentrations 64, 32 and 16 μg/mL, corresponding to 1/2× MIC, 1/4× MIC and 1/8× MIC, respectively. To determine whether the inhibitory effect on biofilm formation was related to growth inhibition, planktonic growth was measured in the same conditions used in the biofilm assay. At the concentrations tested in the biofilm assay, l-NPDNJ did not affect the planktonic growth of the S. aureus ATCC 29213 strain (data not shown).
There are currently only a few papers focusing on the antibiofilm activity of iminosugars. Strus et al. showed the inhibition of P. aeruginosa biofilm formation by specific iminosugars, probably owing to the interference with the biosynthesis of extracellular polymeric substances [27]. However, this effect was found to occur only at high concentrations. Similarly, d-DNJ was reported to inhibit adherence and biofilm formation by S. mutans, reducing the expression of the glucosyltransferase genes responsible for the sugar-dependent S. mutans biofilm formation [24,25,26]. In contrast, pyrrolidine-based hamamelitannin analogues are inactive as antibiofilm agents [40].
In conclusion, sub-MIC values of l-NPDNJ exhibited no bactericidal activity against S. aureus but affected S. aureus biofilm formation in a dose-dependent manner, inducing a strong reduction in the biofilm biomass.

2.3. Antivirulence Activity of l-NPDNJ in S. Aureus ATCC 29213

Therapeutic agents able to reduce S. aureus virulence, especially toxin production, would help to control infections caused by multidrug-resistant strains [10,11]. In order to investigate the effect of l-NPDNJ on S. aureus virulence genes [7], the expression levels of 16 virulence genes were measured by reverse transcription real-time PCR (qRT-PCR) in S. aureus ATCC 29213, following treatment with l-NPDNJ (Figure 5).
The transcriptional analysis was performed on samples that were harvested after treatment of S. aureus cells (5 × 108 CFU/mL) at a sub-MIC concentration of l-NPDNJ for 3 hours. Untreated S. aureus cells grown in the same conditions were used as the control. No growth differences between treated and untreated cells were observed. In this type of experiment, genes with at least a 2-fold difference in the relative transcript levels and with a P value of < 0.05 were considered significant. As shown in Figure 5, the expression of about half of the tested genes was affected by l-NPDNJ treatment.
The S. aureus virulence arises from the combination of a comprehensive array of virulence determinants including surface-associated proteins, exotoxins, enterotoxins and superantigens [8]. The S. aureus hemolysins alpha-toxin (Hla), beta-toxin (Hlb) and phenol-soluble modulins (PSMs) all cause the lysis of eukaryotic cells [41,42] and may also contribute to the formation of biofilms [5,43,44].
Mounting evidence identifies S. aureus toxins as potential targets of anti-virulence therapy [45,46]. In agreement with this, our results showed that the treatment of S. aureus cells with l-NPDNJ decreased significantly the expression of the hla, hlb and sea (encoding enterotoxin A) genes (Figure 5). Alpha toxin, a small pore-forming toxin, is a potent secreted cytolysin essential to the development of serious infections, including skin and soft tissue infections, pneumonia and bacteremia [41,47]. Hla is also required for cell–cell interactions during biofilm formation and is employed by S. aureus to evade the host immune system [48]. Many molecules can suppress Hla production by S. aureus or inhibit the self-assembly of Hla [49]. Beta toxin, a sphingomyelinase toxic for different types of human cells, forms an insoluble nucleoprotein in the biofilm matrix and stimulates biofilm formation in vivo, which is an important process occurring during infective endocarditis [44]. The staphylococcal enterotoxin A is the toxin most frequently reported to cause staphylococcal food poisoning [50]. It has been suggested that SEA may be involved during the early phases of colonization [51]. Our data are in accordance with a recent report, showing that both baicalin and thymol treatments reduced sea and hla levels [52,53].
In contrast with the effect observed on the expression of hla and hlb, we found that the treatment with l-NPDNJ resulted in the upregulation of the psm gene expression. PSMs genes belong to a novel family of toxins and play multiple roles during S. aureus pathogenesis, which typically involve blood cell lysis and biofilm development [5,54]. PSMs are small amphipathic peptides that can also disrupt cellular interactions within biofilms, facilitating the structuring and detachment of staphylococcal biofilms [42]. PSMs exhibit cytolytic activity against eukaryotic cells and this effect is diminished in human serum [9]. A recent paper reported low concentrations of both the clindamycin- and secalonic acid D-induced psm gene expression in S. aureus planktonic cells [55,56]. Overall, the downregulation of the expression of toxin genes observed during treatment with l-NPDNJ and other antimicrobials may reduce the damage of eukaryotic cells and/or biofilm formation of S. auerus.
In addition to the downregulation of toxin genes, l-NPDNJ was effective in decreasing the transcription of the spa gene (-19.3-fold), encoding surface protein A, whereas no significant changes were observed in the fibronectin binding protein A (fnbA) and B (fnbB) gene expressions (Figure 5). Moreover, l-NPDNJ has no effect on the expression of icaA, which encodes for a transmembrane glucosyltransferase synthetizing polysaccharide intercellular adhesin (PIA) oligomers [57] (Figure 5). Protein A binds the Fc region of IgG, which may serve to limit infections in vivo [58]. Protein A is also involved in S. aureus host colonization inducing aggregation and biofilm development [58,59]. Thus, the decreased spa expression observed after l-NPDNJ treatment might contribute to the decrease in biofilm formation. Similarly, the benzimidazole derivative UM-C162 exhibits antivirulence and antibiofilm activities through the downregulation of hlb, spa virulence-associated genes and the saeR response regulator [60]. In addition, the benzimidazole-derived molecule ABC-1 inhibits biofilm formation primarily by reducing the spa expression and accumulation of PIA on the cell surface without affecting the transcription of the icaA gene [61]. Recently, Hassan et al. [25] showed that d-DNJ downregulates a panel of genes encoding for glucosyltransferases involved in the synthesis of glucans (gtfC, gtfD, gbpB), surface protein (spaP) and the quorum-sensing regulatory gene (comDE), which are critical for S. mutans adherence to the tooth surface and virulence.
Finally, we observed that the treatment with l-NPDNJ reduced the expression of genes encoding for two global regulators of S. aureus virulence, the accessory gene regulator A (AgrA) and response regulator SaeR (Figure 5). The quorum-sensing system agr plays a key role in the regulation of S. aureus virulence genes [62]. The agr operon regulates both biofilm formation and the production of toxins, such as hemolysin (Hla and Hlb), enterotoxins and SpA [63,64,65]. PSMs are positively regulated by the direct binding of AgrA to the its promoter region [66] and negatively by the direct binding of the transcriptional regulator MgrA to the promoter region [67]. The staphylococcal accessory regulator (SarA) and the small RNA Teg41 can also influence the expression of PSMs [42,68]. In most strains of S. aureus, the agr system activates the transcription of the two-component system SaeRS [69]. SaeRS controls the expression of major virulence genes, including cell wall proteins (such as Spa and FnbA) and secreted toxins (such as HlA and Hlb), probably through direct interaction with these target genes [70,71]. The upregulation of virulence genes by SaeRS facilitates S. aureus survival following neutrophil evasion and pathogenesis [72,73]. It is possible that the downregulation of the agrA and saeR genes could contribute to the downregulation of the other virulence genes tested, reducing the deleterious effects that occur in S. aureus infections.
Overall, our data demonstrate that l-NPDNJ inhibits the expression of important virulence and global regulator genes in S. aureus, attenuating probably the virulence of this pathogen. Future studies will be necessary to establish the molecular mechanism responsible for the effect of l-NPDNJ on S. aureus planktonic growth and biofilm formation.

3. Materials and Methods

3.1. Chemicals and Reagents

All chemicals and solvents were used with the highest degree purity and without further purification (Sigma-Aldrich, Alfa Aesar, VWR). TLC monitoring was used to follow the reaction course (F254 Merck silica gel plate) by exposure to ultraviolet radiation, iodine vapor and chromic mixture. Intermediates and final products were characterized by NMR analysis (NMR spectrometers: Bruker DRX and Bruker AVANCE 400 MHz). Compound purity was analyzed by elemental analysis (CHNS). Synthesis of iminosugars was accomplished as previously reported [21,34]. Iminosugars were dissolved in ultrapure DNase/RNase-free distilled water to the concentration of 20 mg/mL.

3.2. Bacterial Strains and Growth Conditions

S. aureus ATCC 29213 and S. aureus clinical isolates described by us previously [39,74] were grown overnight at 37 °C on Trypticase soy agar (TSA) with 5% sheep blood. The MIC of oxacillin was determined by a broth microdilution method according to the recommended procedures by the Clinical and Laboratory Standards Institute [75]. Methicillin-resistant S. aureus (MRSA) isolates (Table S1) were screened for the presence of staphylococcal cassette chromosome mec (SCCmec) using the Xpert MRSA kit (Cepheid, Sunnyvale, CA, USA).

3.3. Determination of Minimum Inhibitory Concentration (MIC) and Minimum Bactericidal Concentration (MBC)

MIC and MBC values of iminosugars were determined by a broth microdilution method as previously described [76]. Briefly, 180 μL of cation-adjusted Mueller–Hinton broth (CA-MHB) containing serially diluted DNJ derivatives was inoculated with a 5 × 105 colony forming unit (CFU) and incubated at 37 °C for 18–24 h under shaking (300 rpm). The final concentration of the tested compounds ranged from 1000 to 16 μg/mL. Non-treated bacteria were used as controls. All tests were performed in triplicate and repeated three times.

3.4. Time Killing Assay

The time-killing kinetics of l-NPDNJ were determined against the S. aureus ATCC 29213 strain, as previously described [77]. A bacterial inoculum (approximately 5 × 106 CFU/mL) was added to tubes containing different concentrations of l-NPDNJ (512, 256 and 128 μg/mL), and incubated at 37 °C under shaking (300 rpm). A tube without l-NPDNJ was used as the growth control. A 50 μL aliquot was removed from the bacterial culture at 0, 1, 2, 3, 4, 5, 7, 8 and 24 h and serial 10-fold dilutions of these cultures were plated on TSA for the determination of CFU/mL. All experiments were repeated three times.

3.5. Checkerboard Assay

Tests were carried out using the microbroth checkerboard method according to the previously reported method [38]. Serial dilutions of l-NPDNJ (256–8 μg/mL in sterile water) were prepared and combined with serial dilutions of gentamicin (512–1 μg/mL in sterile water) or oxacillin (256–0.5 μg/mL in sterile water). Subsequently, each of the different concentrations of antibiotics and of l-NPDNJ was added to each well of the microtiter plate containing approximately 5 × 106 CFU/mL of the S. aureus isolate 00717. The plates were then incubated at 37 °C for 18–24 h. The combined effects were then determined by calculating the fractional inhibitory concentration (FIC) index as follows: FICI = FICA + FICB, where FICA is the ratio of the MIC of the L-NPDNJ combination and the MIC of L-NPDNJ alone and FICB is the ratio of the MIC of the antibiotic in combination and the MIC of the antibiotic alone. The FIC index is interpreted as synergy (FICI ≤0.5), additive (FICI >0.5 to ≤1.0), indifference (FICI >1.0 to ≤2.0) and antagonism (FICI >2.0) [38,78]. All experiments were repeated three times.

3.6. Biofilm Assay

Biofilm formation was examined using a crystal violet (CV) staining assay and confocal laser scanning microscopy (CLSM), according to the previously reported method [79]. The 0.5 McFarland of bacterial cultures was diluted 1:100 in TSB supplemented with 0.5% glucose. Then, 5 × 106 cells/mL was transferred into a 96-well flat-bottomed polystyrene microtiter plate containing 100 μL of scalar doses of l-NPDNJ (ranging from 64 to 0.5 μg/mL and 64 to 32 μg/mL in CV and CLSM assays, respectively) and incubated at 37 °C for 24 h. Non-treated bacteria were incubated with 100 μL of broth and used as the control. The culture supernatant was gently discarded, the wells were washed twice with phosphate-buffered saline (PBS) 1× pH 7.4 and the biofilms were stained with 200 μL of 0.1% crystal violet for 15 min. The wells were washed twice with PBS 1X, and dye was re-eluted with 100% ethanol. The absorbance was measured at 595 nm using a microplate reader (Bio-Rad Laboratories S.r.l.). All data points are expressed as means ± SDs of three separate experiments performed in triplicate.

3.7. RNA Purification and Real-Time RT-PCR

S. aureus ATCC 29213 cells were grown at 37 °C at 200 rpm to the exponential phase (OD600 = 0.4) and were subsequently split into two tubes and incubated in the presence or absence of l-NPDNJ at the concentration of 64 μg/mL for a further 3 h. Total RNA was isolated from three independent cultures according to the previously reported method [80]. The cDNA was synthesized using QuantiTect Reverse Transcription Kit (Qiagen), according to the manufacturer’s protocol. Real-time RT-PCR assays were performed by using a SYBR Green master mix (Applied Biosystems) as previously described [81]. The expressions of target genes were normalized using the rpoB gene as the housekeeping gene. The fold-change of the gene expression level was calculated using the 2−ΔΔCT method [82]. All experiments were performed three times in triplicate. The primers used in the qRT-PCR experiments are reported in Table 3.

3.8. Statistical Analysis

All statistical analyses were carried out using GraphPad Prism version 8.0 for Windows (GraphPad Software, San Diego, CA, USA). All experiments were performed at least three times and the results are shown as means ± SD. Differences between mean values were tested for significance by performing two-tailed Student’s t-tests. A P value < 0.05 was considered to be statistically significant.

4. Conclusions

We have herein reported one of the earliest studies on the antimicrobial properties of d- and l-iminosugars, with a special focus on their effects on the growth, biofilm formation and virulence factor expression of S. aureus. Our results have brought to identify in the iminosugar l-NPDNJ a new antimicrobial drug against S. aureus because of its antibacterial activity at 128 μg/mL MIC and bactericidal effect at 2 × MIC. Noteworthy, combination effects were observed when l-NPDNJ was administered with the marketed antimicrobial drugs gentamicin and oxacillin, leading to an enhancement or a restoration of the antibacterial activity, respectively. Further, sub-MIC concentrations of l-NPDNJ were able to inhibit the S. aureus biofilm formation. Even more intriguingly, an addictive effect was observed when mixing equimolar amounts of the enantiomeric iminosugars d- and l-NPDNJ, although in this case, the enhancement of the antimicrobial activity was less marked. Moreover, l-NPDNJ was found to inhibit the expression of virulence and global regulator genes. Overall, our data suggest that l-NPDNJ and most generally lipophilic l-iminosugars may represent new candidates for the anti-virulence therapy of S. aureus. Future studies will be necessary to evaluate the therapeutic use of l-NPDNJ during S. aureus infections.

Supplementary Materials

The following are available online at, Table S1: Antibiotic susceptibility of clinical isolates used in this study, Table S2: MIC (μg/mL) and MBC (μg/mL) values of L-NPDNJ for clinical isolates used in this study.

Author Contributions

Conceptualization, E.D.G. and A.G.; methodology, A.V., A.E., A.M., M.D.F., V.D.I. and D.D.; formal analysis, E.D.G.; investigation, E.D.G., A.E., A.V.; data curation, A.G., R.Z. and E.D.G.; writing—original draft preparation, A.G., R.Z. and E.D.G.; supervision, A.G., R.Z. and E.D.G.; funding acquisition, R.Z. and A.G. All authors have read and agreed to the published version of the manuscript.


This research was funded in part by grant from the Italian Ministry of Education, University and Research (MIUR): PRIN2017 (Grant 2017SFBFER to RZ), and in part by Italian Cystic Fibrosis Research Foundation, grant number FFC #20/2019 (adopted by Delegazione FFC di Pesaro con Delegazione FFC di Torino Rivarolo Canavese e Gruppo di sostegno FFC di Parma Fidenza, Gruppo di sostegno FFC di Melilli, Gruppo di sostegno FFC di Tremestieri). A.E. is a contract holder (#20/2019).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. David, M.Z.; Daum, R.S. Treatment of Staphylococcus aureus infections. Rev. Microbiol. Immunol. 2017, 409, 325–383. [Google Scholar]
  2. Turner, N.A.; Sharma-Kuinkel, B.K.; Maskarinec, S.A.; Eichenberger, E.M.; Shah, P.P.; Carugati, M.; Holland, T.L.; Fowler, V.G. Methicillin-resistant Staphylococcus aureus: An overview of basic and clinical research. Nat. Rev. Genet. 2019, 17, 203–218. [Google Scholar] [CrossRef] [PubMed]
  3. Vestergaard, M.; Frees, D.; Ingmer, H. Antibiotic resistance and the MRSA problem. Microbiol. Spectr. 2019, 7, 747–765. [Google Scholar] [CrossRef] [PubMed]
  4. Figueiredo, A.M.S.; Ferreira, F.; Beltrame, C.O.; Côrtes, M.F. The role of biofilms in persistent infections and factors involved in ica-independent biofilm development and gene regulation in Staphylococcus aureus. Crit. Rev. Microbiol. 2017, 2, 1–19. [Google Scholar] [CrossRef] [PubMed]
  5. Otto, M. Staphylococcal infections: Mechanisms of biofilm maturation and detachment as critical determinants of pathogenicity. Annu. Rev. Med. 2013, 64, 175–188. [Google Scholar] [CrossRef]
  6. Paharik, A.E.; Horswill, A.R. The staphylococcal biofilm: Adhesins, regulation, and host response. Microbiol. Spectr. 2016, 4, 529–566. [Google Scholar] [CrossRef] [Green Version]
  7. Jenul, C.; Horswill, A.R. Regulation of Staphylococcus aureus virulence. Microbiol. Spectr. 2018, 6, 669–686. [Google Scholar] [CrossRef]
  8. Tam, K.; Torres, V.J. Staphylococcus aureus secreted toxins and extracellular enzymes. Microbiol. Spectr. 2019, 7, 640–668. [Google Scholar] [CrossRef]
  9. Peschel, A.; Otto, M. Phenol-soluble modulins and staphylococcal infection. Nat. Rev. Genet. 2013, 11, 667–673. [Google Scholar] [CrossRef]
  10. Totsika, M. Disarming pathogens: Benefits and challenges of antimicrobials that target bacterial virulence instead of growth and viability. Futur. Med. Chem. 2017, 9, 267–269. [Google Scholar] [CrossRef] [Green Version]
  11. Kane, T.L.; Carothers, K.E.; Lee, S.W. Virulence factor targeting of the bacterial pathogen Staphylococcus aureus for vaccine and therapeutics. Curr. Drug Targets 2018, 19, 111–127. [Google Scholar] [CrossRef] [PubMed]
  12. Compain, P.; Martin, O.R. Iminosugars: From Synthesis to Therapeutic Applications; John Wiley & Sons, Ltd.: Chichester, UK, 2007; ISBN 9780470517437. [Google Scholar]
  13. Wang, H.; Shen, Y.; Zhao, L.; Ye, Y. 1-Deoxynojirimycin and its derivatives: A mini review of the literature. Curr. Med. Chem. 2020, 27, 1. [Google Scholar] [CrossRef] [PubMed]
  14. Nash, R.J.; Kato, A.; Yu, C.-Y.; Fleet, G.W. Iminosugars as therapeutic agents: Recent advances and promising trends. Futur. Med. Chem. 2011, 3, 1513–1521. [Google Scholar] [CrossRef] [PubMed]
  15. Platt, F.M.; d’Azzo, A.; Davidson, B.L.; Neufeld, E.F.; Tifft, C.J. Lysosomal storage diseases. Nat. Rev. Dis. Prim. 2018, 4, 1–25. [Google Scholar] [CrossRef]
  16. Fiaux, H.; Popowycz, F.; Favre, S.; Schütz, C.; Vogel, P.; Gerber-Lemaire, S.; Juillerat-Jeanneret, L. Functionalized pyrrolidines inhibit α-mannosidase activity and growth of human glioblastoma and melanoma cells. J. Med. Chem. 2005, 48, 4237–4246. [Google Scholar] [CrossRef] [Green Version]
  17. Evans, G.B.; Tyler, P.C.; Schramm, V.L. Immucillins in infectious diseases. ACS Infect. Dis. 2017, 4, 107–117. [Google Scholar] [CrossRef]
  18. Alonzi, D.S.; Scott, K.; Dwek, R.A.; Zitzmann, N. Iminosugar antivirals: The therapeutic sweet spot. Biochem. Soc. Trans. 2017, 45, 571–582. [Google Scholar] [CrossRef] [Green Version]
  19. Dechecchi, M.C.; Nicolis, E.; Norez, C.; Bezzerri, V.; Borgatti, M.; Mancini, I.; Rizzotti, P.; Ribeiro, C.M.; Gambari, R.; Becq, F.; et al. Anti-inflammatory effect of miglustat in bronchial epithelial cells. J. Cyst. Fibros. 2008, 7, 555–565. [Google Scholar] [CrossRef]
  20. Best, D.; Jenkinson, S.F.; Saville, A.W.; Alonzi, D.S.; Wormald, M.; Butters, T.; Norez, C.; Becq, F.; Blériot, Y.; Adachi, I.; et al. Cystic fibrosis and diabetes: IsoLAB and isoDAB, enantiomeric carbon-branched pyrrolidine iminosugars. Tetrahedron Lett. 2010, 51, 4170–4174. [Google Scholar] [CrossRef]
  21. De Fenza, M.; D’Alonzo, D.; Esposito, A.; Munari, S.; Loberto, N.; Santangelo, A.; Lampronti, I.; Tamanini, A.; Rossi, A.; Ranucci, S.; et al. Exploring the effect of chirality on the therapeutic potential of N-alkyl-deoxyiminosugars: Anti-inflammatory response to Pseudomonas aeruginosa infections for application in CF lung disease. Eur. J. Med. Chem. 2019, 175, 63–71. [Google Scholar] [CrossRef]
  22. Esposito, A.; D’Alonzo, D.; De Fenza, M.; De Gregorio, E.; Tamanini, A.; Lippi, G.; Dechecchi, M.C.; Guaragna, A. Synthesis and therapeutic applications of iminosugars in cystic fibrosis. Int. J. Mol. Sci. 2020, 21, 3353. [Google Scholar] [CrossRef] [PubMed]
  23. Greimel, P.; Spreitz, J.; Stutz, A.; Wrodnigg, T. Iminosugars and relatives as antiviral and potential anti-infective agents. Curr. Top. Med. Chem. 2003, 3, 513–523. [Google Scholar] [CrossRef] [PubMed]
  24. Islam, B.; Khan, S.N.; Haque, I.; Alam, M.; Mushfiq, M.; Khan, A.U. Novel anti-adherence activity of mulberry leaves: Inhibition of Streptococcus mutans biofilm by 1-deoxynojirimycin isolated from Morus alba. J. Antimicrob. Chemother. 2008, 62, 751–757. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Hasan, S.; Singh, K.; Danisuddin, M.; Verma, P.K.; Khan, A.U. Inhibition of major virulence pathways of streptococcus mutans by quercitrin and deoxynojirimycin: A synergistic approach of infection control. PLoS ONE 2014, 9, e91736. [Google Scholar] [CrossRef] [Green Version]
  26. Yoo, Y.; Seo, D.-H.; Lee, H.; Cho, E.-S.; Song, N.-E.; Nam, T.G.; Nam, Y.-D.; Seo, M.-J. Inhibitory effect of Bacillus velezensis on biofilm formation by Streptococcus mutans. J. Biotechnol. 2019, 298, 57–63. [Google Scholar] [CrossRef]
  27. Strus, M.; Mikołajczyk, D.; Machul, A.; Heczko, P.; Chronowska, A.; Stochel, G.; Gallienne, E.; Nicolas, C.; Martin, O.R.; Kyzioł, A. Effects of the selected iminosugar derivatives on pseudomonas aeruginosa biofilm formation. Microb. Drug Resist. 2016, 22, 638–645. [Google Scholar] [CrossRef]
  28. Horne, G.; Wilson, F.X.; Tinsley, J.; Williams, D.H.; Storer, R. Iminosugars past, present and future: Medicines for tomorrow. Drug Discov. Today 2011, 16, 107–118. [Google Scholar] [CrossRef]
  29. D’Alonzo, D.; Guaragna, A.; Palumbo, G. Glycomimetics at the mirror: Medicinal chemistry of L-iminosugars. Curr. Med. Chem. 2009, 16, 473–505. [Google Scholar] [CrossRef]
  30. Ghisaidoobe, A.; Bikker, P.; De Bruijn, A.C.J.; Godschalk, F.D.; Rogaar, E.; Guijt, M.C.; Hagens, P.; Halma, J.M.; Hart, S.M.V.; Luitjens, S.B.; et al. Identification of potent and selective glucosylceramide synthase inhibitors from a library of N-alkylated iminosugars. ACS Med. Chem. Lett. 2010, 2, 119–123. [Google Scholar] [CrossRef] [Green Version]
  31. Asano, N. Iminosugars: The potential of carbohydrate analogs. Carbohydr. Chem. State Art Chall. Drug Dev. 2015, 279–301. [Google Scholar] [CrossRef]
  32. Jenkinson, S.F.; Fleet, G.; Nash, R.J.; Koike, Y.; Adachi, I.; Yoshihara, A.; Morimoto, K.; Izumori, K.; Kato, A. Looking-glass synergistic pharmacological chaperones: DGJ and L-DGJ from the enantiomers of tagatose. Org. Lett. 2011, 13, 4064–4067. [Google Scholar] [CrossRef] [PubMed]
  33. Rountree, J.S.S.; Butters, T.; Wormald, M.; Boomkamp, S.D.; Dwek, R.A.; Asano, N.; Ikeda, K.; Evinson, E.L.; Nash, R.J.; Fleet, G. Design, synthesis, and biological evaluation of enantiomeric β-N-acetylhexosaminidase inhibitors LABNAc and DABNAc as potential agents against Tay-Sachs and Sandhoff disease. Chem. Med. Chem. 2009, 4, 378–392. [Google Scholar] [CrossRef] [PubMed]
  34. D’Alonzo, D.; De Fenza, M.; Porto, C.; Iacono, R.; Huebecker, M.; Cobucci-Ponzano, B.; Priestman, D.A.; Platt, F.M.; Parenti, G.; Moracci, M.; et al. N-Butyl-l-deoxynojirimycin (l-NBDNJ): Synthesis of an allosteric enhancer of α-glucosidase activity for the treatment of pompe disease. J. Med. Chem. 2017, 60, 9462–9469. [Google Scholar] [CrossRef] [PubMed]
  35. Caputo, R.; Ciriello, U.; Festa, P.; Guaragna, A.; Palumbo, G.; Pedatella, S. Stereoselective synthesis of fully protected (S)-1,7-dioxaspiro[5,5]undec-4-ene derivatives of sugars. Eur. J. Org. Chem. 2003, 2617–2621. [Google Scholar] [CrossRef]
  36. D’Alonzo, D.; Guaragna, A.; Van Aerschot, A.; Herdewijn, P.; Palumbo, G. Toward L-homo-DNA: Stereoselective de novo synthesis of β-L-erythro-hexopyranosyl nucleosides. J. Org. Chem. 2010, 75, 6402–6410. [Google Scholar] [CrossRef]
  37. Levison, M.E. Pharmacodynamics of antimicrobial drugs. Infect. Dis. Clin. 2004, 18, 451–465. [Google Scholar] [CrossRef]
  38. Hall, M.; Middleton, R.; Westmacott, D. The fractional inhibitory concentration (FIC) index as a measure of synergy. J. Antimicrob. Chemother. 1983, 11, 427–433. [Google Scholar] [CrossRef]
  39. Vollaro, A.; Esposito, A.; Antonaki, E.; Iula, V.D.; D’Alonzo, D.; Guaragna, A.; De Gregorio, E. Steroid derivatives as potential antimicrobial agents against Staphylococcus aureus planktonic cells. Microorganisms 2020, 8, 468. [Google Scholar] [CrossRef] [Green Version]
  40. Bouton, J.; Van Hecke, K.; Rasooly, R.; Van Calenbergh, S. Synthesis of pyrrolidine-based hamamelitannin analogues as quorum sensing inhibitors in Staphylococcus aureus. Beilstein J. Org. Chem. 2018, 14, 2822–2828. [Google Scholar] [CrossRef] [Green Version]
  41. Von Hoven, G.; Qin, Q.; Neukirch, C.; Husmann, M.; Hellmann, N. Staphylococcus aureus α-toxin: Small pore, large consequences. Biol. Chem. 2019, 400, 1261–1276. [Google Scholar] [CrossRef] [PubMed]
  42. Li, S.; Huang, H.; Rao, X.; Chen, W.; Wang, Z.; Hu, X. Phenol-soluble modulins: Novel virulence-associated peptides of staphylococci. Futur. Microbiol. 2014, 9, 203–216. [Google Scholar] [CrossRef] [PubMed]
  43. Anderson, M.J.; Lin, Y.-C.; Gillman, A.; Parks, P.J.; Schlievert, P.M.; Peterson, M.L. Alpha-toxin promotes Staphylococcus aureus mucosal biofilm formation. Front. Microbiol. 2012, 2, 64. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Huseby, M.J.; Kruse, A.C.; Digre, J.; Kohler, P.L.; Vocke, J.A.; Mann, E.E.; Bayles, K.W.; Bohach, G.A.; Schlievert, P.M.; Ohlendorf, U.H.; et al. Beta toxin catalyzes formation of nucleoprotein matrix in staphylococcal biofilms. Proc. Natl. Acad. Sci. USA 2010, 107, 14407–14412. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Kong, C.; Neoh, H.-M.; Nathan, S. Targeting Staphylococcus aureus toxins: A potential form of anti-virulence therapy. Toxins 2016, 8, 72. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Cheung, G.Y.C.; Otto, M. The potential use of toxin antibodies as a strategy for controlling acute Staphylococcus aureus infections. Expert Opin. Ther. Targets 2012, 16, 601–612. [Google Scholar] [CrossRef] [Green Version]
  47. Xiong, Y.Q.; Willard, J.; Yeaman, M.R.; Cheung, A.L.; Bayer, A.S. Regulation of Staphylococcus aureus α-toxin gene (hla) expression by agr, sarA, and sae in vitro and in experimental infective endocarditis. J. Infect. Dis. 2006, 194, 1267–1275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Caiazza, N.C.; O’Toole, G.A. Alpha-toxin is required for biofilm formation by Staphylococcus aureus. J. Bacteriol. 2003, 185, 3214–3217. [Google Scholar] [CrossRef] [Green Version]
  49. Wu, S.-C.; Liu, F.; Zhu, K.; Shen, J.-Z. Natural products that target virulence factors in antibiotic-resistant Staphylococcus aureus. J. Agric. Food Chem. 2019, 67, 13195–13211. [Google Scholar] [CrossRef]
  50. Betley, M.; Mekalanos, J. Staphylococcal enterotoxin A is encoded by phage. Science 1985, 229, 185–187. [Google Scholar] [CrossRef]
  51. Schlievert, P.M.; Bohach, G. Staphylococcal and streptococcal superantigens: An update. In Superantigens: Molecular Basis for the Role in Human Diseases; Fraser, J.D., Kobt, M., Eds.; ASM Press: Washington, DC, USA, 2007; pp. 21–36. [Google Scholar]
  52. Chen, Y.; Liu, T.; Wang, K.; Hou, C.; Cai, S.; Huang, Y.; Du, Z.; Huang, H.; Kong, J.; Chen, Y. Baicalein inhibits Staphylococcus aureus biofilm formation and the quorum sensing system in vitro. PLoS ONE 2016, 11, e0153468. [Google Scholar] [CrossRef] [Green Version]
  53. Qiu, J.; Wang, D.; Xiang, H.; Feng, H.; Jiang, Y.; Xia, L.; Dong, J.; Lu, J.; Yu, L.; Deng, X. Subinhibitory concentrations of thymol reduce enterotoxins A and B and α-hemolysin production in Staphylococcus aureus isolates. PLoS ONE 2010, 5, e9736. [Google Scholar] [CrossRef] [Green Version]
  54. Periasamy, S.; Chatterjee, S.S.; Cheung, G.Y.C.; Otto, M. Phenol-soluble modulins in staphylococci: What are they originally for? Commun. Integr. Biol. 2012, 5, 275–277. [Google Scholar] [CrossRef] [PubMed]
  55. Schilcher, K.; Andreoni, F.; Haunreiter, V.D.; Seidl, K.; Hasse, B.; Zinkernagel, A.S. Modulation of Staphylococcus aureus biofilm matrix by subinhibitory concentrations of clindamycin. Antimicrob. Agents Chemother. 2016, 60, 5957–5967. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Wang, J.; Nong, X.-H.; Zhang, X.-Y.; Xu, X.-Y.; Amin, M.; Qi, S.-H. Screening of anti-biofilm compounds from marine-derived fungi and the effects of secalonic acid D on Staphylococcus aureus biofilm. J. Microbiol. Biotechnol. 2017, 27, 1078–1089. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Gerke, C.; Kraft, A.; Süßmuth, R.; Schweitzer, O.; Götz, F. Characterization of the N-acetylglucosaminyltransferase activity involved in the biosynthesis of the Staphylococcus epidermidis polysaccharide intercellular adhesin. J. Biol. Chem. 1998, 273, 18586–18593. [Google Scholar] [CrossRef] [Green Version]
  58. Atkins, K.L.; Burman, J.D.; Chamberlain, E.S.; Cooper, J.E.; Poutrel, B.; Bagby, S.; Jenkins, A.T.A.; Feil, E.; Elsen, J.M.V.D.; Jenkins, A.T.A. S. aureus IgG-binding proteins SpA and Sbi: Host specificity and mechanisms of immune complex formation. Mol. Immunol. 2008, 45, 1600–1611. [Google Scholar] [CrossRef]
  59. Merino, N.; Toledo-Arana, A.; Vergara-Irigaray, M.; Valle, J.; Solano, C.; Calvo, E.; Lopez, J.A.; Foster, T.J.; Penadés, J.R.; Lasa, I. Protein A-mediated multicellular behavior in Staphylococcus aureus. J. Bacteriol. 2008, 191, 832–843. [Google Scholar] [CrossRef] [Green Version]
  60. Kong, C.; Chee, C.F.; Richter, K.; Thomas, N.; Rahman, N.A.; Nathan, S. Suppression of Staphylococcus aureus biofilm formation and virulence by a benzimidazole derivative, UM-C162. Sci. Rep. 2018, 8, 2758. [Google Scholar] [CrossRef]
  61. Shrestha, L.; Kayama, S.; Sasaki, M.; Kato, F.; Hisatsune, J.; Tsuruda, K.; Koizumi, K.; Tatsukawa, N.; Yu, L.; Takeda, K.; et al. Inhibitory effects of antibiofilm compound 1 against Staphylococcus aureus biofilms. Microbiol. Immunol. 2016, 60, 148–159. [Google Scholar] [CrossRef] [Green Version]
  62. Dunman, P.M.; Murphy, E.; Haney, S.; Palacios, D.; Tucker-Kellogg, G.; Wu, S.; Brown, E.L.; Zagursky, R.J.; Shlaes, D.; Projan, S.J. Transcription profiling-based identification ofStaphylococcus aureus genes regulated by the agrand/or sarA Loci. J. Bacteriol. 2001, 183, 7341–7353. [Google Scholar] [CrossRef] [Green Version]
  63. Goerke, C.; Fluckiger, U.; Steinhuber, A.; Zimmerli, W.; Wolz, C. Impact of the regulatory loci agr, sarA and sae of Staphylococcus aureus on the induction of alpha-toxin during device-related infection resolved by direct quantitative transcript analysis. Mol. Microbiol. 2001, 40, 1439–1447. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Coelho, L.; Souza, R.R.; Ferreira, F.; Guimarães, M.A.; Ferreira-Carvalho, B.T.; Figueiredo, A.M.S.; Nozaki, S.; Ogawa, T. Agr RNAIII divergently regulates glucose-induced biofilm formation in clinical isolates of Staphylococcus aureus. Microbiology 2008, 154, 3480–3490. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Gustafsson, E.; Nilsson, P.; Karlsson, S.; Arvidson, S. Characterizing the dynamics of the quorum-sensing system in Staphylococcus aureus. J. Mol. Microbiol. Biotechnol. 2004, 8, 232–242. [Google Scholar] [CrossRef] [PubMed]
  66. Queck, S.Y.; Jameson-Lee, M.; Villaruz, A.E.; Bach, T.-H.L.; Khan, B.; Sturdevant, D.E.; Ricklefs, S.M.; Li, M.; Otto, M. RNAIII-independent target gene control by the agr quorum-sensing system: Insight into the evolution of virulence regulation in Staphylococcus aureus. Mol. Cell 2008, 32, 150–158. [Google Scholar] [CrossRef] [Green Version]
  67. Jiang, Q.; Jin, Z.; Sun, B. MgrA negatively regulates biofilm formation and detachment by repressing the expression of psm operons in Staphylococcus aureus. Appl. Environ. Microbiol. 2018, 84. [Google Scholar] [CrossRef] [Green Version]
  68. Zapf, R.; Wiemels, R.E.; Keogh, R.; Holzschu, D.L.; Howell, K.M.; Trzeciak, E.; Caillet, A.R.; King, K.A.; Selhorst, S.A.; Naldrett, M.J.; et al. The small RNA Teg41 regulates expression of the alpha phenol-soluble modulins and is required for virulence in Staphylococcus aureus. MBio 2019, 10, e02484-18. [Google Scholar] [CrossRef] [Green Version]
  69. Geiger, T.; Goerke, C.; Mainiero, M.; Kraus, D.; Wolz, C. The virulence regulator sae of Staphylococcus aureus: Promoter activities and response to phagocytosis-related signals. J. Bacteriol. 2008, 190, 3419–3428. [Google Scholar] [CrossRef] [Green Version]
  70. Liu, Q.; Yeo, W.; Bae, T. The SaeRS two-component system of Staphylococcus aureus. Genes 2016, 7, 81. [Google Scholar] [CrossRef] [Green Version]
  71. Mainiero, M.; Goerke, C.; Geiger, T.; Gonser, C.; Herbert, S.; Wolz, C. Differential target gene activation by the Staphylococcus aureus two-component system saeRS. J. Bacteriol. 2009, 192, 613–623. [Google Scholar] [CrossRef] [Green Version]
  72. Voyich, J.M.; Vuong, C.; Dewald, M.; Nygaard, T.K.; Kocianova, S.; Griffith, S.; Jones, J.; Iverson, C.; Sturdevant, D.E.; Braughton, K.R.; et al. The SaeR/S gene regulatory system is essential for innate immune evasion by Staphylococcus aureus. J. Infect. Dis. 2009, 199, 1698–1706. [Google Scholar] [CrossRef] [Green Version]
  73. Flack, C.E.; Zurek, O.W.; Meishery, D.D.; Pallister, K.B.; Malone, C.L.; Horswill, A.R.; Voyich, J.M. Differential regulation of staphylococcal virulence by the sensor kinase SaeS in response to neutrophil-derived stimuli. Proc. Natl. Acad. Sci. USA 2014, 111, E2037–E2045. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. De Gregorio, E.; Roscetto, E.; Iula, V.D.; Martinucci, M.; Zarrilli, R.; Di Nocera, P.P.; Catania, M.R. Development of a real-time PCR assay for the rapid detection of Acinetobacter baumannii from whole blood samples. New Microbiol. 2015, 38, 251–257. [Google Scholar] [PubMed]
  75. Clinical and Laboratory Standards Institute. CLSI document M07-A9. In Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria That Grow Aerobically: Approved Standard-Ninth Edition; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2012. [Google Scholar]
  76. Esposito, A.; De Gregorio, E.; De Fenza, M.; D’Alonzo, D.; Satawani, A.; Guaragna, A. Expeditious synthesis and preliminary antimicrobial activity of deflazacort and its precursors. RSC Adv. 2019, 9, 21519–21524. [Google Scholar] [CrossRef] [Green Version]
  77. Esposito, A.; Vollaro, A.; Esposito, E.P.; D’Alonzo, D.; Guaragna, A.; Zarrilli, R.; De Gregorio, E. Antibacterial and antivirulence activity of glucocorticoid PYED-1 against Stenotrophomonas maltophilia. Antibiotics 2020, 9, 105. [Google Scholar] [CrossRef] [Green Version]
  78. European Committee for Antimicrobial Susceptibility Testing (EUCAST) of the European Society of Clinical Microbiology and Infectious Diseases (ESCMID). Terminology relating to methods for the determination of susceptibility of bacteria to antimicrobial agents. Clin. Microbiol. Infect. 2000, 6, 503–508. [Google Scholar] [CrossRef] [Green Version]
  79. Vollaro, A.; Esposito, A.; Esposito, E.P.; Zarrilli, R.; Guaragna, A.; De Gregorio, E. PYED-1 inhibits biofilm formation and disrupts the preformed biofilm of Staphylococcus aureus. Antibiotics 2020, 9, 240. [Google Scholar] [CrossRef]
  80. De Gregorio, E.; Esposito, E.P.; Zarrilli, R.; Di Nocera, P.P. Contact-dependent growth inhibition proteins in Acinetobacter baylyi ADP1. Curr. Microbiol. 2018, 75, 1434–1440. [Google Scholar] [CrossRef] [Green Version]
  81. Martinucci, M.; Roscetto, E.; Iula, V.D.; Votsi, A.; Catania, M.R.; De Gregorio, E. Accurate identification of members of the Burkholderia cepacia complex in cystic fibrosis sputum. Lett. Appl. Microbiol. 2016, 62, 221–229. [Google Scholar] [CrossRef] [Green Version]
  82. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]

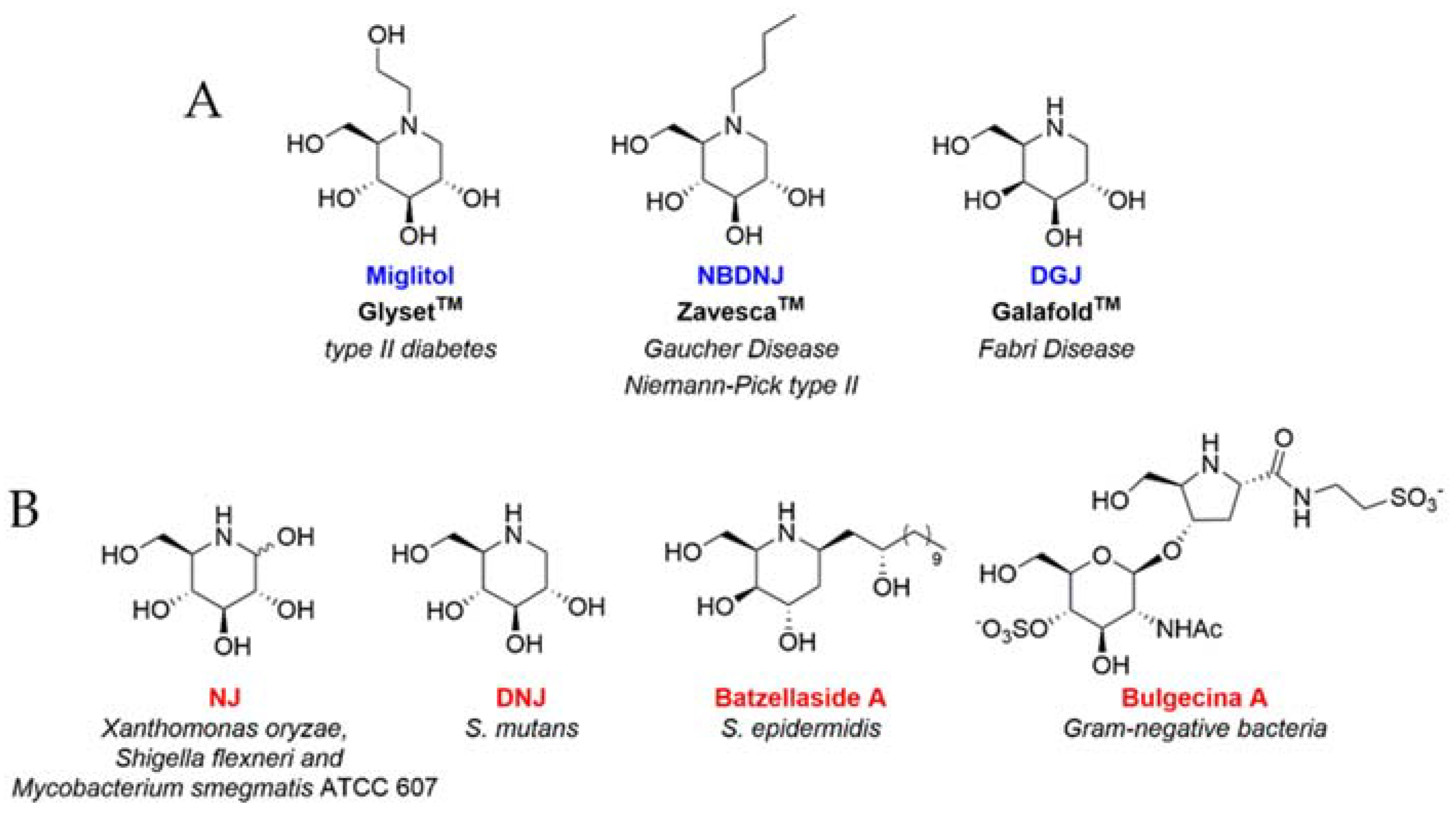

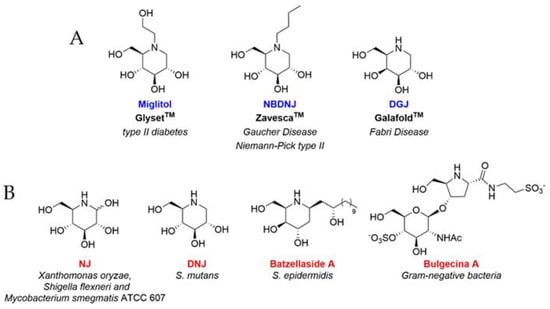

Figure 1. (A) Iminosugar-based drugs on the market. (B) Iminosugars showing antibacterial activity.
Figure 1. (A) Iminosugar-based drugs on the market. (B) Iminosugars showing antibacterial activity.
Antibiotics 09 00362 g001

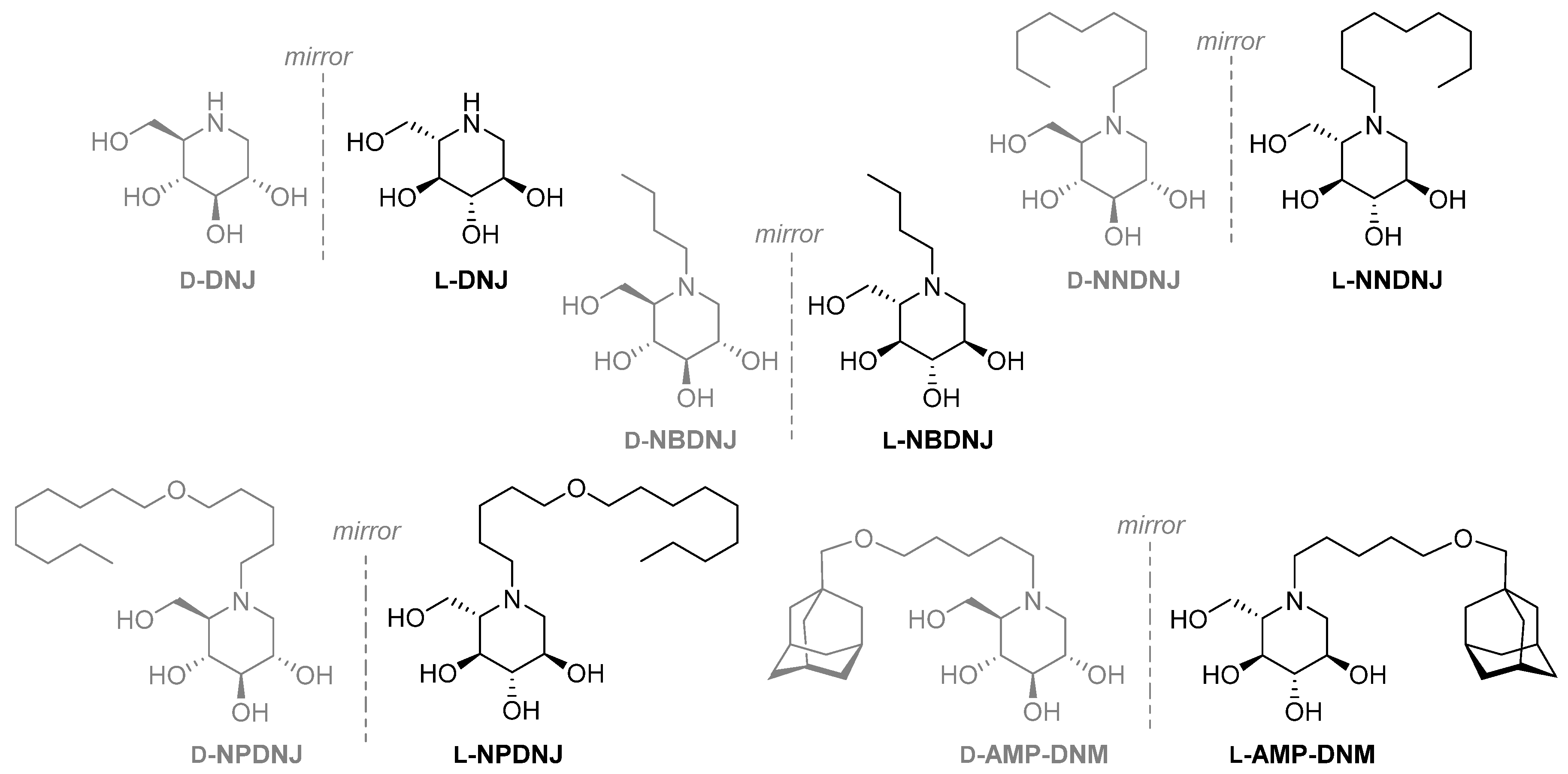

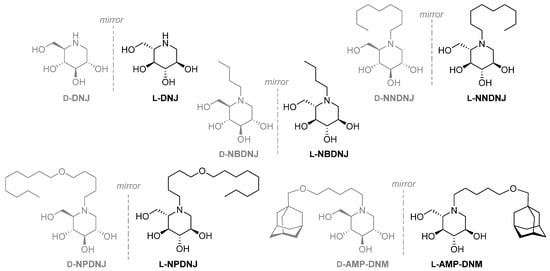

Figure 2. d- and l-deoxyiminosugars studied in this work. DNJ, deoxynojirimycin; NBDNJ, N-butyl DNJ; NNDNJ, N-nonyl DNJ; NPDNJ, N-nonyloxypentyl DNJ; AMP-DNM, N-[5-(adamantan-1-ylmethoxy) pentyl] -1-DNJ.
Figure 2. d- and l-deoxyiminosugars studied in this work. DNJ, deoxynojirimycin; NBDNJ, N-butyl DNJ; NNDNJ, N-nonyl DNJ; NPDNJ, N-nonyloxypentyl DNJ; AMP-DNM, N-[5-(adamantan-1-ylmethoxy) pentyl] -1-DNJ.
Antibiotics 09 00362 g002

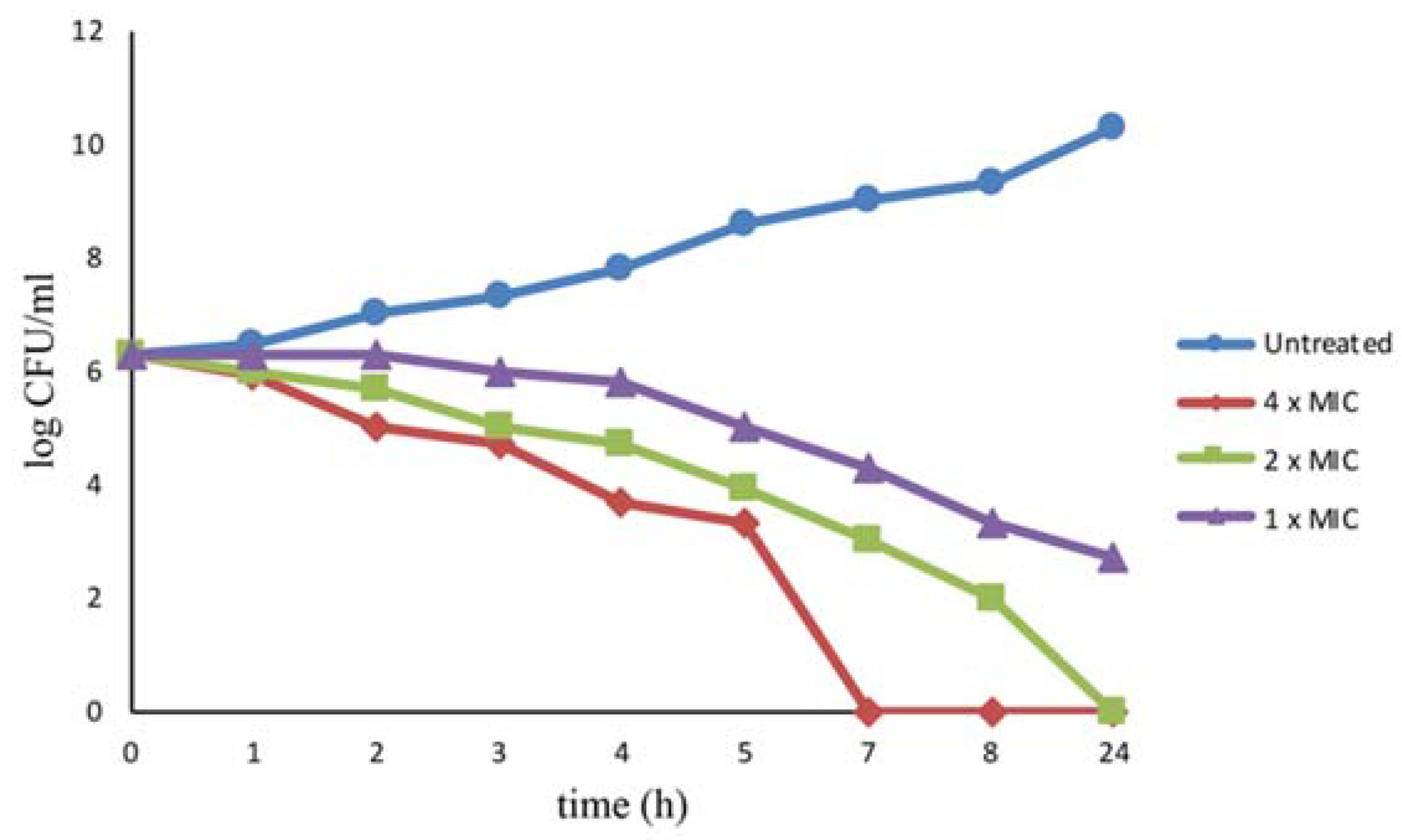

Figure 3. Killing kinetics for S. aureus ATCC 29213 following treatment with the l-NPDNJ. Growth kinetics were monitored following exposure to l-NPDNJ at 1× MIC, 2× MIC and 4× MIC.
Figure 3. Killing kinetics for S. aureus ATCC 29213 following treatment with the l-NPDNJ. Growth kinetics were monitored following exposure to l-NPDNJ at 1× MIC, 2× MIC and 4× MIC.
Antibiotics 09 00362 g003

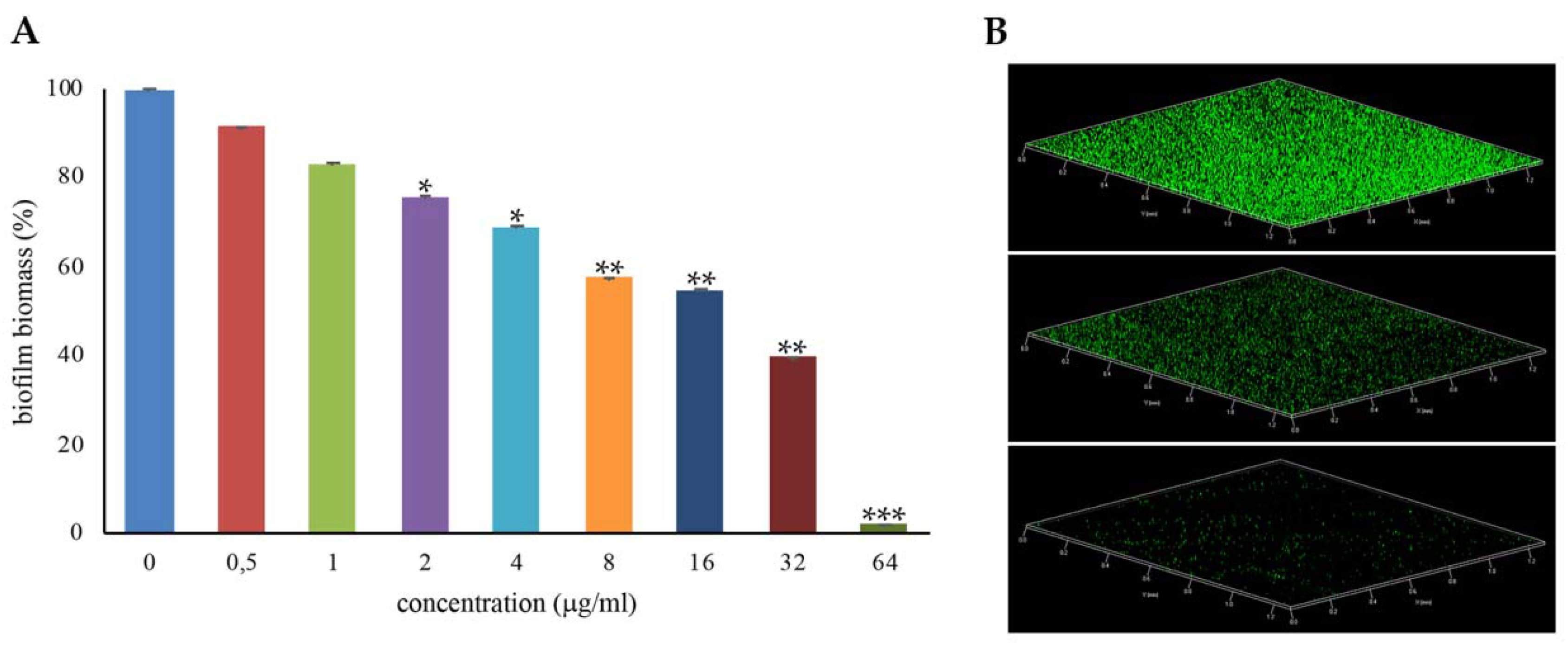

Figure 4. Inhibition of S. aureus ATCC29213 biofilm formation with l-NPDNJ. (A) Biofilm was quantified after crystal violet staining. Values are presented as means ±SDs. Asterisks indicate statistically significant differences between treated and untreated biofilms (* p < 0.05, ** p < 0.01, *** p < 0.001). (B) Confocal laser scanning microscopy (CLSM) analysis of the biofilm formed in the absence (upper panel) or presence of l-NPDNJ at the concentrations of 32 (middle panel) and 64 μg/mL (inferior panel).
Figure 4. Inhibition of S. aureus ATCC29213 biofilm formation with l-NPDNJ. (A) Biofilm was quantified after crystal violet staining. Values are presented as means ±SDs. Asterisks indicate statistically significant differences between treated and untreated biofilms (* p < 0.05, ** p < 0.01, *** p < 0.001). (B) Confocal laser scanning microscopy (CLSM) analysis of the biofilm formed in the absence (upper panel) or presence of l-NPDNJ at the concentrations of 32 (middle panel) and 64 μg/mL (inferior panel).
Antibiotics 09 00362 g004

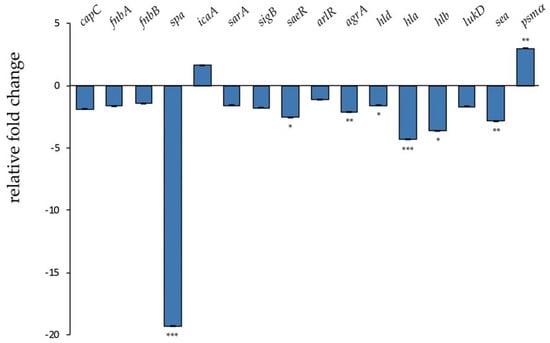

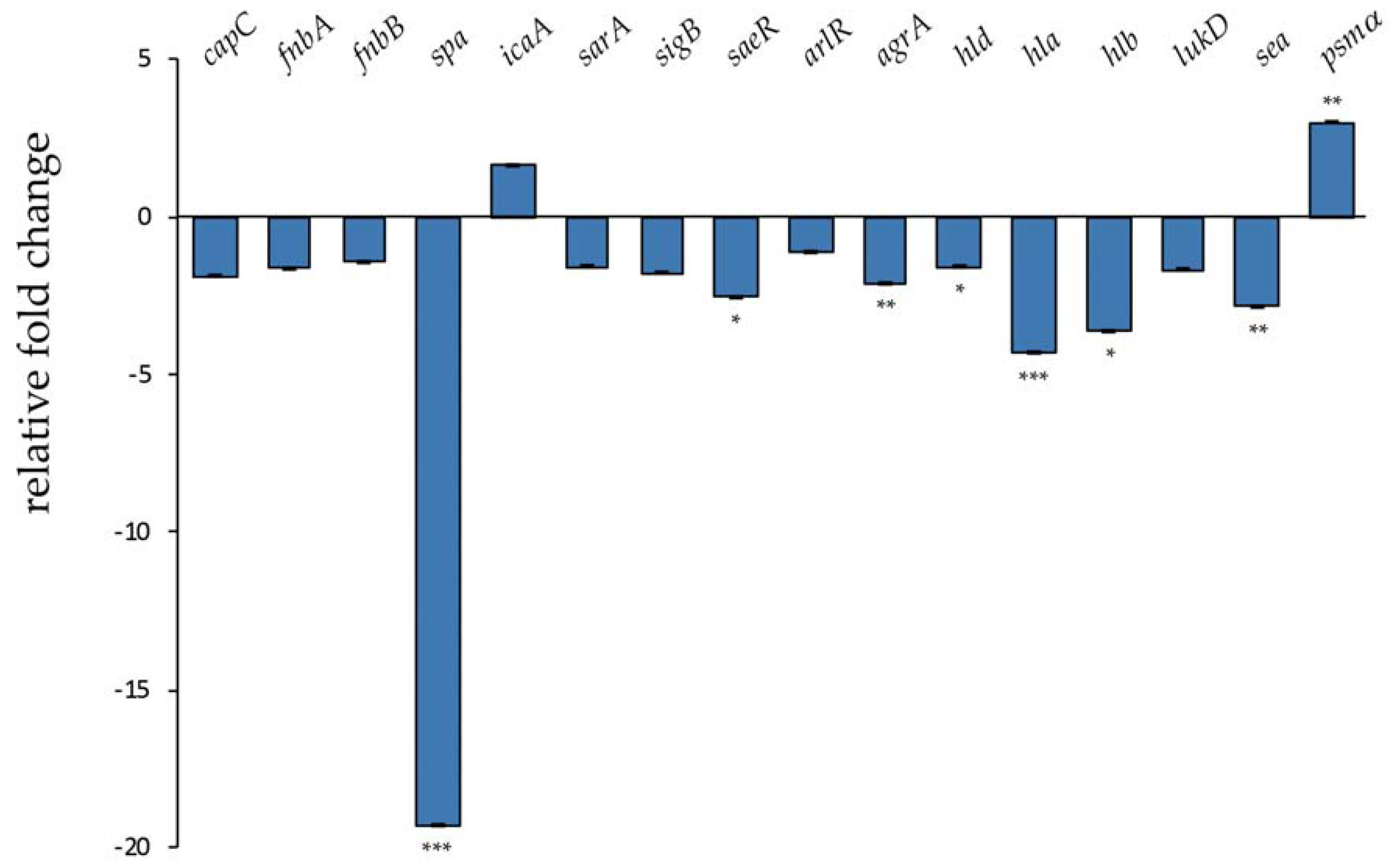

Figure 5. Transcriptional profiling of virulence factor genes in S. aureus ATCC 29213 after treatment with l-NPDNJ determined by qRT-PCR. Data were normalized to rpoB expression. Fold-changes were calculated using treated versus untreated S. aureus cells. Asterisks indicate statistically significant differences between treated and untreated S. aureus cells (* p < 0.05, ** p < 0.01, *** p < 0.001). capC, capsule biosynthesis protein C; fnbA, fibronectin-binding protein A; fnbB, fibronectin-binding protein B; spa, surface protein A; icaA, intercellular adhesion protein A; sarA, staphylococcal accessory regulator A; sigB, RNA polymerase sigma factor B; saeR, response regulator SaeR; arlR, response regulator ArlR; agrA, accessory gene regulator A; hld, delta-hemolysin; hla, alpha-haemolysin; hlb, beta-haemolysin; lukD, pore-forming leucocidin; sea, staphylococcal enterotoxin A; psmα, alpha phenol-soluble modulin.
Figure 5. Transcriptional profiling of virulence factor genes in S. aureus ATCC 29213 after treatment with l-NPDNJ determined by qRT-PCR. Data were normalized to rpoB expression. Fold-changes were calculated using treated versus untreated S. aureus cells. Asterisks indicate statistically significant differences between treated and untreated S. aureus cells (* p < 0.05, ** p < 0.01, *** p < 0.001). capC, capsule biosynthesis protein C; fnbA, fibronectin-binding protein A; fnbB, fibronectin-binding protein B; spa, surface protein A; icaA, intercellular adhesion protein A; sarA, staphylococcal accessory regulator A; sigB, RNA polymerase sigma factor B; saeR, response regulator SaeR; arlR, response regulator ArlR; agrA, accessory gene regulator A; hld, delta-hemolysin; hla, alpha-haemolysin; hlb, beta-haemolysin; lukD, pore-forming leucocidin; sea, staphylococcal enterotoxin A; psmα, alpha phenol-soluble modulin.
Antibiotics 09 00362 g005
Table 1. Minimum inhibitory concentration (MIC) (μg/mL) and minimum bactericidal concentration (MBC) (μg/mL) values of d- and l-DNJ and their N-alkyl derivatives against S. aureus ATCC 29213.
Table 1. Minimum inhibitory concentration (MIC) (μg/mL) and minimum bactericidal concentration (MBC) (μg/mL) values of d- and l-DNJ and their N-alkyl derivatives against S. aureus ATCC 29213.
Abbreviations: MIC, minimum inhibitory concentration; MBC, minimum bactericidal concentration; DNJ, deoxynojirimycin.
Table 2. Additive effect of l-NPDNJ with antibiotics against S. aureus isolate 00717.
Table 2. Additive effect of l-NPDNJ with antibiotics against S. aureus isolate 00717.
Bacterial StrainCombinationMICa (μg/mL)MICc (μg/mL)FICI
S. aureus 00717l-NPDNJ/oxacillin128/12864/10.5078
MICa, MIC of one sample alone; MICc, MIC of samples in combination; FICI, fractional inhibitory concentration index.
Table 3. Gene target list and oligonucleotide sequences.
Table 3. Gene target list and oligonucleotide sequences.
GeneForward Primer (5’-3’)Reverse Primer (5’-3’)Reference

Share and Cite

MDPI and ACS Style

De Gregorio, E.; Esposito, A.; Vollaro, A.; De Fenza, M.; D’Alonzo, D.; Migliaccio, A.; Iula, V.D.; Zarrilli, R.; Guaragna, A. N-Nonyloxypentyl-l-Deoxynojirimycin Inhibits Growth, Biofilm Formation and Virulence Factors Expression of Staphylococcus aureus. Antibiotics 2020, 9, 362.

AMA Style

De Gregorio E, Esposito A, Vollaro A, De Fenza M, D’Alonzo D, Migliaccio A, Iula VD, Zarrilli R, Guaragna A. N-Nonyloxypentyl-l-Deoxynojirimycin Inhibits Growth, Biofilm Formation and Virulence Factors Expression of Staphylococcus aureus. Antibiotics. 2020; 9(6):362.

Chicago/Turabian Style

De Gregorio, Eliana, Anna Esposito, Adriana Vollaro, Maria De Fenza, Daniele D’Alonzo, Antonella Migliaccio, Vita Dora Iula, Raffaele Zarrilli, and Annalisa Guaragna. 2020. "N-Nonyloxypentyl-l-Deoxynojirimycin Inhibits Growth, Biofilm Formation and Virulence Factors Expression of Staphylococcus aureus" Antibiotics 9, no. 6: 362.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
