Using GFP-Tagged Escherichia coli to Investigate the Persistence of Fecal Bacteria in Vegetated Wetlands: An Experimental Approach

by
Emilia Chiapponi
1,2,*,
Charles P. Henriot
2,*,
Xavier Bertrand
2,3,
Didier Hocquet
2,3 and
Gudrun Bornette
2
1
BIGEA–Biological, Geological and Environmental Sciences, Via S. Alberto 163, Ravenna Campus, University of Bologna, 40126 Bologna, Italy
2
UMR 6249, Laboratoire Chrono-Environnement, CNRS-Université de Bourgogne Franche-Comté, 25030 Besançon, France
3
Hygiène Hospitalière, Centre Hospitalier Universitaire de Besançon, 3 Boulevard A. Fleming, 25030 Besançon, France
*
Authors to whom correspondence should be addressed.
Antibiotics 2020, 9(6), 335; https://doi.org/10.3390/antibiotics9060335
Submission received: 20 May 2020 / Revised: 10 June 2020 / Accepted: 16 June 2020 / Published: 18 June 2020
(This article belongs to the Special Issue Antibacterial Activity of Plant Extracts and Essential Oils)
Browse Figures
Versions Notes

Abstract

:
The contamination of surface water by pathogenic bacteria of human origin is an important public health issue. Wetlands can be contaminated with fecal bacteria by water originating from different sources, such as wastewater treatment plants and agriculture. Escherichia coli is a commensal of the human gut flora and the major indication of fecal contamination in surface water. Little is known about the association between fecal bacteria and submerged macrophytes and how this may influence the water quality. We questioned whether macrophytes enhance or inhibit the bacterial growth in wetlands. For this purpose, we grew four different species of macrophytes (Mentha aquatica, Baldellia ranunculoides, Sparganium emersum and Elodea canadensis, in mono- or multispecies cultures) in aquatic rhizotrons and inoculated the devices with a fluorescent strain of Escherichia coli (producing a green fluorescent protein) to simulate the fecal contamination of wetlands. Bacterial survival was monitored by measuring the fluorescence for 19 days. We found (i) that contaminated sediments did not release E. coli in the water column in lentic conditions and (ii) that monocultures of E. canadensis, M. aquatica and S. emersum reduced the E. coli concentration in the water column. This suggests that aquatic plant species may be used in constructed wetlands to clear surface freshwater from bacteria of fecal origin.

1. Introduction

The pathogenic bacterial contamination of surface water is a major health risk for the human population and a threat to future water supplies [1,2]. New contemporary problems, such as antibiotic resistance, could aggravate the existing situation [3].
Fecal bacteria contaminating freshwaters originate from both punctual sources (e.g., wastewater treatment plants (WWTPs) [4], hospitals [5] and agriculture [6]) and nonpunctual ones (e.g., sewage sludge [7], manure [8], rainwater runoff [9] and percolation from fertilized fields [10]). All these sources contain pathogens that contribute to the fecal peril. Many transnational organizations (e.g., WHO and the European Union) set standards and guidelines for assessing the water quality and indicate Escherichia coli as a major indicator for fecal contamination [3]. This species is a commensal of human and animal guts and is released into the environment through feces [11,12]. Once in the environment, the bacteria disperse and reach different ecosystems such as surface water, including wetlands, in which they potentially survive [13,14].
Natural wetlands have beneficial effects on the water quality, while increasing the habitat diversity and maintaining ecological sustainability [15,16]. However, very little is known about the survival of fecal bacteria in these environments. On the one hand, oxygenation of the rhizosphere by the vegetation, crucial for the survival of microorganisms, may promote the survival of fecal bacteria in wetlands [17]. On the other hand, the shade and the allelopathic compounds excreted by the vegetation may negatively affect fecal bacteria in wetlands [18,19]. Several experimental studies have shown that constructed wetlands vegetated with macrophytes efficiently reduce the bacterial load, outlining their potential bioremediation properties [20,21]. The mechanisms of bacteria clearance in these environments may be numerous: natural die-off, UV radiations on the cell wall of bacteria, protozoan predation, antimicrobial substances secreted by macrophyte roots, etc. [22,23].
Here, we aimed at determining experimentally the fate of bacteria of fecal origin in vegetated wetlands and the remediation potential of macrophytes that naturally colonize these wetlands, using E. coli as a model. Several studies were carried out on constructed wetlands [22,24,25], whereas, to the best of our knowledge, only one has investigated the potential of natural wetlands [26]. The subject remains poorly studied, and to our knowledge, no study has been aimed at comparing experimentally the efficiency of several macrophyte species colonizing natural wetlands at controlling fecal bacteria survival and multiplication.
To do so, we grew different macrophytes in rhizotrons, which species were selected by the demonstrated or potential production of the secondary compounds and antimicrobial activity. We then inoculated the rhizotrons with GFP-tagged E. coli (GFP-E. coli) and followed bacterial fluorescence for 19 days. This ex-situ study was carried out implementing nondestructive, cost-effective and simple methods to assess the spatiotemporal dynamics of the bacterial contamination without compromising the plants and rhizotrons settings.

2. Results

The bacterial concentration was monitored for 19 days in mixed-species, single-species and unplanted rhizotrons inoculated with a fluorescent GFP-E. coli strain. In all inoculated rhizotrons, fluorescence—and so, the concentration of bacteria—increased until reaching a peak in the third day after inoculation. The bacterial concentration started to decrease drastically around day six, until reaching values under the limit of detection (LOD) at day eight.

2.1. Influence of the Type of Inoculation in Bacterial Survival

The limit of detection (LOD) was 4.91 × 105 CTCF (corrected total cell fluorescence) for the mixed-species rhizotrons and 4.07 × 105 CTCF for the unplanted ones. Only fluorescence from day one to day eight was detectable and, thus, considered.
The location of the bacterial inoculation (water or sediment) had an effect on the florescence measured in the rhizotron water (ANOVA on the l-mm, p-value = 0.0061). The rhizotrons that were inoculated in the sediment (n = 6; three with the mixture of four plants and three without plants; Table 1) showed less fluorescence than the ones inoculated in the water (n = 6; three with the mixture of four plants and three without plants; Table 1) (Figure 1, Tukey’s test on the l-mm). No interactive effect between the presence/absence of plants and the type of inoculation was observed.

2.2. The Role of Vegetation and Plant Species in Bacterial Survival

The LOD was 1.33 × 105 CTCF for Baldellia ranunculoides rhizotrons, 1.57 × 105 CTCF for Elodea canadensis rhizotrons, 1.89 × 105 CTCF for Mentha aquatica rhizotrons and 1.07 × 105 CTCF for Sparganium emersum rhizotrons. Only fluorescence from the day one to day eight was detectable and, thus, considered.
The fluorescence did not differ between the rhizotrons without plants and those planted with the set of four species (ANOVA on the l-mm, p-value = 0.89). For the single-species vegetated rhizotrons (n = 12; four plant species in three replicates each; Table 1), the measured fluorescence differed between rhizotrons according to the species planted (ANOVA on the l-mm, p-value = 0.000024). The rhizotrons containing E. canadensis, M. aquatica or S. emersum showed less fluorescence than those containing B. ranunculoides. In the same way, the measured fluorescence differed between rhizotrons planted with B. ranunculoides (n = 3; Table 1), E. canadensis (n = 3; Table 1), M. aquatica (n = 3; Table 1), S. emersum (n = 3; Table 1), the mixture of these four species together (n = 3; Table 1) and the ones without plants (n = 3; Table 1) (ANOVA on the l-mm, p-value = 3.4 × 10–10). The rhizotrons containing E. canadensis, M. aquatica or S. emersum were less fluorescent than those containing B. ranunculoides, the four tested species together (mixed-species rhizotrons) and those containing no plants (Figure 2; Tukey’s test on the l-mm).
No difference of fluorescence was observed between the six mixed-vegetated rhizotrons according to their vegetation densities, as these were comparable (i.e., 50%, 50%, 50%, 75%, 75% and 25% in the six vegetated rhizotrons, measured the third day after inoculation).
We did not observe any fluorescent spot in the rhizosphere (mono- and poly-species rhizotrons) during the experiment.

3. Discussion

The aim of this study was to assess experimentally the fate of fecal bacteria in vegetated wetlands and their remediation potential according to the vegetation. To do so, we followed the fluorescence of a GFP-E. coli in an experimental model.
In all rhizotrons, we observed an increase of fluorescence in the first days following inoculation, maybe because the bacteria were inoculated with their growth broth. Between days three and eight, even if E. coli is mobile, we can assume the sedimentation of the bacteria, since there was no flow and since the measured fluorescence increased in the lower part of the rhizotrons [27,28]. Fluorescence was under the LOD from day eight. We first hypothesized that the bacteria lost the plasmid that borne the GFP-encoding genes, as already reported [29]. To test this possibility, we sampled water aliquots from each rhizotron at day eight and streaked them on a growing medium (Mueller-Hinton agar) further incubated overnight at 37 °C. Both fluorescent and nonfluorescent E. coli grew, but the fluorescent E. coli largely dominated (species identification checked with a MALDI-TOF MS). The decay of fluorescence thus rather indicated that most GFP-E. coli did not survive in the rhizotrons after day eight. The specific conditions of the rhizotrons (i.e., no flow, no oxygenation of the sediment, no nutrient income and use of tap water) probably accounted for the poor survival of GFP-E. coli.
This study aimed to test the capability of natural wetlands to remove bacterial contaminations through vegetation, depending on the source of contamination (water column or sediment). Concerning the source of contamination, the bacterial fluorescence was lower in the water column of rhizotrons inoculated in sediments compared to those inoculated in the water. On the one hand, bacteria found nutrients and protection against predators in the sediment [30]. On the other hand, some studies observed a rapid decay of bacteria in the sediment due to the lack of dissolved oxygen and the absence of water column mixing, as it may be the case in the present experiment [29]. A substantial oxygen concentration in the sediment and water is crucial for a sufficient and visible (in terms of brightness) GFP-gene expression of the transformed plasmid (to allow visual identification within a fine sediments matrix [29]. Thus, the lentic condition of this experiment resulted firstly in a decay of the detected fluorescence and, later, (possibly due to a lack of nutrients) in bacterial population numbers [31]. As the nondestructive method used in this work did not allow to monitor the survival of bacteria in the sediment, it is not possible to conclude on the bacteria survival in this compartment. The present results suggest that the fecal bacterial load, for the most part, was not transferred from the sediment to the water column, either because of habitat preference or poor survival. This suggests that, under lentic conditions, the fecal contamination of the sediment may not significantly contribute to the contamination of the water column in natural wetlands [32]. Moreover, no fluorescent spot was observed near the roots on the inclined side of the planted rhizotrons. This could suggest either that bacteria did not survived in the sediment [33] or that the rhizosphere is not a favorable habitat for fecal bacteria, contrary to what other studies suggested [34].
Concerning the effect of vegetation, we found that monocultures of E. canadensis, M. aquatica and S. emersum reduced the survival of GFP-E. coli, whereas monocultures of B. ranunculoides and four-species cultures had no effect (Figure 2). E. canadensis, M. aquatica and S. emersum produced secondary compounds [35,36,37]. In contrast, secondary compounds of B. ranunculoides are poorly known [38,39]. The acetone extract from S. emersum (made of flavonoids, essential oils, phenylpropanoid glycosides and aromatic alkenes) has a high antimicrobial effect, which may account for the observed decay of bacteria [36]. Previous observations already indicated a negative relationship between Elodea and algae or cyanobacteria, and this species has been reported to have a medium allelopathic activity [40]. Elodea species contain diglucuronides of the flavones luteolin, apigenin and chrysoeriol and a yet-unidentified phenolic acid similar to caffeic acid [41], and various flavonoids have been demonstrated to inhibit the growth of Gram-negative bacteria [42]. Mentha aquatica benefits from a wider knowledge on its role, being largely used in constructed wetlands [43]. While analyzing its essential oils, a total of 34 compounds have been identified. Menthofuran (70.5%) was characterized as the main component, with limonene and pmenthone constituting 9.42% and 7.20% of the oil [44]. The results of the current research revealed that the essential oils exhibited moderate antibacterial effects against the microorganisms—in particular, against Gram-positive bacteria [45,46]. On the other hand, not much is known about B. ranunculoides, and the study of its biochemistry diversity is still in its early stages. All Baldellia spp. have very strong coriander-like smells whose chemical composition has not yet been studied [47]. It is therefore unclear, any chemical affinities with the aldehydic smell of Coriandrum sativum (Apiaceae). On the other hand, species of Alisma (closely related to Baldellia spp.) are reported to produce phenolic glycosides with caffeic acid, chlorogenic acid and quercetin [48]. The content of B. ranunculoides extracts are yet to be identified and tested on microbial activity. Even if the observed reduction in the bacterial concentration was rather low compared to conventional remediation processes used in water treatments, for example, the results suggest that E. canadensis, M. aquatica and S. emersum could be used in constructed wetlands for their capacity to limit bacterial survival and/or multiplication. However, more information is still needed for identifying the identity and quantity of allelopathically active compounds involved and on the factors influencing their production and release by macrophytes. Several studies suggest that the allelopathic effect is also very specific and deeply connected to the macrophyte species and its characteristics [33]. Indeed, plant exudates have the potential to act directly either on resources, competition or chemical interferences between plants and play a direct role in allelopathy mediation [36]. Furthermore, the effects of these secondary compounds on the rhizosphere, hosting bacterial communities essential to the development of vegetation, need to be better clarified.
These results must be nuanced, because multispecies and unvegetated rhizotrons did not show a significant difference in terms of bacterial survival. There is still no clear evidence that, by combining different species with known effects, it would result in a better treatment efficiency for a single contaminant compared to a treatment implying a monoculture [49]. As of now, there is no consistent accordance favoring a monoculture, despite mixed wetlands. Indeed, some studies have indicated that species competition may affect the nutrient removal and vegetation stability in constructed wetlands [50]. Mixed wetlands can be more or less efficient than monocultures, depending on the plant species (growth speed, biomass, competition ability and stubble growth attributes) used in both wetlands and on whether the mixed community can maintain a relatively stable state [51].
It is also possible that the concentration of a given exudate may need to reach a certain value to be effective. This could have implied that the concentrations of the secondary compounds did not reach a breakthrough concentration in the mixed rhizotrons. Monospecies environments may be more efficient, because the allelopathic compound would be much more abundant.
The noninvasive method used in this experiment allowed monitoring the bacterial concentration in the water column of the different rhizotrons for 19 days, without using the classical microbiology technics (more expensive, longer, laborious and potentially invasive). Nevertheless, on the one hand, this method has made it impossible to monitor the bacterial concentration in the sediment. This issue needs to be further explored to conclude on the potential role of the macrophyte rhizosphere as a reservoir of fecal bacteria. On the second hand, the method used in this work did not make it possible to investigate the potential shelter role of plants for bacteria (fixation and formation of biofilm on the surface of submerged parts and presence in vegetal tissues), as presented in several studies. Finally, while this experimental study allowed a better understanding on the fate of E. coli in vegetated wetlands, interactions between fecal bacteria and the natural bacterial community present in this habitat should be further investigated for a deeper perspective of fecal bacteria fate in natural wetlands.
It is desirable, in view of their relevance in bioremediation, to focus future studies not only on separate plant species as isolated individuals but, also, on considering the effects of different species as an interconnected whole and the complexity of their allelopathic effects. This knowledge is important for understanding the present existing mechanisms in natural wetlands that can drive the survival or removal of fecal bacterial populations and pollutants’ fate and to face the environmental bacterial contamination with effective remediation strategies.

4. Materials and Methods

4.1. Ecosystem and Conditions of Reference

To ensure that the experimental conditions were as close as possible to the natural ones (sediment composition, plants and temperature), we referred to natural wetlands of the Ain River in the Jura Massif (France) that have already been studied for bacterial contamination [14]. Rhizotrons were filled with artificial sediment prepared according to the sediment composition of six natural wetlands of the Ain River and those referred in the literature [52,53]. Hence, the sediments used were composed by 70% silty sand (supplied by a local quarry from the Ain River floodplain), 15% clay (kaolinite) and 15% organic matter (190 g.m-3 N, 100 g.m-3 P2O5 and 60 g.m-3 K2O). The mixture was poured in each rhizotron until covering 10 cm of the box height. Then, 2.5 L of tap water was gently poured, and the rhizotrons were left to settle for 48 h before plant transplant.
Four macrophyte species have been transplanted in the rhizotrons. Three species were chosen based on their abundance in natural wetlands and their referred potential to affect the bacterial community or to product the active secondary metabolites: E. canadensis [40], M. aquatica [43] and S. emersum [37]. The fourth species was B. ranunculoides because of its abundance in natural wetlands and to test its unknown effects on fecal bacteria [39,40]. The plants were collected in wetlands of the Ain River (M. aquatica, 46°00′36.3″ N 5°17′59.3″ E; B. ranunculoides, 45°58′51.1″ N 5°16′57.4″ E and S. emersum and E. canadensis, 45°58′04.7″ N 5°17′37.7″ E). Plants were stored at 5–8 °C for the time to transport them from the field to the laboratory (5 h), washed and transferred into the rhizotrons. The experiment room was kept at 18 °C to reflect the water temperature of natural wetlands.

4.2. Experiment Set up

4.2.1. Rhizotrons

Thirty rhizotrons (polystyrene boxes of 27 cm H × 20 cm L × 10 cm W) were filled by 10-cm height of sediment. For comparing the effect of vegetation versus no vegetation on the bacterial success, we planted the four macrophyte species together (one individual per species) in seven rhizotrons: three were inoculated with GFP-E. coli in the water, three were inoculated with GFP-E. coli in the sediment and one served as a control (mixed-species vegetated but not inoculated with GFP-E. coli) (Table 1). We also prepared 7 rhizotrons without vegetation: three were inoculated with GFP-E. coli in the water, three were inoculated with GFP-E. coli in the sediment and one served as a control (not vegetated and not inoculated) (Table 1). Finally, for studying the effect of a given species on the bacterial success, 16 rhizotrons were planted with four individuals of each of the four different species of macrophytes (four rhizotrons per species—among which, one was not inoculated and served as a control) (Table 1). We only tested the effects of the inoculation (water versus sediment) for mixed-species and unvegetated rhizotrons (Table 1). The rhizotrons were inclined at 30° to observe the possible driving effects of the rhizosphere on the bacterial community [54,55]. The external part of the rhizotrons corresponding to the sediment layer was covered with black plastic film to reproduce natural dark conditions that prevail in natural sediment. We applied a 12-h photoperiod with a growth lamp with blue led light at 30 W (Digyssal, Guangzhou Hua Dun Electronic Technology Co. Ltd., Guangdong, China).
In order to verify that plant size did not differ significantly between replicates, and to assess the possible effect of plant size on bacterial survival, we measured the density of vegetation at the beginning of the experiment and three days after inoculation using 5 classes of density (0%, 25%, 50%, 75% and 100%).

4.2.2. Inoculation with GFP-E. coli

We used a fluorescent and nonpathogenic strain E. coli GFP ATCC® 25922GFP™ (American Type Culture Collection, Manassas, VA, USA). It harbors a multicopy vector encoding the green fluorescent protein GFPmut3. The GFPmut3 fluorophore has an excitation maximum at 501 nm and an emission maximum at 511 nm, compatible with usual fluorescence detection technologies. The plasmid-borne bla gene confers the resistance to 100 µg/mL of ampicillin. This E. coli strain has been grown in a Luria-Bertrani (LB) broth overnight at 37 °C with gentle shaking to reach the growth plateau (~109 CFU/mL). Then, an aliquot of the culture of 6 mL with a concentration of 2.4 × 106 CFU/mL was inoculated in rhizotrons via a sterile pipette for water inoculation and via sterile syringe connected to a tube to reach a 5-cm depth in sediments to simulate contaminations from the surface water and groundwater, respectively. To make the strain visible, it was excited at each measure by lightening the rhizotrons with a FastGene® Blue/Green LED Flashlight (Nippon Genetics Europe GmbH, Dueren, Germany) emitting at 480–530 nm.

4.3. Image Analysis

4.3.1. Camera and Settings

Unmodified digital single-lens reflex (DSLR) camera can be a successful tool for detecting fluorescence while being cost-effective, applicable to a wide range of studies and easy to use for the operators [56,57]. A DSLR camera Canon model Eos 7D (Canon Europe N.V., Amstelveen, The Netherlands) on a tripod with an amber filter on the front was used. A black cardboard was placed behind the photographed rhizotron in order to avoid reflection from the background. Each day of measurement, the rhizotrons were photographed in light and total dark conditions while enlightening them with green UV flashlight to spot fluorescence (Figure 3). To ensure the same lighting conditions, the camera and the lamp were kept each time at the same distance from the photographed rhizotron. Camera settings were kept the same throughout the whole duration of the experiment (1/50 s f/4 29 mm ISO 320 for light conditions and 13 s f/18 41 mm and ISO 800 for detecting fluorescence). Photos were taken on days 1, 2, 3, 6, 8, 10, 14 and 19 after inoculation. The limit of detection (LOD) was calculated for each different condition measuring the fluorescence in the control rhizotrons. Fluorescence readings lower than the LOD were removed from the analysis.

4.3.2. Image Analysis

The images capturing fluorescence were treated with ImageJ2 ™ (National Institute of Health, Bethesda, MD, USA). This has been shown to be a useful tool for fluorescence intensity analysis [58,59]. The pictures were first converted as an 8-bit grayscale image. The colors channels were split in order to keep only the green fluorescence emitted from bacteria, reducing the noise from the red fluorescence emitted by plants and algae present in the rhizotrons. Noise from burned pixels in the image was also corrected and treated. Then, the CTCF was calculated by selecting three measurement areas (triplicates) with a mean of 20,380.3 square pixels in the water-sediment interface level. We then took three measurements of a mean area of 7318.6 square pixels of the nearby background to correct the fluorescence and calculate the CTCF as follows [60,61]:
CTCF = Integrated density − (area of selected fluorescence × means fluorescence of the backgrounds)

4.3.3. Calibration Curve

Increasing the concentration of GFP-E. coli was prepared in different vials (0.2, 0.4, 0.5, 0.7, 0.8, 0.9, 1, 1.5, 2, 3, 4 and 6 McF) and photographed them three times under the same conditions as the rhizotrons. The CTCF for each vial was calculated as described above, and we deducted a calibration curve between the retrieved CTCF and GFP-E. coli concentration (Figure 4). We obtained a curve of 12 points and with a R2 of 0.84 (Figure 4). The lowest concentration measured was 0.25 McF, which yielded 5.12 × 105 CTCF, and the highest value measured was for 4 McF, even though it was not the highest bacterial concentration (6 McF), which yielded at 2.03 × 106 CTCF.

4.4. Statistics

The normality and homoscedasticity of the data were tested using the Shapiro-Wilk test and Bartlett’s test, respectively. The dataset was square-root (sqrt)-transformed for reaching normality.
Four linear mixed-effects models (lmm) were performed, putting a random effect on the day of sampling to avoid a time-dependent artefact. The first lmm tested the effect of the type of inoculation (water versus sediment) on the fluorescence measured in the rhizotrons. The second lmm tested the effect of the four species together (mixed-species rhizotrons) against the absence of plants on the fluorescence measured in the rhizotrons. The third lmm tested the effect of the four plant species tested individually (single-species rhizotrons) on the fluorescence measured in the rhizotrons. An overall lmm, including the four single-species treatments, the mixed-species treatment and the unplanted rhizotrons were also assessed. An ANOVA was then performed on each lmm, followed by a Tukey’s test. The α value was set to 0.05. All analyses were performed with R 3.6.1 software [62].

5. Conclusions

In conclusion, the experiment demonstrated that aquatic plant species may play a role in the survival of bacteria of fecal origin that contaminates surface freshwater. In the lentic conditions of our experiments, we found (i) that contaminated sediments did not release E. coli in the water column in lentic conditions and (ii) that monocultures of E. canadensis, M. aquatica and S. emersum reduced the E. coli concentration in the water column.

Author Contributions

Conceptualization, E.C., C.P.H. and G.B.; methodology, E.C., C.P.H., D.H., X.B. and G.B.; validation, D.H. and G.B.; formal analysis, C.P.H.; investigation, E.C., C.P.H. and G.B.; data curation, E.C. and C.P.H.; writing—original draft preparation, E.C. and C.P.H.; writing—review and editing, E.C., C.P.H., D.H. and G.B.; supervision, D.H. and G.B.; project administration, G.B. and funding acquisition, G.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Mission for Interdisciplinarity of the National Centre for Scientific Research (CNRS; France).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pandey, P.; Kass, P.H.; Soupir, M.L.; Biswas, S.; Singh, V.P. Contamination of water resources by pathogenic bacteria. AMB Express 2014, 4, 51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Price, R.G.; Wildeboer, D.E. Coli as an indicator of contamination and health risk in environmental waters. In Escherichia Coli—Recent Advances on Physiology, Pathogenesis and Biotechnological Applications; Samie, A., Ed.; IntechOpen: London, UK, 2017. [Google Scholar]
  3. World Health Organization. Global Action Plan on Antimicrobial Resistance; WHO Library Cataloguing-in-Publication: Geneva, Switzerland, 2015; ISBN 978 92 4 150976 3. [Google Scholar]
  4. Rizzo, L.; Manaia, C.M.; Merlin, C.; Schwartz, T.; Dagot, C.; Ploy, M.; Michael, I.; Fatta-Kassinos, D. Urban wastewater treatment plants as hotspots for antibiotic resistant bacteria and genes spread into the environment: A review. Sci. Total Environ. 2013, 447, 345–360. [Google Scholar] [CrossRef]
  5. Hocquet, D.; Müller, A.; Bertrand, X. What happens in hospitals does not stay in hospitals: Antibiotic-resistant bacteria in hospital wastewater systems. J. Hosp. Infect. 2016, 93, 395–402. [Google Scholar] [CrossRef] [PubMed]
  6. Manyi-Loh, C.E.; Mamphweli, S.N.; Meyer, E.; Makaka, G.; Simon, M.; Okoh, A.I. An overview of the control of bacterial pathogens in cattle manure. Int. J. Environ. Res. Public Health 2016, 13, 843. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Chen, Q.-L.; An, X.; Li, H.; Su, J.; Ma, Y.; Zhu, Y.-G. Long-term field application of sewage sludge increases the abundance of antibiotic resistance genes in soil. Environ. Int. 2016, 92, 1–10. [Google Scholar] [CrossRef] [PubMed]
  8. McKinney, C.W.; Dungan, R.S.; Moore, A.; Leytem, A.B. Occurrence and abundance of antibiotic resistance genes in agricultural soil receiving dairy manure. FEMS Microbiol. Ecol. 2018, 94. [Google Scholar] [CrossRef] [PubMed]
  9. Park, Y.; Pachepsky, Y.; Shelton, D.; Jeong, J.; Whelan, G. Survival of manure-borne escherichia coli and fecal coliforms in soil: Temperature dependence as affected by site-specific factors. J. Environ. Qual. 2016, 45, 949–957. [Google Scholar] [CrossRef]
  10. Heuer, H.; Schmitt, H.; Smalla, K. Antibiotic resistance gene spread due to manure application on agricultural fields. Curr. Opin. Microbiol. 2011, 14, 236–243. [Google Scholar] [CrossRef]
  11. Ishii, S.; Sadowsky, M.J. Escherichia coli in the environment: Implications for water quality and human health. Microbes Environ. 2008, 23, 101–108. [Google Scholar] [CrossRef] [Green Version]
  12. Odonkor, S.T.; Ampofo, J.K. Escherichia coli as an indicator of bacteriological quality of water: An overview. Microbiol. Res. 2013, 4, 2. [Google Scholar] [CrossRef]
  13. Price, J.; Ledford, S.H.; Ryan, M.O.; Toran, L.; Sales, C.M. Wastewater treatment plant effluent introduces recoverable shifts in microbial community composition in receiving streams. Sci. Total Environ. 2018, 613, 1104–1116. [Google Scholar] [CrossRef] [PubMed]
  14. Henriot, C.P.; Martak, D.; Cuenot, Q.; Loup, C.; Masclaux, H.; Gillet, F.; Bertrand, X.; Hocquet, D.; Bornette, G. Occurrence and ecological determinants of the contamination of floodplain wetlands with Klebsiella pneumoniae and pathogenic or antibiotic-resistant Escherichia coli. FEMS Microbiol. Ecol. 2019, 95. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Zedler, J.B. Wetlands at your service: Reducing impacts of agriculture at the watershed scale. Front. Ecol. Environ. 2003, 1, 65–72. [Google Scholar] [CrossRef]
  16. Vymazal, J. Emergent plants used in free water surface constructed wetlands: A review. Ecol. Eng. 2013, 61, 582–592. [Google Scholar] [CrossRef]
  17. Rehman, F.; Pervez, A.; Khattak, B.N.; Ahmad, R. Constructed wetlands: Perspectives of the oxygen released in the rhizosphere of macrophytes. CLEAN Soil Air Water 2016, 45. [Google Scholar] [CrossRef]
  18. Gross, E.M.; Hilt, S.; Lombardo, P.; Mulderij, G. Searching for allelopathic effects of submerged macrophytes on phytoplankton—State of the art and open questions. Hydrobiologia 2007, 584, 77–88. [Google Scholar] [CrossRef] [Green Version]
  19. Mohamed, Z.A. Macrophytes-cyanobacteria allelopathic interactions and their implications for water resources management—A review. Limnologica 2017, 63, 122–132. [Google Scholar] [CrossRef]
  20. Brix, H. Do macrophytes play a role in constructed treatment wetlands? Water Sci. Technol. 1997, 35, 11–17. [Google Scholar] [CrossRef]
  21. Torrens, A.; Molle, P.; Boutin, C.; Salgot, M. Removal of bacterial and viral indicator in vertical flow constructed wetlands and intermittent sand filters. Desalination 2009, 246, 169–178. [Google Scholar] [CrossRef]
  22. Vacca, G.; Wand, H.; Nikolausz, M.; Kuschk, P.; Kästner, M. Effect of plants and filter materials on bacteria removal in pilot-scale constructed wetlands. Water Res. 2005, 39, 1361–1373. [Google Scholar] [CrossRef]
  23. Jousset, A.; Scheu, S.; Bonkowski, M. Secondary metabolite production facilitates establishment of rhizobacteria by reducing both protozoan predation and the competitive effects of indigenous bacteria. Funct. Ecol. 2008, 22, 714–719. [Google Scholar] [CrossRef]
  24. Sleytr, K.; Tietz, A.; Langergraber, G.; Haberl, R. Investigation of bacterial removal during the filtration process in constructed wetlands. Sci. Total Environ. 2007, 380, 173–180. [Google Scholar] [CrossRef] [PubMed]
  25. Mburu, N.; Thumbi, G.M.; Mayabi, A.O. Removal of bacterial pathogens from domestic wastewater in a tropical subsurface horizontal flow constructed wetland. In Phytoremediation: Management of Environmental Contaminants; Springer International Publishing: Basel, Switzerland, 2008; Volume 4, pp. 327–346. [Google Scholar]
  26. Knox, A.K.; Dahlgren, R.A.; Tate, K.W.; Atwill, E.R. Efficacy of natural wetlands to retain nutrient, sediment and microbial pollutants. J. Environ. Qual. 2008, 37, 1837–1846. [Google Scholar] [CrossRef]
  27. Tailleur, J.; Cates, M.E. Sedimentation, trapping, and rectification of dilute bacteria. Europhys. Lett. Assoc. 2009, 86, 60002. [Google Scholar] [CrossRef] [Green Version]
  28. Cervantes, A.A. Resuspension of E. coli Under Controlled Flows and Stream Bottom Sediments; Master, Iowa State University: Ames, IA, USA, 2018. [Google Scholar]
  29. Dunn, A.M.; Silliman, S.E.; Dhamwichukorn, S.; Kulpa, C.F. Demonstration of microbial transport into the capillary fringe via advection from below the water table. J. Hydrol. 2005, 306, 50–58. [Google Scholar] [CrossRef]
  30. Brennan, F.; Moynihan, E.; Griffiths, B.; Hillier, S.; Owen, J.; Pendlowski, H.; Avery, L.M. Clay mineral type effect on bacterial enteropathogen survival in soil. Sci. Total Environ. 2014, 468–469, 302–305. [Google Scholar] [CrossRef]
  31. Leff, L.G.; Leff, A.A. Use of green fluorescent protein to monitor survival of genetically engineered bacteria in aquatic environments. Appl. Environ. Microbiol. 1996, 62, 3486–3488. [Google Scholar] [CrossRef] [Green Version]
  32. Heß, S.; Berendonk, T.U.; Kneis, D. Antibiotic resistant bacteria and resistance genes in the bottom sediment of a small stream and the potential impact of remobilization. FEMS Microbiol. Ecol. 2018, 94. [Google Scholar] [CrossRef] [Green Version]
  33. Faulwetter, J.L.; Gagnon, V.; Sundberg, C.; Chazarenc, F.; Burr, M.D.; Brisson, J.; Camper, A.K.; Stein, O.R. Microbial processes influencing performance of treatment wetlands: A review. Ecol. Eng. 2009, 35, 987–1004. [Google Scholar] [CrossRef]
  34. Berg, G.; Eberl, L.; Hartmann, A. The rhizosphere as a reservoir for opportunistic human pathogenic bacteria. Environ. Microbiol. 2005, 7, 1673–1685. [Google Scholar] [CrossRef]
  35. Bertin, C.; Yang, X.; Weston, L.A. The role of root exudates and allelochemicals in the rhizosphere. Plant Soil 2003, 256, 67–83. [Google Scholar] [CrossRef]
  36. Bais, H.P.; Weir, T.L.; Perry, L.G.; Gilroy, S.; Vivanco, J.M. The role of root exudates in rhizosphere interactions with plants and other organisms. Annu. Rev. Plant Boil. 2006, 57, 233–266. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Özbay, H.; Alim, A. Antimicrobial activity of some water plants from the northeastern anatolian region of Turkey. Molecules 2009, 14, 321–328. [Google Scholar] [CrossRef] [Green Version]
  38. Kozlowski, G.; Jones, R.A.; Nicholls-Vuille, F.-L. Biological flora of central Europe: Baldellia ranunculoides (Alismataceae). Perspect. Plant Ecol. Evol. Syst. 2008, 10, 109–142. [Google Scholar] [CrossRef] [Green Version]
  39. Harborne, J.B.; Williams, C.A. Occurrence of sulphated flavones and caffeic acid esters in members of the fluviales. Biochem. Syst. Ecol. 1976, 4, 37–41. [Google Scholar] [CrossRef]
  40. Hilt, S.; Gross, E.M. Can allelopathically active submerged macrophytes stabilise clear-water states in shallow lakes? Basic Appl. Ecol. 2008, 9, 422–432. [Google Scholar] [CrossRef] [Green Version]
  41. Mues, R. Species specific flavone glucuronides in Elodea species. Biochem. Syst. Ecol. 1983, 11, 261–265. [Google Scholar] [CrossRef]
  42. Basile, A.; Giordano, S.; López-Sáez, J.A.; Cobianchi, R.C. Antibacterial activity of pure flavonoids isolated from mosses. Phytochemistry 1999, 52, 1479–1482. [Google Scholar] [CrossRef]
  43. Avelar, F.F.; Matos, M.P.; Matos, M.P.; Borges, A.C. Coliform bacteria removal from sewage in constructed wetlands planted withMentha aquatica. Environ. Technol. 2014, 35, 2095–2103. [Google Scholar] [CrossRef]
  44. Getahun, Z.; Asres, K.; Mazumder, A.; Bucar, F. Essential oil composition, antibacterial and antioxidant activities of mentha aquatica growing in Ethiopia. Ethiop. Pharm. J. 2008, 26, 9–16. [Google Scholar] [CrossRef]
  45. Mimica-Dukic, N.; Bozin, B.; Sokovic, M.; Mihajlović, B.; Matavulj, M. Antimicrobial and antioxidant activities of three mentha species essential oils. Planta Med. 2003, 69, 413–419. [Google Scholar] [CrossRef] [PubMed]
  46. Shahbazi, Y. Chemical composition and in vitro antibacterial activity of mentha spicata essential oil against common food-borne pathogenic bacteria. J. Pathog. 2015, 2015, 1–5. [Google Scholar] [CrossRef]
  47. Rubinos, M.I.; Pablo, R. Luronium natans, a rare species in the iberian peninsula. Belg. J. Bot. 2004, 137, 85–90. [Google Scholar] [CrossRef]
  48. Jonsell, B.; Dahlgren, R.M.T.; Clifford, H.T.; Yeo, P.F. The families of the monocotyledons. Structure, evolution and taxonomy. Nord. J. Bot. 1987, 7, 254. [Google Scholar] [CrossRef]
  49. Brisson, J.; Rodriguez, M.; Martin, C.A.; Proulx, R. Plant diversity effect on water quality in wetlands: A meta-analysis based on experimental systems. Ecol. Appl. 2020, 30. [Google Scholar] [CrossRef]
  50. Agami, M.; Reddy, K. Competition for space between Eichhornia crassipes (Mart.) Solms and Pistia stratiotes L. cultured in nutrient-enriched water. Aquat. Bot. 1990, 38, 195–208. [Google Scholar] [CrossRef]
  51. Liang, M.-Q.; Zhang, C.-F.; Peng, C.-L.; Lai, Z.-L.; Chen, D.-F.; Chen, Z.-H. Plant growth, community structure, and nutrient removal in monoculture and mixed constructed wetlands. Ecol. Eng. 2011, 37, 309–316. [Google Scholar] [CrossRef]
  52. Smith, J.; Edwards, J.; Hilger, H.; Steck, T.R. Sediment can be a reservoir for coliform bacteria released into streams. J. Gen. Appl. Microbiol. 2008, 54, 173–179. [Google Scholar] [CrossRef] [Green Version]
  53. Garzio-Hadzick, A.; Shelton, D.; Hill, R.; Pachepsky, Y.; Guber, A.K.; Rowland, R. Survival of manure-borne E. coli in streambed sediment: Effects of temperature and sediment properties. Water Res. 2010, 44, 2753–2762. [Google Scholar] [CrossRef]
  54. Mendes, R.; Garbeva, P.; Raaijmakers, J.M. The rhizosphere microbiome: Significance of plant beneficial, plant pathogenic, and human pathogenic microorganisms. FEMS Microbiol. Rev. 2013, 37, 634–663. [Google Scholar] [CrossRef]
  55. Bourceret, A.; Leyval, C.; Thomas, F.; Cébron, A. Rhizosphere effect is stronger than PAH concentration on shaping spatial bacterial assemblages along centimetre-scale depth gradients. Can. J. Microbiol. 2017, 63, 881–893. [Google Scholar] [CrossRef] [PubMed]
  56. Miranda, G.E.; Prado, F.B.; Delwing, F.; Junior, E.D. Analysis of the fluorescence of body fluids on different surfaces and times. Sci. Justice 2014, 54, 427–431. [Google Scholar] [CrossRef] [PubMed]
  57. Koenig, M.H.; Yi, E.P.; Sandridge, M.J.; Mathew, A.S.; Demas, J.N. “Open-Box” approach to measuring fluorescence quenching using an iPad screen and digital SLR camera. J. Chem. Educ. 2014, 92, 310–316. [Google Scholar] [CrossRef]
  58. Cochrane, N.; Walker, G.; Manton, D.J.; Reynolds, E.C. Comparison of quantitative light-induced fluorescence, digital photography and transverse microradiography for quantification of enamel remineralization. Aust. Dent. J. 2012, 57, 271–276. [Google Scholar] [CrossRef] [PubMed]
  59. Wenzel, M.; Vischer, N.; Strahl, H.; Hamoen, L.W. Assessing membrane fluidity and visualizing fluid membrane domains in bacteria using fluorescent membrane dyes. Bio-Protocol 2018, 8. [Google Scholar] [CrossRef] [Green Version]
  60. McCloy, R.A.; Rogers, S.; Caldon, C.E.; Lorca, T.; Castro, A.; Burgess, A. Partial inhibition of Cdk1 in G2 phase overrides the SAC and decouples mitotic events. Cell Cycle 2014, 13, 1400–1412. [Google Scholar] [CrossRef] [Green Version]
  61. Ang, L.Y.E.; Too, H.K.I.; Tan, E.L.; Chow, T.-K.V.; Shek, L.P.-C.; Tham, E.H.; Alonso, S.; Shek, P.-C.L. Antiviral activity of Lactobacillus reuteri Protectis against Coxsackievirus A and Enterovirus 71 infection in human skeletal muscle and colon cell lines. Virol. J. 2016, 13, 111. [Google Scholar] [CrossRef] [Green Version]
  62. R Development Core Team. R: A Language and Environment for Statistical Computing: Reference Index. Vienna: R Foundation for Statistical Computing 2010. Available online: http://www.polsci.wvu.edu/duval/PS603/Notes/R/fullrefman.pdf (accessed on 22 October 2019).
Antibiotics 09 00335 g001 550
Figure 1. Effect of the type of inoculation—in water (n = 6) or in sediment (n = 6)—on the fluorescence of GFP-Escherichia coli in the rhizotrons. Boxplots of fluorescences measured on days 1, 2, 3, 6 and 8 (fluorescences > limit od detection (LOD)) in the water of rhizotrons inoculated with GFP-E. coli. Using an ANOVA with a multiple comparisons Tukey’s test on the l-mm, testing the effects of the type of inoculation on the fluorescence (i.e., bacterial concentration) of the water column. a and b are significantly different (p-value (ANOVA) < 0.01). CTCF: corrected total cell fluorescence.
Figure 1. Effect of the type of inoculation—in water (n = 6) or in sediment (n = 6)—on the fluorescence of GFP-Escherichia coli in the rhizotrons. Boxplots of fluorescences measured on days 1, 2, 3, 6 and 8 (fluorescences > limit od detection (LOD)) in the water of rhizotrons inoculated with GFP-E. coli. Using an ANOVA with a multiple comparisons Tukey’s test on the l-mm, testing the effects of the type of inoculation on the fluorescence (i.e., bacterial concentration) of the water column. a and b are significantly different (p-value (ANOVA) < 0.01). CTCF: corrected total cell fluorescence.
Antibiotics 09 00335 g001
Antibiotics 09 00335 g002 550

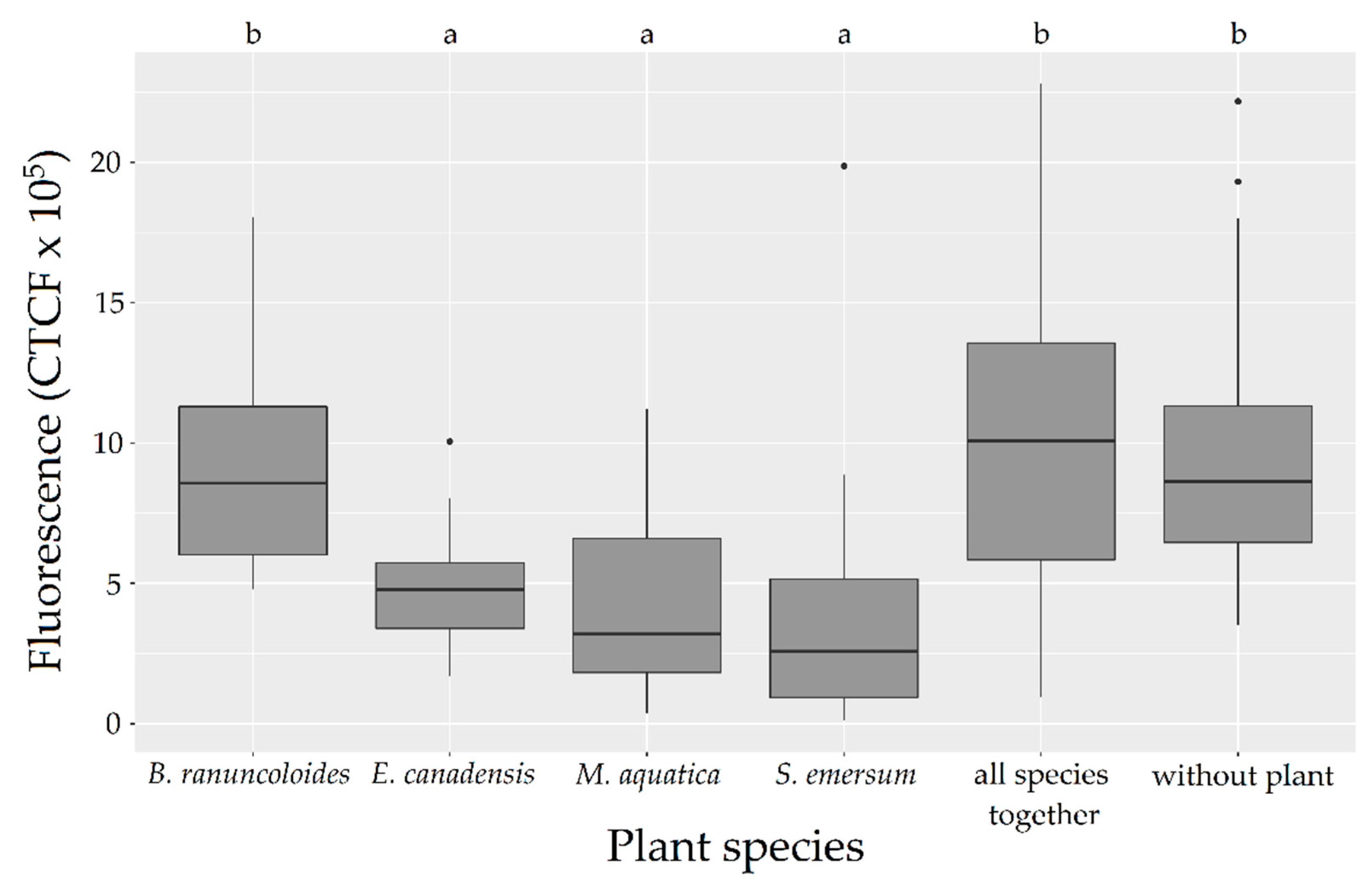

Figure 2. Effects of Baldellia ranunculoides (n = 3), Elodea canadensis (n = 3), Mentha aquatica (n = 3), Sparganium emersum (n = 3), the mixture of these four species together (n = 3) and the absence of plants (n = 3) on the fluorescence of GFP-E. coli in the rhizotrons. Boxplots of fluorescences measured on days 1, 2, 3, 6 and 8 (fluorescences > LOD) in the water of rhizotrons inoculated with GFP-E. coli. Using an ANOVA with a multiple comparisons Tukey’s test on the l-mm, testing the effects of plant species on the fluorescence (i.e., bacterial concentration) of the water column. a and b are significantly different (p-value (ANOVA) < 0.001). The dots are outliers.
Figure 2. Effects of Baldellia ranunculoides (n = 3), Elodea canadensis (n = 3), Mentha aquatica (n = 3), Sparganium emersum (n = 3), the mixture of these four species together (n = 3) and the absence of plants (n = 3) on the fluorescence of GFP-E. coli in the rhizotrons. Boxplots of fluorescences measured on days 1, 2, 3, 6 and 8 (fluorescences > LOD) in the water of rhizotrons inoculated with GFP-E. coli. Using an ANOVA with a multiple comparisons Tukey’s test on the l-mm, testing the effects of plant species on the fluorescence (i.e., bacterial concentration) of the water column. a and b are significantly different (p-value (ANOVA) < 0.001). The dots are outliers.
Antibiotics 09 00335 g002
Antibiotics 09 00335 g003 550

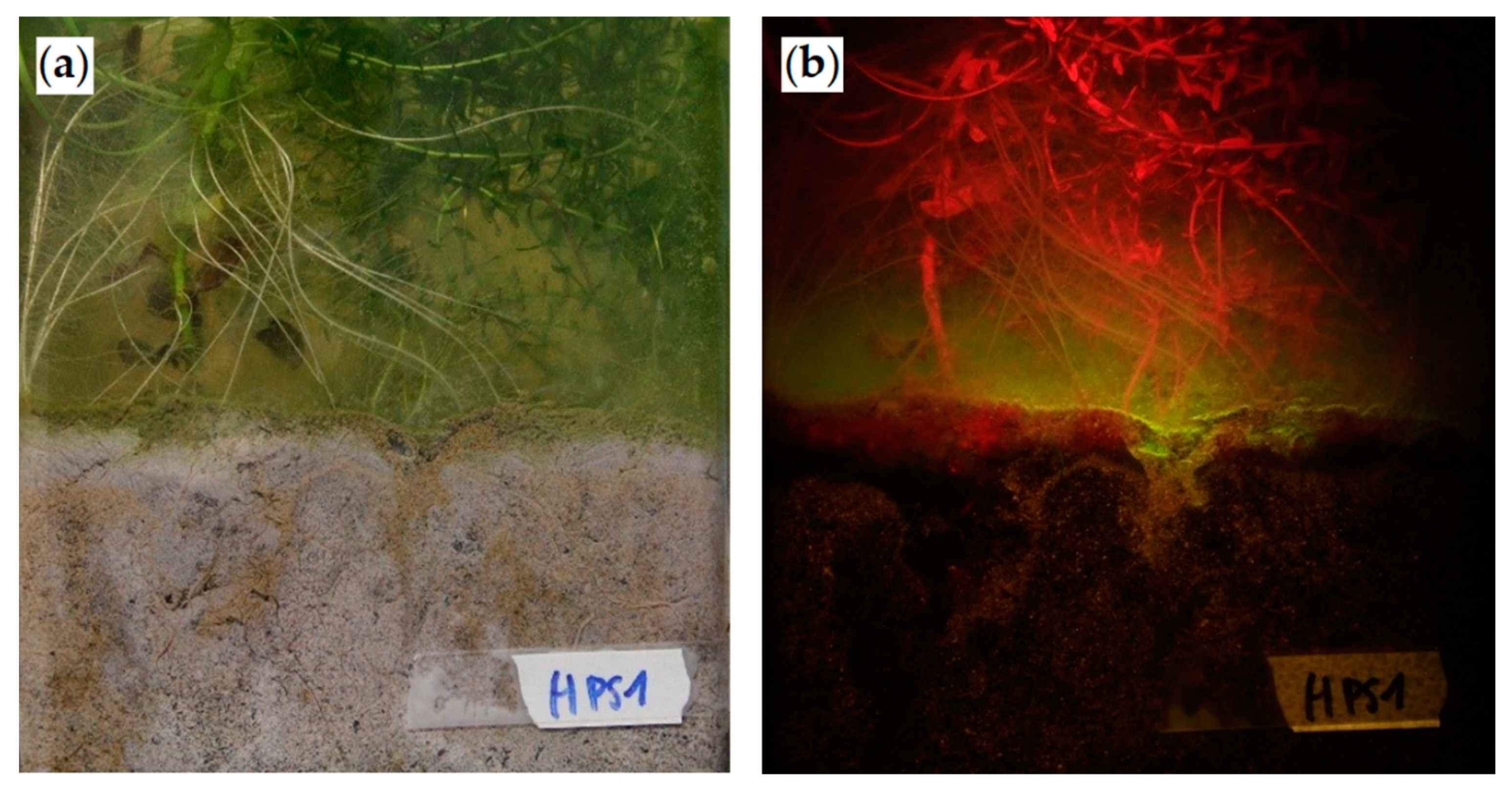

Figure 3. Example of planted rhizotrons after the inoculation of fluorescent E. coli (3rd day after inoculation). (a) Rhizotron under natural light. (b) Rhizotron under fluorescence conditions (enlightened only with a 480–530-nm light and observed with an amber filter). Photo obtained with an exposition of 13 s f/18 and ISO 800 with a Canon EOS 7D.
Figure 3. Example of planted rhizotrons after the inoculation of fluorescent E. coli (3rd day after inoculation). (a) Rhizotron under natural light. (b) Rhizotron under fluorescence conditions (enlightened only with a 480–530-nm light and observed with an amber filter). Photo obtained with an exposition of 13 s f/18 and ISO 800 with a Canon EOS 7D.
Antibiotics 09 00335 g003
Antibiotics 09 00335 g004 550
Figure 4. Fitting curve between the fluorescence measurements (CTCF) and the bacterial concentration (McF). Twelve vials with known concentrations of GFP-E. coli (0.2, 0.4, 0.5, 0.7, 0.8, 0.9, 1, 1.5, 2, 3, 4 and 6 McF) were photographed three times under the same conditions as the rhizotrons. The values presented are the means of these three measurements for each vial.
Figure 4. Fitting curve between the fluorescence measurements (CTCF) and the bacterial concentration (McF). Twelve vials with known concentrations of GFP-E. coli (0.2, 0.4, 0.5, 0.7, 0.8, 0.9, 1, 1.5, 2, 3, 4 and 6 McF) were photographed three times under the same conditions as the rhizotrons. The values presented are the means of these three measurements for each vial.
Antibiotics 09 00335 g004
Table
Table 1. Experimental design. Planted and unplanted rhizotrons inoculated with GFP-Escherichia coli in water or sediment.
Table 1. Experimental design. Planted and unplanted rhizotrons inoculated with GFP-Escherichia coli in water or sediment.
Rhizotron TypePlant SpeciesType of Inoculation with GFP-E. coli
WaterSedimentControl 1
Rizotrons planted with the four species together (n = 7)Baldellia ranunculoides, Elodea. canadensis,
Mentha aquatica,
Sparganiumemersum together		n = 3n = 3n = 1
Rhizotrons without vegetation (n = 7)Ø 2n = 3n = 3n = 1
Rhizotrons planted with one single plant species (n = 16)Baldellia ranunculoidesn = 3Ø 3n = 1
Elodea canadensisn = 3Ø 3n = 1
Mentha aquatican = 3Ø 3n = 1
Sparganium emersumn = 3Ø 3n = 1
1 no bacteria inoculation. 2 no plants in rhizotrons without vegetation. 3 not tested.
