Synthesis of 4,4′-(4-Formyl-1H-pyrazole-1,3-diyl)dibenzoic Acid Derivatives as Narrow Spectrum Antibiotics for the Potential Treatment of Acinetobacter Baumannii Infections

by
Evan Delancey
1,
Devin Allison
1,
Hansa Raj KC
1,
David F. Gilmore
2,
Todd Fite
3,4,
Alexei G. Basnakian
3,4 and
Mohammad A. Alam
1,*
1
Department of Chemistry and Physics, College of Science and Mathematics, Arkansas State University, Jonesboro, AR 72467, USA
2
Department of Biological Sciences, College of Science and Mathematics, Arkansas State University, Jonesboro, AR 72467, USA
3
Department of Pharmacology and Toxicology, University of Arkansas for Medical Sciences, 4301 W. Markham St., Little Rock, AR 72205, USA
4
Central Arkansas Veterans Healthcare System, W. 7th St., Little Rock, AR 72205, USA
*
Author to whom correspondence should be addressed.
Antibiotics 2020, 9(10), 650; https://doi.org/10.3390/antibiotics9100650
Submission received: 29 July 2020 / Revised: 25 September 2020 / Accepted: 25 September 2020 / Published: 28 September 2020
(This article belongs to the Special Issue Narrow-Spectrum Antibiotics: How Can They Help in the Fight against Antimicrobial Resistance and How Can We Get More of Them?)
Browse Figures
Review Reports Versions Notes

Abstract

:
Acinetobacter baumannii has emerged as one of the most lethal drug-resistant bacteria in recent years. We report the synthesis and antimicrobial studies of 25 new pyrazole-derived hydrazones. Some of these molecules are potent and specific inhibitors of A. baumannii strains with a minimum inhibitory concentration (MIC) value as low as 0.78 µg/mL. These compounds are non-toxic to mammalian cell lines in in vitro studies. Furthermore, one of the potent molecules has been studied for possible in vivo toxicity in the mouse model and found to be non-toxic based on the effect on 14 physiological blood markers of organ injury.

1. Introduction

The ESKAPE pathogens, a group of six bacteria (Enterococcus faecium, Staphylococcus aureus, Klebsiella pneumoniae, Acinetobacter baumannii, Pseudomonas aeruginosa, and Enterobacter species) cause the majority of nosocomial infections in the U.S., and these pathogens are effectively escaping the current arsenal of antibiotics [1]. A. baumannii, one of the ESKAPE pathogens, is a commonly found aquatic Gram-negative bacterium, but its drug-resistant strains can cause serious health problems in immunocompromised individuals particularly in clinical settings. In just two decades, this bacterium became well-known to cause serious infections, being notorious opportunist and producing multiresistant strains in hospital wards and in communities [2,3,4,5]. A. baumannii infection of U.S. service members has become a major problem since the Iraq War began in 2003 [6]. In recent years, the emergence of A. baumannii, which is extremely drug- and pandrug-resistant, has alarmed the medical community [7,8,9]. In late February 2017, the WHO released a list of 12 drug-resistant bacteria that pose the greatest threat to human health and for which new antibiotics are desperately needed. Carbapenem-resistant A. baumannii is on the top of the list [10,11]. Therefore, the discovery of new antibacterial agents to treat A. baumannii infections is imperative.
Although broad-spectrum antibiotics play a vital role in treating bacterial infections, there are some drawbacks to their use such as selection for and spread of resistance across multiple bacterial species and the detrimental effect upon the host microbiome. If the causative agent of the infection is known, the use of narrow-spectrum antibiotics can alleviate some of these problems. The development of narrow-spectrum antibiotics that do not cause cross-resistance in non-targeted microbes and elicit less collateral damage upon the host microbiome is an attractive approach to fight multidrug-resistance infections [12]. It is also expected that new drugs will be non-toxic in vivo at therapeutic doses.

2. Results and Discussion

In our efforts to find potent antimicrobial agents [13], we have previously reported the synthesis of phenyl substituted pyrazole derivatives as potent S. aureus and A. baumannii growth inhibitors [14,15]. Fluoro-substitution on the phenyl ring increased the potency of molecules significantly [16,17]. Similarly, coumarin and naphthalene substituted compounds also showed potent activity against the tested strains, particularly S. aureus [18,19,20]. Our reported molecules are significantly lipophilic. To get less lipophilic compounds, we designed and synthesized a series of diylbenzoic acid derivatives of pyrazole to get compounds with better pharmacological properties (Figure 1).
The reaction of hydrazinobenzoic acid (1) with 4-acetylbenzoic acid (2) formed the hydrazone (3), which on reaction with POCl3/N,N-dimethylformamide (DMF) afforded the diylbenzoic acid-derived pyrazole aldehyde (4) in 90% overall yield. The ease of synthesis of the pure aldehyde derivative (4) in a multigram scale without work-up or column purification helped to synthesize a series of hydrazone derivatives. The starting material was subjected to further reaction with several hydrazine derivatives to get novel hydrazone derivatives. We found the expected products (5–29) in a very good average yield (Scheme 1).
These new compounds were tested against six bacterial strains: Two Gram-positive strains, S. aureus ATCC 25923 and Bacillus subtilis ATCC 6623, and four Gram-negative bacteria, Enterobacter aerogenes ATCC 13048, Escherichia coli ATCC 25922, A. baumannii ATCC 19606, type strain (Ab6), and Pseudomonas aeruginosa ATCC 27833. Remarkably, in initial screening tests, none of the compounds showed activity against the bacteria tested other than A. baumannii ATCC 19606 at concentrations less than 50 µg/mL. Because of the high specificity of compounds against A. baumannii, these molecules were further tested against two additional A. baumannii strains (Table 1).
Products of aliphatic hydrazine derivatives (5, 6, 7, and 8) did not show any activity against the tested bacterial strains. N,N-Disubstituted hydrazone derivatives (9, 10, 11, 12, 13, 14, and 15) also failed to show any noticeable antimicrobial property for the tested strains. N-Phenyl derivatives with halogen substitution in the phenyl ring exhibited potent activity against A. baumannii. 2-Fluorphenyl-susbstituted hydrazone (16) showed potent activity against the A. baumannii strains with MIC values as low as 3.125 µg/mL. 3-Fluorophenyl derivative (17) showed better activity against the A. baumannii strains with MIC values as low as 1.56 µg/mL. Chloro-substitution gave the most potent molecule (18) in the series. This molecule (18) inhibited the growth of A. baumannii ATCC 19606, type strain with an MIC value at submicrogram concentration. Two other strains, A. baumannii ATCC BAA-1605 and A. baumannii ATCC 747, were also inhibited efficiently by this novel molecule with minimum inhibitory concentration (MIC) values 3.125 and 1.56 µg/mL, respectively. The bromo-substituted compound (19) also showed potent activity against the tested A. baumannii strains with MIC value as low as 3.125 µg/mL. Dihalosubstitution, fluoro (20), and chloro (21), in the phenyl ring resulted in similar potency against the tested strains of A. baumannii. Mixed-halo substitutions, chloro, and fluoro (22 and 23), retained the potency of the compounds. Tetra-fluoro substitution decreased the potency of the resultant molecule (24) several-fold. Similarly, the pentafluoro compound (25) failed to inhibit the growth of the tested strains. Extremely electron withdrawing groups such as trifluoromethyl (26), cyano (27), carboxylic acid (28), and nitro (29) completely eliminated the potency of the molecules.
Based on the antimicrobial data, we could deduce a clear structure–activity relationship (SAR) of narrow spectrum antimicrobial agents. N,N-Disubstituted compounds failed to show any activity against the tested strains. Halogen-substituted N-phenyl hydrazone showed potent activity. Among these halogen-substituted compounds, mono-substitution showed the best result and the chlorine substitution gave the most potent compound (18). Increasing the number of halogen atoms in the phenyl ring decreased the activity of the molecules as no activity was observed for the penta-substituted compounds.

2.1. Experimental Data

4,4′-(4-formyl-1H-pyrazole-1,3-diyl)dibenzoic acid (4). Yellow solid (3.02 g 90%). 1H NMR, 300 MHz (DMSO-d6): δ 9.99 (s, 1H), 9.41 (s, 1H), 8.09–8.05 (m, 8H); 13C NMR (75 MHz, DMSO-d6) δ = 189.6, 172.1, 171.6, 156.9, 146.5, 141.1, 140.2, 136.1, 134.6, 133.9, 127.9, 124.0. HRMS (ESI-FTMS Mass (m/z): calcd for C18H12N2O5 [M + H]+ = 337.0819, found 337.0821.
4-[1-(4-carboxyphenyl)-4-[(E)-(dimethylhydrazono)methyl]pyrazol-3-yl]benzoic acid (5). Yellow solid (347 mg, 92%). 1H NMR (300 MHz DMSO-d6): 8.77 (s, 1H), 8.11–8.04 (m, 6H), 7.90 (d, J = 8.2 Hz, 2H), 7.29 (s, 1H), 2.88 (s, 6H); 13C NMR (75 MHz DMSO-d6): 167.5, 167.1, 149.9, 142.5, 137.2, 131.3, 130.7, 130.1, 128.8, 128.5, 126.4, 124.2, 120.9, 118.4, 42.8. HRMS (ESI-FTMS Mass (m/z): calcd for C20H18N4O4 [M + H]+ = 379.1401, found 379.1398.
4-[1-(4-carboxyphenyl)-4-[(E)-1-piperidyliminomethyl]pyrazol-3-yl]benzoic acid (6). Yellow solid, (376 mg, 91%). 1H NMR 300 MHz (DMSO-d6): 8.77 (s, 1H), 8.06–8.03 (m, 6H), 7.88 (d, J = 8.0 Hz, 2H), 7.59 (s, 1H), 3.05 (s, 4H), 1.63 (s, 4H), 1.46 (s, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.6, 167.2, 150.2, 142.4, 137.0, 131.3, 131.0, 130.0, 129.2, 128.6, 126.8, 126.1, 120.7, 118.4, 51.8, 25.0, 24.0. HRMS (ESI-FTMS Mass (m/z): calcd for C23H23N5O4 [M + H]+ = 434.1823, found 434.1819.
4,4′-{4-[(E)-(4-methylpiperazin-1-yl)imino)methyl]-1H-pyrazole-1,3-diyl}dibenzoic acid (7). Yellow solid (402 mg, 93%). 1H NMR 300 MHz (DMSO-d6): δ 8.80 (s, 1H), 8.06 (s, 4H), 8.04 (d, J = 8.7 Hz, 2H), 7.88 (d, J = 8.3 Hz, 2H), 7.64 (s, 1H), 3.13 (br s, 4H), 2.60 (br s, 4H), 2.29 (s, 3H); 13C NMR (75 MHz, DMSO-d6 + CDCl3) δ = 167.8, 167.4, 150.3, 142.3, 136.7, 131.4, 131.3, 130.0, 129.7, 128.6, 128.0, 127.1, 120.3, 118.5, 53.9, 50.4, 45.4. HRMS (ESI-FTMS Mass (m/z): calcd for C23H23N5O4 [M + H]+ = 434.1823, found 434.1819.
4-[1-(4-carboxyphenyl)-4-[(E)-(4-cyclopentylpiperazin-1-yl)iminomethyl]pyrazol-3-yl]benzoic acid (8). Yellow solid (457 mg, 94%). 1H NMR, 300 MHz (DMSO-d6): 8.83 (s, 1H), 8.11–8.04 (m, 6H), 7.89 (d, J = 8. 1 Hz, 2H), 7.62 (s, 1H), 3.08 (s, 4H), 2.60 (s, 4H), 2.50 (s, 1H), 1.79 (s, 2H), 1.59–1.34 (m, 6H), 13C NMR (75 MHz, DMSO-d6) δ = 167.6, 167.1, 150.3, 142.4, 136.9, 131.3, 131.0, 130.1, 129.3, 128.6, 127.5, 127.0, 120.4, 118.5, 66.8, 51.2, 51.0, 30.3, 24.1. HRMS (ESI-FTMS Mass (m/z): calcd for C27H29N5O4 [M + H]+ = 488.2292, found 488.2301.
4-[1-(4-carboxyphenyl)-4-[(E)-(diphenylhydrazono)methyl]pyrazol-3-yl]benzoic acid (9). Yellow solid (446 mg, 89%). 1H NMR, 300 MHz (DMSO-d6): δ 9.12 (s, 1H), 8.14–8.06 (m, 4H), 7.97 (d, J = 8.1 Hz, 2H), 7.70 (d, J = 8.1 Hz, 2H), 7.44 (t, J = 7.8 Hz, 4H), 7.28–7.14 (m, 7H); 13C NMR (75 MHz, DMSO-d6) δ = 167.4, 167.0, 150.5, 143.2, 142.4, 136.9, 131.3, 130.9, 130.4, 129.8, 129.1, 128.6, 128.0, 127.8, 125.0, 122.5, 119.5, 118.5. HRMS (ESI-FTMS Mass (m/z): calcd for C30H22N4O4 [M + H]+ = 503.1714, found 503.1713.
4-[4-[(E)-[benzyl(phenyl)hydrazono]methyl]-1-(4-carboxyphenyl)pyrazol-3-yl]benzoic acid (10). Yellow solid (464 mg, 90%). (1H NMR, 300 MHz (DMSO-d6): δ 9.04 (s, 1H), 8.10–8.07 (m, 4H), 7.87 (d, J = 8.0 Hz, 2H), 7.47–7.35 (m, 9H), 7.30 (t, J = 7.9 Hz, 1H), 7.21 (d, J = 7.1 Hz, 2H), 6.91 (t, J = 7.2 Hz, 1H), 5.30 (s, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 168.0, 167.7, 150.3, 147.7, 142.0, 136.5, 136.1, 132.5, 131.2, 130.0, 129.5, 129.3, 127.9, 127.5, 126.8, 126.6, 125.8, 120.5, 120.0, 118.4, 114.7, 48.9. HRMS (ESI-FTMS Mass (m/z): calcd for C31H24N4O4 [M + H]+ = 517.1870, found 517.1878.
4-[1-(4-carboxyphenyl)-4-[(E)-(dibenzylhydrazono)methyl]pyrazol-3-yl]benzoic acid (11). Yellow solid (487 mg, 92%). 1H NMR, 300 MHz (DMSO-d6): 8.79 (s, 1H), 8.11–8.03 (m, 4H), 7.82 (d, J = 8.1 Hz, 2H), 7.39–7.21 (m, 12H), 7.08 (s, 1H), 4.56 (s, 4H); 13C NMR (75 MHz DMSO-d6): 167.4, 167.1, 149.6, 142.5, 138.3, 136.8, 131.3, 130.4, 129.9, 129.0, 128.6, 127.9, 127.8, 127.5, 125.9, 123.9, 120.6, 118.5, 58.1. HRMS (ESI-FTMS Mass (m/z): calcd for C32H26N4O4 [M + H]+ = 531.2027, found 531.2031.
4-[1-(4-carboxyphenyl)-4-[(E)-[ethyl(phenyl)hydrazono]methyl]pyrazol-3-yl]benzoic acid (12). Yellow solid (399 mg, 88%). 1H NMR, 300 MHz (DMSO-d6): 9.04 (s, 1H), 8.17–8.07 (m, 6H), 7.91 (m, 2H), 7.69 (s, 1H), 7.32–7.21 (m, 4H), 6.85 (t, 1H), 4.02 (q, J = 6.5 Hz, 2H), 1.13 (t, J = 6.6 Hz, 3H); 13C NMR (75 MHz DMSO-d6): 167.5, 167.1, 150.4, 146.5, 142.5, 137.3, 131.3, 130.8, 130.1, 129.4, 128.9, 128.8, 127.3, 123.7, 120.8, 120.1, 118.5, 114.4, 38.7, 9.9. HRMS (ESI-FTMS Mass (m/z): calcd for C26H22N4O4 [M + H]+ = 455.1714, found 455.1720.
4-[4-[(E)-[butyl(phenyl)hydrazono]methyl]-1-(4-carboxyphenyl)pyrazol-3-yl]benzoic acid (13). Yellow solid (428 mg, 89%). 1H NMR, 300 MHz (DMSO-d6): 9.06 (s, 1H), 8.17–8.05 (m, 6H), 7.89 (d, J = 8.2 Hz, 2H), 7.65 (s, 1H), 7.33–7.21 (m, 4H), 6.84 (t, J = 6.9 Hz, 1H), 3.92 (s, 2H), 1.55–1.53 (m, 2H), 1.42–1.34 (m, 2H), 0.93 (t, J = 7.1 Hz, 3H); 13C NMR (75 MHz DMSO-d6): 167.5, 167.1, 150.4, 146.9, 142.5, 137.2, 131.3, 130.8, 130.0, 129.3, 128.9, 128.7, 127.1, 123.7, 120.7, 120.1, 118.5, 114.4, 43.9, 26.4, 20.0, 14.2. HRMS (ESI-FTMS Mass (m/z): calcd for C28H26N4O4 [M + H]+ = 483.2027, found 483.2027.
4-[1-(4-carboxyphenyl)-4-[(E)-[methyl(m-tolyl)hydrazono]methyl]pyrazol-3-yl]benzoic acid (14). Yellow solid (408 mg, 90%). 1H NMR (300 MHz DMSO-d6): δ 9.00 (s, 1H), 8.15–8.06 (m, 6H), 7.94 (d, J = 8.1 Hz, 2H), 7.64 (s, 1H), 7.13–7.09 (m, 3H), 6.66 (s, 1H), 3.37 (s, 3H), 2.25 (s, 3H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 150.3, 147.6, 142.5, 138.4, 137.4, 131.4, 130.7, 130.1, 129.1, 128.9, 128.8, 127.6, 124.3, 121.2, 120.7, 118.5, 115.5, 112.2, 32.9, 21.9. HRMS (ESI-FTMS Mass (m/z): calcd for C26H22N4O4 [M + H]+ = 455.1714, found 455.1720.
4-[1-(4-carboxyphenyl)-4-[(E)-[ethyl(p-tolyl)hydrazono]methyl]pyrazol-3-yl]benzoic acid (15). Yellow solid (411 mg, 88%). 1H NMR, 300 MHz (DMSO-d6): δ 9.01 (s, 1H), 8.18–8.06 (m, 6H), 7.90 (d, J = 8.1 Hz, 2H), 7.63 (s, 1H), 7.20 (d, J = 8.3 Hz, 2H), 7.05 (d, J = 8.3 Hz, 2H), 3.98 (q, J = 6.4 Hz, 2H), 2.23 (s, 3H), 1.11 (t, J = 6.3 Hz, 3H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 150.3, 144.4, 142.6, 137.3, 131.3, 130.7, 130.1, 129.8, 128.9, 128.8, 128.7, 127.2, 123.0, 120.9, 118.5, 114.6, 20.5, 9.9. HRMS (ESI-FTMS Mass (m/z): calcd for C27H24N4O4 [M + H]+ = 469.1870, found 469.1872.
4,4′-(4-{(E)-[2-(2-fluorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (16). Brownish solid (346 mg, 78%). 1H NMR, 300 MHz (DMSO-d6): δ 10.52 (s, 1H), 9.12 (s, 1H), 8.16–8.07 (m, 6H), 7.99 (s, 1H), 7.90 (d, J = 8.1 Hz, 2H), 7.22–7.15 (m, 1H), 6.86 (d, J = 11.7 Hz, 1H), 6.73 (d, J = 8.1 Hz, 1H), 6.49 (t, J = 6.7 Hz, 1H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 163.8 (1JC-F = 238.8 Hz), 150.4, 147.7 (3JC-F = 11.1 Hz), 142.4, 136.9, 131.3, 131.03 (d, 3JC-F = 10.0 Hz), 131.0, 130.1, 130.0, 129.1, 128.8, 127.7, 119.6, 118.6, 108.4, 104.5 (3JC-F = 21.2 Hz), 98.9 (3JC-F = 26.0 Hz). HRMS (ESI-FTMS Mass (m/z): calcd for C24H17FN4O4 [M + H]+ = 445.1307, found 445.1309.
4,4′-(4-{(E)-[2-(3-fluorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (17). Brownish solid (346 mg, 78%). 1H NMR, 300 MHz (DMSO-d6): δ 10.47 (s, 1H), 9.08 (s, 1H), 8.15–7.90 (m, 4H), 7.97 (s, 1H), 7.75 (d, J = 7.4 Hz, 2H), 7.55–7.48 (m, 2H), 7.19 (q, J = 6.8 Hz, 1H), 6.88 (d, J = 11.7 Hz, 1H), 6.74 (d, J = 8.0 Hz, 1H), 6.49 (t, J = 8.3 Hz, 1H); 13C NMR (75 MHz, DMSO-d6) δ = 167.1, 163.9 (d, 1J =238.6 Hz), 151.6, 147.8 (d, 3J = 11.1 Hz), 142.6, 132.7, 131.3, 131.0 (d, 3J = 10.1 Hz), 130.4, 129.0, 128.8, 127.2, 119.2, 118.9, 118.4, 108.4, 105.0 (2J = 20.5), 104.7, 98.8 (d, 2J = 26.1 Hz). HRMS (ESI-FTMS Mass (m/z): calcd for C24H17FN4O4 [M + H]+ = 445.1307, found 445.1310.
4,4′-(4-{(E)-[2-(4-chlorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (18). Brownish solid (349 mg, 76%). 1H NMR, 300 MHz (DMSO-d6): δ 10.42 (s, 1H), 9.07 (s, 1H), 8.16–8.07 (m, 6H), 7.98 (s, 1H), 7.90 (d, J = 8.2 Hz, 2H), 7.22 (d, J = 8.7 Hz, 2H), 7.02 (d, J = 8.7 Hz, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 150.4, 144.6, 142.4, 136.9, 131.3, 131.0, 130.0, 129.8, 129.7, 128.8, 127.5, 122.1, 119.7, 118.6, 113.6. HRMS (ESI-FTMS Mass (m/z): calcd for C24H17ClN4O4 [M + H]+ = 461.1011, found 461.1008.
4,4′-(4-{(E)-[2-(3-bromophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (19). Brownish solid (388 mg, 77%). 1H NMR, 300 MHz (DMSO-d6): δ 10.47 (s, 1H), 9.22 (s, 1H), 8.15–8.08 (m, 2H), 7.99 (s, 1H), 7.91 (d, J = 8.3 Hz, 2H), 7.21–7.20 (m, 1H), 7.11 (t, J = 7.9 Hz, 1H), 6.91–6.84 (m, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 150.5, 147.2, 142.4, 136.9, 131.3, 131.1, 130.9, 130.5, 130.0, 129.3, 128.9, 127.9, 123.0, 121.2, 119.5, 118.6, 114.3, 111.3. HRMS (ESI-FTMS Mass (m/z): calcd for C24H17BrN4O4 [M + H]+ = 505.0506, found 505.0512.
4,4′-(4-{(E)-[2-(2,5-difluorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (20). Brownish solid (337 mg, 73%). 1H NMR, 300 MHz (DMSO-d6): δ 10.42 (s, 1H), 9.18 (s, 1H), 8.33 (s, 1H), 8.17–8.07 (m, 6H), 7.89 (d, J = 8.2 Hz, 2H), 7.25–7.10 (m, 2H), 6.52–6.47 (m, 1H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 160.1 (1JC-F = 236.4 Hz), 150.6, 145.5 (d, J = 234.9 Hz), 142.4, 136.8, 135.3-135.1 (m), 133.2, 131.3, 131.1, 130.0, 129.3, 128.8, 127.9, 119.4, 118.6, 118.6-116.1 (m), 104.0 (2,3JC-F = 25.0, 7.5 Hz), 100.8 (2JC-F = 30.4 Hz). HRMS (ESI-FTMS Mass (m/z): calcd for C24H16F2N4O4 [M + H]+ = 463.1212, found 463.1214.
4,4′-(4-{(E)-[2-(2,4-dichlorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (21). Brownish solid (376 mg, 76%). 1H NMR, 300 MHz (DMSO-d6): δ 10.04 (s, 1H), 9.11 (s, 1H), 8.47 (s, 1H), 8.16–8.08 (m, 6H), 7.88 (d, J = 8.1 Hz, 2H), 7.54 (d, J = 8.8 Hz, 1H), 7.43 (d, J = 2.0 Hz, 1H), 7.25 (d, J = 8.8 Hz, 1H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 150.7, 142.4, 141.0, 136.7, 133.7, 131.3, 131.1, 130.0, 129.3, 128.9, 128.7, 128.2, 127.6, 122.3, 119.5, 118.6, 116.7, 115.3. HRMS (ESI-FTMS Mass (m/z): calcd for C24H16Cl2N4O4 [M + H]+ = 495.0621, found 495.0618.
4-[1-(4-carboxyphenyl)-4-[(E)-[(3-chloro-2-fluoro-phenyl)hydrazono]methyl]pyrazol-3-yl]benzoic acid (22). Brownish solid (358 mg, 75%). 1H NMR, 300 MHz (DMSO-d6): δ 10.40 (s, 1H), 9.09 (s, 1H), 8.32 (s, 1H), 8.11–8.07 (m, 6H), 7.88 (s, J = 7.8 Hz, 2H), 7.43 (t, J = 7.6 Hz, 1H), 7.05 (t, J = 7.7 Hz, 1H), 6.85 (t, J = 6.4 Hz, 1H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 150.6, 144.7 (d, 1J = 235.8 Hz), 142.4, 136.8, 135.3 (d, 3J = 9.2), 133.2, 131.3, 131.1, 130.0, 129.3, 128.8, 127.7, 125.8 (d, J = 3.5 Hz), 119.9 (d, 2J = 14.2 Hz), 119.4, 118.8, 118.6, 113.0. HRMS (ESI-FTMS Mass (m/z): calcd for C24H16ClFN4O4 [M + H]+ = 479.0917, found 479.0920.
4,4′-(4-{(E)-[2-(3-chloro-4-fluorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (23). Brownish solid (368 mg, 77%). 1H NMR, 300 MHz (DMSO-d6): δ 10.83 (br s, 1H), 9.05 (s, 1H), 8.10–8.98 (m, 7H), 7.81 (d, J = 8.1 Hz, 2H), 7.25–7.19 (m, 2H), 6.98–6.94 (m, 1H); 13C NMR (75 MHz, DMSO-d6) δ = 168.8, 168.4, 150.7, 151.1 (1JC-F = 234.6 Hz), 150.7, 143.4, 141.2, 135.8, 135.1, 134.0, 131.0, 129.9, 128.2, 127.1, 120.3 (2JC-F = 18.2 Hz), 119.2, 118.1, 117.6 (2JC-F = 22.1 Hz), 112.6, 111.9. HRMS (ESI-FTMS Mass (m/z): calcd for C24H16ClFN4O4 [M + H]+ = 479.0917, found 479.0919.
4,4′-(4-{(E)-[2-(2,3,5,6-tetrafluorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (24). Brownish solid (398 mg, 80%). 1H NMR, 300 MHz (DMSO-d6): δ 10.38 (s, 1H), 8.81 (s, 1H), 8.36 (s, 1H), 8.05–7.98 (m, 6H), 7.81 (d, J = 6.9 Hz, 2H), 7.25–7.13 (m, 1H); 13C NMR (75 MHz, DMSO-d6) δ = 168.4, 168.1, 157.5, 151.0, 140.9, 138.5, 136.1, 135.8, 134.7, 131.0, 129.8, 128.2, 127.2, 118.3, 95.7 (2JC-F = 25.0 Hz). HRMS (ESI-FTMS Mass (m/z): calcd for C24H14F4N4O4 [M + H]+ = 499.1024, found 499.1021.
4,4′-(4-{(E)-[2-(2,3,4,5,6-pentafluorophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (25). Brownish solid (423 mg, 82%). 1H NMR, 300 MHz (DMSO-d6): δ 10.13 (br s, 1H), 8.72 (s, 1H), 8.21 (s, 1H), 8.01 (s, 7H), 7.84–7.81 (m, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.6, 167.2, 150.5, 142.1, 139.9–139.7 (m), 138.9, 136.4, 135.5, 135.3, 131.2, 129.8, 129.6–129.2 (m), 129.4, 128.6, 127.4, 121.6, 118.7, 118.5. HRMS (ESI-FTMS Mass (m/z): calcd for C24H13F5N4O4 [M + H]+ = 517.0930, found 517.0932.
4,4′-(4-{(E)-[2-(4-trifluoromethylphenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (26). Brownish solid (370 mg, 75%). 1H NMR, 300 MHz (DMSO-d6): δ 10.78 (s, 1H), 9.07 (s, 1H), 8.14–8.07 (m, 8H), 7.90 (d, J = 8.3 Hz, 2H), 7.48 (d, J = 8.6 Hz, 2H), 7.13 (d, J = 8.5 Hz, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.5, 167.1, 150.6, 148.6, 142.4, 136.8, 131.5, 131.3, 131.0, 130.0, 129.1, 128.8, 127.8, 126.7, 123.6, 119.4, 118.6, 111.8. HRMS (ESI-FTMS Mass (m/z): calcd for C25H17F3N4O4 [M + H]+ = 495.1275, found 495.1272.
4-[1-(4-carboxyphenyl)-4-[(E)-[(4-cyanophenyl)hydrazono]methyl]pyrazol-3-yl]benzoic acid (27). Brownish solid (342 mg, 76%). 1H NMR, 300 MHz (DMSO-d6): δ 10.92 (s, 1H), 9.12 (s, 1H), 8.16–8.07 (m, 8H), 7.90 (d, J = 8.3 Hz, 2H), 7.59 (d, J = 8.7 Hz, 2H), 7.10 (d, J = 8.6 Hz, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.4, 167.0, 150.7, 148.9, 142.4, 136.8, 134.0, 132.6, 131.4, 131.1, 130.0, 129.2, 128.8, 128.0, 120.5, 119.2, 118.7, 112.4, 99.5. HRMS (ESI-FTMS Mass (m/z): calcd for C25H17N5O4 [M + H]+ = 452.1353, found 452.1360.
4,4′-(4-{(E)-[2-(4-corboxyphenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (28). Brownish solid (347 mg, 74%). 1H NMR, 300 MHz (DMSO-d6): δ 12.8 (br s, 3H), 10.77 (s, 1H), 9.12 (s, 1H), 8.17–8.07 (m, 8H), 7.91 (s, 1H), 7.79–7.77 (d, J = 8.58 Hz, 2H), 7.05 (d, J = 8.4 Hz, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.7, 167.5, 167.1, 150.6, 149.1, 142.4, 136.9, 131.5, 131.4, 131.0, 130.0, 129.9, 129.1, 129.0, 128.9, 120.5, 119.4, 118.6, 111.4. HRMS (ESI-FTMS Mass (m/z): calcd for C25H18N4O6 [M + H]+ = 471.1299, found 471.1299.
4,4′-(4-{(E)-[2-(4-nitrophenyl)hydrazinylidene]methyl}-1H-pyrazole-1,3-diyl)dibenzoic acid (29). Reddish solid (372 mg, 79%). 1H NMR, 300 MHz (DMSO-d6): δ 11.31 (s, 1H), 9.17 (s, 1H), 8.15–8.08 (m, 9H), 7.89 (d, J = 8.0 Hz, 2H), 7.10 (d, J = 8.4 Hz, 2H); 13C NMR (75 MHz, DMSO-d6) δ = 167.7, 167.2, 151.0, 150.9, 142.2, 138.5, 136.5, 134.6, 131.6, 131.3, 130.0, 129.8, 128.8, 128.3, 126.5, 118.9, 118.7, 111.5. HRMS (ESI-FTMS Mass (m/z): calcd for C24H17N5O6 [M + H]+ = 472.1252, found 472.1250.
All the Spectra can be seen in the Supplementary File.

2.2. In Vitro and In Vivo Toxicity

Synthesized molecules were tested for their possible toxicity to human cell lines. These compounds did not show any noticeable growth inhibition for the NCI-60 cancer cell lines at 10 μM concentration. Furthermore, compounds showing activity against A. baumannii were tested for their possible toxicity against human embryonic kidney (HEK293) cell line and they did not show any significant toxicity up to 50 µg/mL concentration.
After finding the benign nature of potent compounds against human cell lines, we tested the most potent compound 18 for any toxic in vivo effect on mice (Figure 2). We chose the doses of 20 and 50 mg/kg, which were used in our previous studies [20]. In vivo effects of a single IP injection of the compound were assessed by 14 different parameters for organs’ functions as described in Methods section and shown in Figure 2. This measurement clearly showed that none of the organ function markers indicated a toxicity by the used criteria. The majority of blood tests after the compound 18 administration showed no significant difference from control samples, and all except one of them were within the normal ranges. In particular, a normal concentration of albumin indicated no harm to the liver and kidneys. Unaffected blood urea nitrogen, creatinine, sodium, potassium levels indicated no harm to the kidneys of the treated animals. A normal concentration of amylase indicated that this potent anti-A baumannii agent did not adversely affect the pancreas. A normal alkaline phosphatase (ALP) level in blood is a key indicator of a healthy liver and bones. This compound treatment showed a slightly lower level of ALP but within the normal range. Normal alanine transaminase (ALT), and glucose levels at 20 mg/kg treatment further confirm the tolerance of this compound by the liver. Although a slight elevation of glucose was observed at 50 mg/kg dose, liver injury was not confirmed by other liver injury markers, such as total bilirubin, ALP, and ALT. Glucose level is very labile and it changes constantly during the day depending, for example, on food consumption. Calcium and phosphorus levels indicated the normal function of several organs such as liver, kidney, and bones. Unaffected total protein and globulin levels indicate healthy liver and kidney, and immune system respectively. Thus, this narrow-spectrum antibiotic is non-toxic in therapeutic doses, and seems to be very safe for further drug development. Future studies may need to focus on the development of a final pharmaceutical product. For this, additional tests would be needed to detect pharmacological responses through absorption, distribution, metabolism and excretion studies. All those will need to be done prior to Phase I testing in humans.

2.3. Calculated Physicochemical Properties

We calculated the physicochemical properties of the most potent compound 18 by using a free online software, SwissADME (http://www.swissadme.ch/index.php). The n-octanol/water partition coefficient (ilogP) value for this potent molecule is 2.67, which is within the optimum range [21]. The Topological Total Surface Area (TPSA) is 116.81 A°, which should allow good passive transport across the cell membrane. There is no violation of Lipinski’s rule of five and zero alert for PAINS. All these favorable parameters and very good biological activities indicate the suitability of the molecule 18 for further antibiotic development.

3. Materials and Methods

General Consideration

All the products were obtained by reactions carried out in round-bottom flasks under an air atmosphere. Reagents, solvents, and substrates were purchased from Oakwood Chemical (Estill, SC, USA) and Fisher Scientific (Hanover Park, IL, USA.). 1H and 13C spectra were recorded with a Varian Mercury −300 MHz and 75 MHz respectively in DMSO-d6 solvent with TMS as internal standard. ESI-FTMS mass spectra were recorded in Brucker Apex II-FTMS system. Growth media and bacterial broth were purchased from Fisher Scientific, ATCC, and ATCCHardy Diagnostics (Santa Maria, CA, USA).
Synthesis of pyrazole aldehyde (4): A mixture of 4-actylbenzoic acid (2, 1.64 g, 10 mmol) and 4-hydrazinobenzoic acid (1, 1.980 g, 10.5 mmol) in ethanol was refluxed for 8 h and ethanol was removed by evaporation following drying in vacuo to get the hydrazone intermediate (3), which was subjected to further reaction without purification. The hydrazone derivative (3) was dissolved in N,N-dimethylformamide (30 mL), and cooled under ice for ~15 min followed by the dropwise addition of phosphorous oxychloride (POCl3, 4.67 mL, 50 mmol). The reaction mixture was stirred under ice for 30 min, and heated to 80 °C for 12 h. The reaction mixture was poured onto ice and the aqueous mixture was stirred for 12 h. The solid product was filtered by gravity filtration and washed repeatedly with water followed by drying under vacuum to get the pure product (4).
Synthesis of hydrazones (4–29): A mixture of aldehyde (4, 336 mg, 1 mmol) and the hydrazine derivative (1.05 mmol) and sodium acetate (86 mg, 1.05 mmol) in case of the hydrochloride salt of the hydrazine derivatives in anhydrous ethanol was refluxed for 8 h. Water was added in the mixture and the solid product was filtered followed by washing with water and ethanol to get the pure products for biological studies.
Culturing of Bacteria: Tryptic soy agar (TSA) slants were used to maintain bacterial cultures. Cation-Adjusted Mueller Hinton Broth (CAMHB) was used to grow bacteria in liquid culture including 96-well plates for minimum inhibition concentration (MIC) testing and phosphate-buffered saline (PBS) was used to make bacterial dilutions.
MIC studies: The MICs of potent compounds were determined by using the broth microdilution method following the Clinical and Laboratory Standards Institute (CLSI) guidelines. The starting concentration of compounds was 50 μg/mL with two-fold serial dilutions below for MIC determination. The MIC values were measured in three independent experiments on different days with fresh bacterial culture and confirmed with at least duplicate occurrence. The concentration of compound in diluent dimethyl sulfoxide (DMSO) was maintained at 2.5%, which is below the cytotoxicity level for bacteria.
In vitro Cytotoxicity Studies: Cytotoxicity of compounds against human embryonic (HEK293) kidney cell line and NCI-60 cancer cell lines were performed in 96-well black plate using resazurin cell viability assay. Cells (4000 per well) were plated in Eagle’s Minimum Essential Medium (EMEM) with 10% Fetal Bovine Serum (FBS) and incubated at 37 °C in the presence of 5% carbon dioxide for 24 h. After incubation, test compounds at different concentrations were added to each well and placed in 96-well plate shaker for 5 min for proper mixing of compounds. The plate was re-incubated for 24 h. After the second incubation, 40 µL resazurin (0.15 mg/mL, w/v) was added in each well and mixed gently by pipetting. The plate was incubated for 4 additional hours and plate reading was conducted using Bio TekTM CytationTM5 plate reader with excitation at 560 nm and emission at 590 nm. Data were processed in Microsoft Excel® for Office 365 MSO.
In Vivo Toxicity Studies: All animal experiments were performed at the Central Arkansas Veterans Healthcare System (John L. McClellan Memorial Veterans Hospital in Little Rock, AR) and have been approved by the Institutional Animal Care and Use Committee. CD-1 male mice (8 weeks old, 33–37 g) were purchased from Charles River Laboratories (Wilmington, MA). The test compound 18 was freshly dissolved in 0.9% saline, sterilized by ultrafiltration, and injected intraperitoneally (IP) in mice at two doses of 20 or 50 mg/kg (n = 5 per dose). The two additional control groups (n = 5/group) were untreated or administered with the vehicle (saline). The mice were euthanized 24 h after the injection, and blood was collected by cardiac puncture. Toxicity was assessed by measuring 14 blood markers of various organ function available in the Comprehensive Diagnosis Kit (Abaxis, Union City, CA, USA) and using VetScan VS2 instrument (Abaxis). The markers included: alanine aminotransferase (ALT), albumin (ALB), alkaline phosphatase (ALP), amylase (AMY), calcium (CA), creatinine (CRE), globulin (GLOB), glucose (GLU), phosphorus (PHOS), potassium (K+), sodium (NA+), total bilirubin (TBIL), total protein (TP), and blood urea nitrogen (BUN). Our criterium for toxicity was the combination of: (a) measurements being beyond the normal ranges, (b) statistically significantly difference from the untreated and vehicle (saline) controls, and (c) consistency between several functional markers of the same organ.

4. Conclusions

We reported the synthesis of 25 novel pyrazole compounds. They were synthesized efficiently by using readily available starting materials and benign conditions. Column purification was not required to get pure products. The molecules were tested against both Gram-positive and Gram-negative bacteria and found to be potent and specific inhibitors of A. baumannii at low concentrations. These molecules are non-toxic in in vitro and in vivo studies. Thus, these potent compounds with very good selectivity factor could be pursued for further drug development as narrow-spectrum antibiotics. Mode of action and further antimicrobial studies are going on and will be reported elsewhere.

5. Patents

Alam, M. A. Antimicrobial agents and the method of synthesizing the antimicrobial agents.
US Patent. 10,596,153, 2020.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-6382/9/10/650/s1, Supplement File:1H and 13C NMR spectra.

Author Contributions

Conceptualization, M.A.A. and D.F.G.; methodology, E.D., D.A., H.R.K. and T.F.; resources, M.A.A., D.G. and A.G.B.; writing—original draft preparation, M.A.A.; writing—review and editing, D.F.G., supervision, M.A.A., D.F.G. and A.G.B.; funding acquisition, M.A.A., D.F.G. and A.G.B. All authors have read and agreed to the published version of the manuscript.

Funding

“This research was funded by National Institute of General Medical Sciences (NIGMS), grant number P20 GM103429” and “The APC was funded by P20 GM103429, 2I01BX002425, and P20 GM109005”.

Acknowledgments

This manuscript was made possible by the Research Technology Core of the Arkansas INBRE program, supported by a grant from the National Institute of General Medical Sciences, (NIGMS), P20 GM103429 from the National Institutes of Health to record the Mass Spectrometry data and grants 2I01BX002425 and P20 GM109005 to perform in vivo toxicity study. This publication was made possible by the Arkansas INBRE Summer Research Grant, supported by a grant from the National Institute of General Medical Sciences, (NIGMS), P20 GM103429 from the National Institutes of Health.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Spellberg, B.; Guidos, R.; Gilbert, D.; Bradley, J.; Boucher, H.W.; Scheld, W.M.; Bartlett, J.G.; Edwards, J., Jr.; Infectious Diseases Society of Amercia. The epidemic of antibiotic-resistant infections: A call to action for the medical community from the Infectious Diseases Society of America. Clin. Infect. Dis. 2008, 46, 155–164. [Google Scholar] [CrossRef] [PubMed]
  2. Marsit, H.; Koubaa, M.; Gargouri, M.; Ben Jemaa, T.; Gaddour, H.; Kotti, F.; Sammoudi, A.; Turki, M.; Ben Jemaa, M. Hospital-acquired infections due to multidrug resistant Acinetobacter baumannii: How challenging is the management? Fund. Clin. Pharmacol. 2016, 30, 87. [Google Scholar]
  3. Pomba, C.; Endimiani, A.; Rossano, A.; Saial, D.; Couto, N.; Perreten, V. First Report of OXA-23-Mediated Carbapenem Resistance in Sequence Type 2 Multidrug-Resistant Acinetobacter baumannii Associated with Urinary Tract Infection in a Cat. Antimicrob. Agents Chemother. 2014, 58, 1267–1268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Biderman, P.; Bugaevsky, Y.; Ben-Zvi, H.; Bishara, J.; Goldberg, E. Multidrug-resistant Acinetobacter baumannii infections in lung transplant patients in the cardiothoracic intensive care unit. Clin. Transplant. 2015, 29, 756–762. [Google Scholar] [CrossRef] [PubMed]
  5. Guo, N.H.; Xue, W.C.; Tang, D.H.; Ding, J.Y.; Zhao, B. Risk factors and outcomes of hospitalized patients with blood infections caused by multidrug-resistant Acinetobacter baumannii complex in a hospital of Northern China. Am. J. Infect. Control. 2016, 44, E37–E39. [Google Scholar] [CrossRef]
  6. Weber, B.S.; Harding, C.M.; Feldman, M.F. Pathogenic Acinetobacter: From the Cell Surface to Infinity and Beyond. J. Bacteriol. 2015, 198, 880–887. [Google Scholar] [CrossRef] [Green Version]
  7. Inchai, J.; Liwsrisakun, C.; Theerakittikul, T.; Chaiwarith, R.; Khositsakulchai, W.; Pothirat, C. Risk factors of multidrug-resistant, extensively drug-resistant and pandrug-resistant Acinetobacter baumannii ventilator-associated pneumonia in a Medical Intensive Care Unit of University Hospital in Thailand. J. Infect. Chemother. 2015, 21, 570–574. [Google Scholar] [CrossRef]
  8. Vourli, S.; Frantzeskaki, F.; Meletiadis, J.; Stournara, L.; Armaganidis, A.; Zerva, L.; Dimopoulos, G. Synergistic interactions between colistin and meropenem against extensively drug-resistant and pandrug-resistant Acinetobacter baumannii isolated from ICU patients. Int. J. Antimicrob. Agents 2015, 45, 670–671. [Google Scholar] [CrossRef]
  9. Smani, Y.; Dominguez-Herrera, J.; Pachon, J. Rifampin Protects Human Lung Epithelial Cells Against Cytotoxicity Induced by Clinical Multi and Pandrug-resistant Acinetobacter baumannii. J. Infect. Dis. 2011, 203, 1110–1119. [Google Scholar] [CrossRef]
  10. WHO. Global Priority List of Antibiotic-Resistant Bacteria to Guide Research, Discovery, and Development of New Antibiotics. Available online: http://www.who.int/medicines/publications/global-priority-list-antibiotic-resistant-bacteria/en/ (accessed on 28 February 2017).
  11. Willyard, C. The drug-resistant bacteria that pose the greatest health threats. Nature 2017, 543, 15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Melander, R.J.; Zurawski, D.V.; Melander, C. Narrow-Spectrum Antibacterial Agents. Med. Chem. Commun. 2018, 9, 12–21. [Google Scholar] [CrossRef] [PubMed]
  13. Alam, M.A. Antimicrobial agents and the method of synthesizing the antimicrobial agents. US Patent 10,596,153, 24 March 2020. [Google Scholar]
  14. Brider, J.; Rowe, T.; Gibler, D.J.; Gottsponer, A.; Delancey, E.; Branscum, M.D.; Ontko, A.; Gilmore, D.; Alam, M.A. Synthesis and antimicrobial studies of azomethine and N-arylamine derivatives of 4-(4-formyl-3-phenyl-1H-pyrazol-1-yl)benzoic acid as potent anti-methicillin-resistant Staphylococcus aureus agents. Med. Chem. Res. 2016, 25, 2691–2697. [Google Scholar] [CrossRef]
  15. Allison, D.; Delancey, E.; Ramey, H.; Williams, C.; Alsharif, Z.A.; Al-khattabi, H.; Ontko, A.; Gilmore, D.; Alam, M.A. Synthesis and antimicrobial studies of novel derivatives of 4-(4-formyl-3-phenyl-1H-pyrazol-1-yl)benzoic acid as potent anti-Acinetobacter baumannii agents. Bioorg. Med. Chem. Lett. 2017, 27, 387–392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Zakeyah, A.A.; Whitt, J.; Duke, C.; Gilmore, D.F.; Meeker, D.G.; Smeltzer, M.S.; Alam, M.A. Synthesis and antimicrobial studies of hydrazone derivatives of 4-[3-(2,4-difluorophenyl)-4-formyl-1H-pyrazol-1-yl]benzoic acid and 4-[3-(3,4-difluorophenyl)-4-formyl-1H-pyrazol-1-yl]benzoic acid. Bioorg. Med. Chem. Lett. 2018, 28, 2914–2919. [Google Scholar] [CrossRef]
  17. Whitt, J.; Duke, C.; Ali, M.A.; Chambers, S.A.; Khan, M.M.K.; Gilmore, D.; Alam, M.A. Synthesis and Antimicrobial Studies of 4-[3-(3-Fluorophenyl)-4-formyl-1H-pyrazol-1-yl]benzoic Acid and 4-[3-(4-Fluorophenyl)-4-formyl-1H-pyrazol-1-yl]benzoic Acid as Potent Growth Inhibitors of Drug-Resistant Bacteria. ACS Omega 2019, 4, 14284–14293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Alnufaie, R.; Alsup, N.; Kc, H.R.; Newman, M.; Whitt, J.; Chambers, S.A.; Gilmore, D.; Alam, M.A. Design and synthesis of 4-[4-formyl-3-(2-naphthyl)pyrazol-1-yl]benzoic acid derivatives as potent growth inhibitors of drug-resistant Staphylococcus aureus. J. Antibiot. 2020. [Google Scholar] [CrossRef] [PubMed]
  19. Alnufaie, R.; Raj KC, H.; Alsup, N.; Whitt, J.; Andrew Chambers, S.; Gilmore, D.; Alam, M.A. Synthesis and Antimicrobial Studies of Coumarin-Substituted Pyrazole Derivatives as Potent Anti-Staphylococcus aureus Agents. Molecules 2020, 25, 2758. [Google Scholar] [CrossRef] [PubMed]
  20. Whitt, J.; Duke, C.; Sumlin, A.; Chambers, S.A.; Alnufaie, R.; Gilmore, D.; Fite, T.; Basnakian, A.G.; Alam, M.A. Synthesis of Hydrazone Derivatives of 4-[4-Formyl-3-(2-oxochromen-3-yl)pyrazol-1-yl]benzoic acid as Potent Growth Inhibitors of Antibiotic-resistant Staphylococcus aureus and Acinetobacter baumannii. Molecules 2019, 24, 2051. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Daina, A.; Michielin, O.; Zoete, V. iLOGP: A Simple, Robust, and Efficient Description of n-Octanol/Water Partition Coefficient for Drug Design Using the GB/SA Approach. J. Chem. Inf. Model. 2014, 54, 3284–3301. [Google Scholar] [CrossRef] [PubMed]
Antibiotics 09 00650 g001 550

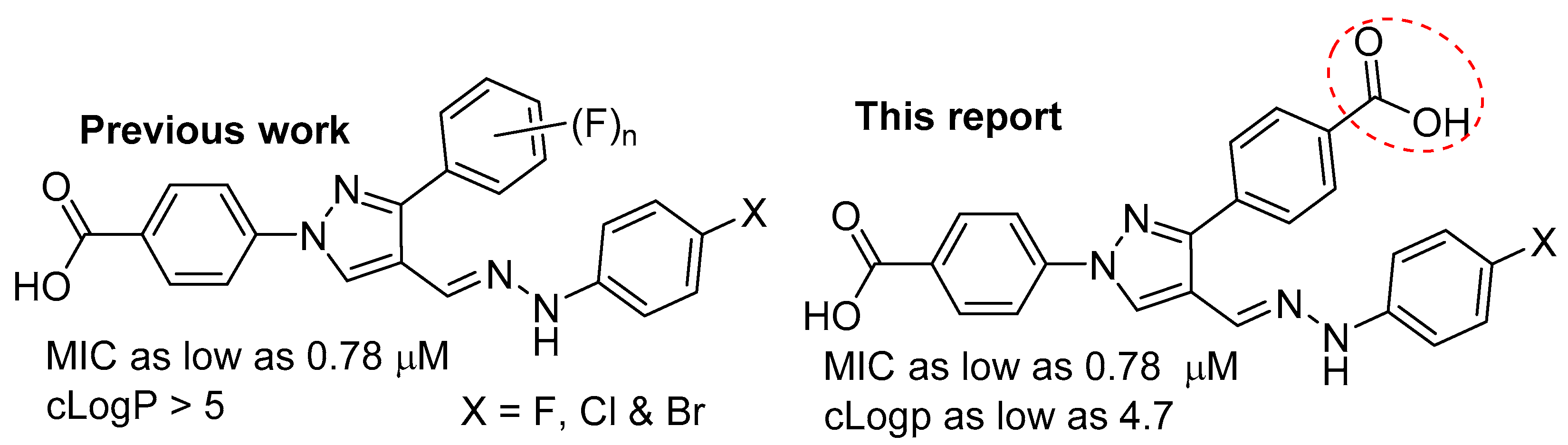

Figure 1. Pyrazole derived hydrazones as potent anti- Acinetobacter baumannii agents.
Figure 1. Pyrazole derived hydrazones as potent anti- Acinetobacter baumannii agents.
Antibiotics 09 00650 g001
Antibiotics 09 00650 sch001 550

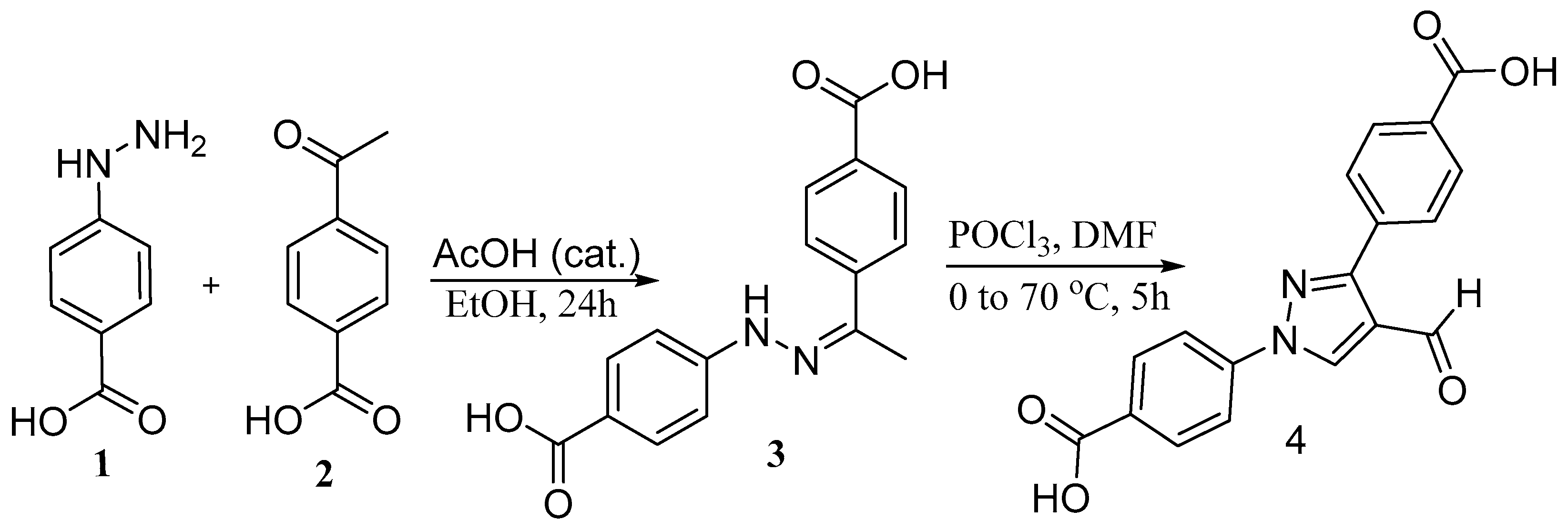

Scheme 1. Synthesis of pyrazole-derived aldehyde (4).
Scheme 1. Synthesis of pyrazole-derived aldehyde (4).
Antibiotics 09 00650 sch001
Antibiotics 09 00650 g002a 550Antibiotics 09 00650 g002b 550

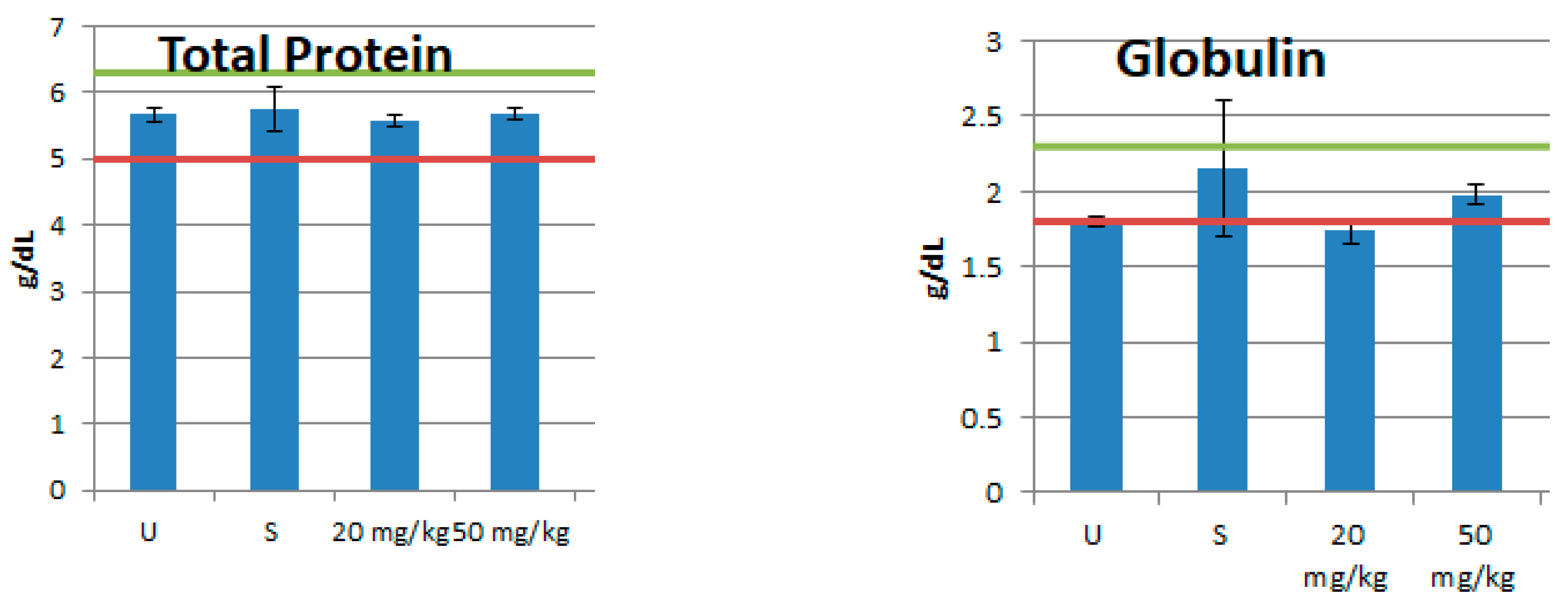

Figure 2. In vivo toxicity assessment of the compound 18. Two doses (20 and 50 mg/kg) were administered intraperitoneally (IP) in CD-1 mice (n = 5 for each dose). Blood samples were collected 24 h later and tested by 14 parameters for organ functions. The red and green lines indicate the normal ranges for the assays. U, untreated animals; S, animals injected with saline (vehicle control).
Figure 2. In vivo toxicity assessment of the compound 18. Two doses (20 and 50 mg/kg) were administered intraperitoneally (IP) in CD-1 mice (n = 5 for each dose). Blood samples were collected 24 h later and tested by 14 parameters for organ functions. The red and green lines indicate the normal ranges for the assays. U, untreated animals; S, animals injected with saline (vehicle control).
Antibiotics 09 00650 g002aAntibiotics 09 00650 g002b
Table
Table 1. Synthesis and antimicrobial activity of (pyrazole-1,3-diyl)dibenzoic acid substituted hydrazone derivatives.
Table 1. Synthesis and antimicrobial activity of (pyrazole-1,3-diyl)dibenzoic acid substituted hydrazone derivatives.
Antibiotics 09 00650 i001
Comps Antibiotics 09 00650 i027MIC (µg/mL)
SaBsEaAb6Ab5Ab7EcPa
5 Antibiotics 09 00650 i002NANANANANANANANA
6 Antibiotics 09 00650 i003NANANANANANANANA
7 Antibiotics 09 00650 i004NANANANANANANANA
8 Antibiotics 09 00650 i005NANANANANANANANA
9 Antibiotics 09 00650 i006NANANANANANANANA
10 Antibiotics 09 00650 i007NANANANANANANANA
11 Antibiotics 09 00650 i008NANANANANANANANA
12 Antibiotics 09 00650 i009NANANANANANANANA
13 Antibiotics 09 00650 i010NANANANANANANANA
14 Antibiotics 09 00650 i011NANANANANANANANA
15 Antibiotics 09 00650 i012NANANANANANANANA
16 Antibiotics 09 00650 i013NANANA3.125253.125NANA
17 Antibiotics 09 00650 i014NANANA1.563.1251.56NANA
18 Antibiotics 09 00650 i015NANANA0.783.1251.56NANA
19 Antibiotics 09 00650 i016NANANA3.125253.125NANA
20 Antibiotics 09 00650 i017NANANA3.1256.253.125NANA
21 Antibiotics 09 00650 i018NANANA3.1256.253.125NANA
22 Antibiotics 09 00650 i019NANANA6.256.253.125NANA
23 Antibiotics 09 00650 i020NANANA3.1256.253.125NANA
24 Antibiotics 09 00650 i021NANANA12.55025NANA
25 Antibiotics 09 00650 i022NANANANANANANANA
26 Antibiotics 09 00650 i023NANANANANANANANA
27 Antibiotics 09 00650 i024NANA NANANANANA
28 Antibiotics 09 00650 i025NANA NANANANANA
29 Antibiotics 09 00650 i026NANA NANANANANA
DMSONANA NANANANANA
Colistin 1.563.1250.78
Gram-positive bacteria: Staphylococcus aureus ATCC 25,923 (Sa) and Bacillus subtilis ATCC 6623 (Bs), Gram-negative bacteria: Enterobacter aerogenes ATCC 13048 (Ea), Escherichia coli ATCC 25922 (Ec), A. baumannii ATCC 19606, type strain (Ab6), A. baumannii ATCC BAA-1605 (Ab5), A. baumannii ATCC 747 (Ab7), Pseudomonas aeruginosa 27833 (Pa). and NA = no activity.
