Development of a High Throughput Screen for the Identification of Inhibitors of Peptidoglycan O-Acetyltransferases, New Potential Antibacterial Targets

Department of Molecular and Cellular Biology, University of Guelph, Guelph, ON N1G 2W1, Canada
Author to whom correspondence should be addressed.
Antibiotics 2019, 8(2), 65;
Submission received: 1 May 2019 / Revised: 22 May 2019 / Accepted: 22 May 2019 / Published: 27 May 2019
(This article belongs to the Special Issue Novel Strategies against Pathogenic Bacteria)


The O-acetylation of peptidoglycan occurs in many Gram-negative and most Gram-positive pathogens and this modification to the essential wall polymer controls the lytic activity of the autolysins, particularly the lytic transglycosylases, and inhibits that of the lysozymes of innate immunity systems. As such, the peptidoglycan O-acetyltransferases PatA/B and OatA are recognized as virulence factors. In this study, we present the high throughput screening of small compound libraries to identify the first known inhibitors of these enzymes. The fluorometric screening assay developed involved monitoring the respective O-acetyltransferases as esterases using 4-methylumbelliferylacetate as substrate. Pilot screens of 3921 compounds validated the usefulness of the HTS protocol. A number of potential inhibitors were identified amongst a total of 145,000 low molecular-weight compounds, some of which were common to both enzymes, while others were unique to each. After eliminating a number of false positives in secondary screens, dose response curves confirmed the apparent specificity of a benzothiazolyl-pyrazolo-pyridine as an inhibitor of Neisseria gonorrhoeae PatB, and several coumarin-based compounds as inhibitors of both this PatB and OatA from Staphylococcus aureus. The benzothiazolyl-pyrazolo-pyridine was determined to be a non-competitive inhibitor of PatB with a Ki of 126 µM. At 177 µg/mL and close to its solubility limit, this compound caused a 90% reduction in growth of N. gonorrhoeae, while growth of Escherichia coli, a bacterium that lacks PatB and, hence, does not produce O-acetylated peptidoglycan, was unaffected. These data provide preliminary proof of concept that peptidoglycan O-acetyltransferases would serve as useful antibacterial targets.

1. Introduction

Given its uniqueness to bacteria, together with its essential role in maintaining cell viability, the metabolism of peptidoglycan (PG) has been exploited, both naturally and clinically, as a prime target for antibacterial action. Thus, in addition to the clinical use of antibiotics that block PG biosynthesis, such as the β-lactams and vancomycin, the hydrolysis of PG represents the first line of defense against invading pathogens by the innate immune system. Specifically, lysozymes present in blood, the liver, in secretions such as milk, tears, urine, and saliva, at mucosal surfaces, and in phagocytes, including macrophages, neutrophils, and dendritic cells [1], act to hydrolyze the β-(1→4) linkage between the repeating N-acetylmuramoyl (MurNAc) and N-acetylglucosaminyl (GlcNAc) residues that constitute the glycan chains of PG. Such lysis leads to the rapid rupture of the invading bacteria, while the released PG fragments act as critical activators for further immune response [2,3]. This defensive action of lysozyme is effective against both Gram-positive and Gram-negative bacteria, despite the fact that the PG sacculus of the latter is covered by their outer membrane. Other factors of the innate immune system, such as defensins [4] and lactoferrin [5], serve to disrupt the outer membrane to facilitate exposure of PG to lysozyme. However, many pathogens protect themselves from lysozyme by chemically modifying their PG through O-acetylation.
PG O-acetylation occurs at the C-6 hydroxyl group of MurNAc residues within the sacculus. This modification sterically inhibits the productive binding of lysozyme [6] in a concentration dependent manner [7,8,9,10]. Both Gram-positive and Gram-negative bacteria produce O-acetyl-PG, but it appears to be predominant in pathogens. For example, only pathogenic species of Staphylococcus (including S. aureus) produce O-acetylated PG, and each is highly resistant to lysozyme. In contrast, all non-pathogenic species of the genus both lack this modification and they are lysozyme sensitive [11]. As a non-stoichiometric modification, the extent of PG O-acetylation varies with species and strain (typically ranging between 20% and 70% [12,13,14,15]) with the age of a bacterial culture [16] and differential state (e.g., vegetative cells vs. swarmers [17], or viable but not culturable [16]). The increased susceptibility of PG with decreased levels of O-acetylation to host lysozyme correlates directly with the decrease in pathogenicity of both Gram-positive (S. aureus [18,19], S. suis [20], Streptococcus iniae [21], E. faecalis [22], Listeria monocytogenes [23,24,25], Bacillus subtilis [26]) and Gram-negative (Helicobacter pylori [27], Neisseria gonorrhoeae [10,28] and N. meningitidis [29]) pathogens. In all cases, either the enzyme directly responsible for PG O-acetylation and/or its regulator(s) have been identified as a critical virulence factor [10,18,19,20,21,22,23,24,25,26,27,28,29].
In addition to providing increased resistance to lysozyme, PG O-acetylation increases resistance to β-lactam antibiotics [30] and controls endogenous autolytic activity associated with PG metabolism [14,31,32,33,34,35], including that required for cell septation [32,33]. In Gram-negative bacteria, the lytic transglycosylases (LTs) represent a major class of autolysins involved with PG metabolism and cell septation [36]. These enzymes lyse PG at the same site as the lysozymes, but instead of hydrolysis, they utilize the C-6 hydroxyl group of MurNAc to generate 1,6-anhydroMurNAc products [37]. Consequently, the presence of a C-6 O-acetyl group precludes LT activity and, thus, provides a means of autolytic control at the substrate level [14,31,36].
The O-acetylation of PG is a maturation event, occurring after transglycosylation of Lipid II precursors into the sacculus [15,38], which requires that the enzymes catalyzing the modification are extracytoplasmic. As such, these enzymes present attractive targets for the development of a new class of antibacterials. Inhibitors would be expected to (i) act as anti-virulence factors to render pathogens more susceptible to the host immune system; (ii) possibly act synergistically with existing antibiotics that depend on autolysins for their bactericidal effect, especially the β-lactams; (iii) potentially act directly as bactericidal agents by removing LT control thereby permitting rampant and catastrophic autolysis; (iv) be less susceptible to efflux as the targets are either periplasmic or external in Gram-negative and Gram-positive pathogens, respectively; and (v) be ineffective against the predominantly non-O-acetylated commensal microbiota.
In Gram-negative bacteria, PG O-acetylation is catalyzed by the concerted action of two enzymes, PG O-acetyltransferase (Pat) A and B [39,40]. As a putative membrane-bound O-acyl transferase (MBOAT), PatA is predicted to function as a transmembrane shuttle of acetyl groups from cytoplasmic pools to the periplasmic face of the inner membrane [12,13,14] (Figure 1). The translocated acetyl is then presented to PatB for its transfer to the C-6 hydroxyl groups of MurNAc residues in the existing PG sacculus. With Gram-positive bacteria, a single bimodal integral membrane protein, PG O-acetyltransferase A (OatA), catalyzes both reactions [18,19,41]. With its 11 predicted transmembrane helices [42], the N-terminal domain of OatA (OatAN) is thought to function like PatA for the translocation of acetyl groups [12,13], while the extracellular C-terminal domain (OatAC) catalyzes their transfer to muramoyl residues [41] (Figure 1). Both recombinant PatB and OatAC have been biochemically and kinetically characterized [39,41,43,44,45], and the X-ray crystal structure of OatAC has been determined at high resolution [41]. They are members of the SGNH/GDSL hydrolase superfamily (CCD cl01053) and, thus, they possess a canonical Ser-His-Asp catalytic triad that catalyzes the O-acetyltransfer reaction via a ping-pong bisubstrate-biproduct mechanism of action [41,45].
With the ever-increasing incidence of antibiotic resistance amongst pathogens that produce O-acetylated PG, and which have been identified by the World Health Organization as high-level priority pathogens in need of research and development of new antibiotics, we sought to identify inhibitors that could be used to prove the concept that PatB and/or OatAC represent novel antibacterial targets. Herein, we present the development of a high throughput screen and its application for the identification of the first known inhibitors of both N. gonorrhoeae PatB (NgPatB) and S. aureus OatAC (SaOatAC).

2. Results

2.1. Production, Purification and Stability of NgPatB and SaOatAC Constructs

Soluble constructs of SaOatAC [41] and NgPatB [39,44,45] have been used in previous studies to characterize PG O-acetyltransferase activity in vitro. Both SaOatAC and NgPatBΔ69, previously referred to as NgPatBΔ77, catalyze weak esterase activity toward fluorogenic and chromogenic artificial substrates [39,41,46], and they are stable for the time frame needed to complete a pilot screen for potential inhibitors [39,41]. As the addition of an N-terminal SUMO-tag had been shown previously to stabilize other constructs of NgPatB [39], we engineered a SUMO-NgPatBΔ69 fusion protein to aid in the production of large quantities of recombinant NgPatBΔ69. Whereas stability was qmaintained throughout the time course of the pilot screen (described below), we observed that over longer durations of time, NgPatBΔ69 experienced partial degradation while retaining full specific activity. The degradation, as visualized by SDS PAGE (data not shown), appeared to be consistent, suggesting that a stable active core of the enzyme existed. Given the extended time frame associated with a large high throughput screen (HTS), the availability and use of a construct representing this stable core would be more appropriate. Using liquid chromatography quadrupole-time-of-flight mass spectrometric (LC-Q-TOF MS) analysis, we determined that the stable NgPatB core had a MW of 25538.6 g/mol, which corresponded to the loss of 31 amino acids from the N-terminus of NgPatBΔ69. Thus, a construct of NgPatB was engineered that lacked the first 100 N-terminal amino acid residues (named NgPatBΔ100). Similarly, the previously described construct of SaOatAΔ435, consisting of residues 435–603, was found to experience partial degradation over extended periods of time. To improve short-term and long-term stability, a construct of SaOatAC consisting of residues 445–601 (SaOatAΔ445) was engineered with an N-terminal SUMO-tag.
Both SaOatAΔ445 and NgPatBΔ100 were overproduced in large quantities and purified by a combination of affinity and cation-exchange chromatographies to apparent homogeneity, as judged by SDS PAGE analysis (Supplementary Materials, Figure S1). Yields of SaOatAΔ445 and NgPatBΔ100 averaged 4 and 12.5 mg per litre culture, respectively. These variants of the two PG O-acetyltransferases were found to be stable for over a month of storage at −20 °C (Supplementary Materials, Figure S1).

2.2. Kinetic Parameters of NgPatBΔ100 and SaOatAΔ445

We determined the kinetic parameters of KM and kcat for both the NgPatBΔ100- and SaOatAΔ445-catalyzed hydrolysis of the fluorometric substrate 4-methylumbelliferyl-acetate (4MU-Ac). These values, together with the overall efficiency of the enzyme, as reflected by kcat/KM values, were very similar to those reported previously for the earlier versions of the recombinant enzymes (Supplementary Materials, Table S1). Likewise, the pH-activity profile of NgPatBΔ100, with its bell-shaped curve and pH optimum of 7.0 (Supplementary Materials, Figure S2), resembled that of NgPatBΔ69. Given this, we were able to use the two NgPatB constructs interchangeably for routine assays, while using the more stable NgPatBΔ100 for longer term experiments, such as the large-scale HTS. The pH-activity optimum of SaOatAΔ445 was found to be 8.0 with 4MU-Ac as substrate. This differs from the pH optimum of 7.0 reported previously [41]. The reason for this difference remains unknown, but the HTS assay developed (described below) was conducted at pH 7.0 to minimize spontaneous hydrolysis of the ester-linked substrate, which occurs more rapidly in alkaline pH.

2.3. Pilot High Throughput Screen for Inhibitors of SaOatACΔ435 and NgPatBΔ69 Esterase Activity

The assay used to monitor the transferase activity of PG O-acetyltransferases [41,44] involves costly glycans, as well as a laborious analysis not conducive to a high throughput format, and so it was not considered further. Instead, an in vitro microtiter plate assay to monitor the esterase activity [46] of the two enzymes was optimized for use in a high throughput format. As many of the compounds in HTS collections are yellow when dissolved in aqueous solutions, we chose to use the fluorogenic substrate 4MU-Ac, instead of the chromogenic substrate p-nitrophenyl acetate (pNP-Ac), to avoid possible interference by a colorimetric assay product. Thus, using excitation and emission wavelengths fixed at 372 nm and 445 nm for the detection of the 4MU product, we tested different combinations of enzymes and substrate concentrations in a total reaction volume of 50 µL of 50 mM sodium phosphate, pH 7.0, containing 5% DMSO. Under these conditions, the reaction of 3 µM NgPatBΔ69 or SaOatAΔ435 with 1 mM 4MU-Ac gave an ideal level of detectable product, following 6 min incubation at 22 °C.
The measure of the quality and suitability of an HTS assay is typically assessed by calculating its Z’ value [47]. The Z’ is a statistical parameter which takes both the dynamic range of the signal and the data variation associated with the controls into account. A Z’ value ≥ 0.5 (to a maximum of 1.0) implies that a well-defined “hit-window” will exist and that the assay is appropriately optimized for use in an HTS. For the two pilot screens, we used 192 replicates of each the high (negative; substrate and enzyme) and low (positive; substrate only) control assays for the calculation of the final Z’. This gave values of 0.71 and 0.67 for NgPatBΔ69 and SaOatAΔ435, respectively, indicating that the optimized assay conditions were indeed suitable for use in an HTS (Figure 2a,c).
To test the robustness of the assay, we conducted pilot screens of 3921 small molecules that comprise the Bioactive Subset of the Canadian Compound Collection [48] (see Supplementary Materials, Figure S3 for a flowchart of the process). The ability of these molecules to inhibit NgPatBΔ69 and SaOatAΔ435 esterase activity was tested in duplicate. The threshold to identify “hits” was set at ≤77% and ≤70% residual activity of NgPatBΔ69 and SaOatAΔ445, respectively, where 77% and 70% represented 3 standard deviations below the respective mean of the high control reactions on each corresponding plate (Figure 2b,d). Using this threshold, 58 and 25 unique primary hits were identified for the two respective enzymes, with the residual activity of both replicates being below the threshold. This resulted in a relatively high primary hit rate of 1.5% and 0.64% for the screens of NgPatBΔ69 and SaOatAΔ435, respectively.

2.4. Secondary Screening of Pilot Screen Hits

We selected a number of the primary hits from the two pilot screens for testing in dose response assessments to determine half maximal inhibitory concentrations (IC50) using 4MU-Ac as substrate (Figure 3 and Figure S3). At this point, we discarded several hits from the respective primary screens due to a lack of response to increasing concentration of compound. Several molecules that did confirm to be dose dependent, and inhibitory to both enzymes, shared a common coumarin core (Figure 3) and so we investigated them further. Of these, esculin, esculetin, and scopoletin were identified as effective inhibitors of both NgPatBΔ69 and SaOatAΔ435. The IC50 values determined for these compounds ranged from 48 µM to 106 µM (Table 1, Supplementary Materials, Figure S4). In contrast, the IC50 values for the simpler 7-hydroxycoumarin were an order of magnitude greater.
With fluorometric assays, fluorescence quenching by compounds in the libraries could lead to their false identification as inhibitors. Thus, to confirm their inhibitory activity, we also tested esculin, esculetin, and scopoletin as inhibitors of PatBΔ69 and SaOatAΔ435 esterase activity using the chromogenic pNP-Ac as substrate. The resulting dose response curves confirmed that each of the compounds inhibits both enzymes. However, the apparent IC50 values for each of the tested coumarins were over an order of magnitude higher compared to the respective values determined using 4MU-Ac as substrate (Figure 3 and Supplementary Materials, Figure S4, Table 1).

2.5. Large Scale High Throughput Screen for Inhibitors of NgPatBΔ100 and SaOatAΔ445

The fluorescence-based assay using 4MU-Ac as substrate was further optimized for use with the tipless Dual VaLet™ (Vertical Array Loader) HTS system of the Drug Discovery Facility at the SPARC BioCentre. Z’ scores were determined for assays with varying incubation times, as well as concentrations of each enzyme and substrate (n = 96 for NgPatB; n = 64 for SaOatA). For NgPatBΔ100, a final Z’ of 0.82 was achieved with 0.75 μM enzyme incubated with 0.48 mM 4MU-Ac in a total volume of 26 μL for 12 min at 22 °C (Supplementary Materials, Figure S5a). Optimal conditions for SaOatAΔ445 involved incubation of 0.75 μM enzyme with 0.2 mM 4MU-Ac in a total volume of 47 µL for 42 min at 22 °C, which gave a Z’ score of 0.85 (Supplementary Materials, Figure S5c).
Using these assays, we tested a total of 134,993 compounds in singlicate for inhibition of NgPatBΔ100 and/or SaOatAΔ445 (Supplementary Materials, Figure S3), where hits were defined as causing ≥20% inhibition combined with a z-score ≤−3 compared to respective in-plate controls (Supplementary Materials, Figure S5b,d). We tested NgPatBΔ100 in a primary screen against a total of 68,928 compounds and we identified 423 hits, where 171 of the compounds originated from the Maybridge HitFinder Collection (hit rate of 1.2%), 248 from the ChemBridge DIVERset Collection (hit rate of 0.5%), and the remaining 4 compounds were from the subset of the GlycoNET ChemBridge Collection (hit rate of 0.1%). Rather than repeating the screening of this collection of compounds with SaOatAΔ445, we tested it against the GlycoNET Collection of 66,065 compounds. Applying the initial hit parameters, we obtained 4944 hits with this collection, giving the very high hit rate of 7.5%. By re-evaluating both data sets using a z-score of ≤−4.05 and percent inhibition ≥ 20%, the numbers of initial hits were reduced to 329 (0.48%) and 631 compounds (0.93%) for NgPatBΔ100 and SaOatAΔ445, respectively.
For hit validation, we selected 960 compounds from the combined list of initial hits from the two primary screens and we tested each for inhibition against both NgPatBΔ100 and SaOatAΔ445 in separate screens, which were conducted in triplicate using 4MU-Ac as substrate. This reduced the number of authentic hits to 18 and 79 compounds as apparent inhibitors of NgPatBΔ100 and SaOatAΔ445, respectively. Finally, we examined each of these remaining compounds for reactive functional groups. Six and 58 compounds, respectively, were identified as “pan assay interference compounds” (PAINS) [50] and therefore we eliminated them from further consideration. The remaining 12 and 21 compounds were subjected to secondary screening.

2.6. Secondary Screening of Potential PatB Inhibitors from Large Scale HTS

To further evaluate the inhibitory potential of the 12 and 21 remaining compounds (Supplementary Materials, Figure S3), we determined their IC50 values toward NgPatBΔ100 and SaOatAΔ445, respectively, using an 8-point dose response assay with 4MU-Ac as substrate. Four and 16 compounds that did not completely inhibit NgPatBΔ100 and SaOatAΔ445, respectively, or had non-ideal response curves, were eliminated (Supplementary Materials, Figure S5). The remaining 13 hits between the two enzymes had calculated IC50 values of between 22 and 88 µM (Supplementary Materials, Figure S6), two of which were common to both NgPatBΔ100 and SaOatAΔ445. These 2 inhibitors as well as 3 which were specific for SaOatAΔ445, including compound 18420 with an IC50 of 86.6 µM, and two of the NgPatBΔ100–specific inhibitors, including compound 89224 with an IC50 value of 22.1 µM (Figure 4), were selected for continued investigation based on their attractive physicochemical properties. However, prior to any further assessment of inhibitory activities, we determined the fluorescence quenching properties of the compounds, recognizing their potential to interfere with the fluorometric assay. This was accomplished using a fluorescence quenching assay where a fixed concentration of 4MU was titrated with increasing concentrations of the respective compounds. Compounds that reduced 4MU fluorescence in a concentration dependent manner were deemed to be quenchers. Unfortunately, five of the remaining seven compounds were determined to have interfered with the screening assay, leaving just compounds 89224 and 18420 for further analysis (Supplementary Materials, Figure S6).
To confirm that each of the two remaining compounds were indeed inhibiting esterase activity and not quenching fluorescence in the fluorometric HTS assay, we determined their IC50 values using the colorimetric pNP-Ac based assay. Under the conditions employed, both were indeed found to be inhibitory, but with IC50 values in the mM range (Figure 4, Table 1).

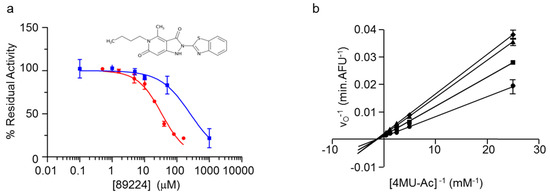

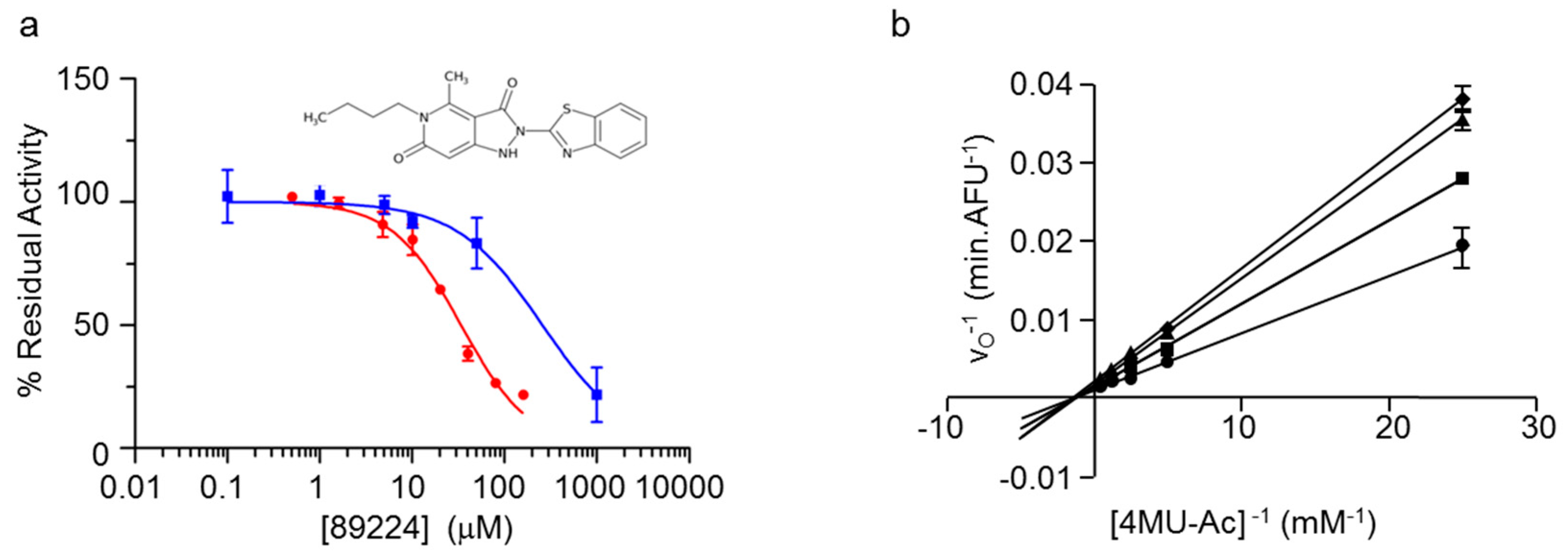

2.7. Inhibition Kinetics of Esculetin and Compound 89224 with NgPatB

Given the high IC50 value obtained for SaOatAΔ445 with compound 18420, we focused on determining the Michaelis–Menten parameters for only the inhibition of NgPatBΔ100 esterase activity by compound 89224, as well as esculetin as a representative of a coumarin-based inhibitor. This was performed by varying concentrations of 4MU-Ac (0.04−2 mM) as acetyl substrate in the enzyme assay, while simultaneously increasing inhibitor concentration (0−125 µM for compound 89224 and 0−600 µM for esculetin). Nonlinear regression analysis of the inhibition data by compound 89224 provided a Ki value of 126 ± 19.5 µM, while the same analysis for esculetin provided a Ki value of 86.7 ± 4.7 µM. A Lineweaver–Burke plot of the 89224 inhibition data showed that they converge on the negative x-axis indicating that the compound is a mixed/non-competitive inhibitor of NgPatBΔ100 (Figure 4). Moreover, the Ki and Ki’ values are equal, indicating no preference of the inhibitor for the free enzyme or enzyme-substrate complex. Esculetin, on the other hand, appears to function as a competitive inhibitor (Supplementary Materials, Figure S7).

2.8. Antibacterial Activity of Inhibitors

Using a microtiter plate assay, we tested each of the four identified inhibitors, the three coumarins from the pilot screen and compound 89224, for antibacterial activity toward the growth of S. aureus ATCC 6538 and/or N. gonorrhoeae FA1090. For this preliminary experiment, we used E. coli as a negative control because it both lacks a PG-O-acetyltransferase homolog and it does not produce O-acetylated PG [15]. Under the conditions employed, neither esculin nor scopoletin had any significant effect on the growth of N. gonorrhoeae FA1090 or S. aureus ATCC 6538 at concentrations up to their solubility limits of 2048 µg/mL and 480 µg/mL, respectively. In contrast, at a concentration of 512 µg/mL, esculetin retarded growth of N. gonorrhoeae FA1090 and S. aureus ATCC 6538 such that only 25% and 10% of control growth levels where reached over the course of the experiment, respectively (Supplementary Materials, Figure S8). Due to its solubility limit, we could not achieve 100% inhibition with this coumarin, which therefore precluded our ability to determine its minimum inhibitory concentration (MIC) value in either organism. However, we found esculetin to also inhibit the growth of E. coli BL21, with an MIC of 512 µg/mL. Inhibition of all 3 bacteria indicates that, perhaps in addition to PatB and OatA, esculetin inhibits an essential target(s) common to these bacteria.

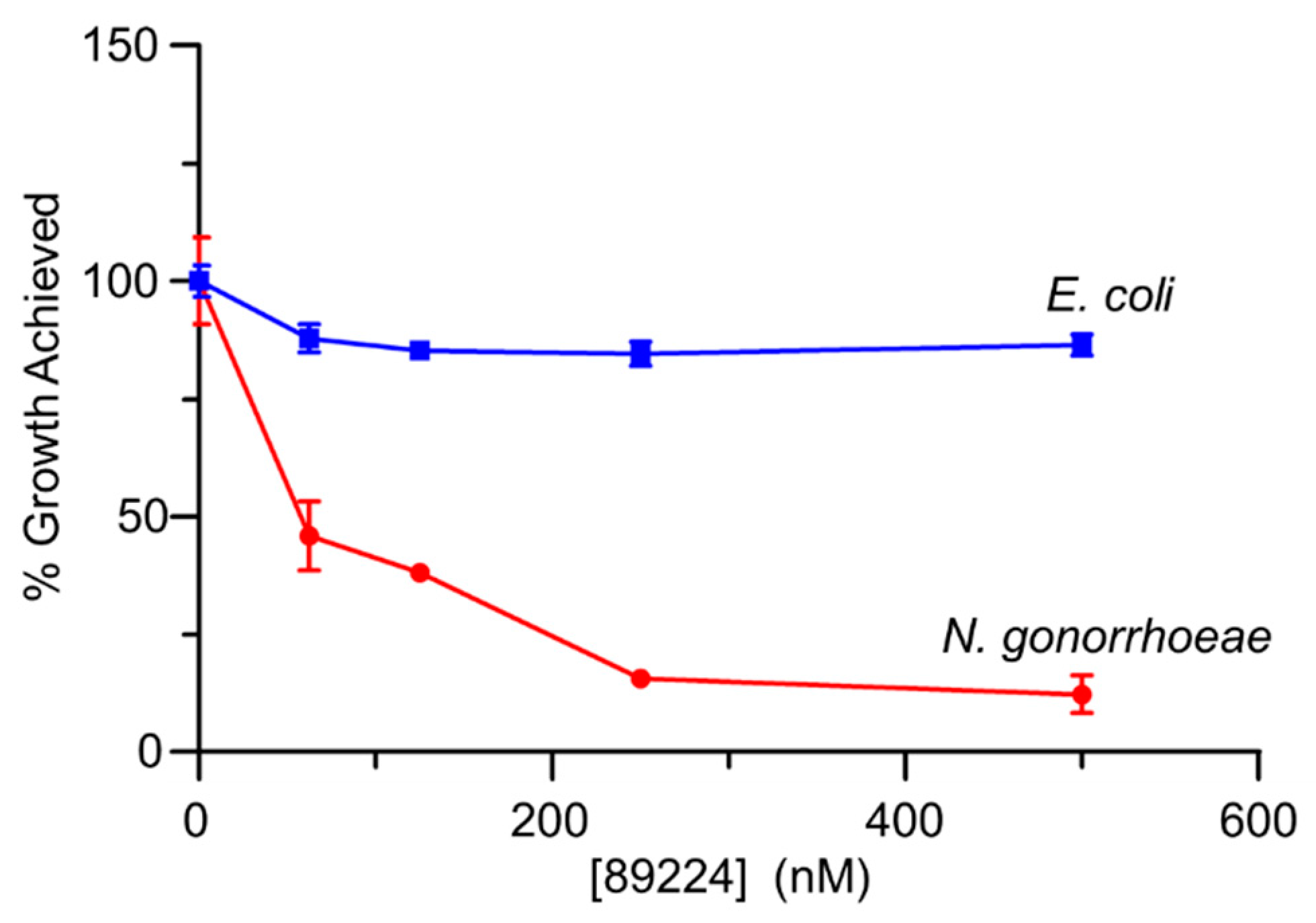

Compound 89224 also inhibited the growth of N. gonorrhoeae FA1090. Similarly to esculetin, this compound reduced the growth achieved by cultures compared to controls lacking added compound, as measured by optical density at 600 nm. At 177 µg/mL and close to its solubility limit, compound 89224 caused a 90% reduction in growth over the time course of the experiment. In contrast to esculetin, however, we found compound 89224 did not affect the growth of E. coli BL21 to any extent within its solubility limits (Figure 5).

3. Discussion

The O-acetylation of PG was first identified as an important virulence factor over a decade ago [18,19], at a time when the mechanics of the enzymatic system had yet to be investigated. In the years since, a number of studies have outlined novel protocols and characterizations of both PatB and OatA. In this study, we used these tools to design the first high throughput screens for the identification of inhibitors of NgPatB and SaOatA. One of these inhibitors was then used to provide preliminary proof of principal that PG O-acetyltransferase represents a promising antibacterial target.
Coumarins aside, the structural features of the inhibitors of NgPatB and SaOatA identified in both the pilot and large-scale screens varied considerably, with no obvious chemical similarities with which to categorize them. Most compounds, however, contained at least one, if not multiple, planer 6-membered ring, which likely mimics the aminosugars of the natural PG substrate of these O-acetyltransferases. The structural diversity of the inhibitors may also reflect the various substrate binding subsites that must be present to specifically accommodate both the carbohydrates of the glycan backbone and amino acids of stem peptides of PG. Despite the overall structural similarity between PatB, OatA, and O-acetyl-PG esterase (Ape), in addition to their identical mechanisms of catalytic action (recently reviewed in [12,13]), the effective competitive inhibitor of Ape, purpurin (1,2,4-trihydroxy-anthraquinone) [51], was not identified in the pilot HTS as an inhibitor of NgPatB or SaOatA. This anthraquinone is amongst a number of others that comprise the biologically-active collection of compounds tested against in the pilot screens. Not identifying purpurin within the hit list of OatA and PatB inhibitors is consistent with an earlier preliminary characterization of SaOatA inhibition. The IC50 value of purpurin for SaOatA is approximately 1.1 mM [52]. Thus, regardless of their overall similarities, the binding specificities of the −1 or +1 binding subsites at the catalytic centers of the two respective enzyme classes must be a little different.
Unlike most other Serine hydrolases, and PG-active enzymes such as lysozyme [53] and N. meningitidis Ape [54], the PG O-acetyltransferases lack deep clefts or pockets. Instead, the active site appears to be open and exposed on the enzymes’ surfaces [41,55]. Presumably, with the juxtaposition of the cytoplasmic membrane below, and PG strands of the sacculus above, the physical constraints imposed would serve to guide appropriate interactions with PG [41]. Unfortunately, a structure of neither OatA nor PatB in complex with any ligand has been determined and so details of substrate binding remain unknown. However, both PatB and OatA have been shown previously to have increasing transferase efficiency when presented with glycan acceptors with increasing degrees of polymerization [41,44]. This suggests that multiple binding subsites must exist, as has been seen for numerous other carbohydrate active enzymes, including lysozyme [53]. However, the in vitro assays adopted for the HTS and secondary screening employed structurally simple esters of acetate, which are very poor mimics of the natural PG substrate. These small substrates would occupy no more than the equivalent of a single PG-binding subsite and the simplistic in vitro assay conditions used would not exert any physical constraints naturally involved in the productive binding of PG. This lack of constraint, together with some potential binding flexibility, may explain the relatively large differences in IC50 values obtained for each inhibitor when using the two different assays (Table 1). Thus, it would appear that the relatively small and conformationally flat pseudo substrates may bind productively in subtly different ways such that the coumarin-based inhibitors more efficiently block the enzymes’ activity toward 4MU-Ac, compared to inhibiting their activity toward pNP-Ac. The characterization of esculetin as an apparent competitive inhibitor of NgPatB, when assayed using 4MU-Ac, supports this view. Moreover, the identification of a number of coumarins as inhibitors would be a natural consequence of using 4MU-Ac as the substrate for the primary HTS assay.
A structure-activity relationship (SAR) analysis based on comparisons of determined IC50 values revealed some specificity of the different coumarins as inhibitors of the PG O-acetyltransferases. For example, the presence of either a hydroxyl or a glucopyranosyl group at C6 and the absence of a 4-methyl group enhanced the inhibitory potential of the 7-hydroxy-coumarin based derivative toward NgPatB compared to hymerchrome (7-hydroxy-4-methyl-coumarin) by over an order of magnitude (Table 1). The observation that hymercrome is a relatively poor inhibitor, however, is somewhat surprising given that it is a very close homolog of the substrate 4MU-Ac (7-acetyl-4-methy-coumarin). The reason for this apparent anomaly is not known, but intuitively it would have been expected to serve as a highly effective competitive inhibitor like esculetin.
Coumarin (1,2-benzopyrone) is a natural product derived from the phenylpropanoid pathway. Hundreds of coumarin derivatives have been isolated from plants and fungi with many being exploited for their beneficial properties towards human health. As a versatile synthetic scaffold possessing a wide spectrum of biological effects, coumarin-based drugs are being developed to treat a variety of diseases including cancer, while warfarin (a 4-hydroxy-coumarin derivative, also known as coumadin) is used widely as an anticoagulant (recently reviewed in [56,57]). In addition, coumarinic and isocoumarinic derivatives have long been known to serve as potent inhibitors of Serine hydrolases. The mode of inhibition by these compounds, however, is irreversible, involving the initial acylation of the catalytic Ser through its nucleophilic attack on the carbonyl C atom of the respective bicyclic ring compounds [58,59,60]. With the PG O-acetyltransferases investigated in the current study, the inhibition was found to be independent of time and hence reversible. That the coumarins do not serve as mechanism-based inhibitors of the PG O-acetyltransferases is likely consistent with the observation that, at least, esculetin functions as a competitive inhibitor. Binding in the same mode as 4MU-Ac would not position the carbonyl C atom of the 1,2-benzopyrone for appropriate attack by the catalytic Ser residues. With 4MU-Ac, binding of 4MU places the sidechain acetyl carbonyl in this position.
The coumarin-based inhibitors of both PatB and OatA were found to have antibacterial activity, which is in keeping with earlier reports ([61] and references therein). However, we found that this antibacterial activity was not only confined to bacteria that produce O-acetyl-PG, suggesting that they have “off-target” effects. As such, we could not use them to validate the enzymes as antibacterial targets. Given the wide distribution of coumaric compounds in nature, and the range of their uses in a variety of medicinal and therapeutic practices, perhaps it is not surprising that the relatively simple coumarins identified in the current application would have off target effects, as was with the inhibition of E. coli growth. Compound 89224, on the other hand, has both comparable inhibitory activity toward NgPatB and apparent antibacterial specificity toward N. gonorrhoeae. Compound 89224, a benzothiazolyl-pyrazolo-pyridine derivative, functions as a non-competitive inhibitor of NgPatB and, in so-doing, inhibits the growth N. gonorrhoeae. E. coli, a bacterium that produces neither O-acetyl-PG nor a PatB homolog, is not affected by this compound. This distinction provides preliminary evidence that, at least, PatB represents a new antibacterial target worthy of further investigation.
Sensitizing pathogenic bacteria to the lysozyme of the innate immune system would serve to control infections. With pathogens such as N. gonorrhoeae, it also has the potential to alleviate the wide range of downstream complications that often result in patients following gonorrheal infections. As lysozyme hydrolyzes only the non-O-acetylated portions of the PG sacculus, large molecular weight (O-acetylated) fragments continue to circulate in the patient, a condition that leads to the development of e.g., pelvic inflammatory disease [62] and rheumatoid arthritis [28]. Similarly, in a mouse-model of S. aureus arthritic infection, the severity and frequency of arthritis was increased with the presence of OatA, resulting in increased articular tissue damage as a result of the decreased ability of lysozyme in the synovial tissue to kill S. aureus with O-acetylated PG [63]. Furthermore, during S. aureus infection, O-acetylation of PG limits the T-helper cell priming required to develop an effective protective response to systemic infection [64]. Thus, in addition to increasing the severity of disease, PG O-acetylation in S. aureus also causes downstream complications and limits the development of robust protective immunity required to prevent reinfection. Inhibitors targeting PG O-acetyltransferases also have the potential to work synergistically with β-lactam antibiotics. For example, increased levels of PG O-acetylation in Streptococcus pneumoniae cause increases in β-lactam resistance. By disrupting this pathogen’s O-acetyltransferase gene, cells not only become hypersensitive to lysozyme, but also to β-lactams, which had been shown to be ineffective previously [30]. The results of this study demonstrate validity of this approach and provide the basis for further inhibitor discovery.

4. Materials and Methods

4.1. Engineering of NgPatB

A previously described recombinant construct of NgPatB from N. gonorrhoeae FA1090, lacking its N-terminal 69 residues (previously referred to as NgPatBΔ77, but herein referred to as NgPatBΔ69), was engineered to include an N-terminal His6-SUMO tag [39]. The gene encoding the SUMO tag was sub-cloned from the Champion™ pET-SUMO expression vector (ThermoFisher Scientific, Waltham, MA) by PCR amplification using the primers 5′-GTGGCAGTGCTAGCATGTCGGACTCAG-3′ (forward) and 5′-GCTCGAGCTCACCACCAATCTGTTCTCTGT G-3′ (reverse). The PCR amplicon was digested using appropriate restriction enzymes and ligated into similarly digested pBAD-His A plasmid containing the gene for PatBΔ69 using T4 DNA ligase (New England Biolabs, Ltd, Whitby, ON Canada), resulting in the pACAB1 construct. This construct was further modified by removing the restriction site between sumo and NgpatBΔ69 to encode a flush fusion protein. Outward facing primers modified with 5′phosphate groups (5′-CTGTCCGGCGAAACTCCGC-3′, forward and 5′-ACCACCAATCTGTTCTCTGTGAGCC-3′, reverse) were used to amplify the plasmid excluding the restriction site. The resulting PCR product was ligated using T4 DNA ligase to generate the final pACAB2 construct. This construct (NgPatBΔ69SUMO) was used in the production of NgPatBΔ69 containing an N-terminal His6-SUMO fusion tag.
A second construct was generated by deleting a further 31 codons from the 5′ end of ngpatBΔ69 within pACAB2. Once again outward facing primers modified with 5′phosphate groups (5′-GGCACCGAATGGAAACAGGGC-3′, forward, and 5′- ACCACCAATCTGTTCTCTGTGAGCC-3′, reverse) were used to PCR amplify the target DNA. The PCR amplicon was ligated using T4 DNA ligase resulting in the final pACAB7 construct. This construct (NgPatBΔ100SUMO) was used in the production of a stable derivative of PatB, lacking its N-terminal 100 amino acids (NgPatBΔ100) and possessing an N-terminal His6-SUMO fusion tag.

4.2. Production and Purification of NgPatB Variants

Competent cells of E. coli Rosetta (DE3) (Novagen, Millipore (Canada) Ltd., Etobicoke, ON Canada) were transformed with either pACAB2 or pACAB7 to achieve overproduction of the two engineered forms of recombinant NgPatB. Cells were grown in 1 L of Super Broth (5 g sodium chloride, 20 g yeast extract, and 32 g tryptone) supplemented with 100 µg/mL ampicillin at 37 °C, with aeration until an OD600 of 0.6 was reached. Over expression of the genes was induced with the addition of 0.02% L-arabinose (final concentration) followed by further incubation for 4 hours before cells were harvested by centrifugation (5000× g, 20 min, 4 °C).
Cell pellets were resuspended in 20 mM sodium phosphate buffer, pH 7.8, containing 500 mM NaCl and 10 mM imidazole (wash buffer) and then subjected to lysis by either using a French Pressure Cell at 1200 PSI (NgPatBΔ69SUMO) or sonication (NgPatBΔ100SUMO). Insoluble cellular debris were cleared by centrifugation (25,000× g, 20 min, 4 °C) and supernatants were filtered through a 0.45 µm syringe-driven filter (Millipore). Recombinant NgPatB was isolated by affinity chromatography using cOmplete His-Tag purification resin (Roche Diagnostics, Laval, QC Canada) equilibrated with wash buffer. After sample loading, the resin was washed with 10 bed volumes of wash buffer and then bound proteins were eluted in wash buffer containing 250 mM imidazole. Recovered proteins were dialyzed at ambient temperature, first against 20 mM sodium phosphate buffer, pH 7.8, containing 50 mM L-arginine, and then the same buffer lacking L-arginine.
Cleavage of the SUMO tag from recombinant NgPatB was achieved by digestion with purified SUMO protease (Ulp1). SUMO protease was purified following the protocol of Reverter and Lima [65] and the fusion proteins were digested at 30 °C for 3 hours. Further purification of NgPatB was achieved by cation-exchange chromatography on Source mono S (GE Healthcare Life Sciences, Mississauga, ON Canada). Samples were applied to the 10 × 100 mm column pre-equilibrated in 20 mM sodium phosphate, pH 7.8, and bound enzyme was recovered by application of a linear gradient of 0.1–0.3 M NaCl over 30 min. Purity of fractions was assessed by SDS PAGE and appropriate fractions were pooled, dialyzed against 20 mM sodium phosphate buffer, pH 7.8 at ambient temperature, and stored at −80.0 °C until required.

4.3. Engineering of SaOatAΔ445

A previously described recombinant construct of SaOatA from S. aureus SA113, consisting of residues 435–603, was engineered to include an N-terminal His6- tag [41]. This gene was ligated into the Champion™ pET-SUMO expression vector using T4 DNA ligase, followed by deletion mutagenesis generating the final pDSAC71 construct. This construct consisting of residues 445–601 (SaOatA Δ445SUMO) was used in the production of a stable derivative of OatA lacking its N-terminal 445 amino acids and possessing an N-terminal His6-SUMO fusion tag.

4.4. Production and Purification of SaOatAΔ445

Production and purification of SaOatAΔ445 was carried out as follows. Competent cells of E. coli BL21 (DE3) (Novagen) were transformed with pDSAC71 to achieve overproduction of SaOatAΔ445SUMO. Cells were grown in 1 L Luria-Bertani broth (Difco; Fisher Scientific, Ottawa, ON Canada) supplemented with 50 µg/mL kanamycin at 37 °C with aeration until an OD600- of 0.6 was reached. Gene expression was induced with the addition 1mM isopropyl β-d-1-thiogalactopyranoside (Sigma-Aldrich Canada, Oakville, ON Canada. The culture continued to grow at 37 °C for an additional 4 h, after which the cells were harvested by centrifugation (5000× g, 15 min, 4 °C).
Cell pellets were thawed on ice and resuspended in wash buffer (50 mM sodium phosphate, pH 7.5, 200 mM NaCl) containing 20 µg/mL DNase, 20 µg/mL RNase, 50 µg/mL hen egg-white lysozyme, and cOmplete EDTA-free protease inhibitor cocktail (Millipore). The cells were disrupted by sonication on ice (15 min, pulse 10:20 sec, 50% amplitude) and unbroken cells were collected by centrifugation (25,000× g, 20 min, 4 °C). The soluble lysate was then incubated with cOmplete His-Tag purification resin (Roche Diagnostics,) pre-equilibrated with wash buffer. After 1 h at 4 °C with nutation, the cell lysate and resin slurry were loaded onto a gravity-flow column and the cell lysate containing all unbound proteins was allowed to pass through. The resin was washed with 40 resin bed volumes of wash buffer before elution of SaOatAΔ445SUMO from the resin with elution buffer (50 mM sodium phosphate, pH 7.5, 200 mM NaCl, 400 mM imidazole). To achieve cleavage of the His6-SUMO tag from recombinant SaOatAΔ445SUMO, purified SUMO protease (Ulp1) was added to the elution fraction. This protein mixture was dialyzed against 50 mM sodium phosphate pH 6.5, 150 mM NaCl at ambient temperature for 2 h, with one buffer change. The dialyzed fraction was then incubated for 1 h with nutation at 4 °C with fresh cOmplete His-Tag purification resin pre-equilibrated with dialysis buffer to bind the His6-SUMO tag. The solution containing untagged SaOatAΔ445 was allowed to pass through the column and was collected. The SaOatAΔ445 fraction was concentrated using an Amicon Ultra-15 centrifugal filter (10 kDa MWCO; Millipore) at 4000× g at 4 °C. After concentration, the protein was filtered using a syringe-driven filter (0.22 µm; Millipore) and loaded onto a HiLoad Superdex 75PG column (GE Healthcare) pre-equilibrated with gel filtration buffer (50 mM sodium phosphate pH 6.5, 150 mM NaCl). Protein elution was achieved using an isocratic flow of gel filtration buffer at a flow-rate of 1 mL/min. Purity of fractions was assessed by SDS-PAGE and appropriate fractions were pooled and stored at 4 °C until use.

4.5. Assays for NgPatB and SaOatA Activity and Inhibition Kinetics

The ability of NgPatB and SaOatA variants to function as esterases was exploited for the routine measurements of their catalytic activity. Microtiter plate-based fluorometric or chromogenic assays, using either 4MU-Ac or pNP-Ac as substrate, were conducted as previously described [46]. Michaelis–Menten steady-state kinetic parameters were established by determining esterase rates of 3 µM NgPatB in 50 mM sodium phosphate buffer, pH 7.0, or 5 µM SaOatAΔ445 in 50 mM sodium phosphate buffer, pH 6.5, in the presence of 0.005–5 mM or 0.02–0.5 mM 4MU-Ac, respectively. The Michaelis–Menten kinetic parameters were determined by nonlinear regression analysis of the data using GraphPad Prism 5.0 (Informer Technologies, Inc., Roseau Valley, Dominica). The pH dependence of enzyme activity was determined by substituting the sodium phosphate buffer in the reaction described above with a 50 mM tripartite buffer consisting of one-third sodium citrate, one-third sodium phosphate, and one-third sodium borate at a range of pHs. The pH dependence of the reactions with NgPatB and SaOatAΔ445 was determined in the presence of 1.0 mM and 0.1 mM 4MU-Ac, respectively.
Determinations of Ki and mode of inhibition of NgPatBΔ100 were conducted using 4MU-Ac as a substrate. Reactions involved incubating 3 µM NgPatBΔ100 in 50 mM sodium phosphate buffer, pH 7.0, for 10 min with 0–125 µM compound 89224 or 0–600 µM esculetin prior to the addition of 0.04–2 mM 4MU-Ac. Initial velocities of substrate hydrolysis were obtained by fluorescence emission at 420 nm (390 nm excitation).

4.6. Pilot HTS for Inhibitors of NgPatBΔ69 and SaOatAΔ435 and Esterase Activity

In the Pilot HTS screen 3 µM NgPatBΔ69 or SaOatAΔ445 (final concentration) was assayed with 1 mM 4MU-Ac as substrate in 50 mM sodium phosphate buffer (pH 7.0). The release of the fluorescent 4MU product at ambient temperature was monitored using excitation and emission wavelengths of 372 nm and 445 nm, respectively. Assessment of both the quality of the assay and readiness for use in a high throughput format was performed using a Z’ assay, the result of which was calculated using Equation (1) [47], as follows:
Z   F a c t o r   =   1 [ ( 3 σ h   +   3 σ l ) / ( | μ h     μ l | ) ] ,
where σh, σl, µh, and µl are the standard deviations (σ) and averages (µ) of the high (h, 100% activity, negative) and the low (l, 0% activity, positive) controls.
A collection of 3921 small molecules (10 µM final concentration) comprising the Bioactive Subset of the Canadian Compound Collection [48] was tested against NgPatBΔ69 and SaOatAΔ435 activity in duplicate using a 384-well microtiter plate format (Costar 3573). A Biomek® FXP Laboratory Automation Workstation (Beckman Coulter Canada, Mississauga, ON, Canada) liquid handling system maintained at the HTS Facility at the Centre for Microbial Chemical Biology, McMaster University, was used to prepare all 384-well assay plates. SAMI EX (Beckman Coulter, City Country) method scheduling software permitted a 10 min pre-incubation of enzymes with the added compound prior to the addition of substrate and subsequent data collection using an EnVision® 2014 Multilabel Plate Reader (Perkin Elmer, Waltham, UK). All steps were performed at ambient temperature with both enzymes having been stored at 4 °C prior to its addition to assay plates. “Hits” were identified as any compound for which both replicates had a lower residual activity than the identified threshold, which was set as 3 standard deviations below the mean of the high (100% activity) control.

4.7. Secondary Screening of Potential NgPatB Inhibitors from Pilot HTS

Secondary screening involved the determination of IC50 values for a select number of hits identified in the pilot screen. PatBΔ69 or SaOatAΔ445 (3 µM) was assayed with 1 mM 4MU-Ac in 50 mM sodium phosphate buffer, pH 7.0, in the presence of 0.001–2.0 mM concentrations of inhibitors. Data were fit to the [Inhibitor] vs. Normalized response – Variable slope (Equation (2)) within GraphPad Prism 5.0.
Y   =   100 / ( 1 + x HillSlope IC 50 HillSLope ) .

4.8. Large Scale High Throughput Screen for Inhibitors of NgPatBΔ100 and SaOatAΔ445 Esterase Activity

A large scale HTS was conducted at the SPARC BioCentre Drug Discovery Facility (The Hospital for Sick Children, Toronto, Canada) to identify additional inhibitors of PatBΔ100 acetylesterase activity. A total of 68,928 compounds were tested in singlicate, including 14,400 from the Maybridge HitFinder Collection, 50,000 from the ChemBridge DIVERset Collection, and 4,480 compounds representing plates 1–15 of the GlycoNET ChemBridge Collection maintained at the facility. The 4MU-Ac served as the substrate in the 384-well microtiter plate (NUNC 262260) fluorescent assay described above. The assay was optimized for use with this facility by altering enzyme and substrate concentrations, in addition to incubation times and reaction volume. As for the pilot screen, a Z’ for the assay was determined using Equation (1). The optimized assay involved dispensing a final concentration of 0.75 µM PatBΔ100 in 50 mM sodium phosphate buffer, pH 7.0, into plate wells using a Thermo MultiDrop Combi fitted with a standard cassette. This was followed by dispensing final concentrations of 20 µM compounds from the Maybridge HitFinder and ChemBridge DIVERset Collections or 10 µM compounds from the GlycoNET ChemBridge Collection using an Echo® 550 acoustic dispenser (Labcyte). Following 10 min pre-incubation at ambient temperature, 4MU-Ac was added using a Thermo MultiDrop Combi, fitted with a small cassette, to a final concentration of 0.48 mM. Fluorescence was monitored with a SynergyNeo microplate reader (BioTek, Winooski, VT USA) using excitation and emission wavelengths of 390 and 420 nm, respectively.
The large scale HTS for inhibitors of SaOatAΔ445 was conducted as described above, with the following changes: Compounds were pre-incubated with SaOatAC at a final concentration of 0.75 µM for 40 min, followed by addition of 0.2 mM 4MU-Ac. A total of 66,065 compounds were tested in singlicate from the GlycoNET ChemBridge Collection.
Data analysis was performed using CDD Vault Analysis Software (Collaborative Drug Discovery, Inc., Burlingame, CA, USA) to assess the effect of each compound by comparing the % residual activity of each assay sample vs. that of the in-plate high control (0.75 µM NgPatBΔ100 or SaOatAΔ445 in the presence of DMSO, in the place of compound). Data were normalized to the high control on a per plate basis. Hits were identified as any compound for which both threshold criteria were met (≥20% inhibition and a z-score ≤ −3.0). The z-score is a comparison of the deviation of a signal on a well by well basis, compared to the average signal of the control on the respective plate. A z-score of e.g., −3.0 represents a datum being 3.0 standard deviations below the mean of the control data.
Hits identified using these criteria were then validated in triplicate using the in vitro assay described above. The resulting list of confirmed hits were then examined and compounds which were expected to be reactive or contain functional groups identified as “pan assay interference compounds” (PAINS) [50] were eliminated.

4.9. Secondary Screening of Potential NgPatB and SaOatAΔ445 Inhibitors from Large Scale HTS

IC50 values were determined for a select number of hits identified in the primary screen from dose response curves generated using 0.5–160 µM (final concentrations) of respective compounds. Residual activity of NgPatBΔ100 (0.75 µM) was assayed using 0.46 mM 4MU-Ac in 50 mM sodium phosphate buffer, pH 7.0, following 12 min incubation at ambient temperature (within the linear range of the assay). Residual activity of SaOatAΔ445 (0.75 µM) was assayed using 0.2 mM 4MU-Ac in 50 mM sodium phosphate buffer, pH 7.0, following 40 min incubation at ambient temperature. Percent residual activity was calculated relative to the mean of the high controls from the respective plate, and the IC50 inhibition plots were fit using CDD Vault Analysis Software.
Hits which were seen to affect NgPatBΔ100 esterase activity in a dose dependent manner were also tested as inhibitors of the enzyme (0.75 µM, final concentration) using 2 mM pNP-Ac as substrate to identify false positives, due to fluorescence quenching under similar assay conditions. Similarly, hits which were seen to affect SaOatAΔ445 esterase activity in a dose dependent manner were also tested as inhibitors of the enzyme at 1.5 µM (final concentration) using 1.1 mM pNP-Ac. Data were fit to the inhibitor vs. normalized response – variable slope equation within GraphPad Prism 5.0, as described above.
To determine whether a compound quenched the fluorescence of 4MU, its fluorescence was measured in the presence of varying concentrations of compound. Three concentrations of compounds, increasing by a factor of 10 (when possible within solubility limits), were mixed with 50 mM sodium phosphate, pH 7, with 4MU at a final concentration of 70 µM. Fluorescence was measured using a SynergyNeo plate reader (BioTek) with excitation and emission wavelengths of 390 nm and 420 nm, respectively.

4.10. Bacterial Strains and Growth Conditions for Minimum Inhibitory Concentration Assays

A single colony of N. gonorrhoeae FA1090, cultured on solid GC agar at 37 °C in a humid 5% CO2 incubator, was used to inoculate 5 mL of GCBL broth in a 10 mL culture tube supplemented with sodium bicarbonate [66]. The tube was sealed and the culture was incubated at 37 °C, with slight agitation, overnight to provide the inoculum for MIC assays. E. coli BL21 cells were cultured overnight at 37 °C with agitation (200 rpm) in 5 ml tryptic soy broth.
MIC assays were conducted in triplicate using sterile 96-well microtiter plates (Costar 3997). Assays with N. gonorrhoeae were conducted using GCBL broth supplemented with sodium bicarbonate with light agitation. The microtiter plate lid was used in these experiments to maintain an internal atmospheric environment, with increased levels of CO2 throughout the experiment. Experiments with E. coli BL21 were conducted in Luria-Bertani broth with agitation and contamination was prevented with the use of Breathe Easy Sealing Membranes (Sigma-Aldrich).
Appropriate dilutions of overnight cultures in their respective liquid growth media were incubated with two-fold dilutions of compound and growth was monitored at 600 nm over the course of an overnight incubation at 37 °C with agitation using a Synergy H1 Microplate Reader (BioTek). The growth, measured as difference in OD600 reading, of each treatment was then compared to that of the no compound control and plotted as a function of compound concentration. All assays were considered complete when the stationary phase was reached by the control culture lacking compound.

5. Conclusions

The O-acetylation of peptidoglycan observed in pathogenic Gram-negative and Gram-positive bacteria is a key virulence factor employed to enable increased pathogenicity and resistance to lysozyme of the innate immune system [10,18,19,20,22,23,24,25,26,28]. The data presented herein represents the first identification of inhibitors of PatB and OatA. We demonstrated that inhibiting NgPatB could be used as a novel antivirulence strategy, as compound 89224 was able to selectively inhibit the growth of N. gonorrhoeae over a non-O-acetylating control bacterium. This information may enable the development of novel therapeutics to not only treat gonococcal infections but a wide range of bacterial infections where the causative agent is an O-acetylating bacterial pathogen. Moreover, this study leads the discussion of the mode of substrate interaction for this family of transferases found to have an unconventional shallow active site with respect to other carbohydrate-active enzymes. This information can be used to gain a better understand of PG O-acetylation systems in Gram-negative and Gram-positive pathogens, as well as other O-acetylating enzymatic systems, and how they could be exploited as novel antibacterial targets.

Supplementary Materials

The following are available online at, Figure S1. SDS PAGE analysis of the purification of (a) NgPatBΔ69, (b) NgPatBΔ100, and (c) SaOatAcΔ445; Figure S2. Dependence of (a) SaOatAcΔ445 and (b) NgPatBΔ100 O-acetylesterase activity on pH; Figure S3. Flowcharts of pilot and larger-scale screens for inhibitors of PatA and OatA; Figure S4. Molecular structure and half maximal inhibitory concentrations of (a) esculin and (b) scopoletin for inhibition of SaOatAcΔ435 and NgPatBΔ69; Figure S5. Large scale HTS for inhibitors of SaOatAcΔ445 and NgPatBΔ100; Figure S6. Representative dose response curves of NgPatBΔ100 and SaOatAcΔ445 inhibition in the presence of select potential hit compounds from the respective large-scale screens that help to identify false-positives; Figure S7. Mode of inhibition of NgPatBΔ69 by esculetin; Figure S8. Effect of esculetin on bacterial cell growth. Table S1. Kinetic analysis of SaOatA and NgPatB variants as O-acetylesterases.

Author Contributions

A.S.B., C.S.J., and A.J.C. designed the research. A.S.B. and C.S.J. engineered, produced, purified, and biochemically characterized the enzymes, conducted the secondary screening for inhibitors and performed the MIC experiments. A.S.B., C.S.J., and A.J.C. analyzed all data. A.S.B. and A.J.C. wrote the manuscript and all three authors contributed to the editing of the article.


This research was funded by project grants to A.J.C. from the Canadian Institutes of Health Research (grant number PJT 156353) and the Canadian Glycomics Network, a National Centre of Excellence. C.J. was supported by an NSERC CGSM scholarship, and both C.S.J. and A.S.B. were recipients of Ontario Graduate Scholarships.


We thank: Tracey Campbell, Centre for Microbial Chemical Biology, McMaster University and Leanne Wybenga-Groot, Drug Discovery Facility, SPARC BioCentre for their assistance with HTS; Mark Nitz, Department of Chemistry, University of Toronto for his assistance with PAINS analyses; David Sychantha for providing oatAΔ445; and Laura Kell, Nick Moroz, and Catherine Jany for their expert technical assistance.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Callewaert, L.; Michiels, C.W. Lysozymes in the animal kingdom. J. Biosci. 2010, 35, 127–160. [Google Scholar] [CrossRef]
  2. Sorbara, M.T.; Philpott, D.J. Peptidoglycan: A critical activator of the mammalian immune system during infection and homeostasis. Immunol. Rev. 2011, 243, 40–60. [Google Scholar] [CrossRef]
  3. Shimada, T.; Park, B.G.; Wolf, A.J.; Briko, C.; Goodridge, H.S.; Becker, C.A.; Reyes, C.N.; Miao, E.A.; Aderem, A.; Götz, F.; et al. Staphylococcus aureus evades lysozyme-based peptidoglycan digestion that links phagocytosis, inflammasome activation, and IL-1beta secretion. Cell Host Microbe 2010, 7, 38–49. [Google Scholar] [CrossRef]
  4. Hancock, R.E.W.; Scott, M.G. The role of antimicrobial peptides in animal defenses. Proc. Natl. Acad. Sci. USA 2000, 97, 8856–8861. [Google Scholar] [CrossRef] [Green Version]
  5. Ellison, R.T., 3rd; Giehl, T.J. Killing of Gram-negative bacteria by lactoferrin and lysozyme. J. Clin. Investig. 1991, 88, 1080–1091. [Google Scholar] [CrossRef]
  6. Pushkaran, A.C.; Nataraj, N.; Nair, N.; Götz, F.; Biswas, R.; Mohan, C.G. Understanding the structure-function relationship of lysozyme resistance in Staphylococcus aureus by peptidoglycan O-acetylation using molecular docking, dynamics, and lysis assay. J. Chem. Inf. Model. 2015, 55, 760–770. [Google Scholar] [CrossRef]
  7. Dupont, C.; Clarke, A.J. Dependence of lysozyme-catalysed solubilization of Proteus mirabilis peptidoglycan on the extent of O-acetylation. Eur. J. Biochem. 1991, 195, 763–769. [Google Scholar] [CrossRef]
  8. Rosenthal, R.S.; Folkening, W.J.; Miller, D.R.; Swim, S.C. Resistance of O-acetylated gonococcal peptidoglycan to human peptidoglycan-degrading enzymes. Infect. Immun. 1983, 40, 903–911. [Google Scholar] [Green Version]
  9. Rosenthal, R.S.; Blundell, J.K.; Perkins, H.R. Strain-related differences in lysozyme sensitivity and extent of O-acetylation of gonococcal peptidoglycan. Infect. Immun. 1982, 37, 826–829. [Google Scholar] [Green Version]
  10. Swim, S.C.; Gfell, M.A.; Wilde, C.E., 3rd; Rosenthal, R.S. Strain distribution in extents of lysozyme resistance and O-acetylation of gonococcal peptidoglycan determined by high-performance liquid chromatography. Infect. Immun. 1983, 42, 446–452. [Google Scholar] [PubMed]
  11. Sukhithasri, V.; Nisha, N.; Biswas, L.; Anil Kumar, V.; Biswas, R. Innate immune recognition of microbial cell wall components and microbial strategies to evade such recognitions. Microbiol. Res. 2013, 168, 396–406. [Google Scholar] [CrossRef] [PubMed]
  12. Sychantha, D.; Brott, A.S.; Jones, C.S.; Clarke, A.J. Mechanistic pathways for peptidoglycan O-acetylation and de-O-acetylation. Front. Microbiol. 2018, 9, 2332. [Google Scholar] [CrossRef] [PubMed]
  13. Moynihan, P.J.; Sychantha, D.; Clarke, A.J. Chemical biology of peptidoglycan acetylation and deacetylation. Bioorg. Chem. 2014, 54, 44–50. [Google Scholar] [CrossRef]
  14. Moynihan, P.J.; Clarke, A.J. O-Acetylated peptidoglycan: Controlling the activity of bacterial autolysins and lytic enzymes of innate immune systems. Intl. J. Biochem. Cell Biol. 2011, 43, 1655–1659. [Google Scholar] [CrossRef] [PubMed]
  15. Clarke, A.J.; Dupont, C. O-Acetylated peptidoglycan: Its occurrence, pathobiological significance and biosynthesis. Can. J. Microbiol. 1991, 38, 85–91. [Google Scholar] [CrossRef]
  16. Pfeffer, J.M.; Strating, H.; Weadge, J.T.; Clarke, A.J. Peptidoglycan O-acetylation and autolysin profile of Enterococcus faecalis in the viable but nonculturable state. J. Bacteriol. 2006, 188, 902–908. [Google Scholar] [CrossRef] [PubMed]
  17. Strating, H.; Clarke, A.J. Changes in peptidoglycan structure and metabolism during differentiation of Proteus mirabilis into swarmer cells. Can. J. Microbiol. 2012, 58, 1183–1194. [Google Scholar] [CrossRef]
  18. Bera, A.; Biswas, R.; Herbert, S.; Götz, F. The presence of O-acetyltransferase in various staphylococci species correlates with lysozyme resistance and pathogenicity. Infect. Immun. 2006, 74, 4598–4604. [Google Scholar] [CrossRef] [PubMed]
  19. Bera, A.; Herbert, S.; Jakob, A.; Vollmer, W.; Götz, F. Why are pathogenic staphylococci so lysozyme resistant? The peptidoglycan O-acetyltransferase OatA is the major determinant for lysozyme resistance of Staphylococcus aureus. Mol. Microbiol. 2005, 55, 778–787. [Google Scholar] [CrossRef] [PubMed]
  20. Wichgers Schreur, P.J.; van Weeghel, C.; Rebel, J.M.; Smits, M.A.; van Putten, J.P.; Smith, H.E. Lysozyme resistance in Streptococcus suis is highly variable and multifactorial. PLoS ONE 2012, 7, e36281. [Google Scholar] [CrossRef] [PubMed]
  21. Allen, J.P.; Neely, M.N. CpsY influences Streptococcus iniae cell wall adaptations important for neutrophil intracellular survival. Infect. Immun. 2012, 80, 1707–1715. [Google Scholar] [CrossRef]
  22. Hébert, L.; Courtin, P.; Torelli, R.; Sanguinetti, M.; Chapot-Chartier, M.P.; Auffray, Y.; Benachour, A. Enterococcus faecalis constitutes an unusual bacterial model in lysozyme resistance. Infect. Immun. 2007, 75, 5390–5398. [Google Scholar] [CrossRef]
  23. Burke, T.P.; Loukitcheva, A.; Zemansky, J.; Wheeler, R.; Boneca, I.G.; Portnoy, D.A. Listeria monocytogenes is resistant to lysozyme through the regulation, not the acquisition, of cell wall-modifying enzymes. J. Bacteriol. 2014, 196, 3756–3767. [Google Scholar] [CrossRef]
  24. Aubry, C.; Goulard, C.; Nahori, M.A.; Cayet, N.; Decalf, J.; Sachse, M.; Boneca, I.G.; Cossart, P.; Dussurget, O. OatA, a peptidoglycan O-acetyltransferase involved in Listeria monocytogenes immune escape, is critical for virulence. J. Infect. Dis. 2011, 204, 731–740. [Google Scholar] [CrossRef]
  25. Rae, C.S.; Geissler, A.; Adamson, P.C.; Portnoy, D.A. Mutations of the peptidoglycan N-deacetylase and O-acetylase result in enhanced lysozyme sensitivity, bacteriolysis, and hyperinduction of innate immune pathways. Infect. Immun. 2011, 79, 3596–3606. [Google Scholar] [CrossRef] [PubMed]
  26. Guariglia-Oropeza, V.; Helmann, J.D. Bacillus subtilis σ(V) confers lysozyme resistance by activation of two cell wall modification pathways, peptidoglycan O-acetylation and D-alanylation of teichoic acids. J. Bacteriol. 2011, 193, 6223–6232. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, G.; Lo, L.F.; Forsberg, L.S.; Maier, R.J. Helicobacter pylori peptidoglycan modifications confer lysozyme resistance and contribute to survival in the host. WMBio 2012, 3, e00409–e00412. [Google Scholar] [CrossRef]
  28. Fleming, T.J.; Wallsmith, D.E.; Rosenthal, R.S. Arthropathic properties of gonococcal peptidoglycan fragments: Implications for the pathogenesis of disseminated gonococcal disease. Infect. Immun. 1986, 52, 600–608. [Google Scholar]
  29. Veyrier, F.J.; Williams, A.H.; Mesnage, S.; Schmitt, C.; Taha, M.K.; Boneca, I.G. De-O-acetylation of peptidoglycan regulates glycan chain extension and affects in vivo survival of Neisseria meningitidis. Mol. Microbiol. 2013, 87, 1100–1112. [Google Scholar] [CrossRef]
  30. Crisóstomo, M.L.; Vollmer, W.; Kharat, A.S.; Inhülsen, S.; Gehre, F.; Buckenmaier, S.; Tomasz, A. Attenuation of penicillin resistance in a peptidoglycan O-acetyl transferase mutant of Streptococcus pneumoniae. Mol. Microbiol. 2006, 61, 1497–1509. [Google Scholar] [CrossRef]
  31. Pfeffer, J.M.; Moynihan, P.J.; Clarke, C.A.; Vandenende, C.; Clarke, A.J. Control of lytic transglycosylase activity within bacterial cell walls. In Glycomicrobiology; Reid, C.W., Twin, S.M., Reid, A.N., Eds.; Caister Academic Press: Norfolk, UK, 2012; pp. 55–68. [Google Scholar]
  32. Bernard, E.; Rolain, T.; David, B.; André, G.; Dupres, V.; Dufrêne, Y.F.; Hallet, B.; Chapot-Chartier, M.P.; Hols, P. Dual role for the O-acetyltransferase OatA in peptidoglycan modification and control of cell septation in Lactobacillus plantarum. PLoS ONE 2012, 7, e47893. [Google Scholar] [CrossRef]
  33. Laaberki, M.-H.; Pfeffer, J.; Clarke, A.J.; Dworkin, J. O-Acetylation of peptidoglycan is required for proper cell separation and S-layer anchoring in Bacillus anthracis. J. Biol. Chem. 2011, 286, 5278–5288. [Google Scholar] [CrossRef] [PubMed]
  34. Emirian, A.; Fromentin, S.; Eckert, C.; Chau, F.; Dubost, L.; Delepierre, M.; Gutmann, L.; Arthur, M.; Mesnage, S. Impact of peptidoglycan O-acetylation on autolytic activities of the Enterococcus faecalis N-acetylglucosaminidase AtlA and N-acetylmuramidase AtlB. FEBS Lett. 2009, 583, 3033–3038. [Google Scholar] [CrossRef]
  35. Strating, H.; Clarke, A.J. Differentiation of bacterial autolysins by zymogram analysis. Anal. Biochem. 2001, 290, 388–393. [Google Scholar] [CrossRef]
  36. Scheurwater, E.M.; Reid, C.W.; Clarke, A.J. Lytic transglycosylases: Bacterial space-making autolysins. Int. J. Biochem. Cell Biol. 2008, 40, 586–591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Höltje, J.-V.; Mirelman, D.; Sharon, N.; Schwarz, U. Novel type of murein transglycosylase in Escherichia coli. J. Bacteriol. 1975, 124, 1067–1076. [Google Scholar] [Green Version]
  38. Clarke, A.J.; Strating, H.; Blackburn, N. Pathways for the O-acetylation of bacterial cell wall polysaccharides. In Glycomicrobiology; Doyle, R.J., Ed.; Plenum: New York, NY, USA, 1999; pp. 187–223. [Google Scholar]
  39. Moynihan, P.F.; Clarke, A.J. O-Acetylation of peptidoglycan in Gram-negative bacteria: Identification and characterization of PG O-acetyltransferase in Neisseria gonorrhoeae. J. Biol. Chem. 2010, 285, 13264–13273. [Google Scholar] [CrossRef]
  40. Dillard, J.P.; Hackett, K.T. Mutations affecting peptidoglycan acetylation in Neisseria gonorrhoeae and Neisseria meningitidis. Infect. Immun. 2005, 73, 5697–5705. [Google Scholar] [CrossRef]
  41. Sychantha, D.; Jones, C.S.; Little, D.J.; Moynihan, P.J.; Robinson, H.; Galley, N.F.; Roper, D.I.; Dowson, C.G.; Howell, P.L.; Clarke, A.J. In vitro characterization of the antivirulence target of Gram-positive pathogens, peptidoglycan O-acetyltransferase A (OatA). PLoS Pathog. 2017, 13, e1006667. [Google Scholar] [CrossRef]
  42. Bernard, E.; Rolain, T.; Courtin, P.; Guillot, A.; Langella, P.; Hols, P.; Chapot-Chartier, M.P. Characterization of O-acetylation of N-acetylglucosamine: A novel structural variation of bacterial peptidoglycan. J. Biol. Chem. 2011, 286, 23950–23958. [Google Scholar] [CrossRef]
  43. Sychantha, D.; Clarke, A.J. Peptidoglycan modification by the catalytic domain of Streptococcus pneumoniae OatA follows a ping-pong bi-bi mechanism of action. Biochemistry 2018, 57, 2394–2401. [Google Scholar] [CrossRef] [PubMed]
  44. Moynihan, P.J.; Clarke, A.J. Substrate specificity and kinetic characterization of PatB from N. gonorrhoeae. J. Biol. Chem. 2014, 289, 16748–16760. [Google Scholar] [CrossRef]
  45. Moynihan, P.J.; Clarke, A.J. The mechanism of peptidoglycan O-acetyltransferase involves an Asp-His-Ser catalytic triad. Biochemistry 2014, 53, 6243–6251. [Google Scholar] [CrossRef] [PubMed]
  46. Moynihan, P.J.; Clarke, A.J. Assay for peptidoglycan O-acetyltransferase: A potential new antibacterial target. Anal. Biochem. 2013, 439, 73–79. [Google Scholar] [CrossRef]
  47. Zhang, J.H.; Chung, T.D.; Oldenburg, K.R. A simple statistical parameter for use in evaluation and validation of high throughput screening assays. J. Biomol. Screen. 1999, 4, 67–73. [Google Scholar] [CrossRef] [PubMed]
  48. Brown, E.D. Screening in academe: A perspective on implementation of university-based small molecule screening. J. Biomol. Screen. 2003, 8, 377–379. [Google Scholar] [CrossRef] [PubMed]
  49. Kell, L.F. Investigation of novel inhibitory compounds of O-acetyltransferase A (OatA) from Staphylococcus aureus. Ph.D. Thesis, University of Guelph, Guelph, ON, Canada, December 2015. [Google Scholar]
  50. Baell, J.B.; Holloway, G.A. New substructure filters for removal of pan assay interference compounds (PAINS) from screening libraries and for their exclusion in bioassays. J. Med. Chem. 2010, 53, 2719–2740. [Google Scholar] [CrossRef] [PubMed]
  51. Pfeffer, J.M.; Clarke, A.J. Identification of the first known inhibitors of O-acetylpeptidoglycan esterase: A potential new antibacterial target. Chembiochem 2012, 13, 722–731. [Google Scholar] [CrossRef]
  52. Moynihan, P.J. Biochemical characterization of peptidoglycan O-acetyltransferases. Ph.D. Thesis, University of Guelph, Guelph, ON, Canada, December 2013. [Google Scholar]
  53. Song, H.; Inaka, K.; Maenaka, K.; Matsushima, M. Structural changes of active site cleft and different saccharide binding modes in human lysozyme co-crystallized with hexa-N-acetyl-chitohexose at pH 4.0. J. Mol. Biol. 1994, 224, 522–540. [Google Scholar] [CrossRef] [PubMed]
  54. Williams, A.H.; Veyrier, F.J.; Bonis, M.; Michaud, Y.; Raynal, B.; Taha, M.K.; White, S.W.; Haouz, A.; Boneca, I.G. Visualization of a substrate-induced productive conformation of the catalytic triad of the Neisseria meningitidis peptidoglycan O-acetylesterase reveals mechanistic conservation in SGNH esterase family members. Acta Crystallogr. D Biol. Crystallogr. 2014, 70, 2631–2639. [Google Scholar] [CrossRef]
  55. Brott, A.S. Inhibition and structural insights into the mechanism of peptidoglycan O-acetylation in Neisseria gonorrhoeae. Ph.D. Thesis, University of Guelph, Guelph, ON, Canada. In preparation.
  56. Weeke, P.; Roden, D.M. Applied pharmacogenomics in cardiovascular medicine. Ann. Rev. Med. 2014, 65, 81–94. [Google Scholar] [CrossRef] [PubMed]
  57. Emami, S.; Dadashpour, S. Current developments of coumarin-based anti-cancer agents in medicinal chemistry. Eur. J. Med. Chem. 2015, 102, 611–630. [Google Scholar] [CrossRef] [PubMed]
  58. Pochet, L.; Doucet, C.; Dive, G.; Wouters, J.; Masereel, B.; Reboud-Ravaux, M.; Pirotte, B. Coumarinic derivatives as mechanism-based inhibitors of alpha-chymotrypsin and human leukocyte elastase. Bioorg. Med. Chem. 2000, 8, 1489–1501. [Google Scholar] [CrossRef]
  59. Harper, J.W.; Powers, J.C. Reaction of serine proteases with substituted 3-alkoxy-4-chloroisocoumarins and 3-alkoxy-7-amino-4-chloroisocoumarins: New reactive mechanism-based inhibitors. Biochemistry 1985, 24, 7200–7213. [Google Scholar] [CrossRef] [PubMed]
  60. Heynekamp, J.J.; Hunsaker, L.A.; Vander Jagt, T.A.; Royer, R.E.; Deck, L.M.; Vander Jagt, D.L. Isocoumarin-based inhibitors of pancreatic cholesterol esterase. Bioorg. Med. Chem. 2008, 16, 5285–5294. [Google Scholar] [CrossRef] [Green Version]
  61. De Souza, S.M.; Delle Monache, F.; Smânia, A., Jr. Antibacterial activity of coumarins. Z. Fuer Naturforsch. C 2005, 60, 693–700. [Google Scholar] [CrossRef]
  62. Haggerty, C.L.; Ness, R.B. Epidemiolgy, pathogenesis and treatment of pelvic inflammatory disease. Expert Rev. Anti. Infect. Ther. 2006, 4, 235–247. [Google Scholar] [CrossRef]
  63. Baranwal, F.; Mohammad, M.; Jarneborn, A.; Reddy, B.R.; Golla, A.; Chakravarty, S.; Biswas, L.; Götz, F.; Shankarappa, S.; Jin, T.; et al. Impact of cell wall peptidoglycan O-acetylation on the pathogenesis of Staphylococcus aureus in septic arthritis. Int. J. Med. Microbiol. 2017, 307, 388–397. [Google Scholar] [CrossRef]
  64. Sanchez, M.; Kolar, S.L.; Müller, S.; Reyes, C.N.; Wolf, A.J.; Ogawa, C.; Singhania, R.; De Carvalho, D.D.; Arditi, M.; Underhill, D.M.; et al. O-Acetylation of peptidoglycan limits helper T cell priming and permits Staphylococcus aureus reinfection. Cell Host Microbe 2017, 22, 1–9. [Google Scholar] [CrossRef]
  65. Reverter, D.; Lima, C.D. Preparation of SUMO proteases and kinetic analysis using endogenous substrates. In Methods in Molecular Biology: SUMO Protocols; Ulrich, H.D., Ed.; Humana Press, Springer Science + Business Media: New York, NY, USA, 2009. [Google Scholar]
  66. Dillard, J.P. Genetic manipulation of Neisseria gonorrhoeae. In Current Protocols in Microbiology: Beta Proteobacteria; John Wiley & Sons. Inc.: Hoboken, NJ, USA, 2005; pp. 4A. 2.1–4A. 2.19. [Google Scholar]

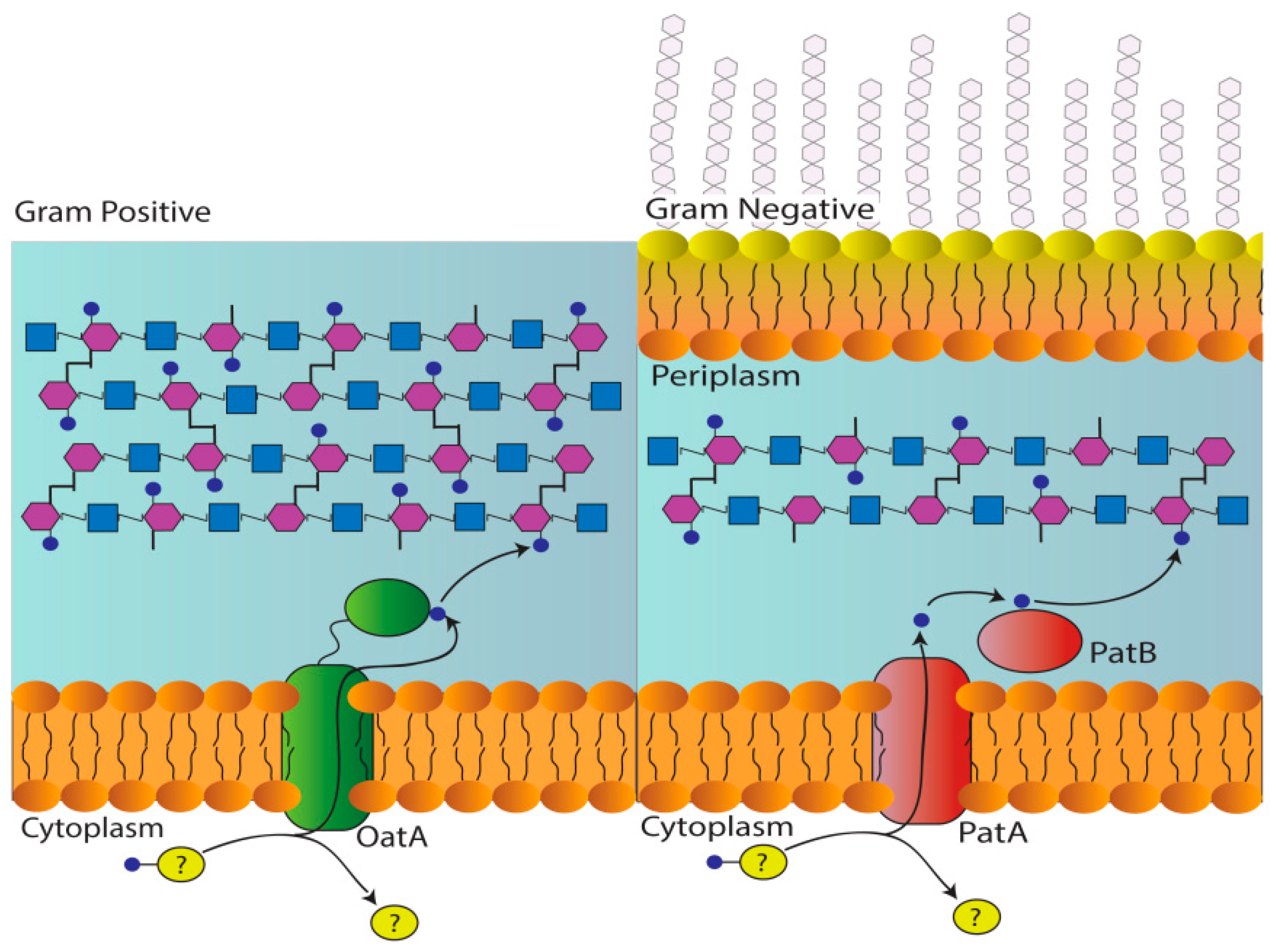

Figure 1. Pathways for the O-acetylation of PG. In Gram-positive bacteria, the membrane-spanning N-terminal domain of OatA receives an acetyl group from an unknown donor and translocates it across the cytoplasmic membrane for its transfer to PG by the extracytoplasmic C-terminal O-acetyltransferase domain. With Gram-negative bacteria, the two reactions are catalyzed by separate proteins. As an integral membrane protein, PatA translocates the acetyl group across the cytoplasmic membrane, while cytoplasmic PatB catalyzes its transfer to PG.
Figure 1. Pathways for the O-acetylation of PG. In Gram-positive bacteria, the membrane-spanning N-terminal domain of OatA receives an acetyl group from an unknown donor and translocates it across the cytoplasmic membrane for its transfer to PG by the extracytoplasmic C-terminal O-acetyltransferase domain. With Gram-negative bacteria, the two reactions are catalyzed by separate proteins. As an integral membrane protein, PatA translocates the acetyl group across the cytoplasmic membrane, while cytoplasmic PatB catalyzes its transfer to PG.
Antibiotics 08 00065 g001

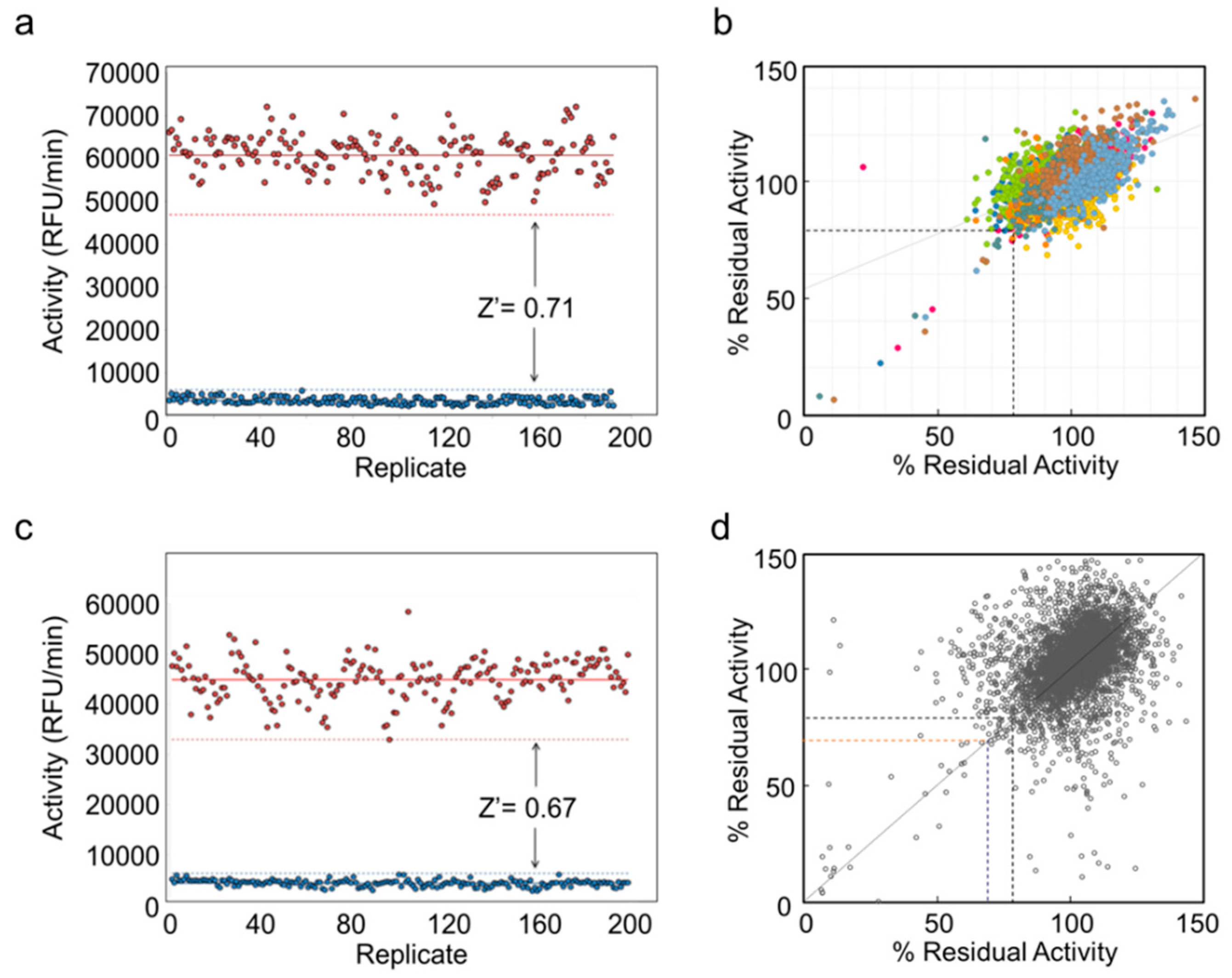

Figure 2. Pilot screens for inhibitors of NgPatB and SaOatA. (a,c) Determination of Z’ factors for the HTS assays of NgPatBΔ69 and SaOatAΔ435, respectively. (b,d) HTS of Bioactive Subset of the Canadian Compound Collection for inhibitors of NgPatBΔ69 and SaOatAΔ435, respectively.
Figure 2. Pilot screens for inhibitors of NgPatB and SaOatA. (a,c) Determination of Z’ factors for the HTS assays of NgPatBΔ69 and SaOatAΔ435, respectively. (b,d) HTS of Bioactive Subset of the Canadian Compound Collection for inhibitors of NgPatBΔ69 and SaOatAΔ435, respectively.
Antibiotics 08 00065 g002

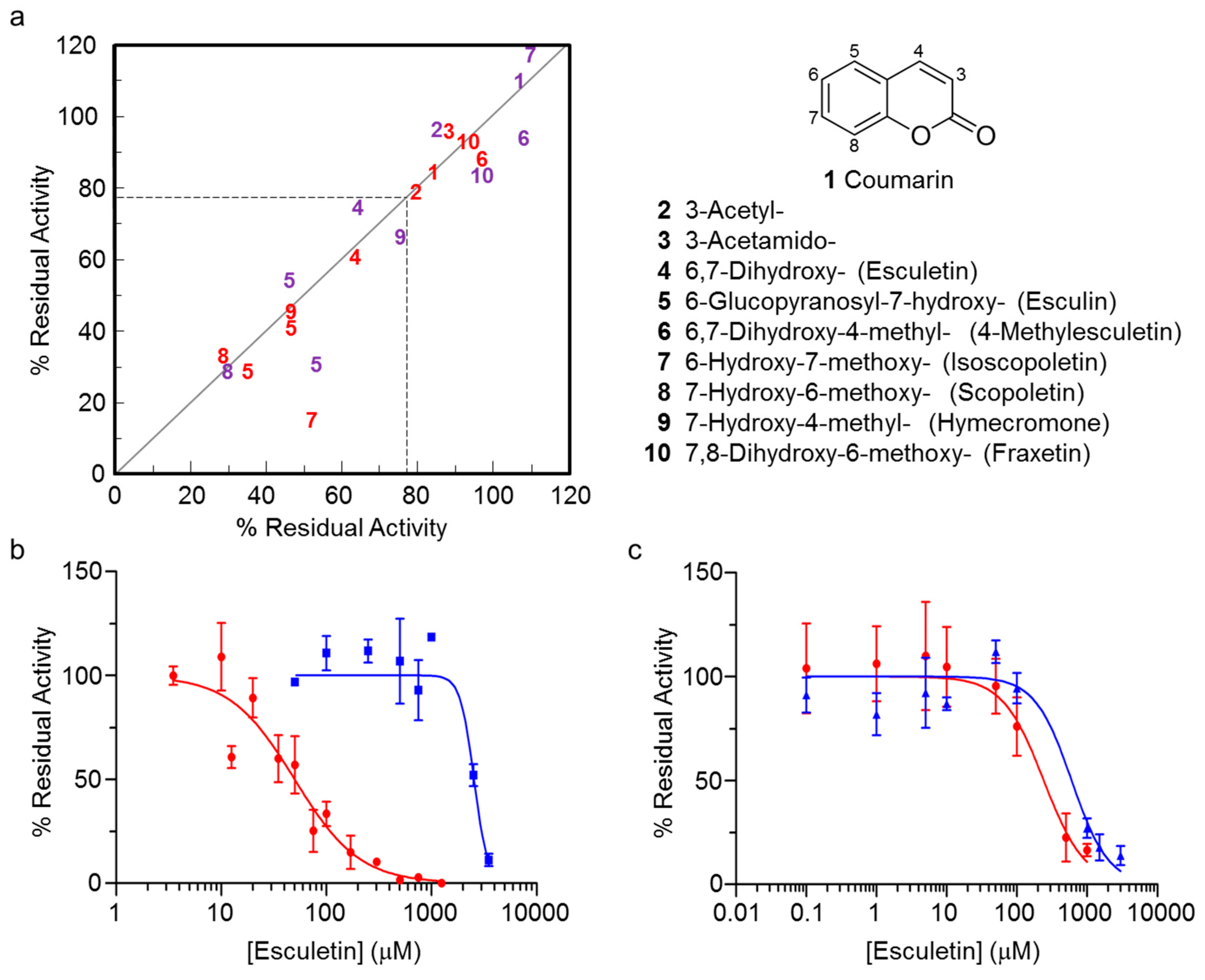

Figure 3. Pilot HTS for inhibitors of NgPatB and SaOatA. (a) Hit window of primary screen presenting the inhibition of NgPatBΔ69 (red) and SaOatAΔ435 (purple) by select coumarins present in the Bioactive Collection. Determination of dose dependence (IC50 values) of inhibition of (b) NgPatBΔ69 and (c) SaOatAΔ435 by esculetin (compound 4 in panel (a)), assayed with 4MU-Ac (red) and pNP-Ac (blue). Error bars denote standard deviation (n = 3).
Figure 3. Pilot HTS for inhibitors of NgPatB and SaOatA. (a) Hit window of primary screen presenting the inhibition of NgPatBΔ69 (red) and SaOatAΔ435 (purple) by select coumarins present in the Bioactive Collection. Determination of dose dependence (IC50 values) of inhibition of (b) NgPatBΔ69 and (c) SaOatAΔ435 by esculetin (compound 4 in panel (a)), assayed with 4MU-Ac (red) and pNP-Ac (blue). Error bars denote standard deviation (n = 3).
Antibiotics 08 00065 g003
Figure 4. Inhibition of NgPatB by compound 89224. (a) Determination of IC50 value. (b) Determination of the mode of reversible inhibition and Ki value. Double reciprocal plot of initial velocity vs. substrate concentration in the presence of (●) 0 µM, (■) 25 µM, (▲) 75 µM, and (♦) 125 µM compound 89224. Error bars denote standard deviation (n = 3).
Figure 4. Inhibition of NgPatB by compound 89224. (a) Determination of IC50 value. (b) Determination of the mode of reversible inhibition and Ki value. Double reciprocal plot of initial velocity vs. substrate concentration in the presence of (●) 0 µM, (■) 25 µM, (▲) 75 µM, and (♦) 125 µM compound 89224. Error bars denote standard deviation (n = 3).
Antibiotics 08 00065 g004
Figure 5. Effect of compound 89224 on growth of N. gonorrhoeae and E. coli. Cultures of the two bacteria in their respective liquid growth media were incubated at 37 °C, with compound 89224 at the concentrations indicated, and growth was monitored at 600 nm until control cultures reached stationary phase. The data presented represent the average extents of growth of cultures relative to the respective control cultures. Error bars denote standard deviations (n = 3).
Figure 5. Effect of compound 89224 on growth of N. gonorrhoeae and E. coli. Cultures of the two bacteria in their respective liquid growth media were incubated at 37 °C, with compound 89224 at the concentrations indicated, and growth was monitored at 600 nm until control cultures reached stationary phase. The data presented represent the average extents of growth of cultures relative to the respective control cultures. Error bars denote standard deviations (n = 3).
Antibiotics 08 00065 g005
Table 1. Inhibition of NgPatB and SaOatA by select compounds identified though HTS.
Table 1. Inhibition of NgPatB and SaOatA by select compounds identified though HTS.
1° Screen
(% RA) 1
1° Screen
(% RA) 1
n.d.530 ± 70n.d.>3000n.d.98.5 ± 1.12>3000
42.9615 ± 10n.d.>300067.8>3000>3000
55.753.1 ± 1.086.7 ± 4.7853 ± 7971.0106±1.22600 ± 140
38.449.7 ± 3.0n.d.923±9.047.875.8 ± 1.021350 ± 150
30.047.9 ± 4.0n.d.792 ± 7.021.4103 ± 1.121170 ± 100
Compound 8922478.822.1 ± 1.2126 ± 19623 ± 6499.8n.d.n.d.
Compound 1842077.1n.d.n.d.n.d.78.286.6 ± 8.7>3000
1NgPatB data ± standard error (n = 3); SaOatA data ± standard deviation (n = 3). For the coumarin data obtained from the pilot screens, average of the two replicates is presented. n.d., not determined. Data from [49].

Share and Cite

MDPI and ACS Style

Brott, A.S.; Jones, C.S.; Clarke, A.J. Development of a High Throughput Screen for the Identification of Inhibitors of Peptidoglycan O-Acetyltransferases, New Potential Antibacterial Targets. Antibiotics 2019, 8, 65.

AMA Style

Brott AS, Jones CS, Clarke AJ. Development of a High Throughput Screen for the Identification of Inhibitors of Peptidoglycan O-Acetyltransferases, New Potential Antibacterial Targets. Antibiotics. 2019; 8(2):65.

Chicago/Turabian Style

Brott, Ashley S., Carys S. Jones, and Anthony J. Clarke. 2019. "Development of a High Throughput Screen for the Identification of Inhibitors of Peptidoglycan O-Acetyltransferases, New Potential Antibacterial Targets" Antibiotics 8, no. 2: 65.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
