Article

Cefonicid Benzathine Salt: A Convenient, Lean, and High-Performance Protocol to Make an Old Cephalosporin Shine

by
Marziale Comito
1,2,
Riccardo Monguzzi
2,
Silvia Tagliapietra
1,
Giovanni Palmisano
3 and
Giancarlo Cravotto
1,*
1
Dipartimento di Scienza e Tecnologia del Farmaco, University of Turin, Via Pietro Giuria 9, 10125 Turin, Italy
2
Research and Development, ACS Dobfar SpA, Via Paullo 9, 20067 Tribiano, Italy
3
Dipartimento di Scienza e Alta Tecnologia, University of Insubria, Via Valleggio 9, 22100 Como, Italy
*
Author to whom correspondence should be addressed.
Antibiotics 2022, 11(8), 1095; https://doi.org/10.3390/antibiotics11081095
Submission received: 15 July 2022 / Revised: 3 August 2022 / Accepted: 10 August 2022 / Published: 12 August 2022
Browse Figures
Versions Notes

Abstract

:
Cefonicid is a second-generation cephalosporin sold under the brand name Sintocef™. It is an injectable drug obtained via a freeze-drying process and is also available for oral preparations. The high-quality standard required is very challenging to satisfy, and current production protocols are characterized by steps that are lengthy and cumbersome, making the product unattractive for the international market. Industrial R&D is constantly working on the process optimization for API synthesis, with the aim of increasing productivity and decreasing production costs and waste. We herein report a new and efficient method for the synthesis of the cefonicid benzathine salt that provides a good yield and high product stability. The double-nucleophilic and lipophilic nature of N′,N″-dibenzylethylene diacetate enables the deformylation of the OH-protected group on the mandelic moiety and also enables product crystallization to occur. We demonstrate that the formyl group in the peculiar position has high reactivity, promoting an amidation reaction that deprotects a hydroxy group and generates a new C-N bond in the reaction by-product. Several amines and OH-protected groups have been studied, but none were able to replicate the excellent results of benzathine diacetate.

1. Introduction

The discovery and development of antibiotics, combined with their therapeutic use against many bacterial illnesses, can be considered one of humankind’s great breakthroughs, so much so that it was cited, in 2013, as one of nine ways that chemistry has changed the world [1], underlining the utmost importance of these drugs.
Although we have observed a drastic fall in the approval of new antibacterials since the 1990s [2], the market has rewarded this therapeutic class, placing it in fifth place in sales rankings in 2018, with USD 40.6 billion being sold, putting it on a par with vaccines [3]. Of the various antibiotic types available, β-lactams are the largest class in terms of production volume and market size, with USD 27.1 billion being sold in 2018 and a growth perspective of USD 34.2 billion by 2028 [4].
While penicillins and cephalosporins have been and continue to be the main β-lactam scaffolds, patients can fight infections caused by bacteria with other β-lactam subgroups, such as carbapenems, penems, monobactams, oxacephems, and carbacephems, that were discovered during the “golden age” of antibiotics in the 1960s, 1970s, and 1980s [5].
Over the last twenty years, except for the approval of fourth- and fifth-generation cephalosporins, ceftaroline fosamil [6], ceftolozane [7], ceftobiprole [8], and cefiderocol [9], the trend in pharmaceutical industry R&D has been to dredge up older cephalosporins and carbapenems and combine them with β-lactamase inhibitors to create more powerful medical weapons. Meropenem/vaborbactam, sold under the brand name Vabomere™ [10], imipenem/cilastatin/relebactam (Recarbrio™) [11], and ceftazidime with avibactam (Avycaz™) [12] constitute the recent FDA approvals in the antibacterial field.
In this landscape, where new molecular entities (NMEs) are dwindling, the possibility of a cephalosporin renaissance is realistic. In this work, we have revisited the synthetic pathway of cefonicid, one of the first cephalosporins discovered, with the aim of making it appealing to new pharmaceutical research opportunities. Cefonicid is a common, second-generation cephalosporin that was patented in 1978 [13] by Glaxo Wellcome (now GlaxoSmithkline). It is parenterally administered and used for urinary tract infections, lower respiratory tract infections, and soft tissue and bone infections [14]. Although its long half-life (4.6 h) and cost-effective, once-daily dosage regimen are the major pharmacokinetic advantages found in this generation of cephalosporins [15,16], its marketplace is currently restricted to low- and middle-income countries (LMICs), and its appeal has fallen even lower.
Chemically, the general concept behind producing these semi-synthetic molecules involves derivatization at the 3- and 7- positions of 7-aminocephalosporanic acid (7-ACA), which is the backbone of almost all cephalosporin-based antibiotics and is obtained via a modern and environmentally friendly biocatalytic process from cephalosporin C [5,17,18], as designed in Figure 1.
In the specific case of cefonicid, the presence of the sulfonic acid moiety on the 1-Me tetrazole ring dramatically enhances solubility in water. Industrially, this high affinity for water explains why freeze-drying is a sterile process for the injectable form, and consequently, why even cumbersome and lengthy synthetic steps, followed by purification with chromatography or ion-exchange resins, characterized the first synthetic protocols [19,20,21]. Obtaining stable and high-purity grades of an oral drug before the lyophilization step has been the main goal of all synthetic pathways developed over the years, while at the same time, being the biggest challenge to face for process industrialization.
We have very recently reported a simple, energy-saving, and cost-effective protocol that is also scalable for commercial production for the synthesis of the key cefonicid intermediate, 7-SACA (4) [22]. This intermediate, with a free amino group in the 7-position, was formed in an SN1 reaction using a BF3 complex in acetonitrile as the Lewis acid, starting from 7-ACA and an S-nucleophile scaffold, which played the activator role for the acetoxy group in the 3-position and provided a reduction in waste.
In pursuit of the challenging goal of improving the total synthesis of cefonicid, and therefore, ensuring a more profitable production, we retrieved an old, synthetic pathway and designed and developed a relevant improvement by focusing our attention on the amidation of the 7-position and OH deprotection. The greatest challenge facing process chemistry is that of producing the required molecules in a controlled fashion, with reproducible impurity profiles, in an economic and scalable way. The rigorous inspection of batch impurity profiles over the last few years discourages any changes or adjustments in validated processes. However, the fact that the critical E-factors (environmental-factor) of the pharma industry are estimated to be in the 25 to 100 range (kg of waste per kg of drug molecule), the pharmaceutical–chemical community has recognized the urgent need for more sustainable manufacturing via the design of cost-effective and greener synthetic routes [23,24,25].
This situation has encouraged us to develop a new, synthetic path for the abovementioned cephalosporin, starting from the restrictions imposed by its chemical behavior and turning them into the driving force for a sustainable route to highly efficient production. Considering the old chemistry of cefonicid preparation, the conversion to modern, sustainable processes is a challenging task. We believe that this work may be pioneering in the reevaluation of cefonicid as part of the booming, β-lactam antibiotics panorama, therefore increasing its attractiveness for use in new clinicals studies in combination with β-lactamase inhibitors to fight the infinitive war against bacterial resistance.

2. Results and Discussion

We have investigated three different synthetic paths for the amidation of the 7-position.

2.1. (R)-5-Phenyl-1,3-Dioxolane-2,4-Dione

O-carboxyanhydride (OCA) compounds are a class of five-membered rings that is widely applied in the polymeric, peptidic, and pharmaceutical fields, thanks to the ease with which the desired epimer form is generated [26,27,28,29,30,31]. The OCA subgroup from (R)-mandelic acid (1) has been the only possible way to directly access the optically active form of the 3-methylthio-tetrazolyl-7-mandeloyl cephalosporanic derivatives (cefonicid and cefamandole) from the starting substrates, and thus, bypass the hydroxy-protection–deprotection steps and the carboxylic acid activation on the mandelic moiety, as depicted in Figure 2 [32,33,34,35,36,37].
The synthesis of this compound in β-lactam manufacturing (2), from phosgene or its derivatives (di- and triphosgene) [38,39,40,41,42,43,44], has always been limited by safety and environmental concerns. In addition, the racemization caused by the hydrochloric acid that is released during mandelic cyclization means that several purification steps must be performed if the R form is to be obtained, making the process poorly convenient.
Over the last few years, a new family of dioxolane compounds have emerged in the fields of biocompatible and biodegradable polymers for drug delivery in tissue engineering and food packaging, as they are easily prepared from inexpensive and sustainable feedstocks. Both 5-phenyl-1,3-dioxolane-4-one (DOX) and alkyl-DOX are part of this group, and their simple, synthetic accessibility has been proven by the fact that fewer toxic resources were used as ring-closing agents for mandelic acid (1) in acetone or cyclohexane, giving good isolated yields. Having observed this new frontier of compounds, we have investigated the possibility of replacing phosgene-derived OCA with DOX, which was obtained from paraformaldehyde, and with methyl- and ethyl-DOX, which were synthetized from trimethyl and triethyl orthoformate (TMOF and TEOF) [45,46,47,48,49,50], as illustrated in Figure 3.
Unfortunately, our efforts to obtain cefonicid using these molecules were in vain, even when we applied the same reaction conditions used for phosgene-derived OCA, having unsuccessfully studied amidation in water or in a mixture with polar aprotic solvents (acetone, ethyl acetate and acetonitrile [51]) at a neutral pH value and at weakly acidic and alkaline conditions, both at room temperature and in the 0–5 °C range. In addition, satisfactory results could not be achieved, despite the use of DMAP as an organic catalyst, such as in ring-opening polymerization (ROP) [43]. The reasons for failure lie in the fact that the irreversible decarboxylation reaction is the driving force in obtaining a new C-N bond, while formaldehyde and methyl/ethyl formate are bad leaving groups in nucleophilic substitutions, as reported in Figure 4. Finally, a line was drawn under these alternative compounds.

2.2. Amidation in Water and Organic Solvents

Sustainability is and will be the key driver and guideline in the future of API manufacturing, as will the goal of applying shorter synthetic routes that do not depend on hazardous reagents and solvents. It is now well established that amidation in an organic solvent is impossible for the extremely hydrophilic 7-SACA (4), and the same behavior was observed with environmentally friendly organic solvents such as 2-methyl-THF, cyclopentyl methyl ether (CPME), and cyrene. Only one protocol has been developed with harsh reaction conditions, and that was forty years ago. It was never industrialized because of the production of very dangerous waste, due to the use of N,N-dimethylformamide and 2,2′-dithiobisbenzothiazole [32]. By contrast, the amidation of the O-protected mandelic moiety in water has been the technique of choice on an industrial scale over the years because it combines high-grade drug quality with green chemistry credentials and the manufacturing requirements of good yields and low-cost production [52,53,54].
In the industry, both the ultrafiltration and reverse osmosis processes required to remove the enzyme from the aqueous medium and the 20 h needed for acid OH deprotection have seriously limited large-scale production because of the ultra-low productivity and heavy plant-management costs that these processes cause. Some years ago, Terreni et al. studied an enzymatic synthesis with immobilized acylase, which fell foul to a number of undesired, parallel reactions, low stability in the native protein, and irresolvable difficulty in recovering the biocatalyst from the reaction mixture, meaning that this approach was effectively abandoned [55].
Recent developments in the synthesis of the antimuscarinic agent, mirabegron, have prompted us to replicate the linkage of the mandelic group directly to 7-SACA (4) in an attempt to overcome the above-mentioned shortcomings. As amidation is one of the most commonly used chemical reactions in the synthesis of these semi-synthetic compounds, and as a broad class of coupling reagents exists, we focused our selection of activators on the practical aspects of standard chemistry processes: costs, yields, safety, and waste. As indicated in Table 1, activation via O-acylisoureic ester, boron-derived mixed anhydride, and sulfonate-based mixed anhydride are the techniques used in our work [56,57,58,59,60,61,62].
These data clearly highlight that it is impossible to directly attach (R)-mandelic acid (1) to 7-SACA (4) due to the presence of free OH, which interferes with the coupling reagent, meaning that the carboxylic moiety is not totally activated, and to the water medium used to dissolve the cephalosporanic nucleus, which hydrolyzes the activated adduct. When the same trials were repeated and the hydroxyl group was protected via formylation [30], it appeared that coupling via carbodiimide (EDC and DIC) promoted amidation in water, although less efficiently than the corresponding acyl chloride, generating formyl cefonicid, whereas the mixed anhydride was unsuccessful. The high reactivity of the acid chloride towards the 7-SACA (4) amine group led to a conversion of above 99% in solution towards formyl cefonicid, demonstrating that this reaction system possesses better adaptability in water, with the same results even being achieved when the OH-protected group was changed, as shown in Table 2.
These results placed us before an unwelcome choice because amidation via either EDC or DIC is explicitly more environmentally friendly than proceeding via acid chloride, due to the use of thionyl chloride. However, the difference in reactivity is so significant that acid chloride was chosen as the activation type.

2.3. Cefonicid Benzathine Salt

Our plan to develop a lean, cost-effective, and high-performance method for producing cefonicid has been achieved thanks to the simultaneous deprotection and crystallization of the drug with N′,N″-dibenzylethylenediamine diacetate (5) after the amidation step. This operation allows the ultrafiltration and reverse osmosis that are necessary to remove the enzyme from the reaction mixture in enzymatic deformylation to be avoided and makes the 20 h of reaction to deprotect the OH group with acid unnecessary.
Benzathine diacetate (5) is a common precipitating agent in cephalosporanic production thanks to its capacity to generate a salt between the cephalosporin negative charge and two secondary amines [54,63]. The linear chain with benzylic moieties at the bottom makes the molecule lipophilic in nature, enabling the precipitation of cephalosporin from the aqueous medium. In our case, we have taken advantage of the nucleophilicity of secondary amines to deprotect formyl cefonicid, and at the same time, crystallize the drug as a benzathine salt (6), Supplementary Figure S1, as described in Scheme 1.
This excellent formylic transfer surprisingly builds a new C-N bond on the reaction by-product, benzathine formylate (7), Figure S2, which is lost in the mother liquor after cake filtration, deblocks the hydroxy group on the cefonicid mandelic moiety, and all in the same step, is followed immediately by spontaneous product crystallization due to vigorous stirring. As reported in Table 3, the minimum amount of benzathine diacetate (5) required to achieve this excellent result is 2.4 equivalents, relative to 7-SACA (4), because the amidation/deformylation does not complete when working with lower amounts, while larger amounts do not affect the drug quality, thus meeting the theoretical assay for cefonicid (69.3%) and benzathine (30.7%).
We also investigated other amines (imidazole, pyridine, triethylamine, and 28% ammonia solution) in order to explore the reactivity of this OH-protected group, and we discovered that the same reactivity drove the formyl transfer but no crystallization occurred. These results represent a problem for our intent to streamline the process, as resins or chromatography would then be required to purify the product. However, at the same time, they also demonstrate that benzathine diacetate (5) shows the best performance of the amines tested.
Finally, we studied the same reaction on the OH-acetyl- and OH-pivaloyl-protected groups, but deprotection proved troublesome. In these cases, two subunits disconnected, with one being OH-acetyl-mandelic acid and the others being OH-pivaloyl-mandelic acid and 7-SACA (4).
As drug stability is a crucial feature when working on an industrial scale, we studied this parameter over 6 months and can confirm the high stability of the salt, as indicated in Table 4.

3. Materials and Methods

3.1. Chemistry

(R)-mandelic acid (1), N′,N″-dibenzylethane-1,2-diamine diacetate (5), O-acetyl-(R)-mandeloyl chloride, (R)-2-chloro-2-oxo-1-phenylethyl pivalate, O-formyl-(R)-mandeloyl chloride, and solvents were kindly provided by ACS Dobfar. All other reagents were purchased from Merck KGaA (Darmstadt, Germany).
The Agilent 1200 series HPLC system, NMR (Bruker 400, Munich, Germany Munich, Germany), and Karl Fischer titration were the analytical instruments used to identify and analyze the products.

3.1.1. General Procedure for the Synthesis of O-Formyl-(R)-Mandelic Acid

A mixture of (R)-mandelic acid (1, 5.0 g, 32.9 mmol) and 99% formic acid (80 mL, 2.12 mol) was heated at 80–90 °C for 12 h and concentrated to give a residue. Toluene (100 mL) was added and evaporated under reduced pressure to remove formic acid as a binary azeotrope (86 °C at 101 KPa). The residual thick oil was dissolved in toluene (200 mL) and the solution was washed with water (2 × 50 mL). The organic layer was separated, dried over sodium sulphate (0.5 g), and evaporated under reduced pressure. The residual oil was taken up in cyclohexane (100 mL) to make the title compound a colorless solid (3.40 g, 57% yield), Figure S3. The crude ester was used directly for the next step without further purification.

3.1.2. General Procedure for the Synthesis of 7-Amino-3-[sulphomethyl-1H-tetrazol-5-yl-thiomethyl]-3-cephem-4-carboxylate Monosodium Salt [7-SACA, 4]

A solution of BF3 in MeCN (15.2–16.8% BF3 basis) (140 mL, 122.4 g, 288.8 mmol BF3) was added dropwise over 40 min to a stirred mixture of 1-sulphomethyl-5-mercapto-1,2,3,4-tetrazole sodium-potassium salt (7.7 g, 30.0 mmol) and 7-ACA (8.0 g, 29.3 mmol) in MeCN (60 mL), while the internal temperature was maintained at 25–28 °C. After 40 min under stirring, the reaction mixture was poured into the water (72 mL) at 25 °C, yielding a precipitate (Na, K borates). After filtration, the wet cake was washed with a (1:1) MeCN-water mixture (10 mL). The filtrates were pooled, and the precipitate was discarded. The limpid filtrate was brought to pH 3.0 ± 0.1 with 15% NaOH (45 mL) at 25 °C, and a precipitate became visible. This was aged for 2 h, filtered, and washed with acetone (32 mL) to make the title compound (4) (8.6 g, 68% yield) an off-white solid. The HPLC assay was 101.0% (as sodium on the anhydrous basis).
1H NMR (400 MHz, DMSO-d6): 3.50 (1H, d, 2J = 17.6 Hz), 3.74 (1H, d, 2J = 17.6 Hz), 4.08 (1H, d, 2J = 13.6 Hz), 4.42 (1H, d, 2J = 13.6 Hz), 5.20 (1H, d, 3J = 5.2 Hz), 5.40 (1H, d, 3J = 5.2 Hz), 5.87 (2H, s), Figure S6.
13C NMR (100 MHz, DMSO-d6): 26.25 (CH2), 36.0 (CH2), 53.3 (CH), 57.6 (CH), 60.4 (CH2), 119.8 (C), 130.0 (C), 154.9 (C), 159.6 (C), 161.8 (C), Figure S7.

3.1.3. General Procedure for the Synthesis of Cefonicid Benzathine Salt (6)

A 30% (w/w) NaOH aqueous solution (24 mL) was added dropwise to a stirred suspension of 7-SACA (4, 100.0 g, 0.23 mol) in pre-cooled (0–5 °C) water (375 mL) until complete dissolution was achieved at pH 6.9–7.1. NaHCO3 (22.4 g, 0.26 mol) and O-formyl-(R)-mandeloyl chloride (52.0 g, 0.26 mol) were subsequently added to the reaction mixture, which was set aside at 0–5 °C for 45 min. The pH was adJ =usted to 5.8–6.1 via the addition of NaHCO3 (4.5 g, 0.053 mol) and alumina (2.5 g). After 20 min, the alumina was removed by filtration and washed with water (50 mL), and the filtrate was treated with norite charcoal (5 g) for 20 min at 20–25 °C. The charcoal was removed by filtration and the filtercake was washed with water (50 mL). Methanol (500 mL) was added, at 25–28 °C, to the combined filtrate, followed by 5% HCl (5 mL) to reach pH 5.1–5.2. N′,N″-dibenzylethylenediamine diacetate (5) (200.0 g, 0.55 mol) was added portionwise over 30 min. The reaction mixture was kept under fast stirring for 4 h to spontaneously crystallize the product. After stirring for an additional 5 h at 20–22 °C, water (600 mL) was added dropwise, and the resultant slurry was aged for 1 h. The solid was collected by filtration and subsequently washed with a (3:1) water–methanol mixture (2 L), followed by water (1700 mL) to make the cefonicid benzathine salt (6) (110.0 g; 63% yield) a colorless solid. M.p.: 195–198 °C; assay (HPLC, free base: 71.5% (theoretical maximum: 72.2%) for (1:1) cefonicid benzathine salt).
1H NMR (400 MHz, DMSO-d6): 8.76 (1H, d, J = 8.8 Hz), 8.0–7.0 (15H, m), 5.70 (1H, dd, J = 8.8 Hz, J = 4.8 Hz), 5.20–5.00 (4H, m), 4.27 and 4.23 (2H, AB system, J = 12.8 Hz), 4.11 (4H, s), 3.69 and 3.57 (2H, AB system, J = 17.6 Hz), 3.17 (4H, s), Figure S4.
13C NMR (100 MHz, DMSO-d6): 173.54 (CONH), 165.72 (CO β-lactam), 164.94 (COO), 156.01 (C-S), 141.46 (C), 138.58 (C-4), 130.86 (CH), 129.69 (C), 129.12 (CH), 129.00 (CH), 128.42 (CH), 127.96 (CH), 126.85 (CH), 121.21 (C), 121.8 (C-3), 73.52 (C-OH), 62.25(CH2SO3−), 58.99 (C-7), 57.95 (C-6), 51.54 (CH2-Ph), 44.60 (CH2N), 37.44 (CH2S), 27.32 (C-2), Figure S5.

4. Conclusions

In conclusion, we have reported a new, reliable, efficient, and sustainable protocol for the production of cefonicid benzathine salt (6) as both oral and injectable formulations. Using the double alkaline and nucleophilic behavior of N′,N″-dibenzylethylenediamine diacetate (5), we have considerably streamlined the process, producing the drug with remarkable stability and with a good yield, making it ready for industrial scale-up. The extreme reactivity of the OH-protected formyl group proved to be the winning weapon for this type of amidation, considering the bulkiness of benzathine diacetate (5), while its partially lipophilic nature facilitates the precipitation of the drug from the water medium and reduces waste production. In the jungle of API synthesis, where more and more companies are striving to find new ways to solve chemical-manufacturing challenges, we believe that this is a competitive process.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/antibiotics11081095/s1, Figure S1: IC analysis of cefonicid benzathine salt (6). Figure S2: Mother liquor LC-MS analysis to determinate benzathine formilate (7). Figure S3: O-Formyl-(R)-mandelic acid LC-MS analysis. Figure S4: 1H-NMR of cefonicid benzathine salt (6). Figure S5: 13C-NMR of cefonicid benzathine salt (6). Figure S6: 1H-NMR of 7-SACA (4). Figure S7: 13C-NMR of 7-SACA (4).

Author Contributions

Conceptualization, G.P., R.M. and G.C.; methodology, M.C. and S.T.; validation, M.C., R.M. and S.T.; formal analysis, G.P. and S.T.; investigation, M.C.; data curation, S.T.; writing—original draft preparation, G.P. and M.C.; writing—review and editing, S.T. and G.C.; supervision, G.P. and G.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by ACS Dobfar—Tribiano (MI), Italy.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within this article or Supplementary Materials.

Acknowledgments

ACS Dobfar SPA and the University of Turin are warmly acknowledged for their financial and technical support.

Conflicts of Interest

All the authors declare no conflict of interest.

References

  1. Fischman, J. Nine for Ninety. Chem. Eng. News 2013, 91, 26–27. [Google Scholar] [CrossRef]
  2. Hughes, D.L. Patent Review of Manufacturing Routes to Fifth-Generation Cephalosporin Drugs. Part 1, Ceftolozane. Org. Process. Res. Dev. 2017, 21, 430–443. [Google Scholar] [CrossRef]
  3. Top Therapeutic Classes Global Pharmaceutical Sales 2018|Statista. Available online: https://www.statista.com/statistics/279916/top-10-therapeutic-classes-by-global-pharmaceutical-sales/ (accessed on 31 March 2022).
  4. Beta-Lactam and Beta-Lactamase Inhibitors Market Size and Share-2028. Available online: https://www.alliedmarketresearch.com/beta-lactam-and-beta-lactamase-inhibitors-market (accessed on 31 March 2022).
  5. Von Nussbaum, F.; Brands, M.; Hinzen, B.; Weigand, S.; Habich, D. Antibacterial Natural Products in Medicinal Chemistry-Exodus or Revival? Angew. Chem. Int. Ed. 2006, 45, 5072–5129. [Google Scholar] [CrossRef]
  6. Duplessis, C.; Crum-Cianflone, N.F. Ceftaroline: A new cephalosporin with activity against methicillin-resistant Staphylococcus aureus (MRSA). Clin. Med. Rev. Ther. 2011, 3, 1–17. [Google Scholar] [CrossRef]
  7. Cluck, D.; Lewis, P.; Stayer, B.; Spivey, J.; Moorman, J. Ceftolozane-Tazobactam: A new-generation cephalosporin. Am. J. Health-Syst. Pharm. 2015, 72, 2135–2146. [Google Scholar] [CrossRef] [PubMed]
  8. Basilea Pharmaceutica-News and Media. Available online: https://web.archive.org/web/20190331140355/http:/www.basilea.com/News-and-Media/Basilea-to-launch-Zevtera-Mabelio-ceftobiprole-medocaril-in-Europe-through-a-commercial-services-provider/7dcfb10b-c4ef-5a82-8359-f88b1f36cb96/ (accessed on 31 March 2022).
  9. Aoki, T.; Yoshizawa, H.; Yamawaki, K.; Yokoo, K.; Sato, J.; Hisakawa, S.; Hasegawa, Y.; Kusano, H.; Sano, M.; Sugimoto, H.; et al. Cefiderocol (S-649266), A new siderophore cephalosporin exhibiting potent activities against Pseudomonas aeruginosa and other gram-negative pathogens including multi-drug resistant bacteria: Structure activity relationship. Eur. J. Med. Chem. 2018, 155, 847–868. [Google Scholar] [CrossRef] [PubMed]
  10. FDA Approves New Antibacterial Drug|FDA. Available online: https://www.fda.gov/news-events/press-announcements/fda-approves-new-antibacterial-drug (accessed on 31 March 2022).
  11. FDA Approves New Treatment for Complicated Urinary Tract and Complicated Intra-Abdominal Infections|FDA. Available online: https://www.fda.gov/news-events/press-announcements/fda-approves-new-treatment-complicated-urinary-tract-and-complicated-intra-abdominal-infections (accessed on 31 March 2022).
  12. Press Announcements > FDA Approves New Antibacterial Drug Avycaz. Available online: https://web.archive.org/web/20151117082448/https:/www.fda.gov/NewsEvents/Newsroom/PressAnnouncements/ucm435629.htm (accessed on 31 March 2022).
  13. Actor, P.; Uri, J.V.; Zajac, I.; Gaurini, J.R.; Phillips, L.; Pitkin, D.H.; Berges, D.A.; Dunn, G.L.; Hoover, J.R.E.; Weisbach, J.A. SK&F 75073, New parenteral broad-spectrum cephalosporin with high and prolonged serum level. Antimicrob. Agents Chemother. 1978, 13, 784–790. [Google Scholar] [CrossRef]
  14. Liras, P.; Martin, J.F. Gene clusters for β-lactam antibiotics and control of their expression: Why have clusters evolved, and from where did they originate? Int. Microbiol. 2006, 9, 9–19. [Google Scholar] [PubMed]
  15. Tartaglione, T.A.; Polk, R.E. Review of the new second-generation cephalosporins: Cefonicid, ceforanide, and cefuroxime. Drug Intell. Clin. Pharm. 1985, 19, 188–198. [Google Scholar] [CrossRef]
  16. Saltiel, E.; Brogden, R. Cefonicid: A review of its antibacterial activity, pharmacological properties and therapeutic use. Drugs 1986, 32, 222–259. [Google Scholar] [CrossRef]
  17. Gröger, H.; Pieper, M.; König, B.; Bayer, T.; Schleich, H. Industrial landmarks in the development of sustainable production processes for the β-lactam antibiotic key intermediate 7-aminocephalosporanic acid (7-ACA). Sustain. Chem. Pharm. 2017, 5, 72–79. [Google Scholar] [CrossRef]
  18. Zhang, T.Y.; Hatfield, L.D. Cephalosporins. Compr. Heterocycl. Chem. II 1996, 1B, 591–622. [Google Scholar] [CrossRef]
  19. Berges, D.A. 7-Acyl-3-(sulfonic acid and sulfamoyl substituted tetrazolyl thiomethyl) Cepahlosporins. U.S. Patent 4,048,311, 13 September 1977. [Google Scholar]
  20. Berges, D.A. 7-Acyl-3-(sulfonic acid and sulfamoyl substituted tetrazolyl thiomethyl) Cephalosporins. U.S. Patent 4,093,723, 6 June 1978. [Google Scholar]
  21. Berges, D.A. 7-Acyl-3-(sulfonic acid and sulfamoyl substituted tetrazolyl thiomethyl) Cephalosporins. U.S. Patent 4,159,373, 26 June 1979. [Google Scholar]
  22. Comito, M.; Monguzzi, R.; Tagliapietra, S.; Palmisano, G.; Cravotto, G. Efficient pilot-scale synthesis of the key cefonicid intermediate at room temperature. Green Process. Synth. 2022, 11, 96–105. [Google Scholar] [CrossRef]
  23. Bryan, M.C.; Dunn, P.J.; Entwistle, D.; Gallou, F.; Koenig, S.G.; Hayler, J.D.; Hickey, M.R.; Hughes, S.; Kopach, M.E.; Moine, G.; et al. Key green chemistry research areas from a pharmaceutical manufacturers’ perspective revisited. Green Chem. 2018, 20, 5082–5103. [Google Scholar] [CrossRef]
  24. Constable, D.J.C.; Dunn, P.J.; Hayler, J.D.; Humphrey, G.R.; Leazer, J.L., Jr.; Linderman, R.J.; Lorenz, K.; Manley, J.; Pearlman, B.A.; Wells, A.; et al. Key green chemistry research areas-a perspective from pharmaceutical manufacturers. Green Chem. 2007, 9, 411–420. [Google Scholar] [CrossRef]
  25. Jimenez-Gonzalez, C.; Poechlauer, P.; Broxterman, Q.B.; Yang, B.S.; Ende, D.; Baird, J.; Bertsch, C.; Hannah, R.E.; Dell’Orco, P.; Noorman, H.; et al. Key green engineering research areas for sustainable manufacturing: A perspective from pharmaceutical and fine chemicals manufacturers. Org. Process Res. Dev. 2011, 15, 900–911. [Google Scholar] [CrossRef]
  26. Fuller, W.D.; Verlander, M.S.; Murray, G. A procedure for the facile synthesis of amino-acid N-carboxy anhydrides. Biopolymers 1976, 15, 1869–1871. [Google Scholar] [CrossRef]
  27. Kricheldorf, H.R.; Jonte, J.M. New polymer syntheses. 8. Synthesis and polymerization of L-lactic acid O-carobxyanhydride (5-methyl-dioxolan-2,4-dione). Polym. Bull. 1983, 9, 276–283. [Google Scholar] [CrossRef]
  28. Komori, T.; Sakane, K.; Setoi, H.; Kawai, Y.; Teraji, T.; Kohsaka, M.; Imanaka, H. Structure activity relationships of synthetic antibiotic analogs of chryscandin. J. Antibiot. 1985, 38, 1182–1203. [Google Scholar] [CrossRef]
  29. Toyooka, K.; Takeuchi, Y.; Ohto, H.; Shibuya, M.; Kubota, S. Synthesis and absolute configuration of optically active 2,3-disubstituted 2,3-dihydro-1,3,4-thia-diazoles. Chem. Pharm. Bulletin. 1991, 39, 777–779. [Google Scholar] [CrossRef]
  30. Naito, T.; Okumura, J.; Kamachi, H. 7-(D-α-hydroxy-2-arylacetamido)-3-(2-carboxyalkyl-2,3-dihydro-s-triazolo-[4,3-b]pyridazine-3-on-6-ylthiomethyl)-3-cephem-4-carboxylic Acids and Derivates. U.S. Patent 4,112,228, 5 September 1978. [Google Scholar]
  31. Yin, Q.; Yin, L.; Wang, H.; Cheng, J. Synthesis and biomedical applications of functional poly(α-hydroxy acids) via ring-opening polymerization of O-carboxyanhydrides. Acc. Chem. Res. 2015, 48, 1777–1787. [Google Scholar] [CrossRef] [PubMed]
  32. Greene, J.M. Process for Preparing 7-(α-Hydroxy-α-phenyl)acetamido-3-(1-methyl-1H-tetrazol-5-xylthiomethyl)-3-cephem-4-carboxylic Acid and Derivates. CA 994,327, 3 August 1976. [Google Scholar]
  33. Prager, B.C. Cephalosporins. EP 0,156,771, 2 October 1985. [Google Scholar]
  34. Hoover, J.R.E. Derivates of 7-Aminocephalospoanic Acid. U.S. Patent 3,167,549, 26 January 1965. [Google Scholar]
  35. Greene, J.M. Process for Preparing 7-(α-Hydroxy-α-phenyl)acetamido-3-(1-methyl-1H-tetrazol-5-ylthiomethyl)-3-cephem-4-carboxylic Acid and Derivates Thereof. U.S. Patent 3,840,531, 8 October 1974. [Google Scholar]
  36. Masayuki, N.; Tadashi, Y.; Hiroshi, O.; Mitsuaki, O.; Tetsuo, O.; Teruji, T.; Ikuo, K.; Nobuhiro, H.; Hisashi, S. Synthetic studies on β-lactam antibiotics. Part 10. Synthesis of 7β-[2-carboxy-2-(4-hydroxyphenyl)acetamido]-7α-methoxy-3-[[(1-methyl-1H-tetrazol-5-yl)thio]methyl]-1-oxa-1-dethia-3-cephem-4-carboxylic acid disodium salt (6059-S) and its related 1-oxacephems. J. Med. Chem. 1979, 22, 757–759. [Google Scholar] [CrossRef]
  37. Masayuki, N.; Tadashi, Y.; Hiroshi, O.; Mitsuaki, O.; Tetsuo, O.; Wataru, N. Synthesis and antibacterial activity of 1-oxacephem derivates. J. Antibiot. 1982, 35, 463–482. [Google Scholar] [CrossRef]
  38. Davies, W.H. Anhydrocarboxy-derivates of hydroxy and mercapto acids. J. Chem. Soc. Resumed 1951, 1357–1359. [Google Scholar] [CrossRef]
  39. Toyooka, K.; Takeuchi, Y.; Kubota, S. A novel and facile synthesis of 5-substituted 1,3-dioxolane-2,4-diones using trichloromethyl chloroformate. Heterocycles 1989, 29, 975–978. [Google Scholar] [CrossRef]
  40. Oya, M.; Ryoichi, K.; Katakai, R.; Nakai, H. Novel synthesis of N-carboxy-α-amino acid anhydride. Chem. Lett. 1973, 11, 1143–1144. [Google Scholar] [CrossRef]
  41. Katakai, R.; Iizuka, Y. An improved rapid method for the synthesis of N-carboxy α-amino acid anhydride using trichloromethyl chloroformate. J. Org. Chem. 1985, 50, 715–716. [Google Scholar] [CrossRef]
  42. Tang, L.; Deng, L. Dynamic kinetic resolution via dual-function catalysis of modified cinchona alkaloids: Asymmetric synthesis of α-hydroxy carboxylic acids. J. Am. Chem. Soc. 2002, 124, 2870–2871. [Google Scholar] [CrossRef]
  43. Li, M.; Tao, Y.; Tang, J.; Wang, Y.; Zhang, X.; Tao, Y.; Wang, X. Synergetic organocatalysis for eliminating epimerization in ring-opening polymerizations enables synthesis of stereoregular isotactic polyester. J. Am. Chem. Soc. 2019, 141, 281–289. [Google Scholar] [CrossRef]
  44. Jiang, J.; Cui, Y.; Lu, Y.; Zhang, B.; Pan, X.; Wu, J. Weak lewis pairs as catalysts for highly isoselective ring-opening polymerization of epimerically labile rac-O-carboxyanhydride of mandelic acid. Macromolecules 2020, 53, 946–955. [Google Scholar] [CrossRef]
  45. Cairns, S.A.; Schultheiss, A.; Shaver, M.P. A broad scope of aliphatic polyesters prepared by elimination of small molecules from sustainable 1,3-dioxolan-4-ones. Polym. Chem. 2017, 8, 19. [Google Scholar] [CrossRef]
  46. Xu, Y.; Perry, M.R.; Cairns, S.A.; Shaver, M.P. Understanding the ring-opening polymerization of dioxolanones. Polym. Chem. 2019, 10, 23. [Google Scholar] [CrossRef]
  47. Bylikin, S.Y.; Shipov, A.G.; Kramarova, E.P.; Negrebetsky, V.V.; Korlyukov, A.A.; Baukov, Y.; Hursthouse, M.B.; Male, L.; Bassindale, A.R.; Taylor, P.G. O,O-Monochelate complexes of silicon and germanium halides: The derivates of L-mandelic N,N-dimethylamide. J. Organomet. Chem. 2009, 694, 244–248. [Google Scholar] [CrossRef]
  48. Shipov, A.G.; Gruener, S.V.; Korylyukov, A.A.; Kramarova, E.P.; Murasheva, T.P.; Bylikin, S.Y.; Negrebetskii, V.V.; Ivashchenko, F.A.; Airapetyan, D.V.; Zueva, G.Y.; et al. Tribromogermyl monochelates–derivates of N,N-disubstituted 2-hydroxycarboxylic amides. Russ. Chem. Bull. 2010, 59, 761–770. [Google Scholar] [CrossRef]
  49. Misaki, T.; Ureshino, S.; Nagase, R.; Oguni, Y.; Tanabe, Y. Improved practical asymmetric synthesis of α-alkylmandelic acids utilizing highly diastereoselective alkylation of 5-aryl-2-(1-naphthyl)-1,3-dioxolan-4-ones. Org. Process. Res. Dev. 2006, 10, 500–504. [Google Scholar] [CrossRef]
  50. Kunz, W. 1,3-Dioxolan-5-one Derivates. U.S. Patent 4,447,625, 8 May 1984. [Google Scholar]
  51. Thillaye du Boullay, O.; Marchal, E.; Martin-Vaca, B.; Cossio, F.P.; Bourissou, D. An activated equivalent of lactide toward organocatalytic ring-opening polymerization. J. Am. Chem. Soc. 2006, 128, 16442–16443. [Google Scholar] [CrossRef]
  52. Pessa, A.; Lerpini, A. Process for the Preparation of Cephalosporins. U.S. Patent 5,625,058, 29 April 1997. [Google Scholar]
  53. Brenner, M.; Renganathan, V. Enzymatic Process for the Production of Cefonicid. WO 92/17600, 15 October 1992. [Google Scholar]
  54. Polansky, T.J. Cristalline Benzathine Salt of Cefonicid and Its Preparation. U.S. Patent 5,705,496, 6 January 1998. [Google Scholar]
  55. Terreni, M.; Ubiali, D.; Bavaro, T.; Pregnolato, M.; Fernandez-Lafuente, R.; Guisan, J.M. Enzymatic synthesis of cephalosporins. The immobilized acylase from Arthrobacter viscosus: A new useful biocatalyst. Appl. Microbiol. Biotechnol. 2007, 77, 579–587. [Google Scholar] [CrossRef] [PubMed]
  56. Zhang, Q.; Zhuang, Z.; Liu, Q.; Zhang, Z.; Zhan, F.; Zheng, G. Concise synthesis of key intermediate of mirabegron via a mixed anhydride method. Org. Process Res. Dev. 2016, 20, 1993–1996. [Google Scholar] [CrossRef]
  57. Deshmukh, D.G.; Bangal, M.N.; Patekar, M.R.; Medhane, V.J.; Mathad, V.T. Investigation of mechanistic pathway for trimethyl borate mediated amidation of (R)-mandelic acid for the synthesis of mirabegron, an antimuscarinic agent. Acta Chim. Slov. 2018, 65, 239–245. [Google Scholar] [CrossRef]
  58. Magano, J. Large-scale amidations in process chemistry: Practical considerations for reagents selection and reaction execution. Org. Process. Res. Dev. 2022, 26, 1562–1689. [Google Scholar] [CrossRef]
  59. Fattahi, N.; Ayubi, M.; Ramazani, A. Amidation and esterification of carboxylic acids with amines and phenols by N,N′-diisopropylcarbodiimide: A new approach for amide and ester bond formation in water. Tetrahedron 2018, 74, 4351–4356. [Google Scholar] [CrossRef]
  60. Sharma, S.; Buchbinder, N.W.; Braje, W.M.; Handa, S. Fast amide couplings in water: Extraction, column chromatography, and crystallization not required. Org. Lett. 2020, 22, 5737–5740. [Google Scholar] [CrossRef]
  61. Montalbetti, C.A.G.N.; Falque, V. Amide bond formation and peptide coupling. Tetrahedron 2005, 61, 10827–10852. [Google Scholar] [CrossRef]
  62. Dunetz, J.R.; Magano, J.; Weisenburger, G.A. Large-scale applications of amide coupling reagents for the synthesis of pharmaceuticals. Org. Process. Res. Dev. 2016, 20, 140–177. [Google Scholar] [CrossRef]
  63. Monguzzi, R.; Menapace, S.; Piergiorgio, A. Improved Process for the Preparation of Ceftriaxone. EP 0,399,094, 28 November 1990. [Google Scholar]
Antibiotics 11 01095 g001 550

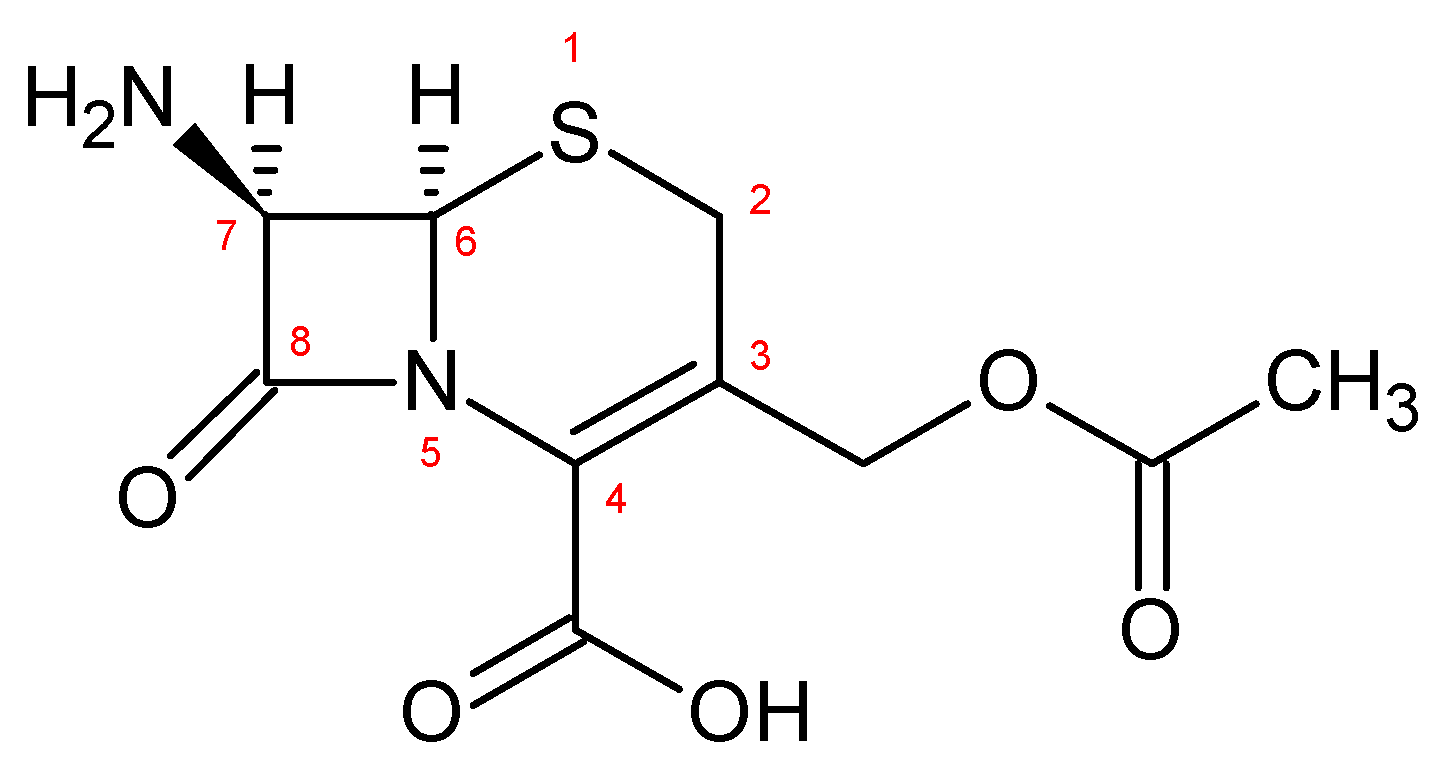

Figure 1. 7-ACA structure.
Figure 1. 7-ACA structure.
Antibiotics 11 01095 g001
Antibiotics 11 01095 g002 550
Figure 2. Amidation of OCA (2) from (R)-mandelic acid (1) and 7-SACA or 7-TACA intermediate (3).
Figure 2. Amidation of OCA (2) from (R)-mandelic acid (1) and 7-SACA or 7-TACA intermediate (3).
Antibiotics 11 01095 g002
Antibiotics 11 01095 g003 550

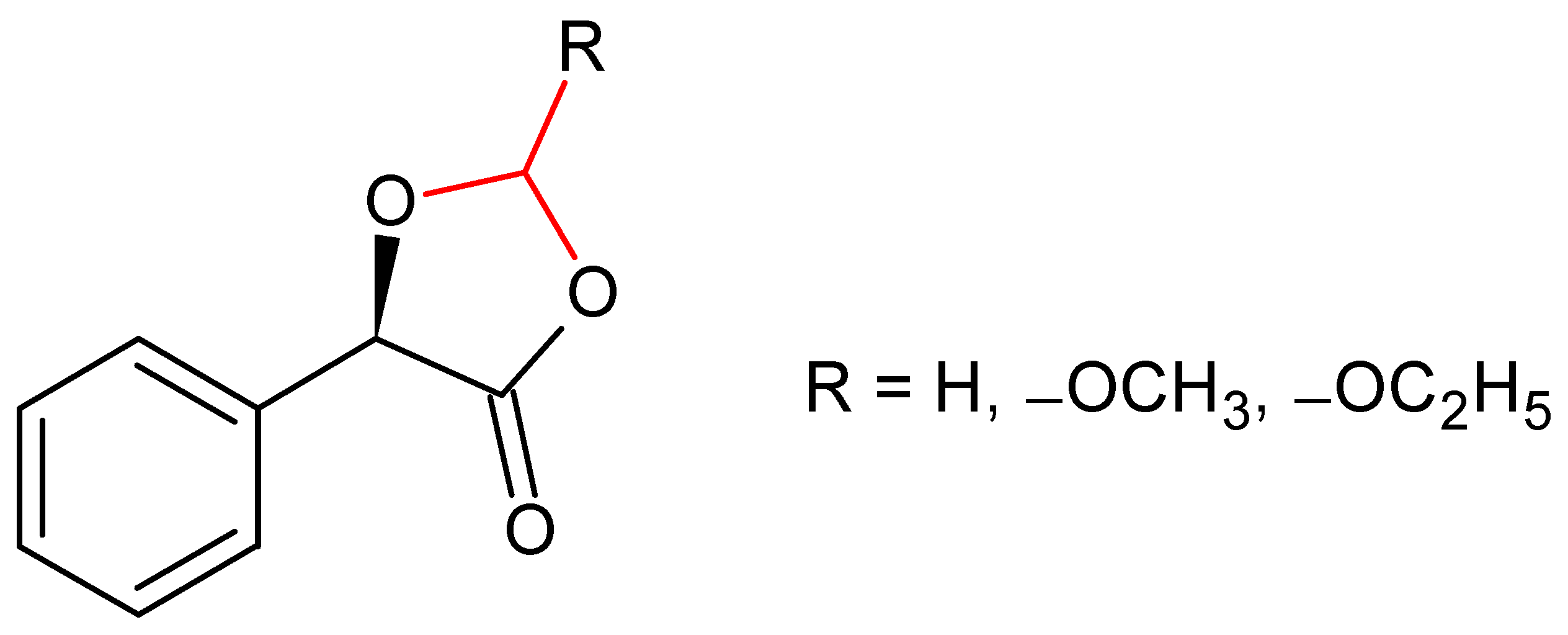

Figure 3. DOX, methyl-DOX, and ethyl-DOX.
Figure 3. DOX, methyl-DOX, and ethyl-DOX.
Antibiotics 11 01095 g003
Antibiotics 11 01095 g004 550

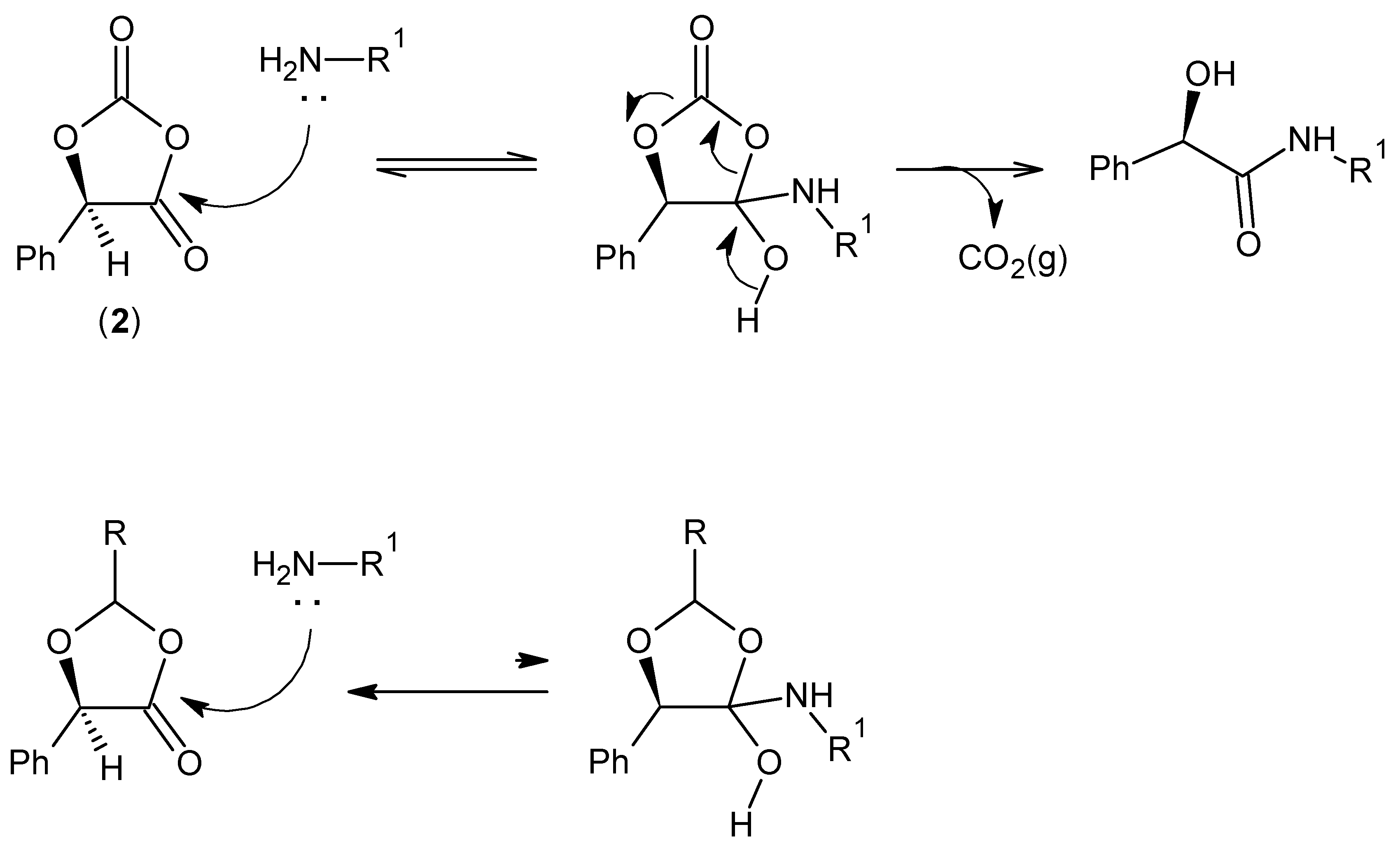

Figure 4. OCA decarboxylation.
Figure 4. OCA decarboxylation.
Antibiotics 11 01095 g004
Antibiotics 11 01095 sch001 550

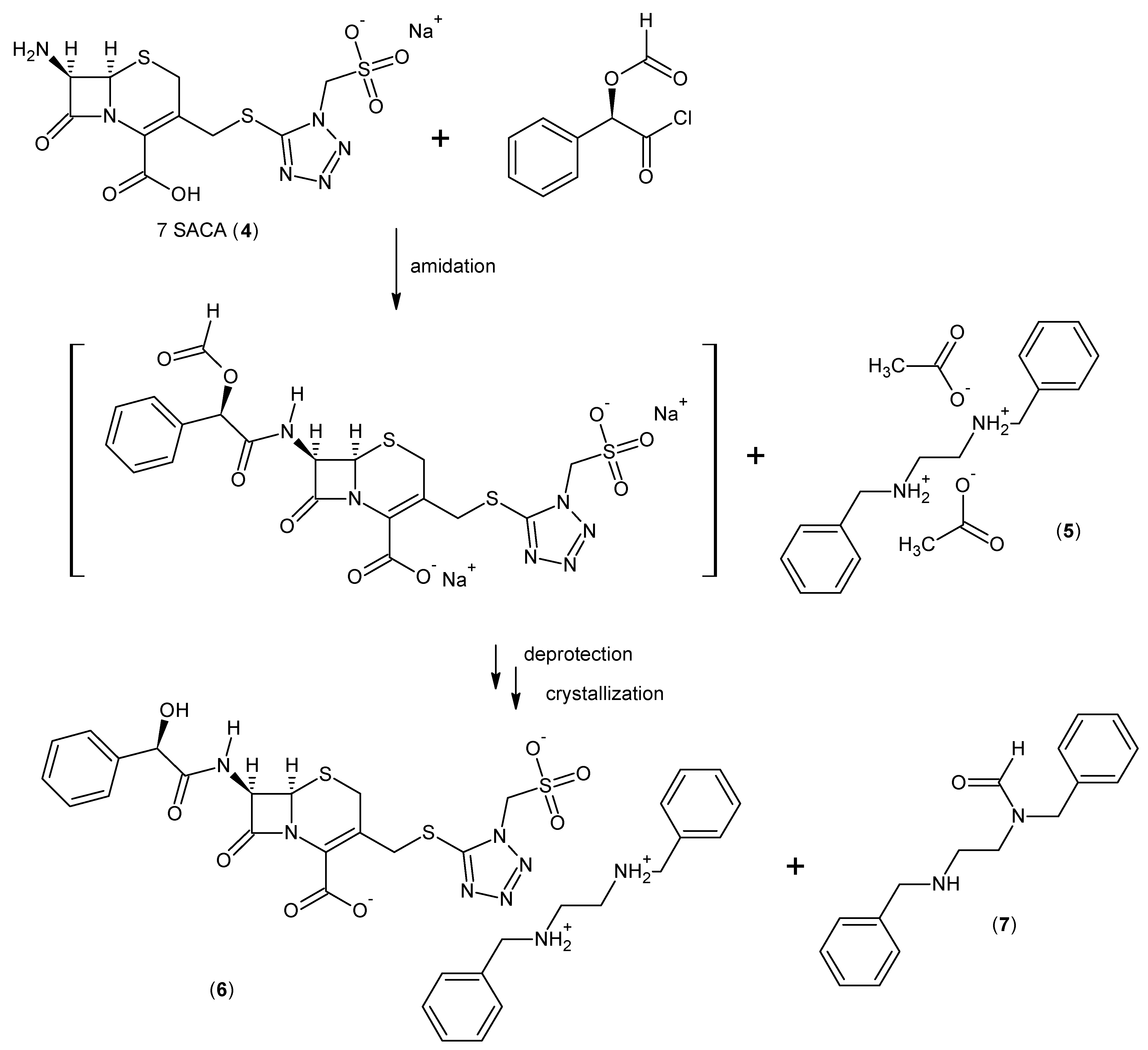

Scheme 1. New protocol to obtain cefonicid benzathine salt (6).
Scheme 1. New protocol to obtain cefonicid benzathine salt (6).
Antibiotics 11 01095 sch001
Table

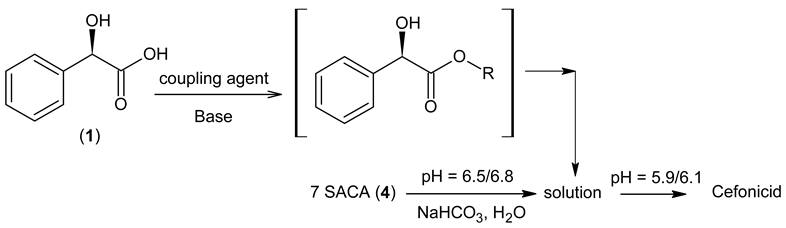

Table 1. Direct amidation of (R)-mandelic acid (1).
Table 1. Direct amidation of (R)-mandelic acid (1).
Antibiotics 11 01095 i001
EntryCoupling AgentBaseSolventActivation Temperature (°C)Amidation Temperature (°C)Cefonicid Yield in Solution (%)
1TsClTEACH3CNreflux0–5
r.t.		0.5
1.3
2MsClTEACH3CNr.t.0–5
r.t.		2.0
3.7
3PivClTEACH3CN0–5 °C0–5
r.t.		-
-
4B(OMe)3NaHCO3 aCH3CN60 °C0–5
r.t.		0.1
0.1
5B(OMe)3K2CO3 aCH3CN60 °C0–5
r.t.		0.1
0.1
6EDC b-waterr.t.r.t.1.2
7DIC b-waterr.t.r.t.0.3
8TsClTEACH2Cl2 c
EtOAc c		refluxr.t.
r.t.		-
-
9MsClTEACH2Cl2 c
EtOAc c		r.t.r.t.
r.t.		0.1
1.0
Reaction conditions: 2.0 g of 7-SACA (4, 1.0 eq.), (R)-mandelic acid (1, 1.2 eq.), activating agent (1.2 eq. to (R)-mandelic acid), base (1.3 eq. to (R)-mandelic acid), water volume = 7.5 mL. a These entries use different bases to dissolve 7-SACA (4). NaHCO3 is the base for entry 4, while K2CO3 is the base for entry 5. b EDC and DIC were added as powders. c Solvent volume = 7.0 mL.
Table
Table 2. Amidation with OH-protected mandelic acid.
Table 2. Amidation with OH-protected mandelic acid.
EntryOH-Protected MoietyCoupling AgentSolventOH-Protected Cefonicid Conversion in Solution (%) a
1 Antibiotics 11 01095 i002TsClCH3CN b1.4
2 Antibiotics 11 01095 i002MsClCH3CN b4.0
3 Antibiotics 11 01095 i002PivClCH3CN b0.5
4 Antibiotics 11 01095 i002B(OMe)3CH3CN b0.4
5 Antibiotics 11 01095 i002EDCWater c27.0
6 Antibiotics 11 01095 i002DICWater c32.0
7 Antibiotics 11 01095 i002SOCl2CH3CN d99.7
8 Antibiotics 11 01095 i003SOCl2CH3CN d99.4
9 Antibiotics 11 01095 i004SOCl2CH3CN d99.3
a The formyl-cefonicid conversion is calculated as a peak-area ratio using the formula: ((OH-protected-cefonicid area)/(OH-protected-cefonicid area + 7-SACA (4) area)) × 100. b Reaction conditions: 2.0 g of 7-SACA (4, 1.0 eq.), O-formyl-(R)-mandelic acid (1.2 eq.), activating agent (1.2 eq. to O-formyl-(R)-mandelic acid), and base (1.3 eq. to O-formyl-(R)-mandelic acid). c Reaction conditions: 2.0 g of 7-SACA (4, 1.0 eq.), O-formyl-(R)-mandelic acid (1.2 eq.), and activating agent (1.2 eq. to O-formyl-(R)-mandelic acid). d Reaction conditions: 2.0 g of 7-SACA (4, 1.0 eq.) and OH-protected-(R)-mandelic acid (1.2 eq.) as a 2.8 mol/L concentration in CH3CN. The amidation step was always carried out at 0–5 °C.
Table
Table 3. Reactivity study of formyl cefonicid with different N′,N″-dibenzylethylenediamine diacetate (5) amounts.
Table 3. Reactivity study of formyl cefonicid with different N′,N″-dibenzylethylenediamine diacetate (5) amounts.
EntryEquivalents aConversion in Deformylation (%) bCrystallization cYields (%)Cefonicid Assay (%)Benzathine Assay (%)
11.352A---
21.784A---
32.094B5172.825.2
42.499.3B6271.527.0
52.899.1B6172.226.3
a The equivalents were calculated as moles of benzathine diacetate (5)/mole of 7-SACA (4). b The cefonicid conversion is calculated as the peak-area ratio using the formula: ((cefonicid area)/(cefonicid area + formyl cefonicid area)) × 100. c A = no product crystallization, B = product crystallization.
Table
Table 4. Salt stability over 6 months.
Table 4. Salt stability over 6 months.
Time (Months)Cefonicid Assay (%)Benzathine Assay (%)Total Impurities
071.527.01.9
671.626.81.7
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Comito, M.; Monguzzi, R.; Tagliapietra, S.; Palmisano, G.; Cravotto, G. Cefonicid Benzathine Salt: A Convenient, Lean, and High-Performance Protocol to Make an Old Cephalosporin Shine. Antibiotics 2022, 11, 1095. https://doi.org/10.3390/antibiotics11081095

AMA Style

Comito M, Monguzzi R, Tagliapietra S, Palmisano G, Cravotto G. Cefonicid Benzathine Salt: A Convenient, Lean, and High-Performance Protocol to Make an Old Cephalosporin Shine. Antibiotics. 2022; 11(8):1095. https://doi.org/10.3390/antibiotics11081095

Chicago/Turabian Style

Comito, Marziale, Riccardo Monguzzi, Silvia Tagliapietra, Giovanni Palmisano, and Giancarlo Cravotto. 2022. "Cefonicid Benzathine Salt: A Convenient, Lean, and High-Performance Protocol to Make an Old Cephalosporin Shine" Antibiotics 11, no. 8: 1095. https://doi.org/10.3390/antibiotics11081095

APA Style

Comito, M., Monguzzi, R., Tagliapietra, S., Palmisano, G., & Cravotto, G. (2022). Cefonicid Benzathine Salt: A Convenient, Lean, and High-Performance Protocol to Make an Old Cephalosporin Shine. Antibiotics, 11(8), 1095. https://doi.org/10.3390/antibiotics11081095

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
