Review

Degradation of Bacterial Antibiotic Resistance Genes during Exposure to Non-Thermal Atmospheric Pressure Plasma

by
Ibtissam Courti
,
Cristina Muja
*,
Thomas Maho
,
Florent P. Sainct
and
Philippe Guillot
Laboratoire Diagnostics des Plasmas Hors-Equilibre (DPHE-EA 4562), University of Toulouse, I.N.U. Champollion, 81000 Albi, France
*
Author to whom correspondence should be addressed.
Antibiotics 2022, 11(6), 747; https://doi.org/10.3390/antibiotics11060747
Submission received: 30 April 2022 / Revised: 25 May 2022 / Accepted: 26 May 2022 / Published: 31 May 2022
(This article belongs to the Special Issue Antibiotic Resistance in Wastewater and Its Treatment)
Browse Figures
Review Reports Versions Notes

Abstract

:
Bacterial resistance to antibiotics has become a major public health problem in recent years. The occurrence of antibiotics in the environment, especially in wastewater treatment plants, has contributed to the development of antibiotic-resistant bacteria (ARB) and the spread of antibiotic resistance genes (ARGs). Despite the potential of some conventional processes used in wastewater treatment plants, the removal of ARB and ARGs remains a challenge that requires further research and development of new technologies to avoid the release of emerging contaminants into aquatic environments. Non-thermal atmospheric pressure plasmas (NTAPPs) have gained a significant amount of interest for wastewater treatment due to their oxidizing potential. They have shown their effectiveness in the inactivation of a wide range of bacteria in several fields. In this review, we discuss the application of NTAPPs for the degradation of antibiotic resistance genes in wastewater treatment.

1. Introduction

Antibiotics are one of the most important discoveries in human history. They have proven to be effective in the treatment and control of human infections and mortality [1]. They have also become fundamental in agriculture and veterinary medicine. For several decades, global consumption of antibiotics has increased due to population growth and demand. Extensive use of antibiotics has led to the emergence of antibiotic-resistant bacteria (ARB). Antibiotic resistance is the ability of bacteria to resist the action of an antibiotic to which they were previously susceptible. Bacteria acquire resistance to antibiotics by chromosomal DNA mutations that alter the existing bacteria proteins or by horizontal gene transfer (HGT) which allows the acquisition of new genetic material between bacteria that are not in a parent–offspring relationship [1]. Antibiotic resistance constitutes a critical worldwide risk for humans, animals, and the environment. In 2014, Lord Jim O’Neill and his team estimated that antibiotic-resistant bacteria could cause 10 million deaths per year by 2050 [2]. In 2017, the WHO announced that antibiotic-resistant bacteria pose the highest risk to human health. Antimicrobial resistance causes 25,000 deaths in Europe and 23,000 deaths in the United States annually [3].
Aquatic environments, such as wastewater treatment plants (WWTPs), are considered important reservoirs and pathways for the dissemination of antibiotic-resistant bacteria (ARB) and antibiotic resistance genes (ARGs) [4,5,6,7]. Several studies have highlighted the direct relationship between human activity and the spread of bacteria and antibiotic resistance genes in aquatic environments [4]. Various conventional treatment methods have been developed to eliminate ARB and degrade ARGs from wastewater, including membrane filtration [8], chlorination [9], ozonation [10], and ultraviolet irradiation (UV) [11]. Sharma et al. reviewed the impact and the mechanisms of these treatments on the inactivation of ARB and the degradation of ARGs in wastewater [12]. However, it has been reported that these treatment methods are not able to effectively reduce the level of ARB and ARGs, which are released into aquatic environments, such as lakes and rivers [4,13]. For instance, the abundance of antibiotic-resistant bacteria on the membrane surface during the membrane filtration process creates an environment that favors horizontal gene transfer, resulting in the production of more ARB and ARGs [8]. Macauley et al. compared the inactivating effects of chlorine, UV, and ozone decontamination processes on aureomycin-, sulfamethazine-, clindamycin-, and tetracycline-resistant bacteria [14]. The results showed that chlorine decontamination was the most effective, followed by UV and ozone. However, they reported that the frequency of ARG transfer increased after UV and chlorine decontamination. Similarly, Stange et al. reported that UV and chlorine treatments were effective in inactivating bacterial cells, but incomplete degradation of ARGs was observed [15]. Conversely, other studies indicated that with high doses, chlorine can efficiently degrade ARGs. Zhuang et al. investigated the inactivation of sul1 and tetG and showed that exposure to 40 mg/L of chlorine for 60 min resulted in a 1.65–2.28-log reduction in these genes. However, the chlorine concentration needed to obtain these results seems too high to be considered as a treatment solution [16].
Recently, advanced oxidation processes (AOPs) based on free radical oxidation such as UV/H2O2 [17], Fenton oxidation [18], photocatalytic oxidation [19], and nanomaterials [20], have received considerable attention for the removal of ARB and ARGs in wastewater. Even though these methods were able to decrease ARB and ARG levels, the exposure of ARB to sub-lethal doses of some of these decontamination processes could allow recovery from injury and enhance the frequency of horizontal gene transfer. Several studies reported that gene transfer between bacteria could be induced by environmental factors such as organic contaminants [21], antibiotics [22], biocides [23], and oxygen species produced during advanced oxidation processes [24,25]. Further research suggests that environmental stressors enhance the horizontal transfer of ARGs between bacteria, which occurs through generally conserved cellular response pathways, including those involved in ROS response systems. The involvement of these cellular pathways and mechanisms poses important questions about the possible role of other environmental factors in ARG transmission [25].
Non-thermal atmospheric pressure plasma (NTAPP), one of the advanced oxidation processes, has recently attracted a significant amount of interest for wastewater decontamination. Plasma is a reactive cocktail of various reactive oxygen and nitrogen species, such as hydrogen peroxides, hydroxyl radicals, ozone, nitric oxide, UV photons, and charged particles such as electrons and ions, which are responsible for the inactivation of microorganisms [26]. Several pilot-scale studies focusing on the decontamination capacities of plasmas have been carried out with samples from municipal wastewater treatment plants (WWTPs) [27,28,29,30,31,32]. A large and growing body of literature reports the effective inactivation capacity of NTAPP for a wide range of microorganisms. The effect of plasma has been evaluated on antibiotic-resistant bacteria, antibiotic resistance genes, and the mechanisms of horizontal transfer of resistance genes. This research will provide an overview of recent advances in the application of NTAPP for the removal of ARB and ARGs from wastewater.

2. Antibiotic-Resistant Bacteria and Antibiotic Resistance Genes in WWTPs

There are several routes for the dispersal of ARGs in aquatic environments. One of them is vertical gene transfer (VGT), a mechanism that allows the transmission of modified genetic information to subsequent generations. The second path of dispersal is horizontal gene transfer (HGT) between microorganisms that do not have a parent–offspring relationship. This process is mediated by mobile genetic elements (MGEs) such as plasmids, transposons, integrons, and bacteriophages. Horizontal gene transfer is considered to be a non-reproductive gene transfer that consists of the exchange of genetic information between different bacterial species [33]. HGT is the most involved mechanism for the dissemination of resistance in WWTPs. There are four different mechanisms of HGT (Figure 1) [34]. Conjugation is the transfer of DNA from a donor bacterium to a recipient bacterium, which involves physical contact between the two bacteria via sexual pili. Conjugation is facilitated by the presence of a fertility factor (F+) that allows the donor bacterium to develop its conjugation machinery for gene transfer. Transformation involves the integration of a naked fragment of extracellular DNA into the cytoplasm or chromosome, which can be received by a competent bacterium. Transduction is a process that consists of the transfer of DNA from a donor bacterium to a recipient bacterium, through a viral vector (a bacteriophage). Finally, gene transfer agents (GTAs) are bacteriophage-like particles that carry random pieces of the producer cell’s genome. GTA particles can be released by cell lysis and spread into a recipient cell.
There is a large body of research that points out the presence of ARB in WWTPs and their persistence after wastewater treatment. Table 1 shows an overview of ARB and ARGs identified in wastewater effluents. For example, Verburg et al. examined the fate of ARB after wastewater treatment in a municipal WWTP in the Netherlands. They analyzed 2886 isolates of three different species (Escherichia coli, Klebsiella spp., Aeromonas spp.) obtained before and after wastewater treatment and showed that even if the bacterial concentration was reduced by around 2 log, the proportion of antimicrobial-resistant bacteria did not decrease after wastewater treatment [35]. Luczkiewicz et al. evaluated the abundance of enterococci in a WWTP [36]. The predominant species were Enterococcus faecium (60.8%) and Enterococcus faecalis (22.1%), where 90% showed resistance to at least one antibiotic. Notably, bacteria showed resistance to nitrofurantoin and erythromycin (53% and 44%, respectively), and also to ciprofloxacin (29%) and tetracycline (20%). The abundance of these resistant species in the WWTP was above 4 log/100 mL. Neudorf et al. demonstrated the occurrence of bacteria harboring resistance to several classes of clinically pertinent antibiotics at three wastewater treatment plants in Northern Canada [37]. Guo et al. investigated the diversity of ARGs and MGEs in a WWTP [38]. Metagenomic analysis revealed that activated sludge and digested sludge showed different microbial communities and changes in the types and occurrence of ARGs and MGEs. A total of 42 ARG subtypes were identified in the activated sludge, while 51 ARG subtypes were detected in the digested sludge. In addition, MGEs including plasmids, transposons, integrons (intI1), and insertion sequences were abundant in both sludge samples.
Several studies showed that hospital wastewater had high concentrations of ARB and ARGs compared to municipal wastewater. Grabow and Prozesky were the first to report the abundance of antibiotic-resistant coliforms of hospital origin in sewage treatment plants [48]. Rowe et al. investigated the abundance of ARGs in wastewater samples from three locations in Cambridge [49]. They found that the ARG abundance in hospital effluent was 9-fold higher than in agricultural effluent and 34-fold higher than in river source water. Gaşpar et al. compared the antibiotic resistance levels of Escherichia coli in samples collected from two hospital wastewaters and two municipal wastewaters [50]. Antibiotic susceptibility testing was performed on 81 E. coli isolates (47 from hospital wastewater and 34 from municipal wastewater). Multidrug resistance was observed in 85.11% of hospital wastewater isolates and 73.53% of municipal wastewater isolates. A comparative study of the abundance of antibiotic resistance genes in the effluent of three hospitals in Romania showed the presence of genes encoding resistance to tetracyclines, aminoglycosides, chloramphenicol, β-lactams, sulfonamides, quaternary ammoniums, streptogramin B antibiotics, and macrolidelincosamide with high concentration levels between 0.01 and 0.1 copies per 16S rRNA gene copy measured by qPCR [51]. A recent overview by Hassoun-Kheir et al. reported that 81% of the studies showed that hospital wastewater contains higher amounts of ARB and ARGs than municipal wastewater [52].
In addition, hospital wastewater also contains relatively high amounts of antibiotics. Sabri et al. reported that most antibiotics are not completely metabolized in humans and animals, meaning that 40–90% of the active substance is excreted and thus ends up in wastewater [53]. High concentrations of a wide range of antibiotics were reported in hospital and urban wastewater, including β-lactams, ciprofloxacin, sulfamethoxazole, quinolones/fluoroquinolones, sulfonamides, and tetracyclines [54]. For example, fluoroquinolones were detected at the highest concentration, especially in hospital effluent samples, and ciprofloxacin and sulfamethoxazole showed almost 10-fold higher concentrations downstream than upstream of the WWTP discharge. A number of studies have reported that continuous exposure of bacteria to sub-inhibitory concentrations of antibiotics exerts selective pressure and promotes the spread of ARB and ARGs in wastewater treatment plants.
Despite the current processes used in wastewater treatment plants to reduce ARB, ARG, and MGE levels, they are still detected in the environment and greatly participate in the spread of antibiotic resistance. Furthermore, as mentioned above, the accumulation of antibiotics imposes a high selective pressure in the environment, which facilitates the acquisition of resistance mechanisms by bacteria. In this context, the inefficiency of wastewater treatment processes confirms the necessity to develop new, more efficient and accessible wastewater treatment technologies that can remove emerging contaminants, in particular ARB and ARGs, and thus prevent their spread in aquatic environments.

3. Plasma Discharge and Chemistry

Plasma is a partially or completely ionized gas, composed of electrons, free radicals, ions, and neutrals. It can be generated by applying thermal energy, an electric field, or electromagnetic radiation energy to a gas. However, attention has been focused mainly on plasmas generated by electric fields [55,56,57,58]. An applied electric field can transfer energy to any free electrons present in a gas. These high-energy electrons transfer their energy to neutral species in the gas by collisions, thus generating an ionized gas. Depending on the thermal equilibrium between the electrons (Te) and gas (Tg), plasmas can be divided into non-thermal plasmas and thermal plasmas. Thermal plasmas are in thermodynamic equilibrium (Te = Tg), whereas non-thermal plasmas are out of thermodynamic equilibrium (Te >> Tg). Non-thermal plasma can be generated at normal atmospheric pressure.
Non-thermal atmospheric pressure plasmas (NTAPPs) have attracted considerable interest for decades because of their rich chemistry [56,59,60,61]. When a non-thermal plasma is generated, the energy of the electric field accelerates free electrons and ionizes the atoms and molecules of the gas, releasing various reactive species including oxygen species (ROS) and nitrogen species (RNS). These species are called the primary reactive species. They are characterized by very short lifetimes; for example, the lifetimes of OH, NO, and O2− * radicals are 2.7 µs, 1.4 µs, and 1.3 µs, respectively [56]. Because of their high reactivity, some of these primary reactive species react immediately with the surrounding gas to create secondary reactive species. The reactive oxygen and nitrogen species (ROS and RNS) produced in the plasma phase and the plasma–liquid interface reach the target, such as a liquid, and are dissolved, forming tertiary reactive species including H2O2, O3, NO2, and NO3. These reactive species have very long lifetimes, from a few milliseconds to several days. Upon contact with a liquid, more reactive species are produced such as ONOO−, ONOOH, NO2−, NO3−, and H2O2, resulting in a decrease in the pH of the target liquid of up to 2 pH values. Figure 2 shows a schematic of the formation of ROS and RNS in the discharge region, the plasma phase, the plasma–liquid interface, and inside the liquid target [61].
Several plasma sources, including corona discharges, dielectric barrier discharges (DBD), and contact glow discharges, have been investigated for wastewater treatment [60,61,62,63]. They operate with different power signals (continuous wave in a wide range of frequencies, pulsed voltage signals), different electrode configurations such as plate-on-plate, plate-on-pin, or pin-on-pin, and different working gases and their mixtures such as air, helium, oxygen, and argon. In general, discharges in and on liquids can be divided into three categories: discharge above the liquid surface, discharge into the liquid, and discharge into bubbles. They have been studied by many research groups to investigate the plasma–liquid interface phenomenon. Typical electrode configurations for the three different types of discharges into and onto liquids are shown in Figure 3.
Plasma discharges above the liquid are considered as gaseous discharges. They are generally more energy-efficient for water treatment due to the number of chemical reactions produced in the gas phase, which are then transferred to the liquid phase [62,63]. The properties of these discharges can be different. The configuration of the high-voltage electrode influences the energy yield of the discharge as well as the production of reactive species in the liquid phase. Moreover, it has been found that the energy efficiency of this type of plasma discharge improves by decreasing the distance between the electrode and the water surface [64]. It has been reported that the distance between the electrodes in the plasma reactor can determine the amount of ROS formed, which affects the degradation efficiency [65]. An experiment was conducted using different electrode distances from 10 to 30 mm, and an applied voltage of 30 kV, for a reaction time of 15 min. Glass is often used as a dielectric barrier, particularly quartz glass, although other types of glass have also been used. These discharges can be driven by direct, pulsed, or alternating current excitation. The configurations used to generate such discharges typically consist of a metal pin–plate configuration (Figure 3a).
Plasma discharges in a liquid, also called electrohydraulic discharges, have been studied for many years because of their importance in electrical transmission processes and their potential for water treatment [62,63]. They are interesting for water treatment because of the relatively high ratio of the contact area between the plasma and the liquid. In addition, the plasma residence time in the liquid is very short due to the exchange of high-energy electrons with the surrounding liquid [59]. Plasma discharges in a liquid are considered chemically rich discharges due to the formation of reactive species directly in the liquid which immediately interact with molecules present in the liquid. The direct electric discharge applied in the liquid generates high-temperature plasma channels which induce cavitation (vapor-filled cavities in the liquid, followed by a shock wave), superficial water oxidation, and the formation of short-lived radicals by ultraviolet photolysis [66]. They can also be generated by direct, pulsed, or alternating current excitation. The most commonly reported types of electrohydraulic discharge are pulsed arc discharge and pulsed corona discharge. A typical discharge liquid is shown in Figure 3b, in a pin-to-plate configuration.
Discharges in bubbles and cavities are considered a separate group, as they are completely surrounded by the liquid that serves as an electrode [59]. These discharges consist of bubbling gas through the discharge area. This will promote mixing of the liquid treatment, an increase in the contact area between the plasma and the liquid, and the production of reactive species. It is obvious that in such discharges, the feed gas plays a decisive role due to the absence of interaction between the plasma discharge and the ambient air. Yasuoka et al. measured the size of bubbles generated in the liquid using two feed gases, namely, argon (Ar) and helium (He) [67]. The Ar bubble discharge exhibited a large contact area with the liquid compared to the helium discharge. The material, shape, size, and orientation of the nozzle determine the shape of the bubble during its formation and its position after detachment. These characteristics greatly influence the chemistry that occurs during bubble formation, the electric field involved, and, consequently, the plasma properties. A typical method involves the pumping of gas up through a nozzle anode, placed under a grounded electrode, as shown in Figure 3c. The nozzle electrode is often placed inside a dielectric tube up to its tip to prevent the energy from leaking into the water. Many variations can be found in the literature, such as a pin anode inside a hole in a dielectric plate and different orientations of the nozzle [62].

4. Plasma as New Wastewater Treatment Process

Several studies have shown the effectiveness of plasma for the inactivation of bacteria, both in vegetative and spore form [28,68,69,70,71]. However, the antibiotic resistance genes released by bacteria after cell membrane alteration can be transmitted to other bacteria through the different pathways mentioned above. The elimination of ARGs is a greater challenge than the inactivation of bacteria usually discussed in the literature. Antibiotic resistance and the control of ARGs must be taken into consideration.
Table 2 presents an overview of the different plasma discharges applied for the degradation of antibiotic-resistant bacteria and antibiotic resistance genes. The first study on the inactivation of antibiotic resistance genes by non-thermal plasma at atmospheric pressure was conducted 4 years ago [27]. In this study, a plasma discharge over a liquid was applied for the inactivation of methicillin-resistant Staphylococcus aureus (MRSA) and its methicillin resistance gene (mecA). The experiments were carried out in three liquid matrices (PBS, and two models of dairy and meat wastewater). The study focused on the effect of plasma on the intracellular (i-) and extracellular (e-) mecA gene. Intracellular ARGs are located within the cytoplasm of bacterial cells. When the cell envelopes are disrupted, intracellular ARGs are released into the environment and become extracellular ARGs, which can be acquired by other bacteria through HGT. The results of MRSA inactivation showed that increasing the plasma intensity from 0 to 0.12 kJ/cm2 resulted in a 5-log bacterial reduction. For the degradation of ARGs, e-mecA showed a higher sensitivity to plasma treatment as compared to i-mecA. The degradation kinetics of i-and e-mecA in phosphate-buffered solutions showed that the reduction in i-mecA genes was significantly slower than that in e-mecA genes. For example, 1-log degradation of i-mecA required a plasma treatment of more than 0.53 kJ/cm2, whereas only 0.12 kJ/cm2 could induce >1-log degradation of e-mecA. Additionally, the degradation of i-mecA (2.49 cm2/kJ for dairy effluent and 2.87 cm2/kJ for meat effluent) was much slower than that of e-mecA (3.35 cm2/kJ for dairy effluent and 3.58 cm2/kJ for meat effluent). The low degradation of i-mecA can be explained by the protective effect of the outer cell envelope, or by the intracellular structures. In addition, organic materials in dairy and meat effluents, such as proteins and lipids, act as scavengers to quench plasma-generated radicals, in particular ROS. As a result, MRSA cells and the resistant mecA gene are further protected from attack by plasma reactive species. The characteristics of the liquid matrices influence the efficiency of plasma decontamination and can protect ARB and ARGs, resulting in a lower degradation efficiency.
Liao et al. employed a plasma discharge over a wastewater system for the degradation of E. coli harboring a plasmid (pBR322) encoding for ampicillin (blaTEM) and tetracycline (tet) resistance [29]. During the treatment of wastewater effluents, significant reductions were observed as a function of the treatment time. The results revealed that plasma treatment at a low intensity (0.71 kJ/cm2) resulted in a reduction of higher than 3 log CFU/mL in E. coli. At a plasma intensity of 0.18 kJ/cm2, the degradation kinetics of e-blaTEM and e-tet did not decrease at all. However, when the plasma dose exceeded 0.18 kJ/cm2, the concentrations of e-blaTEM and e-tet began to decrease rapidly. The rate of degradation of the e-blaTEM and e-tet genes did not show significant differences (p > 0.05) over the range of plasma doses applied (0–20.8 kJ). In the case of the degradation of i-blaTEM and i-tet, the results showed that a plasma dose of 1.41 kJ/cm2 (8 min treatment) was sufficient to cause a reduction of more than 1 log copies/mL. This suggests that the mechanisms of degradation by plasma exposure may be the same for both resistance genes. Plasma-treatment-induced plasmid degradation may be due to plasma-generated atomic oxygen, which may react with purine and pyrimidine bases or the deoxyribose backbone of DNA.
Integrons are a key group of ARG transmission vectors in bacteria. They are genetically mobile bacterial recombination systems, called gene cassettes (GCs), that allow the acquisition and expression of sequences coding for antibiotic resistance. Several studies have reported their presence in receiving rivers after discharge from treatment plants, and their elimination during water treatment processes remains a challenge. Recently, Song et al. assessed the potential of atmospheric pressure plasmas to inactivate ARB and to destroy ARGs using a plasma bubble discharge and antibiotic-resistant Escherichia coli (AR E. coli) as a model ARB [30]. The results showed that a higher plasma voltage increased the inactivation of AR E. coli. Approximately 6.3 log AR E. coli were decreased at 18 kV within 10 minutes of treatment, whereas they were only decreased by 4.4 log AR E. coli at 10 kV. The production of reactive oxygen and nitrogen species (RONS) was positively related to plasma voltage, and higher voltage favoured bacterial inactivation. The study also showed that bacterial inactivation increased with increasing gas flow. The efficiency of AR E. coli inactivation increased with the air flow rate. Only 5.5 log AR E. coli were reduced in 10 minutes of plasma treatment at a flow rate of 1.5 L min-1, while up to 7.0 log AR E. coli were reduced when the flow rate was 2.5 L min-1. The air flow could be the source of RONS generation, in the different phases of plasma-liquid interactions, and thus the inactivation of AR E. coli. The minimum inhibitory concentration (MIC) representing antibiotic resistance profiles decreased by 96.9%, 96.9%, and 98.4% for the tetracycline, amoxicillin, and gentamicin tested, respectively. The production of ROS correlated positively with the plasma voltage, and a higher voltage enhanced bacterial inactivation. All ARGs decreased after the plasma treatment, with a removal efficiency of higher than 90%. The ARGs including tetC, tetW, blaTEM-1, aac(3)-II, and the integron gene intI1 decreased by 1.04, 0.61, 1.84, 2.2, and 2.3 log copies within 10 min, respectively. The data also revealed that the plasma reduced the frequency of conjugative transfer of ARGs by approximately 63% after 10 min of treatment, thus further confirming the inhibition of the HGT of ARGs by the plasma.
Yang et al. studied AR bacteria degradation potential using a discharge in a liquid. The research group exposed E. coli with resistance genes (tetA, tetR, aphA) and the transposase gene (tnpA) to plasma in a 0.9% sterile saline solution [28]. The results showed that the plasma generated in the liquid was able to inactivate AR E. coli, eliminate ARGs, and reduce the potential of gene transfer. E. coli levels determined by 16S rRNA decreased by approximately 4.7 log after 15 min of discharge treatment. The gene reduction in tetA, tetR, aphA, and tnpA was increased to 5.8, 5.4, 5.3, and 5.5 log after 30 min of discharge treatment, respectively.
Overall, non-thermal atmospheric pressure plasmas present a promising alternative for the elimination of antibiotic resistance genes, as well as the mobile genetic elements involved in the spread of antibiotic resistance in wastewater treatment plants and in aquatic environments in general. A comparison of the inactivation of ARB and their associated ARGs showed the great potential of plasma processes compared to the classical advanced oxidation processes (AOPs) including electrochemical, photo-Fenton/LED, UV irradiation, and photocatalysis processes (Table 3). Plasma treatments showed relatively high inactivation efficiencies for short exposure times compared to the other AOPs. Nevertheless, full-scale studies are needed to confirm the effectiveness of plasma treatments in comparison to the different AOPs applied in wastewater treatment plants. In addition, a wide range of AOPs are frequently combined with exogenous chemicals to increase the oxidative power for better inactivation. However, the release of by-products of AOPs into the aquatic environment could pose a health risk to aquatic systems.
On the other hand, plasma at atmospheric pressure has also been studied for the degradation of antibiotics in wastewater. The decomposition of pentoxifylline in an aqueous solution was studied using an NTAPP, operating in a pulsed regime. After 60 min of plasma treatment, 92.5% of pentoxifylline was removed [76]. The degradation of veterinary antibiotics in wastewater was investigated by Kim et al. [77]. The results indicated that antibiotics were easily degraded by the plasma, and that the degradation rates were mainly governed by the amount of energy supplied. Antibiotic degradation decreased exponentially with increasing supplied energy. Based on an initial concentration of 5 mg/L, at 60% degradation efficiency, the energy requirements ranged from 0.26 to 1.49 kJ/mg, depending on the type of antibiotic substance, while those at 90% degradation efficiency ranged from 0.39 to 2.06 kJ/mg. More recently, Nguyen et al. studied the degradation of antibiotics in hospital effluents using atmospheric pressure plasma [78]. In this study, four antibiotics, namely, ofloxacin, ciprofloxacin, cefuroxime, and amoxicillin, were monitored in wastewater from seven hospitals in Ho Chi Minh City, Vietnam. Ciprofloxacin, cefuroxime, and ammonia were almost eliminated, while ofloxacin and amoxicillin were reduced by more than 72% after 15 min of plasma treatment with an applied voltage of 30 kV.

5. Conclusions and Future Perspectives

The limited efficiency of conventional and advanced treatment processes in wastewater treatment plants for the removal of antibiotics, ARB, and ARGs increases the demand for the development of new methods of wastewater treatment. In recent years, several studies have highlighted the advantages of applying atmospheric pressure plasmas in the microbiological decontamination of liquids. Several types of plasma discharges have been extensively studied, and comparative research on the effectiveness of different configurations on different liquid volumes and matrices has also been conducted. These studies have shown the effectiveness of plasmas for the degradation of contaminants (molecules and microorganisms) in liquids.
Future progress in this field involves an expansion toward industrial applications. Most published reports on plasma water treatment are based on lab-scale set-ups. The application of plasmas on a large scale requires a significant scientific and financial investment. In contrast to the various wastewater treatment processes used in wastewater treatment plants, plasma involves more complex and costly equipment. Plasma generation requires engineering studies, including the choice of different plasma equipment, power source design, frequency, and gas. Another problem which limits the implementation of plasma application on a large scale is that most of the literature studies single-component treatments, whether microorganisms or chemical compounds such as antibiotics, but the use of treatments with several compounds in combination is often not studied. The effectiveness of plasma against the compounds under consideration may not be reproducible under real conditions when applied to mixtures of organic materials, and interactions of reactive species between different contaminants may occur. Further studies are needed to better understand the influence of the liquid matrices and the presence of organic matter on the effectiveness of plasma treatments.
Nevertheless, the research reports included here highlight the potential of using plasma for the degradation of ARB and ARGs. These results are of particular interest in the context of the dissemination of ARB and ARGs. However, further research is needed to optimize plasma parameters for wastewater treatment and to enable its upscaling.

Funding

This research was supported by the Research Grant Program of Occitanie Region, France.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wright, G.D. Q&A: Antibiotic resistance: Where does it come from and what can we do about it? BMC Biol. 2010, 8, 123. [Google Scholar] [CrossRef] [Green Version]
  2. O’Neill, J.J. Antimicrobial Resistance: Tackling a Crisis for the Health and Wealth of Nations; The Review on Antimicrobial Resistance: London, UK, 2014; pp. 1–16. Available online: https://amr-review.org/sites/default/files/AMR Review Paper - Tackling a crisis for the health and wealth of nations_1.pdf (accessed on 26 March 2022).
  3. Sachdeva, T.; Palur, S.; Sudhakar, R.V.; Rathinavelan, K.U. E. coli Group 1 Capsular Polysaccharide Exportation Nanomachinary as a Plausible Antivirulence Target in the Perspective of Emerging Antimicrobial Resistance. Front. Microbiol. 2017, 8, 70. [Google Scholar] [CrossRef] [Green Version]
  4. Amarasiri, M.; Sano, D. Understanding human health risks caused by antibiotic resistant bacteria (ARB) and antibiotic resistance genes (ARG) in water environments: Current knowledge and questions to be answered. Crit. Rev. Environ. Sci. Technol. 2020, 50, 2016–2059. [Google Scholar] [CrossRef]
  5. Karkman, A.; Do, T.T.; Walsh, F.; Virta, M.P.J. Antibiotic-Resistance Genes in Waste Water. Trends Microbiol. 2018, 26, 220–228. [Google Scholar] [CrossRef] [Green Version]
  6. Huang, X.; Zheng, J.; Liu, C.; Liu, L.; Liu, Y.; Fan, H. Removal of antibiotics and resistance genes from swine wastewater using vertical flow constructed wetlands: Effect of hydraulic flow direction and substrate type. Chem. Eng. J. 2017, 308, 692–699. [Google Scholar] [CrossRef]
  7. Kaur, R.; Yadav, B.; Tyagi, R.D. Microbiology of hospital wastewater. Curr. Dev. Biotechnol. Bioeng. 2020, 103–148. [Google Scholar]
  8. Hong, C.; Hong, P. Removal of antibiotic-resistant bacteria and antibiotic resistance genes affected by varying degrees of fouling on anaerobic microfiltration membranes. Environ. Sci. Technol. 2017, 51, 12200–12209. [Google Scholar] [CrossRef] [Green Version]
  9. Zheng, J.; Su, C.; Zhou, J.; Xu, L.; Qian, Y.; Chen, H. Effects and mechanisms of ultraviolet, chlorination, and ozone disinfection on antibiotic resistance genes in secondary effluents of municipal wastewater treatment plants. Chem. Eng. J. 2017, 317, 309–316. [Google Scholar] [CrossRef]
  10. Czekalski, N.; Imminger, S.; Salhi, E.; Veljkovic, M.; Kleffel, K.; Drissner, D.; Hammes, F.; Burgmann, H.; Gunten, U.V. Inactivation of Antibiotic Resistant Bacteria and Resistance Genes by Ozone: From Laboratory Experiments to Full-Scale Wastewater Treatment. Environ. Sci. Technol. 2016, 50, 11862–11871. [Google Scholar] [CrossRef]
  11. Sousa, J.M.; Macedo, G.; Pedrosa, M.; Becerra-Castro, C.; Castro-Silva, S.; Pereira, M.F.; Silva, A.; Nunes, O.C.; Manaia, C. Ozonation and UV254nm radiation for the removal of microorganisms and antibiotic resistance genes from urban wastewater. J. Hazard. Mater. 2017, 323, 434–441. [Google Scholar] [CrossRef]
  12. Sharma, V.K.; Johnson, N.; Cizmas, L.; McDonald, T.J.; Kim, H. A review of the influence of treatment strategies on antibiotic resistant bacteria and antibiotic resistance genes. Chemosphere 2016, 150, 702–714. [Google Scholar] [CrossRef] [PubMed]
  13. Triggiano, F.; Calia, C.; Diella, G.; Montagna, M.T.; De Giglio, O.; Caggiano, G. The role of urban wastewater in the environmental transmission of antimicrobial resistance: The current situation in Italy (2010–2019). Microorganisms 2020, 8, 1567. [Google Scholar] [CrossRef] [PubMed]
  14. Macauley, J.J.; Qiang, Z.; Adams, C.D.; Surampalli, R.; Mormile, M.R. Mine Disinfection of Swine Wastewater Using Chlorine, Ultraviolet Light and Ozone. Water Res. 2006, 40, 2017–2026. [Google Scholar] [CrossRef]
  15. Stang, C.; Sidhu, J.P.S.; Toze, S.; Tienhm, A. Comparative removal of antibiotic resistance genes during chlorination, ozonation, and UV treatment. Int. J. Hyg. Environ. Health 2019, 222, 541–548. [Google Scholar] [CrossRef] [PubMed]
  16. Zhuang, Y.; Ren, H.; Geng, J.; Zhang, Y.; Zhang, Y.; Ding, L.; Xu, K. Inactivation of antibiotic resistance genes in municipal wastewater by chlorination, ultraviolet, and ozonation disinfection. Environ. Sci. Pollut. Res. Int. 2015, 22, 7037–7044. [Google Scholar] [CrossRef]
  17. Yoon, Y.; Dodd, M.C.; Lee, Y. Elimination of transforming activity and gene degradation during UV and UV/H2O2 treatment of plasmid-encoded antibiotic resistance genes. Environ. Sci. Water Res. Technol. 2018, 4, 1239–1251. [Google Scholar] [CrossRef]
  18. Ahmed, Y.; Lu, J.; Yuan, Z.; Bond, P.L.; Guo, J. Efficient inactivation of antibiotic resistant bacteria and antibiotic resistance genes by photo-Fenton process under visible LED light and neutral pH. Water Res. 2020, 179, 115878. [Google Scholar] [CrossRef]
  19. Dunlop, P.; Ciavola, M.; Rizzo, L.; McDowell, D.; Byrne, J. Effect of photocatalysis on the transfer of antibiotic resistance genes in urban wastewater. Catal. Today 2015, 240, 55–60. [Google Scholar] [CrossRef]
  20. Qiu, Z.; Yu, Y.; Chen, Z.; Jin, M.; Yang, D.; Zhao, Z.; Wang, J.; Shen, Z.; Wang, X.; Qian, D.; et al. Nanoalumina promotes the horizontal transfer of multiresistance genes mediated by plasmids across genera. Proc. Natl. Acad. Sci. USA 2012, 109, 4944–4949. [Google Scholar] [CrossRef] [Green Version]
  21. Jiao, Y.N.; Chen, H.; Gao, R.X.; Zhu, Y.G.; Rensing, C. Organic compounds stimulate horizontal transfer of antibiotic resistance genes in mixed wastewater treatment systems. Chemosphere 2017, 184, 53–61. [Google Scholar] [CrossRef]
  22. Jutkina, J.; Rutgersson, C.; Flach, C.F.; Larsson, D.G.J. An assay for determining minimal concentrations of antibiotics that drive horizontal transfer of resistance. Sci. Total Environ. 2016, 548–549, 131–138. [Google Scholar] [CrossRef] [PubMed]
  23. Seier-Petersen, M.A.; Jasni, A.; Aarestrup, F.M.; Vigre, H.; Mullany, P.; Roberts, A.P.; Agersø, Y. Effect of subinhibitory concentrations of four commonly used biocides on the conjugative transfer of Tn916 in Bacillus subtilis. J. Antimicrob. Chemother. 2014, 69, 343–348. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Chen, X.; Yin, H.; Li, G.; Wang, W.; Wong, P.K.; Zhao, H.; An, T. Antibiotic-resistance gene transfer in antibiotic-resistance bacteria under different light irradiation: Implications from oxidative stress and gene expression. Water Res. 2019, 149, 282–291. [Google Scholar] [CrossRef] [PubMed]
  25. Lu, J.; Wang, Y.; Jin, M.; Yuan, Z.; Bond, P.; Guo, J. Both silver ions and silver nanoparticles facilitate the horizontal transfer of plasmid-mediated antibiotic resistance genes. Water Res. 2020, 169, 115229. [Google Scholar] [CrossRef]
  26. Barjasteh, A.; Dehghani, Z.; Lamichhane, P.; Kaushik, N.; Choi, E.H.; Kaushik, N.K. Recent progress in applications of non-thermal plasma for water purification, bio-sterilization, and decontamination. Appl. Sci. 2021, 11, 3372. [Google Scholar] [CrossRef]
  27. Liao, X.; Cullen, P.J.; Liu, D.; Muhammad, A.I.; Chen, S.; Ye, X.; Wang, J.; Ding, T. Combating Staphylococcus aureus and its methicillin resistance gene (mecA) with cold plasma. Sci. Total Environ. 2018, 645, 1287–1295. [Google Scholar] [CrossRef]
  28. Yang, Y.; Wan, K.; Yang, Z.; Li, D.; Li, G.; Zhang, S.; Wang, L.; Yu, X. Inactivation of antibiotic resistant Escherichia coli and degradation of its resistance genes by glow discharge plasma in an aqueous solution. Chemosphere 2020, 252, 126476. [Google Scholar] [CrossRef]
  29. Liao, X.; Liu, D.; Chen, S.; Ye, X.; Ding, T. Degradation of antibiotic resistance contaminants in wastewater by atmospheric cold plasma: Kinetics and mechanisms. Environ. Technol. 2021, 42, 58–71. [Google Scholar] [CrossRef]
  30. Song, R.; Li, H.; Kang, Z.; Zhong, R.; Wang, Y.; Zhang, Y.; Qu, G.; Wang, T. Surface plasma induced elimination of antibiotic-resistant Escherichia coli and resistance genes: Antibiotic resistance, horizontal gene transfer, and mechanisms. Sep. Purif. Technol. 2021, 275, 119185. [Google Scholar] [CrossRef]
  31. Li, H.; Song, R.; Wang, Y.; Zhong, R.; Zhang, Y.; Zhou, J.; Wang, T.; Jia, H.; Zhu, L. Inhibited conjugative transfer of antibiotic resistance genes in antibiotic resistant bacteria by surface plasma. Water Res. 2021, 204, 117630. [Google Scholar] [CrossRef]
  32. Li, H.; Song, R.; Wang, Y.; Zhong, R.; . Zhou, J.; Wang, T.; Jia, H.; Zhu, L. Insights into DNA Structures during Antibiotic-Resistance Gene Elimination by Mesoporous Plasma. ACS Environ. Sci. Technol. Water 2022, 2, 128–136. [Google Scholar] [CrossRef]
  33. Uluseker, C.; Kaster, K.M.; Thorsen, K.; Basiry, D.; Shobana, S.; Jain, M.; Kumar, G.; Kommedal, R.; Pala-Ozkok, I. A Review on Occurrence and Spread of Antibiotic Resistance in Wastewaters and in Wastewater Treatment Plants: Mechanisms and Perspectives. Front. Microbiol. 2021, 12, 717809. [Google Scholar] [CrossRef] [PubMed]
  34. Von Wintersdorff, C.J.; Penders, J.; van Niekerk, J.M.; Mills, N.D.; Majumder, S.; Van Alphen, L.B.; Savelkoul, P.H.; Wolffs, P.F. Dissemination of antimicrobial resistance in microbial ecosystems through horizontal gene transfer. Front. Microbiol. 2016, 7, 173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Verburg, I.; García-Cobos, S.; Leal, L.H.; Waar, K.; Friedrich, A.W.; Schmitt, H. Abundance and antimicrobial resistance of three bacterial species along a complete wastewater pathway. Microorganisms 2019, 7, 312. [Google Scholar] [CrossRef] [Green Version]
  36. Łuczkiewicz, A.; Jankowska, K.; Fudala-Książek, S.; Olańczuk-Neyman, K. Antimicrobial resistance of fecal indicators in municipal wastewater treatment plant. Water Res. 2010, 44, 5089–5097. [Google Scholar] [CrossRef]
  37. Neudorf, K.D.; Huang, Y.N.; Ragush, C.M.; Yost, C.K.; Jamieson, R.C.; Truelstrup Hansen, L. Antibiotic resistance genes in municipal wastewater treatment systems and receiving waters in Arctic Canada. Sci. Total Environ. 2017, 598, 1085–1094. [Google Scholar] [CrossRef] [Green Version]
  38. Guo, J.; Li, J.; Chen, H.; Bond, P.L.; Yuan, Z. Metagenomic analysis reveals wastewater treatment plants as hotspots of antibiotic resistance genes and mobile genetic elements. Water Res. 2017, 123, 468–478. [Google Scholar] [CrossRef]
  39. Gallert, C.; Fund, K.; Winter, J. Antibiotic resistance of bacteria in raw and biologically treated sewage and in groundwater below leaking sewers. Appl. Microbiol. Biotechnol. 2005, 69, 106–112. [Google Scholar] [CrossRef]
  40. Goldstein, R.E.R.; Micallef, S.A.; Gibbs, S.G.; George, A.; Claye, E.; Sapkota, A.; Joseph, S.W.; Sapkota, A.R. Detection of Vancomycin-Resistant Enterococci (VRE) at Four U.S. Wastewater Treatment Plants that Provide Effluent for Reuse. Physiol. Behav. 2017, 176, 139–148. [Google Scholar] [CrossRef]
  41. Pazda, M.; Kumirska, J.; Stepnowski, P.; Mulkiewicz, E. Antibiotic resistance genes identified in wastewater treatment plant systems—A review. Sci. Total Environ. 2019, 20, 134023. [Google Scholar] [CrossRef]
  42. Biswal, B.K.; Mazza, A.; Masson, L.; Gehr, R.; Frigon, D. Impact of wastewater treatment processes on antimicrobial resistance genes and their co-occurrence with virulence genes in Escherichia coli. Water Res. 2014, 50, 245–253. [Google Scholar] [CrossRef]
  43. Alexander, J.; Bollmann, A.; Seitz, W.; Schwartz, T. Microbiological characterization of aquatic microbiomes targeting taxonomical marker genes and antibiotic resistance genes of opportunistic bacteria. Sci. Total Environ. 2015, 512–513, 316–325. [Google Scholar] [CrossRef]
  44. Amador, P.P.; Fernandes, R.M.; Prudêncio, M.C.; Barreto, M.P.; Duarte, I.M. Antibiotic resistance in wastewater: Occurrence and fate of Enterobacteriaceae producers of Class A and Class C β-lactamases. J. Environ. Sci. Heal. Part A Toxic Hazard. Subst. Environ. Eng. 2015, 50, 26–39. [Google Scholar] [CrossRef]
  45. Szczepanowski, R.; Linke, B.; Krahn, I.; Gartemann, K.H.; Gützkow, T.; Eichler, W.; Pühler, A.; Schlüter, A. Detection of 140 clinically relevant antibiotic-resistance genes in the plasmid metagenome of wastewater treatment plant bacteria showing reduced susceptibility to selected antibiotics. Microbiology 2009, 155, 2306–2319. [Google Scholar] [CrossRef] [Green Version]
  46. Yang, Y.; Li, B.; Zou, S.; Fang, H.H.P.; Zhang, T. Fate of antibiotic resistance genes in sewage treatment plant revealed by metagenomic approach. Water Res. 2014, 62, 97–106. [Google Scholar] [CrossRef]
  47. Zhang, X.X.; Zhang, T. Occurrence, abundance, and diversity of tetracycline resistance genes in 15 sewage treatment plants across china and other global locations. Environ. Sci. Technol. 2011, 45, 2598–2604. [Google Scholar] [CrossRef]
  48. Grabow, W.O.; Prozesky, O.W. Drug resistance of coliform bacteria in hospital and city sewage. Antimicrob. Agents Chemother. 1973, 3, 175–180. [Google Scholar] [CrossRef] [Green Version]
  49. Rowe, W.; Baker-Austin, C.; Verner-Jeffreys, D.W.; Ryan, J.J.; Micallef, C.; Maskell, D.J.; Pearce, G.P. Overexpression of antibiotic resistance genes in hospital effluents over time. J. Antimicrob. Chemother. 2017, 72, 1617–1623. [Google Scholar] [CrossRef]
  50. Gaşpar, C.M.; Cziszter, L.T.; Lăzărescu, C.F.; Ţibru, I.; Pentea, M.; Butnariu, M. Antibiotic resistance among Escherichia coli isolates from hospital wastewater compared to community wastewater. Water 2021, 13, 3449. [Google Scholar] [CrossRef]
  51. Szekeres, E.; Baricz, A.; Chiriac, C.M.; Farkas, A.; Opris, O.; Soran, M.L.; Andrei, A.S.; Rudi, K.; Balcázar, J.L.; Dragos, N.; et al. Abundance of antibiotics, antibiotic resistance genes and bacterial community composition in wastewater effluents from different Romanian hospitals. Environ. Pollut. 2017, 225, 304–315. [Google Scholar] [CrossRef]
  52. Hassoun-Kheir, N.; Stabholz, Y.; Kreft, J.U.; de la Cruz, R.; Romalde, J.L.; Nesme, J.; Sørensen, S.J.; Smets, B.F.; Graham, D.; Paul, M. Comparison of antibiotic-resistant bacteria and antibiotic resistance genes abundance in hospital and community wastewater: A systematic review. Sci. Total Environ. 2020, 743, 140804. [Google Scholar] [CrossRef]
  53. Sabri, N.A.; Schmitt, H.; Van der Zaan, B.; Gerritsen, H.W.; Zuidema, T.; Rijnaarts, H.H.M.; Langenhoff, A.A.M. Prevalence of antibiotics and antibiotic resistance genes in a wastewater effluent-receiving river in the Netherlands. J. Environ. Chem. Eng. 2020, 8, 102245. [Google Scholar] [CrossRef]
  54. Rodriguez-Mozaz, S.; Chamorro, S.; Marti, E.; Huerta, B.; Gros, M.; Sànchez-Melsió, A.; Borrego, C.M.; Barceló, D.; Balcázar, J.L. Occurrence of antibiotics and antibiotic resistance genes in hospital and urban wastewaters and their impact on the receiving river. Water Res. 2015, 69, 234–242. [Google Scholar] [CrossRef]
  55. Rezaei, F.; Vanraes, P.; Nikiforov, A.; Morent, R.; De Geyter, N. Applications of Plasma-Liquid Systems: A Review. Materials 2019, 12, 2751. [Google Scholar] [CrossRef] [Green Version]
  56. Kim, S.; Kim, C.H. Applications of plasma-activated liquid in the medical field. Biomedicines 2021, 9, 1700. [Google Scholar] [CrossRef]
  57. Perinban, S.; Orsat, V.; Raghavan, V. Nonthermal Plasma–Liquid Interactions in Food Processing: A Review. Compr. Rev. Food Sci. Food Saf. 2019, 18, 1985–2008. [Google Scholar] [CrossRef] [Green Version]
  58. Zeghioud, H.; Nguyen-Tri, P.; Khezami, L.; Amrane, A.; Assadi, A.A. Review on discharge Plasma for water treatment: Mechanism, reactor geometries, active species and combined processes. J. Water Process Eng. 2020, 38, 101664. [Google Scholar] [CrossRef]
  59. Bruggeman, P.; Kushner, M.; Locke, B.; Gardeniers, J.; Graham, W.; Graves, D.B.; Hofman-Caris, R.C.H.M.; Maric, D.; Reid, J.P.; Ceriani, E.; et al. Plasma-liquid interactions: A review and roadmap. Plasma Sources Sci. Technol. 2016, 25, 053002. [Google Scholar] [CrossRef]
  60. Jiang, B.; Zheng, J.; Qiu, S.; Wu, M.; Zhang, Q.; Yan, Z.; Xue, Q. Review on electrical discharge plasma technology for wastewater remediation. Chem. Eng. J. 2014, 236, 348–368. [Google Scholar] [CrossRef]
  61. Bruggeman, P.; Leys, C. Non-thermal plasmas in and in contact with liquids. J. Phys. D Appl. Phys. 2009, 42, 053001. [Google Scholar] [CrossRef]
  62. Vanraes, P.; Nikiforov, Y.A.; Leys, C. Electrical Discharge in Water Treatment Technology for Micropollutant Decomposition. In Plasma Science and Technology. Progress in Physical States and Chemical Reactions; IntechOpen: London, UK, 2016. [Google Scholar] [CrossRef] [Green Version]
  63. Foster, J.E. Plasma-based water purification: Challenges and prospects for the future. Phys. Plasmas 2017, 24, 055501. [Google Scholar] [CrossRef]
  64. Invernizzi, L.; Muja, C.; Sainct, F.P.; Guillot, P. Investigation of RONS Production and Complex Molecules Degradation Induced by an APPJ Generated by Two Different Source. IEEE Trans. Radiat. Plasma Med. Sci. 2019, 4, 121–129. [Google Scholar] [CrossRef]
  65. Ghimire, B.; Sornsakdanuphap, J.; Hong, J.Y.; Uhm, H.S.; Weltmann, D.K.; Choi, E.H. The effect of the gap distance between an atmospheric-pressure plasma jet nozzle and liquid surface on OH and N2 species concentrations. Phys. Plasmas 2017, 24, 073502. [Google Scholar] [CrossRef]
  66. Marotta, E.; Ceriani, E.; Schiorlin, M.; Ceretta, C.; Paradisi, C. Comparison of the rates of phenol advanced oxidation in deionized and tap water within a dielectric barrier discharge reactor. Water Res. 2012, 46, 6239–6246. [Google Scholar] [CrossRef]
  67. Yasuoka, K.; Sasaki, K.; Hayashi, R. An energy-efficient process for decomposing perfluorooctanoic and perfluorooctane sulfonic acids using dc plasmas generated within gas bubbles. Plasma Sources Sci. Technol. 2011, 20, 034009. [Google Scholar] [CrossRef]
  68. Liao, X.; Liu, D.; Ding, T. Nonthermal Plasma Induces the Viable-but-Nonculturable State in Staphylococcus aureus via Metabolic Suppression and the Oxidative Stress Response. Appl. Environ. Microbiol. 2020, 86, 5. [Google Scholar] [CrossRef]
  69. Joshi, S.G.; Cooper, M.; Yost, A.; Paff, M.; Ercan, U.K.; Fridman, G.; Friedman, G.; Fridman, A.; Brooks, A.D. Nonthermal dielectric-barrier discharge plasma-induced inactivation involves oxidative DNA damage and membrane lipid peroxidation in Escherichia coli. Antimicrob. Agents Chemother. 2011, 55, 1053–1062. [Google Scholar] [CrossRef] [Green Version]
  70. Tseng, S.; Abramzon, N.; Jackson, J.O.; Lin, W.J. Gas discharge plasmas are effective in inactivating Bacillus and Clostridium spores. Appl. Microbiol. Biotechnol. 2012, 93, 2563–2570. [Google Scholar] [CrossRef]
  71. Lee, C.; Subhadra, B.; Choi, H.G.; Suh, H.W.; Uhm, H.S.; Kim, H.J. Inactivation of Mycobacteria by Radicals from Non-Thermal Plasma Jet. J. Microbiol. Biotechnol. 2019, 28, 1401–1411. [Google Scholar] [CrossRef]
  72. Liang, S.; Lin, H.; Habteselassie, M.; Huang, Q. Electrochemical inactivation of bacteria with a titanium sub-oxide reactive membrane. Water Res. 2018, 145, 172–180. [Google Scholar] [CrossRef]
  73. Chen, L.; Zhou, Z.; Shen, C.; Xu, Y. Inactivation of antibiotic-resistant bacteria and antibiotic resistance genes by electrochemical oxidation/electroFenton process. Water Sci. Technol. 2020, 81, 2221–2231. [Google Scholar] [CrossRef]
  74. McKinney, C.W.; Pruden, A. Ultraviolet disinfection of antibiotic resistant bacteria and their antibiotic resistance genes in water and wastewater. Environ. Sci. Technol. 2012, 46, 13393–13400. [Google Scholar] [CrossRef] [PubMed]
  75. Yoon, Y.; Chung, H.J.; Wen Di, D.Y.; Dodd, M.C.; Hur, H.G.; Lee, Y. Inactivation efficiency of plasmid-encoded antibiotic resistance genes during water treatment with chlorine, UV, and UV/H2O2. Water Res. 2017, 123, 783–793. [Google Scholar] [CrossRef] [PubMed]
  76. Magureanu, M.; Piroi, D.; Mandache, N.B.; David, V.; Medvedovici, A.; Parvulesc, V.I. Degradation of pharmaceutical compound pentoxifylline in water by non-thermal plasma treatment. Water Res. 2010, 44, 3445–3453. [Google Scholar] [CrossRef]
  77. Kim, K.S.; Yang, C.S.; Mok, Y.S. Degradation of veterinary antibiotics by dielectric barrier discharge plasma. Chem. Eng. J. 2013, 219, 19–27. [Google Scholar] [CrossRef]
  78. Nguyen, P.T.T.; Nguyen, H.T.; Tran, U.N.P.; Manh, B. Removal of Antibiotics from Real Hospital Wastewater by Cold Plasma Technique. J. Chem. 2021, 2021, 13. [Google Scholar] [CrossRef]
Antibiotics 11 00747 g001 550

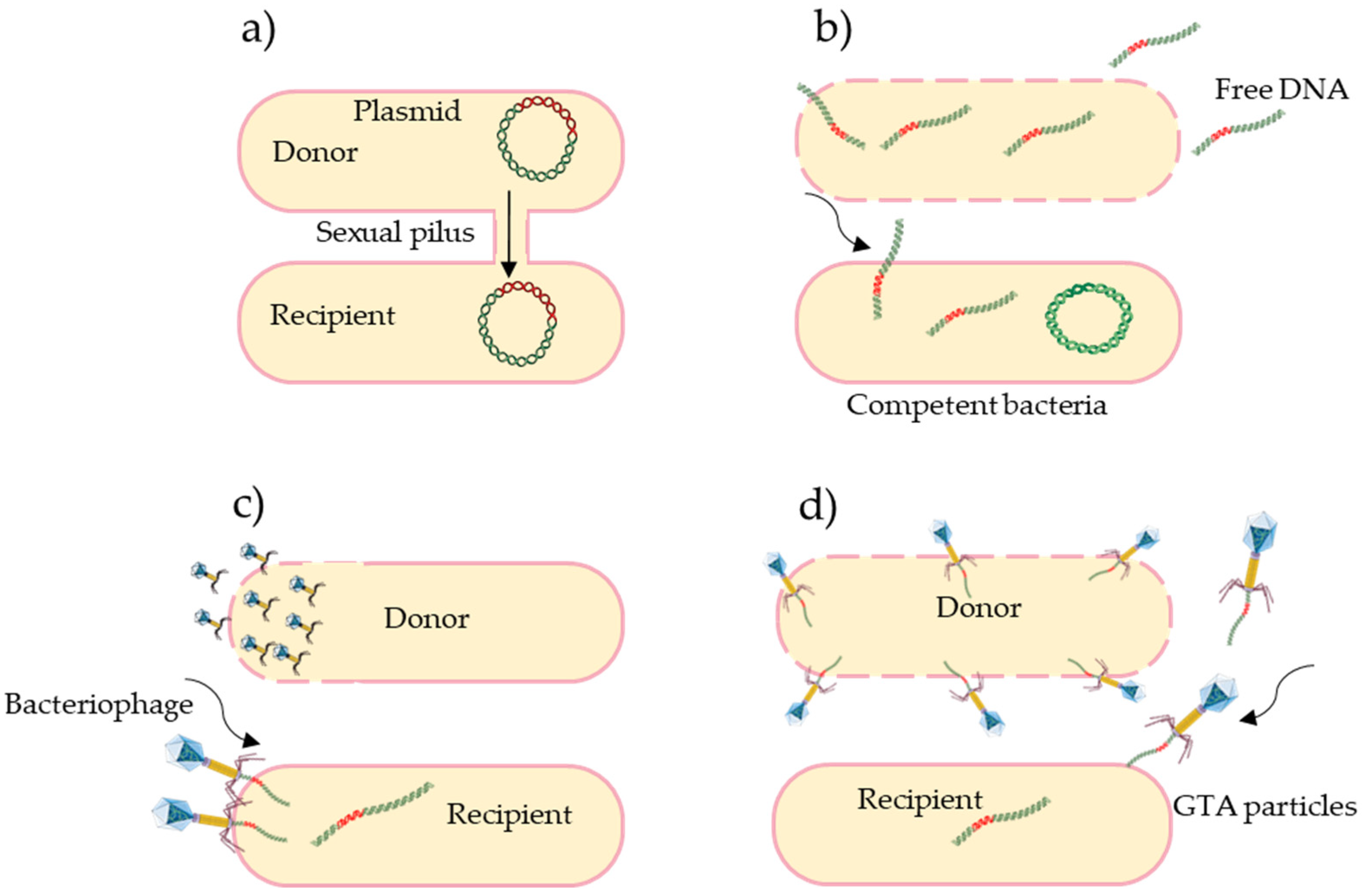

Figure 1. Antibiotic resistance transport mechanisms; (a) Conjugation, (b) Transformation, (c) Transduction, and (d) Gene transfer agents (GTAs), (adapted from [34]).
Figure 1. Antibiotic resistance transport mechanisms; (a) Conjugation, (b) Transformation, (c) Transduction, and (d) Gene transfer agents (GTAs), (adapted from [34]).
Antibiotics 11 00747 g001
Antibiotics 11 00747 g002 550

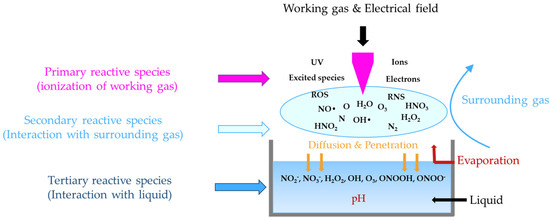

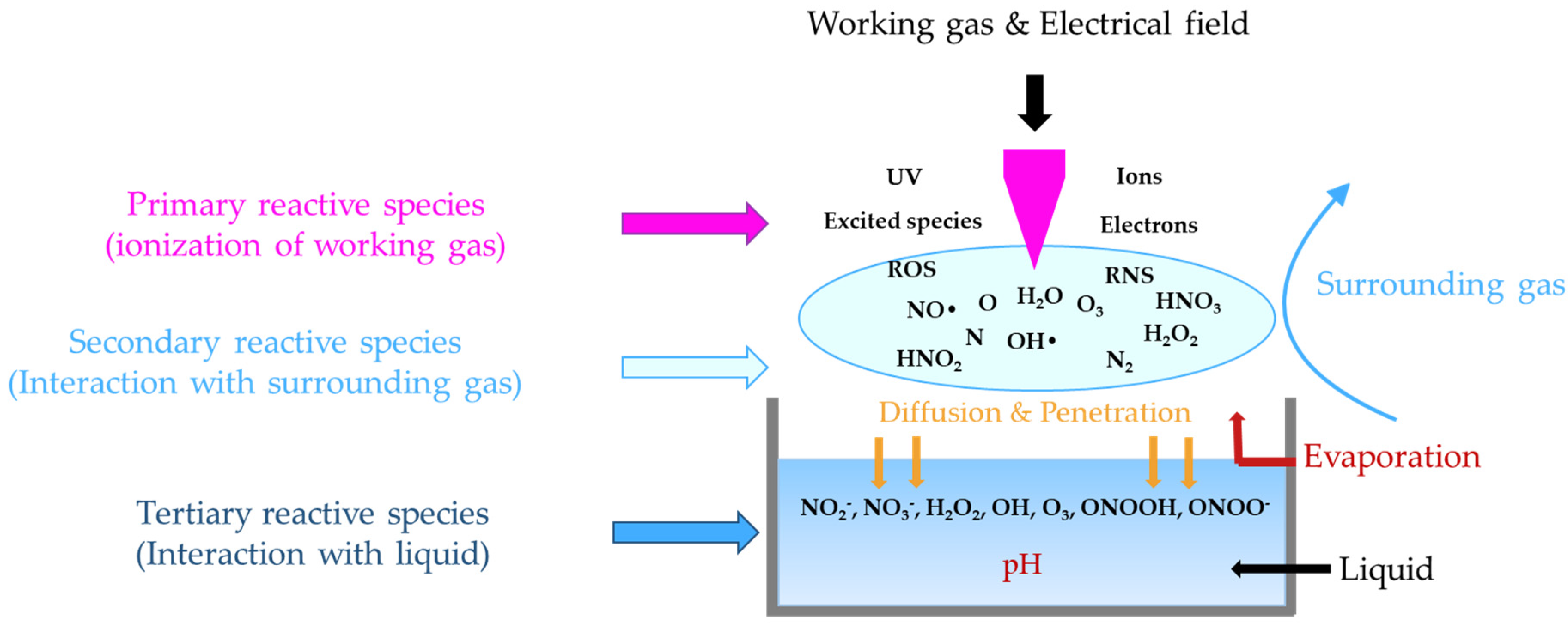

Figure 2. Schematic diagram of the synthesis mechanisms for plasma-liquid interaction (adapted from [61]).
Figure 2. Schematic diagram of the synthesis mechanisms for plasma-liquid interaction (adapted from [61]).
Antibiotics 11 00747 g002
Antibiotics 11 00747 g003 550

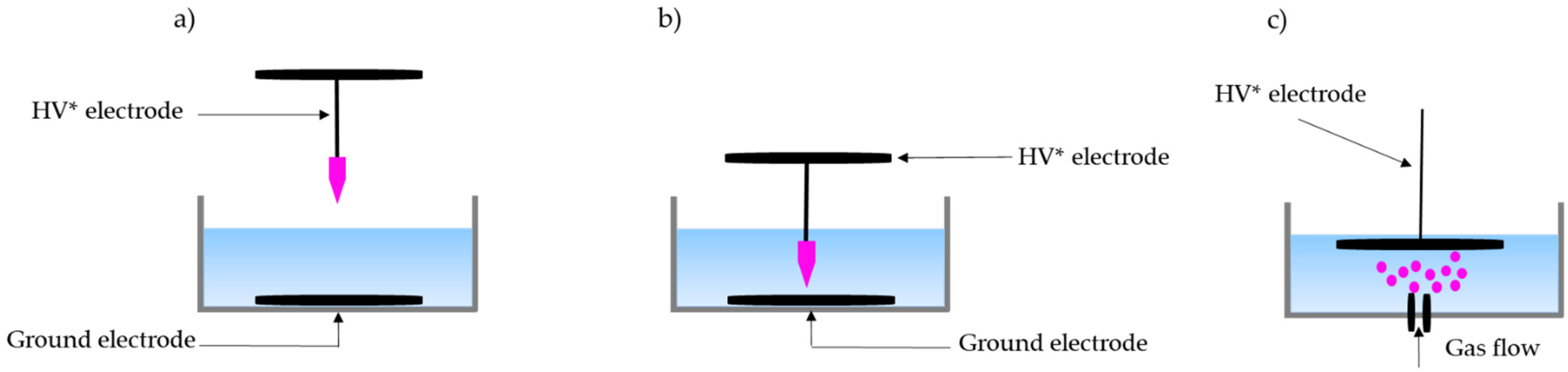

Figure 3. Schematic of different plasma discharge systems used for water treatment; (a) Discharge above liquid, (b) Discharge in liquid, and (c) Discharge in bubbles, * HV—high voltage. (adapted from [59]).
Figure 3. Schematic of different plasma discharge systems used for water treatment; (a) Discharge above liquid, (b) Discharge in liquid, and (c) Discharge in bubbles, * HV—high voltage. (adapted from [59]).
Antibiotics 11 00747 g003
Table
Table 1. Overview of ARB and ARGs found in the influent, effluent, and activated sludge of wastewater treatment plants (WWTPs).
Table 1. Overview of ARB and ARGs found in the influent, effluent, and activated sludge of wastewater treatment plants (WWTPs).
ARB or ARGsAntibiotic
Resistance
Profiles		OriginWWTP SampleCountryReferences
InfluentActivated SludgeEffluentEffluent
Concentrations of ARB or ARGs
ARB
Escherichia coliCiprofloxacin,
cotrimoxazole,
ampicillin		Nursing home,
hospital, and community wastewater collection point 		+na *+5 logThe
Netherlands		[35]
EnterococcusPenicillin G,
ampicillin,
vancomycin		Industrial, hospital, and nursing home+na *+2 logGermany[39]
Staphylococcus aureusMulti-resistantCommunity wastewater
collection point		na *na *+nd *USA[40]
Klebsiella spp.Ciprofloxacin,
cotrimoxazole,
ampicillin,
trimethoprim		Nursing home, hospital, and community wastewater collection point+na *+5 logThe Netherlands[35]
Aeromonas spp.Ciprofloxacin,
cotrimoxazole,
ampicillin,
trimethoprim		Nursing home,
hospital, and community wastewater collection point		+na *+5 logThe
Netherlands		[35]
ARGs (adapted from [41])
ampRBeta-lactamsCommunity wastewater collection point+na *+reductionCanada[42]
blaAmpCHospital, community wastewater collection point, and receiving rivers+na *+increaseGermany[43]
blaTEMHospital, domestic, and industrial+na *+increasePortugal[44]
mecACommunity wastewater collection point and receiving rivers+na *+nd *Canada[37]
tetATetracyclineCommunity wastewater collection pointna *++nd *Germany[45]
Community wastewater collection point+na *+increaseCanada[42]
Community wastewater collection point+++reductionChina[46]
Sewage treatment plants (STPs)+++reduction[47]
mdtGMultidrug efflux pump genesCommunity wastewater collection point+++reductionChina[46]
mdtH+++
mdtN+++
na *—not analyzed; nd *—no difference; +—detected.
Table
Table 2. Literature overview of different types of plasma discharges used for wastewater treatment.
Table 2. Literature overview of different types of plasma discharges used for wastewater treatment.
Plasma DischargeDischarge
Characteristics		StrainAntibiotic
Resistance
Profiles †		VolumeInitial
Concentration		MatricesStrain and Resistance Gene Reduction †References
Discharge above liquid surfaceV = 14 kVStaphylococcus aureus (MRSA)i-mecA 109
CFU/mL		PBS *
(pH = 7)		Staphylococcus aureus (MRSA) = 5 log[27]
Freq. * = 10 kHzi-mecA = 0.8 log
Power = 2.94 W/cm2e-mecAe-mecA = 2.6 log
Time = 0 to 8 minE. coli multi-resistanti-blaTEM 109
CFU/mL		PBS *
(pH = 7)		E. coli multi-resistant = 3 log[29]
i-teti-blaTEM = 1.26 log
e-blaTEMi-tet = 1.55 log
e-tete-blaTEM = 3.26 log
e-tet = 3.14 log
Discharge in bubblesV = 18 kVE. coli multi-resistanttet C300 mL108
CFU/mL		PBS *
(pH = 7)		E. coli multi-resistant = 7 log[30]
Freq. * = 50 Hztet Wtet C = 1.04 log
Power = 12 WblaTEM-1tetW = 0.61 log
Gas = Dry air at 2.5 L/minaac(3)-IIblaTEM-1 = 1.84 log
Time = 10 minIntegron gene (intI1)aac(3)-II = 2.2 log
intI1 = 2.3 log
E. coli multi-resistantIntegron gene (intI1)500 mL108
CFU/mL		PBS *
(pH = 7)		E. coli multi-resistant = 4.5 log[31]
intI1 = 3.10 log
Discharge in liquidV = 500 VE. coli multi-resistanttet A150 mL108
CFU/mL		Saline
(0.9%)		E. coli multi-resistant = 7 log[28]
Current = 100 mAtet Rtet A = 5.8 log
Power = 50 Waph Atet R = 5.4 log
Time = 30 minTransposase gene (tnpA)aph A = 5.5 log
tnpA = 5.5 log
Freq. *—frequency; † i—intracellular gene; e—extracellular gene; PBS *—phosphate-buffered solution.
Table
Table 3. ARG and ARB removal performance in the liquid phase by different AOPs.
Table 3. ARG and ARB removal performance in the liquid phase by different AOPs.
ProcessesStrainAntibiotic
Resistance Profiles		VolumeRemoval
Efficiency of ARB		Removal
Efficiency of ARGs		TimeEnergy YieldReference
PlasmaE. coliTetC, TetW, blaTEM-1, aac(3)-II, and
integron gene (intI1)		300 mL7 log1–2 log10 min18 kV[30]
E. colitet A,tet R,aph A, and transposase gene (tnpA)150 mL7 log5–6 log30 min500 V[31]
ElectrochemicalE. coli__150 mL5 log__30 min2.4 mA/cm2[72]
Electrochemical
oxidation/electro-Fenton		E. colitetA300 mL6 log3–5 log120 min21.42 mA/cm2[73]
Photo-Fenton/LEDE. coliblaTEM-1 and tetA50 mL6 log6–8 log30 min19.2 mW/cm2[18]
UV irradiationE.colitetA10 mL4–5 log3–4 log1 min (ARB) and 30 min (ARGs)20 mJ/cm2 (ARB) and 400 mJ/cm2 (ARGs)[74]
UV/H2O2E. coliampR and kanR120 mL5 log3 log5 min100 mJ/cm2[75]
Photocatalytic
oxidation		E. coli__200 mL3 log__120 min80 W/m2[19]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Courti, I.; Muja, C.; Maho, T.; Sainct, F.P.; Guillot, P. Degradation of Bacterial Antibiotic Resistance Genes during Exposure to Non-Thermal Atmospheric Pressure Plasma. Antibiotics 2022, 11, 747. https://doi.org/10.3390/antibiotics11060747

AMA Style

Courti I, Muja C, Maho T, Sainct FP, Guillot P. Degradation of Bacterial Antibiotic Resistance Genes during Exposure to Non-Thermal Atmospheric Pressure Plasma. Antibiotics. 2022; 11(6):747. https://doi.org/10.3390/antibiotics11060747

Chicago/Turabian Style

Courti, Ibtissam, Cristina Muja, Thomas Maho, Florent P. Sainct, and Philippe Guillot. 2022. "Degradation of Bacterial Antibiotic Resistance Genes during Exposure to Non-Thermal Atmospheric Pressure Plasma" Antibiotics 11, no. 6: 747. https://doi.org/10.3390/antibiotics11060747

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
