Article

An Assessment of the Viability of Lytic Phages and Their Potency against Multidrug Resistant Escherichia coli O177 Strains under Simulated Rumen Fermentation Conditions

by
Peter Kotsoana Montso
1,2,*,
Caven Mguvane Mnisi
2,3,
Collins Njie Ateba
1,2 and
Victor Mlambo
4
1
Antimicrobial Resistance and Phage Biocontrol Laboratory, Department of Microbiology, Faculty of Natural and Agricultural Sciences, North-West University, Private Bag X2046, Mmabatho 2735, South Africa
2
Food Security and Safety Niche Area, Faculty of Natural and Agricultural Sciences, North-West University, Private Bag X2046, Mmabatho 2735, South Africa
3
Department of Animal Sciences, Faculty of Natural and Agricultural Sciences, North-West University, Private Bag X2046, Mmabatho 2735, South Africa
4
School of Agricultural Sciences, Faculty of Agriculture and Natural Sciences, University of Mpumalanga, Private Bag X11283, Mbombela 1200, South Africa
*
Author to whom correspondence should be addressed.
Antibiotics 2021, 10(3), 265; https://doi.org/10.3390/antibiotics10030265
Submission received: 3 February 2021 / Revised: 27 February 2021 / Accepted: 2 March 2021 / Published: 5 March 2021
(This article belongs to the Special Issue Phage Therapy to Control Pathogenic Bacteria)
Browse Figure
Review Reports Versions Notes

Abstract

:
Preslaughter starvation and subacute ruminal acidosis in cattle are known to promote ruminal proliferation of atypical enteropathogenic Escherichia coli strains, thereby increasing the risk of meat and milk contamination. Using bacteriophages (henceforth called phages) to control these strains in the rumen is a potentially novel strategy. Therefore, this study evaluated the viability of phages and their efficacy in reducing E. coli O177 cells in a simulated ruminal fermentation system. Fourteen phage treatments were allocated to anaerobic serum bottles containing a grass hay substrate, buffered (pH 6.6–6.8) bovine rumen fluid, and E. coli O177 cells. The serum bottles were then incubated at 39 °C for 48 h. Phage titres quadratically increased with incubation time. Phage-induced reduction of E. coli O177 cell counts reached maximum values of 61.02–62.74% and 62.35–66.92% for single phages and phage cocktails, respectively. The highest E. coli O177 cell count reduction occurred in samples treated with vB_EcoM_366B (62.31%), vB_EcoM_3A1 (62.74%), vB_EcoMC3 (66.67%), vB_EcoMC4 (66.92%), and vB_EcoMC6 (66.42%) phages. In conclusion, lytic phages effectively reduced E. coli O177 cells under artificial rumen fermentation conditions, thus could be used as a biocontrol strategy in live cattle to reduce meat and milk contamination in abattoirs and milking parlours, respectively.

1. Introduction

Atypical enteropathogenic E. coli (aEPEC) group contains heterogeneous serotypes, which causes severe illness in humans [1,2]. Recent studies have reported that some serotypes from this group harbour stx operon (stx1 and stx2) responsible for production of Shiga toxin [2,3]. Shiga-toxigenic aEPEC may cause life-threatening conditions such as haemorrhagic colitis (HC) and haemolytic uremic syndrome (HUS) in humans [4]. Although aEPEC strain is known to inhabit the lower gastrointestinal tract (GIT) of healthy cattle, preslaughter starvation and subacute ruminal acidosis have been reported to promote their proliferation in the rumen [5,6,7,8,9]. This may contribute substantially to the amount of microbial load present in the lower GIT of a live animal. High loads of shiga toxigenic multidrug resistant aEPEC in the GIT of cattle increase the risk of recurrent contamination of milk and meat (carcass) during milking and slaughter [10,11,12,13]. As a result, this may pose a substantial food safety risk.
Although a variety of biological, physical, and chemical methods have been used to reduce the level of foodborne pathogens such as E. coli species on food, these decontamination methods have practical drawbacks [14]. For example, irradiation leads to lipid oxidation, and consequently, changes in organoleptic properties of food [15] while the use of chlorine produces carcinogenic trihalomethanes [16]. Furthermore, application of these methods, especially in live animals prior to slaughter is cumbersome [17]. Consequently, animals with high microbial load may contribute to cross-contamination of the carcass during slaughtering process. Against this backdrop, development of novel strategies to control the proliferation of E. coli pathogens in live animals to prevent food contamination and subsequent human infections is urgently needed [18]. One such novel strategy is the use of phages to prevent the proliferation of shiga toxigenic multidrug resistant (MDR) aEPEC strain in live cattle.
Phages are viruses that infect and kill bacteria cells through a lytic process [19,20]. The phages are host-specific, self-replicating, and harmless to eukaryotic cells and cause minimal or no effect to nonhost microbiota [21,22,23,24]. In addition, phages can kill multidrug resistant bacteria strains, which pose significant public health risks [15]. Based on these attributes, lytic phages are regarded as a viable alternative to combat the spread of multidrug resistant E. coli O177 strain. In the “bio-control intervention strategy”, phages can be applied on live animals to reduce the level of foodborne pathogens, thereby improving food safety [25]. Some studies have indicated the potential of lytic phages against E. coli O157 in live calves [18,26]. Furthermore, studies with live animals have focused on the use of phages against shiga-toxigenic E. coli O157 and other non O157 serotypes [26]. Indeed, no study has assessed the potency of single phages and/or phage cocktails against shiga-toxigenic MDR E. coli O177 cells in the rumen. This strain was selected because it harbours virulence and antibiotic resistance genes (3). Furthermore, its presence in cattle may result into food contamination during slaughter and milking. Therefore, this study was designed to evaluate the viability and efficacy of single phages and their cocktails against E. coli O177 cells in an in vitro ruminal fermentation system. We tested the hypotheses that single phages, and their cocktails can survive and thus reduce E. coli O177 cells under simulated ruminal fermentation conditions.

2. Results

2.1. Viability of Phages and Time-Induced Changes in Total E. coli O177 Cell Counts

Both single phages and phage cocktails were viable and stable under rumen simulation conditions. Figure 1 presents the number (mean log10) of phages (PFU/mL) recovered from artificial rumen contents over a 48-h incubation period. The titres of single phages and phage cocktails show quadratic increases (p < 0.05) over incubation time, indicating viability in the simulated rumen fermentation conditions. As presented in Table 1 and Table 2, both single phage and phage cocktail titres were projected to peak after 49–52 h and 51–55 h of incubation as calculated from quadratic equations with R2 values ranging from 0.811 to 0.994 and 0.982 to 0.995, respectively. Phage vB_EcoM_3A1’s titre was predicted to peak after 49 h of incubation while vB_EcoM_10C3’s titre was predicted to reach a maximum after 53 h of incubation. For phage cocktails, vB_EcoMC1’s titre was predicted to peak after 51 h of incubation whereas vB_EcoMC4’s titre was projected to peak after 55 h of incubation.

2.2. Efficacy of Phages against E. coli O177 Cells

As shown in Table 3 and Table 4, both single phages and phage cocktails reduced E. coli O177 cell counts over the 48-h incubation period (p < 0.05). E. coli O177 cell count reduction ranged from 16.03% to 62.74% in samples treated with single phages. Phage vB_EcoM_366B was the most effective against E. coli O177 cells at 6 h (19.41%) and 12 h (28.61%) post-inoculation. At 24 h post-inoculation, phage vB_EcoM_11B2 was the most effective resulting in 50.10% reduction in E. coli O177 cell counts while the highest effect at 36 h (56.42%) and 48 h (62.74%) was recorded in samples treated with the phage vB_EcoM_3A1 (p < 0.05). The number of E. coli O177 cell counts ranged between 20.65% and 66.92% in samples treated with phage cocktails over the 48-h incubation period. Phage cocktail vB_EcoMC4 was the most effective phage cocktail in reducing E. coli O177 cell counts at 6 h and 12 h, with the maximum reduction of 26.63% and 12 h 36.75%, respectively while at 24 h and 36 h, the highest (55.19% and 60.69%, respectively) reduction was recorded in samples treated with vB_EcoMC6. At 48 h, the most effective cocktail against E. coli was vB_EcoMC4 that caused a 66.92% reduction in cell counts.
Relationships between time of incubation and percent reduction in E. coli O177 cell counts when challenged with single phages and phage cocktails are presented in Table 5 and Table 6. For single phages, efficacy against E. coli O177 cells peaked (60.81–63.27%) at 47–48 h of incubation as determined from prediction equations with R2 values ranging from 0.992 to 0.996. The highest efficacy (62.73%) after 48 h was observed in samples treated with vB_EcoM_12A1 while the lowest efficacy (61.031%) was seen in samples treated with vB_EcoM_10C2 (p < 0.05). The maximum efficacy (63.27%) at 47 h was seen in E. coli challenged with vB_EcoM_366B whereas the minimum efficacy (60.81%) was observed with vB_EcoM_10C3. After exposure to phage cocktails, efficacy peaked (63.06–73.25%) at 43–46 h of incubation as determined from prediction equations with R2 values ranging from 0.970 to 0.993. For phage cocktails, vB_EcoMC3 and vB_EcoMC6, efficacy against E. coli O177 reached a maximum (73.25% and 66.90%, respectively) at 43 h whereas for vB_EcoMC2 and vB_EcoMC4, efficacy peaked (63.80% and 67.18%, respectively) at 44 h of incubation (p < 0.05). For phage cocktail vB_EcoMC1, efficacy peaked (66.06%) at 46 h while for cocktail vB_EcoMC5, efficacy against of E. coli O177 reached a maximum (63.06%) after 45 h (p < 0.05).

3. Discussion

Most farm animals, including ruminants, harbour foodborne pathogens [3,27,28,29]. In addition, intensively reared beef and dairy animals tend to be housed in large numbers and this may promote proliferation and dissemination of foodborne pathogens into the environment [30]. Furthermore, supper-shedders may increase the risks of preharvest cross contamination of beef carcasses and milk intended for human consumption [31,32,33]. Given the limitations of traditional decontamination methods, the use of phages is considered as a practical alternative to reduce E. coli pathogens in live animals [34]. Several studies have evaluated the ability of phages to reduce foodborne pathogens, especially E. coli O157:H7 in live animals [18,26,35,36,37]. In vitro rumen fermentation models have only been used to investigate the efficacy of phages against E. coli O157 [36,37], but never for E. coli O177 strain. The current study evaluated the stability and efficacy of single phages and phage cocktails in reducing E. coli O177 cells under simulated ruminal fermentation conditions over a 48-h incubation period. Notably, all single phages and phage cocktails were stable under simulated ruminal fermentation (pH 6.3, 39 °C and CO2). Following phage treatment, E coli O177 cell counts significantly decreased while phage titres increased with incubation time. Bacterial cells infected by phages tend to release many virions (phage particles) [38] resulting in higher phage titres that were observed over time in this study. Contrary to the findings by Bach et al. [37] who reported a significant decrease of phage titres even after 48 h of incubation, our study showed that single phage titres increased with incubation time and were predicted to attain their maximum titre values after 49–53 h of incubation. This difference between the two studies could be attributed to different bacteria host targeted (E. coli O177 vs. E. coli O157:H7), the amount of E. coli added to the fermentation bottles (108 CFU/mL vs. 104 CFU/mL), the in vitro ruminal fermentation technique (Reading Pressure Technique vs. Rusitec), and basal substrates (Eragrostis plana hay vs. barley and silage) used. Phages intended for biocontrol purpose should be stable under various environmental conditions [39]. The results obtained in this study revealed that single phages required the shortest incubation time (49–53 h) to attain peak titres compared to phage cocktails (51–55 h). This could be due to the emergence of phage resistant E. coli O177 cells, which may hinder the phage infection process, especially in the samples treated with single phages [40]. Interestingly, both phage types were stable under simulated rumen conditions (39 °C, pH 6.5, anaerobic condition with the presence of other rumen microbes and enzymes). This suggests that these are suitable candidates for reducing E. coli O177 cells in cattle prior to slaughter [34]. As a result, this may not only reduce microbial load in live animals but also mitigate contamination of carcass during slaughter and thus minimise meat waste, which normally occurs during slaughter-trimming process of contaminated areas on beef carcasses.
Based on the results obtained in this study, the highest phage potency against E. coli O177 cell was observed between 47 h and 48 h (for single phages) and between 43 h and 46 h (for phage cocktails). This suggested that phage cocktails required a short time to reduce bacterial cell counts as compared to single phages. Phage cocktails vB_EcoMC3, vB_EcoMC4, and vB_EcoMC6 were the most efficient phages in reducing E. coli O177 cells (66.67%, 66.92% and 66.42%, respectively). However, the highest percentage reduction in cell counts was observed in samples treated with single phages vB_EcoM_366B and vB_EcoM_3A1 (62.31% and 62.74%, respectively). This variation in percentage cell counts reduction between the phage types could be attributed to the fact phage resistance may affect the efficacy of single phages more than phage cocktails and thus prolong the time required for the reduction of E. coli O177 cells [41,42,43]. In addition, phage cocktails tend to have large bust size, which may accelerate phage infections, cell lysis and complete elimination of the pathogen within a short period of time. The variation between single phages and phage cocktails’ burst sizes was observed in our previous studies [44,45]. Nonetheless, the efficacy both phage types was lower than that of the previous study by Rivas et al. [36] who reported that single phages reduced E. coli O157 cell counts to below the detection limit within 4 h of incubation. Different fermentation substrates and target bacteria (E. coli O157) could be the reasons for the difference in phage efficacy.

4. Materials and Methods

4.1. Ethical Statement

A rumen fistulated cow was used as a donor for the rumen fluid used in this study. The study was approved by the Animal Care Research Ethics Committee (AnimCare REC), North-West University (Certificate no: NWU-01223-19-S9).

4.2. Preparation of Grass Hay Substrate for Ex Vivo Rumen Fermentation

Milled Eragrotis plana hay was used as a substrate in the in vitro ruminal fermentation system. The grass hay was autoclaved in a 2 L beaker at 121 °C and 15 PSI for 15 min. After autoclaving, the grass was stored in the beaker covered with an aluminium foil at a room temperature until use. Sterile serum bottles (125 mL) were used as fermentation vessels into which 1 g of the sterile grass hay substrate and 90 mL fermentation buffer (pH 6.8) were added. The mixture was temperature acclimated at 39 °C for 18 h before inoculation with rumen fluid.

4.3. Bacterial Strain

Shiga toxigenic MDR atypical enteropathogenic E. coli O177 strain was obtained from our bacterial culture collection. Characterisation of this strain has been described in our previous study [3]. Briefly, a previously frozen (−80 °C) stock culture of MDR E. coli O177 strain was revived on MacConkey agar. A single colony was then transferred to a sterile falcon tube (50 mL) with nutrient broth (10 mL) and incubated for 24 h at 37 °C.

4.4. Propagation of Phage Lysates

Eight single phages (vB_EcoM_10C2, vB_EcoM_10C3, vB_EcoM_118B, vB_EcoM_11B2, vB_EcoM_12A1, vB_EcoM_366B, vB_EcoM_366V, and vB_EcoM_3A1) and six phage cocktails (vB_EcoMC1, vB_EcoMC2, vB_EcoMC3, vB_EcoMC4, vB_EcoMC5, and vB_EcoMC6) were used to challenge E. coli O177 under simulated ruminal fermentation conditions. Biological characteristics of the eight single phages used in this study have been described in our previous study [44]. Prior to conducting the ex vivo rumen simulation assay, single phage stock solution was propagated using shiga toxigenic MDR E. coli O177 host as previously described [46]. Phage cocktail formulation was prepared using single phages as previously described [45]. Final titration of both single phages and cocktails was determined using double-layer agar method and the working titres were adjusted to 1 × 108 PFU/mL.

4.5. Efficacy of Phages Against E. coli O177 Strain in Ex Vivo Rumen Fermentation Conditions

4.5.1. Collection of Rumen Fluid

The viability and efficacy of phages under anaerobic rumen fermentation conditions were evaluated using three runs of the Reading Pressure Technique [47]. Briefly, rumen fluid was obtained from the donor (a five-year old rumen cannulated Bonsmara cow) before morning feeding. Rumen digesta was collected into a sterile prewarmed thermos flask and then transported to the laboratory. Upon arrival, the fluid was filtered using three layers of cheesecloth. The filtrate was kept in a water bath at 39 °C with constant purging with carbon dioxide gas (CO2). An aliquot of 10 mL rumen fluid was added into each of the 120 mL serum bottles containing 90 mL buffer and 1 g of grass hay substrate. The bottles were purged with CO2 and sealed with butyl stopper rubbers.

4.5.2. E. coli O177 and Phage Inoculation

Eighty serum bottles containing 1 g grass hay substrate, 90 mL fermentation buffer and 10 mL rumen fluid were used per run. Of these, 70 serum bottles were inoculated with 200 µL E. coli O177 (1 × 108 CFU/mL). Subsequently, samples were treated with 2000 µL of each phage (1 × 108 PFU/mL) (5 replicates per phage (40 for single phages and 30 for phage cocktails)) to achieve multiple of infection (MOI) of 10. Two sets of five control bottles containing grass hay substrate and buffered rumen fluid were designed as follows: 1. serum bottles inoculated with 200 µL E. coli O177 but without phage treatment and 2. serum bottles with neither E. coli O177 nor phage treatments. All the bottles were purged with CO2, sealed with butyl stopper rubbers, and incubated at 39 °C for 48 h.

4.6. Determination of Phage Titres and E. coli O177 Cell Counts

Samples of serum bottle contents were taken at 0, 6, 12, 24, 36, 48 h post-inoculation for enumeration of viable E. coli O177 cell counts and titration of single phages and phage cocktails. An aliquot of 5 mL was withdrawn from each bottle using a 20 mL syringe and transferred into 50 mL sterile falcon tubes. New syringes were used for each sampling. The samples were centrifuged at 10,000× g for 10 min at 4 °C to sediment the bacteria. The pellets were resuspended in 1.5 mL phosphate buffer saline (PBS, pH 7.0) and the mixture was vortexed for 2 min to obtain a homogeneous suspension. A 10-fold serial dilution of each sample was prepared. Subsequently, 100 µL from the dilutions was plated in triplicate on MacConkey agar supplemented with 1 mg/L potassium tellurite, 50 µg/mL nalidixic acid, 50 µg/mL streptomycin sulfate, and 50 µg/mL erythromycin [36]. The plates were incubated at 37 °C for 24 h and colony count was performed as previously described [48]. Average number of viable E. coli O177 cells recovered was calculated using the formula: [(n1 − n2) * d], where n1 = average number of colonies counted from negative control samples, n2 = average number of colonies counted from the samples treated with phages and d = dilution factor. The supernatant, which contained phages, was filter-sterilised using 0.22 µm pore-size syringe filter. Phage lysates (single phages and phage cocktails) were serially diluted using sterile PBS (pH 7.0) and their titrations were determined using double-layer agar method [49]. All the assays were performed in triplicate and phage titres were expressed as PFU/mL.

4.7. Statistical Analysis

Efficacy of phages was analysed [50] according to the following general linear model:
Yij = µ + Ti + Eij
where Yij is the dependent variable ij; µ is the overall mean; Ti is the effect of phages and Eij is the random error associated with ij. Phage viability and phage efficacy over incubation time was analysed for linear and quadratic trends (PROC RSREG; [50]). For all statistical tests, significance was declared at p < 0.05 and the least square means were separated using the probability of difference option in SAS.

5. Conclusions

This study provides the evidence that lytic single E. coli O177-specific phages and their cocktails were stable and viable under simulated rumen fermentation conditions. Although both phage types significantly reduced E. coli O177 cell counts in the rumen model, phage cocktails were more efficacious compared to single phages. These findings suggest that there is potential for in-feed E. coli O177-specific phage cocktails to be offered to feedlot finished beef cattle at least two days prior to slaughter to reduce the risks of meat contamination. However, more work needs to be done to determine phage–bacterium interaction in live animals.

Author Contributions

Conceptualisation, C.N.A. and V.M.; methodology, P.K.M. and C.M.M.; validation, P.K.M. and C.M.M.; formal analysis, P.K.M.; investigation, P.K.M.; resources, C.N.A., V.M. and C.M.M.; data curation, P.K.M. and C.M.M.; writing—original draft preparation, P.K.M.; writing—review and editing, C.N.A., V.M. and C.M.M.; visualisation, P.K.M.; supervision, C.N.A. and V.M.; project administration, C.N.A. and V.M.; funding acquisition, C.N.A. and V.M. All authors have read and agreed to the published version of the manuscript.

Funding

Funding from North-West University and National Research Foundation (Grant Number 112543) is hereby acknowledged.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board (or Ethics Committee) of the North-West University (protocol code: NWU-01223-19-S9 and date of approval: 18 October 2019).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kotloff, K.L.; Nataro, J.P.; Blackwelder, W.C.; Nasrin, D.; Farag, T.H.; Panchalingam, S.; Wu, Y.; Sow, S.O.; Sur, D.; Breiman, R.F.; et al. Burden and aetiology of diarrhoeal disease in infants and young children in developing countries (the Global Enteric Multicenter Study, GEMS): A prospective, case-control study. Lancet 2013, 382, 209–222. [Google Scholar] [CrossRef]
  2. Ingle, D.J.; Tauschek, M.; Edwards, D.J.; Hocking, D.M.; Pickard, D.J.; Azzopardi, K.I.; Amarasena, T.; Bennett-Wood, V.; Pearson, J.S.; Tamboura, B. Evolution of atypical enteropathogenic E. coli by repeated acquisition of LEE pathogenicity island variants. Nat. Microbiol. 2016, 1, 15010. [Google Scholar] [CrossRef]
  3. Montso, P.K.; Mlambo, V.; Ateba, C.N. The First Isolation and Molecular Characterization of Shiga Toxin-Producing Virulent Multi-drug Resistant Atypical Enteropathogenic Escherichia coli O177 Serogroup From South African Cattle. Front. Cell. Infect. Microbiol. 2019, 9, 333. [Google Scholar] [CrossRef] [PubMed]
  4. Kaper, J.B.; Nataro, J.P.; Mobley, H.L.T. Pathogenic Escherichia coli. Nat. Rev. Microbiol. 2004, 2, 123–140. [Google Scholar] [CrossRef]
  5. Rasmussen, M.A.; Cray, W.C., Jr.; Casey, T.A.; Whipp, S.C. Rumen contents as a reservoir of enterohemorrhagic Escherichia coli. FEMS Microbiol. Lett. 1993, 114, 79–84. [Google Scholar] [CrossRef]
  6. Tkalcic, S.; Brown, C.A.; Harmon, B.G.; Jain, A.V.; Mueller, E.P.; Parks, A.; Jacobsen, K.L.; Martin, S.A.; Zhao, T.; Doyle, M.P. Effects of diet on rumen proliferation and faecal shedding of Escherichia coli O157: H7 in calves. J. Food Protec. 2000, 63, 1630–1636. [Google Scholar] [CrossRef] [PubMed]
  7. Trabulsi, L.R.; Keller, R.; Gomes, T.A.T. Typical and atypical enteropathogenic Escherichia coli. Emerg. Infect. Dis. 2002, 8, 508–513. [Google Scholar] [CrossRef] [PubMed]
  8. Laven, R.; Ashmore, A.; Stewart, C. Escherichia coli in the rumen and colon of slaughter cattle, with particular reference to E. coli O157. Vet. J. 2003, 165, 78–83. [Google Scholar] [CrossRef]
  9. Khafipour, E.; Plaizier, J.; Aikman, P.C.; Krause, D. Population structure of rumen Escherichia coli associated with subacute ruminal acidosis (SARA) in dairy cattle. J. Dairy Sci. 2011, 94, 351–360. [Google Scholar] [CrossRef] [Green Version]
  10. Ateba, C.N.; Mbewe, M. Detection of Escherichia coli O157: H7 virulence genes in isolates from beef, pork, water, human and animal species in the North West province, South Africa: Public health implications. Res. Microbiol. 2011, 162, 240–248. [Google Scholar] [CrossRef]
  11. Álvarez-Suárez, M.-E.; Otero, A.; García-López, M.-L.; Dahbi, G.; Blanco, M.; Mora, A.; Blanco, J.; Santos, J.A. Genetic characterization of Shiga toxin-producing Escherichia coli (STEC) and atypical enteropathogenic Escherichia coli (EPEC) isolates from goat’s milk and goat farm environment. Int. J. Food Microbiol. 2016, 236, 148–154. [Google Scholar] [CrossRef] [PubMed]
  12. Brauer, A.; Frail, S.; Shan, P.; Tran, T. Biocontrol for foodborne zoonotic pathogens in animal reservoirs and food products. In Safety and Practice for Organic Food; Academic Press: Cambridge, MA, USA, 2019; pp. 377–395. [Google Scholar] [CrossRef]
  13. Duc, H.M.; Son, H.M.; Yi, H.P.S.; Sato, J.; Ngan, P.H.; Masuda, Y.; Honjoh, K.I.; Miyamoto, T. Isolation, characterization and application of a polyvalent phage capable of controlling Salmonella and Escherichia coli O157: H7 in different food matrices. Food Res. Int. 2020, 131, 108977. [Google Scholar] [CrossRef]
  14. Carter, C.D.; Parks, A.; Abuladze, T.; Li, M.; Woolston, J.; Magnone, J.; Senecal, A.; Kropinski, A.M.; Sulakvelidze, A. Bacteriophage cocktail significantly reduces Escherichia coli O157: H7 contamination of lettuce and beef, but does not protect against recontamination. Bacteriophage 2012, 2, 178–185. [Google Scholar] [CrossRef] [Green Version]
  15. Moye, Z.; Woolston, J.; Sulakvelidze, A. Bacteriophage applications for food production and processing. Viruses 2018, 10, 205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Bai, J.; Jeon, B.; Ryu, S. Effective inhibition of Salmonella Typhimurium in fresh produce by a phage cocktail targeting multiple host receptors. Food Microbiol. 2019, 77, 52–60. [Google Scholar] [CrossRef]
  17. Buncic, S.; Sofos, J. Interventions to control Salmonella contamination during poultry, cattle and pig slaughter. Food Res. Int. 2012, 45, 641–655. [Google Scholar] [CrossRef]
  18. Rozema, E.A.; Stephens, T.P.; Bach, S.J.; Okine, E.K.; Johnson, R.P.; Stanford, K.; Mcallister, T.A. Oral and rectal administration of bacteriophages for control of Escherichia coli O157: H7 in feedlot cattle. J. Food Protect. 2009, 72, 241–250. [Google Scholar] [CrossRef] [PubMed]
  19. Harada, L.K.; Silva, E.C.; Campos, W.F.; Del Fiol, F.S.; Vila, M.; Dąbrowska, K.; Krylov, V.N.; Balcão, V.M. Biotechnological applications of bacteriophages: State of the art. Microbiol. Res. 2018, 212, 38–58. [Google Scholar] [CrossRef] [PubMed]
  20. Altamirano, F.L.G.; Barr, J.J. Phage therapy in the post-antibiotic era. Clin. Microbiol. Rev. 2019, 32, e00066-18. [Google Scholar] [CrossRef] [Green Version]
  21. Sillankorva, S.M.; Oliveira, H.; Azeredo, J. Bacteriophages and their role in food safety. Int. J. Microbiol. 2012, 2012, 863945. [Google Scholar] [CrossRef] [Green Version]
  22. Dissanayake, U.; Ukhanova, M.; Moye, Z.D.; Sulakvelidze, A.; Mai, V. Bacteriophages reduce pathogenic Escherichia coli counts in mice without distorting gut microbiota. Front. Microbiol. 2019, 10, 1984. [Google Scholar] [CrossRef]
  23. Mangieri, N.; Picozzi, C.; Cocuzzi, R.; Foschino, R. Evaluation of a Potential Bacteriophage Cocktail for the Control of Shiga-Toxin Producing Escherichia coli in Food. Front. Microbiol. 2020, 11, 1801. [Google Scholar] [CrossRef]
  24. Nikolich, M.P.; Filippov, A.A. Bacteriophage therapy: Developments and directions. Antibiotics 2020, 9, 135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Endersen, L.; O’mahony, J.; Hill, C.; Ross, R.P.; Mcauliffe, O.; Coffey, A. Phage therapy in the food industry. Ann. Rev. Food Sci. Technol. 2014, 5, 327–349. [Google Scholar] [CrossRef]
  26. Tolen, T.N.; Xie, Y.; Hairgrove, T.B.; Gill, J.J.; Taylor, T.M. Evaluation of commercial prototype bacteriophage intervention designed for reducing O157 and non-O157 shiga-toxigenic Escherichia coli on beef cattle hide. Foods 2018, 7, 114. [Google Scholar] [CrossRef] [Green Version]
  27. Wang, L.; Wakushima, M.; Aota, T.; Yoshida, Y.; Kita, T.; Maehara, T.; Ogasawara, J.; Choi, C.; Kamata, Y.; Hara-Kudo, Y. Specific properties of enteropathogenic Escherichia coli isolates from diarrheal patients and comparison to strains from foods and fecal specimens from cattle, swine, and healthy carriers in Osaka City, Japan. Appl. Environ. Microbiol. 2013, 79, 1232–1240. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Martins, F.H.; Guth, B.E.; Piazza, R.M.; Elias, W.P.; Leão, S.C.; Marzoa, J.; Dahbi, G.; Mora, A.; Blanco, M.; Blanco, J. Lambs are an important source of atypical enteropathogenic Escherichia coli in southern Brazil. Vet. Microbiol. 2016, 196, 72–77. [Google Scholar] [CrossRef]
  29. Munhoz, D.D.; Nara, J.M.; Freitas, N.C.; Moraes, C.T.; Nunes, K.O.; Yamamoto, B.B.; Vasconcellos, F.M.; Martínez-Laguna, Y.; Girón, J.A.; Martins, F.H.; et al. Distribution of major pilin subunit genes among atypical enteropathogenic Escherichia coli and influence of growth media on expression of the ecp operon. Front. Microbiol. 2018, 9, 942. [Google Scholar] [CrossRef]
  30. Endersen, L.; Coffey, A. The use of bacteriophages for food safety. Curr. Opin. Food Sci. 2020, 36, 1–8. [Google Scholar] [CrossRef]
  31. Wang, L.; Qu, K.; Li, X.; Cao, Z.; Wang, X.; Li, Z.; Song, Y.; Xu, Y. Use of bacteriophages to control Escherichia coli O157: H7 in domestic ruminants, meat products, and fruits and vegetables. Foodborne Path. Dis. 2017, 14, 483–493. [Google Scholar] [CrossRef] [PubMed]
  32. Huang, K.; Nitin, N. Antimicrobial particle-based novel sanitizer for enhanced decontamination of fresh produce. Appl. Environ. Microbiol. 2019, 85, e02599-18. [Google Scholar] [CrossRef] [Green Version]
  33. Menge, C. The Role of Escherichia coli Shiga Toxins in STEC Colonization of Cattle. Toxins 2020, 12, 607. [Google Scholar] [CrossRef]
  34. Goodridge, L.D.; Bisha, B. Phage-based biocontrol strategies to reduce foodborne pathogens in foods. Bacteriophage 2011, 1, 130–137. [Google Scholar] [CrossRef] [Green Version]
  35. Sheng, H.; Knecht, H.J.; Kudva, I.T.; Hovde, C.J. Application of bacteriophages to control intestinal Escherichia coli O157: H7 levels in ruminants. Appl. Environ. Microbiol. 2006, 72, 5359–5366. [Google Scholar] [CrossRef] [Green Version]
  36. Rivas, L.; Coffey, B.; Mcauliffe, O.; Mcdonnell, M.J.; Burgess, C.M.; Coffey, A.; Ross, R.P.; Duffy, G. In vivo and ex vivo evaluations of bacteriophages e11/2 and e4/1c for use in the control of Escherichia coli O157: H7. Appl. Environ. Microbiol. 2010, 76, 7210–7216. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Bach, S.J.; Mcallister, T.A.; Veira, D.M.; Gannon, V.P.; Holley, R.A. Effect of bacteriophage DC22 on Escherichia coli O157: H7 in an artificial rumen system (Rusitec) and inoculated sheep. Anim. Res. 2003, 52, 89–101. [Google Scholar] [CrossRef]
  38. Raya, R.R.; Oot, R.A.; Moore-Maley, B.; Wieland, S.; Callaway, T.R.; Kutter, E.M.; Brabban, A.D. Naturally resident and exogenously applied T4-like and T5-like bacteriophages can reduce Escherichia coli O157: H7 levels in sheep guts. Bacteriophage 2011, 1, 15–24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Guo, Y.; Chen, P.; Lin, Z.; Wang, T. Characterization of two Pseudomonas aeruginosa viruses vB_PaeM_SCUT-S1 and vB_PaeM_SCUT-S2. Viruses 2019, 11, 318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Kosznik-Kwaśnicka, K.; Ciemińska, K.; Grabski, M.; Grabowski, Ł.; Górniak, M.; Jurczak-Kurek, A.; Węgrzyn, G.; Węgrzyn, A. Characteristics of a Series of Three Bacteriophages Infecting Salmonella enterica Strains. Int. J. Mol. Sci. 2020, 21, 6152. [Google Scholar] [CrossRef]
  41. Labrie, S.J.; Samson, J.E.; Moineau, S. Bacteriophage resistance mechanisms. Nat. Rev. Microbiol. 2010, 8, 317. [Google Scholar] [CrossRef] [PubMed]
  42. Cooper, I.R. A review of current methods using bacteriophages in live animals, food and animal products intended for human consumption. J. Microbiol. Methods 2016, 130, 38–47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ma, Y.; Chen, L.; Fan, J.; Yan, T.; Liu, Q.; Yuan, S.; Deng, D. Isolation and characterization of specific phages to prepare a cocktail preventing Vibrio sp. Va-F3 infections in shrimp (Litopenaeus vannamei). Front. Microbiol. 2019, 10, 2337. [Google Scholar] [CrossRef] [Green Version]
  44. Montso, P.K.; Mlambo, V.; Ateba, C.N. Characterisation of lytic bacteriophages infecting multi-drug resistant shiga-toxigenic atypical Escherichia coli O177 strains isolated from cattle faeces. Front. Public Health 2019, 7, 355. [Google Scholar] [CrossRef] [PubMed]
  45. Montso, P.K.; Mlambo, V.; Ateba, C.N. Efficacy of novel phages for control of multi-drug resistant Escherichia coli O177 on artificially contaminated beef and their potential to disrupt biofilm formation. Food Microbiol. 2021, 94, 103647. [Google Scholar] [CrossRef]
  46. Sambrook, J.; Russell, D.W. Molecular Cloning: A Laboratory Manual, 3rd ed.; Cold Spring Harbor Laboratory Press: Cold Spring Harbor, NY, USA, 2001. [Google Scholar]
  47. Mauricio, R.M.; Mould, F.L.; Dhanoa, M.S.; Owen, E.; Channa, K.S.; Theodorou, M.K. A semi-automated in vitro gas production technique for ruminant feedstuff evaluation. Anim. Feed Sci. Technol. 1999, 79, 321–330. [Google Scholar] [CrossRef]
  48. O’Toole, G.A. Classic spotlight: Plate counting you can count on. J. Bacteriol. 2016, 198, 3127. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Adams, M.H. Assay of phage by agar layer method. In Bacteriophages; Interscience Publishers Inc.: New York, NY, USA, 1959; pp. 450–454. [Google Scholar]
  50. SAS Institute. SAS User’s Guide: Statistics Version 9.4; SAS. Institute, Inc.: Cary, NC, USA, 2010. [Google Scholar]
Antibiotics 10 00265 g001 550

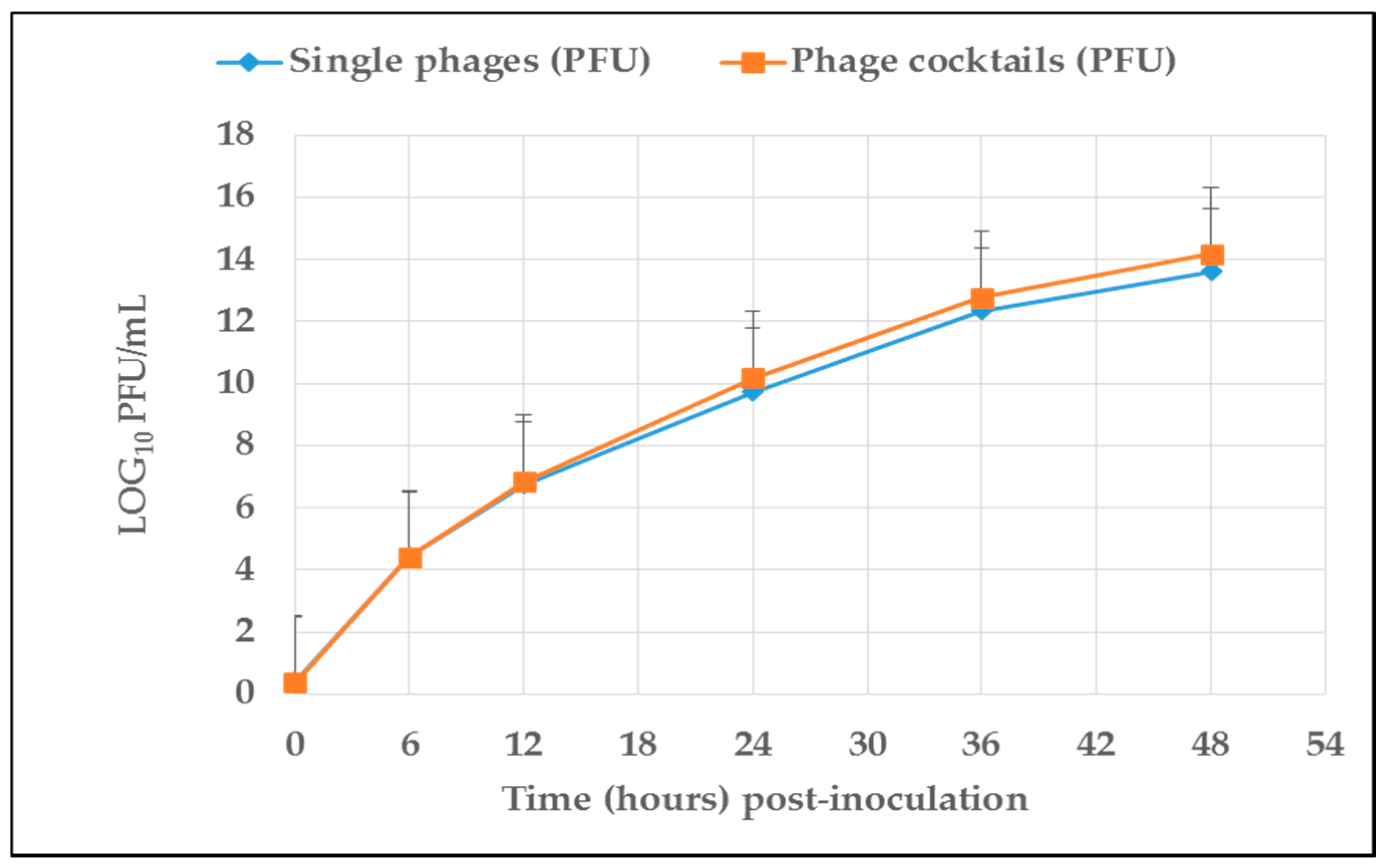

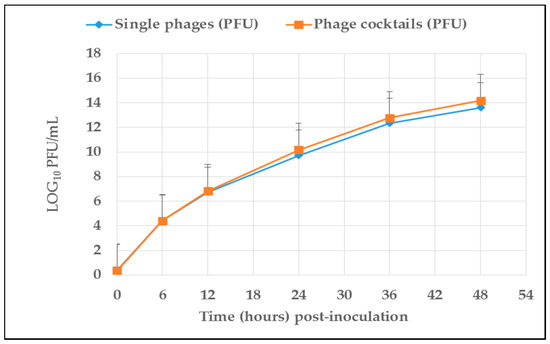

Figure 1. Average concentration of single phages and phage cocktails (PFU/mL) recovered from rumen contents at different incubation times. Standard deviation is represented by the error bars.
Figure 1. Average concentration of single phages and phage cocktails (PFU/mL) recovered from rumen contents at different incubation times. Standard deviation is represented by the error bars.
Antibiotics 10 00265 g001
Table
Table 1. Relationship between single phage titres (y) and in vitro ruminal incubation time (x).
Table 1. Relationship between single phage titres (y) and in vitro ruminal incubation time (x).
Single PhageRegression EquationR2p-ValuePredicted Time to
Peak Titre (h)
vB_EcoM_10C2y = 1.128 (±0.2139) + 0.501 (±0.0237)x − 0.005 (±0.0005)x20.985<0.00150
vB_EcoM_10C3y = 0.752 (±0.1727) + 0.525 (±0.0191)x − 0.005 (±0.0004)x20.991<0.00153
vB_EcoM_118By = 1.149 (±0.1815) + 0.496 (±0.0201)x − 0.005 (±0.0004)x20.989<0.00150
vB_EcoM_11B2y = 1.036 (±0.1403) + 0.502 (±0.0155)x − 0.005 (±0.0003)x20.994<0.00150
vB_EcoM_12A1y = 0.730 (±0.1725) + 0.521 (±0.0191)x − 0.005 (±0.0004)x20.991<0.00152
vB_EcoM_366By = 1.014 (±0.2037) + 0.503 (±0.0226)x − 0.005 (±0.0005)x20.987<0.00150
vB_EcoM_366Vy = 1.088 (±0.2153) + 0.503 (±0.0238)x − 0.005 (±0.0005)x20.985<0.00150
vB_EcoM_3A1y = 1.041 (±0.2006) + 0.489 (±0.0222)x − 0.005 (±0.0004)x20.811<0.00149
Table
Table 2. Relationship between titres phage cocktails (y) and in vitro ruminal incubation time (x).
Table 2. Relationship between titres phage cocktails (y) and in vitro ruminal incubation time (x).
Phage CocktailRegression EquationR2p-ValuePredicted Time to
Peak Titre (h)
vB_EcoMC1y = 0.981 (±0.1845) + 0.514 (±0.0204)x − 0.005 (±0.0004)x20.990<0.00151
vB_EcoMC2y = 0.682 (±0.1525) + 0.535 (±0.0169)x − 0.005 (±0.0003)x20.993<0.00154
vB_EcoMC3y = 0.919 (±0.1368) + 0.532 (±0.0151)x − 0.005 (±0.0003)x20.995<0.00153
vB_EcoMC4y = 0.531 (±0.1548) + 0.548 (±0.0171)x − 0.005 (±0.0003)x20.994<0.00155
vB_EcoMC5y = 1.020 (±0.2435) + 0.519 (±0.0270)x − 0.005 (±0.0005)x20.982<0.00152
vB_EcoMC6y = 1.145 (±0.2101) + 0.527 (±0.0233)x − 0.005 (±0.0005)x20.987<0.00153
Table
Table 3. Effect (% reduction) of single phages on E. coli O177 cells in a rumen fermentation model.
Table 3. Effect (% reduction) of single phages on E. coli O177 cells in a rumen fermentation model.
Time (h)Single Phages
vB_EcoM_10C2vB_EcoM_10C3vB_EcoM_118BvB_EcoM_11B2vB_EcoM_12A1vB_EcoM_366BvB_EcoM_366VvB_EcoM_3A1SEM
617.25 c16.58 abc16.31 ab16.89 bc16.03 a19.41 e18.09 d16.46 ab0.168
1227.03 b28.59 d25.86 a27.66 bc28.05 cd28.61 d27.92 cd27.54 bc0.194
2448.37 a48.53 b49.56 f50.10 g49.60 f49.52 e49.07 c49.50 d0.123
3654.37 a54.43 a55.13 ab55.62 bc54.96 ab56.10 c55.78 bc56.42 c0.207
4861.02 a61.12 a61.69 ab61.73 ab61.89 b62.31 bc61.90 b62.74 c0.180
Means with different superscripts (a, b, c, d, e, f and g) within a rows are significantly different (p < 0.05), SEM = standard error mean. The percentage reduction was calculated based on the difference between the mean log10 E. coli cell counts (CFU/mL) in phage-treated samples and mean log10 E. coli cell counts (CFU/mL) in untreated control samples for each phage and at each time point.
Table
Table 4. Effect (% reduction) of phage cocktails on E. coli O177 cells in a rumen fermentation model.
Table 4. Effect (% reduction) of phage cocktails on E. coli O177 cells in a rumen fermentation model.
Time (h)Phage Cocktails
vB_EcoMC1vB_EcoMC2vB_EcoMC3vB_EcoMC4vB_EcoMC5vB_EcoMC6SEM
621.79 b20.65 a24.38 c26.63 d21.05 a24.65 c0.168
1232.52 b30.29 a34.83 c36.75 d30.73 a34.69 c0.194
2450.81 b51.51 c54.34 e53.51 d50.27 a55.19 f0.123
3658.60 b58.67 b59.84 c59.81 c56.41 a60.69 d0.207
4865.34 b62.82 a66.67 c66.92 c62.35 a66.42 c0.180
Means with different superscripts (a, b, c, d, e and f) within a rows are significantly different (p < 0.05), SEM = standard error mean. The percentage reduction was calculated based on the difference between the mean log10 E. coli cell counts (CFU/mL) in phage cocktail-treated samples and mean log10 E. coli cell counts (CFU/mL) in untreated control samples for each phage cocktail and at each time point.
Table
Table 5. Relationship between in vitro ruminal incubation time (x) and percent reduction in E. coli O177 cells (y) when challenged with single phages.
Table 5. Relationship between in vitro ruminal incubation time (x) and percent reduction in E. coli O177 cells (y) when challenged with single phages.
Single PhagesRegression EquationR2p-ValueTime to Maximum Effect (h)
vB_EcoM_10C2y = 1.212 (±0.6744) + 2.548 (±0.0746)x − 0.027 (±0.0015)x20.993<0.00148
vB_EcoM_10C3y = 1.258 (±0.650) + 2.583 (±0.0720)x − 0.028 (±0.0014)x20.994<0.00147
vB_EcoM_118By = 0.476 (±0.7273) + 2.599 (±0.0805)x − 0.027 (±0.0016)x20.993<0.00148
vB_EcoM_11B2y = 1.054 (±0.6771) + 2.646 (±0.0749)x − 0.029 (±0.0015)x20.993<0.00147
vB_EcoM_12A1y = 0.715 (±0.677) + 2.636 (±0.0749)x − 0.028 (±0.0015)x20.993<0.00148
vB_EcoM_366By = 1.930 (±0.7607) + 2.621 (±0.084)x − 0.028 (±0.0017)x20.992<0.00147
vB_EcoM_366Vy = 1.317 (±0.6620) + 2.616 (±0.0732)x − 0.028 (±0.0014)x20.994<0.00147
vB_EcoM_3A1y = 0.680 (±0.5571) + 2.636 (±0.0616)x − 0.028 (±0.0012)x20.996<0.00147
Table
Table 6. Relationship between in vitro ruminal incubation time (x) and percent reduction in E. coli O177 cells (y) when challenged with phage cocktails.
Table 6. Relationship between in vitro ruminal incubation time (x) and percent reduction in E. coli O177 cells (y) when challenged with phage cocktails.
Phage CocktailsRegression EquationR2p-ValueTime to
Maximum Effect (h)
vB_EcoMC1y = 3.359 (±0.938) + 2.697 (±0.1038)x − 0.029 (±0.0021)x20.988<0.00146
vB_EcoMC2y = 1.887 (±0.734) + 2.815 (±0.0813)x − 0.032 (±0.0016)x20.993<0.00144
vB_EcoMC3y = 3.803 (±1.2326) + 2.905 (±0.1364)x − 0.034 (±0.0027)x20.981<0.00143
vB_EcoMC4y = 5.049 (±1.510) + 2.864 (±0.167)x − 0.033 (±0.0033)x20.970<0.00144
vB_EcoMC5y = 2.671 (±0.899) + 2.692 (±0.0995)x − 0.030 (±0.0020)x20.988<0.00145
vB_EcoMC6y = 3.606 (±1.1709) + 2.977 (±0.1296)x − 0.035 (±0.0026)x20.983<0.00143
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Montso, P.K.; Mnisi, C.M.; Ateba, C.N.; Mlambo, V. An Assessment of the Viability of Lytic Phages and Their Potency against Multidrug Resistant Escherichia coli O177 Strains under Simulated Rumen Fermentation Conditions. Antibiotics 2021, 10, 265. https://doi.org/10.3390/antibiotics10030265

AMA Style

Montso PK, Mnisi CM, Ateba CN, Mlambo V. An Assessment of the Viability of Lytic Phages and Their Potency against Multidrug Resistant Escherichia coli O177 Strains under Simulated Rumen Fermentation Conditions. Antibiotics. 2021; 10(3):265. https://doi.org/10.3390/antibiotics10030265

Chicago/Turabian Style

Montso, Peter Kotsoana, Caven Mguvane Mnisi, Collins Njie Ateba, and Victor Mlambo. 2021. "An Assessment of the Viability of Lytic Phages and Their Potency against Multidrug Resistant Escherichia coli O177 Strains under Simulated Rumen Fermentation Conditions" Antibiotics 10, no. 3: 265. https://doi.org/10.3390/antibiotics10030265

APA Style

Montso, P. K., Mnisi, C. M., Ateba, C. N., & Mlambo, V. (2021). An Assessment of the Viability of Lytic Phages and Their Potency against Multidrug Resistant Escherichia coli O177 Strains under Simulated Rumen Fermentation Conditions. Antibiotics, 10(3), 265. https://doi.org/10.3390/antibiotics10030265

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
